RCT122 Turbo - Vacuum Cleaner FAKIR - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Model	RCT122 Turbo
Brand	Fakir
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Suction Power	Adjustable, up to 400 Air Watts
Dust Capacity	2.5 L (bagless)
Filtration System	HEPA 13 filter, washable
Noise Level	78 dB(A)
Cord Length	6 m
Weight	5.2 kg
Dimensions (L x W x H)	250 x 290 x 420 mm
Included Accessories	Turbo brush, crevice tool, upholstery nozzle, floor brush
Bagless System	Yes, cyclonic technology
Maintenance	Empty dust container after each use; clean HEPA filter monthly
Safety Features	Overheat protection, automatic shut-off
Spare Parts Availability	Filters, brush roll, and accessories available from Fakir service
Warranty	2 years

Frequently Asked Questions - RCT122 Turbo FAKIR

How do I empty the dust container?

Press the release button on the dust container and lift it off. Hold over a trash bin and press the bottom flap to empty. Ensure the filter is clean before reattaching.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3 months or when the suction power noticeably decreases. Rinse under lukewarm water and let it dry completely for 24 hours before reinserting.

The vacuum has reduced suction. What should I check?

First, empty the dust container. Then check the filters (HEPA and pre-motor) for clogging. Also inspect the hose, wand, and brush roll for blockages. If issues persist, contact Fakir support.

Can I use the vacuum on hardwood floors?

Yes, but use the floor brush in the appropriate setting or switch to a hard floor nozzle if available. Avoid using the turbo brush on delicate surfaces.

What does the 'Turbo' feature mean?

The 'Turbo' indicates a motorized turbo brush that rotates to deep-clean carpets and remove pet hair more effectively. It is powered by the suction airflow.

How do I replace the brush roll?

Turn off and unplug the vacuum. Remove the brush roll cover by pressing the tabs. Lift out the old brush roll, clean the compartment, and insert a new one. Close the cover securely.

Is the vacuum bagless or with bags?

The Fakir RCT122 Turbo is bagless. It uses a cyclonic system to separate dust from air, so there is no need for replacement bags.

The vacuum shuts off during use. Why?

This is likely due to overheat protection. The vacuum automatically shuts off if it becomes too hot. Check for blockages and ensure filters are clean. Wait 30 minutes before restarting.

Where can I order spare parts?

You can order spare parts from the Fakir website or authorized service centers. Common parts include HEPA filters, brush rolls, and accessories. Use the model number RCT122 Turbo.

How do I clean the turbo brush?

Unplug the vacuum. Remove the turbo brush from the hose. Use scissors to cut away any tangled hair or threads wrapped around the brush roll. Wipe with a damp cloth and dry before reattaching.

USER MANUAL RCT122 Turbo FAKIR

Black and silver portable vacuum cleaner with '12V ECHARGABLE' branding, no visible text or symbols on body

RC7 122

7urbo

Şarjlı El Süpürgesi - Kullanma Kılavuzu Rechargeable Cleaner - Instruction Manual

Giriş

3D model of a gray plastic electronic device with mounting holes and a cable (no text or symbols visible)

Pilin Şarji

Close-up of a white, rounded object with a dark curved edge, possibly a tool or component (no visible text or symbols)

Black plastic medical device with a small protrusion and two circular ports, labeled with number 10 (no text or symbols on the device itself)

Thank you for purchasing this product which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase.

Safety is Important

To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product. Keep this information in a safe place for future reference.

Product Specification

Model number RCT 122 TURBO

Charger input voltage 230V AC 50Hz

Battery voltage 12 volts

Charging time 15 hours

Features

Motorised rotating head attachment

Rubberised handle

Washable dust filter

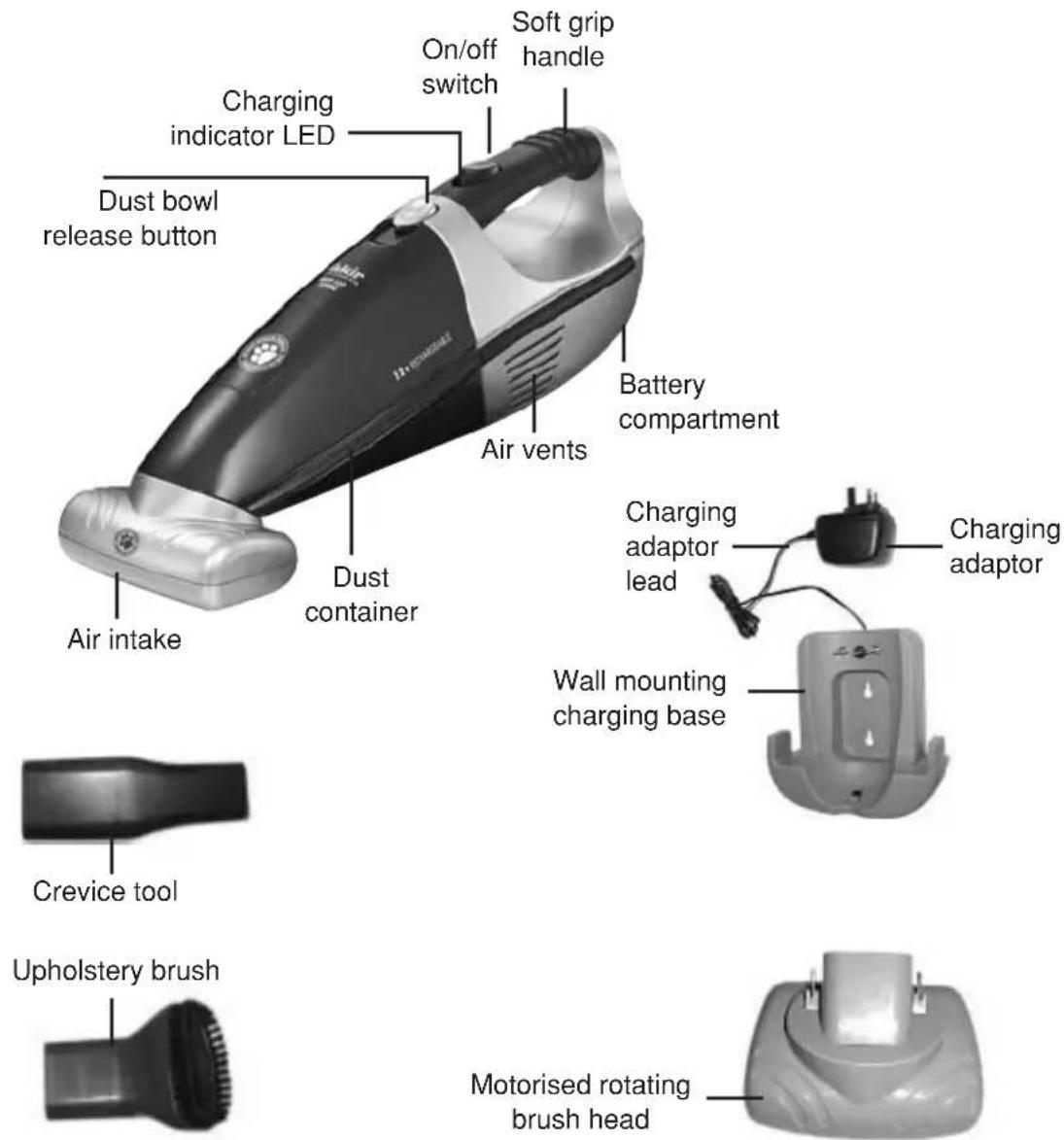

Pack Contents

RCT 122 TURBO rechargeable vacuum cleaner

Wall mounting recharging base

Charging adaptor

Pet Patrol rotating brush head

Crevice tool

Upholstery brush

Safety Instructions

WARNING!

When using this rechargeable vacuum cleaner, basic safety precautions, including the following should be followed to reduce the risk of fire, leaking batteries, personal injury and material damage. Read all of this User Guide before using this vacuum cleaner.

INTENDED USE

This cleaner has been designed for light, dry, indoor use only. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this User Guide may present a risk of personal injury.

BEFORE USE

Before use, inspect the cleaner and the charger for damage or defective parts. Check for breakage of parts, damage to switches and any other condition that may affect its operation.

Do not use the cleaner if any part is damaged or defective.

Have any damaged or defective parts repaired or replaced by an authorised repair agent.

USING THE CLEANER

Do not use this vacuum cleaner to pick up anything that is hot or burning, such as cigarettes, matches or hot ashes. Do not use this vacuum cleaner to pick up liquids.

Do not immerse the cleaner in water. Keep the motor draught away from your eyes and face.

Keep children and animals at a safe distance when using this cleaner.

AFTER USE

When not in use the cleaner should be stored in a dry, secure location out of the reach of children.

THE CHARGING ADAPTOR

Do not use the charging adaptor on any other appliance.

Do not charge this vacuum cleaner with any other charger or charging adaptor.

Use only the charging adaptor supplied with this appliance.

Unplug the charging adaptor from the mains supply before starting any cleaning or maintenance procedures.

Do not attempt to open the charging adaptor.

DO NOT ABUSE THE LEAD.

Do not pull the charging adaptor lead to disconnect the charging adaptor from the mains supply. Keep the charging adaptor lead away from heat, oil and sharp edges.

AIR INTAKE

Do not use the cleaner if the air intake or the cooling vents are blocked.

Keep the cooling vents and air intake free of hair, lint, dust and any other

items that may block or restrict the air flow.

THE BATTERY

Do not attempt to open the battery or battery compartment.

Do not expose the battery to water. Do not incinerate the battery.

When disposing of the battery, follow the instructions given in the Environmental Protection section of this User Guide.

Electrical Safety

WARNING!

Read these electrical safety instructions carefully before connecting the charging adaptor to the mains supply.

Do not leave your charging adaptor connected to the mains supply when not in use.

This vacuum cleaner is supplied with a charging adaptor which has been designed for indoor use only.

Before plugging the charging adaptor into the mains supply, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the charging adaptor.

The charging adaptor is a sealed unit. There are no user serviceable parts inside and it does not require any electrical adjustments.

WARNING!

Do not attempt to open the charging adaptor. If the charging adaptor is not suitable for your socket, becomes damaged, or fails to charge your battery, it must be replaced and disposed of in a safe and environmentally protective way. Always refer to qualified personnel.

This charging adaptor is designed to operate on 230VAC 50Hz supply only.

Connecting it to any other power sources may damage the unit.

Do not allow the cleaner, or the charging adaptor to be exposed to rain or moisture. Regularly inspect the charging adaptor and the lead for damage.

Do not use it if faults or damage are found. Refer to qualified service personnel.

This symbol indicates that this charging adaptor is a Class II appliance and does not require an earth connection.

Operating Instructions

INSTALLING THE WALL MOUNTED CHARGING BASE

It is recommended that the charging base should be mounted on a wall to provide a convenient storage and charging point for the cleaner.

1- Find a suitable indoor wall location near a mains power socket but out of the reach of children. Do not mount the charging base in direct sunlight or close to a heating source. Ensure that there are no hidden electrical wires or pipes in the chosen location.
2- Position the charging base as shown in figure 1.
3- Mark the location of the mounting holes and drill two suitable holes.
4- Make sure that the charging adaptor lead is threaded through the slot in the charging base. See figure 2. Excess lead can be stored at the rear of the charging base.
5- Screw the charging base to the wall.

3D model of a gray plastic electrical outlet with mounting holes and wiring (no text or symbols visible)

CHARGING THE BATTERY

1- Before the first use, the battery must be charged for 15 hours. Before the first charge, the battery should be fully discharged. Operate the On/Off switch until the motor stops. Make sure that the On/Off switch is returned to the Off position. The battery will not charge with the switch in the On position. New batteries, or a battery that has been stored uncharged for some time, may not initially accept a full charge. This is normal. It will charge fully after several charge and discharge cycles. The battery should always be charged at ambient air temperatures of between 40 and 400 C.

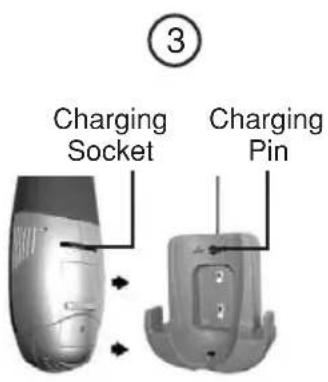

2- Locate the cleaner in the charging base, making sure that the charging socket on the cleaner is correctly located with the charging pin on the charging base. See figure 3.
3- Plug the charging adaptor into the mains supply. The charging indicator LED will light to show that the battery is accepting the charge. See figure 4.

CHARGING THE BATTERY - continued

4 Whilst charging, the charging adaptor will become warm. This is normal and does not indicate a problem. The cleaner may be stored in the charging base. However, ensure that the charger is disconnected from the mains supply when charging is complete (maximum 15 hours).

NOTE

After fully charging the battery, the average effective use of the cleaner is approximately 10 minutes. This will reduce to 8 minutes if the rotating brush head described on page 9 is used.

USING THE CLEANER

1 Lift and pull the cleaner from the wall mounting base. See figure 5.

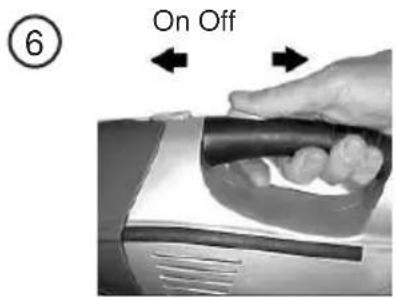

2 Push the On/Off switch forward to switch On. See figure 6. The cleaner will start.
3 Perform the cleaning operation.
4 Pull the On/Off switch back to switch Off. See figure 6.
5 Return the cleaner to the wall mounting base.

CAUTION!

Do not use the cleaner to pick up liquids as this will severely damage the motor.

Do not touch the motorised brush head while it is rotating as this could cause personal injury.

1 To connect the rotating brush head, remove the cleaner from the wall mounting charging base.
2 Ensure that the cleaner is switched Off.
3 Push the brush head firmly into the air intake. See figures 7 and
8. Ensure that the two pins on the brush head are correctly located in the two sockets on the air intake.
4 To remove the brush head pull it firmly out of the air intake.

The rotating brush head is designed for cleaning short pile carpets

and rugs. It should not be used for cleaning long pile carpets.

NOTE:

Picking up cotton, hair and other threads may clog the brush head

by twisting around the brush head spindle. If this happens remove

the brush head from the cleaner and remove the thread from the spindle.

Close-up of a smooth, curved object with a rounded top and a dark horizontal band, labeled with number 8 (no text or symbols on the object itself)

FITTING THE ATTACHMENTS

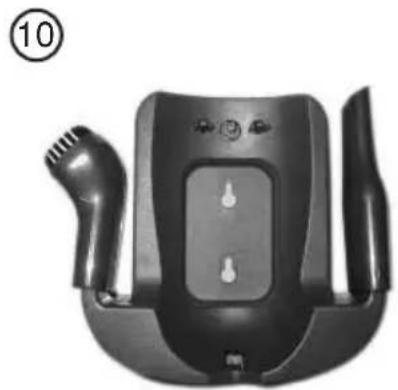

The crevice tool and upholstery brush are fitted by pushing them directly into the air intake. See figure 9. Both of these attachments may be stored on the charging base when the unit is not in use. See figure 10.

Black plastic medical device with a triangular handle and central button (no visible text or symbols)

Cleaning and Maintenance

CLEANING THE DUST BOWL AND FILTER

The performance of the cleaner is dependant on the condition of the dust bowl and the filter. The dust bowl should be emptied and cleaned regularly. The filter should be regularly removed and washed in warm soapy water and rinsed thoroughly.

NOTE:

The filter requires more frequent cleaning if fine dust is vacuumed regularly. Ensure that both the dust bowl and the filter are completely dry before refitting them to the cleaner.

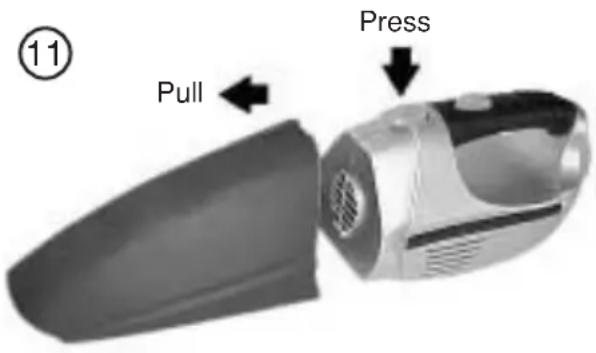

1 To empty the dust bowl and remove the filter, press down on the dust bowl release button.
2 Pull the dust bowl away from the motor housing. See figure 11.
3 Pull the filter out of the dust bowl. See figure 12.
4 Empty and clean the dust bowl.
5 Wash the filter in warm soapy water. Allow to dry completely before refitting. Do not attempt to force-dry with any heat source.
6 Always replace the filter and refit the dust bowl before switching on and using the cleaner.

Cleaning and Maintenance

There are no other user-serviceable parts inside this vacuum cleaner.

Refer to authorized Fakir Service if internal maintenance is required. Any worn, or damaged parts should be replaced by qualified personnel.

Environmental protection

When the batteries are no longer required, they must be disposed of in an environmentally protective way.

Run the cleaner completely down and then

remove the batteries from the cleaner. To remove the batteries, undo the battery hatch at the rear of the cleaner. The battery packs contain SLA battery. They are recyclable. Take them to your service agent or a local recycling centre to be disposed of properly. Do not incinerate battery packs as they may explode when exposed to fire. Do not attempt to open the battery packs. Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
