60BHD3200 - Projector SALORA - Free user manual and instructions

Product Type	Video Projector
Brand	Salora
Model	60BHD3200
Resolution	1920 x 1080 (Full HD)
Brightness	3000 ANSI Lumens
Contrast Ratio	10000:1
Lamp Life	Up to 20000 hours (Eco Mode)
Projection Size	30 - 300 inches
Keystone Correction	Vertical: ±15°
Inputs	HDMI, VGA, USB, Audio 3.5mm
Built-in Speaker	1 x 5W
Dimensions (W x D x H)	30 x 22 x 10 cm
Weight	2.8 kg
Power Consumption	200W (Typical)
Power Supply	AC 100-240V, 50/60Hz
Lens Cleaning	Use a soft, dry cloth
Filter Cleaning	Every 500 hours of use
Safety Warning	Do not look directly into the lens
Repair Service	Contact authorized Salora service center
Manual Availability	Free download at notice-facile.com

Frequently Asked Questions - 60BHD3200 SALORA

How do I connect my laptop to the Salora 60BHD3200 projector?

Use an HDMI cable to connect your laptop's HDMI output to the projector's HDMI input. Select the correct input source using the remote or projector buttons.

What is the maximum projection size of this projector?

The Salora 60BHD3200 can project an image from 30 inches up to 300 inches diagonally, depending on the distance from the screen.

How do I adjust the keystone correction?

Press the Keystone button on the remote control and use the arrow keys to correct vertical distortion. You can adjust up to ±15 degrees.

Can I play media from a USB drive?

Yes, the projector has a USB port that supports playback of video, audio, and image files. Insert the USB drive and select the USB input source.

How often should I clean the air filter?

Clean the air filter every 500 hours of use. A clogged filter can cause overheating. Use a vacuum cleaner or wash with mild soap and water, then dry completely before reinstalling.

What is the lamp life of this projector?

The lamp lasts up to 20,000 hours in Eco mode and about 15,000 hours in Normal mode. When the lamp end-of-life indicator appears, replace it with a compatible lamp.

How do I replace the lamp?

Turn off and unplug the projector, wait for it to cool. Remove the lamp cover, loosen the screws, and replace the old lamp with a new one. Ensure it clicks into place. Use only authorized replacement lamps.

Why is the image fuzzy?

Adjust the focus ring on the lens until the image is clear. Also check the distance to the screen and ensure the projector is on a stable surface.

Can I use this projector with a ceiling mount?

Yes, the projector is compatible with standard ceiling mounts. Use a mount that supports its weight (2.8 kg). Ensure the mount is securely attached to a ceiling beam.

How do I reset the lamp timer?

After replacing the lamp, press the Menu button, go to Settings > Lamp Info > Reset Lamp Timer, and confirm. This ensures accurate lamp life tracking.

USER MANUAL 60BHD3200 SALORA

Multi-language version of the Quick User Guide

English

Nederlands

Français

Red circular icon with a white stylized object resembling a device or device, no text or symbols present.

Owner's manual

Salora 60BHD3200

LED Projector

Please read the safety information carefully before using this product

POINTS SAILLANTS

Illustration of a projector connected to two separate electronic devices (no text or symbols visible)

B. Connexion HDMI

C. Connexion VGA (PC)

Illustration of a projector connected to a laptop via cable, showing internal components and a close-up of the port (no text or symbols present)

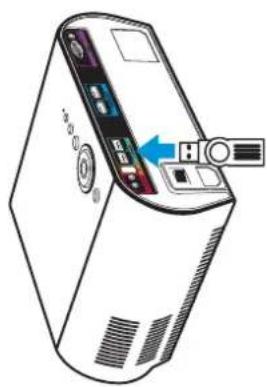

D. Connexion USB

Illustration of a computer monitor with an attached USB port and indicator lights (no text or symbols)

E. Connexion Audio

Diagram showing a speaker connected to an electronic device via cable (no text or symbols present)
