FXTRL7N7NANM035 - Câbles pour ordinateurs et périphériques Panduit - Free user manual and instructions

Product Type	Fiber Optic Patch Cable
Brand	Panduit
Model	FXTRL7N7NANM035
Cable Length	3.5 m (11.5 ft)
Connector Type	LC Duplex
Fiber Type	Singlemode 9/125 µm
Jacket Material	LSZH (Low Smoke Zero Halogen)
Jacket Color	Yellow
Insertion Loss (Max)	0.5 dB per connector
Return Loss (Min)	65 dB
Operating Temperature Range	-20°C to +70°C (-4°F to +158°F)
Minimum Bend Radius	10 mm (dynamic), 5 mm (static)
Weight	Approx. 0.05 kg (0.11 lb)
Compliance	TIA/EIA-568-C.3, RoHS, REACH
Primary Function	High-speed data transmission for network equipment
Application	Data centers, LAN, telecommunications
Maintenance	Clean connectors with lint-free wipes and isopropyl alcohol before use
Safety Precautions	Do not exceed minimum bend radius; avoid kinking or crushing the cable
Spare Parts / Repairability	Not repairable; replace entire cable if damaged
Power Requirement	Passive component, no power needed

Frequently Asked Questions - FXTRL7N7NANM035 Panduit

What is the length of the Panduit FXTRL7N7NANM035 cable?

The cable is 3.5 meters (11.5 feet) long, as indicated by the '035' suffix in the model number.

What connectors are on this fiber optic cable?

It features LC duplex connectors on both ends, suitable for standard network equipment.

Is this a singlemode or multimode cable?

This is a singlemode fiber cable (9/125 µm), ideal for long-distance, high-bandwidth applications.

Can I use this cable with multimode equipment?

No, singlemode cables are not compatible with multimode transceivers. Use only with singlemode SFP modules.

What is the maximum insertion loss of this cable?

Maximum insertion loss is 0.5 dB per connector, ensuring reliable signal transmission.

How should I clean the connectors?

Use lint-free wipes and isopropyl alcohol to gently clean the ferrule ends before each connection. Avoid touching the end face.

What is the minimum bend radius?

The dynamic minimum bend radius is 10 mm, and static is 5 mm. Do not bend more sharply to prevent fiber breakage.

Is this cable suitable for outdoor use?

No, it is designed for indoor use only (LSZH jacket). For outdoor, use an armored or outdoor-rated cable.

Can I repair a damaged fiber optic cable?

Fiber optic patch cables are not repairable. If damaged, replace the entire assembly to maintain performance.

What does the model number 'FXTRL7N7NANM035' stand for?

Panduit part numbers encode specifications: 'FX' indicates fiber, 'TR' may denote tight-buffer riser, 'L7' for LC connectors, 'N7' for singlemode, 'NA' for length in meters (035 = 3.5m).

USER MANUAL FXTRL7N7NANM035 Panduit

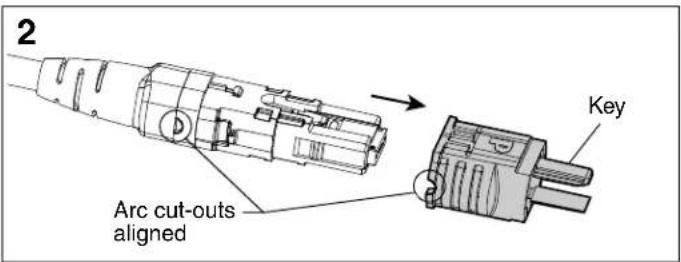

Squeeze both sides of outer housing at the back end evenly until you hear an audible click.

Pull outer housing off connector.

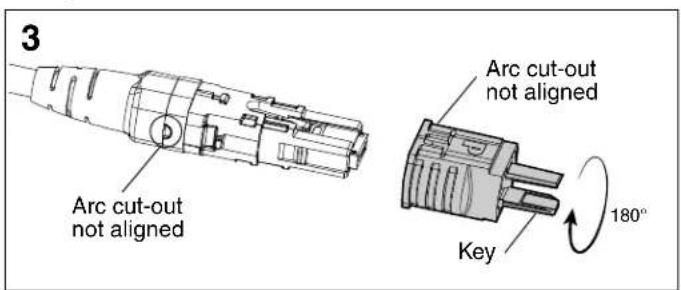

Rotate outer housing 180° so arc cut-out is on the opposite side.

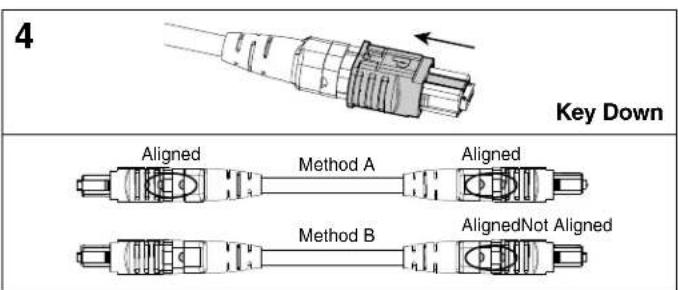

Re-install outer housing until you hear a faint audible click.

For Technical Support: www.panduit.com/resources/install_maintain.asp

E-mail: [e-mail]

Phone: [phone]

Gender Changeover

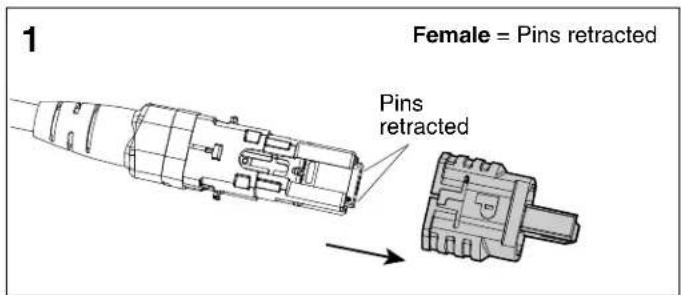

Remove outer housing per polarity changeover instructions.

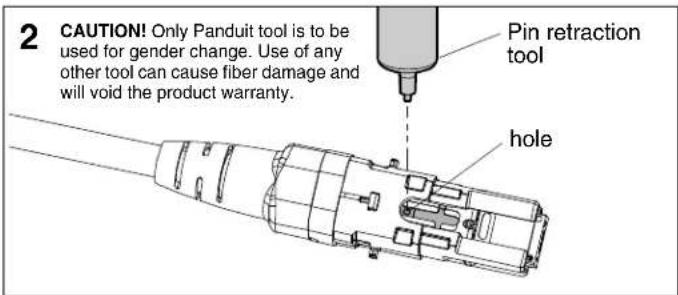

Locate hole in the inner housing on the slotted side and position pin retraction tool over the hole.

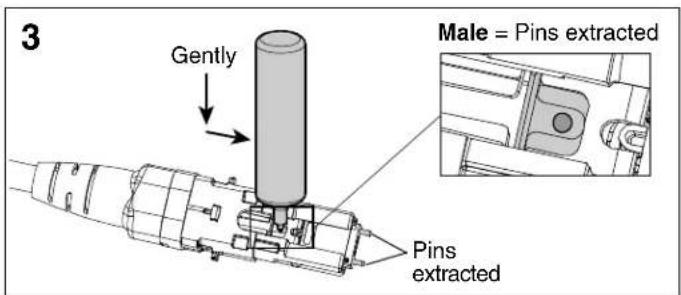

Insert tool into hole, press down gently, and push forward to advance connector pins to the male state. Repeat process in opposite direction to retract pins for female state.

Technical line drawing of a cable connector with an arrow indicating direction (no text or symbols)

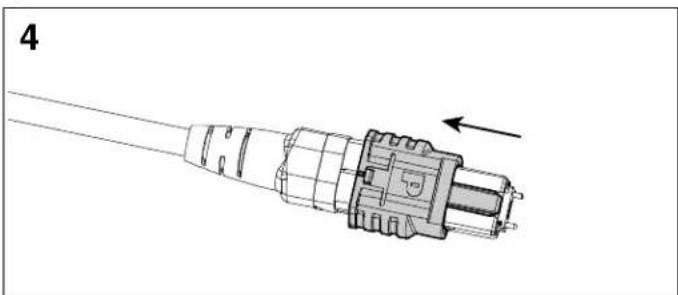

Re-install outer housing in the correct orientation. See polarity changeover instructions on page 1.
