Product Type	Thermal Imaging Scope
Model	Quantum HS19
Detector Type	UL 02 15 2 Uncooled Microbolometer (160x120)
Refresh Rate	9 Hz
Magnification	2.5x
Digital Zoom	Not available (n/a)
Display	OLED, 0.31 inch, 640x480 pixels
Field of View	12° (H) x 9° (V)
Spectral Range	8.3 – 13.6 μm
Detection Range	Up to 450 m (490 yd) (object 1.7x0.5 m)
Diopter Adjustment	+5 to -5 D
Power Supply	4x AA batteries (or rechargeable) or external 8.4-15 V DC
Battery Life (approx.)	At least 2 hours on AA; 9/20 hours with EPS3/EPS5 pack
Protection Rating	IPX4 (splash proof, not submersible)
Operating Temperature	-20°C to +50°C (humidity up to 90%)
Video Output	PAL/NTSC via 3.5mm jack
Dimensions (LxWxH)	177 x 86 x 58 mm (7.0 x 3.4 x 2.3 in)
Weight	400 g (without batteries), 490 g (with batteries) / 14.1/17.3 oz
Mounting	Weaver rail, two 1/4" tripod sockets
Included Accessories	Carrying case, video cable, hand strap, cleaning cloth, warranty card
Calibration	Manual calibration via CAL button (lens cap closed)
Image Modes	White Hot and Black Hot
Display Brightness/Contrast	Adjustable via encoder (1-20 levels)
Focus Adjustment	Internal focusing ring (objective) and diopter ring (eyepiece)

Frequently Asked Questions - Quantum HS19 PULSAR

What type of batteries does the Quantum HS19 use?

The scope uses four AA batteries (alkaline or rechargeable). For best performance, use quality rechargeable cells with a capacity of at least 2500 mAh. Do not mix battery types or different charge levels.

How do I calibrate the thermal scope?

To calibrate, press the CAL button while the lens cap is closed. The image freezes for 1-2 seconds and 'CALIBRATION' appears on the display. When the message disappears, calibration is complete.

What is the maximum detection range of the Quantum HS19?

The maximum detection range for an object measuring 1.7 x 0.5 meters is 450 meters (490 yards). Actual range depends on weather and target characteristics.

Can I use an external power supply?

Yes, the scope accepts external DC power from 8.4V to 15V (2.1mm pin, center positive). It also works with a 12V vehicle socket. When external power is connected, battery power is automatically cut off.

Is the Quantum HS19 waterproof?

The scope has an IPX4 rating, meaning it is splash-proof but not designed for immersion. Avoid submerging in water.

How do I clean the lenses?

First remove dust with a blower brush or canned air. Then use lens cleaning equipment approved for multi-coated optics. Do not pour solution directly onto the lens. Keep the scope in its carrying case when not in use.

What accessories are compatible?

Compatible accessories include EPS3/EPS5 battery packs (SKU#79111/79112), CVR640 video recorder (SKU#17044), and other Weaver-mount accessories. The two 1/4" tripod mounts allow tripod or hand strap attachment.

How do I change the video output signal (PAL/NTSC)?

Enter the menu by pressing and holding the encoder. Rotate to select the video icon, press to confirm, then rotate to choose PAL or NTSC. Press again to confirm, or exit by holding the encoder for two seconds.

Why is the image blurry or uneven?

Try calibrating first. If the image is still blurry, adjust diopter via the eyepiece ring and focus via the internal focusing ring. If vertical stripes persist, perform calibration with the lens cap closed.

Can I store the scope for a long period?

Remove the batteries if the scope will not be used for over a month. Store in the carrying case in a dry, well-ventilated place. Avoid extreme heat (e.g., direct sunlight).

USER MANUAL Quantum HS19 PULSAR

Close-up of a black optical device with lens and aperture (no visible text or symbols)

QUANTUM

THERMAL IMAGING SCOPE

INSTRUCTION

ENGLISH / FRANÇAIS / DEUTSCH / ESPAÑOL / ITALIANO / PYCCKIЙ

SKU	77301	77302	77307	77308
MODEL	Quantum HD 38	Quantum LD 38	Quantum HS 19	Quantum LS 19
Optical characteristics
Detector type	UL 03 16 2Uncooled microbolometer	UL 03 16 2	UL 02 15 2Uncooled microbolometer	UL 02 15 2
Refresh rate	30 Hz	9 Hz	30 Hz	9 Hz
Magnification, x	2,1	2.1	2.5	2.5
Digital zoom, x	2	2	n/a	n/a
Resolution, pixels	384x288	384x288	160x120	160x120
OLED Display size	0.31"	0.31"	0.31"	0.31"
Close-up range, m	2	2	2	2
Exit pupil, mm	8	8	8	8
Spectral range, μm	7.7-13.2	7.7-13.2	8.3-13.6	8.3-13.6
Field of view, degree
- horizontal	14.4	14.4	12	12
- vertical	10.8	10.8	9	9
Diopter adjustment, D	+5/-5	+5/-5	+5/-5	+5/-5
Max. detection range,m/ yd*	900 / 985	900 / 985	450 / 490	450 / 490
Operationalcharacteristics
Start-up time (approx.), sec	10	10	10	10
Power supply	4+6 V	4+6 V	4+6 V	4+6 V
Battery type	4xAA	4xAA	4xAA	4xAA
External power supply	8,4-15 V	8,4-15 V	8,4-15 V	8,4-15 V
Operating time on batterypack EPS3 / EPS5)	9/20	9/20	9/20	9/20
Operating time on a battersyset, approx.	At least two hours		At least two hours
Degree of protection, IPcode (IEC60529)	IPX4	IPX4	IPX4	IPX4
Video output	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Operating temperature	from -20 °C to +50 °C, humidity up to 90%
Dimensions, mm	200x86x59	200x86x59	177x86x58	177x86x58
inch	7.9x3.4x2.3	7.9x3.4x2.3	7x3.4x2.3	7x3.4x2.3
Weight (without/with batteries),g / oz	470/560//16.6/19.7	470/560//16.6/19.7	400/490//14.1/17.3	400/490//14.1/17.3

• Max. detection range of an object measuring 1.7x0.5 m

PRODUCT NAME LEGEND:

Example: Quantum HD 38

First letter:

"H" – refresh rate 30 Hz;

"L" – refresh rate 9 Hz.

Second letter:

"D" - detector size 384x288;

“S” – detector size 160x120

Figure "38" or "19" stands for lens focal length - 38 mm or 19 mm

• Thermal Imaging Scope
- Carrying case
- User manual
- Video cable
- Hand strap
• Automotive cigarette lighter adapter
- Spare battery container
- Cleaning cloth
Warranty card

For improvement purposes, design of this product is subject to change.

Black optical device with lens and screen (no visible text or symbols)

DESCRIPTION

Digital thermal imaging scopes Quantum based on IR sensor (uncooled microbolometer) are represented by a number of models featuring various resolution, magnification and lens diameter. The scopes are designed for the use both in the nighttime and in the daylight in inclement weather conditions (fog, smog, rain) to see through obstacles hindering detection of targets (branches, tallgrass, thick bushes etc.). Unlike the image intensifier tube based night vision devices, thermal imaging scopes Quantum do not require an external source of light and are not affected by bright light exposure.

Thermal imaging scopes Quantum have a wide range application including night hunting, observation and terrain orientation, search and rescue operations.

FEATURES

• Detector size 384x288 or 160x120 pixels
• Quality OLED display (640x480 pixels)
• Magnification 2,1x/2,5x
• 2x digital zoom (384x288 models only)
• High-aperture lens
- Wide field of view
• External power supply
• Video output enabling recording
- Modes "White hot" and "Black hot"
- Ergonomic body
- Two 1/4" tripod mounts

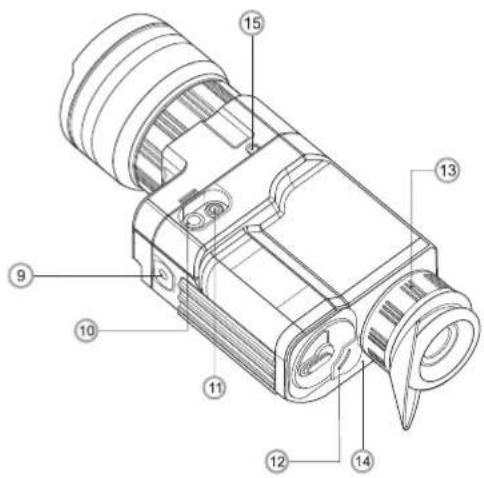

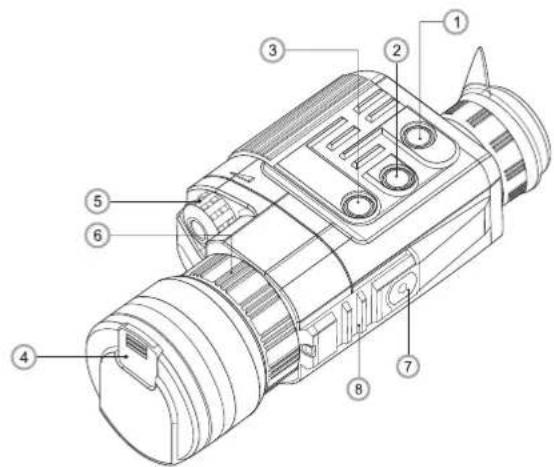

COMPONENTS AND CONTROL ELEMENTS

① "ON" button
② "CAL" button
③ "ZOOM/INVERT" button
④ Lens cap
⑤ Encoder
⑥ Ring for lens internal focusing
⑦ ¼" tripod mount
⑧ Weaver mounting rail
⑨ Second 14 " tripod mount
⑩ External power supply jack
⑪ Video out
⑫ Battery compartment
⑬ Eyepiece
⑭ LED indicator
15 Lens cap storage hole

DATA PANEL ICONS

Ⓐ Clock setup
B Video output signal selection
© 2x digital zoom
D Clock
E Low battery indicator
F Indication for external power supply
G Brightness and contrast adjustment
H White hot / Black hot modes

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

INSTALLATION OF BATTERIES

• Turn the lever of the battery compartment (12) 90 degrees in "Open" position and, pulling by the lug of the cover, remove the battery container.
  • Install four AA batteries (or rechargeable batteries) observing polarity shown on the battery container.
• Insert the battery container into the battery compartment and turn the lever 90 degrees clockwise.

Note: to ensure long and reliable operation it is recommended that you use quality rechargeable batteries with a capacity of at least 2500 mAh. Please do not use batteries of different types or batteries with various charge levels.

EXTERNAL POWER SUPPLY

The scope can be powered with an external DC power supply (2.1mm pin) with stabilised voltage ranging from 8.4V to 15V (max. consumption power 3W) or a 12V vehicle socket.

• External power supply (AC/DC) is to be connected to "Power" (10) jack located on the bottom side of the device.
• Please note that the central pin of the power supply that you connect to the "power" jack of the riflescope, must have marking "+". The power supply may have marking - -⊕ +

Connection of an external power supply (icon 📋 shows up on the data panel) automatically cuts off power supply from batteries.

External power supply DOES NOT charge the rechargeable batteries in the unit.

Attention! We suggest that you use battery packs EPS3 or EPS5 ensuring from 9 to 20 hours of operation.

OPERATION

Switching on and calibration

• Press "ON" (1) to switch on the unit. Green LED indicator (14) will light up. In case of low battery the LED will turn red and battery icon will start flashing.
• Do the calibration of image. Calibration levels background temperature of the microbolometer and eliminates image flaws. To calibrate, press "CAL" (2) without opening the lens cap. Image will freeze for 1-2 seconds, message "CALIBRATION" will show up on the data panel, when the message disappears, calibration is completed.

КОМПЛЕКТ ПОСТАВКИ

Close-up of a black optical device with lens and aperture (no visible text or symbols)

ОПИСАНИЕ

Focusing and image adjustment

• Open the lens cap (4) and fix it in the hole (15) in the bottom part of the unit. Adjust the sharpness of the display icons by turning the eyepiece ring (13).
• To adjust display brightness, rotate the encoder (5). Brightness level (from 1 to 20) will show up next to the brightness icon ⚙ on the data panel.
• To adjust display contrast press the encoder (5) (icon Ⓞ will show up) and rotate it. Contrast level (from 1 to 20) will show up next to the contrast icon on the data panel.
• Point the unit at a warm object located at a certain distance, 100 meters, for example.
• Adjust the focus by turning the ring for lens internal focusing (6).
  • After this adjustment no further dioptre adjustment should be required, regardless of distance or other factors. Adjust image quality only with the ring for lens internal focusing.

Other functions

• Press "ZOOM/INVERT"(3) to activate digital zoom (only in models 384x288).
• Keep "ZOOM/INVERT"(3) pressed for two seconds (in 160x120 models no waiting is needed) to activate colour inversion (functions "Hot white" and "Hot black").
  When function "White hot" is used, warm objects are represented in shades of bright colour;
  "Black hot" represents objects in shades of dark colour.
  Press "ON" (1) to switch off the unit.

MENU

The menu includes two functions:

- Clock;

- Video output signal selection.

Function "Clock":

• To enter the menu, keep the encoder (5) pressed until icon 📊 shows up. Press the encoder shortly to confirm the function selected.
• Rotate the encoder (5) to select time format ("24" or "AM/PM") (editable parameter is flashing).
• To pass to minute/hour setup press the encoder (5). Rotate the encoder to adjust minute/hour parameter.
  • To exit the menu, keep the encoder (5) pressed for two seconds.

Function "Video output signal selection":

• Rotate the encoder (5) to select icon ☐ and press the encoder to confirm.
• Rotate the encoder (5) to select the required video output signal (PAL or NTSC).
• Press the encoder shortly to confirm.
• To exit the menu, keep the encoder (5) pressed for two seconds or wait 10 seconds to enable automatic exit.

"Video out" jack (11) is designed to connect external recording devices and to transmit video signal to monitors, TV sets etc.

• Select a suitable video output standard - PAL or NTSC (refer to section 9 "MENU").
• Use the included video cable to connect a peripheral device to the "Video out" jack (11).
• Switch on your thermal imaging scope – a peripheral device will show the image seen through the scope.

ACCESSORIES

Using the Weaver mounting rail (8), you can attach various accessories to the Quantum scopes, such as:

• Battery packs EPS3/EPS5 (SKU#79111/79112)
• CVR640 video recorder (SKU#17044) and others.

The 14 " tripod mounts from both sides of the scope are designed to have the scope installed on a tripod or have a hand strap (included) attached.

CARE AND MAINTENANCE

• Il termovisore ha un grado di protezione IPX4 (protezione contro gli spruzzi d'acqua) non è destinato per l'immersione nell'acqua.
  • La garanzia si perde se lo strumento viene riparato oppure smontato.

• Clean the scope's optical surfaces only if necessary, and use caution. First, remove (by blowing with a blower brush or canned air) any dust or sand particles. Then proceed to clean by using camera/lens cleaning equipment approved for use with multicoated lenses. Do not pour the solution directly onto the lens!

• The scope can be used in operating temperatures ranging from -20 °C to +50 °C. However, if it has been brought indoors from cold temperatures, do not turn it on for three to four hours. This will prevent external optical surfaces from fogging.
• Always store the unit in its carrying case in a dry, well-ventilated space.
• Remove the batteries if the scope is not going to be used for an extended period (longer than one month).
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

TROUBLESHOOTING

Listed below are some potential problems that may occur when using the scope. Carry out the recommended checks and troubleshooting steps in the order listed. Please note that the table does not list all of the possible problems. If the problem experienced with the scope is not listed, or if the suggested action meant to correct it does not resolve the problem, please contact the manufacturer.

problem	possible cause	corrective action
The unit will not turn on.	Batteries have been wrongly installed.	Reinstall the batteries observing polarity.
	Oxidized contact points in the battery compartment due to "leaky" batteries or contact points becoming exposed to a chemically reactive solution.	Clean the battery compartment, focusing on the contacts.
	The batteries are fully exhausted.	Install fresh batteries.
The image is blurry, with vertical stripes and uneven background.	Calibration is to be done.	Do the calibration according to section 8 "OPERATION"
The image is too dark.	The lowest brightness level is set.	Adjust brightness by rotating the encoder (5).
