Product Type	Wireless Presentation Gateway
Model Number	VC10 (VS17129)
Brand	ViewSonic
Dimensions (approx.)	100 x 30 x 10 mm (typical dongle size)
Weight (approx.)	30 g
Power Supply	DC 5V/1A via USB or MHL
Interface	HDMI / MHL
Wireless Standards	802.11 b/g/n/ac (2.4/5 GHz)
Operating System Compatibility	iOS 9+, Android 4.2+, Windows 7/8.1/10, macOS 10.10+
Max. Simultaneous Users	4

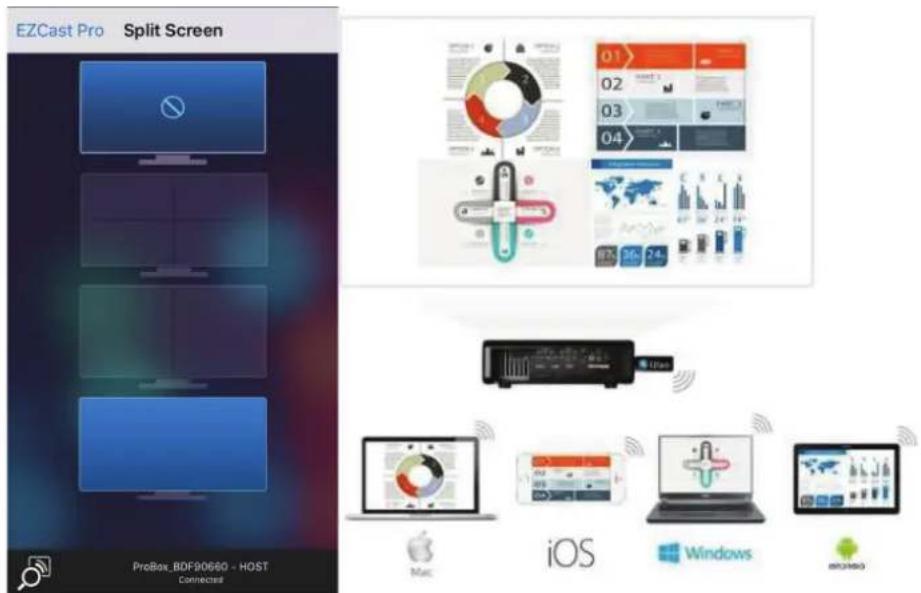

Key Features	Screen mirroring, host control, split-screen, EZBoard collaboration, AirView, Miracast (EZMirror), DLNA, cloud storage integration
Power Consumption	5W max
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to 50°C
Certifications	FCC, CE, IC, RoHS2
Warranty	1 year labor
Cleaning Instructions	Wipe with dry cloth; avoid liquids
Safety Notes	Use only manufacturer power supply; avoid high temperatures; keep 20 cm distance for RF exposure
Repairability	Contact ViewSonic support; no user-serviceable parts

Frequently Asked Questions - VC10 VIEWSONIC

What devices are compatible with the ViewSonic VC10?

The VC10 works with iOS 9+, Android 4.2+, Windows 7/8.1/10, and macOS 10.10+. It supports screen mirroring and content streaming via the EZCast Pro app or Miracast.

How do I connect the VC10 to my TV or projector?

Plug the VC10 into an HDMI port using the included adapter, or directly into an MHL port if supported. For HDMI, connect external power via USB (5V/1A). Then select the correct input on your display.

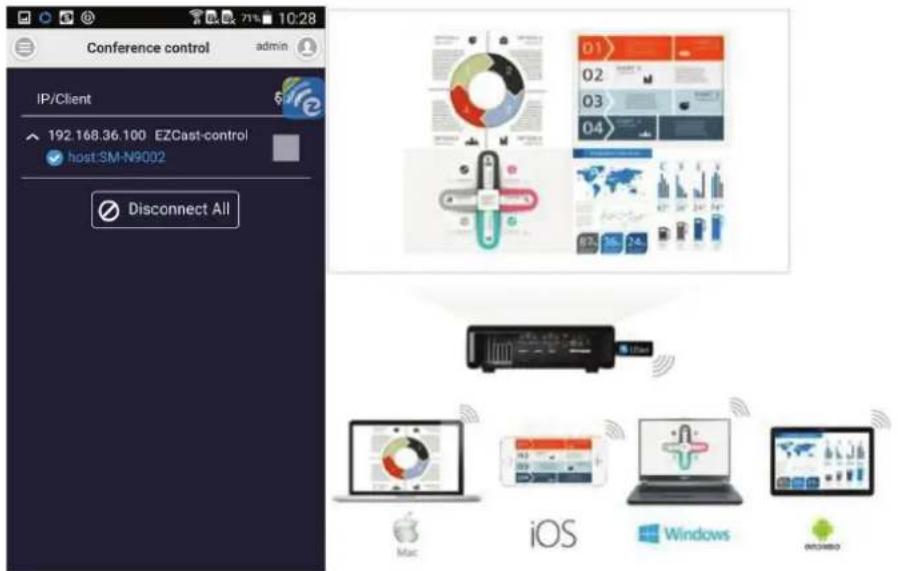

Can multiple users share the screen at the same time?

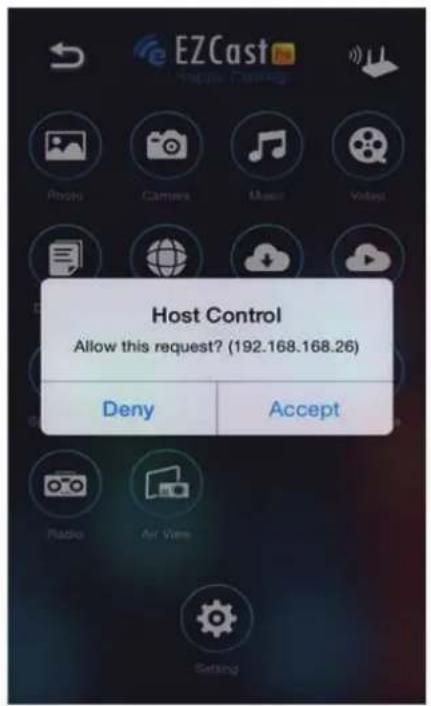

Yes, up to 4 users can display simultaneously. The host controls the layout, while guests request permission to show content.

How do I set up the device for the first time?

Power on the VC10, connect to its Wi-Fi SSID (EZCastPro_xxxxxxxx), open the EZCast Pro app, and follow the on-screen instructions. You can also connect via your home router by entering the device's settings.

What is the difference between SoftAP and Infrastructure mode?

SoftAP is a direct connection to the VC10 (no router needed). Infrastructure mode connects through your existing Wi-Fi network, allowing internet access but may reduce performance.

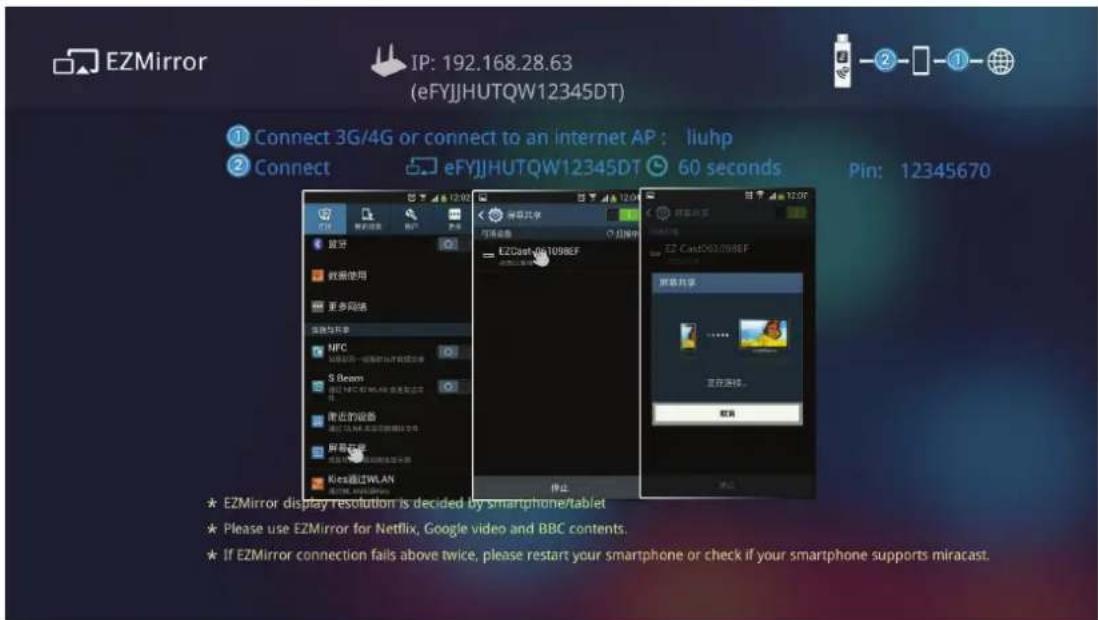

How do I enable Miracast (EZMirror) on the VC10?

In the EZCast Pro app, tap the EZMirror button. The receiver switches to Miracast mode for 60 seconds. Then on your Windows/Android device, select the VC10 from the Miracast list.

Can I use the VC10 without the EZCast Pro app?

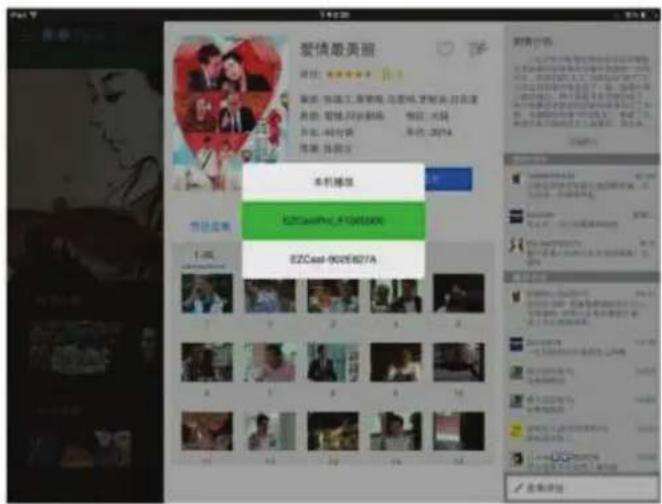

Yes, you can use Miracast (Windows/Android) or DLNA for media streaming. However, the app provides full features like host control, EZBoard, and cloud access.

What is the default admin password and how do I change it?

The default admin password is 000000. Change it on first login via the advanced settings. If forgotten, contact ViewSonic support to reset.

How do I update the firmware on the VC10?

Go to Advanced > Reboot & Upgrade in the admin menu. The device can check for updates online or you can manually upload a firmware file.

What should I do if the VC10 overheats or malfunctions?

Ensure proper ventilation and operating temperature (0-35°C). If issues persist, contact ViewSonic support at 1-800-688-6688 (US) or your local service center.

USER MANUAL VC10 VIEWSONIC

Wireless Presentation Gateway User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"

Model No. VS17129

Thank you for choosing ViewSonic

As a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world's expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

ViewSonic®

Compliance Information

Please read before proceeding

• Use only the batteries and power adapter provided by the manufacturer. The use of unauthorized accessories may void your warranty.
• Do not store your device in temperatures higher than 50^ (122°F).
• The operating temperature for this device is from 0^ (32°F) to 35^ (95°F).

FCC Compliance Statement

The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID: GSS-VS15989 on the product label. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This mobiledevice has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void theuser's authority to operate the equipment. The antenna(s) used for this transmitter must not be colocated or operating in conjunction with any otherantenna or transmitter.

The device was tested and complies to measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C

FCC SAR Information

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium, or more than 0.004% Lead.

European Union Regulatory Conformance

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards: EN301489-1, EN301489-17, EN60950-1, EN300328.

We, hereby, declare that this Wi-Fi radio is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

IC Warning Statement

This device complies with Industry Canada license- exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

For ptoduct available in the USA/Canada market, only channe 1\~11 can be operated. Selection of other channels is not possible.

For MPE Statement – Mobile device IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive), and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium ( Cr^6+ ) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length ( ≤ 500 mm): maximum 3.5 mg per lamp.
(2) Medium length (>500 mm and ≤ 1,500 mm): maximum 5 mg per lamp.
(3) Long length (>1,500 mm): maximum 13 mg per lamp.

1. Lead in glass of cathode ray tubes.

2. Lead in glass of fluorescent tubes not exceeding 0.2% by weight.

3. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

4. Copper alloy containing up to 4% lead by weight.

5. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).

6. Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Contents

Compliance Information

FCC Compliance Statement......i

CE Conformity for European Countries....ii

IC Warning Statement ....iii

Declaration of RoHS2 Compliance....iv

Copyright Information

Product Registration......vii

For Your Records....vii

General

Hardware Installation....1

App (iOS/Android) 2

iOS System requirements....2

Android OS System requirements....2

Start up....2

Download....2

Device Connection ....3

App starts (below photos are based on iOS version)....3

App Features....5

Special Features....11

Preferred Device....11

Host control 12

Installation (Windows) 17

Download and Install 18

Next....18

Install progress....19

Request from Guest 22

Denied by Host....22

Mirror the complete screen....23

Make vPresenter Pro devide as an extension screen 23

Web Browser....25

Online Video....26

Setting 29

Connection 34

Connection 34

Installation (Mac) 35

Download and Install 36

Next....36

Mirror 44

Extension....44

Split screen....45

Update 45

Setting 48

Connection 53

Connection ....53

Other Information

Customer Support ....54

Limited Warranty 55

Mexico Limited Warranty....57

Copyright Information

Copyright © ViewSonic Corporation, 2017. All rights reserved.

ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.

DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR ^® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR ^® partner, ViewSonic Corporation has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com.

	For Your Records
Product Name:	VC10Wireless Presentation Gateway
Model Number:	VS17129
Document Number:	VC10_UG_ENG Rev. 1A 08-25-17
Serial Number:
Purchase Date:

Proper product disposal is necessary at the end of product life

ViewSonic respects the environment and is committed to working and living green.

Thank you for being part of a Smarter, Greener Computing effort.

Please visit the ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

General

“EZCast Pro” is a new product based on successfulwireless app EZCast, and adds some new features for commercial/educational application. It supports Multi-users Display under our new Host Control System and Content Broadcasting function. There are still more new features to be added soon, please download and enjoy our EZCast Pro features with hardware!

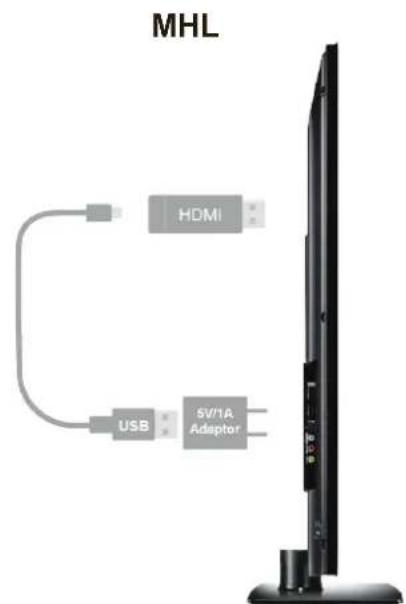

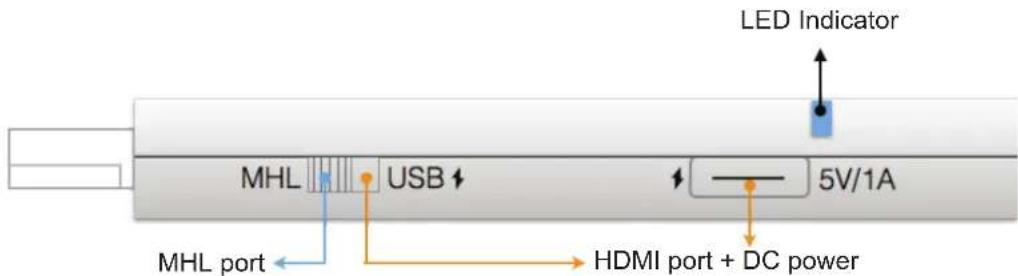

Hardware Installation

The EZCast Pro dongle is compatible with MHL interface, so there are 2 ways to connect with EZCast Pro dongle with your receiver devices like TV, Monitor or Projector. Use the switch to choose HDMI output or MHL output, please be noted your MHL device must provide 900mA power, and if you use HDMI out, you will need external 5V/1A DC power to bring up the dongle.

Plug into MHL port directly to use it directly.

*Requires 900mA from MHL port

Use external DC power, and make sure you're your USB DC power can provide 1A current.

App Installation

• IOS and Android users:

- Please search “EZCast Pro” in Apple’s App Store or Google Play and install it. - Or Use the QR scanner app to scan the QR code on EZCast LAN’s main page.

*Supports iOS9 and Android 4.2 above

• Windows and Mac OS users:

- Please download it from our official website: www.iezcast.com or www.iezvu.com

*Supports from Windows 7/8.1/10, and Mac OS 10.10 and after.

• Get Started (ex: iOS version)

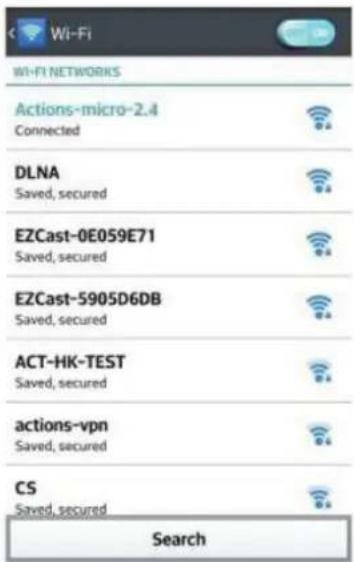

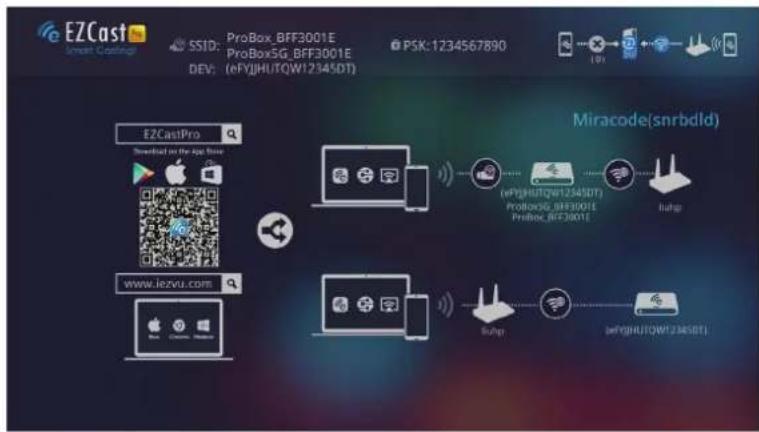

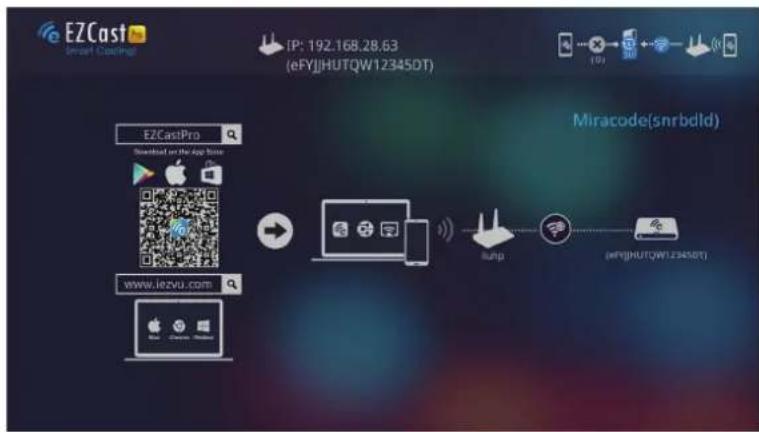

• Enter your NB/PC/Smartphone/Tablet's WiFi setting, find the SSID (EZCastPro_xxxxxxxx or Pro D01_xxxxxxxx) and connect with it.
• Open EZCastPro app on your device.

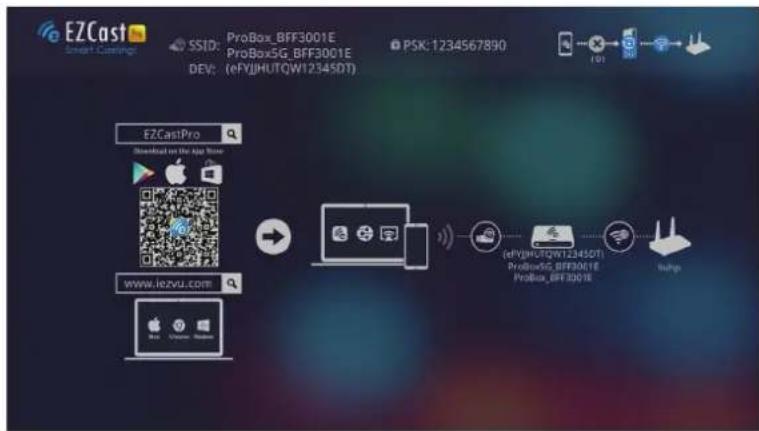

• Once you've connected to EZCastPro, the on-screen link status will beupdated and show how many devices are linking to it directly.

App starts(below photos are based on iOS version)


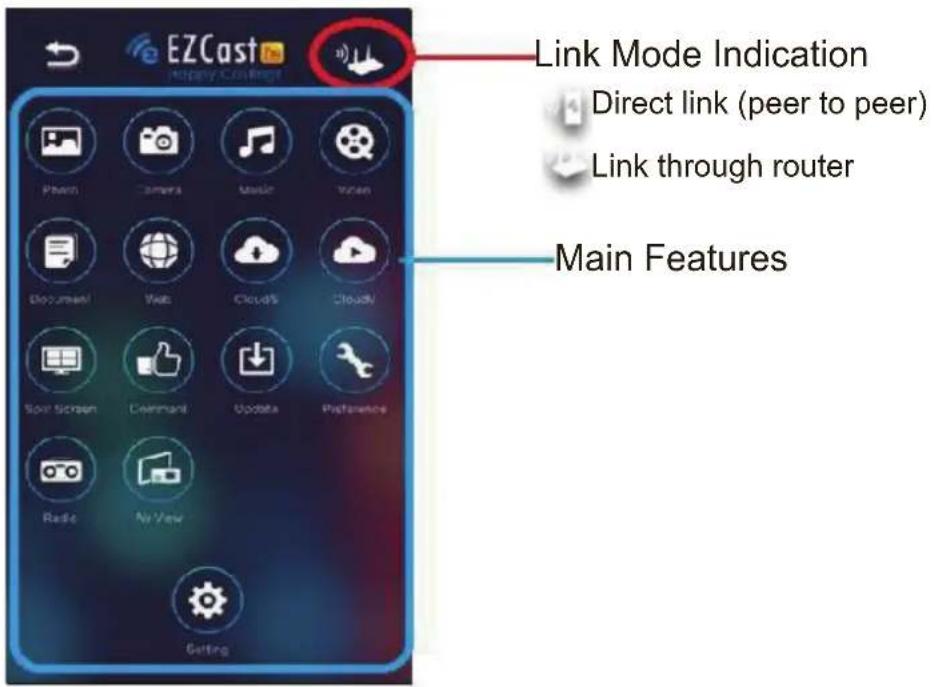

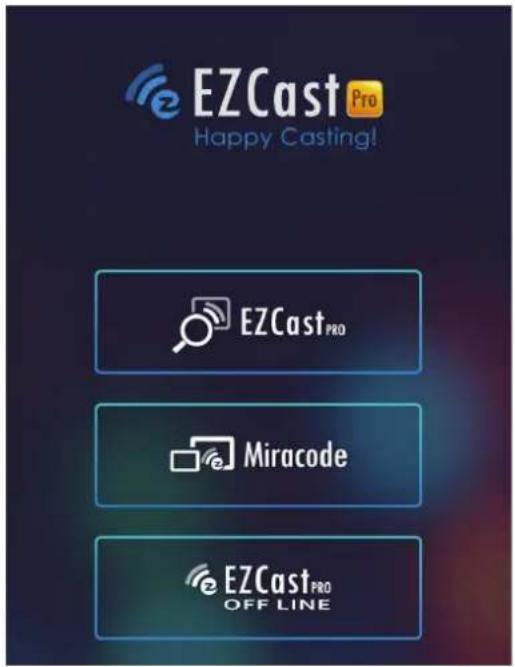

• When you execute the app, if you are not linking to EZCast Pro, you can only use several functions in offline mode.

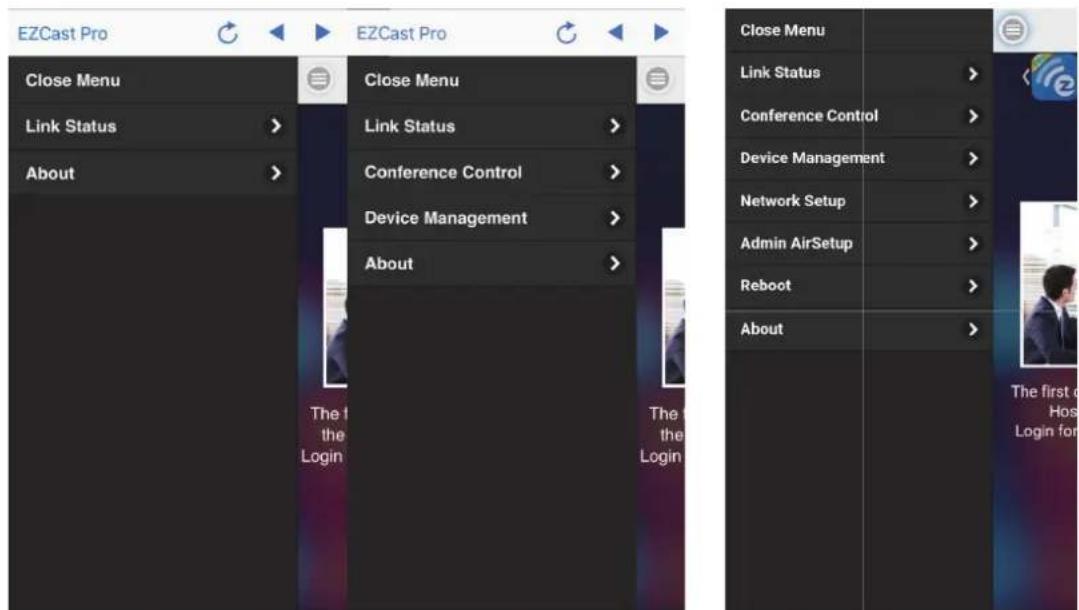

• Click "EZCastPro" icon, the device will be listed, you can select the device you like to cast if there are more than one.

--> Discover device
--> Input IP or Miracode to link manually
--> Work under offline mode

Note: EZCastProapponlyworkswithEZCastProhardwarenow, it'snotcompatiblewithnorma IEZCastproduct.

• Click "EZCastPro" icon, the device will be listed, you can select the device you like to cast if there are more than one.
• If you are not linking to EZCast Pro, you can only use several functions in offline mode.

Note: EZCastProapponlyworkswithEZCastProhardwarenow, it'snotcompatiblewithnorma IEZCastproducts.

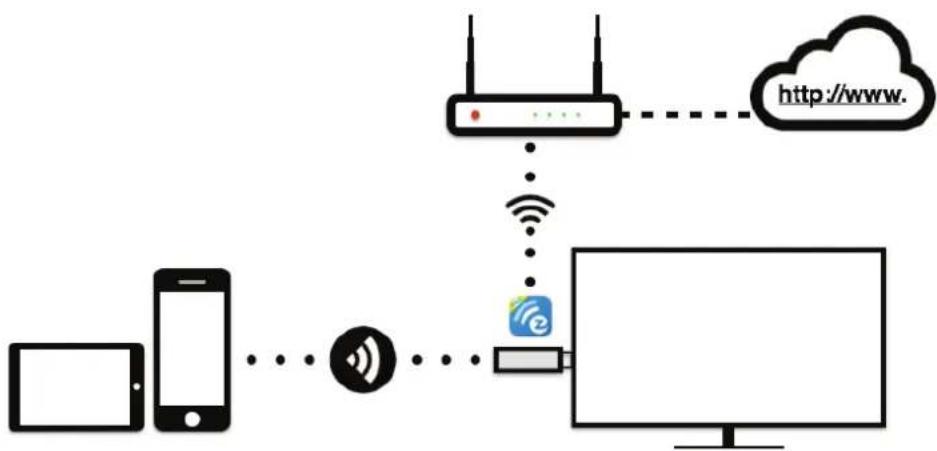

Important: WiFi Link mode explanations

• EZCast Pro devices allow various connection methods, here are the descriptions:
• SoftAP mode: It's direct linking from PC/MobilePhone/Tablet to a Pro device, you can link to EZCast Pro's SSID directly to discover it, and you can also setup Pro devices' WiFi to link with your router to keep internet surfing.

Note: After setting up your internet, sometimes the connection between EZCastPro and your mobile phone might be disconnected because of different WiFi routerchannel. Please remember to reconnect again.

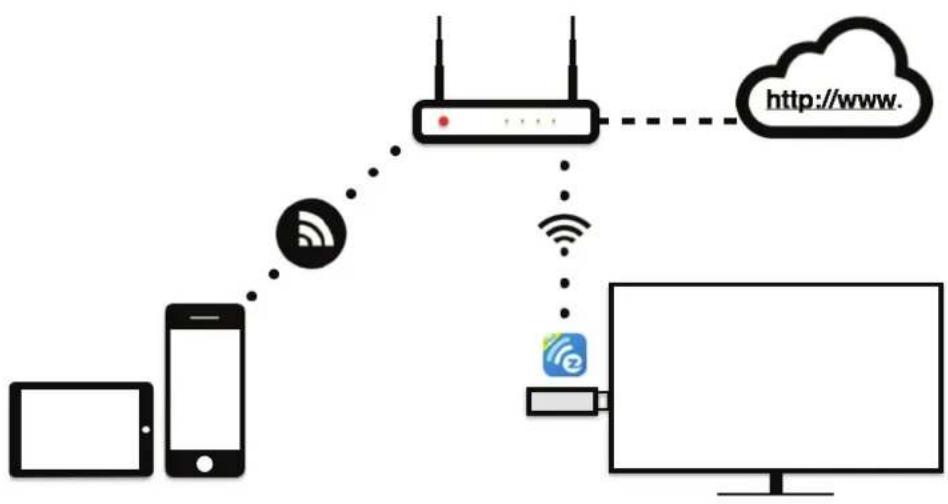

- There is another link mode "Infrastructure mode", which allows you to link with EZCast Pro Box through router instead of SoftAP mode. However, the performance may not as good as direct link, and you will need to enter the setting to enable it if need it.


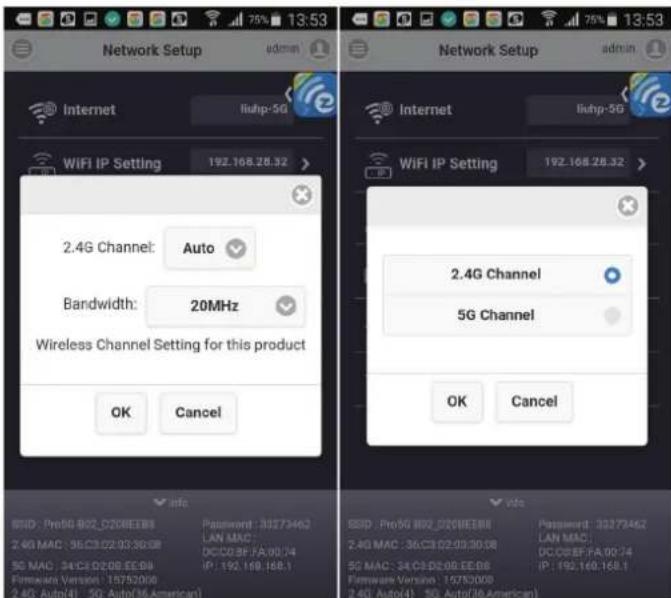

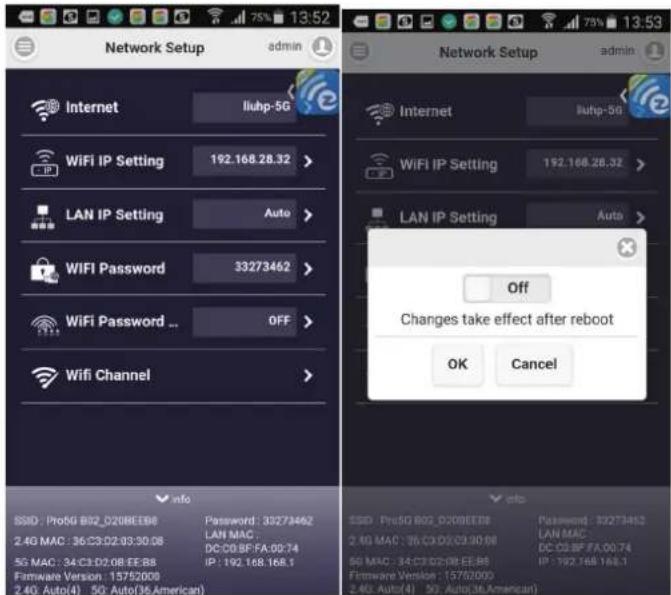

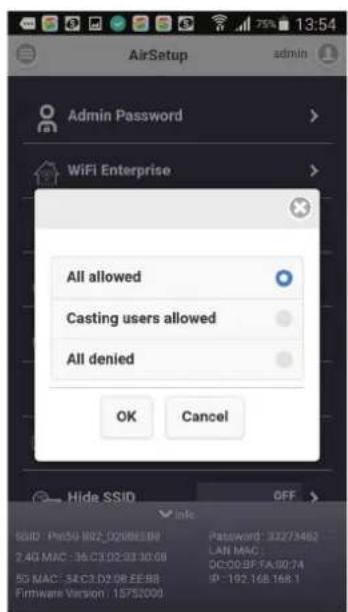

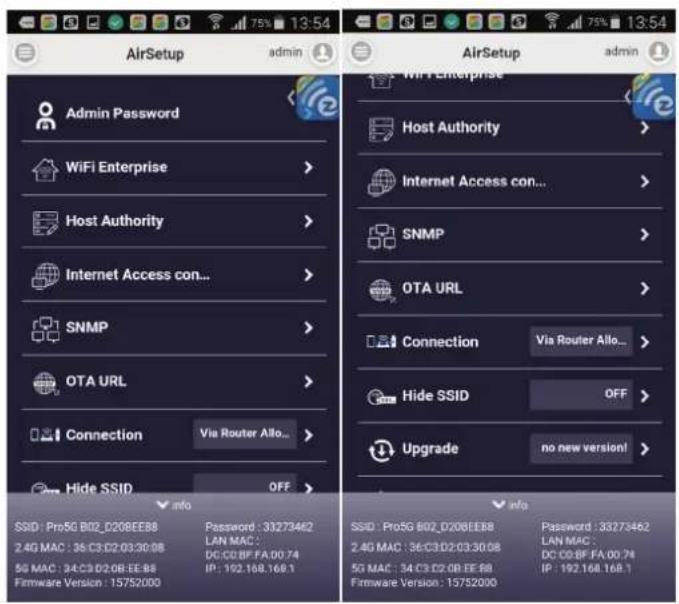

• There is 2 special modes for WiFi connections in our advanced setting, one is "Direct link only" and the other is "Via Router only".
• In "Direct Link Only" mode, you will not be able to discover EZCast Pro through your home router. Under "Via Router Only" mode, the Pro device will shut down Soft AP (SSID), in this mode the SSID will be turned off so that no one can search it directly to prevent some hacker's attack. Please be careful you will need to connect device through router under this mode.

Direct Link: This provides best bandwidth between your Smart devices/PC and EZCast Pro

Via Router Allowed: You will be able to discover EZCast Pro through home router if you have established the connection with router.

Via Router Only: In this mode, the SoftAP of 2.4Ghz/5Ghz WiFi will be turned off, you can use it under some particular purpose so no one can link to EZCast Pro directly.

App Tips

• You can cast your multimedia data wirelessly now, however, please be noted some features like cloud video or web will require internet connection.

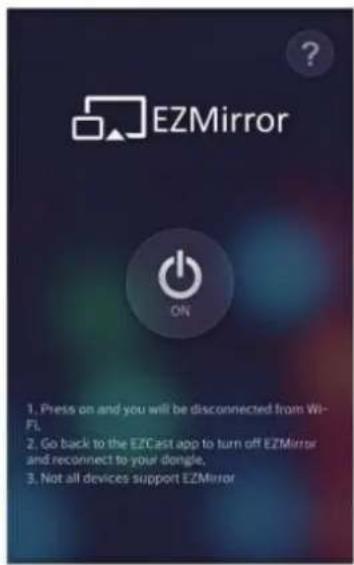

• Please be noted EZMirror(Miracast) mode will disconnect current WiFi and you will need to connect to internet by your phone (3G or WiFi) if you want to keep internet surfing.

App Features(\*based on iOS app for your reference)

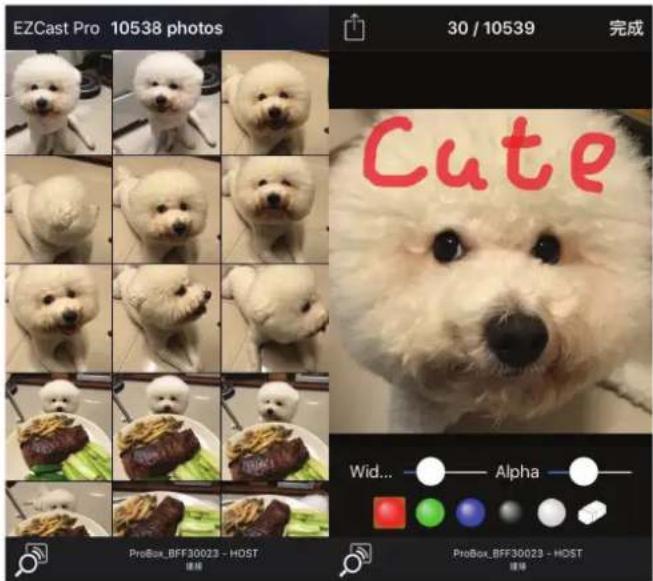

- Photo

- You will have to allow EZCast Pro to share your camera roll and enable the location service before using Photo function.

- In Photo viewer, you can select photo and it will be displayed on your TV/Projector. You can also use gesture control to zoom in/out or change photos.

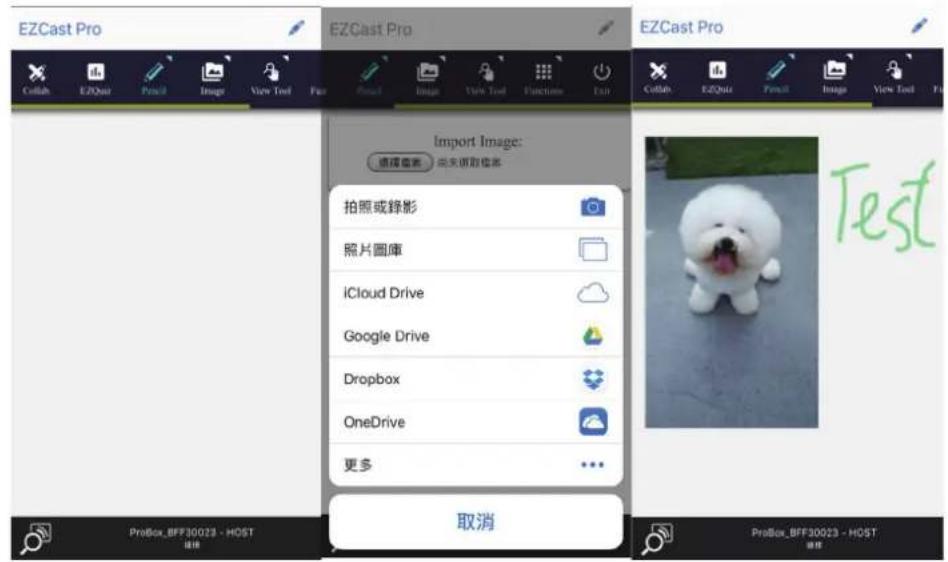

- We developed a practical Sketch tool, you can draw on the photo you picked, and save it if you like.

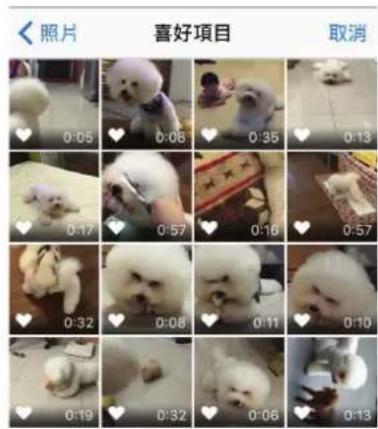

- Video

- There are 2 sources to video streaming. One is to sync the videoyou like through iTunes (iTunes File Syncing), or you can selectvideo from your recorded video (Camera Roll)

• Please be noted iOS will compress the recorded video beforestreaming to save the bandwidth, you can decide if you want to save it in EZCast Pro app for future use.
• You can also sync subtitle file to EZCast Pro, just make sure the filename is the same with your video and sync through iTunes, it will be automatically shown with video playing.

*For subtitle, wesupport srt, smi, ssa and cdg formats with UTF-8 coding.

- For subtitle support, please see demo video: http://goo.gl/0yq5Z8

- Music

- The music player allows you to stream music through WiFi, and we can support playlist.

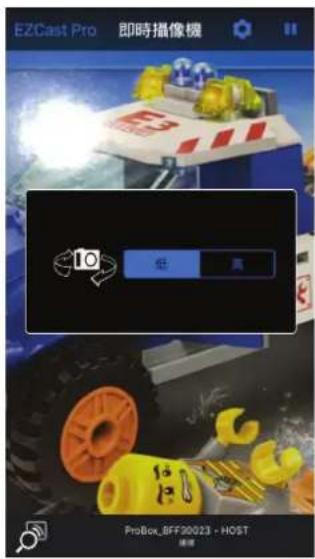

Live Camera

- Live camera is a real object camera which allows you to stream the image from mobile device's camera, and take a snap shot to edit.

- You can adjust image quality, switch from Front/Rear camera. You can enable Sketch and save the current image to album.

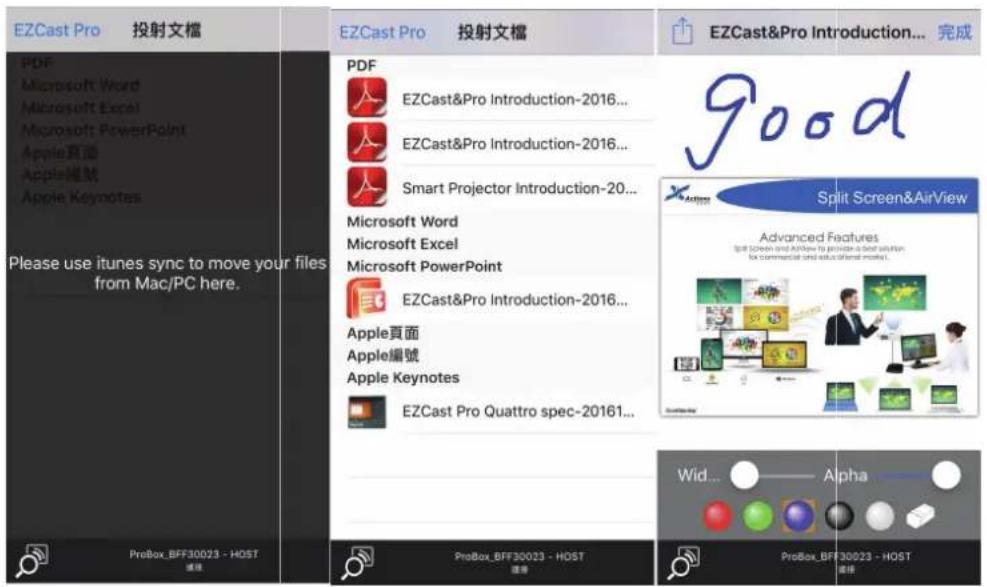

- Document

- The document viewer can support MS-office, PDF, and Apple'siWorks. Before you start to cast, please remember to sync thedocument files to your iOS device through iTunes.

- The document viewer supports sketch as well, that means you can make some note on the document, and save the page to cameraroll.

* Please be noted some documents may not be displayed the same as shownon PC.

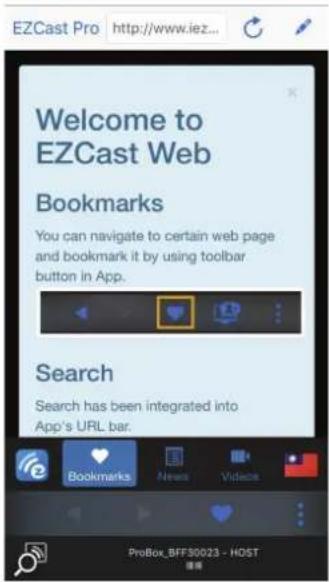

- Web

• EZCast Pro comes with a built-in browser, and we also categorize several popular websites for you.
• The web page will dynamically change with different countrysetting in your device.
• Sketch function is also supported.

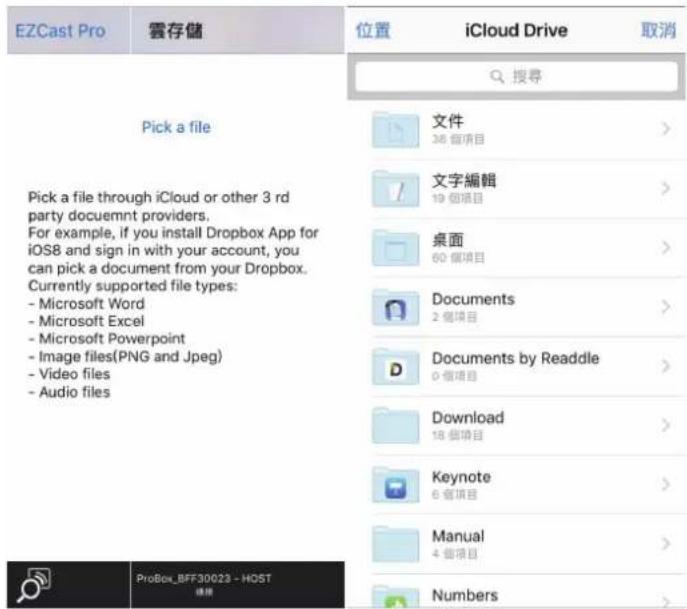

- Cloud Storage

- We will link to your personal Dropbox and *Google Drive accountto let you access your cloud storage anywhere. All content will beshown for you to download and display.

- You can enable sketch function if you download and decode adocument file

- Comment

• We treasure your feedback either good or bad, so we created an innovative way to communicate with you. You can send some comments, suggestions or even bugs to us directly, and all the inputs will make our product better.

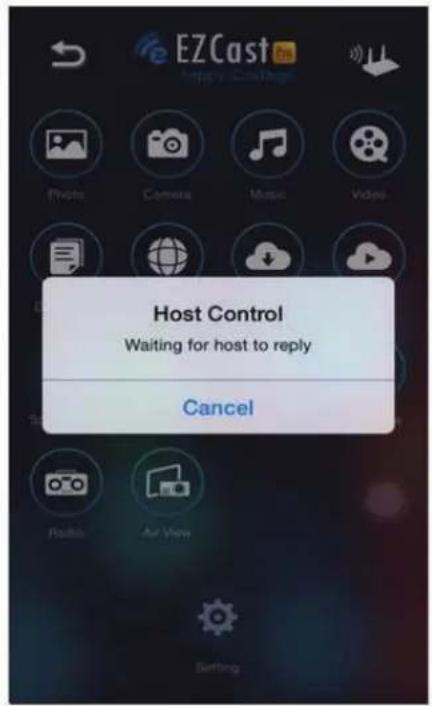

• Split Screen and Host Control

• When you are the first user link to EZCast Pro and open the app, you will become the "Host".
• Host has the authority to control the display, that means Host rolecan use all features without limitation. The next or later coming users will be treated as “Guest”, somefunctions will be disabled under Guest mode, and you will need toget Host’s permission to display.
• EZCast Pro device will allow max. 4 users to display on screentogether, but only Host can decide the position he wants, otherguest's screens will be placed automatically after the request isallowed.

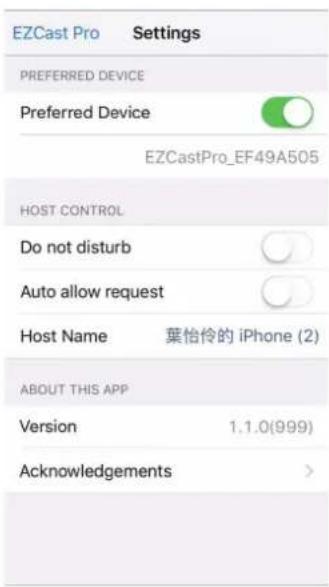

- Preference

- Except Preferred device setting, you can also enable/disable the inquiry from guests, or automatically allow all display requests from guests without showing pop-up message.

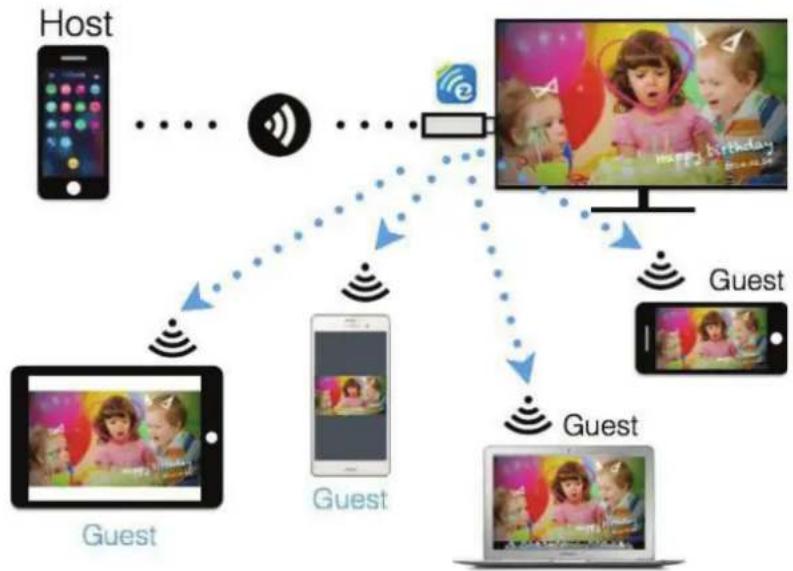

- AirView

• You can enable AirView function to see the current display contenton EZCast Pro hardware, this is a great tool for display sharing.
• This function will not need Host's permission to enable. * This feature doesn't support video or audio streaming.

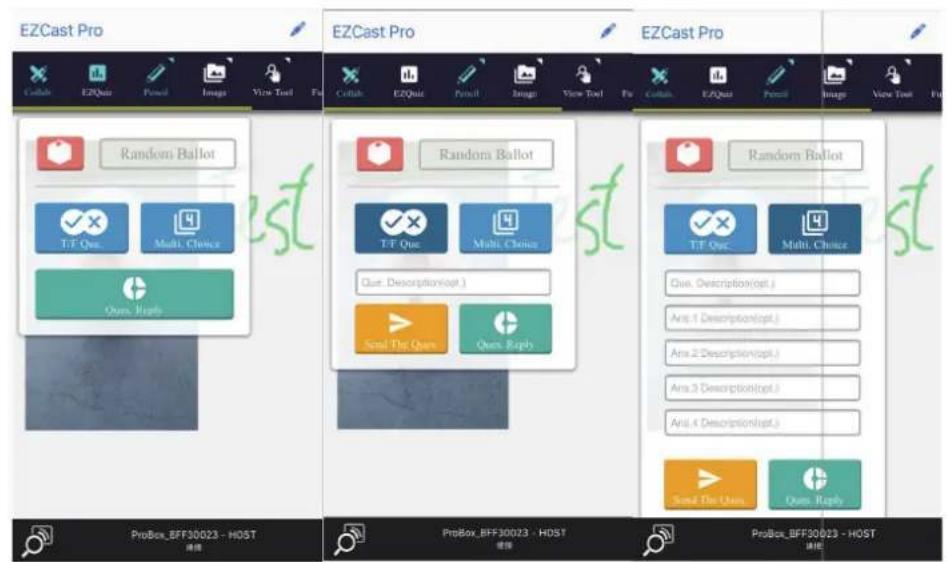

- EZBoard

- EZBoard is an innovative function to achieve real collaboration, which will allow all users share/collaborate in the same board. It can support sketch, insert photos or texts, all users can see the real-time result either on Pro or their own devices. Furthermore, we also integrate a quick tool for quiz purpose.

* Please be noted EZBoard will require internet connection.

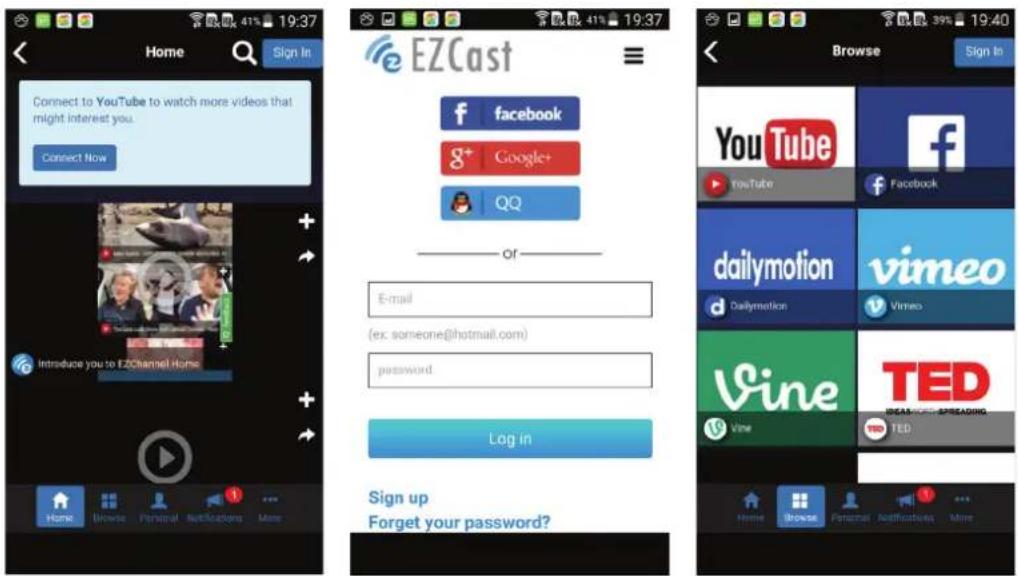

- EZChannel

• Once you enter EZChannel, you can enjoy default featured channel, public channel or your friend's channel. Please be noted some features will require logging in.
• You can subscribe your channel here, review your playlists(collections) or install Chrome plug-in in the setting.

* Please be noted this function will require internet connection.

- DLNA DMR

• DLNA is an industrial standard which allows you to streammultimedia formats through WiFi/LAN
• In the main menu, you can also use DMLA app to push multimediafiles to EZCast Pro for streaming.

- EZMirror(Miracast, this is only available for Windows and Android)

• EZMirror is fully compatible with Miracast, you can click the EZMirror button in EZCast app, and the receiver will be switched to Miracast mode.
• Once you turn it on, there will be a 60 seconds countdown for your mobile phone to connect with the receiver. Please select your Miracast function in your mobile phone setting page.
  • We also recommend you link your smart phone to your homenetwork at the same time to keep internet connection.

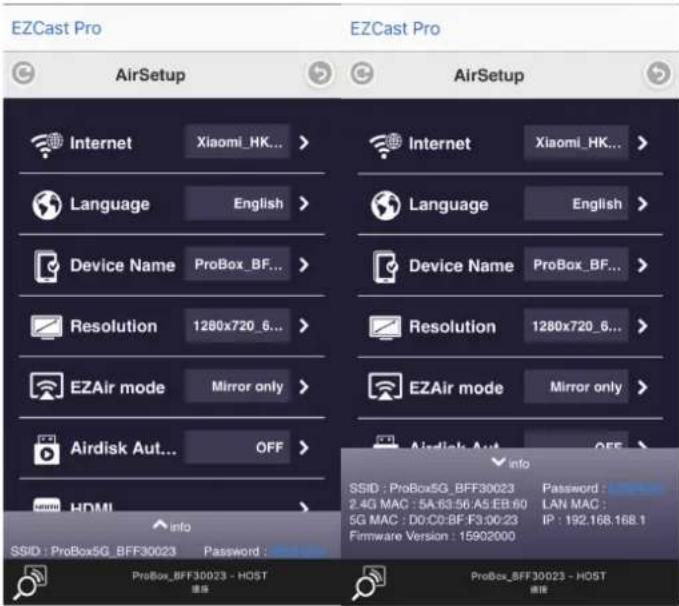

- AirSetup

- In setting function, you can setup EZCastPro device's configurations including output resolution, change SSID password, setup router connection for internet surfing, languages, EZAir modes, and turn on/off Airview/Castcode/Miracode...etc.

• Miracode: this is a special code for IP translation for better IP protection
• Castcode: Except host control, the admin can turn on Castcode for guests, they will need to input the 4 digits Castcode shown on screen to cast their content. This will prevent accidentally interruption by some users not in the same conference room.

- Advanced

Example: Non-admin mode (Guest/Host) Example: Administrator mode

- The Advanced functioncontains all advanced setting/control including Conference Control, Device Management, Network setup, Admin Setup, Host Authority control, Add CA and Access Control or Reboot and Upgrade FW...etc. The defaultpassword is "000000", and you will have to change it while 1st time log-in admin. *Important!!!! Please be careful and keep the new password safe, if you forget the password, the only way to reset it is to contact us for security reason.

- Link Status

- You can check all connected devices status here.

• Conference Control(Default for Host/Admin only)

• This is an advanced control for all connected devices, you can select the position and place it.
• You can disconnect all at one time, too.
• Please be noted some special mode like Miracast will not be controlled by it.

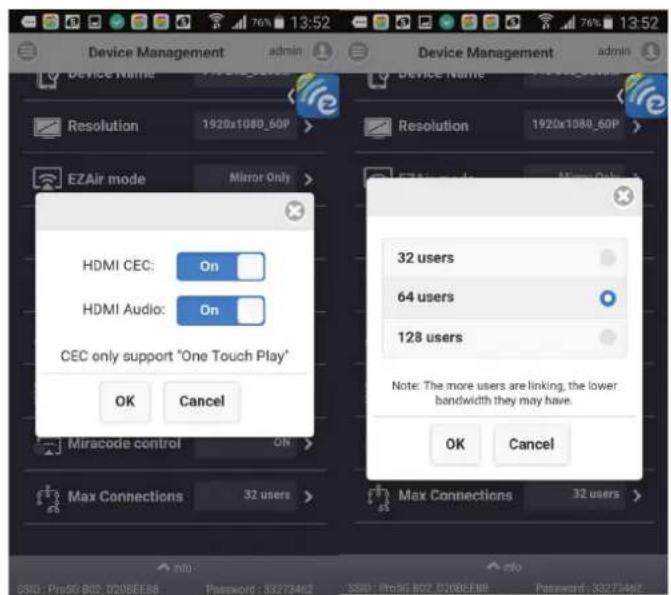

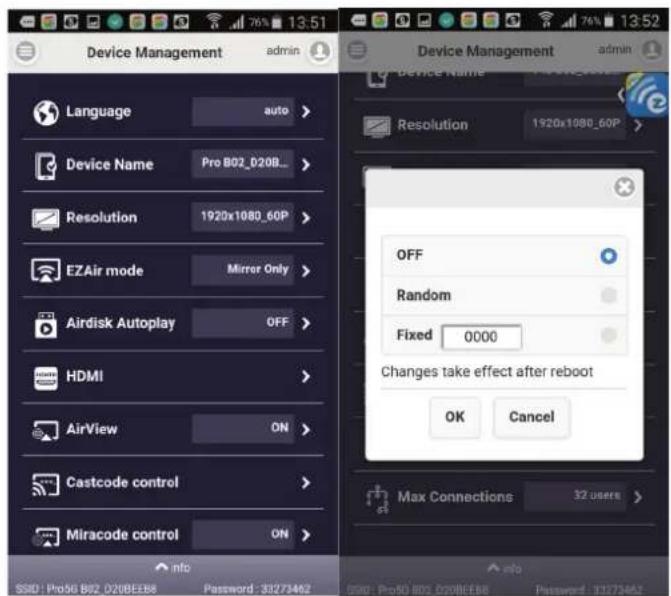

• Device Management (Default for Host/Admin only)

- You can modify device setting here, including language, device's host name (not SSID), change resolution, change EZAir mode while playing video (only mirror or stream video), turn on/off AirDisk auto play, HDMI CEC, AirView on/off, Castcode on/off/fixed digit, Miracode on/off, as well as the max. usersconnection.

Network Setup (Default for Admin, but can be enabled for Host by Administrator)

- You can adjustnetwork related setting here. Please be noted some settings will require reboot.

Admin Setup (Only for Admin)

- You can adjust more detailed functions here, and you can also release some authorities for Host to control the device, and here are some major features descriptions.

- Password

- Admin password change, the defaultpassword is "000000", you will have to change it in the 1st time log-in as admin. *Please be noted to preserve the Administrator passwordcarefully, due to security reason, if you forget it or lose it, this only way to grant it is to contact us to reset it.

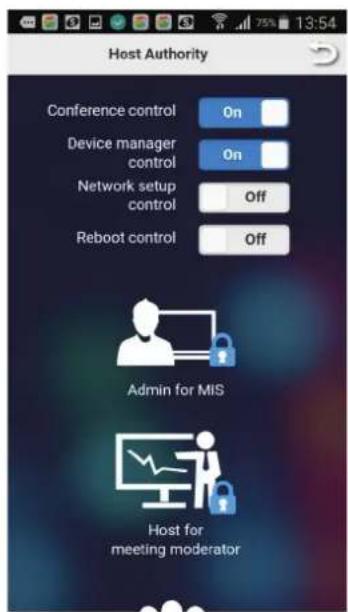

- Host Authority

- The admin can release some functions to Host so that the host can get some control, too. If some functions are released to host, then the host can use some functions without logging in as administrator.

- Access Control

- The admin can decide if the connected devices can go for internet through EZCast Pro device or not.

- Add CA for WiFi enterprise (802.1x), this is for WiFi Enterprise connection, consult with your MIS for the CA if needed.

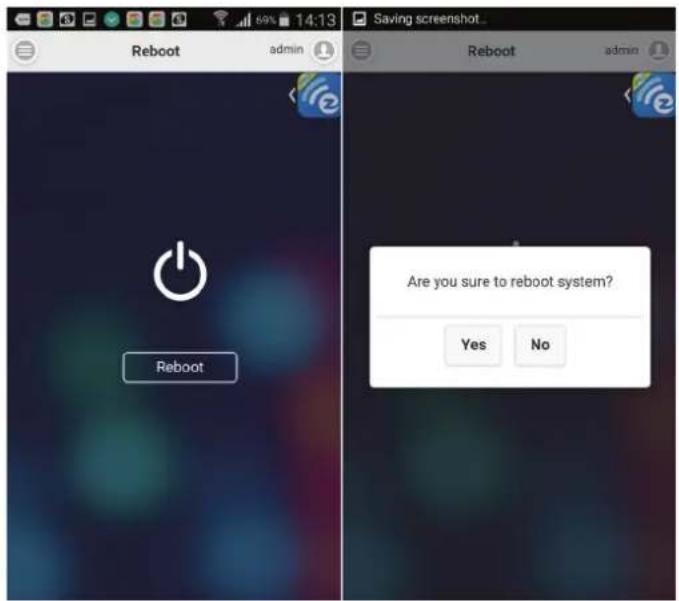

- Reboot Control (Default for Admin only, but can be released to Host)

- You can reboot the device if you need.

- Reset to Default

- Reset all parameters to default.

- About

• Show some device information like version and others.

Other Information

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need to provide the product serial number.

Country/Region	Website	T= TelephoneC = CHAT ONLINE	Email
AustraliaNew Zealand	www.viewsonic.com.au	AUS= 1800 880 818NZ= 0800 008 822	[e-mail]
Canada www.viewsonic.com T= 1-866-463-4775 [e-mail]
Europe www.viewsoniceurope.com http://www.viewsoniceurope.com/eu/support/call-desk/
Hong Kong www.hk.viewsonic.com T= 852 3102 2900 [e-mail]
India www.in.viewsonic.com T= 1800 419 095 [e-mail]
Korea ap.viewsonic.com/kr/ T= 080 333 2131 [e-mail]
Latin America(Argentina)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Chile)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Columbia)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Mexico)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F.Tel: [phone])6547-6484Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico
Latin America(Peru)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Macau www.hk.viewsonic.com T= 853 2870 0303 [e-mail]
Middle East	ap.viewsonic.com/me/	Contact your reseller	[e-mail]
Puerto Rico &Virgin Islands	www.viewsonic.com	T= 1-800-688-6688 (English)C = http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]@viewsonic.com
Singapore/Malaysia/Thailand	www.ap.viewsonic.com	T= 65 6461 6044 [e-mail]
South Africa	ap.viewsonic.com/za/	Contact your reseller	[e-mail]
United States	www.viewsonic.com	T= 1-800-688-6688	[e-mail]

Limited Warranty

ViewSonic® Wireless Presentation Gateway

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic Wireless Presentation Gateway is warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration, failure, or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper maintenance, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Operation outside of product specifications.
c. Operation of the product for other than the normal intended use or not under normal conditions.
d. Repair or attempted repair by anyone not authorized by ViewSonic.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
g. Causes external to the product, such as electric power fluctuations or failure.
h. Use of supplies or parts not meeting ViewSonic's specifications.
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.

1. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to "Customer Support" page). You will need to provide your product's serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Effect of local law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governances do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information.

Wireless Presentation Gateway Warranty Term Template In UG

VSC_TEMP_2014

Mexico Limited Warranty

ViewSonic® Wireless Presentation Gateway

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

ViewSonic Wireless Presentation Gateway is warranted for 1 year for labor from the date of the first customer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time.

2. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: ____ Model Number: ____

Document Number: Serial Number:

Purchase Date: ____ Extended Warranty Purchase? ____ (Y/N)

If so, what date does warranty expire? ____

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,Col. San Fernando Huixquilucan, Estado de MéxicoTel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:Distribuciones y Servicios Computacionales SA de CV.Calle Juarez 284 local 2Col. Bugambilas C.P: 83140Tel: [phone]E-Mail: [e-mail]	Villahermosa:Compumantenimietnos Garantizados, S.A. de C.V.AV. GREGORIO MENDEZ #1504COL, FLORIDA C.P. 86040Tel: [phone]E-Mail: [e-mail]
Puebla, Pue. (Matriz):RENTA Y DATOS, S.A. DE C.V. Domicilio:29 SUR 721 COL. LA PAZ72160 PUEBLA, PUE.Tel: [phone] CON 10 LINEASE-Mail: [e-mail]	Veracruz, Ver.:CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419ENTRE PINZÓN Y ALVARADOFracc. Reforma C.P. 91919Tel: [phone]E-Mail: [e-mail]
ChihuahuaSoluciones Globales en ComputaciónC. Magisterio # 3321 Col. MagisterialChihuahua, Chih.Tel: [phone]E-Mail: [e-mail]	CuernavacaCompusupport de Cuernavaca SA de CVFrancisco Leyva # 178 Col. Miguel HidalgoC.P. 62040, Cuernavaca MorelosTel: 01 777 3180579 / 01 777 3124014E-Mail: [e-mail]
Distrito Federal:QPLUS, S.A. de C.V.Av. Coyoacán 931Col. Del Valle 03100, México, D.F.Tel: [phone]E-Mail : [e-mail]	Guadalajara, Jal.:SERVICRECE, S.A. de C.V.Av. Niños Héroes # 2281Col. Arcos Sur, Sector Juárez44170, Guadalajara, JaliscoTel: 01(52)33-36-15-15-43E-Mail: [e-mail]
Guerrero AcapulcoGS Computación (Grupo Sesicomp)Progreso #6-A, Colo Centro39300 Acapulco, GuerreroTel: 744-48-32627	Monterrey:Global Product ServicesMar Caribe # 1987, Esquina con Golfo PérsicoFracc. Bernardo Reyes, CP 64280Monterrey N.L. MéxicoTel: 8129-5103E-Mail: [e-mail]
MERIDA:ELECTROSERAv Reforma No. 403Gx39 y 41Mérida, Yucatán, México CP97000Tel: [phone]E-Mail: [e-mail]	Oaxaca, Oax.:CENTRO DE DISTRIBUCION YSERVICIO, S.A. de C.V.Murguía # 708 P.A., Col. Centro, 68000, OaxacaTel: 01(52)95-15-15-22-22Fax: [phone]E-Mail. [e-mail]
Tijuana:STDAv Ferrocarril Sonora #3780 L-CCol 20 de NoviembreTijuana, Mexico	FOR USA SUPPORT:ViewSonic Corporation14035 Pipeline Ave. Chino, CA 91710, USATel: 800-688-6688 (English); 866-323-8056 (Spanish);E-Mail: http://www.viewsonic.com

Three colorful bird illustrations perched on a branch against a red background (no text or symbols)

ViewSonic®
