Product Type	Hand Blender
Brand	Morphy Richards
Model	402006
Power	Approx. 600 W
Voltage	220-240 V, 50/60 Hz
Speed Settings	Variable speed with turbo boost
Attachments Included	Blending shaft, whisk, measuring jug
Blending Shaft Material	Stainless steel
Cord Length	Approx. 1.2 m
Weight	Approx. 0.8 kg
Dimensions (Main Unit)	Approx. 38 x 6 x 6 cm
Dishwasher Safe Parts	Detachable shaft and whisk
Safety Features	Soft-grip handle, safety lock switch
Warranty	2 years
Color	Black/silver

Frequently Asked Questions - 402006 MORPHY RICHARDS

What is the power rating of the Morphy Richards 402006 hand blender?

The Morphy Richards 402006 hand blender has a power rating of approximately 600 W, suitable for blending soups, sauces, and smoothies.

Can I use the blender for hot liquids?

Yes, the stainless steel shaft can be used in hot liquids up to 80°C. Ensure the blender is fully immersed to avoid splashing.

How do I clean the hand blender?

Detach the blending shaft and whisk. Rinse under running water or clean in the dishwasher (top rack). Wipe the motor unit with a damp cloth.

What attachments are included?

The package includes a stainless steel blending shaft, a whisk attachment, and a measuring jug (500 ml).

Is the blender suitable for crushing ice?

The hand blender is not designed for crushing ice. Use only for soft fruits, cooked vegetables, and liquids.

How do I change the speed?

Use the variable speed control on the handle. Rotate to increase or decrease speed. Press the turbo button for maximum power.

Can I blend directly in a saucepan?

Yes, the blender can be used directly in a saucepan. Ensure the shaft is fully immersed and the saucepan is not non-stick to avoid scratching.

What is the cord length?

The power cord is approximately 1.2 meters long, allowing easy movement around the kitchen.

Is the blender easy to store?

Yes, the compact design and detachable attachments make it easy to store in a drawer or cupboard. The motor unit stands upright for convenience.

Does the blender have a safety feature?

Yes, it features a safety lock switch to prevent accidental operation. The motor only runs when the switch is pressed.

USER MANUAL 402006 MORPHY RICHARDS

smart ideas for your home

Accents

Hand Blender Set

Please read and keep these instructions for future use. NOTE: Your product serial number is printed on the back of this instruction booklet.

NEW SERRATOR BLADE

For competitions, product hints and tips and more join us at

www.morphyrichards.co.uk/blog

www.facebook.com/morphyrichardsuk

@loveyourmorphy

www.morphyrichards.com

* Register online for your 2 year guarantee. See the back of this instruction book for details (UK and Ireland customers only).
** Applies to serrator blade only. See back of this instruction book for details.
*** Independently tested by CATRA using the International Standard Cutting Test System to ISO 8442.5 vs a standard plain edge blade.

Health and Safety

The use of any electrical appliance requires the following common sense safety rules.

Please read these instructions carefully before using the product.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

In addition, we offer the following safety advice.

Location

- This appliance is intended to be used in household and similar applications such as:

farm houses;

by clients in hotels, motels and other residential type environments;

bed and breakfast type environments.

It is not suitable for use in staff kitchen areas in shops, offices and other working environments.

• Do not use outdoors or in a bathroom.
  • Always locate your appliance away from the edge of the worktop.
• Do not place the bowl used with the appliance on a highly polished wooden surface as damage may occur to the surface.

Mains cable

• Do not let the mains cable hang over the edge of the worktop where a child could reach it.
• Do not let the lead run across an open space e.g. between a low socket and a table.
• Do not let the cable run across a cooker or other hot area which might damage the cable.
• The mains cable should reach from the socket to the base unit without straining the connections.
• The power cord cannot be replaced. Contact Morphy Richards for advice.

Personal safety

• Avoid touching moving parts. Keep hands, hair and clothing, and utensils away from the attachment blades during operation, to prevent personal injury and/or damage to the appliance.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Do not allow children to use the blender without supervision.

Other safety considerations

Product specific safety

• Do not use the appliance for anything other than it's intended purpose.
• WARNING: The blender blades are very sharp. Handle with care when using and cleaning.
• Do not clean the attachments under running water while they are in position.
• IMPORTANT: Allow hot liquids to cool before adding to the blender, always ensure the lid is fitted correctly.
• Do not blend for longer than the time periods recommended in 'Usage' on page 8.
• Do not exceed the maximum volumes refer to the ‘Quantities’ table on page 8.
• Be careful whilst hot liquid is blending or poured into the blender as it can be ejected due to sudden steaming.
  • Always disconnect from the supply if it left unattended and before assembling, dissembling or cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Electrical requirements

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

Should the fuse in the mains plug require changing, a 3 amp BS1362 fuse must be fitted.

NEW

SERRATOR

BLADE

STAYS SHARPER

12x LONGER

THAN STANDARD BLADES

***

Congratulations on choosing your new Morphy Richards food preparation appliance with Serrator Blade technology. With its revolutionary, unique design the Serrator Blade is designed to give you superior cutting performance for longer.

How does the Serrator blade work?

Specially developed by our in-house designers the Serrator Blade has been created to outperform standard plain edge blades. The perfect serration has been carefully selected and rigourously tested to give you superior performance and us the confidence that the Serrator Blade will give you years of satisfaction.

Sharpness

Blade life

Our new precision Serrator Blades stay sharper up to 12x longer than standard blades, maintaining performance for life.

LIFETIME BLADE

GUARANTEE

Product overview

Features

(1) Speed Control
(2) Main Unit
(3) On Button
(4) Turbo Button
(5) Blending Leg
(6) Serrator Blade
(7) Whisk Gearbox
(8) Balloon Whisk
(9) Beaker
(10) Chopping Bowl Lid

(11) Chopping Serrator Blade
(12) Chopping Bowl

Introduction

Thank you for your recent purchase of this Morphy Richards Hand Blender Set.

The hand blender set comes with a number of attachments and a 'quick twist' connection mechanism for safety.

Please read the instructions for information on how to use each attachment thoroughly before use.

Remember to visit www.morphyrichards.co.uk to register your product's two year guarantee.

Using your hand blender

Insert the Main Unit (2) into the Blending Leg (5) and twist to secure into place.

Before first use

• Wash the Blending Leg (5), Beaker (9), Balloon Whisk (8), Chopping Serrator Blade (11) and Chopping Bowl (12) in hot soapy water. Dry thoroughly before use.
• Do not immerse the Main Unit (2) Whisk Gearbox (7) or Chopping Bowl Lid (10) in water.
  • The Beaker, Chopping Bowl and Balloon Whisk are dishwasher safe.
• WARNING: Carefully unpack your hand blender as the Serrator Blade (6) is very sharp.

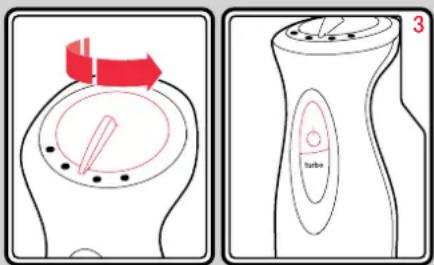

Select the speed on the Speed Control (1). Hold the beaker steady in your other hand and press and hold the On Button (3) to start.

Place the Blending Leg into the food to be blended. We recommend using the Beaker (9) for the best results.

Move the Serrator Blade (6) through the food using an up and down motion.

Release the On Button to stop blending BEFORE removing from the food

Unplug your hand blender from the mains. Twist the Blending Leg (5) to remove from the Main Unit for cleaning. Rinse under running water.

Blending in a saucepan

1. Remove the saucepan from the heat.
2. To avoid excessive splashing, place the Blending Leg (5) into the food before switching the Hand Blender on.
3. Hold the pan steady with your other hand and press the On Button (3). Use a low speed setting to start and increase the speed as needed.
4. Move the Serrator Blade (6) through the food using a up and down motion.
5. Allow the Serrator Blade to stop moving before removing from the pan.
6. WARNING: Lifting the Serrator Blade out of the food while running, or using a high speed setting in a small pan could splash hot liquid. Extra care should be taken when using the Hand Blender in this manner.

7. Do not insert the hand blender into the food past the join between the Main Unit (2) and the Blending Leg (5).

8. Ensure the power cable does not touch any hot surfaces (including the side of the pan.)

9. The hand blender has 8 different speeds as well as a Turbo Button (4). Press the Turbo Button to run the hand blender on speed 8 for intermittent bursts.
10. Note: The Chopping Bowl (12) attachment can only be used with the Speed Control (1) set to the highest setting or when using the Turbo Button (4). Using on a lower setting may cause irreparable damage to the Hand Blender.

Turbo Button

Usage

• WARNING: Your hand blender set is designed for intermittent use. Do not use continuously for more than 1 minute. Allow to cool down for a minimum of 5 minutes before further use.
• Do not use continuously for more than 10 seconds when lifted out of food.
• Do not use to crush ice.

Using the Balloon Whisk

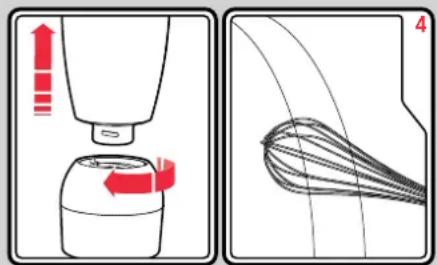

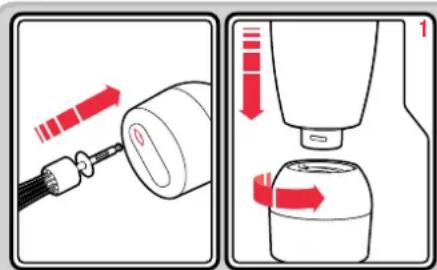

Insert the Balloon Whisk (8) into the Whisk Gearbox (7). Attach the whisk onto the Main Unit (2).

Place the Balloon Whisk into the ingredients.

To avoid splashing, select a slow speed on the Speed Control (1) and press and hold the On Button (3) to start. Release the button to stop BEFORE removing the Balloon Whisk from the food.

Unplug from the mains before twisting the Whisk Gearbox (7) to unlock from the Main Unit (2). Pull the Balloon Whisk from the Whisk Gearbox for cleaning.

Using the Chopping bowl

CAREFULLY Insert the Chopping Serrator Blade (11) into the Chopping Bowl (12).

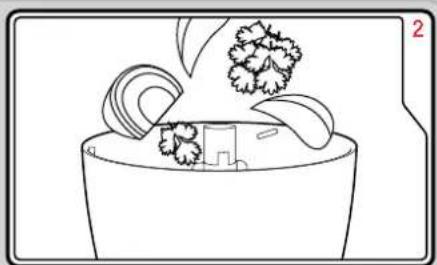

Place the food you wish to chop into the Chopping Bowl. (Please refer to the maximum quantities table on page 8)

Place the Chopping Bowl Lid (10) on the Chopping Bowl. Twist to secure into place.

Attach the Main Unit (2) to the Chopping Bowl Lid, twist to secure into place.

Select the maximum speed on the Speed Control (1) and press and hold the On Button (3) to start. Do not open the Lid while in use.

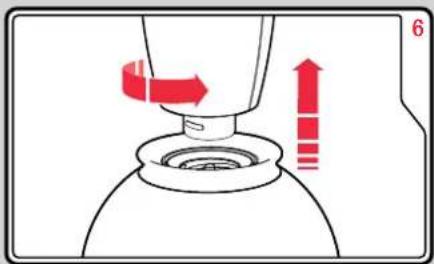

Unplug from the mains before twisting the Main Unit to detach from the Chopping Bowl Lid.

Remove the Chopping Bowl Lid from the Chopping Bowl.

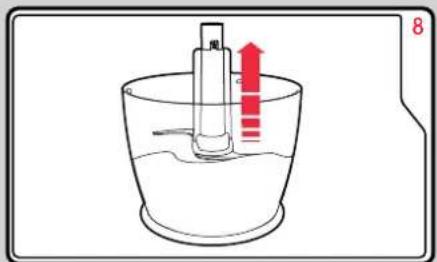

CAREFULLY remove the Chopping Serrator Blade before emptying the food from the bowl.

Maximum quantities for use in the Chopping Bowl (12)

• The amounts listed below should be used as a guide.
  The Chopping Bowl (12) should not be filled more than half full.
  Ingredients Maximum

- Onions - 200g

- Carrots • 100g • 5-15 seconds

- Basil - 50g

- Meat (fat free) - 100g

- Peanuts - 100g

Quantity

• 3-8 seconds

• 7-12 seconds
  7-13 seconds
• 5-15 seconds

Time

Suitable foods

Blending Leg (5)

• The Blending Leg is designed for pureeing soft foods for use in soups and baby food.
• The Blending Leg is not suitable for grinding hard items such as coffee beans, ice, nuts, meat or hard vegetables (raw potatoes, raw carrots etc).

Balloon Whisk (8)

• The Balloon Whisk is ideal for whipping cream, eggs and other soft foods. It should be used at low speeds to avoid splashing.
• It is not suitable for stiffer mixtures such as cake batter.

Chopping Bowl (12)

• The Chopper is suitable for chopping nuts, herbs, boiled eggs and dried bread. The chopping bowl should be used on maximum speed only.
• The Chopper is not suitable for grinding coffee beans or hard vegetables (raw potatoes, raw carrots etc).
• Do not use to crush ice.

Top tips

• When blending foods with strong colour (eg. cooked carrots), the plastic parts of the appliance may become discoloured. Wipe with cooking oil to clean any discoloured parts.
• When blending using the Blending Leg (5), start the process by plunging the blender into the ingredients. This will ensure all the ingredients are pulled into the blade to be processed. Continue this movement until the mixture is to the desired consistency.
• Do not lift the Blending Leg out of the mixture completely when running, as splashing may occur.

Care and cleaning

• WARNING: Always unplug the appliance from the mains socket before cleaning and maintenance.
• WARNING: Handle the blades with care as they are sharp.
• Wash the Blending Leg (5) Beaker (9), Balloon Whisk (8), Chopping Serrator Blade (11) and Chopping Bowl (12) thoroughly in hot soapy water. Dry completely before reusing.
• Clean the Main Unit (2) Whisk Gearbox (7) or Chopping Bowl Lid (10) with a damp cloth and dry all the parts thoroughly.
• WARNING: Never immerse the Main Unit, Whisk Gearbox or Lid in water or any other liquid.
• The Beaker, Chopping Bowl and Balloon Whisk are dishwasher safe.

Contact us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from.

Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker.

UK Helpline: 0844 871 0960

IRE Helpline: 1800 409 119

Spares: 0844 873 0726

Talk To Us

If you have any questions or comments, or want some great tips or recipe ideas to help you get the most out of your products, join us online:

Blog: www.morphyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: @loveyourmorphy

Website: www.morphyrichards.com

Notes

9

F

Notes

Notes

FP402006 MUK Rev 1 03/13

Lifetime blade guarantee

The 'Serrator Blade' is warranted to be free from defects in materials and workmanship for life. This warranty covers the original purchaser only and is not assignable or transferable to any other party. This warranty is available to consumers who use the 'Serrator Blades' for non-commercial household purposes. This warranty does not cover any damage caused by accident, misuse or any use other than as described in your owner's manual, or damage resulting from failure to maintain and clean this product as specified in your owner's manual.

Registering your 2 year guarantee

Your standard one year product guarantee is extended for an additional 12 months when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 2 year guarantee register with us online at www.morphvrichards.co.uk

Or call our customer registration line UK 0844 871 0962

IRE 1800 409 119

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 2 year guarantee is only available in the UK and Ireland. Please refer to the one year guarantee for more information.

Your 1 year guarantee

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase. Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, crumb trays should have been emptied regularly.

Exclusions

Morphy Richards shall not be liable to replace or repair the goods under the terms of either the Lifetime Blade Guarantee or the 1 or 2 Year Guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 The appliance has been used for hire purposes or non domestic use.
5 The appliance is second hand.
6 Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion
7 Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.
8 Batteries and damage from leakage are not covered by the guarantee.
- These guarantees does not confer any rights other than those expressly set out above and do not cover any claims for consequential loss or damage. These guarantees are offered as an additional benefit and do not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions.

Disclaimer

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of it's models at any time.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country

IF YOU ARE HAVING A PROBLEM WITH ONE OF OUR PRODUCTS, CALL OUR HELPLINE:

UK: 0844 871 0960 EIRE: 1800 409 119 SPARES: 0844 873 0726

morphy richards

The After Sales Division

Morphy Richards Ltd

Mexborough, South Yorkshire,

England, S64 8AJ

Helplines (office hours)

UK 0844 871 0960

Spare Parts 0844 873 0726

Republic of Ireland 1800 409 119

www.morphyrichards.com
