Product Type	Freestanding Dishwasher
Brand	Elektro Helios
Model	DI930-2
Place Settings	12
Energy Efficiency Class	A+
Annual Energy Consumption	290 kWh
Water Consumption per Cycle	12 L
Noise Level	49 dB(A) re 1 pW
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Glass, Pre-Wash
Drying System	Condensation drying with heat exchanger
Water Connection	Cold water only
Dimensions (H x W x D)	845 x 600 x 600 mm
Weight	45 kg

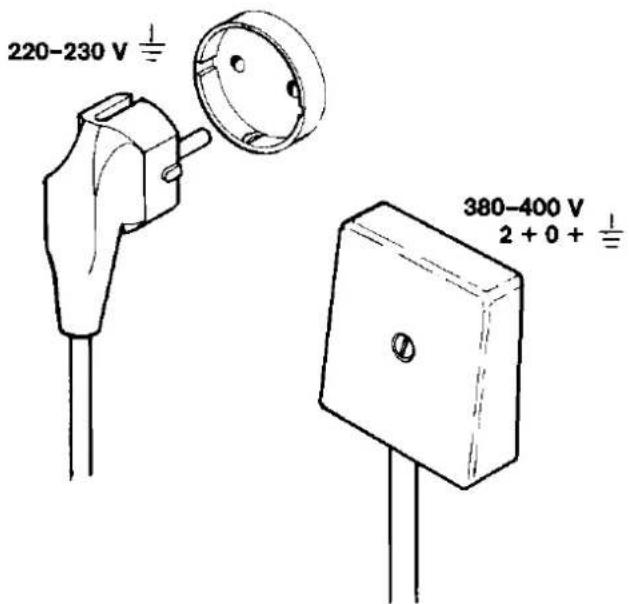

Electrical Connection	220-240 V, 50 Hz, 10 A
Power Consumption (Standby)	0.5 W
Water Inlet Hose Length	1.5 m
Drain Hose Length	1.5 m
Safety Features	Child lock, overflow protection, anti-flood device
Spare Parts Availability	Racks, spray arms, filters, heating element, pump, control board
Repair Index	7.2 / 10 (repairable with standard tools)
Cleaning and Maintenance	Clean filters monthly, wipe door seals, descale every 3 months
Warranty	2 years (EU), varies by country

Frequently Asked Questions - DI930-2 ELEKTRO HELIOS

How do I register my Elektro Helios DI930-2 dishwasher?

Visit the Elektro Helios website and navigate to the registration page. You will need your model number DI930-2, serial number, and purchase receipt.

What does the 'Eco' program do on the DI930-2?

The Eco program is designed to save energy and water. It runs at a lower temperature (50°C) and longer duration to achieve optimal cleaning with minimal resources.

Why is my dishwasher not draining water?

Check the drain hose for kinks or clogs. Also clean the filter and ensure the pump impeller is not blocked. If the problem persists, the drain pump may need replacement.

How do I clean the filters on the DI930-2?

Remove the lower rack, turn the coarse filter counterclockwise, and lift out both filters. Rinse under running water, scrub if necessary, and reassemble. Clean monthly for best performance.

What types of detergent can I use?

You can use powder, gel, or tablets. For Eco program, use a detergent with enzymes for effective low-temperature cleaning. Always use rinse aid for better drying.

How do I activate the child lock?

Press and hold the Start/Reset button for 3 seconds until a lock symbol appears on the display. To deactivate, repeat the same process.

My dishes are not drying properly. What should I do?

Ensure the rinse aid dispenser is filled. Increase the rinse aid dosage setting. Check that the drying system is clean and not blocked. Also, select the Extra Drying option if available.

Where can I find spare parts for the DI930-2?

Spare parts like racks, spray arms, filters, and heating elements are available online at parts retailers or directly from Elektro Helios service centers. Use the model number for accurate fit.

How do I descale the dishwasher?

Use a proprietary dishwasher descaler. Pour it into the detergent compartment and run a hot empty cycle (e.g., Intensive 70°C). Repeat every 3 months depending on water hardness.

What does error code 'E15' mean?

Error code E15 indicates a possible leak or water in the base tray. Turn off the water supply and unplug the appliance. Check for leaks and dry the base tray. If the error persists, contact service.

USER MANUAL DI930-2 ELEKTRO HELIOS

Line drawing of a front view of a kitchen appliance with a door, tray, and base (no text or symbols)

Mechanical assembly diagram showing a rotating component mounted on a rod with a base mount (no text or symbols)

Vid frysrisk

Simple line drawing of a rectangular container with a circular label containing the number 35, no text or symbols present.

Pure diagram of a mechanical component with no text, numbers, or symbols visible

Technical line drawing of a mechanical assembly with components and alignment lines (no text or symbols)
