DI810-3 - Dishwasher ELEKTRO HELIOS - Free user manual and instructions

Product Type	Built-in dishwasher
Brand	Elektro Helios
Model	DI810-3
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	Approx. 50 kg
Power Supply	230 V ~ 50 Hz, 10 A
Energy Efficiency Class	A (estimated)
Number of Place Settings	12-14 (estimated)
Programs	Eco, Intensive, Normal, Rinse & Hold
Noise Level	~50 dB (estimated)
AquaStop	Yes
Child Lock	Yes
Adjustable Racks	Yes, with foldable tines
Cutlery Basket	Yes, removable
Self-Cleaning Filter	Yes
Delay Start	Yes, up to 24 hours
Drying System	Condensation drying
Interior Light	Yes
Spare Parts Availability	Available for up to 10 years

Frequently Asked Questions - DI810-3 ELEKTRO HELIOS

How do I install the dishwasher?

Refer to the installation chapter in the manual. Ensure the appliance is level, water and electrical connections are secure, and the inlet hose is not kinked. Built-in models require proper cabinetry preparation.

What should I do if the dishwasher doesn't start?

Check that the door is closed properly, the power cord is plugged in, and the circuit breaker is not tripped. Also ensure the water supply is turned on and the delay start function is not active.

How should I load the dishes for best results?

Place heavily soiled items facing the spray arms. Avoid blocking water flow. Use the upper rack for glasses and cups, lower rack for plates and pots, and the cutlery basket for utensils. Refer to the user manual for loading diagrams.

What detergent should I use?

Use a mild dishwasher detergent (powder, tabs, or gel). For hard water, add a water softener or use detergent with built-in salt. Always follow the dosage instructions on the detergent package.

How do I clean the spray arms?

Remove the spray arms by unscrewing the retaining nut. Clean the nozzles with a pointed object to remove debris. Rinse under running water and reassemble. Do this regularly to ensure optimal cleaning.

Why are there white spots on my dishes?

White spots are usually caused by hard water or insufficient rinse aid. Check the rinse aid reservoir and refill it. Also ensure the water softener is set correctly according to your water hardness level.

How do I enable/disable the child lock?

The child lock is typically activated by pressing and holding the Start/Pause button for 3 seconds, or a combination of buttons. Refer to the manual for exact steps. When enabled, buttons are locked to prevent accidental operation.

What should I do if water leaks from the dishwasher?

Turn off the water supply and power immediately. Check the door gasket for debris or damage. Ensure the drain hose is not clogged. If the leak persists, contact a professional technician. The AquaStop system may have activated.

How often should I clean the filter?

Clean the coarse filter after every wash, and the fine filter weekly. Remove the filter assembly, rinse under water, and scrub with a soft brush if needed. A clogged filter reduces cleaning performance.

Where can I find spare parts for my model?

Spare parts can be ordered through authorized service centers or online retailers. Use the model number DI810-3 and brand Elektro Helios. The manufacturer guarantees availability for at least 10 years after purchase.

USER MANUAL DI810-3 ELEKTRO HELIOS

Made in Sweden

Diskmaskin Astianpesukone

B R U K S A N V I S N I N G

K Ä Y T T Ö O H J E

DI 810-3

INNEHÅLLSFÖRTECKNING 2

SISÄLTÖ 28

Elektro EH Helios

INNEHÅLL

SE

PLACERING

FRISTÄENDE MASKINER

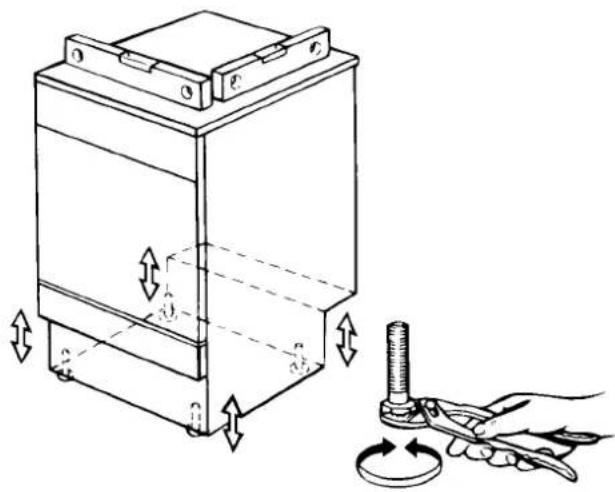

STÄLL MASKINEN VÅGRÄTT

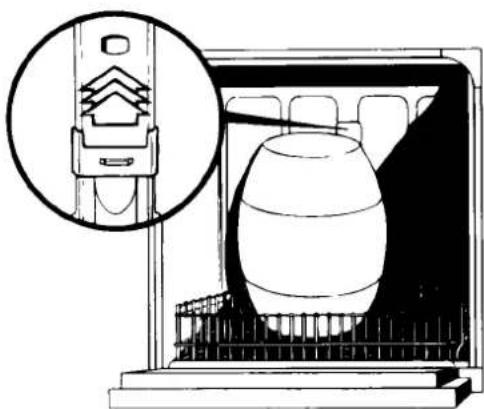

FÖRBEREDELSER FÖR INBYGGNAD

INJUSTERING

ANSLUT ELSLADDEN

INSTÄLLNING AV LUCKANS BARNSÄKERHETSLÅS

MASKINDISKMEDEL ÄR FARLIGT!

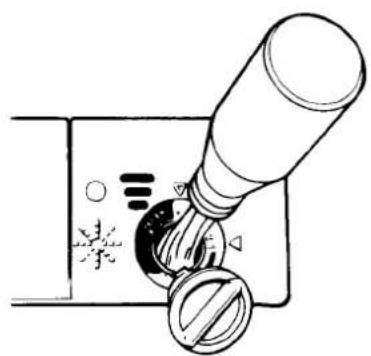

ANVÄND SKÖLJMEDEL

RENGÖRING AV SPOLARMARNA

AVSTÄNGNING AV VATTEN OCH EL

Om något verkar fel

OM DISKEN INTE BLIR REN ...

OM DET BLIR ÖVERSVÄMNING (TROTS ALLT)
