Product Type Roof Box
Brand Calix
Model Nova 380
Capacity 380 liters
External Dimensions (L x W x H) 195 x 85 x 44 cm
Internal Dimensions (L x W x H) 180 x 75 x 38 cm
Weight 18 kg
Max Load Capacity 75 kg
Material High-impact ABS plastic
Color Glossy Black
Locking System Central locking with two keys
Opening Dual side opening
Mounting System Quick-fit clamp system, fits most roof bars
Compatible Roof Bars Square, round, aerodynamic (up to 90 mm width)
Aerodynamic Design Optimized for low wind noise and drag
Security Key lockable, anti-theft design
Maintenance Clean with mild soap and water; check mounting bolts regularly
Spare Parts Locks, keys, mounting clamps, and rubber seals available
Repairability Modular parts replaceable; contact Calix service or authorized dealers
Warranty 2 years manufacturer warranty

Frequently Asked Questions - Nova 380 Calix

What is the capacity of the Calix Nova 380 roof box?
The Nova 380 has a capacity of 380 liters, suitable for carrying skis, luggage, and bulky items.
What are the external dimensions of the Nova 380?
External dimensions are approximately 195 x 85 x 44 cm (L x W x H). Always measure your vehicle roof clearance before installation.
What is the maximum load weight for this roof box?
The maximum recommended load weight is 75 kg, including the weight of the box itself. Distribute weight evenly.
How do I install the Nova 380 on my roof bars?
Use the supplied quick-fit clamp system that attaches to most roof bars. Align the box centrally and tighten the clamps evenly. Refer to the user manual for torque specifications.
Is the roof box lockable?
Yes, it features a central locking system with two keys to secure your belongings.
Can I open the roof box from both sides?
Yes, the Nova 380 has dual side opening for convenient access, especially on taller vehicles.
What speed should I not exceed with the roof box installed?
Calix recommends not exceeding 130 km/h (81 mph) to ensure safety and prevent damage. Adjust speed according to load and wind conditions.
How do I clean and maintain the roof box?
Clean with mild soap and water, avoid abrasive cleaners. Periodically check and lubricate locks, and inspect mounting hardware for tightness.
Are spare parts available for the Nova 380?
Yes, spare parts such as locks, keys, mounting clamps, and rubber seals are available through Calix dealers or authorized service centers.
Does the roof box come with a warranty?
Yes, the Calix Nova 380 includes a 2-year manufacturer warranty against defects in materials and workmanship.

User questions about Nova 380 Calix

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Roof box in PDF format for free! Find your manual Nova 380 - Calix and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Nova 380 by Calix.

USER MANUAL Nova 380 Calix

INSTALLATION AND SAFETY INSTRUCTIONS

INSTRUCTIONS POUR L'INSTALLATION ET LA SÉCURITÉ EINbAU-UND SIChERhEITShINwEISE

MONTERING- OCh SÄKERhETSINSTRUKTIONER

Technical line drawing of two mechanical components with no text or symbols

autoform

CALIX 280

CALIX NOVA 340, 370, 380, 430, 600

CALIX ZAFE

Line drawing of a car front bumper with no text or symbols

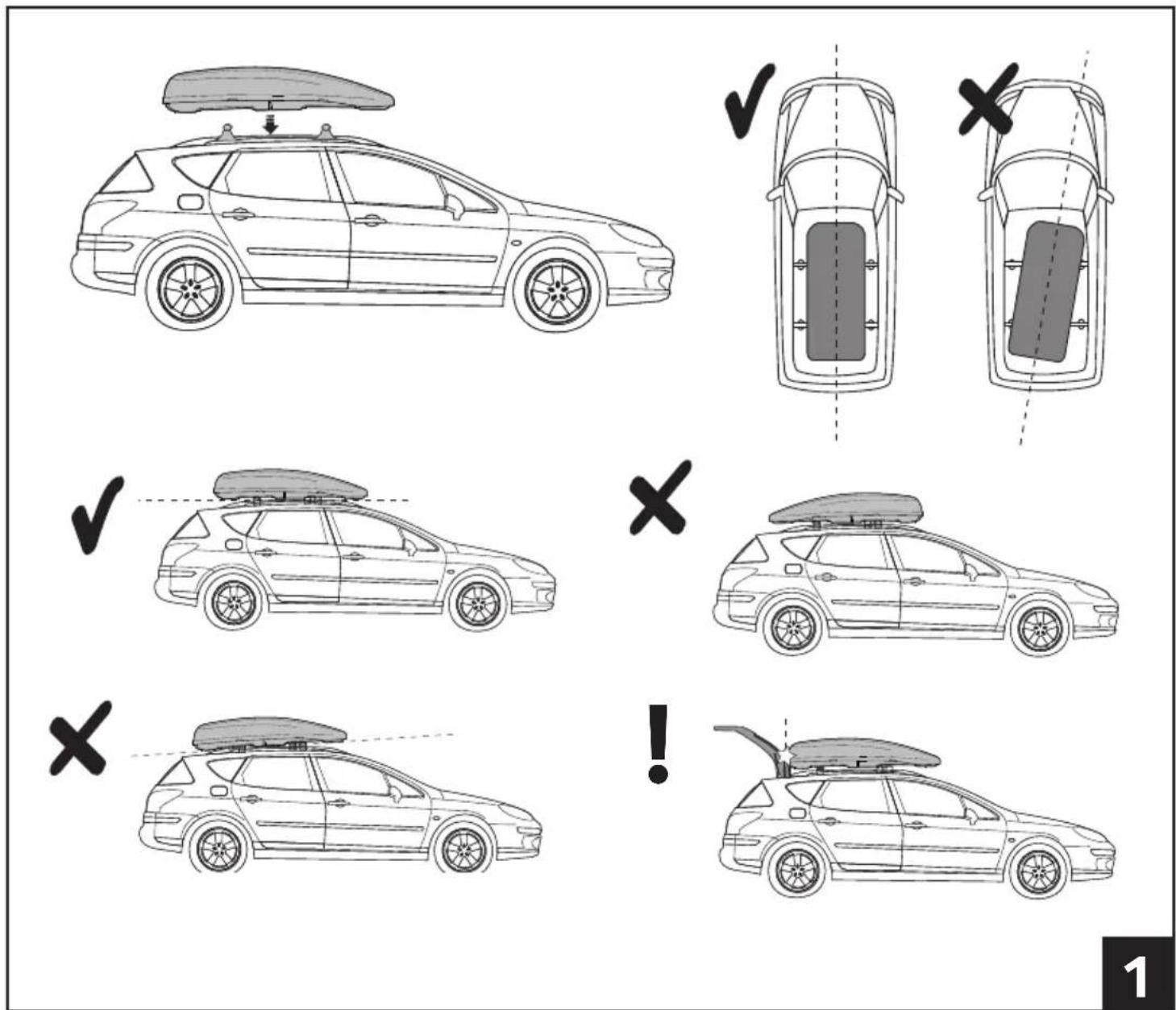

Diagram illustrating car roof support system with check and incorrect actions for lifting a vehicle, including front and side views.

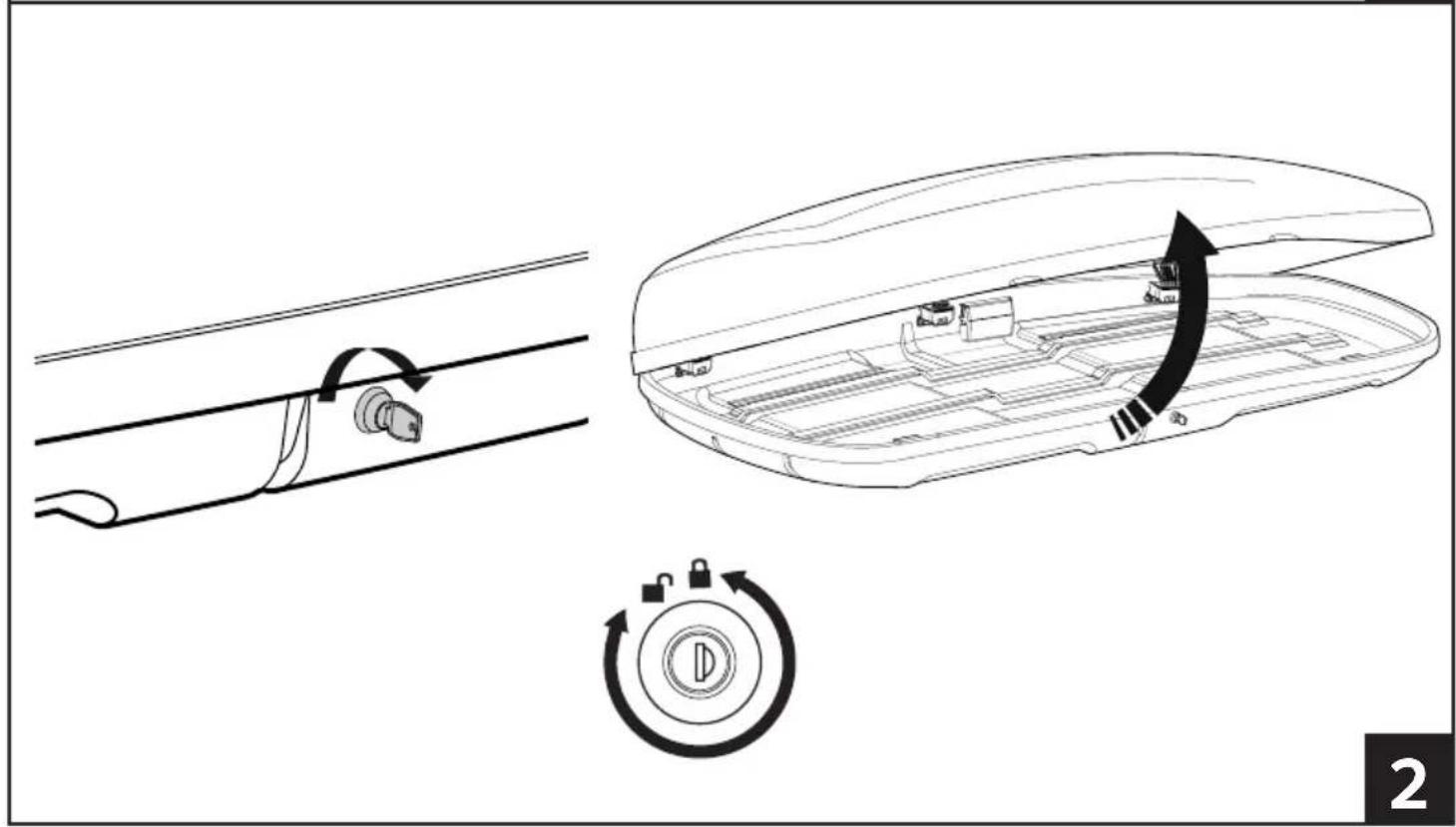

Diagram illustrating the internal mechanism of a device, showing switch operation and lock mechanism with labeled components.

ABC

Diagram of a coiled, layered object with a central slot and small protrusions (no text or symbols)

X2

130 max km/h 350 mm Place this sticker on the dashboard.

Line drawing of a handheld device labeled X4, with no visible text or symbols on the device itself.

3D diagram of a rectangular object with a slot, labeled X4 (no text or symbols on the object itself)

See instructions no 3–8 See instructions no 9

F
Calix Nova 380 - autoform - 9

G X4 X4

HIJ
Calix Nova 380 - autoform - 11
X4

Calix Nova 380 - autoform - 12
X8

Calix Nova 380 - autoform - 13
X8

L
Calix Nova 380 - autoform - 14
X4

M
Technical drawing of a metal bracket with mounting holes and a V-shaped cutout (no text or symbols)

HIJ
Calix Nova 380 - autoform - 16
X4

Calix Nova 380 - autoform - 17
X8

Calix Nova 380 - autoform - 18
X8
See instructions no 10 See instructions no 11

K
Calix Nova 380 - autoform - 19
X4

Technical drawing of a mechanical part with labeled section G and section X4 (no text or symbols beyond labels)

H
Calix Nova 380 - autoform - 21
X4

|
Calix Nova 380 - autoform - 22
X4

Calix Nova 380 - autoform - 23
X4

K
Calix Nova 380 - autoform - 24
X4

M
Technical drawing of a mechanical bracket with mounting holes and a slot (no text or symbols)

HIJ
Calix Nova 380 - autoform - 26
X4

Calix Nova 380 - autoform - 27
X4

Calix Nova 380 - autoform - 28
X4
See instructions no12

INSTALLING

Model Xmin (mm) Xmax (mm)
370665955
3805651055
430/Zafe555995
6005451015

max 32 mm min 22 mm max 85 mm min 30 mm

Xmax mm Xmin mm

Check!
Diagram showing a U-shaped rectangular object and a vertical ruler with measurement markings

If 22 - 25 mm

Use

3D rendered image of a metallic elongated object with a U-shaped groove, labeled 'E' and 'X4' (no other text or symbols)

D E

1
Technical line drawing of a mechanical device with an open lid and internal components, showing a rotational arrow (no text or symbols)

2
2 MAX

3
Technical line drawing of a firearm with labeled parts (B and 3), showing internal components without any text or symbols.

Calix Nova 380 - INSTALLING - 9

5

Stop ratcheting when both hooks meet roofrack

6

7

8

Calix Nova 380 - INSTALLING - 10

3D diagram of a U-shaped pipe or channel with dashed arrows indicating direction (no text or symbols)

max 35 mm

max 70 mm

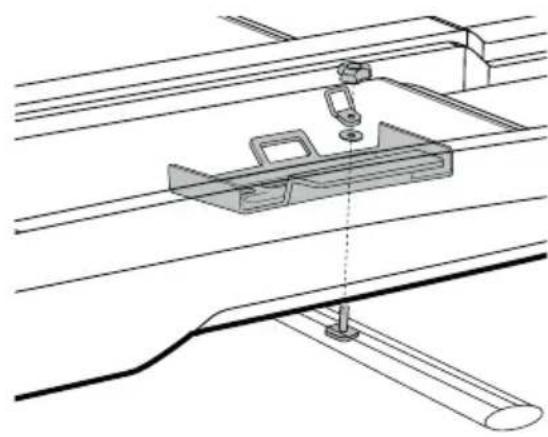

Attach the box to the roof racks on all four attachment points

Top-down line drawing of a car showing front and side views with horizontal lines and a vertical dimension arrow (no text or symbols)

Model Xmin (mm) Xmax (mm)
280360760
340570810
3705701050
3804701150
430/Zafe4601090
6004501110

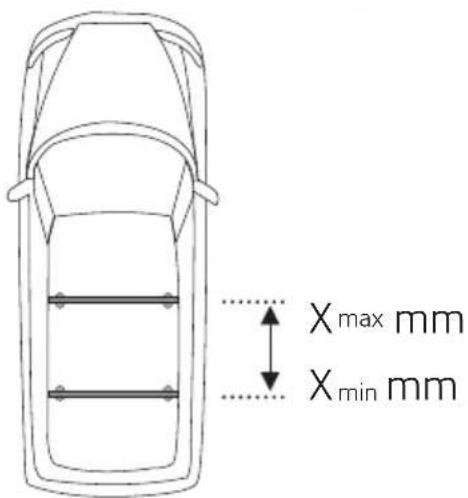

Xmin mm

Xmax mm

J

H

|

G

F

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a closed automotive trunk box with internal compartments and mounting hardware (no text or symbols)

9

Calix Nova 380 - INSTALLING - 15

Diagram of a 3D mechanical component with dashed arrows indicating direction (no text or symbols)

max 28 mm

max 62 mm

Attach the box to the roof racks on all four attachment points

Top-down line drawing of a car with horizontal and vertical measurement lines (no text or symbols)

ModelXmin (mm)Xmax (mm)
280360760
340570810
3705701050
3804701150
430/Zafe4601090
6004501110

Xmin mm

Xmax mm

J

|

H

M

L

Technical line drawing of a structural support frame with mounting brackets and internal components (no text or symbols)

Line drawing of a vehicle chassis with open lid and internal compartments (no text or symbols)

10

Calix Nova 380 - INSTALLING - 20

Attach the box to the roof racks on all four attachment points

Model Xmin (mm) Xmax (mm)
280355765
340565815
3705651055
3804651155
430/Zafe4551095
6004451115

J H I G K
Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down line drawing of a car showing front and side views with horizontal lines and spacing arrows (no text or symbols)

Xmin mm Xmax mm

Line drawing of a car front bumper with internal compartments and mounting fixtures (no text or symbols)

11

Calix Nova 380 - INSTALLING - 24

Attach the box to the roof racks on all four attachment points

Model Xmin (mm) Xmax (mm)
280355765
340565815
3705651055
3804651155
430/Zafe4551095
6004451115

J I H M K
Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down line drawing of a car showing horizontal and vertical stripes (no text or symbols)

Xmin mm Xmax mm

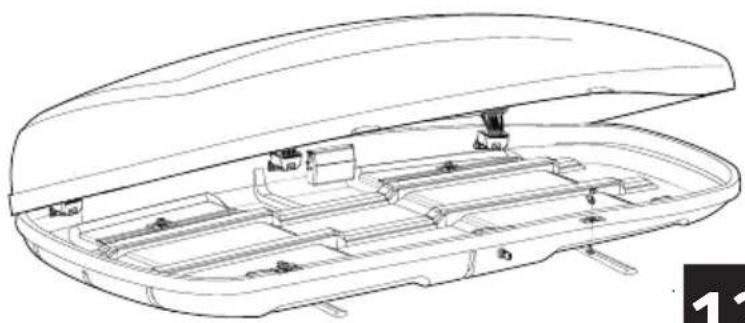

Line drawing of a car front bumper with internal compartments and mounting hardware (no text or symbols)

12

LOADING

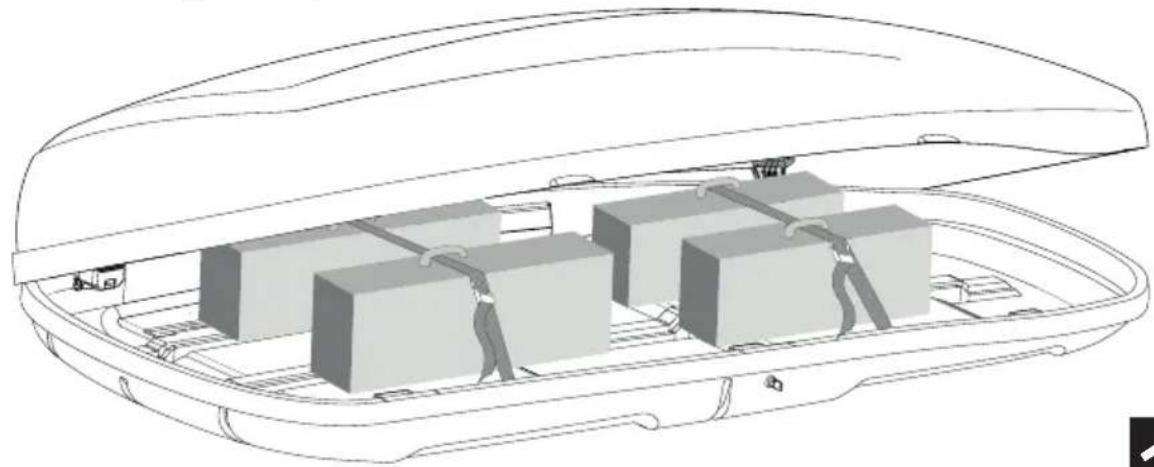

All items are to be fastened with the loading straps.

Line drawing of a car trunk with four rectangular boxes and attached straps (no text or symbols)

13

380 /430/600/ 1/4 1/2 1/4

Xmaxload

Model Xmaxload
280/340/37050kg
380 /430/600/Zafe75kg

14

Check drivers manual for maximum permitted roof load of your car.

Xmaxweight + Xmaxload < max

Line drawing of a rectangular object with a curved top and a small protrusion on the side (no text or symbols)

Calix Nova 380 - LOADING - 4

Zafe 2

The roof box is water resistant, not completely water proof.

Side profile line drawing of a car with a downward arrow indicating motion or change (no text or symbols)

Model Xmaxweight
28011kg
34013kg
37018kg
38018kg
43023kg
60029kg
Zafe27kg

15

Line drawing of a car chassis with internal compartments and a circular stopwatch icon (no text or symbols)

16

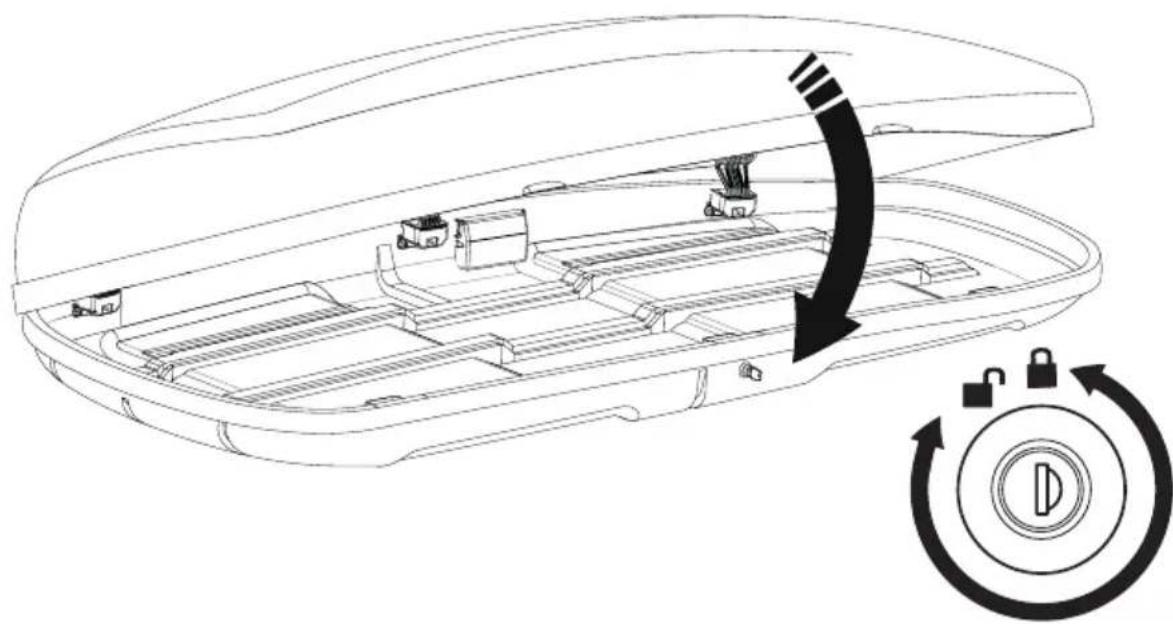

Make sure that the top is locked.

The box is properly closed when top covers bottom and you are unable to push top upwards.

Line drawing of a car front bumper with no text or symbols

17

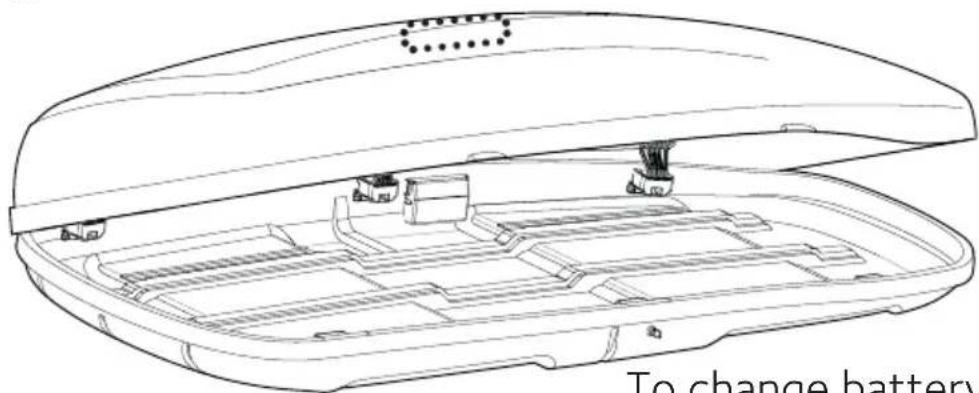

Turn on/off light by placing finger on the sensor buttons.

Line drawing of an open battery casing with internal compartments and battery modules (no text or symbols)

Line drawing of a hand holding a cylindrical object with a small mark on the tip (no text or symbols)

* optional feature

To change battery, release the lamp by moving it sideways.

Calix Nova 380 - LOADING - 11

Please consider difference in car behavior (crosswinds, cornering and braking)

350 mm

Place sticker on dashboard

C

Check!

Calix

Roof Boxes

by autoform

V-03

autoform

Autoform AB

Box 155

782 24, Malung

SWEDEN

Phone: +46(0)280-59 33 00

E-mail: info@autoform.se

calixroofboxes.com
