Nova 600 - Roof box Calix - Free user manual and instructions

Product Type	Roof Box
Brand	Calix
Model	Nova 600
Volume	600 L
Weight	29 kg
Maximum Load Capacity	75 kg
Maximum Speed	130 km/h
Material	ABS Plastic
Locking System	Yes (key lock)
Water Resistance	Water resistant (not waterproof)
Mounting Type	Fits roof bars with cross section 22-32 mm
Installation Requirements	Requires roof racks; attach at four points
Included Accessories	Loading straps, dashboard sticker, mounting hardware
Optional Features	Interior light with touch sensor (battery powered)
Battery for Optional Light	User replaceable (slide lamp sideways)
Safety Notes	Check vehicle roof load limit; adjust driving for crosswinds, cornering, braking
Maintenance	Clean with mild soap and water; check tightness periodically
Maximum Roof Bar Separation (X_max)	1115 mm (for model 600)
Minimum Roof Bar Separation (X_min)	445 mm (for model 600)

Frequently Asked Questions - Nova 600 Calix

How do I install the Calix Nova 600 roof box?

Installation requires roof racks. Place the box on the roof bars, adjust the clamps to fit the bar separation (X_min 445 mm to X_max 1115 mm for this model), and tighten the hooks until both meet the roof rack. Ensure all four attachment points are secured. Refer to the manual for step-by-step diagrams.

What is the maximum load capacity of the Nova 600?

The maximum load capacity is 75 kg. However, you must also consider the weight of the box (29 kg) and the vehicle's maximum roof load as specified in your car's manual.

Can I use the roof box in the rain?

The box is water resistant but not completely waterproof. It can withstand light rain, but heavy or prolonged exposure may allow some moisture inside. It is recommended to pack items in waterproof bags for extra protection.

How do I lock the roof box?

Close the lid fully so that the top covers the bottom. Use the key to lock the central lock mechanism. You should not be able to push the top upward when properly locked.

Is the interior light included?

The interior light is an optional feature. If equipped, it uses a touch sensor to turn on/off. The battery can be changed by sliding the lamp sideways.

What is the speed limit when driving with the roof box?

The maximum recommended speed is 130 km/h. Always adhere to local speed limits and reduce speed in crosswinds, when cornering, or braking.

How do I clean and maintain the roof box?

Clean the box with mild soap and water. Avoid abrasive cleaners. Periodically check all mounting hardware for tightness and ensure the locking mechanism functions smoothly.

What should I do if the roof box does not fit my roof bars?

Ensure the roof bar cross section is between 22 mm and 32 mm. The box clamps are adjustable for bars of these sizes. If your bars are outside this range, you may need adapter brackets or different roof bars.

Can I mount the box on any car?

The box can be mounted on most cars with roof rails or cross bars. However, always check your vehicle's maximum roof load capacity in the owner's manual. The combined weight of the box (29 kg) plus cargo must not exceed the vehicle's limit.

What items can I store in the roof box?

The box is suitable for luggage, camping gear, sports equipment, and other bulky items. All items must be secured with the provided loading straps. Avoid storing extremely heavy or sharp objects that could damage the box.

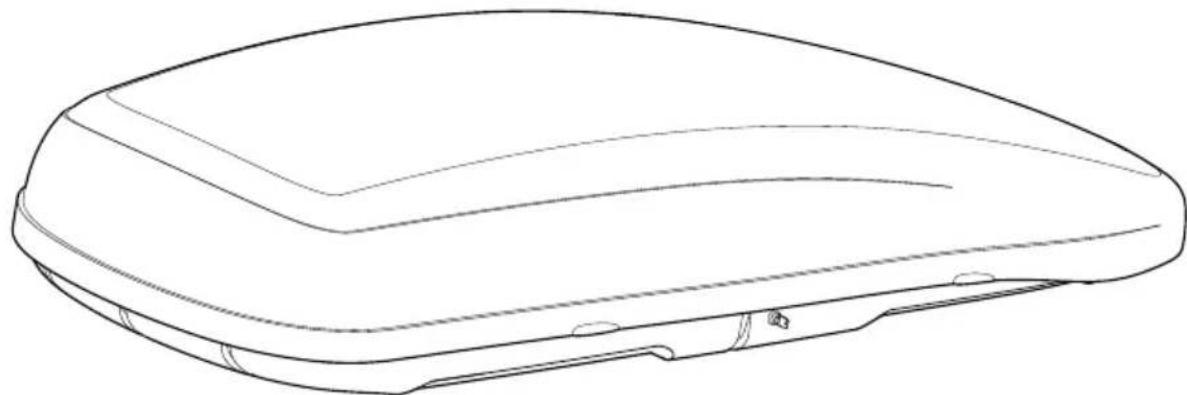

USER MANUAL Nova 600 Calix

INSTALLATION AND SAFETY INSTRUCTIONS

INSTRUCTIONS POUR L'INSTALLATION ET LA SÉCURITÉ EINbAU-UND SIChERhEITShINwEISE

MONTERING- OCh SÄKERhETSINSTRUKTIONER

autoform

CALIX 280

CALIX NOVA 340, 370, 380, 430, 600

CALIX ZAFE

X2

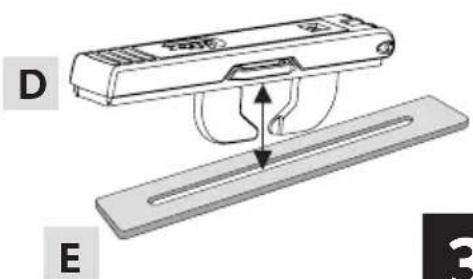

See instructions no 3–8 See instructions no 9

F

HIJ

X4

X8

X8

L

X4

M

HIJ

X4

X8

X8
See instructions no 10 See instructions no 11

K

X4

H

X4

|

X4

J

X4

K

X4

M

HIJ

X4

X4

X4
See instructions no12

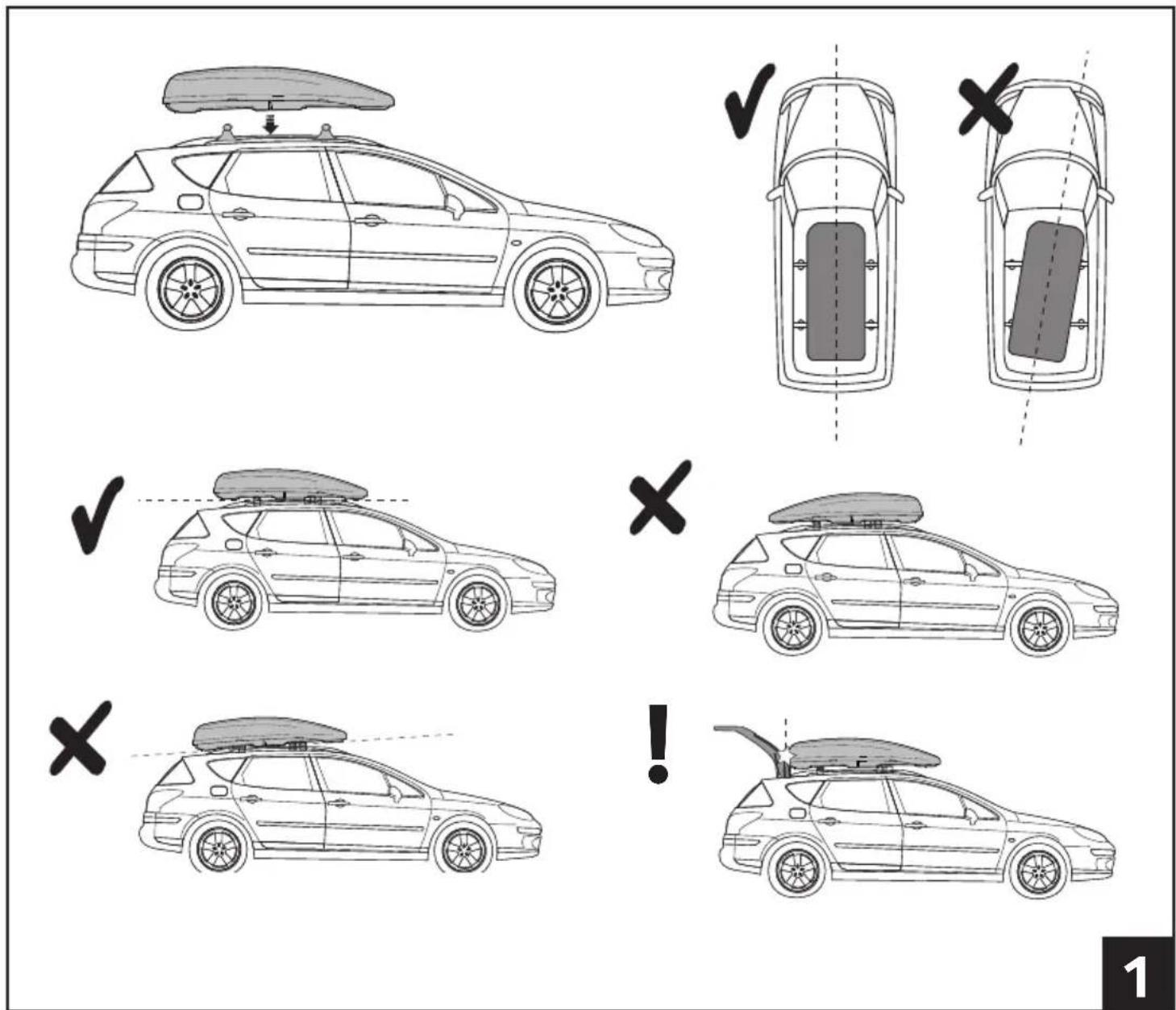

INSTALLING

Model	Xmin (mm)	Xmax (mm)
370	665	955
380	565	1055
430/Zafe	555	995
600	545	1015

Check!

If 22 - 25 mm

Use

1

2

3

5

Stop ratcheting when both hooks meet roofrack

6

7

8

max 35 mm

max 70 mm

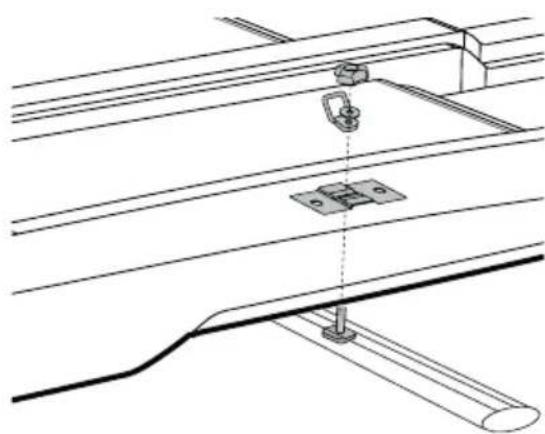

Attach the box to the roof racks on all four attachment points

Model	Xmin (mm)	Xmax (mm)
280	360	760
340	570	810
370	570	1050
380	470	1150
430/Zafe	460	1090
600	450	1110

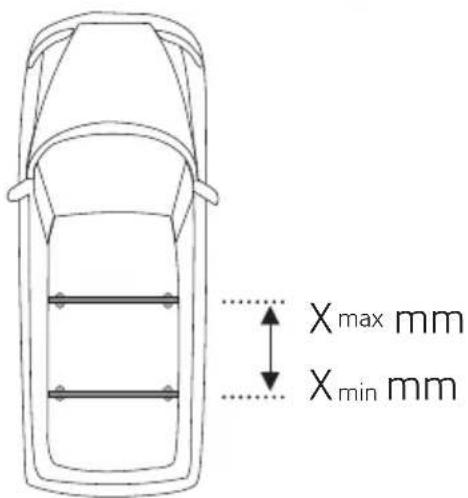

X_min mm

X_max mm

J H I G F

9

max 28 mm

max 62 mm

Attach the box to the roof racks on all four attachment points

Model	Xmin (mm)	Xmax (mm)
280	360	760
340	570	810
370	570	1050
380	470	1150
430/Zafe	460	1090
600	450	1110

X_min mm

X_max mm

J I H M L

10

Attach the box to the roof racks on all four attachment points

Model	Xmin (mm)	Xmax (mm)
280	355	765
340	565	815
370	565	1055
380	465	1155
430/Zafe	455	1095
600	445	1115

J H I G K

X_min mm X_max mm

11

Attach the box to the roof racks on all four attachment points

Model	Xmin (mm)	Xmax (mm)
280	355	765
340	565	815
370	565	1055
380	465	1155
430/Zafe	455	1095
600	445	1115

J I H M K

X_min mm X_max mm

12

LOADING

All items are to be fastened with the loading straps.

13

X_maxload

Model	Xmaxload
280/340/370	50kg
380 /430/600/Zafe	75kg

14

Check drivers manual for maximum permitted roof load of your car.

X_maxweight + X_maxload < max

The roof box is water resistant, not completely water proof.

Model	Xmaxweight
280	11kg
340	13kg
370	18kg
380	18kg
430	23kg
600	29kg
Zafe	27kg

15

16

Make sure that the top is locked.

The box is properly closed when top covers bottom and you are unable to push top upwards.

17

Turn on/off light by placing finger on the sensor buttons.

* optional feature

To change battery, release the lamp by moving it sideways.

Please consider difference in car behavior (crosswinds, cornering and braking)

350 mm

Place sticker on dashboard

C

Check!

Calix

Roof Boxes

by autoform

V-03

autoform

Autoform AB

Box 155

782 24, Malung

SWEDEN

Phone: [phone]

E-mail: [e-mail]

calixroofboxes.com
