Product Type	Steam Iron
Brand	Swan
Model	SI3030N
Power Rating	2400 W
Soleplate Material	Stainless Steel
Water Tank Capacity	300 ml
Steam Output (Continuous)	35 g/min
Steam Boost	Yes, 150 g/min
Anti-Drip System	Yes
Auto Shut-Off	Yes, after 8 minutes inactivity
Self-Cleaning Function	Yes
Vertical Steaming	Yes
Spray Function	Yes
Cord Length	2.0 m
Dimensions (L x W x H)	30 x 15 x 15 cm
Weight	1.2 kg
Voltage	220-240 V, 50/60 Hz
Water Type Recommended	Distilled or demineralized water
Removable Scale Collector	No
Storage Pouch Included	No

Frequently Asked Questions - SI3030N SWAN

How do I fill the water tank?

Unplug the iron, open the fill cap, and pour water into the tank using a measuring cup. Avoid overfilling; do not exceed the maximum level marked inside.
Important: Always use distilled water to prevent scale buildup.

How do I adjust the steam settings?

Turn the steam control dial located on the handle. There are usually settings from minimal (dry ironing) to maximum (high steam). Select the appropriate level based on your fabric type.
Tip: For delicate fabrics, use lower steam.

What does the anti-drip system do?

The anti-drip system prevents water from leaking out of the soleplate when the iron is not hot enough. This avoids water spots on your clothes. It activates automatically when the temperature drops.

How do I clean the soleplate?

Allow the iron to cool completely. Wipe the soleplate with a damp cloth.
For stubborn residue, use a mixture of vinegar and water (1:3) on a cloth, then wipe with a clean damp cloth. Never use abrasive cleaners or scouring pads.

How do I descale the iron?

Use the self-cleaning function if available: fill the tank, set iron to maximum temperature, unplug, hold over a sink, and press the self-clean button. Steam and scale will flush out. Alternatively, use a commercial descaler according to instructions.
Frequency: Every 1-2 months depending on water hardness.

Why does my iron leak water?

Possible causes: the temperature is too low for steam generation, the tank is overfilled, or the anti-drip system is faulty. Ensure the iron is set to at least a medium temperature and the tank is not above the max line. If problem persists, contact support.

What does the auto shut-off feature do?

The iron automatically switches off after 8 minutes of inactivity when in a vertical position, and after 30 seconds when placed horizontally on its heel. This prevents accidents if you forget to unplug it.
To restart: Simply pick up the iron and move it; it will reheat.

Can I use tap water in the iron?

It is recommended to use distilled or demineralized water to avoid mineral buildup. Tap water can be used in areas with soft water, but scale may still occur. To prolong iron life, use distilled water.

How do I store the iron after use?

Ensure the iron is cool and empty the water tank. Wrap the cord loosely around the heel or use the cord storage feature. Store the iron upright on its heel in a dry place. Never store with water in the tank.

Where can I find spare parts like the soleplate or water tank?

Spare parts for the SI3030N are available through authorized Swan service centers or online retailers. Check the manufacturer's website or contact customer support for genuine parts. Always use original parts to ensure safety and performance.

USER MANUAL SI3030N SWAN

Swan 2400W ceramic series iron with purple and white casing, no visible text or symbols on body

2400 Watts | Ceramic soleplate steam iron

Help line: 0871 200 0003

Model: SI3030 (all colours)

v2.1

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
- Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
- Never immerse the unit in water or any other liquid for cleaning purposes.
- Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
- The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
- Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
- Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
- Do not use the appliance on a gas or electric cooking top or over or near an open flame.
- Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
- This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
- Do not carry the appliance by the power cord.
- Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
- Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
- Ensure that the unit is switched off after use.
- The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
- In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
- Your appliance must never be switched on through an external timer or any kind of separate remote control system
- This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

CAUTION: SURFACES BECOME HOT DURING USE

Swan 2

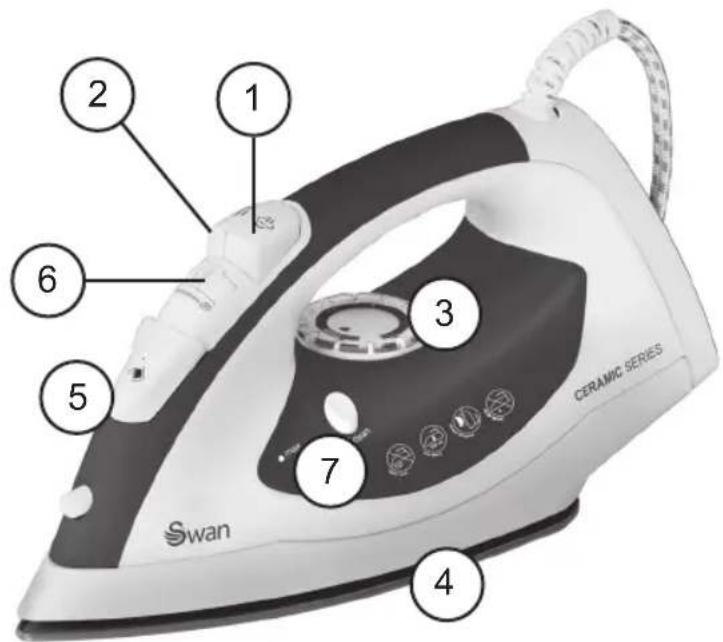

PARTS

1. Steam shot button
2. Spray button
3. Thermostat
4. Soleplate
5. Filler cap
6. Steam control
7. Self clean button

Specification

Model No. SI3030N

220V-240V\~50/60Hz

2000-2400W

Temperature Guide

Symbol	Fabric	Temperature	Variable steam	Steam shot	Spray
	Synthetic fibres/silk	[CSYT]
	Wool	[DAZA]
	Cotton Linen	[5WWK]
	Do not iron

Do not iron

wan

3

HOW TO USE

Before first use

Remove any stickers, protective foil or storage cover from the soleplate.

Heat up the iron to maximum temperature and iron over a piece of damp cloth for several minutes for the purpose of removing any residue on the soleplate.

Note: It is normal for a strange odour to come from the unit during the first use. This is due to light oils used to preserve components during manufacture. The odour will disappear after first use.

Operation

Hold the iron in a tilted position, then add clean water into the water tank. For best results and longer product life, use bottled or purified water – especially if you live in a hard water area. Make sure not to exceed Max level on the tank.

Press down cover of water tank and you will hear a click if it is in the correct position.

Connect plug to outlet and turn temperature dial to your desired setting, which is determined by the type of fabric you intend to iron. The indicator light will illuminate.

Make sure steam control is on dry (O) position then place the iron vertically

Once soleplate temperature has reached the preset temperature, indicator light will turn off, then set steam dial to your desired steam output or dry position and begin ironing. WARNING: Not touch hot soleplate at any time during ironing. It will be very hot.

Press spray button a couple of times to moisten the laundry if necessary, before spraying make sure that there is enough water in water tank. A few presses might be required to pump the water through on first use

Steam shot function is best used at max temperature, as it helps remove stubborn creases.

The iron has an anti-drip function: if you are ironing dense garments for a long time, the soleplate temperature can drop. To prevent water coming from the soleplate, the iron will automatically reduce the steam output.

"Steam shot" can also be applied when holding the iron in a vertical position, so this is useful for removing creases from hung clothes, curtains, etc.

IRONING TIPS

Always check first whether a label with ironing instructions is attached to the article.

The iron heats up quicker than it cools down, therefore, you should start ironing the articles requiring the lowest temperature such as those made of synthetic fibres.

If the fabric consists of various kinds of fibres, you must always select the lowest ironing temperature to iron the composition of those fibres.

Silk and other fabrics that are likely to become shiny should be ironed on the inner side.

To prevent staining do not spray water straight on silk or other delicate fabrics.

Velvet and other textures that rapidly become shiny should be ironed in one direction with light pressure applied. Always keep the iron moving at any given moment.

Pure woollen fabrics (100% wool) may be ironed with the iron set a steam position. Preferably set steam button to the maximum position and use a dry cloth as a mat.

Note: when ironing woolen fabrics, shining of the fabric may occur. So it is suggested that you should turn the article inside out and iron the reverse side.

CLEANING & MAINTENANCE

Self cleaning:

Set the temperature control to the maximum position, press the self clean button for about 1 minute, steam will be emitted to clean the steam chamber. Use this function once every two weeks or so.

Anti-calc:

The Anti-calc function filters some minerals from the water to prevent limescale residue build up in the steam chamber. However if you live in a particularly hard water area, we recommend using bottled or distilled water. Warning: never pour vinegar or other liquid cleaners for eliminating calcium into water tank.

After ironing

Disconnect power supply and empty the water left in water tank. Reconnect the power supply and disconnect after indicator light goes off, this dries the soleplate.

Let the iron completely cool down, then wipe flakes and any other deposits on the soleplate with a damp cloth or a non-abrasive (liquid) cleaner. Clean the upper part of iron with a damp cloth. Always store the emptied iron horizontally on a stable surface with a cloth protecting the soleplate.

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive[s]:

2004/108/EC The EMC Directive (the Electromagnetic Compatibility Directive).

2006/95EC. The LVD Directive (Low Voltage Directive).

2011-65-EU. The RoHS directive (Restriction of Hazardous Substances Directive)

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

SWAN BRAND HERITAGE

Vintage iron iron with coiled cord and handle (no text or symbols visible)

Did you know...

In 1933 most homes were heating their irons over the gas ring or still putting hot coal in them. This Swan iron was basically a n element with a handle, which plugged straight into a light bulb socket. And at a mere 14 s hillings (70p), it meant many households could own a prestigious Swan Product.
