SI5090N - Iron SWAN - Free user manual and instructions

Product Type	Corded Steam Iron
Brand	Swan
Model	SI5090N
Power	2000 W
Voltage	220-240 V, 50/60 Hz
Water Tank Capacity	300 ml
Continuous Steam Output	30 g/min
Steam Boost	100 g/min
Soleplate Type	Stainless Steel or Ceramic Coated
Anti-Calc System	Built-in anti-scale filter
Self-Clean Function	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Spray Function	Yes
Vertical Steaming	Yes
Cord Length	2.5 meters
Weight	1.2 kg
Dimensions (LxWxH)	30 x 15 x 18 cm
Maintenance & Cleaning	Use self-clean function monthly; descale as needed
Safety	Thermal fuse, auto shut-off, heat-resistant handle
Spare Parts & Repairability	Replaceable soleplate and water tank available; repair service via authorized centers
General Information	Designed for efficient ironing; compatible with tap water

Frequently Asked Questions - SI5090N SWAN

How do I use the steam boost function?

Press the steam boost button located on the handle for a powerful burst of steam to remove stubborn wrinkles. Use it vertically for hanging garments.

What type of water should I use?

Use ordinary tap water. If you have hard water, mix with distilled water to reduce scale buildup. Always empty the tank after use.

How do I clean the anti-calc filter?

The anti-calc filter is built-in and self-cleaning during the self-clean cycle. Run the self-clean function every month to remove mineral deposits.

Why is my iron not producing steam?

Ensure the water tank is filled and the temperature dial is set to a high enough level for steam. If still no steam, allow the iron to heat up for 1-2 minutes.

Can I iron delicate fabrics like silk?

Yes, use the lowest temperature setting and avoid the steam function. You can place a pressing cloth between the iron and the fabric.

What does the self-clean function do?

The self-clean function flushes hot water and steam through the soleplate to remove scale and impurities. Fill the tank, set to max temperature, unplug, and hold the self-clean button.

How do I store the iron safely?

Unplug and let it cool completely. Empty the water tank. Store upright on its heel rest to protect the soleplate and avoid leaks.

The iron leaves white residue on clothes. What to do?

This is likely scale buildup. Run the self-clean function and use distilled water in the future. Wipe the soleplate with a damp cloth.

How long is the warranty?

Swan typically offers a 2-year warranty. Check your purchase receipt for exact terms. Registration may be required.

Can I use the iron without water?

Yes, you can dry iron. Set the temperature according to the fabric. Do not press the steam buttons when the tank is empty.

USER MANUAL SI5090N SWAN

Exterior view of a white and black air iron with a textured handle (no text or symbols visible)

Travel Iron

v1.0

Item no.: SI5090N

2 Year Guarantee

This product is guaranteed for two years from the date of original purchase. If any defect arises due to faulty materials or workmanship faulty products must be returned to place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with original proof of purchases.
- The product must be installed and used in accordance with the instruction contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan has no responsibility for incidental or consequential loss or damage.
• Valid in the UK and Eire Only

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

Always ensure that the voltage on the rating label corresponds to the mains voltage in your home.

- Incorrect operation and improper use can damage the appliance and cause injury to the user.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.

- Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.

• Never immerse the unit in water or any other liquid for cleaning purposes.

- Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.

- The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.

- Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.

• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
  • Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system

It is important to ensure the correct plug adaptor is used when operating in a country not using the UK 13 Amp socket system. If in doubt, consult a qualified electrician.

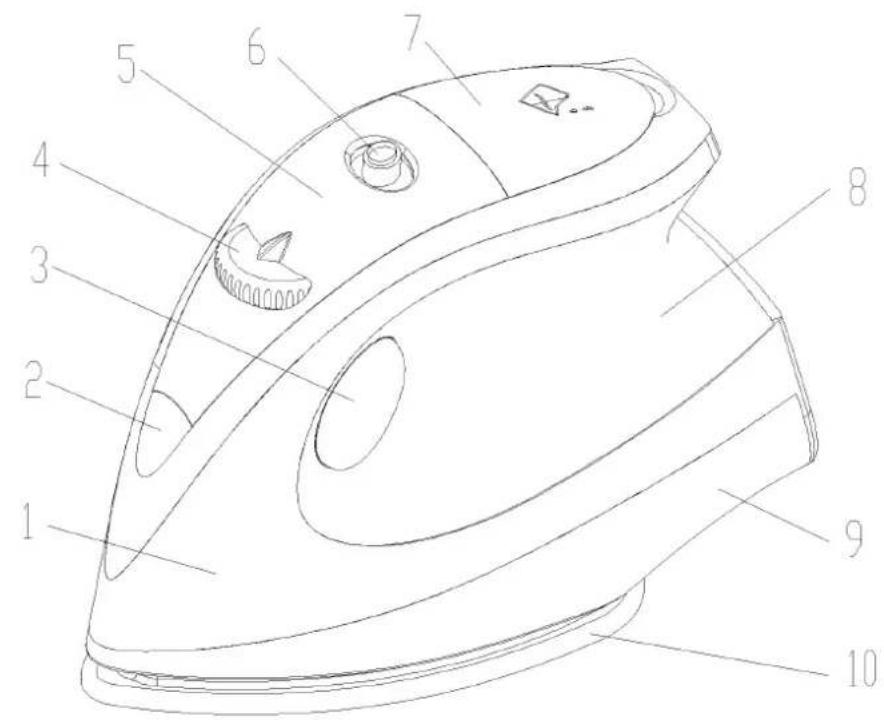

1. Body
2. Lamp cover
3. Steam surge button
4. Temperature dial
5. Handle
6. Steam on/off switch
7. Tank filling cover
8. Water tank
9. Skirt
10. Soleplate

Remove any stickers, protective foil or storage cover from the soleplate.

Selecting the temperature

1. Check the ironing instructions on the garment to be ironed.
2. If the garment does not have any ironing instructions but you know the kind of fabric in question, use the chart below.
3. Fabrics that have some kind of finish (polishing . wrinkles , contrasts etc) can be ironed at the lowest temperatures.
4. If the fabric contains several kinds of fibres, always select the temperature applicable, if an article contains 60% polyester and 40% cotton, you should always choose the temperature corresponding to polyester and without steam.
5. First classify the articles to be ironed according to the most suitable ironing temperature: wool with wool, cotton with cotton, etc. as the iron heats up faster than it cools, start by ironing the articles requiring the lowest temperature such as those made of synthetic fibres. Progress towards those that require the highest temperatures.
6. Turn the temperature control until it is in front of the appropriate setting according to the following:

Symbol	Fabric	Temperature	Variable steam	Steam shot	Spray
	Synthetic fibres/silk		[50Y5]
	Wool		√		[TSTG]
	Cotton Linen	[9446]	√
	Do not iron

Do not iron

How to fill the water tank.

1. Unplug the iron.
2. Set the steam switch to dry ironing.
3. Fill the tank through the filling hole.
   -If you have hard water, it is advisable to use only distilled or demineralized water.
   -do not use chemically de-limed water or perfumed
4. Do not store the iron with water in the tank.

Steam ironing

1. Fill the iron as described in the section "how to fill the water tank".
2. Plug the iron into the mains.
3. Steam ironing is only possible when the highest temperatures shown on the temperature control are selected. Otherwise water may escape through the soleplate.
4. Wait until the pilot light goes out, which indicates that the selected temperature has been reached.
5. Turn the steam button to the required position.
6. When the ironing is finished and during breaks in ironing place the iron in its upright position.
7. Disconnect the iron from the mains supply. CAUTION: the remaining water in the iron may still be hot so allow the iron to cool first. Pour out any remaining water.

Shot of steam

Shot of steam gives extra steam for removing persistent wrinkles.

1. Place the temperature selector at the "max" position and wait until the pilot light goes out
2. Wait for a few seconds for the steam to penetrate the fibre before pressing again.

NOTE : For the best steam quality, do not use more than three successive bursts each time. Several pumping actions are needed to start this function. Excessive use of this feature will cause the iron to cool, ensure that the pilot light is out, before operating the shot of steam control

Cleaning

1. Disconnect the appliance from the mains before cleaning.
2. Do not use solvents or abrasive products to clean the iron
3. clean with a damp cloth.

Defects and repairs

Do not attempt to replace a defective mains lead. The appliance has to be returned to an authorised service centre for repair.

Faults-reasons and solutions

- Iron emits an odor or smoke during first use: Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.

- Iron does not heat: The iron should be plugged into a 230 Volt AC electrical outlet only. The temperature dial must be set at the desired temperature.

- Iron does not steam: The water tank many be empty. Turn the steam switch to "0" and add water. Allow the iron to heat, and then set the steam switch to the steam setting.

- Burst of steam feature does not work: The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.

• Water from the sole plate: The steam dial must be set to off until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

U.K. Plug Wiring Instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recylcenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Helpline

01733 404703
