JF-320LS - Refrigerator Jocel - Free user manual and instructions

Product Type	French Door Refrigerator
Brand	Jocel
Model	JF-320LS
Total Gross Capacity	320 Liters
Refrigerator Capacity	Approx. 230 Liters
Freezer Capacity	Approx. 90 Liters
Energy Class	F (EU scale)
Annual Energy Consumption	Approx. 250 kWh
Dimensions (H x W x D)	1850 x 595 x 650 mm
Net Weight	Approx. 58 kg
Power Supply	220-240 V ~ 50 Hz
Climate Class	SN-ST (10°C to 38°C)
Noise Level	Approx. 42 dB(A)
Refrigerant	R600a
Key Functions	Adjustable thermostat, interior LED light, reversible doors, glass shelves, vegetable crisper, freezer compartments
Maintenance	Clean with soft cloth and mild detergent; defrost freezer when ice thickness exceeds 5 mm
Safety	Disconnect power before cleaning; do not use steam cleaners or abrasive materials
Spare Parts & Repairability	Contact Jocel authorized service center for genuine parts; repair index available on request

Frequently Asked Questions - JF-320LS Jocel

What is the recommended temperature for the refrigerator compartment?

The ideal temperature is between 3°C and 5°C (37°F to 41°F). Use the thermostat dial to adjust.

How do I adjust the thermostat?

Turn the thermostat knob inside the fridge compartment. Higher numbers mean colder temperatures. Usually, position 3-4 is adequate for normal use.

Why is my refrigerator making a strange noise?

Normal sounds include humming from the compressor, clicking when the thermostat cycles, and gurgling from refrigerant flow. If noise is loud or persistent, check that the appliance is level and not touching walls.

How often should I defrost the freezer?

Defrost when the ice layer reaches about 5 mm thick. Do not use sharp tools to remove ice; let it melt naturally or use a plastic scraper.

What should I do if the refrigerator stops cooling?

First, check if the power cord is plugged in and the circuit breaker hasn't tripped. Ensure the thermostat is set correctly. If the issue persists, contact Jocel customer support.

Can I reverse the door opening direction?

Yes, the JF-320LS door can be reversed. Refer to the user manual for instructions, or contact a qualified technician.

How do I clean the interior?

Unplug the fridge, remove all food and shelves. Clean with a soft cloth dipped in warm water and mild soap. Avoid abrasive cleaners. Rinse and dry thoroughly before restocking.

What does the LED light indicator mean?

Some models have a power indicator light. If it's off, check power supply. If the interior light is not working, the bulb may need replacement (consult manual).

How can I improve energy efficiency?

Place the fridge away from heat sources, allow proper ventilation around the appliance, minimize door openings, and set thermostat to a moderate temperature.

Where can I find the model and serial number?

The rating plate is located inside the refrigerator compartment, usually on the side wall. It contains the model number, serial number, and technical specifications.

USER MANUAL JF-320LS Jocel

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

MANUAL DE INSTRUÇÕES MANUAL DE FUNCIONAMENTO INSTRUCTION MANUAL

ARMAZENAR OS ALIMENTOS

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

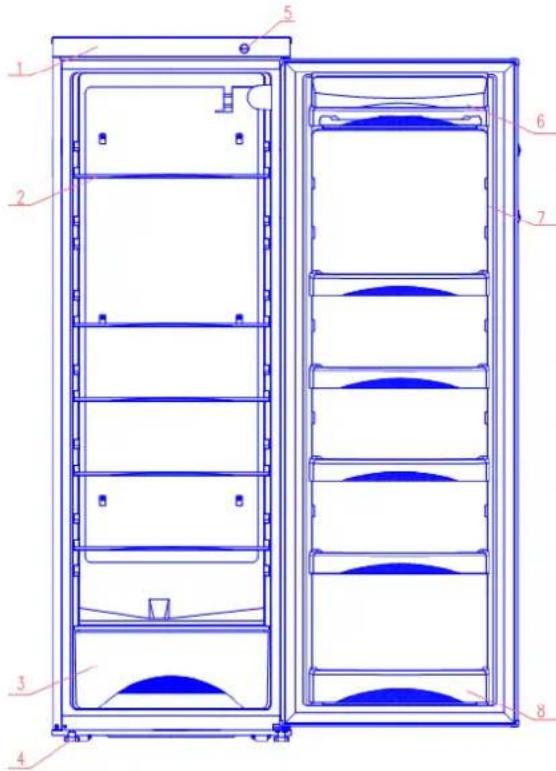

GENERAL DESCRIPTION OF REFRIGERATOR

1. Upper Cover

2. Refrigerator Shelf

3. Vegetable Box

4. Adjustable Feet

5. Adjustable Thermostat

6. Upper Rack of door

7. Middle bottle rack from door

8. Lower rack of the door

TRANSPORTATION AND HANDING

When transporting, hold the base and lift the refrigerator carefully with the tilted angle more than 45 degree. Never hold the door handle as support. Never place it upside down, horizontal wise or get it extruded. Push refrigerator about by making its two hind roller feet as axis and then tilting it slightly during moving indoors.

INSTALLATION

1. Install the refrigerator at a place with a flat, firm ground directly, to prevent vibration and noise.
2. Choose a well-ventilated place. A space of no less than 10cm must be left around the refrigerator.
3. Choose a location where there is no heat source. Keep the refrigerator away from direct sunlight and oven etc..
4. Choose a dry and well-ventilated place where there is no corrosive air.

Testing

1. Clean the refrigerator with lukewarm water and detergent, and wipe dry.
   Notes: Electrical components should be cleaned with a dry cloth.
2. Turn the thermostat knob to the middle position between "MIN" and "MAX" position, and plug the refrigerator into the wall outlet. The compressor will begin to run.
3. Check, after 30 minutes of operation, to ensure that the freezer is cold.

TEMPERATURE CONTROL

1. The temperature controller installed in the upper cover controls the temperature in the refrigerator.
2. Turning the thermostat knob adjusts the temperature of the refrigerator
3. The marks on the knob are the temperature grades, not the exact number of the degrees of temperature."OFF" shows a forced STOP and "MAX" shows the lowest temperature. Turn the knob from "MIN" position to "MAX" position clockwise, the temperature decreases continuously. You may set the temperature control selector to any position according to what you need.
4. The factory recommended the middle position between "MIN" and "MAX".

1. How to Use the Refrigerator

• The cook dishes can be put into refrigerator to keep fresh after their temperature decreases to room temperature.
• Egg pockets and bottle pockets for eggs, butter, milk and bottle drinks, etc.
• Other food such as MEAT, FISH AND suchlike, in addition to becoming dry, may cause smells. To prevent this, they should be wrapped in aluminium foil, placed in suitable polythene bags or stored in proper airtight containers.

2. Placement of Food

– Proper place should be left instead of too crowded during food storage.
- Food to be stored should be wrapped with clean plastic film or fresh keeping paper, and then distributed to several frames even to avoid contamination and the loss of water and smell mixture.
- Cool hot food down to the room temperature before storing or consumption of electricity will increase and would lead to frost forming inside.

DEFROSTING

1. When the refrigerator operates for a long period of time, the internal surface may become covered with a layer of white frost. This frost will reduce the energy efficiency of the unit, and make the refrigerator less effective. When this frost forms, it should be promptly removed.
2. When defrosting, unplug the refrigerator, and remove all items from inside. Either allow the frost to melt naturally from the warm air in the room, or carefully use a plastic scraper. Finally, wipe away any remaining ice and water, plug the refrigerator, and return the food to the freezer.

CAUTION: Never use sharp tools to chip ice away.

NOTES:

• The appliance should be so positioned that the plug is easily accessible.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• The appliance shall not be used in open air and shall not be exposed to rain.
• Don't store something like ether, methanol, gasoline etc., which is easy to evaporate burn or explode.
• Don't set something too heavy on the top of refrigerator and do not pour water on it.
• Do connect your refrigerator to an independent electrical socket and use a safe ground wire. The voltage should be limited within the ranges from 187V to 242V, or the main motor will be damaged.
• Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.
• In order to save electricity consumption, keep air circulation during operation and the package base should be taken away.
• Sure to keep electrical wire away from compressor and condenser, or its insulation function will be spoiled by high temperature.
• To save the energy, you should reduce the frequency and duration of the opening of the door.
• When there is no electricity or when refrigerator ceases to be used, it should be cleaned in time in order to prevent it from smelling. Too much frost may affect refrigeration.
• It is not recommended to use any extension cords.
• Warning-Keep ventilation openings in the appliance enclosure or in the structure for building in, clear of obstruction.
• Warning-Do not damages the refrigerant circuit.
• Warning-Do not use electrical appliances inside the food storage of the appliance unless they are of the type recommended by the manufacturer.
• If the appliance can not be used any more, please release the refrigerant before abandon at a place exposed to the air and away from tinderbox.

GENERAL INSTRUCTIONS FOR CARE AND MAINTENANCE

The refrigerator should be cleaned every other month, before cleaning; the electric plug must be removed from the power supply.

Wipe the inside and outside of the refrigerator with a wet soft cloth.

If it's too dirty, clean with a soft cloth soaked with neutral detergent and clean water, remove the moisture with dry cloth.

If you are going away on holiday or for any other reason, wish to leave the refrigerator idle for any period of time, proceed as follows:

• Disconnect the refrigerator from the electric power supply by removing the plug from the wall socket.
• Remove all food.
• Clean and dry the inside as instructed in the direction given above for cleaning.
• Leave the doors open to prevent any unpleasant smells from building up while the refrigerator is not used.

CLEANING:

• When cleaning the refrigerator the electric plug must be removed from the power supply.
• Use water and a non-abrasive detergent.
• Clean with a soft cloth soaked in this solution and remove moisture with a dry cloth.
  – Remember to clear the defrost drain situated at the back just above the glass cover.

REPLACING THE LIGHT BULB

Should the light fail, switch off at the socket outlet and pull out the mains plug. Then ensure the bulb is screwed securely in the bulb holder. Replace the plug and switch on. If the light still fails, obtain a replacement E14 screw-cap type 15 Walt (Max) bulb from your local electrical sore and then fit it. Carefully dispose of the burnt-out light bulb immediately.

WORKING DEFECTS AND FAILURES

Symptom: Appliance will not work at all.

Cause:

The power supply plug is not inserted in the wall socket or the plug and the outlet is loose. Due to some anomaly in the household electric supply circuit, no power is reaching the refrigerator supply socket. This can be checked by plugging in a light or any other electric appliance into the suspect socket.

The voltage is too low.

Symptom: Noisy running.

Cause:

The appliance has not been properly levelled.

The refrigerator is in contact with the wall.

The accessories in the refrigerator are placed wrong position.

Symptom: Appliance does not cool sufficiently.

Cause:

Door has been opened too often, or it has been left open for a while.

The refrigerator is too near to the wall.

Have too much food in the refrigerator.

The temperature was not regulated correctly.

Symptom: Smell inside the appliance.

Cause:

Some of the food is not properly wrapped or covered.

The inside of the refrigerator needs cleaning.

If your refrigerator shows other symptoms from those described above, or if you have check all items listed as the causes and the symptom still exist, then call the service department.

THE FOLLOWING ARE NOT BREAKDOWNS

1. Refrigerant running in pipes gives forth a gentle sound of water running in pipes.
2. In a moist season, the outer surface of refrigerator may be covered with moisture which should be simply wiped away.
3. The compressor and the rear condenser may be heated to the extent that scalding your hand in summer during refrigerator operation.
4. Door frame heat means the anti-dew tube is working during refrigerator operation.

Due to product's changing and improving, the exact product for the consumer may not correspond with some details in the instruction.

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product REFRIGERATOR

Brand JOCEL

Model JF-320LS

Complies with the following European directives and standards implementation:

Low Voltage

2006/95/CE

EN 60335-1:2002+A1:2004+A11:2004+

A2:2006+A12:2006+A13:2008+A14:

2010+A15:2011

EN60335-2-24:2010

EN62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014-1:2206/+A1:2009/+A2:2011

EN 55014-2:1997/+A1:2001/+A2:2008

EN 61000-3-2:2006/+A1:2009/+A2:2009

EN 61000-3-3:2008

Country of Origin: R.P.C.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt
