Product Type	Upright Freezer
Brand	Logik
Model	LTFFFS12
Total Capacity	100 Liters
Energy Efficiency Class	A+
Climate Class	N-ST (16°C to 38°C)
Temperature Range	-18°C to -24°C
Defrost System	Manual
Freezing Capacity	10 kg per 24 hours
Number of Drawers	3
Dimensions (H x W x D)	85 x 55 x 60 cm
Weight	35 kg
Power Supply	220-240V, 50Hz
Power Consumption	0.8 kWh/24h
Noise Level	42 dB
Fast Freeze Function	Yes
Door Alarm	Yes
Power Failure Safe Storage	Up to 10 hours
Door Reversible	Yes
Adjustable Thermostat	Yes
Condenser Cleaning	Annually
Defrost Interval	When ice exceeds 5 mm
Garage Ready	Yes (down to -15°C ambient)
Refrigerant	R600a
Repair Service	Replaceable door gasket, thermostat, compressor

Frequently Asked Questions - LTFFFS12 Logik

What is the ideal temperature for my Logik LTFFFS12 freezer?

The recommended temperature is -18°C for long-term storage of frozen foods. Use the adjustable thermostat to set it.

How often should I defrost the freezer?

Defrost when the ice layer reaches 5 mm thickness to maintain efficiency. This typically occurs every 6-12 months depending on usage.

Why is my freezer making strange noises?

Normal sounds include gurgling from refrigerant flow, clicking from the thermostat, and humming from the compressor. If noises are loud or irregular, check if the freezer is level.

What should I do during a power outage?

Keep the door closed. The freezer will keep food frozen for up to 10 hours. Avoid opening the door unnecessarily. If power returns within that time, food should be safe.

How do I clean the condenser coils?

Unplug the freezer, access the coils at the back or bottom, and use a vacuum cleaner with a brush attachment to remove dust. Clean annually to maintain performance.

Can I install the freezer in an unheated garage?

Yes, but the ambient temperature must be between -15°C and 38°C. Below -15°C, the freezer may not operate correctly.

How do I reverse the door swing?

Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a spanner. The door is reversible by swapping hinges and handles.

What is the fast freeze function and when to use it?

Fast freeze lowers the temperature rapidly to freeze fresh food quickly. Activate it 24 hours before adding large amounts of unfrozen food to preserve quality.

How do I adjust the temperature?

Use the thermostat dial inside the freezer. Usually 1 is warmest, 5 is coldest. Set to 3-4 for normal use (-18°C).

What spare parts are available for this freezer?

Common replaceable parts include the door gasket, thermostat, light bulb (if applicable), and compressor. Contact Logik support or authorized dealers.

USER MANUAL LTFFFS12 Logik

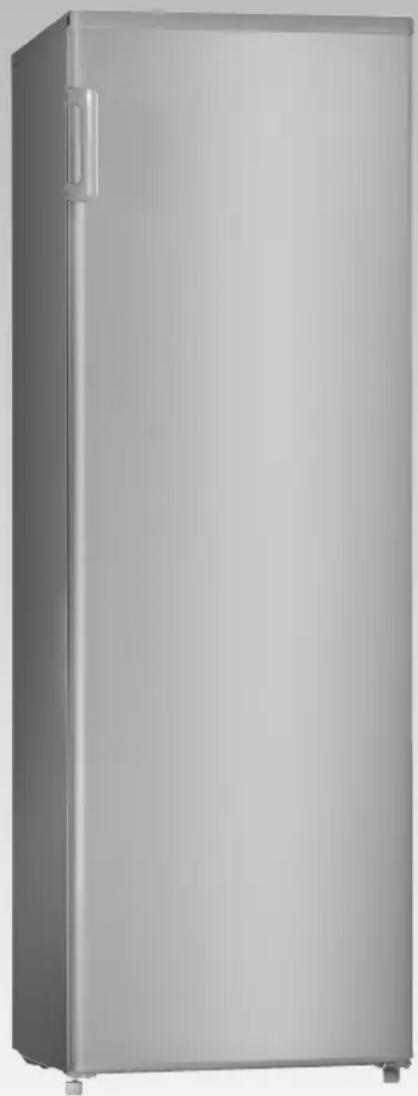

Tall Silver Frost Free Freezer

Instruction Manual

LTFFFS12

Exterior view of a modern stainless steel refrigerator (no visible text or labels)

Gradient grayscale background with no text, symbols, or identifiable objects

Unpacking....4

Installation....5

Location 5

Reversing the Door Swing....5

Levelling the Unit 7

Cleaning Before Use 8

Before Using Your Unit....8

Product Overview 9

Main Unit 9

Control Panel....9

Operation 10

Adjusting the Temperature....10

Fast Freezing....10

Alarm for Freezer 11

Noises Inside the Unit!....11

Shopping for Frozen Foods ....11

Preparations for Freezing....11

Defrosting Frozen Food....12

Cleaning 13

Defrosting 13

Cleaning the Interior and the Exterior of the Unit....13

Cleaning Tips....13

Maintenance 14

Care When Handling / Moving the Unit....14

Servicing....14

Switching Off for Long Periods of Time....14

Disposal....14

Specifications....15

Safety Warnings....16

Thank you for purchasing your new Logik Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a rectangular refrigerator with handle and side legs (no text or symbols)

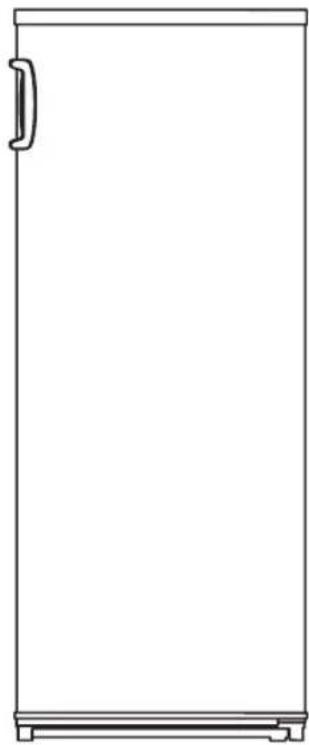

The Main Unit

Upper Freezer Frame x 3 P.N.: 1118674

Lower Freezer Frame P.N.: 1118675

Lower & Bottom Freezer Panel x 2 P.N.: 1403902

Isometric view of a rectangular frame with internal triangular lattice pattern (no text or symbols)

Ice Tray P.N.: 1051965

Upper Freezer Panel x 3 P.N.: 1403904

Bottom Freezer Frame P.N.: 1118679

Freezer Slip P.N.: 1403905

Instruction Manual P.N.: DSGLTFFFS12-001

If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 100 mm of free space is left at both sides, 100 mm at the rear and 75 mm at the top of the unit. The door can be opened to the right or the left, depending on what better suits the location. Please ensure there is adequate space for the door to fully open.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
• All parts removed must be saved to do the reinstallation of the door. You should rest the unit on something solid so that it will not slip during the door change process. Do not lay the unit flat as this may damage the coolant system. Ensure the unit is unplugged and empty.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• Tilt the unit slightly towards the rear and prop it securely. Two people are required to tilt the unit during the door reversal process.

Illustration of two workers exchanging a large box, no text or symbols present

INSTALLATION

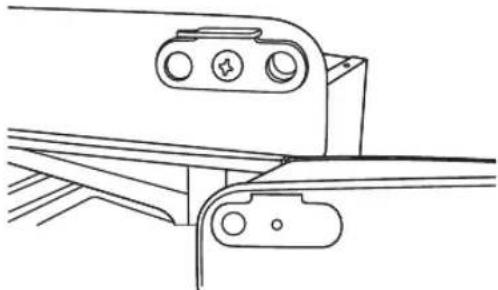

1. Remove the four blanking plates from the top of the freezer with a flat bladed screwdriver. Remove the screws underneath with a Phillips screwdriver.

Simple line drawing of a tool tip and a circle on a plain background (no text or symbols)

1. Use the 8mm socket or spanner to remove the three bolts above the door hinge. Lift off the bracket. Remove the freezer door.

2. Remove the pin from the bracket and replace it into the same hole from the other side.

Technical line drawing of two mechanical bracket components (no text or symbols)

1. Remove the hinge insert plate from the bottom of the freezer door. Replace the plate on the opposite side.

Technical line drawing of a mechanical assembly with mounting brackets and a clip (no text or symbols)

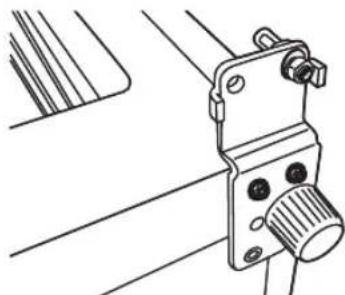

1. Tilt the freezer back, no more than 45^ , to access the bottom hinge and feet. Remove the feet and the bolts securing the right hand hinge plate and left hand fixing plate.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Remove the pin and reattach it to where the hinge bracket was located on the opposite side (right to left). Place the hinge on the opposite side of the cabinet, secure it with three bolts, screw the foot into position.

Technical line drawing of a mechanical bracket with mounting holes and a curved arrow indicating rotation (no text or symbols)

* All images are for reference only; please refer to your individual unit for actual item.

INSTALLATION

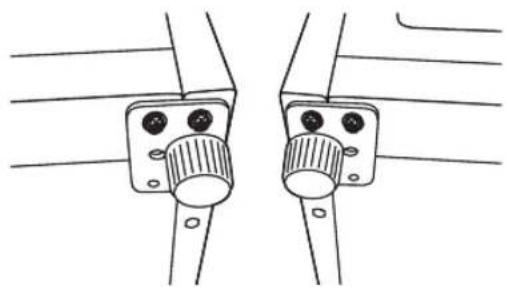

1. Place the fixing plate on the opposite side of the appliance, secure it with three bolts, and screw the foot into position.

Technical line drawing of two mechanical components with adjustment knobs (no text or symbols)

1. Remove the handle covers and screws which fix the handle on the right side of door, then remove the handle and rotate 180 degree, position on the right side, fix it by screws and cover the handle cover.

Technical line drawing of a mechanical bracket with a curved cutout detail (no text or symbols)

1. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a refrigerator with a handle and side legs (no text or symbols)

Levelling the Unit

To do this adjust two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

* All images are for reference only; please refer to your individual unit for actual item.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the drawers in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

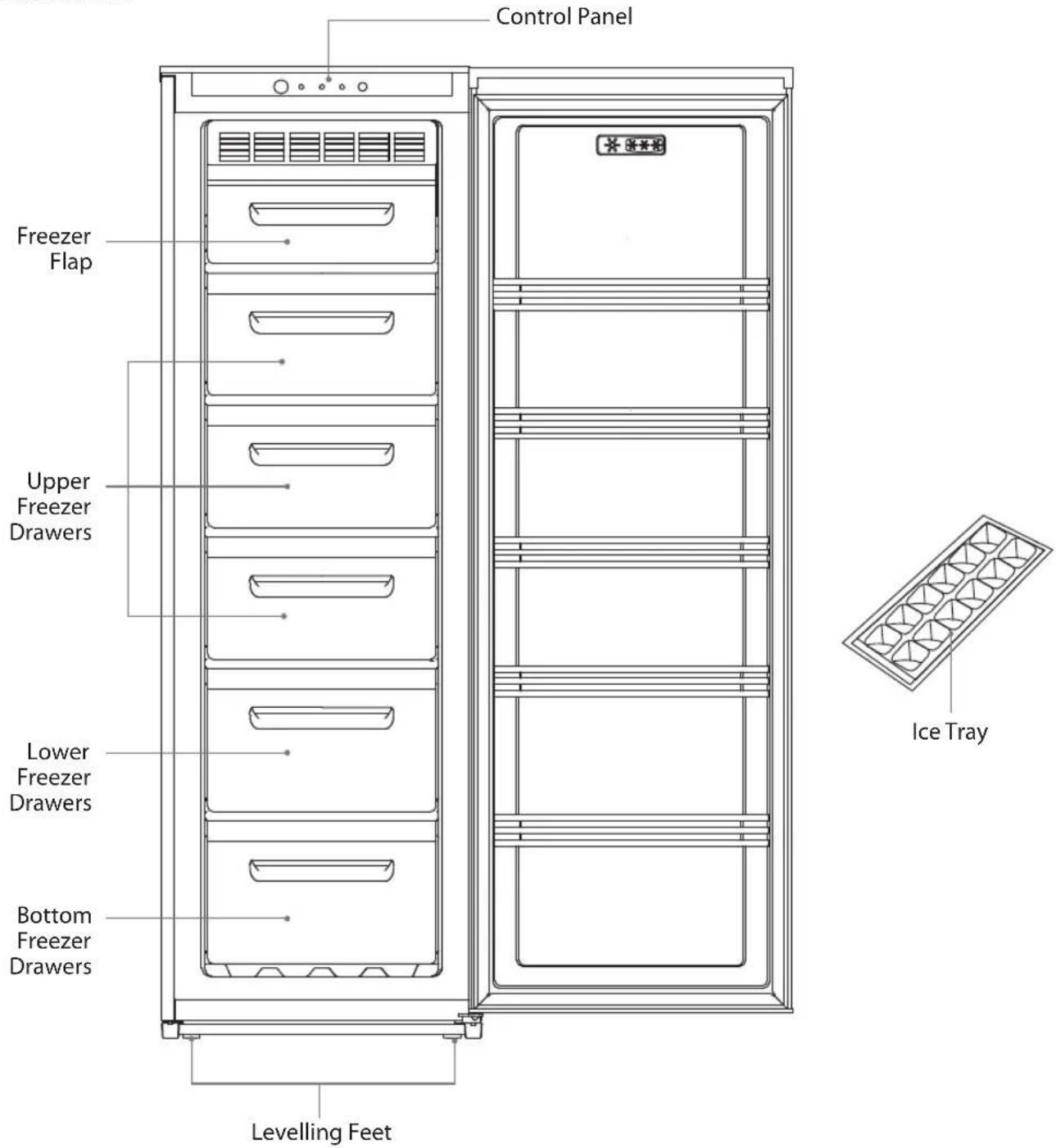

Main Unit

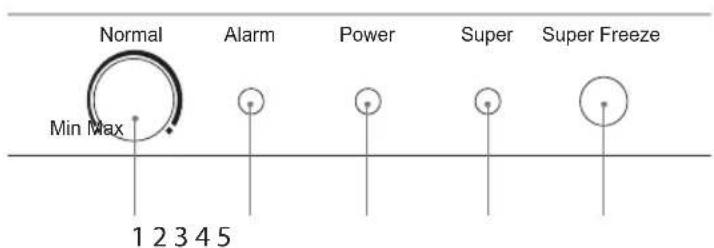

Control Panel

1. Thermostat Control Dial
2. Alarm Indicator
3. Power Indicator
4. Super Indicator

5. Super Freeze Button

6. Connect the mains cable to the mains socket. The power indicator will turn on. The internal temperature of your unit is controlled by a thermostat. There are three setting Min, Normal and Max.

7. After the unit has been on for 20 minutes adjust the thermostat control dial to Normal. This is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
8. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
9. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
10. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be between -18^ or lower.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. Max position is the coldest setting and it is used for fast freezing. The recommended position is Normal, but it should be adjusted according to the environment.

Fast Freezing

Fresh food should be frozen as quickly as possible. Press the Super Freeze button to makes your unit operate at its coldest temperatures (approximately -28°C) continuously. The Super indicator will turn on. It helps to quickly freeze and retain more of the goodness of your food. Freezing will be completed after 24 hours. After freezing your food, press the Super Freeze button. The Super indicator will turn off. Never freeze large quantities of fresh food at one time.

When the Super Freeze button is set on, the compressor works continuously to fast freeze much hot food quickly. So you must turn off the Super Freeze button to normal mode in 24 hours.

Alarm for Freezer

When the freezer temperature is higher than -8^ , the alarm indicator will illuminate until the temperature is below -8^ .

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for Frozen Foods

- Your unit is 4-star. * * * *

When you are buying frozen food, check the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4-star rating. This is usually the period stated as "Best before" on the front of the packaging. The maximum freezing capacity of this freezer is shown on the rating plate. Do not exceed the maximum capacity.

• Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.
  • Take a quick look at the frozen food package and make sure it is in perfect condition.
  • Always buy frozen products last on your shopping trip or visit to the supermarket. Try to keep frozen food together whilst shopping and on the journey home as this will help to keep the food frozen.
• Don't buy frozen food unless you can freeze it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These bags can keep frozen food frozen longer.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

Illustration of a hand pouring liquid from a container into a container with a spoon (no text or symbols)

• Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.
• You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never refreeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food

Defrosting

Frost might build up in the unit after the it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10 mm (0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Place a shallow bowl or pan below the unit. Scrape away the frost using a plastic scraper (not included). Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the unit and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove.

2. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.

3. When defrosting is complete, clean your unit's interior and exterior.

Simple illustration of a gray spatula with a handle and circular end (no text or symbols)

Cleaning the Interior and the Exterior of the Unit

• Remove all the drawers before cleaning.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a ‘wrung-out’ sponge or cloth. Wipe completely dry before replacing the drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This maybe due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LTFFFS12
Frozen Food Storage Volume (Four-Star Compartment)	176 L * ***
Storage Temperature ≤ -18°C
Energy Consumption 0.704 kWh / 24h
Energy consumption 256 kwh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 8 (Upright Freezer)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Frost Free
Climate Class N/ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 45dB
Temperature Rise Time 10 hours
Freezing Capacity 15kg / 24h
Rated Voltage	220V - 240V
Rated Current	0.45 A
Unit Dimensions Without Handle (W x D x H)	554 x 571 x 1687 mm

Features and specifications are subject to change without prior notice.

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• Keep ventilation openings in the unit enclosure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the freezer, unless they are of the type recommended by the manufacturer.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
• Young children should be supervised to ensure that they do not play with the unit.
• Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).
• The unit must be maneuvered by a minimum of 2 persons.
• This unit is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the freezer by a person responsible for their safety.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances in the unit.
• Do not store bottles or glass containers in the unit. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage the unit.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

	Normal energy consumption	Increased energy consumption
Installation site	In a ventilated room. In an enclosed, unventilated room.Protected from direct sunlight. In direct sunlight.Not situated near to a heat source (radiator, oven).Where the ideal ambient room temperature is approx 20°C.	Situated near to a heat source (radiator, oven).Where there is a high ambient room temperature.
Use	Only open the doors when necessary and for as short a time as possible.Store food in an organised way. If food is not stored in an organised way, searching for an item will mean the door is open for longer.Allow hot food and drinks to cool down before placing them in the unit.Store food covered or packaged. The evaporation or condensation of liquids will cause a loss of coldness in the unit.Do not over-fill the appliance to allow air to circulate.	Frequent opening of the doors for long periods will cause a loss of coldness.not stored in an organised way, searching for an item will mean the door is open for longer.Placing hot food in the unit will cause the compressor to run for a long time, as the unit will have to work harder to lower the temperature.
Defrosting	Defrost the unit when a layer of ice 1 cm thick has built up.	A layer of ice hinders the cold from reaching the frozen food, and causes an increase in energy consumption.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Upper Freezer Frame 1118674
Upper Freezer Panel 1403904
Lower Freezer Frame 1118675
Bottom Freezer Frame 1118679
Lower & Bottom Freezer Panel 1403902
Freezer Flip 1403905
Ice Tray 1051965

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can

deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Gradient grayscale transition from white to dark gray, no text or symbols present

Gradient grayscale background with no text, symbols, or identifiable objects
