Product Type	Freestanding Refrigerator-Freezer
Model	T60170B
Brand	SERVIS
Height	170 cm
Width	60 cm
Depth	65 cm
Weight	55 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	E
Annual Energy Consumption	250 kWh
Total Net Capacity	250 L
Fridge Net Capacity	180 L
Freezer Net Capacity	70 L
Star Rating for Freezer	4 Stars
No Frost	No (manual defrost)
Cooling Function	Static cooling
Temperature Control	Thermostat dial (1-7)
Interior Light	Yes, LED
Shelves Material	Glass
Number of Shelves	4
Door Storage	Yes, 3 compartments
Freezer Compartments	3 drawers
Defrosting Method	Manual (fridge and freezer)
Noise Level	42 dB
Climate Class	N-ST
Refrigerant	R600a
Reversible Door	Yes
Maintenance	Clean condenser coils annually, defrost when ice > 5 mm
Safety Features	Child lock on freezer, anti-tip bracket included
Spare Parts Availability	7 years from end of production
Repairability Index	7.5/10

Frequently Asked Questions - T60170B SERVIS

How to set the temperature on my SERVIS T60170B fridge?

Turn the thermostat dial inside the fridge compartment. Settings range from 1 (warmest) to 7 (coldest). For normal use, set between 3 and 4. The freezer temperature is automatically controlled.

Why is my fridge not cooling properly?

Check that the thermostat is set correctly. Ensure the door is fully closed and the seal is clean. Clean the condenser coils at the back if they are dusty. Allow 24 hours for temperature to stabilize after loading.

How to defrost the freezer?

Unplug the appliance and remove all food. Leave the freezer door open. Place towels to absorb melting water. Do not use sharp objects to remove ice. Once defrosted, dry and switch on.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove the top hinge, door, and bottom hinge, then reinstall on the opposite side. You may need a screwdriver and spanner.

What does the alarm sound mean?

The alarm indicates the door has been left open for more than 2 minutes, or the internal temperature is too high. Close the door properly or check if the freezer is overfilled.

How to clean the interior?

Unplug the fridge. Remove all shelves and drawers. Wash with warm water and mild detergent. Avoid abrasive cleaners. Dry thoroughly before replacing. Clean the door seals with a damp cloth.

Why is there water pooling inside the fridge?

Check if the defrost drain is blocked. Clean the drain hole at the back of the fridge using a pipe cleaner or cotton bud. Also ensure the fridge is level so water flows to the drain.

How to change the interior light bulb?

Unplug the fridge. Remove the light cover by pressing the tabs. Replace with a LED module (max 1W) if available, or the specified bulb (usually E14, 10W). Reattach cover.

What is the recommended temperature for the fridge and freezer?

Fridge: 3°C to 5°C (37°F to 41°F). Freezer: -18°C (0°F) or lower. Use a thermometer to verify. Adjust the thermostat if needed.

How to transport my fridge safely?

Empty the appliance and secure shelves. Use straps to hold the door closed. Keep the fridge upright during transport. If tilted, allow 24 hours upright before plugging in.

USER MANUAL T60170B SERVIS

Line drawing of a refrigerator with two doors and a front panel (no text or symbols)

Visit servis.co.uk

Contents>

01 Welcome
02 Safety Instructions
07 Your Fridge Freezer
10 Electrical Information
11 Technical Specification
12 Installation
15 Usage
16 Food Storage Tips
20 Cleaning and Care
23 Troubleshooting
25 Guarantee
27 Index

WELCOME >

SAFETY

WELCOME>

Thank you for choosing this Servis Fridge Freezer, which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product but please take time to read these instructions, which have been written to ensure you get the very best from your purchase.

WARRANTY >

Servis provides you with a guarantee which will protect you should your Fridge Freezer develop an electrical or mechanical fault during the guarantee period. To ensure that you get a prompt and efficient service, please register your Fridge Freezer immediately.

You will find a warranty card included within the packaging. To register, complete the form, or:

» Visit us at www.servis.co.uk

» Call us on 0333 577 7232

ITEMS INCLUDED>

Fridge Freezer Complete with Shelves and Drawers

Line drawing of a refrigerator and ice cube tray (no text or symbols)

Figure 1

01

T:0333 577 7232 T:0333 577 7232

Visit servis.co.uk

To ensure your safety and the safety of others, please read the following safety precautions before you use your Fridge Freezer.

Your Fridge Freezer conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to your Fridge Freezer, read this user guide carefully before using it for the first time. It contains important information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this user guide for future use and pass it on to any new owners. Read this user guide before using or installing your Fridge Freezer.
» Do not expose your Fridge Freezer to moisture or rain.
Always remove the mains plug from the wall socket when not in use or before any service operation.
Your Fridge Freezer is for domestic use only and is only intended for the storage of edible foodstuffs.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Before setting up your Fridge Freezer, check for any external visible damage. Do not install or use your Fridge Freezer if it is damaged.
Before connecting your Fridge Freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

Visit

servis.co.uk

SAFETY INSTRUCTIONS >

» Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the Fridge Freezer.
» Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
» A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
» Never remove the plug from the socket by pulling the cord. Always hold the plug.
» Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
» Never let the power cord be crushed by the Fridge Freezer itself or other heavy objects.
» Never bend the power cord excessively.
» Never let the power cord touch or pass over heating appliances.
» Do not remove items from the freezer if your hands are damp/wet. This could cause skin abrasions or frost/freezer burns.
» Do not place fizzy drinks, bottles and cans in the freezer compartment as they can burst as the contents freeze.
» Faulty components must only be replaced by a suitably qualified Service Agent using genuine spare parts.
» Unauthorised repairs could result in unforeseen dangers for the user. Repairs should only be undertaken by an approved service agent.

» Do not use other electrical appliances inside the Fridge Freezer.
» Do not refreeze food once it has thawed out.
» Do not make any alterations to your Fridge Freezer, unless authorised to do so by Servis.
» The packaging of the machine could be hazardous to children. Please refer to the disposal instructions on the rear cover.
» Please ensure that you have removed all of the packaging materials and protective tape from your Fridge Freezer before using.
» Please take care when moving your Fridge Freezer. It is heavy and we recommend that a minimum of two people move it. Your Fridge Freezer has a wheel in each back corner. You will find it easiest to move your Fridge Freezer when it is tilted backwards and pushed into position.
The small quantity of refrigerant used in the Fridge Freezer is eco-friendly R600a (an isobutenе) and is flammable/explosive if ignited in enclosed conditions. If the cooler elements have been damaged and you suspect a leak, move the Fridge Freezer away from any heat sources or open flame and ventilate the room the Fridge Freezer is in for a few minutes.
Because of the very low temperatures in the Freezer compartment, some foods, such as ice lollies could cause frost burns if consumed immediately after being removed from the Fridge Freezer.
» Keep the ventilation openings of the Fridge Freezer clear from obstruction.
» Do not store medicine or academic research samples that require strict temperature control in the Fridge Freezer.

SAFETY INSTRUCTIONS >

» When cleaning, do not use sharp implements as they may damage the Fridge Freezer.
» Store pre-packed frozen foods in accordance with their instructions and use by date.

Ecological Hints and Tips:

We have provided a few important hints and tips, so that you can save on the cost of energy and help protect the environment.

» Do not install the Fridge Freezer close to sources of heat such as a radiator or a cooker.
» Install the Fridge Freezer in a well ventilated room and keep the openings clear from obstruction.
» Do not install the Fridge Freezer on a wet floor or in a location with high humidity/moisture content.
» Food which is to be frozen (when cool) should be placed in the fridge compartment before being transferred to the freezer.
» Pack all foods into airtight packages before placing them into the freezer compartment.
» Do not place food against the turbo fan, otherwise air circulation within the refrigerator compartment will be impaired.
» Ensure there are no obstructions preventing the doors from closing properly.
» Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

» Clean the condenser on the back of the Fridge Freezer at least once a year to make sure it is free from dust and dirt.
» Once installation is complete, please dispose of the packaging with due regard to safety and the environment. Disposal instructions can be found on the rear cover.
» Your Fridge Freezer does not contain gases which damage the ozone layer, in either its refrigerant circuit or insulation materials.

Environmental Information:

The following information will help you to identify the different parts of your Fridge Freezer and provide suggestions on the best way to use them.

Freezer Compartments

① Adjustable shelf (two positions)

Refrigerator Compartment

② Turbo fan - used to circulate air around the fridge. Do not block the turbo fan.
③ Thermostat/Light - see pages 14 and 22.
4 Adjustable glass shelves
5 Drain hole - water formed as a result of automatic defrosting flows through this hole into the vaporisation container at the rear of your Fridge Freezer and evaporates.
6 Vegetable drawer
7 Door shelves
8 Bottle shelf

Your Fridge Freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply.
If your plug requires changing because it is not suitable for your socket, or it is damaged, you should consult a qualified electrician.

Fuse:

Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp rating.
» Replacement fuses can be purchased from an electrical supplier.

TECHNICAL SPECIFICATION INSTALLATION

TECHNICAL SPECIFICATION >

Model Number T60170R, T60170C, T60170B
Power Source 220-240 V AC, 50Hz
Energy Consumption 0.768 KWh/24h
Freezer Rating 4
Climate Class ST/N (16°C - 38°C)
Refrigerant Gas R600a
Gas Capacity 70 gr
Freezer Capacity 70 Lt
Fresh Food Freezing Capacity 3.5 Kg./24h
Input Power	195 W
Fridge Light	E14 220-240v/15W
Energy Efficiency Rating	A+ Class
Minimum Room Temperature	16°C

INSTALLATION REQUIREMENTS >

Before unpacking and manoeuvring your Fridge Freezer, please take the time to read and become familiar with the following points:

To avoid risk of injury, please take care when moving your Fridge Freezer. It is heavy and we recommend that a minimum of two people move it. Your Fridge Freezer has a wheel in each back corner. You will find it easiest to move your Fridge Freezer when it is tilted backwards and pushed into position.
» Make sure that your Fridge Freezer can fit through all doorways on route to its final location. The dimensions of your Fridge Freezer (including the handles) are 1700 mm high x 610 mm wide x 655 mm deep.

Your Fridge Freezer should be positioned in a location that meets the following requirements:

» In a dry room that can be ventilated and out of direct sunlight.
» Away from any heat source such as a radiator. If this is unavoidable, a suitable heat insulator should be used (this is not supplied).
On a suitable floor that will not become damaged, or sag under the weight of the Fridge Freezer.
At least 500 mm away from stoves, ovens and heater cores and 50 mm away from electrical ovens.
» At least 20 mm away from another freezer.
» Clearance of at least 200 mm is required at the top and back of your Fridge Freezer. Do not place anything on top of your Fridge Freezer.

INSTALLATION>

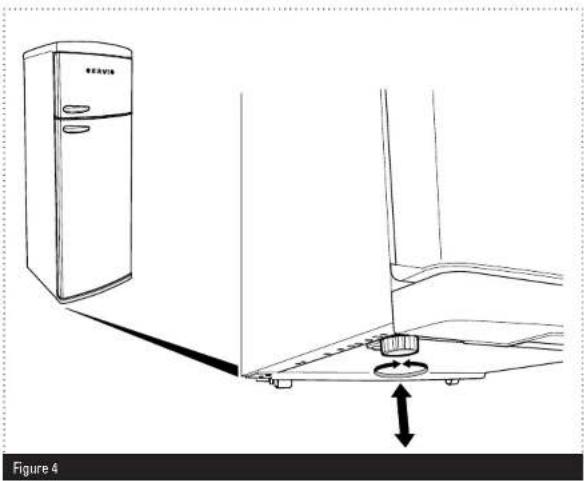

ADJUSTING THE FEET >

For safe operation, it is important that your Fridge Freezer is stable and balanced. The two adjustable feet at the front are used to level your Fridge Freezer. Make sure that your Fridge Freezer is level before placing any foodstuffs inside it.

To increase the height of the Fridge Freezer, turn the feet clockwise (Figure 4).
2 To decrease the height of the Fridge Freezer, turn the feet anti-clockwise (Figure 4).

Line drawing of a refrigerator and a kitchen appliance with a directional arrow indicating movement (no text or symbols)

TEMPERATURE CONTROL >

The thermostat (Figure 5) is used to regulate the temperature in the fridge and freezer compartments. It can be set to any value from 1-5, where 5 is the setting with the lowest temperature. For normal everyday use we recommend a value of 3-5. If "I" is selected the compressor is switched off.

① To increase the temperature, turn the thermostat dial clockwise.
② To decrease the temperature, turn the thermostat dial anti-clockwise.

We do not recommend that you operate your Fridge Freezer in environments colder then 10°C as efficiency is reduced.

Your Fridge Freezer is designed to operate in an ambient temperature of 16 °C to 38°C.

Line drawing of a refrigerator with an open door and a side view showing the front panel (no text or symbols)

USAGE>

FOOD STORAGE TIPS >

When using your Fridge Freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of sodium bicarbonate before use. After cleaning, rinse with warm water and dry.
» You may notice a slight odour when using your Fridge Freezer for the first time. This is perfectly normal and will fade away once the fridge starts to cool.
» Before using your Fridge Freezer, make sure that it has been connected to an appropriate mains power supply and is switched on at the socket.
» When using your Fridge Freezer for the first time, set the thermostat to a value of 4 for the first 24 hours.
Your Fridge Freezer has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your Fridge Freezer, it will begin to operate normally after 5 minutes.

To help you use your Fridge Freezer efficiently, please take the time to read the following tips and guidance.

Storage Areas:

The circulation of air within your Fridge Freezer causes areas of different temperatures. It is recommended that you make use of these areas when storing your food.

The coldest area of the fridge compartment is at the bottom, above the vegetable drawer. We recommend that you use this area to store food that will perish easily, such as fish, ready meals, baked goods and dairy products.

The warmest area of your fridge is the top shelf of the door. We recommend that you store butter and cheeses in this shelf.

Storing food:

It is best to store you food covered or packaged, to prevent it from drying out, and to prevent smells affecting other food in your Fridge. Store fruit and vegetables loose in the vegetable containers. Avoid storing potatoes, onions and garlic in your refrigerator.

Other tips you might find helpful are:

» Wash your food before storage.
» Allow warm or hot food to cool down before storing. This helps to reduce power consumption.

FOOD STORAGE TIPS >

» Keep as much space as possible between your items of food. This allows the cold air to circulate freely around them.
» Take care when storing tropical fruit such as pineapples as they can quickly deteriorate in lower temperatures.
» Divide and separate food into smaller pieces before storage.
» Cover or wrap food to prevent odours. We recommend that you store meat loosely covered as this allows air to circulate around the meat causing the surface to dry slightly, helping to prevent the growth of bacteria.
» Do not store food close to the lamp, or block the cover or the cooling compartment.

The table below is a quick guide, showing you the most efficient way to store the major food groups in your refrigerator compartment.

Food Storage Duration Location
Fruits and Vegetables 1 week Loose in Vegetable Drawer
Fish and Meat 2-3 Days Wrapped on Glass Shelf
Fresh Cheese 3-4 Days	Top Door Shelf
Butter and Margarine 1 Week	Top Door Shelf
Bottles, Yogurt and Milk	Refer to Packaging	Door Shelf
Eggs	1 month	Door Shelf

The Freezer Compartment:

You should use the freezer compartment of your Fridge Freezer for storing food for long periods and making ice. Aim to freeze fresh food as quickly as possible so that it keeps its taste and appearance.

It is important that you do not exceed the maximum freezing capacity of your Fridge Freezer, this will help to ensure that your food freezes as quickly as possible. The maximum freezing capacity for freezing within a 24 hour period is 3.5 kg.

The storage durations of frozen food can be changed by a variety of factors, such as; the frequency of the doors opening and closing, thermostat settings, food types and the period of time that elapsed from when the food was acquired to the time it entered the freezer. It is important that you follow the packaging on frozen foods and do not exceed the storage duration. The table below contains some recommendations on freezing.

Food	Preparation	Storage Duration (Months)	Thawing Period at Room Temperature (Hours)
Beef Steak	Cut into single portions	6-10	1-2
Lamb Cut into single portions		6-8	1-2
Minced Meat Packed in convenient portions		1-3	2-3
Sausage Must be packed	1-2	Until Thawed
Chicken and Turkey	Packed in convenient portions	1-2	10-12

FOOD STORAGE TIPS >

CLEANING AND CARE >

Food Preparation Storage Duration		(Months)	Thawing Period at Room Temperature (Hours)
Freshwater Fish (such as trout) Cleaned well inside		2	U
Lean Fish (such as Sea Bass)	and scaled. Washed and dried. Cut off head and tail where necessary	4-8 Until Well Thawed
Fatty fish (such as Mackerel)		2-4 Until Well Thawed
Peas	Shelled and washed	12	May Be Used From Frozen

WARNING: Do not re-freeze frozen food once it has thawed. It may be a danger to your health.

Ice Cube Trays:

Your can make ice cubes using the ice cube trays supplied with your Fridge Freezer;

» Fill each ice cube tray three quarters full with water and place it on the bottom of the freezer compartment.

Power Disruption:

In the event of a power cut, please do not open the door of the freezer compartment. Your Fridge Freezer will preserve your frozen food in an ambient environmental temperature of 25 °C for approximately 13 hours. This time period will be shorter if the ambient temperature is higher. When power is re-applied after a power cut your Fridge Freezer will not operate for 4-5 minutes. This is to allow the gas in the cooling system to balance and is perfectly normal.

CLEANING AND CARE >

From time to time it will be necessary to carry out cleaning of your Fridge Freezer.

» Before cleaning your Fridge Freezer, turn your mains power supply off and remove the plug from the socket.
» Do not wash your Fridge Freezer by pouring water on it.
» Use a warm, soapy cloth or sponge to the wipe the interior and exterior of your Fridge Freezer.
» Carefully remove all shelves and drawers by sliding outwards or upwards and clean with soapy water. Do not wash in a washing machine or dish washer.
» Clean the condenser at the back of your Fridge Freezer at least once a year with a soft brush or vacuum cleaner.
» Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your Fridge Freezer. They may damage the plastic surfaces and other components with the chemicals they contain.

CLEANING AND CARE >

Cleaning The Vaporisation Container:

Your Fridge Freezer performs fully automatic defrosting. The water formed as a result of this automatic defrosting flows through the drain hole at the back of the fridge (see page 7) into the vaporisation container at the rear of your Fridge Freezer and evaporates. We recommend cleaning the vaporisation container at regular intervals to prevent odours from building up.

To clean the vaporisation container:

1 Remove the vaporisation container by unscrewing the 2 screws (Figure 6 a and b)
② Clean the vaporisation container with warm soapy water and dry with a cloth.
② Re-fit the vaporisation container by screwing it back into position.

Technical line drawing of an internal appliance with labeled parts (a and b), no readable text or symbols present.

Figure 6

21

T:03335777232 T:03335777232

Visit servis.co.uk

Replacing the LED:

Contact the Servis helpdesk.

Visit servis.co.uk

TROUBLESHOOTING>

TROUBLESHOOTING INFORMATION >

If your Fridge Freezer is not operating as expected, you may find a simple solution listed in the table below.

If your Fridge Freezer has developed a fault not covered in this manual, please contact the Servis helpdesk.

Fault Possible Cause Solution
Your Fridge Freezer does not operate.	It is switched off at the mains.	Check that your Fridge Freezer is plugged in and turned on at the mains.
Your Fridge Freezer does not get cold enough.	The thermostat is set too low.	Turn the thermostat to a higher value. (A setting of 5 will provide the lowest temperature).
	The doors are opened and closed too frequently.	Try to reduce the number of times the doors are opened and closed.
	The door seals are faulty. Contact Servis.
	The refrigerator compartment is overfilled.	Check that there is enough space between items to allow air circulation.Make sure that no items are food are blocking the air vents.

Fault Possible Cause Solution
Food in the Freezer compartment is colder than necessary.	The thermostat setting may be too high.	Put the thermostat on a lower setting.
Your Fridge Freezer is noisy. Your	Fridge Freezer may not be level.	Adjust the feet to level your Fridge Freezer. See page 13.
	Please note that certain noises may heard from your Fridge Freezer during use. They are perfectly normal from a frost free Fridge Freezer and are not damaging your Fridge Freezer. Contact the Servis helpdesk if you have any concerns.
There is moisture on the inner parts of your Fridge Freezer.	The doors are opened and closed too frequently.	Try to reduce the number of times the doors are opened and closed.
There is loose water in the bottom of the fridge.	The drain hole at the back of the fridge may be blocked.	Use the drain plug to clear the drain hole.
The doors do not close properly.	Items of food may prevent them from closing.	Make sure that the doors are free from obstruction.
	The shelves and drawers are not correctly in position.	Check that the shelves are drawers are properly placed in position.
	The door seal is damaged. Contact the Servis helpdesk.
	Your Fridge Freezer is not level.	Adjust the feet to level your Fridge Freezer. See page 13.

GUARANTEE >

DISPOSAL OF YOUR OLD FRIDGE FREEZER >

All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.

When the Fridge Freezer is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing. A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

Please refer to the rear cover for disposal instructions.

GUARANTEE >

The Servis guarantee covers the cost of parts/labour/call out charges to repair an appliance should any covered component fail in its normal functions necessitating a repair or replacement to resume those functions.

The Servis guarantee does not cover:

» Accidental damage
»Use in a commercial environment
»Incorrect or faulty installation
» Deliberate damage or neglect
» Repairs to cosmetic parts

25

T: 0333 577 7232 T: 0333 577 7232

Visit

servis.co.uk

»Damage caused by foreign objects or substances
» Claims in respect to routine inspection or maintenance

The Servis guarantee is not transferable.

For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim.

The above summary does not include all of the terms and conditions and exclusions which can be found on our website www.servis.co.uk.

KNOW YOUR RIGHTS >

Household contents insurance

Your household insurance may cover you for accidental damage, fire or theft of your product.

Data Protection Act (1988)

Please note that any information provided will be processed by us or our agents in compliance with the provisions of the Data Protection Act 1988, for the purpose or providing cover and handling claims, if any, which may necessitate providing such information to third parties.

Visit

servis.co.uk

INDEX>

A

Adjusting the feet 13

B

Before using your fridge freezer .....15

C

Cleaning and care 20

D

Disposal 25

E

Ecological hints and tips 05

Electrical information 10

Environmental information 06

F

Food storage guidance 16

Freezer compartment 18

Fuse....10

G

Guarantee....25

1

Installation requirements....12

Items included 01

P

Power disruption 20

R

Replacing the led....22

S

Safety instructions 02

T

Technical specification 11

Temperature control 14

Troubleshooting information 23

W

Warranty....01

27

T:03335777232 T:03335777232

Visit

servis.co.uk

Visit

servis.co.uk

T:03335777232

E: [e-mail]

Visit servis.co.uk

SERVIS

EFFICIENCY BY DESIGN

The owner of the product, or its packaging manufacturer, that this product may not be treated as household waste, neither it shall be heated over to the applicable collection gain, for the purpose of electral and mechanical environment. By ensuring this product is disposed of correctly, you will have a power, potential negative consequences for the maintenance and human beauty, which should otherwise be prescribed by maintenance water lending or the consumer. You are also called in order to assist cleaning of this product, please contact your local city office, your household waste disposal service or the shop where you attended the product.
