UL55W - Refrigerator SERVIS - Free user manual and instructions

Product Type	Freestanding Refrigerator
Model Number	UL55W
Dimensions (Height x Width x Depth)	840 mm x 540 mm x 595 mm
Power Supply	220-240 V ~ 50 Hz
Power Consumption	83 W
Energy Consumption	0.315 kWh/24h
Energy Efficiency Class	A+
Climate Class	GT/SN (10°C – 43°C)
Refrigerant	R600a (25 g)
Lighting	E14, 220-240 V, 15 W
Temperature Control	Dial thermostat (1-5), setting 5 coldest
Interior Features	Adjustable glass shelves, vegetable drawer, door shelves, bottle shelf, egg holders
Automatic Defrost	Yes
Compressor Delay	5 minutes built-in delay function
Leveling Feet	2 adjustable feet at front
Installation Clearance	Top and back: 200 mm min; sides: 50 mm from ovens, 500 mm from stoves
Cleaning	Wipe with warm soapy water; clean condenser yearly
Safety Features	Eco-friendly R600a refrigerant (flammable), child lock (door catch must be disabled before disposal)
Guarantee	Servis guarantee covers parts/labour/call out (except accidental damage, commercial use, etc.)

Frequently Asked Questions - UL55W SERVIS

How do I adjust the temperature on my SERVIS UL55W fridge?

Turn the thermostat dial (Figure 5) to a value between 1 and 5. Setting 5 provides the lowest temperature. For normal use, we recommend a setting of 3-5. Turning the dial below 1 switches off the compressor.

What should I do if my fridge is not cooling enough?

Check that the thermostat is set to a higher value (5 is coldest). Ensure doors are not opened too frequently and door seals are intact. Make sure the fridge is not overfilled and air vents are not blocked. If the problem persists, contact Servis.

How do I clean the interior of my fridge?

Unplug the fridge and remove all shelves and drawers. Wash them with warm soapy water. Wipe the interior with a warm soapy cloth. Do not use abrasive cleaners, solvents, or glass cleaners. Rinse and dry thoroughly before reinserting.

How often should I clean the condenser?

Clean the condenser at the back of the fridge at least once a year using a soft brush or vacuum cleaner to remove dust and dirt.

What type of light bulb does the fridge use?

The fridge uses an E14 bulb rated 220-240 V, 15 W. To replace, unplug the fridge, remove the light cover, unscrew the old bulb, and fit a new one. Reattach the cover.

How do I level the fridge?

Turn the two adjustable feet at the front clockwise to increase height, anticlockwise to decrease height. Ensure the fridge is stable and balanced before placing food inside.

What should I do if there is water at the bottom of the fridge?

The drain hole at the back may be blocked. Clear it using the drain plug. Also check that the vaporisation container at the rear is not full; clean it regularly with warm soapy water.

Can I store flammable items in the fridge?

No. Do not store containers with flammable gases or liquids (e.g., spray cans, fire extinguisher refills) near the fridge as they can leak at low temperatures.

How long should I wait before turning on the fridge after moving it?

Keep the fridge upright for at least 3 hours after transportation or before first use to allow the compressor oil to settle. Then plug it in and set the thermostat to 4 with super switch on for 24 hours.

Where should I store different types of food?

Store fruits and vegetables loose in the vegetable drawer. Fish and meat (wrapped) on the bottom glass shelf. Dairy and eggs on door shelves. Butter and cheese on the top door shelf. Refer to the food storage guide in the manual for specific durations.

USER MANUAL UL55W SERVIS

Line drawing of a rectangular refrigerator with no visible text or symbols on the body

Contents>

01 Welcome
02 Safety Instructions
07 Your Fridge
10 Electrical Information
11 Technical Specification
12 Installation
15 Usage
17 Food Storage Tips
19 Cleaning and Care
23 Troubleshooting
25 Guarantee
27 Index

WELCOME >

SAFETY

WELCOME>

Thank you for choosing this Servis Fridge, which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product but please take time to read these instructions, which have been written to ensure you get the very best from your purchase.

WARRANTY >

Servis provides you with a guarantee which will protect you should your Fridge develop an electrical or mechanical fault during the guarantee period. To ensure that you get a prompt and efficient service, please register your Fridge immediately. You will find a warranty card included within the packaging. To register, complete the form, or:

» Visit us at www.servis.co.uk

» Call us on 0333 577 7232

ITEMS INCLUDED

Fridge Complete with Shelves and Drawers

Egg Holders

Figure 1

This illustration is only for information about parts of the appliance. Parts may vary according to the appliance model

01

T: 0333 577 7237

Visit servis.co.uk

To ensure your safety and the safety of others, please read the following safety precautions before you use your Fridge.

Your Fridge conforms to current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to your Fridge, read this user guide carefully before using it for the first time. It contains important information on the installation, safety, use and maintenance of your Fridge. Retain this user guide for future use and pass it on to any new owners. Read this user guide before using or installing your Fridge.
» Do not expose your Fridge to moisture or rain.
Always remove the mains plug from the wall socket when not in use or before any service operation.
» Your Fridge is for domestic use only and is only intended for the storage of edible foodstuffs.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Before setting up your Fridge, check for any external visible damage. Do not install or use your Fridge if it is damaged.
Before connecting your Fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

Visit serv

servis.co.uk

T:03335777232

SAFETY INSTRUCTIONS >

» Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans or fire extinguisher refill cartridges in the vicinity of the Fridge.
» Do not connect your Fridge to the mains electricity supply using an extension lead.
» A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
» Never remove the plug from the socket by pulling the cord. Always hold the plug.
» Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
» Never let the power cord be crushed by the Fridge itself or other heavy objects.
» Never bend the power cord excessively.
» Never let the power cord touch or pass over heating appliances.
» Faulty components must only be replaced by a suitably qualified Service Agent using genuine spare parts.
» Unauthorised repairs could result in unforeseen dangers for the user. Repairs should only be undertaken by an approved service agent.
» Do not use other electrical appliances inside the Fridge.

» Do not make any alterations to your Fridge, unless authorised to do so by Servis.
» The packaging of the machine could be hazardous to children. Please refer to the disposal instructions on the rear cover.
» Please ensure that you have removed all of the packaging materials and protective tape from your Fridge before using.
» Please take care when moving your Fridge. It is heavy and we recommend that a minimum of two people move it. Your Fridge has a wheel in each back corner. You will find it easiest to move your Fridge when it is tilted backwards and pushed into position.
The small quantity of refrigerant used in the Fridge is eco-friendly RS00a (an isobutene) and is flammable/explosive if ignited in enclosed conditions. If the cooler elements have been damaged and you suspect a leak, move the Fridge away from any heat sources or open flame and ventilate the room the Fridge is in for a few minutes.
» Keep the ventilation openings of the Fridge clear from obstruction.
» Do not store medicine or academic research samples that require strict temperature control in the Fridge.
» When cleaning, do not use sharp implements as they may damage the Fridge.
» Store pre-packed frozen foods in accordance with their instructions and use by date.

SAFETY INSTRUCTIONS >

Ecological Hints and Tips:

We have provided a few important hints and tips, so that you can save on the cost of energy and help protect the environment.

» Do not install the Fridge close to sources of heat such as a radiator or a cooker.
» Install the Fridge in a well ventilated room and keep the openings clear from obstruction.
» Do not install the Fridge on a wet floor or in a location with high humidity/moisture content.
» Ensure there are no obstructions preventing the doors from closing properly.
» Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
» Clean the condenser on the back of the Fridge at least once a year to make sure it is free from dust and dirt.

Environmental Information:

Once installation is complete, please dispose of the packaging with due regard to safety and the environment. Disposal instructions can be found on the rear cover.
» Your Fridge does not contain gases which damage the ozone layer, in either its refrigerant circuit or insulation materials.

YOUR FRIDGE >

FRONT VIEW >

The following information will help you to identify the different parts of your Fridge and provide suggestions on the best way to use them.

① Thermostat/Light
② Adjustable glass shelves
③ Vegetable drawer
4 Drain hole
5 Door shelves
6 Bottle shelf

YOUR FRIDGE >

ELECTRICAL INFORMATION >

REAR VIEW >

ELECTRICAL INFORMATION

Your Fridge requires a 220-240V, 50Hz mains supply. Do not use any other supply.
If your plug requires changing because it is not suitable for your socket, or it is damaged, you should consult a qualified electrician.
» Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp rating.
» Replacement fuses can be purchased from an electrical supplier.

Fuse:

TECHNICAL SPECIFICATION INSTALLATION

TECHNICAL SPECIFICATION >

Model Numbers UL55W
Power Source 220-240 V AC, 50Hz
Energy Consumption 0.315 KWh/24h
Climate Class GT/SN (10°C - 43°C)
Refrigerant Gas R600a
Gas Capacity 25 gr
Input Power 83 W
Fridge Light E14 220-240v/15W
Energy Efficiency Rating A+ Class

Minimum Room Temperature 10°C

INSTALLATION REQUIREMENTS >

Before unpacking and manoeuvring your Fridge, please take the time to read and become familiar with the following points:

To avoid risk of injury, please take care when moving your Fridge. It is heavy and we recommend that a minimum of two people move it. Your Fridge has a wheel in each back corner. You will find it easiest to move your Fridge when it is tilted backwards and pushed into position.
» Make sure that your Fridge can fit through all doorways on route to its final location. The dimensions of your Fridge (including the handle) are 840 mm high x 540 mm wide x 595 mm deep.

Your Fridge should be positioned in a location that meets the following requirements:

» In a dry room that can be ventilated and out of direct sunlight.
» Away from any heat source such as a radiator. If this is unavoidable, a suitable heat insulator should be used (this is not supplied).
On a suitable floor that will not become damaged, or sag under the weight of the Fridge.
At least 500 mm away from stoves, ovens and heater cores and 50 mm away from electrical ovens.
» At least 20 mm away from a freezer.
» Clearance of at least 200 mm is required at the top and back of your Fridge. Do not place anything on top of your Fridge.

INSTALLATION>

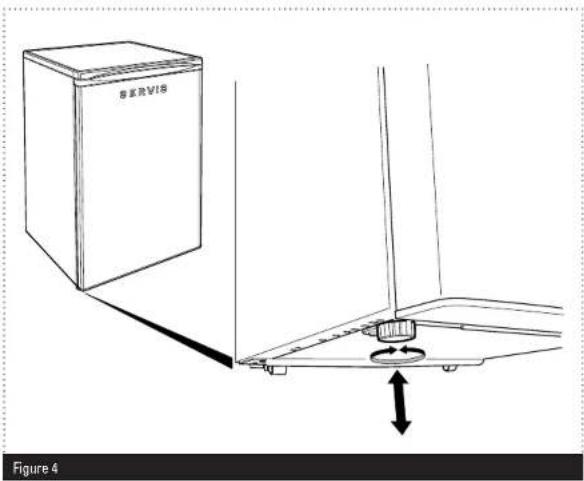

ADJUSTING THE FEET >

For safe operation, it is important that your Fridge is stable and balanced. The two adjustable feet at the front are used to level your Fridge. Make sure that your Fridge is level before placing any foodstuffs inside it.

① To increase the height of the Fridge, turn the feet clockwise (Figure 4).
② To decrease the height of the Fridge, turn the feet anti-clockwise (Figure 4).

TEMPERATURE CONTROL >

The thermostat (Figure 5) is used to regulate the temperature in the fridge. It can be set to any value from 1-5, where 5 is the setting with the lowest temperature. For normal everyday use we recommend a value of 3-5. If you turn the dial below the 1 position the compressor is switched off.

» We do not recommend that you operate your Fridge in environments colder than 10 °C as efficiency is reduced.
» Your Fridge is designed to operate in an ambient temperature of 10 °C to 43°C.

Line drawing of an open refrigerator with a handheld device inserted, labeled Figure 5 (no text or symbols on the device itself)

USAGE>

BEFORE USING YOUR FRIDGE >

When using your Fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
» We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of sodium bicarbonate before use. After cleaning, rinse with warm water and dry.
» You may notice a slight odour when using your Fridge for the first time. This is perfectly normal and will fade away once the fridge starts to cool.
Before using your Fridge, make sure that it has been connected to an appropriate mains power supply and is switched on at the socket.
When using your Fridge for the first time, set the thermostat to a value of 4 and set the super switch to on for the first 24 hours. Avoid opening the door while the Fridge is cooling down and do not place a lot of food inside the Fridge, otherwise it will take longer to reach operating temperature.
Your Fridge has a 5 minute built in delay function, designed to prevent damage to the compressor. When power is applied to your Fridge, it will begin to operate normally after 5 minutes.

Power Disruption:

In the event of a power cut, your Fridge will preserve your food longer if you do not open the Fridge door.

When power is re-applied after a power cut your Fridge will not operate for 4-5 minutes. This is to allow the gas in the cooling system to balance and is perfectly normal.

FOOD STORAGE TIPS >

To help you use your Fridge efficiently, please take the time to read the following tips and guidance.

Storage Areas:

The circulation of air within your Fridge causes areas of different temperatures. It is recommended that you make use of these areas when storing your food.

The coldest area of the fridge compartment is at the bottom, above the vegetable drawer. We recommend that you use this area to store food that will perish easily, such as fish, ready meals, baked goods and dairy products.

The warmest area of your fridge is the top shelf of the door. We recommend that you store butter and cheeses in this shelf.

Storing food:

It is best to store you food covered or packaged, to prevent it from drying out, and to prevent smells affecting other food in your Fridge. Store fruit and vegetables loose in the vegetable containers. Avoid storing potatoes, onions and garlic in your refrigerator.

Other tips you might find helpful are:

» Wash your food before storage.
» Allow warm or hot food to cool down before storing. This helps to reduce power consumption.

» Keep as much space as possible between your items of food. This allows the cold air to circulate freely around them.
» Take care when storing tropical fruit such as pineapples as they can quickly deteriorate in lower temperatures.
» Divide and separate food into smaller pieces before storage.
» Cover or wrap food to prevent odours. We recommend that you store meat loosely covered as this allows air to circulate around the meat causing the surface to dry slightly, helping to prevent the growth of bacteria.
» Do not store food close to the lamp, or block the cover or the cooling compartment.

The table below is a quick guide, showing you the most efficient way to store the major food groups in your Fridge.

Food Storage Duration Location

Fruits and Vegetables 1 week Loose in Vegetable Drawer
Fish and Meat 2-3 Days Wrapped on Glass Shelf
Fresh Cheese	3-4 Days	Top Door Shelf
Butter and Margarine 1 Week	Top Door Shelf
Bottles, Yogurt and Milk	Refer to Packaging	Door Shelf
Eggs	1 month	Door Shelf

CLEANING AND CARE >

CLEANING AND CARE

From time to time it will be necessary to carry out cleaning of your Fridge.

» Before cleaning your Fridge, turn your mains power supply off and remove the plug from the socket.
» Do not wash your Fridge by pouring water on it.
» Use a warm, soapy cloth or sponge to the wipe the interior and exterior of your Fridge.
» Carefully remove all shelves and drawers by sliding outwards or upwards and clean with soapy water. Do not wash in a washing machine or dish washer.
» Clean the condenser at the back of your Fridge at least once a year with a soft brush or vacuum cleaner.
Do not use solvents, abrasive cleaners, glass cleaners or all purpose cleaning agents to clean your Fridge. They may damage the plastic surfaces and other components with the chemicals they contain.

Cleaning The Vaporisation Container:

Your Fridge performs fully automatic defrosting. The water formed as a result of this automatic defrosting flows into the vaporisation container at the rear of your Fridge and evaporates. We recommend cleaning the vaporisation container at regular intervals to prevent odours from building up.

To clean the vaporisation container:

1 Remove the vaporisation container by unscrewing the 2 screws (a) and (b) (Figure 6)

② Clean the vaporisation container with warm soapy water and dry with a cloth.

③ Re-fit the vaporisation container by screwing it back into position.

CLEANING AND CARE >

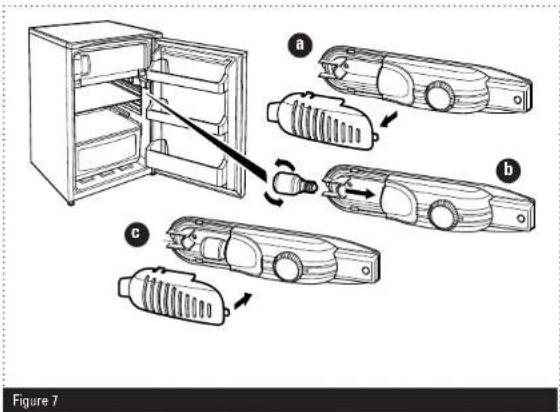

Replacing the Lamp Bulb:

To replace the bulb:

① Check that your Fridge is turned off and unplugged from the mains.
② Apply light pressure to the sides of the light cover and carefully pull downwards.
(Figure 7 a).
③ Unscrew the bulb by turning it clockwise, and remove (Figure 7 b).
4 Replace with a 15 Watt bulb.
⑤ Re-fit the light cover, by pushing it upwards it until it clicks back into position (Figure 7 C).

This page intentionally blank

TROUBLESHOOTING>

TROUBLESHOOTING INFORMATION >

If your Fridge is not operating as expected, you may find a simple solution listed in the table below.

If your Fridge has developed a fault not covered in this manual, please contact Servis.

Fault Possible Cause Solution
Your Fridge does not operate. It is switched off at the mains.		Check that your Fridge is plugged in and turned on at the mains.
Your Fridge does not get cold enough.	The thermostat is set too low.	Turn the thermostat to a higher value. (A setting of 5 will provide the lowest temperature).
	The doors are opened and closed too frequently.	Try to reduce the number of times the doors are opened and closed.
	The door seals are faulty. Contact Servis.
	The refrigerator compartment is overfilled.	Check that there is enough space between items to allow air circulation.Make sure that no items are food are blocking the air vents.

Fault Possible Cause Solution
Your Fridge is noisy. Your Fridge	may not be level. Adjust the feet to level your Fridge. See page 13.
	Please note that certain noises may heard from your Fridge during use. They are perfectly normal from a frost free Fridge and are not damaging your Fridge. Contact Servis if you have any concerns.
There is moisture on the inner parts of your Fridge.	The doors are opened and closed too frequently.	Try to reduce the number of times the doors are opened and closed.
There is loose water in the bottom of the fridge.	The drain hole at the back of the fridge may be blocked.	Use the drain plug to clear the drain hole.
The doors do not close properly.	Items of food may prevent them from closing.	Make sure that the doors are free from obstruction.
	The shelves and drawers are not correctly in position.	Check that the shelves are drawers are properly placed in position.
	The door seal is damaged. Contact Servis.
	Your Fridge is not level. Adjust the feet to level your Fridge. See page 13.

GUARANTEE >

DISPOSAL OF YOUR OLD FRIDGE

All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.

When the Fridge is to be scrapped, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing. A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely.

Please refer to the rear cover for disposal instructions.

GUARANTEE >

The Servis guarantee covers the cost of parts/labour/call out charges to repair an appliance should any covered component fail in its normal functions necessitating a repair or replacement to resume those functions.

The Servis guarantee does not cover:

» Accidental damage
»Use in a commercial environment
»Incorrect or faulty installation
» Deliberate damage or neglect
» Repairs to cosmetic parts

» Damage caused by foreign objects or substances
» Claims in respect to routine inspection or maintenance

The Servis guarantee is not transferable.

For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim.

The above summary does not include all of the terms and conditions and exclusions which can be found on our website www.servis.co.uk.

KNOW YOUR RIGHTS >

Household contents insurance

Your household insurance may cover you for accidental damage, fire or theft of your product.

Data Protection Act (1988)

Please note that any information provided will be processed by us or our agents in compliance with the provisions of the Data Protection Act 1988, for the purpose or providing cover and handling claims, if any, which may necessitate providing such information to third parties.

INDEX>

A

Adjusting the feet 13

B

Before using your fridge 15

C

Cleaning and care 19

B

Disposal 25

E

Ecological hints and tips 05

Electrical information 10

Environmental information 06

F

Food storage guidance 17

Fuse....10

©

Guarantee 25

1

Installation requirements....12

Items included 01

P

Power disruption 16

R

Replacing the lamp bulb 21

S

Safety instructions 02

T

Technical specification 11

Temperature control 14

Troubleshooting information 23

W

Warranty....01

T: 0333 577 7232

E. [e-mail]

Visit servis.co.uk

SERVIS

EFFICIENCY BY DESIGN

The owner of the product, or its packaging manufacturer, that this product may not be treated as household waste, neither it shall be heated over to the applicable collection gain, for the purpose of electral and mechanical environment. By ensuring this product is disposed of closely, you will have a power, potential negative consequences for the maintenance and human beauty, which are otherwise as necessary to maintain water flowing in the sector. You must be treated with water and water using this product, please contact your local city office, your household waste disposal service or the shop where you attended the product.
