SD-004 - Kitchen scale TANITA - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Tanita
Model	SD-004
Maximum Capacity	5 kg (11 lbs) or similar
Graduation / Accuracy	1 g (0.1 oz)
Units of Measurement	g, kg, lb, oz, fl.oz (milk, water) possibly
Weighing Platform Material	Stainless Steel or Tempered Glass
Display Type	LCD (Liquid Crystal Display)
Power Source	2 x AAA batteries (1.5V)
Auto-Off Feature	Yes, after 2-5 minutes of inactivity
Tare Function	Yes, to zero out container weight
Overload Indicator	Yes (display shows 'EEEE' or similar)
Low Battery Indicator	Yes, icon on display
Dimensions (approx.)	20 x 15 x 3 cm (7.9 x 5.9 x 1.2 in)
Weight (without batteries)	Approx. 400 g (0.88 lb)
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Operating Temperature	10-40°C (50-104°F)
Storage Temperature	-10 to 60°C (14 to 140°F)
Spare Parts Availability	Batteries (standard AAA), not other user-serviceable parts
Intended Use	Kitchen food weighing only, not for commercial use

Frequently Asked Questions - SD-004 TANITA

What is the maximum weight capacity of the Tanita SD-004 kitchen scale?

The maximum capacity is typically 5 kg (11 lb) for this model. Overloading beyond this may damage the scale and display an error.

How accurate is the scale?

The SD-004 has an accuracy of 1 gram (0.1 oz), suitable for precise cooking and baking.

How do I change the batteries?

Locate the battery compartment on the bottom of the scale, slide open the cover, remove old batteries, and insert two new AAA batteries following the polarity indicators.

Why does my scale show an error message 'EEEE'?

The 'EEEE' message indicates an overload. Remove the excess weight immediately to prevent damage.

Can I use the scale to measure liquids?

Yes, many Tanita scales have a liquid measurement mode. Refer to the manual for specific units (e.g., fl. oz for milk/water).

How do I clean the scale?

Wipe the platform and body with a damp cloth. Do not immerse in water or use abrasive cleaners, as this may damage the electronics.

What does the tare function do?

The tare function subtracts the weight of a container, allowing you to weigh only the contents. Place the container on the scale, press tare, then add ingredients.

Why does my scale turn off automatically?

The auto-off feature saves battery life. It activates after 2-5 minutes of inactivity. You can press the power button to restart.

How do I switch between weight units?

Press the UNIT or MODE button to cycle through available units (g, kg, lb, oz). The selected unit appears on the display.

Is the scale suitable for commercial use?

No, the Tanita SD-004 is designed for home kitchen use only. Commercial environments may require more durable, legal-for-trade scales.

USER MANUAL SD-004 TANITA

Digital Scale for kitchen use

MODEL SD-004

The kitchen scale has both a solar cell and a lithium battery. The solar cell powers the scale in bright areas, elsewhere the lithium battery is used.

○If no battery or battery power is low, the display shows the icon.

The scale can operate without a battery in bright areas. If the light is not bright enough, the scale may be in the below conditions. Should this happens, insert a lithium battery.

• Displays Lo.

- Nothing is displayed.

• The display disappears during weighing.

- Brightness needed for powering the solar cell Place the kitchen scale about 1.4 m away from a 60 W incandescent bulb or 2.0 m from a 30 W fluorescent light.

- Do not use it near an inverter fluorescent light. If the scale does not work properly, move it at least 1 m away from such the light source. - The solar cell does not charge the lithium battery.

此電子秤提供太陽能及鋰電池選擇。

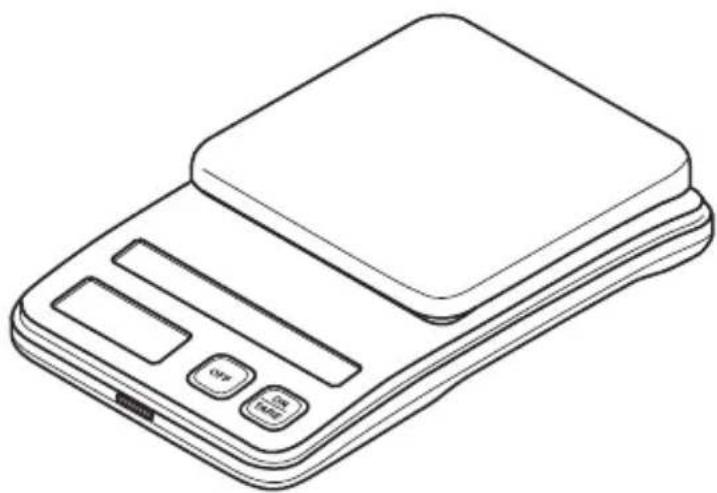

A	Tray
B	LCD Display
C	ON/TARE button
D	OFF button
E	Solar panel
F	Battery compartment
G	Battery compartment cover

Important

Use the unit on a firm, flat surface.

How to use

1. Open the battery compartment cover and insert 1× "CR2032(IEC)" or "5004LC" battery as indicated. (see figure 1) NB. Make sure that the polarity of battery is correctly aligned.

2. Press the ON/TARE button.

The display will show "8888".

Wait until the display shows "0" before proceeding to weigh item(s).

NB. Make sure you place item(s) in the centre of the tray.

If the weight of the item(s) exceeds the scale's capacity, "EEEE" will appear on the display.

(fig.1)

1. Tare weighing function

The tare function allows you to Add and Weigh individual item(s) without removing contents of the bowl.

When the display shows "0", put the bowl onto the scale and press the ON/TARE button. The display will revert to "0" again.

Now add and weigh item(s), pressing the ON/TARE button before adding and weighing each individual item.

After removing the bowl at the end, the display will show a negative reading. Press the ON/TARE button to return the display to "0".

1. Press the OFF button to turn off the power.

2. Auto Power Off

The scale is designed with an auto power-off function for energy efficiency. If the same reading is displayed for more than 10 minutes the scale will automatically turn off.

1. Battery Replacement

The icon appears when the battery is depleted or no battery. Press the OFF button to turn off the scale and replace the old battery with a new CR2032 coin lithium battery that is within its recommended use-by date.

*Mode Change

When a mode change is required, press and hold the ON/TARE button about 2 seconds while display shows "g" or "oz". (for the g/oz version)

Care instructions and important notes

1. The scale is a precision instrument. Do not dismantle the scale and avoid strong vibrations or shocks.
2. Keep away from direct sunlight and heating appliances, eg. oven.
3. When moving the scale to a new location, where the temperature differs from the previous location by more than 10° C ( 50° F), leave the scale in the new location for at least 2 hours before using it.
4. Wipe the scale clean with a damp cloth.
5. Avoid using chemicals to prevent creating a hazard.
6. If the scale is not to be used for a long period of time, remove the batteries.

Specification

	g version	g/oz version
Capacity	3000g	3000g/105oz
Minimum graduation	0 - 1000g 1g1000 - 2000g 2g2000 - 3000g 5g	0 - 1000g 1g / 0.00 - 35.0oz 0.05oz1000 - 2000g 2g / 35.0 - 70.0oz 0.1oz2000 - 3000g 5g / 70.0 -105.0oz 0.2oz
Power	solar cell, 1× "CR2032(IEC)" or "5004LC" battery (included)

電子秤使用說明

部件名稱

重要事項

請在平穩地方使用。

使用方法

圖像 1

1. 除皮功能

除皮功能可以提供扣除容器重量。

สำคัญ

Penting

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by the Tanita Corporation may void the user's authority to operate the equipment.

EN

Notice: These marks can be found on contaminant-containing Batteries:

Pb Pb = Battery contains lead,

Cd Cd = Battery contains cadmium,

Hg Hg = Battery contains mercury.

Not allowed to mix batteries with consumer waste!

As a consumer you are legally bound to return used or discharged batteries. You can deposit your old batteries at public collection points in your town, or wherever the corresponding batteries are sold and specifically marked collecting boxes have been set up. In case of scrapping the apparatus, the batteries should be removed from it and deposited at the collection points as well.

ZH

This device features radio interference suppression in compliance with valid EC Regulation 2004/108/EC.

ZH
