Product Type	VCR (Video Cassette Recorder)
Brand	Funai
Model	FT4120
Video System	VHS (NTSC)
Number of Heads	4
Dimensions (W x D x H)	430 mm x 250 mm x 90 mm
Weight	4.5 kg
Power Supply	AC 110-240 V, 50/60 Hz
Power Consumption	20 W (operating), 2 W (standby)
Recording Modes	SP, LP, EP
Timer Recording	Up to 4 events, 1-month schedule
Inputs	Antenna (RF), Composite (RCA)
Outputs	RF out, Composite (RCA), Audio L/R
Remote Control	Infrared (included)
Cleaning & Maintenance	Use VHS head cleaning cassette; avoid magnetic fields
Safety Precautions	Do not expose to moisture; do not open casing; unplug during storms
Spare Parts Availability	Belts, heads, power supplies available from Funai service centers
Repairability	Moderate; requires specialized tools for head replacement
General Information	VCR with auto tracking and digital auto head cleaning

Frequently Asked Questions - FT4120 FUNAI

Why does my Funai FT4120 VCR not power on?

Check the power cord connection and ensure the outlet is working. If the unit still doesn't power on, the internal fuse may be blown. Attempt a factory reset by unplugging for 10 minutes.

How do I adjust tracking on the FT4120?

The FT4120 has auto tracking, but manual tracking can be adjusted using the tracking buttons on the front panel or remote. Press until picture stabilizes.

Why does the picture have lines or snow?

This is often caused by dirty video heads. Use a VHS head cleaning cassette. Also check your cable connections and try a different tape.

How do I set up timer recording?

Press 'Timer Set' on the remote, then use the number keys to set date, start time, end time, and channel. Ensure a tape with sufficient length is inserted and the VCR is in standby mode.

My remote control doesn't work. What should I do?

Replace the batteries (two AA). Ensure there are no obstacles between remote and sensor. Test the remote by pointing at a camera phone to see if the IR emitter lights up. If not, the remote may need replacement.

Can I connect the FT4120 to my modern TV?

Yes, via the composite (RCA) outputs. If your TV lacks RCA inputs, you can use an RF modulator to connect to the coaxial antenna input. Note that modern TVs may not support 480i resolution properly.

How do I clean the video heads?

Use a wet-type VHS head cleaning cassette. Insert it, press play for 10-15 seconds, then eject. Do not use dry cleaners excessively as they can wear heads.

Why does the VCR eat tapes?

This can be due to dirty or worn pinch rollers or idler tires. The unit may need professional servicing. Avoid using damaged tapes.

What types of tapes are compatible?

The FT4120 plays and records on VHS tapes (T-120 and T-160). It also plays S-VHS tapes in standard VHS mode (lower quality).

Is the FT4120 compatible with PAL or SECAM?

No, the FT4120 is designed for the NTSC system. Using PAL or SECAM tapes may result in black-and-white picture or no picture. A converter would be required.

USER MANUAL FT4120 FUNAI

IMPORTANT SAFEGUARDS....2

PRECAUTIONS....4

SUPPLIED ACCESSORIES 4

FEATURES 5

OPERATING CONTROLS AND FUNCTIONS ..... 6

REMOTE CONTROL OPERATION....8

HOW TO USE THE REMOTE CONTROL......8

INSTALLING THE BATTERIES....9

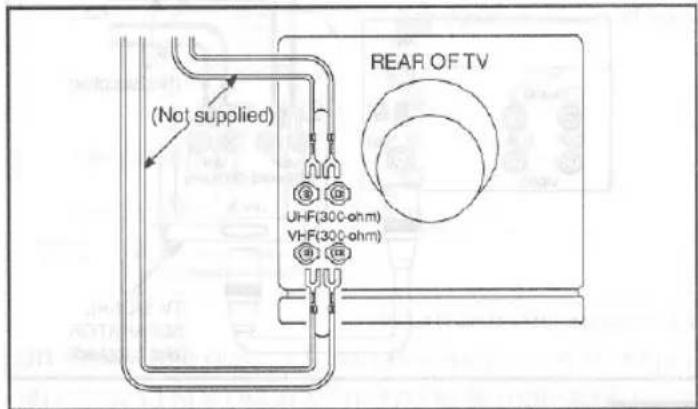

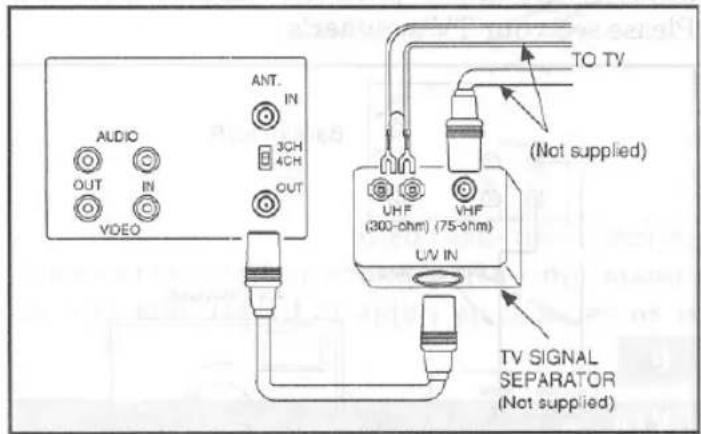

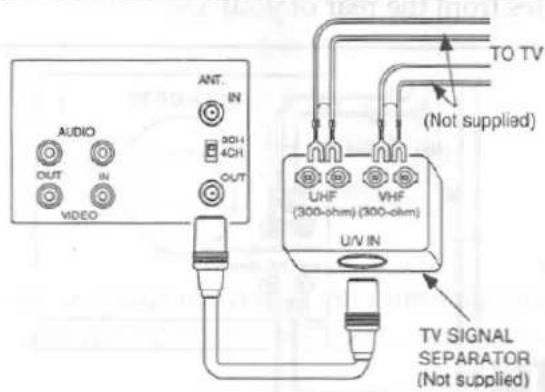

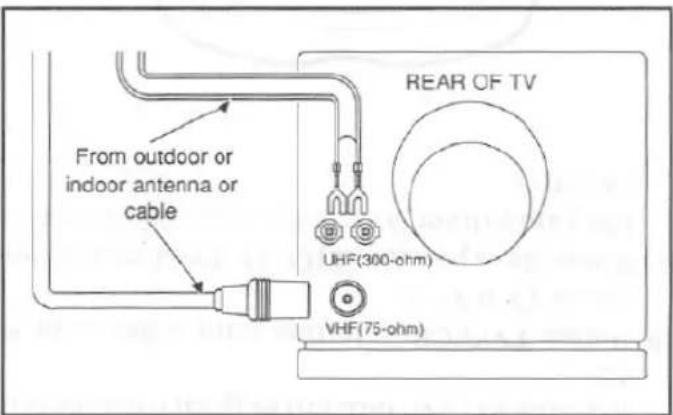

ANTENNA/CABLESYSTEM CONNECTIONS.10

CONTROLLING VCR INPUT & OUTPUT......13

PREPARATION FOR USE....14

SELECTING LANGUAGE (ENGLISH OR SPANISH)....14

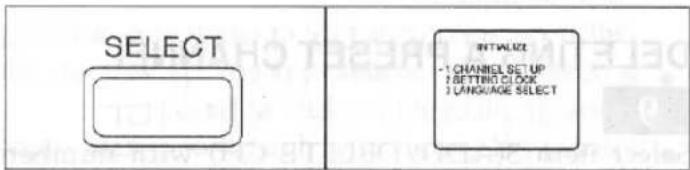

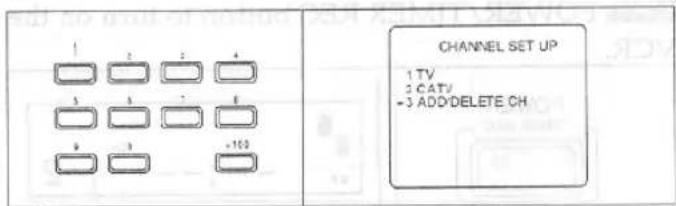

PROGRAMMING THE TV/CATV TUNER MEMORY 15

TO DELETE, ADD PRESET CHANNEL.....16

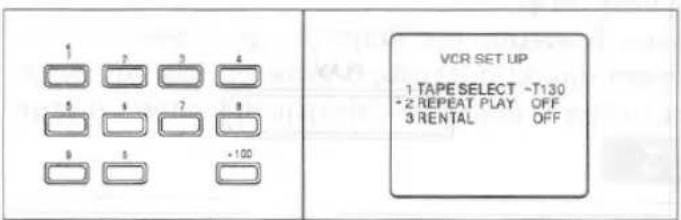

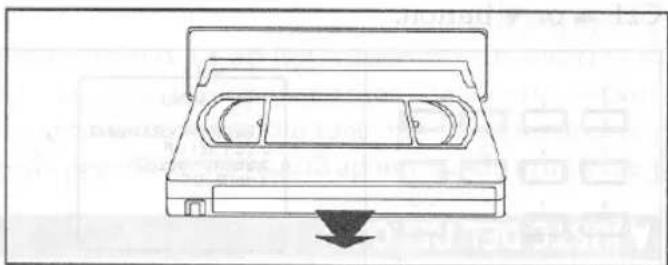

VIDEO CASSETTE....17

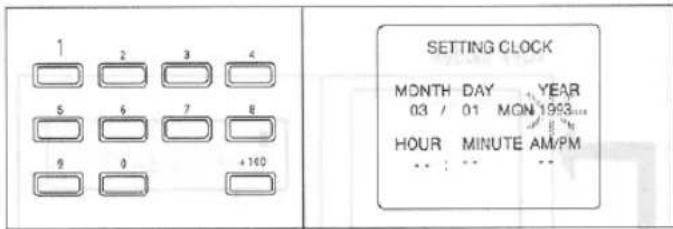

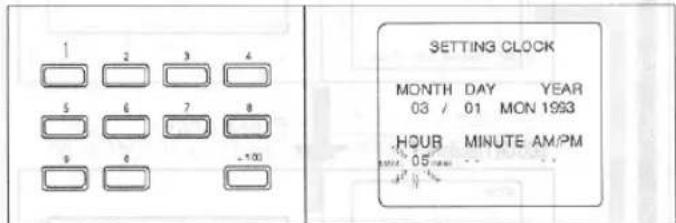

SETTING THE CLOCK 18

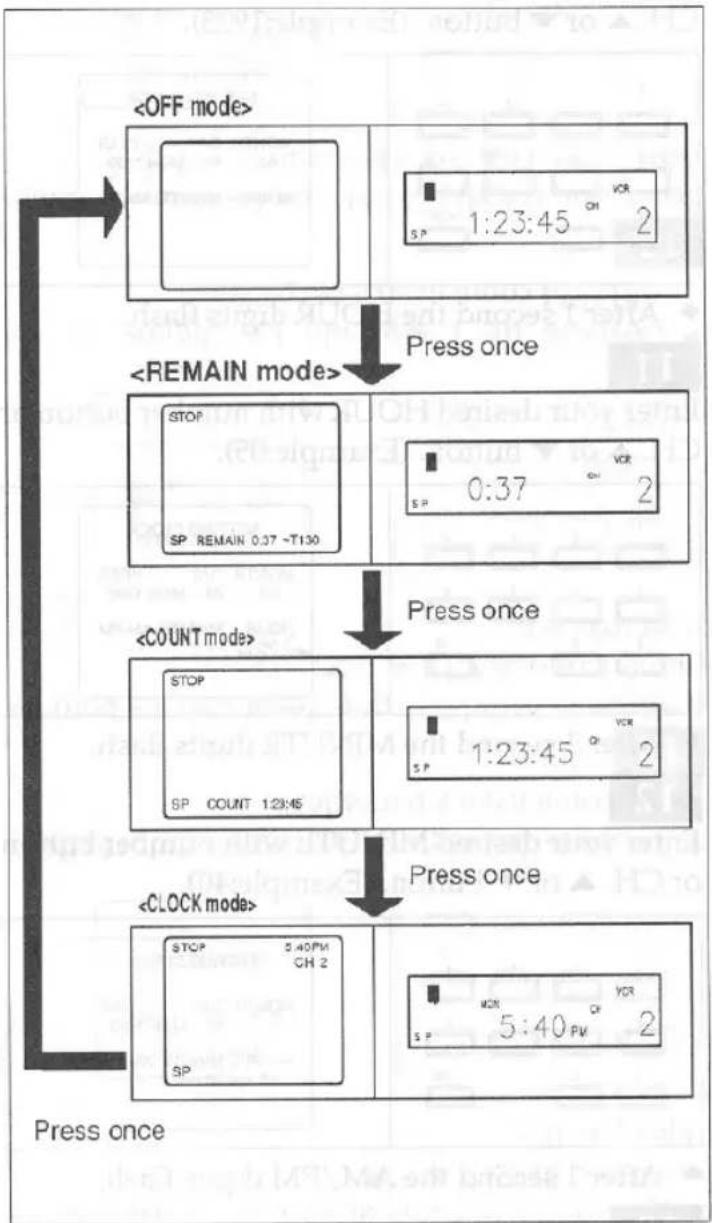

CHECKING THE REMAIN, COUNT, CLOCK, AND CHANNEL NUMBER....20

OPERATION....21

VIEWING AND RECORDING THE SAME PROGRAM....21

RECORDING ONE PROGRAM WHILE VIEWING ANOTHER....24

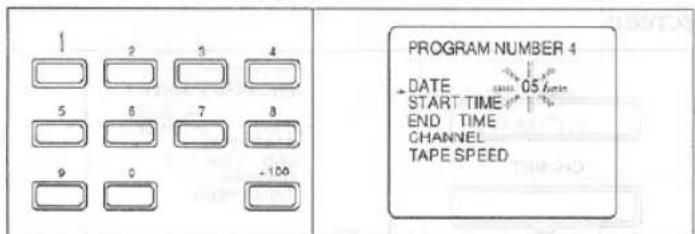

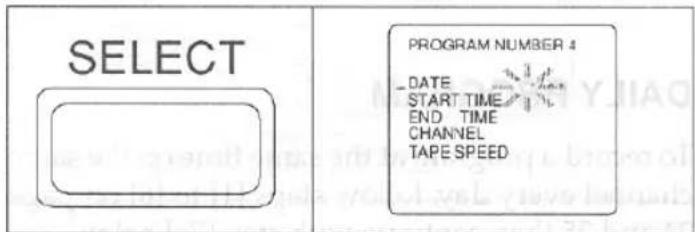

AUTOMATIC TIMER RECORDING....24

TROUBLESHOOTING GUIDE....40

MAINTENANCE 41

CABINET CLEANING....41

HEAD CLEANING....41

SERVICING....41

SPECIFICATIONS....42

GENERAL SPECIFICATIONS....42

ELECTRICAL SPECIFICATIONS....42

Line drawing of a microwave oven front panel with control buttons and indicator lights (no text or symbols)

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions be followed.
5. Cleaning-Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
   EXCEPTION: A product that is meant for uninterrupted service and that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
8. Accessories-Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious

damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart com-

PORTABLE CART WARNING (Symbol provided by RETAC)

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

S3125A

bination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

2. Power Sources-This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.

3. Grounding or Polarization-This video product is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact you electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

4. Power Cord Protection-Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

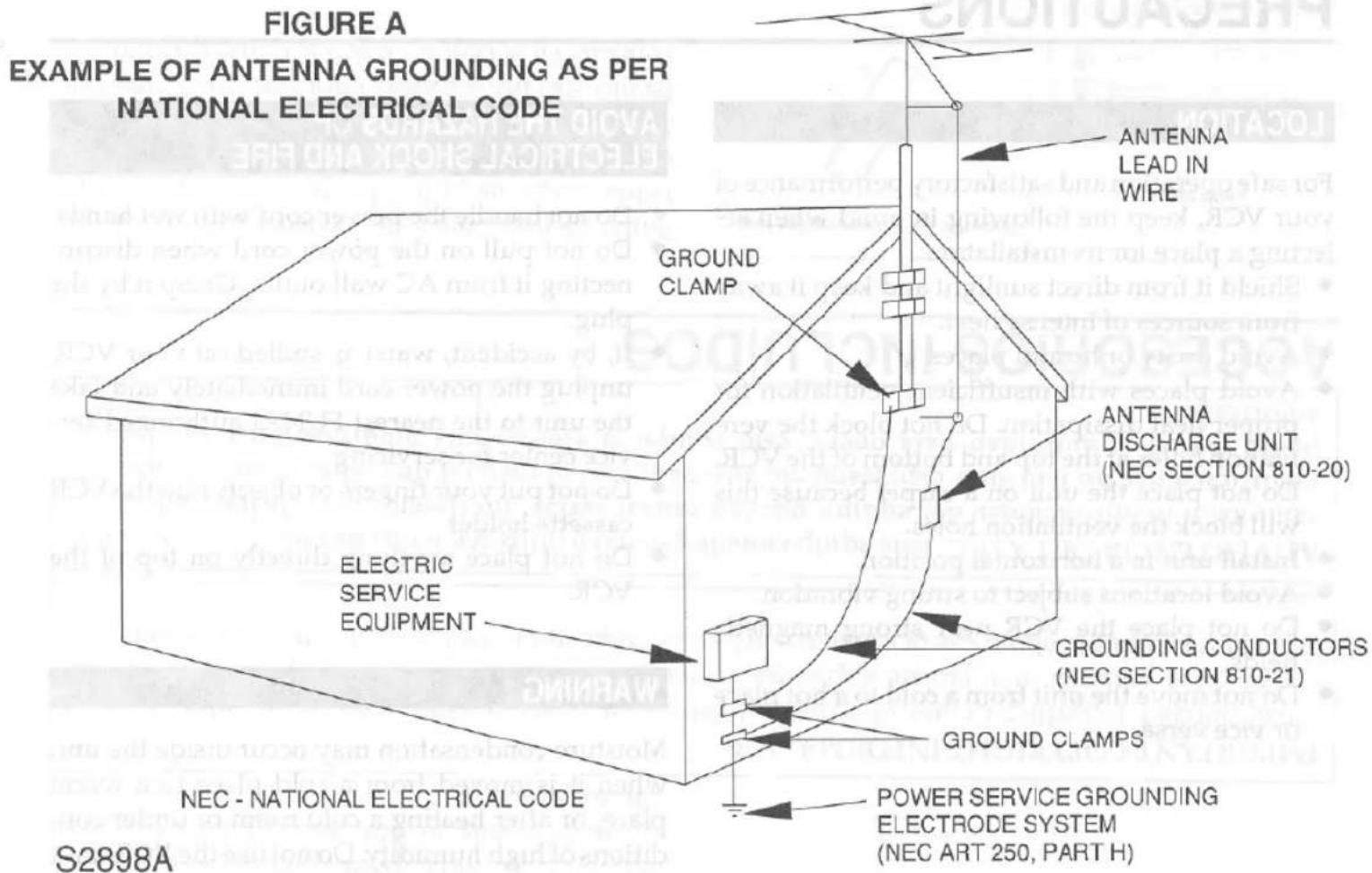

5. Outdoor Antenna Grounding-If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code,

ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

1. Lightning-For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.
2. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
3. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
4. Object and Liquid Entry-Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.
5. Servicing-Do not attempt to service this video product yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

1. Damage Requiring Service-Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
   a. When the power-supply cord or plug is damaged.
   b. If liquid has been spilled, or objects have fallen into the video product.
   c. If the video product has been exposed to rain or water.
   d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.
   e. If the video product has been dropped or the cabinet has been damaged.
   f. When the video product exhibits a distinct change in performance this indicates a need for service.
2. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
3. Safety Check-Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

LOCATION

For safe operation and satisfactory performance of your VCR, keep the following in mind when selecting a place for its installation:

◆ Shield it from direct sunlight and keep it away from sources of intense heat.
- Avoid dusty or humid places.
- Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the VCR. Do not place the unit on a carpet because this will block the ventilation holes.
◆ Install unit in a horizontal position.
◆ Avoid locations subject to strong vibration.
Do not place the VCR near strong magnetic fields.
Do not move the unit from a cold to a hot place or vice versa.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.
Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.
If, by accident, water is spilled on your VCR, unplug the power cord immediately and take the unit to the nearest FUNAI authorized service center for servicing.
Do not put your fingers or objects into the VCR cassette holder.
Do not place anything directly on top of the VCR.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use the VCR until its inside is dry.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television programming, video tape, film or other copyrighted material may violate applicable copyright laws. We assume no responsibility for the unauthorized duplication, use or other acts which infringe upon the rights of copyright owners.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

SUPPLIED ACCESSORIES

Coaxial cable (WPZ0102JC001/5750398/5750476)

(UREMT36SR006)

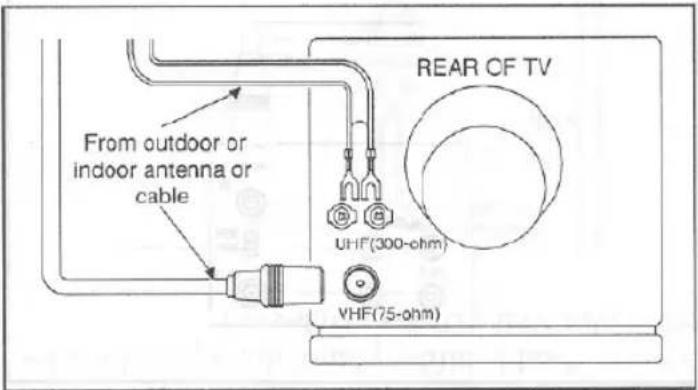

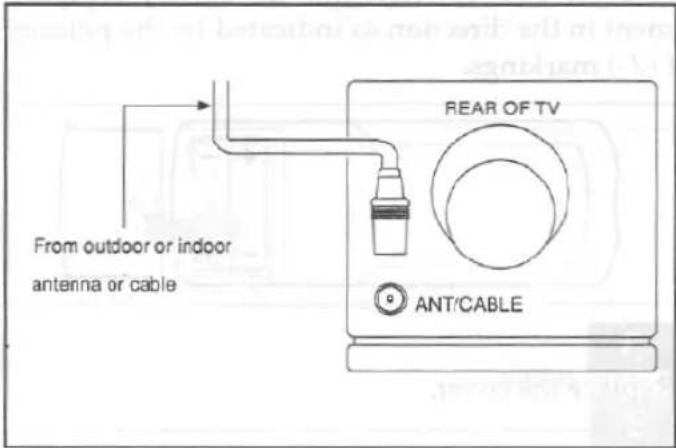

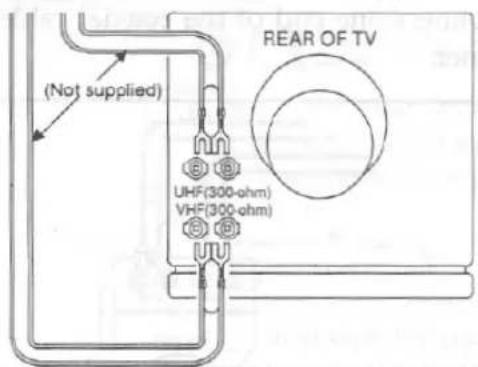

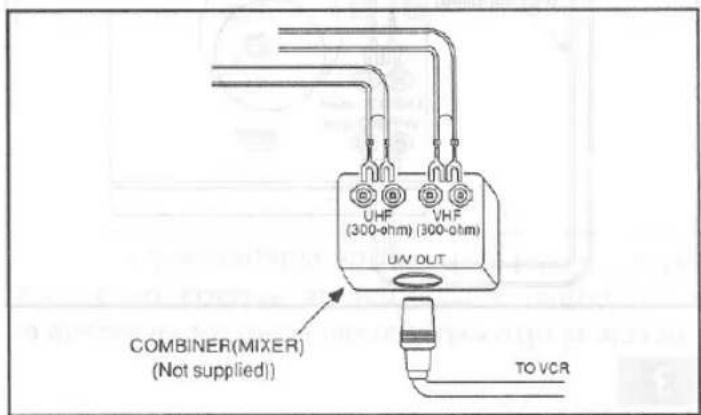

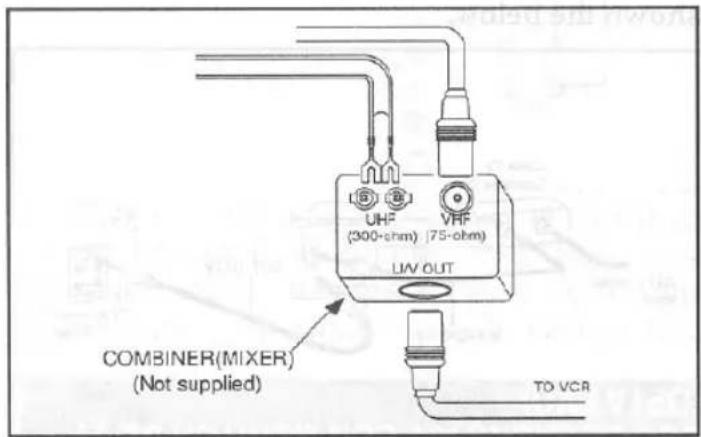

Note: Depending on your antenna system, you will need a different type of Combiner (Mixer) and Separator (Splitter). Contact your local electronics store for these items.

◆ 4 Rotary Head Record /Playback System- 4 rotary heads to ensure excellent picture quality and special effects playback.

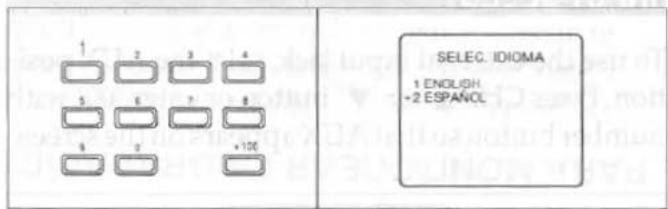

- On Screen Display (OSD) with English/Spanish selectable Screens

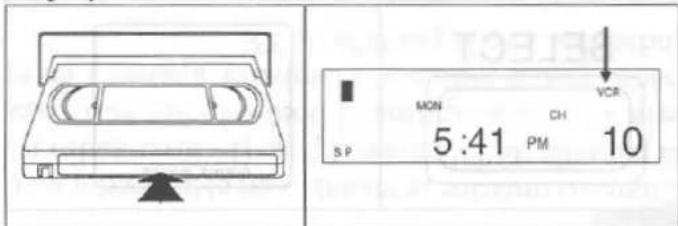

- Auto Power On/Off system— Automatically turns the VCR on as you insert the cassette, and turns off after auto-rewind, ejects when reaches beginning of the tape.
Three Different Record/Playback Speeds—Select between Standrad Play (SP), Long Play (LP) or Super Long Play (SLP) for up to eight hours of recording/playback with a T-160 tape.
◆ Automatic Playback Speed Selection—Automatically selects the proper playback speed even if you select a different tape speed.
- Automatic Rewind– Automatically rewinds at the end of the tape except during timer recording.

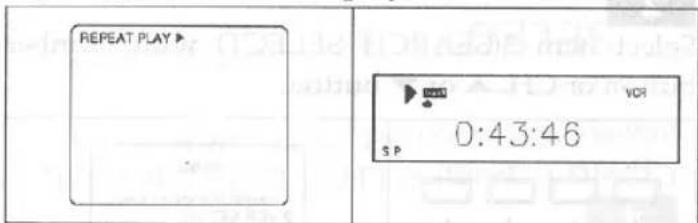

- Auto Repeat Playback—Allows you to repeat a tape indefinitely without pressing the PLAY button.
- Auto Tracking- Adjusts the tracking automatically for each tape you play.

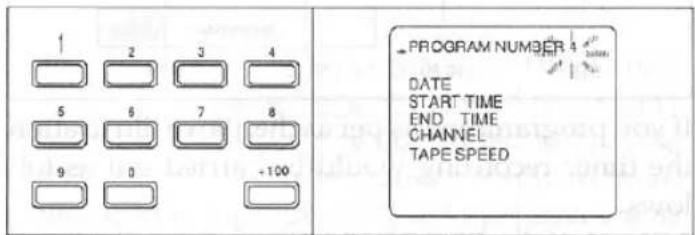

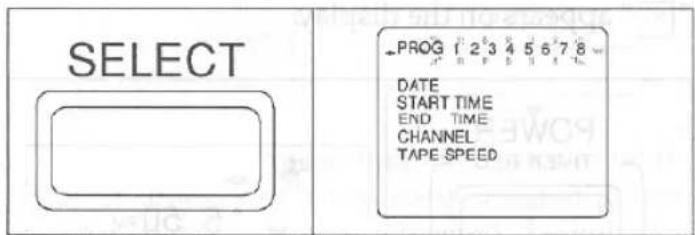

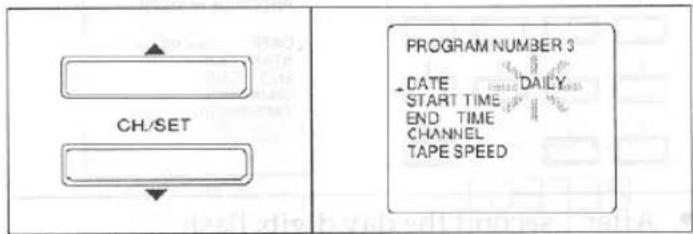

1 Year, 8 events timer (including Today, daily and weekly Timer Recording)—The built-in timer allows you to record up to 7 programs at different times on different channels up to 1 year in advance. The Today Timer Recording feature uses program number 8. The daily timer will allow recordings to be made of daily broadcasts and the weekly timer will allow recording to be made once a week up to the end of the tape.

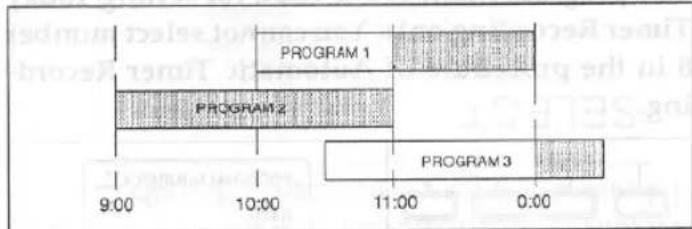

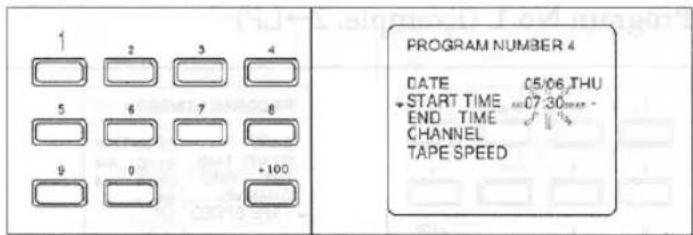

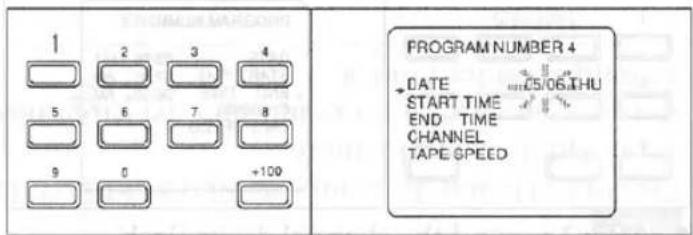

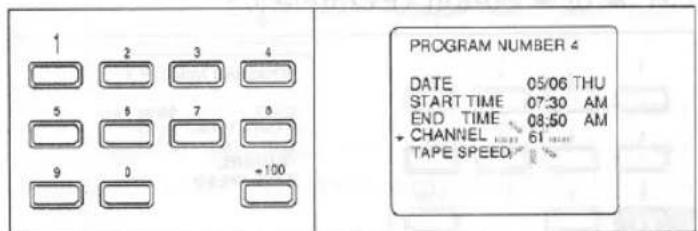

Today Timer Recording—The Today Timer Recording allows you to easily record one program within 24 hours.

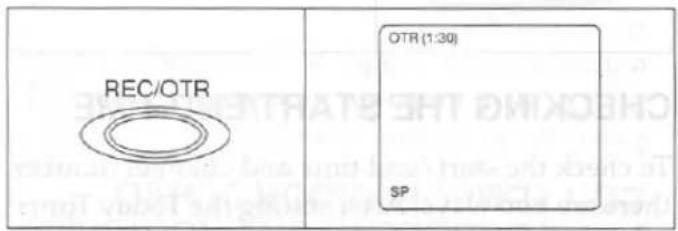

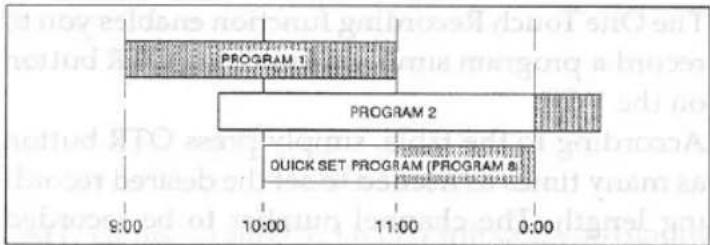

♦ OTR (One Touch Recording)—Instant timed recording from 30 to 480 minutes is possible at the push of OTR button.

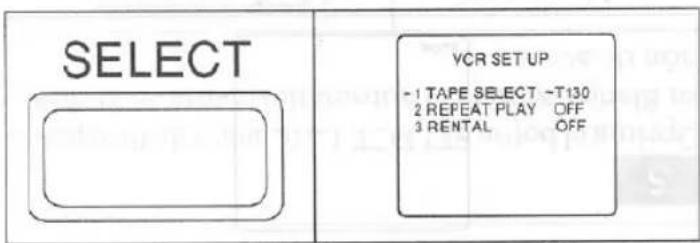

◆ Rental Play Mode- Improves playback picture quality of worn tapes, especially rental tapes.
◆ 2 Step Picture Search Operation- You may view the video program at a high speed or super high speed in either a forward or reverse direction in LP and SLP mode.
- STILL- "Freeze" the picture at any time, for close viewing of a particular scene.
◆ PLL Frequency Synthesizer Tuner with 181 Channel Cable-compatible with Direct station Call- (A converter may be necessary to view scrambled CATV channels.)
◆ 30 Buttons Infrared Remote control unit- Allows you to use most of control from a remote location.
- On-Screen-Programming—Most major operating and programming functions appear on your TV screen for operating convenience.

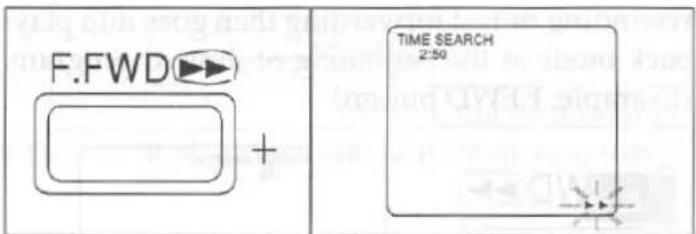

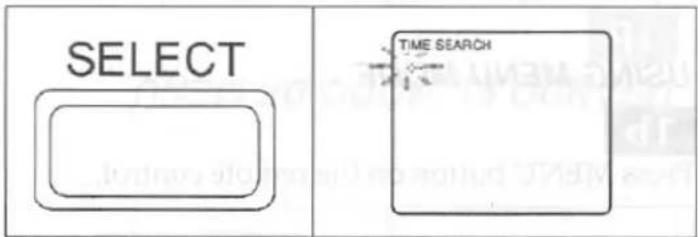

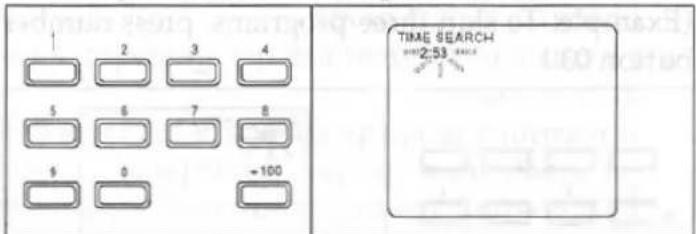

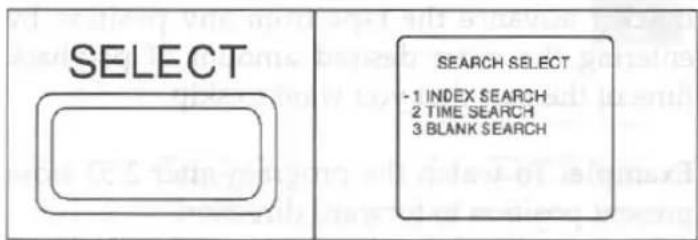

Time Search- Let you set the VCR to advance the tape by entering the desired playback time you want to skip.

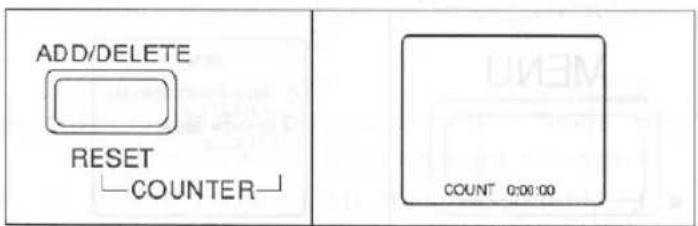

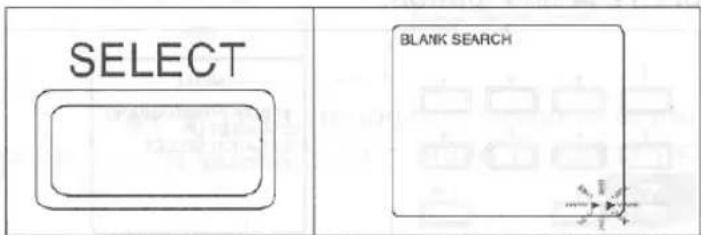

- Blank Search– Let you set the VCR to search for an unrecorded portion on the tape.

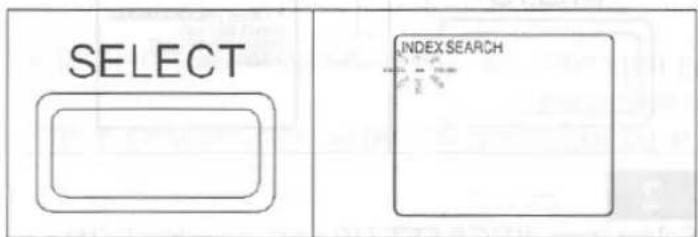

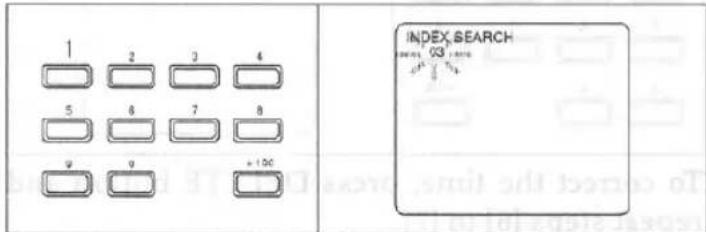

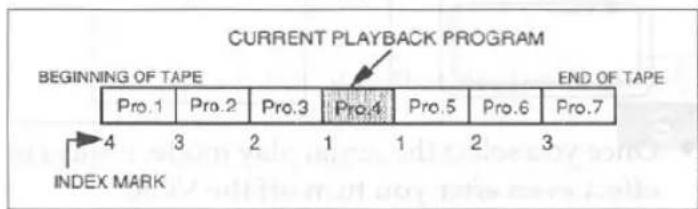

♦ Index Search–Index the start of a recording.
- Edit Search—Let you set the VCR to edit an unwanted segment of a recording.

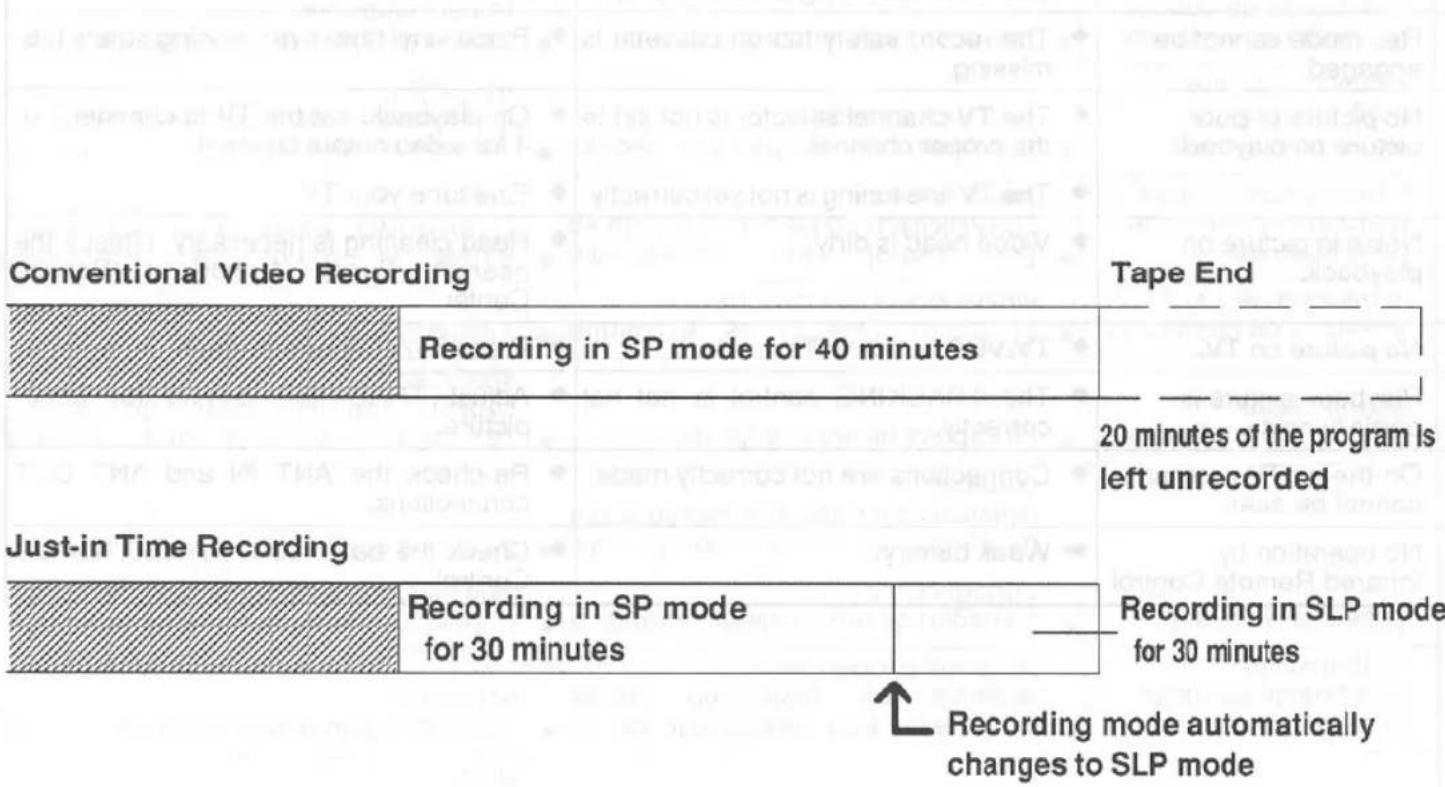

- Just-In-Time Recording—Measures the remaining tape and automatically adjusts the tape speed so that the automatic timer recording fits on a cassette.

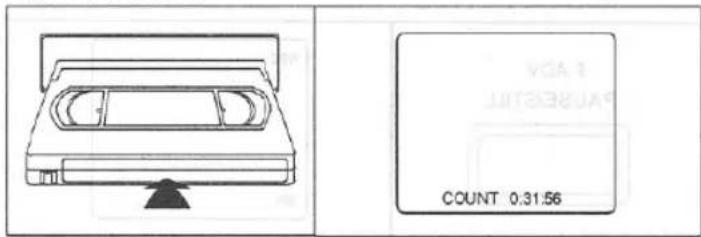

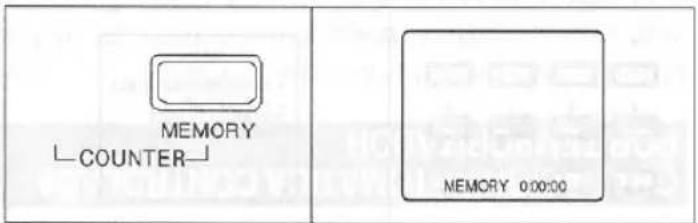

♦ Tape Remainder—You can check the remaining tape running time of your tape.
- Slow Motion- You can view the video program at a slower than normal playback speed. Slow speed can be controlled by pressing SLOW + button (faster) or SLOW - button (slower).

The serial number of this product may be found on the back of the VCR. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.	FT4120
Serial No.

OPERATING CONTROLS AND FUNCTIONS

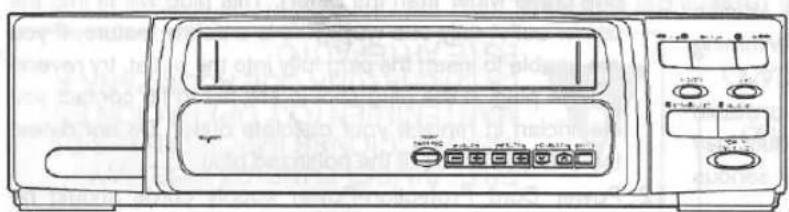

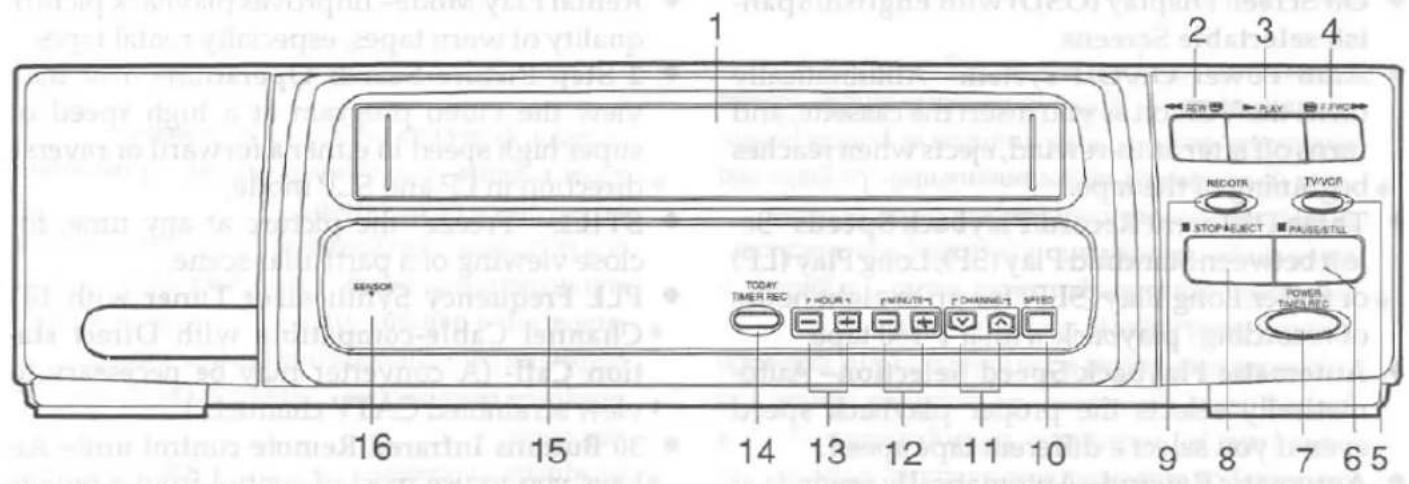

—FRONT VIEW—

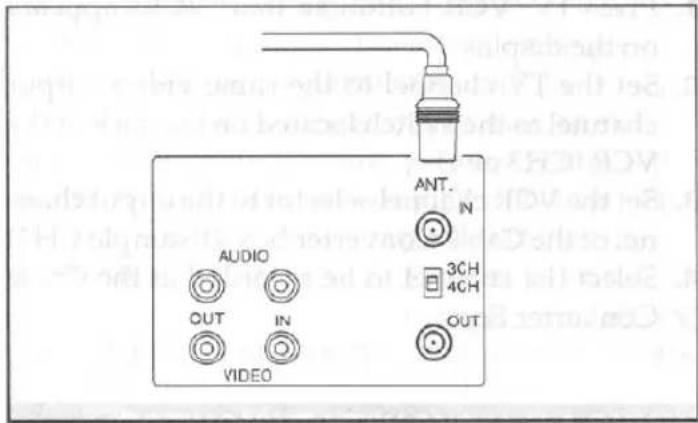

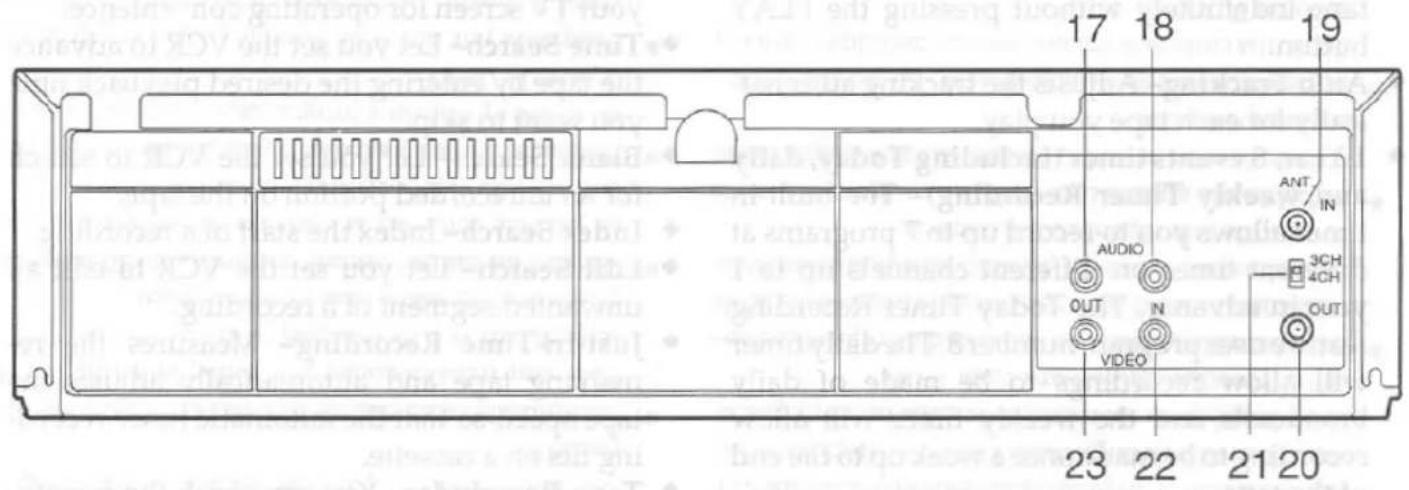

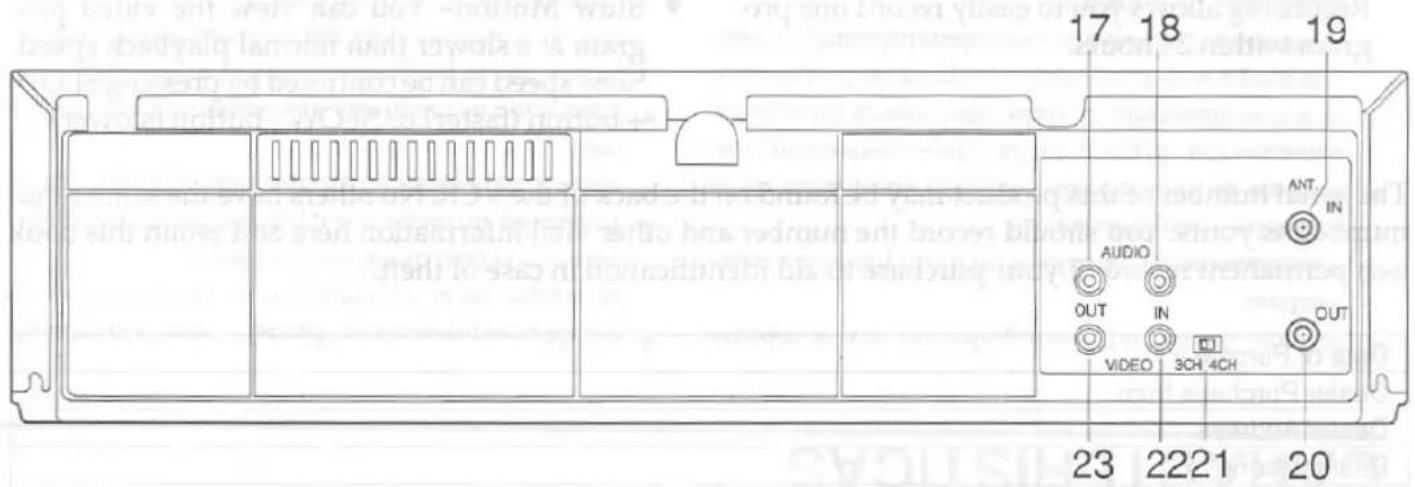

—REAR VIEW AND TERMINALS—

OR

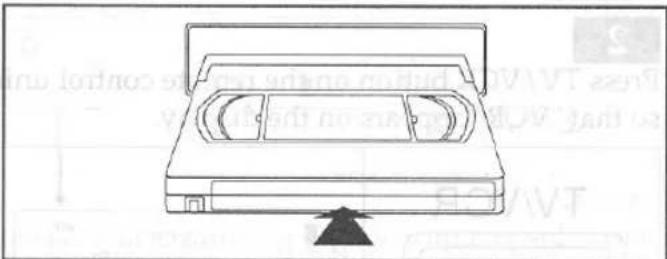

1 CASSETTE COMPARTMENT

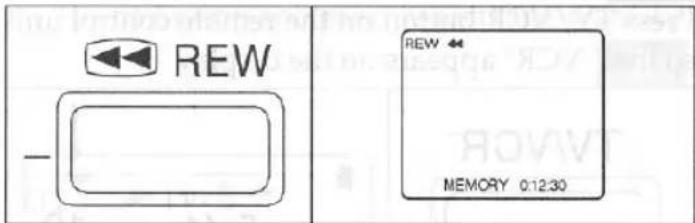

2 REW button- Press to rewind tape or to view video in reverse during play mode at a faster than normal speed. Press PLAY button to return VCR to normal playback speed.
3 PLAY button- Press to begin playback of a tape.
4 F.FWD button- Press to advance tape or to view video in forward direction during play mode at a faster than normal speed. Press PLAY button to return VCR to normal playback speed.

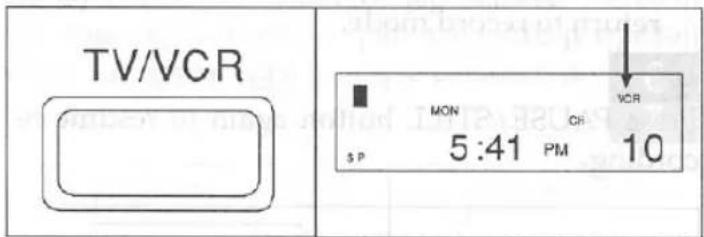

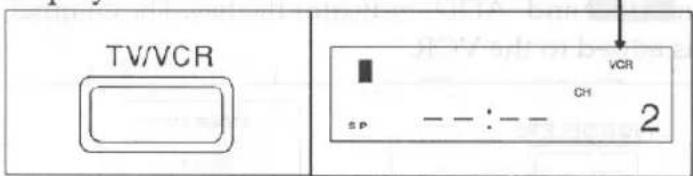

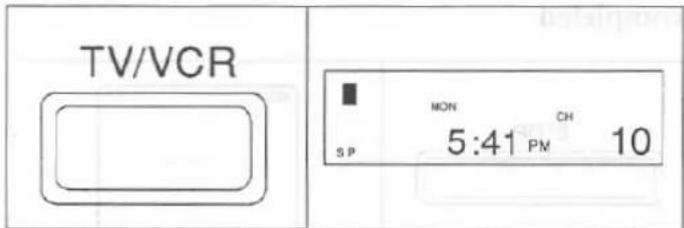

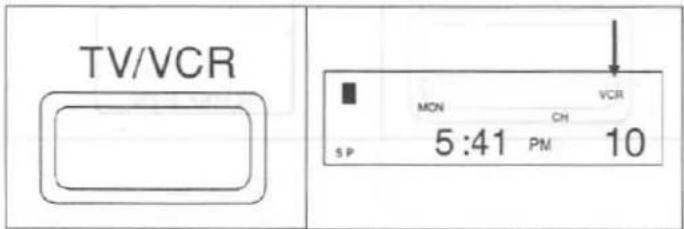

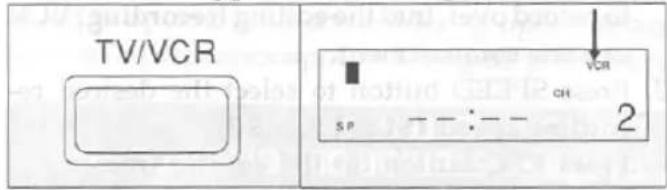

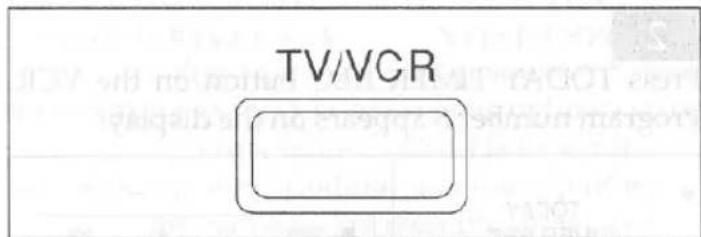

5 TV/VCR button- Press to select the signal source that your TV will receive.

VCR position: to view playback, to monitor video recordings or watch TV using the VCR tuner.

TV position: to watch TV or to view one program while recording another.

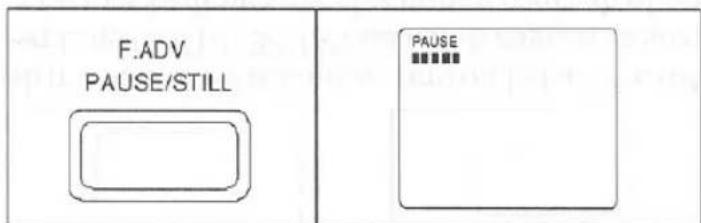

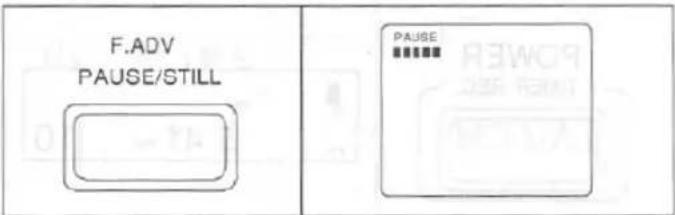

6 PAUSE/ STILL button- Press to temporarily stop tape during playback or manual recording.

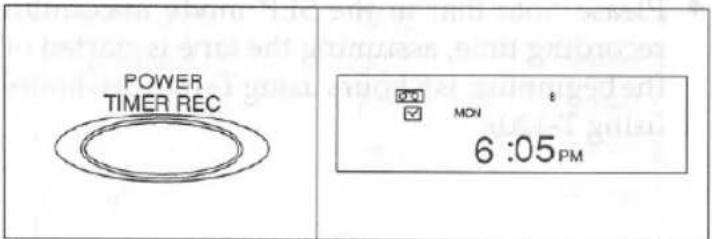

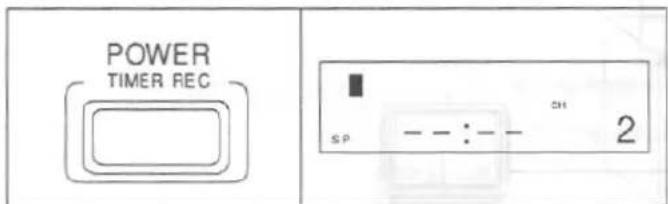

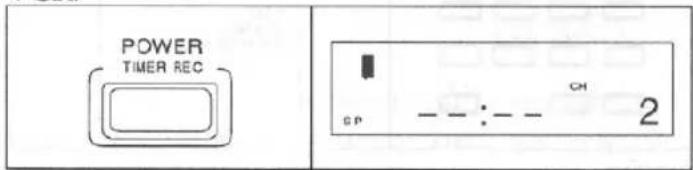

7 POWER/TIMER REC button- Press to turn VCR on and off. Press to activate the automatic timer recording.

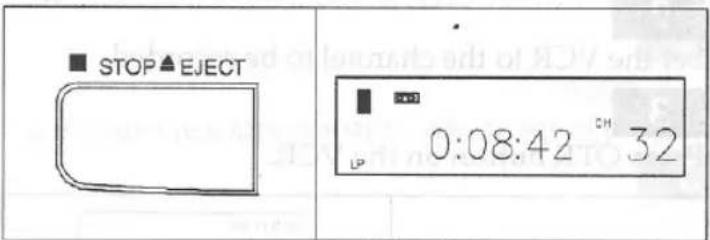

8 STOP/EJECT button- Press to stop tape motion. Press to remove tape from VCR.

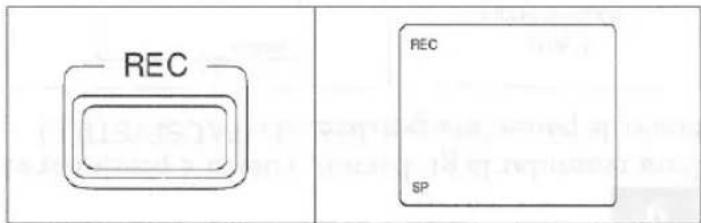

9 REC/OTR button- Press to begin manual recording and activate one touch recording mode.

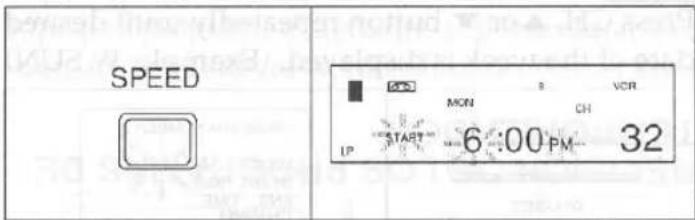

10 SPEED button-Press to set desired tape speed.

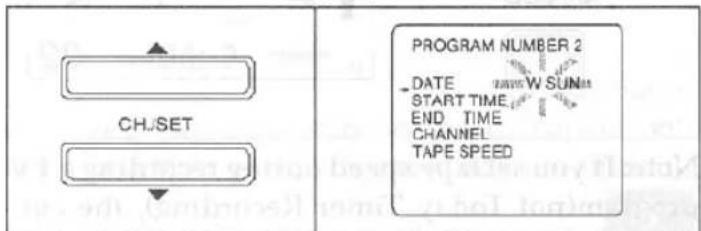

11 CHANNEL/TRACKING buttons- Press "▲" or "▼" to select desired channel number for viewing or recording. Press "▲" or "▼" to minimize video "noise" (lines or snow on TV screen) during tape playback.

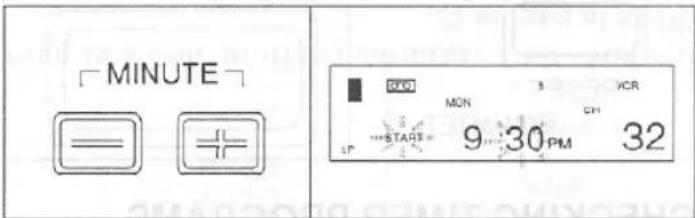

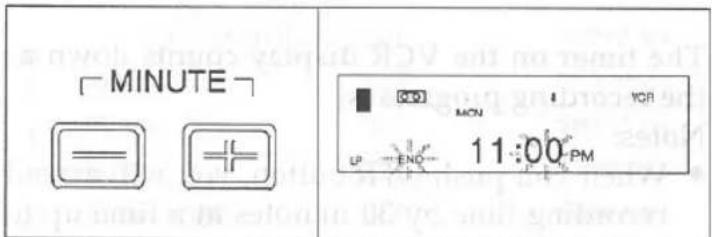

12 MINUTE buttons- Press to select desired minute by pressing "+" or "-" button in the Today Timer Rec mode.
13 HOUR buttons- Press to select desired hour by pressing "+" or "-" button in the Today Timer Rec mode.

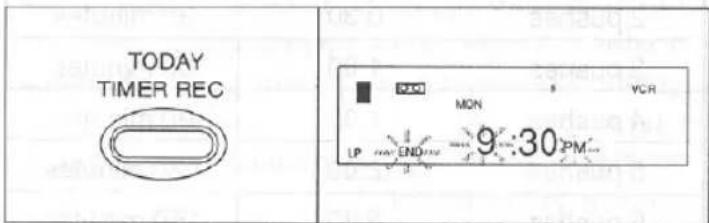

14 TODAY TIMER REC button- Press to set Today Timer Recording.

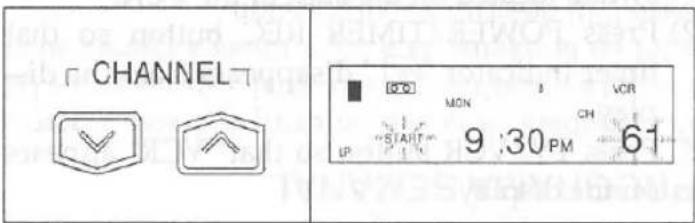

15 DIGITAL DISPLAY-Displays the clock, timer recording, count, channel etc.
16 REMOTE SENSOR window- Receives the infrared control signals from the handheld remote control unit.

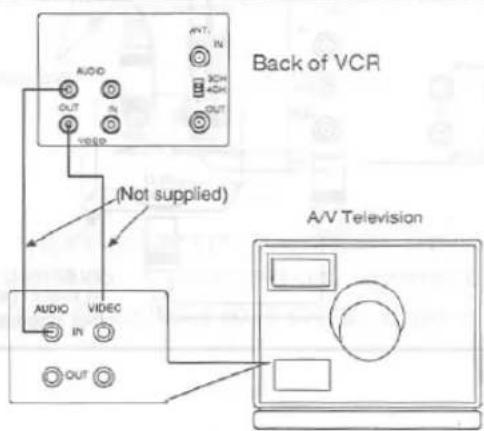

17 AUDIO OUT jack-For connection to the audio in jack of your audio equipment or another VCR.
18 AUDIO IN jack- For connection to audio output jack of your audio equipment or another VCR.

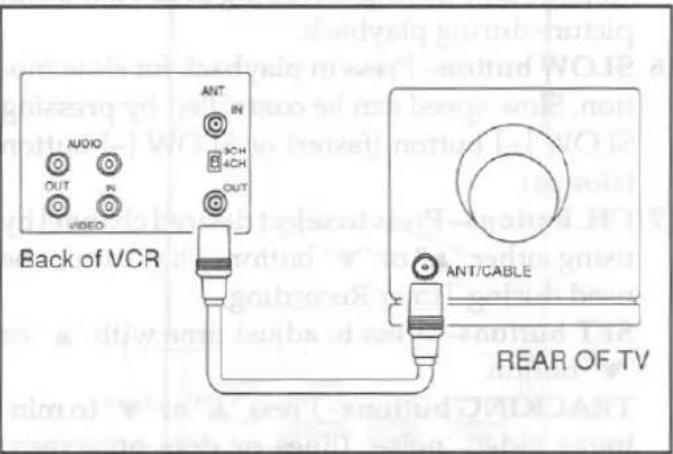

19 ANT. IN terminal- For connection to an antenna or CATV.
20 ANT. OUT terminal- For connection to AN-TENNA IN terminal of your TV.
21 3CH/4CH selector switch- Use to select the video output channel (3 or 4) for playback from the VCR.

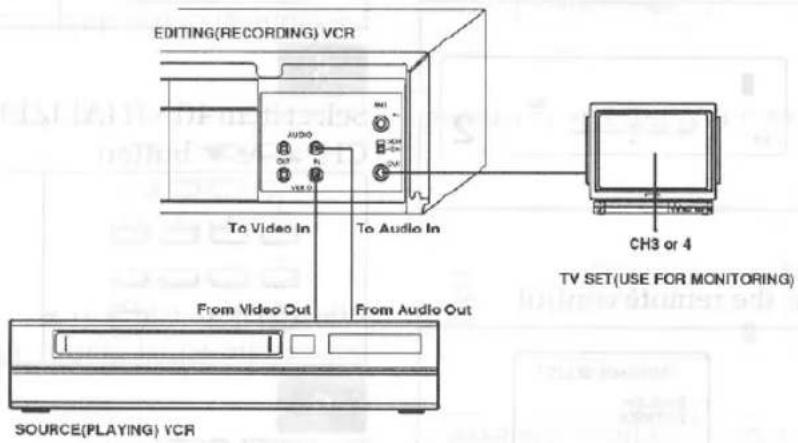

22 VIDEO IN jack- For connection to video output jack of your video camera or another VCR.
23 VIDEO OUT jack-For connection to the video in jack of video processor or another VCR.

You can operate most of your VCR's functions from the Remote Control (included). The buttons on the Remote Control unit have the same functions as the corresponding buttons on the VCR.

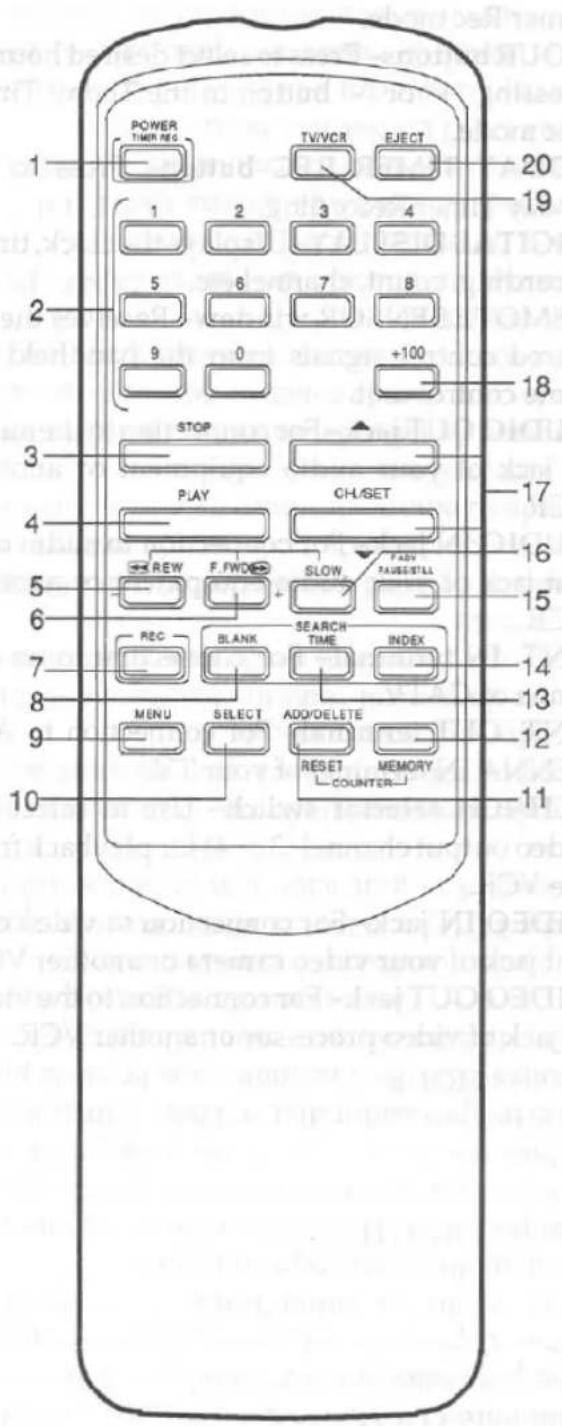

HOW TO USE THE REMOTE CONTROL

1 POWER/TIMER REC button—Press to turn VCR on and off. Press to activate the automatic timer recording.

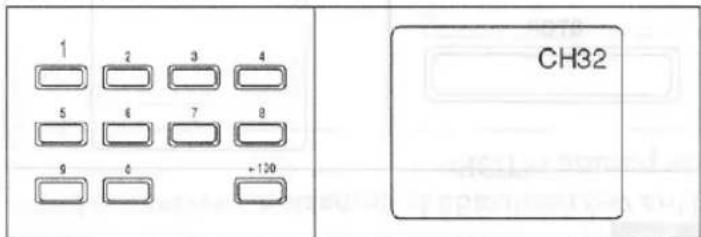

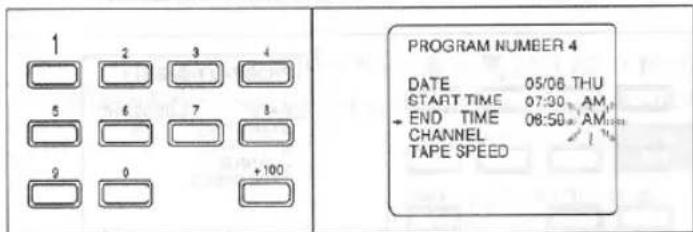

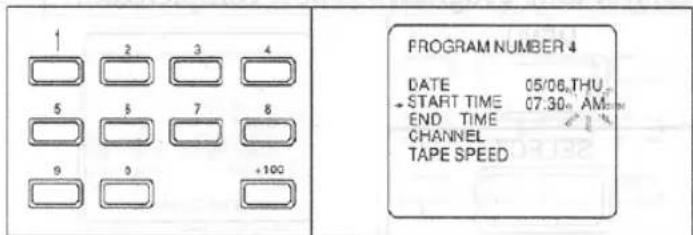

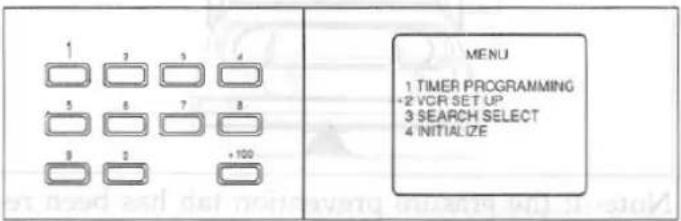

2 NUMBER buttons- Press to select desired channels and select item in the menu mode. They cannot be used to set desired channel during Timer Recording. To select channels from 1 to 9, first press "0" button then 1 to 9.
3 STOP button- Press to stop the tape.
4 PLAY button- Press to playback a tape.
5 REW button- Press to rewind the tape, or to view the picture rapidly in reverse during play-back. (Rewind Search)
SLOW [-] button- Press to control speed in slow motion. (slower)
6 F.FWD button- Press to rapidly advance the tape, or view the picture rapidly forward during playback. (Forward Search)
SLOW [+] button- Press to control speed in slow motion. (faster)
7 REC button- Press to begin recording.

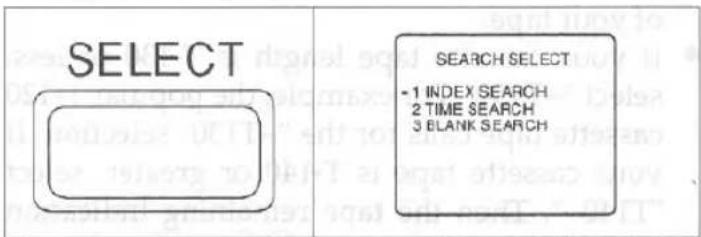

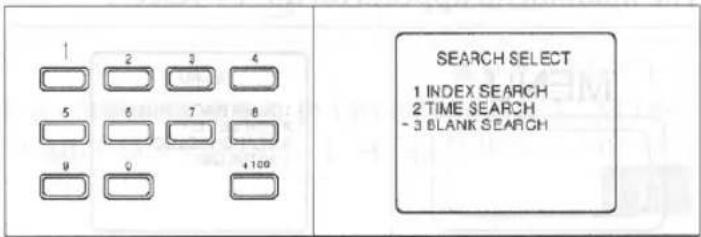

8 BLANK SEARCH button- Press to use Blank Search mode.

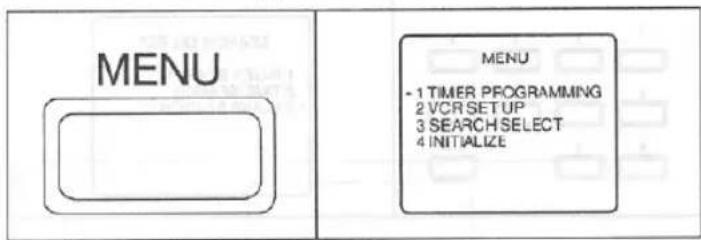

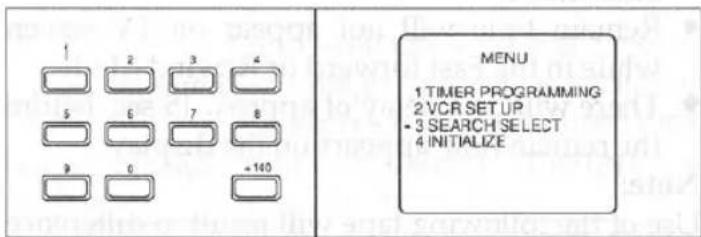

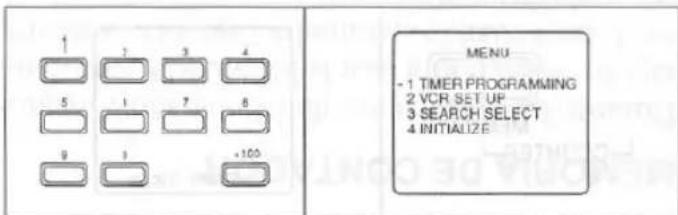

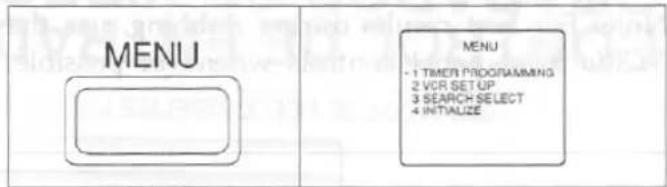

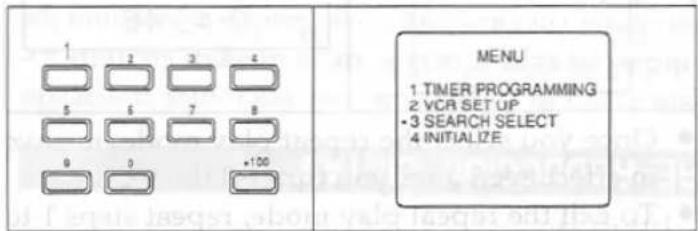

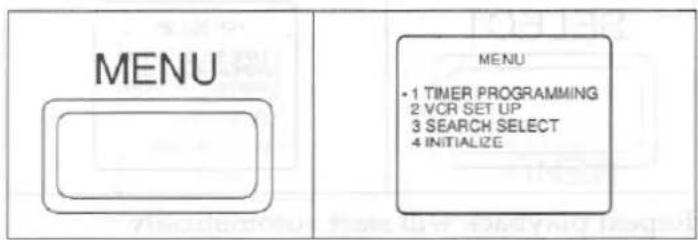

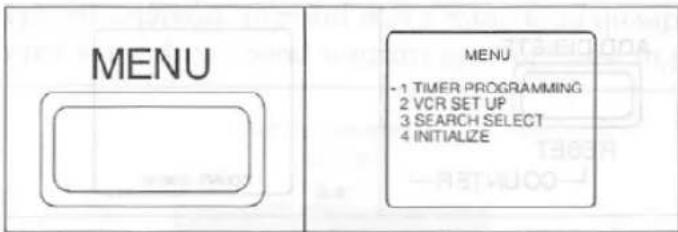

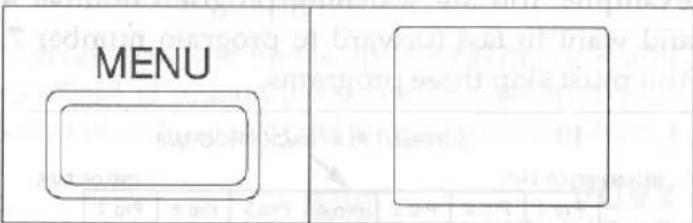

9 MENU button-Press to display main menu on the TV screen.
10 SELECT button- Press to select setting modes (TIMER PROGRAMMING, CHANNEL SET UP, SETTING CLOCK, REPEAT PLAY, RENTAL, REMAIN, etc) from menu.
STATUS button- Press to display the counter or the current channel number and current time on the TV screen. To clear the display from the screen, press SELECT button again.
11 ADD/DELETE button—Press to add or delete channel numbers. Press to cancel a timer program.
COUNTER RESET button- Press to reset counter to 0:00:00.
12 COUNTER MEMORY button- Press to use Counter Memory mode.

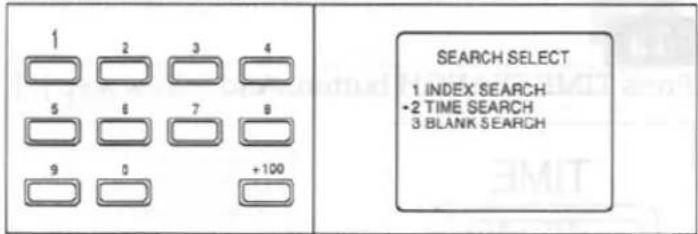

13 TIME SEARCH button- Press to use Time Search mode.
14 INDEX SEARCH button- Press to use Index Search mode.

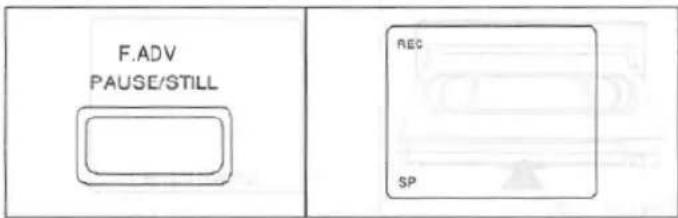

15 F.ADV button- Press this button during pause/still mode to advance one frame.
To release, press PLAY button.
PAUSE/ STILL button- Press to temporarily stop the tape during recording or to view a still picture during playback.
16 SLOW button- Press in playback for slow motion. Slow speed can be controlled by pressing SLOW [+] button (faster) or SLOW [-] button (slower).
17 CH. buttons- Press to select desired channel by using either "▲" or "▼" button. They cannot be used during Timer Recording.
SET buttons—Press to adjust time with "▲" or "▼" button.
TRACKING buttons- Press "▲" or "▼" to minimize video 'noise' (lines or dots on screen) during tape playback.
18 +100 button- Press to select channels which are equal or greater than number 100.
19 TV/VCR button- Press to select TV or VCR mode.
20 EJECT button- Press to remove tape from VCR.

INSTALLING THE BATTERIES

1

Slide the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

Simple line drawing of a cylindrical object with an arrow pointing right, no text or symbols present.

2

Insert 2 "AA" batteries into the battery compartment in the direction as indicated by the polarity (+/-) markings.

Top-down schematic of a cylindrical device with two battery cells and a triangular connector (no text or symbols)

3

Replace the cover.

Diagram of a cylindrical device with two batteries and an arrow indicating direction (no text or symbols)

For some of the most common types of connections, see the following drawings. For any further complex connections, please contact your local sales dealer or cable company.

COMBINATION VHF/UHF ANTENNA, CATV COAXIAL CABLE

1

Disconnect the round 75-ohm combination VHF/UHF antenna cable or CATV coaxial cable from the rear of your TV set.

2

Reconnect the 75-ohm cable to ANT-IN terminal of the VCR.

3

Connect one end of the supplied coaxial cable to the VCR ANT-OUT and other end to the TV-ANT terminal.

Notes: If your cable system is connected with a converter box or descrambler box,

• Set the VCR channel selector to the same output channel as the converter box or descrambler box. (usually CH3 or CH4)
  ◆ Use the converter box to select the channel you want to watch or record.

SEPARATE 75/300 OHM ANTENNA

1

Disconnect the VHF coaxial antenna cable and the UHF flat twin-lead antenna cable from the rear of your TV set.

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

2

Reconnect those cables to the Combiner (not supplied) VHF and UHF terminal, and then connect one end of coaxial cable to Combiner.

3

Connect the coaxial cable (from the Combiner) to the VCR's ANT IN terminal.

4

Connect another coaxial cable (not supplied) to the VCR's ANT OUT terminal and connect the other end to a Separator (not supplied).

5

Connect the Separator's coaxial end to the TV's VHF terminal, and flat twin-lead end to the TV's UHF terminal.

SEPARATE 300 OHM ANTENNA

1

Disconnect the 300-ohm (flat twin-lead) antenna cables from the rear of your TV.

2

Reconnect the flat twin-lead cables to the Combiner (not supplied) VHF and UHF terminals, and then connect one end of the coaxial cable to the Combiner.

3

Connect the other end of the coaxial cable (from the Combiner) to VCR ANT IN terminal.

4

Connect another coaxial cable (not supplied) to the VCR's ANT OUT terminal and connect the other end to a Separator (not supplied).

5

Connect the Separator's flat twin-lead end to the TV's VHF/UHF terminals.

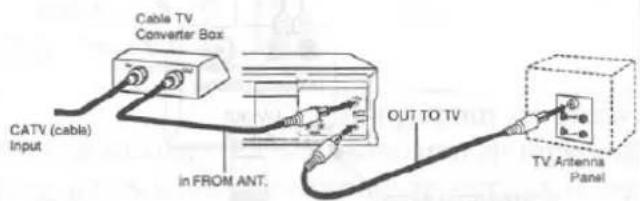

USING A CATV CONVERTER BOX

6

If your cable service supplies you with a converter box, you can use the basic connection shown the below.

TO RECORD AND VIEW A SCRAMBLED/UN-SCRAMBLED CHANNEL.

1. Press TV/VCR button so that "VCR" appears on the display.
2. Set the TV channel to the same video output channel as the switch located on the back of the VCR (CH3 or 4).
3. Set the VCR channel selector to the output channel of the Cable Converter box. (Example CH3)
4. Select the channel to be recorded at the Cable Converter Box.

USING A/V JACKS WITH TV/MONITOR (OPTIONAL)

If your TV has A/V input jacks, you may connect your VCR's audio/video output jacks to the audio/video input jacks on back of your TV. Please see your TV's owner's.

TO COPY A VIDEO CASSETTE

1. Insert a pre-recorded video cassette into the source/playing VCR.
2. Insert a blank video cassette, or one you want to record over, into the editing (recording) VCR cassette compartment.
3. Press SPEED button to select the desired recording speed. (SLP, LP or SP).
4. Press REC button on the editing (recording) VCR.
5. Begin playback of the tape in the source/playing VCR.
   Note: For best results during dubbing, use the VCR's front panel controls whenever possible.

The remote control might affect the playback VCR's operation.

◆ Always use video-quality shielded cables with RCA-type connectors. Standard Audio cables are not recommended.
You can use a video disc player, satellite receiver, or other audio/video component with A/V outputs in place of the source/playing VCR.

TO MONITORING THE RECORDING

1. Turn on the TV connected to the editing VCR, and set it to the same output channel as the editing VCR 3CH/4CH switch.
2. Press TV/VCR button on the editing VCR so that VCR appears on the display.

CONTROLLING VCR INPUT & OUTPUT

VIDEO OUTPUT CHANNEL SETTING (BACK OF VCR)

When the VCR is in the playback mode, or when the TV/VCR button is in the VCR position, your TV will receive the signals from the VCR on either channel 3 or 4. Set the 3CH/4CH selector switch to the station that is not used for normal broadcasts in your area; then set your TV to that same channel when viewing from the VCR. The video output channel of this unit is set to channel 3 prior to shipment from the factory.

INPUT SELECT

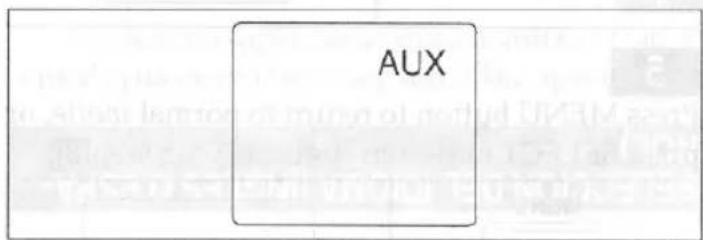

To use the external input jack, select the AUX position. Press CH. "▲" or "▼" button or enter "00" with number button so that AUX appears on the screen.

SELECTING LANGUAGE (ENGLISH OR SPANISH)

You may select the display on the TV screen to be either English or Spanish.

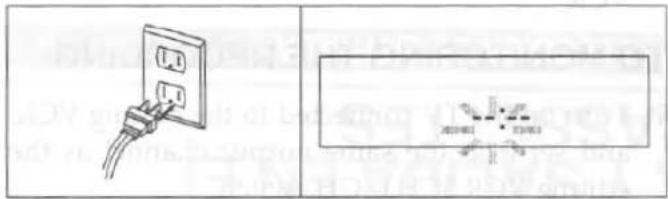

1

Plug the VCR power cord into a standard AC outlet. The "-:-" flashes.

Two technical diagrams showing a plug socket and a schematic symbol (no text or labels)

2

Turn on the VCR and the TV.

3

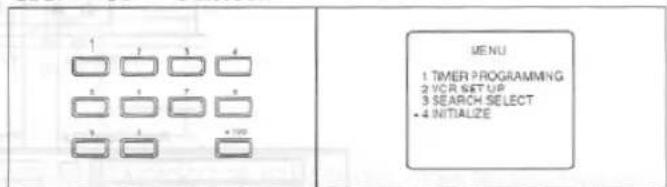

Press MENU button on the remote control.

4

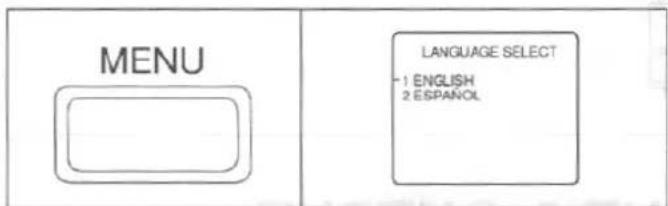

Select 1(ENGLISH) or 2(ESPAÑOL=SPANISH) with number button or CH. ▲ or ▼ button.

5

Press MENU button to return to normal mode, or press SELECT button to continue with step[8].

MENU
SELECT

TO CHANGE THE LANGUAGE

6

Press TV/VCR button on the remote control unit so that "VCR" appears on the display.

7

Press MENU button on the remote control.

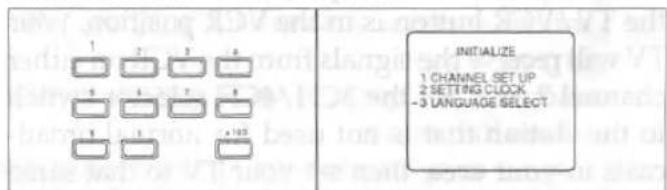

8

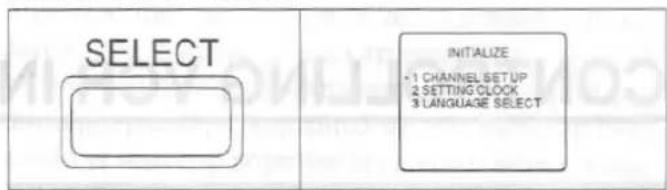

Select item 4(INITIALIZE) with number button or CH. ▲ or ▼ button.

9

Press SELECT button.

10

Select item 3(LANGUAGESELECT) with number button or CH. ▲ or ▼ button.

11

Press SELECT button. Continue with step [4].

PROGRAMMING THE TV/CATV TUNER MEM- ORY

You can program the tuner to scan only the channels you receive in your area. See page 43 for cable channel designations.

- Programmed channels are erased when you disconnect the power cord or if a power failure occurs.

1

Press POWER/TIMER REC button to turn on the VCR.

2

Turn on the TV and set the TV channel to the same video output channel as the VCR's 3CH/4CH selector switch, located on the back of the VCR.

Line drawing of a vintage CRT monitor with front panel and base mount (no text or symbols)

3

Press TV/VCR button on the VCR or on the remote control unit so that "VCR" appears on the display.

4

Press MENU button on the remote control.

5

Select item 4(INITIZE) with number button or CH. ▲ or ▼ button.

6

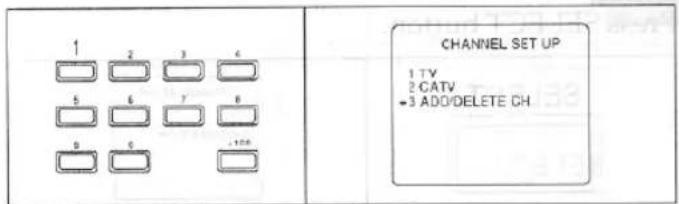

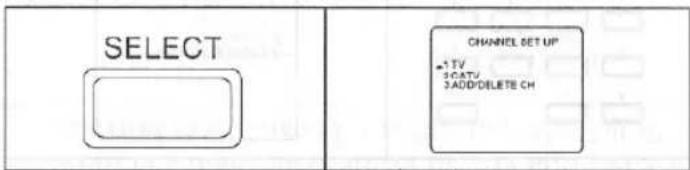

Press SELECT button. Select item 1(CHANNEL SET UP) with number button or CH. ▲ or ▼ button.

7

Press SELECT button.

8

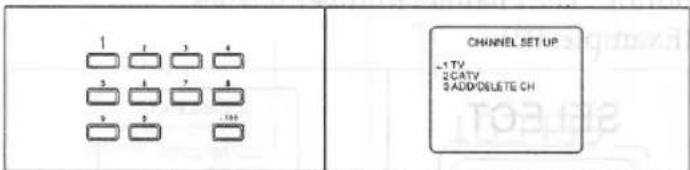

Select 1(TV) or 2(CATV) with number button or CH. ▲ or ▼ button. (Example: TV)

9

Press SELECT button. The tuner scans and memorizes all the active channels in your area. (TV mode: from CH2 / CATV mode: from CH1)

10

After scanning, the tuner stops on the lowest memorized channel. (Example: CH02)

TO DELETE, ADD PRESET CHANNEL

Use this procedure to delete from memory the channels you no longer receive or seldom watch and to manually add to memory previously deleted channels. Follow steps [1] to [7] on page 15, then step[9] below.

DELETING A PRESET CHANNEL

9

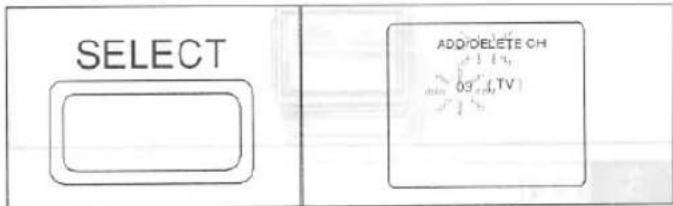

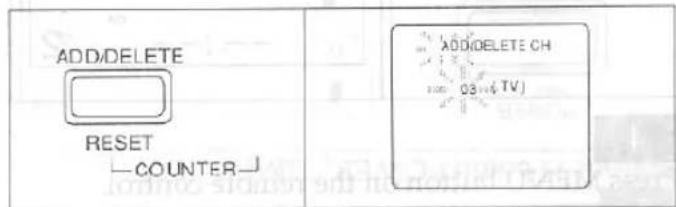

Select item 3(ADD/DELETE CH) with number button or CH. ▲ or ▼ button.

10

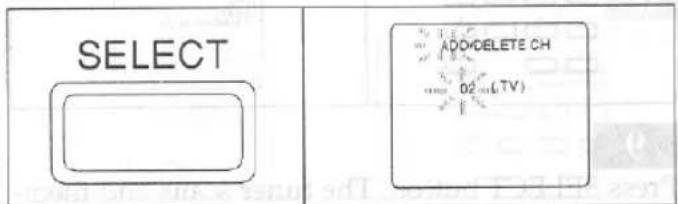

Press SELECT button. Enter the desired channel using the number buttons or the CH. ▲ or ▼ button. The channel number flashes.

(Example: 02)

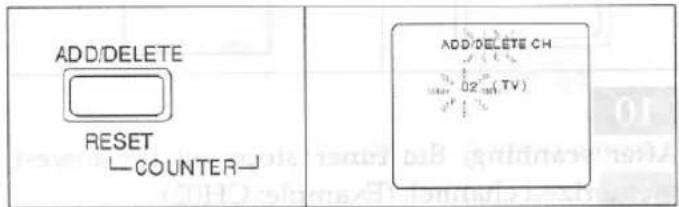

11

Press ADD/DELETE button once. The channel number and "DELETE" indicator flashes. The channel is deleted.

For next channel you wish to delete, select that channel and follow step [11].
- If you press ADD/DELETE button again, the channel is memorized again.

12

Press MENU button. The TV screen returns to TV mode.

Note: To check the channel(s) that has been deleted, press CH. ▲ or ▼ button.

ADDING PRESET CHANNEL

9

Select item 3(ADD/DELETE CH) with number button or CH. ▲ or ▼ button.

10

Press SELECT button. Enter the desired channel using the number buttons. The channel number flashes.

(Example: 03)

11

Press ADD/DELETE button once. The channel number and "ADD" indicator flashes. The channel is added to the VCR.

• For next channel you wish to add, select that channel and follow step [11].
  If you press ADD/DELETE button again, the channel is deleted again.

12

Press MENU button. The TV screen returns to TV mode.

Note: To check the channel(s) that has been added, press CH. ▲ or ▼ button.

VIDEO CASSETTE

This VCR will operate with any cassette that has the VHS mark. For best result we recommend the use of high-quality tapes.

Do not use the poor quality or damaged tapes. The table below shows the recording/playback time using T-60, T-120 or T-160 tape in the SP, LP or SLP mode.

MODE	CASSETTE
	T-60	T-120	T-160
SP Mode	1 hour	2 hours	2-2/3hours
LP Mode	2 hours	4 hours	5-1/3hours
SLP Mode	3 hours	6 hours	8 hours

When handling video tapes, take the following precautions

Avoid moisture, which can condense on the tape if it is moved from a cold place to a warm place. Playing a tape that has moisture in it will damage the tape and your VCR. Before using a tape with these conditions, wait until the tape has warmed to room temperature and the moisture has evaporated.
- Avoid extreme heat, high humidity and magnetic fields.
◆ Do not tamper with the cassette mechanism.
♦ Do not touch the tape with your fingers.

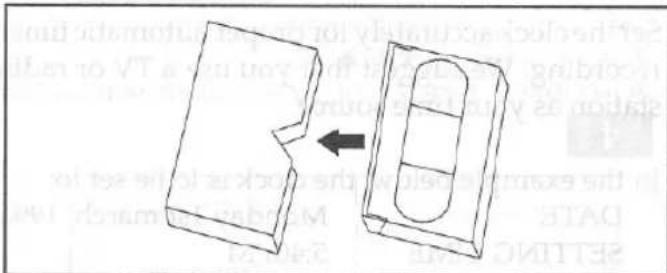

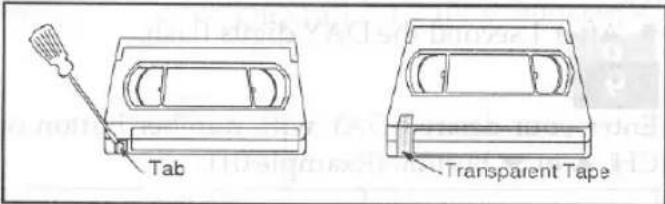

ERASE PREVENTION

You may prevent accidental erasing of a tape by breaking off the tab on the back edge of the cassette. If you decide to record on the tape again, cover the hole with transparent tape.

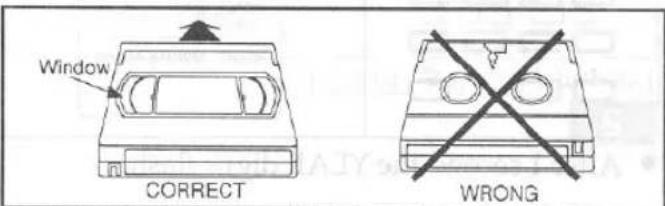

Insert the cassette into the VCR as shown.

Store the cassette in its case as shown.

Diagram showing a 3D object being cut into a rectangular block with an arrow indicating the process (no text or symbols present)

INSERTING A CASSETTE

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn completely into the VCR.

The VCR will automatically turn on, and the cassette-in indicator will light on the display when the cassette is properly inserted.

Line drawing of a cassette tape device with a flat lid and arrow indicating motion (no text or symbols)

REMOVING A CASSETTE

1

Press EJECT button on the VCR or on the remote control unit.

2

When the cassette-in indicator goes off and the cassette stops moving, pull the cassette out of the cassette compartment and store it properly.

Diagram of a moving cassette tape with an arrow indicating compression or disassembly (no text or symbols present)

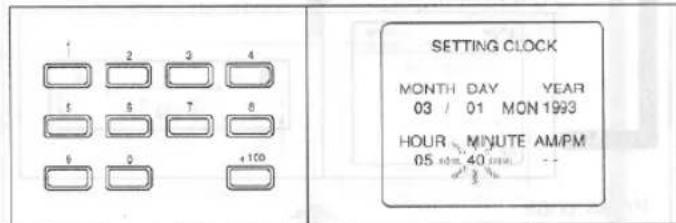

SETTING THE CLOCK

Set the clock accurately for proper automatic timer recording. We suggest that you use a TV or radio station as your time source.

In the example below, the clock is to be set to:

DATE

Monday 1st march, 1993

SETTING TIME

5:40PM

1

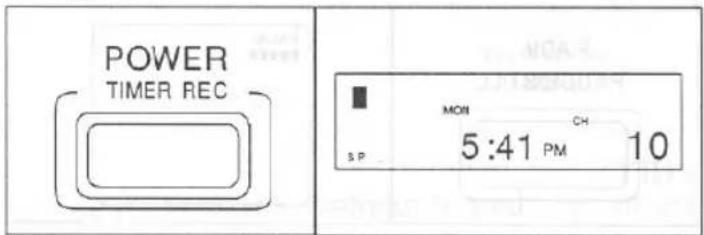

Press POWER/TIMER REC button to turn on the VCR.

Press TV/VCR button on the remote control unit so that "VCR" appears on the display.

3

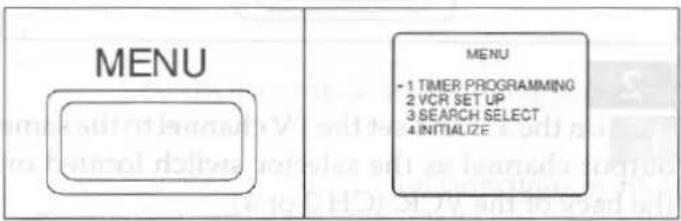

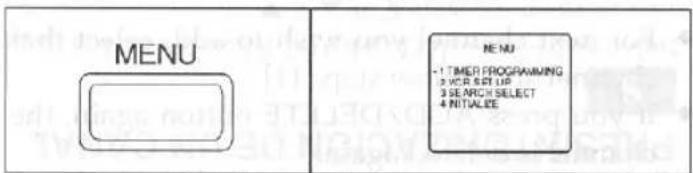

Press MENU button on the remote control unit. The main menu appears on the TV screen.

4

Select item 4(INITIALIZE) with number button or CH. ▲ or ▼ button.

5

Press SELECT button.

6

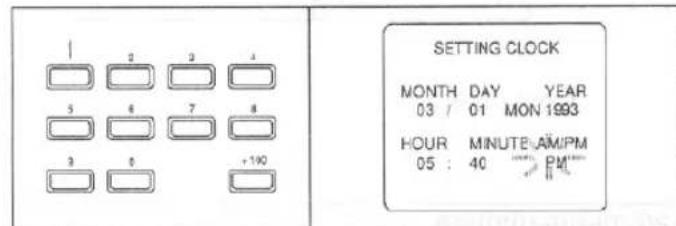

Select item 2(SETTING CLOCK) with number button or CH. ▲ or ▼ button.

7

Press SELECT button. The MONTH digits flash.

8

Enter the MONTH with number button or CH. ▲ or ▼ button. (Example:03).

◆ After 1 second the DAY digits flash.

9

Enter your desired DAY with number button or CH. ▲ or ▼ button. (Example:01).

◆ After 1 second the YEAR digits flash.

10

Enter your desired YEAR with number button or CH. ▲ or ▼ button. (Example:1993).

◆ After 1 second the HOUR digits flash.

11

Enter your desired HOUR with number button or CH. ▲ or ▼ button. (Example:05).

◆ After 1 second the MINUTE digits flash.

12

Enter your desired MINUTE with number button or CH. ▲ or ▼ button. (Example:40).

◆ After 1 second the AM/PM digits flash.

13

Select AM(1) or PM(2) with number button or CH.

▲ or ▼ button. (Example: 2→PM)

Press DELETE button to back one step from current step during steps [8] to [13].

14

Press MENU or SELECT button to start the clock. Although seconds are not displayed, they begin counting from 00 when you press MENU or SELECT button. Use this feature to synchronize the clock with the correct time.

MENU	5:40PM
SELECT

Notes:

When unplugging the AC cord or if there is a power failure, "--:" flashes on the display.
If the display shows an abnormal reading or no reading, unplug the power cord for a few seconds. Then plug it back in.

TO CHANGE CLOCK SETTING

If you want to change the clock,

1) Follow step [2] to [7], page 18.
2) Select desired digit with SELECT button or DELETE button.
3) Enter correct numbers with number button or CH. ▲ or ▼ button.
4) Press MENU or SELECT button to original mode.

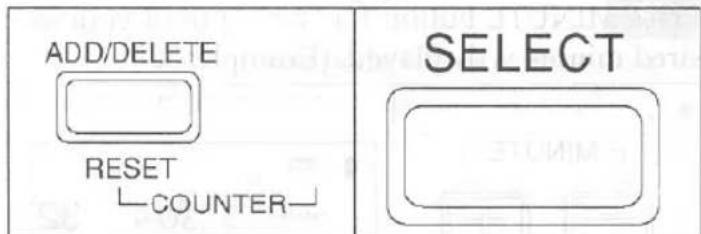

CHECKING THE REMAIN, COUNT, CLOCK AND CHANNEL NUMBER

To check the Remain, Count, Clock and Channel number on the TV screen or display, press SELECT button.

SELECT

Simple rectangular outline with rounded corners, no text or symbols present

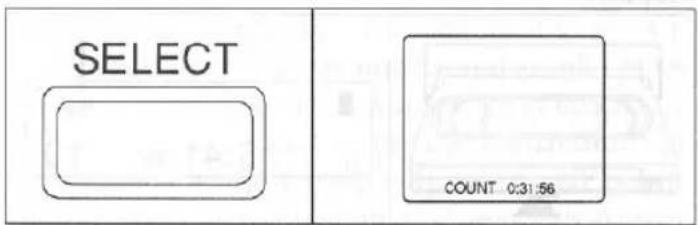

Each time you press SELECT button, TV screen or display will change as follows.

    subgraph <OFF mode>
        F[" "] --> G["1:23:45 0H 2"]
    end

    subgraph <REMAIN mode>
        H["STOP SP REMAIN 0.37 -T130"] --> I["0:37 0H 2"]
    end

    subgraph <COUNT mode>
        J["STOP SP COUNT 1:23:45"] --> K["1:23:45 0H 2"]
    end

    subgraph <CLOCK mode>
        L["STOP 5:40PM CH 2 SP"] --> M["5:40 PM 2"]
    end

VIEWING AND RECORDING THE SAME PROGRAM

1

If timer indicator "☒" is displayed, press POWER/TIMER REC button on the VCR or on the remote control unit so that timer indicator "☒" disappears.

2

Turn on the TV and set the TV channel to the same video output channel as the selector switch located on the back of the VCR. (CH 3 or 4)

Line drawing of a flat-screen monitor with control panel and mouse pointer (no text or symbols)

3

Press TV/VCR button on the remote control unit so that "VCR" appears on the display.

4

Press SPEED button on the VCR to select the desired tape speed (SP/LP/SLP).

(Example: SP)

SPEED

SP

5

Insert a cassette with erasure prevention tab intact. When the tape is inserted, count mode appears on the TV screen.

6

Press the number buttons or the CH. ▲ or ▼ button on the remote control to select the program to be recorded.

7

Press REC button on the remote control unit. The red "O" indicator lights on the display.

To skip some materials while you are recording:

8

Press PAUSE/ STILL button.

Note: If you do not press PAUSE/ STILL button again within five minutes, VCR will automatically return to record mode. You may review the time remaining with "■" marks on the display. Each "■" mark shows one minute.

9

Press PAUSE/ STILL button again to resume recording.

10

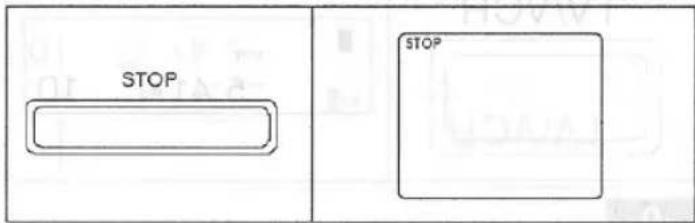

Press STOP button when recording is completed.

EDIT SEARCH

To edit an unwanted segment from the already recorded portion of tape while VCR remains in record mode.

1

While VCR in record mode, press PAUSE/ STILL button.

Press and hold REW button until you have reached the beginning of the unwanted segment. (If you rewind past the beginning of the unwanted segment, press and hold F.FWD button until you have reached it.)

If you do not press PAUSE/ STILL button again within five minutes, VCR will automatically return to record mode.

3

Press PAUSE/ STILL button again to resume recording.

F.ADV PAUSE/STILL

REC SP

4

Press STOP button when recording is completed.

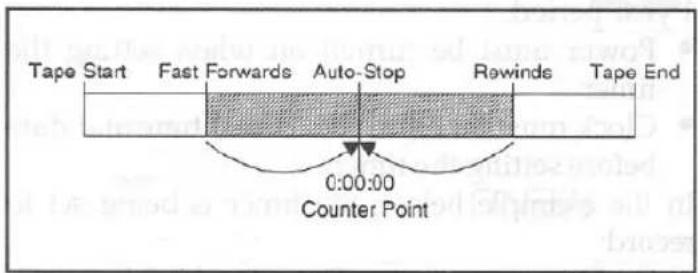

COUNTER MEMORY

The MEMORY can be used during rewind or fast forward to automatically stop the tape when the count reaches a preset approx.0:00:00 reading.

For example, this feature can be used to return the tape to a pre-selected position immediately after recording, or to repeatedly playback a certain portion of a tape.

1

If the count is displayed on the VCR display or on the TV screen, skip step [1].

If the count is not displayed, press SELECT button so that the counter appears on the VCR display or on the TV screen.

2

Press COUNTER RESET button. The count resets to 0:00:00.

3

Press COUNTER MEMORY button. "MEMORY" appears on the TV screen.

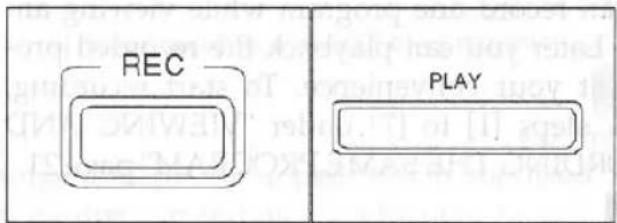

4

Press REC or PLAY button.

5

Press STOP button when recording or playback is completed.

6

(If the count is not displayed, press SELECT button so that the counter appears on the VCR display or on the TV screen.)

Press REW button. The tape will automatically stop when the count returns to approx. 0:00:00.

RECORDING ONE PROGRAM WHILE VIEWING ANOTHER

You can record one program while viewing another. Later you can playback the recorded program at your convenience. To start recording, follow steps [1] to [7] under "VIEWING AND RECORDING THE SAME PROGRAM" page 21.

8

Press TV/VCR button on the remote control unit to TV so that "VCR" disappears on the display.

9

Set the TV to the channel you want to watch.

TO MONITOR RECORDING

To monitor the progress of your recording,

10

Press TV/VCR button on the remote control unit so that "VCR" appears on the display.

11

Turn on the TV and set the TV channel to the same video output channel as the switch located on the back of the VCR (CH3 or 4).

12

Press STOP button when recording is completed.

You may set the VCR to start and end a recording while you are away. You can set seven events to record on a specific day, daily or weekly within a 1 year period.

Power must be turned on when setting the timer.
◆ Clock must be set to the correct time and date before setting the timer.

In the example below, the timer is being set to record:

DATE Thursday 6th May, 1993

SETTING TIME from 7:30AM to 8:50AM

CHANNEL CH.61

TAPE SPEED LP

1

Insert a blank cassette, or one that you want to record over, into the cassette compartment.

Turn on the TV, set it to the same video output channel as the VCR's 3CH/4CH switch. Press TV/VCR button so that "VCR" appears on the display.

2

Press MENU button on the remote control unit. The main menu display on the TV screen.

3

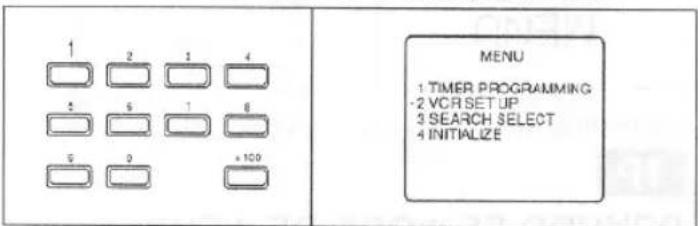

Select item 1(TIMER PROGRAMMING) with number button or CH. ▲ or ▼ button.

4

Press SELECT button. Programming mode displays on the TV screen.

5

Select your desired program number with number button or CH. ▲ or ▼ button. (Example: 4).

The program number 8 is used for setting Today Timer Recording only. You cannot select number 8 in the procedure of Automatic Timer Recording.

6

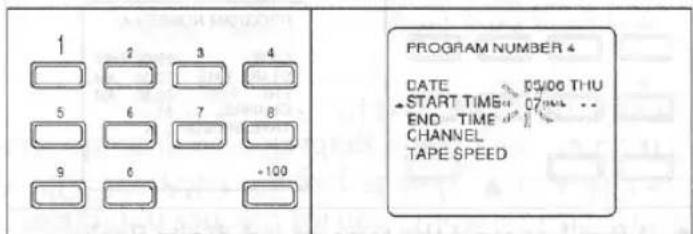

Press SELECT button. The MONTH digits flash.

7

Enter your desired MONTH with number button or CH. ▲ or ▼ button. (Example:05).

◆ After 1 second the day digits flash.

8

Enter your desired DAY with number button or CH. ▲ or ▼ button. (Example:06)

The day of the week changes automatically.

◆ After 1 second the start time hour digits flash.

9

Enter your desired HOUR with number button or CH. ▲ or ▼ button. (Example:07)

◆ After 1 second the start time minute digits flash.

10

Enter your desired MINUTE with number button or CH. ▲ or ▼ button. (Example:30)

◆ After 1 second the AM/PM indicator flashes.

11

Select AM(1) or PM(2) with number button or CH.

▲ or ▼ button. (Example: 1→AM)

◆ After 1 second the end time hour digits flash.

12

Repeat steps [9]-[11] to set the end time.

(Example: 08:50AM)

◆ After 1 second the channel digits flash.

13

Enter your desired CHANNEL with number button or CH. ▲ or ▼ button. (Example: 61)

◆ After 1 second the tape speed digits flash.

14

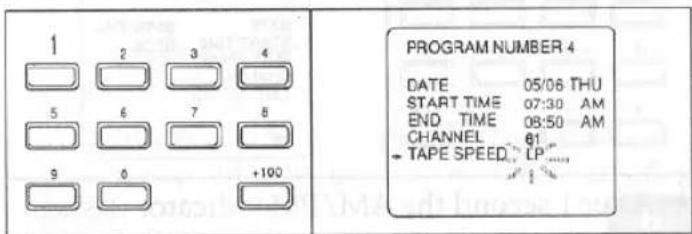

Select your desired recording speed SP(1), LP(2), SLP(3) or AUTO(4) with number button or CH. ▲ or ▼ button. But, AUTO(4) is available only with Program No.1. (Example: 2→LP)

15

Press MENU or SELECT button on the remote control unit. Program 4 is now completed.

MENU
SELECT

To set another program, repeat steps [2] to [15].

16

Press POWER/TIMER REC button on the VCR or on the remote control unit. The timer indicator "☒" appears on the display.

Note: When the programs overlap, the earlier program has priority.

If you programmed as per as the above illustration the timer recording would be carried out as follows:

9:00 - 11:00 for PROGRAM 2

11:00 - 0:00 for PROGRAM 1

0:00 - for PROGRAM 3

DAILY PROGRAM

To record a program at the same time on the same channel every day, follow steps [1] to [6] on page 24 and 25 then continue with step [7a] below.

7a

Press CH. ▲ or ▼ repeatedly or enter "00" with number button. "DAILY" appears on the TV screen.

After 1 second, continue with step [9] on page 25 onwards.

WEEKLY PROGRAM

To record a program at the same time on the same channel every week, follow steps [1] to [6] on page 24 and 25 then step [7b] below.

7b

Press CH. ▲ or ▼ button repeatedly until desired date of the week is displayed. (Example: W SUN)

After 1 second, continue with step [9] on page 25 onwards.

TO CORRECT OR CANCEL A PRO- GRAM

◆ Press DELETE button to go back one step from current step during steps [6]\~[14].
If you finished setting program, press SELECT button repeatedly (or press DELETE button to go back one step) until your desired digit flashes and reset program during steps [6]\~[14].
You may cancel the entire program by pressing DELETE button at step [5].

CHECKING TIMER PROGRAMS

To check a program that is to be recorded using the Automatic Timer Program when the VCR is in the timer-record mode:

1) Turn on the TV and set the TV channel to the same video output channel as the selector switch located on the back of the VCR.
2) Press POWER/TIMER REC button so that timer indicator "☒" disappears from the display.
3) Press TV/VCR button so that "VCR" appears on the display.

4) Follow instructions in steps [2] to [5] on page 24 and 25. Information which was set for programming will now appear.

• If there a power failure or the VCR is unplugged for more than a few seconds, the clock setting and all timer settings are lost.
  If you are recording using the Programmed Automatic Timer, you may not operate the unit manually, but, you may still stop the recording by pressing STOP/EJECT button on the VCR. Note: STOP button on the remote control unit will not function in this mode.
  If a tape is not inserted or the erasure prevention tab is removed, the timer indicator "☑" flashes and automatic timer recording cannot occur. Press POWER/TIMER REC button to stop the flashing. Then, Insert a tape that allows recording.

MONITORING AUTOMATIC TIMER RECORDING

To monitor automatic timer recording.

1

Turn on the TV and set the TV channel to the same output channel as the selector switch located on the back of the VCR. (CH 3 or 4)

2

Press TV/VCR button on the remote control unit so that "VCR" appears on the display.

Note: The VCR will continue recording until the preset end time is reached or the tape runs out.

You may set the VCR to start and end recording one program within 24 hours by simply pressing TODAY TIMER REC button on the VCR.

It is easy for you to record today's TV program.

◆ Power must be on to set Today Timer.
◆ Clock must be set to the correct time before setting the timer.
Today Timer Recording is memorized to program number 8.

In the example below, the Today Timer is being set to record:

SETTING TIME

from 9:30PM to 11:00PM

CHANNEL

CH61

TAPE SPEED

:LP

Current time is 6:00PM.

Note: This function is not operative with the remote control.

1

Insert a cassette tape with its erasure prevention tab in place, if necessary, rewind or fast forward the tape to the point at which you want to begin recording.

Timer display will be changed to Count mode.

Line drawing of a vintage cassette tape device with a flat top and a triangular base (no text or symbols)

2

Press TODAY TIMER REC button on the VCR. Program number 8 appears on the display.

3

Press SPEED button until your desired tape speed is displayed. (AUTO=no display-SP-LP-SLP, Example: LP)

- The tape speed can be memorized or changed at any step from [2] to [8].

Note: If you set tape speed during recording a TV program(not Today Timer Recording), the current recording tape speed changes, too.

SETTING THE START TIME

4

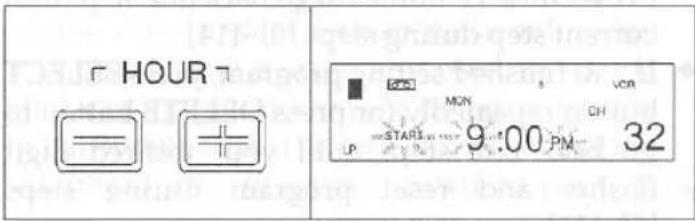

Press HOUR button (+" or "-") until your desired hour is displayed. (Example: 9, PM)

◆ After 2 seconds the minute digits flash.

5

Press MINUTE button (+" or "-") until your desired minute is displayed. (Example: 30)

If you want to change hour, press HOUR button (+" or "-") and re-set the correct hour.
◆ After 2 seconds the channel digits flash.

6

Press CHANNEL button (▲ or ▼) until your desired channel number is displayed. (Example: 61)

SETTING THE END TIME

7

Press TODAY TIMER REC button.

Note: If you press TODAY TIMER REC button again, the program will be cancelled.

8

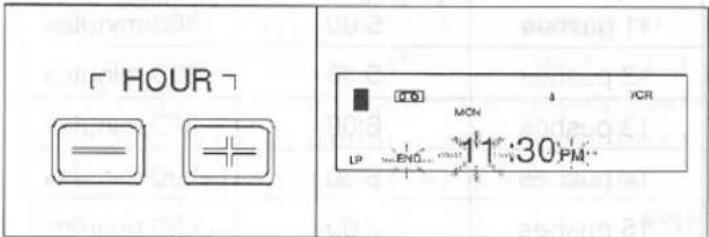

Press HOUR button (+" or "-") until your desired hour is displayed. (Example: 11, PM)

◆ After 2 seconds the minute digits flash.

9

Press MINUTE button ("+" or "-") until your desired minute is displayed. (Example: 00)

If you want to change hour, press HOUR button (+ or -) and re-set the correct hour.

10

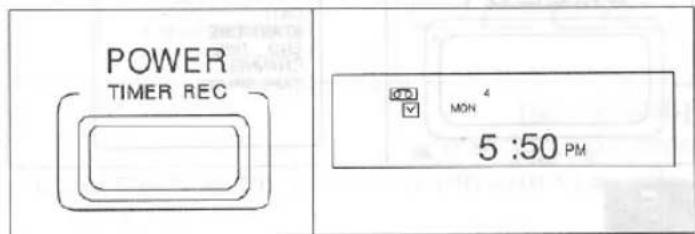

Press POWER/TIMER REC button to set Today Timer Recording. The "☑" indicator appears on the display. The program number 8 is displayed with current time.

When the programs overlap, Today Timer Recording program has priority.

If you program as per the illustration the timer recording would be carried out as follows.

9:00-11:00 for PROGRAM 1

11:00-0:00 for TODAY TIMER REC (PROGRAM 8)

0:00- for PROGRAM 2

TO CANCEL A TODAY TIMER PRO- GRAM RECORDING WHILE IN PROG- RESS

Press STOP/EJECT button on the VCR. The program will be canceled. and the display returns to original mode.

CHECKING THE START/END TIME

To check the start/end time and channel number, there are two ways. After setting the Today Timer;

WATCHING DISPLAY OF VCR

Press TODAY TIMER REC button repeatedly.

WATCHING MENU ON THE TV SCREEN

1) Press MENU button.
2) Select item 1(TIMER PROGRAMMING) with number button or CH. ▲ or ▼ button.
3) Press SELECT button.
4) Select program number 8 with number button or CH. ▲ or ▼ button. "TODAY TIMER" appears on the TV screen.
5) Press MENU button. The display returns to original mode.

The One Touch Recording function enables you to record a program simply by pressing OTR button on the VCR.

According to the table, simply press OTR button as many times as needed to set the desired recording length. The channel number to be recorded and recording length will be shown on the VCR display.

1

Press POWER /TIMER REC button to turn on the VCR.

2

Set the VCR to the channel to be recorded.

3

Press OTR button on the VCR.

Recording starts immediately when the OTR button is pressed, even if you are watching the same or different channel.

The recording length can be determined by the number of times you press the OTR button.

(Example: 4 pushes for 90 minutes)

Note:

You can monitor the program being recorded by following the steps as given on Page 27.

Push(es)	DISPLAY	LENGTH
1push	NORMAL REC MODE
2 pushes	0:30	30 minutes
3 pushes	1:00	60 minutes
4 pushes	1:30	90 minutes
5 pushes	2:00	120 minutes
6 pushes	2:30	150 minutes
7 pushes	3:00	180 minutes
8 pushes	3:30	210 minutes
9 pushes	4:00	240 minutes
10 pushes	4:30	270 minutes
11 pushes	5:00	300 minutes
12 pushes	5:30	330 minutes
13 pushes	6:00	360 minutes
14 pushes	6:30	390 minutes
15 pushes	7:00	420 minutes
16 pushes	7:30	450 minutes
17 pushes	8:00	480 minutes
18 pushes	NORMAL REC MODE

The timer on the VCR display counts down as the recording progresses.

Notes:

When you push OTR button, you will extend recording time by 30 minutes at a time up to 8-hours (or to the end of the tape).
◆ To stop the OTR operation, press STOP button.
When OTR button is pushed 18 times the VCR will record continuously until the end of the tape.
◆ The recording length time remaining is indicated on the VCR display as the recording
◆ Recording stops when 0:00 is reached.
Please note that in the SLP mode maximum recording time, assuming the tape is started of the beginning, is 8 hours using T-160 (or 6 hours using T-120).

PLAYBACK

1

Press POWER/TIMER REC button to turn on the VCR.

2

Turn on the TV and set the TV channel to the same output channel as the selector switch located on the back of the VCR. (CH 3 or 4)

3

Insert a pre-recorded tape.

Line drawing of a vintage DVD drive with a flat top and rear cover, showing no text or symbols.

Note: If the erasure prevention tab has been removed, the VCR will start playback automatically.

4

Press PLAY button.

Note: If the erase-protection tab has been removed, the VCR will start playback automatically.

5

Press STOP button when playback is completed.

AUTO REWIND

When the end of the tape is reached during recording, playback, or fast-forward, the tape will automatically rewind to the beginning (or to the 0:00:00 counter reading if the memory function is activated), eject, and the VCR turns off.

Notes:

◆ The tape will not auto-rewind during timer recording or One Touch Recording.
When the tape is rewound to the preset memory position, the tape will not eject and VCR will not turn off.

SLOW MOTION

Press SLOW button to reduce the playback speed. The VCR mutes the sound during slow motion. You can control the speed by pressing SLOW + button (faster) or SLOW - button (slower).

◆ Press PLAY button to return to normal playback.

PICTURE SEARCH (SP/LP/SLP MODE)

You may view the video program at a high speed in either a forward or reverse direction. When in the play mode, press E.FWD button to view the tape at a fast speed in the forward direction. To view the tape at a fast speed in the reverse direction, press REW button. The sound will be muted. This feature is useful in finding or skipping over a particular section of a tape. When you wish to view the tape in normal speed, simply press PLAY button.

Note: The picture will not be as good as in normal playback during Picture Search.

SUPER HIGH SPEED SEARCH (LP/SLP MODE)

To Picture Search in super high speed press either FFWD or REW button while the unit is in the play mode. Release button, then depress again. The unit will now search in super high speed. For normal playback simply press PLAY button.

Note: Tapes recorded in the LP or SLP mode will display a noise bar on the TV screen and the picture may revert to Black and White. This is normal.

STILL FIELD DURING PLAYBACK

If you press PAUSE/ STILL button during play-back, the picture will freeze on the TV screen. You may use this feature to study details of a particular screen.

If noise lines appear on the still picture, put unit in the slow mode and adjust tracking as described under Slow Tracking.

Press PLAY button to continue playback.

Note: The VCR will automatically switch to the Stop mode, if it is left in the Pause mode for more than five minutes.

VERTICAL HOLD CONTROL

Adjust to stabilize the picture if picture begins to jitter.

This adjustments works only in the Still mode with CH ▲ or ▼ button.

TRACKING ADJUSTMENT

Play Tracking

• Tracking adjustment will be set automatically when you start playback. "DTR" appears on the display.
  When playing pre-recorded tapes or tapes recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, adjust the TRACKING control with TRACKING button ("+" or "-" until the streaks disappear.
  To return tracking to the center position, press both "+" and "-" buttons at the same time. (This function is operative only by the buttons on the Main Unit.)

Slow Tracking

You can reduce the noise lines by pressing TRACKING button ("+" or "-") in slow mode, too. But you cannot set center position in slow mode, and slow tracking adjustment will not be set automatically.

Note: Press SLOW button in Still mode and press TRACKING button (+" or "-") until the streaks disappear. To return to Still mode, press PAUSE/ STILL button again.

This enables you to see the picture in its entirety without distracting noise lines.

AUTO REPEAT PLAYBACK

The VCR has an auto repeat function that allows you to repeat a tape indefinitely without touching the PLAY button.

Note: If the "COUNTER MEMORY" is activated, auto repeat will not function.

1

Press MENU button on the remote control unit.

2

Select item 2(VCR SET UP) with number button or CH. ▲ or ▼ button. Press SELECT button.

3

Select item 2(REPEAT PLAY) with number button or CH. ▲ or ▼ button.

4

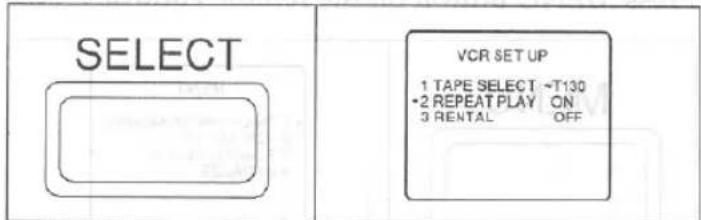

Press SELECT button repeatedly to select "ON".

Repeat playback will start automatically.

" 🔍 " appears on the display.

Once you select the repeat play mode, it stays in effect even after you turn off the VCR.
To exit the repeat play mode, repeat steps 1 to 3. Then, follow step 4, but select "OFF" instead of "ON" for normal play.
◆ If the rental play function is set ON, the "RENTAL PLAY▶" display has priority.

RENTAL PLAY

This function enables you to improve the picture quality when playing back worn cassettes such as those rented from a video shop.

1

Press MENU button on the remote control unit.

MENU	MENU -1 TIMER PPROGRAMMING 2 VCR SETUP 3 SEARCH SELECT 4 INITIALIZE

2

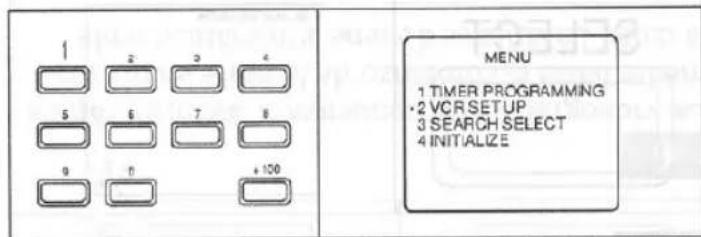

Select item 2(VCR SET UP) with number button or CH. ▲ or ▼ button. Press SELECT button.

3

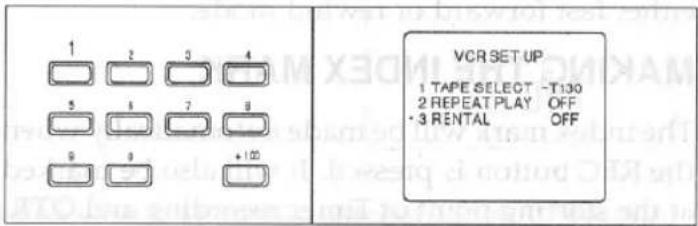

Select item 3(RENTAL) with number button or CH. ▲ or ▼ button.

4

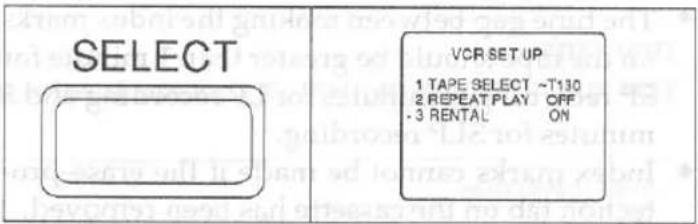

Press SELECT button repeatedly to select "ON".

5

Press MENU button.

Once you select the rental play mode, it stays in effect even after you turn off the VCR.
To exit the rental play mode, repeat steps 1 to 3. Then, follow step 4, but select "OFF" for normal playback.

VIEWING ONLY TV (WITHOUT RECORDING)

◆ The VCR must be plugged into an AC outlet.

1

Turn VCR power off or press TV/VCR button on the remote control unit to TV, so that "VCR" disappears from the display.

2

Turn on the TV and select the channel you want to watch.

INDEX SEARCH

This feature provides a method of indexing the starting point so that it can be easily returned to in either fast forward or rewind mode.

MAKING THE INDEX MARK

The index mark will be made automatically when the REC button is pressed. It will also be marked at the starting point of Timer recording and OTR.

The index mark is not recorded if the PAUSE/ STILL button is pressed and released during recording.
The time gap between making the index marks on the tape should be greater than 1 minute for SP recording, 2 minutes for LP recording and 3 minutes for SLP recording.
- Index marks cannot be made if the erase-protection tab on the cassette has been removed.

INDEX SEARCH OPERATION

Example: You are watching program number 4 and want to fast forward to program number 7. You must skip three programs.

There are two ways to set Index Search:

USING INDEX SEARCH BUTTON

1a

Press INDEX SEARCH button. And follow step [4].

USING MENU MODE

1b

Press MENU button on the remote control.

2

Select item 3(SEARCH SELECT) with number button or CH. ▲ or ▼ button.

3

Press SELECT button. Select item 1(INDEX SEARCH) with number button or CH. ▲ or ▼ button.

SELECT

SEARCH SELECT -1 INDEX SEARCH 2 TIME SEARCH 3 BLANK SEARCH

4

Press SELECT button. Index Search mode appears on the TV screen.

5

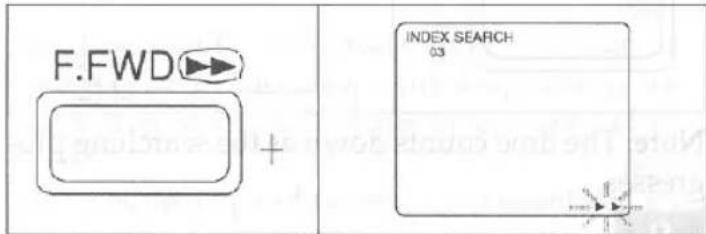

Press the number button corresponding to the number of program that you want to skip.

(Example: To skip three programs, press number button 03.)

To correct the Index number, press DELETE button and re-enter the correct number.

6

Press REW or F.FWD button. The VCR begins rewinding or fast forwarding then goes into play-back mode at the beginning of desired program. (Example: F.FWD button)

Note: Every time an index signal is skipped, the number in the program indicator decreases by one.

7

When the preset program is reached, normal play-back will start.

Notes:

◆ Index search can be set up to 20.
- This function is not operative in recording mode.
◆ Procedures must be followed within 30 seconds, from steps [4] to [5]. Otherwise the Time Search mode will be cancelled.
◆ Counter Memory function is not operative in this mode.

TIME SEARCH

The Time Search function makes it possible to quickly advance the tape from any position by entering the exact desired amount of playback time of the part that you want to skip.

Example: To watch the program after 2:53 from present position to forward direction.

There are two ways to set Time Search:

USING TIME SEARCH BUTTON

1a

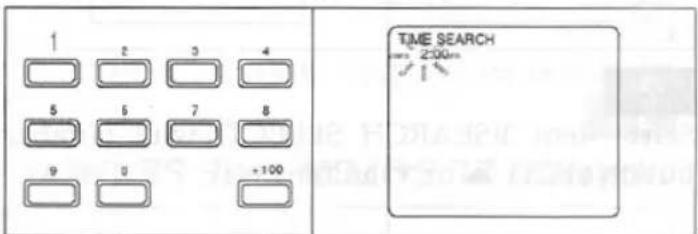

Press TIME SEARCH button. And follow step [5].

USING MENU MODE

1b

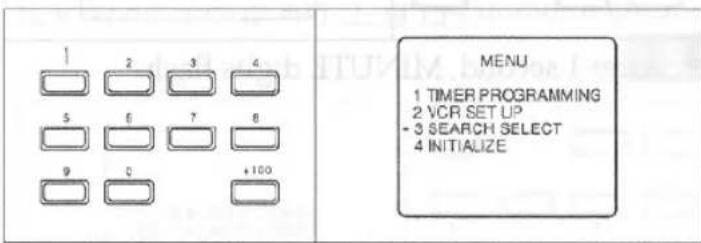

Press MENU button on the remote control.

MENU	MENU - 1 TIMER PROGRAMMING 2 VCR SET UP 3 SEARCH SELECT 4 INITIALIZE

2

Select item 3(SEARCH SELECT) with number button or CH. ▲ or ▼ button.

3

Press SELECT button.

4

Select item 2(TIME SEARCH) with number button or CH. ▲ or ▼ button.

5

Press SELECT button. The HOUR digits flash.

6

Enter the desired hour with number button or CH.

▲ or ▼ button. (Example: 2)

◆ After 1 second, MINUTE digits flash.

7

Enter the desired minutes with number button or CH. ▲ or ▼ button. (Example: 53)

To correct the time, press DELETE button and repeat steps [6] to [7].

8

Press F.FWD or REW button. The tape will move to the specified point.

(Example: F.FWD button)

Note: The time counts down as the searching progresses.

9

When 0:00 is reached, the tape will start playback automatically.

Notes:

◆ Time search can be set up to 9:59.
◆ Procedures must be followed within 30 seconds from steps [5] to [7]. Otherwise the Time Search mode will be cancelled.
This function is not operative in recording mode.
◆ Counter Memory function is not operative in this mode.

BLANK SEARCH

This function enables you to search for the unrecorded portion of the tape in the forward direction.

♦ Tape must be fully rewound.

There are two ways to set Blank Search:

USING BLANK SEARCH BUTTON

1a

Press BLANK SEARCH button. And follow step [5].

USING MENU MODE

1b

Press MENU button on the remote control.

MENU	MENU -1 TIMER PROGRAMMING 2 VCR SET UP 3 SEARCH SELECT 4 INITIALIZE

2

Select item 3(SEARCH SELECT) with number button or CH. ▲ or ▼ button.

3

Press SELECT button.

4

Select item 3(BLANK SEARCH) with number button or CH. ▲ or ▼ button.

5

Press SELECT button. Blank Search function starts automatically in the forward direction.

6

The VCR begins fast forwarding to the beginning of the blank part of the tape.

The tape will automatically stop.

SETTING THE REMAIN TIME

You can check the remaining tape running time of your tape.
If your cassette tape length is T-130 or less, select "\~T130". For example, the popular T-120 cassette tape calls for the "\~T130" selection. If your cassette tape is T-140 or greater, select "T140\~". Then the tape remaining indication will be correct.

1

Press MENU button on the remote control unit. The main menu appears on the TV screen.

2

Select item 2(VCR SET UP) with number button or CH. ▲ or ▼ button.

3

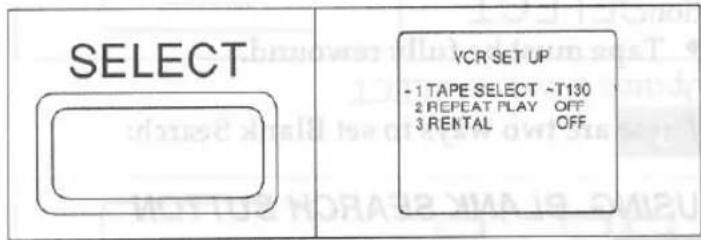

Press SELECT button. Select item 1(TAPE SELECT) with number button or CH. ▲ or ▼ button.

4

Press SELECT button repeatedly to select "\~T130" or "T140\~".

In the Remain Time Mode calculating will start when the cassette tape is inserted.

While calculating, the TV screen shows as illustrated.

REMAINING TAPE RUNNING TIME DISPLAY

Since the diameter of reel and thickness of tape are not common to all cassettes, the time count differs from cassette to cassette. Use the time display as an informative number.
During recording the remaining tape running time is estimated based on the current recording mode (SP, LP, SLP).
During playback the remaining tape running time is calculated based on the current play-back mode.
◆ Remain time will not appear on TV screen while in the Fast forward or Rewind Mode.
There will be a delay of approx. 15 sec. before the remain time appears on the display.

Note:

Use of the following tape will result in difference between the displayed remaining time and actual time to the end of the tape:

♦ Tape housed in a VHS-C cassette adapter.
◆ Shorter tape length such as a 10-minute cassette
T-180 cassette. In this case the display may read 2 Hr, 40 Min at the start point of the tape in SP mode.

This function allows you to fully utilize the available tape length for timer recording. The VCR calculates the remaining tape amount and then adjusts the tape speed from SP to SLP as needed.

If it is suspected that the end of the tape will be reached before the reserved program ends (as long as SP mode is kept all the way), set recording mode to AUTO. This function is available only with Program No. 1 and Today Timer recording.

The auto mode starts recording in SP mode but will change to SLP mode automatically since the internal circuit always compares the rest of the program against the available tape length. This will assure coverage of the desired timer program before the end of the tape is reached.

Notes:

• Set the tape remainder switch ("\~T130" or "T140\~") to the tape loaded.
  Even if SLP mode is selected, just-in time recording cannot compensate for a tape length which may be too short.
  ◆ A momentary picture break up will occur at the point on the tape when the recording speed changes from SP to SLP.

The displayed remaining tape running time may not always match the actual remaining time on the tape (usually longer than the actual time). It is recommended to set the end of the reserved recording time several minutes before the end of the TV program.

If you have followed the instructions contained in this manual and have difficulty in operating your VCR, locate the SYMPTOM in the left column below. Check the corresponding POSSIBLE CAUSE and CORRECTIVE ACTION columns to remedy the problem.

SYMPTOM	POSSIBLE CAUSE	CORRECTIVE ACTION
No power.	Power cord is not connected.POWER button is set to off.	Connect power cord to AC outlet.Set the POWER button to on.
Timer recording is not possible.	The timer recording is set incorrectly.The timer recording is not set to on.	Set the timer recording correctly.Set TIMER REC to on.
Rec mode cannot be engaged.	The record safety tab on cassette is missing.	Place vinyl tape over missing safety tab.
No picture or poor picture on playback.	The TV channel selector is not set to the proper channel.The TV fine tuning is not set correctly.	On playback, set the TV to channel 3 or 4 for video output channel.Fine tune your TV.
Noise in picture on playback.	Video head is dirty.	Head cleaning is necessary, consult the nearest Funai Authorized Service Center.
No picture on TV.	TV/VCR button in TV mode.	Press TV/VCR button again.
Playback picture is partially noisy.	The TRACKING control is not set correctly.	Adjust TRACKING control for better picture.
On-the-air TV programs cannot be seen.	Connections are not correctly made.	Re-check the ANT IN and ANT OUT connections.
No operation by infrared Remote Control.	Weak battery.	Check the batteries in Infrared Remote Control.

CABINET CLEANING

◆ Wipe the front panel and other exterior surfaces of the VCR with a soft cloth immersed in lukewarm water and wrung dry.
- Never use a solvent or alcohol. Do not spray insecticide liquid near the VCR. Such chemicals may cause damage and discoloration to the exposed surfaces.

HEAD CLEANING

Picture playback may become blurred or interrupted while the TV program received is clear. This does not mean that the recorded program has been erased. Dirt accumulated on the head after long periods of use, or usage of rental or old tape causes this problem. In this case, head cleaning requires highly technical attention, therefore consult the nearest Funai Authorized Service Center. Clean heads only when problems occur.

SERVICING

- Should your VCR become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and take the unit to the nearest Funai Authorized Service Center for servicing.

GENERAL SPECIFICATIONS

Television system	: NTSC, TV standard
Video heads	: Rotary four-head
Tape width	: 1/2inch (12.65mm)
Tape speed
SP	: 33.35mm/sec.
LP	: 16.67mm/sec.
SLP	: 11.12mm/sec.
Tuner channel
VHF	: #2~#13
UHF	: #14~#69
Cable channel	: 5A, A-5 ~ A-1, A ~ W+84
RF converter	: Built-in VHF converter
Converter output	: VHF Channel 3 or 4.
Timer indication	: AM/PM 12-hour system
Operating temperature	:5°C~40°C (41°F~104°F)
Terminals
Antenna input	: F type connector x 1
Antenna output	: F type connector x 1
Video input/output	: RCA connector x 2
Audio input/output	: RCA connector x 2

ELECTRICAL SPECIFICATIONS

Video output level	: 1Vp-p
Video output impedance: 75Ω
Audio output level	:-6dBv (1KHz)
Video input level	: 0.5~2.0Vp-p
Audio input level	:-10dBv
Video S/N ratio
SP	: More than 42dB
Audio S/N ratio
SP	: More than 38dB

OTHER SPECIFICATIONS

Power requirement	: 120V, 60Hz
Power consumption	: 17 Watts
Dimensions	:W 14-1/4" (360mm)H 3-5/8" (92mm)D 10" (252mm)
Weight	: 7.4lbs. (3.4 Kg.) (Approx.)
Accessories, included	: Remote control unit2 "AA" Batteries: Owners Manual: Coaxial cable

◆ Designs and specifications are subject to change without notice.

This model is capable of receiving 125 cable channels. The channels are displayed as 1 thru 125.

Cable companies often designate the other channels with letters or letter-number combinations. Please check with your local cable company.

The following is a chart of common cable channel designations.

CATV Channel	5A	2	3	4	5	6	7	8	9	10	11	12	13	A	B
VCR Display	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
CATV Channel	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
VCR Display	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
CATV Channel	R	S	T	U	V	W	W+1	W+2	W+3	W+4	W+5	W+6	W+7	W+8	W+9
VCR Display	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45
CATV Channel	W+10	W+11	W+12	W+13	W+14	W+15	W+16	W+17	W+18	W+19	W+20	W+21	W+22	W+23	W+24
VCR Display	46	47	48	49	50	51	52	53	54	55	56	57	58	59	60
CATV Channel	W+25	W+26	W+27	W+28	W+29	W+30	W+31	W+32	W+33	W+34	W+35	W+36	W+37	W+38	W+39
VCR Display	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75
CATV Channel	W+40	W+41	W+42	W+43	W+44	W+45	W+46	W+47	W+48	W+49	W+50	W+51	W+52	W+53	W+54
VCR Display	76	77	78	79	80	81	82	83	84	85	86	87	88	89	90
CATV Channel	W+55	W+56	W+57	W+58	A-5	A-4	A-3	A-2	A-1	W+59	W+60	W+61	W+62	W+63	W+64
VCR Display	91	92	93	94	95	96	97	98	99	100	101	102	103	104	105
CATV Channel	W+65	W+66	W+67	W+68	W+69	W+70	W+71	W+72	W+73	W+74	W+75	W+76	W+77	W+78	W+79
VCR Display	106	107	108	109	110	111	112	113	114	115	116	117	118	119	120
CATV Channel	W+80	W+81	W+82	W+83	W+84
VCR Display	121	122	123	124	125

FUNAI CORPORATION

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS:

FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR:

FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced or missing. This FUNAI CORPORATION Limited warranty does not apply to any the product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FACILITY.

WHEN YOU ARE RETURNING THE PRODUCT FOR SERVICE TO FACTORY SERVICE CENTER, PLEASE CONTACT THE FUNAI SERVICE DEPARTMENT TO RECEIVE M.R.A. (MERCHANDISE RETURN AUTHORIZATION) NUMBER PRIOR TO SHIPPING. ANY POSTAGE, INSURANCE AND SHIPPING COST, INCURRED IN PRESENTING OR SENDING YOUR FUNAI/SYMPHONIC PRODUCT FOR SERVICE ARE SHIPPER'S RESPONSIBILITY.

CAREFULLY PACK WITH PROPER PACKING MATERIALS, PREFERABLY IN THE ORIGINAL CARTON.

ATTACH WRITTEN DOCUMENTATION DETAILING THE COMPLAINT, TO THE OUTSIDE OR INSIDE OF THE CARTON.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

For information of your nearest FUNAI Authorized Service Center or general service procedure, please call or write to the following:

FUNAI CORPORATION

Corporate Headquarters & Factory Service Center

Address :100 North Street Teterboro, NJ 07608

Tel:[phone]

(Eastern Time 9:00 AM - 4:30 PM)
