TP1000 - Tablet ORION - Free user manual and instructions

Product Type	Tablet
Brand	ORION
Model	TP1000
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Dimensions	240 x 160 x 8 mm
Weight	500 g
Operating System	Android 10
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Battery Capacity	4000 mAh Lithium-ion
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Cameras	Rear 5 MP, Front 2 MP
Audio	Built-in speakers, 3.5 mm headphone jack
Sensors	Accelerometer
Expansion Slot	microSD up to 128 GB
Charging Port	Micro USB
Power Adapter	5V / 2A
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid liquids.
Safety Precautions	Do not expose to water or heat. Do not disassemble.
Spare Parts & Repairability	Not user-serviceable. Contact authorized service center.
General Information	User manual available for free download in PDF format.

Frequently Asked Questions - TP1000 ORION

How do I turn on or off the ORION TP1000 tablet?

Press and hold the power button located on the side of the device for about 3 seconds to turn it on. To turn it off, press and hold the power button until the power off menu appears, then select 'Power off'.

How do I charge the tablet?

Connect the included USB cable to the micro USB port on the tablet and the power adapter to a wall outlet. The battery icon shows charging status. Fully charge for 4-5 hours for first use.

Why can't my tablet connect to Wi-Fi?

Ensure Wi-Fi is enabled in Settings. Check that the router is working and within range. Restart the tablet and router. If the problem persists, forget the network and reconnect with the correct password.

What should I do if the screen becomes unresponsive?

First, try a forced restart by pressing and holding the power button for 10-15 seconds. If the issue continues, check for screen protectors or debris. A factory reset may be necessary as a last resort.

How do I perform a factory reset?

Go to Settings > System > Reset > Factory data reset. Confirm by tapping 'Reset tablet'. This will erase all data, so backup important files first.

How can I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds. The screen will flash and the screenshot will be saved in the Gallery app.

How do I expand the tablet's storage?

Insert a microSD card (up to 128 GB) into the microSD slot located on the side of the tablet. Go to Settings > Storage to view and manage the external storage.

How do I update the operating system?

Go to Settings > System > System update. Tap 'Check for updates'. If an update is available, follow the on-screen instructions to download and install. Ensure the battery is above 50%.

Is the ORION TP1000 suitable for reading e-books or watching videos?

Yes, the 10.1-inch display with 1280x800 resolution is ideal for reading and multimedia. Install e-book apps like Kindle or use the pre-installed video player.

What is the warranty period for the ORION TP1000?

The ORION TP1000 typically comes with a 12-month manufacturer warranty covering defects in materials and workmanship. Keep your proof of purchase for warranty claims.

USER MANUAL TP1000 ORION

White tablet device with a digital screen displaying a woman in a white dress against a blue abstract background (no visible text or symbols)

CONTENTS

1. PRECAUTIONS 3
2. MAIN FUNCTIONS 3
3. PACKAGE CONTENTS 3
4. BUTTONS OVERVIEW 4
5. BASIC OPERATIONS 5
6. HOME SCREEN 6
7. SETTINGS 7
8. APPINSTALLER 8
9. FILE MANAGER 9
10. TECHNICAL SPECIFICATIONS 10
11. TROUBLESHOOTING 11

单位：元

ORION

This manual describes the instructions on the proper use of the device, as well as safety measures and precautions that should be observed during use. Before use, please read these instructions carefully and save it for future use.

Note

• Product features and specifications are subject to change self-hatification
  BEFORE USING THE DEVICE YOU SHOULD CHARGE THE BATTERY TO 100% TO ACHIEVE FULL BATTERY CAPACITY AND THE CORRECT OPERATION OF THE DEVICE A NEW BATTERY MUST BE FULLY CHARGED AND THEN FULLY DISCHARGE. THIS CYCLE MUST BE REPEATED 3-4 TIMES.
• UNAUTHORIZED SOFTWARE UPDATE (OS ANDROID) CAN C AUSE DEVICE BALFUNCTIONS AND CANCELLATION OFF WARRANTY SERVICE. AUTHORIZED SOFTWARE UPDATE IS AVAILABLE ONLY ON OFFICIAL WEBSITE OF THE MANUFACTURER'S UNIFORMANUA

PRECIATIONS

1. During the formatting or uploading downloading do not disconnect the tablet from the PC. Disconnection during updating or data transfer may damage file or the tablet.
2. Dismantling the tablet will void the warranty. Please check the trouble shooting section of this manual if experiencing problems.
3. Our company reserves the right to improve the product. Different software and hardware versions might affect the product performance and functions, therefore the product shall be subject to change without further notice.
4. If the OTG cable with charging port, when user using this cable should use 5V/2A adaptor to charging.

BIANN FUNCTIONS

• 10 F1024"600 capacitive touch screen
• SupportMPS, AAC, WMA, APE, WAV, OGG music format
• Support video of MVV, MVV, MPG, MPRG, DAT, AVI, MOV, TS, TP, MP4, 3GP (1080p)
• Support picture before in JPG, PNG, GIF, BMP format

1. Volume -
2. Volume +
3. Power key
4. RESET
5. Front camera
6. Charging port
7. TF card slot
8. USB&OTG port Speaker
9. Earphone port
10. Mic hole

Power on/off

1) Press and hold Power button for 3S to turn on the tablet. Pressing and holding the Power button for 3S to show "Power off" window. Choose "ok" to turn off the tablet, choose "cancel" to return.

Note: When the screen has a screen timeout, short press the Power button to wake it up.

Touch & type

Use your fingers to manipulate icons, buttons, menus, the onscreen keyboard, and other items on the touch screen. You can also change the screen's orientation.

To select or activate something, touch it.

To type something, such as a name, password, or search terms, just touch where you want to type. A keyboard pops up that lets you type into the field.

Other common gestures include:

a) Touch & hold: Touch & hold an item on the screen by touching it and not lifting your finger until an action occurs. For example, touching an icon on home screen and hold it, when the Remove icon is shown on the screen, dragging the selected icon to this icon can remove it from the home screen.

b) Drag: Touch & hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reaches the target position. For example, you can drag to reposition shortcuts on the Home screen.

c) Swipe or slide: Quickly move your finger across the surface of the screen, without pausing when you first touch (so you don't drag something instead). For example, you can slide a Home screen left

or right to view the other Home screens.

d) Double-tap: Tap quickly twice on a webpage, map, or other screen to zoom. For example, double tap

a webpage in Browser to zoom in and double-tap again to zoom out.

e) Pinch: In some apps (such as Maps, Browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in).

f) Rotate the screen: On most screens, the orientation of the screen rotates with your device as you turn it. You can change this Display setting.

Related settings

Settings > Device > Display

The quick brown fox jumps over the lazy dog.

单位：人民币元

• How to meet the table?

If your tablet cannot respond to any function key, please use pin to press the reset button in the next hole to read the tablet

• How to save power?

The battery icon on the screen shows the net volume of electricity. To save the power, in system setting interface, please set Brightness and Sleep to a reasonable level.

• How to charge the tablet?

Please charge the tablet timely before the battery icon sheet blank.

The tablet can be charged via the commanded DC charger

The whole charging period need 6 hours. It is normal to find that the machine surface is warm under charging state.

• G-mensor

If do settings setting—display—Auto-state screen—or, the tablet will switch the screen orientation automatically when it is being rotated.

• Connect to Computer and File Transfer

When the tablet on connect the tablet using the supplied USB cable, an interface is shown for your choice, on which it touch "turn on arc storage", then the player enters the USB connection mode.

In the USB connection mode, the tablet will be detected as standard removable disks by your computer and allows the transfer and management of files on the player without the need for the installation of 3rd party software.

Touch turn off web storage can exit USB connection mode.

HOME & GREEN

ORION

Once you back up to the Home screen, you can't go back any further in your history.

Home: Opens Home. If you're viewing a left or right Home screen, opens the central Home een.

Recent apps:

Opens a list of thumbnail images of apps you've worked with recently. To open an app, touch it. To remove a thumbnail from the list, swipe it left or right.

Note: After a short time without getting used, these buttons may shrink to dots or fade away, depending on the current app. To bring them back, touch their location.

1:51920 Status icons: it is used to show the current status of network connection, battery volume and system time.

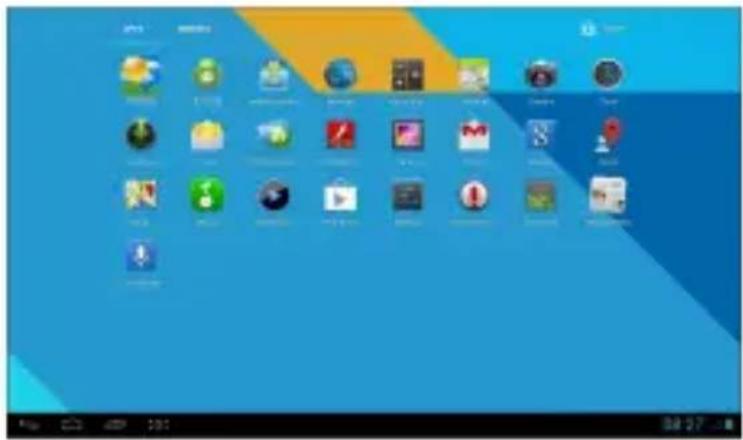

All Apps: Touch it to see all your apps and widgets. To open an app, folder, or widget, touch a icon.

SETTINGS

From a Home or All Apps screen, touch the Settings icon to enter the system setting interface, on which user can do settings shown below:

Wi-Fi: turn on or turn off the Wi-Fi connection. The tablet can scan all available Wi-Fi network by itself. Choosing the target Wi-Fi and typing the correct password, then you can use the Wi-Fi.

Mobile networks: when user want external connect 3G dongle, please do settings- Wireless & networks-more- Mobile networks-Data enabled.

Sound: touch to setting volume, Default notification, Touch sounds, screen lock sounds.

Display: touch to setting "Brightness, Wallpaper, auto-rotate screen, Sleep, Font size.

Storage: touch to view SD card & device storage setting.

Battery: touch to scan the situation of the battery.

Apps: touch to scan the APPS.

Location & services: location settings.

Security: user can do screen security here.

Backup & reset: touch to enter Factory data reset interface.

Language & input: touch to set system language and text inputting method.

Date & time: touch to set system time and date.

About tablet: touch to view basic information about your tablet.

APPINSTALLER

From a Home or All Apps screen, touch the Appinstaller icon. Enter the corresponding interface, on which user can choose device to scan apps

Choose the device, touch to enter into the APP list.

The star highlighting before the app means this app have already installed.

The grey star means this app uninstalled.

Touch an uninstalled app show installing window.Choose "install" to install the app,choose "cancel" to return.

Touch an installed app show uninstalled window.Choose "OK" to uninstall the app,choose "cancel" to return.

Note: No matter in which interface, tap icon, can show submenu.

FILE MANAGER

From a Home or All Apps screen, touch the ES File Explore icon 📄, enter the corresponding interface, on which user can enter file management interface.

Select: turn on or turn off the select function. when "select"off,user can open the files y; When "Select"on,user can edit all files in this tablet.

When "Select" on, touch and hold target files, can popup submenu.

法定代表人

2014年1月1日

单位：元

ORION

TECHNICAL SPECIFICATIONS

CPU:	Actions: ATH07029 ARM Cortex Air Quad Core upto 1.3GHz (4x1.3GHz)
GPU:	Vivante OC 1000
RAM:	10Ω DD/RS
RCbit:	16GB
Screen:	10 F, capacitive TFT touch screen, resolution 1024x600, multibouch function
OS:	Android 4.1
Graensor:	+
Cast slot	TF card (up to 30GB)
Camera:	front: 0,3dBP
Support:	audio: MP3, AA C, WBA A PE, WAV, OGG video: MVV, WHV, MPG, MPEG, DAT, AVI, MOV, TS, TP, MP4, 3GP (1080p) photo: JPG, PNG, GIF, BBIP
Interface:	USB 2.0, DC S/SSA, 3.5 mm headphone stereo OUT
Speaker, microphone:	+

ORION

TROUR LISHHOOTING

The tablet cannot be turned on	- Please charge it via the D.C charger to check if the battery is low. If not, then please reset the tablet.
Incorrect language displayed	- Please make sure that you have selected the correct language. Set language in (Settings) or (personal) use (Language Input)
File: cannot be downloaded	- Include sure the proper connection between computer and tablet.- Check if the memory is full.- Check if the USB cable is damaged and replace it necessary.
Audio files not playable	- This tablet cannot play audio files that are copy protected. Please ensure that only file that contain no copy protection are transferred to the tablet.
Fail to open the web page	- Please check whether successfully create the WiFi connexion.
