Product Type	Electronic Room Thermostat
Model	RET 230F
Brand	Danfoss
Power Supply	230 V AC ±15%, 50/60 Hz
Temperature Range	5–10 °C
Switch Rating	3(1) A
Switch Type	1B
IP Rating	IP20
Maximum Ambient Temperature	45 °C
Rated Impulse Voltage	2.5 kV
Control Pollution Situation	Degree 2
Ball Pressure Test	75 °C
Construction Standard	BS EN60730-2-9
Function	Simple on/off temperature control via rotary dial
Mounting	Wall-mounted (flush or surface)
Wiring	2-wire connection for switching
Compliance	EMC Directive (89/336/EEC), LVD (73/23/EEC)
Cleaning	Wipe with a dry or slightly damp cloth; do not use solvents
Safety	Do not cover; ensure free air flow around the thermostat

Frequently Asked Questions - RET 230F DANFOSS

What is the temperature range of the Danfoss RET 230F thermostat?

The Danfoss RET 230F has a temperature range of 5–10 °C. This is a low-temperature model typically used for floor heating or frost protection.

What is the power supply requirement for the RET 230F?

The thermostat requires a 230 V AC ±15% supply at 50/60 Hz.

Can the RET 230F be used with electric heating systems?

Yes, it is suitable for switching heating systems on and off, including boilers and electric heaters, as long as the load does not exceed 3(1) A.

How do I wire the Danfoss RET 230F thermostat?

The RET 230F has a 2-wire connection. Connect the live and switched live wires according to the wiring diagram in the manual. Ensure the power is off before wiring.

What is the IP rating of the RET 230F, and can it be installed in a bathroom?

The IP rating is IP20, which means it is protected against solid objects larger than 12 mm but not against water. It should not be installed in wet areas like bathrooms unless protected from moisture.

How do I set the temperature on the RET 230F?

Turn the rotary dial to the desired temperature within the 5–10 °C range. The thermostat will switch the heating on/off to maintain the set temperature.

Why does my heating not come on even though the thermostat is set above room temperature?

Check that the power supply is on and the thermostat is wired correctly. Also ensure the heating system's programmer or timer is set to 'on'. The thermostat only operates when the system allows it.

Can I use the RET 230F with a floor heating system?

Yes, the RET 230F is specifically designed for low-temperature applications like floor heating, with a range of 5–10 °C. For higher temperatures, consider other models.

How should I clean the thermostat?

Wipe the thermostat with a dry or slightly damp cloth. Do not use solvents, abrasive cleaners, or immerse in water.

What should I do if the thermostat is not responding?

Turn off the power at the circuit breaker, wait a minute, then turn it back on. If it still does not work, check the wiring connections and ensure the dial is not stuck. If the problem persists, consult a qualified electrician.

USER MANUAL RET 230F DANFOSS

Electronic thermostat

Certification Mark

White industrial fan or air conditioner unit with rotary dial and brand mark 'Dampoli' (no visible text beyond label)

RET 230

RET 230C

RET 230F

RET 230L

RET 230NSB

RET 230VF

RET 230VF2

This product complies with the following EC Directives:

Electro-Magnetic Compatibility Directive.

(EMC) (89\336\EEC), (92\31\EEC)

Low Voltage Directive.

(LVD) (73\23\EEC), (93\68\EEC)

CE

Danfoss

6 GB - Specification

What is a room thermostat?

... an explanation for householders

A room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

Turning a room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the heating system, for example, the size of boiler and radiators.

Neither does the setting affect how quickly the room cools down. Turning a room thermostat to a lower setting will result in the room being controlled at a lower temperature, and saves energy.

The heating system will not work if a timeswitch or programmer has switched it off.

The way to set and use your room thermostat is to find the lowest temperature setting that you are comfortable with, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature – say 18°C – and then turn it up by one degree each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don't have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

Room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from working properly.

Specification
Specification

Specifications
Temperature range 5-30°C
Temperature range (RET230F) 5-10°C
Construction	BS
Maximum Ambient Temperature 45°C
IP Rating IP20
Supply Voltage 230Vac ±15%, 50/60Hz
Switch Rating 3(1)A
Switch Type 1B
Control Pollution Situation Degree 2
Rated Impulse Voltage	2.5kV
Ball Pressure Test 75°C

Spécifi cations

Specifi kation
Specifications

Specifi kation
Temperaturområde	5-30°C
Temperaturområde (RET230F) 5-10°C
Konstruktionsnorm BS EN60730-2-9
Maks. omgivende temperatur 45°C
Tæthedsgrad IP20
Forsyningsspænding 230Vac ±15%, 50/60Hz
Kontaktbelastning 3(1)A
Kontakttype	1B
Forureningssituation Grad 2
Nominel Impuls Spænding	2.5kV
Kugle tryk test 75°C

Technische Specificities

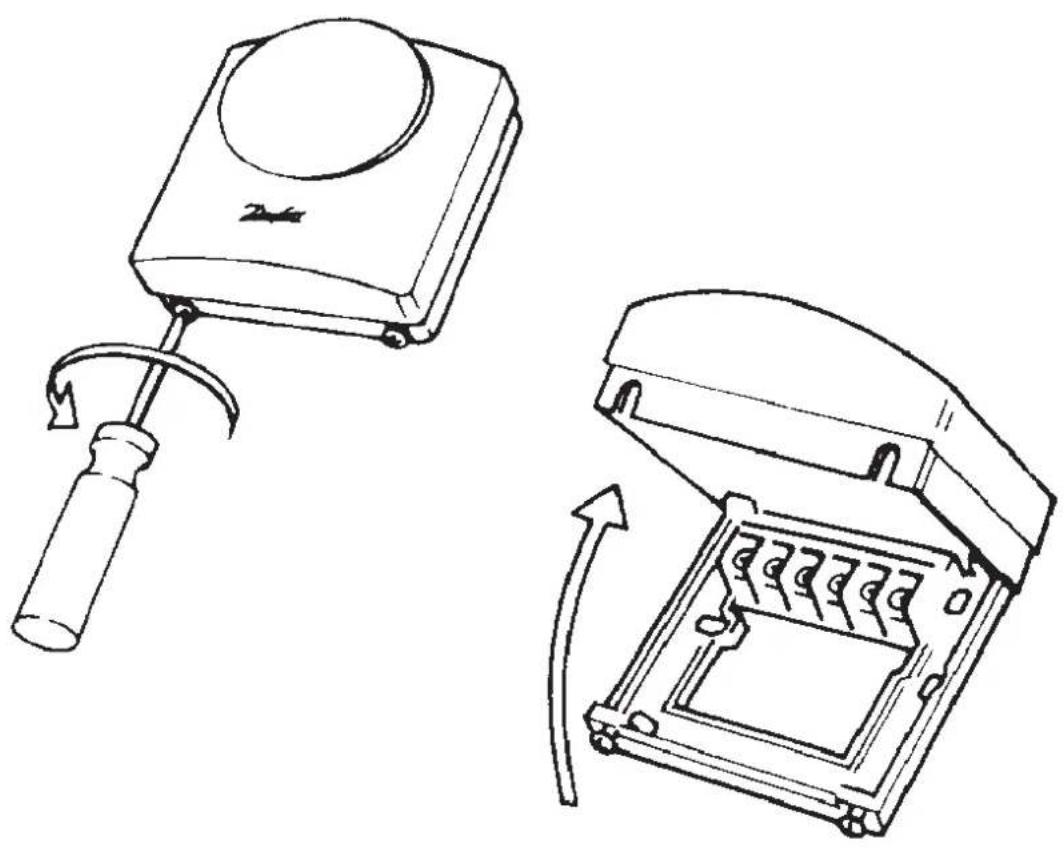

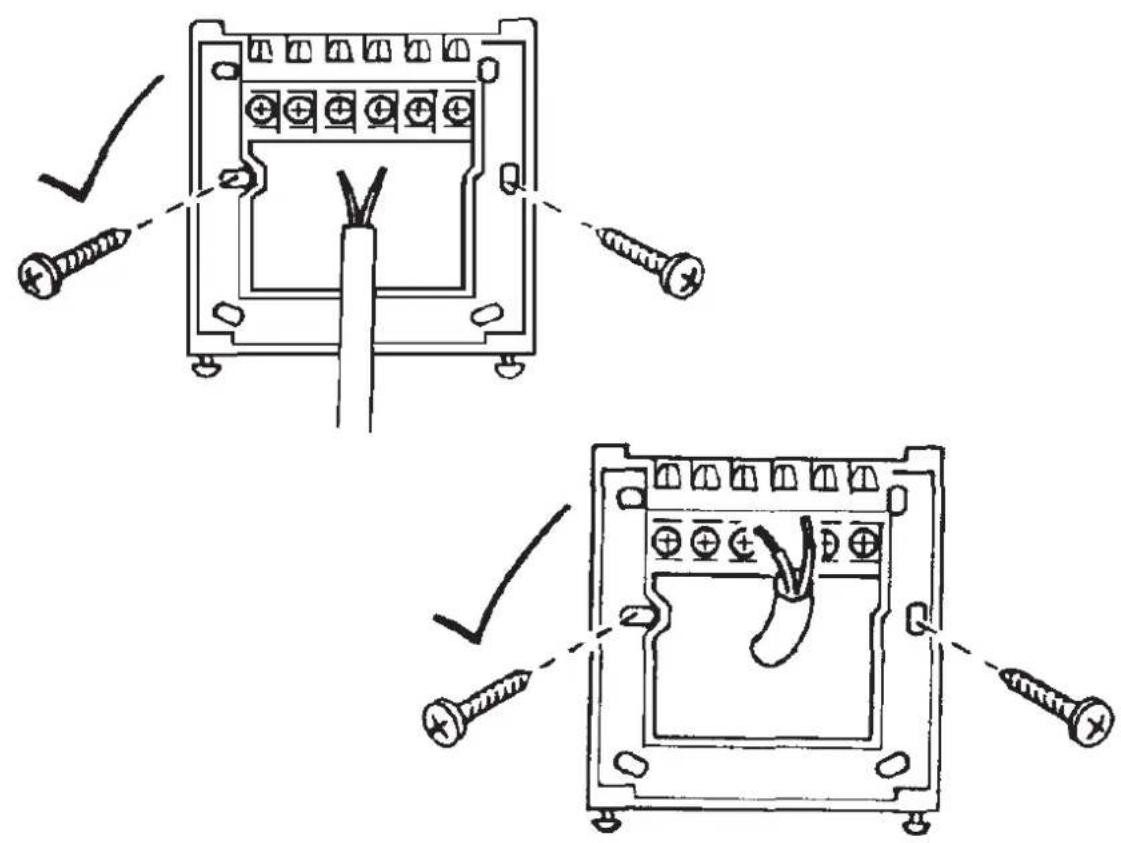

GB - Mounting / F- Montage / D - Befestigung / ES - Montaje DK - Montering / NL - Montage / GR - Εγκατάσταση / PL - Montaż / LT - Montavimas / I - Montaggio

Technical line drawing showing two views of a device with a hammer and screwdriver, one open and one closed, both without any text or symbols.

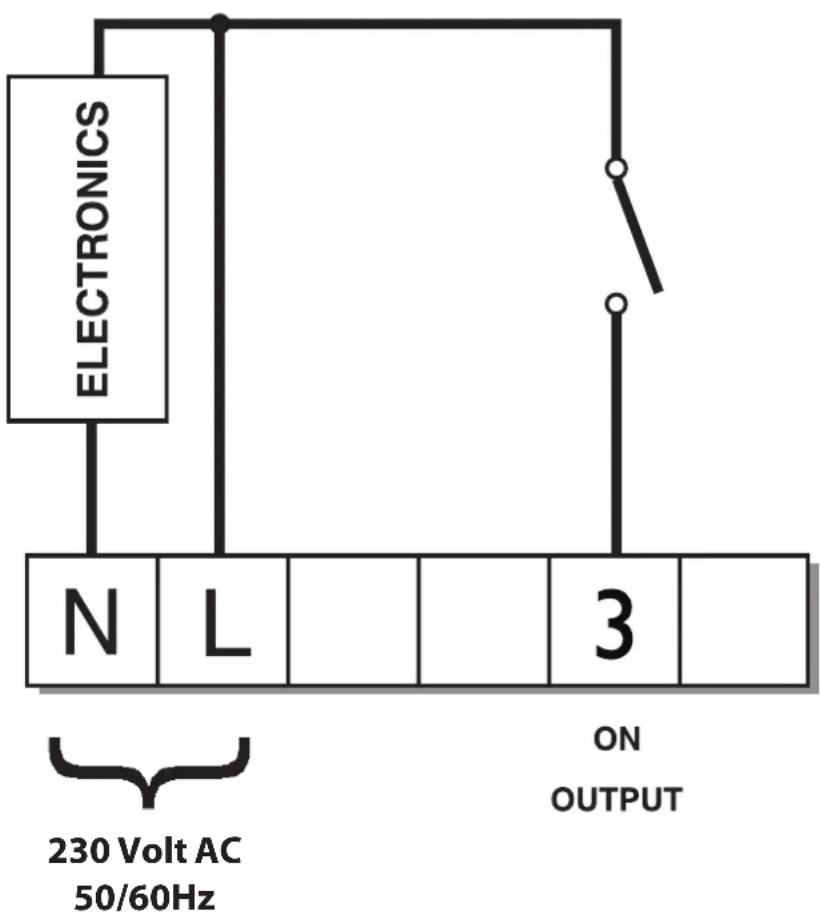

GB - Wiring / F- Câblage / D - Verkabelung / ES - Cableado / DK - Ledningsføring / NL - Aansluitingen GR - Συρμάτωση / PL - Podłączanie przewodów / LT - Laidai / I - Cablaggio

RET 230C / RET 230F

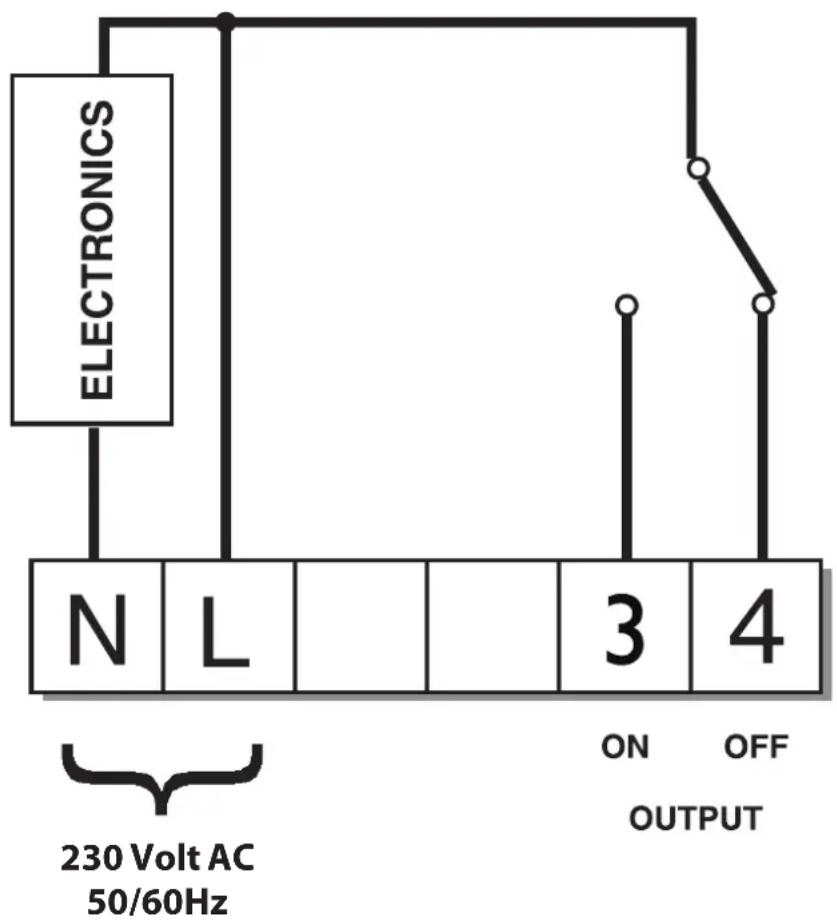

GB - Wiring / F- Câblage / D - Verkabelung / ES - Cableado / DK - Ledningsføring / NL - Aansluitingen / GR - Συρμάτωση / PL - Podłączanie przewodów / LT - Laidai / I - Cablaggio
RET 230 / RET 230L

www.danfoss.com/BusinessAreas/Heating

This product complies with the following EC Directives: Electro-Magnetic Compatibility Directive.

(EMC) (89\336\EEC), (92\31\EEC)

Low Voltage Directive.

(LVD) (73\23\EEC), (93\68\EEC)

Part No 25490v04 06/07
