RET 230VF2 - Thermostat DANFOSS - Free user manual and instructions

Product Type	Electronic Room Thermostat
Model	RET 230VF2
Brand	Danfoss
Power Supply	230 V AC, 50/60 Hz
Switching Capacity	10 A (resistive), 3 A (inductive)
Temperature Setting Range	5 °C to 30 °C
Accuracy	± 0.5 °C
Ambient Temperature Limits	0 °C to 50 °C
Dimensions (H x W x D)	86 x 86 x 30 mm
Weight	0.15 kg
Control Action	On/Off (2-position)
Mounting	Wall-mounting (flush or surface box)
Key Functions	Temperature setpoint dial, ON/OFF switch
Indicators	LED for heating/cooling status
Protection Class	IP20
Safety Standards	CE mark, EN 60730 compliant
Maintenance	Wipe with dry cloth; no user-serviceable parts
Spare Parts & Repairability	Non-repairable; replacement unit recommended if faulty
General Information	Designed for fan-coil units or similar HVAC systems

Frequently Asked Questions - RET 230VF2 DANFOSS

What is the power supply for the Danfoss RET 230VF2 thermostat?

The thermostat operates on 230 V AC (50/60 Hz) mains voltage.

Can the RET 230VF2 be used with a heating system only?

Yes, it can be used for heating or cooling depending on the system configuration.

How do I set the desired temperature?

Turn the temperature dial on the front panel to your desired setpoint (5 °C to 30 °C).

What does the LED indicator mean?

The LED lights up when the thermostat is calling for heating or cooling (depending on mode).

Is the thermostat wall-mountable?

Yes, it is designed for wall mounting on a standard flush or surface box.

Can I use this thermostat with a fan-coil unit?

Yes, the RET 230VF2 is specifically intended for fan-coil units and similar HVAC applications.

What is the switching capacity?

The relay can switch up to 10 A resistive or 3 A inductive loads.

How do I clean the thermostat?

Wipe the exterior with a dry cloth. Do not use water or cleaning agents.

What should I do if the thermostat stops working?

Check the power supply and wiring. If still faulty, the unit is non-repairable and should be replaced.

What is the accuracy of the temperature control?

The thermostat maintains a setpoint with an accuracy of ±0.5 °C.

USER MANUAL RET 230VF2 DANFOSS

Electronic thermostat

Certification Mark

White industrial fan or air conditioner unit with rotary dial and brand mark 'Dampoli' (no visible text beyond label)

RET 230

RET 230C

RET 230F

RET 230L

RET 230NSB

RET 230VF

RET 230VF2

This product complies with the following EC Directives:

Electro-Magnetic Compatibility Directive.

(EMC) (89\336\EEC), (92\31\EEC)

Low Voltage Directive.

(LVD) (73\23\EEC), (93\68\EEC)

CE

Danfoss

6 GB - Specification

What is a room thermostat?

... an explanation for householders

A room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

Turning a room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the heating system, for example, the size of boiler and radiators.

Neither does the setting affect how quickly the room cools down. Turning a room thermostat to a lower setting will result in the room being controlled at a lower temperature, and saves energy.

The heating system will not work if a timeswitch or programmer has switched it off.

The way to set and use your room thermostat is to find the lowest temperature setting that you are comfortable with, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature – say 18°C – and then turn it up by one degree each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don't have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.

Room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from working properly.

Specification
Specification

Specifications
Temperature range 5-30°C
Temperature range (RET230F) 5-10°C
Construction	BS
Maximum Ambient Temperature 45°C
IP Rating IP20
Supply Voltage 230Vac ±15%, 50/60Hz
Switch Rating 3(1)A
Switch Type 1B
Control Pollution Situation Degree 2
Rated Impulse Voltage	2.5kV
Ball Pressure Test 75°C

Spécifi cations

Specifi kation
Specifications

Specifi kation
Temperaturområde	5-30°C
Temperaturområde (RET230F) 5-10°C
Konstruktionsnorm BS EN60730-2-9
Maks. omgivende temperatur 45°C
Tæthedsgrad IP20
Forsyningsspænding 230Vac ±15%, 50/60Hz
Kontaktbelastning 3(1)A
Kontakttype	1B
Forureningssituation Grad 2
Nominel Impuls Spænding	2.5kV
Kugle tryk test 75°C

Technische Specificities

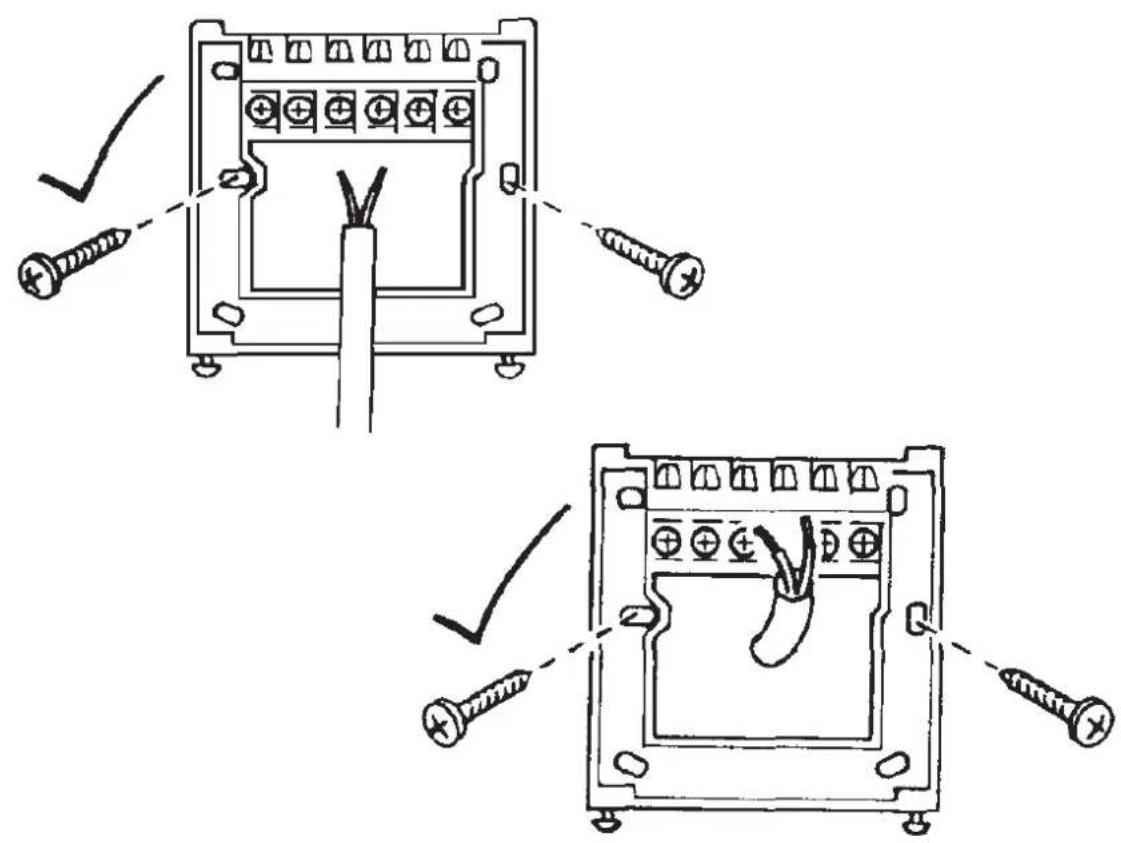

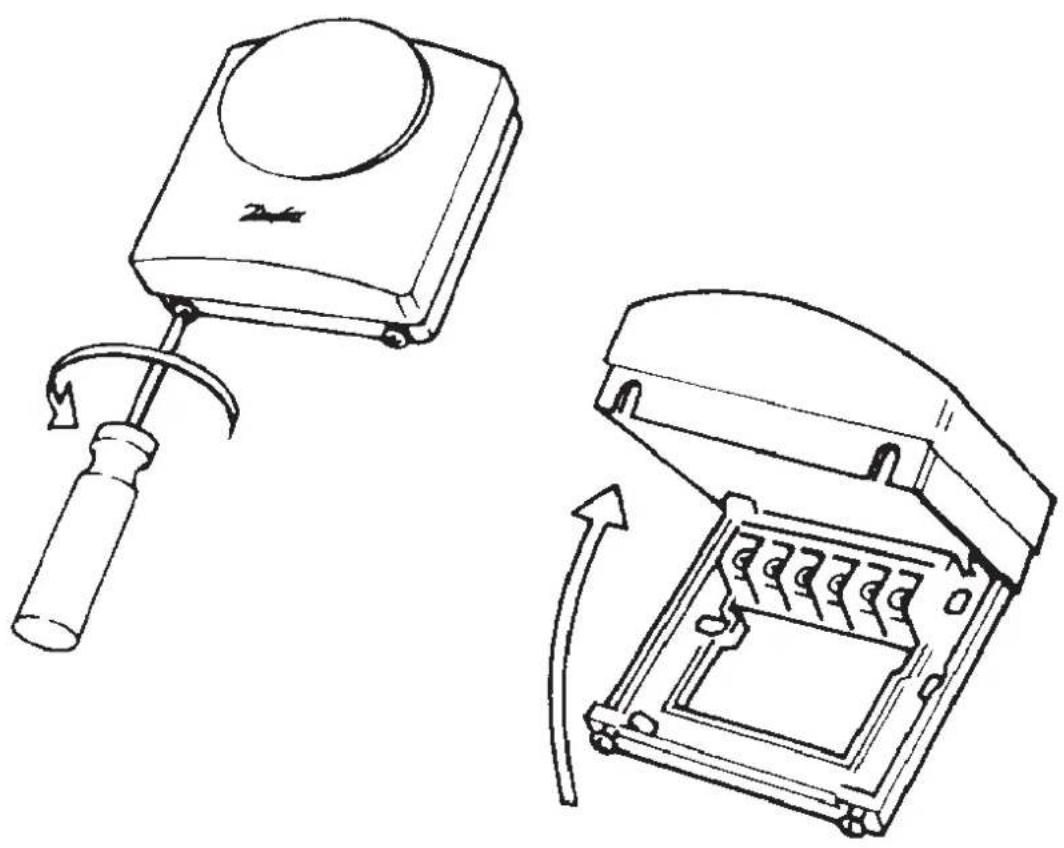

GB - Mounting / F- Montage / D - Befestigung / ES - Montaje DK - Montering / NL - Montage / GR - Εγκατάσταση / PL - Montaż / LT - Montavimas / I - Montaggio

Technical line drawing showing two views of a device with a hammer and screwdriver, one open and one with a curved arrow indicating rotation (no text or symbols present)

GB - Wiring / F- Câblage / D - Verkabelung / ES - Cableado / DK - Ledningsføring / NL - Aansluitingen GR - Συρμάτωση / PL - Podłączanie przewodów / LT - Laidai / I - Cablaggio

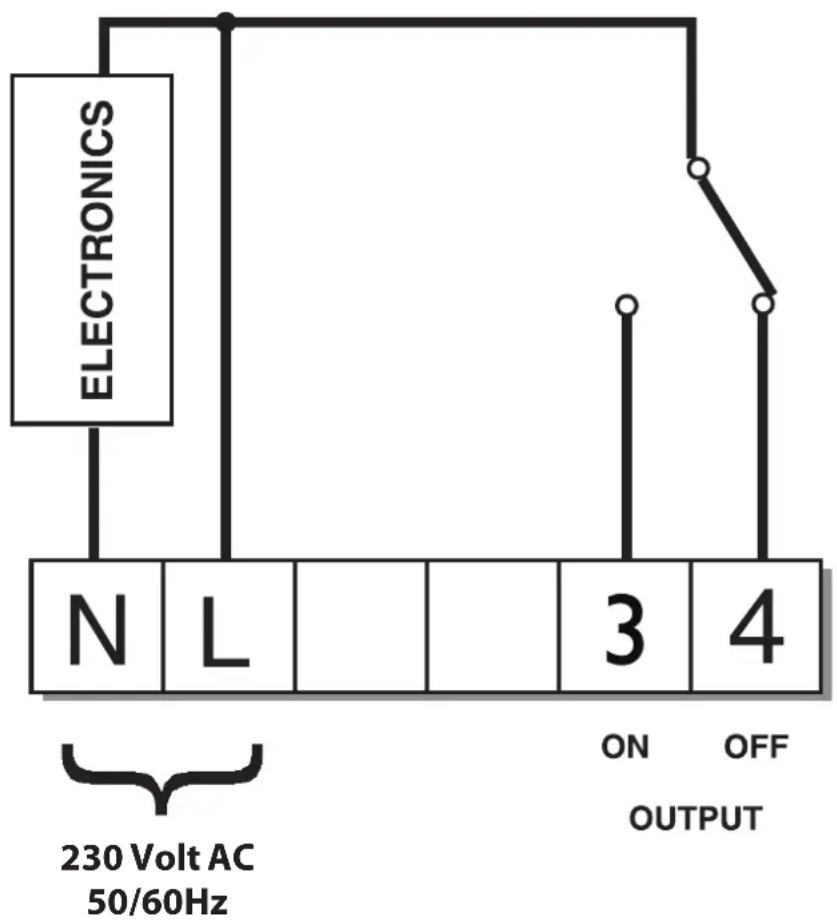

RET 230C / RET 230F

230 Volt AC 50/60Hz
ON OUTPUT

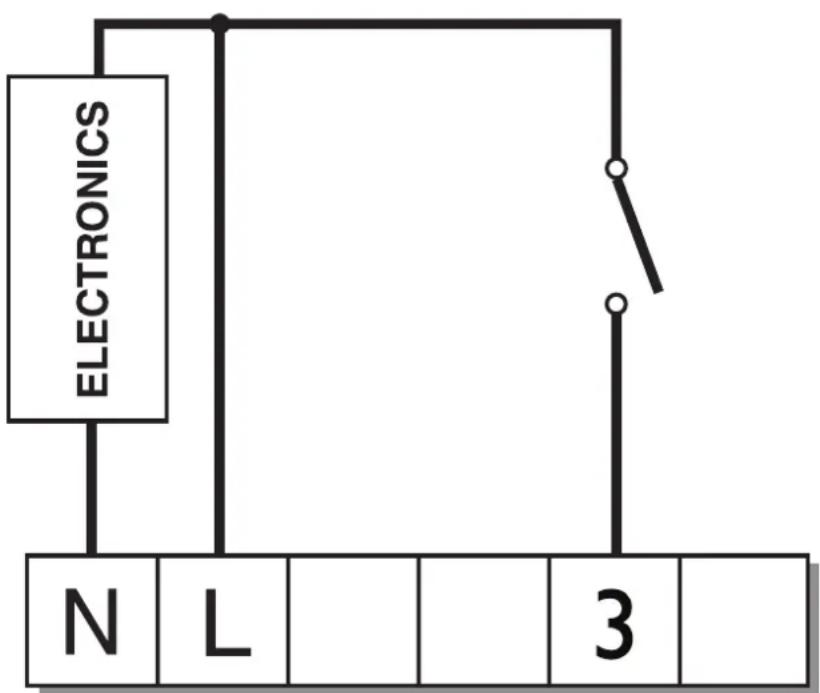

GB - Wiring / F- Câblage / D - Verkabelung / ES - Cableado / DK - Ledningsføring / NL - Aansluitingen / GR - Συρμάτωση / PL - Podłączanie przewodów / LT - Laidai / I - Cablaggio
RET 230 / RET 230L

www.danfoss.com/BusinessAreas/Heating

This product complies with the following EC Directives: Electro-Magnetic Compatibility Directive.

(EMC) (89\336\EEC), (92\31\EEC)

Low Voltage Directive.

(LVD) (73\23\EEC), (93\68\EEC)

Part No 25490v04 06/07
