USER MANUAL DTP HD DA8 4K 230 Extron

Exterior view of three DTP HD 4A network switches (no visible text or labels beyond branding)

Safety Instructions

Safety Instructions • English

WARNING: This symbol, when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

ATTENTION: This symbol, △ when used on the product, is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

ATTENTION: The Twisted Pair Extension technology works with shielded twisted pair (STP) cables only. To ensure FCC Class A and CE compliance, STP cables and STP Connectors are also required.

For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the “Extron Safety and Regulatory Compliance Guide” on the Extron website.

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron Warranty section on the last page of this guide).

CAUTION: Risk of explosion. Do not replace the battery with an incorrect type. Dispose of used batteries according to the instructions.

© 2015 Extron Electronics. All rights reserved.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

The following registered trademarks ^® , registered service marks ^(SM) , and trademarks ^(TM) are the property of RGB Systems, Inc. or Extron Electronics:

Registered Trademarks ^(6)

AVTrac, Cable Cubby, CrossPoint, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, FlexOS, Global Configurator, GlobalViewer, Hideaway, Inline, IP Intercom, IP Link, Key Minder, LockIt, MediaLink, PlenumVault, PoleVault, PowerCage, Pure3, Quantum, SoundField, SpeedMount, SpeedSwitch, System INTEGRATOR, TeamWork, TouchLink, V-Lock, VersaTools, VN-Matrix, VoiceLift, WallVault, WindoWall, XTP, and XTP Systems

Registered Service Mark ^(SM) : S3 Service Support Solutions

Trademarks ^(TM)

AAP, AFL (Accu-Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto-Image, CableCover, CDRS (Class D Ripple Suppression), DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), Driver Configurator, DSP Configurator, DSVP (Digital Sync Validation Processing), DTP, eLink, EQIP, FastBite, FOX, FOXBOX, IP Intercom HelpDesk, LinkLicense, MAAP, MicroDigital, NetPA, ProDSP, QS-FPC (QuickSwitch Front Panel Controller), Room Agent, Scope-Trigger, ShareLink, SIS, Simple Instruction Set, Skew-Free, SpeedNav, Triple-Action Switching, True4K, Vector, WebShare, XTRA, ZipCaddy, ZipClip

Conventions Used in this Guide

Notifications

The following notifications are used in this guide:

ATTENTION:

• Risk of property damage.
• Risque de dommages matériels.

NOTE: A note draws attention to important information.

TIP: A tip provides a suggestion to make working with the application easier.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[∅1] R∅0∅4∅03∅0∅04∅0∅08∅0∅06∅0 [∅2] 35 [17] [∅3]

Esc X1 * X17 * X20 * X23 * X21 CE ←

NOTE: For commands and examples of computer or device responses mentioned in this guide, the character "O" is used for the number zero and "O" is the capital letter "o."

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx -t
SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New. Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Contents

Introduction.... 1

About the DTP HD DA4/DA8 230/330....1

Features 1

Application Diagrams....3

Installation and Operation....4

Mounting the Units 4

Tabletop Use 4

Mounting Kits 4

UL Rack-Mounting Guidelines 4

Front Panel Features....5

Rear Panel Features 6

Connecting the Input Source 8

Twisted Pair Recommendations for DTP

Communication 9

Wiring for RS-232 Control 10

SIS Commands 11

Introduction to SIS 11

Host-to-Distribution Amplifier

Communications 11

Distribution Amplifier-initiated Messages ..... 11

Copyright Information 11

Symbols Used in this Guide....12

Symbol Definitions 12

Error Messages 13

EDID....14

DTP HD DA4/DA8 EDID Memory Locations.....15

Command and Response Table for SIS

Commands 16

Reference Information 20

Using the Internal Web Pages....20

Accessing the Internal Web Pages......20

Setting Up the Device with the Internal Web

Pages....21

Updating the Device Firmware....22

Downloading Firmware 22

Downloading and Installing Firmware

Loader....22

Loading Firmware to the DA with Firmware

Loader....23

Loading Firmware to the DA with Internal Web

Pages....25

Introduction

This guide describes the function, installation, and operation of the DTP HD DA4 4K and DTP HD DA8 4K series of distribution amplifiers. Unless otherwise stated, the terms "distribution amplifier" or "DA" refer to any of the products in the series.

This section provides the following information:

• About the DTP HD DA4/DA8 4K 230/330
- Features
• Application Diagrams

About the DTP HD DA4/DA8 4K 230/330

These Extron distribution amplifiers distribute one HDMI input signal to four (DTP HD DA4 4K 230/330) or eight (DTP HD DA8 4K 230/330) simultaneous outputs over shielded twisted pair (STP) cables. Both models are fully High-bandwidth Digital Content Protection (HDCP) compliant.

These distribution amplifiers support data rates up to 10.2 Gbps (3.4 Gbps per color) with up to 12-bit deep color and use the EDID Minder feature for EDID management.

The automatic output compatibility correction feature scans each output device to ensure that the output signal is compatible with the color depth and format requirements of the device. Each output is adjusted independently.

Features

Distributes HDMI plus control and analog audio up to 230 feet (70 meters) or 330 feet (100 meters) over STP cable (depending on the model) — The DTP HD DA series provides high reliability and maximum performance on an economical and easily installed cable infrastructure.

Inputs: One HDMI with buffered input loop-through, one 3.5 mm stereo mini jack for audio with loop-through

Outputs: Four (DTP HD DA4 4K 230/330 models) or eight (DTP HD DA8 4K 230/330 models) DTP twisted pair outputs on RJ-45

Supports computer video up to 2560x1600, HDTV 1080p/60 Deep Color, and 4K resolutions

DTP outputs are compatible with HDBaseT-enabled devices — Each DTP output can be configured to send video and embedded audio, plus bidirectional RS-232 and IR signals to an HDBaseT-enabled device.

HDMI input loop-through — The DTP HD DA series features an active local HDMI output for local monitor support or system expansion.

Audio input with loop-through accepts additional analog stereo audio signals — The DTP HD DA series accepts stereo analog audio signals for simultaneous transmission over the same shielded twisted pair cable, and it includes a loop-through for local audio system and monitoring needs. Analog audio is not embedded onto the digital video signal, nor is digital audio de-embedded from the digital video signal.

Supports multiple embedded audio formats — The DTP HD DA series is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.

Remote powering of DTP receivers — The DTP HD DA series can provide power to four or eight DTP receivers over the twisted pair connections, eliminating the need for separate power supplies at the remote units.

RS-232 insertion from the Ethernet control port — System level AV device control to all remote locations via the distribution amplifier's Ethernet port, providing comprehensive control of the attached devices without needing additional equipment.

Bidirectional RS-232 and IR pass-through for AV device control — Bidirectional RS-232 control and IR signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.

HDCP compliant

Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, and HD lossless audio formats

Key Minder continuously verifies HDCP compliance — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to enable simultaneous distribution of a single source signal to two or more displays.

EDID Minder automatically manages EDID communication between connected devices — EDID Minder ensures that the source powers up properly and reliably outputs content for display.

Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.

HDCP authentication and signal presence confirmation — Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs, RS-232, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.

HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display — A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non-HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.

HDMI to DVI Interface Format Correction — Automatically enables or disables embedded audio and InfoFrames, and sets the correct color space for proper connection to HDMI and DVI displays.

RS-232 control port — Enables the use of serial commands for integration into a control system. Extron products use the SIS - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.

RJ-45 signal and link LED indicators for DTP ports — Provides a means for validating signal flow and operation, allowing quick identification of connectivity issues.

Compatible with all DTP 230 and DTP 330 Series receivers and DTP-enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements.

Application Diagrams

The diagrams below show typical applications for the DTP HD DA4/DA8 4K 230/330.


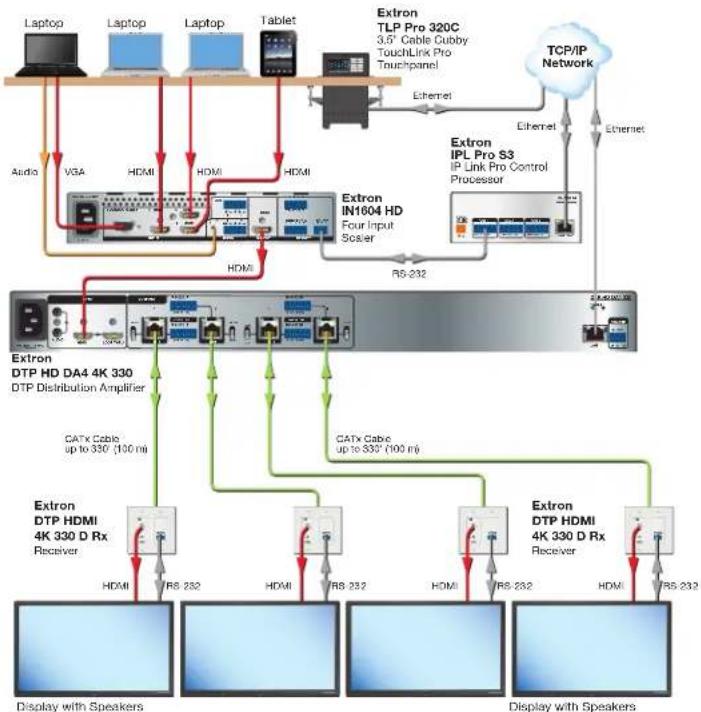

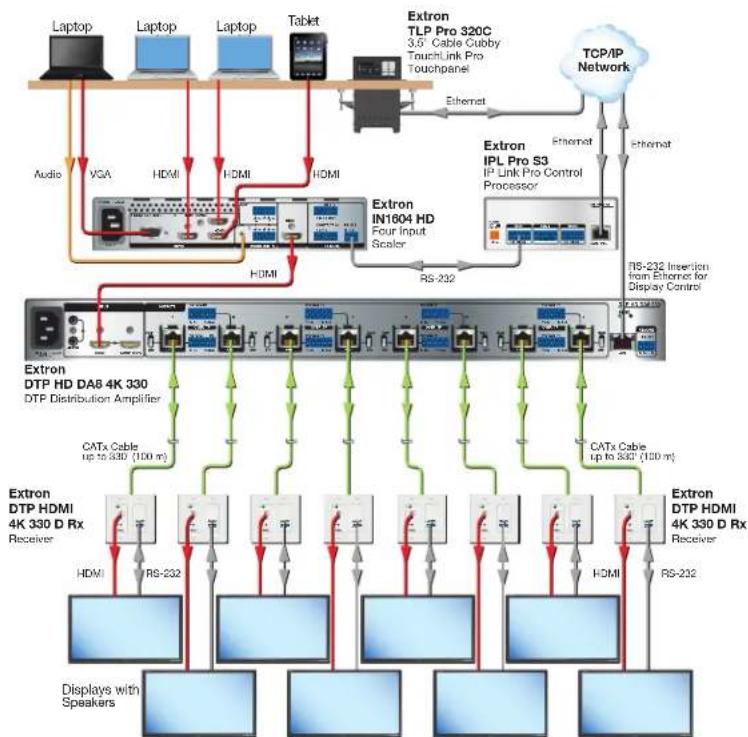

Figure 1. DTP HD DA4 4K 230/330 Application Diagram

Figure 2. DTP HD DA8 4K 230/330 Application Diagram

Installation and Operation

This section of the guide describes the following topics concerned with the installation, setup, and operation of the DTP HD DA4 and DTP HD DA8 series of distribution amplifiers.

• Mounting the Units
• Front Panel Features
• Rear Panel Features
• Connecting the Input Source
• Twisted Pair Recommendations for DTP Communication
  • Wiring for RS-232 Control

Mounting the Units

ATTENTION:

The DTP HD DA4 and DTP HD DA8 series of distribution amplifiers can be placed on a table, mounted in a rack, or mounted under a desk or table.

Tabletop Use

Affix the included rubber feet to the bottom of the unit and place it in any convenient location.

Mounting Kits

Mount the unit using any optional compatible mounting kit listed on the Extron website (www.extron.com), in accordance with the directions included with the kit. For rack mounting, see UL Rack-Mounting Guidelines below.

UL Rack-Mounting Guidelines

The following Underwriters Laboratories (UL) requirements pertain to the installation of the unit into a rack.

- Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (TMA = +122 °F, +50 °C) specified by Extron.

- Reduced air flow — Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

- Mechanical loading — Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

- Circuit overloading — Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

- Reliable Earthing — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply a connection other than a direct connection to a branch circuit, such as by using a power strip.

Front Panel Features
    subgraph_DTP_HD_DA4_Series["DTP HD DA4 Series"]
        direction TB
        A1["Extrn"] --> A2["A B F"]
        A3["Extrn"] --> A4["A B F"]
        A5["Extrn"] --> A6["A B F"]
    end
    subgraph_DTP_HD_DA8_Series["DTP HD DA8 Series"]
        direction TB
        C1["C"] --> C2["E"]
        C3["INUT"] --> C4["OUTPUTS"]
        C5["SECAL"] --> C6["LOOP"]
        C7["HCP"] --> C8["TRU"]
        C9["D"] --> C10["OUTPUTS"]
        C10 --> C11["LOOP"]
        C11 --> C12["TRU"]
        C12 --> C13["OUTPUTS"]
        C13 --> C14["LOOP"]
        C14 --> C15["TRU"]
        C15 --> C16["OUTPUTS"]
        C16 --> C17["LOOP"]
        C17 --> C18["TRU"]
        C18 --> C19["OUTPUTS"]
        C19 --> C20["LOOP"]
        C20 --> C21["TRU"]
        C21 --> C22["OUTPUTS"]
        C22 --> C23["LOOP"]
        C23 --> C24["TRU"]
        C24 --> C25["OUTPUTS"]
        C25 --> C26["LOOP"]
        C26 --> C27["TRU"]
        C27 --> C28["OUTPUTS"]
        C28 --> C29["LOOP"]
        C29 --> C30["TRU"]
        C30 --> C31["OUTPUTS"]
        C31 --> C32["LOOP"]
        C32 --> C33["TRU"]
        C33 --> C34["OUTPUTS"]
        C34 --> C35["LOOP"]
        C35 --> C36["TRU"]
        C36 --> C37["OUTPUTS"]
        C37 --> C38["LOOP"]
        C38 --> C39["TRU"]
        C39 --> C40["OUTPUTS"]
        C40 --> C41["LOOP"]
        C41 --> C42["TRU"]
        C42 --> C43["OUTPUTS"]
        C43 --> C44["LOOP"]
        C44 --> C45["TRU"]
        C45 --> C46["OUTPUTS"]
        C46 --> C47["LOOP"]
        C47 --> C48["TRU"]
        C48 --> C49["OUTPUTS"]
        C49 --> C50["LOOP"]
        C50 --> C51["TRU"]
        C51 --> C52["OUTPUTS"]
        C52 --> C53["LOOP"]
        C53 --> C54["TRU"]
        C54 --> C55["OUTPUTS"]
        C55 --> C56["LOOP"]
        C56 --> C57["TRU"]
        C57 --> C58["OUTPUTS"]
        C58 --> C59["LOOP"]
        C59 --> C60["TRU"]
        C60 --> C61["OUTPUTS"]
        C61 --> C62["LOOP"]
        C62 --> C63["TRU"]
        C63 --> C64["OUTPUTS"]
        C64 --> C65["LOOP"]
        C65 --> C66["TRU"]
        C66 --> C67["OUTPUTS"]
        C67 --> C68["LOOP"]
        C68 --> C69["TRU"]
        C69 --> C70["OUTPUTS"]
        C70 --> C71["LOOP"]
        C71 --> C72["TRU"]
        C72 --> C73["OUTPUTS"]
        C73 --> C74["LOOP"]
        C74 --> C75["TRU"]

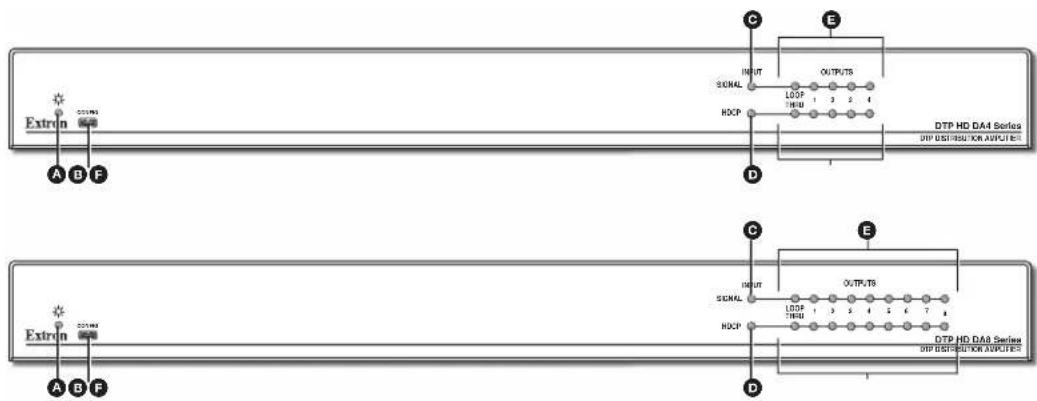

A Power status LED — Lights green when power is applied to the unit.

B USB Config port — Used for firmware updates, SIS configuration, and software control. This port can be used as an alternative to the rear panel Remote RS-232 captive screw connector.

NOTES:

- Neither port has precedence and commands from either port are handled in the order they are received.

- Extron recommends that the USB port is used for temporary connections. If a permanent connection is required, the RS-232 port should be used.

C Input Signal LED — Lights green when a signal is detected on the HDMI input.

D Input HDCP LED — Lights green when HDCP presence is detected on the HDMI input.

E Output Signal LEDs — Light green when a signal is detected on the HDMI outputs.

F Output HDCP LEDs — Light green when HDCP presence is detected on the HDMI outputs.

Rear Panel Features

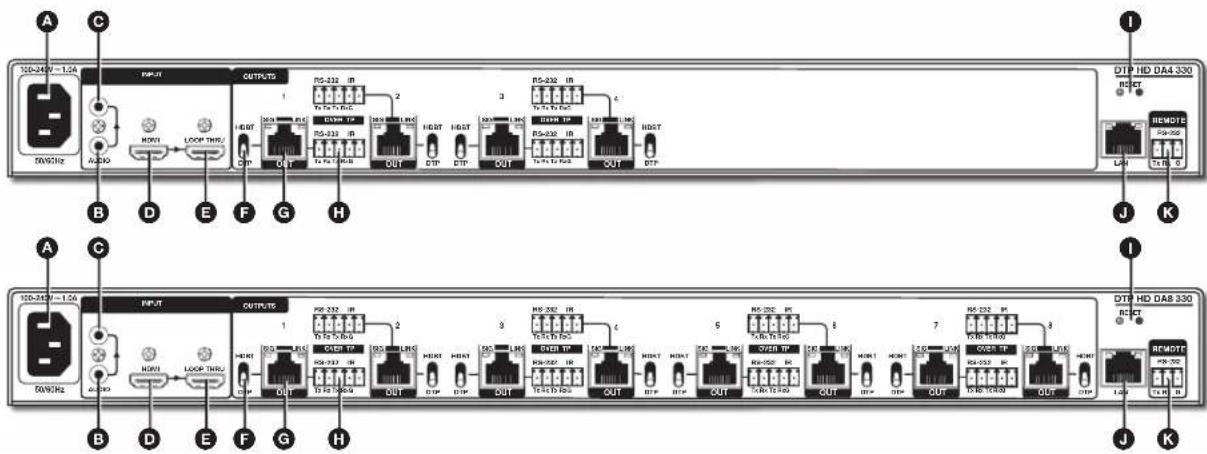

A Power input

G DTP/HDBaseT outputs

B Analog audio input

Over TP RS-232/IR connectors

© Analog audio Loop Thru

① Reset button and LED

D HDMI input

J LAN connector

E HDMI Loop Thru

Remote RS-232 connector

F DTP/HDBaseT configuration switches

Power input — Connect the provided IEC connector to a 100-240 VAC (50 or 60 Hz) power source.
B Analog audio input — Connect an unbalanced stereo audio source to these 3.5 mm mini stereo jacks.

NOTE: The units do NOT embed analog audio onto the HDMI signal. This analog audio signal is transmitted simultaneously with audio embedded within the HDMI signal.

C Analog audio Loop Thru — Connect an audio system to this 3.5 mm mini stereo jack for local loop-through monitoring of the source audio.
D HDMI input — Connect a source device to this female HDMI type A connector (see Connecting the Input Source on page 8 for more information).
E HDMI Loop Thru — Connect a display to this female HDMI type A connector for local loop-through monitoring of the source signal (see Connecting the Input Source on page 8 for more information).
F DTP/HDBaseT configuration switch — Set this 2-position, recessed switch to configure the output between HDBaseT and DTP modes. When configured for HDBaseT, use an HDBaseT-compatible receiver. When configured for DTP, use a DTP-compatible receiver.

G DTP/HDBaseT outputs — Use STP cables to connect these 4 (DA4 models) or 8 (DA8 models) outputs (see illustration on page 6) to the inputs of a compatible receiver (see Twisted Pair Recommendations for DTP Communication on page 9 for more information).

ATTENTION:

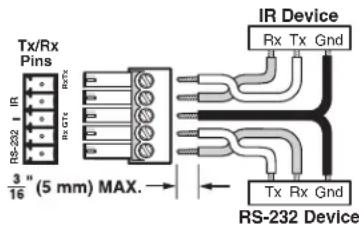

HS RS-232 Over TP port — To pass bidirectional serial control between

DTP-compatible or HDBaseT-compatible devices, connect a control device to the 5-pole captive screw connector. This port includes only the 3 poles labeled "RS-232" (see image below for wiring instructions).

IR Over TP port — To transmit and receive IR signals, connect a control device to the 5-pole captive screw connector. This port includes only the 2 poles labeled "IR" and shares the ground pole with the RS-232 port (see image below for wiring instructions).

NOTE: RS-232 and IR data can be transmitted simultaneously.
1 Reset button and LED — To reset the unit to factory default settings, press and hold this reset button for approximately 9 seconds. The reset LED will flash green 3 times, once every 3 seconds. After the third flash, release the button and quickly press it once more to complete the reset. The LED will flash green 3 times indicating that the default settings have been restored.
J LAN (Ethernet) connector — Use an RJ-45 cable to connect this jack to a LAN (Ethernet) for control of the device.

• Use a straight-through cable for connection to a switch, hub, or router.
• Use a crossover cable or a straight-through cable for connection directly to a PC. Wire the connector as shown in the image below.


Straight-through Cable(for connection to a switch, hub, or router)

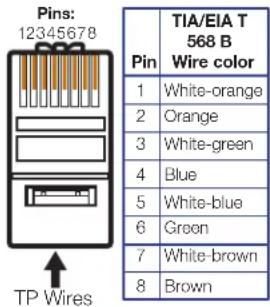

Pin	End 1 Wire Color	Pin	End 2 Wire Color
1	white-orange	1	white-orange
2	orange	2	orange
3	white-green	3	white-green
4	blue	4	blue
5	white-blue	5	white-blue
6	green	6	green
7	white-brown	7	white-brown
8	brown	8	brown

TIA/EIA-T568B

Crossover Cable(for direct connection to a PC)
Pin	End 1 Wire Color	Pin	End 2 Wire Color
1	white-orange	1	white-green
2	orange	2	green
3	white-green	3	white-orange
4	blue	4	blue
5	white-blue	5	white-blue
6	green	6	orange
7	white-brown	7	white-brown
8	brown	8	brown

T568B
T568A

Remote RS-232 connector — To control the unit, connect an RS-232 device to this 3-pole, 3.5 mm captive screw connector and configure it as follows: 9600 baud rate, 8 data bits, 1 stop bit, no parity (see Wiring for RS-232 Control on page 10 for more information).

Connecting the Input Source

Use an HDMI cable to connect the input source to the female HDMI socket on the rear panel (see D on page 6).

Follow these instructions to secure the input and output HDMI connectors to the unit with the LockIt HDMI lacing bracket provided:

1. Plug the HDMI cable into the rear panel connection.
2. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing bracket to be placed over it. The screw does not have to be removed.
3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the screw to secure the bracket.

ATTENTION:

• Do not overtighten the HDMI connection mounting screw. The shield it fastens to is very thin and can easily be stripped.

• Ne serrez pas trop la vis de montage de la connexion HDMI. Le blindage auquel elle est attachée est très fin et peut facilement être dénudé.

• Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown.

• While holding the connector securely against the lacing bracket, tighten the tie wrap, then remove any excess length.

Twisted Pair Recommendations for DTP Communication

Use the following pin configurations for shielded twisted pair cables.

Supported Cables

The distribution amplifiers are compatible with shielded twisted pair cable (F/UTP, SF/UTP, and S/FTP).

ATTENTION:

Cable Recommendations

Extron recommends using the following practices to achieve full transmission distances and reduce transmission errors.

- Use the following Extron XTP DTP 24 SF/UTP cables and connectors for the best performance:

• XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool 22-236-03
• XTP DTP 24P/1000 Plenum 1000' (305 m) spool 22-235-03
• XTP DTP 24 Plug Package of 10 101-005-02

• If not using XTP DTP 24 cable, at a minimum, Extron recommends 24 AWG, solid conductor, STP cable with a minimum bandwidth of 400 MHz.
• Terminate cables with shielded connectors to the TIA/EIA-T568B standard.
• Limit the use of more than two pass-through points, which may include patch points, punch down connectors, couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch down connectors.

NOTE: When using shielded twisted pair cable in bundles or conduits, consider the following:

• Do not exceed 40% fill capacity in conduits.
• Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.
• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
• Separate twisted pair cables from AC power cables.

Wiring for RS-232 Control

RS-232 communication between the distribution amplifier and a host PC can be used to update firmware or configure the unit using SIS commands (see Command and Response Table for SIS Commands on page 16).

The computer connects to either the rear panel 3-pole RS-232 port (K on page 7) or the front panel USB port (B on page 5) of the distribution amplifier.

NOTES:

• Neither port has precedence and commands from either port are handled in the order they are received.

• Extron recommends that the USB port is used for temporary connections. If a permanent connection is required, the RS-232 port should be used.

• Connect an RS-232 cable to the computer, using a female 9-pin D connector (see figure 4):

• Data received by the computer = pin 2
• Data transmitted by the computer = pin 3
• Ground = pin 5

1. Wire the opposite end of the cable to the provided 3-pole captive screw plug (see figure 4):

• Data transmitted by the DA plugs into the Tx (transmit) port
• Data received by the DA plugs into the Rx (receive) port
• Ground plugs into the G (ground) port

NOTES:

• The wiring in the RS-232 cables crosses over so that the Tx on the distribution amplifier connects to the Rx of the control device and vice versa. Ground always connects to ground.
• If the cable has a drain wire, tie the drain wire to the ground at both ends.

DB9 Pin Locations Female
Computer

DTP HD DA4/DA8 230/330
Figure 3. Wiring the DTP HD DA4 and DA8 Series for RS-232 Control

SIS Commands

This section provides information about the SIS commands that are used to configure the DTP HD DA4 and DTP HD DA8 series. The following topics are discussed:

• Introduction to SIS
• Symbols Used in this Guide
• DTP HD DA4/DA8 EDID Memory Locations
• Command and Response Table for SIS Commands

Introduction to SIS

The distribution amplifiers can be set up and controlled remotely via Extron SIS commands that are issued from a host computer running the Extron DataViewer utility or other control system. The host device can be connected to the RJ-45 LAN connector on the rear panel, the 3-pole captive screw connector on the rear panel, or to the mini USB config port on the front panel.

The serial protocol is 9600 baud, 8 data bit, 1 stop bit, and no parity.

NOTE: The wiring in the RS-232 cables crosses over so that the distribution amplifier transmit (Tx) wire connects with the control device receive (Rx) and vice versa.

Host-to-Distribution Amplifier Communications

SIS commands consist of strings (one or more characters per command field). No special characters are required to begin or end a command sequence. Unless otherwise stated, upper and lower case characters can be used interchangeably. Most responses from the distribution amplifier end with a carriage return and a line feed (CR/LF = ←), which signal the end of the response character string. When the switcher determines that a command is valid, it executes the command and sends a response to the host device.

Distribution Amplifier-initiated Messages

When a local event such as a change in signal status takes place, the distribution amplifier responds by sending a message to the host, indicating the status change. No response is required from the host.

Copyright Information

The copyright message is displayed upon connecting to a DA via TCP/IP or Telnet or after a power cycle via RS-232. An example is provided below.

← (©) Copyright 20yy, Extron Electronics, DTP HD DA8 4K 330, Vx.xx, 60-xxxx-01

Mon, 2 Feb 2015 11:27:33

20yy is the year the currently installed firmware was released, Vx.xx is the firmware version number, and 60-xxxx-01 is the catalog part number.

This is followed by a Password prompt if a password has been set.

Symbols Used in this Guide

When programming in the field, certain characters are most conveniently represented by their hexadecimal rather than their ASCII values. The table below shows the hexadecimal equivalent of each ASCII character:

ASCII to HEX Conversion Table

Esc

1B

CR

∅D

LF

∅A

spec

2∅

!

21

"

22

#

23

$

24

%

25

&

26

'

27

(

28

)

29

*

2A

+

2B

,

2C

-

2D

.

2E

/

2F

∅

3∅

1

31

2

32

3

33

4

34

5

35

6

36

7

37

8

38

9

39

:

3A

;

3B

<

3C

=

3D

>

3E

?

3F

@

4∅

A

41

B

42

C

43

D

44

E

45

F

46

G

47

H

48

I

49

J

4A

K

4B

L

4C

M

4D

N

4E

O

4F

P

5∅

Q

51

R

52

S

53

T

54

U

55

V

56

W

57

X

58

Y

59

Z

5A

[

5B

\

5C

]

5D

^

5E

-

5F

`

6∅

a

61

b

62

c

63

d

64

e

65

f

66

g

67

h

68

i

69

j

6A

k

6B

I

6C

m

6D

n

6E

o

6F

p

7∅

q

71

r

72

s

73

t

74

u

75

v

76

w

77

x

78

y

79

z

7A

{

7B

|

7C

}

7D

~

7E

DEL

7F

Table 1. ASCII to HEX Conversion Table

Symbol Definitions

- = Space

← = Carriage return with line feed

| or ← = Carriage return with no line feed

Esc = Escape or W

[X1] = Output selection

1 - 4 (DTP HD DA4 models) 1 - 8 (DTP HD DA8 models)

X2 = Status

= disabled/off/undetected 1 = enabled/on/detected

X3 = Video color bit depth

= auto (based on EDID of sink, default) 1 = force 8-bit

X4 = EDID memory location See the

P HD DA4/DA8 EDID Memory Locations table on page 15.

X5 = EDID data as 256 bytes of hex data (text representation)

X6 = Native resolution and refresh rate (translated from hex)

Example: 1600x1200 @60Hz

[X7] = Controller firmware version to the second decimal place

X8 = Unit name: Up to 24 alphanumeric characters (including the hyphen [-])

No spaces allowed No distinction between upper and lower case letters First character must be a letter Last character cannot be a hyphen (-) Default is model name followed by last 3 digits of MAC address

X10 = RS-232 insertion mode

= RS - 232 pass through 1 = Embedded RS-232

X11	= TMDS output format	∅ = Auto (default), pass through if HDMI sink, force DVI format if DVI sink1 = DVI RGB 4442 = HDMI RGB “Full”3 = HDMI RGB “Limited”4 = HDMI YUV 444 “Limited”5 = HDMI YUV 444 “Full”6 = HDMI YUV 422 “Limited”7 = HDMI YUV 422 “Full”
X12	= HDCP output mode	∅ = Encrypt as required by input(Continuous trials for HDMI sinks, attempt for 10 seconds on DVI sinks,then fail)1 = Always encrypt(Continuous trials for HDMI sinks, attempt for 10 seconds on DVI sinks,then fail)2 = Encrypt as required by input(Continuous trials for HDMI sinks and DVI sinks)3 = Always encrypt(Continuous trials for HDMI sinks and DVI sinks)
X13	= DTP/HDBaseT switch position	∅ = DTP mode1 = HDBaseT mode
X14	= Verbose mode	∅ = Clear/none (default for telnet)1 = Verbose mode (default for RS-232 and USB)2 = Tagged responses for queries3 = Verbose mode and tagged responses for queries
X15	= Set date/time MM/DD/YY-HH:MM:SSExample: Fri, 21 Jun 2002 10:54:00
X16	= IP address	xxx.xxx.xxx.xxx(192.168.254.254 = default)
X17	= MAC address	∅∅-∅5-A6-xx-xx-xx
X18	= Subnet mask	xxx.xxx.xxx.xxx (255.255.∅.∅ = default)
X19	= Password 12 digits and alphanumeric characters for user or admin passwords.

NOTE: / \ | * and space are invalid characters.

X57	= Port number	1 = Remote RS-232/RS-422 port 2 = unused 3 - 1 = UARTs 1 through 8
X58	= Baud rate Default = 9600	Port 1 is fixed at 9600
X59	= Parity Odd, Even, None (default), Mark, Space (only the first letter is required)
X60	= Data bits	7 - 8(8 = default)
X61	= Stop bits	1, 2(1 = default)
X64	= Port timeout intervals	1 - 65000(1 = 10 seconds; default = 30 - 300 seconds = 5 minutes, in 10-second increments)
X65	= Start point for UART ports	1999 = default
X66	= Video mute	= Video mute disabled 1 = Video mute2 = Video and sync mute

Error Messages

E01 — Invalid output channel number (too large)

E10 — Invalid command

E13 — Invalid value (too large)

E24 — Privilege violation

E28 — Bad filename / File not found

EDID

User assigned mode

In user assigned mode, the user can select from 55 factory loaded EDID files, each categorized by rate type (PC or HDTV), video format (DVI or HDMI), audio type (2-Ch or Multi-Ch), and native resolution. The unit retains this setting after a power cycle.

Additionally, two user-loaded slots are available to save the EDID of any connected display. EDID saved to these slots are retained after a power cycle. Upon a factory reset, these EDIDs revert to the factory default (720p @ 60 Hz, 2-Ch audio).

A table showing the factory loaded EDID options is shown on the following page. The EDID memory location is labelled 4 for consistency with the value in the SIS commands.

DTP HD DA4/DA8 EDID Memory Locations

X4

Native Resolution

Refresh Rate

Rate Type

Video Format

Audio Type

File Name

X4

Native Resolution

Refresh Rate

Rate Type

Video Format

Audio Type

File Name

1

60x600 60 Hz PC DVI n/a

EXN_DVI1_80

0x600_60

bin 36 480p 60

Hz HDTV HDMI 2-ch EXN_HDMI20_480p60_2Ch Audio.bin

2

1024x768 60 Hz PC DVI n/a

EXN_DVI2

1024x768

60.bin 37 576p

50 Hz HDTV HDMI 2-ch EXN_HDMI21 576p50 2Ch Audio.bin

3

1280x720 60 Hz PC DVI n/a

EXN_DVI3_

1280x720_60

bin 38 720p

50 Hz HDTV HDMI 2-ch EXN_HDMI22_720p50_2Ch Audio.bin

4

1280x768

60 Hz

PC

DVI

n/a

EXN_DVI4_1280x768_60.bin

39*

720p

60 Hz

HDTV

HDMI

2-ch

EXN_HDMI23_720p60_2Ch Audio.bin

5

1280x800

60 Hz

PC

DVI

n/a

EXN_DVI5_1280x800_60.bin

40

1080i

50 Hz

HDTV

HDMI

2-ch

EXN_HDMI24_1080i50_2Ch Audio.bin

6

1280x1024

60 Hz

PC

DVI

n/a

EXN_DVI6_1280x1024_60.bin

41

1080i

60 Hz

HDTV

HDMI

2-ch

EXN_HDMI25_1080i60_2Ch Audio.bin

7

1360x768

60 Hz

PC

DVI

n/a

EXN_DVI7_1360x768_60.bin

42

1080p

50/25 Hz

HDTV

HDMI

2-ch

EXN_HDMI26_1080p60_25_2Ch Audio.bin

8

1366x768

60 Hz

PC

DVI

n/a

EXN_DVI8_1366x768_60.bin

43

1080p

50 Hz

HDTV

HDMI

2-ch

EXN_HDMI27_1080p50_2Ch Audio.bin

9

1400x1050

60 Hz

PC

DVI

n/a

EXN_DVI9_1400x1050_60.bin

44

1080p

60/24 Hz

HDTV

HDMI

2-ch

EXN_HDMI28_1080p60_24_2Ch Audio.bin

10

1440x900

60 Hz

PC

DVI

n/a

EXN_DVI10_1440x900_60.bin

45

1080p

60 Hz

HDTV

HDMI

2-ch

EXN_HDMI29_1080p60_2Ch Audio.bin

11

1600x900

60 Hz

PC

DVI

n/a

EXN_DVI11_1600x900_60.bin

46

4k/UHD

30 Hz

HDTV

HDMI

2-ch

EXN_HDMI30_4KUHD_60_2Ch Audio.bin

12

1600x1200

60 Hz

PC

DVI

n/a

EXN_DVI12_1600x1200_60.bin

47

720p

50 Hz

HDTV

HDMI

multi-ch

EXN_HDMI31_720p50_MultiCh Audio.bin

13

1680x1050

60 Hz

PC

DVI

n/a

EXN_DVI13_1680x1050_60.bin

48

720p

60 Hz

HDTV

HDMI

multi-ch

EXN_HDMI32_720p60_MultiCh Audio.bin

14

1920x1080

60 Hz

PC

DVI

n/a

EXN_DVI14_1920x1080_60.bin

49

1080i

50 Hz

HDTV

HDMI

multi-ch

EXN_HDMI33_1080i50_MultiCh Audio.bin

15

1920x1200

60 Hz

PC

DVI

n/a

EXN_DVI15_1920x1200_60.bin

50

1080i

60 Hz

HDTV

HDMI

multi-ch

EXN_HDMI34_1080i60_MultiCh Audio.bin

16

2048x1080

60 Hz

PC

DVI

n/a

EXN_DVI16_2048x1080_60.bin

51

1080p

50/25 Hz

HDTV

HDMI

multi-ch

EXN_HDMI35_1080p50_25_MultiCh Audio.bin

17

800x600

60 Hz

PC

HDMI

2-ch

EXN_HDMI1_800x600_60_2Ch Audio.bin

52

1080p

50 Hz

HDTV

HDMI

multi-ch

EXN_HDMI36_1080p50_MultiCh Audio.bin

18

1024x768

60 Hz

PC

HDMI

2-ch

EXN_HDMI2_1024x768_60_2Ch Audio.bin

53

1080p

60/24 Hz

HDTV

HDMI

multi-ch

EXN_HDMI37_1080p60_24_MultiCh Audio.bin

19

1280x768

60 Hz

PC

HDMI

2-ch

EXN_HDMI3_1280x768_60_2Ch Audio.bin

54

1080p

60 Hz

HDTV

HDMI

multi-ch

EXN_HDMI38_1080p60_MultiCh Audio.bin

20

1280x800

60 Hz

PC

HDMI

2-ch

EXN_HDMI4_1280x800_60_2Ch Audio.bin

55

4k/UHD

30 Hz

HDTV

HDMI

multi-ch

EXN_HDMI39_4KUHD_30_MultiCh Audio.bin

21

1280x1024

60 Hz

PC

HDMI

2-ch

EXN_HDMI5_1280x1024_60_2Ch Audio.bin

56

Loop-Through

Automatically populated with EDID from connected sink device(s).

22

1360x768

60 Hz

PC

HDMI

2-ch

EXN_HDMI6_1360x768_60_2Ch Audio.bin

57

Output 1

23

1366x768

60 Hz

PC

HDMI

2-ch

EXN_HDMI7_1366x768_60_2Ch Audio.bin

58

Output 2

24

1400x1050

60 Hz

PC

HDMI

2-ch

EXN_HDMI8_1400x1050_60_2Ch Audio.bin

59

Output 3

25

1440x900

60 Hz

PC

HDMI

2-ch

EXN_HDMI9_1440x900_60_2Ch Audio.bin

60

Output 4

26

1600x900

60 Hz

PC

HDMI

2-ch

EXN_HDMI10_1600x900_60_2Ch Audio.bin

61

Output 5

27

1600x1200

60 Hz

PC

HDMI

2-ch

EXN_HDMI11_1600x1200_60_2Ch Audio.bin

62

Output 6

28

1680x1050

60 Hz

PC

HDMI

2-ch

EXN_HDMI12_1680x1050_60_2Ch Audio.bin

63

Output 7

29

1920x1200

60 Hz

PC

HDMI

2-ch

EXN_HDMI13_1920x1200_60_2Ch Audio.bin

64

Output 8

30

1920x2160

60 Hz

PC

HDMI

2-ch

EXN_HDMI14_1920x2160_60_2Ch Audio.bin

65

User loaded slot 1

Manually populated by user

31

2048x1080

60 Hz

PC

HDMI

2-ch

EXN_HDMI15_2048x1080_60_2Ch Audio.bin

66

User loaded slot 2

32

2048x2160

60 Hz

PC

HDMI

2-ch

EXN_HDMI16_2048x2160_60_2Ch Audio.bin

*Default

33

2560x1080

60 Hz

PC

HDMI

2-ch

EXN_HDMI17_2560x1080_60_2Ch Audio.bin

34

2560x1440

60 Hz

PC

HDMI

2-ch

EXN_HDMI18_2560x1440_60_2Ch Audio.bin

35

2560x1600

60 Hz

PC

HDMI

2-ch

EXN_HDMI19_2560x1600_60_2Ch Audio.bin

Command and Response Table for SIS Commands

Command ASCII Command(host to unit)		Response(unit to host)	Additional Description
Video Mute
Video mute single output	1 * 66 B / b	Vmt 1 * 66	Video mute output 1 only 1, 2, 3, or 4 (DA4)1, 2, 3, 4, 5, 6, 7, or 8 (DA8) 66 = (video mute disabled)or 1 (video mute TMDS)or 2 (video and sync mute)
Video mute all outputs	66 B/b Vmt 66
Query video mute status	B/b	66 66 ... 66	Video mute status of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
Analog Audio Mute
Audio mute single output	1 * 2 Z / z	Amt 1 * 2	Audio mute output 1 only 2 = (audio mute disabled)or 1 (audio mute)
Audio mute all outputs	2 Z / z Amt 2
Query audio mute status	Z/z	2 2 ... 2	Audio mute status of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
HDMI (embedded) Audio Mute
Audio mute single output	1 * 2 AFMT	Afmt 1 * 2	Audio mute output 1 only 2 = (audio mute disabled)or 1 (audio mute)
Audio mute all outputs	2 AFMT Afmt 2
Query audio mute status	AFMT 2 2 ... 2		Audio mute status of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
TMDS Output Format
Set format for single output	1 * 11 VTP0	Vtpo 1 * 11	11 = - 7 ( = default )
Set format for all outputs	11 VTP0 Vtpo 11
Query format settings	VTP0	11 11 ... 11	TMDS settings of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
Video Color Bit Depth
Set video bit depth for a single output	V 1 * 3 BITD	BitdV 1 * 3	3 = (auto, sink EDID, default)1 (force 8-bit)
Set video bit depth for all outputs	V 3 BITD	BitdV 3	3 = (auto, sink EDID, default)1 (force 8-bit)
Query video bit depth for all outputs	VBITD	3 3 ... 3	Video bit depth of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
HDCP Output Mode
Set HDCP output mode for a single output	EscS 1 * 12 HDCP←	HdcpS 1 * 12 ←	12 =0-3(0is default)
Set HDCP output mode for all outputs	EscS 12 HDCP←	HdcpS 12 ←	12 =0-3(0is default)
Query HDCP output mode for all outputs	EscSHDCP←	12 · 12 · 12 ←	Video bit depth of outputs 1 to 4 (DA4) or 1 to 8 (DA8).
Signal Status (unsolicited)
Request all signal status	EscLS←	2 * 2 · 2 · 2 ←	Input * Outputs local-max
Request all HDCP status	EscHDCP←	2 * 2 · 2 · 2 ←	Input * Outputs local-max
HDCP Authorized Device
HDCP authorization enable/ disable	EscE 2 HDCP←	HdcpE 2 ←	2 =0(disabled)1 (enabled, default)
Query HDCP authorization status	EscEHDCP← 2 ←
EDID Minder
Assign EDID to input	EscA 4 EDID←	EdidA 4 ←	4 =EDID memory location (1-66)see the DTP HD DA4/DA8 EDID Memory Locations table on page 15 (default is 720p @ 60 Hz, 2-ch audio)
View EDID assignment	EscAEDID← 4 ←
Save EDID of output to user location	EscS 1 * 4 EDID←	EdidS 1 * 4 ←	Store the EDID of output 1 into EDID memory location 4 (65 or 66)
View/Read EDID in Hex	EscREDID← 5 ←		Read out EDID in Hex from currently selected EDID
View EDID native resolution	EscNEDID← 6 ←		Resolution and refresh rate of currently selected EDIDExample: 1600x1200@60Hz
Import EDID to user slot	EscI 4 ,filenameEDID←	EdidI 4 ←	Import EDID from filename into specified user slot 4 =65 or 66
Upload EDID file to unit	Esc+UFsize,filename←	Up1←
Export EDID to file	EscEX4,filenameEDID←	EdidEX4←	Export EDID from specified EDID table slot to filename 4 =1-66
Send file from unit to PC	EscfilenameSF←	File data (128 or 256 bytes)	Send filename from unit to connected PC
NOTE: filename can optionally carry a full path name. The EDID file format will be “.bin” carrying 128 or 256 bytes of binary data.
IP Configuration/Setup
Set date/time	EscX15CT←IptX15←
View date/time	EscCT←X15←
Set DHCP mode	EscX2DH←IdhX2←
View DHCP mode	EscDH←X2←
Set IP address	EscX16CI←IpiX16←		Default=192.168.254.254
View IP address	EscCI←X16←
View MAC address	EscCH←IphX17←
Set subnet mask	EscX18CS←IpsX18←		Default=255.255.0.0
View subnet mask	EscCS←X18←
Set gateway IP address	EscX16CG←IpgX16←		Default=0.0.0.0
View gateway IP address	EscCG←X16←
Set DNS server IP address	EscX16DI←IpdX16←		Default=0.0.0.0
View DNS server IP address	EscDI←X16←
Get number of connections	EscCC←	{Number of connections}←
		X15←
Set admin password	EscX19CA←Ipa•X19←
Clear admin password	Esc•CA←	Ipa•X15←
View admin password	EscCA←X19←
Set user password	EscX19CU←Ipu•X19←
Clear user password	Esc•CU←	Ipu←
View user password	EscCU←X19←
RS-232 Insertion Port Setup
Enable output RS-232 port	EscO×1*∅LRPT←	LrptO×1*∅←	Set RS-232 to pass through (default)
Enable output UART port	EscO×1*1LRPT←	LrptO×1*1←	Set RS-232 to Ethernet insertion
Set all ports	EscO×10*LRPT←LrptO×10←		Set all ports to pass through or Ethernet insertion
View Insertion Port Setup
View output insert setting	EscO×1LRPT←X10←		View port setting
View all output insert port setting	EscOLRPT←X10	1×103×103...×10←	Verbose: Lrpt000*×101×103×103...×10←
Serial Port Configuration
Set serial port parameters	EscX57*X58,X59,X60,X61CP←	CpnX57•CcpX58,X59,X60,X61←
Query serial port parameters	EscX57CP←	X58,X59,X60,X61←	Read port parameters
Configure current port timeout	Esc∅*X64TC←Pti∅*X64←		Set timeout
View current port timeout	Esc∅TC←X64←		View timeout
Configure global port timeout	Esc1*X64TC←Pti1*X64←
View global port timeout	Esc1TC←X64←
Set UART start point	EscX65*MD←PmdX65←		Default=1999Output 1 uses 2001Output 8 uses 2008
Query UART start point	EscMD←X65←		Read start point for UART
Unit Name
Set unit name	EscX8CN←	Ipn•X8←	X8=Up to 24 alphanumeric characters, including "-"
Set unit name to factory default	Esc•CN←	Ipn•{Default}←	Example:DTP-HD-DA8-4K-330-0B-4A-45(Model name and last 3 pairs of MAC address)
View unit name	EscCN←X8←
Other
Set verbose mode	EscX14CV←VrbX14←		In modes 2 and 3, all "view" commands return the prefix and the value, just as the "set" commands do.
Query verbose mode	EscCV←X14←
Query DTP mode	EscOHDBT←	X13•X13•X13......X13←	This command returns the rear panel DTP/HDBaseT switch status.
Request part number	N/n 60-1437-01←	60-1438-01←	DTP HD DA4 230DTP HD DA8 230
		60-1437-51←	DTP HD DA4 330
		60-1438-51←	DTP HD DA8 330
Query firmware version	Q/q	X7←
Query firmware version with build	*Q/q	x.xx.xxxx←	Firmware build with 2 decimals
Reset settings (retain IP settings)	EscZXXX←Zpx←
Reset all settings (including IP settings)	EscZQQQ←Zpq←

Reference Information

This section provides information about updating the firmware of the DTP HD DA models. The following topics are discussed:

• Using the Internal Web Pages
• Updating the Device Firmware

Using the Internal Web Pages

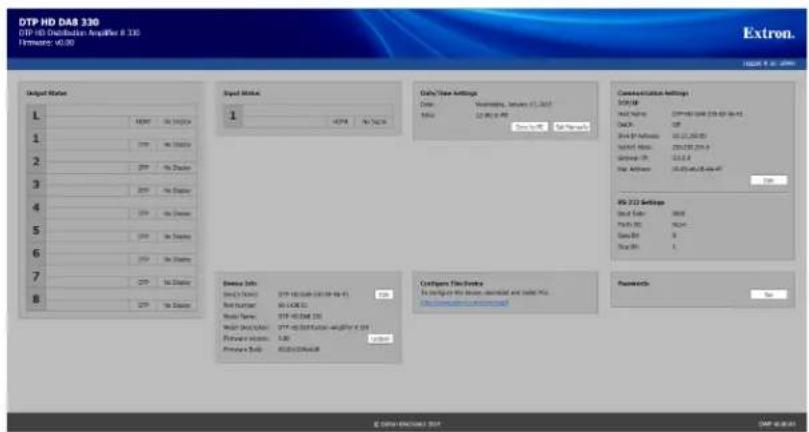

The DTP HD DA4/DA8 4K 230/330 Internal Web Pages allow for monitoring and set up of the device via an Ethernet connection.

Accessing the Internal Web Pages

To access the Internal Web Pages:

1. Using an RJ-45 cable, connect the device to a LAN via the rear panel LAN connector (see ⬆ on page 7).
2. Enter the device IP address into a Web browser address bar.

Setting Up the Device with the Internal Web Pages

Output status

This section displays the status of all connected outputs. This section is not configurable.

Input status

This section displays the status of the connected input. This section is not configurable.

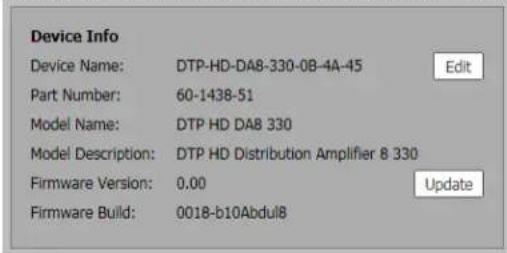

Device info

This section displays device information including:

• Device Name — Displays the device name. Click the Edit button to configure the name.
  • Part Number — Displays the device part number (non-configurable)
• Model Name — Displays the device model number (non-configurable)
• Model Description — Displays a description of the connected model (non-configurable)
• Firmware Version — Displays the current firmware version number. Click the Update button to load new firmware to the device (see the following section for more information)
• Firmware Build — Displays the current firmware build (non-configurable)

Date/Time settings

This section displays the date and time settings of the device. Click Sync to PC to automatically sync the time to the connected PC. Click Set Manually to set a desired time.

Configure this device

Click the link in this section to go to the Extron website where the Product Configuration Software (PCS) can be downloaded.

Communication settings

This section displays the TCP/IP and RS-232 device communications settings.

TCP/IP

If necessary, click the Edit button to change the TCP/IP settings.

RS-232

This section is non-configurable.

Passwords

Click the Set button to set up a password for the device.

Updating the Device Firmware

Update the device firmware via either the Internal Web Pages or the Extron Firmware Loader software.

Downloading Firmware

To obtain the latest version of firmware for your distribution amplifier:

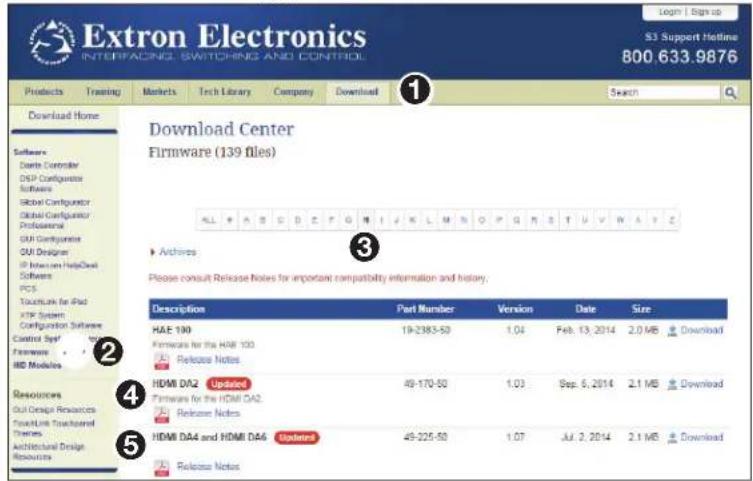

1. At www.extron.com, click the Download link at the top of the page (figure 6, ①), then click the Firmware link (②) on the left sidebar menu.

Figure 4. Firmware Link on the Download Tab

1. On the Download Center screen, click the letter D (3).
2. (Optional) click Release Notes next to the necessary firmware. These notes show the issues that are addressed by the latest update. If these issues do not affect the current device, updating the firmware may not be necessary.
3. Locate the necessary firmware in the list and click Download.
4. On the next screen that appears, enter the requested user information, then click the Download button.
5. Follow the instructions on the rest of the download screens to save the executable firmware file to the computer. Note the folder to which the file was saved.
6. In Windows Explorer or another file browser, locate the downloaded executable file and double-click it to run it.
7. Follow the instructions on the Installation Wizard screens to install the new firmware on the computer. A Release Notes file and a set of instructions for updating the firmware are also loaded.

Downloading and Installing Firmware Loader

Extron recommends using the Firmware Loader software to update the firmware on Extron products. If Firmware Loader is not already installed on the connected computer, download it as follows:

1. Go to www.extron.com and click the Download tab.

2. On the Download Center screen, click the Software link on the left sidebar menu.

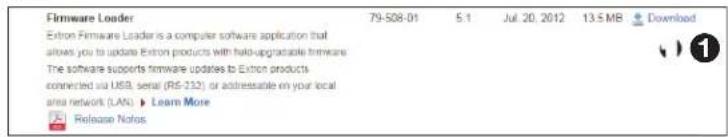

3. On the next Download Center screen, locate Firmware Loader and click its Download link.

Figure 5. Firmware Loader Download Link

1. On the next screen, enter the requested information, then click the Download fw_loader_vnxnxn.exe button (where n is the Firmware Loader version number).
2. Follow the instructions on the rest of the download screens to save the executable Firmware Loader installer file to the computer. Note the folder to which the file was saved.
3. In Windows Explorer or another file browser, locate the downloaded executable installer file and double-click it to open it.
4. Follow the instructions on the Installation Wizard screens to install Firmware Loader on the computer. Unless you specify otherwise, the installer program places the Firmware Loader file, FWLoader.exe, at c:\Program Files\Extron\FWLoader.

Loading Firmware to the DA with Firmware Loader

To load a new version of firmware to the distribution amplifier using Firmware Loader, follow these instructions.

1. If not already installed, download and install the Firmware Loader executable installer file to the computer (see Downloading and Installing Firmware Loader on the previous page).
2. If necessary, download the latest version of firmware for the desired product (see Downloading Firmware on the previous page).
3. Connect the distribution amplifier to the computer using the front panel USB connector (B on page 5), the rear panel LAN connector (J on page 7), or the rear panel RS-232 connector (K on page 7).
4. Open Firmware Loader. If there is no desktop icon, open the program from the Start menu by selecting:

Start > All Programs > Extron Electronics > Firmware Loader > Firmware Loader

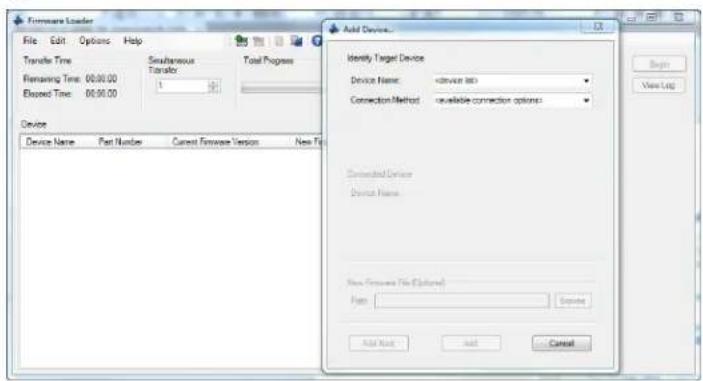

The Firmware Loader dialog box opens with the Add Device... dialog box in front of it.

Figure 6. Opening Firmware Loader

1. Select the DTP HD DA product from the Device Name menu.
2. Select RS-232, USB, or TCP/IP from the Connection Method menu.
3. Depending on the connection method that selected, additional options appear. Make the appropriate selections for the connection method.

• RS-232: Select the appropriate options from the Com Port and Baud Rate menus.
- USB: Only the Extron USB Device_0 option is available on the Available Devices menu. Make sure that it is selected.
- TCP/IP: Enter the IP address (default is 192.168.254.254), port number, and password (if necessary).

1. Click Connect. If the connection is successful, DTP HD DA4 4K 230/330 or DTP HD DA8 4K 230/330 is displayed in green in the Connected Device panel, followed by a green check mark.

2. Click Browse to locate the Firmware file that was downloaded in step 2.

ATTENTION:

• The original factory-installed firmware is permanently available on the DA units. If the attempted firmware upload fails for any reason, the unit reverts to the factory version.

• By default, when the firmware is downloaded from the Extron site, it is saved in one of the following paths:
  C:\Program Files\Extron\Firmware\folder_name (Windows XP) or C:\Program Files (x86)\Extron\Firmware\folder_name (Windows 7) where folder_name may be named for the specific model needed.

• If multiple units are connected to the computer, it is possible to upload the same firmware to all of them. Click Add Next.

The first device is added to the Devices section and the Add Device... dialog box remains open. Add additional devices, by repeating this step.

When adding the last device, (or if only updating a single unit) click Add (do not press Add Next). The device is added to the device list in the Firmware Loader window and the Add Device... dialog box closes.

1. Highlight the distribution amplifier in the device list and click Begin. The following indicators show the progress of the update:

2. The Transfer Time section shows the amounts of remaining and elapsed time for the update.
   • The Total Progress section displays a progress bar with Uploading... above it.

3. In the Devices section, the Progress column displays an incrementing percentage and another progress bar. The Status column displays Uploading.

4. The upload is complete when the Remaining Time field shows 00.00.00, the Progress column shows 100%, and Completed is displayed above the progress bar and in the Status field. Close the Firmware Loader dialog box.

Loading Firmware to the DA with Internal Web Pages

1. Using an internet browser, navigate to the device Internal Web Pages.
2. In the Device Info section, click the Update button.

1. Click the Browse button and locate and select the desired firmware file, then click Open.
2. Click the Upload button.

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

and Central America:

Extron Electronics

1230 South Lewis Street

Anaheim, CA 92805

U.S.A.

Japan:

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

Europe and Africa:

Extron Europe

Hanzeboulevard 10

3825 PH Amersfoort

The Netherlands

China:

Extron China

686 Ronghua Road

Songjiang District

Shanghai 201611

China

Asia:

Extron Asia Pte Ltd

135 Joo Seng Road, #04-01

PM Industrial Bldg.

Singapore 368363

Singapore

Middle East:

Extron Middle East

Dubai Airport Free Zone

F13, PO Box 293666

United Arab Emirates, Dubai

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modifications were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040

Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters+1.800.633.9876 (Inside USA/Canada Only)Extron USA - West Extron USA - East+1.714.491.1500 +1.919.850.1000+1.714.491.1517 FAX [phone] FAX

Extron Europe+800.3987.6673(Inside Europe Only)+31.33.453.4040+31.33.453.4050 FAX

Extron Asia-65.6383.4100-65.6383.4864 FAX

Extron Japan-81.3.3511.7855-81.3.3511.7856 FAX

Extron China+96.21.3780.1568+86.21.3780.1568 FAX

Extron Middle East+071.4.299.1800+1971.4.299.1880 FAX

Extron Korea+82.2.344.4.1571+182.2.3444.1575 FAX

Extron India1800.3070.3777(Inside India Only)+91.80.3055.3777+91.80.3055.3737 FAX
