Product type	Electric insect killer
Brand	Jata
Model	MIE8
Dimensions (approx.)	30 x 20 x 10 cm
Weight (approx.)	1.0 kg
Power supply	AC 220-240 V, 50/60 Hz
Power consumption	6 W
Attraction method	UV light (ultraviolet)
Killing mechanism	High-voltage electric grid
Effective area (est.)	Up to 30 m²
Protection grid	Sturdy metal mesh with safety spacing
Removable tray	Yes, for collecting dead insects
Mounting	Tabletop or wall-mounted (bracket included)
Cord length	1.5 m
Material	ABS plastic and metal grid
Cleaning	Unplug, remove tray, brush off grid and tray
Replacement bulb	UV tube (available as spare part)
Fuse protection	Yes (internal fuse)
Usage location	Indoor only, dry areas
Safety certification	CE, RoHS

Frequently Asked Questions - MIE8 JATA

How does the Jata MIE8 insect killer work?

The device uses an ultraviolet (UV) bulb to attract flying insects. When they come close, they are electrocuted by a high-voltage metal grid surrounding the light. Dead insects fall into a removable tray for easy disposal.

How do I clean the MIE8?

First, unplug the device. Remove the collection tray and empty it. Use a soft brush or cloth to gently clean the high-voltage grid and the UV bulb. Avoid using water directly on the electronics. Reassemble after drying.

Is the Jata MIE8 safe to use around children and pets?

Yes, it is designed with a protective outer grid that prevents fingers or paws from touching the high-voltage inner grid. However, place it out of reach of small children and do not operate in damp locations.

How do I replace the UV bulb?

Unplug the device. Unscrew or unlock the bulb cover (if present). Carefully remove the old UV tube and insert a new one of the same type (check model number). Reassemble the cover and plug in.

Does the MIE8 work on mosquitoes?

Yes, the UV light attracts mosquitoes and many other flying insects. However, effectiveness may vary depending on the environment and species. It works best in dark rooms without competing light sources.

Can I use the insect killer outdoors?

The Jata MIE8 is designed for indoor use only. Do not expose to rain or moisture. For outdoor use, consider a weatherproof model.

Why is the insect killer not attracting insects?

Check if the UV bulb is working (it should glow bluish). Ensure the device is placed away from bright lights or windows that may dilute the UV attraction. Also, the bulb may need replacement after about 3000 hours.

What does the power consumption of the MIE8?

The device consumes only 6 watts, making it energy-efficient. It can be left on 24/7 at a minimal cost.

Is the collection tray dishwasher safe?

No, the tray is made of plastic and should be hand washed with mild soap and water. Dry thoroughly before reinserting.

Where can I buy spare parts for the Jata MIE8?

Replacement UV bulbs and other parts can be ordered from authorised Jata service centres or online retailers. Refer to your warranty card for local support.

USER MANUAL MIE8 JATA

Mod. MIE8-MIE10

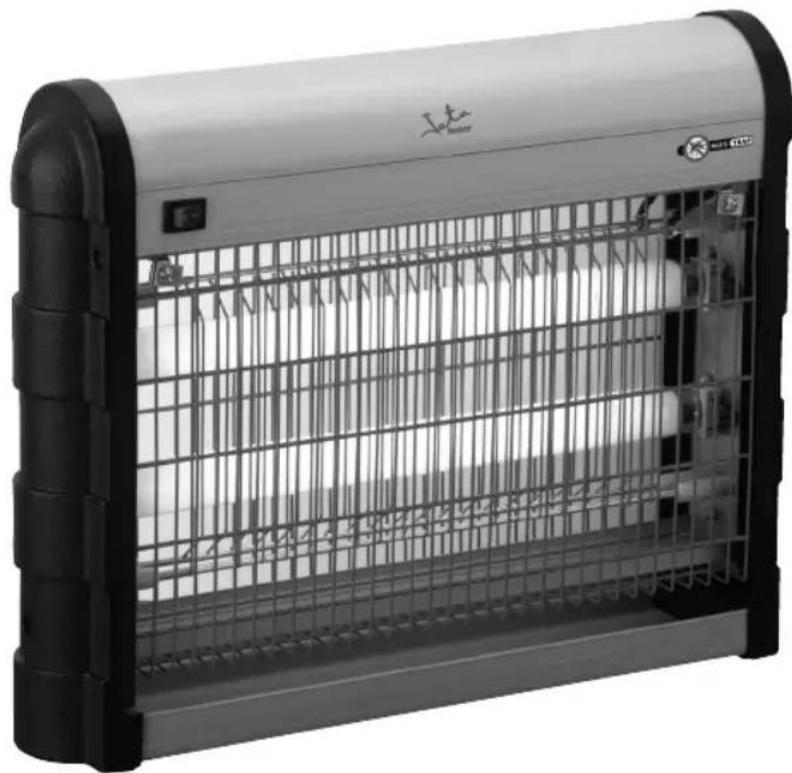

Exterior view of a portable electric anti-tank enclosure with metal grid and control panel (no visible text or symbols)

Mata insectos eléctrico Apanha insetos eléctrico • Electric insect killer

MIEIO

DATOS TÉCNICOS • DADOS TECNICOS • TECHNICAL DATA

MOD. MIE8 230V.~ 23 W.
MOD. MIE10 230V.~ 26 W.

COMPONENTES PRINCIPALES

1. On/off switch.
2. Protective grid.
3. Collection tray.

• Carefully read these instructions before using the appliance for the first time and keep it for future enquires.
• This appliance can be used by children at the age of 8 or more and people with physical, sensory or mental capabilities or lack of experience and knowledge if they have been given an appropriate supervision or instruction concerning the safety use of the appliances and understand the dangers involved.
• Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.
• Do not connect the appliance to the mains without checking that the voltage on the rating plate and that of your household are the same.

• ( ) WARNING: High voltage.

- Don’t allow children play with the appliance. Keep the appliance out of the reach of children.

- It must no be used in places where it could be flammable steam or explosive dust.

- This appliance is not suitable for using in stables or similar places.

- This appliance is only suitable for indoor use.

- Do not open the appliance neither try to manipulate the inner sides.

- Do not insert the fingers neither metallic parts through the grid.

- VERY IMPORTANT: The appliance should never be immersed in water or any other liquid.

- The cleaning and maintenance must be done by users but it can not be done by children without any supervision.

- If the cable were to deteriorate it must be changed by an Authorised Service Centre.

INSTRUCTIONS OF USE

• Hang the appliance or place it on a shelf. In case of hanging in the ceiling, the minimum height from the floor must be 2 meters. If placed it on a shelf, the appliance ought to be out of the reach of children.
• Connect the appliance to the mains and press on switch to the position I. The lights will light on.

MAINTENANCE AND CLEANING

• Before you proceed to cleaning the appliance, ensure it is unplugged from the mains.
• Use a slightly damp cloth for cleaning the outside of the appliance.
• Clean frequently the collection tray, to do that remove it by pulling it outwards.
• Clean the inner sides and the inner grid once a week using a small brush.
• Do not use chemical or abrasive products, such as metallic scourers, which may deteriorate the surfaces of the appliance.

ENVIRONMENT PROTECTION

• Dispose the appliance according to the local garbage regulations.
• Never throw it away to the rubbish. So you will help to the improvement of the environment.

CONDIÇÕES DE GARANTIA

In the rest of countries, the holder of the guarantee will enjoy all the rights that his legislation in force concedes.

Mod. MIE8-MIE10
