ST1000SPEXI - Carte réseau/Adaptateur StarTech.com - Free user manual and instructions

Product Type	Network Adapter (Gigabit Ethernet PCIe)
Model Number	ST1000SPEXI
Interface	PCI Express x1
Ports	1 x RJ-45 Gigabit Ethernet
Data Transfer Rate	10/100/1000 Mbps
Standards	IEEE 802.3, 802.3u, 802.3ab
Form Factor	Low Profile / Standard Bracket Included
Dimensions	120 x 68 x 21 mm
Weight	50 g
Power Consumption	Typical 2.5 W (from PCIe slot)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
LED Indicators	Link/Activity
Supported Features	Jumbo Frames, VLAN Tagging, Wake-on-LAN, Auto MDI/MDIX
Compatible Operating Systems	Windows, Linux, macOS
Spare Parts	None (no user-replaceable parts)
Repairability	Not designed for repair; replace unit if faulty
Care Instructions	Keep dry; clean contacts with isopropyl alcohol
Safety	Handle with care; avoid static discharge; install in grounded system

Frequently Asked Questions - ST1000SPEXI StarTech.com

What operating systems are compatible with the ST1000SPEXI?

The ST1000SPEXI is compatible with Windows (7, 8, 10, 11), Linux (most distributions), and macOS (with available drivers).

Does this card support Wake-on-LAN?

Yes, the ST1000SPEXI supports Wake-on-LAN (WOL) when enabled in the operating system and BIOS.

How do I install the card in a low-profile case?

The card comes with a low-profile bracket. Replace the standard bracket by unscrewing the two screws, attach the low-profile bracket, and install in the PCIe slot.

What is the maximum cable length supported?

For Gigabit Ethernet, the maximum cable length is 100 meters (328 feet) using Cat5e or better cable.

Does the ST1000SPEXI support jumbo frames?

Yes, it supports jumbo frames up to 9K bytes (9000 MTU).

Can I use this card in a PCIe 2.0 slot?

Yes, the card is PCIe 1.0/2.0/3.0 compatible and will work in any x1 or larger PCIe slot.

Why is my computer not detecting the card?

Check that the card is fully seated in the PCIe slot, power off the computer, and try a different slot. Ensure drivers are installed from the included CD or manufacturer website.

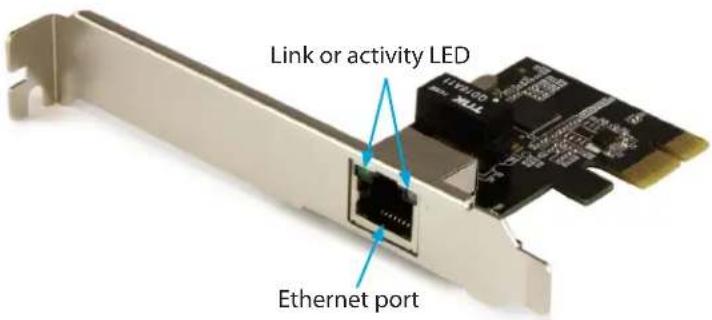

What do the LED indicators mean?

The LED shows solid green for a link and blinking for activity. No light indicates no connection.

Is the ST1000SPEXI compatible with PoE (Power over Ethernet)?

No, this is a standard network adapter and does not support PoE. PoE requires a separate injector or switch.

How do I clean the card?

Turn off and unplug the computer. Use a soft, lint-free cloth slightly dampened with isopropyl alcohol to clean the gold contacts. Do not use water or abrasive cleaners.

USER MANUAL ST1000SPEXI StarTech.com

1-port PCI Express Gigabit Ethernet network card - Intel chip

ST1000SPEXI

• 1 x 1-port PCI Express® network card
• 1 x low-profile bracket
  • 1 x instruction manual

System requirements

• PCI Express enabled computer with an available PCI Express slot (x1, x4, x8, or x16)
  • Any of the following operating systems:

• Windows ^ 7 (32 or 64-bit)
  • Windows 8 (32 or 64-bit)
  • Windows 8.1 (32 or 64-bit)
  • Windows Server® 2008 R2
  • Windows Server 2012
  • Linux® Kernel 2.6.x and later
  • Linux Kernel 3.x and later

• Microsoft® Hyper-V®

Note: Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/ST1000SPEXI.

Installation

Install the PCI Express card

WARNING!

PCI Express cards can be severely damaged by static electricity. Make sure that you're properly grounded before you open your computer case or touch your PCI Express card. StarTech.com recommends that you wear an anti-static strap when you install any computer component. If an anti-static strap isn't available, discharge any built-up static electricity by touching a large grounded metal surface (for example, the computer case) for several seconds. Only handle the PCI Express card by its edges and don't touch the gold connectors.

1. Turn off your computer and any peripherals that are connected to your computer (for example, printers, external hard drives, and so on).
2. Unplug the power cable from the back of your computer.
3. Disconnect any peripheral devices that are connected to your computer.
4. Remove the cover from your computer case. Consult the documentation that came with your computer for details about how to do this safely.

For the latest information, technical specifications, and support for this product, please visit www.startech.com/ST1000SPEXI.

1. Locate an open PCI Express slot and remove the corresponding metal plate cover from the back of the computer case. Consult the documentation that came with your computer for details about how to do this safely.
2. Gently insert the card into the open PCI Express slot and fasten the bracket to the back of the case.

Note: If you install the card into a small form factor or a low-profile desktop system, it may be necessary to replace the preinstalled standard-profile bracket with the included low-profile (half height) installation bracket.

1. Place the cover back onto your computer case.
2. Reconnect the power cable to the back of your computer.
3. Reconnect all of the peripheral devices that you disconnected in step 3.
4. Turn on your computer.

Install the driver on a computer running Windows

1. If the Found New Hardware dialog box appears on your screen, close the dialog box or click Cancel.
2. To download the latest driver, navigate to www.StarTech.com and enter ST1000SPEXI in the Search field.
3. Click the Support tab.
4. Download a driver.
5. When the download is complete, extract the contents of the compressed file that you downloaded.
6. Double-click the appropriate driver for the version of Windows that you're running and follow the on-screen instructions to complete the installation.

Verify that the driver was installed successfully

1. Depending on the version of Windows that you're running, do one of the following:

2. If you're running a version of Windows 7, in the Start menu, right-click Computer. Click Manage. In the Computer Management window, select Device Manager.

3. If you're running Windows 8.1, press the Windows key + X. Click Device Manager.

4. Expand the Network Adapters section. If the driver was installed successfully, the list won't contain any exclamation or question marks next to the devices.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads. For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
