SP20100N - Food processor SWAN - Free user manual and instructions

Product Type	Food Processor
Brand	Swan
Model	SP20100N
Dimensions (approx)	25 x 20 x 40 cm
Weight	3.2 kg
Power	800 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Bowl Capacity	2.5 liters
Main Functions	Chopping, shredding, slicing, blending, mixing, dough kneading
Speed Settings	2 speeds plus pulse
Included Attachments	Chopping blade, shredding disc, slicing disc, dough hook, whisk
Safety Features	Safety lock on bowl, non-slip feet, overload protection
Material	Stainless steel blades, BPA-free plastic bowl
Cleaning	Removable parts dishwasher safe (top rack)
Spare Parts Availability	Replacement bowls, blades and discs available
Warranty	2 years

Frequently Asked Questions - SP20100N SWAN

How to assemble the food processor?

Place the bowl on the motor unit and turn it clockwise until it locks. Insert the desired attachment onto the drive shaft and secure the lid. Always ensure the safety lock is engaged before operating.

Can I crush ice?

Yes, you can crush ice using the pulse function. Add ice cubes to the bowl, cover with lid, and pulse in short bursts until desired consistency. Do not run continuously for more than 30 seconds.

How to clean the blade?

Remove the blade carefully. Wash with warm soapy water or place on the top rack of the dishwasher. Avoid touching the sharp edges. Dry thoroughly before storing.

What is the maximum operation time?

Do not operate the appliance continuously for more than 1 minute for heavy loads (e.g., dough) or 3 minutes for light tasks. Allow at least 2 minutes rest between cycles to prevent overheating.

Why does the motor stop suddenly?

This may be due to overload protection. Unplug, remove some ingredients, wait for the motor to cool down (about 10 minutes), then resume. Ensure the bowl and lid are properly locked.

Can I use it for hot liquids?

No, do not pour hot liquids (above 60°C) into the bowl as they can cause pressure build-up and leaking. Allow liquids to cool before processing.

How to store accessories?

Store all attachments in a dry place. The storage lid can be used to cover the bowl when keeping prepared food in the refrigerator. Keep blades out of reach of children.

Is the bowl BPA-free?

Yes, the bowl is made from BPA-free plastic, safe for food contact. It is also shatter-resistant and easy to handle.

What to do if the blade is dull?

If the blade becomes dull, it should be replaced. Contact Swan customer service or check the spare parts section of the manual for a compatible replacement blade. Do not attempt to sharpen it.

Can I use it to make dough?

Yes, use the dough hook attachment for kneading dough. Do not exceed 500g of flour. Use low speed and pulse as needed. Avoid overworking the motor.

USER MANUAL SP20100N SWAN

SP20100N.indd 2-3

Swan designed for life

Food Processor
For model: SP20100N

v2.0

26/09/2012 14:49

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance on a gas or electric cooking top or over or

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Important Safeguards

near an open flame.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not at tempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate remote control system
20. Do not touch the moving parts and do not insert any kind of object(knives, forks, spoons etc.) while the product is operating. A spatula may be used only when the product is not in operation, avoiding the risk of serious injury.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Specification

Model No. SP20100N

230V\~50Hz

250W

How to Use

Assembly with whisk/chopper
1. Pusher: Use it to gently push the vegetables or meat down so as to facilitate the processing of food. Never use fingers to press the food.
2. Feeder: Cut the food into small pieces and insert it through the feeder
3. Cover: The cover must be properly locked with Base before operating. Otherwise the appliance can not be started. Never remove cover before the blade or disc has completely stopped
4. Shredding blade: used for shredding of vegetables or grating of hard cheese.
5. Slicing blade: use for slicing potatoes, carrots and other vegetables
6. Disc holder
7. Chopping blade
8. Bowl: The bowl must be properly engaged with the base and cover or the unit will not operate
9. on/off pulse switches
10. motor base

Before first use

Carefully unpack the food processor and remove any package material or label or stickers. Cleaning all the parts except Base following the instructions in Cleaning and Maintenance. Handle the blades or disc with extreme care as they are sharp.

Using the food processor

The food processor can be used for mincing meat, chopping nuts, shredding or slicing vegetables etc. using the different attachments to perform the various tasks.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

How to Use

1. chopping/mincing
   Position the bowl in base and turn it clockwise until locks with the base as illustrated b) Place the blade onto the stem of bowl. Always holding the stem of blade as blades is extremely sharp.
   Place the cover in the illustrated direction and turn it until the tab of cover lock with the Base. This is a safety feature which will enable the appliance can only operable when the cover is properly in place. Connect to mains supply.
   Cut the boneless meat or vegetables into small pieces and insert through the Feeder, use the Food pusher to press it if necessary. When the On button is depressed the food will be minced/chopped within seconds. Never overfill the bowl, particularly for beef, the max weight per time can be processed should not exceed 300g and the max running time cannot exceed 1 minute, with a minimum 2 minutes rest time must be maintained between two consecutive cycles.

2. slicing

Correctly position the bowl as illustrated above.

Assemble the Slicing disc on the Disc holder. Always align the right side with the Disc holder first and then press down the left side of Slicing disc with a little force. When removing the disc, reverse the Disc holder and press the right side of Slicing disc with force to release one side first.

Place the Disc holder into the center of bowl as illustrated and then close the cover. Make sure the cover is locked with the Base before operating. Cut the vegetables like potato, carrots, into pieces that can fit into the feed tube. If the food is too large to fit into the feed tube never press it with force.

Press the On button to begin operation.

3. Shredding

Operation is similar to that of slicing but using the shredding/grating disc instead.

4. Cleaning and Maintenance

Switch off the appliance and disconnect the power supply before cleaning. Empty the bowl and remove all attachments and immerse them in water for easier cleaning. The shredding and slicing disc are OK to wash in the dishwasher. Extreme caution must be taken when handling blade or disc as they are very sharp. Wipe the outside of base with cloth and Never immerse it into water as electric shock is possible. Then dry thoroughly. Ensure the interlock area is free of food particles. Some food may discolor the plastic of the bowl. This is normal and will not harm the plastic or effect the flavor of food. Rub with cloth dipped with vegetable oil to remove discoloration.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Swan

Spares references:

When ordering spares quote SP20100N followed by part number on diagram.

Eg. Pusher would be: SP20100N-1

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recylcenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

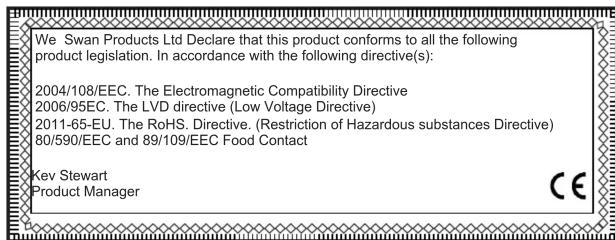

Declaration of EC Conformity

Helpline Number: 01733 404703

WWW.SWAN-BRAND.CO.UK

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase.

The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.

Swan Brand Heritage

Camden St, Birmingham c1933

Did you know...

Components for the Swan Teasmade were still being made at the original Bullpitt & Sons factory on Camden St, Birmingham as recently as 2006.
