Product Type	Hand Blender
Brand	Swan
Model	SP10070N
Category	Immersion Blender
Color	White and Silver
Motor Power	700 Watts
Voltage	220-240 V
Frequency	50/60 Hz
Cord Length	1.2 meters
Weight	0.8 kg
Shaft Material	Stainless Steel
Speed Settings	2 Speeds + Turbo
Attachments Included	Blending Shaft, Whisk, Measuring Beaker
Dishwasher Safe Parts	Blending Shaft, Whisk, Beaker
Safety Features	Overheat Protection, Safety Lock
Cleaning Instructions	Wipe motor unit with damp cloth; rinse attachments under water
Repairability	Spare parts available via Swan customer service
Warranty	2 Years

Frequently Asked Questions - SP10070N SWAN

How do I use the hand blender?

Insert the blending shaft into the motor unit until it clicks. Plug in, submerge the shaft into food, press the speed button and move gently. Release before lifting out.

Can I blend hot liquids?

Yes, but allow liquids to cool below 80°C to avoid damage. Do not submerge the motor unit.

How do I clean the hand blender?

Unplug and detach the shaft. Rinse attachments under running water. Wipe the motor unit with a damp cloth; never immerse in water.

What attachments come with the SP10070N?

It includes a stainless steel blending shaft, a whisk attachment, and a measuring beaker (600 ml).

Is the hand blender BPA free?

Yes, all parts that come into contact with food are BPA-free plastic and stainless steel.

Can I crush ice with this blender?

It can crush soft ice or frozen fruit in small quantities. For hard ice cubes, avoid as it may damage the blades.

How do I use the turbo function?

Press and hold the turbo button for maximum speed. Use in short bursts for tough ingredients.

What safety precautions should I take?

Always unplug when not in use. Do not operate without food in the beaker. Use the safety lock to prevent accidental start.

How do I store the hand blender?

Detach all parts, clean and dry them. Store in a dry place. Use the storage hook if provided, or keep in drawer.

What does the warranty cover?

The 2-year warranty covers manufacturing defects. Normal wear, misuse, and missing parts are not covered.

USER MANUAL SP10070N SWAN

SP10070N.indd 2-3

Swan designed for life

Mixer & Bowl
For model: SP10070N

v2.0

26/07/2012 11:15

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance on a gas or electric cooking top or over or

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Important Safeguards

near an open flame.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not at tempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate remote control system
20. Do not touch the cutting blades and do not insert any kind of object(knives, forks, spoons etc.) while the product is operating. A spatula may be used only when the product is not in operation, avoiding the risk of serious injury.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Specification Model No. SP10070N 220-240V\~50Hz 300W

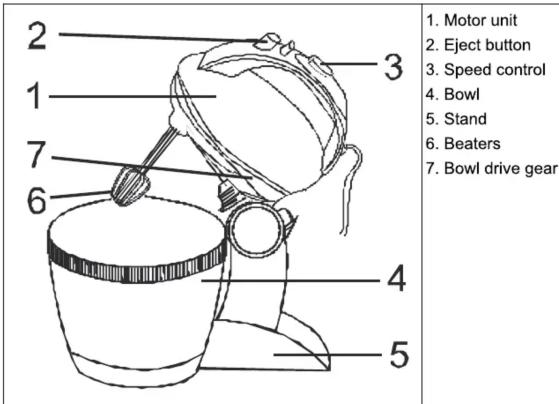

Parts & Assembly How to Use

Become familiar with assembling/disassembling the product before use.

Parts ordering:

If you need spares for this product please quote the model number followed by the part reference above. Eg for spare bowl quote:

SP10070N-4

Swan

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Always ensure the product is disconnected from the mains supply and the speed control is in the OFF position before fitting or removing the beaters.

To fit the beaters, insert the beater shaft into the hole and press firmly until it "clicks" into place. Repeat with the other beater. To remove the beaters simply press the eject button.

The motor unit can be removed from the stand to use as a stand-alone hand mixer or it can be attached to the stand to use the built-in bowl.

To use the bowl, tilt the motor unit back and add ingredients to the bowl. Tilt the motor unit back down and start the mixing process. The drive gear will turn the bowl during mixing.

Speed guide

SPEED	USE
1, 2 FOLD	This is a good starting speed for bulk and dry foods such as flour, butter or cooked veg
3 BLEND	Best speed to start liquid ingredients eg mixing salad dressings
4 MIX	For mixing cakes, cookies or quick breads
5 CREAM	For creaming butter and sugar etc
6, 7 WHIP	For beating eggs eg for soufle etc

Do not run the motor continuously for more than 5 minutes. If the motor sounds to be struggling, switch the mixer off immediately.

CLEANING

Remove the power cord from the mains supply before cleaning.

Press the eject button to remove the beaters. These can be washed in warm soapy water or washed in the dish washer. The bowl can also be washed with warm soapy water. The outside of the motor unit can be cleaned with a moist cloth. Never immerse the motor unit in water or run it under the tap.

Rinse and dry thoroughly before storing.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Swan

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recylcenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Declaration of EC Conformity

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase.

The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.

Swan Brand Heritage

Did you know...

In 1933 Swan were the first to develop an electric heating element that could be immersed in water. This led to the Swan kettle range that could boil up to six pints of water in just over nine minutes - pretty hot for the time! These days it takes about two minutes for a Swan kettle to boil.
