Product Type	Digital Compact Camera
Model	Samsung TL240
Effective Pixels	14.2 Megapixels
Optical Zoom	5x
Digital Zoom	5x
LCD Screen	3.0-inch TFT LCD
Video Recording	720p HD (1280x720) at 30fps
Image Stabilization	Dual Image Stabilization (OIS + DIS)
ISO Sensitivity	Auto, 80, 100, 200, 400, 800, 1600, 3200
Shutter Speed	1/8 – 1/2000 sec (up to 16 sec in Night mode)
Battery	Rechargeable Lithium-ion (SLB-10A)
Storage Media	MicroSD / MicroSDHC (up to 16GB)
Dimensions (W x H x D)	98.5 x 59.5 x 19.5 mm (3.88 x 2.34 x 0.77 in)
Weight	130 g (4.6 oz) without battery and memory card
Connectivity	USB 2.0, HDMI (Micro)
Built-in Flash	Yes (Auto, Red-eye reduction, Fill-in, Slow sync, Off)
Scene Modes	Smart Auto, Program, Scene (Portrait, Landscape, etc.)
Maintenance	Clean lens with a soft, dry cloth. Store in a cool, dry place.
Safety Precautions	Do not expose to extreme temperatures or moisture. Use only Samsung-approved batteries and chargers.
Spare Parts & Repairability	Batteries, chargers, USB cables, and cases available online. Repairs by authorized centers recommended.

Frequently Asked Questions - TL240 SAMSUNG

How do I transfer photos from my Samsung TL240 to a computer?

Connect the camera to your computer using the USB cable provided. Turn on the camera and set it to PC mode (usually appears automatically). Your computer should recognize the camera as a removable drive, allowing you to copy files.

What memory card does the Samsung TL240 use?

The Samsung TL240 supports MicroSD and MicroSDHC memory cards up to 16GB. Insert the card with the gold contacts facing down into the slot.

How do I charge the battery?

The TL240 uses a lithium-ion battery (model SLB-10A). Remove the battery and place it into the charging cradle or use the AC adapter (if available). The LED turns red while charging and green when full.

Can I record videos with the Samsung TL240?

Yes, the camera can record 720p HD video at 30 frames per second. Press the video record button (marked with a red dot) to start/stop recording. Audio is recorded via the built-in microphone.

How do I set the date and time?

Go to the Menu and select Settings (gear icon). Choose Date/Time Set and use the navigation keys to adjust year, month, day, hour, and minute. Press OK to confirm.

What does 'Smart Auto' mode do?

In Smart Auto mode, the camera automatically analyzes the scene and selects the best settings from a range of scene modes (like Portrait, Landscape, Night, etc.). It's ideal for beginners or quick shots.

How do I reduce red-eye in photos?

Enable Red-eye reduction in the flash settings. On the TL240, press the Flash button repeatedly until the red-eye icon appears (a eye with a slash). The camera will fire a pre-flash to reduce red-eye.

My camera won't turn on. What should I do?

First, ensure the battery is charged and inserted correctly. If the battery is low, recharge it. If the camera still doesn't turn on, try a reset by removing the battery and memory card for 1 minute. Also check the battery contacts for dirt.

How do I delete photos from the memory card?

In playback mode, press the Delete button (trash icon) while a photo is displayed. Choose Delete One to remove that image, or go to Menu > Delete All to format the card (warning: erases all files).

Is the Samsung TL240 compatible with HDMI?

Yes, the camera has a Micro HDMI port (Type D). You can connect it to an HDTV using a Micro HDMI cable to view photos and videos on a larger screen.

USER MANUAL TL240 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG / SPA

Health and safety information 2 1

Camera layout 4 13

Setting up your camera ..... 5 12

Unpacking 5

Inserting the battery and memory card 6

Charging the battery ....6

Turning on your camera ..... 7

Using the touch screen ..... 7

Capturing photos or videos 8 23

Playing files 9 62

Selecting a shooting mode using motion recognition....9 21

Transferring files to a PC (Windows) 10 82

Specifications 11 105

Health and safety informationContent

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

EN-2

TL240_QSM_SEA.indb 2 2010-01-20 오후 8:22:46

Color calibration bar with grayscale and color swatches, no text or symbols present

Handle and dispose of batteries and chargers with care

Use only Samsung-approved batteries and chargers. • Incompatible batteries and chargers can cause serious injuries or damage to your camera.

Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

Avoid using or storing your camera in dusty, dirty, • humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

Exercise caution when connecting cables or adapters • and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.

Do not allow liquids, dirt, or foreign substances to • come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.

Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.

English

EN-3

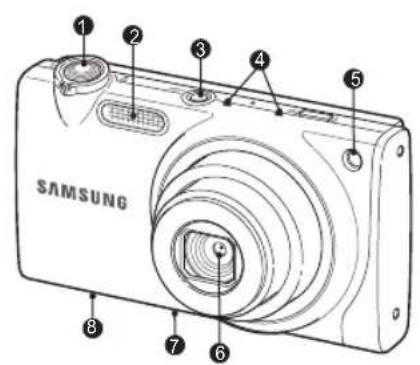

Camera layout

1 Shutter button
② Flash
3 POWER button
4 Microphone
5 AF-assist light/timer lamp
6 Lens
7 Speaker
8 Battery chamber cover

9 Playback button
10 Status lamp
11 Zoom button
12 HDMI port (Accepts HDMI cable)
13 USB and A/V port (Accepts USB cable or A/V cable)
14 Touch screen
15 Tripod mount

EN-4

Setting up your camera

Unpacking

Rechargeable battery
(4302-001226)
Strap
(Sliver: AD63-02596A/
Black: AD63-02604A)

Camera AC adapter/USB cable
(AD44-00143A)/(AD39-00165A)

Quick Start Manual
(AD68-04710A)

User Manual CD-ROM
(AD46-00309A)

Cradle
(AD97-18838A)

Optional accessories

Camera case Memory card
(microSD ^TM )

AV cable
(AD39-00146A)

Battery charger
(AD44-00164A)

HDMI cable
(AD39-00179A)

EN-5

Setting up your camera

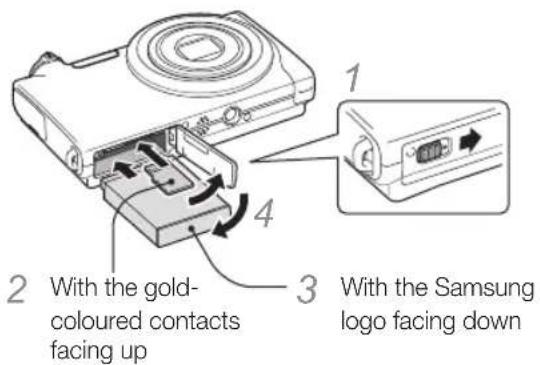

Inserting the battery and memory card Charging the battery

▼ Removing the battery

▼ Removing the memory card

Push gently until the card disengages from the camera and then pull it out of the slot.

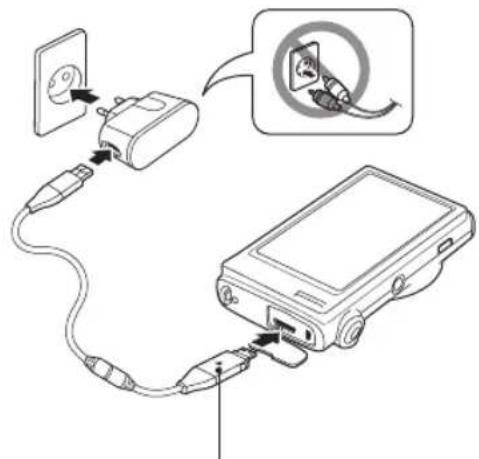

Before using the camera for the first time, you must charge the battery.

Indicator light
Red · : Charging
Green · : Fully charged

EN-6

TL240_QSM_SEA.indb 6 2010-01-20 오후 8:22:50

Color palette bar with grayscale gradient and a central circle (no text or symbols)

Turning on your camera Using the touch screen

1 Press [POWER] to turn your camera on or off. The initial setup screen appears when you turn on your camera for the first time.

Line drawing of a digital camera with an arrow pointing to the side panel (no text or symbols present)

2 Select a language, set the date and time, and select a time zone.

Use your finger to touch or drag on the touch screen.

Caution

Do not use other sharp objects, such as pens or pencils, to touch the screen. Doing so may damage the screen.

Touching

Touch an icon to open a menu or set an option.

Dragging

Drag left or right to scroll horizontally.

EN-7

2010-01-20 오후 8:22

51

Capturing photos or videos

Taking a photo

1 Make sure that the camera is in the ☐ mode (Auto mode).
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Select →
2 Align your subject in the frame.
3 Press [Shutter]. To pause, select!! To resume, select●.
4 Press [Shutter] again to stop recording.

Note

Number of photos by resolution (for 1 GB microSD™)

Resolution Super fine Fine Normal
14_M	4320 X 3240 122 240 353
12_M	4000 X 3000 142 278 409
10_M	3984 X 2656 160 312 454
10_M	3840 X 2160 206 401 588
8_M	3264 X 2448 211 409 594
5_M	2560 X 1920 335 637 908
3_M	2048 X 1536 510 936 1,314
10_M	1920 X 1080 762 1,373 1,931
1_M	1024 X 768 1,626 2,575 3,090

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

EN-8

TL240_QSM_SEA.indb 8

2010-01-20 오후 8:22

Playing files

Viewing photos

1 Press [Playback].
2 Draw a horizontal bar left or right, or select ◀ or ▶ to scroll through photos. You can also view files by tilting your camera.

Viewing videos

1 Press [Playback] and select ▶
2 Use the following icons to control playback.

	Scan backward
	Pause or resume playback
	Stop playback
	Scan forward
	Adjust volume or mute sound

Selecting a shooting mode using motion recognition

In Shooting mode, tilt the camera while touching and holding 🔒.

Access the Movie mode

Motion recognition may not work well if you hold the camera parallel to the ground.

EN-9

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Diagram showing a laptop connected to a physical device via cable (no text or symbols present)

Note

Make sure that the PC Software option is set to On in the settings menu.

2 Turn on the camera.

The computer recognises the camera • automatically.

- For Windows Vista, select Run iStudio.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.

If your camera has no new files, the window to save new files will not appear.

4 Select Yes.

New files will be transferred to your computer. You can now use the Intelli-studio program.

Note

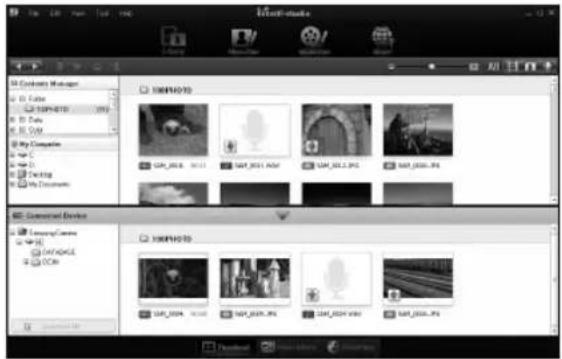

About Intelli-studio

Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

EN-10

TL240_QSM_SEA.indb 10 2010-01-20 오후 8:22:56

Specifications

Image sensor	Type: 1/2.3" (Approx. 7.76 mm) CCD•Effective pixels: approx. 14.2 mega-pixels•Total pixels: approx. 14.5 mega-pixels •
Lens	Focal length: Schneider-KREUZNACH lens •f = 5.6 - 39.2 mm (35 mm film equivalent: 31 - 217 mm)F-stop range: F3.3 (W) - F5.5 (T)•
Display	3.5" (8.9 cm) Wide 1,152 K/Full Touch Screen Panel
Focusing	TTL auto focus (Multi AF, Center AF, Face Recognition AF, Face Detection AF, Smart Touch AF, One Touch Shooting)
Shutter speed	Auto• : 1/8 - 1/2,000 sec.Program• : 1 - 1/2,000 sec.Night• : 8 - 1/2,000 sec.Fireworks• : 2 sec.
Storage	• Internal memory: approx. 13 MBExternal memory (Optional): microSDTM card (up to 4 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	20 pin, 4.4 V
Rechargeable battery	Lithium-ion battery (SLB-11A, 1130 mAh)
Dimensions (W x H x D)	103.8 x 58.3 x 19.6 mm
Weight	156.9 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85%
