PD701W - Portable DVD Player GPX - Free user manual and instructions

Product Type	Portable DVD Player
Brand	GPX
Model	PD701W
Display Size	7 inches
Display Type	TFT LCD
Aspect Ratio	16:9
Playable Disc Formats	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG
Region Code	1
Audio Output	Built-in speakers, headphone jack
Video Output	Composite AV out
Power Source	Rechargeable battery, AC adapter
Battery Life	Up to 5 hours
Dimensions (approx)	25.4 x 17.8 x 4 cm
Weight (approx)	0.68 kg (1.5 lbs)
Inputs	DC power, headphone, AV out
Accessories Included	Remote control, AC adapter, car charger, AV cables
Special Features	Swivel screen, parental lock, anti-shock
Cleaning	Clean with soft dry cloth; do not use liquids or chemicals
Safety	Keep away from moisture; no user-serviceable parts inside; use only approved accessories
Spare Parts & Repairability	Contact GPX support for replacement parts; repairs by qualified personnel only
General Information	Portable DVD player designed for home and travel use; supports multiple media formats

Frequently Asked Questions - PD701W GPX

How do I power on the GPX PD701W?

Press the Power button on the top panel or remote control. Ensure the battery is charged or AC adapter is connected.

Why won't the disc play?

Check that the disc is inserted correctly with label side up. Ensure the disc is compatible (DVD, CD, MP3) and not scratched. Try a different disc.

How do I charge the battery?

Connect the included AC adapter to the unit and a wall outlet. The battery indicator will light up during charging. Full charge takes about 3 hours.

The remote control is not working. What can I do?

Replace the batteries in the remote. Ensure there is no obstruction between remote and sensor. Point directly at the player from within 5 meters.

How can I connect to an external TV?

Use the included AV cable. Connect the yellow plug to video input, red/white to audio inputs on the TV. Set the player's output mode using the Source button.

What do the region code restrictions mean?

The player is set to Region 1 (USA/Canada). Discs from other regions may not play. To play multi-region discs, contact GPX support for unlock instructions.

How do I use the parental lock?

Press Setup on the remote, navigate to Parental Lock, enter the default password (0000), and set a rating level. Discs with higher ratings will require a password.

Why is there no sound from the built-in speakers?

Check volume level. Ensure headphones are not plugged in (they mute speakers). Try a different disc or audio output setting. If issue persists, reset the player.

Can I play MP3 files from a USB drive?

No, this model does not have a USB port. It only plays discs. For MP3 playback, burn them onto a CD-R or DVD-R as data disc.

The screen is black but I hear audio. What's wrong?

Press the Display button to toggle screen on. If still black, the screen may be damaged. Check the screen swivel mechanism. Otherwise, contact support.

USER MANUAL PD701W GPX

Black-and-white photo of a portable open-screen TV with two cars on screen, one open and one closed (no visible text or symbols)

PD701

Portable DVD Player

For the most up-to-date version of this User's Guide, go to www.gpx.com

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• AVERTISSEMENT: Pour réduire le risque d'incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l'humidité.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• PRÉCAUTION: Danger d'explosion si les piles sont remplacées de façon incorrect. Remplacer les piles seulement par le même type de pile ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.

• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste

• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.
  • WARNING: Shock hazard - Do Not Open.
  • AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocks are defeated. Invisible laser radiation is present when the CD Player's lid is open and the system's interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

Portable DVD Player

Features

• Plays DVD, DVD±R/RW, CD, CD-R/RW, JPEG CD
• 7" TFT LCD display
• Convertible tablet design
• Aspect ratio: 16:9
  • 3.5mm audio/video output
• Stereo headphone jack
  • Built-in stereo speakers
  • Full-function remote1
• Multi-language on-screen display
• NTSC video system
  • Built-in rechargeable battery

Included

• Remote control + 2 AAA batteries
  • 3.5mm to RCA audio/video adapter
  • One set of stereo earbuds
• AC/DC power adapter
• 12V DC car adapter

Table of Contents

Portable DVD Player....4

Features

Included

Table of Contents.... 5

Introduction 6

Setup....8

Power

Battery Power

Remote

Charging the Built-in Battery

DVD and CD....9

Loading a Disc

Playing a Loaded Disc

Programming a Loaded Disc

Setup Menu....10

Accessing the Setup Menu

Setup Menu Contents

Audio/Video Output....11

Using the 3.5mm Audio/Video Output

Company Information 12

International Support

Contact Information

Green Initiative

Introduction

LCD DISPLAY

STOP

Press to stop a loaded disc during play.

Line drawing of a vintage television set with monitor, keyboard, and control panel (no text or symbols)

DISC DOOR

OK

Press to make selections in the on-screen menu.

OPEN

Press to open the DISC DOOR.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

SETUP/ARROW (▼)

Press and hold to access the setup menu. Press to navigate on-screen menus.

Technical line drawing of a rectangular electronic device with a flat top and side ports (no text or symbols)

ARROW (▲)

Press to navigate on-screen menus.

PLAY/PAUSE

Press to play or pause the loaded disc.

VOLUME/ARROW

(◀ ▶)

Press to adjust the volume and navigate on-screen menus.

REV/F.FWD

Press to skip between chapters or tracks. Press and hold to search through an individual chapter or track.

CHARGE INDICATOR

Turns red when the portable DVD player is charging.

POWER INDICATOR

Turns green when the portable DVD player is powered on.

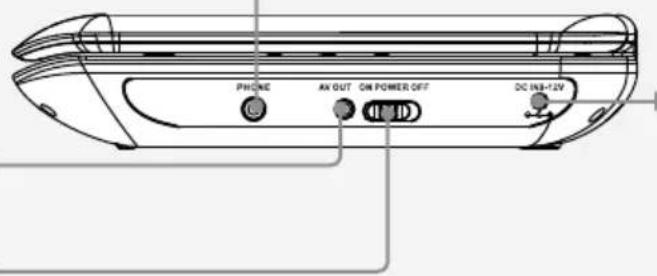

STEREO HEADPHONE JACK

AUDIO/VIDEO OUTPUT

POWER

Adjust to turn the power on or off.

DC POWER INPUT

Setup

Power

DC power input: requires an AC/DC adapter (included)

The POWER INDICATOR will turn green whenever the portable DVD player is powered on.

Line drawing of a portable air conditioner unit connected to a wall-mounted electrical outlet (no text or symbols)

Battery Power Charging the Built-in Battery

DC battery power: built-in rechargeable battery

The CHARGE INDICATOR will turn red whenever the built-in rechargeable battery is charging.

The POWER INDICATOR will turn green whenever the portable DVD player is powered on.

1. Plug the included AC/DC power adapter into the DC POWER INPUT on the portable DVD player and an AC power outlet.

2. Adjust the POWER switch to the off position.

The CHARGE INDICATOR will turn red whenever the built-in rechargeable battery is charging.

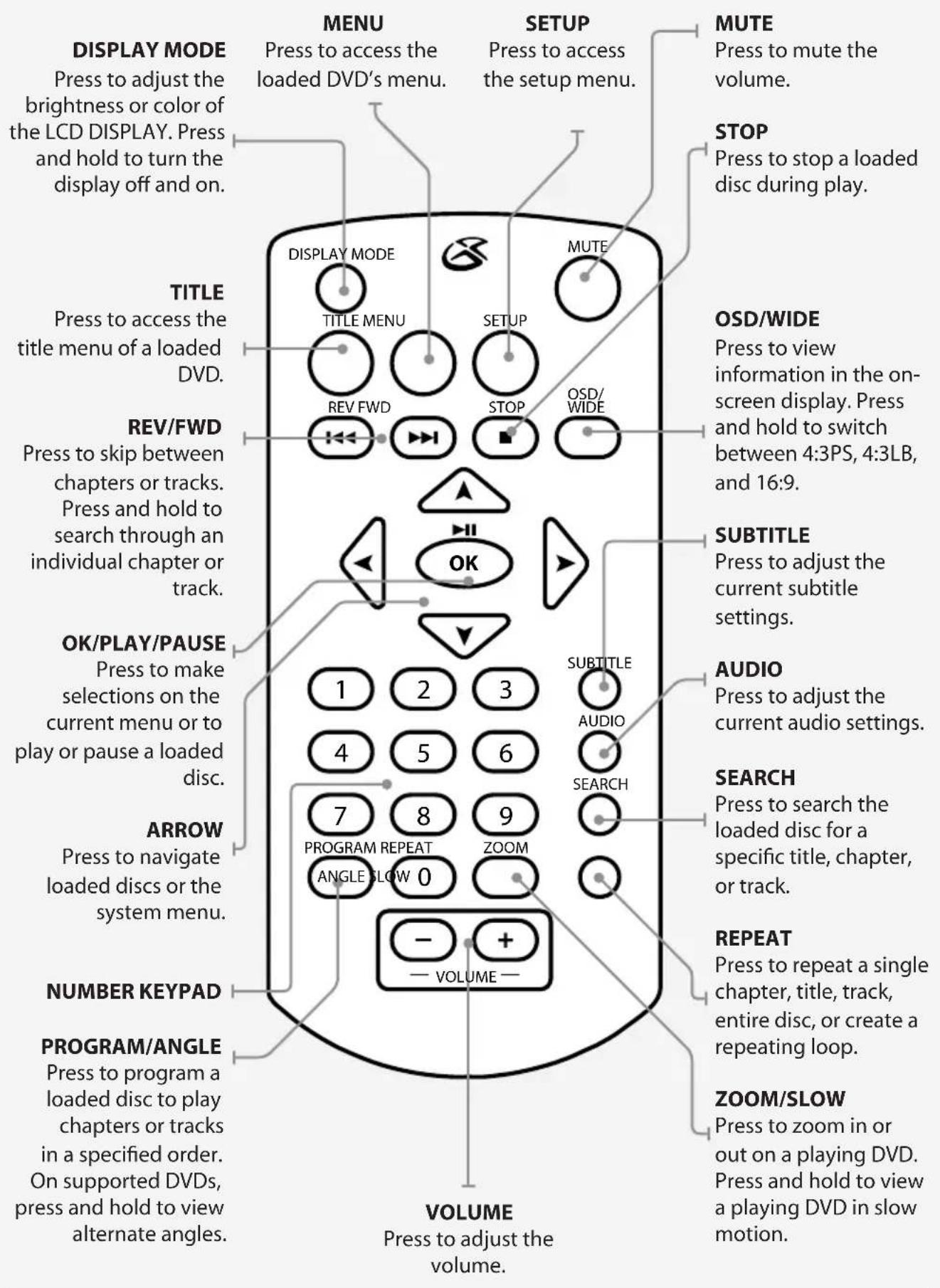

Remote

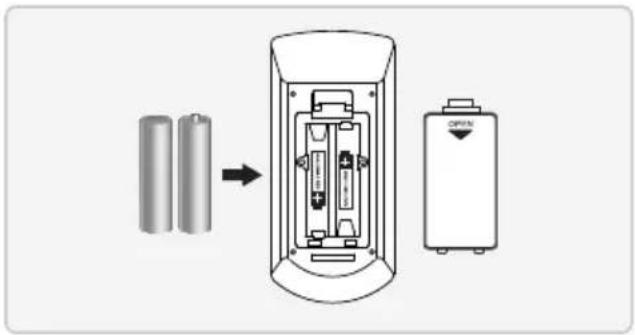

Requires 2 AAA batteries (included)

DVD and CD

Loading a Disc

1. Press the OPEN button to open the DISC DOOR.
2. Load a disc into the portable DVD player, label side facing up.
3. Close the DISC DOOR.

After a disc is loaded, it will begin playing automatically.

Illustration of a hand holding a CD with a movie icon, next to a circular disc and three rectangular strips (no text or symbols)

Playing a Loaded Disc

1. Follow the instructions for Loading a Disc.
2. If the disc does not begin playing automatically, press the PLAY/PAUSE button.

Programming a Loaded Disc

1. Follow the instructions for Loading a Disc and Playing a Loaded Disc.
2. While the loaded disc is playing, press the PROGRAM button on the remote.

3. Use the ARROW buttons to select a program slot.

4. Use the NUMBER KEYPAD to enter in the chapter and title, or track. Titles and chapters, or tracks will play in the order they are listed.

5. Repeat step 3 until the desired titles and chapters, or tracks are programmed.

6. Use the ARROW buttons to highlight the on-screen PLAY button. Press the OK button to begin playing the programmed disc.

Setup Menu

Accessing the Setup Menu

1. Press and hold the SETUP button to access the setup menu.

Setup Menu Contents

System Setup

TV System

• NTSC

• PAL

Screen Saver

• ON

• OFF

TV Type

• 4:3PS

• 4:3LB

• 16:9

Default

- Restore

Video Setup

Brightness

Contrast

Hue

Saturation

Speaker Setup

Downmix

• LT/RT

- Stereo

Language Setup

OSD Language

- Use to adjust the on-screen display language.

Audio Lang

- Use to adjust the audio language of the loaded DVD.

Subtitle Lang

- Use to adjust the subtitle language of the loaded DVD.

Menu Lang

- Use to adjust the DVD menu language of the loaded DVD.

Audio/Video Output

Using the 3.5mm Audio/Video Output

Requires a 3.5mm to 3 x RCA audio/video adapter (included) and an RCA audio/video cable (not included).

1. Connect the 3.5mm to 3 x RCA audio/video adapter to the 3.5mm AUDIO/VIDEO OUTPUT on the portable DVD player.
2. Connect the RCA audio/video cable to the 3.5mm to 3 x RCA audio/video adapter and the RCA stereo audio inputs and composite video input on a television.
3. Audio and video played through the portable DVD player will now be output through the connected television.

Company Information

International Support

To download this User's Guide in English, Spanish, or French, visit the support section at www.gpx.com.

protect for today • sustain for tomorrow

Environmental Commitment to 'Protect for Today and Sustain for Tomorrow'

2009 marked the official launch of DPI, Inc.'s corporate campaign for a greener and cleaner world. DPI is building upon environmental initiatives introduced at all of their facilities to help formulate and sustain significant and important conservation efforts within its manufacturing and marketing communities. In addition to targeting and selecting energy efficient product features, and structuring 'green office' procedures, other initial program efforts include:

• Reduction of all packaging sizes
  • Recyclable plastics for clamshell packages, with a plan to eventually replace plastic with recyclable paper
  • Recycled fiber board in place of the polyfoam in packing boxes
  • Recycled plastics in place of the virgin material in product construction
