USER MANUAL DXZ765MP CLARION

”] | +DXZ765MP-001-cover 2 280-8335-00 Thank you for purchasing this Clarion product. + Please read this owner's manual in its entirety before operating this equipment. + After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). + Check the contents of the enclosed warranty card and keep it carefully with this manual. + This manual includes the operating procedures of the iPod interface, CD changer, Satellite Radio Receiver and TV tuner connected via the CeNET cable. The iPod interface, CD changer and TV tuner have their own manuals, but no explanations for operating them are described. Contents

Names of the Buttons and their Functions Major Button Operations When External Equipment is Connected to This Unit . Display Items .

Inserting the Battery … Functions of Remote Control Unit Buttons

Basic Operations Radio Operations CD/MP3/WMA Operations . Operations Common to Each Mode

8. OPERATIONS OF ACCESSORIES

CD Changer Operations . TV Operations

FEATURE + Fine integrated full dot VF display & 728-variable color illuminated key + Motorized Detachable Faceplate & Smart Control Operation + “Z-ENHANCERY" sound customisation & “MAGNA BASS EX" dynamic bass enhancement

CN SN Major Button Operations When External Equipment is Connected to This Unit @ When the TV is connected + For details, see the section ‘TV Operations”. [ADJ] button + Press and hold the button for 1 second or longer to switch to the TV picture mode or VTR (external) picture mode. D j] button . Litorm preset scan while in the TV mode. When the button is pressed and held, auto store is performed. [BND] button + Switch the band. + When the button is pressed and held, switch seek tuning or manual mode. [DIRECT] buttons + Store a Station into memory or recall it directly. [K, 31] lever + Select a station. 8 ox7eswr

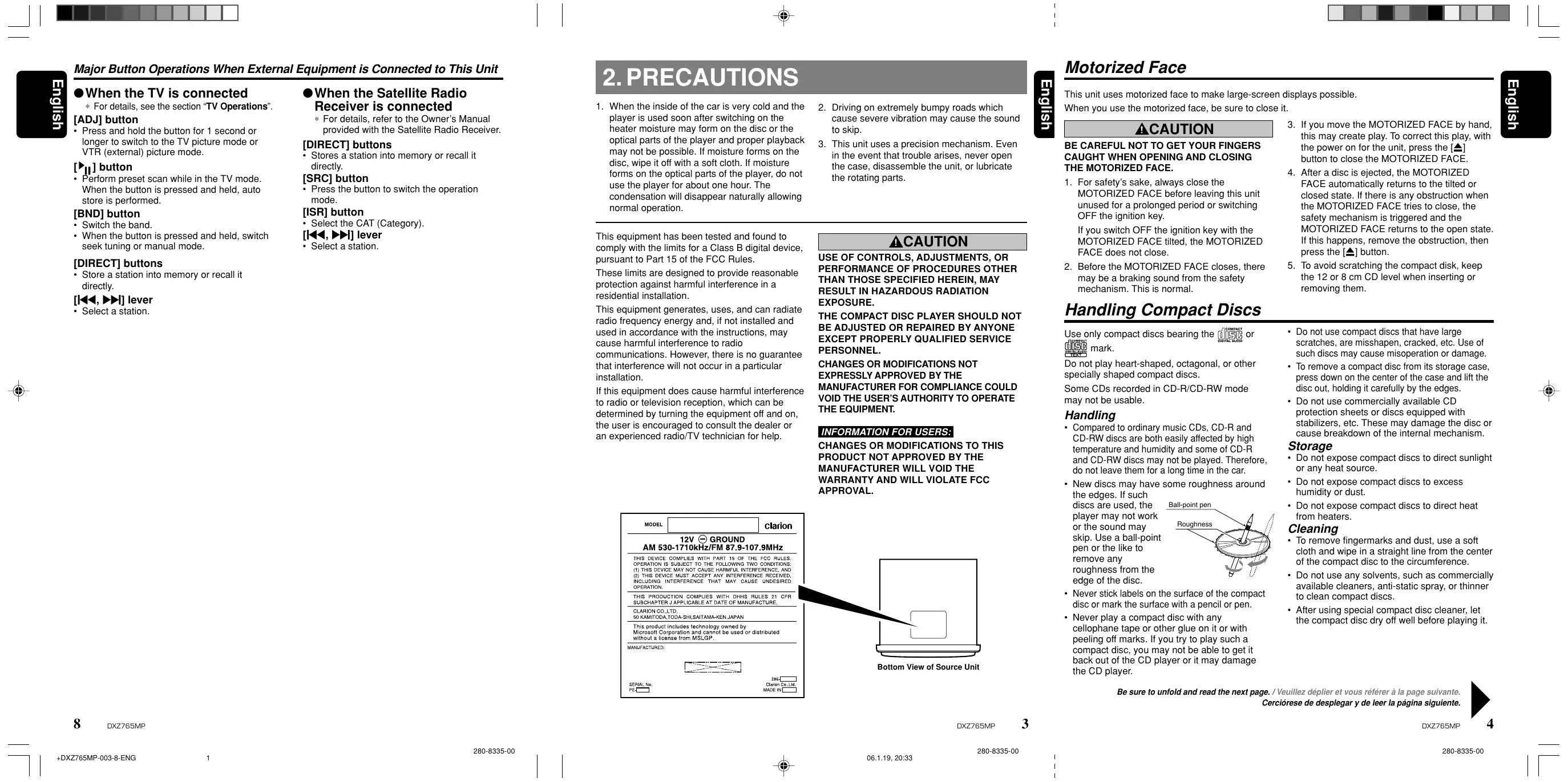

”] | +DXZ765MP-003-8-ENG 1

@When the Satellite Radio Receiver is connected + For details, refer to the Owner's Manual provided with the Satellite Radio Receiver. [DIRECT] buttons + Stores a station into memory or recall it directly. [SRC] button + Press the button to switch the operation mode. SR] button + Select the CAT (Category). [k, DD1] lever + Select a station. 280-8335-00

1. When the inside of the car is very cold and the

player is used soon after switching on the heater moisture may form on the disc or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc, wipe it off with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour. The condensation will disappear natural allowing normal operation.

2. Driving on extremely bumpy roads which

cause severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even

in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. 12V © GROUND AM 530-1710kHz/FM 87.9-107.9MHz SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE, CLARION GOUT. This produe includes lecnnolpgy owned by Microsoft Corporation ang cam be us0d or distrbutod out a rm MSLBP. sean Ps FE = ACAUTION

USE OF CONTROLS, ADJUSTMENTS, OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN, MAY

CHANGES OR MODIFICATIONS TO THIS

PRODUCT NOT APPROVED BY THE

MANUFACTURER WILL VOID THE

WARRANTY AND WILL VIOLATE FCC

APPROVAL. Bottom View of Source Unit DXZ765MP 280-8335-00

Motorized Face CHENE DOM This unit uses motorized face to make large-screen displays possible. When you use the motorized face, be sure to close it. ACAUTION BE CAREFUL NOT TO GET YOUR FINGERS

CAUGHT WHEN OPENING AND CLOSING

1. For safety's sake, always close the

MOTORIZED FACE before leaving this unit unused for a prolonged period or switching OFF the ignition key. If you switch OFF the ignition key with the MOTORIZED FACE tited, the MOTORIZED FACE does not close.

2. Before the MOTORIZED FACE closes, there

may be a braking sound from the safety mechanism. This is normal. Handling Compact Discs

3. If you move the MOTORIZED FACE by hand,

this may create play. To correct this play, with the power on for the unit, press the [&] button to close the MOTORIZED FACE. After a disc is ejected, the MOTORIZED FACE automatically returns to the tilted or closed state. If there is any obstruction when the MOTORIZED FACE tries to close, the safety mechanism is triggered and the MOTORIZED FACE returns to the open state. If this happens, remove the obstruction, then press the [A] button.

5. To avoid scratching the compact disk, keep

the 12 or 8 cm CD level when inserting or removing them.

Use only compact discs bearing the (SE or mark.

Do not play heart-shaped, octagonal, or other specially shaped compact discs. Some CDs recorded in CD-R/CD-RW mode may not be usable. Handling + Compared to ordinary music CDs, CD-R and CD-RW discs are both easily affected by high temperature and humidity and some of CD-R and CD-RW discs may not be played. Therefore, do not leave them for a long time in the car. + New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc. Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen. Never play a compact disc with any cellophane tape or other glue on it or with peeling off marks. If you try to play such a compact disc, you may not be able to get it back out of the CD player or it may damage the CD player. Bal-point pen Roughness + Do not use compact discs that have large scratches, are misshapen, cracked, etc. Use of such discs may cause misoperation or damage. + To remove a compact disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges. + Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism. Storage + Do not expose compact discs to direct sunlight or any heat source. + Do not expose compact discs to excess humidity or dust. + Do not expose compact discs to direct heat from heaters. Cleaning + To remove fingermarks and dust, use a soft cloth and wipe in a straight line from the center of the compact disc to the circumference. + Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean compact discs. + After using special compact disc cleaner, let the compact disc dry off well before playing it. Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante. Cerciérese de desplegar y de leer la pégina siguiente. vxz76smP 4 280-8335-00

”] | +DXZ765MP-003-8-ENG 1

1. When the inside of the car is very cold and the

2. Driving on extremely bumpy roads which

cause severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even

USE OF CONTROLS, ADJUSTMENTS, OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN, MAY

CHANGES OR MODIFICATIONS TO THIS

PRODUCT NOT APPROVED BY THE

MANUFACTURER WILL VOID THE

WARRANTY AND WILL VIOLATE FCC

APPROVAL. Bottom View of Source Unit DXZ765MP 280-8335-00

Motorized Face CHENE DOM This unit uses motorized face to make large-screen displays possible. When you use the motorized face, be sure to close it. ACAUTION BE CAREFUL NOT TO GET YOUR FINGERS

CAUGHT WHEN OPENING AND CLOSING

1. For safety's sake, always close the

2. Before the MOTORIZED FACE closes, there

may be a braking sound from the safety mechanism. This is normal. Handling Compact Discs

3. If you move the MOTORIZED FACE by hand,

5. To avoid scratching the compact disk, keep

the 12 or 8 cm CD level when inserting or removing them.

Use only compact discs bearing the (SE or mark.

Note: + Be sure to read this chapter referring to the front diagrams of chapter *3. CONTROLS" on page 5 (unfold). Names of the Buttons and Their Functions [RELEASE] button + Deeply push in the button to unlock the DCP. [ADJ] button + Switches to the adjust mode. [ROTARY] knob + Turn to adjust the volume. + Performs various settings. LP] button + Plays or pauses a CD while in the CD/MP3/ WMA mode. + Performs preset scan in the radio mode. Press and hold for 2 seconds or longer to perform auto store. + Confirms various settings. [4] button + Press to open the MOTORIZED FACE and insert a CD into the CD SLOT. + Press to eject a CD loaded in the unit. [C] button + Press to select display color. + Press and hold for 1 second or longer to select the user color. [Z] button + Selects one of the 3 types of sound characteristics preset in memory. [T] button + Switches the titles. + Press and hold for 1 second or longer to input or scroll the title. [D] button + Switches the display indication (main display, title display). + Press and hold the button for 1 second or longer (do not over 4 seconds) to enter the display adjust mode. + Press and hold for 4 seconds or longer to turn off the display while in the usual play, ISR mode, telephone interrupt. [IR-RECEIVER] + Receiver for remote control unit. (Operating range: 30° in all directions). [BND] button + Switches the band. + Press and hold for 1 second or longer to switch seek or manual tuning. + Returns to a first track while in the CD/MP3/ WMA mode. + Press and hold for 1 second or longer to switch the track type to play in the CD/MP3/WMA mode. 6 oxzzesu + Press the button to change the character. [UP], [DN] buttons + Selects the folder. (MP3/WMA disc only) [DIRECT] buttons + Stores a station into memory or recalls it directly while in the radio mode. [RDM] button + Performs random play while in the CD/MP3/ WMA mode. + Press and hold for 1 second or longer to perform folder random play while in the MP3/ WMA mode. [RPT] button + Repeats play while in the CD/MP3/WMA mode. + Press and hold for 1 second or longer to perform folder repeat play while in the MP3/ WMA mode. [SCN] button + Performs scan play for 10 seconds of each track while in the CD/MP3/WMA mode. + Press and hold for 1 second or longer to perform folder scan play while in the MP3/ WMA mode. [SRC] button + Press to turn on the power. + Press and hold for 1 second or longer to turn off the power. + Switches the operation mode among the radio mode, etc. IISR] button (Instant station recall) + Recalls ISR radio station in memory. + Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode only) [A-M] button + Switches to the audio mode (SW VOLUME, BASS, TREBLE, BALANCE, FADER). + Press and hold for 1 second or longer to turn on or off the MAGNA BASS EXTEND. [KE BI] lever Selects a station while in the radio mode or selects a track while in the CD/MP3/WMA mode. This lever is used to make various settings. Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode. ICD SLOT] + CD insertion slot. 280-8335-00 : 06.1.19, 20:33 Major Button Operations When External Equipment is Connected to This Unit CHENE DOM @ When the CD/DVD changer/ iPod interface is connected + For details, see the section “CD Changer Operations”. For the DVD changer, refer to the Owner's Manual provided with the DVD changer. For the iPod interface, refer to the Owner's Manual provided with the iPod interface. + Hereinafter, “Pod interface” is abbreviated as iPod BB. Regarding iPod BB (EA-1251B) The iPod interface allows connection of an iPod that can then be operated in the same way as a 6 disc CD changer. + When an iPod is connected to the iPod BB, subsequent operations are as performed from the main unit. + Not all iPod functions can be controlled from the main unit. + iPod models usable with the iPod interface include models supporting the following software versions: . iPod 3rd generation software Ver. 2.2 or later. . iPod th generation software Ver. 3.0.1 or later. . iPod mini software Ver. 1.2 or later. iPod photo (images cannot be displayed).

See your iPod Owner's manual regarding what software version is supported by your iPod. Notes: + Scan play cannot be performed with the iPod BB. + In order to operate the iPod like a 6-disc CD changer, a playlist must be constructed betorehand. + When connecting the iPod BB and CD changer, set the address switch on the side ofthe CD changer to "2". + For other precautions, consult the iPod BB Owners manual. + “iPod” is a trademark of Apple Computer, Inc. registered in the U.S. and other countries. Pay button + Play or pause a CD, DVD or iPod BB. [7] button + Press the button, switches the user titles or track titles, etc. while in the CD changer mode. + Use the button to input a title in the CD changer mode. Use the button to scroll the title during CD- text play. [BND] button + Move the next disc in increasing order. [UP], [DN] buttons + Select the disc. [RDM] button + Perform random play. Also perform disc random play when the button is pressed and held. [RPT] button + Perform repeat play. When this button is pressed and held, disc repeat play is performed. ISCN] button + Perform scan play for 10 seconds of each track. Disc scan play is performed when the button is pressed and held. & [Hé DB1] lever + Select a track when listening to a disc. + Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode. oxz76smP 7 280-8335-00

See your iPod Owner's manual regarding what software version is supported by your iPod. Notes: + Scan play cannot be performed with the iPod BB. + In order to operate the iPod like a 6-disc CD changer, a playlist must be constructed betorehand. + When connecting the iPod BB and CD changer, set the address switch on the side ofthe CD changer to "2". + For other precautions, consult the iPod BB Owners manual. + “iPod” is a trademark of Apple Computer, Inc. registered in the U.S. and other countries. Pay button + Play or pause a CD, DVD or iPod BB. [7] button + Press the button, switches the user titles or track titles, etc. while in the CD changer mode. + Use the button to input a title in the CD changer mode. Use the button to scroll the title during CD- text play. [BND] button + Move the next disc in increasing order. [UP], [DN] buttons + Select the disc. [RDM] button + Perform random play. Also perform disc random play when the button is pressed and held. [RPT] button + Perform repeat play. When this button is pressed and held, disc repeat play is performed. ISCN] button + Perform scan play for 10 seconds of each track. Disc scan play is performed when the button is pressed and held. & [Hé DB1] lever + Select a track when listening to a disc. + Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode. oxz76smP 7 280-8335-00

See your iPod Owner's manual regarding what software version is supported by your iPod. Notes: + Scan play cannot be performed with the iPod BB. + In order to operate the iPod like a 6-disc CD changer, a playlist must be constructed betorehand. + When connecting the iPod BB and CD changer, set the address switch on the side ofthe CD changer to "2". + For other precautions, consult the iPod BB Owners manual. + “iPod” is a trademark of Apple Computer, Inc. registered in the U.S. and other countries. Pay button + Play or pause a CD, DVD or iPod BB. [7] button + Press the button, switches the user titles or track titles, etc. while in the CD changer mode. + Use the button to input a title in the CD changer mode. Use the button to scroll the title during CD- text play. [BND] button + Move the next disc in increasing order. [UP], [DN] buttons + Select the disc. [RDM] button + Perform random play. Also perform disc random play when the button is pressed and held. [RPT] button + Perform repeat play. When this button is pressed and held, disc repeat play is performed. ISCN] button + Perform scan play for 10 seconds of each track. Disc scan play is performed when the button is pressed and held. & [Hé DB1] lever + Select a track when listening to a disc. + Press the lever upward or downward and hold in position for 1 second or longer to enter the fast-forward or fast-backward mode. oxz76smP 7 280-8335-00

”] | +DXZ765MP-003-8-ENG 1

1. When the inside of the car is very cold and the

2. Driving on extremely bumpy roads which

cause severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even

USE OF CONTROLS, ADJUSTMENTS, OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN, MAY

CHANGES OR MODIFICATIONS TO THIS

PRODUCT NOT APPROVED BY THE

MANUFACTURER WILL VOID THE

WARRANTY AND WILL VIOLATE FCC

APPROVAL. Bottom View of Source Unit DXZ765MP 280-8335-00

Motorized Face CHENE DOM This unit uses motorized face to make large-screen displays possible. When you use the motorized face, be sure to close it. ACAUTION BE CAREFUL NOT TO GET YOUR FINGERS

CAUGHT WHEN OPENING AND CLOSING

1. For safety's sake, always close the

2. Before the MOTORIZED FACE closes, there

may be a braking sound from the safety mechanism. This is normal. Handling Compact Discs

3. If you move the MOTORIZED FACE by hand,

5. To avoid scratching the compact disk, keep

the 12 or 8 cm CD level when inserting or removing them.

Use only compact discs bearing the (SE or mark.

Display Items Displays icon corresponding to playback or selection. Source indication \ Band / disc No. / folder No. indication Operation status indication en -Preset channel / É M track No. indication

The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP (DETACHABLE CONTROL PANEL) case to prevent scratches. We recommend taking the DCP with you when leaving the car. Removing the DCP

1. With the MOTORIZED FACE closed, turn off

2. Press the [RELEASE] button deeply to open

the DCP. [RELEASE] button ACAUTION + Always close the MOTORIZED FACE before removing the DCP. + If you remove the DCP with the MOTORIZED FACE open, the MOTORIZED FACE closes immediately. Be careful not to get your fingers caught. Attaching the DCP

1. Insert the DCP so that the @ section on the

right side of the DCP catches on the hook on the unit.

2. Press the left side © of the DCP carefullÿ to

fititin place. | ACAUTION The DCP can easily be damaged by shocks. After removing it, be careful not to drop it or subject it to strong shocks. I the [RELEASE] button is pressed and the DCP is not locked into place, it may fall out from vibration of the car. This can break the DCP, so after removing it, either install it on the unit or put it in its DCP case. + The connector connecting the unit and the DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, screwdrivers, etc. Note: + Hfthe DCP is dirty, wipe off the dirt with a soft, dry cloth only. oxzzesme 11 280-8335-00

Inserting the Battery @ Turn over the remote control unit and slide the cover in the direction indicated by the arrow in the illustration. @ Insert the battery (CR2025) into the insertion guides, with the printed side (+) facing upwards. @ Press the battery in the direction indicated by the arrow so that it slides into the compartiment. @ Replace the cover and slide in until it clicks into place. Notes: Misuse may result in rupture of the battery, producing leakage of fluid and resulting in personal injury or damage to surrounding materials. Always follow these safety precautions: + Use only the designated battery . + When replacing the battery, insert properly, with +/- polarities oriented correctiy. + Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. + Dispose of used batteries properiy. 12 owssw

Functions of Remote Control Unit Buttons Mode iPod BB Radio/Satellite CD/MP3/WMA CD changer TV Button DVD changer [SRC] | Switches among radio, Satellite Radio Receiver, CD/MP3/WMA, iPod BB, CD changer, DVD changer, TV and AUX. IBND] | Switches reception | Returns to the first Moves the next disc | Switches reception band. track. in increasing order. | band. [A], [w] | increases and decreases volume (in all modes) 1HQ ; Di] | Moves preset Moves tracks up and down Moves preset channels up and When pressed and held for 1 second or longer: | channels up and down Fast-forward/fast-backward. down. No function. Suitches between playback and pause. No function: [MUTE] | Tums mute on and oft. IISR] Recalls ISR radio station in memory. When pressed and held for 2 seconds or longer: Stores current station into ISR memory (radio mode only). [DISP] | Switches among main display and title display. When pressed and held for 1 second or longer: Switches the titles (except in the radio, DVD changer, TV mode) ISCN] | Preset scan Scan play. Scan play. Preset scan When pressed and | When pressed and | When pressed and | When pressed and held for 2 seconds or | held for 1 second or | held for 1 second or | held for 2 seconds or longer: longer: longer: longer: Auto store. Folder scan play Disc scan play. Auto store. (MP3/WMA mode). | * Cannot operate via iPod BB. IRPT] No function. Repeat play. Repeat play. No function. When pressed and | When pressed and held for 1 second or | held for 1 second or longer: longer: Folder repeat play | Disc repeat play. (MP3MWMA mode). IRDM] | No function. Random play. Random play. Switches between TV When pressed and | When pressed and | and VTR. held for 1 second or | held for 1 second or longer: longer: Folder random play | Disc random play. (MP3/WMA mode). + Some of the corresponding buttons on the main unit and remote control unit have different functions. oxzzesme 13 280-8335-00

7.OPERATIO Basic Operations Note:Be sure to read this chapter referring to the front diagrams of chapter ‘3. CONTROLS" on page 5 (unfold). Î ACAUTION | Be sure to lower the volume before switching off the unit power or the ignition key. The unit remembers its last volume setting. If you switch the power off with the volume up, when you switch the power back on, the sudden loud volume may hurt your hearing and damage the ui Turning on/off the power Note: + Be careful about using this unit for a long time without running the engine. If you drain the cars battery too far, you may not be able to start the engine and this can reduce the service life of the battery. . Press the [SRC] button.

2. The illumination and display on the unit light

up. The unit automatically remembers its last operation mode and will automatically switch to display that mode.

3. Press and hold the [SRC] button for 1 second

or longer to turn off the power for the unit. Note: + System check During the initial power up of this unit, it will go through a system check procedure. This procedure verifies any devices connected through CeNET. Any additional CeNET devices plugged into the unit after the initial power up will initiate the system check procedure. When the power is turned on, “SYSTEM CHECK” appears in the display if the wire connections were modified. The system check starts automatically within the unit. Selecting a mode

1. Press the [SRC] button to change the

2. Each time you press the [SRC] button, the

operation mode changes in the following order: Radio mode + Satellite Radio mode + CD/MP3/WMA mode + CD changer (iPod BB) mode + CD changer mode + DVD changer mode + TV mode + AUX mode + Radio mode... + External equipment not connected through CeNET will not be displayed. 14 os Adjusting the volume . Press the front part of the [ROTARY] knob. The knob will pop up.

2. Turn the [ROTARY] knob to adjust the

volume. + The volume level is from O (minimum) to 33 (maximum). Switching the display @When the power is turned on

1. Each time you press the [D] button, the

display switches in the following order: Main display -> Title display -> Main display …

2. Press and hold the [D] button for 4 seconds

or longer to turn off the display while in the usual play, ISR mode, telephone interrupt. And press the button to return to the previous mode. + Once selected, the preferred display becomes the display default. When a function adjustment such as volume is made, the screen will momentarily switch to that function's display, then revert back to the preferred display several seconds after the adjustment. + When you have entered a title in a CD/MP3/ WMA, it appears in the display. lf you have not entered a title, ‘{]' appears in the display. For information on how to enter a title, refer to the subsection “Entering titles” in the section “Common Operations”. @When the power is turned off

1. Each time you press the [D] button, the

display switches in the following order: Clock display + Display off > Clock display... Setting MAGNA BASS EXTEND The MAGNA BASS EXTEND does not adjust the low frequencies like the normal sound adjustment function, but emphasizes the deep bass frequencies to provide you with a dynamic sound. + The factory default setting is “OFF”.

1. Press and hold the [A-M] button for 1 second

or longer to turn on the MAGNA BASS EXTEND effect. “MB” light in the display. 280-8335-00

2. Press and hold the [A-M] button for 1 second

or longer to turn off the MAGNA BASS EXTEND effect. “MB” goes off. Setting the Z-Enhancer This unit are provided with 3 types of sound tone effects stored in memory. Select the one you prefer.

The factory default setting is “OFF”. Each time you press the [Z] button, the tone effect changes in the following order:

“OFF” + “BASS BOOST" - “IMPACT” +

“EXCITE” + “OFF”. + BASS BOOST : bass emphasized + IMPACT : bass and treble emphasized + EXCITE : bass and treble emphasized mid deemphasized + OFF : no sound effect Adjusting the tone Press the [A-M] button and select the item to adjust. Each time you press the [A-M] button, the item changes as following order: @When “BASS BOOST” is set

“SW VOLUME” + “BALANCE” +

+ Last function mode... @When “IMPACT” is set

“SW VOLUME” + “BALANCE” +

+ Last function mode... @When “EXCITE" is set

“SW VOLUME" + “BALANCE” + “FADER”

+ Last function mode. @When “OFF” is set

“SW VOLUME” + “# BASS” +

“4 TREB” + “BALANCE” + “FADER" +

Last function mode... Notes: + As subwoofer is effective, “SW VOLUME” can be selected. + The display automatically returns to the previous mode. “FADER” “FADER” Adjusting the subwoofer + The factory default setting is “0” + This function can be adjusted only when the subwoofer output is set to “ON”. For details on how to set the subwoofer, refer to the subsection “Setting the subwoofer” in the section “Operations Common to Each Mode”.

1. Press the [A-M] button to select “SW

2. Turn the [ROTARY] knob to select from —6 to

3. When the adjustment is complete, press the

[A-M] button several times until the function mode is reached. Adjusting the bass This adjustment can only be performed when the Z-Enhancer Plus is set to “OFF”.

1. Press the [A-M] button and select“ BASS”.

2. Turn the [ROTARY] knob to adjust the bass.

The factory default setting is “0”. (Adjustment range: —6 to +7)

3. When the adjustment is complete, press the

[A-M] button several times until the function mode is reached. Adjusting the treble This adjustment can only be performed when the Z-Enhancer Plus is set to “OFF”.

1. Press the [A-M] button and select “# TREB”.

2. Turn the [ROTARY] knob to adjust the treble.

The factory default setting is “0”. (Adjustment range: —6 to +6)

3. When the adjustment is complete, press the

[A-M] button several times until the function mode is reached. Adjusting the balance

1. Press the [A-M] button and select

2. Turn the [ROTARY] knob to adjust the

balance of the left and right speakers.

The factory default setting is “0”. (Adjustment range: L13 to R13)

3. When the adjustment is complete, press the

[A-M] button several times until the function mode is reached. Adjusting the fader . Press the [A-MI button and select ‘FADER". ; Turn the [ROTARY] knob to adjust the balance of the front and rear speakers.

The factory default setting is “0”. (Adjustment range: F12 to R12)

3. When the adjustment is complete, press the

[A-M] button several times until the function mode is reached. oxzzesme 15 280-8335-00

Radio Operations Listening to the radio . Press the [SRC] button and select the radio mode. The frequency appears in the display.

2. Press the [BND] button and select the radio

band. Each time the button is pressed, the radio reception band changes in the following order: F1 (FM) + F2 (FM2) + F3 (FM3) + A (AM) + F1 (FMI)...

3. Press the [k64, BI] lever upward or

downward to tune in the desired station. Tuning There are 3 types of tuning modes available, seek, manual and preset tuning. Seek tuning

1. Press the [BND] button and select the

desired band (FM or AM). + IF“MANU" is lit in the display, press and hold the [BND] button for 1 second or longer. “MANU” in the display goes off and seek tuning is now available.

2. Press the [k£4, BB] lever upward or

downward to start automatic station tuning. When the lever is moved up, the station is sought in the direction of higher frequencies: if the lever is moved down, the station is sought in the direction of lower frequencies. Manual tuning There are 2 ways available: Quick tuning and step tuning. When you are in the step tuning mode, the frequency changes one step at a time. In the quick tuning mode, you can quickly tune the desired frequency.

1. Press the [BND] button and select the

desired band (FM or AM). + IF“MANU" is not lit in the display, press and hold the [BND] button for 1 second or longer. “MANU "is lit in the display and manual tuning is now available.

2. Tune into a station.

@Quick tuning: Press the [k4, 1] lever upward or downward and hold in position for 1 second or longer to begin station tuning. @Step tuning: Press the [44,1] lever upward or downward to perform manual tuning. 16 ox7ssw Recalling a preset station À total of 24 preset positions (6-FM1, 6-FM2, 6- FM3, 6-AM) exists to store individual radio stations in memory. Pressing the corresponding [DIRECT] button recalls the stored radio frequency automatically.

1. Press the [BND] button and select the

desired band (FM or AM).

2. Press the corresponding [DIRECT] button to

recall the stored station. + Press and hold one of the [DIRECT] buttons for 2 seconds or longer to store that station into preset memory. Manual memory

1. Select the desired station with seek tuning,

manual tuning or preset tuning.

2. Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store the current station into preset memory. Auto store Auto store is a function for storing up to 6 stations that are automatically tuned in sequentially. If 6 receivable stations cannot be received, a previously stored station remains unoverwritten at the memory position.

1. Press the [BND] button and select the

desired band (FM or AM).

2. Press and hold the [P1] button for 2

seconds or longer. The stations with good reception are stored automatically to the preset channels. Preset scan Preset scan receives the stations stored in preset memory in order. This function is useful when searching for a desired station in memory.

1. Press the [P1y] button.

2. When a desired station is tuned in, press the

[Wu] button again to continue receiving that station. Note: + Be careful not to press and hold the [' dl J button for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing Stations. 280-8335-00

Radio Operations CD/MP3/WMA Operations Instant station recall (ISR) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button. The ISR function even operates with the unit in other modes. @ISR memory

1. Select the station that you wish to store in ISR

2. Press and hold the [ISR] button for 2 seconds

or longer. @Recalling a station with ISR In any mode, press the [ISR] button to turn on the radio function and tune the selected radio station. “ISR” appears in the display. Press the [SR] button again to return to the previous mode. MP3/WMA What is MP3? MP3 is an audio compression method and classified into audio layer 3 of MPEG standards. This audio compression method has penetrated into PC users and become a standard format. This MP3 features the original audio data compression to about 10 percent of its initial size with a high sound quality. This means about 10 music CDS can be recorded on a CD-R disc or CD-RW disc to allow a long listening time without having to change CDs. What is WMA? WMA is the abbreviation of Windows Media Audio, an audio file format developed by Microsoft Corporation. Notes: + Hf you play a file with DRM (Digital Rights Management) for WMA remaining ON, no audio is output. (The DRM indicator links.) + Windows Media”", and the Windows® logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. @To disable DRM (Digital Rights Management):

2. When using Windows Media Player 9, click

on TOOL + OPTIONS + MUSIC RECORD tab, then under Recording settings, unclick the Check box for RECORD PROTECTED MUSIC. Then, reconstruct files. Personally constructed WMA files are used at your own responsibility. Precautions when creating MP3/WMA disc © Usable sampling rates and bit rates:

1. MP3: Sampling rate 11.025 KHZ-48 kHz,

Bit rate: 8 kbps-320 kbps / VBR

2. WMA: Bit rate 48 kbps-192 kbps

© File extensions Always add a file extension “.MP3" or «WMA to MP3 or WMA file by using single byte letters. If you add a file extension other than specified or forget to add the file extension, the file cannot be played. oxzzesme 17 280-8335-00

2. Files without MP3/WMA data will not play.

The indication “———" appears in the play time display if you attempt to play files without MP3/WMA data. © Logical format (File system)

1. When writing MP3WMA file on a CD-R disc

or CD-RW disc, please select ‘1509660 level 1, 2 or JOLIET or Romeo” as the writing software format. Normal play may not be possible if the disc is recorded on another format.

2. The folder name and file name can be

displayed as the title during MP3/WMA play but the title must be within 64 single byte alphabetical letters and numerals (including an extension).

3. Do not atix a name to a file inside a folder

having the same name. © Folder structure

1. A disc with a folder having more than 8

hierarchical levels will be impossible. © Number of files or folders

1. Up to 255 files can be recognized per folder.

Up to 512 files can be played.

2. Tracks are played in the order that they were

recorded onto a disc. (Tracks might not always be played in the order displayed on the PC.)

3. Some noise may occur depending on the type

of encoder software used while recording. Multisession function When a disc contains both normal CD type tracks and MP3/WMA type tracks mixedly, you can select which type of the recorded tracks to play. © Default value is “CD”. Each time you press and hold the [BND] button for 1 second or longer, the mixed mode is switched between CD type and MP3/WMA type.

1. Types of recording that can be played are as

2. After making these settings, remove the disc

and then reinsert it. 18 ox7ssw

3. When a mixed mode CD is loaded and CD is

set, the track to be played first is MP3/WMA file data and no sound is heard. Note: + When playing a CCCD (Copy Control CD), set the setting to CD type. When this is set to MP3/WWA type. the CD cannot be played normally in some cases. Disc-In-Play function As long as the ignition key is turned to the ON or ACC position, this function allows you to turn the power to the unit and start playing the disc automatically when the disc is inserted even if the power is not tumed on. Loading a CD . Press the [Æ] button. The MOTORIZED FACE opens.

2. Insert a CD into the center of the CD SLOT

with the label side facing up. The CD plays automatically after loading.

3. After loading a CD, the MOTORIZED FACE

closes automatically. Notes: + Never insert foreign objects into the CD SLOT. + Ifthe CD does not insert easily, there may be another CD in the mechanism or the unit may require service. + Discs not bearing the [JTE or ps mark and CD-ROMS cannot be played by this unit + Some CDs recorded in CD-R/CD-RW mode may not be usable. Loading 8 cm compact discs + No adapter is required to play an 8 cm CD. + Insert the 8 cm CD into the center of the insertion slot. Backup Eject function Pressing the [Æ] button ejects the disc even if the power to the unit is not turned on.

1. Press the [&] button. Remove the disc after

itis ejected. Note: + Be sure to close the MOTORIZED FACE after removing the CD. 280-8335-00

CD/MP3/WMA Operations ACAUTION Be careful not to get your fingers caught when opening and closing the MOTORIZED FACE. Do not try to put your hand or fingers in the disc insertion slot. Also never insert foreign objects into the slot. Do not insert discs where adhesive comes out from cellophane tape or a rental CD label, or discs with marks where cellophane tape or rental CD labels were removed. It may be impossible to extract these discs from the unit and they may cause the unit to break down. Listening to a disc already loaded in the unit Press the [SRC] button to select the CD/MP3/ WMA mode. When the unit enters the CD/MP3/WMA mode, play starts automatically. Ifthere is no disc loaded, the indication “NO DISC" appears in the display. Pausing play

1. Press the [D] button to pause play.

“PAUSE” appears in the display.

2. To resume CD play, press the [jp] button

again. Displaying CD titles This unit can display title data for CD-text/MP3/ WMA disc and user titles input with this unit.

1. Each time you press the [T] button, the title

changes in the following order: @CD-TEXT disc User title(disc) {None) Artist name CD-text title (track) User title(disc) CD-text tie (disc) Artist name [CD-text title (track) CD-text title (disc) {None) @MP3/WMA disc Folder _| [= Track Album TAG Track Album TAG Artist TAG = Artist TAG Title TAG Folder Title TAG Folder Track Notes: + Ifthe CD playing is not a CD-text CD or no user title has been input, “ll” appears in the display. + If MP3/WMA disc is not input TAG, “EX” appears in the display. + For MP3, supports ID3 Tags V2.3/ 2.2 / 1.1 / 1.0. + Tag displays give priority to V2.3 / 2.2. + In the case of album Tags for WMA, the information written into the extension header is displayed. + Only ASCII characters can be displayed in Tags. Selecting a track @Track-up

1. Press the [H&, 1] lever upward to move

to the beginning of the next track.

2. Each time the [4, BI] lever is pressed

upward, playback proceeds to another track in the advancing direction. @Track-down

1. Press the [H&4, 1] lever downward to

move the beginning of the current track.

2. Press the [HÉ, 41] lever downward twice to

move to the beginning of the previous track. Fast-forward/fast-backward @Fast-forward Press the [H4, 1] lever upward and hold in position for 1 second or longer. @Fast-backward Press the [(4, D] lever downward and hold in position for 1 second or longer. + For MP3/WMA discs, it takes some time until the start of searching and between tracks. In addition, the playing time may have a margin of error. Folder Select This function allows you to select a folder containing MP3/WMA files and start playing from the first track in the folder.

1. Press the [DN] or the [UP] button:

Press the [DN] button to move the previous folder. Press the [UP] button to move the next folder. oxzzesme 19 280-8335-00

CD/MP3/WMA Operations Root folder FE,

EH, + Press the [UP] button while in the final folder to shift to the first folder. + Folder without an MP3/WMA file is not selectable.

2. To select a track, press the [H@4, 1] lever

upward or downward. Top function The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc.

In case of MP3/WMA, the firsttrack of a folder being played will be retumed. Other various play functions © Scan play This function allows you to locate and play the first 10 seconds of all the tracks recorded on a disc.

1. Press the [SCN] button to perform scan play.

“SCAN” appears in the display.

Scan play starts from the next track after the track currently being played. @Folder scan play This function allows you to locate and play the first 10 seconds of the first track of all the folders on an MP3/WMA disc.

1. Press and hold the [SCN] button for 1

second or longer to perform folder scan play. “ESCAN" appears in the display. + Folder scan play starts from the next track after the track currentiy being played. 20 ox765w @Repeat play This function allows you to play the current track repeatedly.

1. Press the [RPT] button to perform repeat play.

“RPT” appears in the display. @Folder repeat play This function allows you to play a track currently being played in the MP3/WMA folder repeatediy.

1. Press and hold the [RPT] button for 1 second

or longer to perform folder repeat play. “RRPT” appears in the display. @Random play This function allows you to play all tracks recorded on a disc in a random order.

1. Press the [RDM] button to perform random

play. “RDM" appears in the display. © Folder random play This function allows you to play all the tracks of all the folders recorded on an MP3/WMA disc in a random order.

1. Press and hold the [RDM] button for 1

second or longer to perform folder random play. “FRDM" appears in the display. @To cancel play

1. Press the operating button previously

selected. 280-8335-00

Operations Common to Each Mode To change display setting

1. Press and hold the [D] button for 1 second

or longer to switch to the adjustment selection display.

2. Press the [H4, 1] lever upward or

downward to select the “item name”.

“& CLOCK" <> “# BGV” <> “+ POWER

MSG” <> “& SCRN SAVER" <> “& MSG

INPUT” <> “& AUTO SCRL” +

3. Turn the [ROTARY] knob to select the

“desired setting value”. + After completing settings, press the [D] button to return to the previous mode. @Setting the clock 2-1. Select “& CLOCK”. 2-2. Press the [by] button 2-3. Press the [HA BI] lever upward or downward to select the hour or the minute. 3-1. Turn the [ROTARY] knob to set the correct time. + The clock is displayed in 12-hour format. 3-2. Press the Du] button to store the time into memory. Note: + You cannot set the clock when it is displayed with only the ignition on. f you drain or remove the car's battery or take out this unit, the clock is reset. While setting the clock, if another button or operation is selected, the clock set mode is canceled. @Setting the background vision The background vision includes 5 wallpaper images and 3 motion pictures. Choose “SCAN" to automatically display all the wallpaper. + The factory default setting is “SCAN”. 2-1. Select ‘& BGV”. 8-1. Turn the [ROTARY] knob to select the setting Each time you tum the [ROTARY] knob, the setting changes in the following order:

“SCAN” «> “MOVIE 1” <> “MOVIE 2” <>

“MOVIE 3” <> “WALL 1” <> “WALL 2” <>

“WALL 3” <> “WALL 4” <> “WALL 5” <>

“OFF” @Setting the power message display When the unit is powered on or off, a message is displayed. The user can turn this message display “ON” or “OFF”. + The factory default setting is “ON”. 2-1. Select “& POWER MSG”. 3-1. Tum the [ROTARY] knob to select “ON” or “OFF”. + ON: When the power is on or off, the message will appear in the display. + OFF: When the power is on or off, the message won't appear in the display. © Turning the screen saver function on or off This unit features various screen saver patterns that are exhibited across the display. If the screen savers are not desired, they can be turned off. the button operation is performed with the screen saver function on, the operation display corresponding to the button operation is shown for about 30 seconds and the display returns to the screen saver display. + The factory default setting is “DEMO”. 2-1. Select ‘& SCRN SAVER". 2-2. Press the [by] button. 3-1. Turn the [ROTARY] knob to select the setting. Each time you turn the [ROTARY] knob, the setting changes in the following order:

OFF + MSG INFO + DEMO

@Entering MESSAGE INFORMATION When “MESSAGE” is selected for the screen saver setting, you can change the contents of the message. + Up to 30 characters can be entered. + The factory default setting is ‘Welcome to Clarion”. 2-1. Select “& MSG INPUT” 2-2. Press the [by] button. 2-8. Press the [k4, bb] lever upward or downward to move the cursor. 2-4. Press the [BND] button to select a character. Each time you press the [BND] button, the character changes in the following orders: Capital letters -> Small letters + Numbers/Symbols > Umlaut + Capital letters. 3-1. Turn the [ROTARY] knob to select the desired character. 3-2. Repeat steps 2-3 to 3-1 to enter up to 30 characters for message. oxzzesme 21 280-8335-00

Operations Common to Each Mode 3-3. Press and hold the [Pjy] button for 2 seconds or longer to store the message in memory and return to the display adjust mode. + Press and hold the [BND] button for 1 second or longer to delete the message. Then press and hold the (9 ] button for 2 seconds or longer to return the message to the default setting. @Setting the method for title scroll Set how to scroll in CD-TEXT, MP3/WMA TITLE.

The factory default setting is “ON”. 2-1. Select “& AUTO SCRL” 3-1. Turn the [ROTARY] knob to select “ON” or “OFF” - ON: Scrolls automatically. - OFF: Scrolls just 1 time when the title was changed or you press and hold the [T] button for 1 second or longer. @Setting the DIMMER control You can set the dimmer control “ON” or “OFF”. + The factory default setting is “ON”. 2-1. Select ‘& DIMMER". 3-1. Turn the [ROTARY] knob to select on “ON” or “OFF”. To change other settings

1. Press the [ADJ] button to switch to the

adjustment selection display.

2. Press the [H4, 1] lever upward or

downward to select the ‘item name”. Each time the [H4, BI] lever is pressed up/down, the item display changes in the following order: “éBLINK LED” <> “SUB-W” <>

“&SUB-W LPF” <> “# AMP CANCEL" <>

“&SID DISP” <> “& AUX SENS” <>

8. Turn the [ROTARY] knob to select the

“desired setting item” + After completing settings, press the [ADI] button to return to the previous mode. 22 oxw7esw @Anti-theft indicator The red Anti-theft indicator is a function for preventing theft. When the DCP is removed from the unit, this indicator blinks. + The factory default setting is “OFF”. 2-1. Select “# BLINK LED”. 3-1. Turn the [ROTARY] knob to select “ON” or “OFF”. @Setting the subwoofer You can set the subwoofer on or off. + The factory default setting is “ON”. 2-1. Select ‘# SUB-W”. 3-1. Turn the [ROTARY] knob to select “ON” or “OFF”. @Setting LOW PASS FILTER + The factory default setting is “THROUGH”. + lf subwoofer function is set “ON, ‘LOW PASS FILTER" can be selected. 2-1. Select ‘& SUB-W LPF. 8-1. Tum the [ROTARY] knob to select the setting. Each time you turn the [ROTARY] knob, the setting changes in the following order: THROUGH + 50 Hz + 80 Hz > 120 Hz @Setting the external ampl + The factory default setting is “OFF”. 2-1. Select ‘& AMP CANCEL”. 3-1. Turn the [ROTARY] knob to select “ON” or “OFF”. + ON: Use with connected AMP. + OFF: Use with inside AMP. @Displaying the Satellite ID No. + This function only applies when a Satellite receiver is connected. + The factory default setting is the upper 6 digits. 2-1. Select “+ SID DISP”. 3-1. Turn the [ROTARY] knob to switch between the display for the upper 6 digits and lower 6 digits.

Operations Common to Each Mode @ Adjusting the auxiliary input sensitivity Adjust the auxiliary sensitivity when the audio from an external device is difficult to hear even after adjusting the volume. + The factory default setting is “MID”. 2-1. Select ‘& AUX SENS”. 3-1. Turn the [ROTARY] knob to select from “LOW”, “MID” or “HIGH”. @Performing a system check This function verifies the devices hooked up through CeNET. 2-1. Select ‘# SYSTEM CHECK”. 2-2. Press and hold the [Pyy] button for 1 second or longer to start the system check. The digital connection configuration is automatically checked. When the system check is complete, the display returns to the previous mode. Other operations Setting the button illumination Press the [C] button to select a color. Each time you press the [C] button, the color changes in the following order: COLOR SCAN + Indigo Blue -> Surf Blue + Silky White + Aqua Green + Fresh Green > Leaf Green > Warm Amber + Passion Red -> Vivid Pink — Pale Pink > Dark Violet + Pure Purple + USER COLOR 1 -> USER COLOR 2 + USER COLOR 3 -> COLOR SCAN... @Setting COLOR SCAN mode Selecting “COLOR SCAN", the color automatically changes. + The factory default setting is “COLOR SCAN".

Every 3 seconds the color changes to another. @Setting USER mode

The factory default setting is “RED 8, GREEN 8, BLUE 8”. Selecting “USER COLOR 1, 2, 3", press and hold the [C] button for 1 second or longer. “+ RED 8” appears in the display.

1. Press the [4, 1] lever upward or

downward to move the cursor.

2. Turn the [ROTARY] knob to select from 0 to

3. Press and hold the [by] button for 2

seconds or longer to store the color in memory and return to the previous mode COLOR Indigo Blue Surf Blue Silky White Aqua Green Fresh Green Leaf Green Warm Amber Passion Red Vivid Pink Pale Pink Dark Violet Pure Purple USER COLOR 1 USER COLOR 2 USER COLOR 3 œælæ|æ|o|w|æ|æ|æ|o|w|olo|ælo|o|z œælæ|æ|o|o|w|lo|olw|æ|æ|o|æ|r|o|o œælæ|æ|æ|æ|wlw|o|lo|o|olw||o|æ|m Entering titles Titles up to 10 characters long can be stored in memory and displayed for CD, CD changer and Radio/TV stations. The number of titles that can be entered for each mode are as follows. Mode Number of titles CD mode 50 titles TV mode 20 titles Radio mode 30 titles Number of titles 100 titles 100 titles CD changer mode DCZ625 connected CDC655Tz connected

1. Press the [SRC] button to select the mode

you want to enter a title (Radio, CD, CD changer or TV).

2. Play a track or tune in to a radio/TV station

for which you want to enter the title.

3. Do one of the following:

4. Press and hold the [T] button for 1 second or

longer to switch to the title input display.

5. Press the [H4, 1] lever upward or

Operations Common to Each Mode

6. Press the [BND] button to select a character.

Each time you press the [BND] button, the character changes in the following order: Capital letters > Small letters + Numbers/Symbols > Umlaut - Capital letters.

7. Turn the [ROTARY] knob to select the

8. Repeat steps 5 to 7 to enter up to 10

characters for the title.

9. Press and hold the [P1] button for 2

seconds or longer to store the title into memory and return to the previous mode. Glearing titles . Play a track or tune in to a radio/TV station for which you want to delete the title.

2. Do one of the following

@ in the CD or CD changer mode Press the [T] button to select title display. @ in the radio or TV mode Skip this step.

3. Press and hold the [T] button for 1 second or

longer to switch to the title input display.

4. Press and hold the [BND] button for 1

second or longer to delete the title.

5. Press and hold the [jp] button for 2

seconds or longer to store the setting and return to the previous mode. Cellular telephone mute This unit requires special wiring to mute the audio signal automatically when à cellular telephone rings in the car.

This function is not compatible with all cellular telephones. Contact your local authorized Clarion dealer for information on proper installation and compatibility. AUX function This system has an external input jack so you can listen to audio from an external device connected to this unit. 24 ox765w 280-8335-00

8. OPERATIONS OF ACCESSORIE

CD Changer Operations Note: + The following operations are the same as for CD mode: + Pause + Track selection + Fast-forward/fast-backward + Scan play + Repeat play + Random play See “CD/MP3/WMA Operations” (page 17-20) for details. CD changer functions When an optional CD changer is connected through the CeNET cable, this unit controls all CD changer functions. This unit can control a total of 2 changers. Press the [SRC] button and select the CD changer mode to start play. If 2 CD changers are connected, press the [SRC] button to select the CD changer for play. + If*NO MAGAZINE” appears in the display. insert the magazine into the CD changer. “DISC CHECK” appears in the display while the player loads {checks) the magazine. + IÉ “NO DISC” appears in the display, eject the magazine and insert discs into each slot. Then, reinsert the magazine back into the CD changer. Note: + Some CDs recorded in CD-R/CD-RW mode may not be usable. | ACAUTION | CD-ROM discs cannot be played from every CD changer, it's depended on the model. Pausing play

1. Press the [Pyp] button to pause play.

“PAUSE” appears in the display.

2. To resume play, press the WT ] button again.

Displaying CD titles This unit can display title data for CD-text CDs and user titles input with this unit. @When connected to CDC655Tz or DCZ625

1. Each time you press the [T] button, the title

changes in the following order: User title (disc) -> CD-text title (disc) -> Artist name -> CD-text title (track) + User title (disc). Notes: + the CD playing is not a CD-text CD or no user title has been input, “EM” appears in the display. + Ha CD-text CD is not input its disc title or a track title, “or “A” appears in the display. Procedure to scroll a title Set “SCROLL" to “ON” or “OFF”. (The factory default setting is “ON”. Refer to the subsection Setting the method for title scroll” in the section “Operations Common to Each Mode”. © When set to “ON” The title is automatically kept scrolling. @ When set to “OFF” To scroll just { time when the title was changed or you press and hold the [T] button for 1 second or longer. Selecting a CD Press the [UP] or the [DN] button to select the desired disc. + Ifa CD'is not loaded in a slot of magazine, pressing the [UP] or the [DN] button cannot work. Other various play functions Disc scan play Disc scan play locates and plays the first 10 seconds of the first track on each disc in the currently selected CD changer. This function continues automatically until it is cancelled. + Disc scan play is useful when you want to select a desired CD.

CD Changer Operations @ Disc repeat play After all the tracks on the current disc have been played, disc repeat play automatically replays the current disc over from the first track. This function continues automatically until it is cancelled.

1. Press and hold the [RPT] button for 1 second

or longer. TV Operations @Disc random play The disc random play selects and plays individual tracks or discs automatically in no particular order. This function continues automatically until it is cancelled

1. Press and hold the [RDM] button for 1

second or longer. @To cancel play

1. Press the operating button previously selected.

Note: + The following operations are performed the same as for radio mode:

Storing channels in memory
Calling channels from memory
Auto store + Preset scan See ‘Radio Operations” (page 16-17) for details. TV tuner functions When an optional TV tuner is connected through the CeNET cable, this unit controls all TV tuner functions. To watch TV it requires a TV tuner and a monitor. Watching aTV . Press the [SRC] button and select the TV mode.

2. Press the [BND] button to select the desired

TV band (TV1 or TV2). Each time the button is pressed, the input selection toggles between TV1 and TV2

3. Press the [k64, BI] lever upward or

downward to tune in the desired TV station. + Atotal of 12 TV stations can be stored (6-TV1 and 6-TV2). This allows you to select your favorite TV stations and store them in memory. Watching a video The TV tuner features a VTR input for an external AV source, such as a DVD player or game station.

1. Press and hold the [AD] button for 1 second

or longer to select VTR.

2. To return to the TV broadcast, press and

hold the [ADU] button for 1 second or longer. 26 ox765w Setting the TV diver You can change the reception setting for the TV antenna connected to the TV tuner. + The factory default setting depends on the TV.

1. Press the [ADJ] button to switch to the adjust

2. Press the [H4, 1] lever upward or

downward to select “# TV DIVER”.

3. Turn the [ROTARY] knob to select “ON” or

4. Press the [ADJ] button to return to the

Problem Cause Measure Power does not turn on. {No sound is produced.) Fuse is blown. Replace with a fuse of the same amperage. Ifthe fuse blows again, consult Clarion dealer. Incorrect wiring. Consuit Clarion dealer. No audio when operating the unit with amplifiers. Amplifier turn-on lead is shorted to ground or excessive current is required. Turn the unit off and check each wire for a possible short. the amplifier turn-on lead shorts out, cover it with insulation such as tape. Nothing happens when buttons are The microprocessor has malfunctioned due to noise, Turn off the power, then press the [RELEASE] File system is not correct.

& K 5 | pressed. etc. button and remove the DCR. SŸ, È Press the reset button for Ÿ Ô about 2 seconds with a thin RSI rod. DE Display is not | DCP or main unit connectors | Wipe the dirt off with a soft cloth moistened with accurate. are dirty. cleaning alcohol. No audio. The speaker protection 1. Check the speaker connection. circuit is operating. 2. Turn down sound volume. Function can also be restored by tuning the power off and on again.

3. Hthe sound is muted again, consult Clarion

dealer. No audio. There is a disc other than a | With the MOTORIZED FACE open, press and hold compact disc or foreign the [Æ] button for 3 seconds or longer. object already in place. The foreign object is forcibly ejected. MP3/WMA files are absent | Write MP3/WMA files onto the disc properiy. £ on the disc. ë Files are not recognized as _ | Use MP3WMA files encoded properiy. Ë an MP3/WMA file.

Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Sound skips or is noisy. Disc is dirty. Clean the disc with a soft cloth. Disc is heavily scratched or warped. Replace with a disc with no scratches. oxzzesme 27 280-8335-00

Problem Cause Measure Sound is cut or skipped. Noise is generated or noise is mixed MP3/WMA files are not encoded properly. Use MP3/WMA files encoded properly. £ | with sound. Ë Poor sound Water droplets may form on | Let dry for about 4 hour with the power on. S | quality in the internal lens when the & | extremely cold | car is parked in a humid © | weather or place. extreme humidity. Wrong filename _ | File system is not correct. | Use ISO9660 level 1, 2 or JOLIET or Romeo file system. 28 ox765w 280-8335-00

If an error occurs, one of the following displays is displayed. Take the measures described below to eliminate the problem. Error Display Cause Measure ERROR 2 A DISC is caught inside the CD deck andis | This is a failure of CD deck's mechanism and < not ejected. consult Clarion dealer. È ERROR 3 A DISC cannot be played due to scratches, | Replace with a non-scratched disc. É etc. © | ERROR6 A DISC is loaded upside-doun inside the | Eject the disc then reload it properly. CD deck and cannot play. ERROR 2 A DISC inside the CD changer is not loaded | This is a failure of CD changer's mechanism 5 properiy. and consult Clarion dealer. $| ERRoRs A DISC inside the CD changer cannot be | Replace with a non-scratched disc. 5 played due to scratches, etc. 9 | ERROR6 A DISC inside the CD changer cannot be | Eject the disc then reload it properly. played because it is loaded upside-down. ERROR 2 A DISC inside the DVD changer is not This is a failure of DVD mechanism and loaded proper. consult Clarion dealer. | ERROR3 A DISC cannot be played due to scratches, | Retry or replace with a non-scratched disc. 8 etc. £| error A DISC inside the DVD changer cannot be | Eject the disc then reload it properly a played because it is loaded upside-down.

FM Tuner Frequency Range: 87.9 MHz to 107.9 MHz Usable Sensitivity: 9 dBf 50dB Quieting Sensitivity: 15 dBf Alternate Channel Selectivity: 70 dB Stereo Separation (1 kHz): 35 dB Frequency Response (+3 dB): 30 Hz to 15 kHz AM Tuner Frequency Range: 530 KHz to 1710 kHz Usable Sensitivity: 25 LV CD Player System: Compact disc digital audio system Usable Discs: Compact disc: Frequency Response (+1 dB): 5 Hz to 20 kHz Dynamic Range (1 kHz): 95 dB Harmonie Distortion: 0.01% Note: Maximum Power Output: 212 W (53 W X 4 ch) Bass Control Action (80 Hz): +14 dB, -12dB Treble Control Action (10 kHz): +14 dB, -12dB Line Output Level (CD 1 kHz): 4 V/6 ch General Power Supply Voltage: 14.4 V DC (10.8 to 15.6 V allowable), negative ground Current Consumption: Less than 15 A Speaker Impedance: 4 Q (4 Q to 8 Q allowable) Weight / Source unit: 1.55 kg Weight / Remote control unit:

1.41 oz. (40 g) (including battery)

Dimensions / Source unit: 7" (Width) X 2" (Height) X 6-1/8" (Depth) [178 (W) X 50 (H) X 155 (D) mm] Dimensions / Remote control unit: 1-3/4" (Width) X 4-7/16" (Height) X 1/2" (Depth) [44 (W) x 113 (H) X 13 (D) mm] Power Output : 19 W RMS x 4 Channels at 4 Q and 1 % THD4N Signal to Noise Ratio: 81 dBA (reference: 1 W into 4 Q) + Specifications and design are subject to change without notice for further improvement. 30 oxzesu 280-8335-00
