| Product Type | Freestanding Gas Cooker with Electric Oven |
| Brand | Hansa |
| Model | FCMX69129H |
| Energy Source (Hob) | Gas (Natural Gas / LPG convertible) |
| Energy Source (Oven) | Electric (220-240 V, 50/60 Hz) |
| Total Power Consumption | Approx. 2.5 kW (oven only) |
| Dimensions (H x W x D) | 85 cm x 50 cm x 60 cm |
| Weight | Approx. 45 kg |
| Number of Gas Burners | 4 (including 1 triple-ring wok burner) |
| Oven Capacity | 65 liters |
| Oven Functions | Conventional, Grill, Fan-assisted, Defrost |
| Oven Thermostat | 50°C to 250°C |
| Burner Safety Device | Flame failure device (thermocouple) on each burner |
| Oven Safety | Child lock, cooling fan, triple-glazed door |
| Hob Material | Stainless steel with enamel pan supports |
| Oven Door | Drop-down, removable inner glass for easy cleaning |
| Cleaning Type | Manual cleaning (enamel interior, removable side racks) |
| Control Type | Front rotary knobs (gas taps with ignition integrated) |
| Ignition | Automatic spark ignition (battery or mains powered) |
| Accessories Included | 1 grill pan, 1 baking tray, 1 oven rack, gas nozzle kit (LPG) |
| Repairability Index | 7.5 / 10 (spare parts available for 10 years) |
| Warranty | 2 years (Europe), subject to registration |
Frequently Asked Questions - FCMX69129H Hansa
How do I convert the cooker from natural gas to LPG?
The cooker comes with a gas nozzle kit for LPG conversion. Ensure the gas is turned off, then replace the injectors on each burner and adjust the bypass screws according to the manual. Always have a qualified technician perform the conversion.
What is the minimum clearance required above the hob?
A minimum clearance of 75 cm is required between the hob and any overhead cabinets or extractor fan. For flammable materials, the distance should be at least 90 cm.
How do I clean the oven door glass?

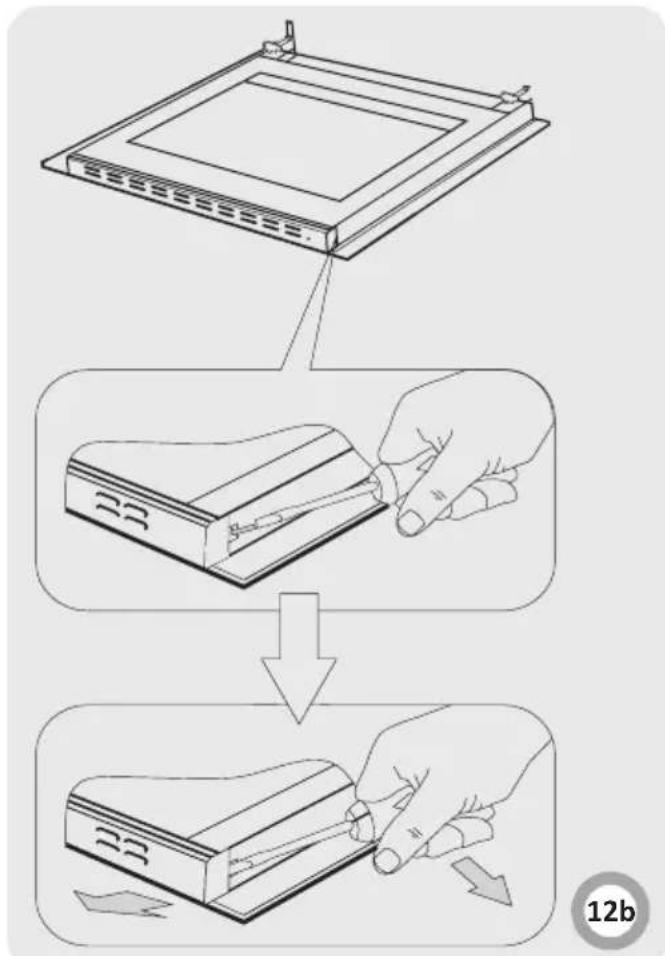

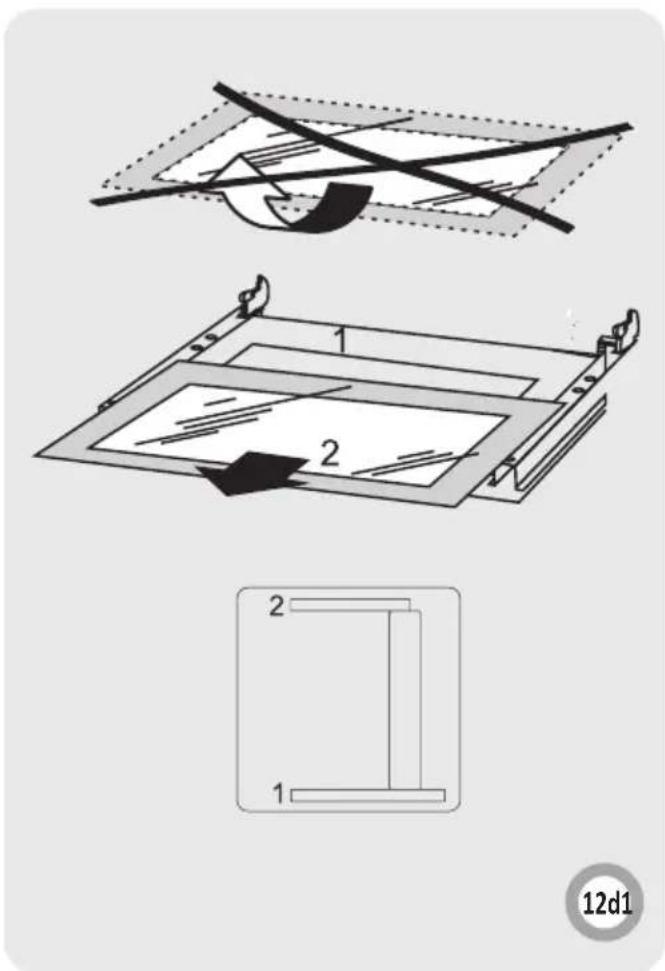

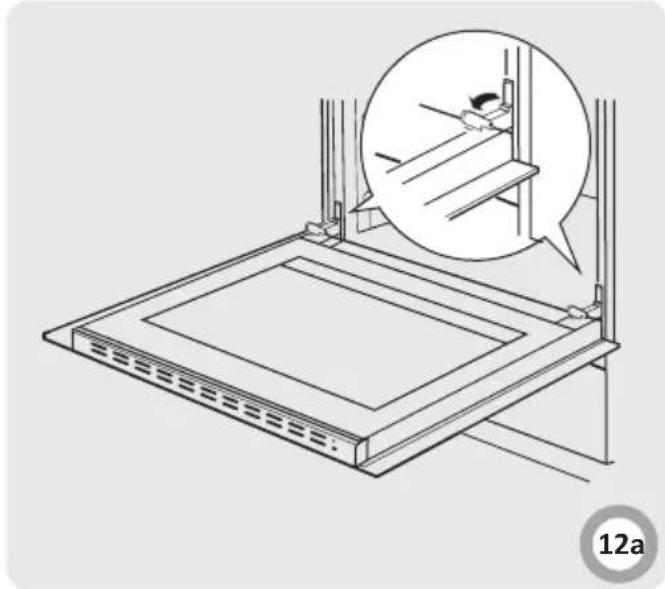

The inner glass is removable. Open the door, loosen the retaining clips, pull the glass pane out, and clean with a mild detergent. Do not use abrasive cleaners. Reassemble in reverse order.
Why does the spark ignition not work?
Check if the mains power is connected or if the battery (if applicable) is inserted correctly. Also, ensure the burner caps and heads are clean and dry. If the problem persists, contact service.
Can I use a wok on the hob?
Yes, the left front burner is a triple-ring wok burner designed for wok pans. For best performance, use a flat-bottomed wok or a wok ring stabilizer.

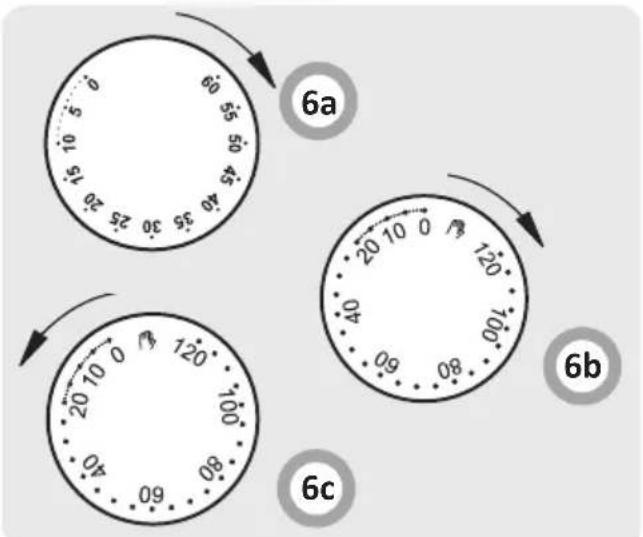

How do I set the timer on the oven?
The oven may have a mechanical or electronic timer. For the mechanical version, turn the timer knob to the desired cooking duration; the oven will switch off automatically. Consult the manual for electronic settings.
What should I do if the gas burner flame is yellow or irregular?
A yellow flame indicates incomplete combustion. First, clean the burner caps and heads of any food residue. Ensure the gas supply pressure is correct. If the issue persists, check the air shutter adjustment (needs service).
Is the oven self-cleaning?

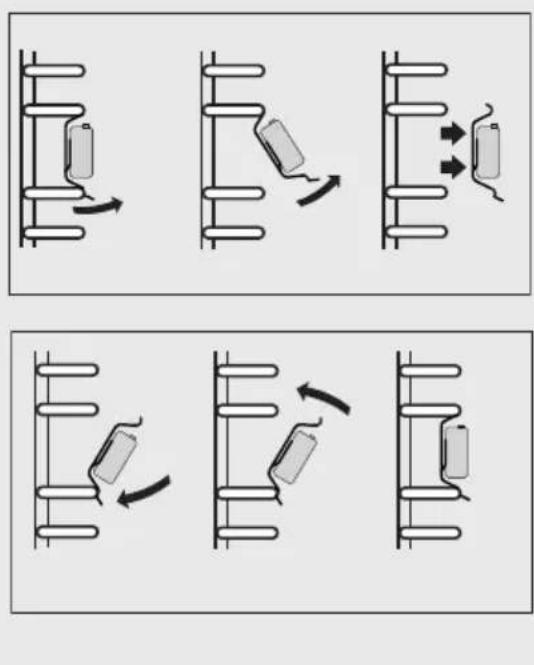

No, the oven has a standard enamel interior and requires manual cleaning. Use a damp cloth and mild detergent. Avoid abrasive sponges. The side racks are removable for easier cleaning.
How do I unlock the child lock on the oven?
Press and hold the designated child lock button (usually marked with a key icon) for about 3 seconds until the indicator light turns off. The exact method may vary; refer to the manual for your specific model.
Where can I download the full user manual?
The full user manual in PDF format is available for free download on the official Hansa website or on notice-facile.com by searching for model FCMX69129H.
