Product Type	Monopod with optional tripod conversion via Docz accessory
Brand	3 Legged Thing
Model	Alana
Number of Leg Sections	4
Leg Lock Type	Twist locks (quarter turn)
Maximum Height (estimated)	160 cm
Weight (estimated)	0.5 kg
Mounting Screw	Retractable 1/4-20 and 3/8-16 screw
Mounting Plate	Integrated with retractable screw
Bubble Grip	Yes, for ergonomic handling
Footwear	Rubber boot with adapter
Docz Attachment	Compatible (sold separately) for tripod legs
Cleaning	Wash after use in sand or dirt; use silicone grease, not WD40
Warranty	5-year global warranty (registration required)
Registration	Via serial number at www.3leggedthing.com/register
Support	[e-mail]
Manufacturer	3 Legged Thing, Unit 9 Kinsbourne Farm, Bury End, Stagsden, Bedfordshire MK43 8TS, UK

Frequently Asked Questions - Alana 3 Legged Thing

How do I attach my camera to the Alana monopod?

Insert the retractable mounting screw into your camera's base. If your camera has a 1/4-20 thread, retract the sleeve to expose the smaller thread. Turn the monopod until it meets resistance; do not overtighten.

How do I extend and lock the monopod legs?

Grip the twist lock on a leg section and turn it a quarter turn to loosen. Extend to desired height, then turn back to original position to lock. Do not turn more than half a turn unless disassembling for cleaning.

How do I attach the Docz tripod legs to my Alana monopod?

Unscrew the rubber boot and adapter from the base of the monopod. If stuck, use a coin to turn it anticlockwise. Then insert Docz's orange screw thread into the base and turn until tight. Adjust the ball by loosening the rubber boot on Docz.

How do I fold the Docz legs after use?

Press the button at the base of each leg and fold them upward until they click into folded position.

How should I clean my Alana monopod?

Rinse with fresh water after use in sand or dirt. Avoid WD40; use silicone grease for lubrication. For video cleaning guides, visit https://www.3leggedthing.com/faq.

What is the warranty period for the Alana monopod?

It comes with a 5-year global warranty. Register your product using the serial number from the box at www.3leggedthing.com/register.

Can I use the monopod without the Docz legs?

Yes, the Alana is designed as a standalone monopod. The Docz legs are an optional accessory for tripod use.

What should I do if the adapter is stuck in the monopod base?

Use a tool or coin to turn it anticlockwise to remove. Store the adapter safely when not in use.

Is the mounting screw reversible?

Yes, the screw is retractable. The outer sleeve reveals a 1/4-20 thread; when retracted, a 3/8-16 thread is exposed for different cameras.

Where can I find more information about 3 Legged Thing products?

Visit www.3leggedthing.com or follow @3LeggedThing on social media. For support, email [e-mail].

USER MANUAL Alana 3 Legged Thing

Look at the end of your box. See that little sticker with a serial number and a barcode? Peel it off and put it here for safe keeping.

Or don't.

IMPORTANT

DO NOT USE YOUR MONOPOD UNTIL YOU HAVE READ THESE INSTRUCTIONS. NO WARRANTY

CLAIM WILL BE ENTERED INTO FOR THE MISUSE OR INCORRECT USE OF THESE PRODUCTS.

ANATOMY OF A MONOPOD

1 Retractable Screw Mount
2 Mounting Plate
3 Bubble Grip
4 Leg Section
5 Twist Locks
6 Boot / Footwear

Always hold your camera when removing from the monopod!

Using The Monopod

To open and extend the monopod simply grip the twist locks (5) in your hand, quarter turn, loosening the monopod allowing you to select a desired height. Once the required height has been obtained lock the monopod in place by rotating back to the original position, which will fully engage the leg lock. The twist locks do not require to be undone further than a half turn, unless you intend to completely disassemble the monopod for cleaning.

To attach your camera, ballhead, or accessory, insert the mounting screw (1) into the base of your camera. If your camera has a 1/-20 thread, retract the spring-loaded sleeve on the screw to reveal the smaller thread, then insert into the base of your camera. Turn the monopod until the screw meets resistance. Do not over-tighten.

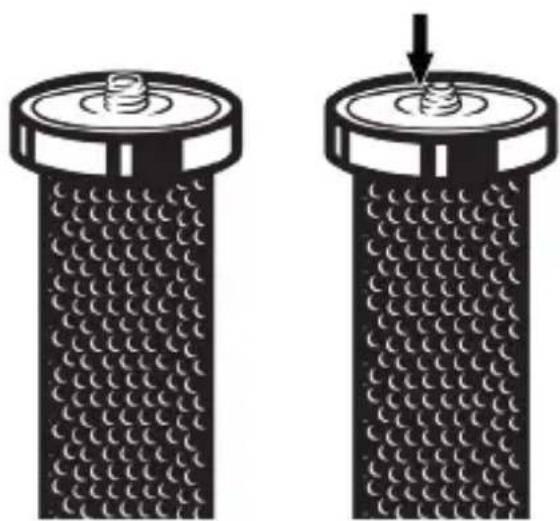

The Mounting Plate comes with one 3/8" threaded screw in the centre. The outer part can be retracted to reveal the 1/4" thread in the centre.

Two identical cylindrical objects with a central screw, one being cut with an arrow (no text or symbols)

ANATOMY OF DOCZ

Using Docz

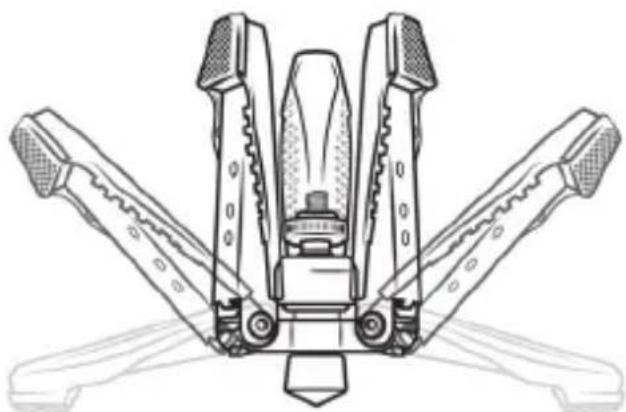

To open the legs from folded, pull down until they click into place. To fold them back up, press the button (5) at the base of each leg and fold upwards.

1 3/8"-16 Screw Thread
2 Screw Lock
3 Ball
4 Legs
5 Leg Buttons
6 Rubber Boot / Ball Adjuster
7 Rubber Feet

Technical line drawing of a mechanical device with four arms and central hub (no text or symbols)

To attach to a monopod unscrew the rubber Boot and the adapter in the base of the monopod. If this adapter is stuck, you can remove this by using tools, or a coin, and turn it anti-clockwise. Put the adapter somewhere safe!

Once removed, insert Docz' orange screw thread (1) into the base of the monopod and turn until the screw meets resistance. If you want to adjust the ball position, turn the orange screw lock (2) upwards until it meets the base of the monopod. To adjust the ball (3) position, loosen the rubber Boot (6) on the base of Docz. Angle the monopod to the desired position. Tighten the Boot (6) to lock the ball into place.

Cleaning

It is advised that you wash your monopod after using it in sand, or dirt.

For videos on how to clean your 3 Legged Thing products, please visit:

https://www.3leggedthing.com/faq

Never use WD40 on your monopod as it can be a solvent. Always use silicone grease.

Warranty Information

Your 3LT product comes with a 5 Year Global Warranty. On the box you will find a sticker with a unique barcode and serial number. Use this serial number to register your products at www.3leggedthing.com/register.

Details of your warranty can be found at www.3leggedthing.com. Your warranty covers 3 Legged Thing products only.

If you have a question or suspect you have a fault, contact us first at [e-mail].
