USER MANUAL Z170GT7 BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

Short Declaration of conformity We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives 2004/108/CE, 2006/95/CE and 1999/05/CE whenever these laws may be applied

Table Of Contents

FCC Information and Copyright 1

Chapter 1: Introduction....3

1.1 Before You Start 3
1.2 Package Checklist....3
1.3 Specifications 4
1.4 Rear Panel Connectors....5
1.5 Motherboard Layout 6

Chapter 2: Hardware installation....7

2.1 Install Central Processing Unit (CPU) 7
2.2 Install a Heatsink....9
2.3 Connect Cooling Fans 10
2.4 Install System Memory 10
2.5 Expansion Slots 12
2.6 Jumper & Switch Setting.... 13
2.7 Headers & Connectors.... 14
2.8 Buttons, Indicators & LEDs.... 18

Chapter 3: UEFI BIOS & Software....19

3.1 UEFI BIOS Setup.... 19
3.2 BIOS Update.... 19
3.3 Software....23

Chapter 4: Useful help....31

4.1 Driver Installation 31
4.2 AMI BIOS Beep Code 32
4.3 AMI BIOS post code 32
4.4 Troubleshooting.... 34
4.5 RAID Functions.... 35

APPENDIX I: Specifications in Other Languages 37

Arabic....37
German 38
Russian....39
Spanish 40
Thai 41

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
• Always disconnect the computer from power outlet before operation.
- Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
- Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
- Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
- Keep the computer from dangerous area, such as heat source, humid air and water.
- The operating temperatures of the computer should be 0 to 45 degrees Celsius.
• To avoid injury, be careful of:
Sharp pins on headers and connectors
Rough edges and sharp corners on the chassis
Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x4
  • Rear I/O Panel for ATX Case x1
• User's Manual x1
  • Fully Setup Driver DVD x1
  • LED Strip x1 (optional)

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	Socket 1151 for Intel® Core i7 / i5 / i3 / Pentium / Celeron processorMaximum CPU TDP (Thermal Design Power): 95Watt* Please refer to www.biostar.com.tw for CPU support list.
Chipset INTEL® Z170
Memory	Supports Dual Channel DDR4 2133/1866Supports Dual Channel DDR4 3200(OC)4x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB MemoryEach DIMM supports non-ECC 4/8/16GB DDR4 module* Please refer to www.biostar.com.tw for Memory support list.
Storage	3x SATA Express Connector (16Gb/s) / 6x SATA III Connector (6Gb/s)1x PCIe 3.0 x4 M.2 (Key M) Slot (32Gb/s)supports RAID 0,1,10, 5 & AHCI* PCI-E Storage supports RAID 0, 1 & 5** When using SSD module on PCIE-M2_1 slot, the SATA_EXPRESS_2 connector will be disabled.
LAN	Intel i219V1x 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8987.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
USB	ASMedia ASM1142:1x USB 3.1 Type-C port (on rear I/Os)INTEL® Z170:7x USB 3.0 port (5 on rear I/Os and 2 via internal header)4x USB 2.0 port (4 via internal headers)
Expansion Slots	3x PCIe 3.0 x1 Slot4x PCIe 3.0 x16 Slot (Supports 3-Way AMD® CrossFireTM Technology)
Rear I/Os	1x VGA Port1x DVI-D Port2x HDMI Port1x USB 3.1 Type-C Port5x USB 3.0 Port1x PS/2 Keyboard/ Mouse1x LAN port6x Audio Jack
Internal I/Os	3x SATA Express Connector / 6x SATA III Connector2x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.0 Header (each header supports 2 USB 3.0 ports)1x 8-Pin Power Connector1x 24-Pin Power Connector2x CPU Fan Connector3x System Fan Connector1x Front Panel Header1x Front Audio Header1x Clear CMOS Header1x TPM Connector1x S/PDIF out Connector
Form Factor ATX Form Factor, 305 mm x 244 mm
OS Support	Windows 7/ 8.1(64bit)/ 10(64bit)Biostar reserves the right to add or remove support for any OS with or without notice.

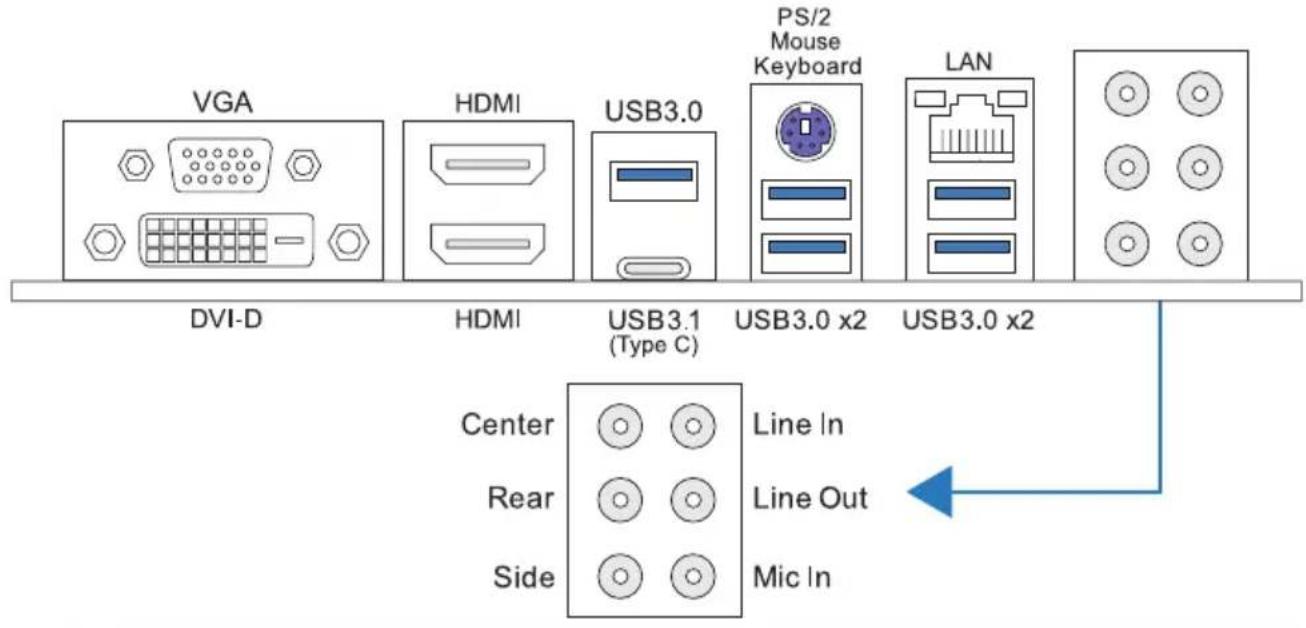

1.4 Rear Panel Connectors

Note

» HDMI, DVI-D & VGA ports only work with an Intel® integrated Graphics Processor.
» Maximum resolution

HDMI: 4096 x 2160 @24Hz, compliant with HDMI 1.4a

VGA: 1920 x 1200 @60Hz

DVI-D: 1920 x 1200 @60Hz

» The mainboard supports three onboard display outputs at same time and the display output configuration can be selected in Intel graphics driver utility.

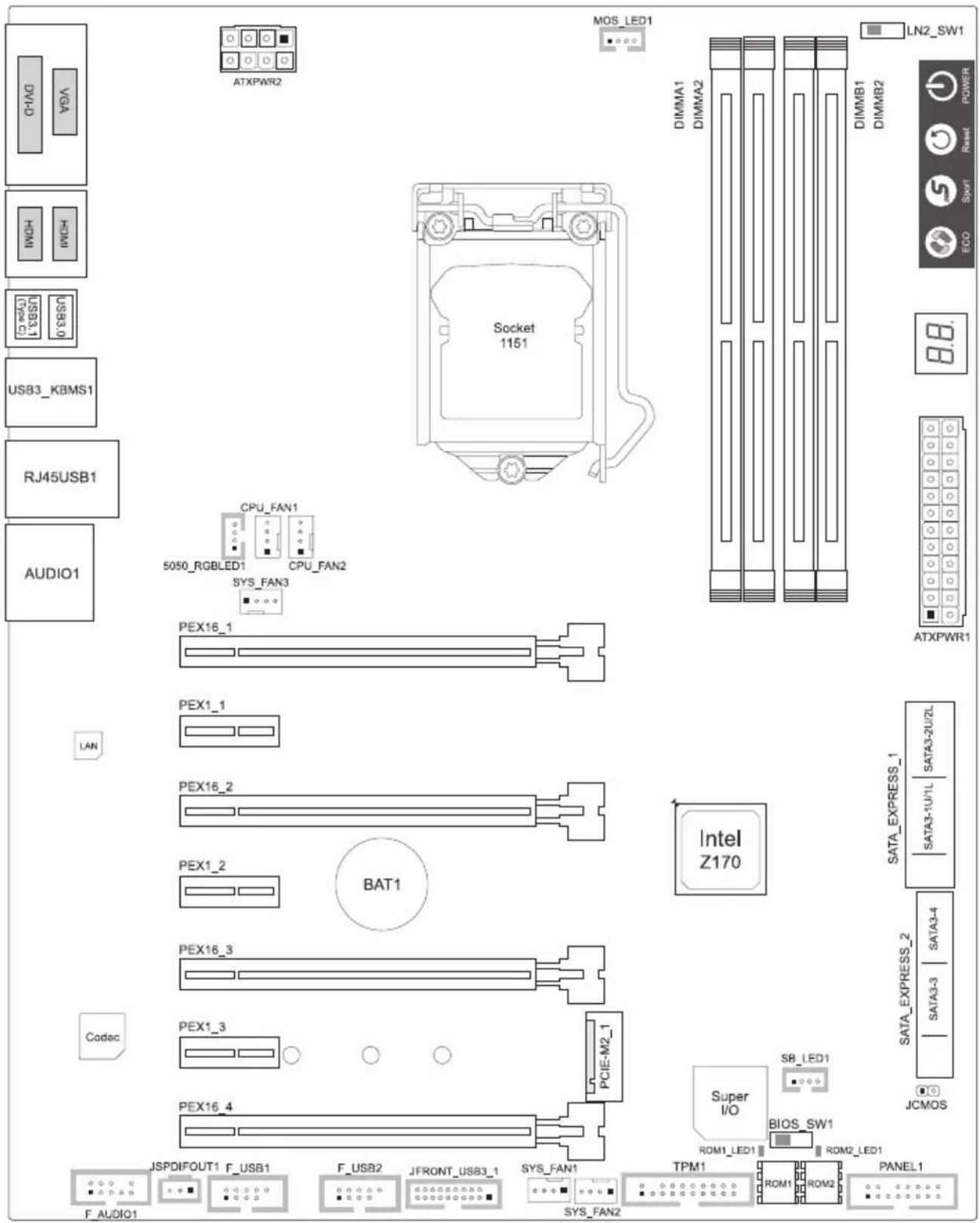

1.5 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

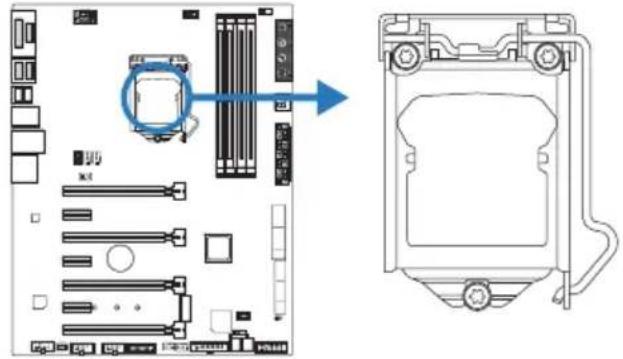

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Note

» Remove pin cap before installation, and make good preservation for future use. When the CPU is removed, cover the pin cap on the empty socket to ensure pin legs won't be damaged.
» The motherboard might equip with two different types of pin cap. Please refer below instruction to remove the pin cap.

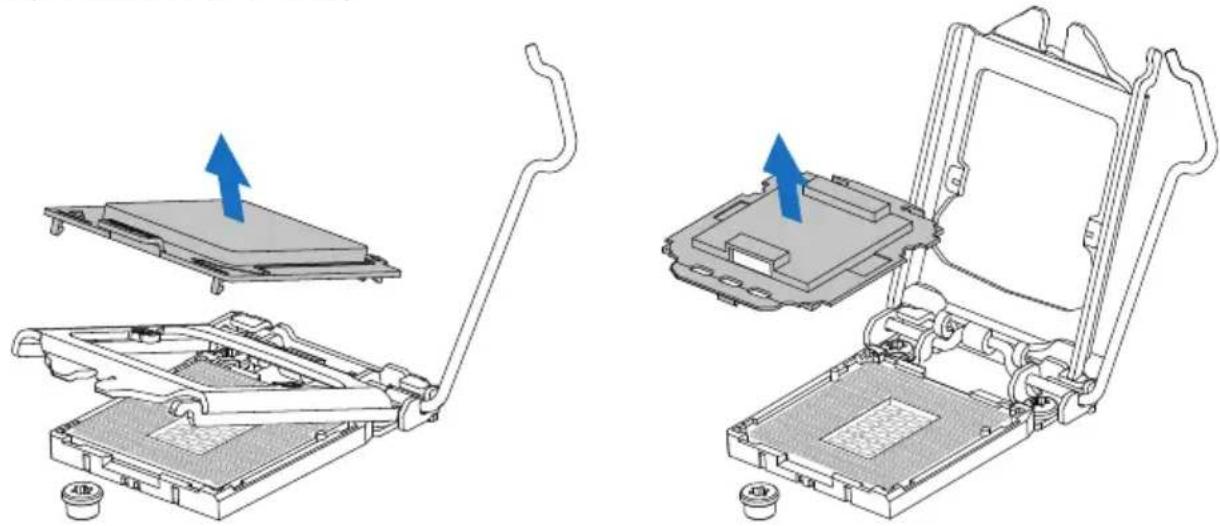

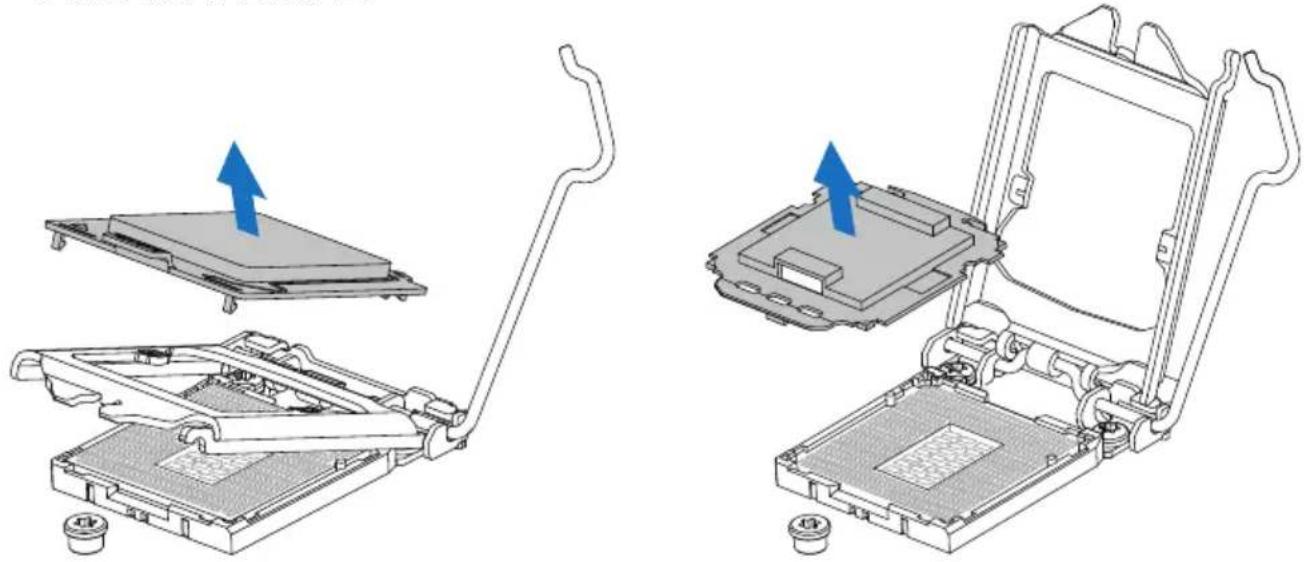

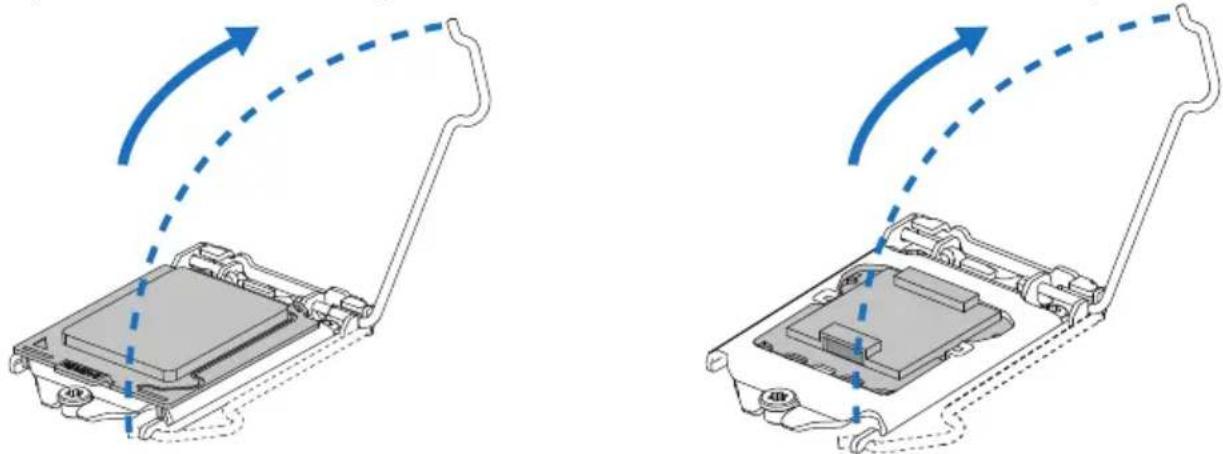

Step 2: Pull the socket locking lever out from the socket and then raise the lever up.

Two technical diagrams showing a device with internal components and directional arrows indicating motion (no text or symbols)

Step 3: Remove the Pin Cap.

Technical illustration of a computer chassis with two views showing internal components and blue arrows indicating assembly direction (no text or symbols present)

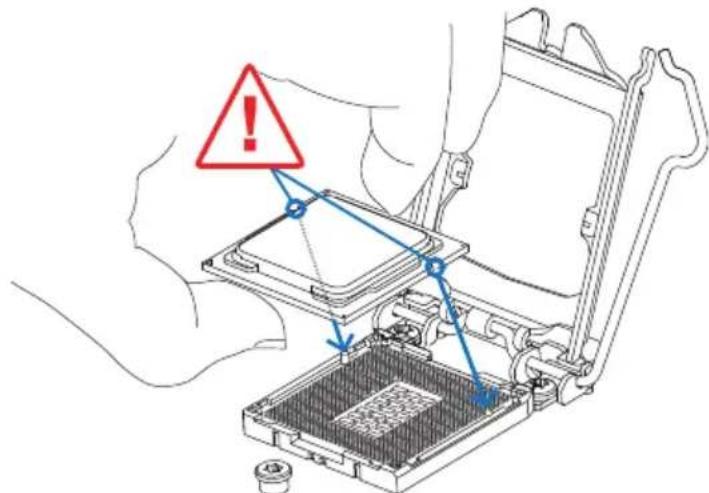

Step 4: Hold processor with your thumb and index fingers, oriented as shown. Align the notches with the socket. Lower the processor straight down without tilting or sliding the processor in the socket.

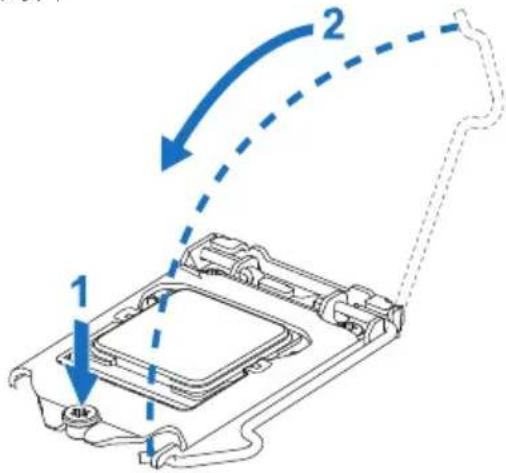

Step 5: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.

Note

» Ensure that you install the correct CPU designed for LGA1151 socket.
» The CPU fits only in one correct orientation. Do not force the CPU into the socket to prevent damaging the CPU.

2.2 Install a Heatsink

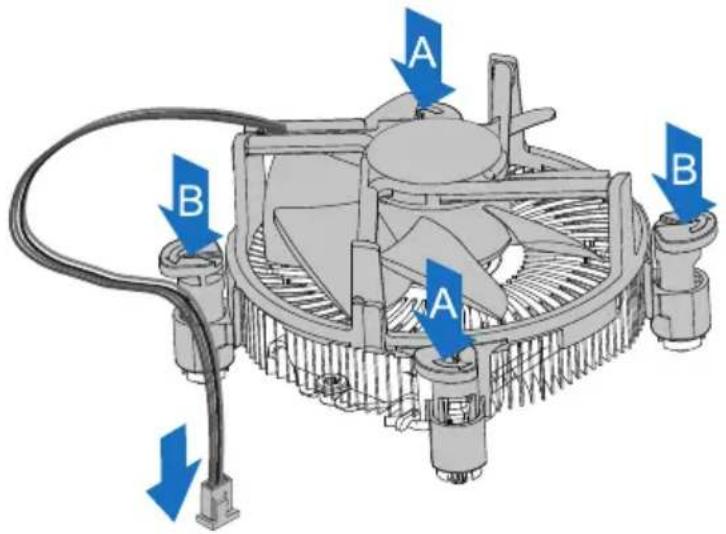

Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest to the CPU fan connector.

Step 2: Press down two fasteners at one time in a diagonal sequence to secure the CPU fan assembly in place. As each fastener locks into position a click should be heard.

Note

» Apply the thermal interface material on the CPU before heatsink installation, if necessary.
» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

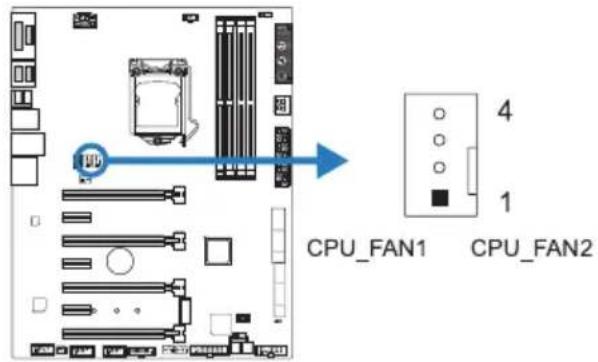

CPU_FAN1/2: CPU Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

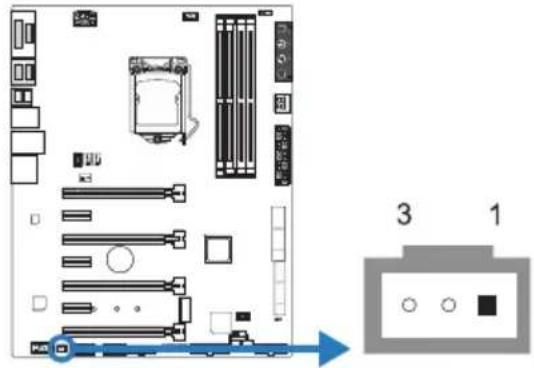

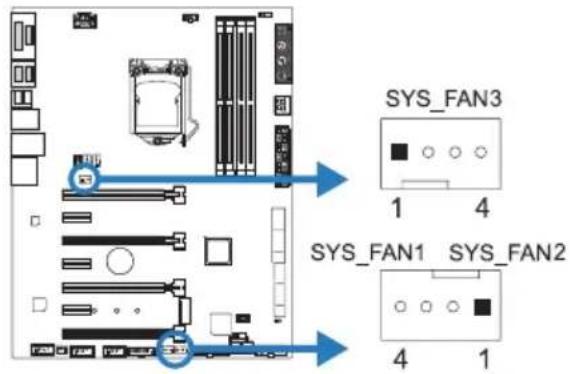

SYS_FAN1/2/3: System Fan Header

Pin Assignment

1 Ground

2 +1 2V

3 FAN RPM rate sense

4 Smart Fan Control (By Fan)

Note

» CPU_FAN1/2, SYS_FAN1/2/3 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

2.4 Install System Memory

DDR4 Modules

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a computer RAM module with mounting bracket and clamping mechanism (no text or symbols)

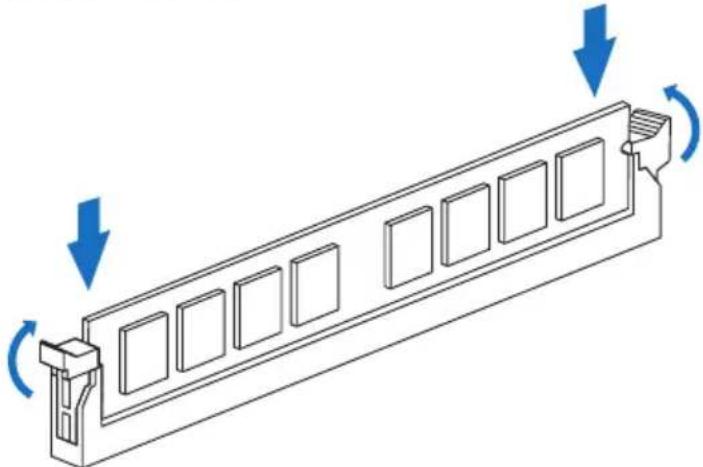

Step 2: Insert the DIMM verically and rmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Loca□on DDR4 Module Total Memory Size
DIMMA1 4GB/8GB/16GB	Max is 64GB.
DIMMA2 4GB/8GB/16GB
DIMMB1 4GB/8GB/16GB
DIMMB2 4GB/8GB/16GB

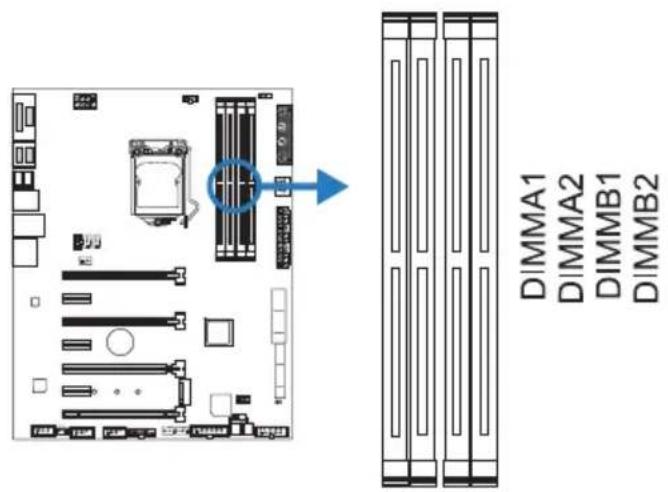

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMM	A2 DIMMB1	DIMMB2
Enabled O X O X
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

2.5 Expansion Slots

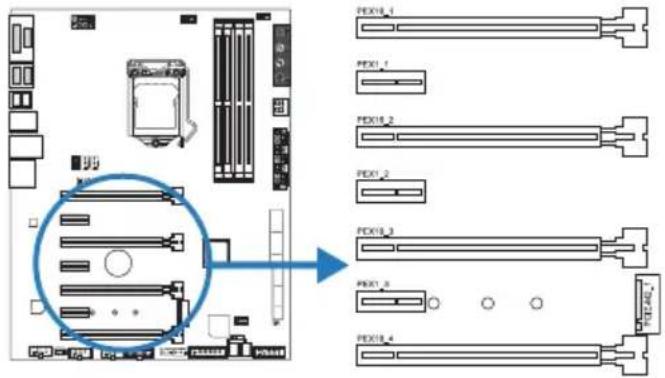

PEX16\_1/16\_2/16\_3/16\_4: PCI-Express Gen3 x16 Slots

• PCI-Express 3.0 compliant.
- Maximum theoretical realized bandwidth of 16GB/s simultaneously per direction, for an aggregate of 32GB/s totally.
• Supports 3-Way AMD® CrossFire™ Technology

PEX1\_1/1\_2/1\_3: PCI-Express Gen3 x1 Slots

• PCI-Express 3.0 compliant.
• Data transfer bandwidth up to 1GB/s per direction; 2GB/s in total

PCI Express Slots Combination Table

Slots PEX16_1	PEX16_2 PEX16_3 PEX16_4		PEX1_1 PEX1_2 PEX1_3
PCIe Slot Max. Speed	x16 -- x2 x4 x1 x1 x1
	x16 -- x4 x4 x1 -- --
	x8 x8 x2 x4 x1 x1 x1
	x8 x8 x4 x4 x1 -- --

» --: the slot is not be used by any expansion card
» the actual PCIe card speed will depend on its running status

PCIE-M2\_1: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position.
• The M.2 slot supports M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)

Note

» When PEX16_3 and PEX16_4 slots are both installed graphics cards, AMD Crossfire™ Technology will be disabled.
» When using SSD module on PCIE-M2_1 slot, the SATA_EXPRESS_2 connector will be disabled.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw.
• Replace your computer's chassis cover.
• Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

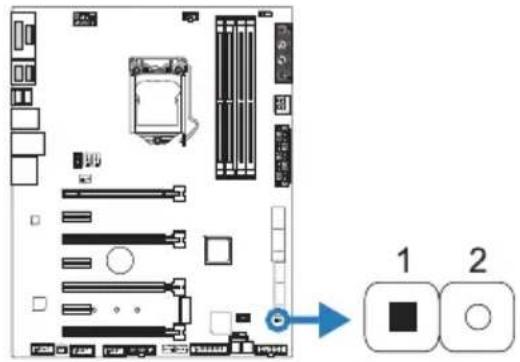

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

1 2 Pin 1-2 Open: Normal Operation (Default)

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 close", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

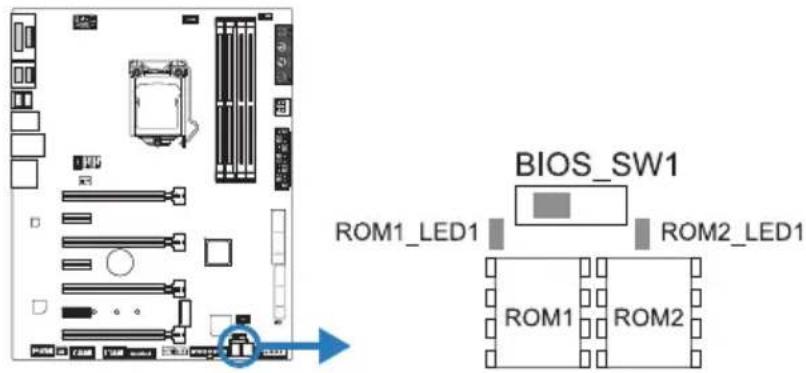

BIOS\_SW1: Dual BIOS Switch

The Dual BIOS Switch allows you to choose one of the BIOS ROMs (ROM1/ROM2) for boot up.

Main BIOS (ROM1) Enabled The LED indicator (ROM1_LED1) will light and the Main BIOS is enabled.
Backup BIOS (ROM2) Enabled The LED indicator (ROM2_LED1) will light and the Backup BIOS is enabled.

Note

» Do not use this switch when your system is power-on.
» Before flashing BIOS ROMs, please make sure this switch is set to the BIOS ROM which you want to update.

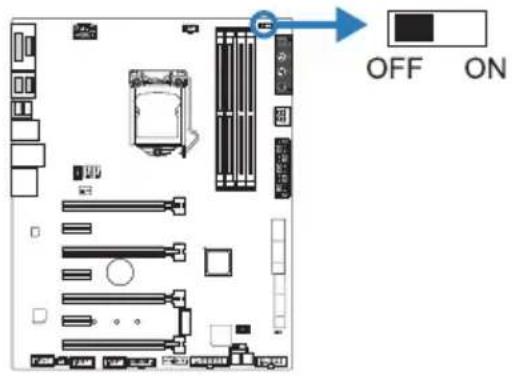

When the LN2 mode is ON, the CPU will run at its lowest frequency (e.g., 800MHz) to avoid unexpected system shutdown.

Note

» We are not responsible for the damages or risks caused by overclocking.

2.7 Headers & Connectors

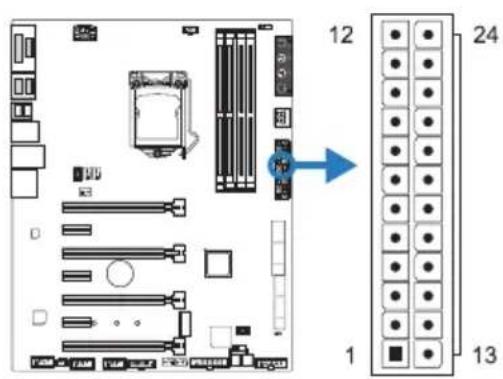

ATXPWR1: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

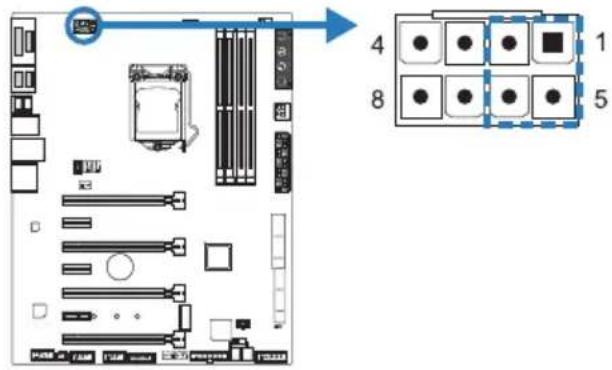

ATXPWR2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

» Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

PANEL1: Front Panel Header

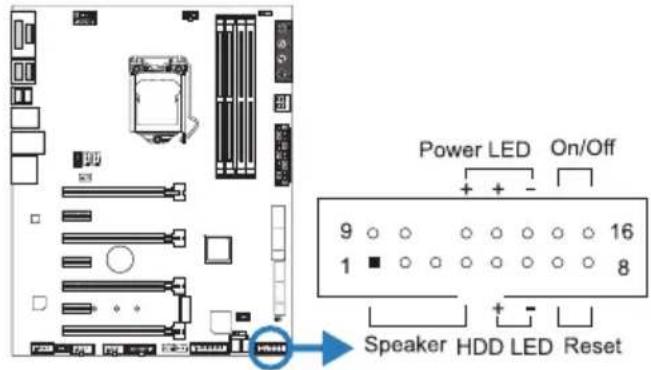

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connection.

Pin	Assignment Function Pin A		Assignment Function
1 +5V		Speaker Connector	9 N/A		N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 Speaker 12 Power LED (+)					Power LED
5 H	DD LED (+)	Hard drive LED 14	13 Power LED (+)
6 H	DD LED (-)		4 Power LED (-)
7 G	round	Reset button 15	15 Power button		Power-on button
8 R	reset control		6 Ground

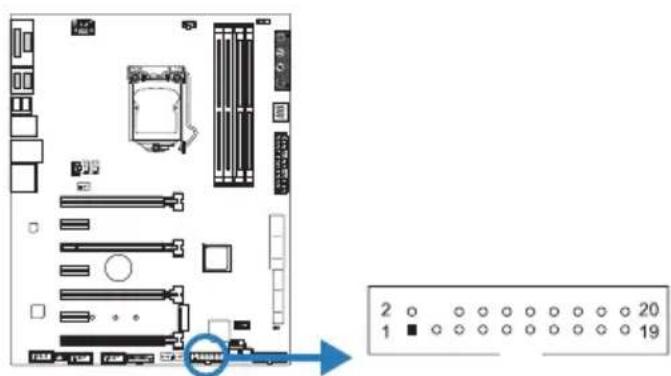

TPM1: Trusted Platform Module Header (TPM1.2)

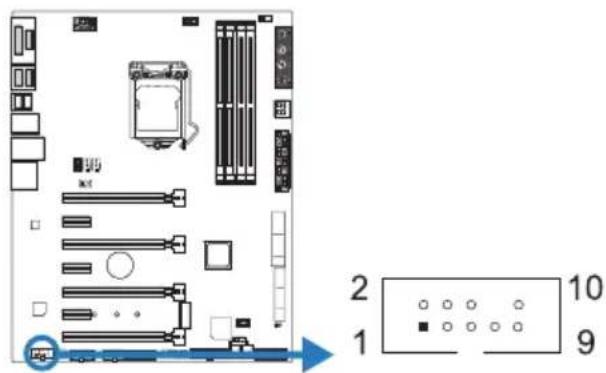

This header allows you to store cryptographic keys that protect information.

Pin Assignment	Pin Assignment
1 CLK_PCI_TPM	2 Ground
3 LFRAME#	4 Key
5 PL_RST2#	6 VCC5
7 FWH3	8 FWH2
9 VCC3_3	10 FWH1
11 FWH0	12 Ground
13 SMBCLK	14 SMBDATA
15 AUX33	16 SERIRQ
17 Ground	18 CLK_RUN#
19 SUS_STAT#	20 LDRQJ1

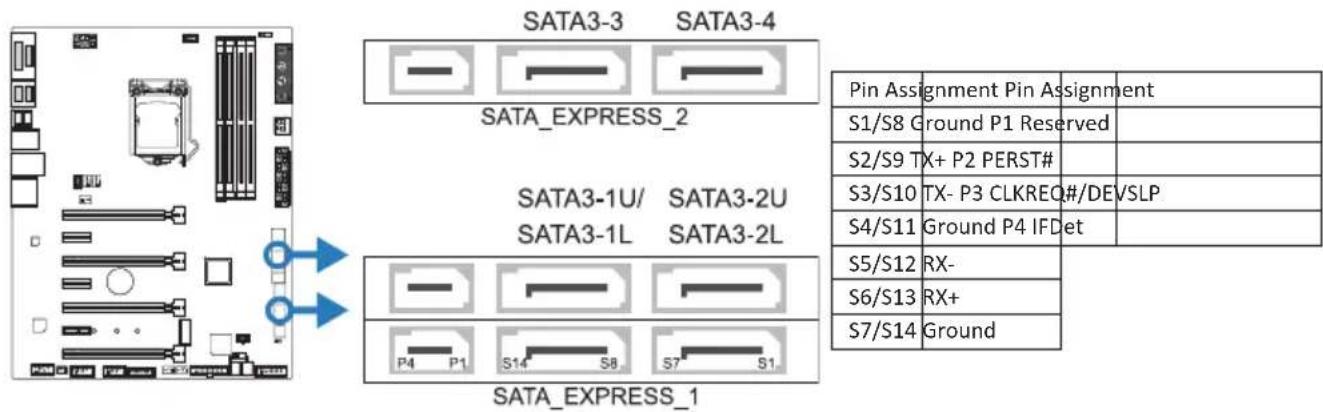

SATA\_Express\_1/2: SATA Express Connector

Each SATA Express connector can support one SATA Express device or two SATA devices.

Note

» When using SSD module on PCIE-M2_1 slot, the SATA_EXPRESS_2 connector will be disabled.

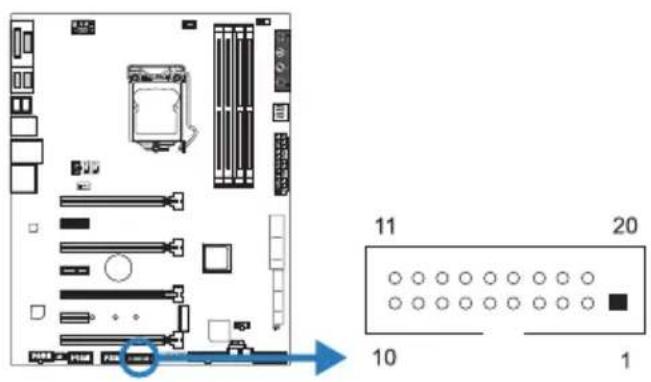

JFRONT\_USB3\_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment Pin	Assignment
1	VBUS0	11	D2+
2	SSRX1-	12	D2-
3	SSRX1+	13	Ground
4	Ground	14	SSTX2+
5	SSTX1-	15	SSTX2-
6	SSTX1+	16	Ground
7	Ground	17	SSRX2+
8	D1-	18	SSRX2-
9	D1+	19	VBUS1
10 ID	20 Key

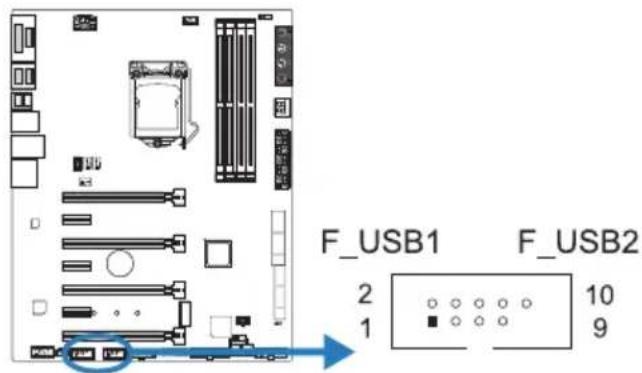

F\_USB1/2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin A	assignment
1	+5V (fused)
2	+5V (fused)
3	USB-
4	USB-
5	USB+
6	USB+
7	Ground
8	Ground
9	Key
10 NC

JSPDIFOUT1: Digital Audio-out Connector

The connector is for connecting the S/PDIF output bracket.

Pin Assignment

1 +5V

2 SPDIF_OUT

3 Ground

F\_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC'97 audio standards.

HD Audio AC'97
Pin Assignment Pin		Assignment
1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

Note

» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.
» Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

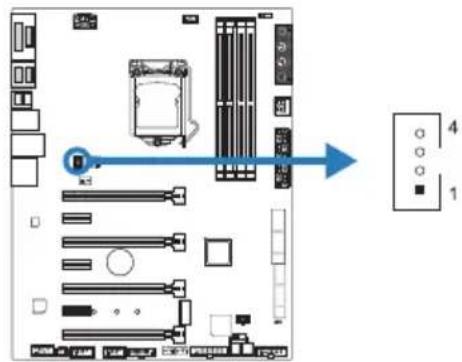

5050\_RGBLED1: RGB LED Strip (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED strip (5050 SMD).

Pin Assignment

1 VCC12

2 LED_GREEN

3 LED_RED

4 LED_BLUE

Note

» Ensure proper pin connecting to your LED strips, wrong connection may damage your LED strips or motherboard.

2.8 Buttons, Indicators & LEDs

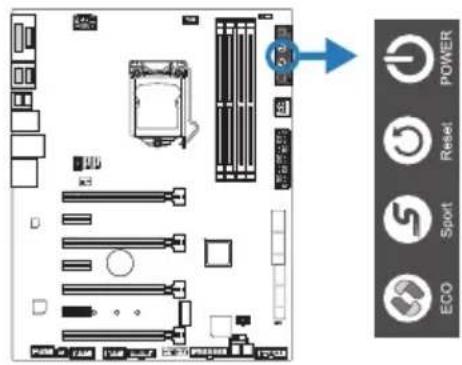

Touch Buttons

ECO Mode:

Enabled ECO mode, it allows you save energy by slightly reducing system performance.

Sport Mode:

Enabled Sport mode, it allows you to maximize system performance but may use more energy.

Reset:

Touch this button to reboot the system.

Power:

Touch this button to turn-on/off the system.

Note

» ECO/SPORT mode buttons will only be available when running RACING GT Utility in Windows environment.

Indicators

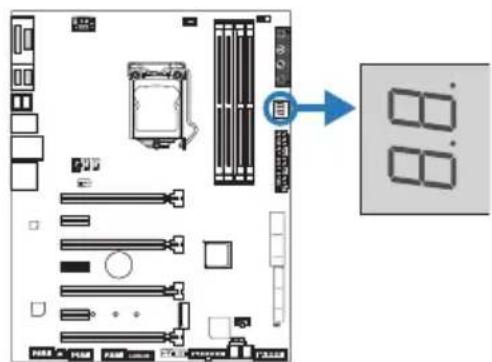

BIOS POST Code Indicator: The indicator will show POST code while booting. Please refer to Chapter 4.3 for all the BIOS POST codes.

CPU Temp. Indicator: The LED lights in three different colors to indicate the CPU Temp.

» Green: under 70°C
» Yellow: between 70-90°C
» RED: above 90°C

LEDs

Below LEDs are controlled by RACING GT program. Please refer to Chapter 3.3 for more detail software setting.


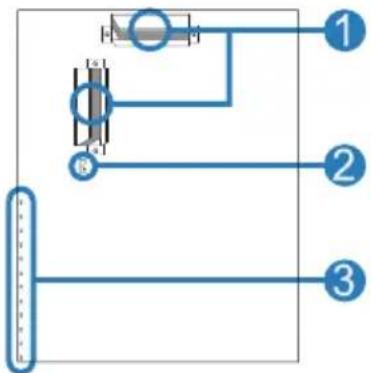

1. MOSFET Heatsink LED
2. RGB LED Strip Header (LED Strip is optional)
3. on-board LEDs (x12)

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIOS Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIOS Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

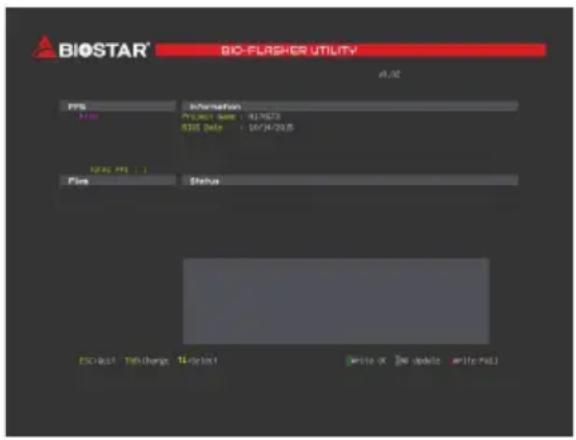

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose to search for the BIOS file.

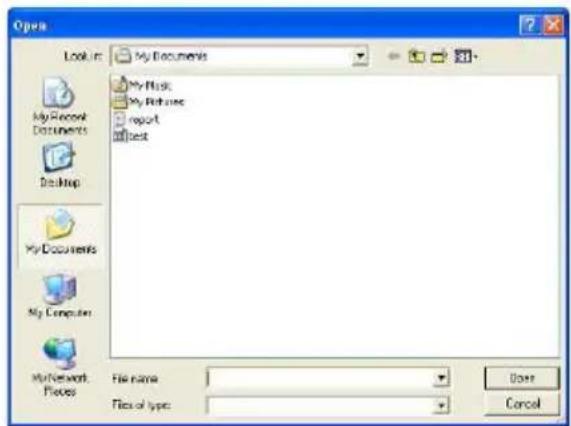

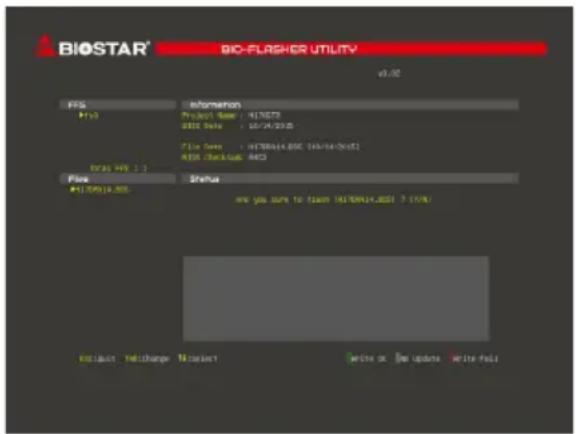

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

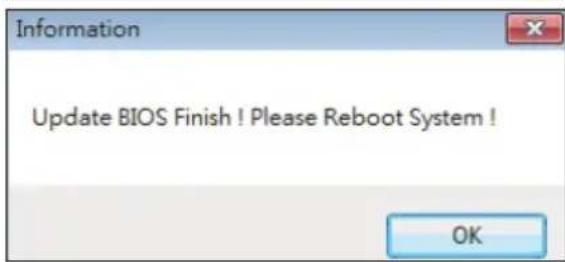

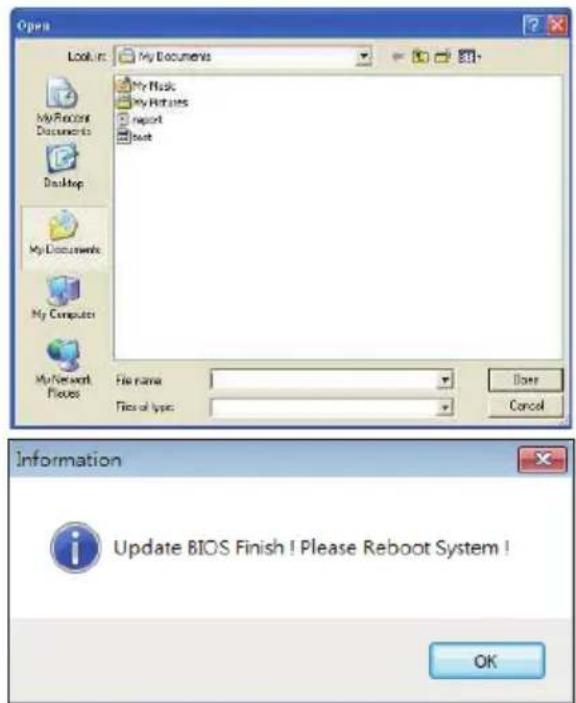

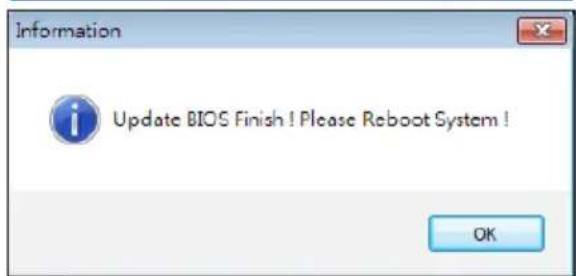

2. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

3. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

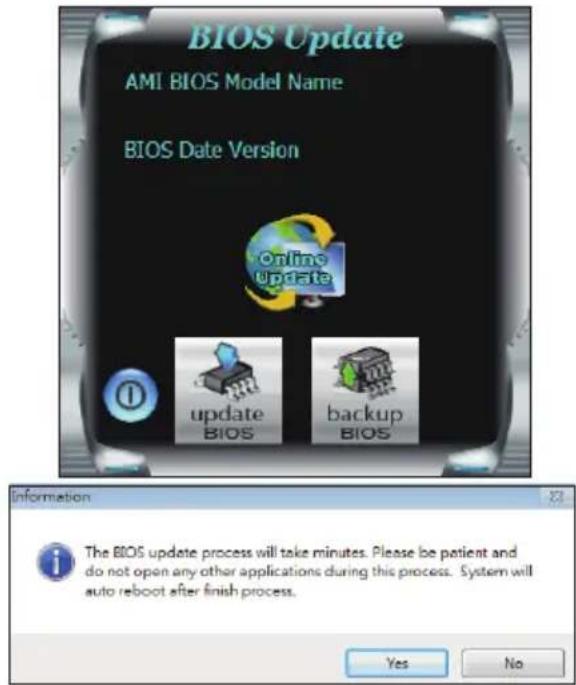

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

4. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

1. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

2. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

3. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

4. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

2. After the BIOS Update process is finished, click on "OK" to reboot the system.

3. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

BIOScreen Utility

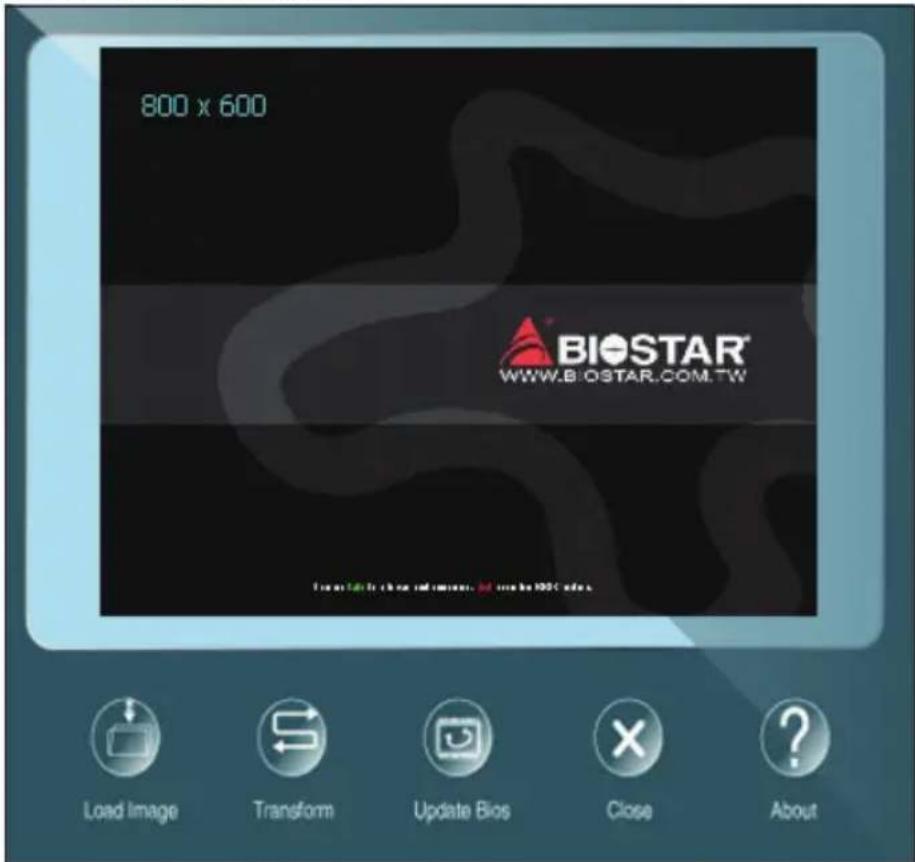

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

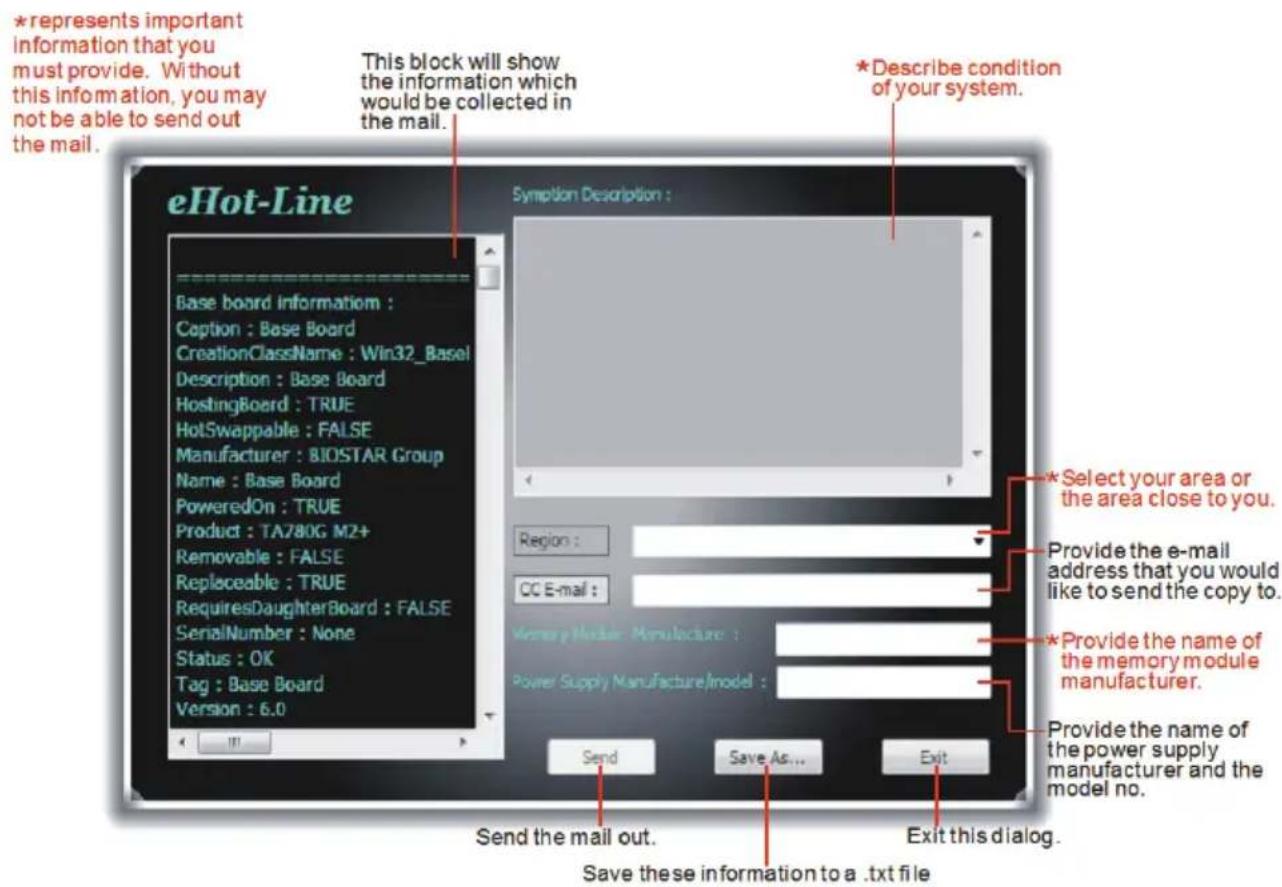

eHot-Line

eHot-Line is a convenient utility that helps you to contact with our Tech-Support system. This utility will collect the system information which is useful for analyzing the problem you may have encountered, and then send these information to our tech-support department to help you fix the problem.

After filling up this information, click "Send" to send the mail out. A warning dialog would appear asking for your confirmation; click "Send" to confirm or "Do Not Send" to cancel.

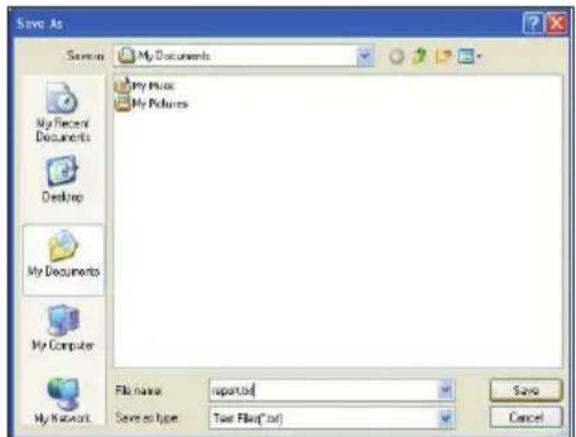

If you want to save this information to a .txt file, click "Save As..." and then you will see a saving dialog appears asking you to enter file name.

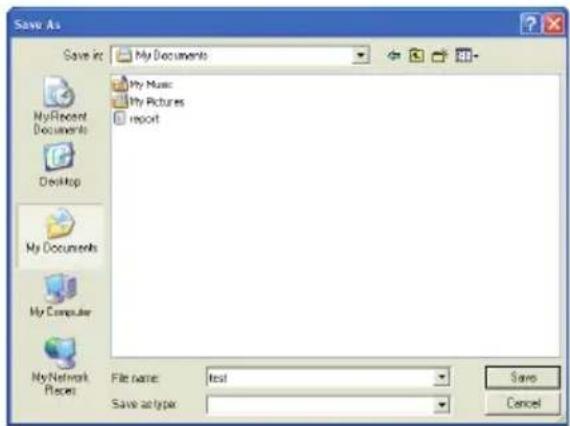

Enter the file name and then click "Save". Your system information will be saved to a .txt file.

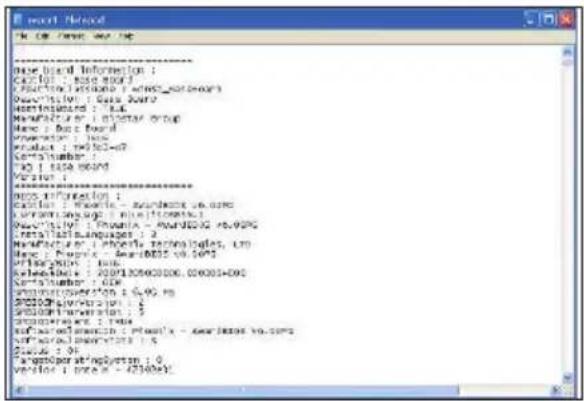

Open the saved .txt file, you will see your system information including motherboard/BIOS/CPU/video/device/OS information. This information is also concluded in the sent mail.

Note

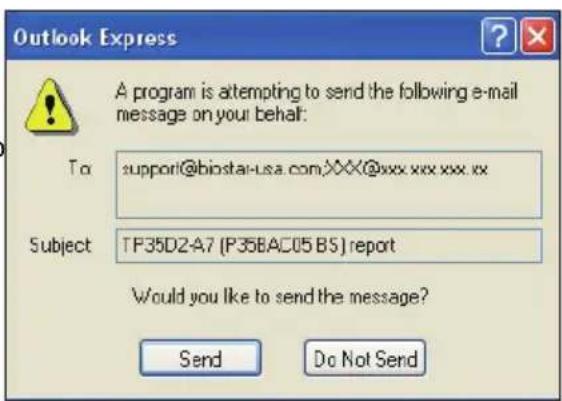

» Before you use this utility, please set Outlook Express as your default e-mail client application program.
» We will not share customer's data with any other third parties, so please feel free to provide your system information while using eHot-Line service.
» If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following website http://www.biostar.com.tw/app/en/about/contact.php for getting our contact information.

RACING GT

RACING GT is an easy-to-use program that integrates several BIOSTAR utilities and allows users to configure these utilities simultaneously and seamlessly.

System Information

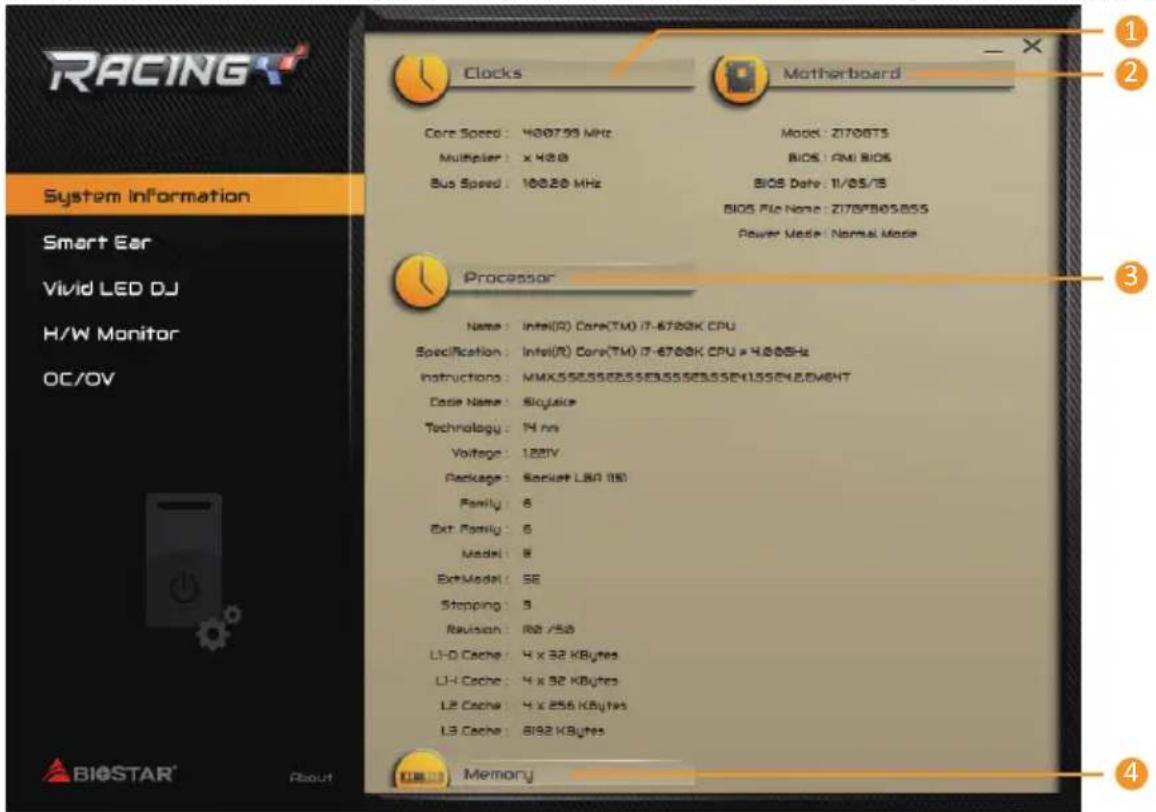

This System Information tab provides you an overview of the basic system information.

1. Clocks: Shows core speed, multiplier and bus speed.
2. Motherboard: Shows motherboard information.
3. Processor: Shows CPU information.
4. Memory: Shows memory information.

SmartEAR

Smart EAR allows you to control system volume and adjust impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound.

Requirements:

1. A chassis with front audio output jacks
2. An earphone or a headphone
3. Windows 7/8.1(64bit)/10(64bit) operation system

Installation Guide:

1. Make sure the front audio cable of the chassis connected to the front audio header of the motherboard properly.
2. Install the RACING GT program from the driver DVD.
3. Connect the earphone or headphone to the front audio jack of the chassis or audio line-out port of rear I/Os.

» If you want to use an AC'97 front audio output cable, please disable the "Front Panel Jack Detection" setting. This setting can be found via O.S. Audio Utility.

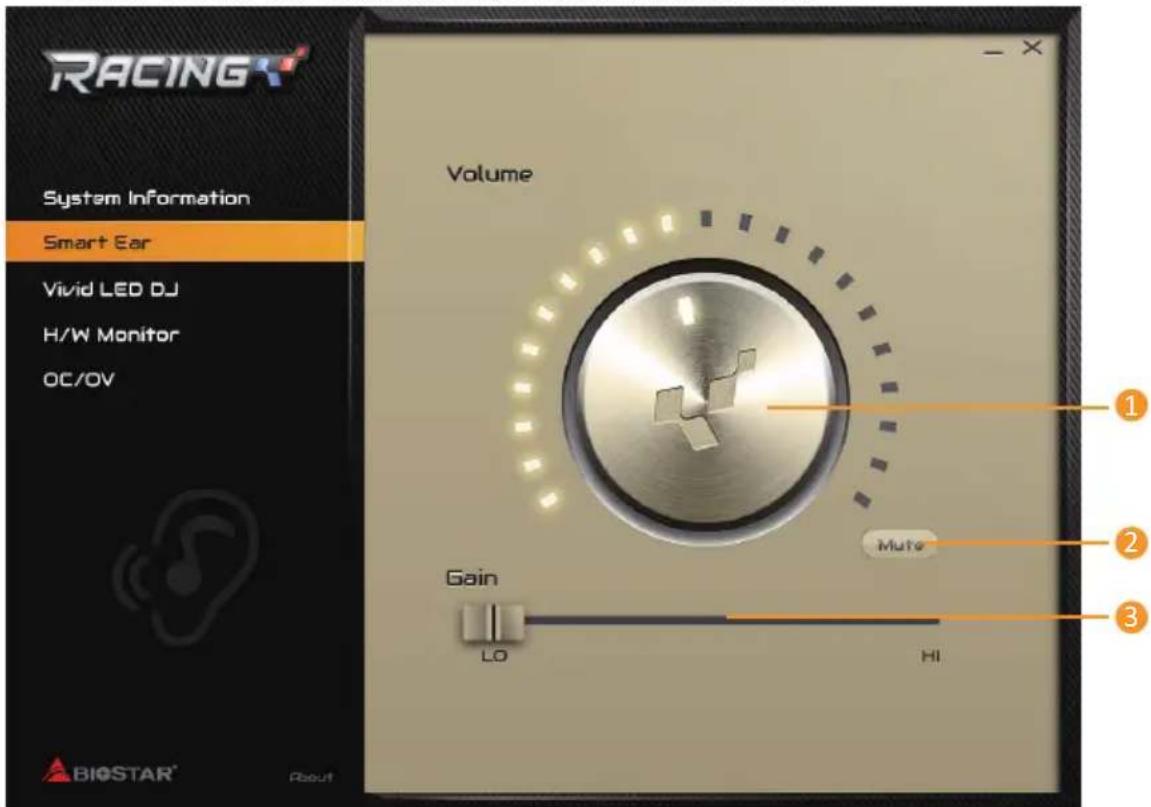

1. Volume Control Knob: The volume can be finely adjusted by turning the knob either clockwise or anti-clockwise to increase or decrease system volume accordingly.
2. Mute: To disable system sound.
3. High/Low Gain Switch: Keep the gain switch to low for low impedance headphone and set to high for high impedance headphone.

Vivid LED DJ

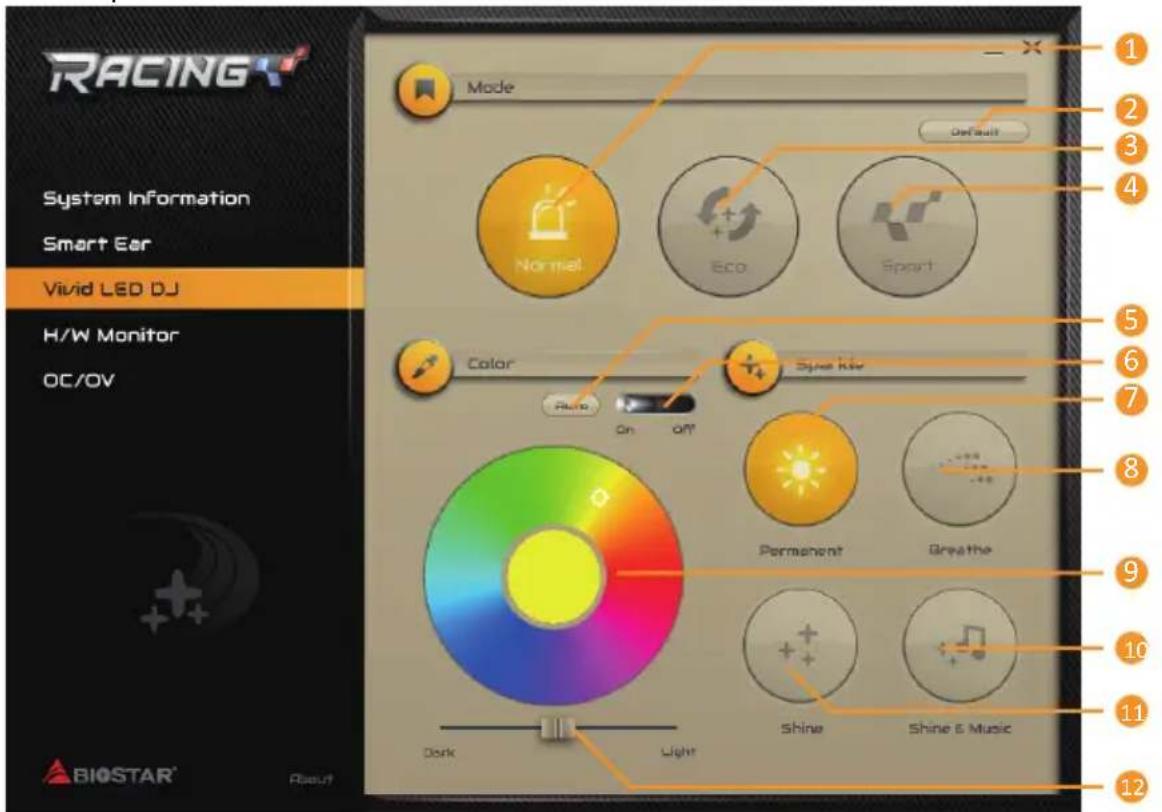

Vivid LED DJ can adjust your color scheme of on-board LEDs, MOSFET Heatsink LED and RGB LED Strip.

1. Normal Mode: It balances energy consumption and system performance.
2. Default: All the setting are back to default.
3. ECO Mode: It saves energy by slightly reducing system performance.
4. Sport Mode: It provides the highest level of performance

» ECO & Sport onboard buttons and LED lights will be available when running RACING GT program in Windows environment.
» The color schemes of Normal, ECO & Sport mode can be adjusted by below setting items.

1. Auto: LEDs will automatically change the color.
2. LED On/Off: Turn on or off the LEDs.
3. Permanent: LEDs are constantly lit.
4. Breath: LEDs gradually flash on and off.
5. Color Palette: Allows to you choose specific color of the LEDs.
6. Shine: LEDs flash at a specific frequency.
7. Shine & Music: LEDs will flash according the music played on your system.

» Please make sure your speaker or earphone is properly connected to audio jack before using RACING GT program.

1. Light/Dark: Allows you to adjust the LED brightness.

H/W Monitor

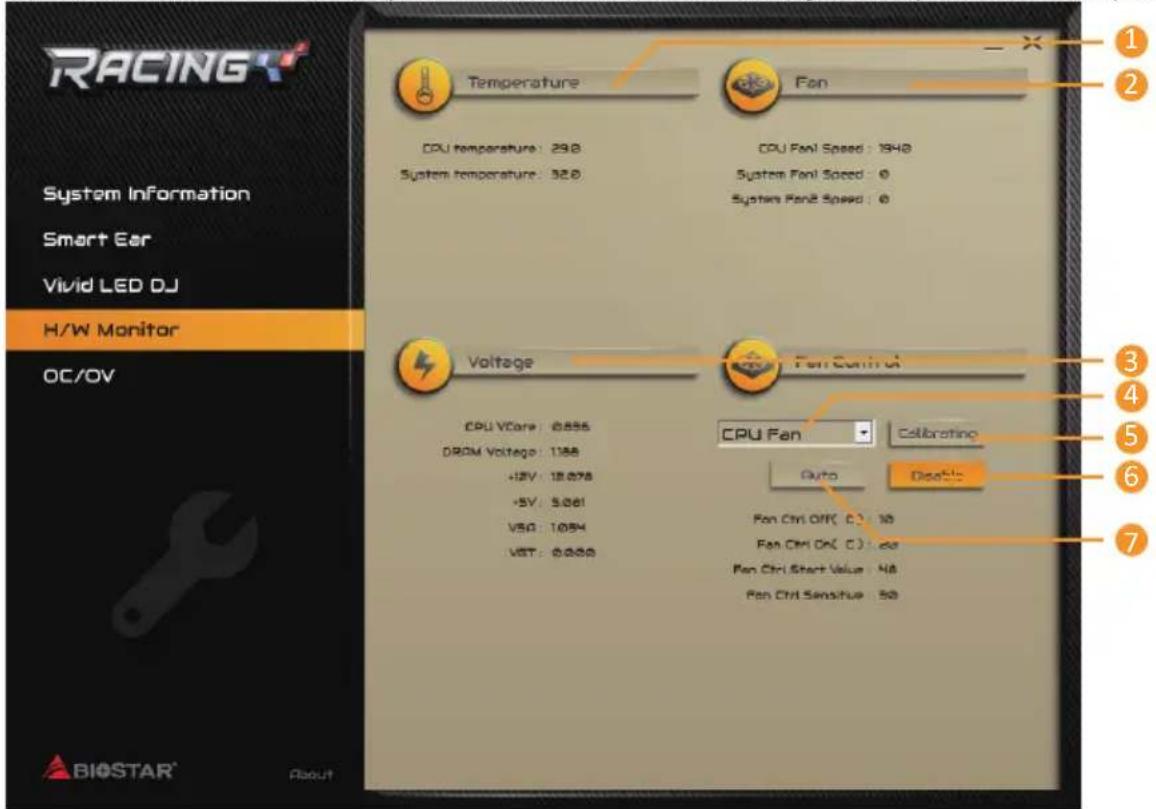

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. Temperature: Shows the current CPU and system temperature.
2. Fan: Shows the current fans' speed.
3. Voltage: Shows the current voltages of CPU and memory.
4. CPU Fan/System Fan: Chooses your setting fan.
5. Calibration: Calibrates fan speed.
6. Disable: Disables smart fan function.
7. Auto: Enables smart fan function.

OC/OV

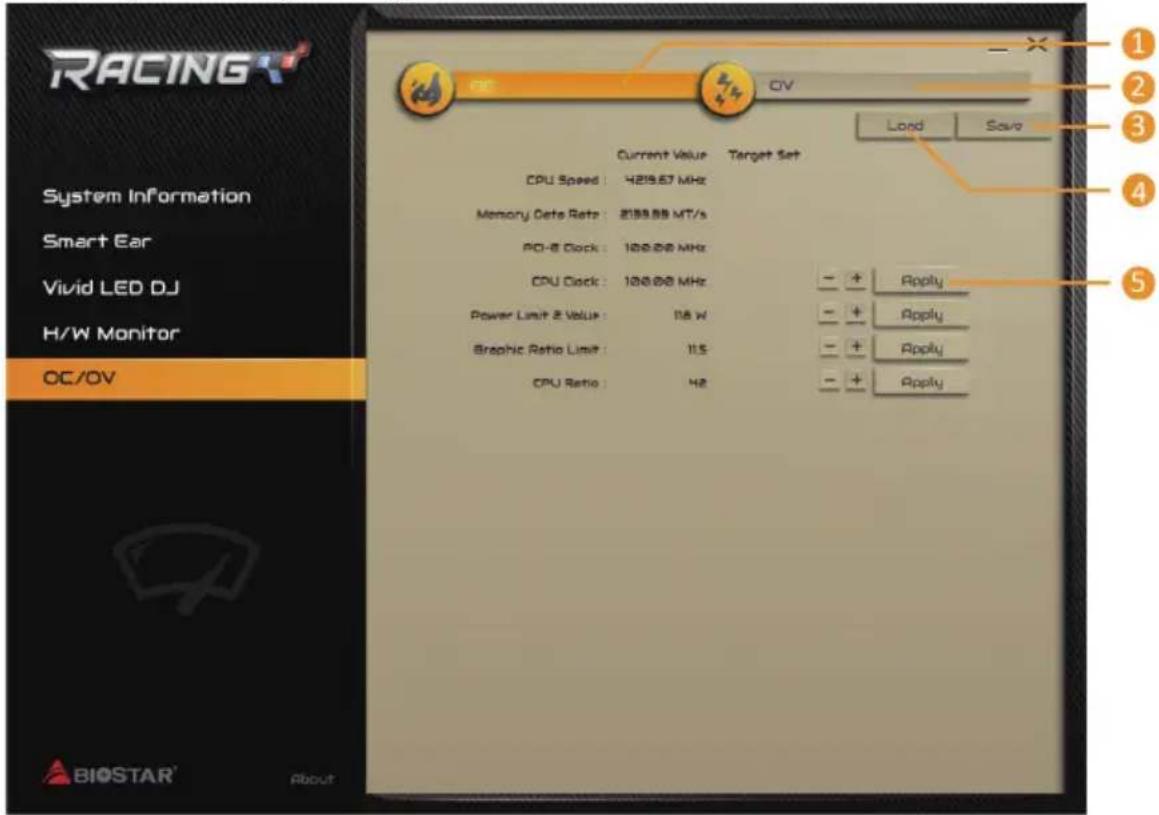

The OC/OV tab allows you to save or load the OC/OV setting profiles, change system frequency and voltage settings.

1. OC: Allows you to adjust overclocking profile values.
2. OV: Allows you to adjust voltage profile values.
3. Save: Store the profile values for future use.
4. Load: Load the profile values from the file.
5. Apply: Apply your changes.

Note

» Not all types of CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.

Overclock is an optional process, but not a "must-do" process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

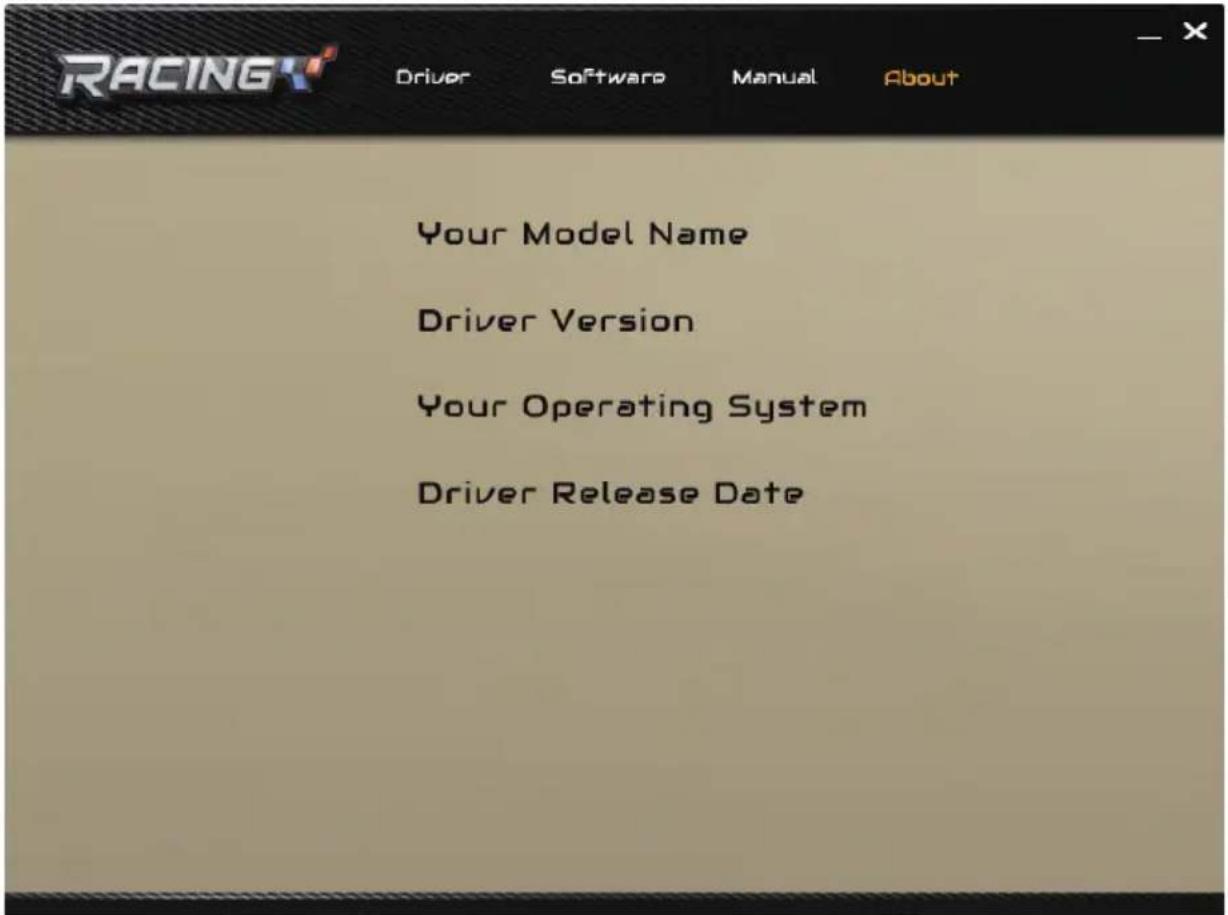

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error	(system video adapter)

4.3 AMI BIOS post code

Code Description

10 PEI Core is started

11 Pre-memory CPU initialization is started

15 Pre-memory North Bridge initialization is started

19 Pre-memory South Bridge initialization is started

2B Memory initialization. Serial Presence Detect (SPD) data reading

2C Memory initialization. Memory presence detection

2D Memory initialization. Programming memory timing information

2E Memory initialization. Configuring memory

2F Memory initialization (other).

31 Memory Installed

32 CPU post-memory initialization is started

33 CPU post-memory initialization. Cache initialization

34 CPU post-memory initialization. Application Processor(s) (AP) initialization

35 CPU post-memory initialization. Boot Strap Processor (BSP) selection

36 CPU post-memory initialization. System Management Mode (SMM) initialization

37 Post-Memory North Bridge initialization is started

3B Post-Memory North Bridge initialization (North Bridge module specific)

4F DXE IPL is started

60 DXE Core is started

F0 Recovery condition triggered by firmware (Auto recovery)

F1 Recovery condition triggered by user (Forced recovery)

F2 Recovery process started

F3 Recovery firmware image is found

F4 Recovery firmware image is loaded

E0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)

E1 S3 Boot Script execution

E2 Video repost

E3 OS S3 wake vector call

60 DXE Core is started

61 NVRAM initialization

62 Installation of the South Bridge Runtime Services

63 CPU DXE initialization is started

68 PCI host bridge initialization

69 North Bridge DXE initialization is started

6A North Bridge DXE SMM initialization is started

Code	Description
70	South Bridge DXE initialization is started
71	South Bridge DXE SMM initialization is started
72	South Bridge devices initialization
78	South Bridge DXE Initialization (South Bridge module specific)
79	ACPI module initialization
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AB	Setup Input Wait
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)

4.4 Troubleshooting

Probable Solution
1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

4.5 RAID Functions

RAID Definitions

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
  • Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.

RAID 10 (1+0)

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

RAID 5
parity across disks


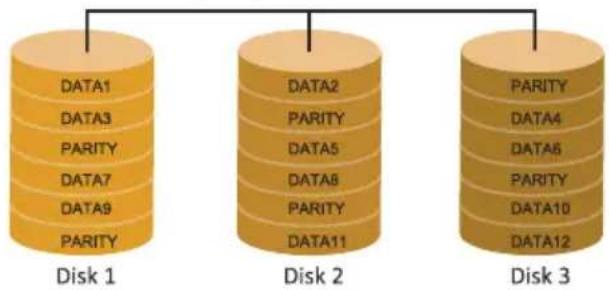

A RAID 5 array can withstand a single disk failure without losing data or access to data. Although RAID 5 can be achieved in software, a hardware controller is recommended. Often extra cache memory is used on these controllers to improve the write performance.

Features and Benefits

• Drives: Minimum 3.
  • Uses: RAID 5 is recommended for transaction processing and general purpose service.
• Benefits: An ideal combination of good performance, good fault tolerance, and high capacity and storage efficiency.
• Drawbacks: Individual block data transfer rate same as a single disk. Write performance can be CPU intensive.
• Fault Tolerance: Yes.

Note

» For more details settings about Intel® Rapid Storage Technology (Intel® RST), please visit http://www.intel.com/p/en_US/support/highlights/chpsts/imsm
» PCI-E Storage only supports RAID 0, 1 & 5.

APPENDIX I: Specifications in Other Languages

Arabic

this page intentionally left blank

FCC条款

注意

Two technical diagrams showing a device with internal components and directional arrows indicating motion (no text or symbols)

步骤3: 取掉针脚保护盖

Technical illustration of a computer chassis with two views showing internal components and a blue arrow indicating the direction (no text or symbols present)

步骤5: 固定CPU，将拉杆闭合。

注意

Technical line drawing of a RAM module with mounting bracket and clamping mechanism (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

注意

双通道状态 DIMMA1 DIMMA2 DIMMB1 DIMMB2
Enabled O X O X
Enabled X O X O
Enabled O O O O

PEX16_1/16_2/16_3/16_4: PCI-Express Gen3 x16 插槽

清空CMOS数据过程:

针定义针定义
13+3.3V 1 +3.3V
14-12V 2 +3.3V
15接地3接地
16 PS_ON 4 +5V
17接地5接地
18接地6 +5V
19接地7接地
20 NC 8 PW_OK
21+5V 9唤醒电压	+5V
22+5V 10 +12V
23+5V 11 +12V
24接地12 +3.3V

ATXPWR2: ATX电源接口

针定义		针定义
1 CLK_PCI_TPM	2	接地
3LFRAME#	4	Key
5 PL_RST2#	6	VCC5
7FWH3	8	FWH2
9 VCC3_3	10	FWH1
11	FWH0	12	接地
13	SMBCLK	14	SMBDATA
15	AUX33 16	SERIRQ
17	接地	18	CLK_RUN#
19	SUS_STAT#	20	LDRQJ1

SATA\_Express\_1/2: SATA Express 接口

针定义针定义
1 VBUS0 11	D2+
2 SSRX1-	12	D2-
3SSRX1+	13	接地
4接地14	SSTX2+
5 SSTX1-	15	SSTX2-
6 SSTX1+	16	接地
7接地17	SSRX2+
8 D1-	18	SSRX2-
9 D1+	19	VBUS1
10	ID	20	Key

HD Audio AC' 97
针定义针定义
1 Mic Left in 1 Mic In
2接地2接地
3Mic Right in 3Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7Front Sense 7Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

注意

针	定义
1 VCC12
2 LED_GREEN
3LED_RED
4 LED_BLUE

注意

ECO模式：

BIOS开机自检代码指示器：

3.3 软件

安装软件

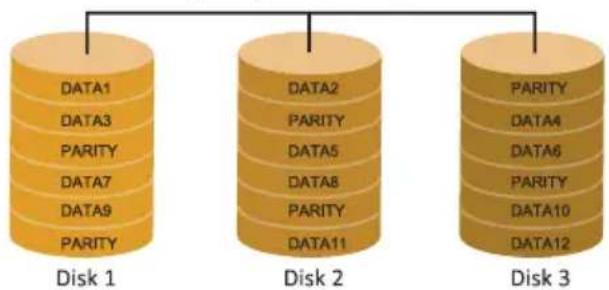

RAID 5
parity across disks
    end
