BVSTKT673SS - Kettle OSTER - Free user manual and instructions

Product Type	Electric kettle
Model	BVSTKT673SS
Color	Stainless steel (SS)
Capacity	Approximately 1.7 liters (Max fill line)
Power Rating	127V: 1200W; 220V: 1850W (50/60 Hz)
Voltage	127 V or 220 V depending on region
Auto Shut-Off	Yes, when water reaches boiling
Boil Dry Protection	Yes, automatic shut-off if boiled dry
Filter	Removable mesh filter to reduce scale deposits
Control Type	Illuminated on/off switch
Power Base	360° swivel base with cord storage
Material	Stainless steel body (likely)
Water Level Window	Yes, graduated window on side
Cord Length	Short cord (approx. 0.7 m) to reduce tripping hazard
Safety Features	Lid closed during use, keep spout away, grounded plug (if applicable)
Care & Cleaning	Hand wash only; descale with vinegar solution; do not immerse base or kettle
Reparability	No user-serviceable parts; contact authorized service center
Weight	Approximately 1.1 kg (2.5 lbs)
Dimensions (Approx.)	23 cm x 20 cm x 25 cm (9 x 8 x 10 in)

Frequently Asked Questions - BVSTKT673SS OSTER

What should I do if the kettle boils dry?

The kettle has a boil-dry protection that shuts it off automatically. Allow it to cool for at least 30 minutes, then refill with water to above the minimum level before reusing.

How do I clean the kettle filter?

First, unplug and let the kettle cool. Open the lid, grip the top of the filter, gently push down and remove it. Rinse under a tap while brushing with a soft brush. Refit by aligning the bottom tab and pushing until it clicks.

Can I put the kettle or base in the dishwasher?

No, neither the kettle nor the power base is dishwasher safe. Hand wash only with mild detergent and water.

Why does the kettle turn off before the water boils?

Ensure the lid is closed firmly and the on/off switch is not obstructed. If the kettle is on but not heating, the boil-dry protection may have activated if there was insufficient water.

What is the maximum water level?

Do not exceed the 'MAX' mark on the water level window. Overfilling may cause hot water to spit out of the spout.

How do I descale the kettle?

Fill with a solution of 3 cups white vinegar and 3 cups water. Let it sit overnight, then empty and rinse. Boil clean water twice to remove vinegar smell.

Can I use the kettle for anything other than water?

No, this kettle is intended for boiling water only. Do not heat other liquids or cook food in it.

What should I do if the plug doesn't fit the kettle tightly?

The plug must be fully inserted until the marking on the plug is not visible. A loose contact can cause overheating. If it doesn't fit, contact an authorized service center.

How should I route the cord?

Follow the exit patterns on the power base to ensure the base lies flat. Improper cord routing may cause the base to wobble.

What is the warranty?

The kettle comes with a one-year limited warranty. Refer to the warranty insert for details, or contact Oster customer service.

USER MANUAL BVSTKT673SS OSTER

Two white and gray Oster water heaters displayed against a blurred background (no text or symbols on the main objects)

MODELOS MODELS

BVSTKT673SS & BVSTKT673CR

PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

PRECAUCIONES IMPORTANTES

Diagram of a medical procedure showing an arrow pointing to a specific anatomical structure (no text or labels present)

Diagram of a medical procedure showing a catheter insertion into a sutured anatomical structure (no text or labels)

MANTENIMIENTO Y LIMPIEZA

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING THE ELECTRIC KETTLE.
2. This appliance generates heat during use. DO NOT touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, DO NOT immerse this appliance including power base, in water or any other liquid.
4. Unplug the power base from the power outlet when not in use, before repositioning and before cleaning. Allow it to cool before putting on or taking off parts, and before cleaning the appliance.
5. DO NOT operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Take the appliance to the nearest Authorized Oster Service Center for examination, repair or adjustment.
6. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
7. DO NOT use outdoors.
8. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
9. DO NOT place this appliance on or near a hot gas or electric burner or in a heated oven.
10. Ensure that the kettle is properly located on the power base before plugging into the wall or switching on. Always attach plug to appliance first, then plug cord into the wall outlet (for appliances with detachable cords). To disconnect, move all controls to the off position “O(up) then remove plug from wall outlet. Do not disconnect by pulling on cord.
11. Remove the kettle from power base before filling or pouring. Do not attempt to remove the kettle from the power base until it is switched off, manually or automatically.
12. Use the kettle only with the power base supplied and vice versa.
13. DO NOT use appliance for other than intended use. Misuse can cause injuries.
14. Use on a hard, flat level surface only, to avoid interruption of airflow underneath the appliance.
15. Extreme caution must be used when handling or moving kettle and pouring from the kettle containing boiling water.
    WARNING: Do not remove the lid while the water is boiling. All lids should be closed during use.
16. Scalding may occur if the lid is during or immediately after the heating cycle. Contents may be hot. Allow to cool before opening the lid. Keep spout away from persons, as scalding can result from steam.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

ENGLISH - 1

1. Close supervision is necessary when any appliance is used by or near children, or incapacitated individuals.
2. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
3. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments farm houses by clients in hotels, motels and other residential type environments bed and breakfast type environments.
4. The heating base and heating element is subject to residual heat following a heating cycle. Do not touch heating base or heating element immediately after a heating cycle. Allow to cool before handling.
5. If your kettle comes with a grounded plug, connect to properly grounded outlets only.

SAVE THESE INSTRUCTIONS

ENGLISH - 2

SPECIAL CORD SET INSTRUCTIONS

1. A short power supply cord is provided to reduce the hazard resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
2. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the electrical rating of the electric kettle (see rating label marked on product). The resulting extended cord must be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over accidentally. If the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord.

PRECAUTIONS:

WARNING: TO AVOID SCALDING, handle this kettle with care as water is heating, boiling, and cooling. The lid must remain closed during use to avoid steam burns. Keep spout away from persons as scalding can result from steam.

1. Place the electric kettle well back from the edge of the counter.
2. This kettle is intended for boiling WATER ONLY. Do not heat any other liquid or at tempt to cook any food in this appliance.
3. NEVER place the kettle NEAR HOT SURFACES.
4. Hand wash filter only. NO PARTS ARE DISHWASHER SAFE.
5. Do not exceed the "Max" water level mark when filling. Overfilling could cause hot water to boil out of the spout.
6. Do not hold the switch on as this may damage the auto shut-off mechanism.
7. Carry or move electric kettle by handle only.
8. Kettle body may get very hot, be careful when handling.
9. Do not immerse the kettle or power base in water or any other liquid.

WARNING: The plug must be fully inserted into kettle. To ensure full insertion, verify the marking on the plug is not visible. A loose contact may cause overheating.

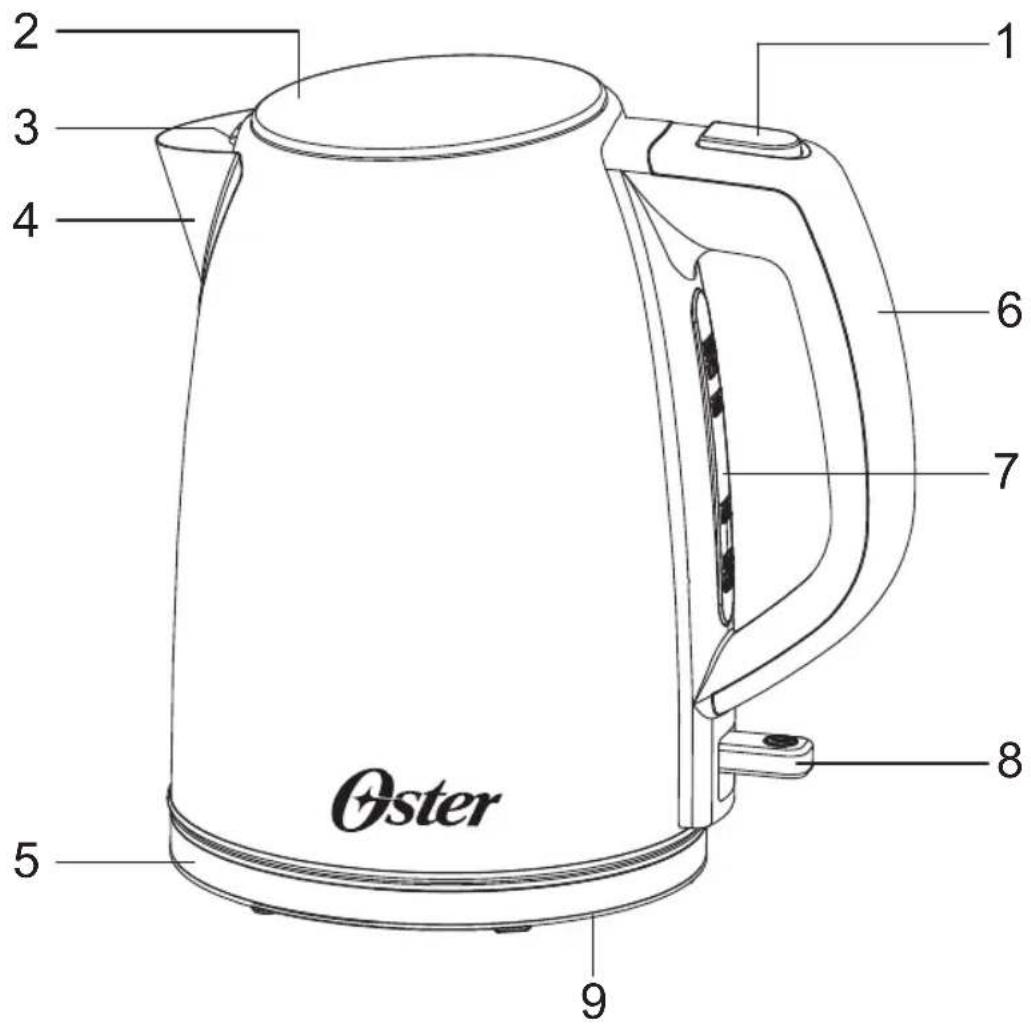

DESCRIPTION OF THE APPLIANCE

1. Lid release button
2. Lid
3. Filter
4. Spout

5. Power base

6. Handle

7. Water level window
8. Illuminated On/Off switch
9. Cord storage

BEFORE THE FIRST USE

1. Wash the inside of the kettle and lid with mild detergent and water. Rinse each thoroughly. Do not immerse the kettle or power base in water or any other liquid. These items are not dishwasher safe.
2. Fill the electric kettle with fresh water to the "MAX" water level mark on water window. Boil the water, following the directions below for use of your kettle.
3. When the water and unit have cooled, discard the water. Rinse with cold water and repeat.
4. Your electric kettle is now ready for use.

OPERATING INSTRUCTIONS

1. Position the power base on a flat, heat resistant surface, as close as possible to a power outlet.
2. Follow cord routing in power base according to exit patterns. Proper cord routing will result in the power base laying flat when kettle is placed in base. DO not operate kettle if power base is not flat. If power base is not flat, remove kettle from power base and repeat cord placement instructions.
3. To fill with water, open lid. Fill the electric kettle with water to below the "MAX" water level mark.

NOTE: Do not exceed the "MAX" water level mark indicated on the electric kettle.

Place lid back in place.

1. Plug the electric cord into an electric outlet. Turn the switch ON by pushing down on the on/off switch. The on/off switch light will illuminate to indicate the unit is on. The water will heat and the electric kettle will switch off automatically when the water boils.
   NOTE: Ensure the ON/OFF switch is clear of obstructions and the lid is firmly closed. The electric kettle will not turn off automatically if the ON/OFF switch is constrained, or if the lid is left open.
2. Carefully lift the kettle from the power base and pour the hot water.
3. The kettle will not re-boil until the on/off switch is again switched ON (down). Wait 25 seconds, allowing kettle to cool down, then switch ON (down).

ENGLISH - 5

IF THE KETTLE DOES BOIL DRY

If the kettle is operated in accordance with instructions for use, it is unlikely that the kettle will boil dry. However, in the event that the kettle does boil dry, it is protected by a boil dry, fail-safe device which will switch the kettle off automatically on sensing a boil dry situation and keep it switched off until the kettle is refilled with at least the minimum amount of water. Always allow the kettle to cool for half an hour before reuse if the kettle has boiled dry.

FILTER INSTRUCTIONS

A mesh filter has been integrated into the kettle to reduce the amount of scale residues entering your beverages or food. The filter is removable for cleaning. To reduce scale build-up, empty out any residual water after boiling.

How often the filter should be cleaned will vary according to where you live and how often you use your kettle. Filter should be cleaned whenever there are noticeable deposits left on the filter and especially if the rate of pouring decreases.

FILTER REMOVAL/CLEANING/REFITTING

IMPORTANT: The kettle must be switched off, disconnected from the power outlet and allowed to cool down completely prior to removing or refitting the filter. Do not use excessive force, as this might damage the filter or the lid.

1. Empty the kettle and open lid.
2. Grip the top part of the filter with index finger and thumb. Gently push down and remove filter. You may have to hold kettle while removing filter.
   CAUTION: Keep fingers clear of mesh. Pressing into mesh may damage filter.
3. To clean the filter, rinse under a tap while brushing it gently with a soft brush.
4. To refit filter, once again hold filter with index finger and thumb. Making sure the bottom tab of the filter is resting on the bottom of the opening, gently push the filter back towards the spout until you hear a click. The filter is now reattached. Gently tug on filter to ensure filter is attached properly.
5. Rinse out kettle with fresh water and it's ready for use.

Diagram of a medical procedure with an arrow indicating direction (no text or labels)

Medical illustration showing a surgical procedure with an arrow indicating direction (no text or labels)

CARE AND CLEANING

1. Mineral deposits in tap water may cause scale deposits to form inside the electric kettle after frequent use. To remove this scale build-up, fill the kettle with a solution of 3 cups of white vinegar and 3 cups water. Let sit overnight.
2. Empty the vinegar solution from the electric kettle. Remove any stain remaining inside by rubbing with a damp cloth.
3. Fill the electric kettle with clean water. Place kettle on power base and bring to a boil, then discard water. Repeat and the electric kettle will be ready to use.
4. The electric kettle will not operate again until the on/off switch is pressed downward.
5. Always remove kettle from power base and disconnect power base from electrical outlet before cleaning. Do not immerse kettle or power base in water or other liquid.
6. The outside of the electric kettle can be wiped with a soft damp cloth.

NOTE: Never use any chemical, steel wool, or abrasive cleaners to clean any part of the kettle, including the power base.

Oster®

Características eléctricas de los modelos de la serie:		BVSTKT673SS-XXX
Electric characteristics of series models:		BVSTKT673CR-XXX
Voltaje/Voltage Frecuencia/Frequency Potencia/Power
127 V 60 Hz 1200	W
220 V 50/60 Hz 1850	W
220 V 50 Hz 1850	W
220 V 60 Hz 1850	W

XXX where X is any number between 0 and 9 or any letter between A and Z.

The following information is intended for Mexico only.

HERVIDOR ELÉCTRICO

MODELOS: BVSTKT673SS, BVSTKT673CR, BVSTKT673SS-013

IMPORTADOR: NEWELL BRANDS DE MÉXICO S.A. DE C.V.

AV. JUAREZ NO. 40-201

© 2018 Sunbeam Products, Inc. All rights reserved. Distributed by Sunbeam Latin America, LLC, 5200 Blue Lagoon Drive, Suite 860, Miami, FL 33126.

One year limited warranty – please see insert for details.

www.oster.com

Impreso en China Printed in China

OSTERLATINO / OSTERBRASIL

YouTube

P.N. 197177

GCDS-OST424960-JC
