Product Type	Dash Cam
Brand	Rexing
Model	V1P SE
Dimensions	3.5 x 2.0 x 1.5 inches
Weight	2.5 oz
Power Input	5V/1.5A via USB
Video Resolution	1080p Full HD (1920x1080)
Recording Channels	Dual (front and rear)
Field of View	170° wide angle
G-Sensor	Built-in to detect collisions and auto-save footage
Loop Recording	Yes, continuous recording with overwrite
Parking Mode	Motion detection and impact monitoring
GPS	Built-in GPS receiver for speed and location logging
Display	2.4-inch LCD screen
Memory Card	MicroSD up to 256 GB (Class 10 or UHS-I recommended)
Battery	Supercapacitor for higher temperature tolerance
Mount	Suction cup mount included
Warranty	1 year limited
Maintenance	Clean lens with a soft, dry cloth
Safety	Overheat protection and secure loop recording

Frequently Asked Questions - V1P SE Rexing

What video resolution does the Rexing V1P SE record?

The Rexing V1P SE records at 1080p Full HD (1920x1080) for both front and rear cameras.

Does the V1P SE support parking mode?

Yes, the V1P SE features a parking mode that uses motion detection and impact monitoring to record events when the vehicle is parked.

What type of memory card does the V1P SE require?

It supports MicroSD cards up to 256 GB, with a recommended speed class of Class 10 or UHS-I.

How do I install the rear camera?

Connect the rear camera cable to the main unit, route it along the headliner, and mount the rear camera to the rear windshield using the adhesive mount.

Is the Rexing V1P SE GPS-enabled?

Yes, it has a built-in GPS receiver to record speed and location data that can be viewed with compatible software.

How does loop recording work on the V1P SE?

The dash cam continuously records in short segments. When the memory card is full, it automatically overwrites the oldest footage, except for locked files from events.

Can I use the V1P SE at night?

Yes, it has night vision capability thanks to a wide aperture lens and sensor optimization for low light.

What is the field of view of the front camera?

The front camera has a 170° wide-angle lens, capturing a broad view of the road.

Does the V1P SE have a battery or supercapacitor?

It uses a supercapacitor instead of a battery, which is more durable and operates in extreme temperatures.

How do I retrieve and view recordings on the V1P SE?

Remove the MicroSD card and insert it into a computer, or connect the dash cam via USB to a PC. Use the Rexing video player software for playback.

USER MANUAL V1P SE Rexing

The information in this manual is subject to change without notice. Rexing All Rights Reserved

www.rexingusa.com

202307REV1

Activate Your

18-Month

Warranty

& Choose Your

FREE Gift!

Activate within 30 days of purchase to claim your free gift and extend your limited 12-month warranty to 18 months.

Scan The QR To Activate & Select Your Free Gift

SCAN ME!

About Us

Thank you for choosing REXING!

We hope you love your new products as much as we do. If you need any assistance, or have any suggestions to help us improve, please contact us.

[e-mail]

[phone]

Our support team will respond to you as soon as possible.

Always a surprise in Rexing.

Check us out here

• https://www.facebook.com/rexingusa/
• https://www.instagram.com/rexingdashcam/
• https://www.rexingusa.com/support/registration/
• https://www.rexingusa.com/support/product-support/

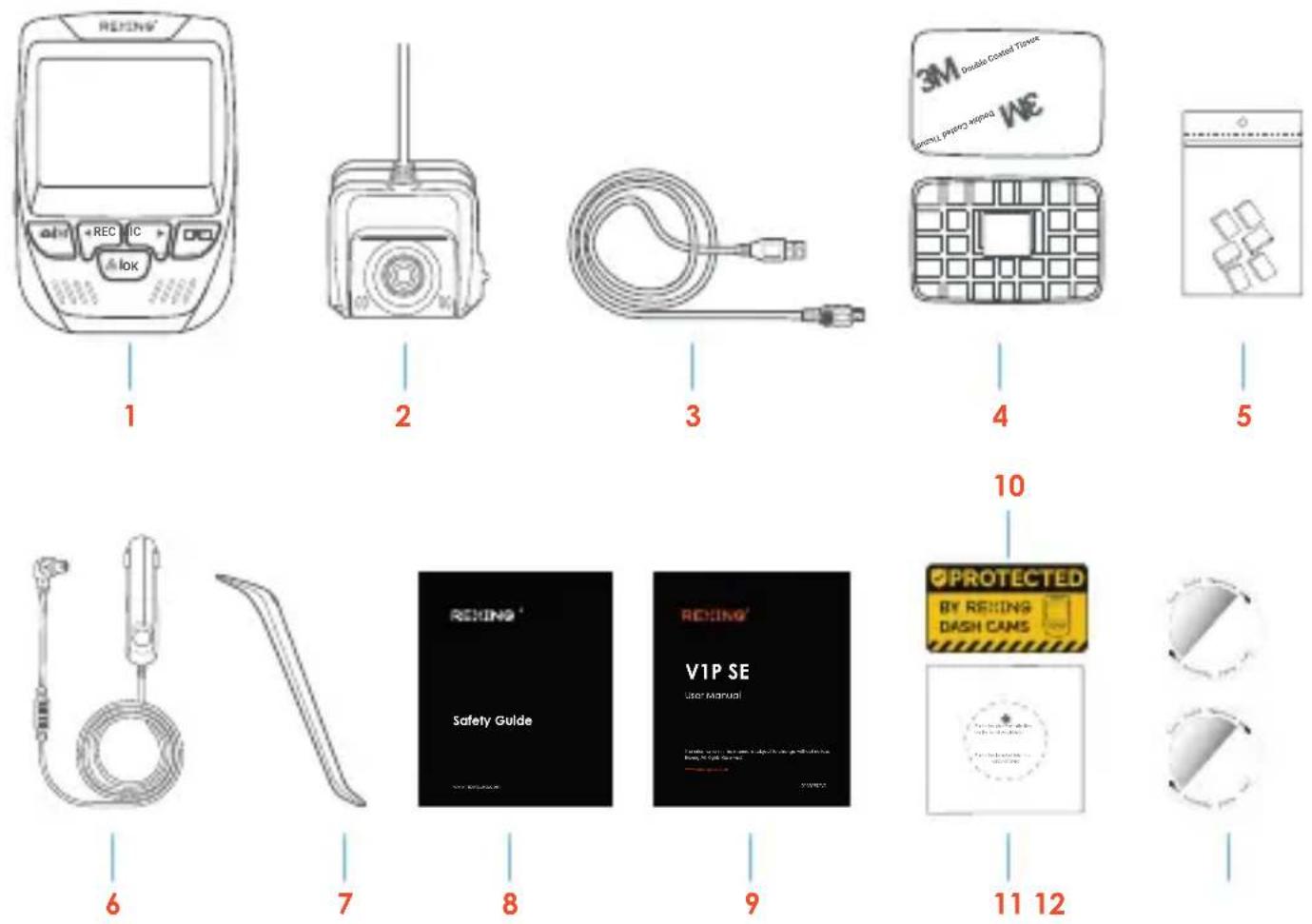

Package Contents

1. Rexing V1P SE Dash Cam
2. Rear camera with rear camera cable
3. Mini-USB Cable (for transfer files only)
4. Mount Plate & 3M Adhesive
5. Cable Clips

6. Car Charger

7. Cable Management Tool

8. Safety Guide
9. User Manual
10. Warning Sticker
11. Electrostatic Sticker
12. CPL Filters (2pcs)

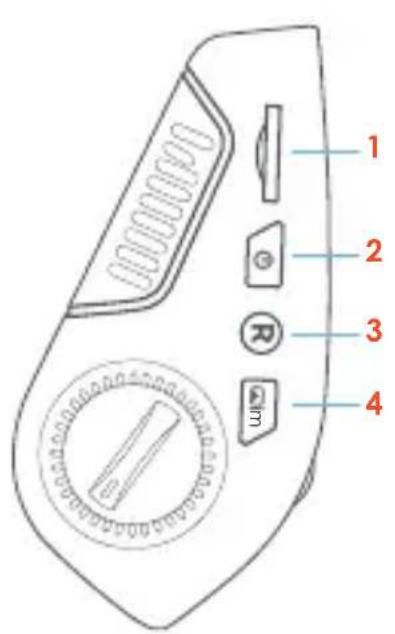

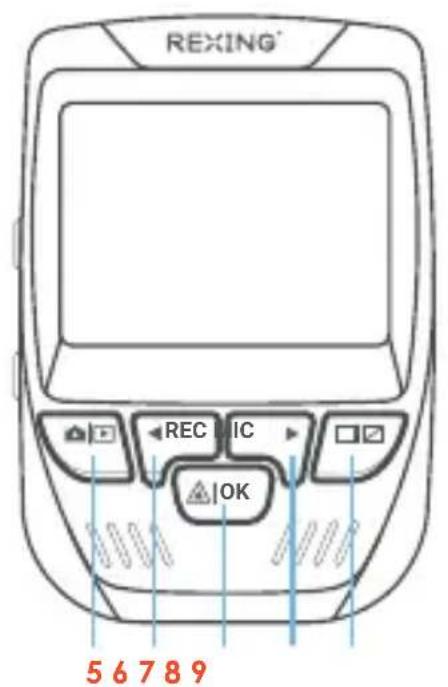

Camera Overview

1. Micro SD Card Slot
2. Power Button
3. Reset Button
4. Menu Button
5. Mode Button

6. REC (Record) Button

7. OK (Confirm) Button

8. MIC (Microphone) Button
9. Screen Button

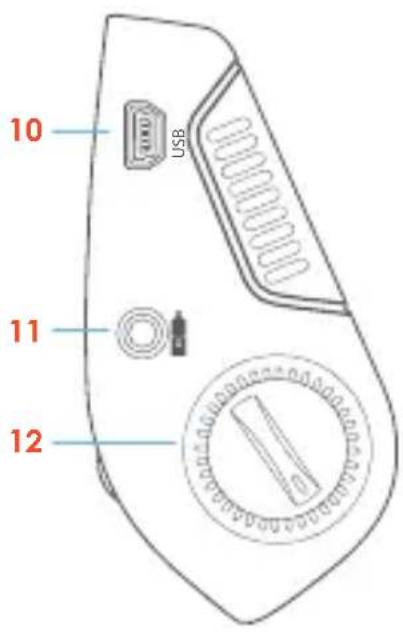

10. Mini-USB Power Port
11. Rear Camera Port
12. Lens Angle Adjustment Dial

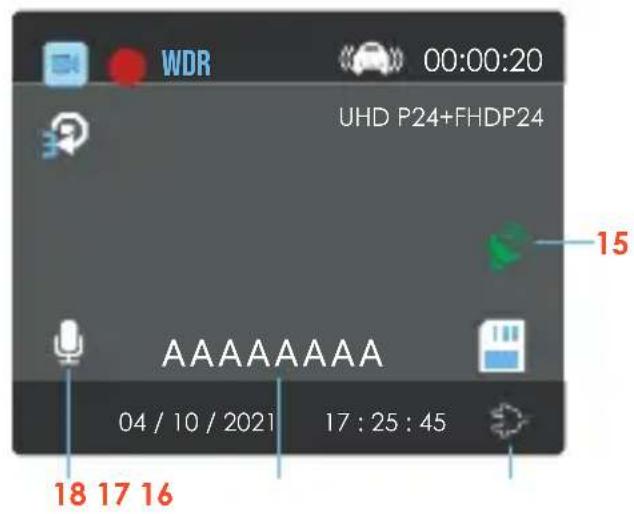

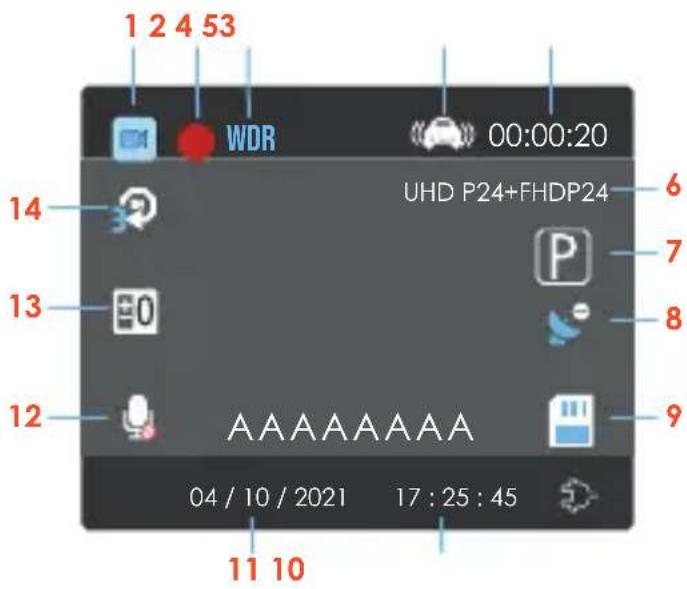

1. Recording Mode
2. Recording (On)
3. WDR Mode (On)
4. G-Sensor Sensitivity Level
5. Recording Time (Current Clip)
6. Video Resolution
7. Parking Mode (On)***
8. GPS Signal (not connected)

9. Memory Card (Inserted)

10. Time (24H)

11. Current Date Time
12. MIC (Off)
13. Exposure Value
14. Loop Recording Time Interval
15. GPS Signal (connected)
16. Battery Charging
17. Plate Number
18. MIC (On)

Get Started

Step 1

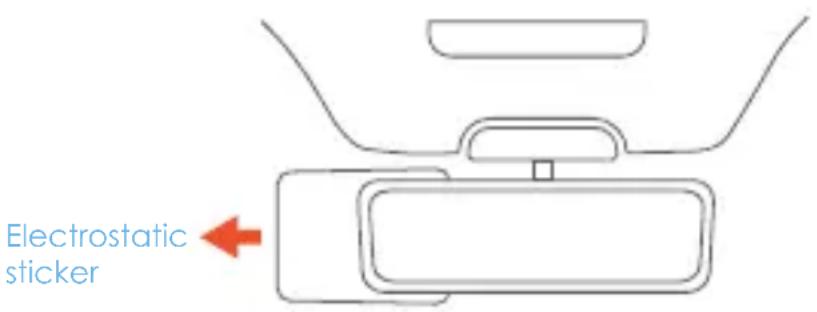

Installing the Electrostatic Stickers

1.1 Prepare Your Windshield

Thoroughly cleanse your windshield with either water or alcohol. Follow this by wiping it dry using a clean, dry cloth to ensure a spotless surface.

1.2 Position the Sticker

Next, carefully peel off the protective film from the electrostatic sticker. Attach the sticker to the windshield, ideally behind the rear-view mirror. This position is recommended to avoid obstructing your view while you're on the road.

Step 2

Installing Adhesive Mount

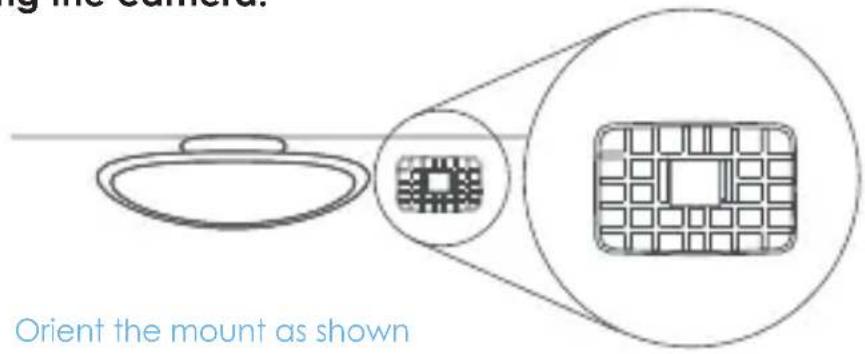

Place the 3M adhesive on the mount plate and properly orient the mount piece to the roof and hood line of the vehicle.

Secure the Mount and Camera

Now, remove the 3M tape from the mount. Once done, you can proceed to fix both the mount and camera onto the previously positioned electrostatic stickers.

Important! Ensure the T-interlock on the mount is oriented in the correct direction. Firmly press the mount onto the windshield. Wait at least 20 minutes before mounting the camera.

Step 3

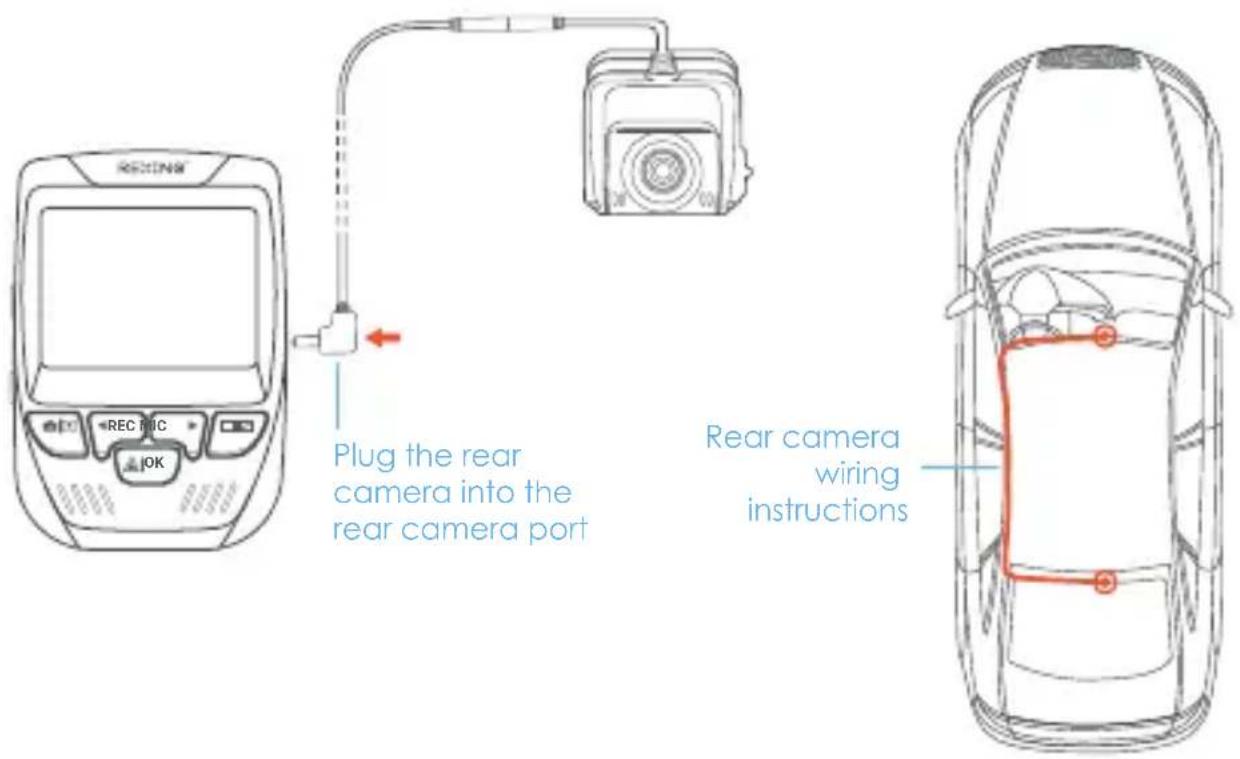

Mount the Rear Camera

Mount the rear camera as shown below. Use the included rear camera cable to connect the rear camera to the front camera.

Step 4

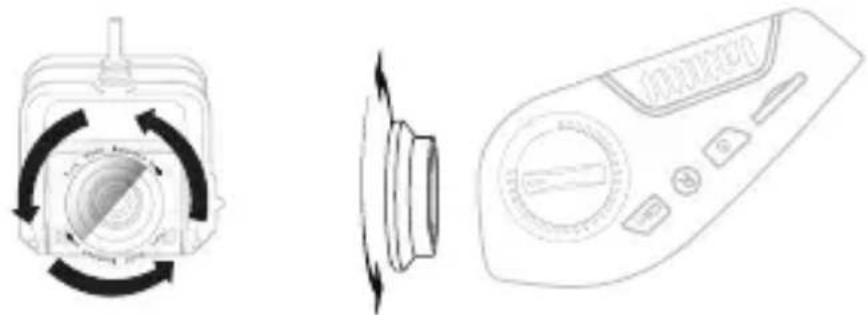

Install the CPL Filters

4.1 Place the CPL filter on top of the dash cam's front and rear lens.

4.2 Use a small screwdriver to fix the CPL filter to the lens with screws (This step is optional).

4.3 Hold and rotate the filters to adjust the level of glare.

Three technical diagrams showing a rotary device with rotating control buttons and a close-up of its dial (no text or symbols present)

Step 5

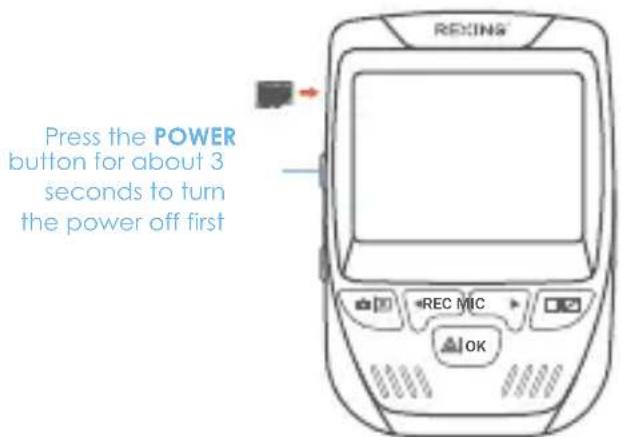

Insert the Memory Card

The Rexing V1P SE accepts Class 10/ UHS-1 or higher Micro SD memory cards up to 512GB. You will need to insert a memory card before recording. Before inserting or removing a memory card, ensure you've powered down the device.

Gently push the memory card in until you hear a click, and allow the spring release to push the card out.

Step 6

Power on the Camera and Format the Memory Card

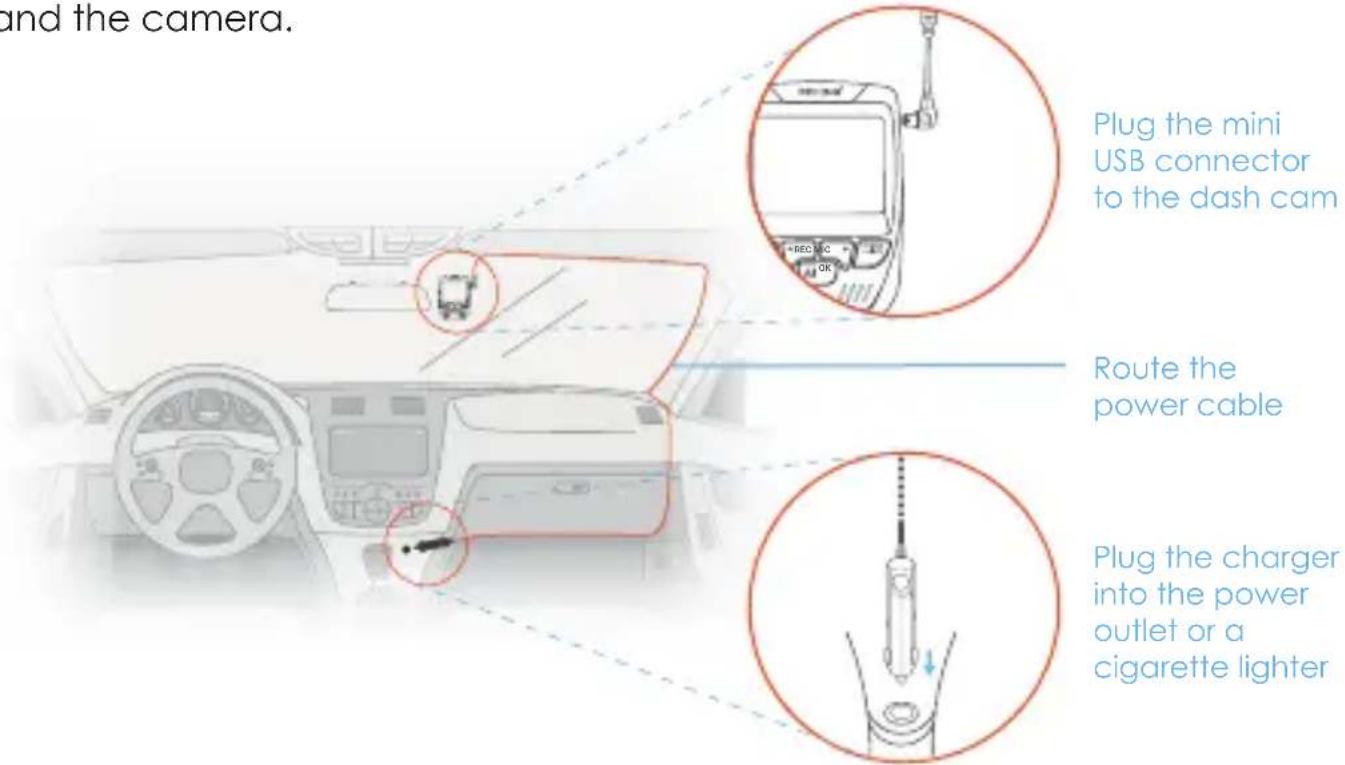

Place the camera on the mount and carefully route the power cable around the windshield and tuck it in under the trim.

Power the camera by connecting the charger to the car cigarette lighter and the camera.

The camera will shut down after 3 seconds when it's disconnect from the power source and it should begin recording automatically the next time it is powered on.

To ensure the V1P SE records to your memory card properly and without error, we strongly recommend you to format the card within the camera when you're using the dash cam for the first time.

Note:

Always remember backup important data stored on the memory card before formatting.

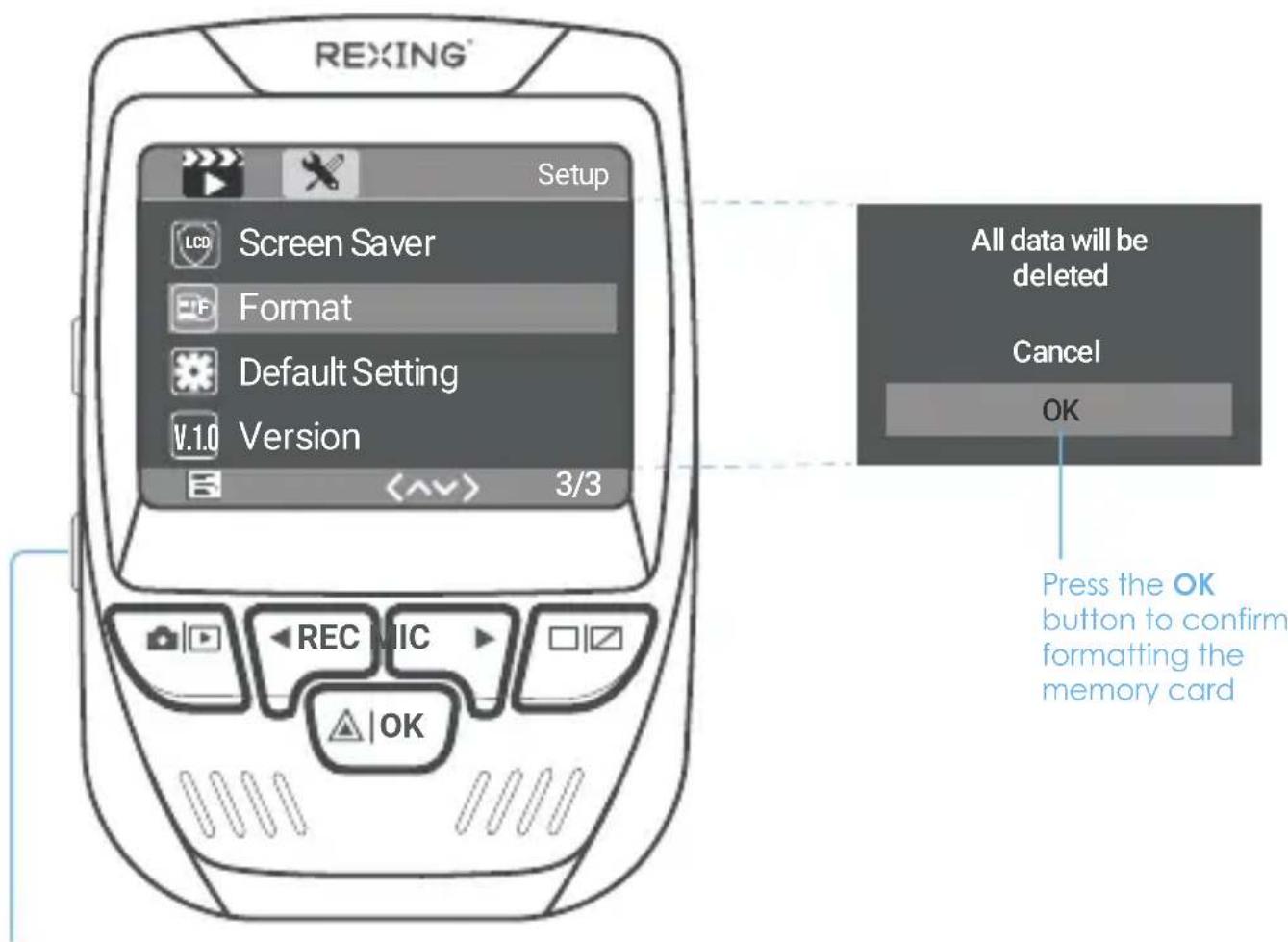

To format the memory card, first press the REC button to stop recording. Then press the MENU button twice to enter the Setup Settings. Use the REC and MIC buttons and toggle to the Format. Pres the OK button to confirm the format.

Press the
MENU
button twice

Basic Operation

Device Power

The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and receives a charge (i.e.: the vehicle is started).

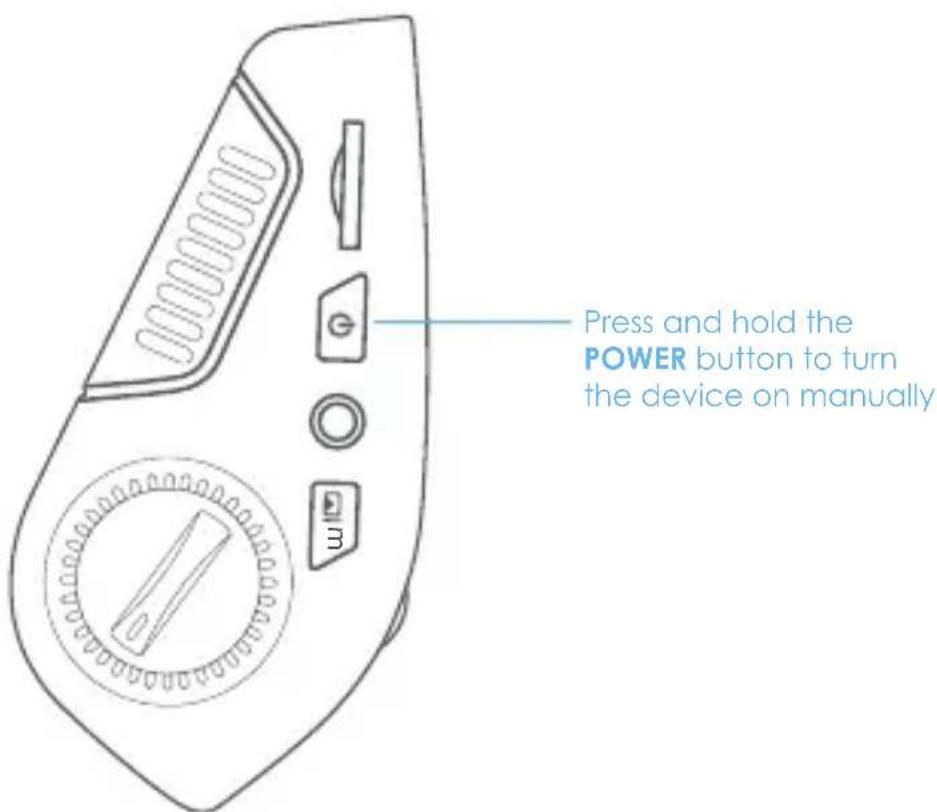

To turn the device on manually, press and hold the POWER button until the welcome screen appears.

The camera will automatically start recording when power on.

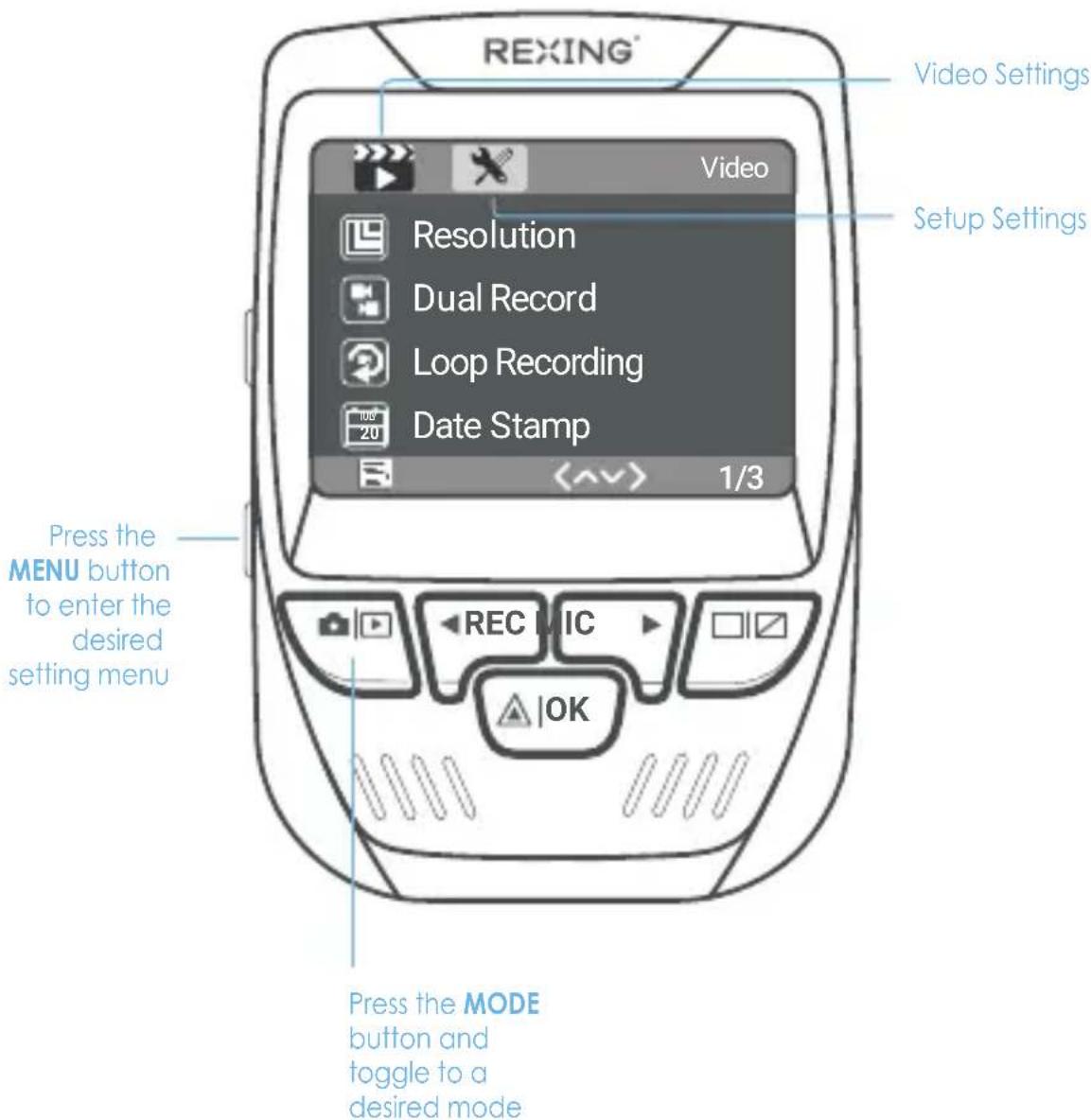

Menu Settings

Power the camera on, then press the REC button to stop recording. Press the MODE button and switch among video mode, image mode and playback mode.

Press the MENU button once to enter the Video Settings, or press the MENU button twice to enter the Setup Settings menu.

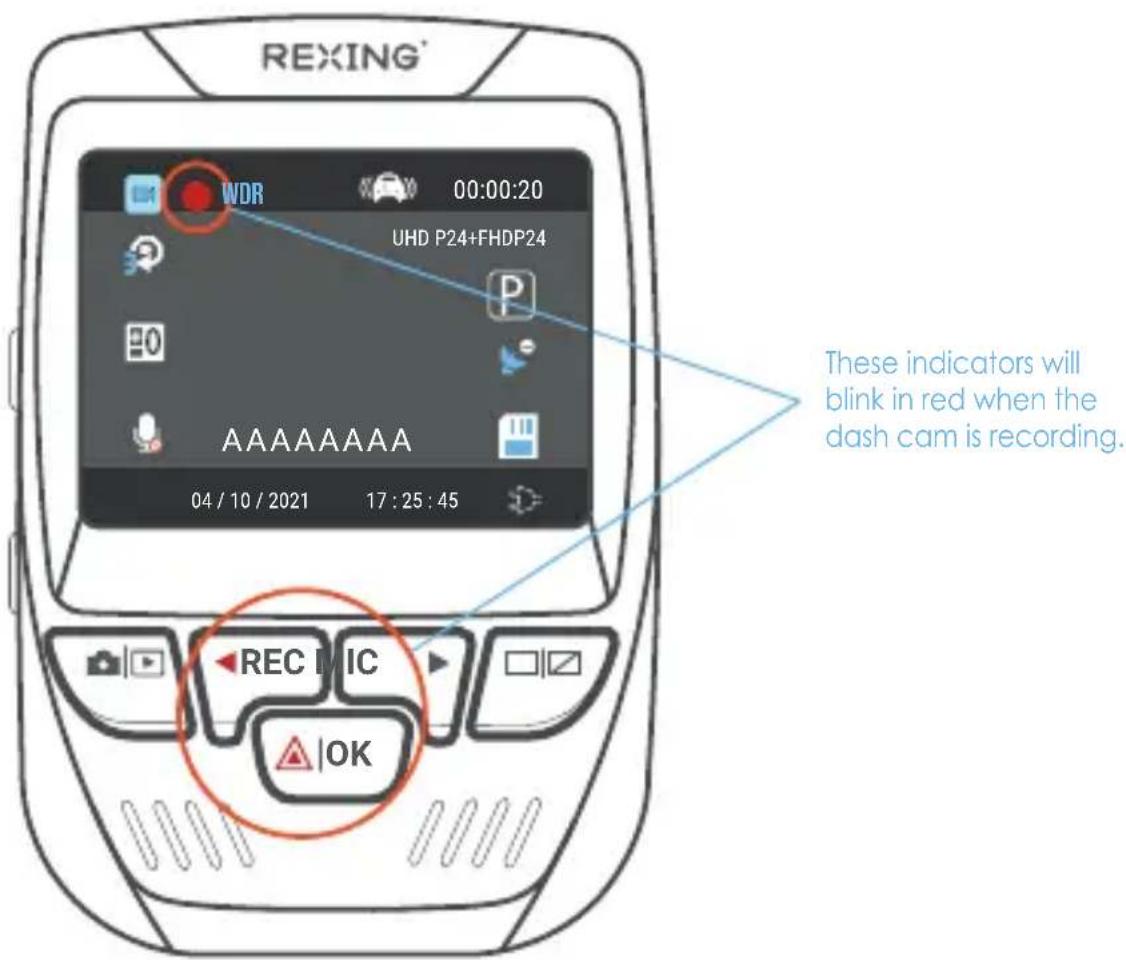

Video Recording

The camera will automatically start recording when the device receives a charge. The LED lights and the red dot will blink when the device is recording. Press the REC button to stop recording.

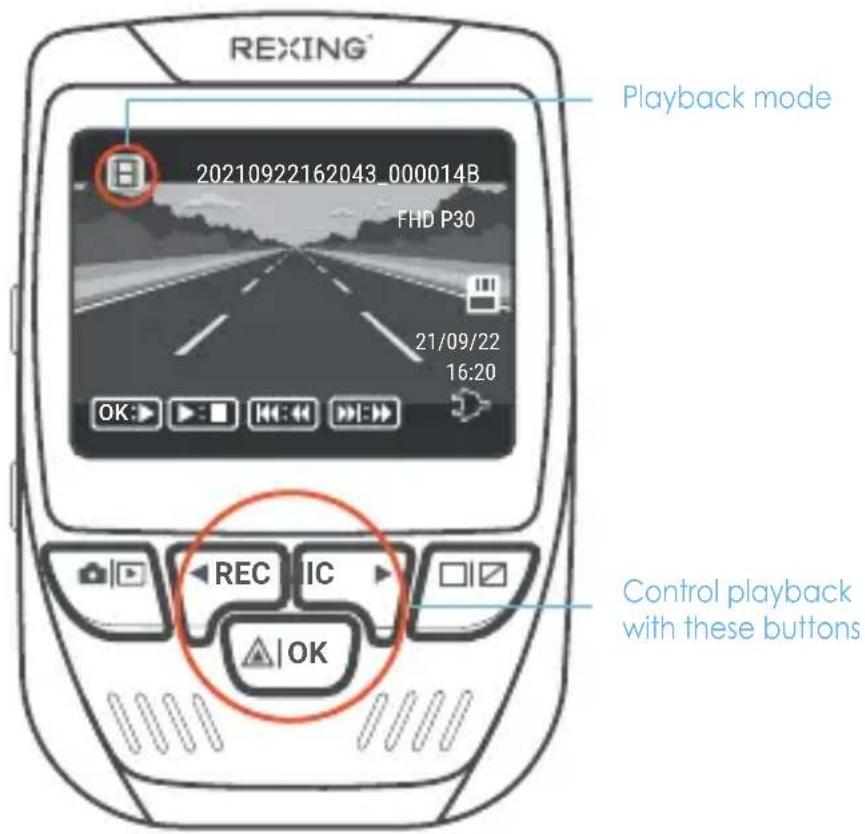

Video Playback

To playback a video on the device, press the REC button to stop recording. Press and hold the MODE button twice to enter the Playback mode. Use the REC and MIC buttons to toggle to the desired video. Press the OK button to play.

During playback, use the OK (pause), MIC (fast forward) and REC (rewind) buttons to control the video playback.

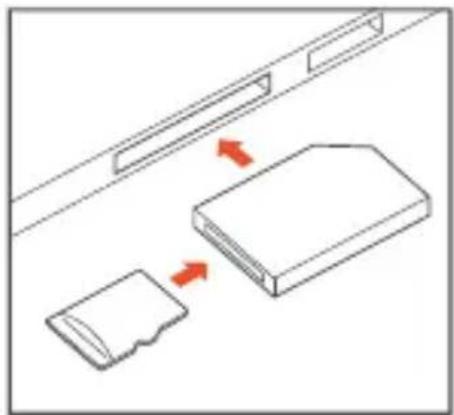

To playback a video by using an SD card reader, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer.

Diagram showing two devices with red arrows indicating movement or interaction (no text or symbols present)

Parking Monitor (Parking Surveillance Mode)

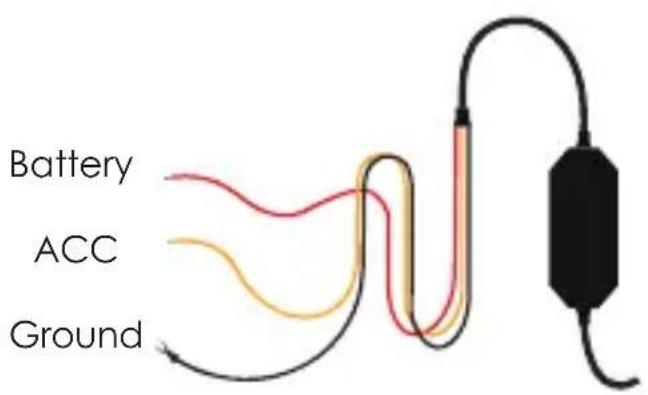

Parking monitor provides surveillance on your parked vehicle. When the engine is off, the hardwire kit is used to provide continuous power and protect your car battery from being discharged.

Option 1: Vibration Detection

To enable the Parking Monitor, you'll need to connect it with a Smart Hardwire Kit (UPC : 857080006565, sold separately).

This feature will allow the dash cam to switch to parking mode automatically if the vehicle's engine turns off and switch back to the normal recording after the vehicle's engine turns on.

Gravity Sensing Record:

The Gravity Sensing detects significant or sudden movement (such as an impact or collision), it will trigger an event recording. We suggest setting the “Gravity Sensing” to High sensitivity for Parking Mode Recording.

Note:

If you do not use the parking mode function, please change the Gravity Sensing sensitivity to low. Otherwise, the video will easily be locked and the video cannot be deleted by the loop recording function. This will cause the memory card to be full of locked videos and cause the recorder to fail to work normally.

Please DO NOT ENABLE the Parking Monitor function in the settings of the dash cam WITHOUT connecting a smart hardwire kit. They may cause a malfunction.

Option 2: Motion Detection

To use this feature, you need to connect it with a Rexing Intelligent Hardwire Kit (UPC : 810046603178, sold separately). Make sure that the Parking Mode is turned off on your dash cam, otherwise it may cause a malfunction.

Once the sensor has detected MOTIONS. The intelligent hardwire kit will power up the dash cam automatically and start recording until the MOTION is cleared.

Please go to

https://www.rexingusa.com/hwk-install/

to watch a video tutorial about the installation or scan the QR code

Wi-Fi Connect

Step 1

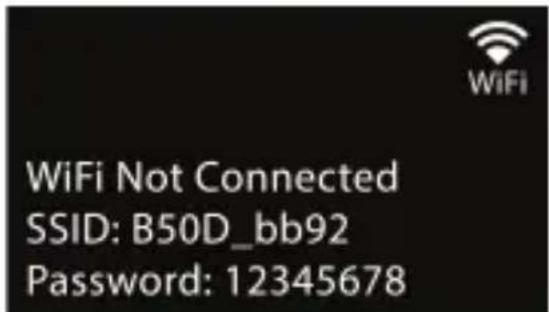

With your dash cam powered on, hold the REC/MIC navigation button to enable the Wi-Fi function. The Wi-Fi name (aka the SSID) and password for the dash cam should be displayed on-screen.

Step 2

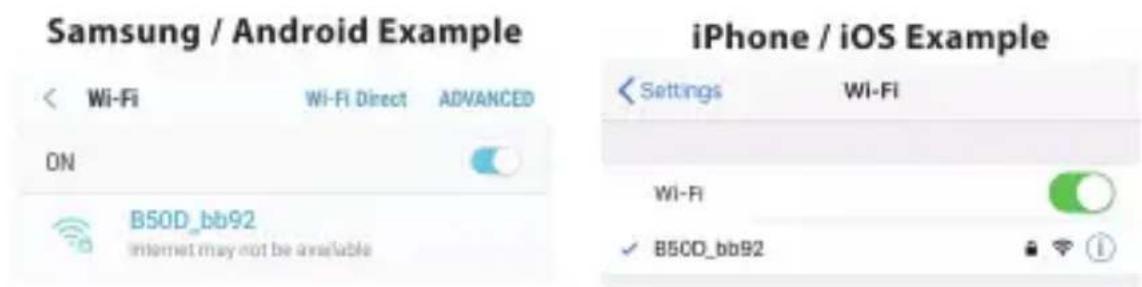

On your mobile device, navigate to your Wi-Fi settings. Connect to your dash cam's Wi-Fi by tapping its name when it appears. Enter your dash cam's Wi-Fi password if you are prompted to do so.

Note: On same mobile devices, you may have to try to connect more than once. To ensure you've successfully connected, your mobile device's screen should resemble the examples shown.

Step 3

Once you're connected to the dash cam, open the Rexing Connect app on your mobile device.

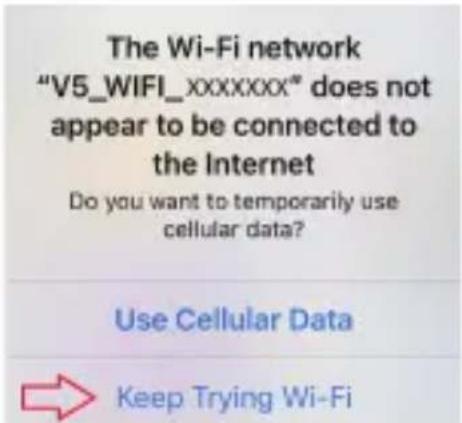

Please select "Keep Trying Wi-Fi" if you see the notification on the right.

Step 4

In the app, hit the "Connect" button to connect to your dash cam, allowing you to access live view and view/download your recordings.

Note: Hold to the REC button for 2 seconds to disconnect the Wi-Fi.

Rexing Connect App

Easily download the app by scanning the QR code below or search via the App Store or Google Play.

Wi-Fi Connect Troubleshooting

If you bring up the Rexing connect app and cannot connect your phone to the dash cam please go to

https://www.rexingusa.com/wifi-connect/

OR scan the QR code below.

Built-in GPS Logger

GPS logger will record the speed and location of your vehicle as you drive. You can then access this information while playing back your recordings using the GPS Video player.

Press the MENU button twice and enter the Setup Settings. Toggle to the GPS Speed Unit and select your preferred speed unit.

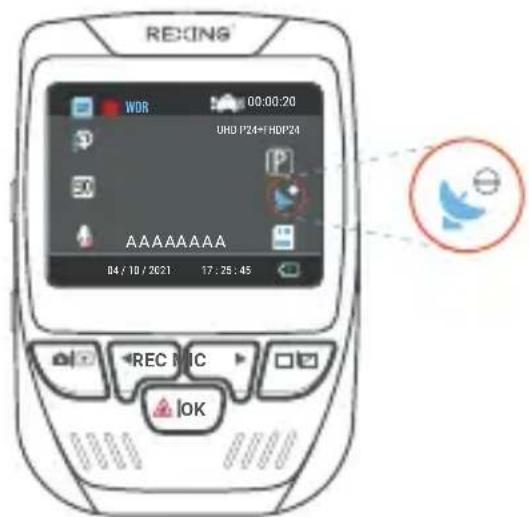

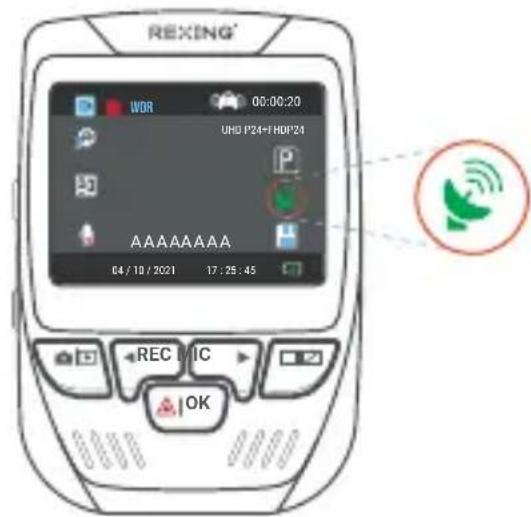

After a GPS signal is found, the screen icon will turn from blue to green. Please visit https://www.rexingusa.com/support/videos/ to watch a video tutorial.

Download GPS Video player

Please download GPS logger player through the link OR Scan the QR Code below.

Taking and Reviewing Photos

To take a photo, press REC button to stop recording. Press the MODE button twice to enter photo mode. Then press the OK button to take a photo.

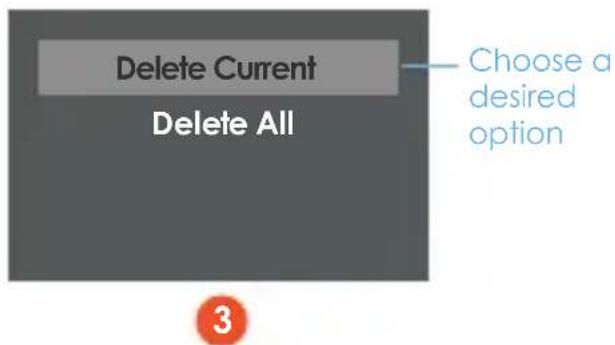

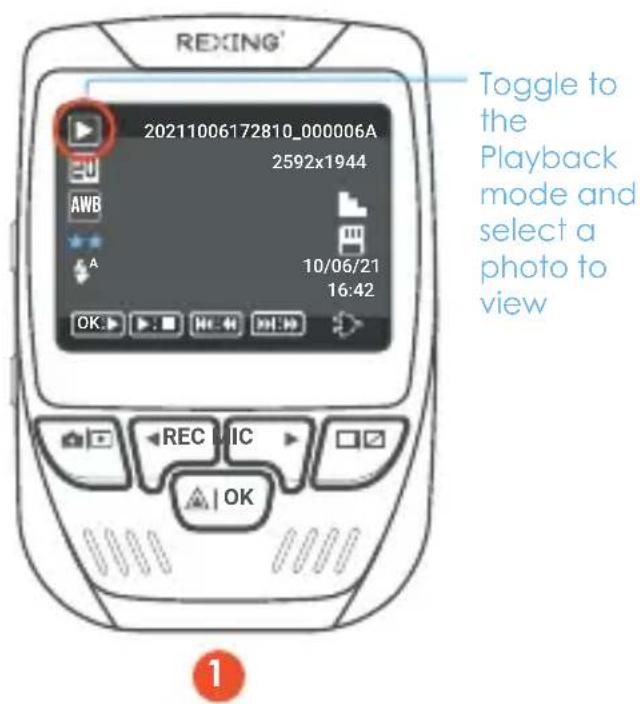

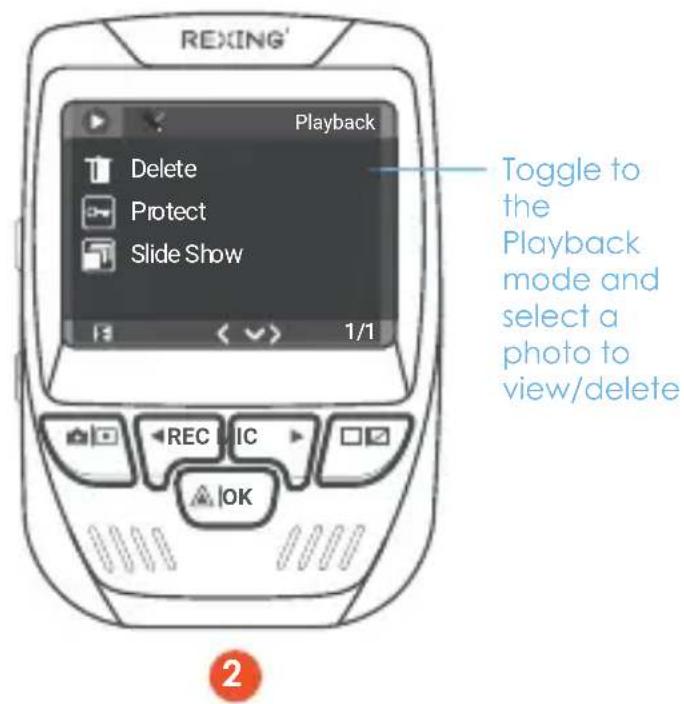

To view/delete a photo, stop video recording and enter the Playback Mode. Toggle through the videos and photos to the one you want to view/delete. Press the MENU button once and toggle to the Delete option. Press the OK Button and select Delete Current or Delete All.

Warranty & Support

Warranty

The Rexing V1P SE Dash Cam comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.

Support

If you have any questions regarding your product, please do not hesitate to contact us at [e-mail], or call us at [phone]. Queries are typically answered within 12-24 hours.

Your opinion matters

Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.

Connect with us today at [e-mail]

Thank you for choosing Rexing!

FCC ID: 2AW5W-V1PGW

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
