Brand	Hotone
Model	Freeze B
Product Type	Guitar Amplifier Head (Class AB)
Power Output	5 Watts
Dimensions (W x D x H)	128 mm x 75 mm x 59.5 mm
Weight	440 g
Power Supply	18V DC adapter (center negative)
Input	1/4" mono jack
Bass Control	Adjusts low frequency response
Middle Control	Adjusts mid frequency response
Treble Control	Adjusts high frequency response
Gain Control	Adjusts gain level
Volume Control	Controls output volume
Headphone/Line Output	1/8" stereo jack for headphones or recording
Aux In	1/8" stereo jack for external music player
FX Loop Send	1/4" mono jack (pre-amp output)
FX Loop Return	1/4" mono jack (power amp input)
Speaker Output	1/4" mono jack, compatible with 4-16 Ω cabinets
Tone Inspiration	Boutique UK-style high gain amp
Portability	Extremely compact design
Maintenance	Wipe with dry cloth; avoid moisture and extreme temperatures
Safety	Use only specified power adapter; do not expose to rain or liquids

Frequently Asked Questions - Freeze B Hotone

What is the power output of the Hotone Freeze B?

The Hotone Freeze B delivers 5 Watts of power in Class AB operation.

What power supply does the Freeze B require?

It requires an 18V DC adapter with center negative polarity.

Can I use headphones with the Freeze B?

Yes, it has a 1/8" stereo headphone/line output for silent practice or recording.

What speaker impedance can the Freeze B handle?

It is compatible with cabinets of 4-16 Ω impedance.

How do I connect external effects?

Use the FX Loop Send (to effect input) and FX Loop Return (from effect output), both 1/4" mono jacks.

Can I play along with external music?

Yes, connect a music player to the Aux In (1/8" stereo jack).

What are the controls on the front panel?

The front panel includes Input, Bass, Middle, Treble, Gain, and Volume controls.

How do I clean the Freeze B?

Wipe the exterior with a dry, soft cloth. Avoid using liquids or abrasive cleaners.

What type of sound does the Freeze B produce?

Its sound is inspired by a boutique UK-style high gain amp head, offering rich overdrive and clarity.

Is the Freeze B portable?

Yes, with dimensions of 128 x 75 x 59.5 mm and weight of 440 g, it is extremely compact and portable.

USER MANUAL Freeze B Hotone

THANK YOU FOR PURCHASING A HOTONE PRODUCT!

www.hotoneaudio.com

Front Panel

FREEZE B

HOTONE

1. INPUT: 1/4" mono jack to plug in your guitar.
   2.BASS: Controls the low frequency response.
2. MIDDLE: Controls the mid frequency response.
   4.TREBLE: Controls the high frequency response.
   5.GAIN: Controls the gain level.
   6.VOLUME: Controls the output volume.

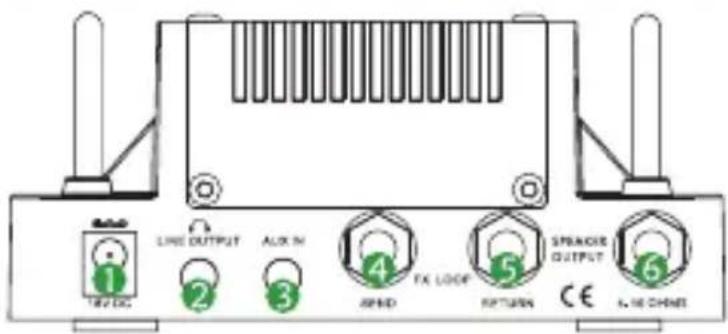

Rear Panel

1 18V DC:

Plug in 18V DC adapter (center negative).

2 PHONES/LINE OUTPUT:

1/8" stereo jack, for using headphones or recording.

2 AUX IN:

1/8" stereo jack, for connecting an external music player.

FX LOOP SEND:

4 1/4"mono jack, connect to your effects input jack.

(The Effects Loop is a patch point between the pre-amp and power amp).

FX LOOP RETURN:

1/4"mono jack, connect to your effects output jack.

6 SPEAKER OUTPUT:

1/4" mono jack, connect to your cabinet (speaker 4-16 Ω).

NANO

LEGACY

Series Amplifier Head

FREEZE B is a 5W Class AB Guitar Amplifier Head

Features

Sound inspired by a famous boutique UK-style high gain amp head
Extremely compact configuration for portability
● High quality tone with Volume and Gain controls
3 Band EQ controls for shaping your tone
FX LOOP for using external effects
● Compatible with cabinets of different impedances ranging from 4-16 Ω
● Headphone output jack is very convenient for practicing and recording
Aux In jack can let you play with an external music player

Specifications

Power Output: 5 Watts

Dimensions: 128 mm(W) x 75 mm(D) x 59.5 mm(H)

Weight: 440 g
