Product Type	Motorhome (Class B/C)
Brand	Swift
Model	Bessacarr (2016)
Engine Options	2.3L 130 MJ (95kW @ 3600rpm, 320Nm @ 1800rpm) or 130 MJ AUTO
Chassis	Fiat/AL-KO Low Line or High Line (various wheelbases)
Overall Length	5.98 m (19'7") to 7.75 m (25'5") depending on model
Overall Width	2.38 m (7'10")
Overall Height	2.82 m (9'3") or 2.76 m (9'1") for some models
Maximum Technical Permissible Laden Mass (MTPLM)	3500 kg to 4250 kg (depending on model)
Mass in Running Order (MIRO)	Approx. 2885 kg to 3330 kg (model dependent)
Fresh Water Tank Capacity	90 L (some models: 94 L)
Waste Water Tank Capacity	68 L (some models: 60 L)
LPG Locker Capacity	2 x 13 kg or 2 x 7 kg gas bottles
Bed Sizes (Example: Front Double)	2.11 m x 1.80 m (6'1" x 4'3") or other configurations
Electrical System	12V habitation and 230V mains (PSU C460 & 465)
Lighting	LED (most road and interior lights), some halogen (wardrobe)
Heating	Combi heater (230V with electric element and gas)
Towing Capability	Max trailer weight varies by model; ensure rear axle load not exceeded
Jacking Points	Indicated on diagram; use proper jacking points
Bulb Replacement	Most lights are LED sealed units; number plate light uses C5W 12V 5W bulb

Frequently Asked Questions - Bessacarr (2016) Swift

What is the maximum payload for a Bessacarr 2016?

The maximum user payload includes passengers, essential habitation equipment, optional equipment, and personal effects. It varies by model; for example, the Bessacarr 412 has a maximum user payload of 615 kg (standard) or 509 kg (optional). Always check the specific model's specification sheet.

Can I tow a trailer with my Bessacarr motorhome?

Yes, but you must adhere to the maximum permissible trailer weight and ensure the rear axle load is not exceeded. A towbar must meet Type Approval Regulations (84/20/EC or 55RECE). The additional noseweight increases rear axle loading, so adjust payload accordingly.

What is the fresh water tank capacity?

The fresh water tank capacity is 90 litres for most models, but some (like the Bessacarr 462) have a 94-litre tank. The waste water tank is 68 litres (or 60 litres for some models).

How many gas bottles can I store?

The LPG locker can hold either 2 x 13 kg bottles (most models) or 2 x 7 kg bottles (e.g., Bessacarr 424). Always use the recommended bottle sizes.

What are the bed sizes available?

Bed sizes vary by model. For example, the Bessacarr 412 has a front double bed of 2.11 m x 1.80 m (6'1" x 4'3"), and two singles. Other models may have different dimensions, including overhead beds.

How do I replace a bulb in the number plate light?

Remove the two screws on the lens, lever the bulb out of the retaining clips, and replace with a C5W 12V 5W bulb. Reverse the procedure to refit the lens.

What type of lighting is used in the motorhome?

Most road lights and interior lights are LED units with no user-serviceable parts. The wardrobe light uses a 12V halogen capsule (G4 5W). For sealed LED units, replacement should be done by a dealer.

Where are the jacking points?

Jacking points are indicated on the vehicle diagram in the manual. Use only the specified points to avoid damage. The manual shows a triangle symbol for jacking points.

What is the maximum technical permissible laden mass (MTPLM)?

The MTPLM varies by model: for example, the Bessacarr 412 has 3500 kg, while the Bessacarr 496 has 4250 kg. Never exceed this mass.

How do I maintain the electrical system?

The motorhome has a 12V habitation system and a 230V mains system. Wiring diagrams are provided. Ensure the battery charger (BP300) and solar regulator are functioning. For faults, consult a qualified technician.

User questions about Bessacarr (2016) Swift

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Motorhome in PDF format for free! Find your manual Bessacarr (2016) - Swift and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Bessacarr (2016) by Swift.

USER MANUAL Bessacarr (2016) Swift

East Yorkshire HU16 4JX

Tel 01482875740

Fax 01482840082

email enquiry@swiftgroup.co.uk

For more information visit

www.swiftgroup.co.uk

issued July 2015

FIND OUT MORE SWIFTGROUP.CO.UK

BROCHURE DOWNLOADS FIND A DEALER FACEBOOK AND SWIFT-TALK.CO.UK PRODUCT VIDEOS SWIFTTV.CO.UK

Swift reserves the right to alter specifications and prices at any time as materials and conditions demand. Please check the website for the latest updates.

Swift Bessacarr (2016) - 1

BESSACARR

TECHNICAL HANDBOOK

Swift Bessacarr (2016) - TECHNICAL HANDBOOK - 1

Swift Bessacarr (2016) - TECHNICAL HANDBOOK - 2

1414576

Specifications 2

Capacities 9

Towing Capabilities 10

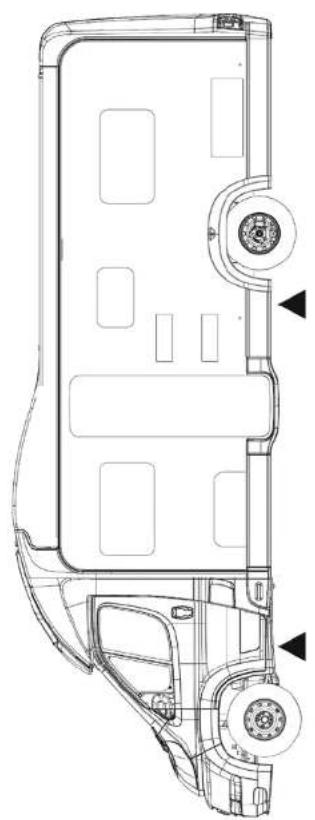

Jacking 12

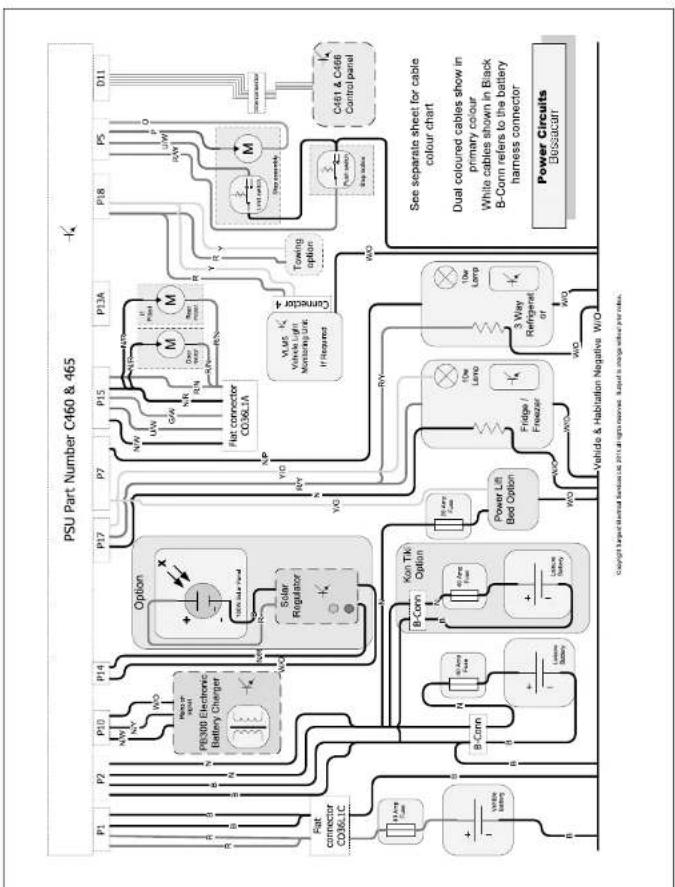

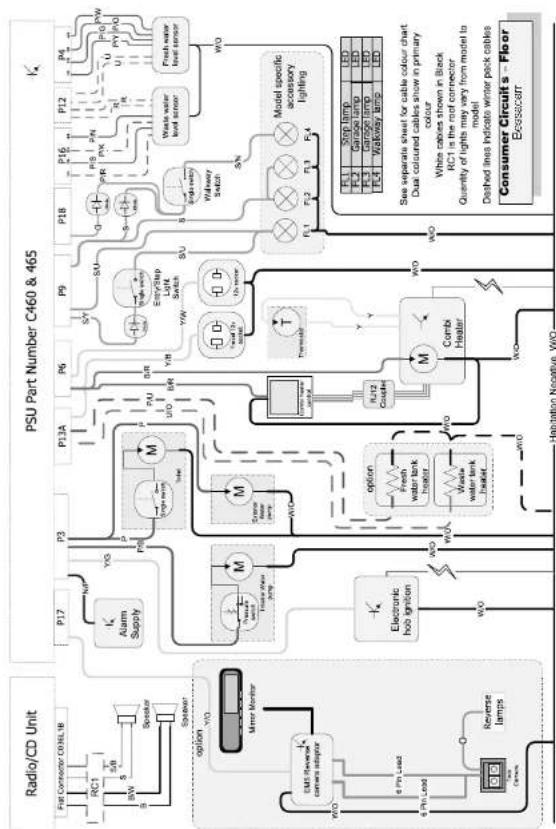

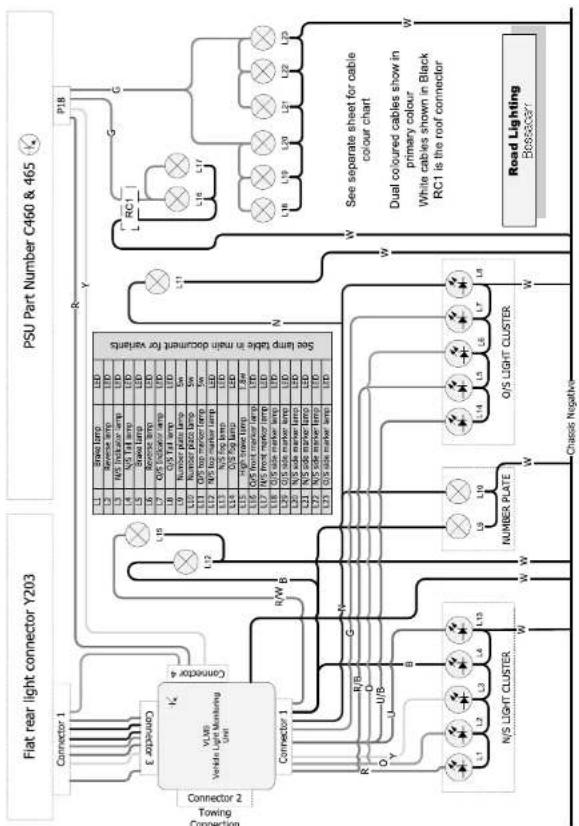

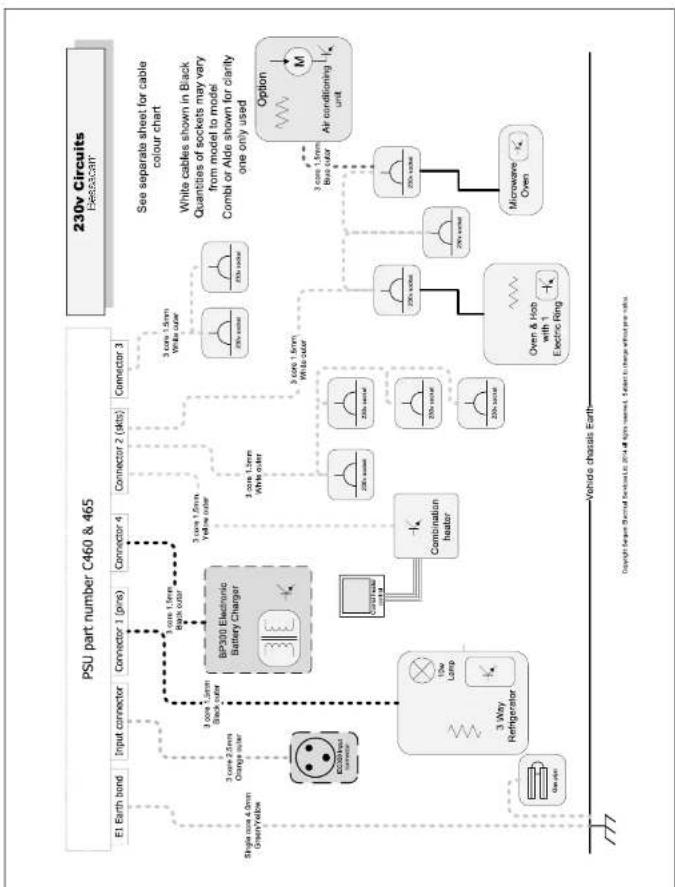

Wiring Diagrams 13

Bulb Chart 19

Bulb Replacement....20

Specifications

Model	Bessacarr 412Standard	Bessacarr 412Optional
Fuel Bracket	Low Line Low Line High	Line High Line High Line High Line
Engine	130 MJ	130 MJ AUTO
Engine Capacity	2257cc 2257cc 2287cc	2287cc 2287cc 2287cc
Max Power	95kW @ 3600rpm	95kW @ 3600rpm
Torque	320 @ 1800rpm	320 @ 1800rpm
Chassis	SWB Flat Low Line Chassis	SWB Flat Low Line Chassis
Vance basic	3.00m^9'10"
Designed Passenger Seats excluding Order	1
Earths (arcoping positions)	2
Overall Length (no factor)**	5.98m^19'7"
Overall Width (purres bidely)	2.38m^7'10"
Overall Height**	2.82m^9'3"
Maximum Technical Permezzanine Litter Mass (A)	3500kg
Mass in Running Order (#)	2885kg	2002kg
Maximum Line Segment (#, #)	615kg	509kg
Unlocked Weight	2/28kg	2/43kg
Face-Inl Supplementation Equipment	10kg
Internal Insulation Grade	Three

Bed Sizes
Front Double	2.11m x 1.80m^6'1" x 4'3"
Front Neonside Single	1.87m x 0.70m^6'2" x 2'4"
Front Edge Single	1.87m x 0.70m^6'2" x 2'4"
Front Double
Front Neonside Single
Front Offside Single
Overcut Bed

Bessacarr 424Standard	Bessacarr 424Optional	Bessacarr 462Standard	Bessacarr 462Optional

130 MJI	130 MJI AUTO	130 MJI	130 MJI AUTO

95kw @ 3600rpm	95kw @ 3600rpm	95kw @ 3600rpm	95kw @ 3600rpm
320 @ 1800rpm	320 @ 1800rpm	320 @ 1800rpm	320 @ 1800rpm
MLWB Flat Low Line Chassis	MLWB Flat Low Line Chassis	MWS Flat Low Line Chassis	MWS Flat Low Line Chassis
3.60m/12"		3.45m/11"
3		1
4		2
5.99m/19"		6.53m/21"
2.38m/7"		2.38m/7"
2.82m/3"		2.82m/3"
3500kg		3500kg
2990kg	300kg	2970kg*	287kg*
510kg	493kg	530kg*	513kg*
2834kg	2851kg	2814kg*	2831kg*
10kg		10kg
Three		Three


2.15m x 1.50m/104cm / 7"0" x 4"1"3"5"


		2.11m x 1.86m/6"1" x 6"1"
		1.86m x 0.66m/6"* x 2"2"
		1.86m x 0.66m/6"* x 2"2"
1.87m x 1.24m/6"2" x 4"1"

NOTE: 1. The Maximum User Payload includes: the conventional load this is the allowance for passengers
(3) essential habitation equipment (harms and fluids required for cafe and proper functioning of habitation equipment)
c) optional equipment items available from the manufacturers over and above the standard specification)
d. personal effects (those items not covered by the access)

The Mass in Running Order is the mass of the unaden vehicle including a 75kg allowance for the other plus engine cocktails, 80% of the fuel tank and 1 x 6kg Color (the cylinder). The MPO is calculated with the fresh water tank empty. If you leave with water in the fresh water tank than the pay out will recuse according to
PLEASE TAKE CARE TO PUSUR THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARVAL, e.g. passengers, optional equipment, essential

Inflation equipment and personal effects, such as clothing, food, pets, bicycles, fabrics, sports equipment etc. 4 WARNING UNDFR NO CIRCOUNSTANTS SHOULD THE MAXIMUM TECHNICAL PERMISSION OF ADDY MASS OF THIS MOTOR CARAVAN BE DICED.
* For selected ** For optional mol/ladder and 125cm in length and 40mm to low line height.

Specifications

Model	Bessacarr 484 Standard	Bessacarr 484 Optional Engine	Bessacarr 484 Lounge Standard	Bessacarr 484 Lounge Optional Engine
Red Flutes	Low Line Low Line Low Line Low Line
Engine	130 MJ	130 MJ AUTO	130 MJ	130 MJ AUTO
Engine Capacity	2287cc 2287cc
Max Power	96kW @ 3600rpm		96kW @ 3600rpm
Irronuc	320 @ 1800 rpm		320 @ 1800rpm
Chassis	LWB Flat Low Line Chassis		LWB Flat Low Line Chassis
Voice basic	4.04m*13"3"
Designed Passenger Seats excluding Door	5	3	1	1
Extra (scoping positions)	4
Overall Length (no banding)**	7.08m*23"3"
Overall Width (minutes body)	2.38m*7"10"
Overall Height*	2.82m*9"3"
Maximum Technical Permezzanine Lumen Mass (A)	3500kg
Mass in Running Order (#)	3105kg	3123kg	30/3kg*	306/kg*
Maximum Life Equipment (# #)	395kg	378kg	430kg*	413kg*
Junction Weight	2943kg	2966kg	2913kg*	2930kg*
Face and Installation Equipment	10kg
Thermal Installation Scale	THRFF

Bed Sizes
Front Double	2.13m x 1.23m1.04m7'0" x 4'0"-3'5"
Front Neutralside Single
Front Double Single
Front Double	1.99m x 1.30m*6" 6" x 4"3"
Front Neutralside Single
Front Offside Single
Overload Bed

Bessacarr 454Standard	Bessacarr 454Optional Engine	Bessacarr 454LoungeStandard	Bessacarr 454LoungeOptional Engine

130 MJT	130 MJT AUTO	130 MJT	130 MJT AUTO
2287cc	2287cc
96KW @ 3600rpm		96KW @ 3600rpm
320 @ 1800rpm		320 @ 1800rpm
LWS Flat Low Line Chassis		LWS Flat Low Line Chassis
4.04m/13'3"
3	3	1	1
4
7.08m/25'3"*
2.38m/7 10"
2.82m/0'3"
3500kg	3500kg	3500kg	3500kg
3080kg	3097kg	3045kg*	3062kg*
420kg	420kg	453kg*	438kg*
2923kg	2940kg	2859kg*	2906kg*
10kg
TH-REF


2.13m x 1.23m/1.04m/7'0" x 4.07/3'5"


1.91m x 1.33m/6'3" x 4'4"

NOTE: 1. The Maximum User Payload includes: the conventional load this is the allowance for passengers

of essential habitation equipment (harms and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment items available from the manufacturers over and above the standard specification)
d. personal effects (those items not covered by the access)

The Mass in Running Order is the mass of the unaden vehicles including a 750g allowance for the other plus engine condensers and 30% of the best tank and 7×60g Color filter cylinder. The MPO is calculated with the fresh water tank empty. If you have with water in the fresh water tank than the pay out will recuse according to
PLEASE TAKE CARE TO PUSUR THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARVAL, e.g. passengers, optional equipment, essential

Specifications

Model	Bessacarr 442Standard	Bessacarr 442Optional
Rock Flutes	Low Line Low Line High	Line High Line
Engine	130 MJT 130 MJT AUTO	130 MJT 130 MJT AUTO
Engine Capacity	2287cc 2287cc 2287cc	2287cc
Engine Power	96kW @ 3600rpm	96kW @ 3600rpm
Torque	320 @ 1500rpm	320 @ 1800rpm
Chassis	LWS Flat Low Line Chassis	LWB Flat Low Line Chassis
Voice basic	4.04m*13"3"
Designed Passenger Seats excluding Order	1
Earths (arcoping positions)	2
Overall Length (no bandel)**	7.38m*24"2"
Overall Width (purres bide)	2.38m*7"10"
Overall Height**	2.82m*9"3"
Maximum Technical Permezzanine Lumen Mass (A)	3500kg
Mass in Running Order (#)	3058kg	30/2kg
Maximum Use Regime (# #)	445kg	428kg
Unlocked Weight	2899kg	2916kg
Face-Inl Supplementation Equipment	10kg
Internal Insulation Grade	TH#FF

Bed Sizes
Front Double	2.11m x 1.42m/6"1" x 4"6"
Front Neonside Single	1.88m x 0.70m/6"2" x 2"4"
Front Edge Single	1.88m x 0.70m/6"2" x 2"4"
Front Double
Front Neonside Single
Front Offside Single
Overload Bed

Bessacarr 494Standard	Bessacarr 494Optional Engine	Bessacarr 494LoungeStandard	Bessacarr 494LoungeOptional Engine



96kW @ 3600rpm		96kW @ 3600rpm
320 @ 1800rpm		320 @ 1800rpm
Fiat/AL KO Low Line Chassis		Fiat/AL KO Low Line Chassis
4.45m/14'8"
3	3	1	1
4
7.36m/24'2"
2.33m/7 10"
2.76m/9'1"
3700kg	3700kg	3500kg	3500kg
3195kg	3212kg	3160kg*	3177kg*
505kg	486kg	340kg*	323kg*
3039kg	3058kg	3003kg*	3020kg*
10kg
THREE


2.13m x 1.23m/1.04m/7'0" x 4'0"/3'5"


1.95m x 1.33m/6'5" x 4'4"

NOTE: 1. The Maximum User Payload includes: stheconventional load this is the allowance for
(essential habitation equipment (them and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment items available from the manufacturers over and above the standard specification)
d. personal effects (those items not covered by the access)

The Mass in Running Order is the mass of the unden vehicles including a 750g allowance for the other plus engine condens and 90% in the best tank and 1×60g Color (the cylinder). The MPO is calculated with the fresh water tank empty. If you have with water in the fresh water tank than the pay use will recourse according to
PLEASE TAKE CARE TO INSURF THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARAVY, e.g. passengers, optional equipment, essential

Inflation equipment and personal effects, such as clothing, food, pets, bicycles, fabrics, sports equipment etc. 4 WARNING UNITS NO CIRCOUNSTANTS SHOULD THE MAXIMUM TYPICAL PERMISSION OF THE MASS OF THIS MOTOR CARAVAN OF DICEDD.
* For selected ** For optional mol/ladder and 125cm in length and 40mm to low line height.

Specifications

Capacities

Model	Bessacarr 496 Standard	Bessacarr 496 Optional
Rod Flutes	High Line High Line
Engine	130 MJT 130 MJT AUIC
Engine Capacity	2287cc 2287cc
Engine Power	96kW @ 3600rpm	96kW @ 3600rpm
Torque	320 @ 1500rpm 320 @ 1600rpm
Chassis	Flat/AL KO Low Line Chassis	Flat/AL KO Low Line Chassis
Vince block	4.70mV/15"5"
Designed Passenger Seats excluding Torque	5
Earths (acoustic positions)	6
Overall Length (no banding)**	7.75mV/25"5"
Overall Width (minutes banding)	2.38mV/7"10"
Overall Height*	2.82mV/9"3"
Maximum Technical Permezzanine Order Mass (A)	4250kg
Mass in Running Order (#)	3330kg	334/kg
Maximum Life Segment (#)	320kg	903kg
Number Weight	31/3kg	3190kg
Face and Production Equipment	10kg
Thermal Insulation Scale	THREE

Bed Sizes
Front Double	2.13m x 1.80m/1.21m/7"0" x 5'11'/4"0"
Front Neutralsle Single
Front Distance Single	1.80m x 0.92m/5"1" x 3"0"
Front Double	2.11m x 1.67m/6"1" x 5"6"
Front Neutralsle Single	1.86m x 0.66m/6"1" x 2"2"
Front Offside Single	1.67m x 0.66m/5"6" x 2"2"
Overcoat Bed	1.95m x 1.30m/5"5" x 4"3"

Water Tank Capacities

	Fresh Water Tank	Waste Water Tank	Water Heater
Bessacarr 90 litre 68 litre 10 litre
Bessacarr 462 94 litre 60 litre 10 litre

LPG Locker Capacity

	Capacity
Bessacarr 2 x 13kg
Bessacarr 424 2 x 7kg

The above are recommended gas bottle sizes

NOTICE: For technical data on the base vehicle please refer to the manufacturer's handbook

NOTE: 1. The Maximum User Payload includes: aptheconventional load this is the allowance for passengers
(essential habitation equipment items and fluids required for safe and proper functioning of habitation equipment)
c) optional equipment items available from the manufacturers over and above the standard specification)
d. personal effects (those items not covered by the access)

The Mass in Running Order is the mass of the unaden vehicles including a 75kg allowance for the other plus engine condens and 90% in the fuel tank and 7 x 6kg Color filter nozzle. The MPO is calculated with the fresh water tank empty. If you have with water in the fresh water tank than the power will reduce according to
PLEASE TAKE CARE TO FINSURF THAT YOU HAVE ALLOWED FOR THE MASSES OF ALL ITEMS YOU INTEND TO CARRY IN THE MOTOR CARAVES, e.g. passengers, optional equipment, essential

Inhalation equipment and personal effects, such as clothing, food, pets, bicycles, fabrics, sports equipment etc. 4 WARNING UNITS NO CIRCOUNSTANTS SHOULD THE MAXIMUM TYPICAL PERMISSION OF THE MASS OF THIS MOTOR CARAVAN OF DICEDD.

* For nexted ** For optional molates and 125cm in length and 40mm to low line height.

Towing Capabilities

Bessacarr Towing Capabilities

Permissible Front Axle Load	Permissible Rear Axle Load	Recommended Maximum Trailer Weight	Gross Train Weight

CAUTION: When fitting a towbar, it must meet certain minimum requirements as specified by Type Approval Regulations. The bar will have marked on it the approval standard (84/20/EC or 55RECE) and the maximum download, or noseweight, that it can accept. It must fit the manufacturer's approved mounting points and must not obscure the towing vehicle's number plate.

Please note that the additional weight of the tow bar and trailer nose weight increases the rear axle loading of the motor home so care should be taken that the rear axle load is not exceeded when towing.

** With this vehicle configuration it will be necessary to reduce the payload carried inside the van when towing to ensure that the MTPLM and maximum axle loads are not exceeded.

To ensure adequate road holding, the load on the front axle, under all conditions, must not be less than 40% or more than 70% of the total weight.

Care must be taken when distributing loads. The loadings and weights above are maximums and must not be exceeded under any circumstances.

Bessacarr
Swift Bessacarr (2016) - Towing Capabilities - 1

Jacking Point: ▲

Wiring Diagrams

Bessacarr - Road lighting circuits
Swift Bessacarr (2016) - Wiring Diagrams - 1

</details>

Bessacarr - Roof lighting circuits
![](images/41e27a307d2cc791bb801017ab0e4cba22f1268bec69c6bbad348d493ea75edb.jpg)

<details>
<summary>flowchart</summary>
        direction TB
        P9 --> Y/W["option"]
        P13A --> Y/B
        P17 --> Y/O
        P8 --> S/R["S/R"]
        P20 --> B/U
        P13B --> Y/U
        Y/W --> W/O
        Y/U --> K/U
        K/U --> L/L1
        L/L1 --> R/L1
        R/L1 --> RL1
        RL1 --> RL2
        RL2 --> RL3
        RL3 --> RL4
        RL4 --> RL5
        RL5 --> RL6
        RL6 --> RL7
        RL7 --> RL8
        RL8 --> RL9
        RL9 --> RL10
        RL10 --> RL11
        RL11 --> RL12
        RL12 --> RL13
    end

    subgraph Consumer_Circuits - Roof
        direction TB
        P9 --> Y/W
        P13A --> Y/B
        P17 --> Y/O
        P8 --> S/R
        P20 --> B/U
        P13B --> Y/U
        Y/W --> W/O
        Y/U --> K/U
        K/U --> L/L1
        L/L1 --> R/L1
        R/L1 --> RL1
        RL1 --> RL2
        RL2 --> RL3
        RL3 --> RL4
        RL4 --> RL5
        RL5 --> RL6
        RL6 --> RL7
        R/L10 --> RL11
        RL11 --> RL12
        RL12 --> RL13
    end

    subgraph Cable_Side Table_Cable_Circuit_Chart
        direction TB
        R1 --> Shower Lamp
        R2 --> Shower Lamp
        R3 --> Wardrobe Lamp
        R4 --> Locker Lamp
        R5 --> Locker Lamp
        R6 --> Locker Lamp
        R7 --> Locker Lamp
        R8 --> Locker Lamp
        R9 --> Lufon Lamp
        R10 --> Driving Lamp
        R11 --> Driving Lamp
        R12 --> Entry Lamp
        R13 --> Atering Lamp
        R14 --> Rear upper lamp
        R15 --> Rear upper lamp
        R16 --> Front upper lamp
        R17 --> Kitchen lamp
        R18 --> Kitchen lamp
        R19 --> Scrapback lamp
        R20 --> Workshop lamp
        R21 --> TV amplifier
        R22 --> F1 Extractor Fan
        R23 --> ML1 Map Light
        R24 --> ML2 Map Light

    end

    subgraph Cable_Side_Cable_Circuit_Chart
            direction TB
            R1 --> Shower Lamp
            R2 --> Shower Lamp
            R3 --> Wardrobe Lamp
            R4 --> Locker Lamp
            R5 --> Locker Lamp
            R6 --> Locker Lamp
            R7 --> Locker Lamp
            R8 --> Locker Lamp
            R9 --> Lufon Lamp
            R10 --> Driving Lamp
            R11 --> Driving Lamp
            R12 --> Entry Lamp
            R13 --> Atering Lamp
            R14 --> Rear upper lamp
            R15 --> Rear upper lamp
            R16 --> Front upper lamp
            R17 --> Kitchen lamp
            R18 --> Kitchen lamp
            R19 --> Scrapback lamp
            R20 --> Workshop lamp
            TV1 --> TV amplifier
            F1 --> Extractor Fan
            ML1 --> Map Light
            ML2 --> Map Light

    end

    subgraph Cable_Side_Cable_Circuit_Chart
            direction TB
            R1 --> Shower Lamp
            R2 --> Shower Lamp
            R3 --> Wardrobe Lamp
            R4 --> Locker Lamp
            R5 --> Locker Lamp
            R6 --> Locker Lamp
            R7 --> Locker Lamp
            R8 --> Locker Lamp
            R9 --> Lufon Lamp
            R10 --> Driving Lamp

            direction TB
            R1 --> Shower Lamp
            R2 --> Shower Lamp
            R3 --> Wardrobe Lamp
            R4 --> Locker Lamp
            R5 --> Locker Lamp
            R6 --> Locker Lamp
            R7 --> Locker Lamp
            R8 --> Locker Lamp
            R9 --> Lufon Lamp

            direction TB
            R1 --> Shower Lamp
            R2 --> Shower Lamp
            R3 --> Wardrobe Lamp
            R4 --> Locker Lamp
            R5 --> Locker Lamp
            R6 --> Locker Lamp

            direction TB
            R1 --> Shower Lamp
            R2 --> Shower Lamp
            R3 --> Wardrobe Lamp
            R4 --> Locker Lamp
            R5 --> Locker Lamp

            direction TB
            R1 --> Shower Lamp

    end

Wiring Diagrams

Bessacarr - Consumer Circuits - Floor circuits
Swift Bessacarr (2016) - Wiring Diagrams - 1
        direction TB
        P12["Radio/CD Unit"] --> RC1["RC1"]
        RC1 --> SW["BW"]
        RC1 --> Speaker["Speaker"]
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 --> Speaker
        RC1 -.-> M["Micro Monitor"]
        RC1 -.-> M["EMS Reversible cameras adaptor"]
        RC1 -.-> M["Electronic hob ignition"]
        RC1 -.-> M["Reverse lamps"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]
        RC1 -.-> M["Switch"]

Bessacarr - Power circuits
Swift Bessacarr (2016) - Wiring Diagrams - 2

    subgraph Power Circuits
        M["Power Lift Bed Option"]
        N["Fridge / Freezer"]
        O["3 Way Refrigerator"]
        P["Vehicle & Habitation Negative W/O"]
    end

    subgraph Cable Colour Chart
        Q["Dual coloured cables show in primary colour"]
        R["White cables shown in Black B-Conn refers to the battery harness connector"]
    end

    subgraph Power Circuits
        S["C461 & C466 Control panel"]
        T["Line capacitor"]
        U["Line switch"]
        V["Line switch"]
    end

    B --> W["Flat connector CO36L1C"]
    C --> X["PB300 Electronic Battery Charger"]
    D --> Y["Solar Regulator"]
    E --> Z["Conventional Cable"]
    F --> AA["Conventional Cable"]
    G --> AB["Conventional Cable"]
    H --> AC["Conventional Cable"]
    I --> AD["Conventional Cable"]
    J --> AE["Conventional Cable"]
    K --> AF["Conventional Cable"]

    subgraph Power Circuits
        AG["Power Lift Bed Option"]
        AH["Fridge / Freezer"]
        AI["3 Way Refrigerator"]
        AJ["Vehicle & Habitation Negative W/O"]
    end

    subgraph Power Circuits
        AK["Power Lift Bed Option"]
        AL["Fridge / Freezer"]
        AM["3 Way Refrigerator"]
        AN["Vehicle & Habitation Negative W/O"]
    end

    style Power Circuits fill:#f9f,stroke:#333
    style Cable Colour Chart fill:#ccf,stroke:#333
    style Power Circuits fill:#cfc,stroke:#333
    style Cable Colour Chart fill:#fcc,stroke:#333

Wiring DiagramsV

Bessacarr - 230v with combi heating
Swift Bessacarr (2016) - Wiring DiagramsV - 1

Wiring Diagrams

Bulb Chart

Bessacarr - Cable Colour Chart

12v Cable Colours

BLACK

230v Cable Colours

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

PURPLE

SLATE GREY

WHITE

PINK

Blue

Black

PURPLE

Blue

Green

Blue

White

Black

SLATE GREY

Blue

Purple

Blue

Red

WHITE

Blue

PINK

Blue

Pink

Blue

Blu

Road Lights
Application Bulb Reference Bulb Rating
Front marker light	LED complete unit - Britax L98.00,12v & L86.01,12v	12v LED
Side marker light LED complete unit L99.0	1,12V 12v LED
Rear high level marker light LED complete	unit L99.02,12V 12v LED
Rear light cluster (Mural function) Britax L79,00,12v (LH) & L79.01,12v (RH) 12v LED
High level brake light ZDA 3/3-600-057 12v LED
Number plate light C5W 12v 5w
Application Bulb Reference Bulb Rating
Locker spotlights, LCD with dimmer LED complete lamp FEM1168 12v LED
China locker light LED complete lamp FEM1374 12v LED
B pillar map reading lamps LED Complete	lamp on 'swan neck' flexible arm 12v LED
Over locker / high level furniture lights	Flexible LED light strip (cut to length) FEM1214	12v LED
Illuminated panel backlighting	Flexible LED light strip (cut to length) FEM1214	12v LED
Downlights	LED complete lamp FEM01169	12v LED
Walkway low level lights	LED complete lamp FEM0993 12v LED
Awing lamp, LED	LED complete lamp FEM0945 12v LED
Stop wall light	LED complete lamp	12v LED
Wardrobe light	12v Halogen capsule	12v G4 5w

Note: Not all lights feature on all modes within a range

Bulb replacement

BESSACARR ROAD LIGHTING, COACH-BUILT BODY MOUNTED LAMPS

REAR LIGHT CLUSTERS (CONTAINING INDICATOR, TAIL / STOP, REVERSE AND FOG LAMPS)

These multi-function lights are LED and have no user serviceable parts inside.

Replacement clusters can be fitted in the following way:

Remove three screws visible around the perimeter of the cluster

Pull the cluster away from the rear panel of the tourer, taking care to not put excessive strain on the electrical connections behind the lamp

Unplug the electrical connection from the rear of the lamp, by releasing the tab and lifting the connector upwards relative to the cluster

Plug the connector back into the replacement lamp, position the lamp into the recess and replace the three fixing screws.

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

FRONT AND REAR UPPER MARKER / POSITION LAMPS

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

These lamps are LED and have no user serviceable parts inside.

Replacements should be undertaken by your dealer, as the lamps are sealed onto the mounting panel.

NUMBER PLATE LIGHTS

Bulb access is via the front lens of each lamp.

Remove the two screws in the lens of the lamp, and remove.

Lever the bulb out of retaining clips.

Reverse the procedure to re-fit a new bulb and the light lens.

Table of contents Click a title to access it

BESSACARR
TECHNICAL HANDBOOK
Contents
Specifications
Capacities
Towing Capabilities
Wiring Diagrams
Wiring DiagramsV
Bulb Chart
Bulb replacement
BESSACARR ROAD LIGHTING, COACH-BUILT BODY MOUNTED LAMPS
REAR LIGHT CLUSTERS (CONTAINING INDICATOR, TAIL / STOP, REVERSE AND FOG LAMPS)
FRONT AND REAR UPPER MARKER / POSITION LAMPS
NUMBER PLATE LIGHTS

Manual assistant

Waiting for your message

📷

Product information

Brand : Swift

Model : Bessacarr (2016)

Category : Motorhome

Bessacarr (2016) - Motorhome Swift - Free user manual and instructions

This manual is not available in your language

Frequently Asked Questions - Bessacarr (2016) Swift

User questions about Bessacarr (2016) Swift

USER MANUAL Bessacarr (2016) Swift

BESSACARR

TECHNICAL HANDBOOK

Contents

Specifications

Capacities

Towing Capabilities

Wiring Diagrams

Wiring Diagrams

Wiring DiagramsV

Wiring Diagrams

Bulb Chart

Bulb replacement

BESSACARR ROAD LIGHTING, COACH-BUILT BODY MOUNTED LAMPS

REAR LIGHT CLUSTERS (CONTAINING INDICATOR, TAIL / STOP, REVERSE AND FOG LAMPS)

FRONT AND REAR UPPER MARKER / POSITION LAMPS

NUMBER PLATE LIGHTS

Other manuals Swift

Carrera (2026)

Trekker (2026)

Kon-Tiki E700 (2011)

Bolero 500 (2014)

Carrera (2023)
