Willow S - Car seat BRITAX - Free user manual and instructions

Product Type	Convertible Car Seat
Brand	Britax
Model	Willow S
Weight Capacity (Rear-Facing)	5–50 lbs (2.3–22.7 kg)
Weight Capacity (Forward-Facing)	22–65 lbs (10–29.5 kg)
Height Limit (Rear-Facing)	Up to 49 inches (124 cm)
Height Limit (Forward-Facing)	Up to 49 inches (124 cm)
Product Dimensions	20.5 x 18.5 x 24.5 inches (52 x 47 x 62 cm)
Product Weight	22.5 lbs (10.2 kg)
Harness Type	5-point harness with ClickTight installation
Recline Positions	2 positions (rear-facing and forward-facing)
Safety Features	Side Impact Protection, Steel Frame, Energy-Absorbing Foam
Installation Method	ClickTight with LATCH or vehicle seat belt
Cover Material	Polyester with foam padding
Cleaning Instructions	Remove cover and hand wash in cold water; air dry
Expiration Date	6 years from date of manufacture
Spare Parts Availability	Contact Britax or authorized retailers for replacement harness, cover, etc.
Regulatory Standards	FMVSS 213 compliant

Frequently Asked Questions - Willow S BRITAX

How do I install the Britax Willow S using ClickTight?

Open the ClickTight seat panel, thread the vehicle seat belt through the belt path, buckle it, then close the panel firmly until it clicks. Ensure the seat is tight with no more than 1 inch of movement.

What is the maximum weight for rear-facing?

The rear-facing weight limit is 50 lbs (22.7 kg) or until the child's head reaches the top of the car seat.

How do I clean the car seat cover?

Remove the cover carefully and hand wash it using cold water and mild detergent. Do not bleach or machine wash. Air dry only.

When does the Britax Willow S expire?

The seat expires 6 years from the date of manufacture. Check the label on the seat for the exact expiration date.

Can I use the Willow S with a lap-only seat belt?

Yes, it can be installed with a lap-only belt in rear-facing mode when positioned in the center of a vehicle that allows it. For forward-facing, a lap-shoulder belt is required.

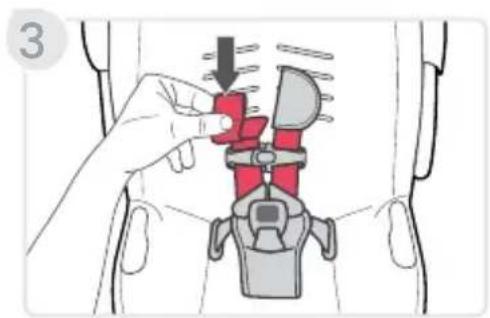

How do I adjust the harness height?

Squeeze the harness adjuster button and pull the harness straps to the desired height level. For rear-facing, straps should be at or below the shoulders; for forward-facing, at or above.

Is the Willow S compatible with all vehicles?

Most vehicles with a seat belt or LATCH system are compatible, but always check the manual and vehicle seat depth. For a tight fit, avoid sloped seats.

Where can I find replacement parts?

Replacement parts such as harness straps, buckle, and cover can be ordered from Britax's official website or authorized retailers. Use the model number and manufacturing date.

What should I do if the buckle is sticky?

Clean the buckle with a damp cloth and mild soap. Do not lubricate. If it continues to stick, contact Britax for a replacement.

Can I use the Willow S on an airplane?

Yes, it is FAA approved for use on aircraft when installed with the seat belt. Ensure the seat is rear-facing for children under 40 lbs and forward-facing for 40+ lbs.

USER MANUAL Willow S BRITAX

Willow S™ Car Seat with Alpine™ Base

Illustration of a baby car seat with adjustable straps and a strap (no text or symbols)

IMPORTANT

THIS USER GUIDE CONTAINS A MANDATORY ARBITRATION CLAUSE AND CLASS ACTION WAIVER (“ARBITRATION AGREEMENT”) THAT AFFECTS YOUR LEGAL RIGHTS, REQUIRES YOU TO ARBITRATE DISPUTES, AND LIMITS THE MANNER IN WHICH YOU CAN SEEK RELIEF.

IMPORTANTE

WILLOW™ S, ALPINE™, ReboundReduce™, CLICKTIGHT®, and BRITAX® are trademarks owned by Britax. All rights reserved. ©2023 Britax Child Safety, Inc. This product and its components are subject to change without notice. Printed in China.

Safety Information....6

Important Notes......9

Certification 11

Registration....12

Child Fit Information....13

ReboundReduce™ Stability Bar....14

Using with the Base 15

Overhang....15

Adjusting the Recline Angle 15

ClickTight Indicator....17

Lap-Shoulder Belt Installation....18

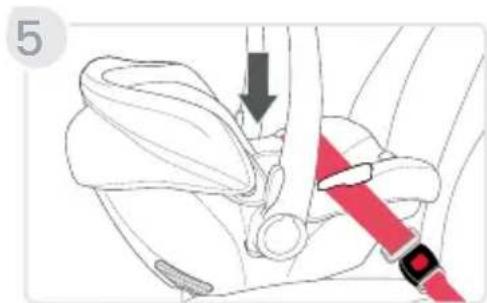

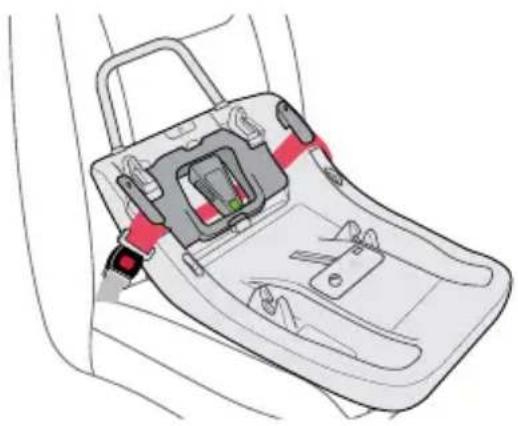

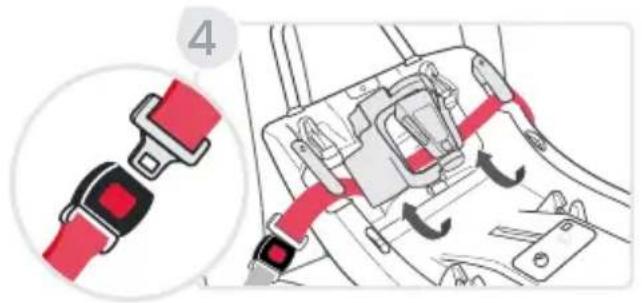

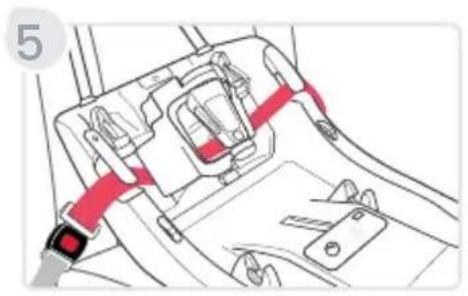

Lap Belt Installation....21

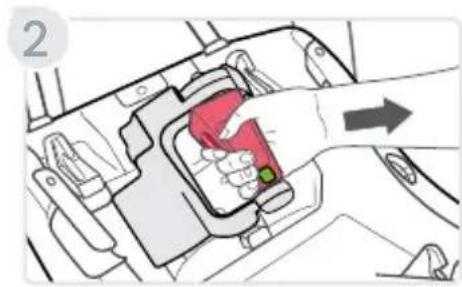

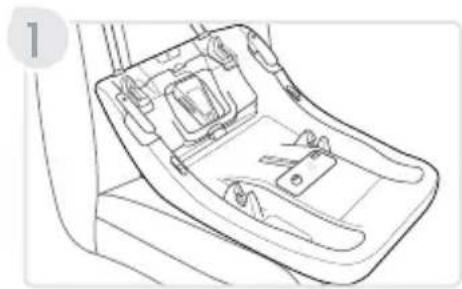

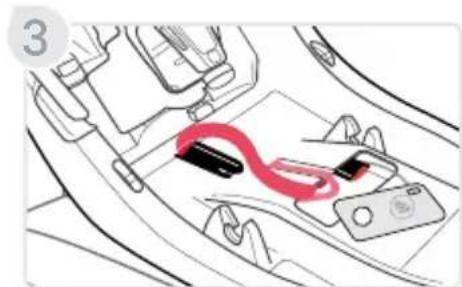

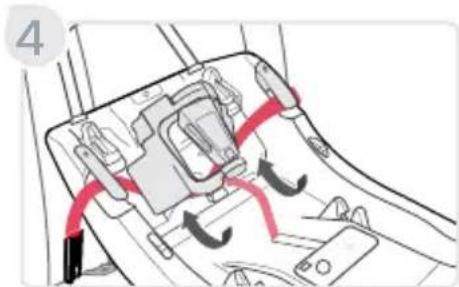

Lower Connector Installation....24

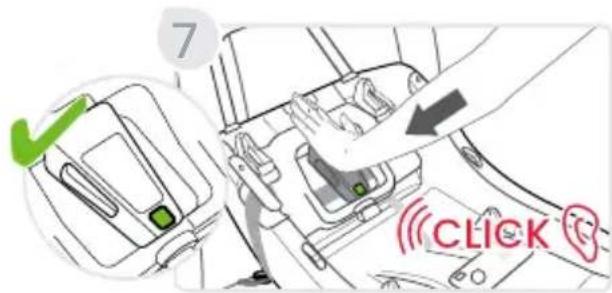

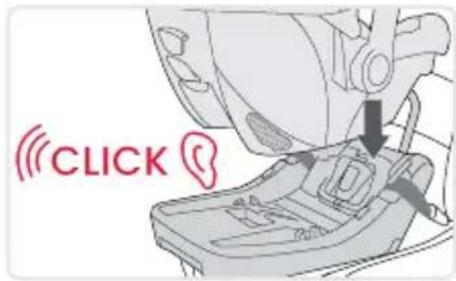

Attaching the Child Restraint to the Base....28

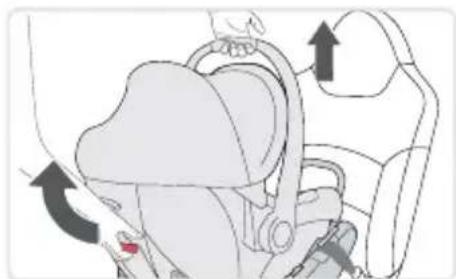

Removing the Child Restraint from the Base....28

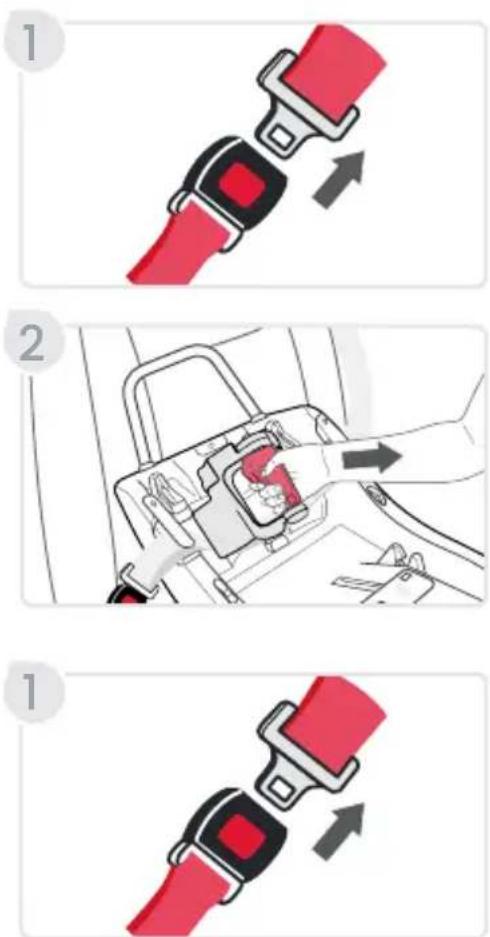

Uninstalling the Base 29

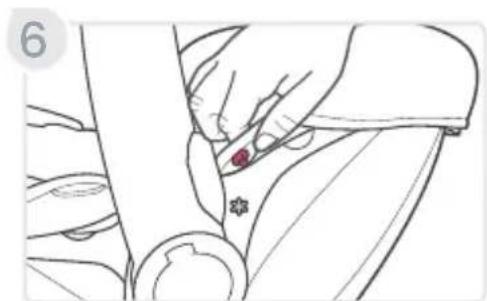

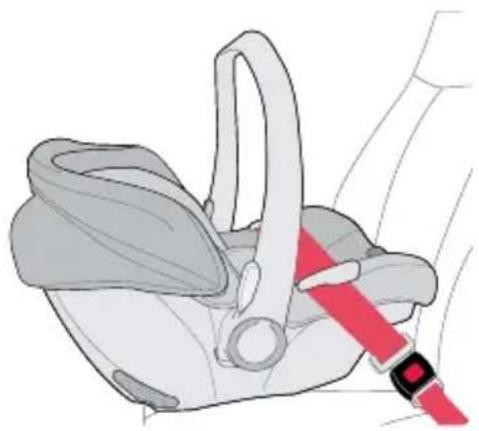

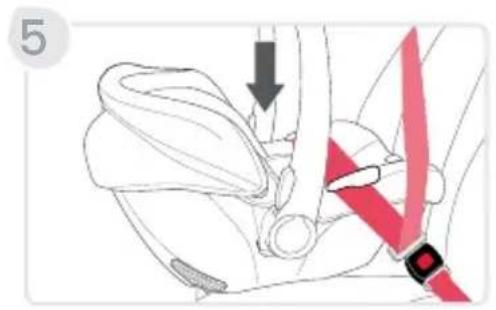

Using without the Base....31

Adjusting the Recline Angle....32

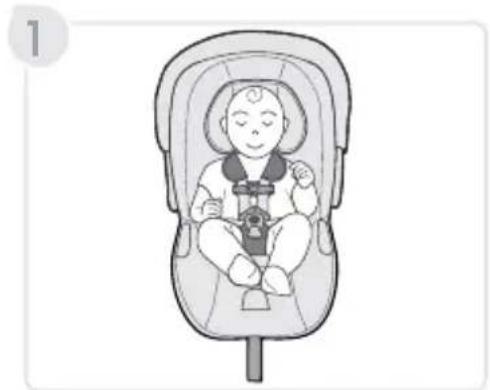

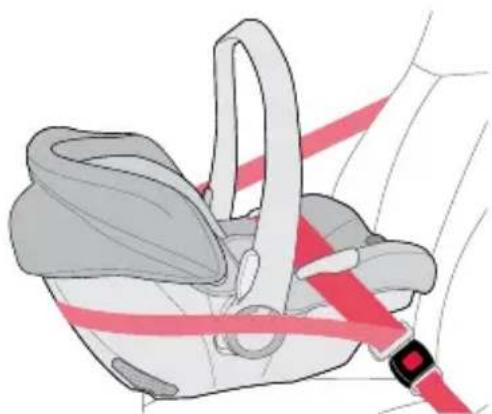

Lap-Shoulder Belt Installation with European Belt Guide....33

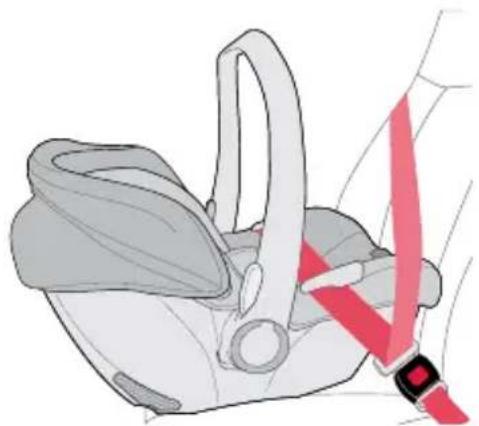

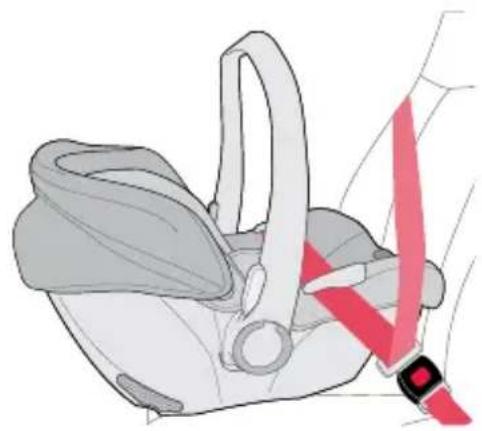

Lap-Shoulder Belt Installation....36

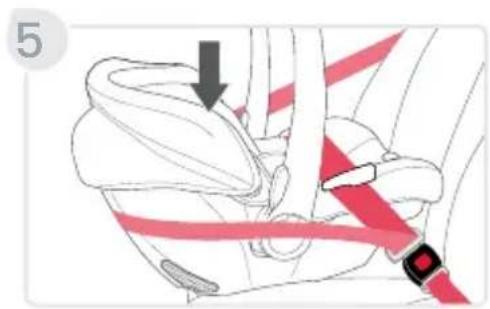

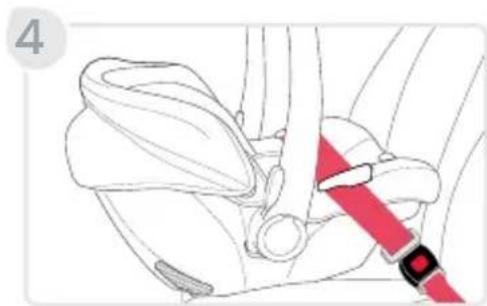

Lap Belt Installation....39

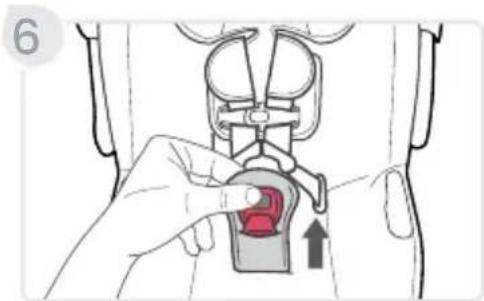

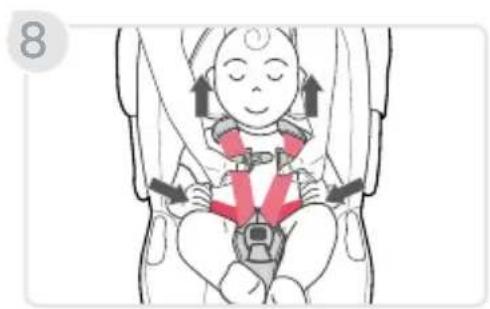

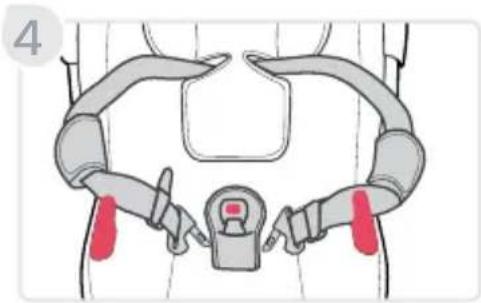

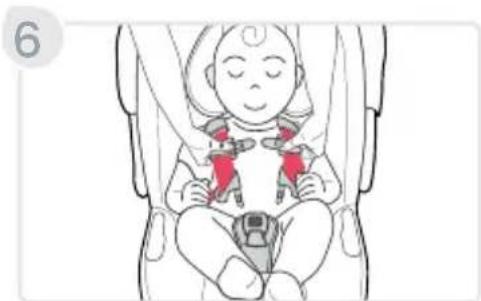

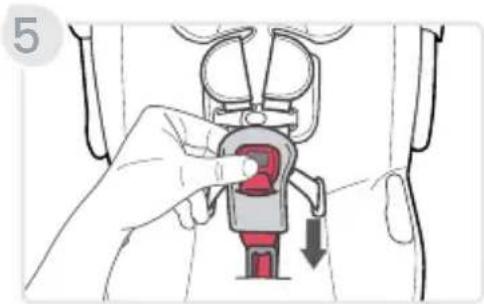

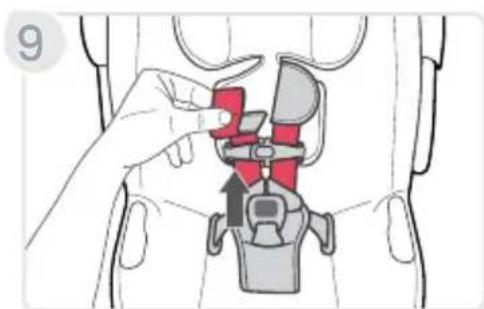

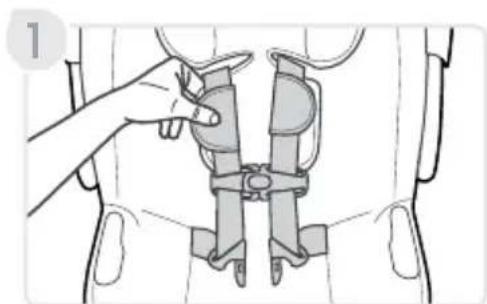

Securing Your Child 42

Child Restraint Functions....46

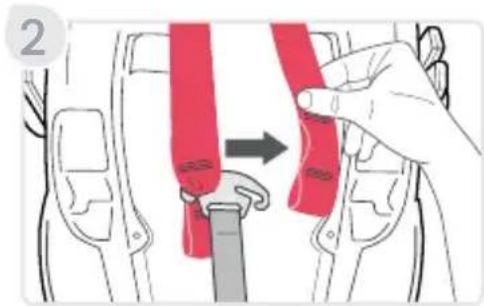

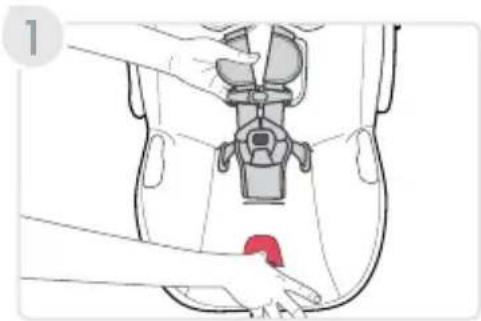

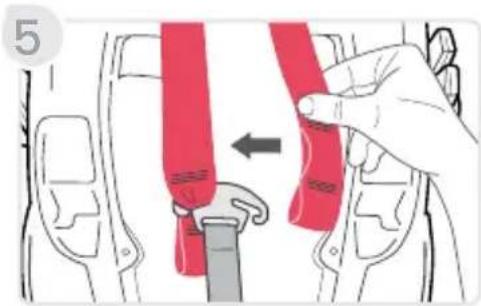

Adjusting the Harness....46

Adjusting the Buckle Position 48

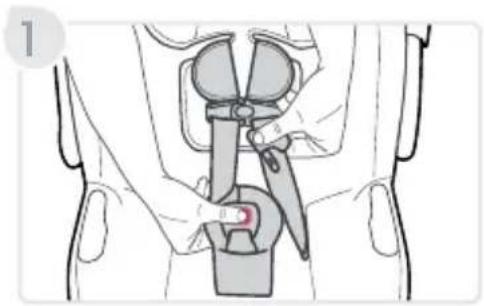

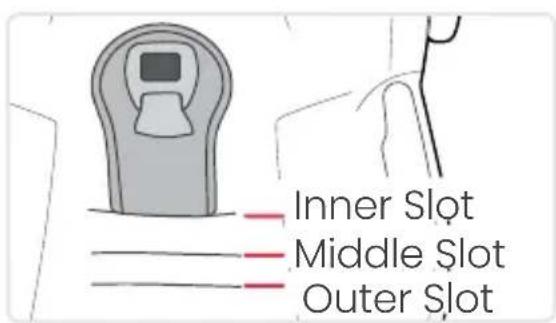

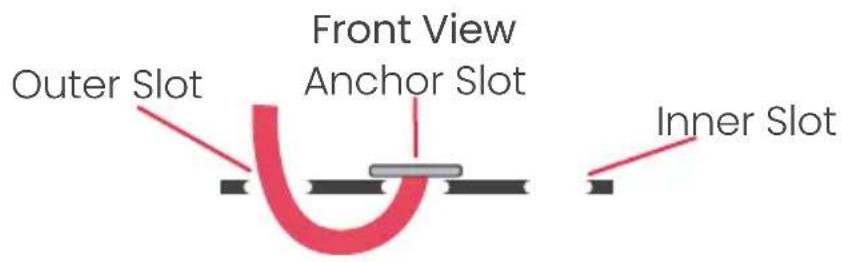

Adjusting the Hip Slots....51

Carry Handle Position....54

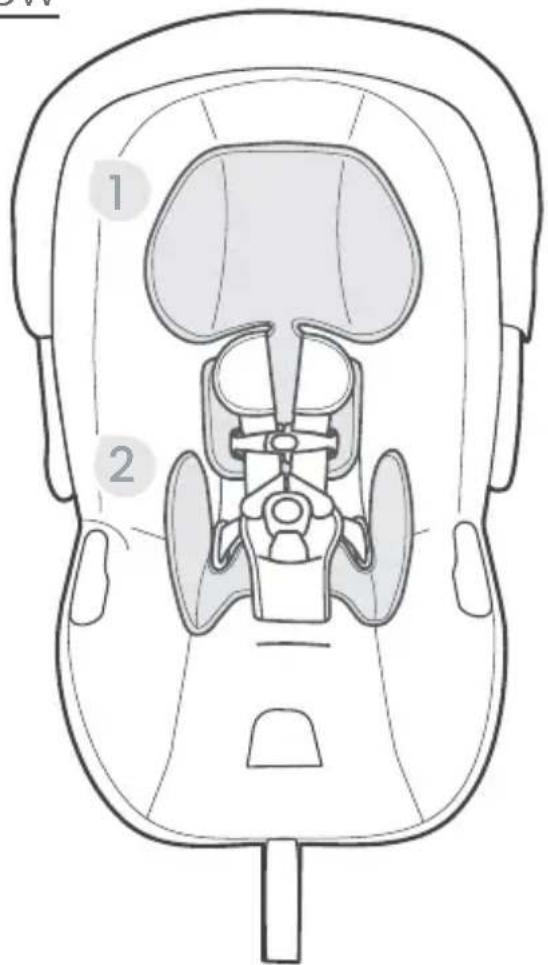

Head Pad & Infant Positioning Pillow....55

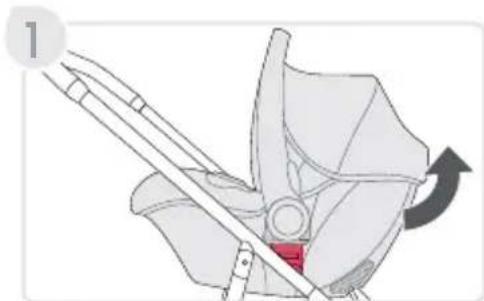

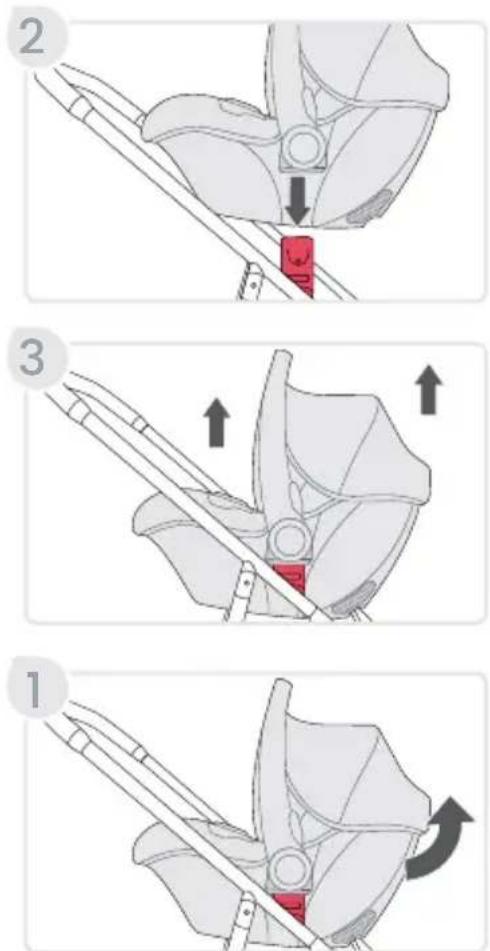

Britax Strollers....56

Using the Lower Anchors....57

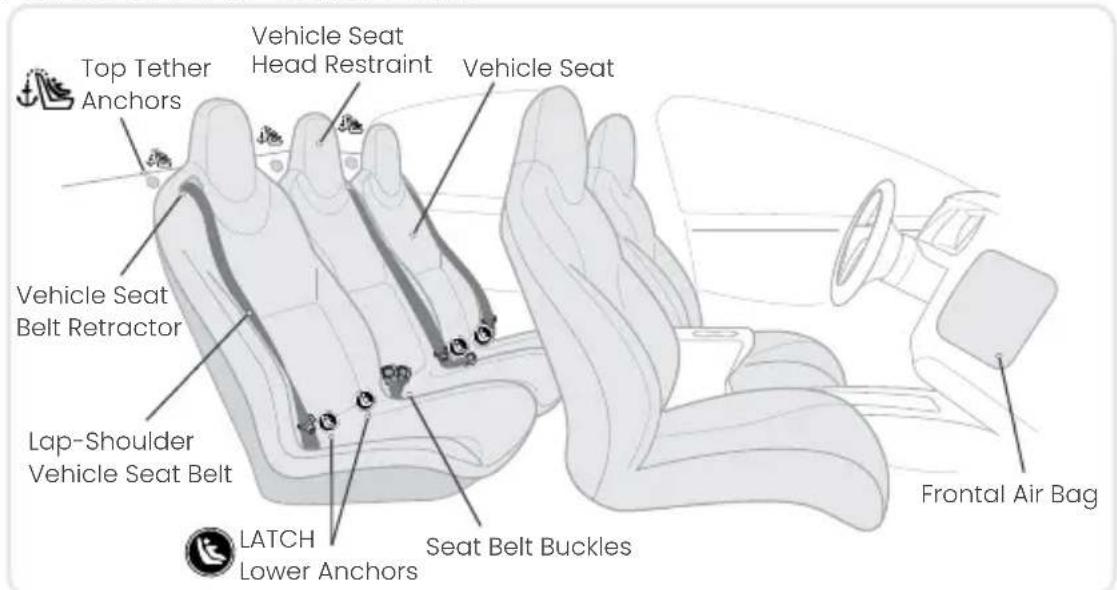

Vehicle Compatibility....58

Care and Maintenance....61

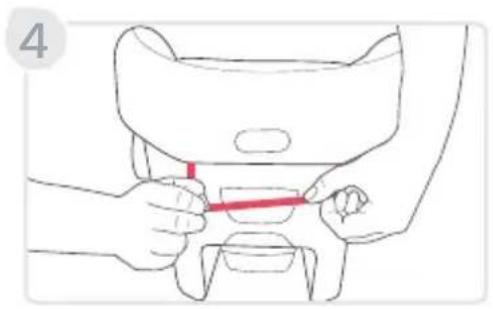

Cleaning....70

Warranty 71

Arbitration Agreement 73

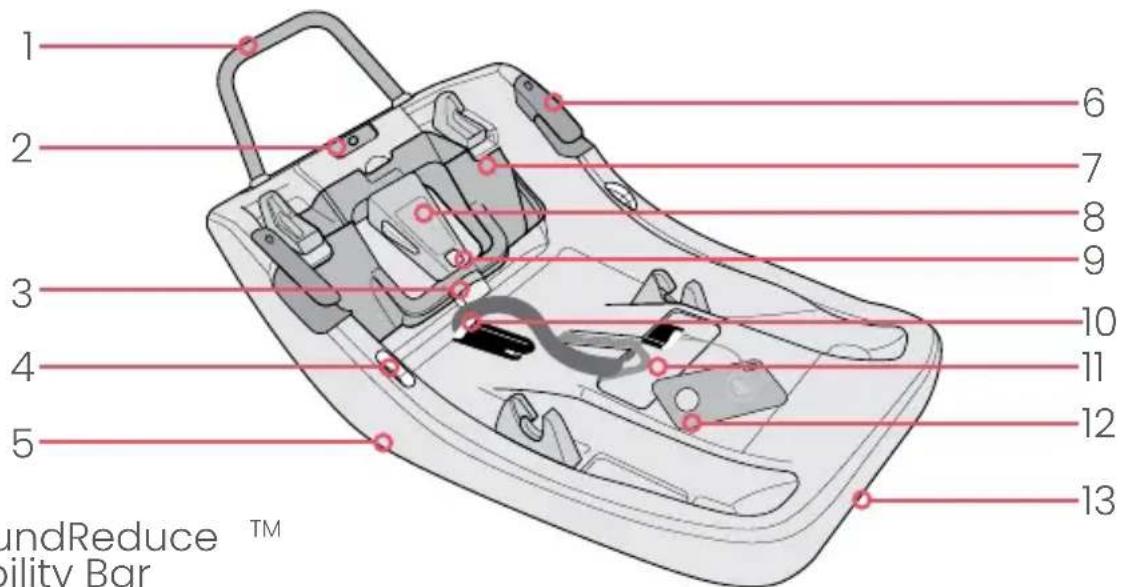

Child Restraint Overview Alpine Infant Seat Base

1. ReboundReduce ^TM Stability Bar
2. Recline Button
3. ClickTight Locking Point
4. Recline Angle Indicator (2)
5. Recline Foot (under base)
6. Belt Guides (2)
7. ClickTight

8. ClickTight Handle

9. ClickTight Indicator Window

10. Lower Connectors
11. Serial Number & Manufacture Date Label (inside compartment)
12. Lower Connectors Storage Compartment Lid
13. Secondary User Guide Storage

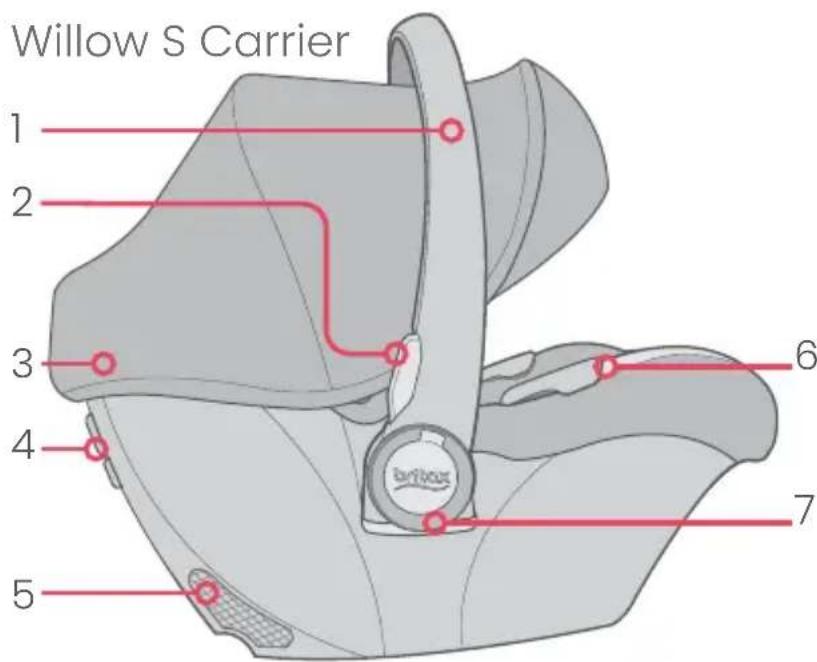

1. Carry Handle
2. Carry Handle Adjustment Buttons
3. Canopy
4. European Belt Guide
5. SafeCell®
6. Seat Cover
7. Stroller Adapter Connection
8. Release Lever from Base and Stroller

1. Serial Number & Manufacture Date Label
2. Harness Straps
3. Harness Yoke
4. Harness Slots
5. Hip Slots
6. Buckle Slots

1. Flip Out Visor
2. Infant Positioning Pillow (optional)
3. Harness Adjuster Lever (under cover)
4. Harness Adjuster Strap
5. Head Pad Pillow (optional)
6. Baseless Install Belt Guidés (2)
7. User Guide Storage Pouch (under cover)

1. Carrier Shell
2. Chest Clip
3. Harness Buckle
4. Comfort Pads (optional)
5. Harness Straps
6. Buckle Strap
7. Belly Pad (optional)

Safety Information

WARNING!

DEATH or SERIOUS INJURY can occur.

Read all instructions before use of the infant carrier.

• Failure to follow all warnings and instructions could result in SERIOUS INJURY OR DEATH.
• Use only in a rear-facing position when using it in the vehicle.
• Use only with children who weigh between 4 and 30 pounds (1.8 and 13.6 kg) and whose height is 32 inches (81.3 cm) or less.
• Snugly adjust the belts provided with this child restraint around your child.
• Follow all instructions on this child restraint and in the written instructions located under the seat cover. Keep the instructions with the restraint for future use.
• Secure this child restraint with the vehicle's child restraint anchorage system, if available, or with a vehicle belt. Using both methods is not approved and may cause the child seat not to perform as intended.
• Register your child restraint with the manufacturer.
  • NEVER leave child unattended.
• Suffocation Hazard: Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas, or other

soft surfaces.

• Fall Hazard: Child's activity can move carrier. NEVER place carrier on counter tops, tables, or any other elevated surface.
• A snug strap should not allow any slack. You should not be able to pinch excess.

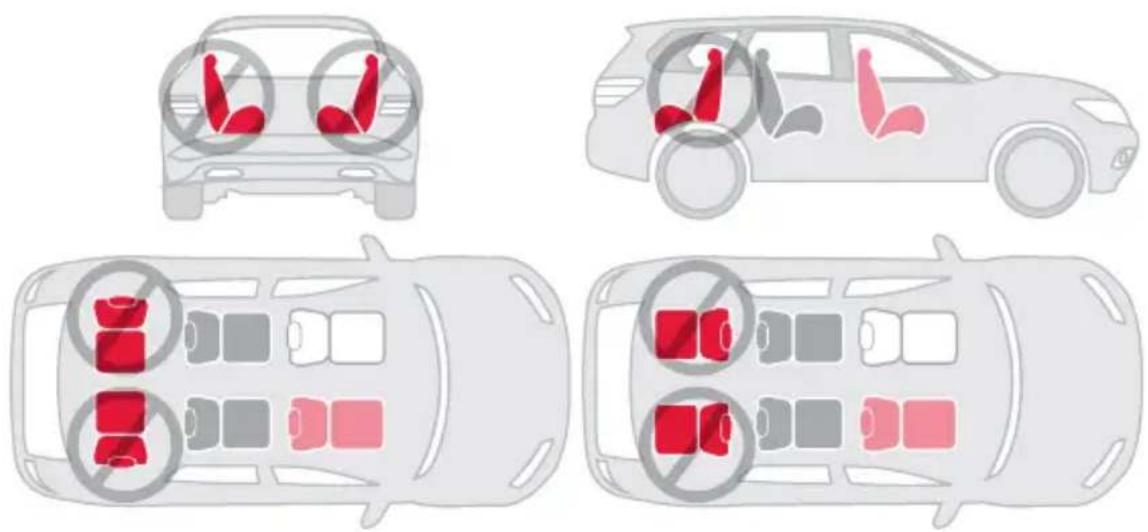

• This child seat can only be used in the following classes of vehicles: multi-purpose passenger vehicles, passenger cars, or trucks.
• In a vehicle with rear designated seating positions, vehicle owners should be alerted that, according to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions. To ensure your child's safety, please study Vehicle Seating Positions on page 58 and consult your vehicle owner's manual.
• The use of non-Britax covers, inserts, toys, accessories, or tightening devices is not approved by Britax. Their use could cause this child seat not to perform as intended in a crash.
• ALWAYS check the back seat upon leaving your vehicle to prevent leaving a child restrained in the infant car seat alone in the vehicle.
• Fall Hazard: The carrier can fall from the shopping cart. DO NOT use on shopping cart.
• Fall Hazard: NEVER use this child restraint on boats, low speed vehicles (LSV), all-terrain vehicles (ATV), golf carts, or any other non-certified application.
• Strangulation Hazard: Children have STRANGLED in loose or

partially buckled harness straps. Fully restrain the child even when carrier is used outside the vehicle.

- ALWAYS lift infant car seat by both sides of carry handle after installation in base to verify that it is secure.

• DO NOT use the infant carrier if it is damaged or broken.

- To prevent injury due to deterioration or hidden damage, DO NOT use this infant car seat and base if it is older than six (6) years or has been in a moderate or severe crash. See expiration date on the date of manufacture label located on the infant car seat and base.

• Always make sure the child restraint system is secured to the vehicle, even when unoccupied, since in a crash an unsecured child restraint system may injure occupants.

- The primary protection for occupants of a vehicle in a collision is the body of the vehicle itself; a child seat will not protect a child when a vehicle is seriously impacted. However, correctly installed, a child seat will substantially improve chances for survival in most crashes. Make sure all users fully understand the correct ways to

use this child seat in a vehicle.

- Do NOT route belt(s) through ClickTight handle opening for any installation method.

Important Notes

• Discontinue use of this child seat if it has been in a moderate or severe crash. It is not necessary to replace a car seat after a minor crash defined by the U.S. National Highway Traffic Safety Administration (NHTSA) as:
  a. The vehicle is drivable from the crash site; and
  b. The vehicle door nearest the child seat was not damaged; and
  c. No vehicle occupants were injured; and
  d. There is no visible damage to the child seat; and
  e. The airbags (if present) did not deploy.
• Verify that the child restraint and child restraint belts or straps do not interfere with the opening and closing of the vehicle door.
• Consult vehicle user guide to ensure child restraint installation does not interfere with function of vehicle seats.
• Ensure the lower harness (waist) straps are firmly adjusted in a position so that the child's pelvic area is secure.
• Ensure the upper harness (shoulder) straps are firmly adjusted so that the child is secure.
• Never leave child unattended.

• Do not, except as described in this booklet, attempt to disassemble any part of the child seat or change the way the harness or vehicle's seat belts are used.

• Do not allow children to play with this child seat.

• Do not use anything to raise the child seat off vehicle seat except as described in these instructions. In a crash, this could cause the child seat not to perform as intended.
• Store the infant car seat in a safe, dry place when it will not be used for an extended period of time. Do not place heavy objects on top of it.
• Third party recommendations are subject to change, so we recommend you visit their websites for the most up to date recommendations.

Certification

Motor Vehicles

This child restraint system conforms to all applicable Federal motor vehicle safety standards (FMVSS 213).

This Restraint is Certified For Use in Motor Vehicles and Aircraft.

Certified for Aircraft Travel

Aircraft - Baseless Installation with Lap Belt (see page 39)

• Install your child restraint in a window seat to avoid blocking the aisle.
• If the aircraft lap belt is too short, ask a flight attendant for a belt extender.
• Your child may experience discomfort if the buckle is located in the seating area of the child restraint after installation.
• Inflatable aircraft lap belts are not compatible with this child seat.
• This seat may not fit all aircraft. Contact your airline prior to travel to verify fit.

Registration

Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available and the restraint's model number and manufacturing date to Britax Child Safety, Inc. P.O. Box 91167 Allentown, PA 18109-9925, or call 1-888-427-4829 or 1-704-409-1699, or register online at us.britax.com/registration. For recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to http://www.NHTSA.gov.

For your convenience, record all the information about your child seat below. Refer to the Serial Number & Manufactured Date Label for all information (see page 3).

Model Name and Number: ____

Serial Number:

Batch Number:

Date of Manufacture:

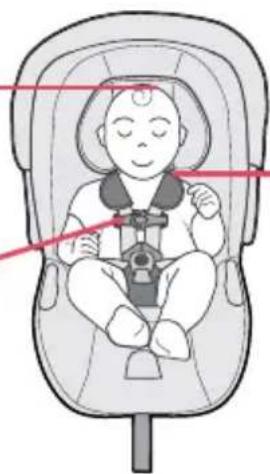

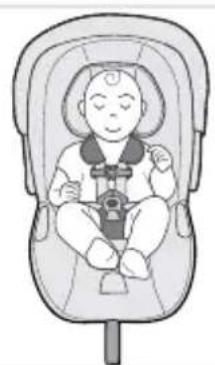

Child Fit Information

Use rear-facing only with children:

• who weigh between 4 and 30 lbs (1.8 and 13.6 kg) and
• who are 32" (81.3 cm) in height or less and
- when the top of the head is 1" (2.5 cm) or more below the top of the shell and
- when the harness straps are located in the closest harness slot below the child's shoulders.

IMPORTANT: See Adjusting the Harness on page 46 for additional child fit guidance.

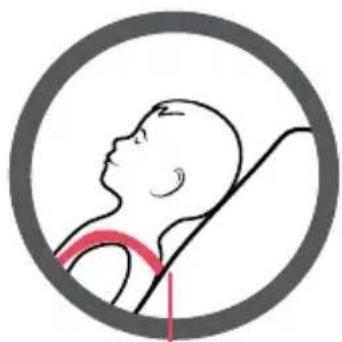

Simple line drawing of a human head in profile within a circular frame (no text or symbols)

Top of child's head at least 1" (2.5 cm) below top of shell

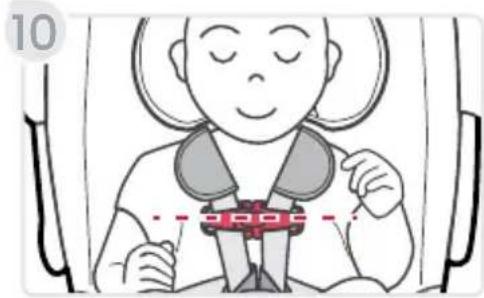

Chest clip at armpit level

Illustration of a child in a car seat with red measurement lines indicating alignment or adjustment (no text or symbols present)

Closest harness slot below shoulder level

ReboundReduce™ Stability Bar Attaching the ReboundReduce™ Stability Bar

1. Push the ReboundReduce ^TM Stability Bar into the receivers on the base until a click is heard.

2. Pull up on the ReboundReduce ^TM Stability Bar to verify that it is secure.

NOTE: The ReboundReduce™ Stability Bar cannot be removed once installed.

Illustration of a hand holding a red curved object with an upward arrow, no text or symbols present

Using with the Base

Before installing the child restraint:

-Check that your vehicle seat belt is compatible with the child restraint by referring to your vehicle owner's manual and page 60 in this user guide.

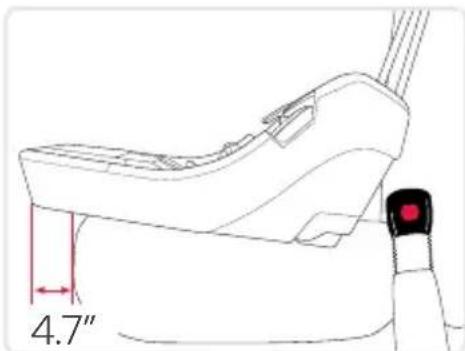

Overhang

It is important that the base of the child restraint rests completely flat on the vehicle seat with no side overhang. It is permissible to allow up to 4.7" (or 11.9 cm) of the base to hang over the edge of the vehicle seat.

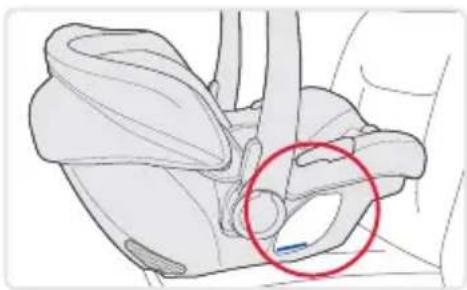

Adjusting the Recline Angle

IMPORTANT: Vehicle must be parked on a level surface.

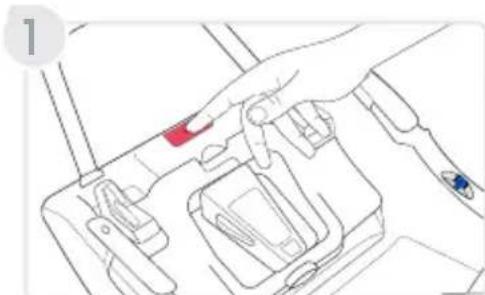

1. Press the recline adjustment button.
2. Position the base on the vehicle seat in contact with the seat back.

Line drawing of a hand operating a device with a red button and blue connector (no text or symbols)

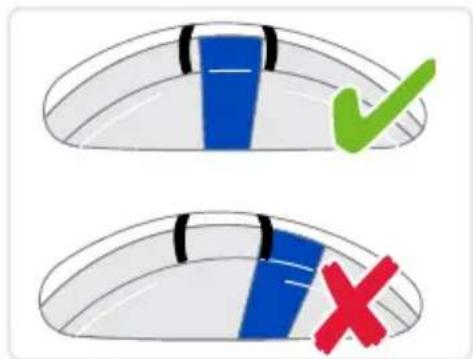

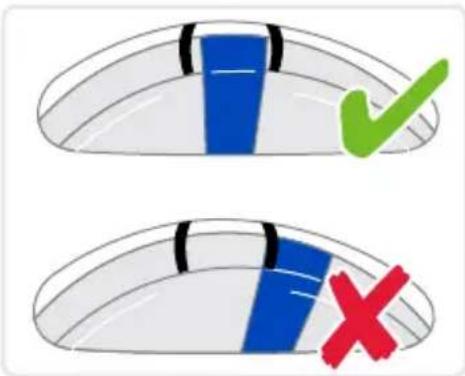

1. Move the base up or down until the entire blue marker is completely visible between the two lines on the recline angle indicators.

IMPORTANT: After the child is secured in the child restraint and the child restraint is attached to the base, ensure that the entire blue marker is completely visible between the two lines on the recline angle indicator.

If there is a problem achieving the proper recline angle after installing, try another approved seating position in your vehicle or:

d. Uninstall the base and lower the recline angle adjustment foot to the lowest position.

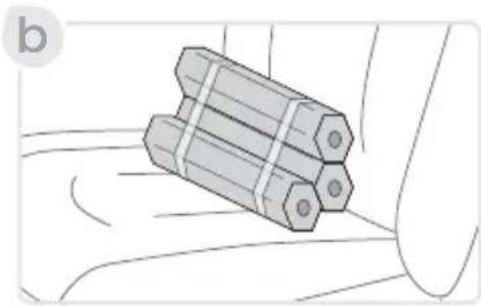

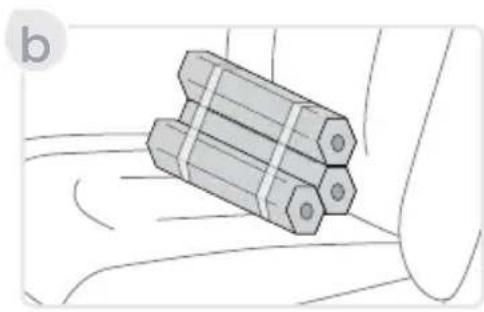

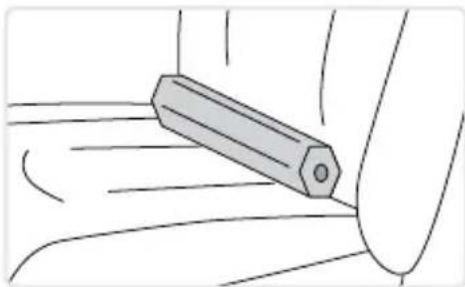

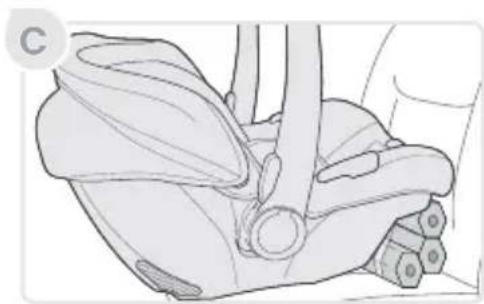

b. Remove the base from the vehicle and place a rolled towel or pool noodle in the vehicle seat bight.
c. Place the base against the towel or pool noodle and install.

NOTE: If a towel or pool noodle is needed for the recline angle, the recline angle adjustment foot on the base should remain in its lowest position.

Diagram of a car's side profile showing two directional arrows indicating movement or force (no text or symbols present)

Simple line drawing of a pencil being inserted into a surface, no text or symbols present

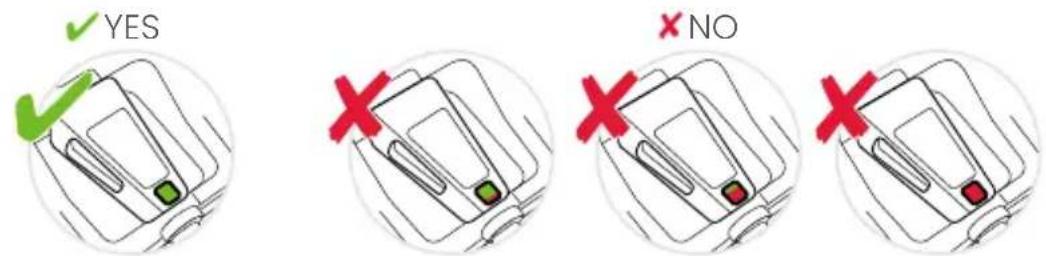

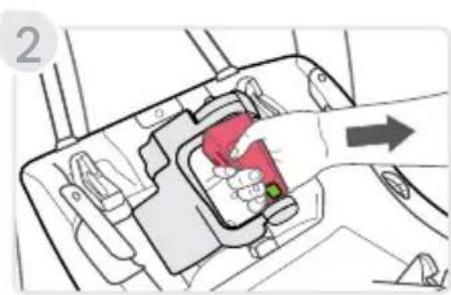

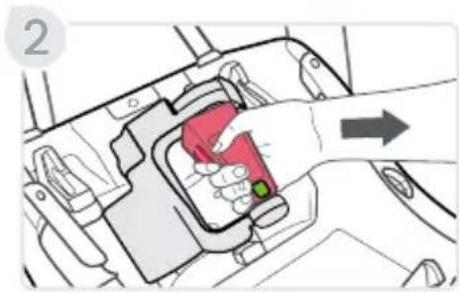

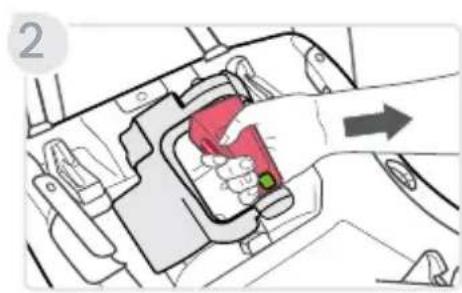

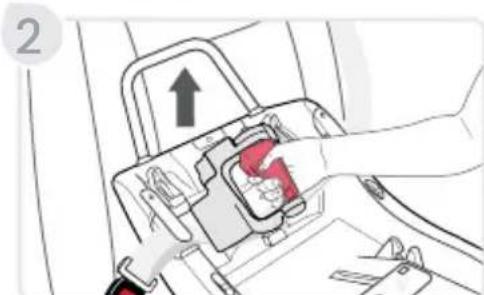

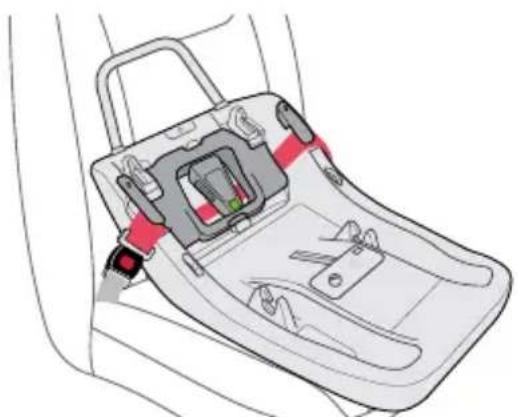

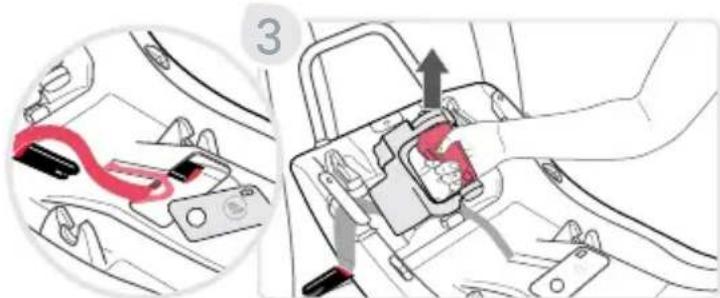

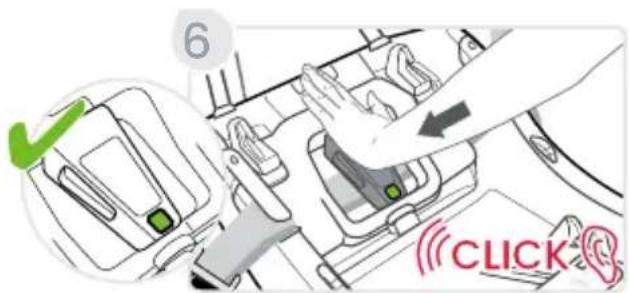

ClickTight Indicator

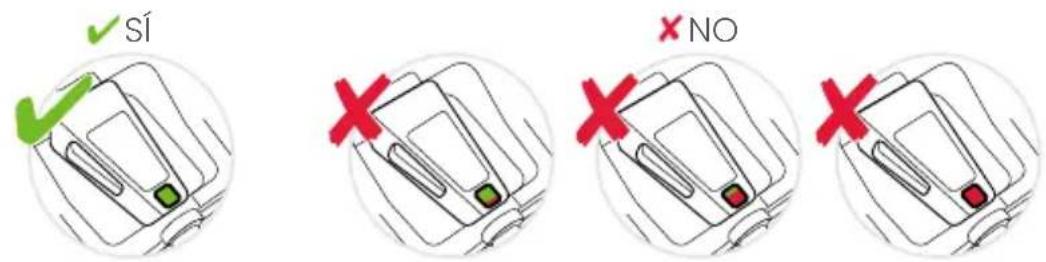

The ClickTight indicator window will be ENTIRELY GREEN (a) when the ClickTight is fully open and (b) when it is closed correctly.

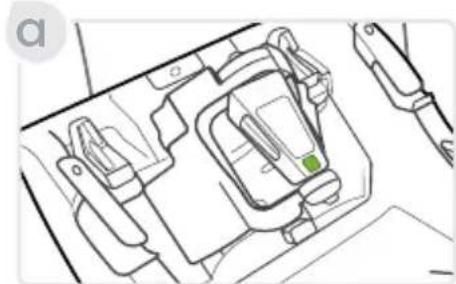

a. When ClickTight is fully open, the indicator window will be entirely green.

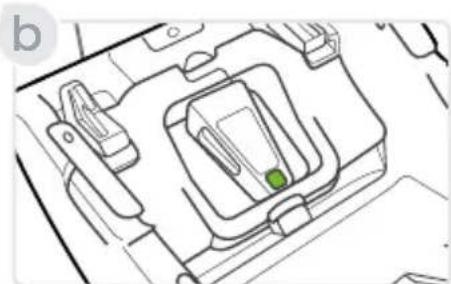

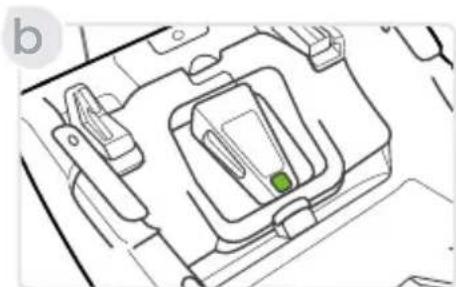

b. When ClickTight is closed correctly, the indicator window will be entirely green.

NOTE: If any red is visible, continue to push ClickTight closed until only green can be seen.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

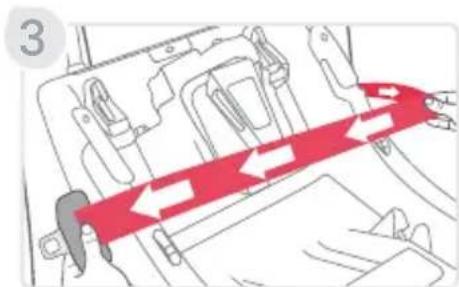

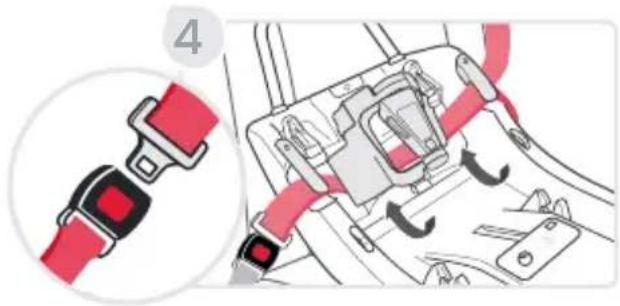

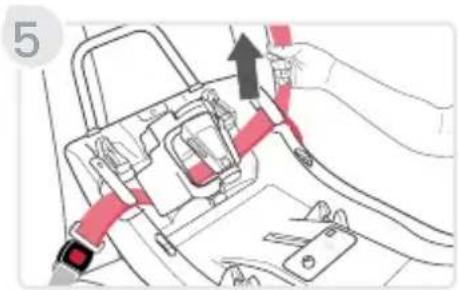

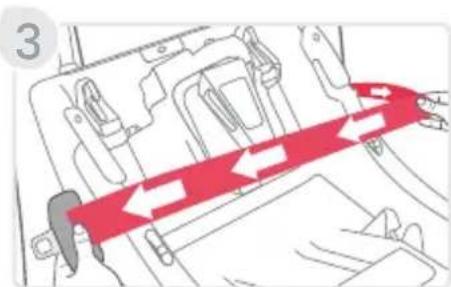

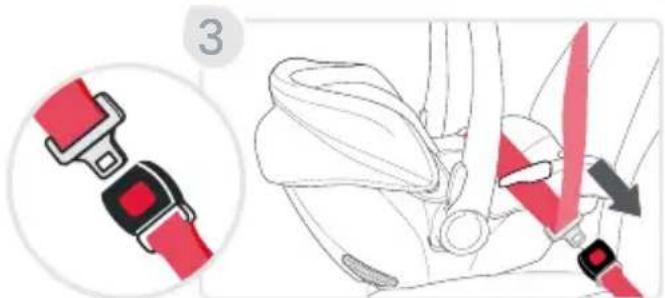

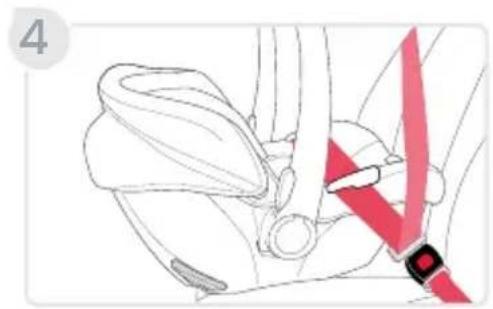

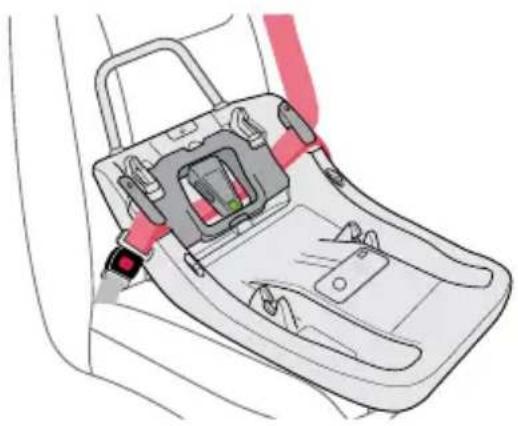

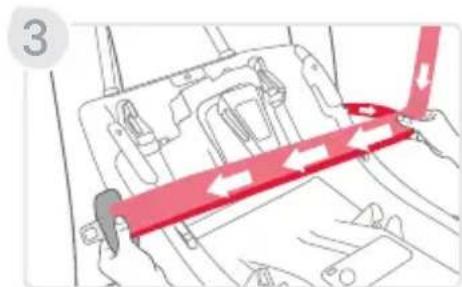

Lap-Shoulder Belt Installation

NOTE: Do not lock/switch the vehicle belt retractor. The ClickTight replaces the need for a locked/switched vehicle belt.

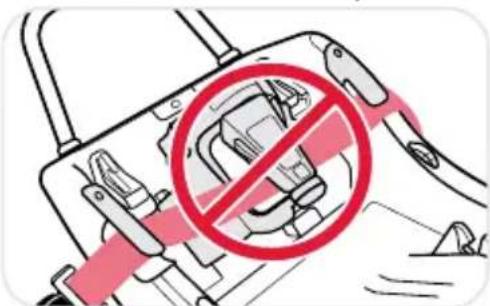

Do not route belt(s) through ClickTight handle opening.

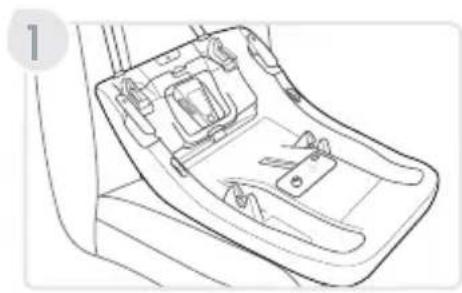

1. Place the base on the vehicle seat.

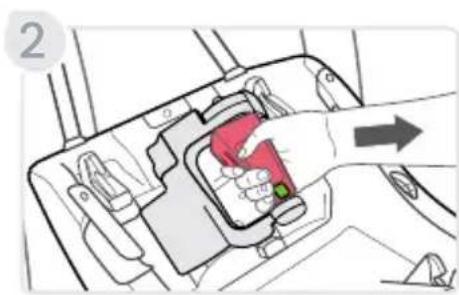

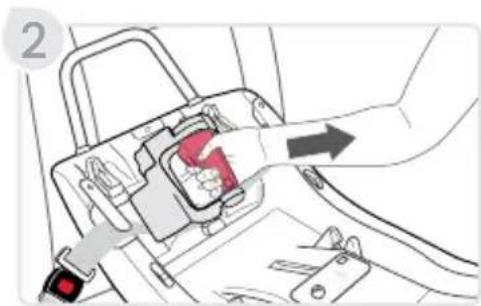

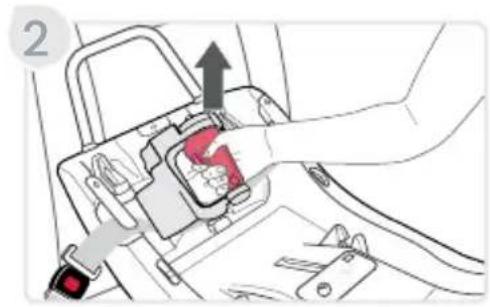

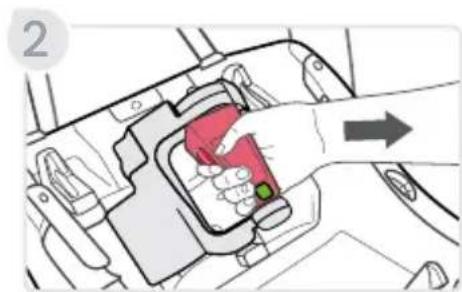

2. Open the ClickTight.

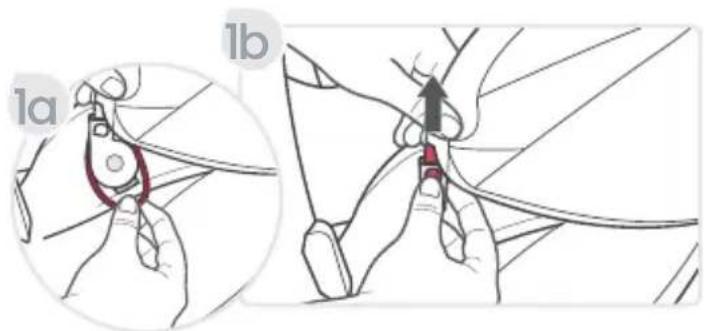

a. Grab the ClickTight handle and squeeze the button.
b. Lift the ClickTight handle.

NOTE: When ClickTight is fully open and button is released the indicator window will be ENTIRELY GREEN.

1. Pull the lap and shoulder belt across the base.

NOTE: Ensure the vehicle belt is not twisted.

Line drawing of a car seat frame with internal components (no text or symbols)

Illustration of a hand inserting a red object into a vehicle's seatbelt (no text or symbols)

1. Tuck the vehicle belt under the ClickTight and belt guides and buckle the vehicle belt.

NOTE: Ensure the lap and shoulder belts are both tucked under the ClickTight completely.

1. Remove slack from the vehicle belt.

NOTE: Overtightening the belt may prevent the ClickTight from closing.

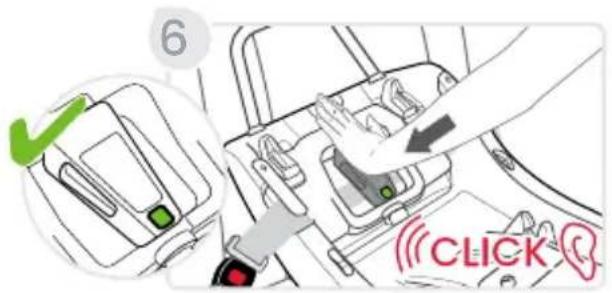

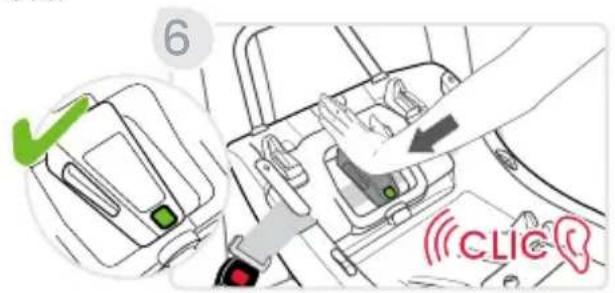

1. Close the ClickTight by pushing down on the ClickTight handle.

NOTE: Ensure indicator in window is ENTIRELY GREEN.

NOTE: A click helps confirm the ClickTight is secure.

Diagram of a car seatbelt buckle assembly with red belt and connector (no text or labels)

Base Installation with Lap-Shoulder Belt

CHECKLIST

√ The base is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ The entire blue marker is completely visible between the two lines on the recline angle indicators.

√ Lap and shoulder belt are both routed under both belt guides and the ClickTight.

√ Lower connector storage compartment lid is closed and secure prior to attaching carrier.

√ ClickTight indicator window is entirely green and no red is visible.

Lap Belt Installation

IMPORTANT: Vehicle belt MUST be locked according to your vehicle owner's manual.

1. Place the base on the vehicle seat.

2. Open the ClickTight.

a. Grab the ClickTight handle and squeeze the button. b. Lift the ClickTight handle.

NOTE: When ClickTight is fully open the indicator window will be ENTIRELY GREEN.

1. Pull the lap belt across the base.

NOTE: Ensure the vehicle belt is not twisted.

Line drawing of a car interior frame with no text or symbols

Diagram of a car interior showing a hand inserting a red object into a vehicle compartment, with an arrow indicating direction (no text or symbols present)

1. Tuck the vehicle belt under the ClickTight and belt guides and buckle the vehicle belt.

NOTE: Ensure the vehicle belt is tucked under the ClickTight completely.

Illustration of a red and black seatbelt buckle being adjusted for a car seatbelt (no text or symbols present)

1. Lock the vehicle belt according to your vehicle owner's manual.

NOTE: Overtightening the vehicle belt may prevent the ClickTight from closing.

Line drawing of a car seatbelt buckle assembly with red belt (no text or symbols)

1. Close the ClickTight by pushing down on the ClickTight handle.

NOTE: Ensure indicator in window is ENTIRELY GREEN.

NOTE: A click helps confirm the ClickTight is secure.

Diagram of a car seatbelt device with red belt and blue buttons, no text or symbols present

Base Installation with Lap Belt

CHECKLIST

√ The base is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ The entire blue marker is completely visible between the two lines on the recline angle indicators.

√ Lap belt is routed under both belt guides and the ClickTight.

√ Vehicle belt is locked.

√ Lower connector storage compartment lid is closed and secure prior to attaching carrier.

√ ClickTight indicator window is entirely green and no red is visible.

Lower Connector Installation

1. Place the base on the vehicle seat.

2. Open the ClickTight.

a. Grab the ClickTight handle and squeeze the button. b. Lift the ClickTight handle.

NOTE: When ClickTight is fully open the indicator window will be ENTIRELY GREEN.

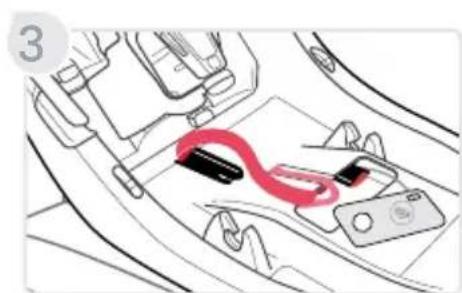

1. Open the storage compartment lid and remove the lower connectors and lengthen. Close the storage compartment lid.

Line drawing of a car interior panel with handlebars and compartments (no text or symbols)

Diagram of a car seatbelt switch with a hand inserting a red component (no text or symbols visible)

Diagram of a car interior showing internal components and a red cable or connector (no text or symbols)

1. Tuck the lower connector strap under the ClickTight and belt guides.

NOTE: Ensure the strap is tucked under the ClickTight completely.

NOTE: Ensure the connector strap is not blocking the locking point for the ClickTight.

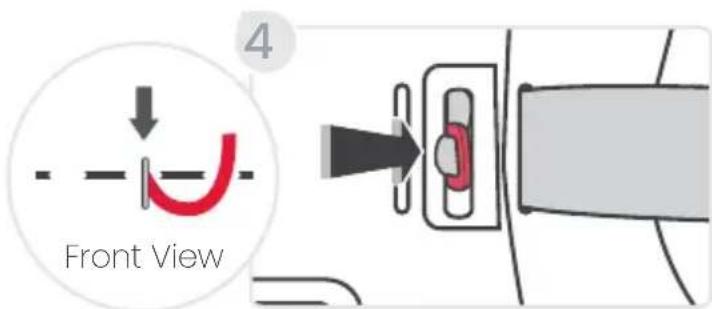

1. Push the lower connectors onto the vehicle lower anchors until a click is heard.

NOTE: Pull the lower connectors to verify they are secure.

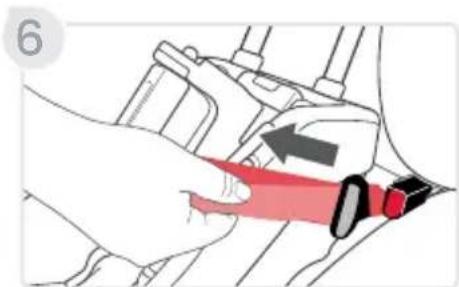

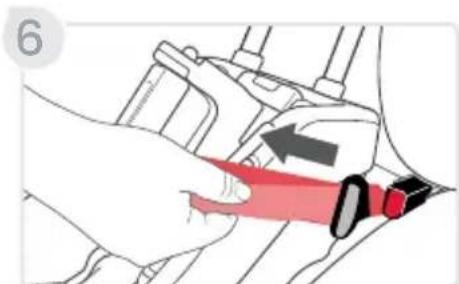

1. Pull the adjustment strap to remove slack.

NOTE: Overtightening the belt may prevent the ClickTight from closing.

Diagram of a car interior showing a seatbelt with red cable routing and directional arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a red belt switch mechanism (no text or symbols present)

1. Close the ClickTight by pushing down on the ClickTight handle.

NOTE: Ensure indicator in window is ENTIRELY GREEN.

NOTE: A click helps confirm the ClickTight is secure.

Diagram of a car seatbelt device with red directional arrows indicating movement or force (no text or symbols)

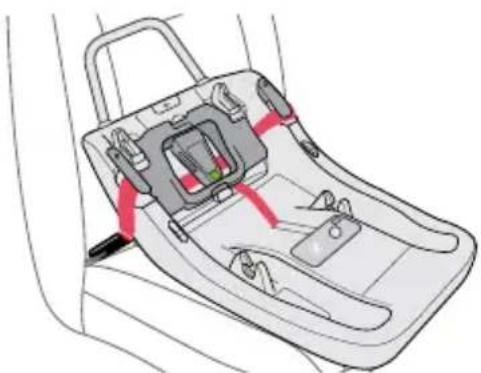

Base Installation with Lower Connectors

CHECKLIST

√ The base is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ The entire blue marker is completely visible between the two lines on the recline angle indicators.
√ Lower connector strap is routed under both belt guides and the ClickTight.
√ Lower connector storage compartment lid is closed and secure prior to attaching carrier.
√ ClickTight indicator window is entirely green and no red is visible.

Attaching the Child Restraint to the Base

1. Ensure that the base is securely installed.
   NOTE: Ensure lower connector storage compartment lid is secure over lower connector storage prior to placing child restraint into the base.
2. Place the child restraint into the base and press down until a click is heard.
3. Pull up on both sides of the child restraint to verify attachment.
4. Ensure that the carry handle is in a locked position and check that the recline angle is still correct.

Diagram of a car seat assembly with two upward arrows indicating direction (no text or labels)

Removing the Child Restraint from the Base

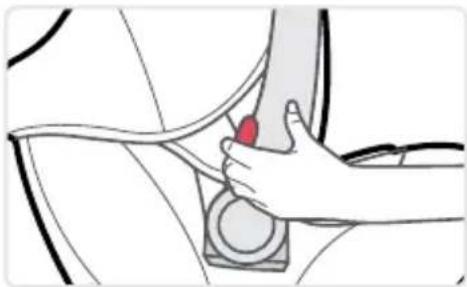

1. Pull up and hold the lever on the back of the child restraint.
2. Lift the child restraint up from the base using the carry handle.

Illustration of a car seatbelt with hand positioning arrows indicating movement (no text or symbols)

Uninstalling the Base

Lap Shoulder Belt Uninstall

1. Unbuckle the vehicle belt.
2. Open the ClickTight.

a. Grab the ClickTight handle and squeeze the button.

b. Lift the ClickTight handle.

1. Pull the belt from the base belt routes.

Lap Belt Uninstall

1. Unbuckle the vehicle belt.

1. Open the ClickTight.

a. Grab the ClickTight handle and squeeze the button.
b. Lift the ClickTight handle.

1. Pull the belt from the base belt routes.

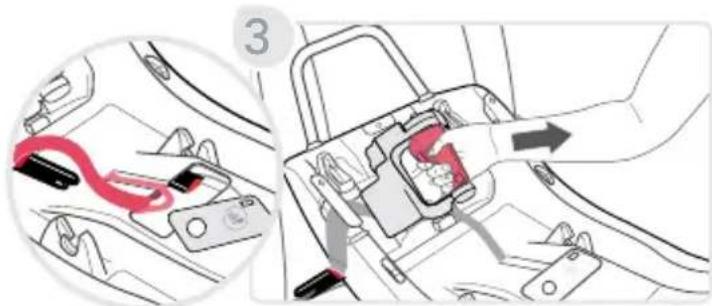

Lower Connector Uninstall

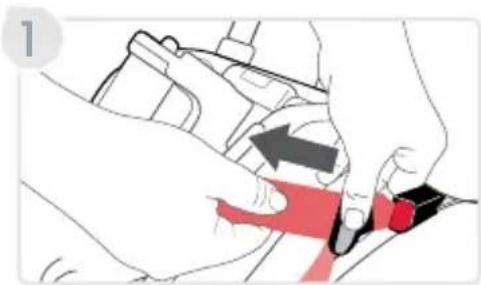

1. Loosen the lower connector straps.

2. Press each of the red release buttons on the lower connectors and release from vehicle anchors.

Illustration of hands using a tool to adjust a red component, no text or symbols present

Illustration of a hand holding a black tool with red adjustment arrows, no text or symbols present

1. Open the ClickTight.

a. Grab the ClickTight handle and squeeze the button.

b. Lift the ClickTight handle.

1. Store the lower connectors in the storage compartment in the base and replace the storage compartment lid.

Diagram showing car seatbelt assembly with red cable and directional arrow (no text or symbols)

Using without the Base

Before installing the child restraint:

• Secure the child in the child restraint before installing in the vehicle.
  -Check that your vehicle seat belt is compatible with the child restraint by referring to your vehicle owner's manual and page 60 in this user guide.
  -Check your vehicle owner's manual to determine how to lock your vehicle belt system.

Adjusting the Recline Angle

-When installed, the level line on the label of the child restraint should be level to the ground.

If there is a problem achieving the proper recline angle after installing, try another approved seating position in your vehicle or:

a. Uninstall the child restraint and remove it from the vehicle seat.
b. Place one or more rolled towels or pool noodles in the vehicle seat bight.
c. Place the child restraint against the towel(s) or pool noodle(s) to level the child restraint and install.

Anatomical illustration of pelvic bones with a red circle highlighting a specific area (no text or labels present)

Illustration of a wooden bolt resting on a surface, no text or symbols present

Illustration of a car seatbelt with a hand inserted, showing no text or symbols

Lap-Shoulder Belt Installation with European Belt Guide

IMPORTANT: Check your vehicle owner's manual to determine how to lock your vehicle belt system.

-If you cannot lock your vehicle seat belt you must use a locking clip. Locking clips are available from Britax at 1-888-427-4829 or 1-704-409-1699.

1. Secure your child in the child restraint before installing in the vehicle. See page 42.

2. Place the child restraint rear facing on the vehicle seat.

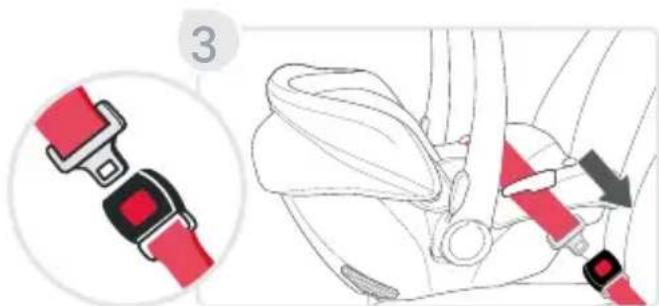

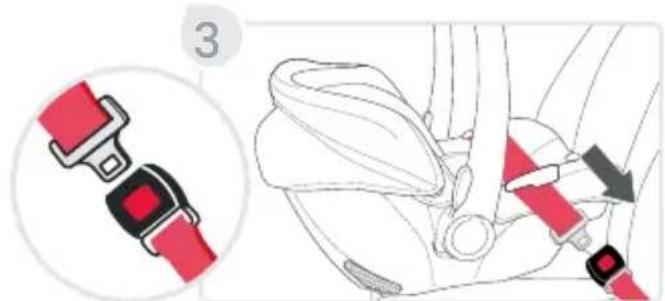

3. Pull the vehicle belt out and route the lap portion under the child restraint belt guides and buckle.

NOTE: Verify that the vehicle belt is not twisted.

Illustration of a child wearing a car seat and holding a teddy bear (no text or symbols)

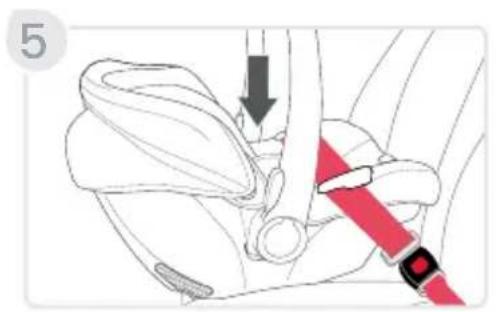

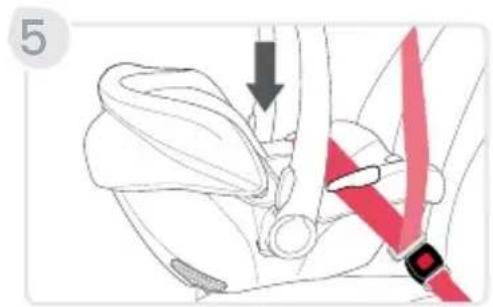

1. Wrap the shoulder belt around the child restraint, through the European belt guide. Lock your vehicle seat belt system as instructed by your vehicle owner's manual.

2. Push the child restraint firmly into the vehicle seat while removing all slack from the lap portion and then the shoulder portion of the vehicle belt.

Line drawing of a car seatbelt with a red belt and black button, no text or symbols present

Illustration of a car seatbelt with red belt and blue straps (no text or symbols)

Lap-Shoulder Belt Installation with European Belt Guide

CHECKLIST

√ The child restraint is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ Recline angle is correct. The proper recline angle is achieved when the level line on the child restraint is level to the ground.
√ The carry handle is rotated into any locked position.

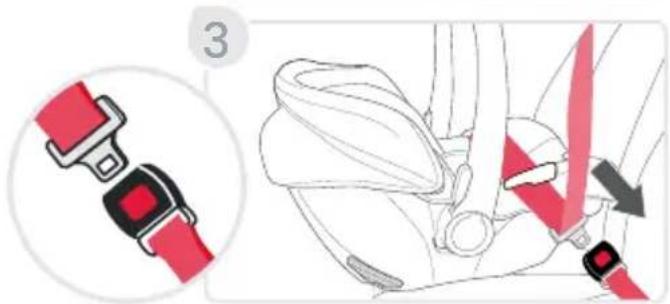

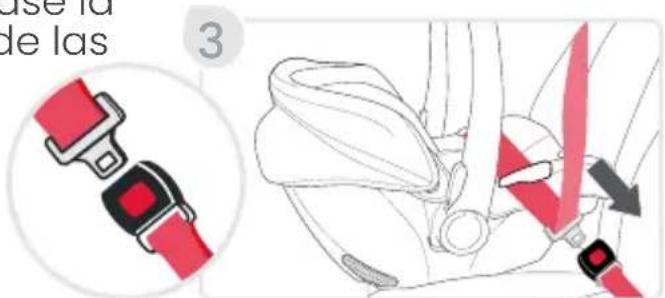

Lap-Shoulder Belt Installation

IMPORTANT: Check your vehicle owner's manual to determine how to lock your vehicle belt system.

- If you cannot lock your vehicle seat belt you must use a locking clip. Locking clips are available from Britax at 1-888-427-4829 or 1-704-409-1699.

1. Secure your child in the child restraint before installing in the vehicle. See page 42.

2. Place the child restraint rear facing on the vehicle seat.

3. Pull the vehicle belt out and route the lap portion under the child restraint belt guides and buckle

NOTE: Verify that the vehicle belt is not twisted.

1

Illustration of a baby wearing a seatbelt in a car seat (no text or symbols)

1. Lock your vehicle seat belt system as instructed by your vehicle owner's manual.

2. Push the child restraint firmly into the vehicle seat while removing all slack from the lap portion and then the shoulder portion of the vehicle belt.

Line drawing of a car seatbelt buckle with a red belt (no text or symbols)

Illustration of a car seatbelt with a red belt buckle, showing no text or symbols

Lap-Shoulder Belt Installation

CHECKLIST

√ The child restraint is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ Recline angle is correct. The proper recline angle is achieved when the level line on the child restraint is level to the ground.
√ The carry handle is rotated into any locked position.

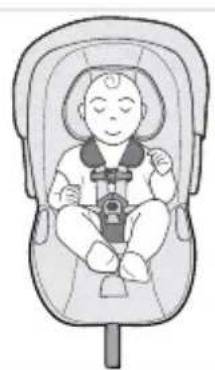

Lap Belt Installation

IMPORTANT: Check your vehicle owner's manual to determine how to lock your vehicle belt system.

1. Secure your child in the child restraint before installing in the vehicle. See page 42.
2. Place the child restraint rear facing on the vehicle seat.

1

Illustration of a baby car seat with seatbelt and comfort band (no text or symbols)

1. Pull the vehicle belt out and route under the child restraint belt guides and buckle.

NOTE: Verify that the vehicle belt is not twisted.

1. Lock your vehicle seat belt system as instructed by your vehicle owner's manual.

2. Push the child restraint firmly into the vehicle seat while removing all slack from the vehicle belt.

Line drawing of a car seatbelt with a red belt (no text or symbols)

Illustration of a car seatbelt buckle with a red belt buckle and arrow indicating motion (no text or symbols)

Illustration of a hand holding a car seatbelt with a red belt (no text or symbols)

Lap Belt Installation

CHECKLIST

√ The child restraint is secure when it moves less than 1" (2.5 cm) front-to-back or side-to-side at the vehicle belt path.
√ Recline angle is correct. The proper recline angle is achieved when the level line on the child restraint is level to the ground.
√ The carry handle is rotated into any locked position.

Securing Your Child

IMPORTANT: Remove bulky coats, jackets and / or bulky sports equipment before putting the child in the child restraint.

1. Ensure that you have followed all instructions for adjustment of the harness, buckle, and hip slots into the correct position for your child. See page 46.

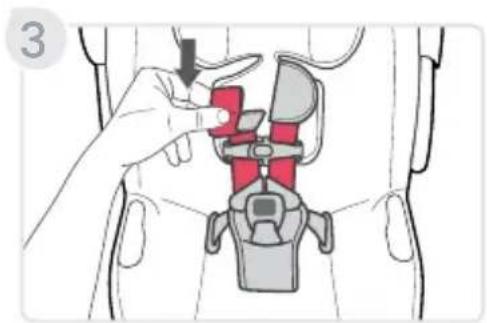

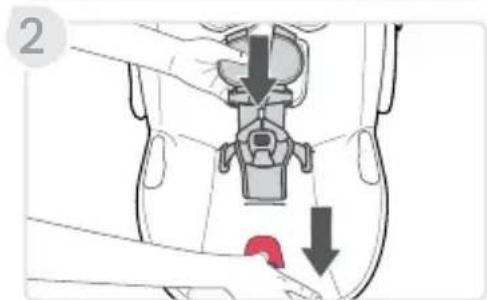

2. Loosen the harness by pressing down the harness adjuster lever while pulling both harness straps forward.

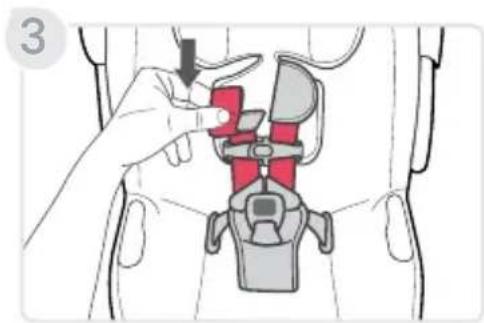

3. Press the tab and pull apart to open the chest clip.

Illustration of a hand adjusting a car seatbelt mechanism (no text or symbols)


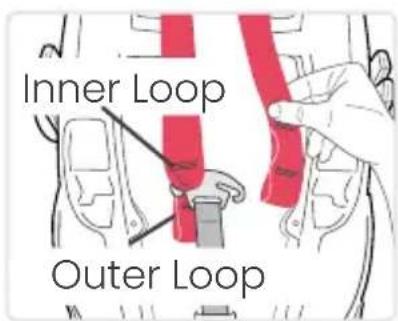

1. Release the buckle and attach the harness straps to the harness holders.

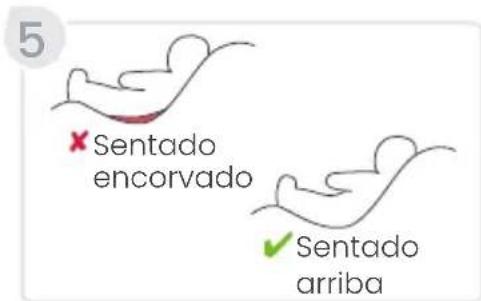

2. Place the child in the child restraint as shown. Ensure the child is positioned upright in the child restraint and not slouching. Their bottom and back must rest flat against the child restraint.

3. Position the harness straps around the child.

Diagram of pelvic anatomy with red and gray components, no text or symbols present

Line drawing of a baby in a car seat with two red buttons placed on the seat (no text or symbols)

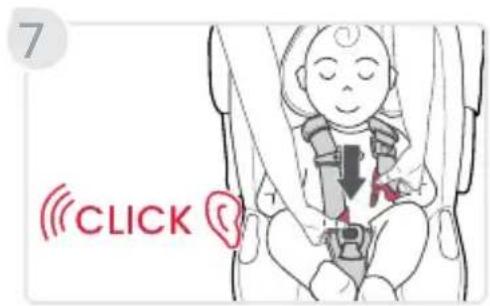

1. Buckle the harness.

NOTE: After inserting each buckle tongue, a click helps confirm the connection is secure.

NOTE: Always pull on the harness to ensure it is properly connected.

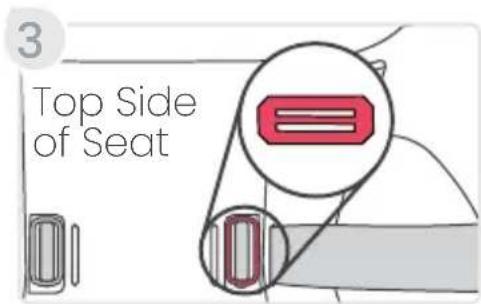

1. Check for proper harness height in the closest position below the shoulders and pull any excess slack up to the child's shoulder area before tightening.

2. Slowly pull the adjuster strap to tighten the harness around the child.

NOTE: Snugly adjust the belts provided with this child restraint around your child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child's flesh or push the child's body into an unnatural position. You should not be able to pinch excess.

Illustration of a baby in a car seatbelt with red arrows indicating pressure or force directions (no text or symbols)

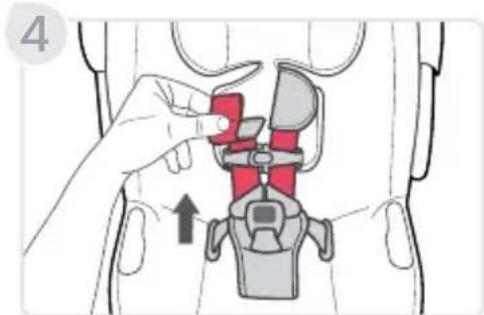

1. Fasten the chest clip and place at armpit level.

Illustration of a person adjusting a seatbelt, no text or symbols present

CHECKLIST

Before traveling, verify that the:

√ Recline angle is correct.
√ Harness straps are not twisted.
√ Harness is snug.
√ Buckle is fastened.
√ Chest clip is at the child's armpit level.

Child Restraint Functions Adjusting the Harness

The child restraint is assembled with the harness in the inner loop.

-Inner Loop: Maximum 11 lbs (5 kg) -Outer Loop: 4 - 30 lbs (1.8kg - 13.6kg)

IMPORTANT: The harness straps should be located in the closest harness height position below the child's shoulders.

IMPORTANT: Ensure the harness straps are fully secured on the harness yoke.

1. Loosen the child restraint harness by pressing the harness adjuster release lever and pulling both harness straps forward.

Illustration of a car interior showing hand positioning and seatbelt mechanism (no text or symbols)

1. Locate the harness yoke on the back of the child restraint and slide one harness strap off of the yoke.

2. Pull the harness strap through the cover and head pad from the front of the seat.

NOTE: Do not remove the comfort pad or chest clip.

1. Ensure that the harness strap is not twisted and rethread the harness strap through the head pad and then through the appropriate harness height slot in the cover and carrier shell.

Illustration of a hand adjusting a red belt buckle buckle, showing a step with an arrow (no text or symbols present)

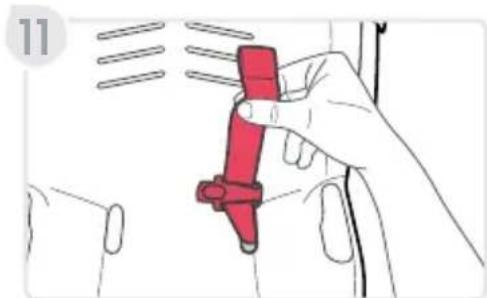

1. Reattach the harness strap to the harness yoke from the back of the seat.

2. Repeat these steps with the second harness strap and ensure they are at the same slot height.

Illustration of a hand adjusting a red belt buckle buckle, showing a correct assembly (no text or symbols present)

Adjusting the Buckle Position

The child restraint is assembled with the buckle in the middle slot.

IMPORTANT: Position the buckle in the slot closest to but not under the child.

IMPORTANT: If your child eats and drinks while in the child restraint, you will need to check the buckle periodically and rinse out any accumulated debris (see page 70).

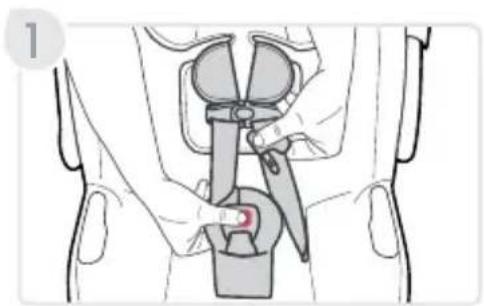

1. Unbuckle the harness by pressing the red button in the center of the buckle and sliding both harness tongues out of the buckle.

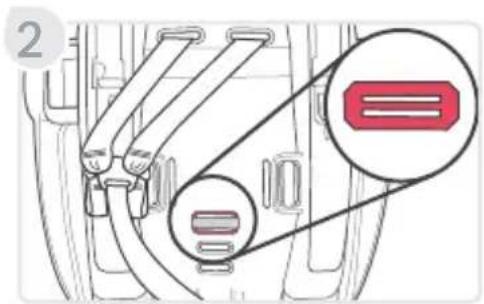

2. Locate the buckle strap retainer on the bottom of the child restraint and pull away from the seat to loosen.

3. Turn the buckle strap retainer so that the short side will go through the slot in the carrier shell and cover.

Illustration of a person's seatbelt buckle being adjusted for a seatbelt (no text or symbols present)

1. Pull the buckle and belly pad out of the slots in the carrier shell and cover.

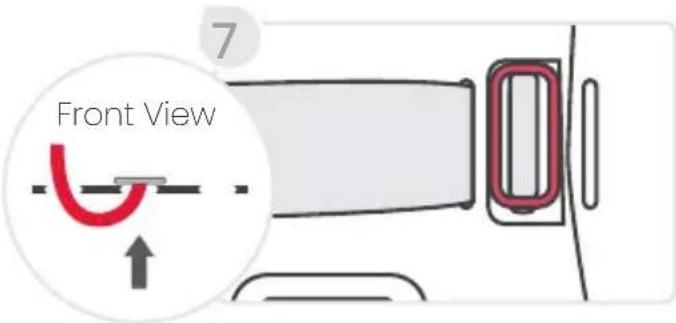

1. Push the retainer through the slot in the cover and carrier shell for the appropriate buckle position.

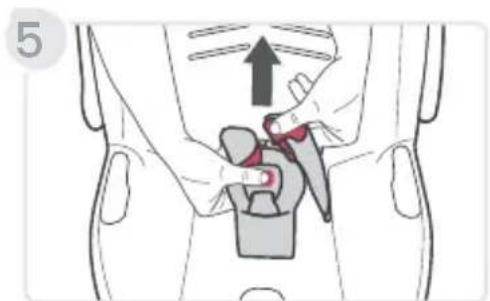

1. Pull up on the buckle to ensure that the buckle strap retainer is properly seated.

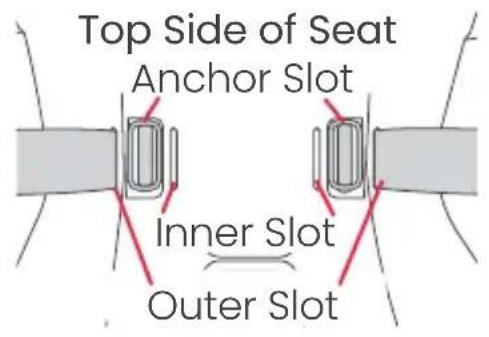

Adjusting the Hip Slots

The child restraint is assembled with the harness in the outer hip slot.

-Inner Slot (optional): Maximum 11 lbs (5 kg)
-Outer Slot: 4 - 30 lbs (1.8kg - 13.6kg)
- Hip straps should NOT sit under the child.

1. Unbuckle the harness by pressing the red button in the center of the buckle and sliding both harness tongues out of the buckle.
2. Remove carrier shell cover. See page 61.

Anatomical illustration of pelvic and hip joint structures (no text or labels)

Illustration of a flower with red petals and a black upward arrow, no text or symbols present

1. Locate the hip strap retainer under the cover of the child restraint and pull away from the seat to loosen.

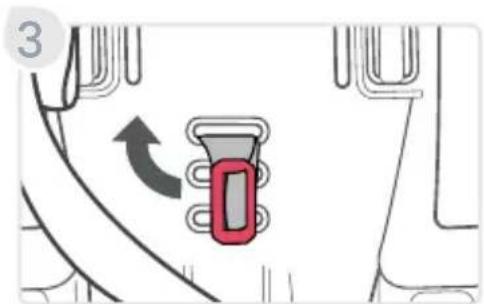

1. Turn the hip strap retainer so that the short side will go through the slot in the carrier shell.

1. Push the hip strap retainer through the slot under the carrier, following the current path of the hip strap.

1. Push the hip strap through the slot in the carrier shell for the appropriate width to fit the child.

IMPORTANT: Do NOT attempt to use center anchor slot as an adjustment point. This slot is for holding the hip strap retainer secure.

1. Push the hip strap retainer up through the center anchor slot to secure the hip strap retainer. Repeat for the other side.

2. Replace carrier shell cover. See page 66.

Illustration of a flower with red petals and a downward arrow, no text or symbols present

Carry Handle Position

The carry handle must be adjusted to any locked position for use in a vehicle.

Always use position 1 to carry.

Britax recommends Position 1 for use in a vehicle. The built in ReboundReduce™ helps reduce the rebound of the child restraint in car accidents.

To adjust, press and hold both carry handle adjusters and rotate the handle to the chosen position.

Carry Position & ReboundReduce™

1

Illustration of a hand holding a small object with a red mark, connected to a vehicle (no text or symbols visible)

Head Pad & Infant Positioning Pillow

1. Head Pad: Provides additional support behind your child to achieve head and neck alignment. To use, tuck behind and around shoulder straps.

2. Infant Positioning Pillow: The infant positioning pillow is designed to provide better fit and comfort for infants using this child restraint. Allows for a snug fit to be achieved.

The infant positioning pillow can be used with infants weighing less than 11 lbs (5 kg).

Britax Strollers

IMPORTANT: Not all strollers are compatible with the Willow child restraint. For stroller compatibility refer to us.britax.com/support/frequently-asked-questions.

Attaching the Child Restraint to the Stroller

1. Set the parking brake.
2. Align the child restraint receivers with the stroller adapters and push onto the frame until a click is heard.

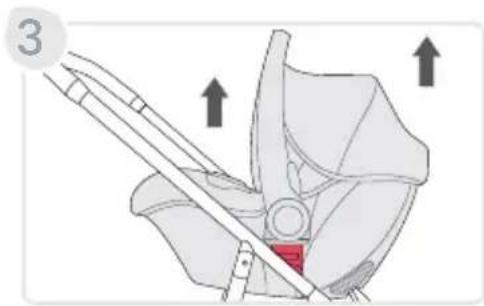

3. Pull up on both sides of the carrier to verify attachment.

Removing the Child Restraint from the Stroller

1. Pull and hold the release lever on the back of the child restraint and lift up to remove from stroller.

Using the Lower Anchors

The Lower Anchors offer an alternative to vehicle seat belt installation methods. The figure below shows typical locations for lower anchors in a vehicle. See page 3 for lower connector components on this child seat.

Check your vehicle owner's manual to learn if it is equipped with lower anchors, the maximum weight rating and information on the lower anchor locations and designated seating positions available for use with this child seat.

Vehicle Compatibility Vehicle Seating Positions

WARNING!

DO NOT place rear-facing child seat on front seat with air bag. DEATH OR SERIOUS INJURY can occur. Owners of vehicles with front passenger side airbags should refer to their owner's manual for child restraint installation instructions. The back seat is the safest place for children 12 and under.

WARNING!

Some vehicles have no seating positions which are compatible with this child restraint. If in doubt, contact the vehicle manufacturer for assistance. Forward-facing vehicle seats MUST be used with this child restraint. Side-facing or rear-facing seats CANNOT be used. See the diagram below.

This child seat can only be used in the following classes of vehicles: multi-purpose passenger vehicles, passenger cars, or trucks.

Incompatible Vehicle Seat Belts

Vehicle seats and seat belts differ from vehicle to vehicle. Refer to your vehicle owner's manual for specific information about your vehicle seat belts and their use with child restraints.

WARNING!

The following types of vehicle seat belts are NOT compatible with this child restraint. If any of the belt types listed below are in the chosen seating position, choose another vehicle seating position or check your vehicle owner's manual for information on installing a child restraint in your vehicle.

Lap belts with a sewn-in latch plate that have a retractor that locks only in case of a sudden stop.

Lap belts forward of the vehicle seat bight.

Lap-shoulder belts with top or bottom anchor points on the vehicle door.

Motorized, automatic vehicle seat belts.

NOTE: This Britax child restraint is not compatible with inflatable lap-shoulder belts.

Care and Maintenance

IMPORTANT: Before each use, check the child restraint and its components to make sure they are in good condition and good working order.

Removing the Cover

1. Remove the canopy.

a. Unhook elastic loops from around the canopy knuckles.
b. Press button on canopy stay.
c. Lift up the canopy from both sides.

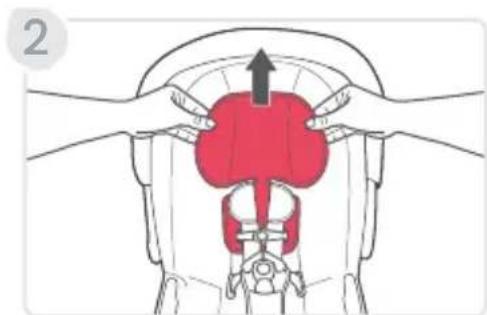

1. Remove the head pad.

Illustration of a human head with hands performing a medical or ergonomic procedure on the spine (no text or symbols present)

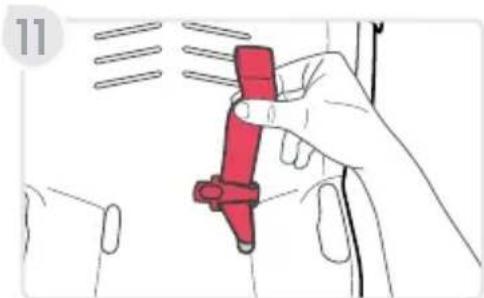

1. Remove the harness straps and pull off comfort pads. Set aside comfort pads for replacing the cover. See page 46.
2. Open chest clip.

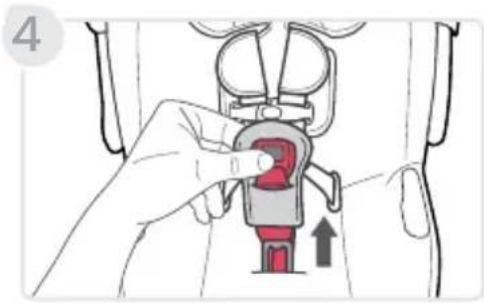

3. Unbuckle the harness.

Illustration of a hand adjusting a red mechanical component with a downward arrow, no text or symbols present
    note right of A: 4

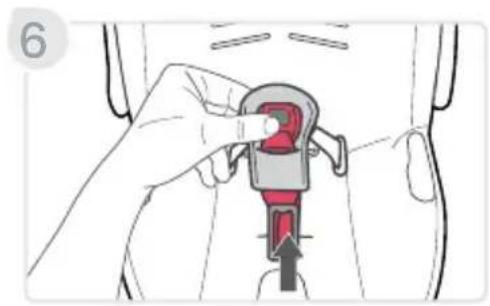

1. Remove the buckle and belly pad. See page 48.

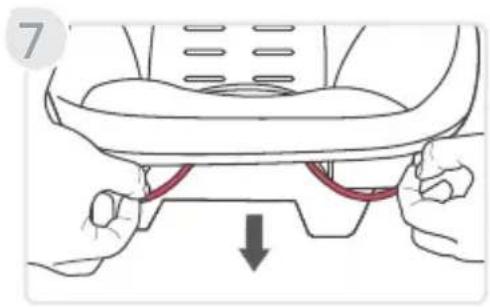

2. Detach the two (2) elastic straps and untuck the cover from around the front of the carrier shell.

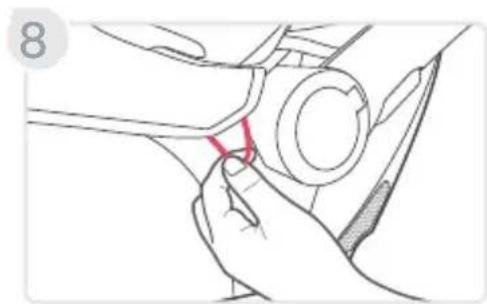

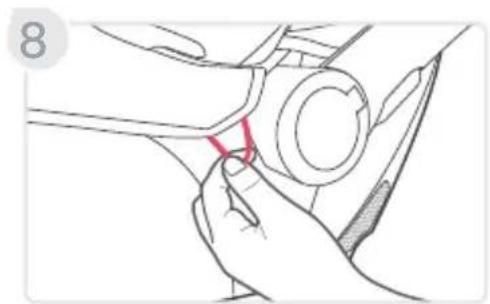

3. Undo the elastic bands by the carrier belt guides on both sides.

Illustration of a hand inserting a plug into a car seat (no text or symbols)

Illustration of a car seat with hands holding a red belt, showing a downward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a mechanical component with a red arrow indicating a step (no text or symbols present)

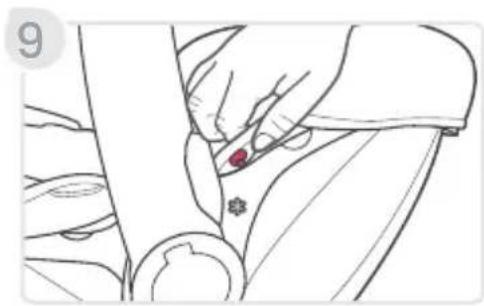

1. Pull out the tips of the plastic snaps securing the cover to the carrier shell on both sides.
2. Undo elastic from around back of seat.
3. Push harness strap, buckle tongue, and chest clip through the hip anchor slot in the cover. Repeat for the other side.

Line drawing of a person adjusting a small object on a curved surface (no text or symbols)

Line drawing of hands assembling a VR headset with a red tool (no text or symbols)

Illustration of a hand holding a red tool with a handle, no text or symbols present

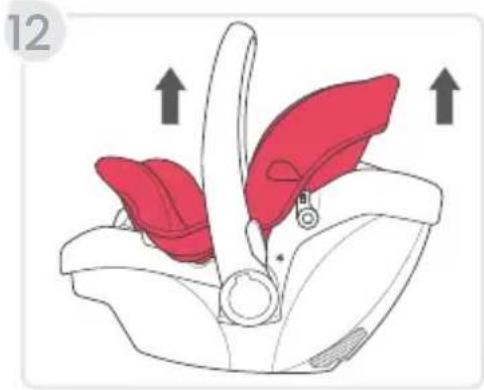

1. Pull the seat cover and lift away from the carrier shell.

Illustration of a hand holding a red flower inside a white basket, with arrows indicating direction (no text or symbols)

Replacing the Cover

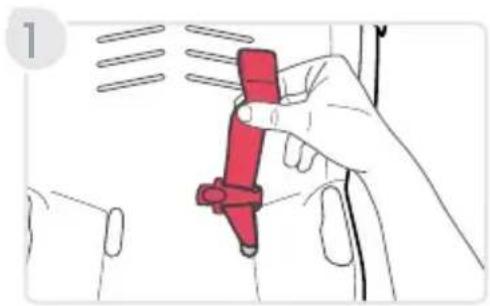

1. Pull the harness strap, chest clip, and buckle tongue back through the hip anchor slot in the cover. Repeat for the other side.

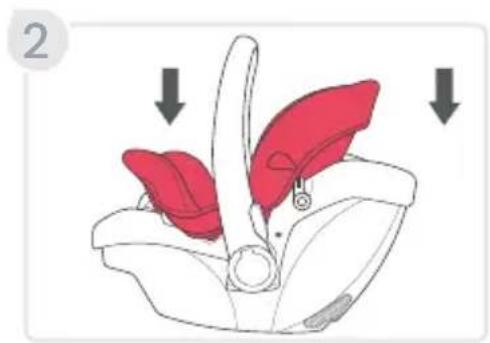

2. Fit the cover onto the top of carrier shell, around head restraint, and tuck into the channel around the carrier shell.
3. Pull the harness adjuster strap through the cover.

Illustration of a hand holding a red tool with motion lines, no text or symbols present

Illustration of a flower with red petals and leaves, showing a handle and stem (no text or symbols)

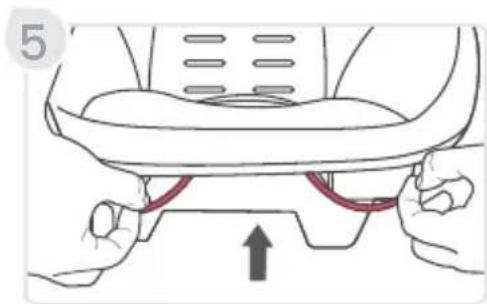

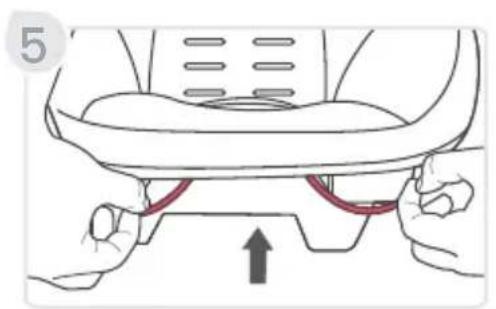

1. Pull the elastic band around back of carrier shell.

2. Tuck cover around front of carrier shell and secure the two (2) elastic straps.

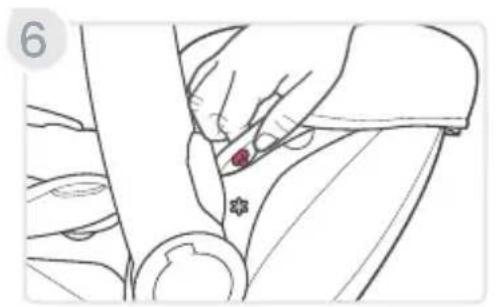

3. Secure plastic snaps at side of carrier shell.

Line drawing of a person using a red tool to adjust or install a device (no text or symbols present)

Line drawing of a car seat with hands holding a cable and an upward arrow indicating motion (no text or symbols)

Line drawing of a hand adjusting a seatbelt with a red star marking the seat area (no text or symbols)

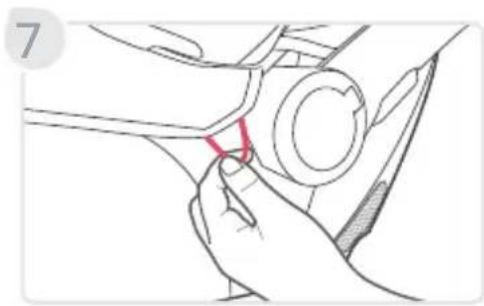

1. Secure elastic straps near carrier belt guides.

2. Replace buckle and belly pad. See page 48.

3. Replace comfort pads and harness straps. See page 46.

NOTE: Ensure harness straps are not twisted.

Line drawing of a hand holding a tool near a circular component, no text or symbols present

Illustration of a hand inserting a plug into a device (no text or symbols visible)

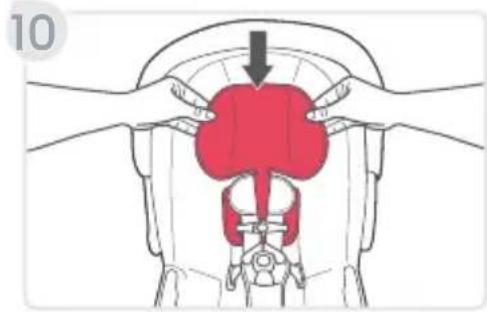

1. Replace head pad.

Illustration of a human head with hands holding a red anatomical object, no text or symbols present

1. Replace canopy.

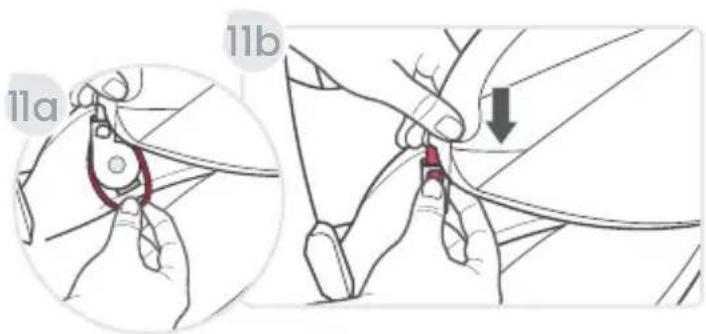

a. Slide elastic loop over canopy knuckle.

b. Slide the canopy into the slot until button pops through the opening.

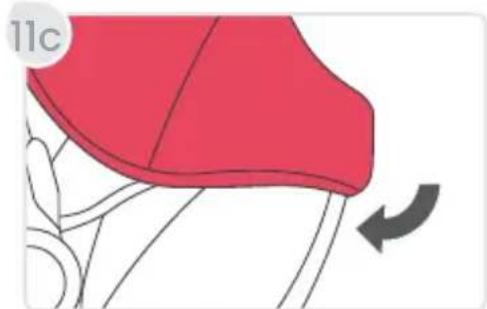

c. Tuck fabric into channel on back of carrier shell.

Illustration of a red hat and fabric pattern with an arrow indicating rotation (no text or symbols)

Cleaning

Cover/Canopy

• Refer to product care label for wash instructions.
• If care label indicates machine washable, always refer to us.britax.com/faqs for important care information.
  • DO NOT bleach or iron.

Harness

• Sponge clean the harness using warm water and mild soap.
• Towel dry.
• DO NOT disassemble the harness, bleach, machine wash, machine dry, or iron.

Buckle

• Thoroughly rinse the buckle using warm water.
- Test the buckle by fastening and unfastening until a click is heard after inserting each buckle tongue. If clicks are not heard, repeat the cleaning procedure.
- Towel dry.
- DO NOT soak, lubricate, use solvents, soap, or household detergents.

Carrier Shell

• Sponge clean using warm water and mild soap.
• Towel dry.
  • DO NOT use abrasive cleaners.

Warranty

This child restraint was manufactured by Britax Child Safety, Inc. ("Britax"). To the extent allowed by law, Britax warrants this product to the original retail purchaser as follows:

LIMITED ONE-YEAR WARRANTY

This product is warranted against defective materials or workmanship for one (1) year from the date of original purchase. Proof of purchase is required for any warranty claims. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser of this product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions.

This warranty does not cover damages that arise from negligence, misuse or use not in accordance with the product instruction. Additionally, Britax products purchased from unauthorized retailers, online auction sites, or as second hand items are not covered under this warranty.

The use of non-Britax covers, inserts, toys, accessories, or tightening devices is not approved by Britax. Their use could cause this child restraint to fail safety standards or not perform as intended in a crash. Their use also may void the Britax warranty.

To make a claim under this warranty, you must contact Britax Consumer Services at 1-888-427-4829 or 1-704-409-1699, or write to us using the address on the back cover of this User Guide.

DISCLAIMER OF WARRANTIES

The following disclaimer shall apply to you to the maximum extent permitted by applicable law. THE LIMITED WARRANTY SET FORTH ABOVE IS THE EXCLUSIVE WARRANTY MADE BY BRITAX. ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE DISCLAIMED. Some states do not allow certain exclusions or limitations on warranties, so the above may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

LIMITATION OF DAMAGES

The following limitation of damages shall apply to you to the maximum extent permitted by applicable law. THE REMEDIES CONTAINED IN THE LIMITED WARRANTY SET FORTH ABOVE ARE THE EXCLUSIVE REMEDIES PROVIDED BY BRITAX. IN NO EVENT SHALL BRITAX BE LIABLE TO YOU FOR ANY INCIDENTAL, SPECIAL, PUNITIVE, EXEMPLARY, OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR RELATING IN ANY WAY TO THE

RELATIONSHIP BETWEEN YOU AND BRITAX (INCLUDING DISPUTES RELATED TO THE MARKETING OR SALE OF BRITAX PRODUCTS), ANY PROVISIONS IN THIS USER GUIDE, AND/OR YOUR PURCHASE OR USE OF ANY PRODUCTS DESIGNED, MANUFACTURED, DISTRIBUTED, MARKETED, OR SOLD BY BRITAX.

PLEASE COMPLETE AND MAIL THE OWNER REGISTRATION CARD WITHIN (30) DAYS OF PURCHASE

You may also register online at us.britax.com/registration.

Arbitration Agreement

MANDATORY ARBITRATION & CLASS ACTION WAIVER ("ARBITRATION AGREEMENT")

PLEASE READ THIS SECTION CAREFULLY BECAUSE IT AFFECTS YOUR LEGAL RIGHTS, REQUIRES YOU TO ARBITRATE DISPUTES, AND LIMITS THE MANNER IN WHICH YOU CAN SEEK RELIEF.

Arbitration is a process in which persons with a dispute waive their rights to file a lawsuit and proceed in court and to have a jury trial to resolve their disputes and, instead, agree to submit their disputes to a neutral third person (an “arbitrator”) for a decision. Each party to the dispute has an opportunity to present some evidence to the arbitrator. Pre-arbitration discovery may be limited. Arbitration proceedings are private and less formal than court trials. The arbitrator will issue a final

and binding decision resolving the dispute, which may be enforced as a court judgment. A court rarely overturns an arbitrator's decision.

YOU AND BRITAX AGREE THAT ANY DISPUTE BETWEEN US, WHETHER BASED IN CONTRACT, TORT, STATUTE OR OTHERWISE, SHALL BE RESOLVED IN BINDING INDIVIDUAL ARBITRATION. For purposes of this Arbitration Agreement, the word "dispute" and "disputes" are given the broadest possible meaning and include, without limitation, all claims, disputes, and/or controversies arising out of or relating in any way to the relationship between you and Britax (including disputes related to the marketing or sale of Britax products), any provisions in this User Guide or this Arbitration Agreement (including the interpretation and scope of this Arbitration Agreement and the arbitrability of any dispute), and/or your purchase or use of any products designed, manufactured, distributed, marketed, or sold by Britax. The Federal Arbitration Act ("FAA") and federal arbitration law apply to this Arbitration Agreement. Notwithstanding the foregoing, you and Britax each agree that you and Britax shall retain the rights to bring an individual suit in small claims court for disputes within the scope of such court's jurisdiction and/or to bring an individual suit in court to enjoin infringement or other misuse of intellectual property rights. In no way shall the foregoing sentence allow for an action to be brought on a class or collective basis.

YOU HAVE THE RIGHT TO OPT OUT OF THIS ARBITRATION AGREEMENT, BUT YOU MUST EXERCISE THIS RIGHT WITHIN THIRTY (30) DAYS OF YOUR PURCHASE OF A BRITAX PRODUCT. If you do not wish to be bound by this

Arbitration Agreement, you must notify Britax by mailing or e-mailing a written opt-out notice, postmarked or electronically delivered within thirty (30) days of your purchase of a Britax product, to: ATTN: Legal Department, 4140 Pleasant Road, Fort Mill, South Carolina 29708. Your opt-out notice must include your full name, address and/or e-mail address, the model and serial numbers of the purchased product, a copy of your proof of purchase, and a statement that you intend to opt out of this Arbitration Agreement. If you do not opt out within thirty (30) days of your purchase, then this Arbitration Agreement will apply and you understand and agree that you are waiving your right to maintain other available resolution processes, such as a court action or administrative proceeding, to resolve your dispute with Britax.

The arbitration will be conducted confidentially by a single arbitrator and administered by the American Arbitration Association ("AAA") under its Consumer Arbitration Rules most recently in effect to the extent such rules and procedures do not contradict the express terms of this Arbitration Agreement. To learn more about the rules and how to begin an arbitration, you may call any AAA office or go to www.adr.org. If you demand arbitration, then at your request Britax will advance your portion of the expenses associated with the arbitration, including the filing, administrative, hearing and arbitrator's fees ("Arbitration Fees") to the extent such Arbitration Fees exceed \200. If Britax demands arbitration, then at your request Britax will advance your portion of the Arbitration Fees. For claims of \10,000 or less, you

can choose whether you would like the arbitration carried out based only on documents submitted to the arbitrator or by a hearing in person or by telephone. The arbitration hearing will be conducted in the county of your residence, within 30 miles of such county, or in such place as shall be ordered by the arbitrator. Throughout the arbitration, each party shall bear his, her or its own attorneys' fees and expenses, including any witness and expert witness fees. The arbitrator shall apply applicable substantive law consistent with the FAA, shall apply statutes of limitation, and shall honor claims of privilege recognized at law. The arbitrator shall decide, with or without a hearing, any motion that is substantially similar to a motion to dismiss for failure to state a claim or a motion for summary judgment. In conducting the arbitration proceeding, the arbitrator shall not apply any federal or state rules of civil procedure or evidence. The arbitrator shall not consolidate the claims of multiple parties unless you and Britax agree to do so. At the timely request of any party, the arbitrator shall provide a written explanation for the award. The arbitrator's award may be filed with any court having jurisdiction.

THIS ARBITRATION AGREEMENT DOES NOT ALLOW CLASS OR COLLECTIVE ARBITRATIONS EVEN IF THE AAA RULES OR PROCEDURES WOULD. IN OTHER WORDS, YOU AND BRITAX EACH AGREE THAT ALL DISPUTES SHALL BE ARBITRATED ON AN INDIVIDUAL BASIS AND WAIVE ANY RIGHT TO PROCEED IN A CLASS, CONSOLIDATED, OR REPRESENTATIVE FASHION. THE ARBITRATOR MAY AWARD MONEY OR INJUNCTIVE RELIEF ONLY IN FAVOR

OF THE INDIVIDUAL PARTY SEEKING RELIEF AND ONLY TO THE EXTENT NECESSARY TO PROVIDE RELIEF WARRANTED BY THAT PARTY'S INDIVIDUAL CLAIM. NO CLASS, REPRESENTATIVE OR PRIVATE ATTORNEY GENERAL OR GENERAL INJUNCTIVE RELIEF THEORIES OF LIABILITY OR PRAYERS FOR RELIEF MAY BE MAINTAINED IN ANY ARBITRATION CONDUCTED PURSUANT TO THIS ARBITRATION AGREEMENT.

If the foregoing class action waiver and prohibition against class arbitration is determined to be invalid or unenforceable for any reason, then this entire Arbitration Agreement shall be void. If any portion of this Arbitration Agreement other than the class action waiver and prohibition against class arbitration is deemed to be invalid or unenforceable for any reason, it shall not invalidate the remaining portions of this Arbitration Agreement. If for any reason a dispute proceeds in court rather than in arbitration, you and Britax each waive any right to a jury trial.

Notas Importantes

Illustration of a hand holding a red curved object with an upward arrow, no text or symbols present

Uso con la base

Line drawing of a hand inserting a device into a device compartment (no text or symbols)

Diagram of a mechanical component with two vertical arrows indicating direction (no text or symbols)

Line drawing of a pencil being inserted into a surface, showing motion lines (no text or symbols)

Indicator ClickTight

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seat or steering wheel assembly (no text or symbols)

Diagram of a hand inserting a red object into a vehicle's internal compartment, with an arrow indicating direction (no text or symbols present)

Diagram of a car seatbelt buckle with red belt and black connector (no text or symbols)

Line drawing of a car seat or steering wheel assembly (no text or symbols)

Diagram of a hand pressing a red object into a vehicle compartment, with an arrow indicating direction (no text or symbols present)

Diagram of a car interior with a red belt and directional arrows indicating movement or force (no text or symbols present)

Line drawing of a car seatbelt buckle assembly with red belt (no text or symbols)

Diagram of a car seatbelt device with red belt and blue handle (no text or symbols)

Line drawing of a car interior showing dashboard and seat components (no text or symbols)

Diagram of a car interior showing a hand inserting a red component into a vehicle seat (no text or symbols present)

Diagram of a car interior showing a red cable and battery connected to a device (no text or symbols visible)

Diagram of a car interior showing a seatbelt with red cable routing (no text or symbols)

Illustration of a hand using a red belt to adjust a car seatbelt (no text or symbols present)

Diagram of a car seatbelt device with red directional arrows indicating movement or force (no text or symbols)

Diagram of a car seat assembly with two upward arrows indicating direction (no text or symbols)

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Red and black belt buckle with a right-hand arrow indicating compression (no text or symbols)

Diagram of a car seatbelt switch with an upward arrow indicating the direction (no text or symbols present)

Red and black belt buckle with a right-hand arrow indicating fastening (no text or symbols)

Illustration of hands using a tool to adjust a red component, no text or symbols present

Illustration of a hand holding a black clip with a red clip, showing a curved line and an arrow indicating motion (no text or symbols)

Diagram showing a car seatbelt switch mechanism with red cable and orange valve, no text or symbols present

Uso sin la base

Anatomical illustration of a car's seat and grip mechanism, highlighting a specific area with a red circle (no text or labels present)

Illustration of a mechanical component with hexagonal pins, resting on a curved surface (no text or symbols)

Line drawing of a car seatbelt mechanism (no text or symbols)

Illustration of a baby sitting in a car seat with a backrest (no text or symbols)

Illustration of a car seatbelt with a red cable, no text or symbols present

Illustration of a car seatbelt with red belt bands (no text or symbols)

Illustration of a child sitting in a car seat, no text or symbols present

Line drawing of a car seatbelt buckle with a red belt and keyway (no text or symbols)

Illustration of a car seatbelt buckle being adjusted for a seatbelt, showing no text or symbols

Illustration of a person's seatbelt with red belt (no text or symbols)

Illustration of a child sitting in a car seat, no text or symbols present

Illustration of a car seatbelt being adjusted using a red belt (no text or symbols)

Illustration of a car seatbelt being adjusted for a cable, showing the grip and seat (no text or symbols)

Illustration of a hand holding a car seatbelt with a red belt (no text or symbols)

Illustration of a hand adjusting a car seatbelt mechanism (no text or symbols)

Diagram of pelvic anatomy showing ligaments and pelvic bones (no text or labels)

Line drawing of a baby in a car seatbelt with red straps, no text or symbols present

1. Ajuste el arnés.

Illustration of a person wearing a seatbelt with a red belt, no text or symbols present

Illustration of a hand pressing down on a car seatbelt component (no text or symbols)

Illustration of a hand adjusting a red belt buckle buckle, showing the correct seatbelting action (no text or symbols present)

Illustration of a hand adjusting a red belt buckle buckle, showing the seatbelt being lifted (no text or symbols present)

Anatomical illustration of pelvic and hip joint positioning with a belt clamp (no text or labels)

Illustration of a hand inserting a red plug into a seatbelt, with a downward arrow indicating force (no text or symbols present)

Anatomical illustration of a human pelvic and hip joint with a belt buckle (no text or labels)

Illustration of a flower with red petals and a black upward arrow, no text or symbols present

Illustration of a flower with red petals and a downward arrow, no text or symbols present

Illustration of a hand holding a medical device with a red mark on the grip (no text or symbols present)

Mechanical assembly diagram showing a belt buckle with a red belt buckle inserted, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with a lever and directional arrow indicating motion (no text or symbols)

Illustration of a human head with hands performing a medical or ergonomic procedure on the spine (no text or symbols present)

Illustration of a hand adjusting a red mechanical component with a downward arrow, no text or symbols present
    note right of A: 4

Illustration of a hand inserting a red plug into a car seatbelt (no text or symbols)

Illustration of a car seat with hands holding a red cable, showing a downward motion (no text or symbols)

Line drawing of a hand holding a circular object with a red arrow pointing to it, no text or symbols present

Line drawing of a hand adjusting a small red object on a car seat (no text or symbols)

Line drawing of hands assembling a VR headset with a red tool (no text or symbols)

Illustration of a hand holding a red tool with motion lines, no text or symbols present

Illustration of a red feather-like object inside a white container with arrows indicating upward motion (no text or symbols)

Illustration of a hand holding a red tool with motion lines, no text or symbols present

Illustration of a flower with red petals and leaves, showing a handle and stem (no text or symbols)

Line drawing of hands holding a device with a red tool, no text or symbols present

Illustration of a car seat with hands holding the seatbelt and a red belt, showing a finger placement (no text or symbols)

Line drawing of a person adjusting a seatbelt with a red star marking on the seat (no text or symbols)

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Illustration of a hand inserting a plug into a car seat (no text or symbols)

Illustration of a human head with hands holding a red anatomical object, no text or symbols present

1. Replace canopy.

a. Slide elastic loop over canopy knuckle.

b. Slide the canopy into the slot until button pops through the opening.

c. Tuck fabric into channel on back of carrier shell.

Illustration of a red hat and fabric pattern with an arrow indicating rotation (no text or symbols)

Limpieza

Cubierta/capota

Abstract geometric shape with a red curved outline overlapping a gray curved background, labeled 'Brita' at the bottom right (no other text or symbols)

Britax Child Safety, Inc.

4140 Pleasant Road

Fort Mill, SC 29708 USA

1-888-427-4829

1-704-409-1699

A Britax Childcare company

us.Britax.com
