USER MANUAL SL 202 VOX

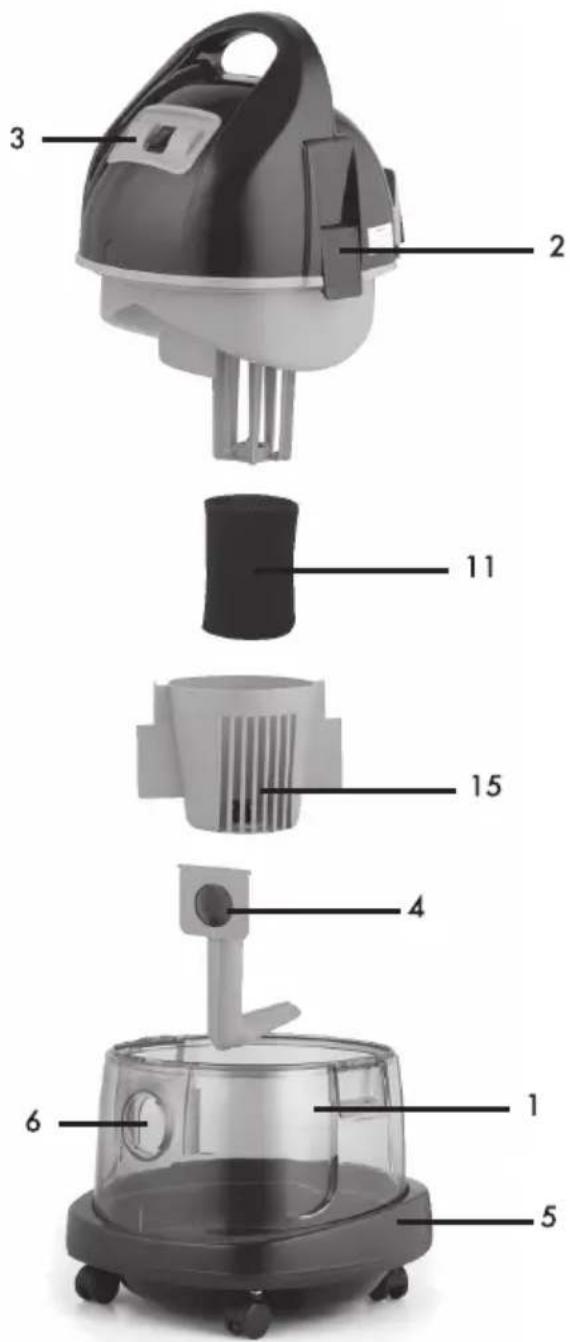

1. Transparent body
2. Motor cavity
3. Motor electrical switch
4. Motor cavity fixing latch
5. Movable head rollers
6. Hose hole
7. Hose head
8. Vacuum hose
9. Plastic pipe
10. Floor sweeper apparatus
11. Jetty unit
12. Water filter pipe
13. Grip
14. Water filter pipe fitting bed
15. Sponch filter
16. Armchair sofa apparatus
17. Corner edge apparatus
18. Vacuum adjusted elbow
19. Water level indicator
20. Jetty filter

Thank you for choosing VOX brand Water Filtered Vacuum Cleaner. We wish that product makes your life easier as well in the way that other VOX products do. Please read the user manual carefully to get the best efficiency from your product and keep in a safe place for further use.

IMPORTANT WARNINGS

Basic safety precautions should be followed using electrical devices.

"Unless an observation and management are provided by a person responsible from the safety of devices, it is not intended to be used by disabled people with physical, sensorial and mental disabilities including children."

• Do not leave your device plugged into energy supply. Unplug it when you don't use or in cases that service is required.
  • Vacuum cleaner cable or plug should not be immersed into any liquid.
• Do not touch your device or its cable with wet hand.
• Never use a vacuum cleaner without its filters.
• Do not hold vacuum pipe dose to your ears and eyes when device operates.
• Keep your clothes, hair and body away from vacuum hole and moving parts of vacuum cleaner.
• Only use accessoires manufactured or suggested by the manufacturer.
• Turn off all control switches on your vacuum cleaner before removing the plug.

USER FAULTS

Check whether the voltage value specified on your VOX brand Water Filtered Vacuum Cleaner meets locai supply voltage.

• Do not use extension cable that provides insufficient current to avoid harming the device.
• Your device is only for home usage. It should not be used for commercial and industrial purposes.
• Avoid movements that might harm the cable and plug. Use plug body to remove it, not the cable.
• In order to avoid deformation in plastic parts of your device and to avoid causing a fire, never leave your device under direct sunlight, heat sources and similar cases.
• In cases that you clean detergents, soap dust etc, chemicals which might cause foaming of water, turn off your device and rinse the basket.
• Never vacuum explosive, flammable, acidic, hard or sharp materials.
• Never immerse the body of your device into water (motor section). Avoid water spilling on it.
• Filters should be used as intended.
• Do not try to fix, adjust or replace the parts of your device. Contact with an authorized service in case of failure.
• Failures arising from droppings and collisions made by the user after the delivery of the device to the user are user failures.

Our company can not be held responsible from failures that might arise from above mentioned reasons thus all failures are processed outside of guarantee coverage.

USER SUGGESTIONS

- Never use the vacuum cleaner without filters to prevent damage.

Wash and rinse the filters according to usage frequency and pollution with soap water then fix them back. That process should keep motor airways open and extend motor life. Also your device will operate with maximum vacuum power.

RULES TO BE FOLLOWED IN MAINTENANCE REPAIR AND USAGE

• Never open and try to fix your vacuum cleaner when it is failed.
• Do not operate your vacuum cleaner when it is dropped to floor or striken to a rigid object, contact your authorized service.
• Never replace a damaged cable or plug, contact your authorized service.

ASSEMBLY AND USAGE

• After removing the device from its package, remove the motor section from the body by opening the locking latches (4) that fix the section in which the transparent body (1) is located.
• Place the sponge filter (15) into motor section.
• Fix water filter pipe (12) into water filter bed (14) in the water tank.
• Fill the product with water up to water level indicator (19).
• Place the jetty unit (11) into its place. Make sure that the jetty filter (20) is fixed.
  • Fix the motor cavity (2) and transparent body (1) using locking latches (4).
• Assemble sweeping apparatus (10), plastic pipe (9), vacuum adjusted elbow (18), vacuum pipe (18) and pipe head (7).
• You can use other cleaning apparatus too as to your cleaning purpose.

WARNING: Mount the parts as specified in manual. Otherwise lifespan of your product will reduce.

WETUSAGE

• Make sure that the sponge filter is fixed (15). If the water filter pipe (12) fixed to transparent body (1), remove it.
• Place the pipe head (7) into the pipe cavity (6) located in front of the main body.
• Close the motor section (2) and transparent body (1) using side latches (4).
• Water accumulated on various surfaces can be vacuumed into the device using vacuum pipe (8) and vacuum adjusted elbow (18) in order to open blocked washbasins.
• Waste water should not be held in the device after vacuuming process done.

WARNING: Don't remove the sponge filter (15) during neither wet usage nor dry usage.

FILTERS

Sponge Filter: Sponge filter should be fixed into its place during dry and wet vacuuming. Otherwise dust and large particles shall penetrate to the motor turbine, if we are doing water suction, all water shall enter the turbine. In that case your guarantee shall be invalid. Make regular maintenance on your long term designed sponge filter. Leave them to dry since they shall wear out too fast.

Jetty Unite Sponge Filter: It prevents that the water pass from air cavities in the jetty unite during the dry usage. It also prevents that the water in the body pass to jetty unite. These filters should be completely dried before usage.

CLEANING & MAINTENANCE

• Turn the motor switch (3) off. Remove electrical plug.
• Make liquids in the pipe flow into the body (1) by raising the end of vacuum pipe (8).
• Unfasten the locking latches connecting the motor section (2) and transparent body (1) and remove the vacuum pipe (8) from the body (1).
• Empty the waste water in the body (1) to washbasin.
• Reconnect the body (1) and motor cavity (2) and refix the vacuum pipe (8).

SUGGESTIONS FOR EFFICIENT USAGE & LOW ENERGY CONSUMPTION

• Clean device filters frequently in order to reduce energy consumption and get high efficiency. Do not dose suction or exhaust holes.
• You can take the motor section cleaned from dust and thrushes by bringing your device to an authorized Service.

TRANSPORTATION & DELIVERY

You have to transport the device in its original package with divisors by wrapping it with a soft cloth.

Wrong packaging might cause to damage on outer surface of the vacuum cleaner.

NOTE: DAMAGES AND FAILURES OCCURRED DURING TRANSPORTATIONS AND AFTER ITS DELIVERY ARE NOT INCLUDED TO GUARANTEE COVERAGE.

- The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.

- Children have to be supervised to ensure that they are not play with the appliance. Declaration and determination duration is 10 years by the Ministry of Industry.

TECHNICAL PROPERTIES

Motor Power	2000 Watt
Motor Power (Nominal)	1500 Watt
Voltage/frequency	220-240V AC, 50/60Hz
Air Flow Rate	45 L/sec
Vacuum Power (Water)	2000 mm H20

Compiles with EEE Regulation.

WEEE

This device should not be disposed to garbage since it contains recyclable parts in accordance with WEE directives. Contact nearest recycling center in order to take it recycled please.

SL 202

SL 205

UPUTSTVO ZA UPOTREBU USISIVAČ SA VODENIM FILTEROM

DELOVI UREĐAJA

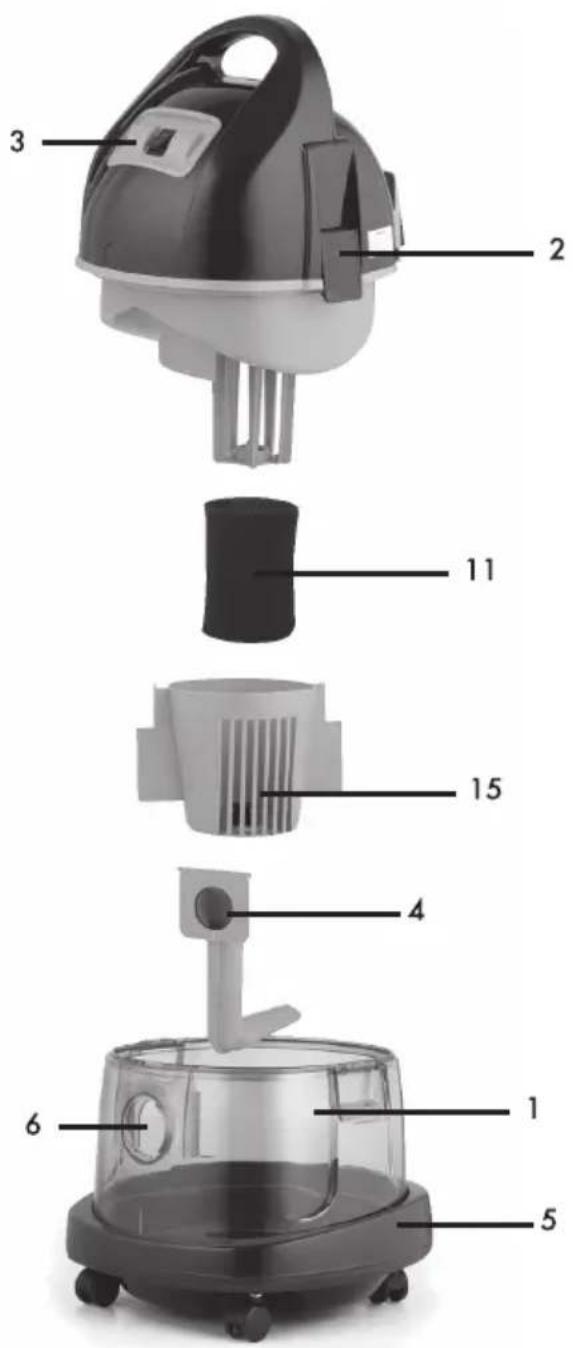

1. Prozirno telo
2. Šupljina motora
3. Električni prekidač motora
4. Reza za fiksiranje šupljine motora
5. Točkovi sa pokretnom glavom
6. Otvor za crevo
7. Glava creva
8. Crevo usisivača
9. Plastična cev
10. Podni čistač
11. Jetty dodatak
12. Cev za filtriranje vode
13. Ručka
14. Ležište cevi filtera za vodu
15. Sunderasti filter
16. Dodatak za čišćenje fotelja i sofa
17. Dodatak za čišćenje ćoškova i uglova
18. Prilagodljiva vakuumska ručka
19. Indikator nivoa vode
20. Jetty filter

Hvala Vam što ste izabrali Usisivač za suvo i mokro usisavanje marke VOX. Želimo da vam ovaj proizvod čini zivot lakšim na isti način kao sto to čine i ostali VOX proizvodi.

Pažljivo pročitajte ovaj priručnik kako bi proizvod iskoristili na najefikasniji način.

Priručnik čuvajte na sigurnom mestu za buduću upotrebu.

VAŽNA UPOZORENJA

Tokom upotrebe električnih uređaja obratite pažnju na sledeće osnovne sigurnosne mere.
