XP15000EH - Generator DuroMax - Free user manual and instructions

Product Type	Portable Generator
Brand	DuroMax
Model	XP15000EH
Dimensions (L x W x H)	35 x 24.5 x 38 inches
Weight	Approximately 250 lbs
AC Rated Wattage (Gasoline)	12,000 Watts
AC Surge Wattage (Gasoline)	15,000 Watts
AC Rated Wattage (Propane)	11,400 Watts
AC Surge Wattage (Propane)	14,250 Watts
AC Voltage	120/240V
AC Frequency	60 Hz
Phase	Single Phase
Engine Type	Fuel Injected V-Twin 4-Stroke OHV
Displacement	713 cc
Starting System	Electric (Key Start) with Battery
Fuel Types	Gasoline (unleaded 87+) and Propane (LPG)
Fuel Tank Capacity	10.6 US Gallons (40 L)
Oil Capacity	54 fl. oz (1.6 L)
Run Time at 50% Load (Gasoline)	9.03 hours
Run Time at 50% Load (Propane)	8.58 hours (60 lb tank)
Noise Level	84 dB
Outlets	1x 120V 3-prong (NEMA 5-20R), 1x 120V Twist Lock (L5-30R), 1x 120/240V 4-prong (NEMA 14-50R), 1x 120/240V Twist Lock (L14-30R)
Additional Features	Dual Fuel, Wheel Kit, Hoist Bar, AVR, Digital Voltmeter/Hour Meter, Circuit Breaker, Ground Terminal, Battery with Electric Start
Warranty	3 Years (Residential), 1 Year (Commercial)
Maintenance	Oil change every 50 hrs, air filter cleaning, spark plug replacement every 100 hrs

Frequently Asked Questions - XP15000EH DuroMax

What type of oil does the XP15000EH use?

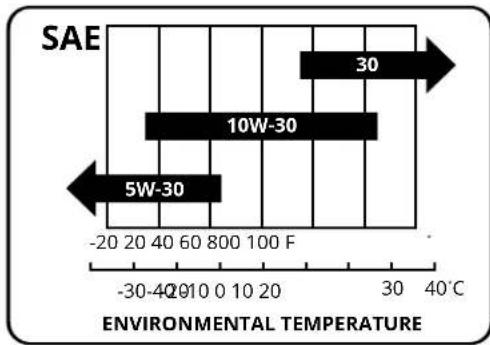

The recommended oil is SAE 10W-30. Use about 54 fl. oz (1.6 L) of high-quality detergent oil. Change oil after the first 20 hours and every 50 hours thereafter. Check oil level before each use.

Can I run the generator on both gasoline and propane?

Yes, the XP15000EH is a dual-fuel generator. Use the fuel select switch to choose between gasoline (GAS) and propane (LPG). Make sure to turn off the gasoline valve when using propane and vice versa. Note: Running wattage is slightly lower on propane (11,400W vs 12,000W).

How do I start the generator using gasoline?

1. Turn breaker off. 2. Open gas valve. 3. Close choke (pull out). 4. Set fuel switch to GAS. 5. Turn key to START (crank for no more than 5 seconds). 6. Once running, push choke in. 7. Turn breaker on. Refer to manual for detailed steps.

What is the surge wattage and why is it important?

Surge wattage is the maximum power the generator can supply for a short time to start motors or compressors. For the XP15000EH, surge is 15,000W on gasoline and 14,250W on propane. Ensure the total starting watts of your appliances do not exceed the surge rating.

How often should I change the oil?

Change oil after the first 20 hours, then every 50 hours or every 3 months, whichever comes first. Use SAE 10W-30 and dispose of old oil properly at an auto parts store.

Is the generator safe to use in wet conditions?

No, do not use the generator in rain or wet conditions. Risk of electrocution. Use only in dry areas with proper ventilation. If necessary, use a ground fault circuit interrupter (GFCI) with extension cords in damp locations.

What type of spark plug does the XP15000EH need?

Use DENSO 5357 spark plugs. The engine has two spark plugs (one per cylinder). Gap them to 0.7-0.8 mm (0.028-0.031 in). Replace every 100 hours or if damaged.

How do I store the generator for a long period?

1. Turn off breaker and let generator cool. 2. Run it with fuel valve off until it stalls. 3. Drain the fuel tank and carburetor bowl. 4. Add 2 tbsp oil into spark plug hole and pull recoil once. 5. Remove battery and keep on a tender. Store in dry, ventilated area.

What does the AVR do?

The Automatic Voltage Regulator (AVR) maintains stable voltage output. It works with carbon brushes. If voltage fluctuates or drops, inspect the AVR and brushes. Replacement is described in the manual.

Can I connect the generator to my house?

Yes, but only through a transfer switch installed by a qualified electrician. Never plug directly into a wall outlet (backfeeding). This can cause electrocution to utility workers. Use heavy-duty extension cords for portable use.

USER MANUAL XP15000EH DuroMax

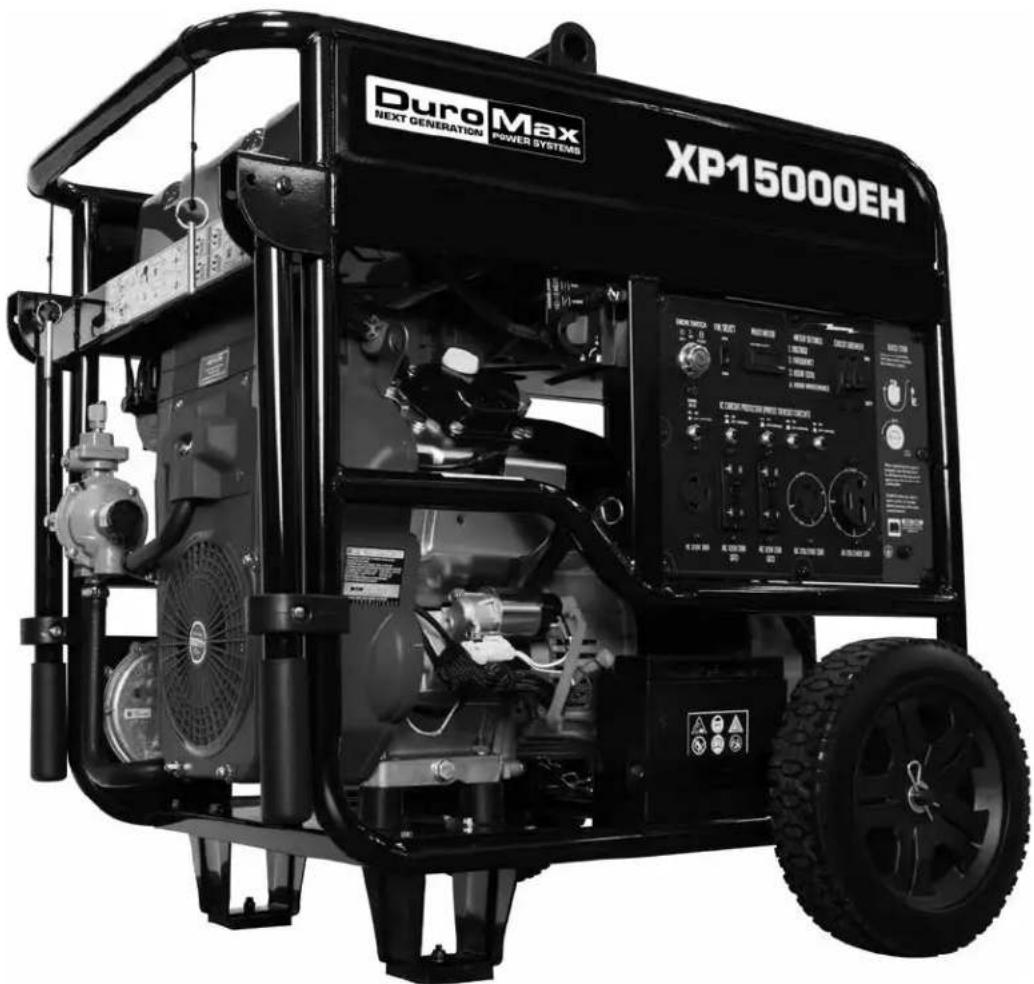

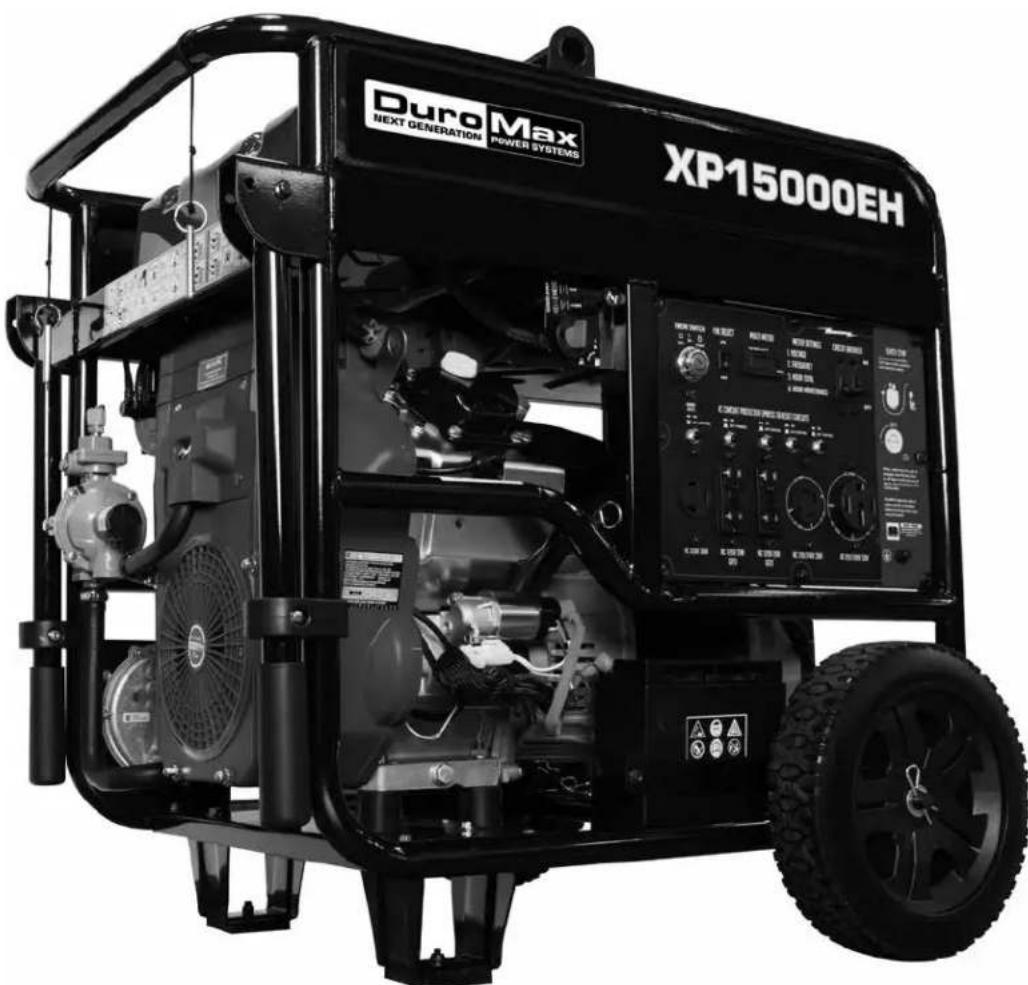

Exterior view of a Duro Max power generation gas generator (XP15000EH) with visible internal components and fuel tanks, no text or symbols on the main body.

XP15000EH GENERATOR

User Manual

REV: XP15000EH-05032021

This manual provides information regarding the operation and maintenance of these products. We have made every effort to ensure the accuracy of the information in this manual. We reserve the right to change this product at any time without prior notice.

5800 Ontario Mills Pkwy

Ontario, CA 91764 USA

www.duromaxpower.com

Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri

844-DUROMAX

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

CONTENTS

1. Introduction

Introduction 6

General Safety Procedures 7

Quick Start Guide (Gasoline) 10

Quick Start Guide (Propane).... 12

Generator Components.... 14

Package Contents 16

2. Generator Setup

Unpack the Generator 18

Wheel Kit/ Hoist Bar Installation 19

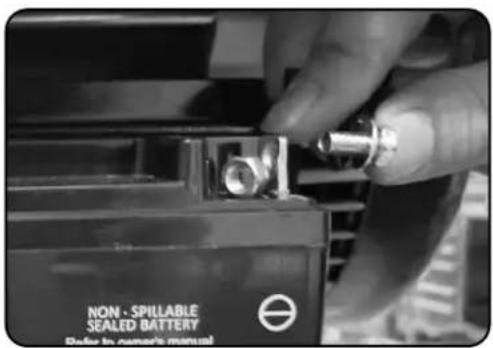

Connect the Battery.... 20

Adding Oil 21

Adding Gasoline 22

Grounding the Generator 23

High Altitude Operation 23

3. Starting the Generator

Checking the Oil 26

Check the Gas Level 27

Starting the Generator Using Gasoline 28

Starting the Generator Using Propane.... 30

4. Using the Generator

AC Usage 34

Connecting a Load to the Generator.... 36

Choosing the Right Power Cord 37

CONTENTS

5. Maintenance and Care

Maintenance Schedule....40

Maintenance Log 41

Checking the Oil 42

Changing the Oil....43

Cleaning the Air Filter 44

Spark Plug Maintenance 46

Storage and Transportation 48

Specifications....49

6. Troubleshooting

Basic Troubleshooting 52

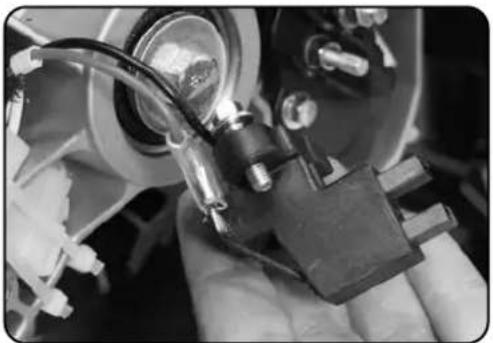

Changing / Inspecting the Carbon Brushes 53

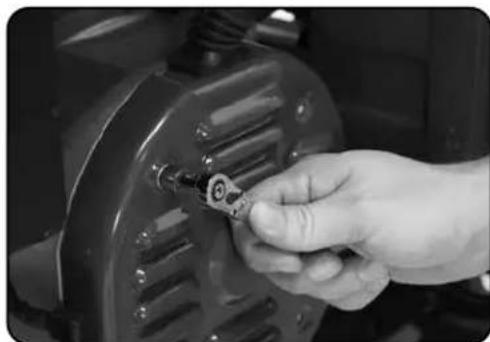

Changing / Inspecting the AVR 55

Wiring Diagram 57

7. Warranty....60

8. Contact Information....64

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

INTRODUCTION

DuroMax has cemented its reputation as one of the markets leading power equipment companies who are headquartered in the US. All of our products are manufactured to the strictest guidelines and go through countless testing in all phases of production.

Evolving our strong engine line, DuroMax has complemented its offerings to include Pressure Washers, Water Pumps, Engines and now offering V-Twin engines. Reliability is the highest standard we hold ourselves to, whether its powering a heater during a winter storm that knocks out power, dewatering a flooded property, or washing away a deck for the summer season

STOP

Please do not return to store.

Duromax representatives are ready to help you with any questions, concerns, or issues about your new product. We can guide you through assembly, start up, and how to operate your new generator. We want you to be able to put your new generator to use right away!

CALL US BEFORE YOU CONSIDER RETURNING THE PRODUCT!

TOLL FREE 1-844-DUROMAX

Notice Regarding Emissions

Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small off Road Equipment), are certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).

GENERAL SAFETY PROCEDURES

SAFETY ALERT SYMBOL

The safety alert symbol is used with one of the safety words (DANGER, CAUTION, or WARNING) to alert you of hazards. Please pay attention to these hazard notices both in this manual and on the generator.

Please familiarize yourself with the following safety symbols and words:

• DANGER: Indicates a hazard that will result in serious injury or death if instructions are not followed.
• WARNING: Indicates a strong possibility of causing serious injury or death if instructions are not followed.
• CAUTION: Indicates a possibility of personal injury or equipment damage if instructions are not followed.

DANGER: This generator produces poisonous carbon monoxide gas when running. This gas is both odorless and colorless. Even if you do not see or smell gas, carbon monoxide may still be present. Breathing this poison can lead to headaches, dizziness, drowsiness, and eventually death.

• Use outdoors ONLY in non-confined areas.
- Keep several feet of clearance on all sides to allow proper ventilation of the generator.

WARNING: The exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING: This generator produces heat when running. Temperatures near exhaust can exceed 150^ F ( 65^ C).

• Do not touch hot surfaces. Pay attention to warning labels on the generator denoting hot parts of the machine.
• Allow generator to cool several minutes after use before touching engine or areas which heat during use.

GENERAL SAFETY PROCEDURES

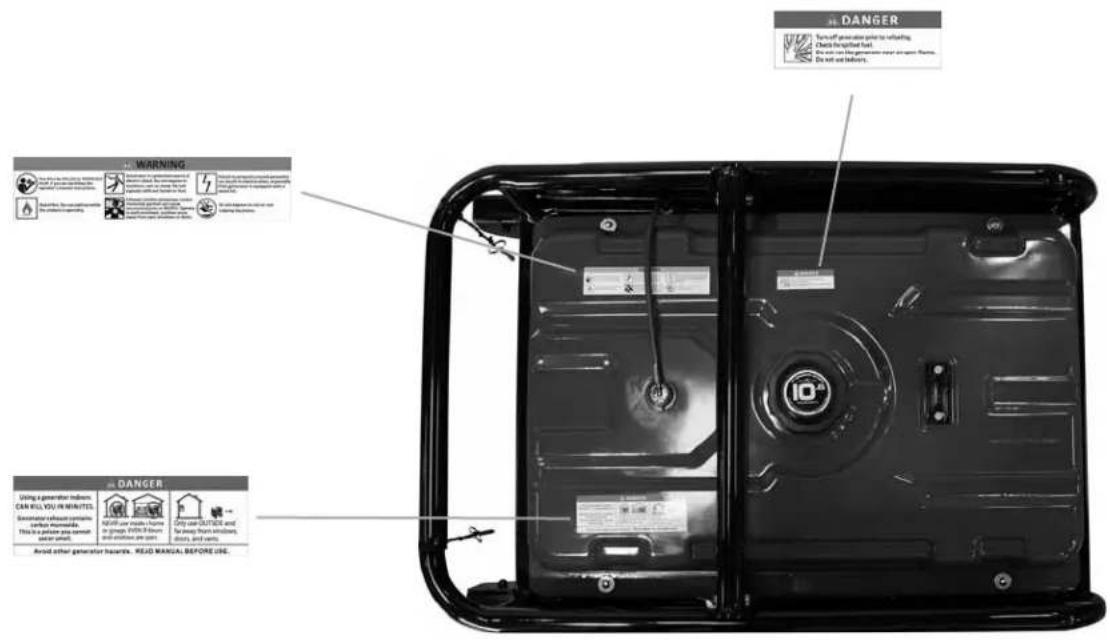

WARNING: This generator may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death. A nearby open flame can lead to an explosion even if not directly in contact with gas.

• Do not operate near an open flame.
• Do not smoke near generator.
  • Always operate on a firm, level surface.
  • Always turn generator off before refueling.
• Allow generator to cool for at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill gas tank. Gas may expand during operation. Do not fill to the top of the tank.
  • Always check for spilled gas before operating.
  • Empty the gasoline tank before storing or transporting the generator.
• Before transporting, turn fuel valve to the off position and disconnect the spark plug.

WARNING: This generator produces a powerful voltage, which can result in electrocution.

• ALWAYS ground the generator before using it (see the "Grounding the Generator" portion of the "PREPARING THE GENERATOR FOR USE section).
• Generator should only be plugged into electrical devices, either directly or with an extension cord. NEVER connect to a building electrical system without a qualified electrician. Such connections must comply with local electrical laws and codes. Failure to comply can create a backflow of power, which may result in serious injury or death to utility workers.
• Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs are available in-line with some extension cords.
• Do not use uncovered in rainy or wet conditions.
• Do not touch bare wires or receptacles (outlets).
• Do not allow children or non-qualified persons to operate.

GENERAL SAFETY PROCEDURES

In addition to the above safety notices, please familiarize yourself with the safety and hazard markings on the generator.

QUICK START GUIDE (GASOLINE)

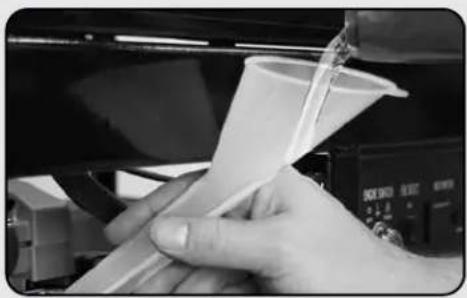

Close-up of hands holding a white plastic cup with a glass rod inserted, inside a mechanical device (no visible text or symbols)

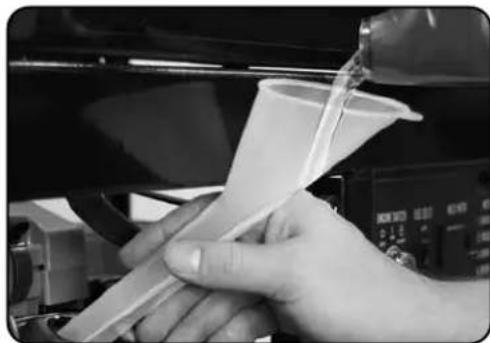

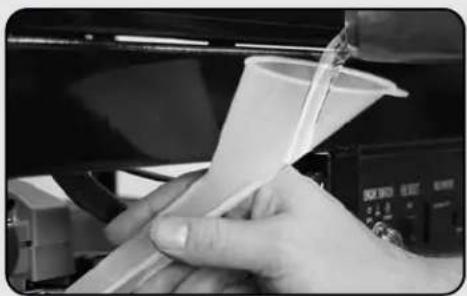

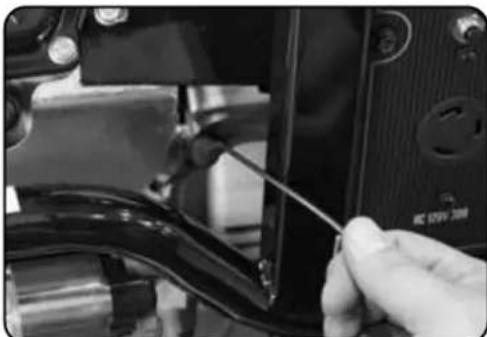

1. Add oil

The oil fill cap is located on the left engine head cover. Remove the oil fill cap and fill with 54oz of 10w30 oil.

Close-up of a mechanical component with a coiled spring and central hub, no visible text or symbols

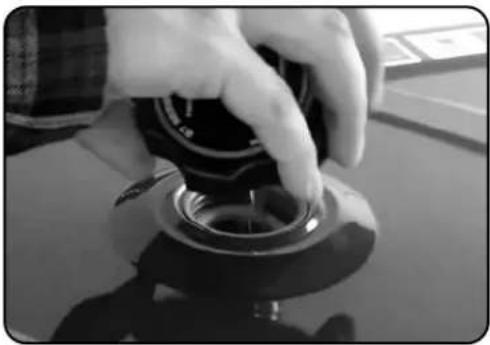

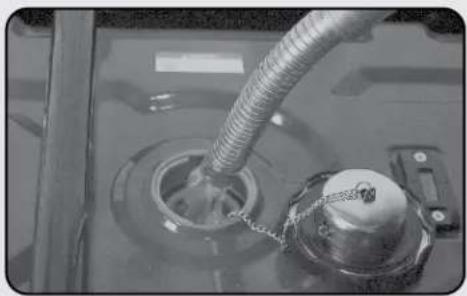

2. Add gasoline

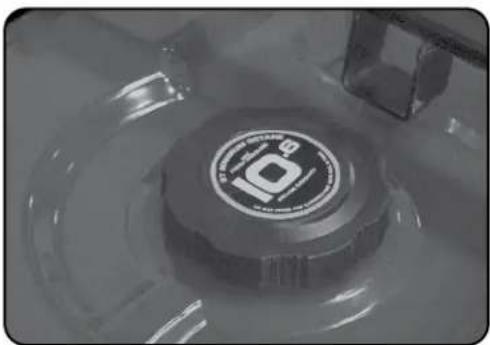

The fuel cap is located on top of the fuel tank. Fill the tank with fresh unleaded gasoline 87 octane or higher. The tank is full when you see fuel in the bottom of the fuel filter cup. DO NOT overfill the tank.

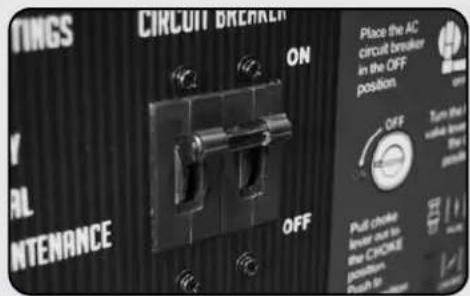

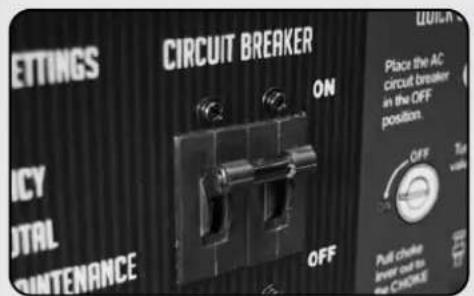

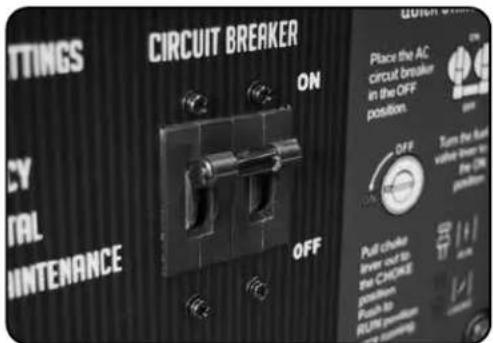

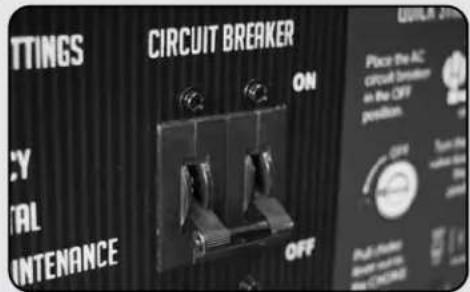

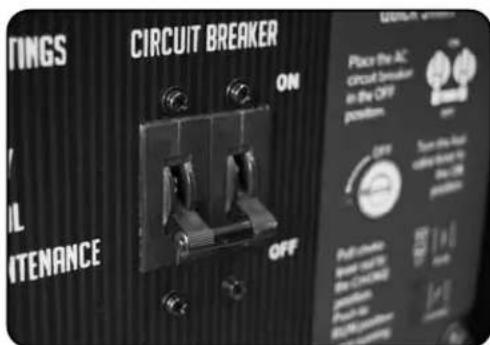

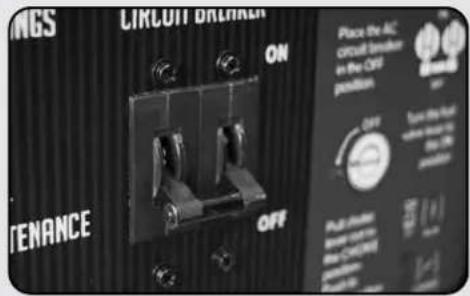

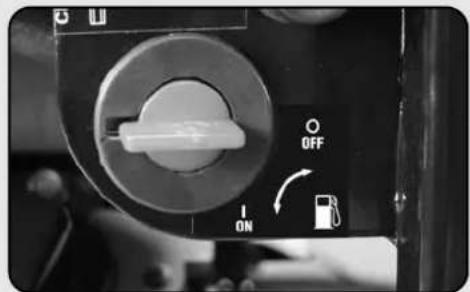

3. Turn breaker off

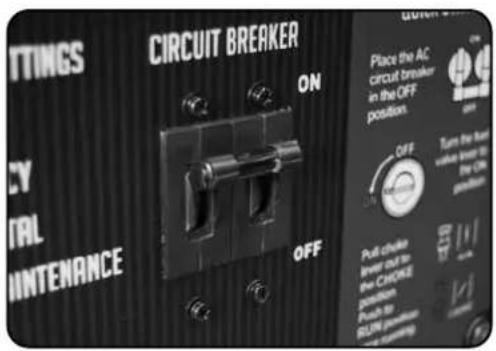

The breaker is located on the right side of the front power panel. Flip the breaker down to prevent accidental load when starting the generator.

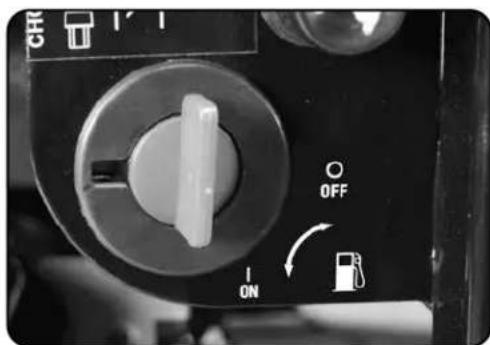

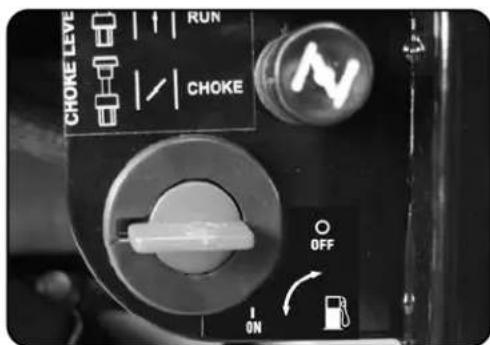

Close-up of a mechanical control knob with ON/OFF/ON/OPEN symbols, no readable text or numbers present.

4. Turn gas valve on

The gas valve is located to the left of the front panel. Rotate the valve counter clockwise to the vertical position to turn on the gas supply.

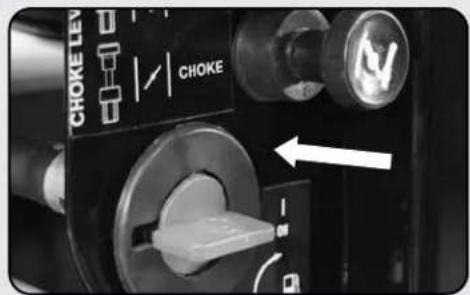

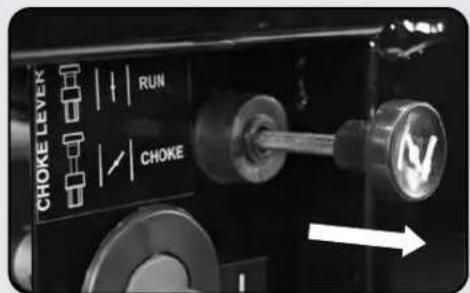

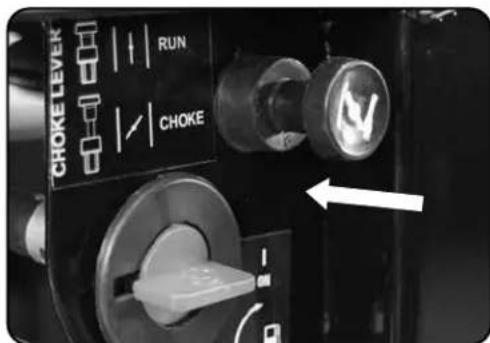

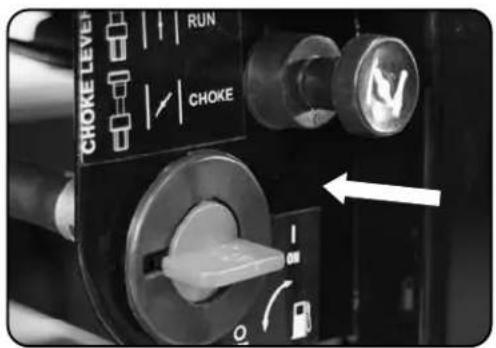

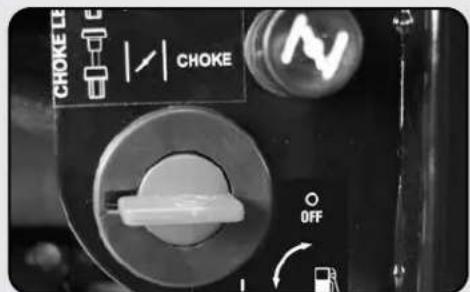

5. Close choke

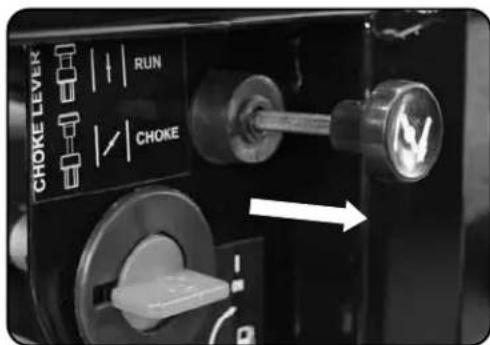

The choke lever is located to the left of the panel. Pull out to cut the air supply and allow more gas into the engine to start.

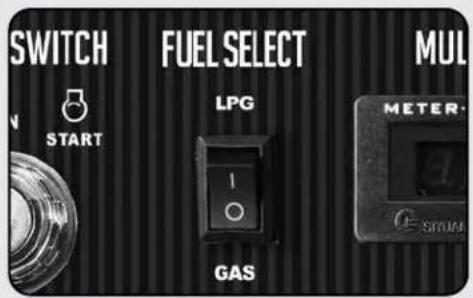

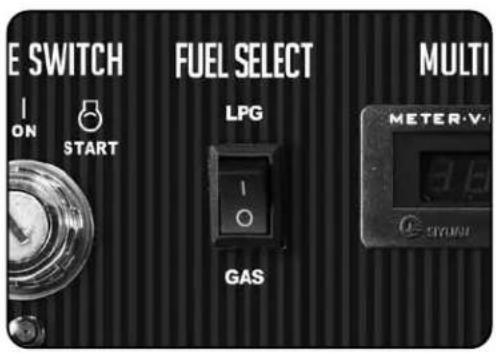

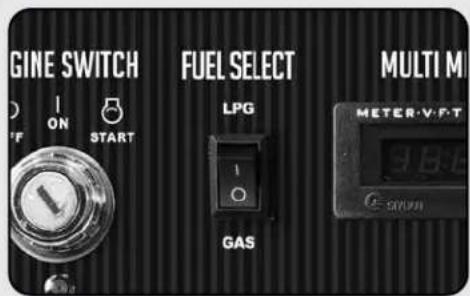

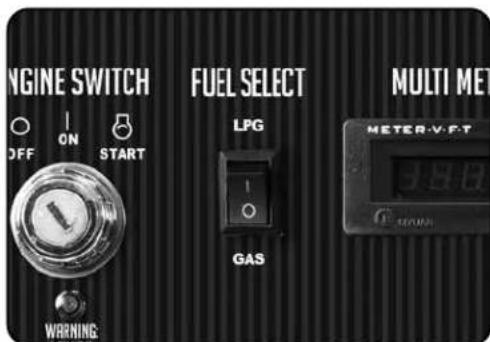

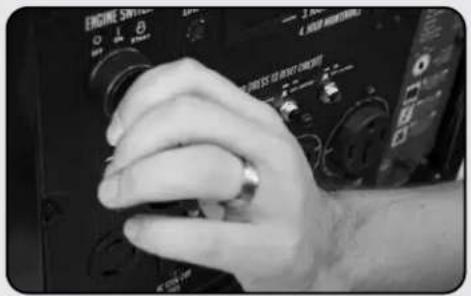

6. Check fuel switch

Make sure the fuel select switch is set to GAS

Close-up of a hand operating an engine switch with control knobs and dials (no visible text or symbols)

7. Start generator

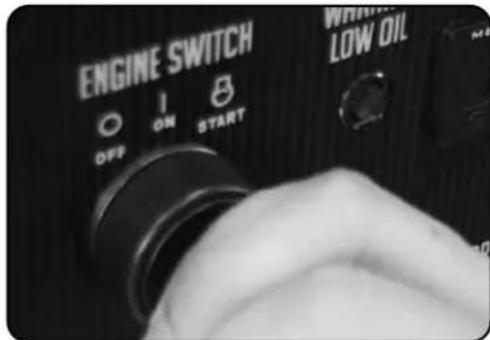

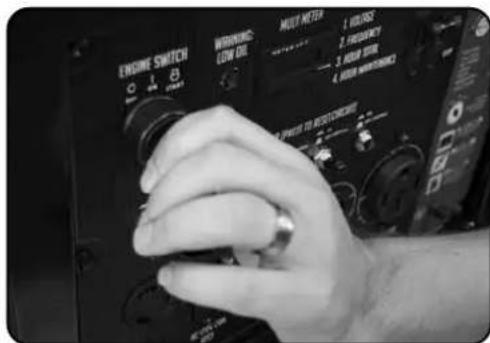

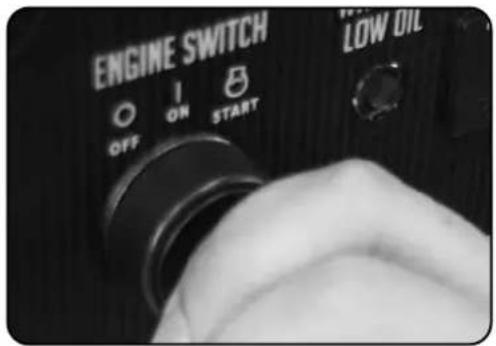

The key switch is located on the left side of the front power panel. Insert the key and turn to the start position to start the generator. Allow the key to return to the run position once started.

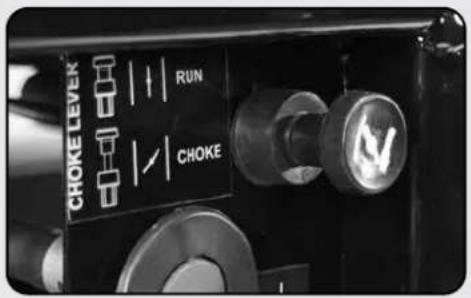

8. Open choke

The choke lever is located to the left of the panel. Push in to open the choke and increase air into the carburetor for normal running.

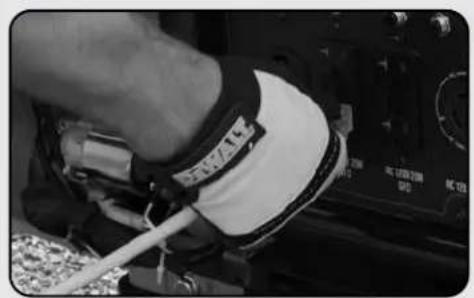

9. Turn breaker on

The breaker is located on the right side of the front power panel. Flip the breaker up to allow power to flow to the receptacles.

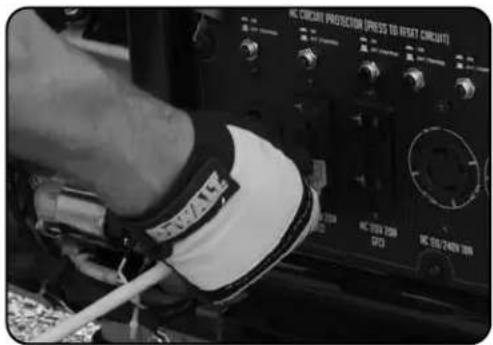

Close-up of a person using a handheld device on a device (no visible text or symbols)

10. Connect devices

Connect your devices to the receptacles on the front panel. Start with the largest loads first.

QUICK START GUIDE (PROPANE)

Close-up of a hand holding a white plastic cup with a glass rod, next to a control panel (no visible text or symbols)

1. Add oil

The oil fill cap is located on the left engine head cover. Remove the oil fill cap and fill with 54oz of 10w30 oil.

2. Turn breaker off

The breaker is located on the right side of the front power panel. Flip the breaker down to prevent accidental load when starting the generator.

3. Turn gas valve off

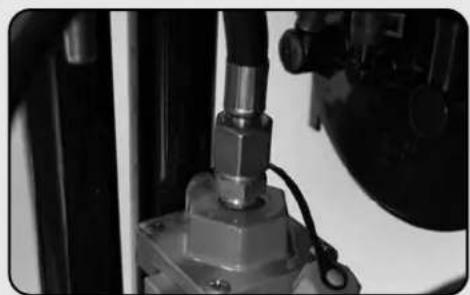

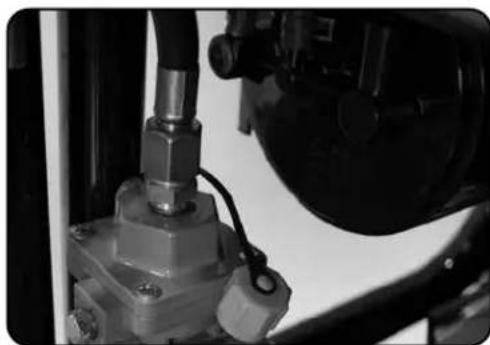

The gas valve is located to the left of the front panel. Rotate the valve clockwise to the horizontal position to stop the flow of gasoline to the carburetor.

Close-up of mechanical components including a metallic bolt and housing (no visible text or symbols)

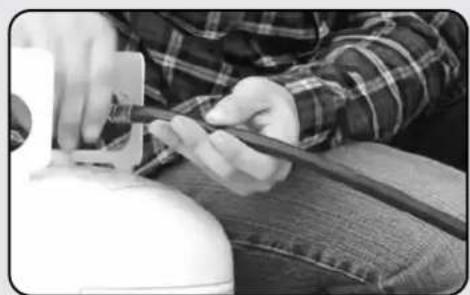

4. Connect propane hose

The propane regulator / decompression valve is located on the frame of the generator below the OHV valve cover. Ensure the propane hose is securely connected to the regulator/compression valve.

Close-up of hands using a tool on a white object, no visible text or symbols

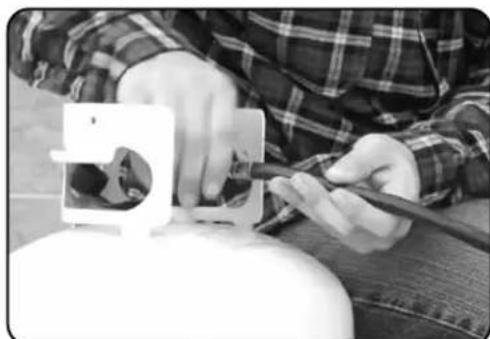

5. Connect propane tank

The propane hose is located on the left side of the regulator, below the OHV valve cover. Screw the open ACME nut connection to your propane tank and turn the tank on.

6. Check fuel switch

Make sure the fuel select switch is set to LPG

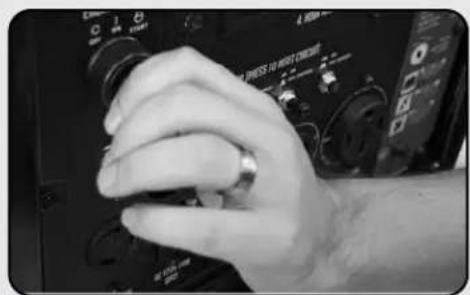

7. Adjust choke

The choke lever is located to the left of the panel. Push in to open the choke and increase air into the carburetor for normal running.

Close-up of a hand operating a control panel with buttons and dials (no visible text or symbols)

8. Start

The key switch is located on the left side of the front power panel. Insert the key and turn to the start position to start the generator. Allow the key to return to the run position once started.

9. Turn breaker on / connect

The breaker is located on the right side of the front power panel. Flip the breaker up to allow power to flow to the receptacles. Connect your devices to the receptacles on the front panel. Start with the largest loads first.

GENERATOR COMPONENTS

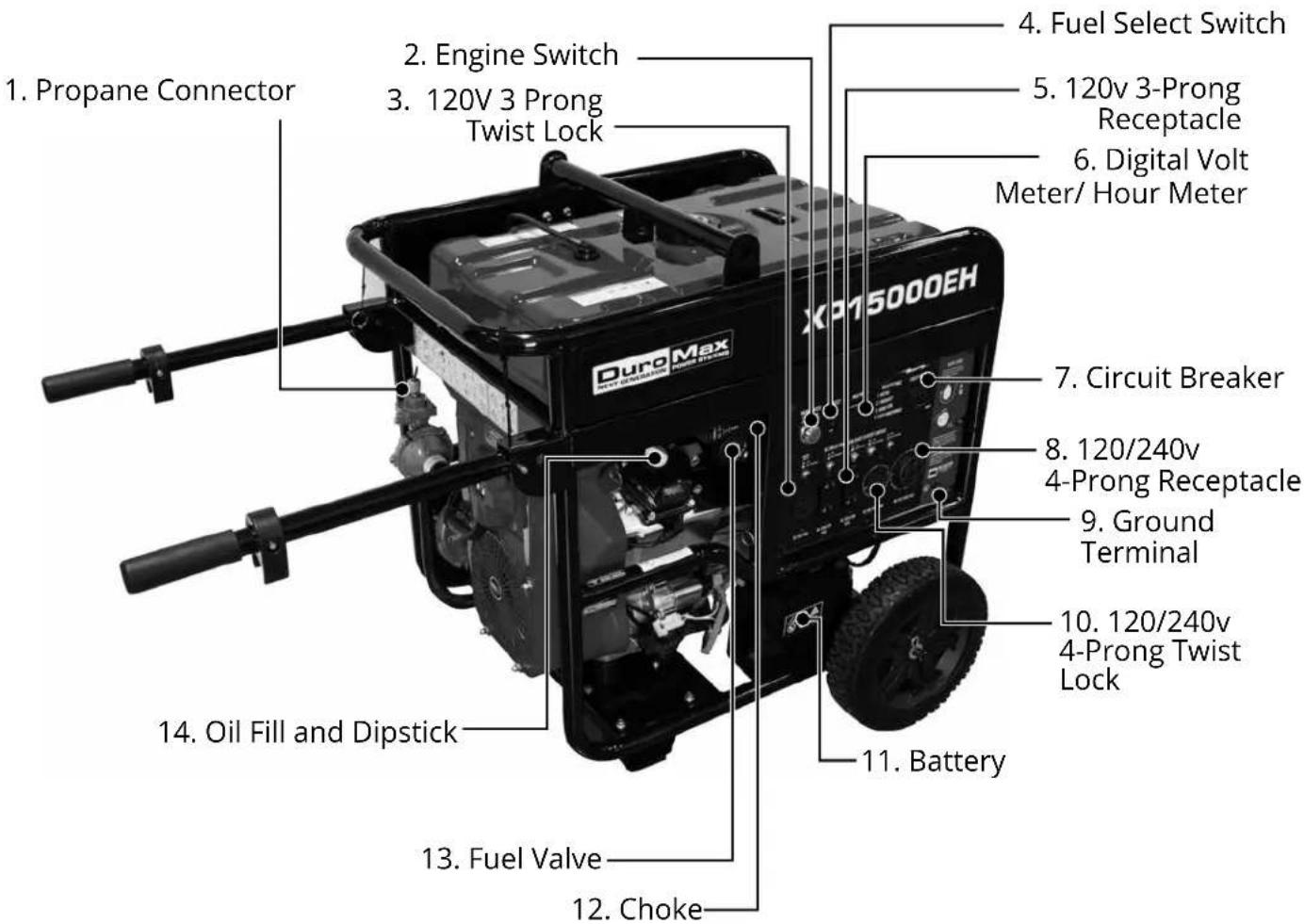

1. Propane Connector – Connects the LPG tank to the LPG Regulator.
2. Engine Switch - 3 Position Switch to "Start", "Run", or turn "Off" the generator.
3. 120v 3-Prong Twist Lock - Use to connect electrical devices that run 120 Volt, 60 Hz, single phase, AC current (L5-30).
4. Fuel Select Switch - Use to select generator fuel source.
5. 120v 3-Prong Receptacle - Use to connect electrical devices that run 120 Volt, 60 Hz, single phase, AC current (NEMA 5-20).
6. Digital Volt Meter/Hour Meter - Provides reading of voltage output and tracks operating hours.
7. Circuit Breaker - Resettable switch that protects the generator from electrical overload.
8. 120/240v 4-Prong Receptacle - Use to connect electrical devices that run 120 or 240 Volt, 60Hz, single phase, AC current (NEMA 14-50).

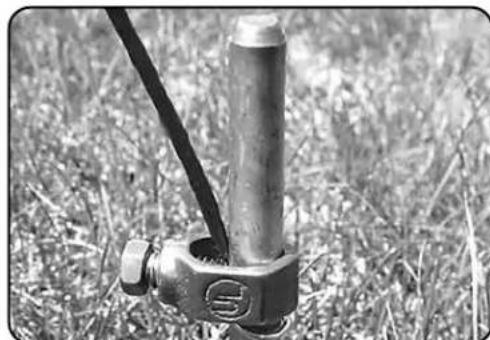

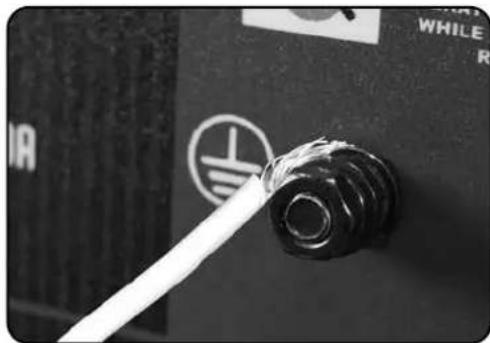

9. Ground Terminal - Connect a ground wire here to properly ground the generator.
10. 120/240v 4-Prong Twist Lock - Use to connect electrical devices that run 120 or 240 Volt, 60Hz, single phase, AC current (NEMA L14-30).

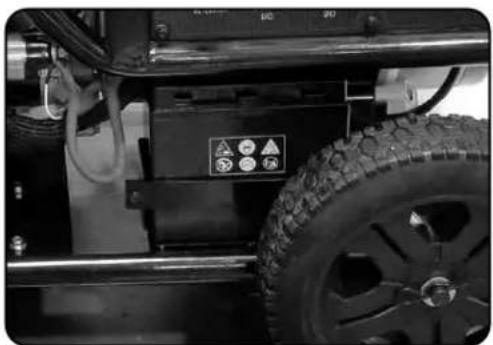

11. Battery - 12V DC 21Ah Battery that powers the Electric Start System.

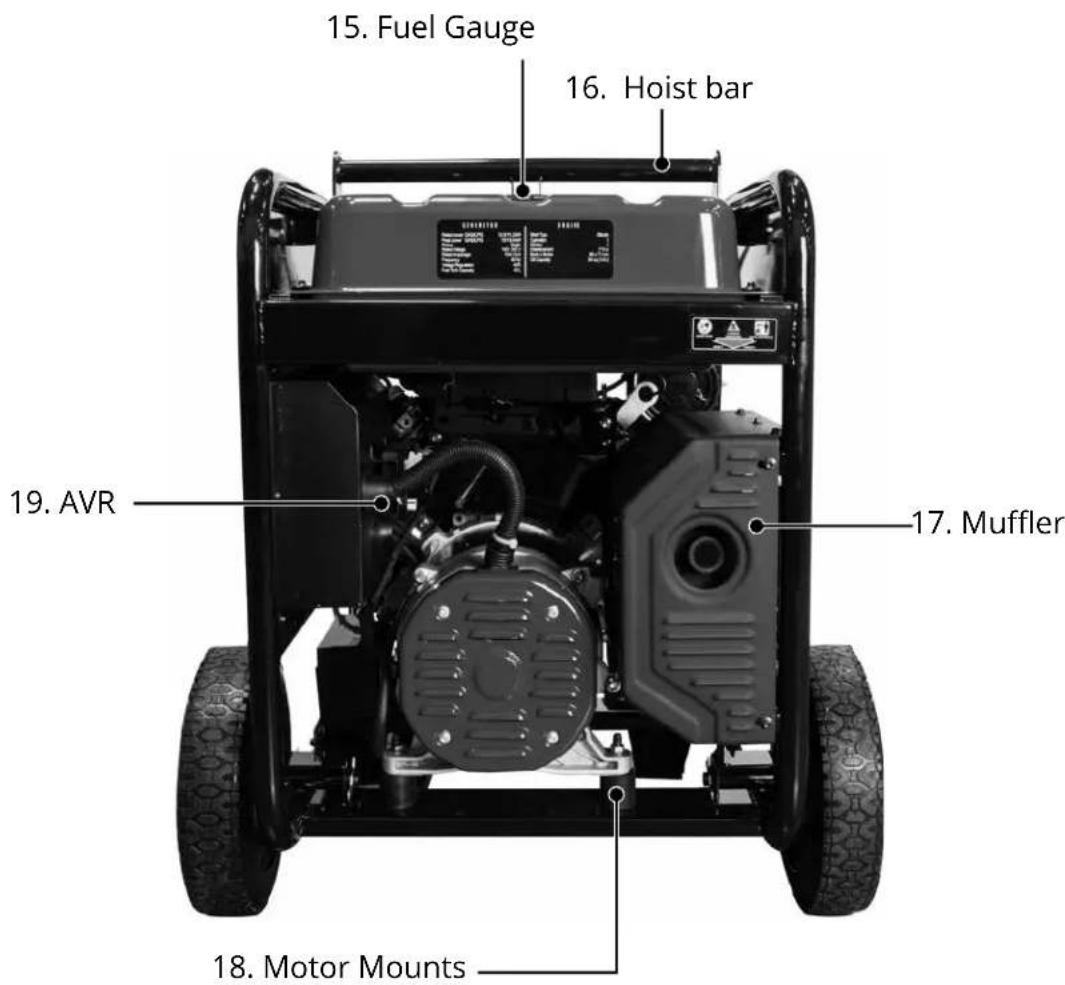

1. Choke - Allows the airflow into the carburetor to be restricted to assist in starting the engine.
2. Fuel Valve - Controls the flow of fuel from the gas tank to the generator.
3. Oil Fill & Dipstick - Opening where you add oil to the generator.

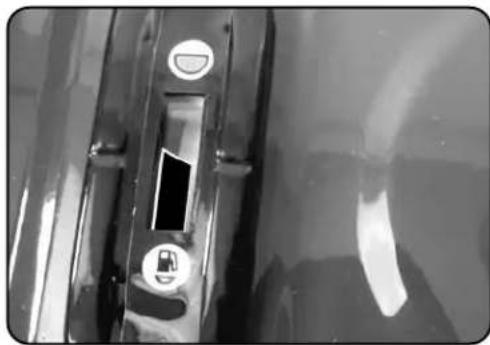

4. Fuel Gauge - Indicates the amount of fuel in the gasoline tank.
5. Hoist Bar - Used to lift via crane into trucks and docks.
6. Muffler - Quiets the motor and reduces pollution.
7. Motor Mounts - Reduces vibration to decrease noise as well as wear and tear.
8. AVR - Automatic Voltage Regulator provides stable AC power.

PACKAGE CONTENTS

Your generator comes with the items listed below. Please check to see that all of the following items are included with your generator.

Metal T-shaped tool with a flanged handle and central shaft (no text or symbols visible)

Spark Plug Wrench

Simple illustration of a conical funnel or horn (no text or symbols)

Two black metal USB lockers with metal clips, no visible text or symbols

Oil Funnel Engine Keys

Used in spark plug maintenance, inspection, and installation.

Used to add oil to the generator without messy spills.

Used to start the generator.

Black flexible hose with connector, isolated on white background (no text or symbols)

Propane Hose

Connects generator to propane tank.

Note: Actual tools may differ in appearance or design from image shown.

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no visible text or symbols on main body)

GENERATOR SETUP

Proper setup of your generator will get you going as soon as possible while making sure you and your equipment are safe and cared for.

GENERATOR SETUP

Step 1 - Unpack the Generator

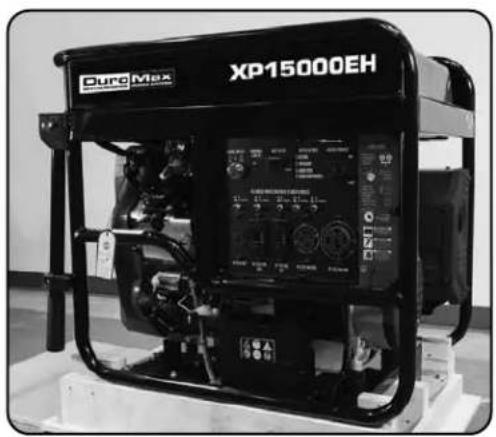

Exterior view of a Duro Max industrial power grid unit (XP15000EH) with visible control panel and wiring (no readable text beyond branding)

1. Unpack

a. Cut the strapping on the box

b. Slide the top of the box off the generator.

c. Continue with the following steps BEFORE taking the generator off the pallet.

Step 2 - Wheel Kit/ Hoist Bar Installation (Optional)

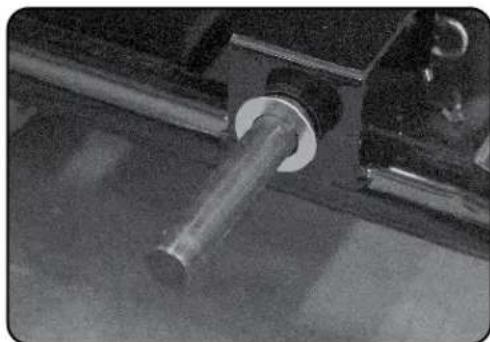

Close-up of a mechanical component with a cylindrical shaft inserted into a housing (no visible text or symbols)

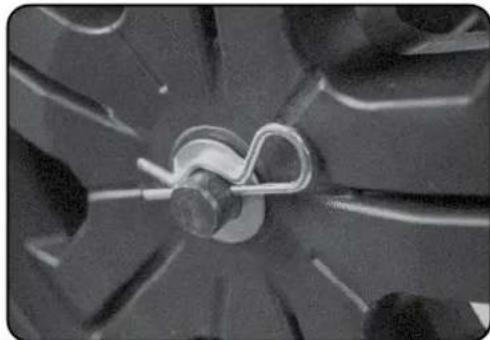

1. Install Axle

a. Insert wheel bolt through frame and secure with provided nut.

Close-up of a metallic chain spring attached to a circular component (no text or symbols visible)

2. Install Wheels

a. Slide one wheel over each axle end. b. Secure wheels with retaining pins.

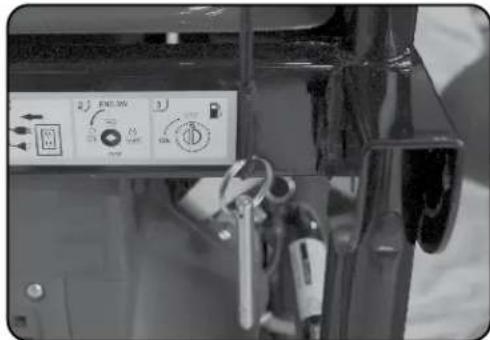

Close-up of a mechanical control panel with buttons and keys (no readable text or symbols)

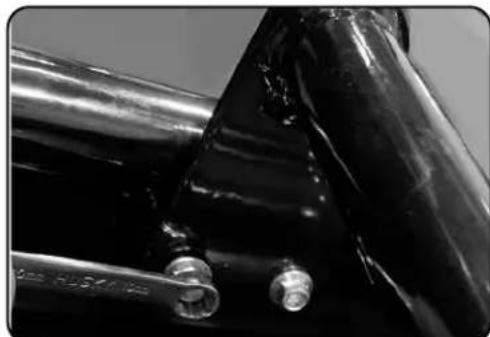

3. Install Handle Pins

a. Loop the pin strap around the generator frame next to the handles and then pass the pin through the strap to secure it to the frame.

Close-up of metallic cylindrical and rectangular components with glossy surfaces (no visible text or symbols)

4. Install Hoist Bar

a. Place hoist bar in place over top frame towards the center and line up the bolt holes with bar. b. Bolt on both sides of hoist bar with the provided bolts.

GENERATOR SETUP (CONTINUED)

Step 3 - Connect the Battery.

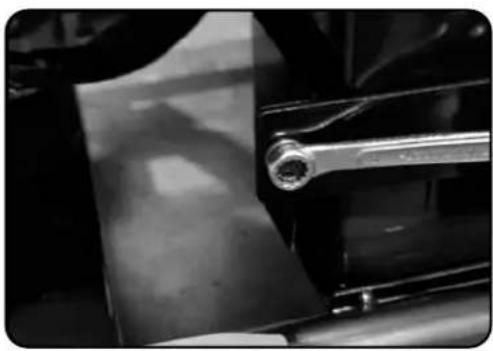

Close-up of a mechanical component with a metallic tool and a cylindrical part inserted (no visible text or symbols)

1. Remove Battery

a. Remove both bolts of the battery holder bracket. b. Carefully remove the generator battery from the battery holder.

2. Bolt on Negative Battery Lead

a. Locate the disconnected negative battery lead that's attached to the generator. b. Securely bolt securely bolt the negative (black) lead to the battery terminal with the "-" symbol.

Close-up of a vehicle's rear wheel and chassis components with warning symbols (no readable text or labels)

3. Install Battery in Generator

a. Place both positive and negative rubber terminal covers over battery terminals. b. Carefully replace battery back in battery holder. c. Bolt battery holder bracket back on to secure battery.

WARNING: Do not let installation tool make contact with the negative or positive battery terminals and the generator frame at the same time to avoid electric shock.

Step 4 - Adding Oil

The generator requires engine oil to operate properly. The generator, when new from the package contains no oil in the crankcase*. You must add the proper amount of oil before operating the generator for the first time. This amount is equal to the oil capacity of the engine crankcase:

Model Number	XP15000EH
Engine Oil Capacity	54 fl. oz (1.6L)

WARNING: Do not apply engine oils with additives or 2-stroke gasoline engine oils. They don't have enough lubrication, and may shorten the engine's service life.

Engine oil recommended: SAE 10W-30. Viscosity varies with regions and temperatures. Choose your oil viscosity using the chart to the left. Synthetic or conventional oils are acceptable for use with this generator.

* A small amount of oil from factory testing may be present on arrival.

Close-up of hands pouring liquid into a white cup on a mechanical device (no visible text or symbols)

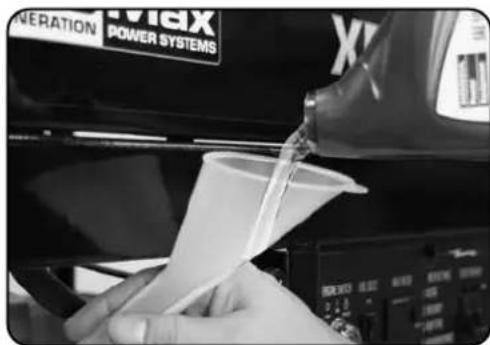

1. Add oil

a. Make sure the generator is on a level surface.
b. Unscrew the oil filler cap from the engine.
c. Using a funnel, add the appropriate amount of oil into the crankcase. You can check the oil level of the generator with the dipstick located below the oil filler cap. Simply pull the dipstick out and the indicated oil level is on the end of the stick.
d. Replace oil filler cap.

Close-up of a hand holding a tool interacting with a black automotive component (no visible text or symbols)

WARNING: DO NOT overfill the crankcase. This may damage the motor and shorting overall life of your generator.

GENERATOR SETUP (CONTINUED)

Step 5 - Adding Gasoline

WARNING: Gasoline and gas fumes are highly flammable.

• Do not fill tank near an open flame.
  • Do not overfill. Always check for fuel spills.

To ensure that the generator runs smoothly use only FRESH, UNLEADED GAS WITH AN OCTANE RATING OF 87 OR HIGHER.

Close-up of hands operating a mechanical device with a circular component (no visible text or symbols)

Close-up of a hand holding a plastic container outdoors, with a wooden fence and patterned background (no visible text or symbols)

Close-up of a mechanical component with a circular base and central logo (no readable text or symbols)

2. Add Gasoline

a. Make sure the generator is on a level surface.
b. Unscrew gas cap and set aside (NOTE: the gas cap may be tight and hard to unscrew).
c. Slowly add unleaded gasoline to the fuel tank. Be careful not to overfill. Please refer to the chart below to find the gas capacity of your generator model. The fuel gauge on the top of the gas tank indicates how much gasoline is in the generator gas tank.
d. Replace fuel cap and wipe up any spilled gasoline with a dry cloth.

NOTE: Gas can expand. Do not fill the gas tank to the very top. Leave a minimum of 1.5 in of open space.

IMPORTANT:

• Never use an oil/gasoline mixture. Never use old gas.
- Avoid getting dirt or water in the fuel tank.
- Gas can age in the tank and make it hard to start up the generator in the future.
- Never store generator for extended periods of time with fuel in the tank.

Model Number XP15000EH

Gas Tank Capacity 10.6 US Gallons (40L)

Step 6 - Grounding the Generator

Close-up of a white cable with exposed wire attached to a black electronic device (no visible text or symbols)

1. Attach grounding wire

a. Ground the generator by tightening the grounding nut against a grounding wire.

b. Connect the other end to a copper or brass grounding rod that's driven into the earth.

A generally acceptable grounding wire is a No. 12 AWG (American Wire Gauge) stranded copper wire.

Close-up of a mechanical clamp or bracket with a metal rod inserted, set against a grassy background (no text or symbols visible)

Grounding codes can vary by location. Please contact a local electrician to check the grounding regulations for your area.

WARNING: Failure to properly ground the generator can result in electrocution.

High Altitude Operation

At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions. High altitude performance can be improved by specific modifications to the carburetor. If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have a dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life. Even with carburetor modification, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburetor modification is made.

When the carburetor has been modified for high altitude operation, the air/fuel mixture will be too lean for low altitude use. Operation at altitudes below 5,000 feet (1,500 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage.

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no signage or text on main body)

STARTING THE GENERATOR

If this is not your first time using the generator there are still steps you should take to prepare it for operation each time you use it.

IMPORTANT: At this point you should be familiar with the procedures described in the first portion of this section entitled "GENERATOR SETUP" If you have not yet read this section, go back and read it now.

BEFORE YOU START YOUR GENERATOR

Step 1 - Check the Oil

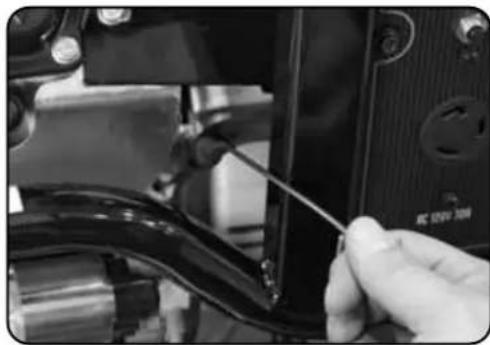

Close-up of a hand holding a cable inserted into a black automotive component (no visible text or symbols)

Simple line drawing of a curved object with two circular ends, no text or symbols present

Close-up of a hand holding a white plastic cup, with a control panel visible in the background (no text or symbols on the cup or background)

1. Check the oil

The generator is equipped with an automatic shutoff to protect it from damage due to low oil. Nonetheless, you should check the oil level of the engine before each use to ensure that the engine crankcase has a sufficient amount.

To check the oil level:

a. Make sure the generator is on a level surface.

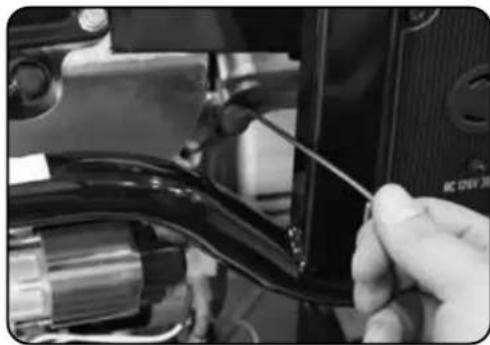

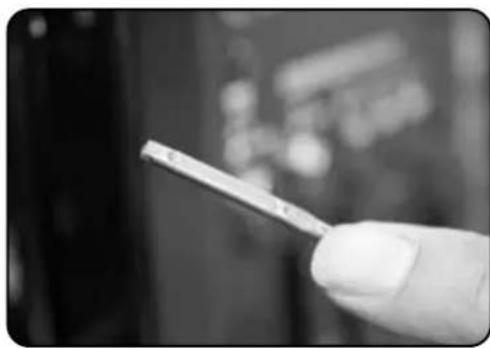

b. Remove dipstick.

c. With a dry cloth, wipe the oil off of the stick.

d. Insert the dipstick completely back into its hole in the engine case. the pull it out again. There should now be oil on the stick. If there is no oil on the stick, or oil only at the very end of the stick, you should add oil until the engine crankcase is filled (see "Adding Oil" portion of the "Maintenance" section).

e. Be sure to replace the dipstick when finished checking oil.

NOTE: The oil capacity for this generator is 54 fl. oz (1.6L).

Step 2 - Check the Gas Level

Close-up of a car door with a switch and circular icon (no visible text or symbols)

1. Check Fuel Level

Before starting the generator, check to see that there is sufficient gasoline in the fuel tank. The fuel gauge on top of the tank will give a rough estimate of the gasoline level. The gauge will appear white then fill red as the tank is filled.

Note: Fuel gauge may not register with less than 1/3 fuel tank full.

WARNING: Gasoline and gasoline fumes are highly flammable.

• Do not fill tank near an open flame.
  • Always allow engine to cool for several minutes before refueling.
• DO NOT overfill fuel tank. Fuel expands when shaken or heated. ALWAY leave 1^1/2 space or more at the top of the tank.
• ALWAYS use fresh fuel or stabilized fuel. Old gasoline (older than 30 days) can cause permanent damage to the fuel system.
  • Always check for fuel spills.

STARTING THE GENERATOR

Starting the Generator Using Gasoline

1. Shut breaker off

The breaker is located on the right side of the front power panel. Flip the breaker down to prevent accidental load when starting the generator.

2. Turn gas valve on

The gas valve is located to the left of the front panel. Rotate the valve counter clockwise to the vertical position to turn on the gas supply.

3. Close choke

The choke lever is located to the left of the panel. Pull out to cut the air supply and allow more gas into the engine to start.

4. Check fuel select

Make sure the fuel select switch is set to GAS.

4. Turn engine switch to START

The key switch is located on the left side of the front power panel. Insert the key and turn to the start position to start the generator. Allow the key to return to the run position once started.

5. Turn engine switch to ON

When the engine starts, allow the engine switch to return to the ON position.

6. Open choke

The choke lever is located to the left of the panel. Push in to open the choke and increase air into the carburetor for normal running.

CAUTION: LPG must be shut off when using gasoline!

CAUTION: Disconnect all electrical loads from the generator before attempting to start!

WARNING: Operating the starter motor for more than 5 seconds can damage the motor. If the engine fails to start, release the switch and wait 10 seconds before operating the starter again.

STARTING THE GENERATOR (CONTINUED)

Starting the Generator Using Propane

1. Shut breaker off

The breaker is located on the right side of the front power panel. Flip the breaker down to prevent accidental load when starting the generator.

Close-up of a gas pump control knob with ON/OFF/ON/OPEN labels (no readable text beyond symbols)

2. Turn gas valve off

The gas valve is located to the left of the front panel. Rotate the valve clockwise to the horizontal position to stop the flow of gasoline to the carburetor.

Close-up of mechanical components including a valve, housing, and clamping device (no visible text or symbols)

3. Connect propane hose

The propane regulator / decompression valve is located on the frame of the generator below the OHV valve cover. Ensure the propane hose is securely connected to the regulator/compression valve.

Person in plaid shirt using a tool to cut or mark a small object, no visible text or symbols

4. Connect propane tank

The propane hose is located on the left side of the regulator, below the OHV valve cover. Screw the open ACME nut connection to your propane tank and turn the tank on.

5. Check fuel select

Make sure the fuel select switch is set to LPG.

6. Open choke

The choke lever is located to the left of the panel. Push in to open the choke and increase air into the carburetor for normal running.

7. Start

The key switch is located on the left side of the front power panel. Insert the key and turn to the start position to start the generator. Allow the key to return to the on position once started.

8. Turn breaker on / connect

The breaker is located on the right side of the front power panel. Flip the breaker up to allow power to flow to the receptacles. Connect your devices to the receptacles on the front panel. Start with the largest loads first.

STARTING THE GENERATOR (CONTINUED)

Starting the Generator Using Propane

WARNING: WHEN USING THE GENERATOR WITH LPG, MAKE SURE THERE IS NO POSSIBLE IGNITION SOURCE CLOSE TO THE GENERATOR.

1. Before using, make sure all of the LPG connectors and hoses are well connected and sealed.
2. Connect electrical devices to generator ONLY after the engine runs smoothly. (There may be remnant gasoline in the carburetor; this can cause unsteady engine performance for several minutes)
3. If the propane gas leaks, shut off the LPG supply first and then quickly unplug or turn off any electrical devices powered by the unit.
4. When stopping the engine, unplug or turn off any electrical devices, turn off the Main Circuit Breaker and then turn off the LPG Supply. After the engine has stopped turn the KEY to 'OFF' position.

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no signage or text on main body)

USING THE GENERATOR

If this is not your first time using the generator there are still steps you should take to prepare it for operation each time you use it.

IMPORTANT: At this point you should be familiar with the procedures described in the first portion of this section entitled "GENERATOR SETUP" If you have not yet read this section, go back and read it now.

USING THE GENERATOR

AC Usage

• You may connect electrical devices running on AC current according to their wattage requirements.
• The chart below shows the rated and surge wattage of your generator according to its model number.
• The rated wattage corresponds to the maximum wattage the generator can output on a continuous basis.
• The surge wattage corresponds to the maximum amount of power the generator can output for a short period of time. Many electrical devices such as refrigerators require short bursts of extra power, in addition the rated wattage listed by the device, to stop and start their motors. The surge wattage ability of the generator covers this extra power requirement.

Fuel Source Rated (Running Wattage) Surge (Peak) Wattage
Gasoline 12,000 15,000
Propane 11,400 14,250

The total running wattage requirement of the electrical devices connected to the generator should not exceed the rated wattage of the generator itself. To calculate the total wattage requirement of the electrical devices you wish to connect, find the rated (or running) wattage of each device. This number should be listed somewhere on the device or in its instruction manual.

If you cannot find this wattage, you may calculate it by multiplying the Voltage requirement by the Amperage drawn: Watts = Volts x Amps. If these specifications are not available you may estimate the Watts required by your device by using the chart on the next page.

Once you have found the rated wattage requirement of each electrical device, add these numbers to find the total rated wattage you wish to draw from the generator. If this number exceeds the rated wattage of the generator, DO NOT connect all these devices. Select a combination of electrical devices, which has a total rated wattage lower than or equal to the rated wattage of the generator.

Tool or Appliance Rated	(Running) Watts Additional Surge Watts
Electric water heater (40 gal) 4000 0
Hot plate 2500 0
Radial arm saw 2000 2000
Electric Stove 1500 0
Circular Saw 1500 1500
Air compressor (1 HP) 1500 3000
Window air conditioner 1200 1800
Miter saw 1200 1800
Microwave 1000 2000
Well water pump 1000 1500
Reciprocating saw 960 1040
Sump pump 800 1200
Refrigerator freezer 800 1200
Furnace blower	800 1300
Computer	800 0
Electric drill	600 900
Television	500 0
Deep freezer	500 800
Garage door opener	480 600
Stereo	400 0
Box fan	300 600
Clock radio	300 0
Security system	180 0
DVD Player	100 0
Common light bulb	75

CAUTION - The generator can only run at its surge wattage capacity for a very short time. Connect only electrical devices requiring a rated (running) wattage equal to or less than the rated wattage of the generator. Never connect devices requiring a rated wattage equal to the surge wattage of the generator.

NOTE: The above wattage figures are estimates only.

Try to check the wattage listed on your electrical devices before consulting this chart.

USING THE GENERATOR (CONTINUED)

Connecting a Load to the Generator

NOTE: Be sure to attach devices to the correct receptacle (outlet).

• 120v devices can be directly connected to the 120v ONLY receptacles.
• 120v devices can be connected to the 120/240v receptacle using an appropriate adapter.
• 240v devices can ONLY be connected the 240v receptacle.

CAUTION: Do not connect 50Hz or 3-phase loads to the generator.

1. Plug in devices

Plug in devices to the appropriate receptacle. When using the generator in 120/240v mode, balance the load as closely as possible. Placing more load on one side of the circuit will reduce the breaker trip period.

2. Turn breaker on

Flip the circuit breaker up to the on position to allow power to the receptacles.

Exterior view of a two-story residential house with illuminated windows and a stone door (no signage or text visible)

3. Turn on connected devices

Start or turn on appliances starting with the biggest loads first.

Choosing the Right Power Cord

Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords, allow for a slightly higher rated wattage requirement for the electrical device. See table below for recommended cords based on the power requirement of the electrical device.

DEVICE REQUIREMENTS WIRE GA		UGE BY LENGTH (ft.)
AMPS	WATTS (120/240V) 10 25 50 100 150
5 600	/1200 18 16 14 12 10
10 1200	/2400 16 14 12 10 8
15 1800	/3600 14 12 10 8 6
20 2400	/4800 12 10 8 6 4
25 3000	/6000 10 8 6 4 4
30 3600	/7200 8 6 4 4 NR
40 4800	/9600 6 6 4 NR NR
50	6000/12000 6 6 4 NR	NR
*NR = NOT RECOMMENDED

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no signage or text overlays on the device body)

MAINTENANCE AND CARE

Proper maintenance and storage of your generator is essential to ensure trouble free use of your generator when you need it.

By following the maintenance and care requirements, you can keep your generator running smooth and efficient for years to come.

MAINTENANCE AND CARE

Proper routine maintenance of your generator is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution.

WARNING: Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously injured or killed. Always follow the inspection and maintenance recommendations and schedules in this instruction manual.

• Make sure the engine is off before you begin any maintenance or repairs.

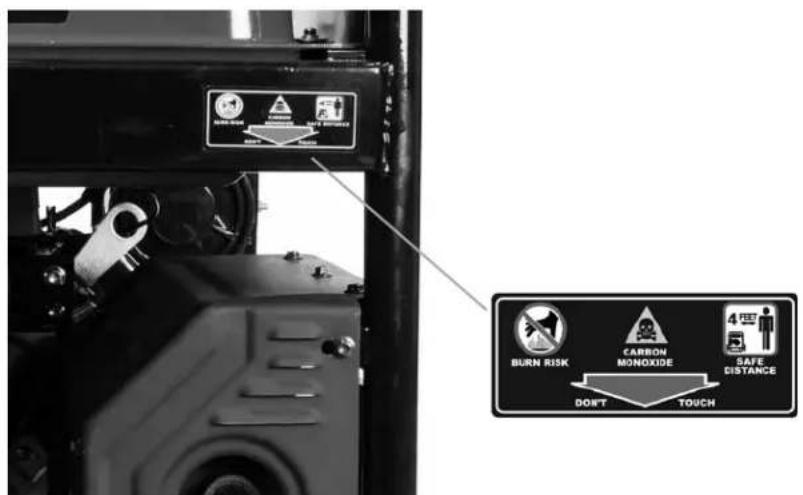

- Let the engine and exhaust system cool before touching.
- To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a nonflammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel related parts.

Maintenance Schedule

Remember that this schedule is based on the assumption that your machine will be used for its designed purpose. Sustained high-load, high temperature operation, or use in unusually wet or dusty conditions, will require more frequent service.

SERVICE		REGULAR SERVICE PERIOD
		BEFORE EACH USE	FIRST MO. OR 20 HRS	EVERY 3 MO. OR 50 HRS	EVERY 6 MO. OR 100 HRS	EVERY 12 MO. OR 300 HRS
ENGINE OIL CHECK
		CHANGE
OIL FILTER CHANGE
AIR CLEANER CHECK
		CHANGE
SEDIMENT CUP CLEAN
SPARK PLUG CLEAN-ADJUST
		REPLACE
SPARK ARRESTOR CLEAN
IDLE SPEED CHECK / ADJUST
VALVE CLEARANCE CHECK-ADJUST
COMBUSTION CHAMBER	CLEAN	500 HOURS
FUEL TANK / FILTER CLEAN
FUEL TUBE CHECK EVERY 24 MO. (REPLACE IF NECESSARY)
TO BE PERFORMED AT EVERY MONTH INDICATED OR HOUR INTERVAL WHICH EVER COMES FIRST

MAINTENANCE LOG

Date Generator Hours Maintenance Performed

MAINTENANCE AND CARE (CONTINUED)

Checking the Oil

Close-up of a hand holding a black cable with wires, next to a mechanical component (no visible text or symbols)

Close-up of a gloved hand holding a small metallic tool, blurred background with no visible text or symbols

Close-up of a hand pouring liquid into a cup, with industrial control panel visible (no readable text or symbols)

1. Check the oil

The generator is equipped with an automatic shutoff to protect it from damage due to low oil. Nonetheless, you should check the oil level of the engine before each use to ensure that the engine crankcase has a sufficient amount.

To check the oil level:

a. Make sure the generator is on a level surface.

b. Remove dipstick.

c. With a dry cloth, wipe the oil off of the stick.

d. Insert the dipstick completely back into its hole in the engine case. the pull it out again. There should now be oil on the stick. If there is no oil on the stick, or oil only at the very end of the stick, you should add oil until the engine crankcase is filled (see "Adding Oil" portion of the "Maintenance" section).

e. Be sure to replace the dipstick when finished checking oil.

NOTE: The oil capacity for this generator is 54 fl. oz (1.6L).

Changing the Oil

Worn out or dirty oil does not cool the generator properly and can lead to catastrophic engine damage.

In addition to regular oil changes, it is necessary to drain the oil from the crankcase if it has become contaminated with water or dirt.

Close-up of hands operating a mechanical component with a coiled spring and tire (no visible text or symbols)

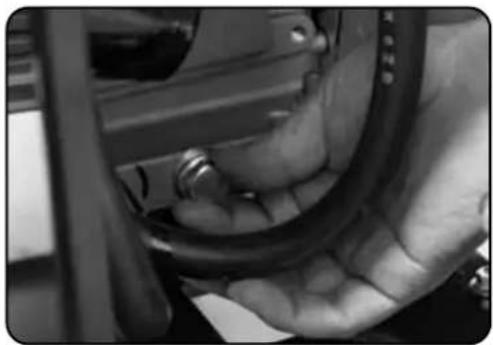

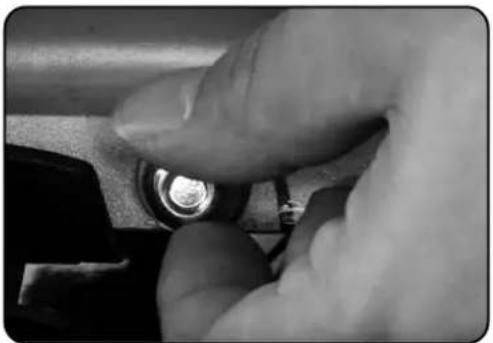

1. Remove drain plug

Using a 12 mm hex wrench, unscrew the oil drain plug, which is located on the crankcase underneath the oil filler/dipstick cap.

Allow all the oil to drain from the generator.

Metallic rectangular food item with ribbed contents, no visible text or symbols

2. Drain oil

Drain oil into an approved oil disposal container. Contact your local auto parts store for information on oil disposal.

Close-up of a hand adjusting a mechanical component with a circular lens (no visible text or symbols)

3. Replace drain plug

Replace the oil drain plug and tighten with a 12 mm hex wrench.

MAINTENANCE AND CARE (CONTINUED)

Cleaning the air filter

Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Check that the air cleaner is free of excessive dirt after every use.

Note: Improper maintenance may cause less air to enter the engine or dirty air to enter the engine causing overheating and engine wear.

Close-up of a mechanical component with a metallic clip and attached spring, no visible text or symbols

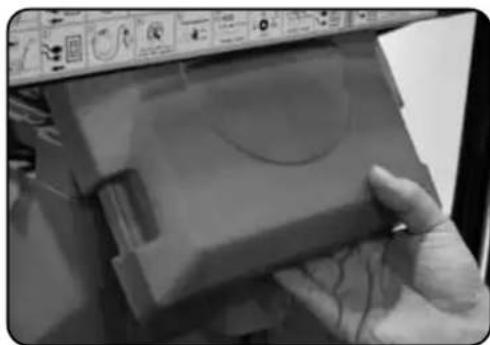

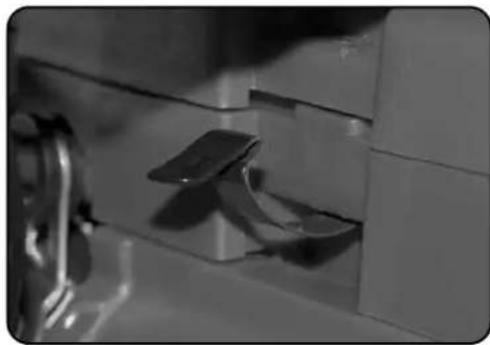

1. Unclip filter cover

Unhinge the four clasps of the air filter cover. There are two clips on each side of the cover.

Hand holding a small electronic device with a curved screen, next to a printer or scanner (no visible text or symbols)

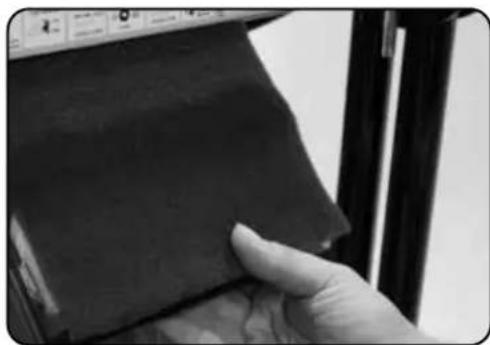

2. Remove filter cover

Remove the plastic air filter cover by sliding it out underneath the generator's frame.

Close-up of a hand holding a dark fabric sample, partially visible through a window frame (no text or symbols)

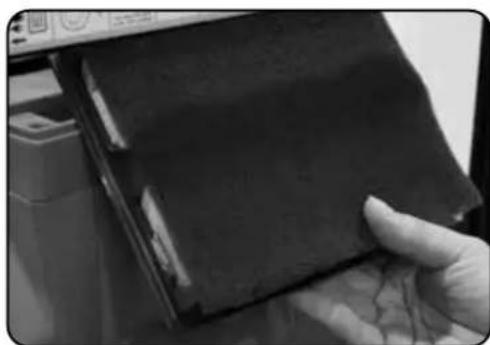

3. Remove filter

Remove the filter from on top of the engine. This filter is paper and is not reusable. Please call 1-844-DUROMAX to order a replacement filter for your generator.

Close-up of a hand holding a dark fabric or material sample, with no visible text or symbols.

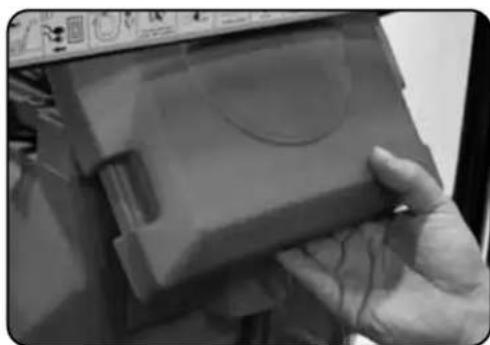

4. Replace new filter

Insert the filter, paper side down into the air filter compartment on top of the engine.

Hand holding a small electronic device with a circular lens (no visible text or symbols)

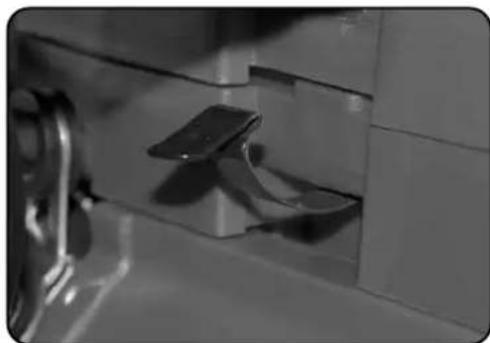

5. Replace filter cover

Slide the filter cover back in place between the frame and the engine.

Close-up of a kitchen sink with metal clamps and tiled walls (no visible text or symbols)

6. Secure filter cover

Fasten the filter cover to the engine with the clips found on each side of the cover.

MAINTENANCE AND CARE (CONTINUED)

Spark Plug Maintenance

The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. The V-Twin engine in this generator has two spark plugs, one on each side. Both plugs are located just underneath the OHV covers.

Improper maintenance may cause reduced fuel economy, misfires, trouble starting, or damage to the spark plug threads.

Close-up of mechanical components with no visible text or symbols

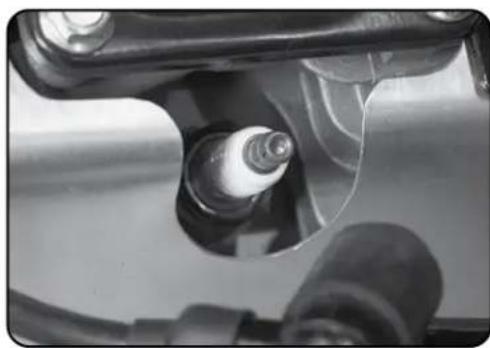

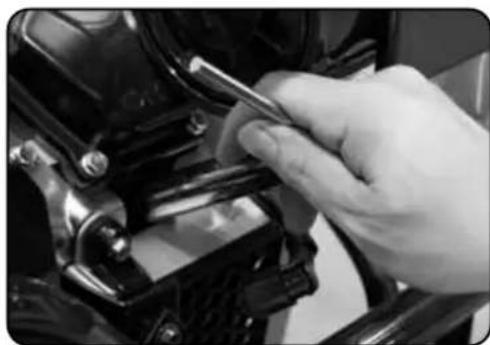

1. Remove spark plug cap

Pull on the spark plug cap to remove it.

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

2. Remove spark plug

Unscrew the spark plug from the generator using the spark plug wrench included with this product.

Close-up of a standard diesel engine spike with visible screw and nozzle (no text or symbols)

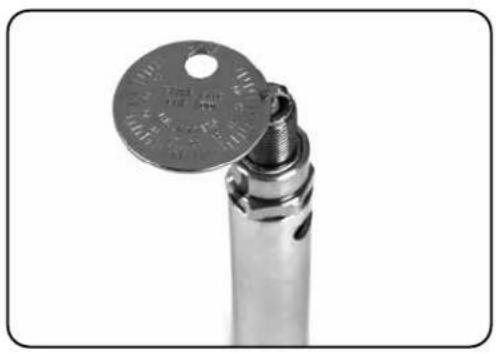

3. Inspect spark plug

Visually inspect the spark plug. If it is cracked or chipped, discard and replace with a new spark plug. We recommend using a DENSO 5357 spark plug.

Close-up of a metallic cylindrical device with a circular lid and threaded handle (no visible text or symbols)

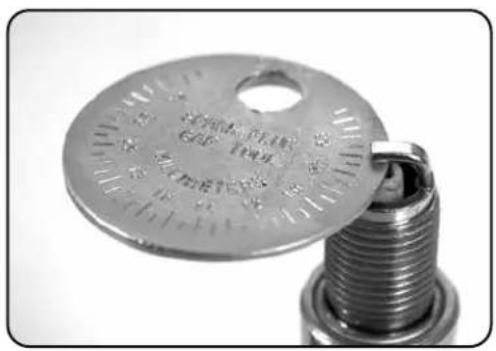

4. Measure plug gap

Measure the plug gap with a gauge. The gap should be 0.7-0.8 mm (0.028-0.031 in).

Close-up of a metallic circular component with engraved markings, partially embedded in a threaded bolt (no visible text or symbols)

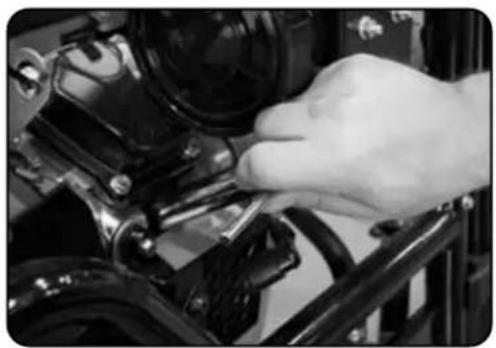

5. Clean and re-gap

If you are re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base and then re-gap the spark plug.

Close-up of a hand adjusting mechanical components on a vehicle chassis (no visible text or symbols)

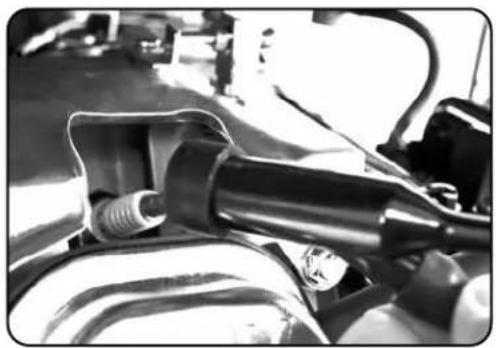

6. Replace spark plug

Screw the spark plug back into its place on the generator using the spark plug wrench.

Close-up of a mechanical component with threaded shaft and housing (no visible text or symbols)

7. Replace spark plug cap

Replace the spark plug cap.

MAINTENANCE AND CARE (CONTINUED)

Storage and Transportation

CAUTION: Never place any type of storage cover on the generator while it is still hot.

When transporting your generator:

• Empty the gas tank (see "Emptying the Gas Tank" in the "Maintenance" section).
• Disconnect the spark plug.
• Do not obstruct any ventilation openings & keep the generator in a cool dry area.

Storage Period Storage Preparation
If you plan on starting the same day.	1. Turn off the main breaker.2. Allow the unit to run 3 - 5 minutes.3. Turn off the key.4. Store.
If you plan on starting the unit again within 30 days.	1. Turn off the main breaker.2. Allow the unit to run 3 - 5 minutes.3. Turn off the fuel valve.4. Allow the unit to stall out.5. Turn off the key.6. Add fuel stabilizer to the gas remaining in the tank.7. Store.
If you do not plan to start the unit for longer than 30 days.	1. Turn off the main breaker.2. Allow the unit to run 3 - 5 minutes.3. Turn off the fuel valve.4. Allow the unit to stall out.5. Turn off the key.6. Drain the fuel tank (See “Emptying the Gas Tank” in the “Maintenance” section)7. Drain the carburetora. Remove the drain bolt from the carburetor.b. Drain the small amount of remaining fuel from the carburetor bowl.8. Oil the cylindera. Remove the spark plug.b. Put 2 tbsp. of 10w30 motor oil directly into the spark plug holec. Pull the recoil start one time.d. Replace the plug.9. Remove the battery and place on tender indoors.

SPECIFICATIONS

AC Rated Wattage (Gasoline) 12000W
AC Rated Wattage (Propane) 11400W
AC Surge Wattage (Gasoline) 15000W
AC Surge Wattage (Propane) 14250W
AC Rated Voltage 120/240V
AC Rated Frequency 60 Hz
AC Phase Single
Dimensions LENGTH 35 in.
	WIDTH 24.5 in.
	HEIGHT 38 in.
Engine Type Fuel Injected V-Twin 4 Stroke OHV
Ignition System Non-Contact Transistor
Displacement 713cc
Starting Type Electric
Fuel Tank Capacity 10.6 US Gal. (40L)
Oil Capacity 54 fl. oz. (1.6L)
Run Time @ 50% (Gasoline)	9.03 hr.
Run Time @ 50% (Propane)	8.58 hr. (60 lb.)
Noise Level	84 dB

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no signage or text on main body)

TROUBLESHOOTING

This section of the manual is to help you troubleshoot problems with your generator.

TROUBLESHOOTING

Mode Description
Engine will not start	Engine Switch is “Off” Set engine switch to “run”
	Fuel Valve is “Closed” Turn fuel valve to “open”
	Choke is open Close the choke
	Engine is out of fuel Add fuel
	Fuel is old or contaminated Change fuel
	Spark Plug is dirty Clean spark plug
	Spark Plug is broken Replace spark plug
	Generator is not level	Move generator to a level surface
	Oil is low Add / change oil
Engine runs, but there is no electrical output	Circuit breaker is “Off” Turn “on” circuit breaker
	Wiring connection is bad Replace extension cord(s)
	Device connected to generator is malfunctioning	Disconnect malfunctioning device
Generator runs, but does not support all electrical devices connected	Generator is overloaded	Disconnect 1 or more items to reduce the load
	Device connected to generator is bad	Disconnect malfunctioning device
	Air Cleaner is dirty Clean / replace the air filter

Changing / Inspecting the Carbon Brushes

The carbon brushes in conjunction with the AVR regulates power from the generator. The carbon brushes are wearable parts and should be inspected every 250 running hours.

Close-up of a hand inserting a small component into a black automotive engine compartment (no visible text or symbols)

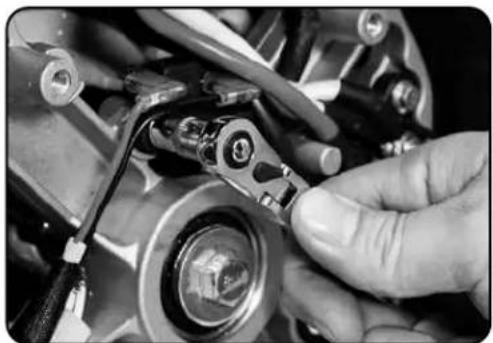

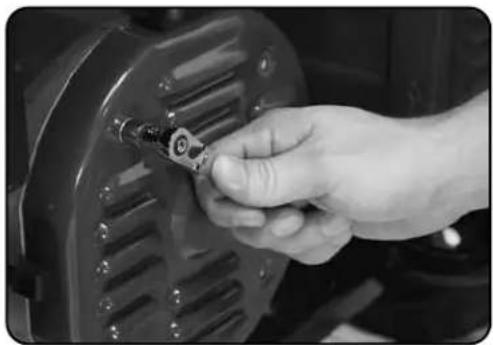

1. Remove generator cover

Remove the 2 bolts of the generator cover then pull the cover off the generator.

Close-up of a hand adjusting a mechanical component with a tool (no visible text or symbols)

2. Remove bolt from brush

Remove the bolt holding the carbon brush.

Close-up of a mechanical assembly with wires and components, no visible text or symbols

3. Disconnect AVR wires

Remove the two wires from the AVR on the carbon brush

TROUBLESHOOTING (CONTINUED)

Changing / Inspecting the Carbon Brushes (Cont.)

Metal mechanical bracket component (no visible text or symbols)

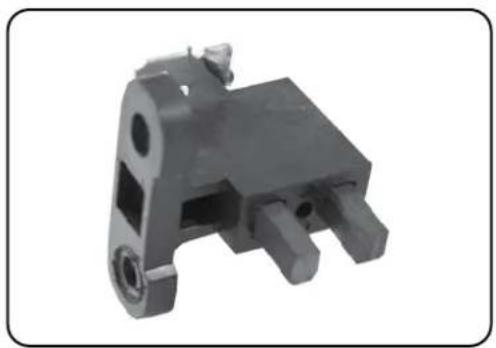

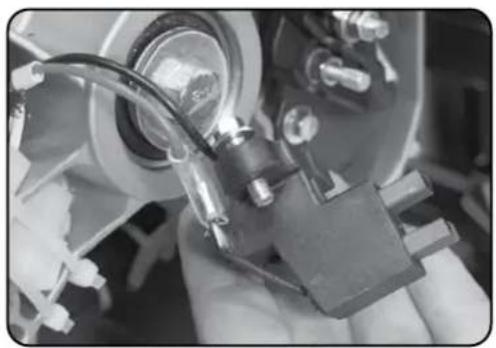

4. Install new brush

Install new carbon brush with bolt.

Close-up of a robotic arm with mechanical components and wiring (no visible text or symbols)

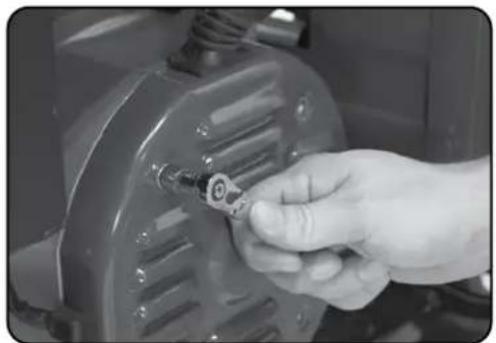

5. Connect AVR wires

Insert and connect the 2 wires from the AVR, be sure to connect + and - correctly.

Close-up of a hand adjusting a mechanical component with a small tool (no visible text or symbols)

6. Replace generator cover

Replace the back cover of the generator and secure with the 2 bolts.

Changing / Inspecting the AVR

The carbon brushes in conjunction with the AVR regulates power from the generator. If the generator is overheated or overloaded, the AVR may be damaged and require replacement.

Interior view of a mechanical device with internal components and wiring (no visible text or symbols)

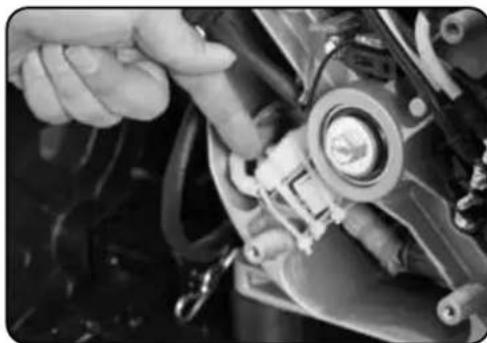

1. Unbolt the AVR

Remove the 2 bolts of the AVR, located behind the power panel.

Close-up of a hand adjusting a mechanical component with visible gears and shafts (no text or symbols)

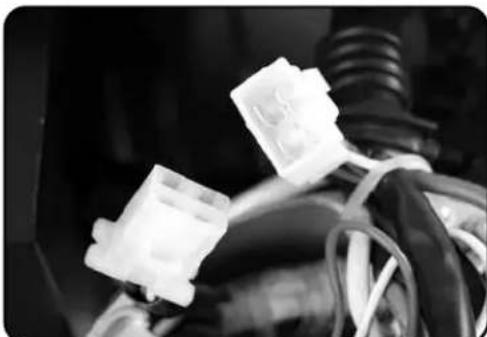

2. Cut zipties

Remove the back cover (see step 1 on page 53). Cut the zip ties connecting the AVR to the brush system..

Close-up of white plastic connectors attached to black cables (no visible text or symbols)

3. Disconnect AVR wire clip

Disconnect the wire clip.

TROUBLESHOOTING (CONTINUED)

Changing / Inspecting the AVR (Continued)

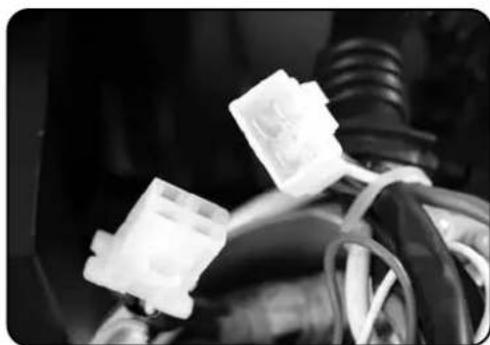

Close-up of white plastic connectors tied with coiled cables, no visible text or symbols

4. Reconnect AVR

Reconnect AVR wire to brush system.

Close-up of a hand inserting a small mechanical component into a vehicle chassis (no visible text or symbols)

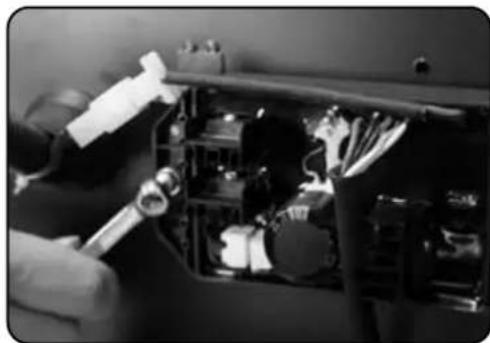

5. Replace cover

Replace the rear cover of the generator

Close-up of a technician working on an electronic device with visible circuitry and components (no text or symbols)

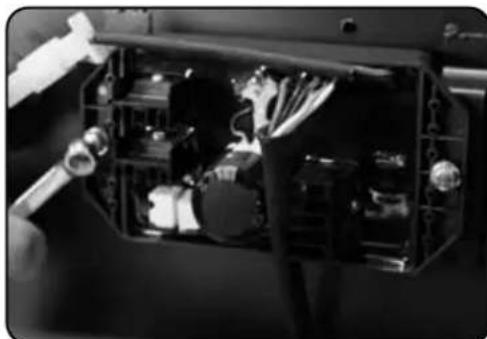

6. Replace new AVR

Bolt the new replacement AVR onto the back of the power panel.

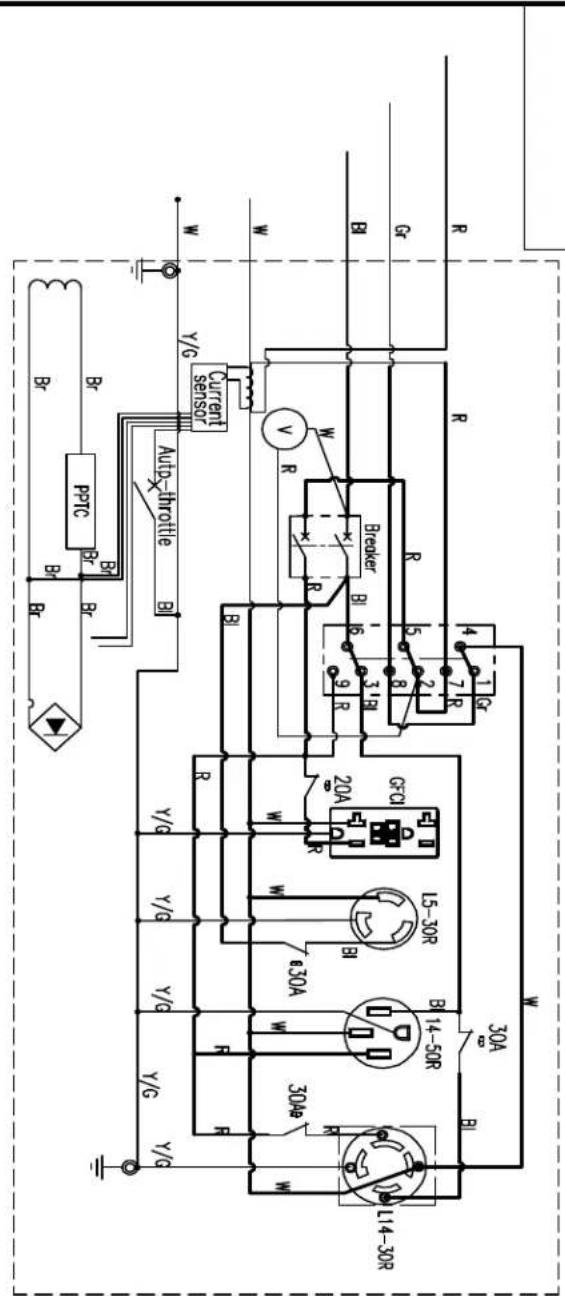

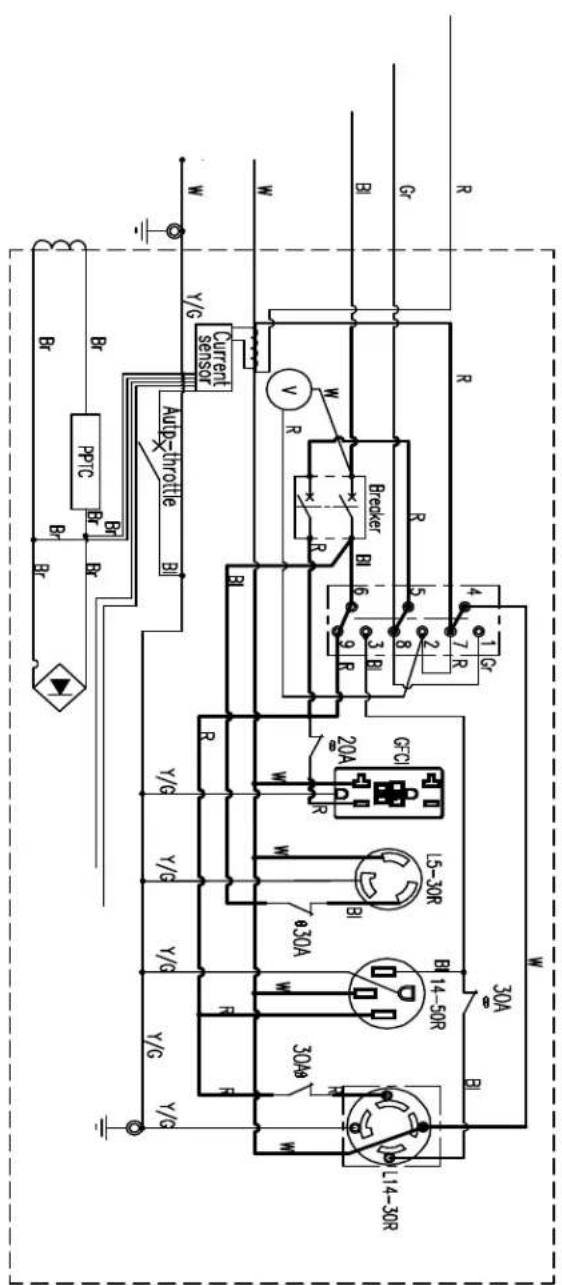

WIRING DIAGRAM

1287

120/2407

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

Exterior view of a Duro Max Power Systems XP15000EH utility vehicle (no signage or text overlays on the device body)

WARRANTY

This section of the manual is to help you to understand your Manufacturer's 3-Year Warranty.

WARRANTY

3-year Warranty

All DuroMax/DuroStar Power Equipment warrant the original purchasers to a 3-year Parts Warranty (Residential Use ONLY: Unusually heavy or commercial use is covered for a period of 1-year) in the event of failure due to defects in electrical or mechanical components. Freight on any items submitted for replacement or repair under the Warranty are the responsibility of the equipment owner. This warranty is non-transferable and only valid to the original purchaser.

Warranty Exclusions

The DuroMax/DuroStar Power Equipment warranty does not cover repairs or returns when the fault is: Normal Wear and Tear, Installation Use or Maintenance Services, Cosmetic defects, Accessories, Failures due to acts of God or Natural Disasters, or problems related to/from aftermarket or non-OEM parts.

Warranty Limitations

DuroMax/DuroStar Power Equipment does not claim or hold any obligation to loss of time, freight charges, use of product, or any incidental damages from the use of this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.

U.S. EPA AND CALIFORNIA EMISSIONS CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

The U.S. Environmental Protection Agency (EPA), California Air Resources Board, and Imperial Industrial Supply Co. LTD. / DuroMax Power Equipment are pleased to explain the emissions control system's warranty on your 2021/2022 small off-road engine. In California, new equipment that use small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. DuroMax Power Equipment must warrant the emissions control system on your small off-road engine for the period listed below provided there has been no abuse, neglect, or improper maintenance of your equipment.

Your emissions control system may include parts such as: carburetors or the fuel injection system, ignition system, catalytic converters, fuel tanks, valves, filters, clamps, connectors, and other associated components. Also, included may be hoses, belts, connectors, sensors, and other emission-related assemblies.

Where a warrantable condition exists, DuroMax Power Equipment will repair your small off-road engine at no cost to you including diagnosis, parts, and labor.

MANUFACTURER'S WARRANTY COVERAGE:

This emissions control system is warranted for two years. If any emissions-related part on your equipment is defective, the part will be repaired or replaced by DuroMax Power Equipment.

OWNER'S WARRANTY RESPONSIBILITIES:

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your owner's manual. DuroMax Power Equipment recommends that you retain all receipts covering maintenance on your small off-road engine, but DuroMax Power Equipment cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
• As the small off-road engine owner, you should however be aware that the DuroMax Power Equipment may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
• You are responsible for presenting your small off-road engine to a DuroMax Power Equipment distribution center or service center as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
• If you have any questions regarding your warranty coverage, contact us at 844-DUROMAX or email [e-mail].

DEFECTS WARRANTY REQUIREMENTS:

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser and extends for a period of Two Years.

GENERAL EMISSIONS WARRANTY COVERAGE:

DuroMax Power Equipment warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is:

1. Designed, built, and equipped to conform with all applicable regulations adopted by the Air Resources Board; and
2. Free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

The warranty on emissions-related parts will be interpreted as follows:

1. Any warranted part that is not scheduled for replacement as required maintenance in the Owner's Manual must be warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, it must be repaired or replaced by the manufacturer according to Subsection (4) below. Any such part repaired or replaced under the warranty must be warranted for the remaining warranty period.

WARRANTY (CONTINUED)

1. Any warranted part that is scheduled only for regular inspection in the Owner's Manual must be warranted for the warranty period stated above. A statement in such written instructions to the effect of "repair or replace as necessary" will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty must be warranted for the remaining warranty period.
2. Any warranted part that is scheduled for replacement as required maintenance in the Owner's Manual must be warranted for the period prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part must be repaired or replaced by the engine manufacturer according to Subsection (4) below. Any such part repaired or replaced under warranty must be warranted for the remainder of the period prior to the first scheduled replacement point for the part.
3. Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station.
4. Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all manufacturer distribution centers that are franchised to service the subject engines.
5. The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station.
6. The manufacturer is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.
7. Throughout the emissions warranty period stated above, the manufacturer must maintain a supply of warranted parts sufficient to meet the expected demand for such parts.
8. Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
   a. Such use will not reduce the warranty obligations of the manufacturer.
9. Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any nonexempt add-on or modified parts will be grounds for disallowing a warranty claim. The manufacturer will not be liable to warrant failures of warranted parts caused using a nonexempt add-on or modified part.
10. The manufacturer issuing the warranty shall provide any documents that describe that manufacturer's warranty procedures or policies within five working days of request by the Air Resources Board.

Exhaust Emission Warranty Parts List.

1. Fuel Metering System

i. Carburetor and internal parts (and/or pressure regulator or fuel injection system).

ii. Air/fuel ratio feedback and control system.

iii. Cold start enrichment system.

1. Air Induction System

i. Controlled hot air intake system.

ii. Intake manifold.

1. Ignition System

i. Spark Plugs.

ii. Magneto or electronic ignition system.

iii. Spark advance/retard system.

1. Air Injection System

i. Air pump or pulse valve.

ii. Valves affecting distribution of flow.

iii. Distribution manifold.

1. Catalyst or Thermal Reactor System (i) Catalytic converter.

i. Thermal reactor.

ii. Exhaust manifold.

1. Particulate Controls

2. Traps, filters, precipitators, and any other device used to capture particulate emissions.

3. Electronic controls.

4. Vacuum, temperature, and time sensitive valves and switches.

5. Hoses, belts, connectors, and assemblies.

6. Evaporative Emission Warranty Part List

i. Fuel Tank*

ii. Fuel Cap

iii. Fuel Line

iv. Fuel Line Fittings

v. Clamps**

vi. Pressure Relief Valves**

vii. Control Valves**

viii. Control Solenoids**

ix. Electronic Controls**

x. Vacuum Control Diaphragms**

xi. Control Cables**

xii. Control Linkages**

xiii. Purge Valves

xiv. Vapor Hoses

xv. Liquid/Vapor Separator

xvi. Carbon Canister

xvii. Canister Mounting Brackets

xviii. Carburetor Purge Port Connector

*Note: The parts list for equipment less than or equal to 80 cc only includes the fuel tank.

**Note: As they relate to the evaporative emission control system.

DuroMax Power Equipment will furnish with each new engine written instructions for the maintenance and use of the engine by the owner.

CUSTOMER SERVICE

Duromax Power Equipment is committed to ensuring that our products perform when they need to. Our generators are your lifeline in the event of an emergency. Should you have any problems, please contact our customer service department:

DUROMAX POWER EQUIPMENT 5800 Ontario Mills Parkway Ontario, CA 91764

Customer Service: 844-DUROMAX Customer Service Hours: 8-5pm PST

Website: www.duromaxpower.com Email: [e-mail]

Black-and-white photo of a woman wearing a headset, smiling while holding a computer monitor (no visible text or symbols)

Duro

NEXT GENERATION

Max

POWER SYSTEMS

POWERING EVERYONE...

ANYWHERE!

Duro NEXT GENERATION

Max POWER SYSTEMS

5800 Ontario Mills Parkway

Ontario, CA 91764

United States

844-DUROMAX
