Product Type	Outdoor Swing Set / Play Structure
Brand	Backyard Discovery
Model	Oceanview (also known as Venture Point; Models: 1606012, 2300224, 2200265)
Recommended Age	3 to 10 years
Maximum Number of Users	9 children
Weight Capacity per Child	120 lbs (multiple user activities); 150 lbs (individual use)
Material	Pre-cut wood (pine or cedar, not specified)
Assembled Dimensions (Approx.)	Width: 21 ft 8 in (6.6 m), Depth: 16 ft 7.5 in (5.1 m), Height: 18 ft 5 in (5.6 m)
Maximum Fall Height	6 ft 8.5 in (2.0 m)
Safe Play Area Required	33 ft 8 in x 28 ft 7.5 in (10.3 m x 8.7 m) plus overhead clearance

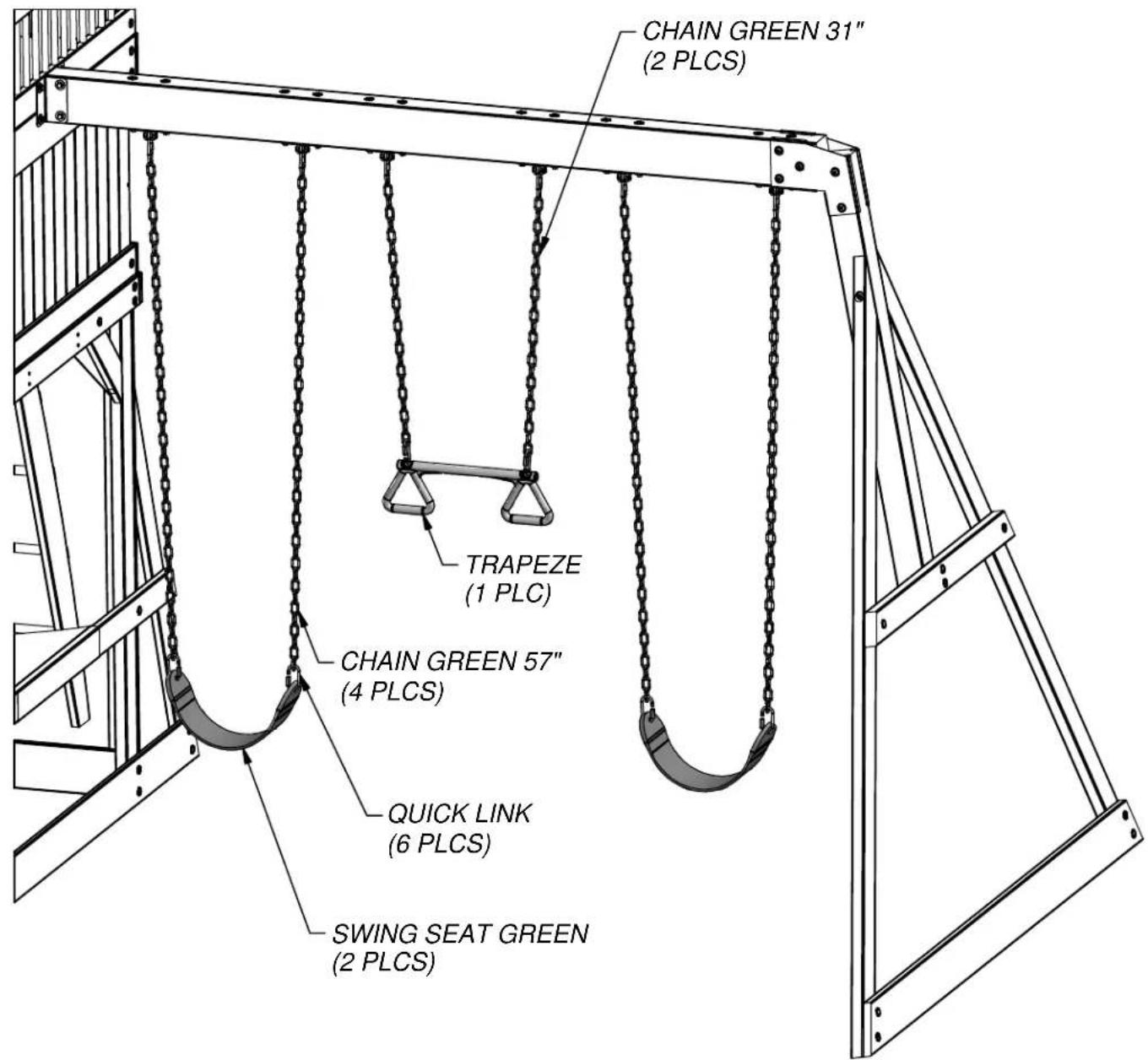

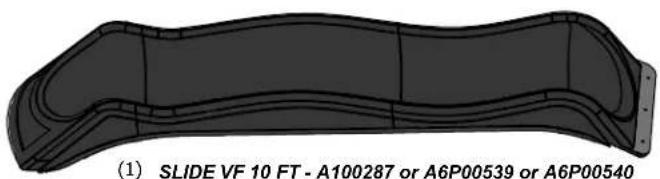

Included Accessories	2 swing seats, trapeze, 10 ft wave slide, monkey bars, ladder, hammock, curtains, roof panels, ground stakes
Assembly Required	Yes, adult assembly (2 adults recommended)
Assembly Time	Approximately 8-12 hours (estimation based on 110 pages manual)
Tools Required	Not included; screwdriver, wrench, drill, Torx bit (T-30) provided
Use Location	Outdoor, residential, on level ground

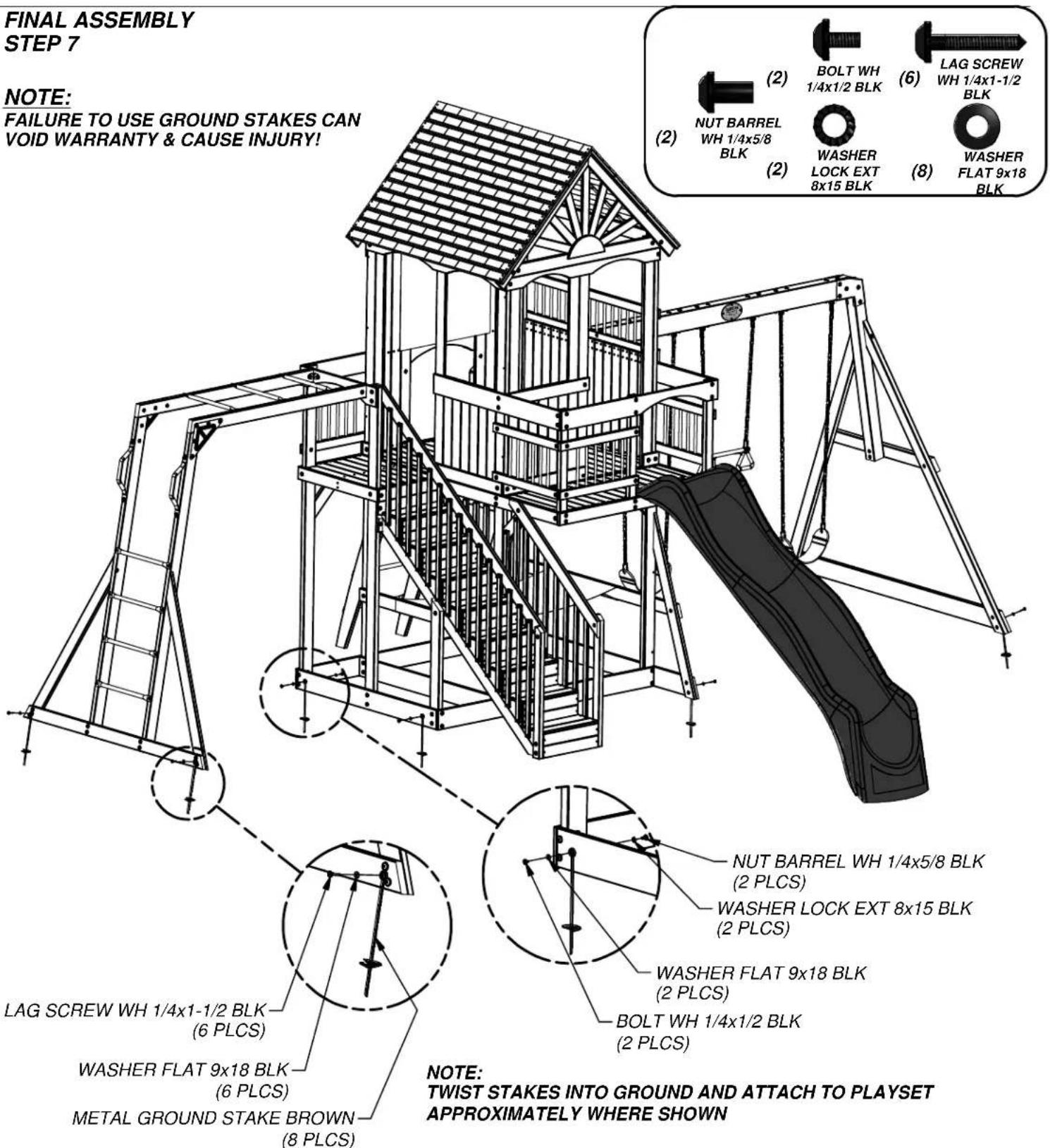

Ground Anchoring	Required; includes 8 ground stakes
Warranty	Refer to manual; failure to use ground stakes may void warranty
Safety Warning	Not suitable for children under 36 months due to small parts
Maintenance	Periodic checks for tightness of bolts and screws, wood treatment recommended
Replacement Parts	Available at www.backyarddiscovery.com

Frequently Asked Questions - Oceanview Backyard Discovery

What is the recommended age for this swing set?

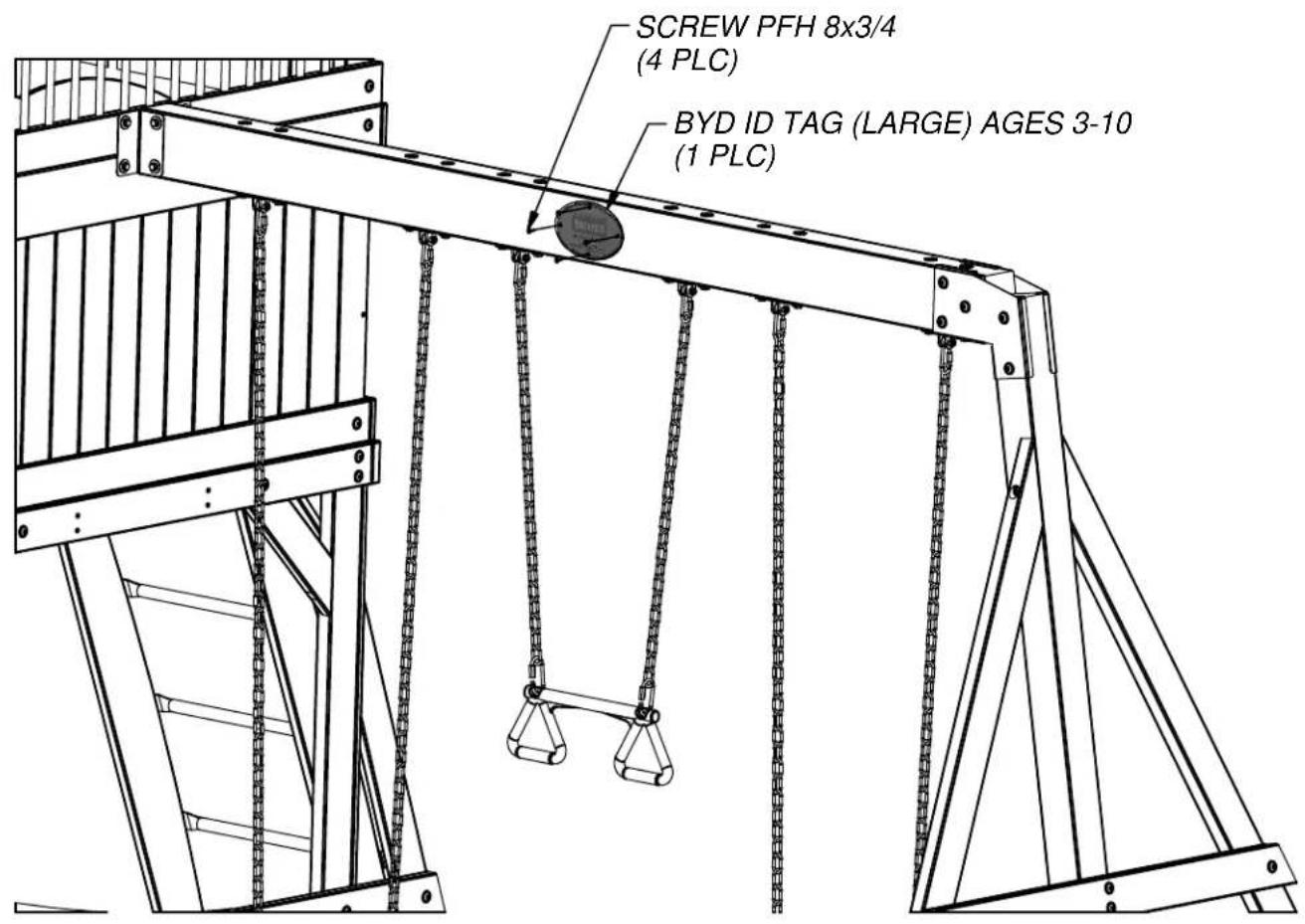

The recommended age range is 3 to 10 years as indicated on the ID tag. Not suitable for children under 36 months due to small parts.

How many children can use the set at once?

The set is designed for a maximum of 9 children simultaneously.

What is the maximum weight per child?

For individual use activities, the maximum weight is 150 lbs (68 kg). For multiple child use, it is 120 lbs (54 kg) per child.

Do I need to anchor the set to the ground?

Yes, anchoring is required. The set includes 8 ground stakes. Failure to use them may void the warranty and cause injury.

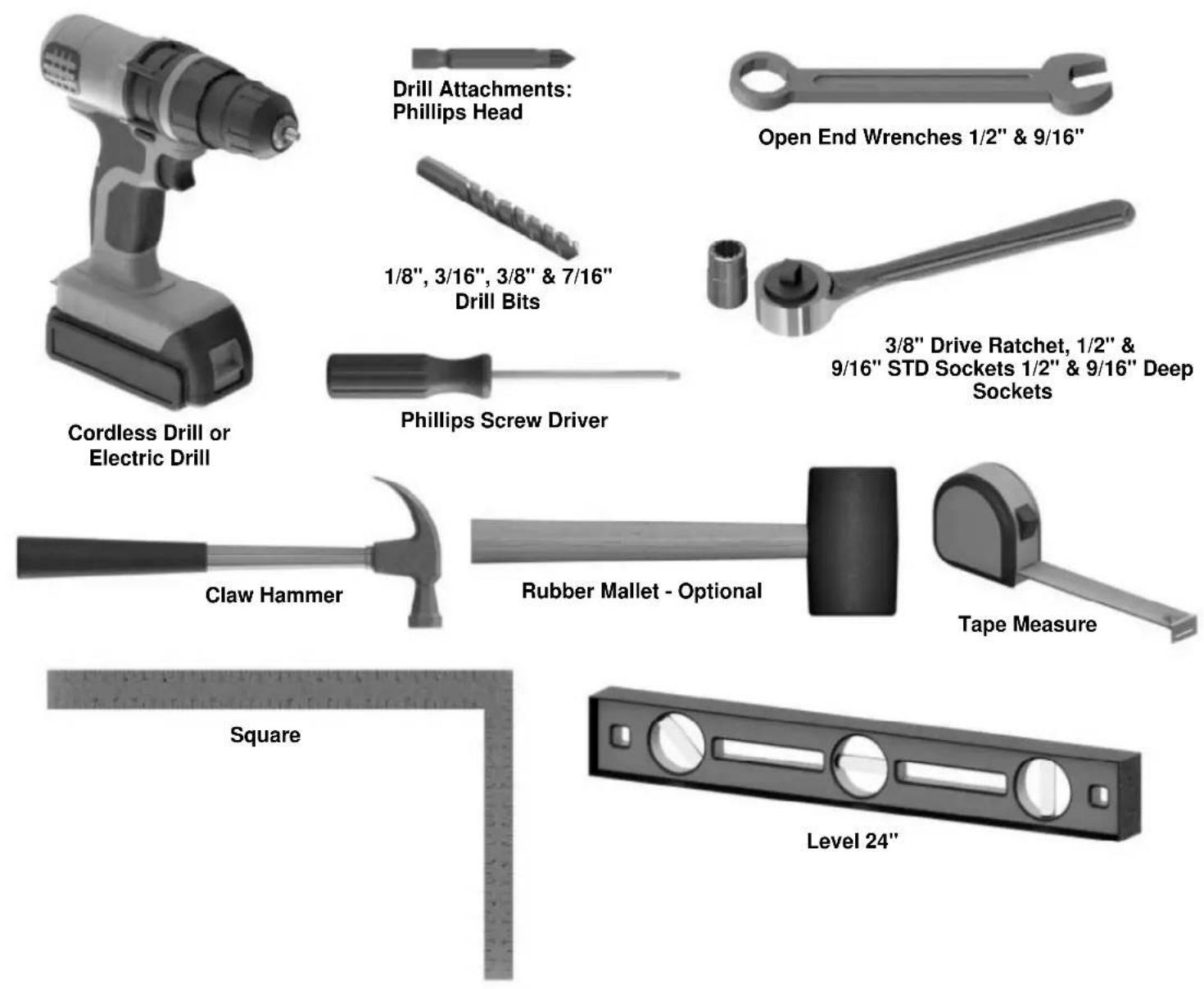

What tools are needed for assembly?

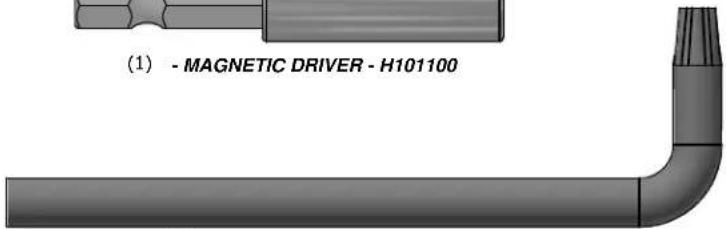

You will need a screwdriver, wrench, drill, and the provided T-30 Torx bit. Other common tools may be helpful.

How long does assembly take?

Assembly time is estimated at 8-12 hours with two adults. The manual is 110 pages, and 3D instructions via the BILT app are available.

Is the wood treated?

The wood is pre-cut and untreated. For longevity, we recommend applying a wood sealant or stain before exposure to weather.

Where can I get replacement parts?

Replacement parts can be ordered online at www.backyarddiscovery.com or by contacting customer service using the numbers in the manual.

What is the maximum fall height?

The maximum fall height is 6 ft 8.5 in (2.0 m). Ensure the surface under the set has adequate impact-absorbing material.

Can I install the set on grass?

Yes, install on level grass or a soft surface. Ensure a safe play area of 33 ft 8 in x 28 ft 7.5 in (10.3 m x 8.7 m) is clear of obstacles.

USER MANUAL Oceanview Backyard Discovery

Basepoint Business Centre: Rivermead Drive, Westlea, Swindon SN5 7EX Phone: [phone]

J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: [phone]

OCEANVIEW

VENTURE POINT

Swing Set

Model # 1606012, 2300224, & 2200265

The assembly manual must be retained

since it contains important information

Adult Assembly Required.

Not suitable for children under 36 months due to small parts.

FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.

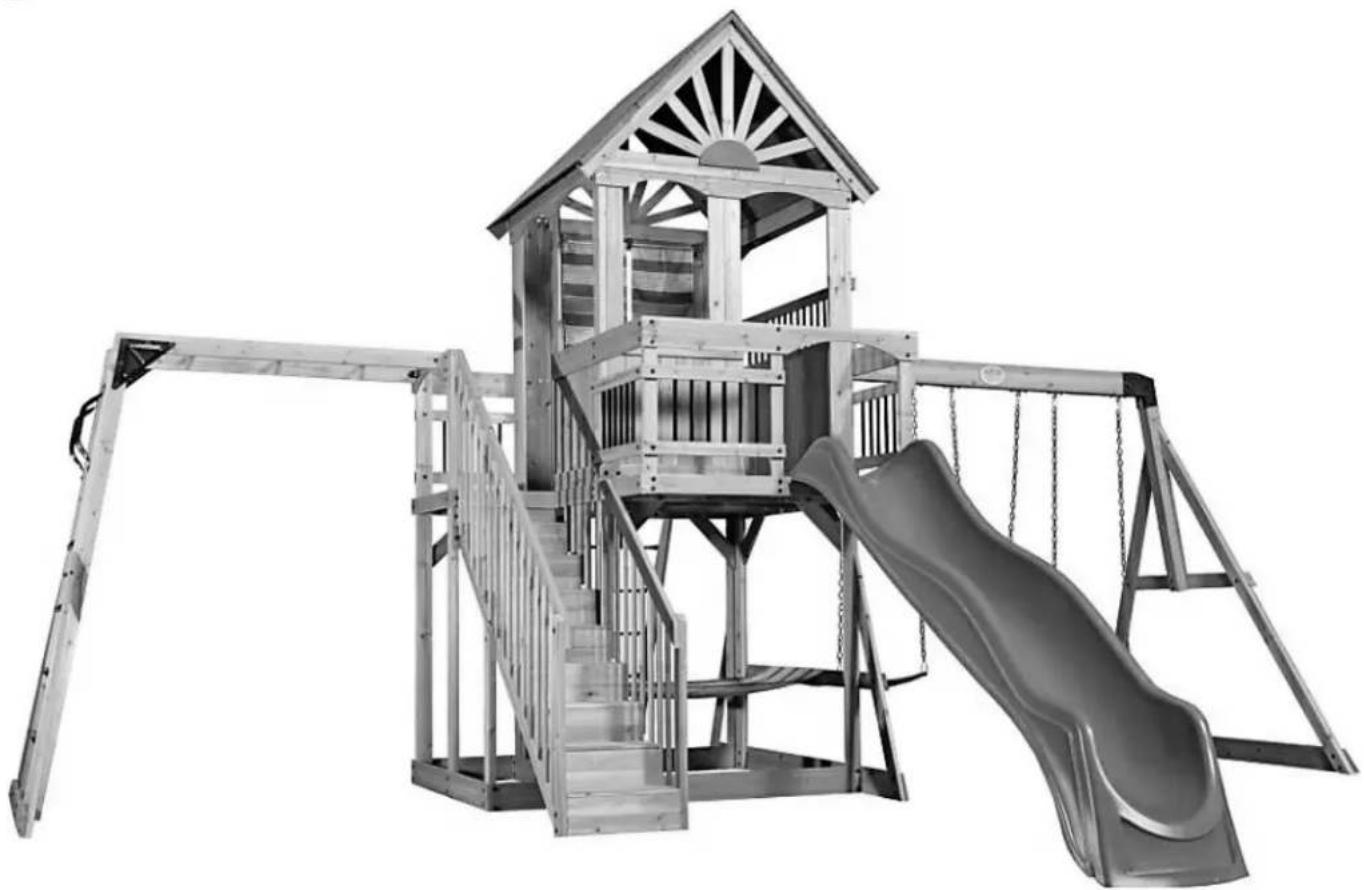

Black-and-white photo of a wooden play structure with stairs, slides, and a curved ramp (no text or symbols visible)

Please visit www.backyarddiscovery.com

For the most up to date assembly manual, to register your set, or to order replacement parts

Download on the App Store

Google play

Made in China

INS-1606012 or 2300224-A-OCEANVIEW-ENG 07-26-2023

INS-2200265-A-VENTURE POINT-ENG 07-26-2023

Owner's Manual - Basic Setup Dimensions & Assembly Notes

Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.

• While assembling unit, take time before and after each phase to make sure fort is level. If fort is not level, assembly will be difficult and improper assembly may result. Extra care must be taken to insure the fort is square.
• The safe play area refers to a zone extending 6'-7" (2 m) beyond the play product on all sides, including the space above the play product.

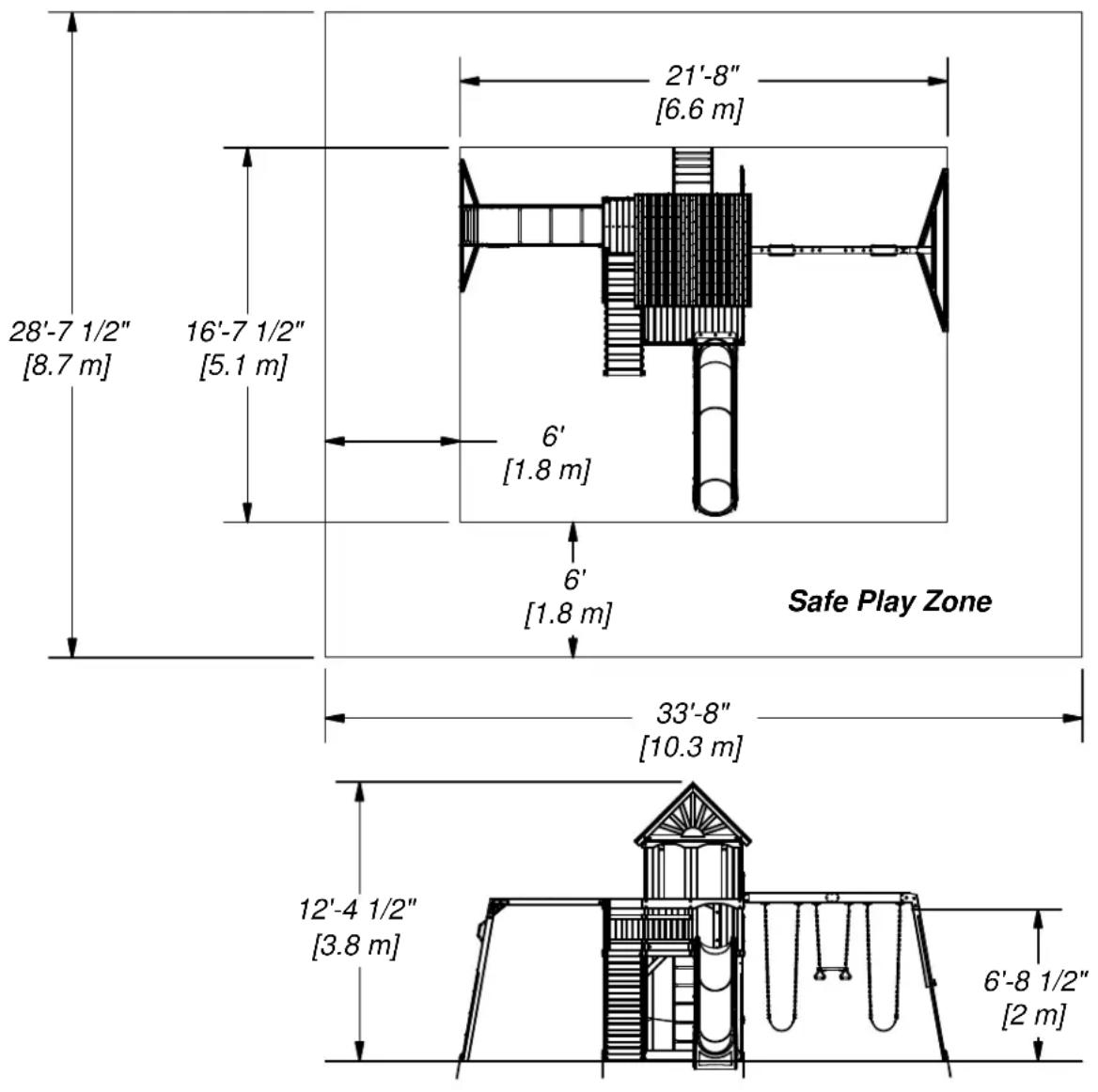

SAFE PLAY AREA DIAGRAM

General Information:

Safe play height: 18'-5" [5.6 m] Maximum fall height: 6'-8 1/2" [2 m]

Your set has been designed and engineered for children only and for residential use only.

A maximum of 150 lbs. per child is recommended for play activities designed for individual use.

A maximum of 120 lbs. per child is recommended for play activities designed for multiple child use.

A maximum of 9 children is recommended for this swing set.

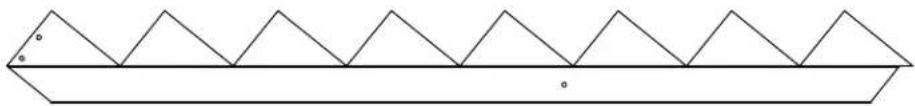

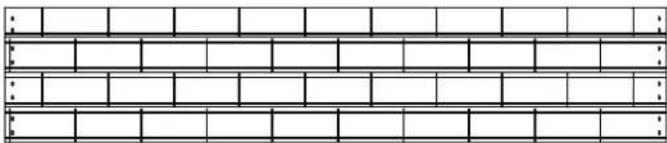

Parts Identification

Wood Components

(NOT TO SCALE)

Pure geometric lines forming a trapezoid with no text, numbers, or symbols

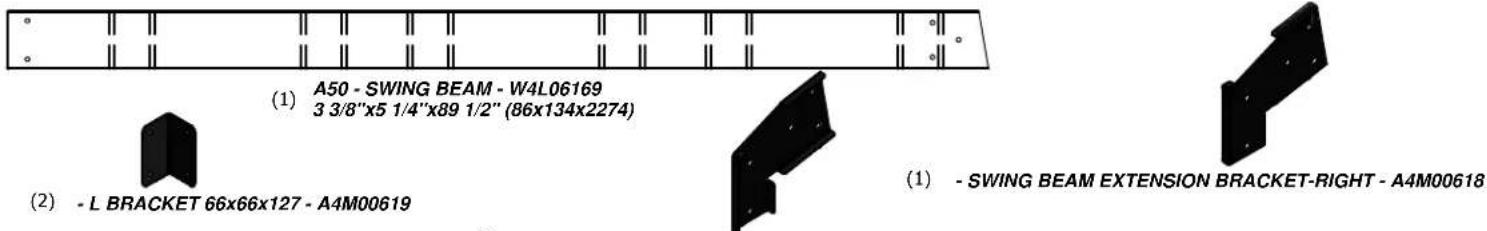

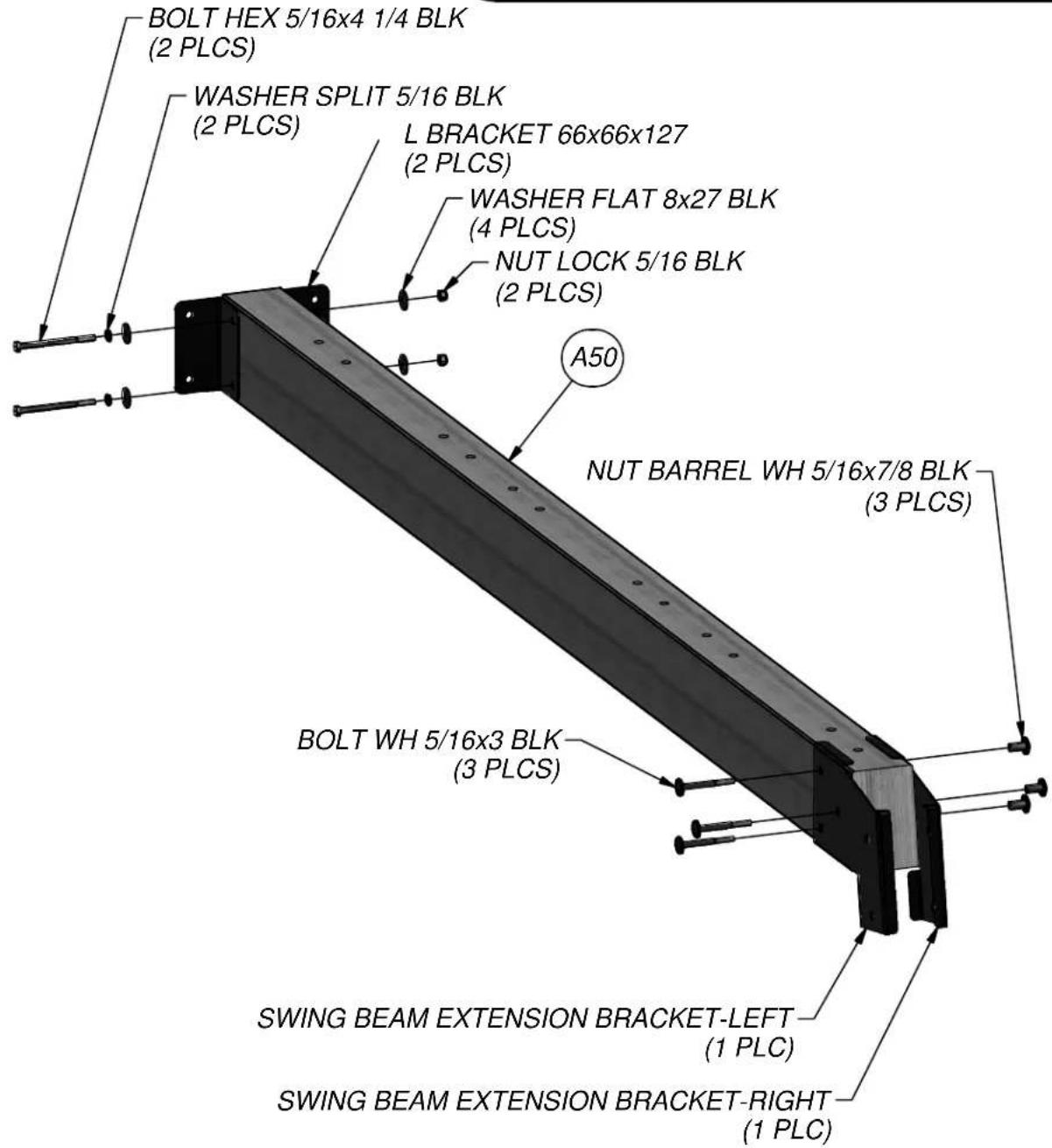

(1) A50 - SWING BEAM - W4L06169 3 3/8"x5 1/4"x89 1/2" (86x134x2274)

Pure horizontal line with scattered dots at the bottom (no text or symbols)

(1) E1 - UPRIGHT - W4L06055 1 3/8"x3 3/8"x86 1/8" (36x86x2186)

Pure horizontal line with evenly spaced circular markers (no text or symbols)

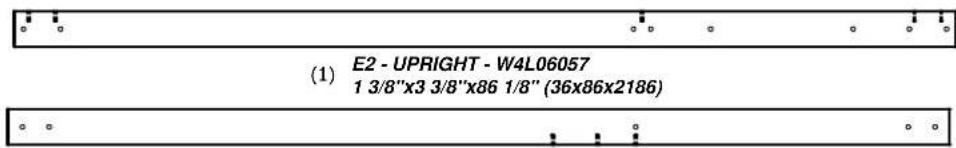

(1) E2 - UPRIGHT - W4L06057 1 3/8"x3 3/8"x86 1/8" (36x86x2186)

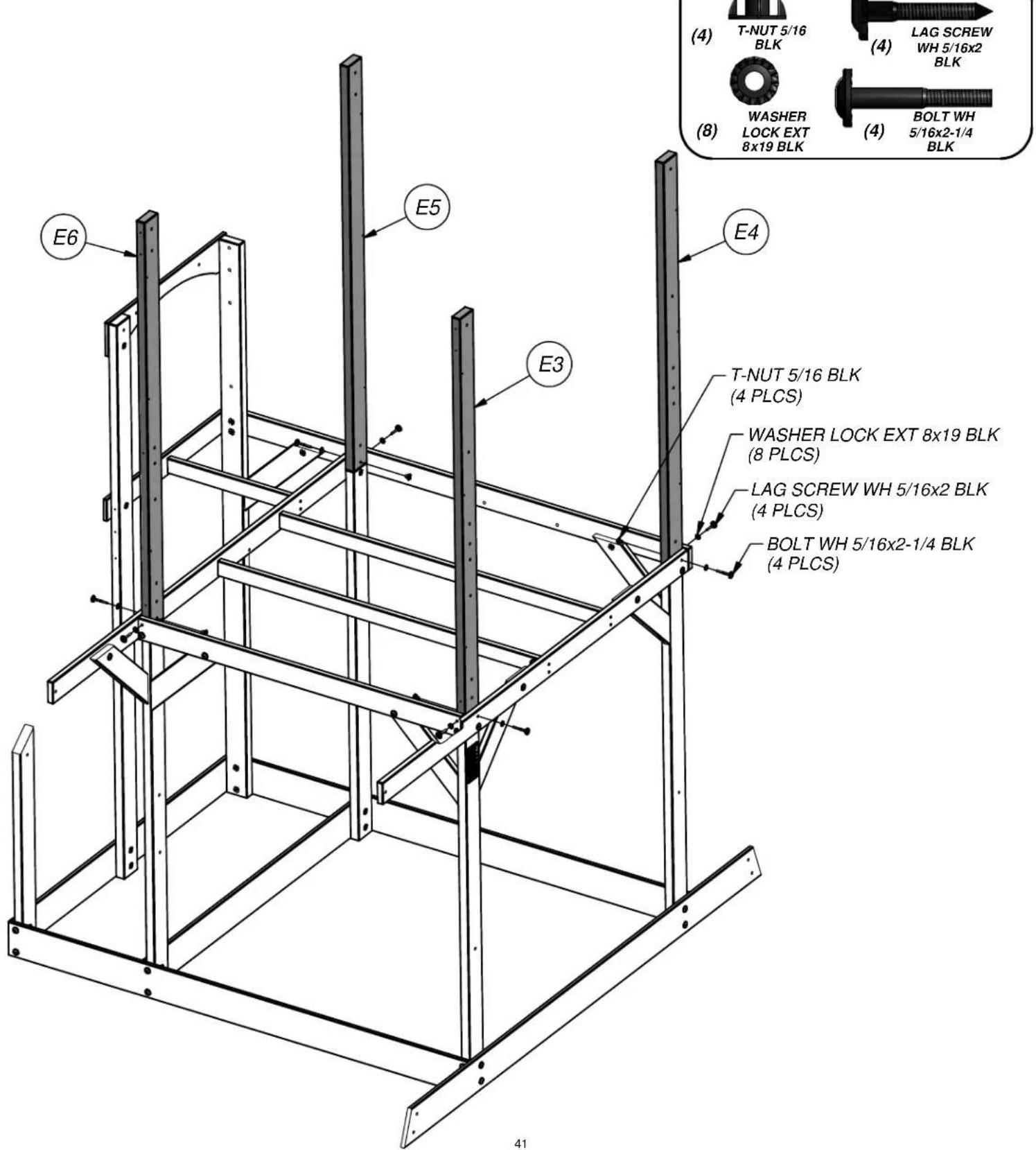

(1) E3 - UPRIGHT - W4L06069 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E4 - UPRIGHT - W4L06085 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E5 - UPRIGHT - W4L06090 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E6 - UPRIGHT - W4L06091 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E7 - UPRIGHT - W4L06051 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

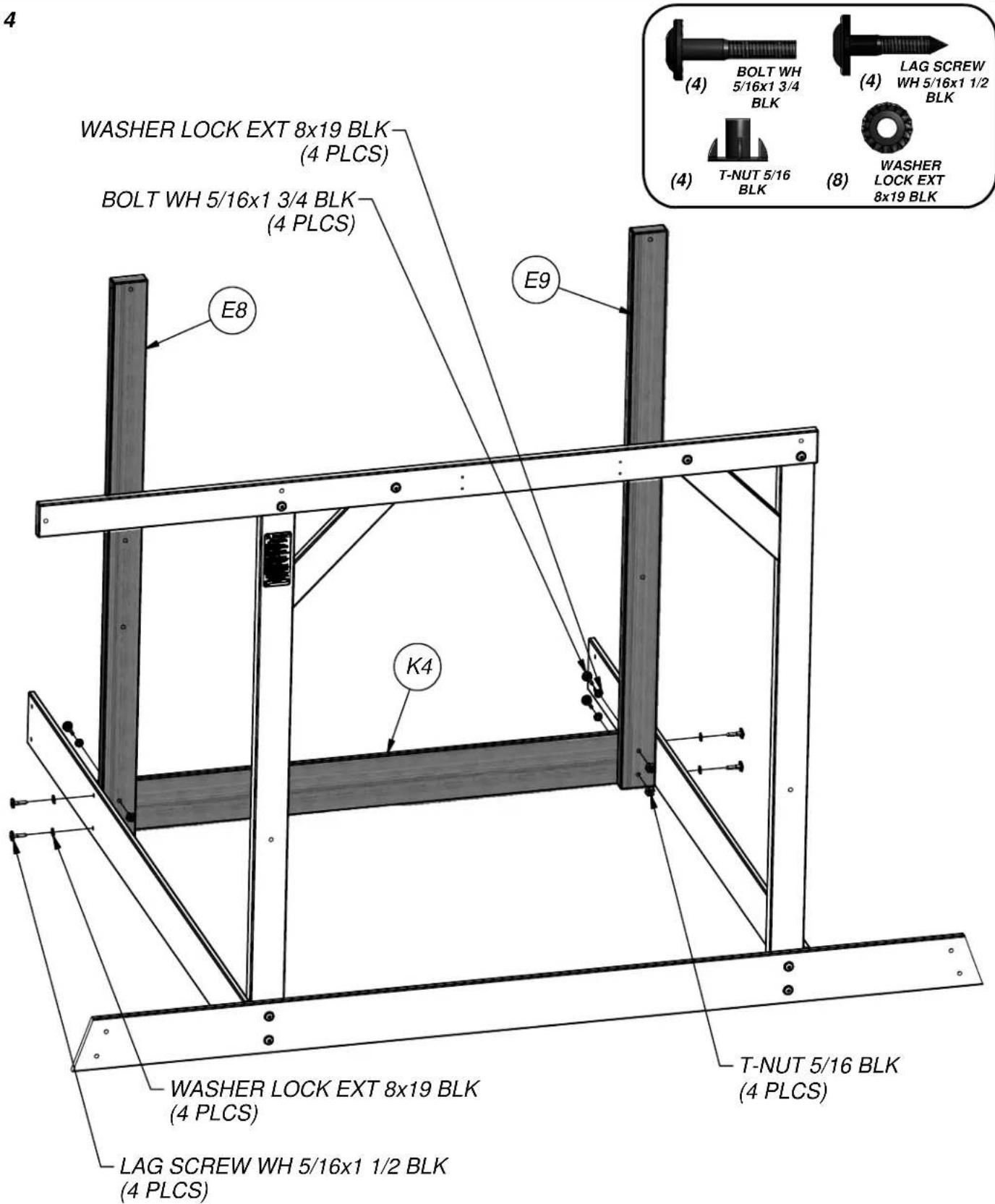

(1) E8 - UPRIGHT - W4L06058 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

(1) E9 - UPRIGHT - W4L06061 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

(1) E10 - UPRIGHT - W4L06053 1 3/8"x3 3/8"x34 1/4" (36x86x869)

(1) E11 - UPRIGHT - W4L06127 1 3/8"x3 3/8"x10 7/8" (36x86x275)

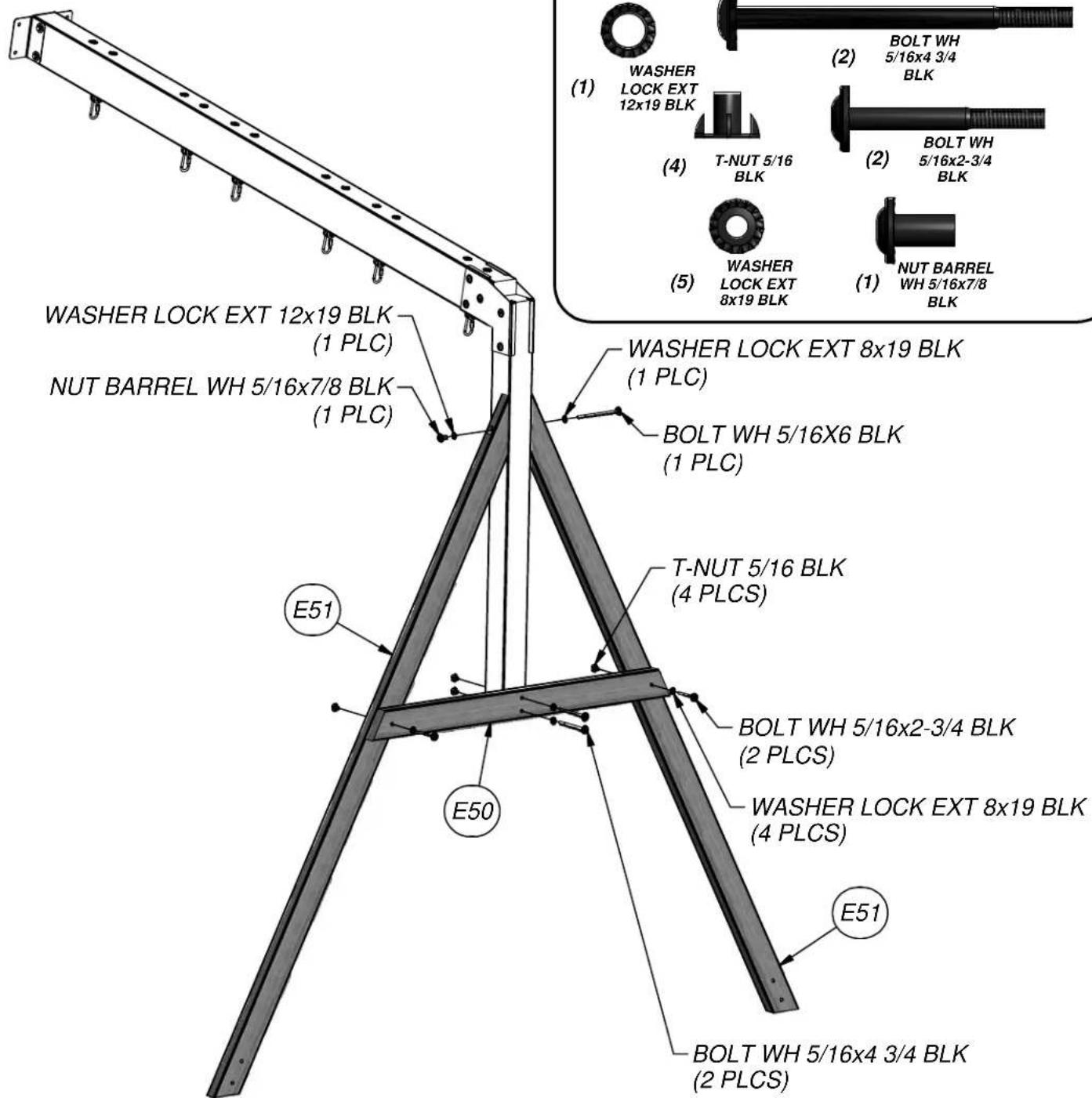

(1) E50 - END SUPPORT - W4L06172 1 3/8"x3 3/8"x44 1/8" (36x86x1120)

Pure geometric shape with no text, numbers, or symbols

(2) E51 - ANGLE BRACE - W4L06171 1 3/8"x3 3/8"x88 3/4" (36x86x2254)

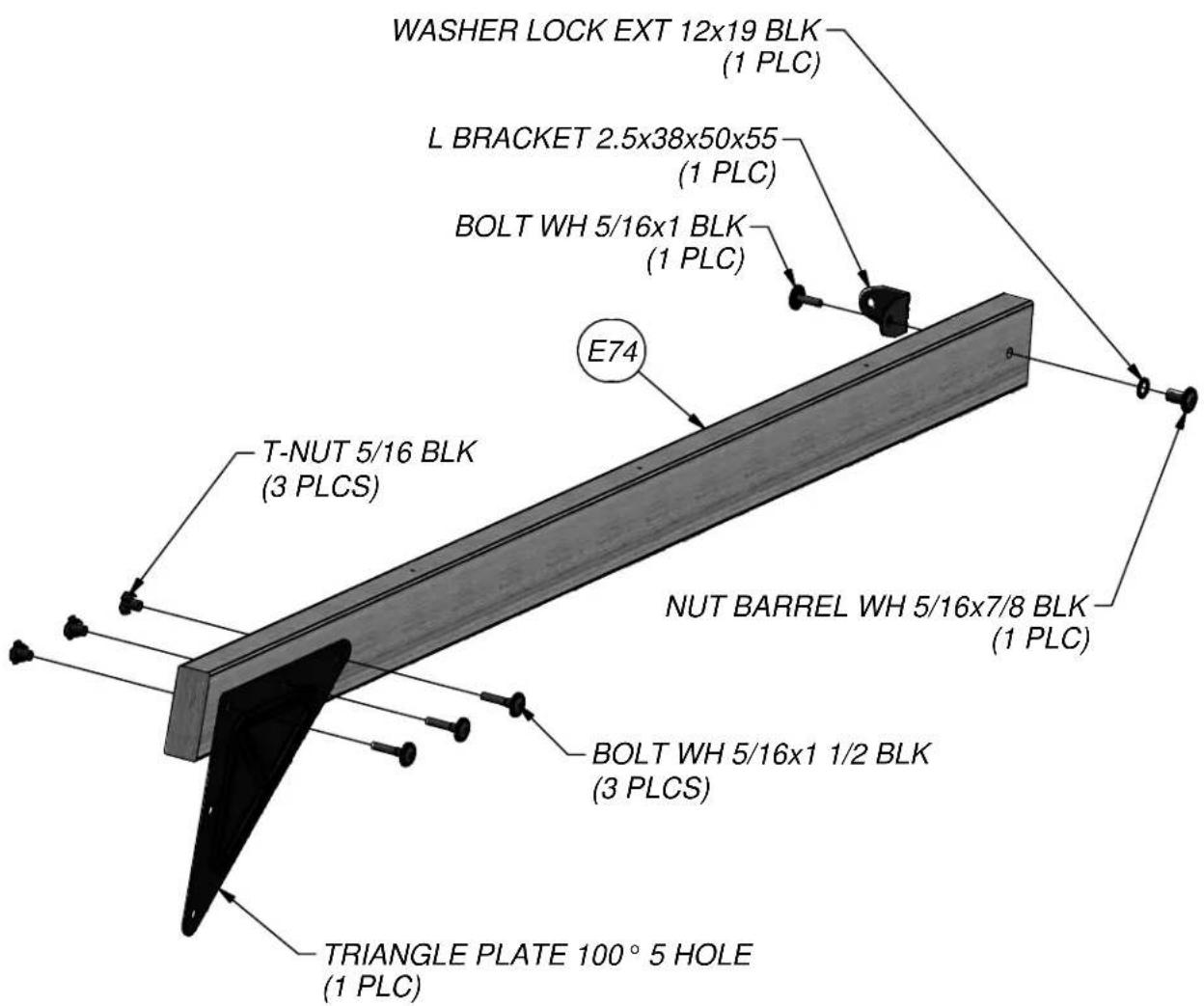

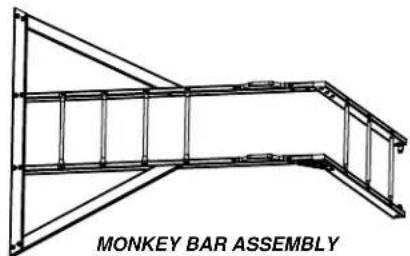

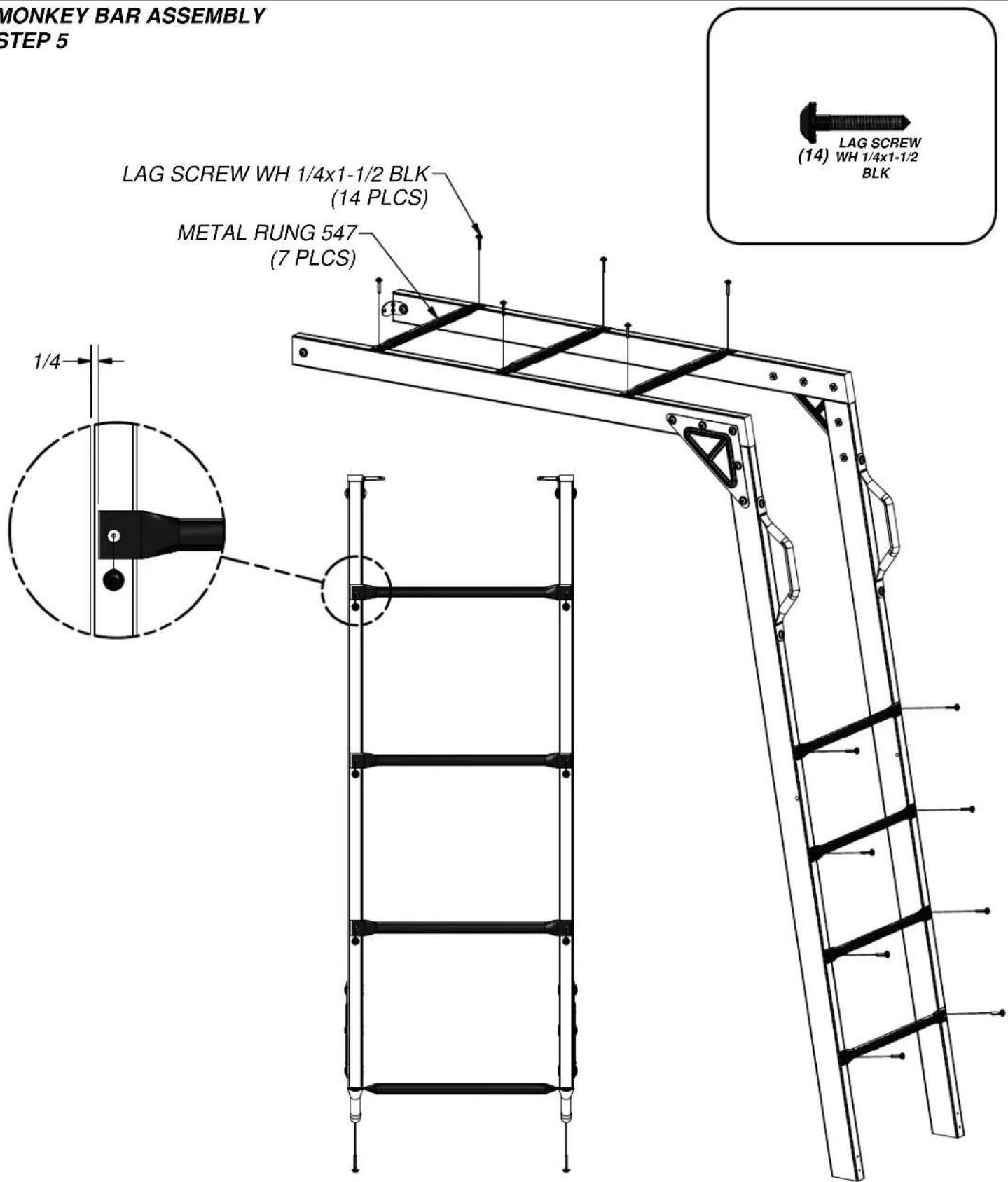

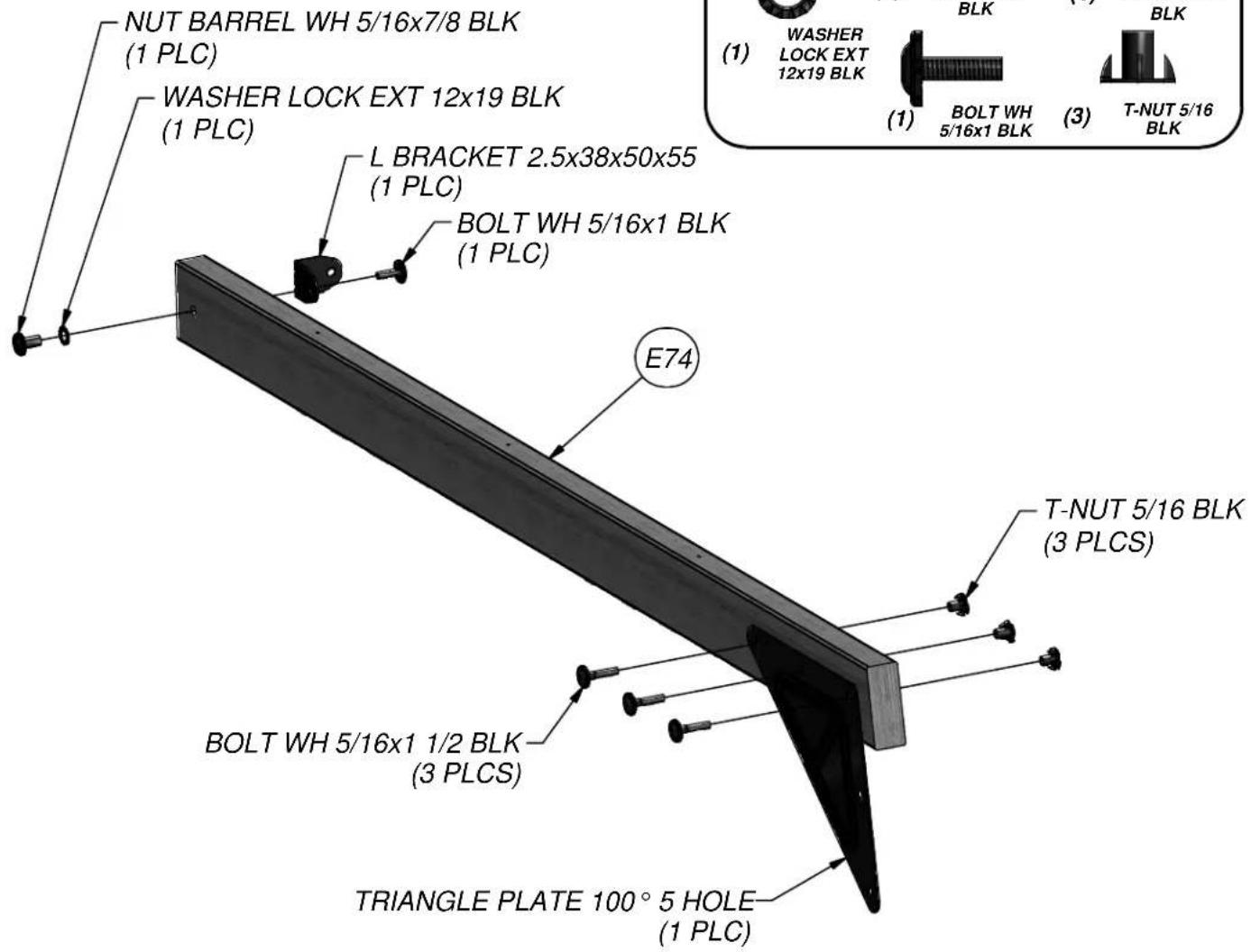

(2) E74 - MONKEY BAR RAIL - W4L06149 1 3/8"x3 3/8"x60 5/8" (36x86x1539)

Parts Identification

Wood Components

(NOT TO SCALE)

Simple horizontal line with evenly spaced dots and two small circles at the end (no text or symbols)

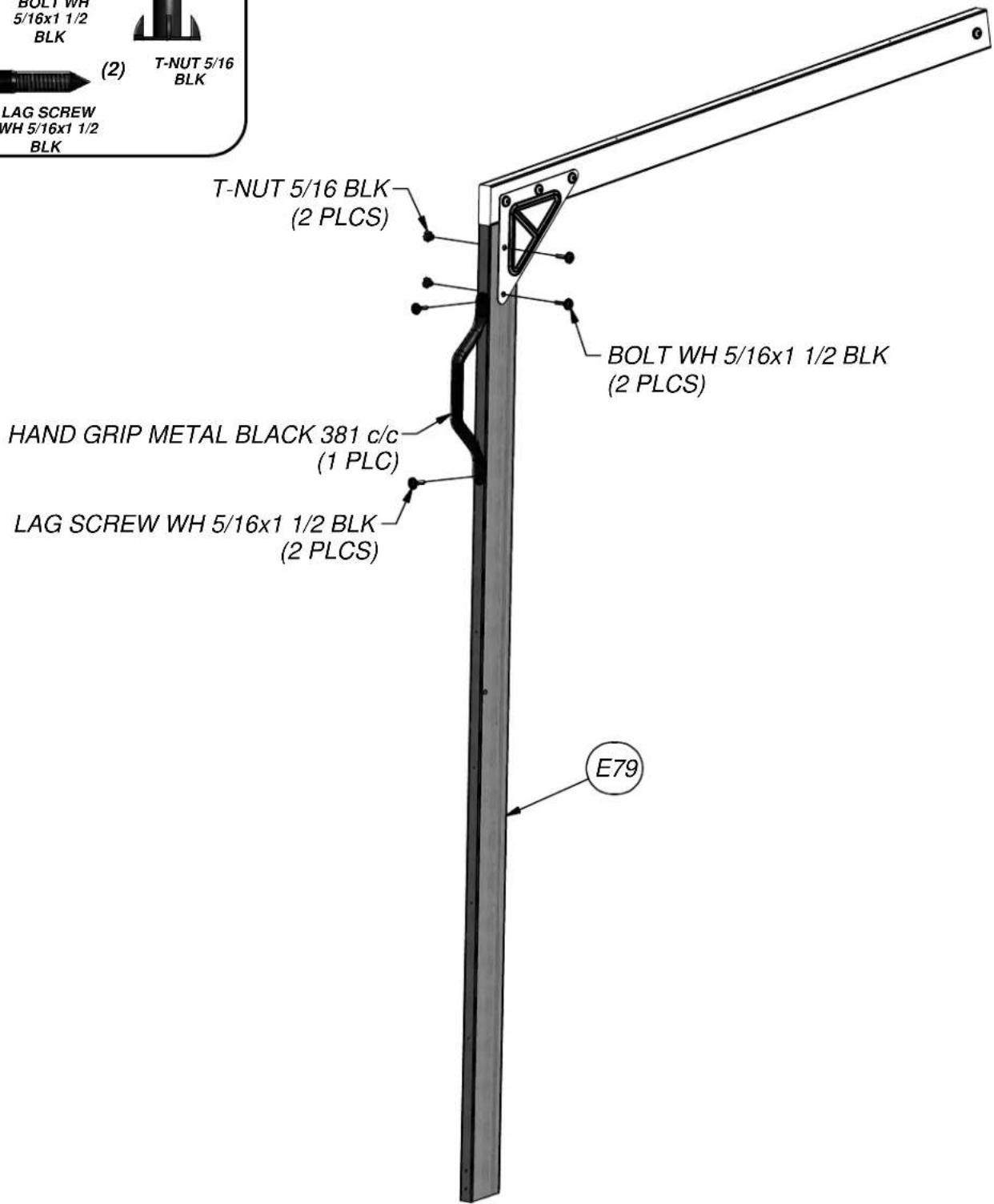

(2) E79 - MONKEY BAR UPRIGHT - W4L06150 1 3/8"x3 3/8"x84 1/2" (36x86x2148)

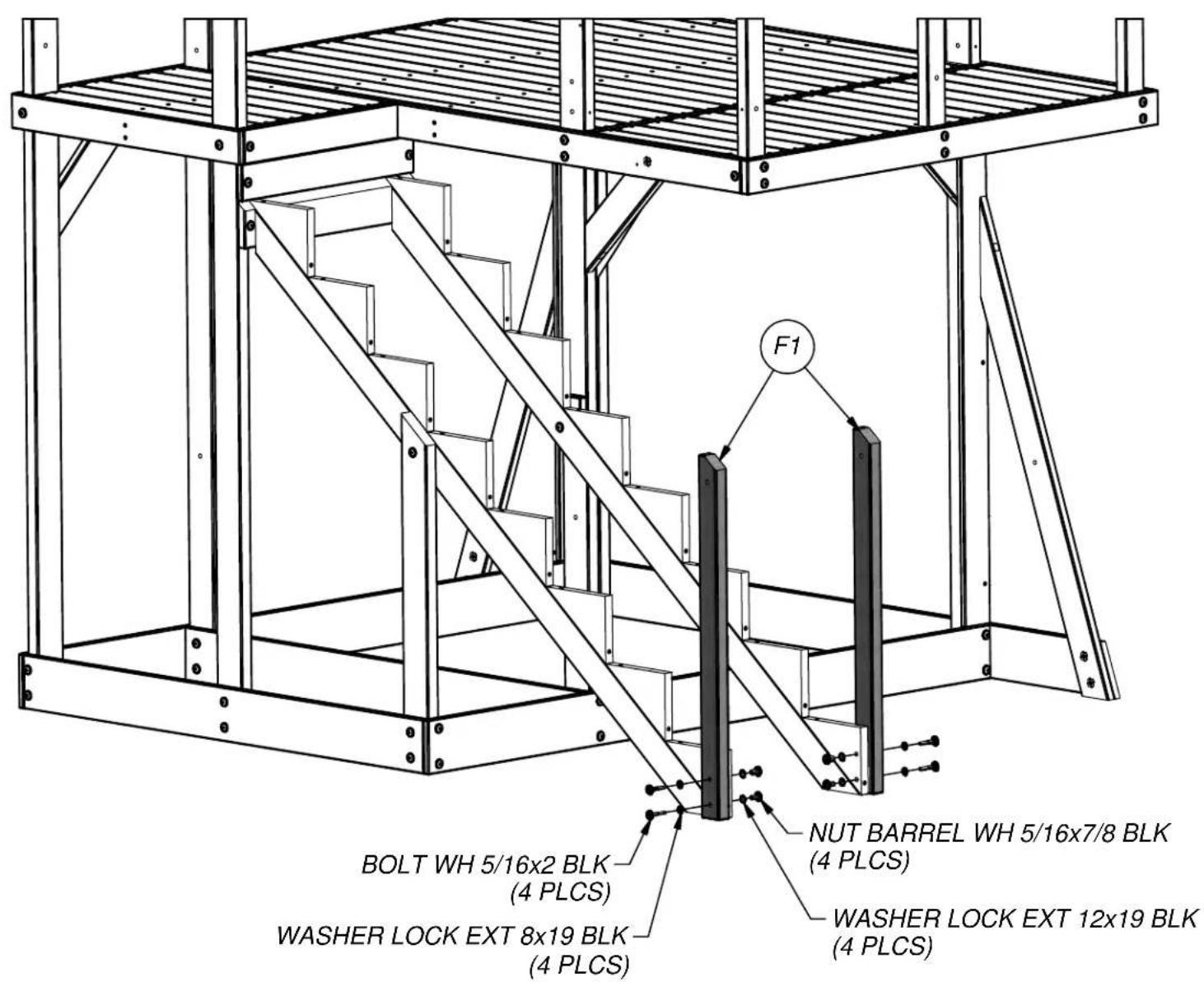

(2) F1 - UPRIGHT - W4L06131 1 3/8"x2 3/8"x34 7/8" (36x60x887)

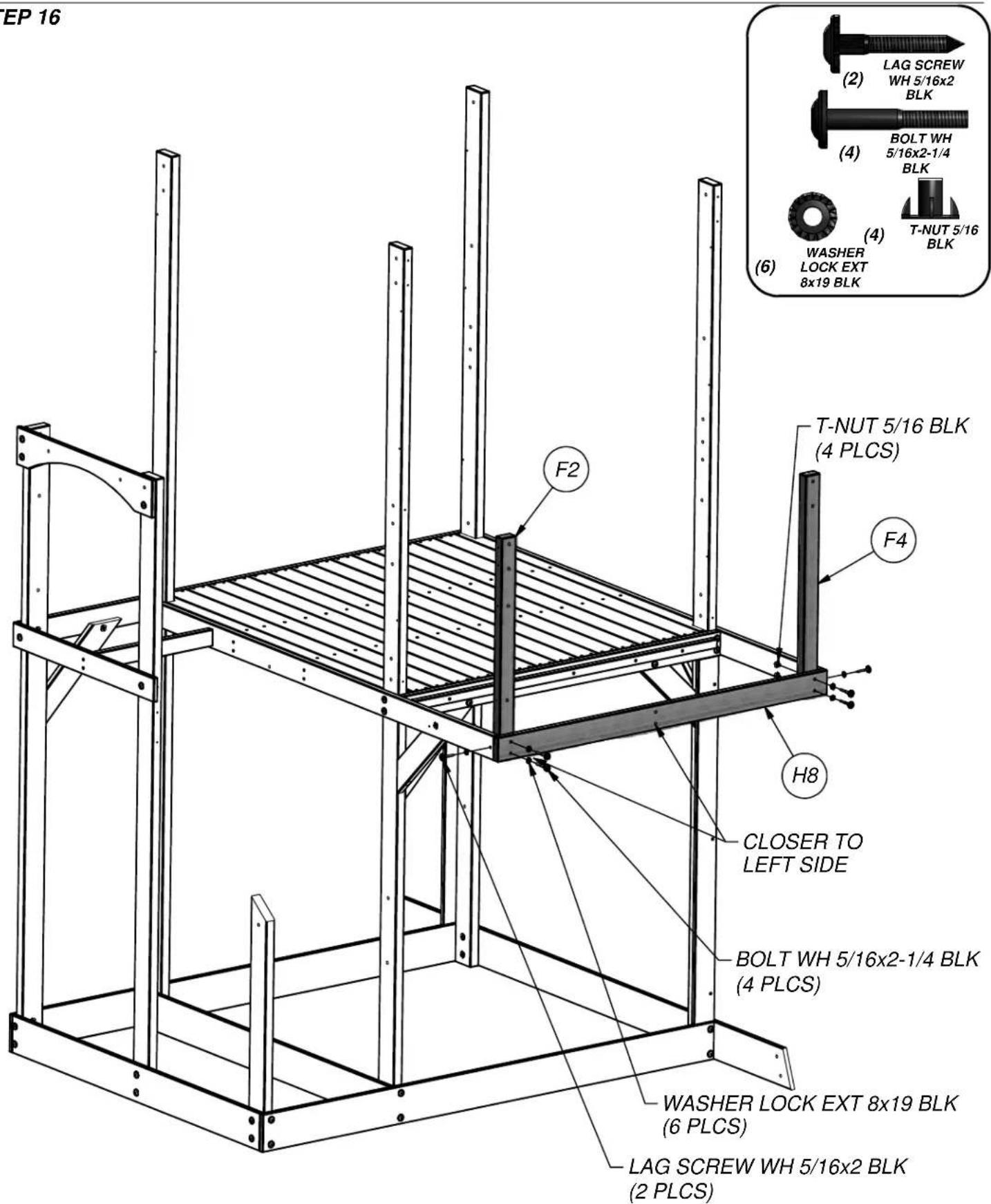

(1) F2 - POST - W4L06070 1 3/8"x2 3/8"x30 3/8" (36x60x772)

(1) F3 - POST - W4L06074 1 3/8"x2 3/8"x30 3/8" (36x60x772)

(1) F4 - POST - W4L06093 1 3/8"x2 3/8"x30 3/8" (36x60x772)

Pure geometric lines forming a rectangle with evenly spaced dots (no text or symbols)

(1) G1 - WALL RAIL - W4L06086 1"x5 1/4"x76 3/4" (24x134x1948)

Simple geometric shape with a curved top and five vertical dashed lines inside, no text or symbols present.

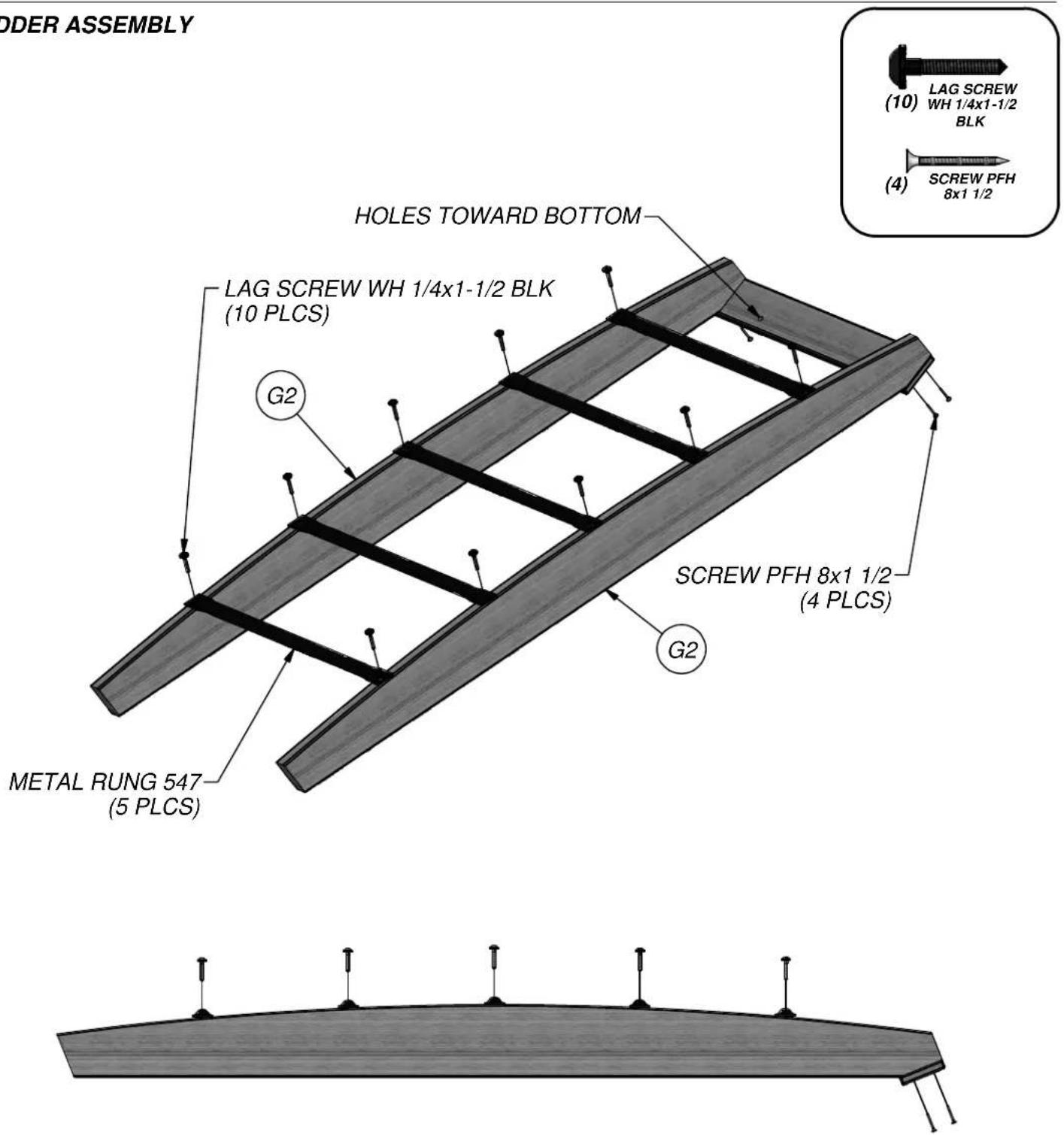

(2) G2 - LADDER UPRIGHT - W4L06144 1"x5 1/4"x64 1/2" (24x134x1637)

Simple rectangular frame with four small dots at the top corners (no text or symbols)

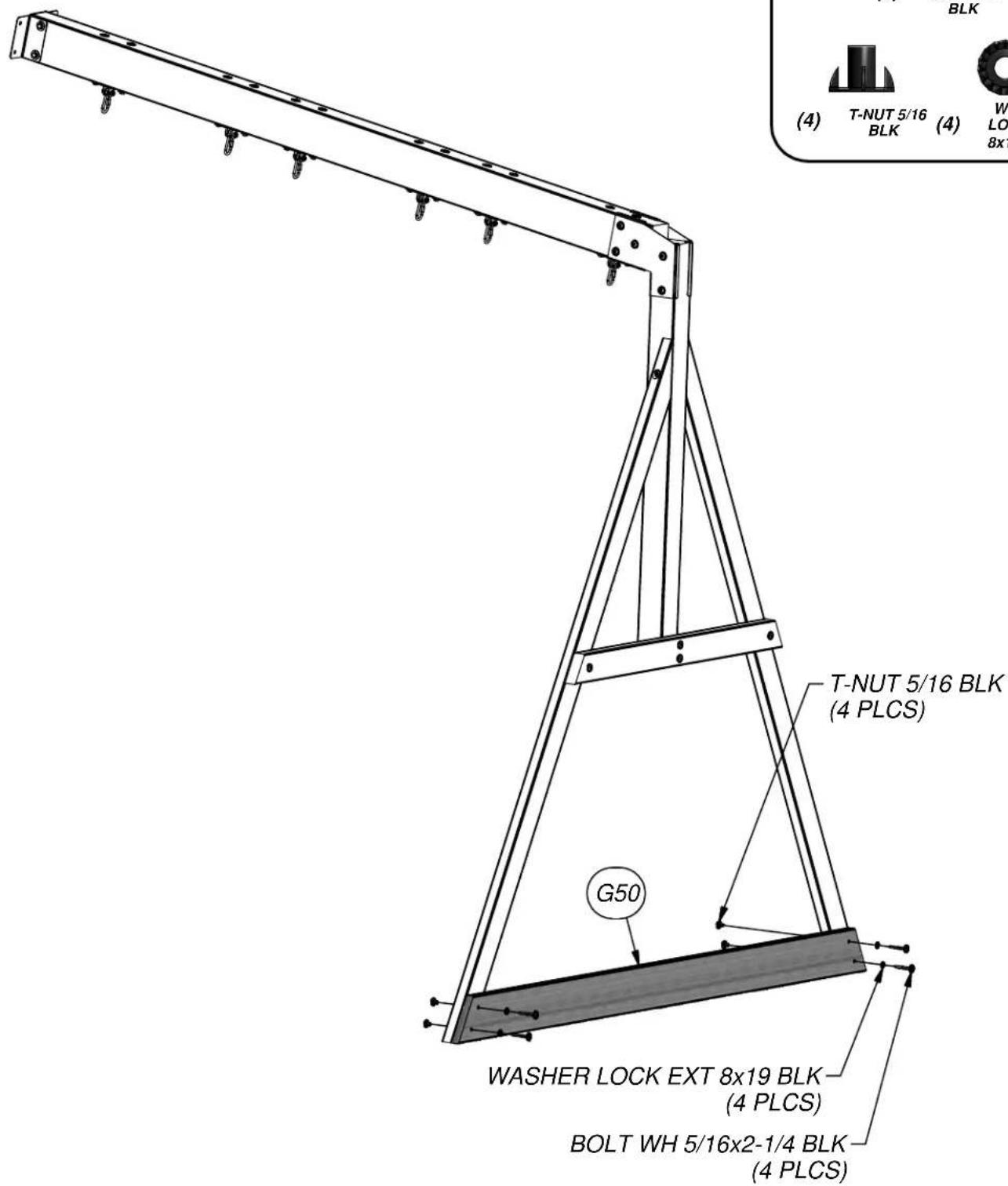

(1) G50 - GROUND BOARD - W4L06173 1"x5 1/4"x86 3/4" (24x134x2202)

Simple geometric shape with two small circles at the top and bottom corners (no text or symbols)

(1) H1 - HANDRAIL - W4L06132 1"x3 3/8"x88 3/4" (24x86x2253)

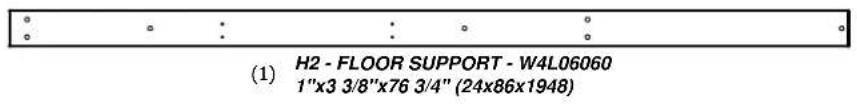

(1) H2 - FLOOR SUPPORT - W4L06060 1"x3 3/8"x76 3/4" (24x86x1948)

(1) H3 - FLOOR SUPPORT - W4L06083 1"x3 3/8"x76 3/4" (24x86x1948)

(1) H4 - FLOOR SUPPORT - W4L06063 1"x3 3/8"x74 7/8" (24x86x1901)

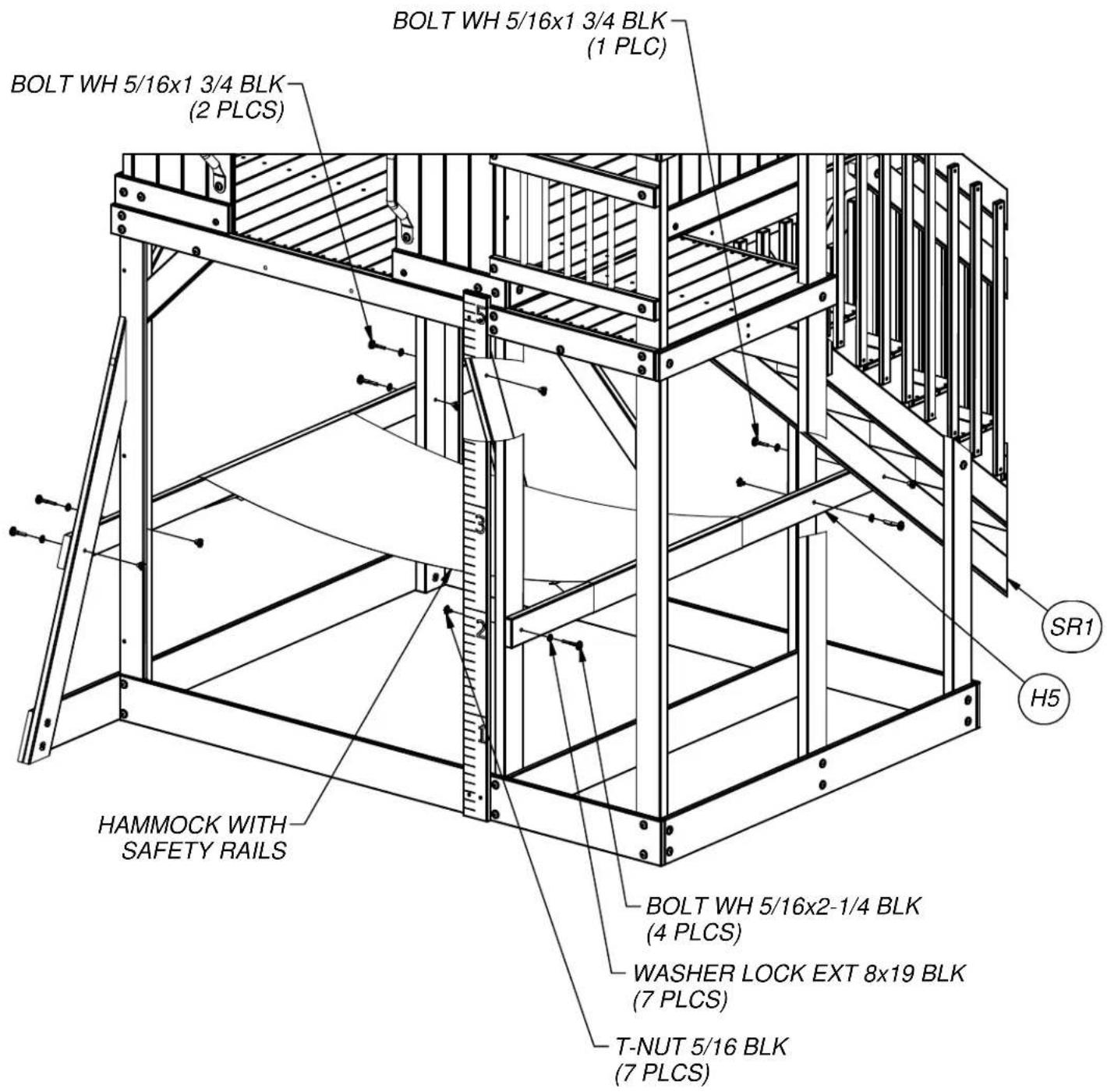

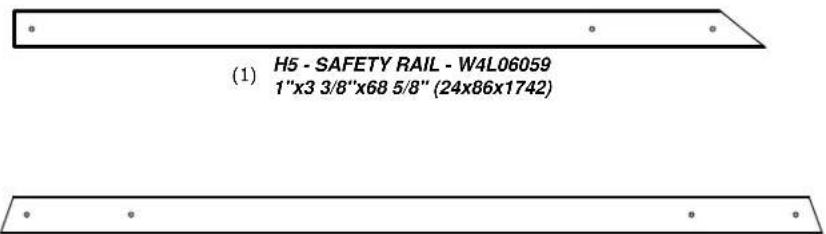

(1) H5 - SAFETY RAIL - W4L06059 1"x3 3/8"x68 5/8" (24x86x1742)

(1) H6 - WALL RAIL - W4L06088 1"x3 3/8"x54 1/2" (24x86x1384)

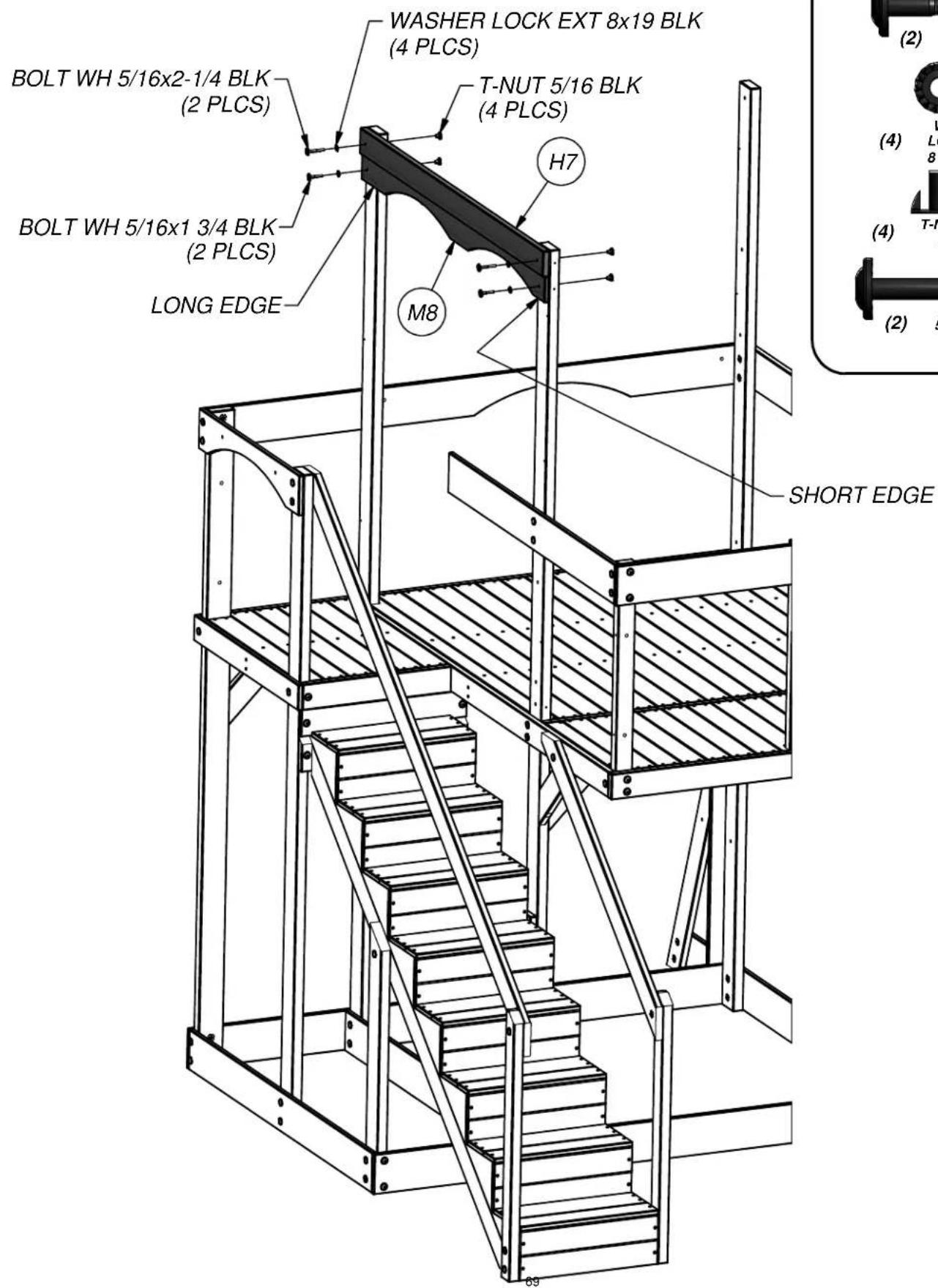

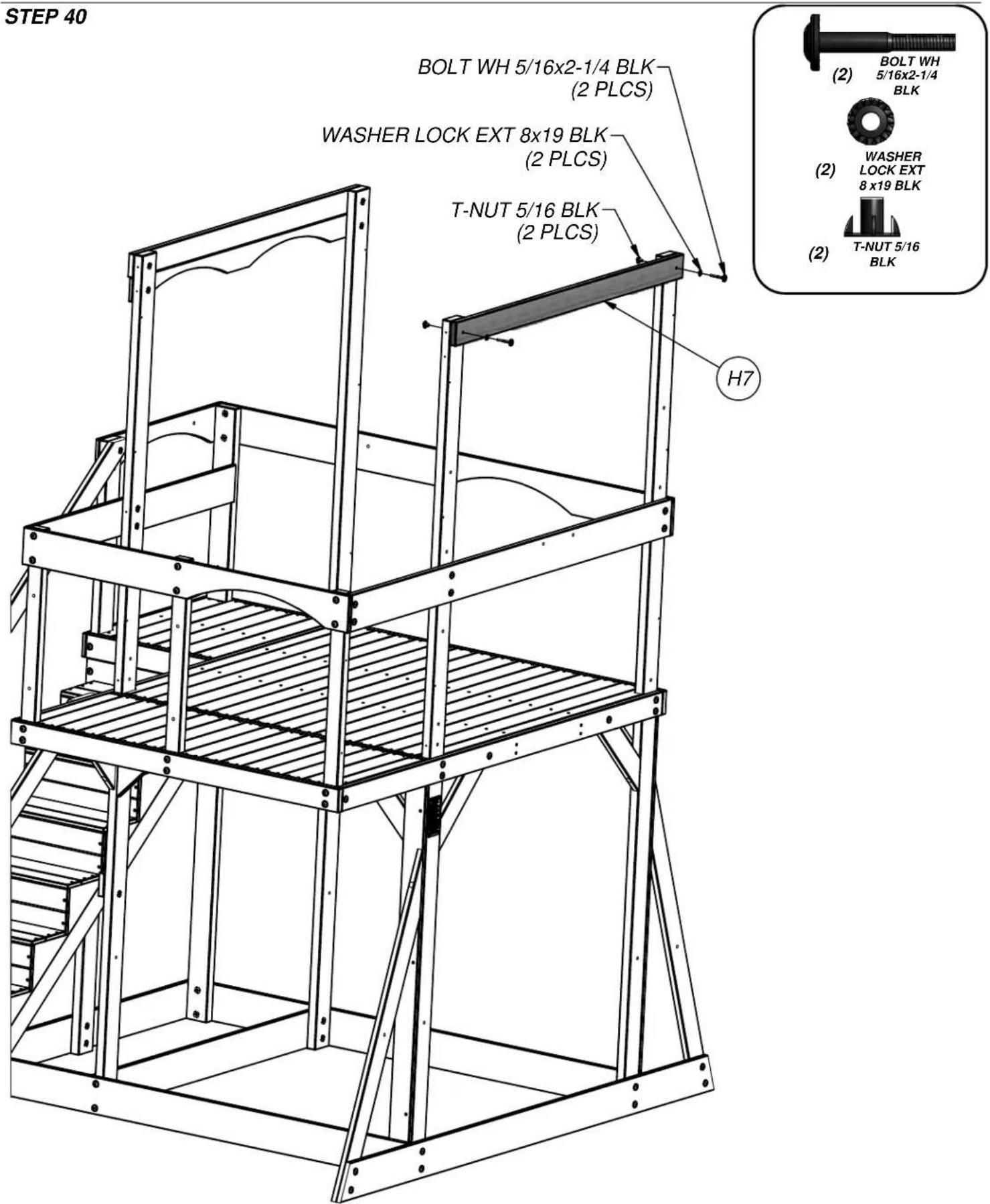

(2) H7 - WALL RAIL - W4L06100 1"x3 3/8"x54 1/2" (24x86x1384)

Parts Identification

Wood Components

(NOT TO SCALE)

(1) H8 - FLOOR SUPPORT - W4L06079 1"x3 3/8"x54 3/8" (24x86x1382)

(2) H9 - WALL RAIL - W4L06102 1"x3 3/8"x54 3/8" (24x86x1382)

(1) H10 - FLOOR SUPPORT - W4L06062 1"x3 3/8"x52 1/2" (24x86x1334)

(1) H11 - HANDRAIL - W4L06133 1"x3 3/8"x46" (24x86x1170)

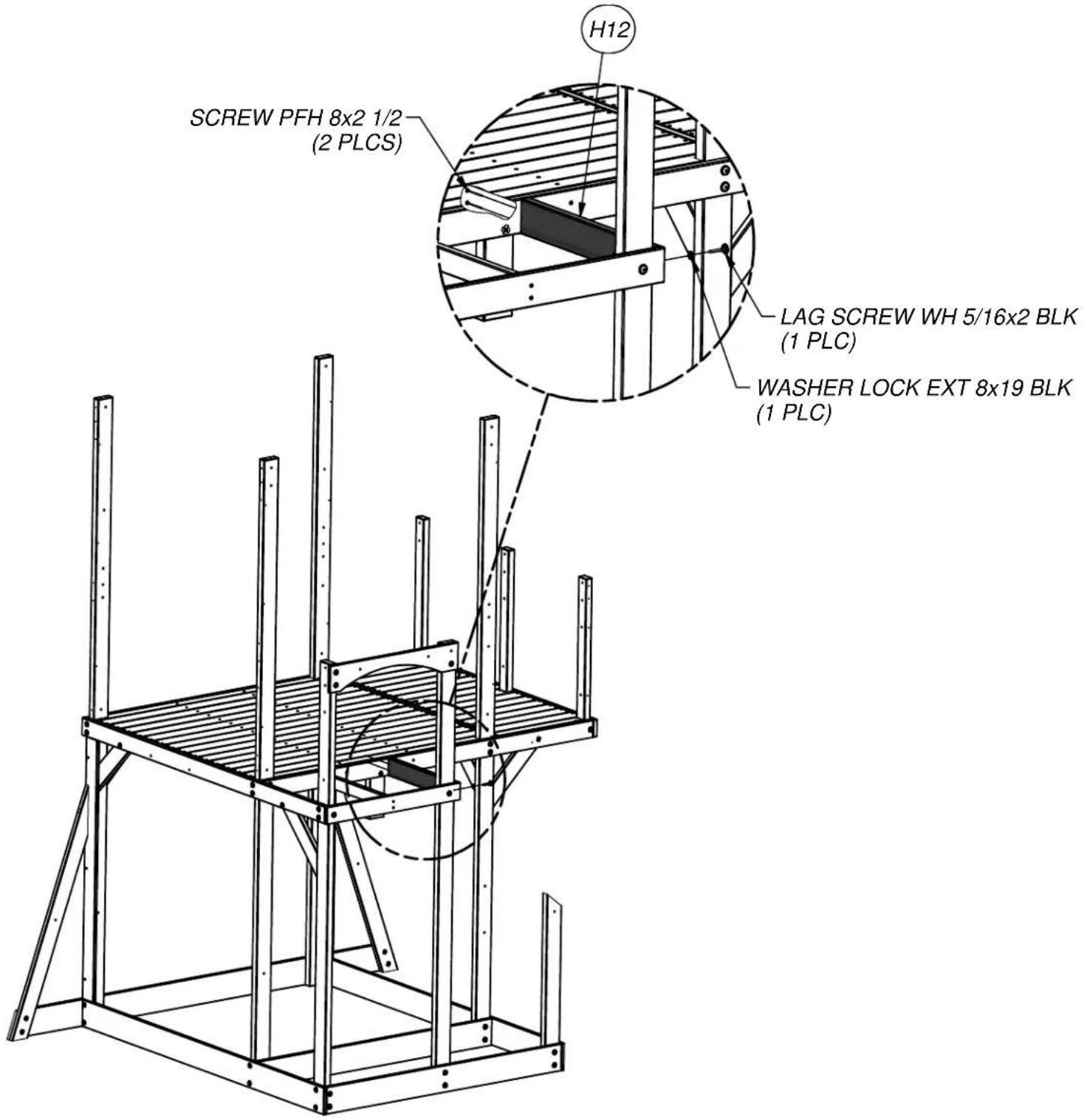

(1) H12 - FLOOR SUPPORT - W4L06125 1"x3 3/8"x20 3/8" (24x86x519)

(1) H13 - WALL SPACER - W4L06126 1"x3 3/8"x3 3/8" (24x86x86)

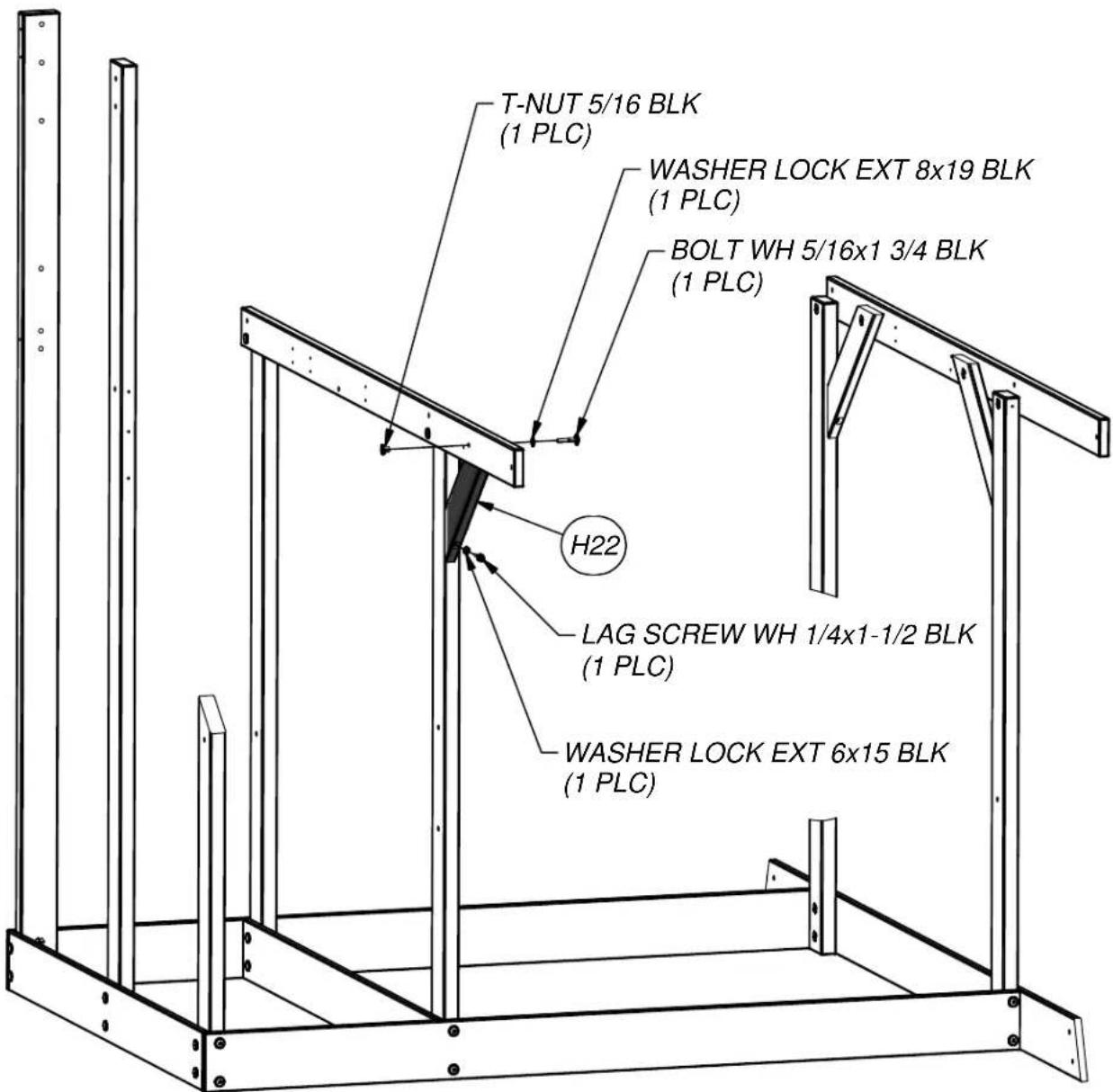

(3) H22 - DECK BRACE - W4L06082 1"x3 3/8"x18 3/8" (24x86x466)

(4) H23 - DECK BRACE - W4L06179 1"x3 3/8"x17 7/8" (24x86x453)

(2) H81 - MONKEY BAR BRACE - W4L06151 1"x3 3/8"x53 1/4" (24x86x1352)

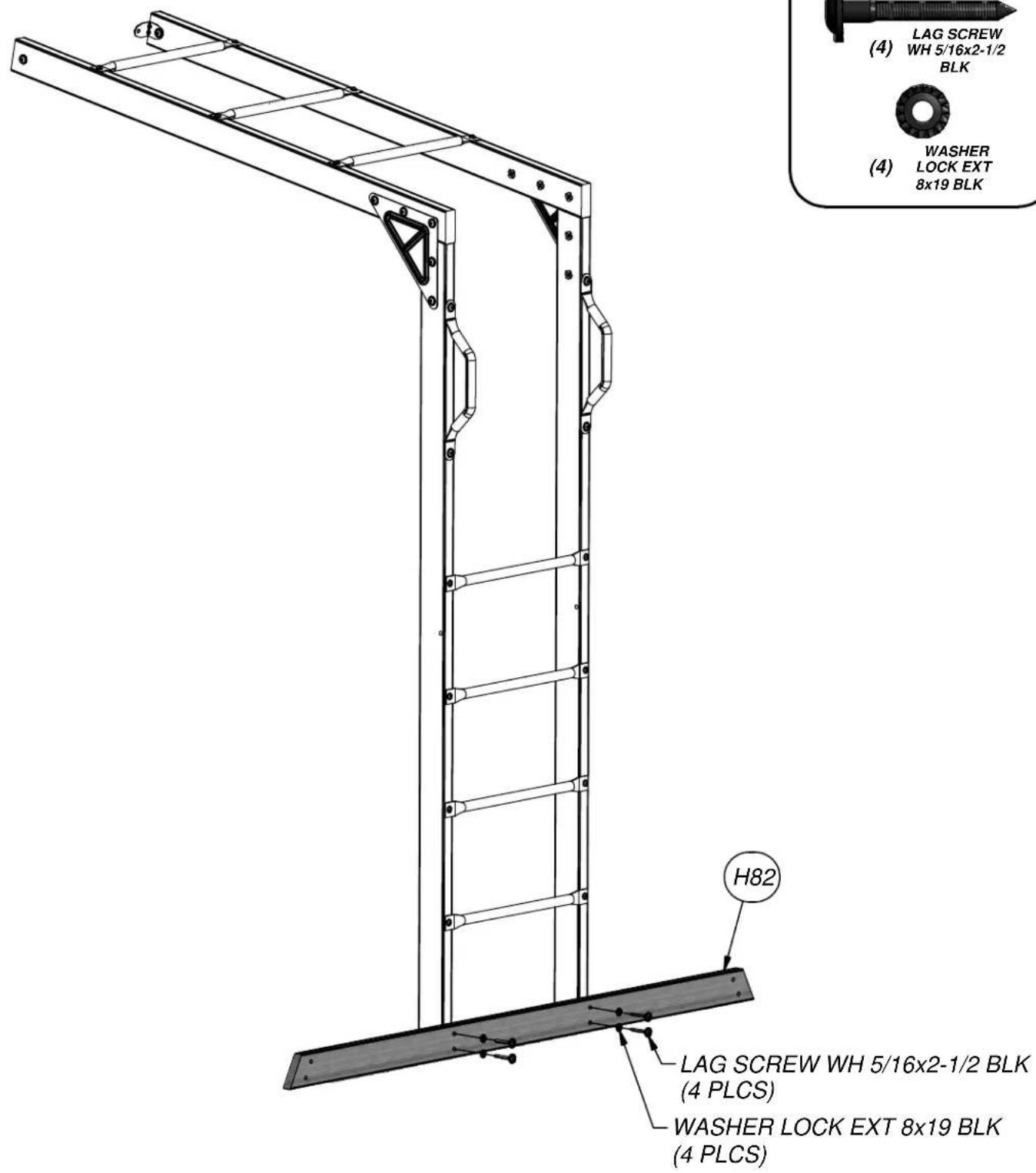

(1) H82 - MONKEY BAR GROUND BOARD - W4L06168 1"x3 3/8"x70 3/8" (24x86x1786)

(3) H83 - WALL BOARD - W4L06182 1"x3 3/8"x61 1/4" (24x86x1557)

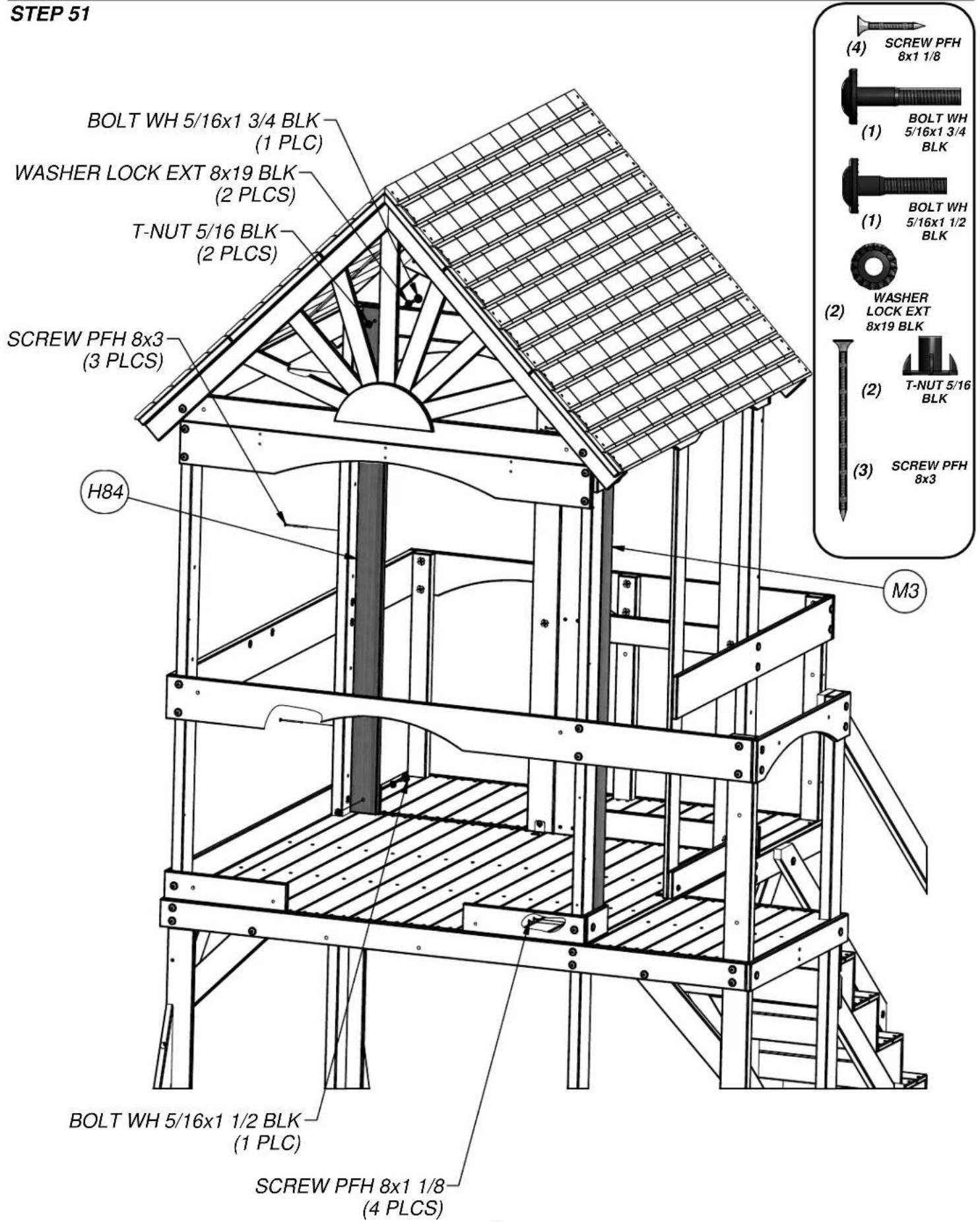

(1) H84 - WALL BOARD - W4L06183 1"x3 3/8"x61 1/4" (24x86x1557)

Simple rectangular frame with four small dots at the top and bottom corners (no text or symbols)

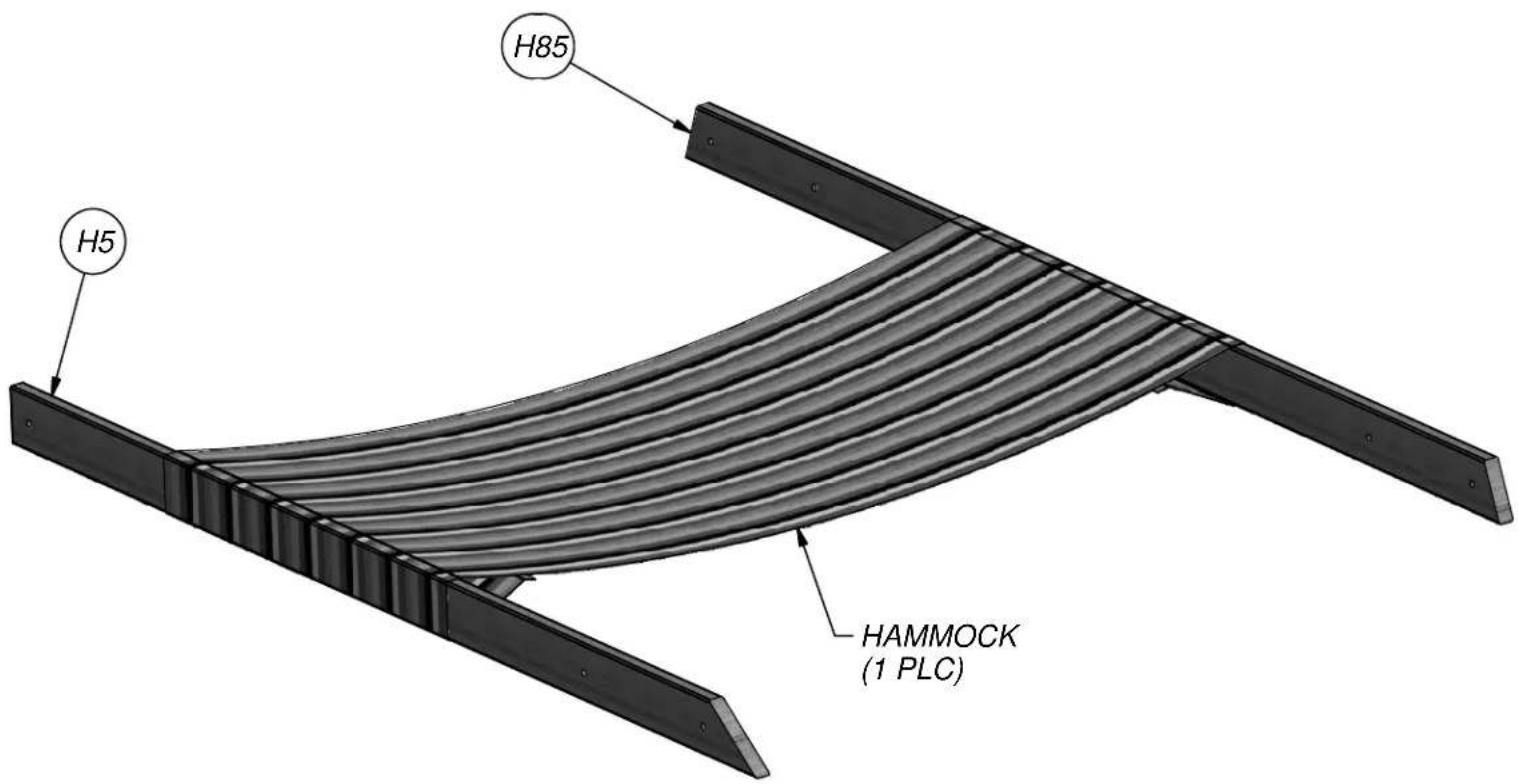

(1) H85 - SAFETY RAIL - W4L06184 1"x3 3/8"x75" (24x86x1904)

(2) H86 - ANGLE BRACE - W4L06186 1"x3 3/8"x49 3/8" (24x86x1254)

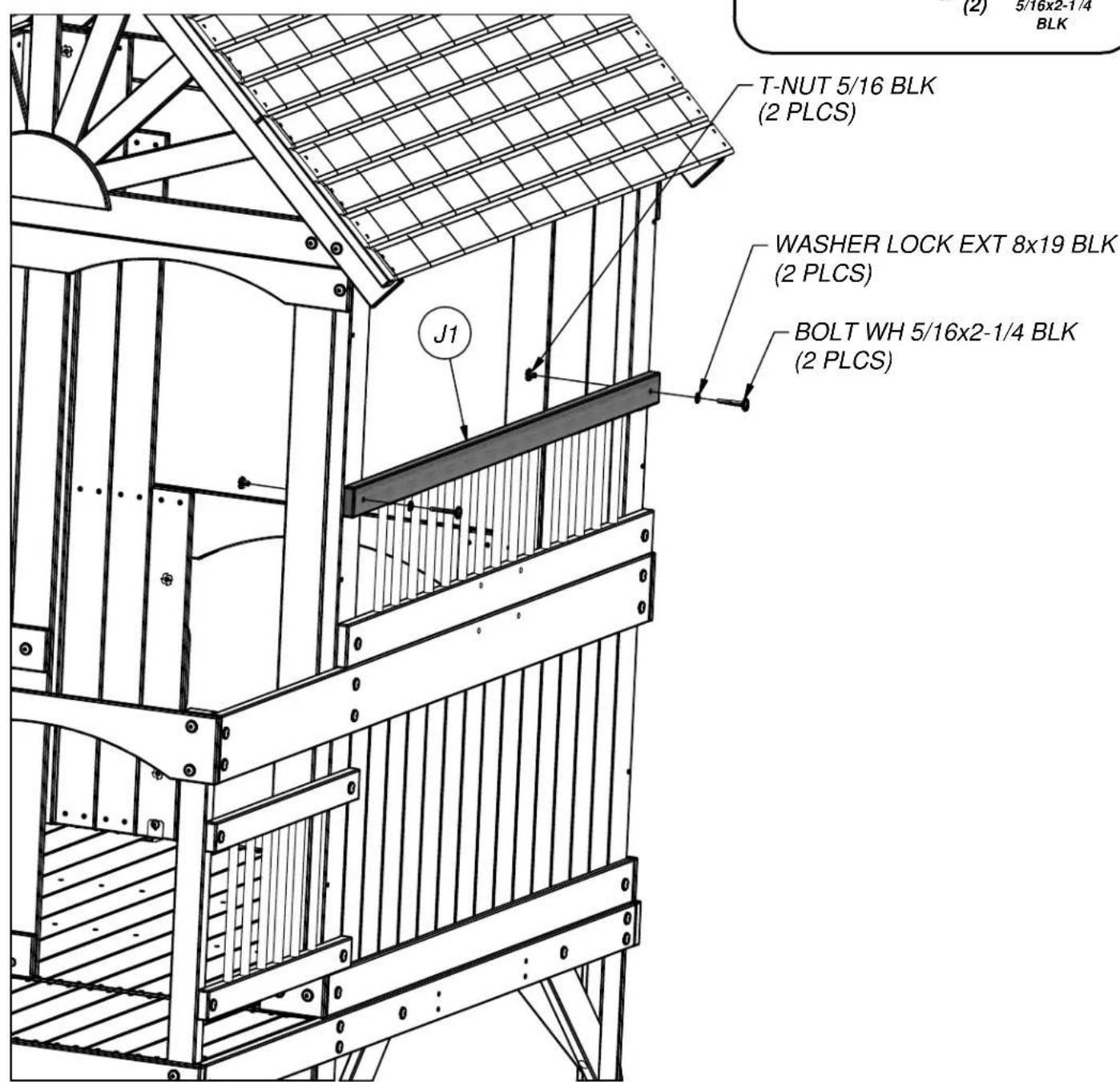

(1) J1 - WALL RAIL - W4L06104 1"x2 3/8"x54 1/2" (24x60x1384)

(2) J3 - WALL RAIL - W4L06092 1"x2 3/8"x27 1/4" (24x60x691)

(2) J2 - FLOOR JOIST - W4L06068 1"x2 3/8"x52 1/2" (24x60x1334)

(2) J4 - OUTER CURTAIN ROD HOLDER - W4L05293 1"x2 3/8"x2 3/8" (24x60x60)

(1) J5 - INNER CURTAIN ROD HOLDER - W4L05294 1"x2 3/8"x2 3/8" (24x60x60)

(4) J6 - WALL RAIL - W4L06089 1"x2 3/8"x25 5/8" (24x60x650)

(2) J7 - WALL RAIL - W4L06050 1"x2 3/8"x22 3/4" (24x60x579)

Parts Identification

Wood Components

(NOT TO SCALE)

(1) J8 - FLOOR JOIST - W4L06134 1"x2 3/8"x20 3/8" (24x60x519)

(5) J9 - SUPPORT BOARD - W4L06064 1"x2 3/8"x3" (24x60x76)

Empty rectangular frame with four corner dots, no text or symbols present

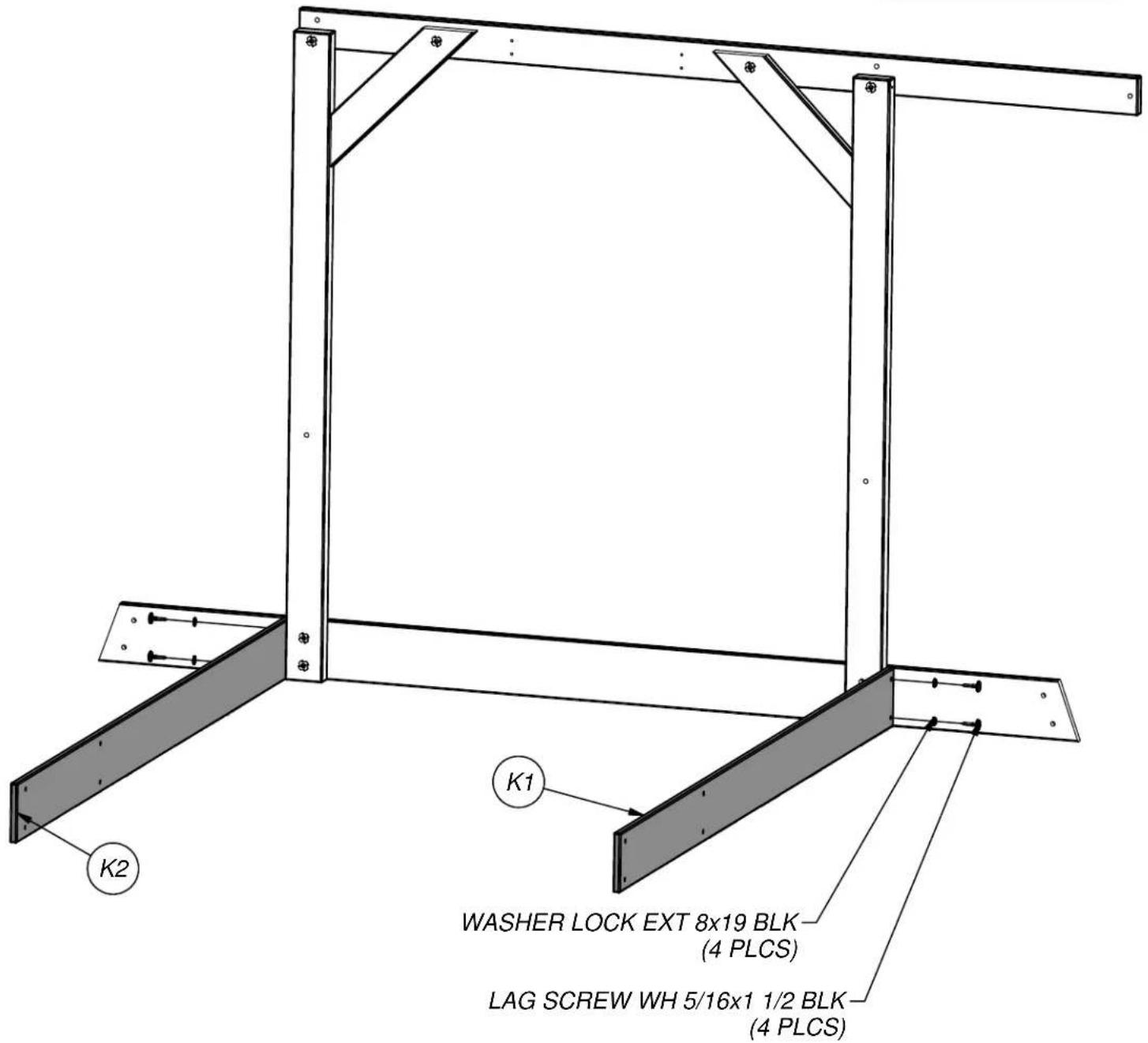

(1) K1 - GROUND BOARD - W4L06052 5/8"x5 1/4"x74 1/2" (16x134x1893)

Empty rectangular frame with four small circular holes at the top (no text or symbols)

(1) K2 - GROUND BOARD - W4L06056 5/8"x5 1/4"x74 1/2" (16x134x1893)

Simple curved line diagram with evenly spaced dots on both sides (no text or symbols)

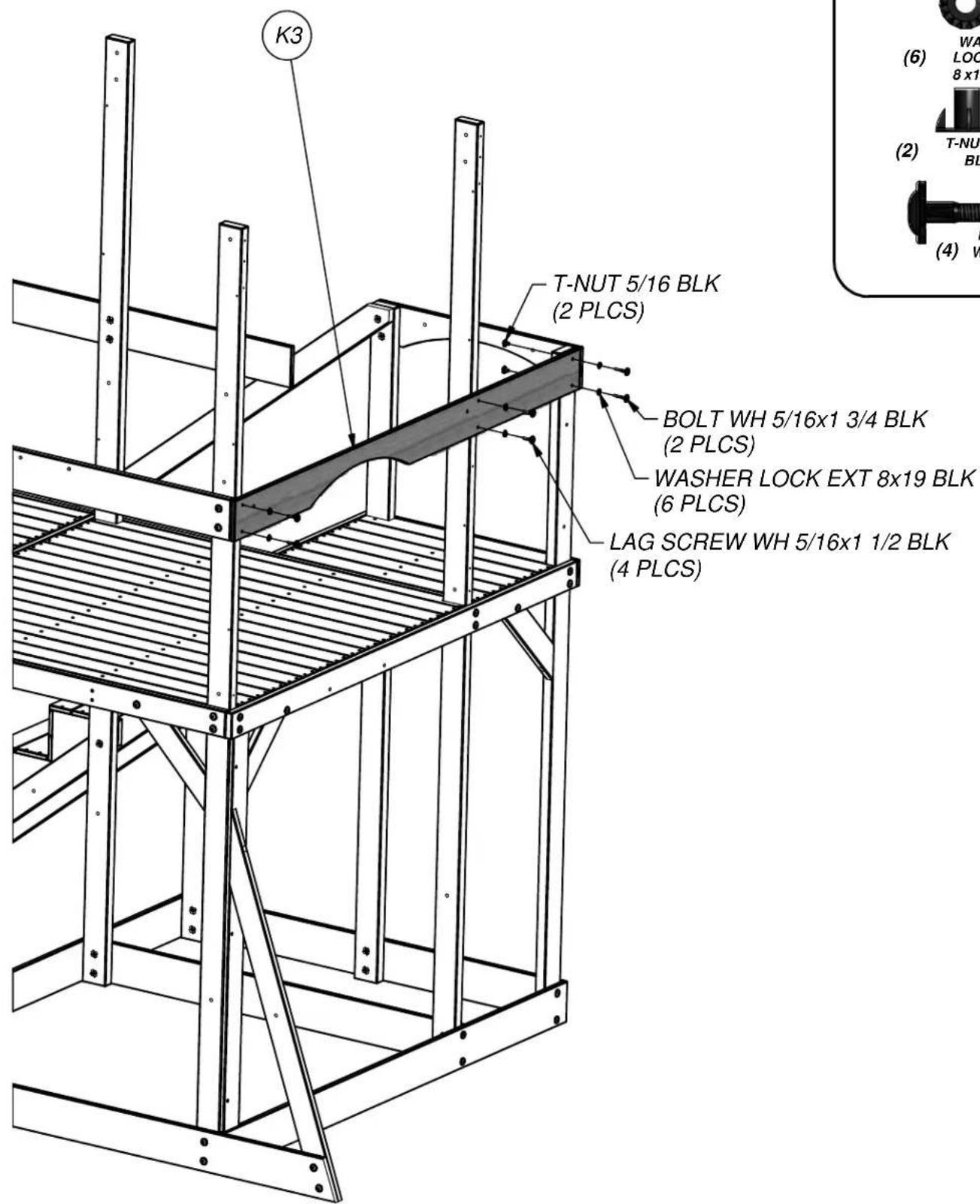

(1) K3 - ARCHED RAIL - W4L06106 5/8"x5 1/4"x74 7/8" (16x134x1901)

Empty rectangular frame with four small circular holes at corners (no text or symbols)

(1) K4 - GROUND BOARD - W4L06049 5/8"x5 1/4"x54 1/2" (16x134x1384)

Empty rectangular frame with four small circles at the top and bottom corners (no text or symbols)

(1) K5 - GROUND BOARD - W4L06054 5/8"x5 1/4"x54 1/2" (16x134x1384)

Simple curved line drawing with four corner dots, no text or symbols present

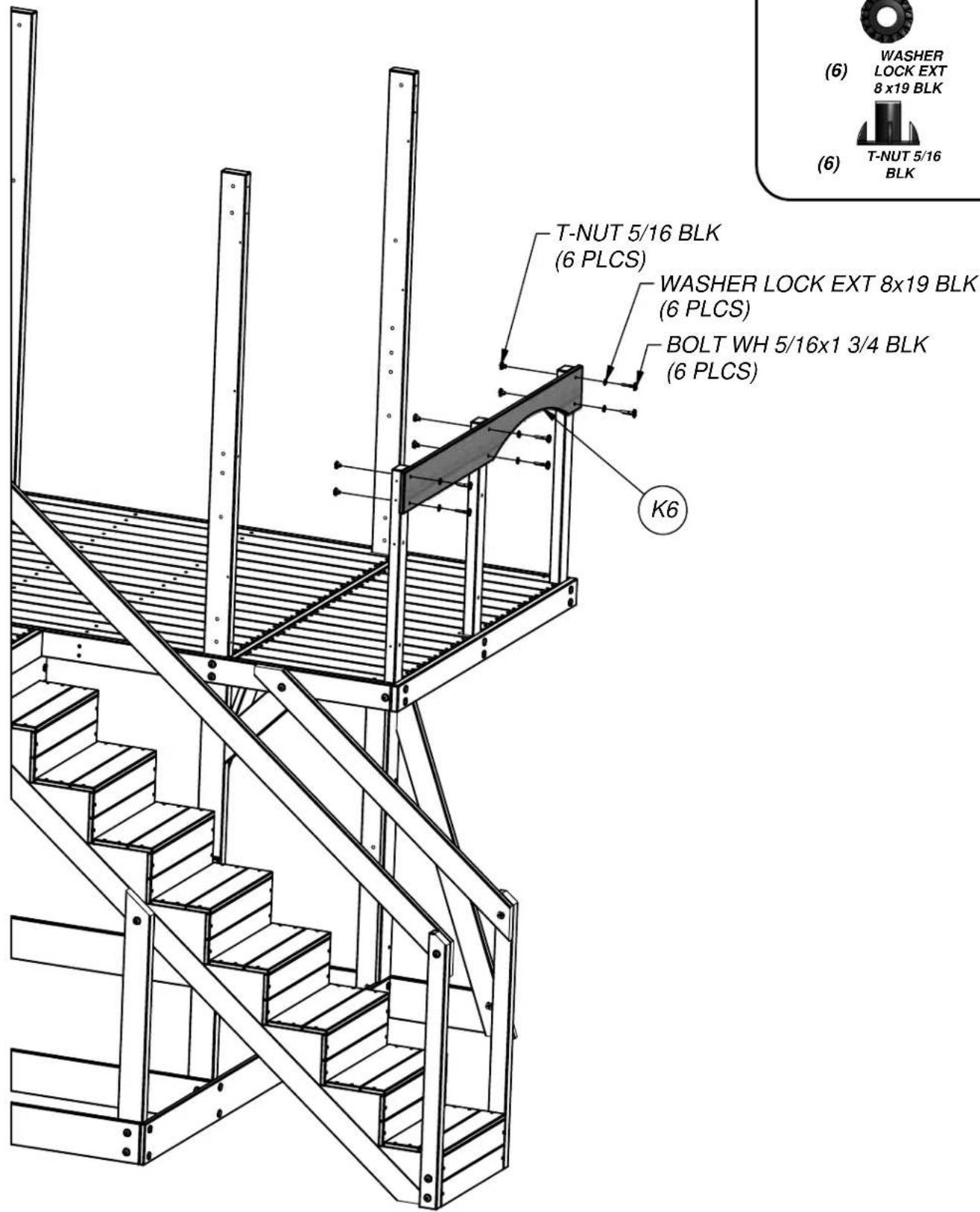

(1) K6 - ARCHED RAIL - W4L06084 5/8"x5 1/4"x54 1/8" (16x134x1374)

Pure geometric shape with a curved line and evenly spaced dots, no text or symbols present

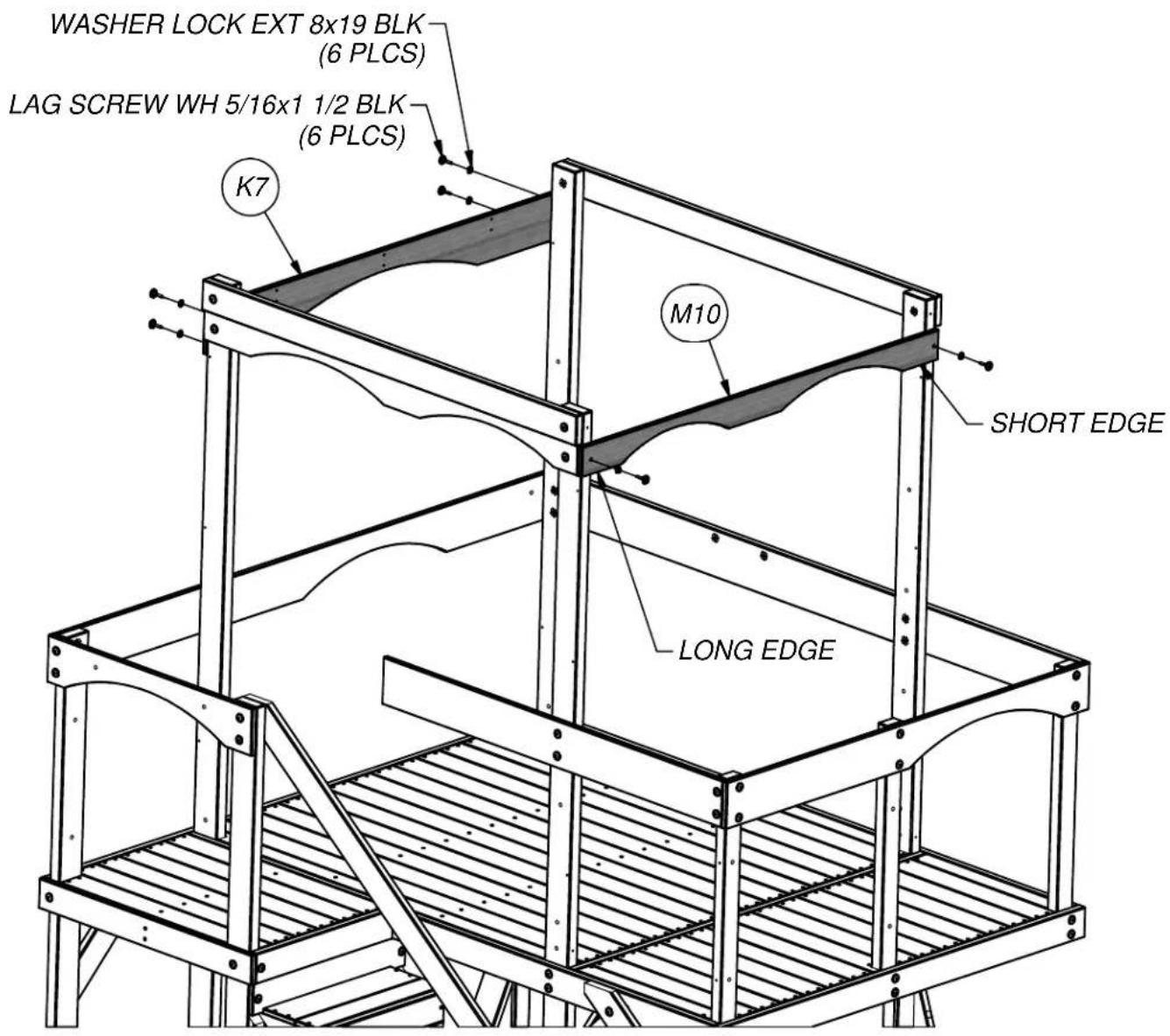

(1) K7 - ARCHED RAIL - W4L06105 5/8"x5 1/4"x52 1/2" (16x134x1334)

(1) K8 - WALL RAIL - W4L06095 5/8"x5 1/4"x49 1/2" (16x134x1256)

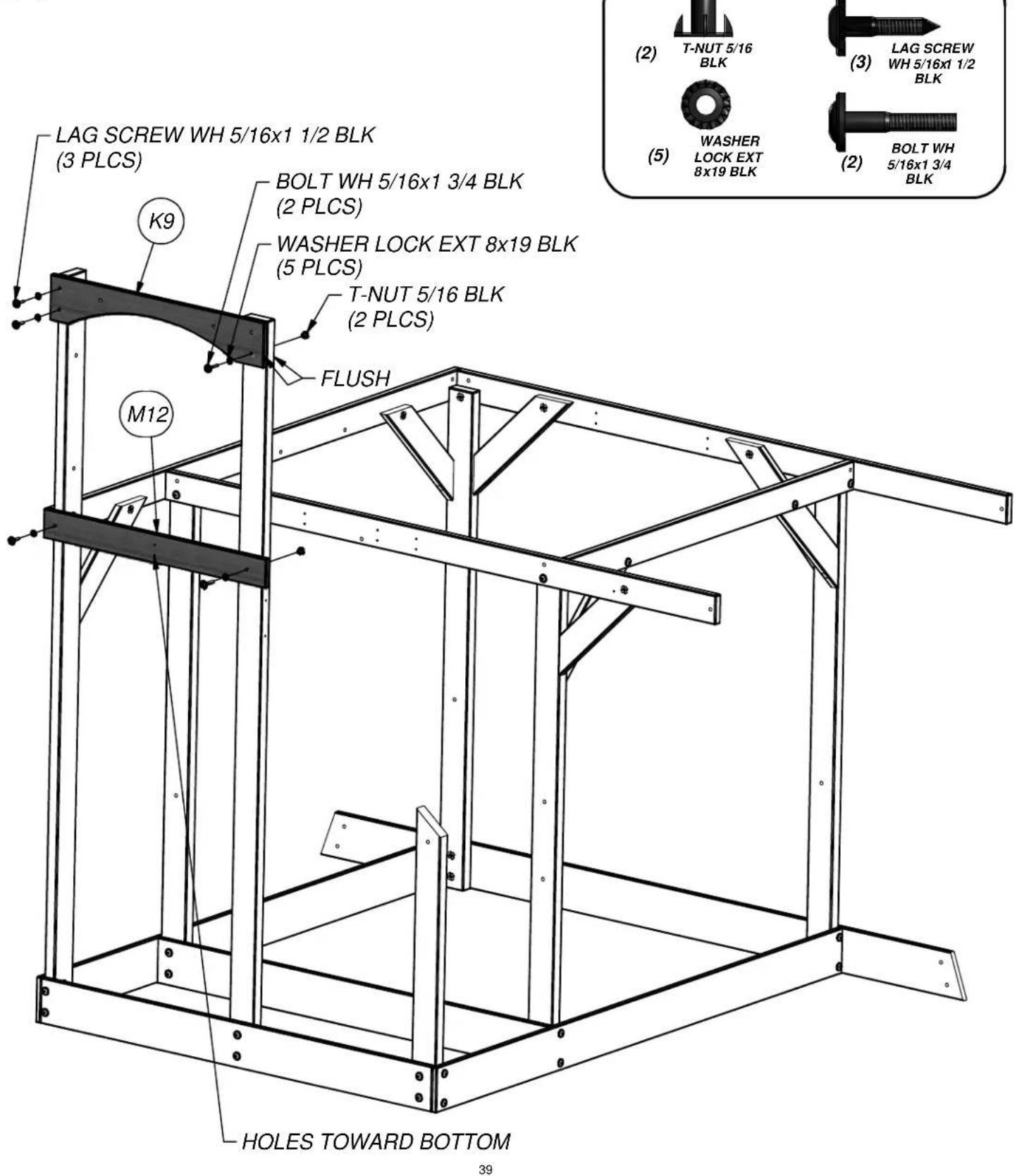

(1) K9 - ARCHED RAIL - W4L06124 5/8"x5 1/4"x29 3/4" (16x134x756)

(8) K10 - STAIR STEP BOARD - W4L06123 5/8"x4 5/8"x19" (16x119x483)

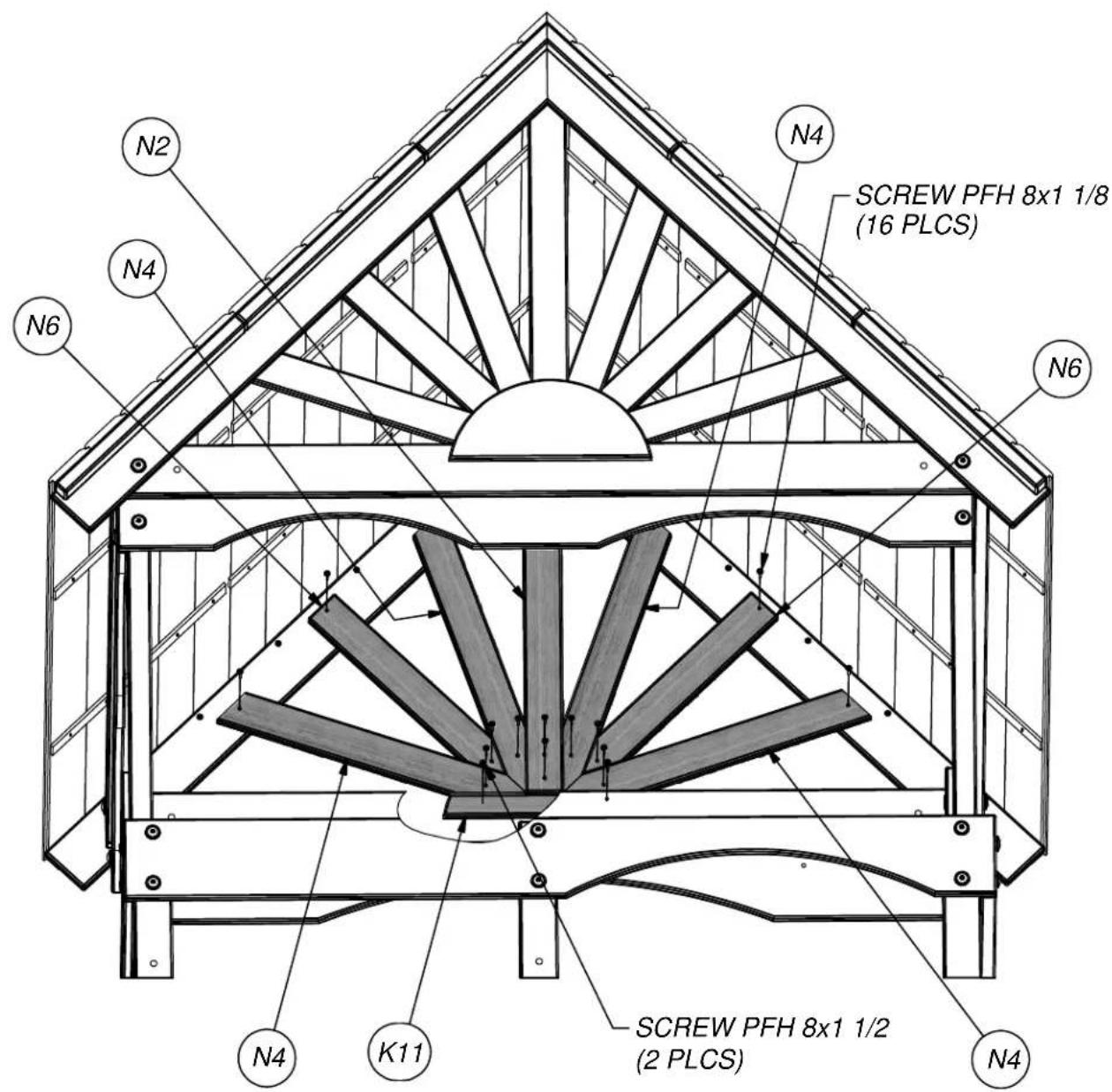

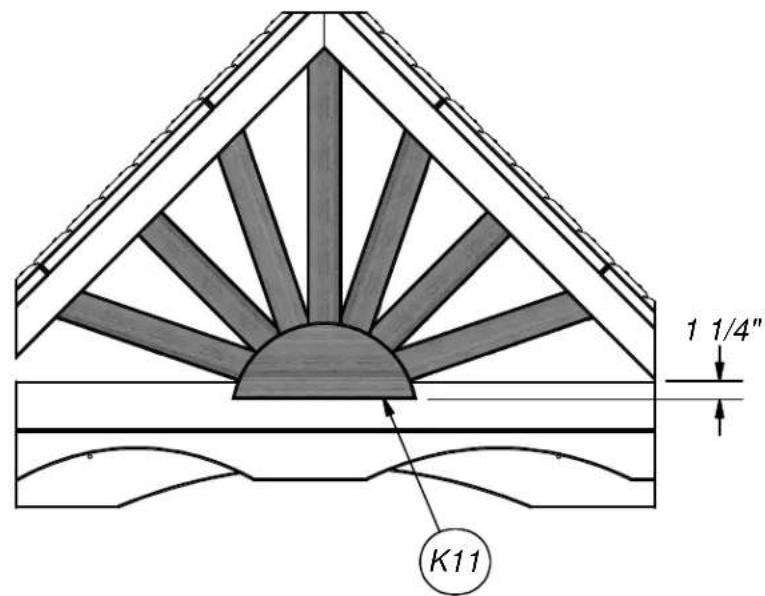

(2) K11 - HALF MOON PLATE - W4L06115 5/8"x5 1/4"x12 5/8" (16x134x320)

Pure geometric lines forming a parallelogram with evenly spaced dots (no text or symbols)

(1) K12 - GROUND BOARD - W4L06185 5/8"x5 1/4"x89 1/2" (16x134x2274)

Parts Identification

Wood Components

(NOT TO SCALE)

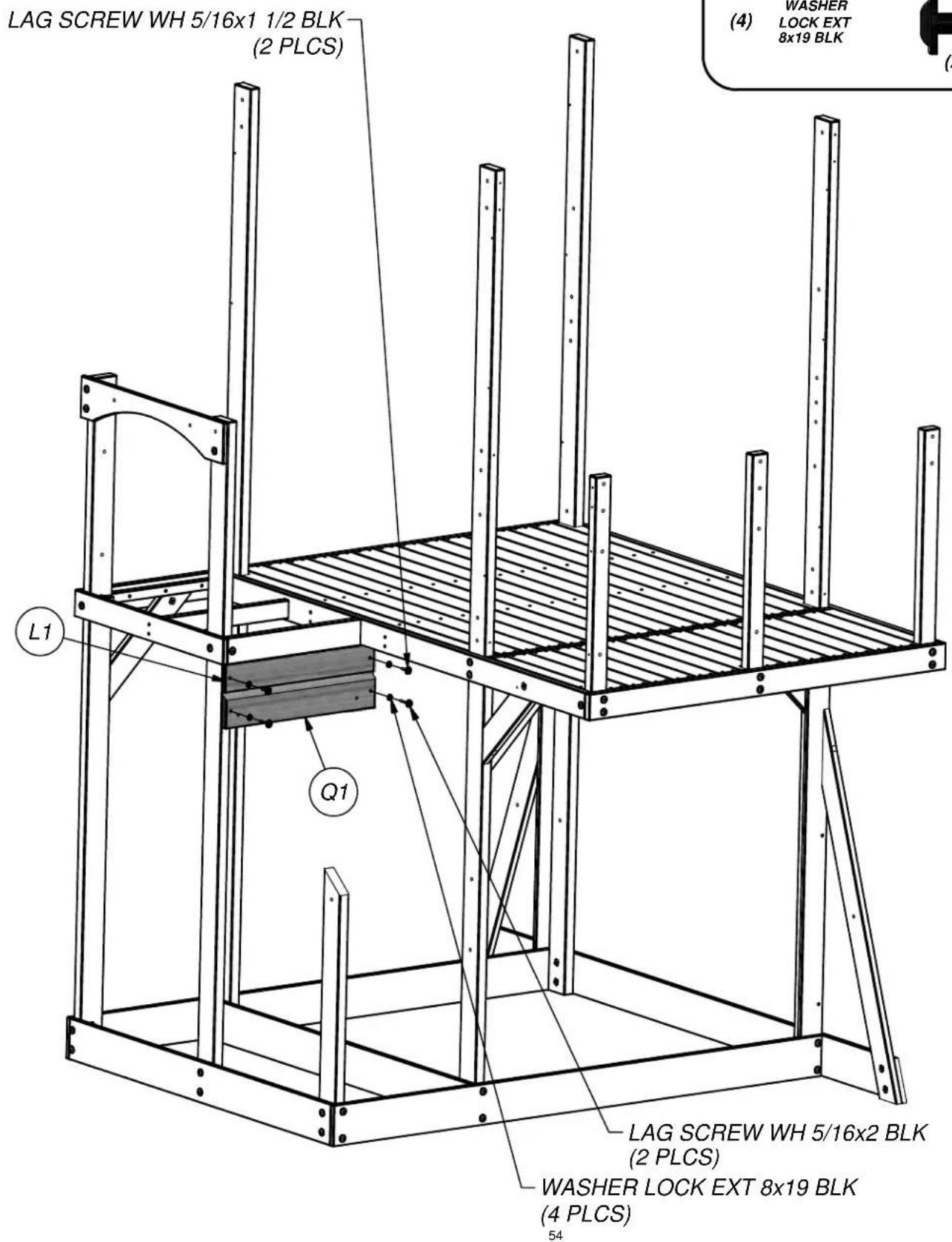

(1) L1 - SUPPORT BOARD - W4L06128 5/8"x3 5/8"x22 3/4" (16x92x579)

(1) L2 - SUPPORT BOARD - W4L06142 5/8"x4 3/8"x15 5/8" (16x112x397)

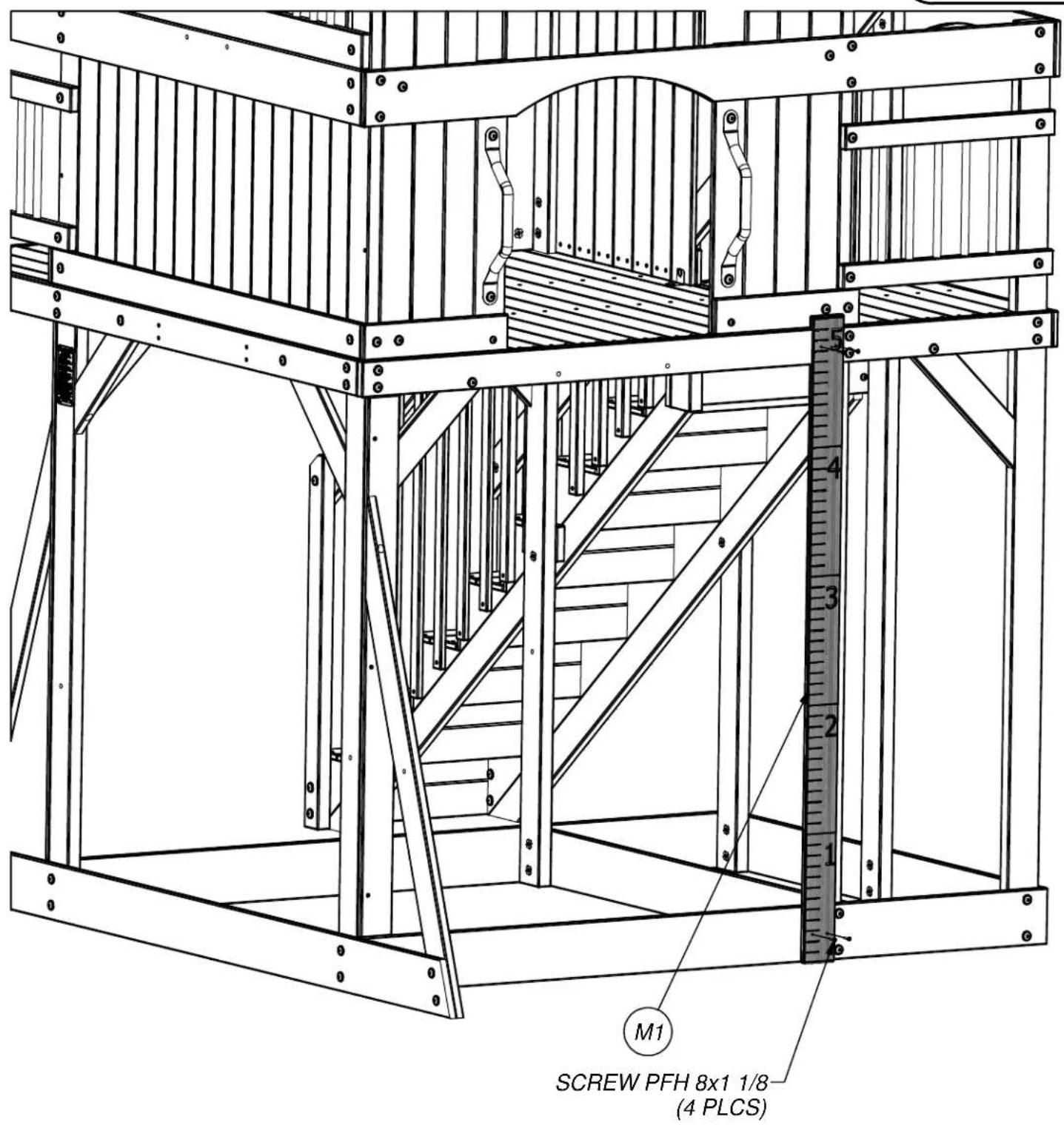

(1) M1 - GROWTH BOARD - W4L06143 5/8"x3 3/8"x60 1/4" (16x86x1530)

(1) M2 - WALL BOARD - W4L06097 5/8"x3 3/8"x61 1/4" (16x86x1557)

(1) M3 - WALL BOARD - W4L06099 5/8"x3 3/8"x61 1/4" (16x86x1557)

(2) M4 - WALL BOARD - W4L06109 5/8"x3 3/8"x61 1/4" (16x86x1557)

(1) M5 - WALL BOARD - W4L06111 5/8"x3 3/8"x61 1/4" (16x86x1557)

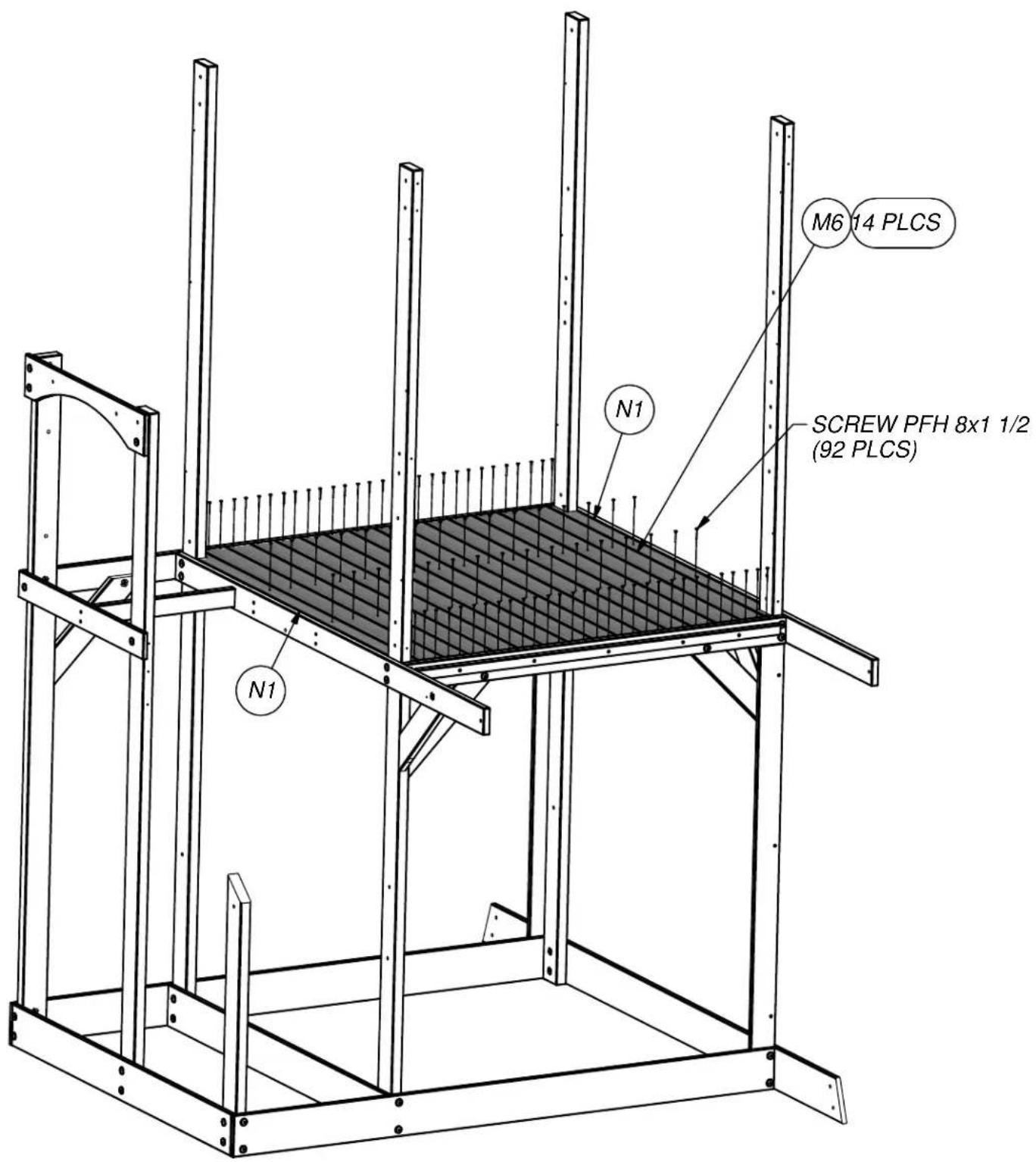

(14) M6 - FLOOR BOARD - W4L06066 5/8"x3 3/8"x54 1/2" (16x86x1384)

(1) M7 - WALL RAIL - W4L06087 5/8"x3 3/8"x54 1/2" (16x86x1384)

(1) M8 - ARCHED RAIL - W4L06101 5/8"x3 3/8"x54 1/2" (16x86x1384)

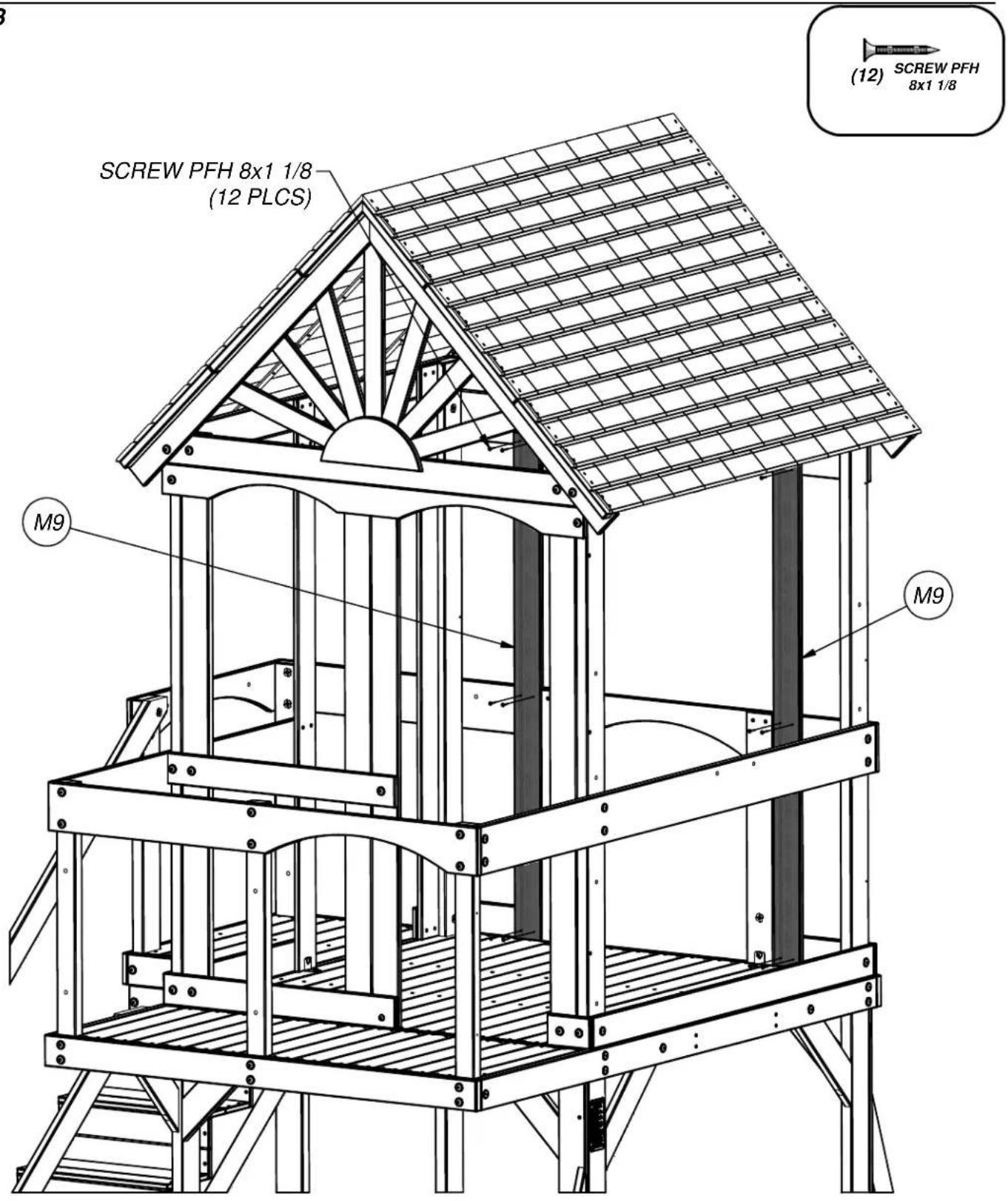

(2) M9 - WALL BOARD - W4L06148 5/8"x3 3/8"x54 1/4" (16x86x1377)

(1) M10 - ARCHED RAIL - W4L06103 5/8"x3 3/8"x53 1/8" (16x86x1350)

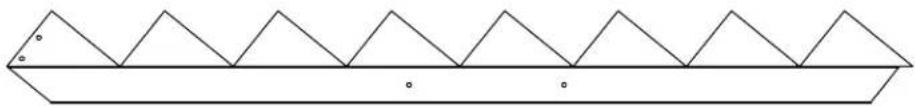

(4) M11 - ROOF RAFTER - W4L06114 5/8"x3 3/8"x43 7/8" (16x86x1114)

(1) M12 - WALL RAIL - W4L06121 5/8"x3 3/8"x31" (16x86x788)

(1) M13 - WALL RAIL - W4L06112 5/8"x3 3/8"x29 1/4" (16x86x744)

Parts Identification

Wood Components

(NOT TO SCALE)

(1) M14 - WALL RAIL - W4L06113 5/8"x3 3/8"x28 5/8" (16x86x728)

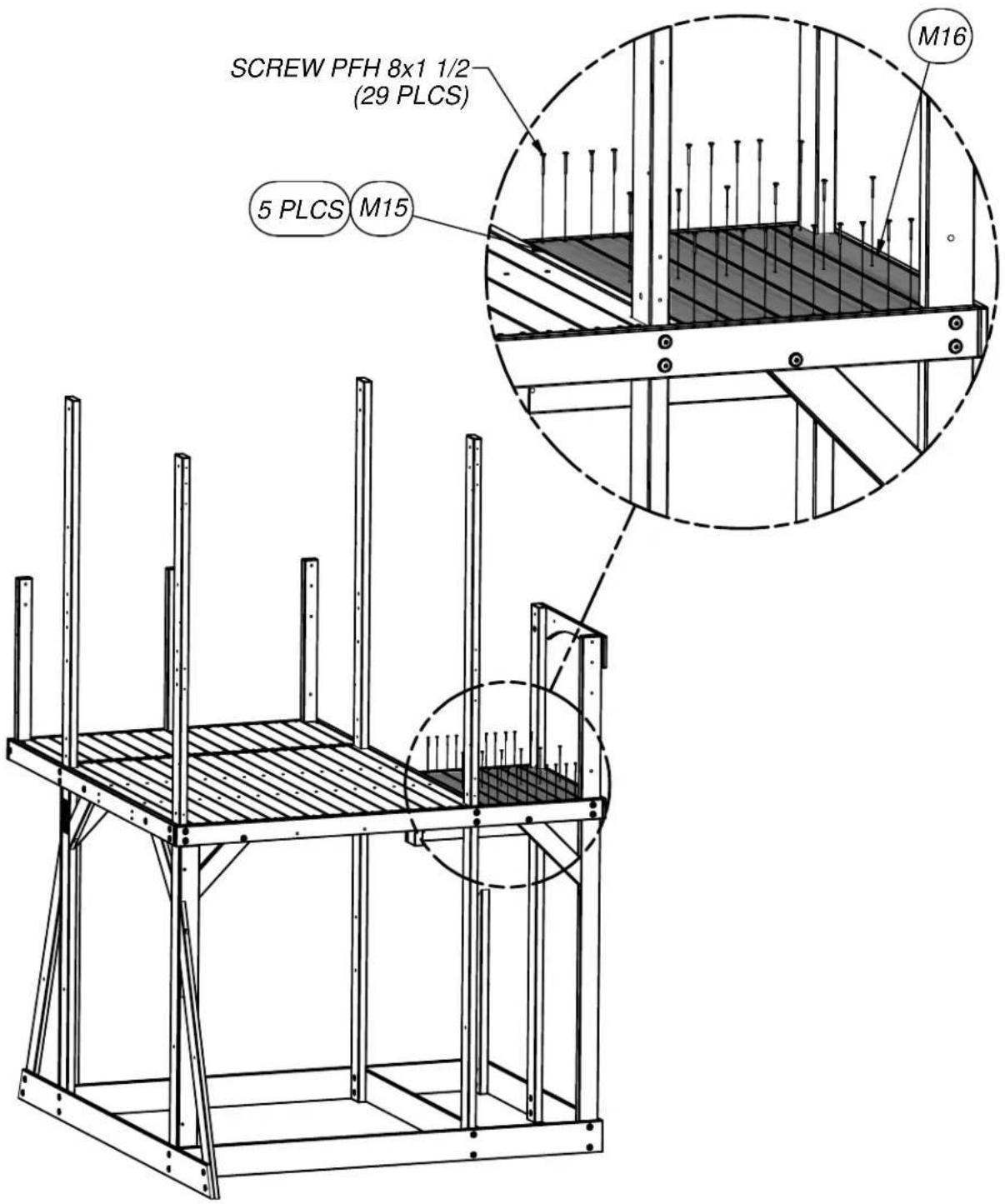

(5) M15 - FLOOR BOARD - W4L06120 5/8"x3 3/8"x29 1/8" (16x86x740)

(1) M16 - FLOOR BOARD - W4L06130 5/8"x3 3/8"x27 3/4" (16x86x704)

(1) M17 - WALL RAIL - W4L06094 5/8"x3 3/8"x27 1/4" (16x86x692)

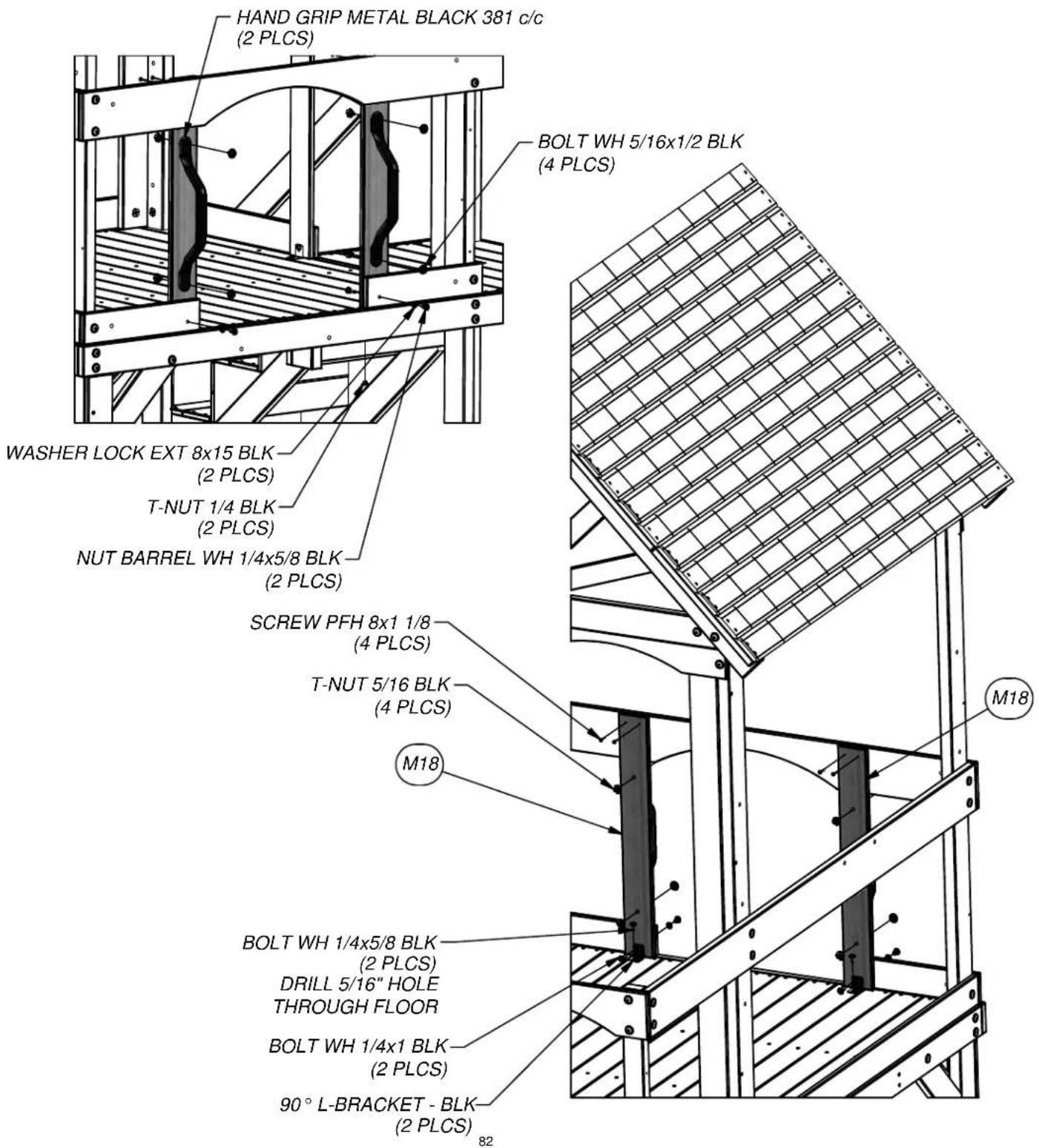

(2) M18 - WALL BOARD - W4L06108 5/8"x3 3/8"x27" (16x86x686)

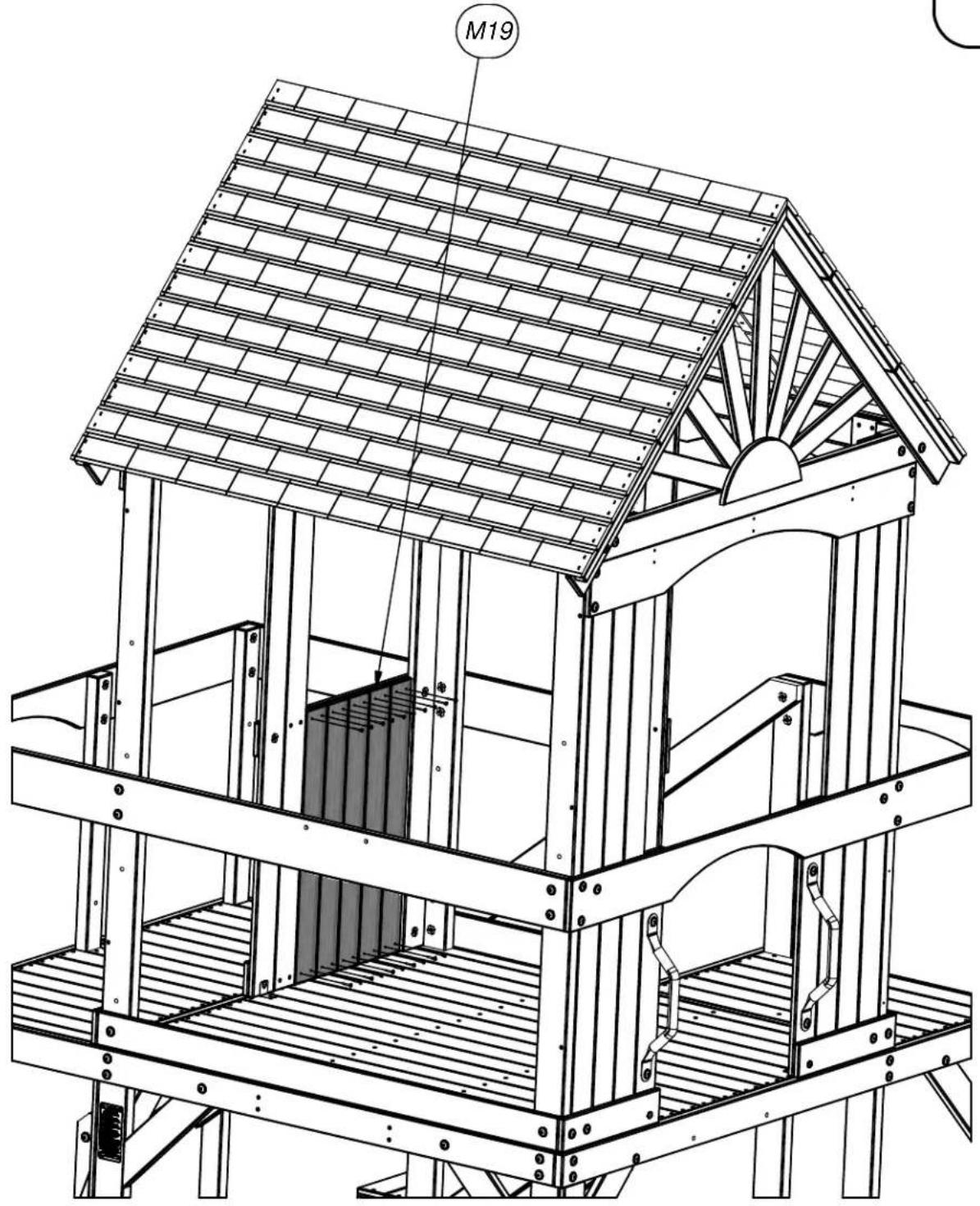

(11) M19 - WALL BOARD - W4L06096 5/8"x3 3/8"x27" (16x86x686)

(1) M20 - ATTACHMENT BOARD - W4L06146 5/8"x3 3/8"x21 1/2" (16x86x547)

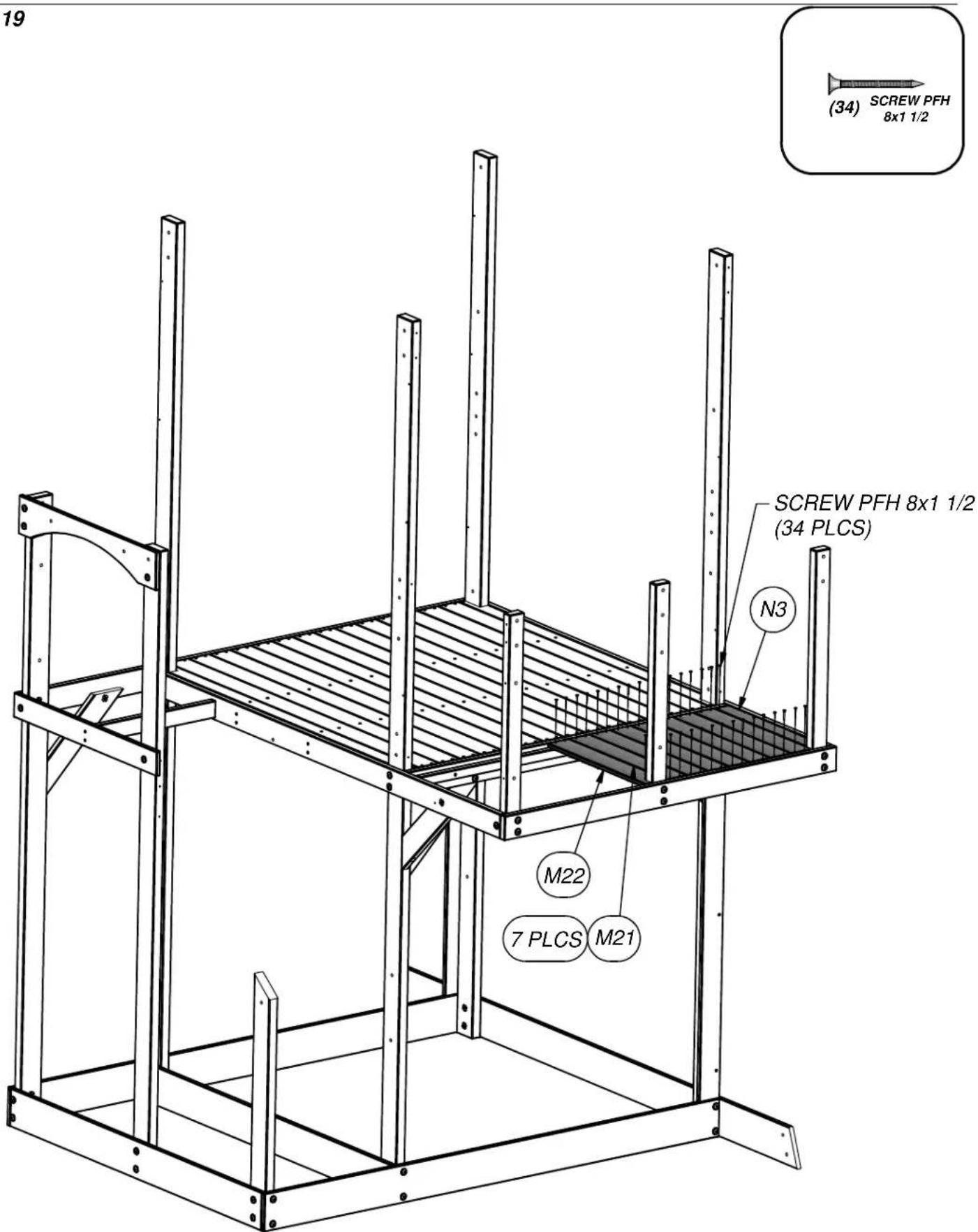

(13) M21 - FLOOR BOARD - W4L06080 5/8"x3 3/8"x21 1/4" (16x86x540)

(1) M22 - FLOOR BOARD - W4L06081 5/8"x3 3/8"x21 1/4" (16x86x540)

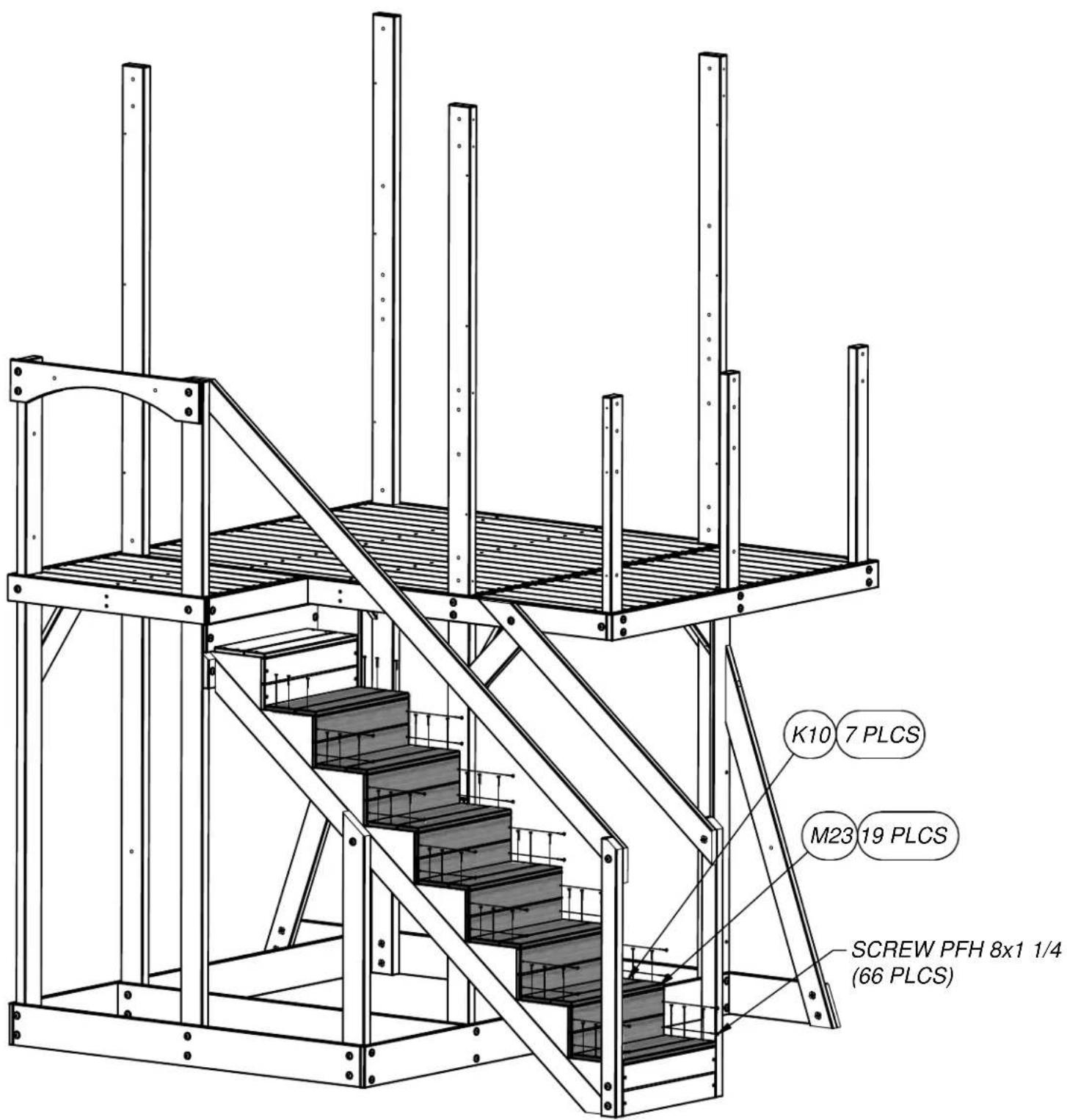

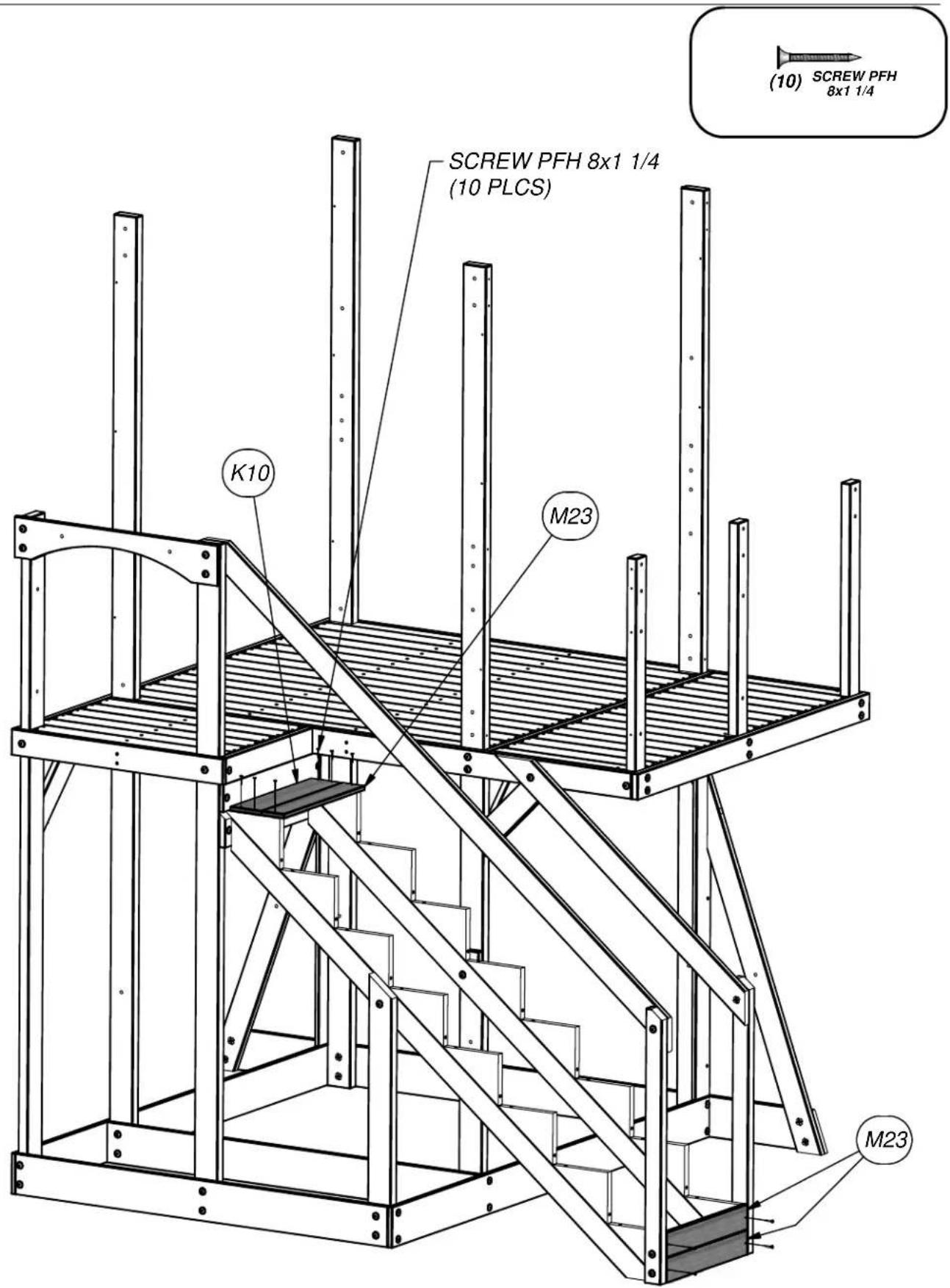

(24) M23 - STAIR STEP BOARD - W4L06122 5/8"x3 1/4"x19" (16x83x483)

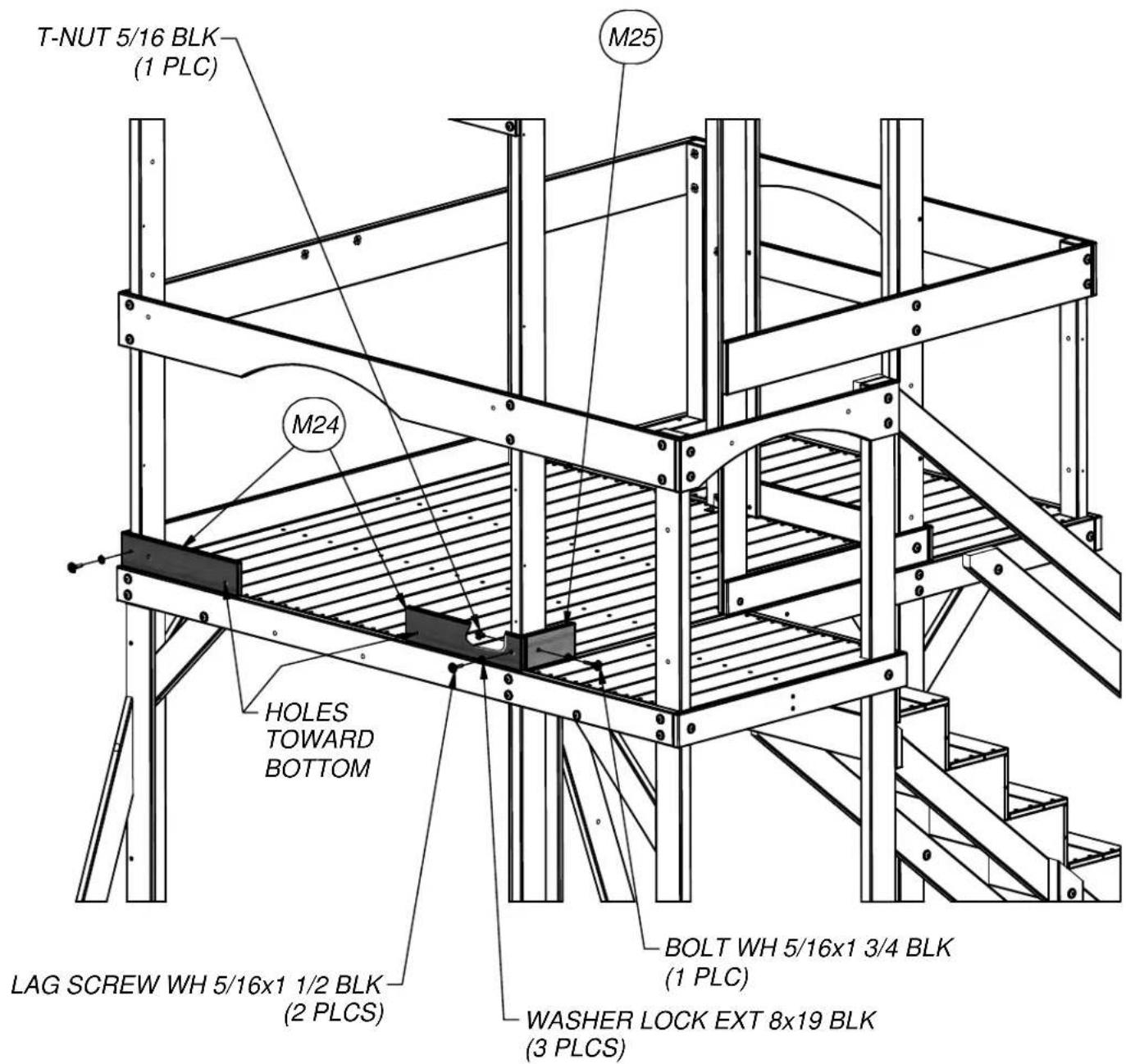

(2) M24 - WALL RAIL - W4L06107 5/8"x3 3/8"x15 5/8" (16x86x398)

(1) M25 - WALL RAIL - W4L06098 5/8"x3 3/8"x6 3/4" (16x86x172)

(1) M26 - WALL RAIL - W4L06110 5/8"x3 3/8"x5 3/8" (16x86x138)

(2) M27 - CORNER BOARD - W4L06147 5/8"x3 3/8"x50 3/8" (16x86x1280)

(1) M28 - WALL BOARD - W4L06180 5/8"x3 3/8"x61 1/4" (16x86x1557)

(2) N1 - FLOOR BOARD - W4L06067 5/8"x2 3/8"x54 1/2" (16x60x1384)

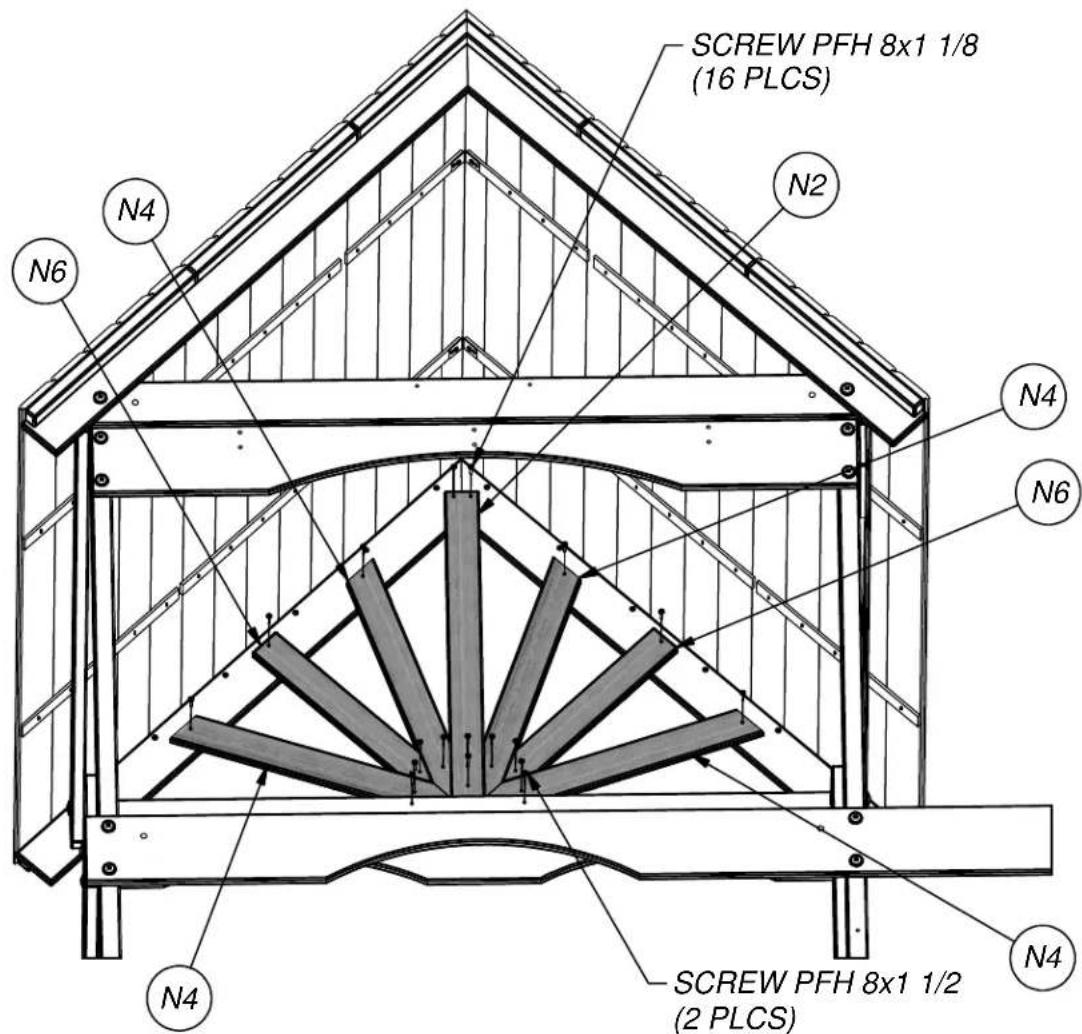

(2) N2 - SUNBURST BOARD - W4L06116 5/8"x2 3/8"x24 3/8" (16x60x620)

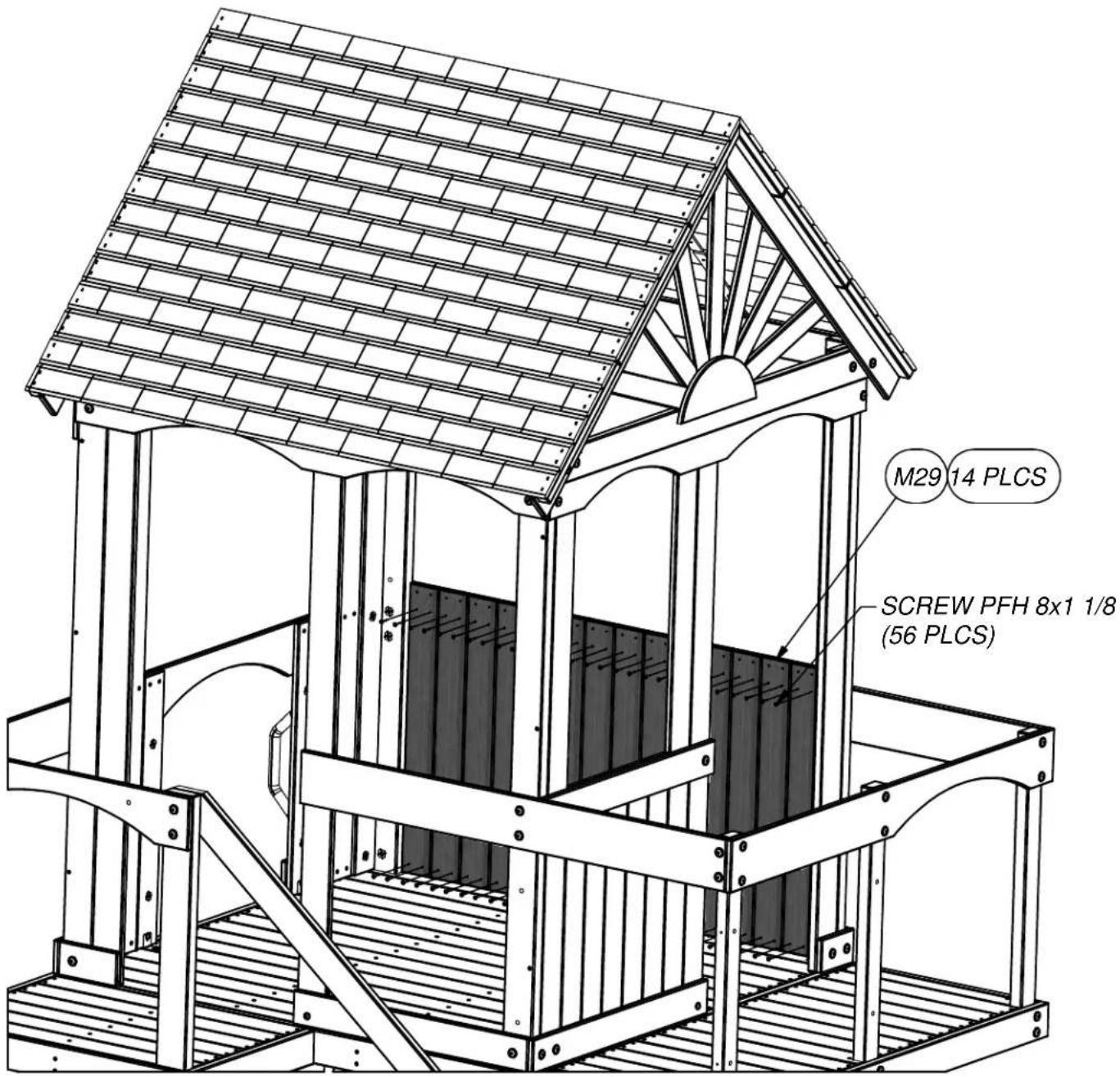

(14) M29 - WALL BOARD - W4L06181 5/8"x3 3/8"x28 5/8" (16x86x726)

Parts Identification

Wood Components

(NOT TO SCALE)

(2) N3 - FLOOR BOARD - W4L06078 5/8"x2 3/8"x19 3/4" (16x60x502)

N4 - SUNBURST BOARD - W4L06118 5/8"x2 3/8"x19 5/8" (16x60x500)

(4) N6 - SUNBURST BOARD - W4L06117 5/8"x2 3/8"x15 7/8" (16x60x404)

(22) O1 - PICKET - W4L06135 5/8"x1 3/8"x31 1/4" (16x34x795)

(1) O70 - SLIDE MOUNTING BOARD - W102822 5/8"x1 3/8"x20 3/8" (16x34x517)

(1) Q1 - SUPPORT BOARD - W4L06129 1"x4 3/8"x22 3/4" (24x112x579)

(1) SP50 - SWING BEAM SUPPORT - W4L06170 3 3/8"x3 3/8"x49 3/8" (86x86x1254)

(1) T1 - SUPPORT BOARD - W4L06075 1"x1 3/8"x50" (24x34x1270)

(2) T2 - SUPPORT BOARD - W4L06065 1"x1 3/8"x49 5/8" (24x34x1260)

(1) T3 - PICKET - W4L06136 1"x1 3/8"x27 1/8" (24x34x688)

(1) 14 - SUPPORT BOARD - W4L06077 1"x1 3/8"x23 7/8" (24x34x606)

(1) T5 - SUPPORT BOARD - W4L06076 1"x1 3/8"x21 1/2" (24x34x546)

(1) T6 - PICKET - W4L06137 1"x1 3/8"x19 5/8" (24x34x500)

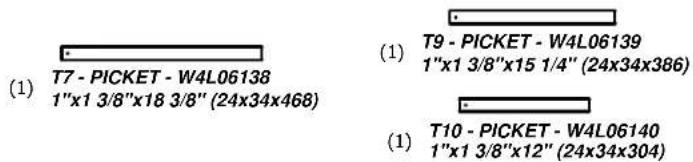

(1) 17 - PICKET - W4L06138 1"x1 3/8"x18 3/8" (24x34x468)

(2) T8 - SUPPORT BOARD - W4L06119 1"x1 3/8"x16 5/8" (24x34x423)

(1) T9 - PICKET - W4L06139 1"x1 3/8"x15 1/4" (24x34x386)

Parts Identification

Wood Components (NOT TO SCALE)

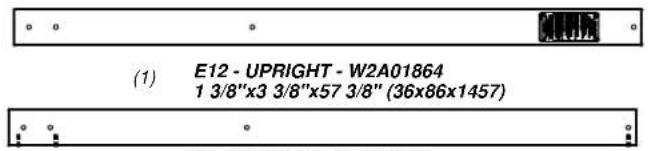

(1) E12 - UPRIGHT - W2A01864 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

Pure architectural floor plan lines without any text, numbers, or symbols

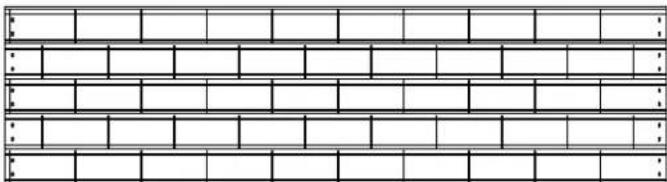

(2) RP1 - ROOF PANEL - W2A01860 1 3/8"x12 1/4"x59 1/2" (35x311x1532)

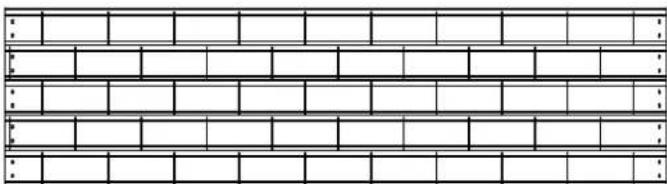

Pure architectural line drawing of a brick wall with horizontal and vertical lines (no text or symbols)

(2) RP2 - ROOF PANEL - W2A01861 1 3/8"x16 1/8"x59 1/2" (35x410x1532)

Pure brick wall pattern with horizontal and vertical lines, no text or symbols present

(2) RP3 - ROOF PANEL - W2A01862 1 3/8"x16 1/8"x59 1/2" (35x410x1532)

Pure geometric diagram of a trapezoid with triangular faces and base, no text or symbols present

(1) SR1 - STAIR RAIL - W2A01863 1"x8 3/8"x82 5/8" (24x214x2099)

Pure geometric diagram of a trapezoidal shape with triangular sides and base, no text or symbols present

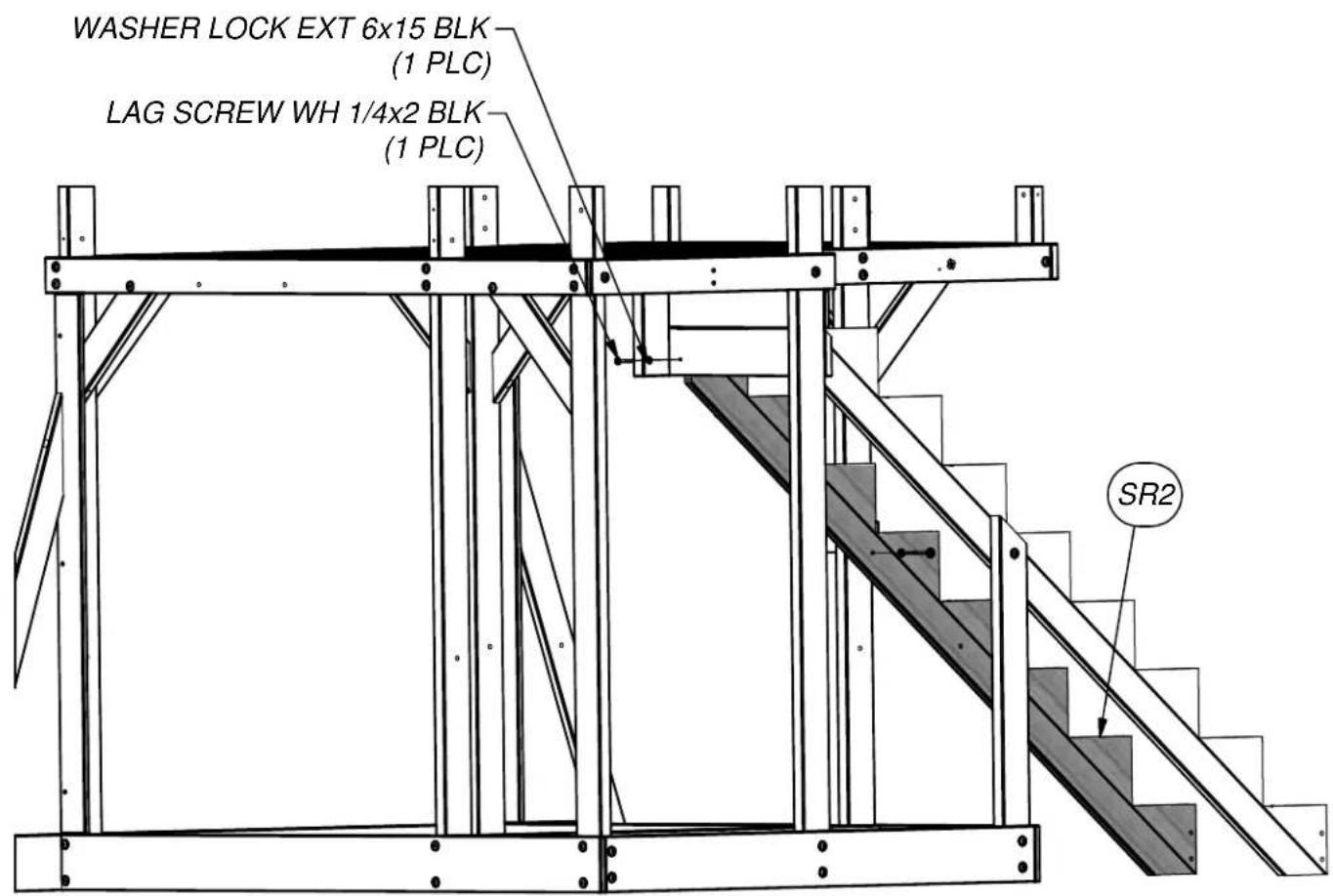

(1) SR2 - STAIR RAIL - W2A01868 1"x8 3/8"x82 5/8" (24x214x2099)

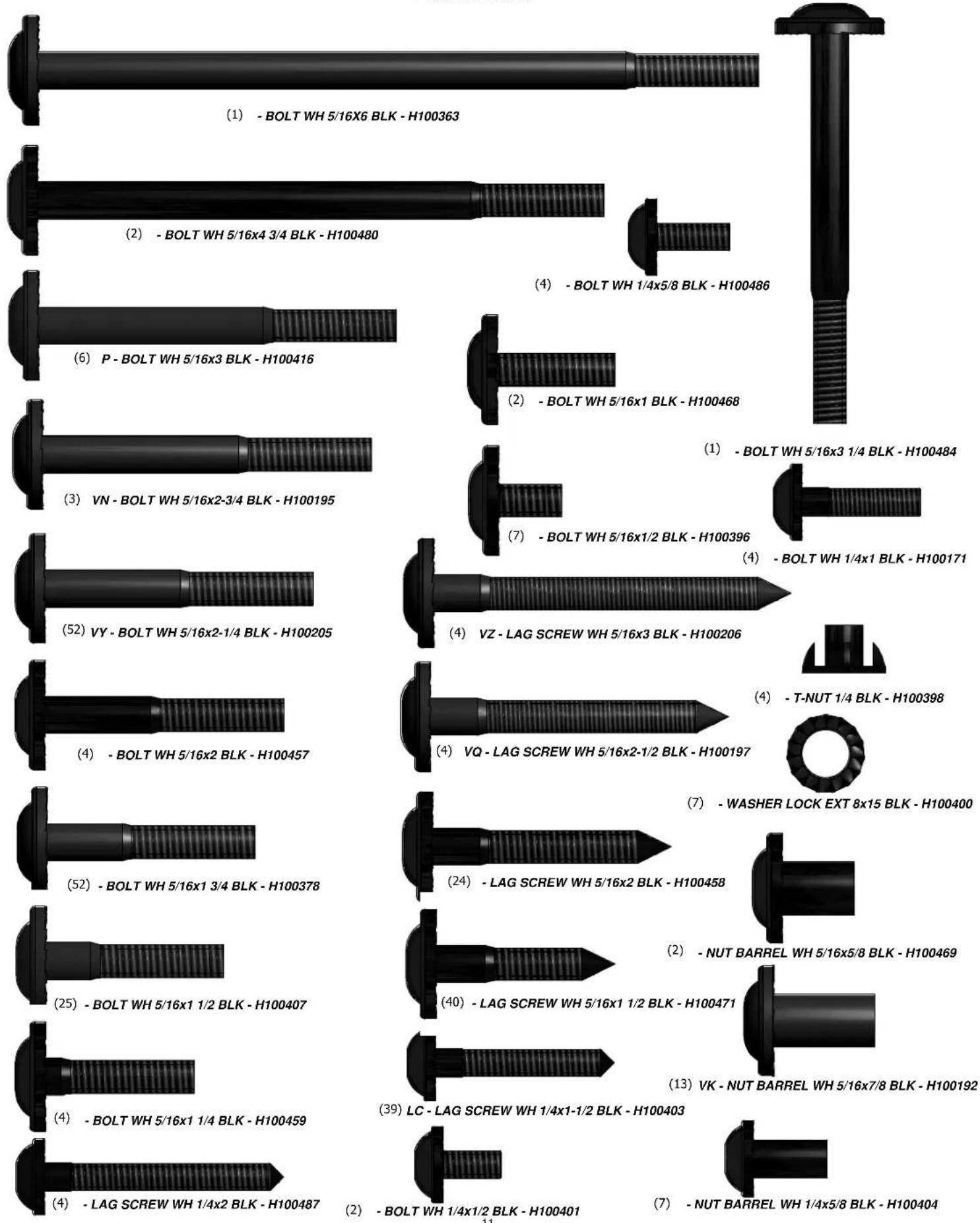

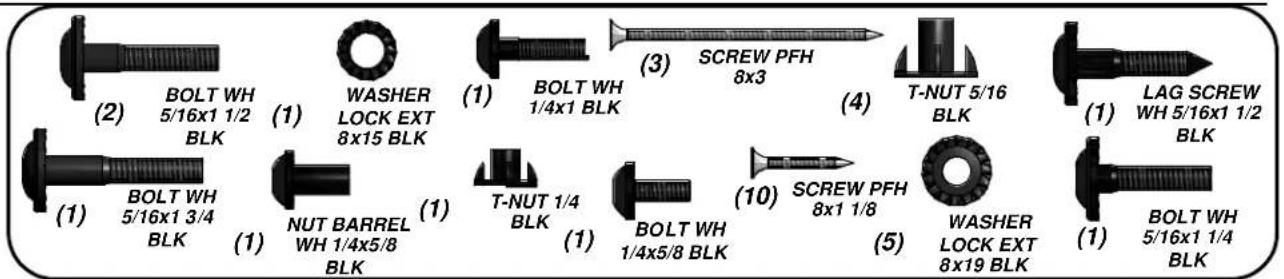

Parts Identification

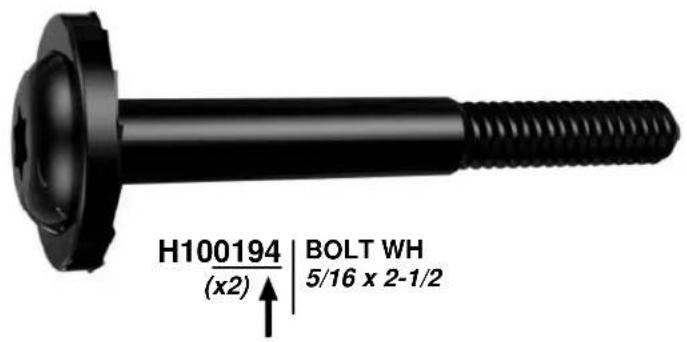

Hardware

Parts Identification

Hardware

Close-up of a mechanical component with a black shaft and metallic end cap (no text or symbols visible)

(1) - SCREW SETTER - H100764

(1) - T-30 TORX BIT - H100147

(1) - T-30 TORX WRENCH - H100114

(13) - SCREW PFH 8x3 - H100092

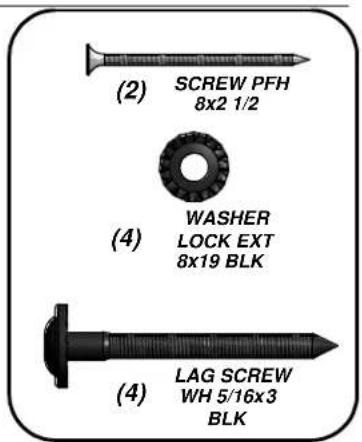

(17) - SCREW PFH 8x2 1/2 - H100090

(7) - SCREW PFH 8x2 - H100111

(13) - WASHER FLAT 11x25 - H100102

(193) - WASHER LOCK EXT 8x19 BLK - H100198

(4) - SCREW PWH 8x1/2 BLK - H100408

(65) - SCREW PFH 8x1-3/4" - H100089

(10) - WASHER LOCK EXT 12x19 BLK - H100199

(13) - T-NUT 3/8 - H100073

(207)- SCREW PFH 8x1-1/2" - H100086

(134)- SCREW PFH 8x1-1/4" - H100087

(11) - WASHER FLAT 9x18 BLK - H100474

(10) - WASHER LOCK EXT 12x19 BLK - H100199

(145)- T-NUT 5/16 BLK - H100379

(218) - SCREW PFH 8x1-1/8" - H100088

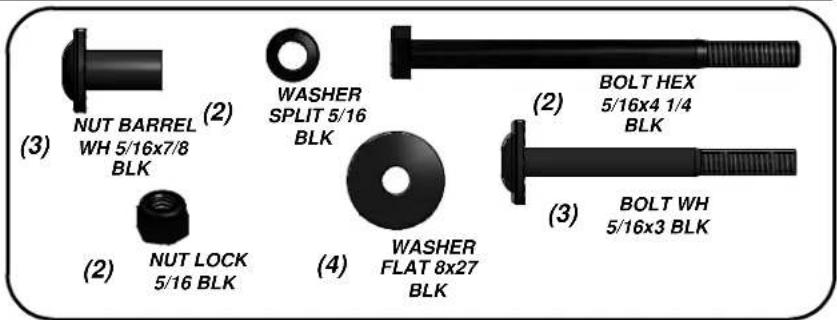

(2) - NUT LOCK 5/16 BLK - H100479

(13) - WASHER LOCK INT 10x18 - H100107

(4) - SCREW PFH 8x3/4 - H100121

(4) - BOLT HEX 5/16x1 1/4 BLK - H100481

(2) - WASHER LOCK INT 8x15 BLK - H100473

Solid black circular ring with a white hole at the center (no text or symbols)

(9) - WASHER FLAT 8x27 BLK - H100478

(2) - SCREW PWH 8x5/8 - H100128

(2) - BOLT HEX 5/16x2-3/4 BLK - H100472

(7) - WASHER SPLIT 5/16 BLK - H100477

Illustration of a cylindrical mechanical component with a textured end and flange (no text or symbols)

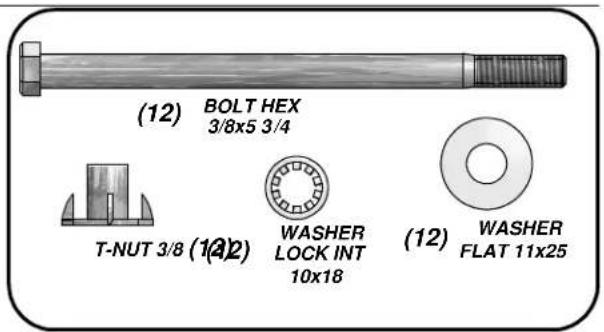

(13) - BOLT HEX 3/8x5 3/4 - H100056

(12) - WASHER LOCK EXT 6x15 BLK - H100405

Black threaded bolt with threaded shaft (no text or symbols visible)

(2) - BOLT HEX 5/16x4 1/4 BLK - H100476

Parts Identification

Accessories (NOT TO SCALE)

Mechanical assembly diagram showing a T-shaped component with attached parts (no text or symbols)

(6) - SWING HANGER - A4M00505

(1) - BYD ID TAG (LARGE) AGES 3-10 - A100164

(1) - "A" REVISION TAG - A100314

(6) - QUICK LINK - A100069

Solid black rounded rectangular object with two small circular holes at the top (no text or symbols)

(2) - SWING SEAT GREEN 22" - A6P00054

3D rendered model of a curved, elongated object with segmented edges (no text or symbols)

(1) SLIDE VF 10 FT - A100287 or A6P00539 or A6P00540

Black triangular metal plate with four evenly spaced holes (no text or symbols)

(2) - TRIANGLE PLATE 100° 5 HOLE - A4M00614

Black V-shaped metal bracket with four mounting holes (no text or symbols)

(2) - L BRACKET 66x66x127 - BLK - A4M00619

(1) - SWING BEAM EXTENSION BRACKET-LEFT - A4M00617

Simple grayscale illustration of a two-hinged horizontal bar with circular ends (no text or symbols)

(1) - TRAPEZE YELLOW - A6P00034

Black metal bracket with mounting holes (no text or symbols)

(1) - SWING BEAM EXTENSION BRACKET-RIGHT - A4M00618

(12) - METAL RUNG 547 - A4M00616

Pure black arrow symbol on white background, no text or labels present

(8) - AUGER GROUND STAKE - A100178

(6) -90° L-BRACKET - BLK - A4M00555

(2) - L BRACKET BLK - A4M00615 2.5x38x50x55

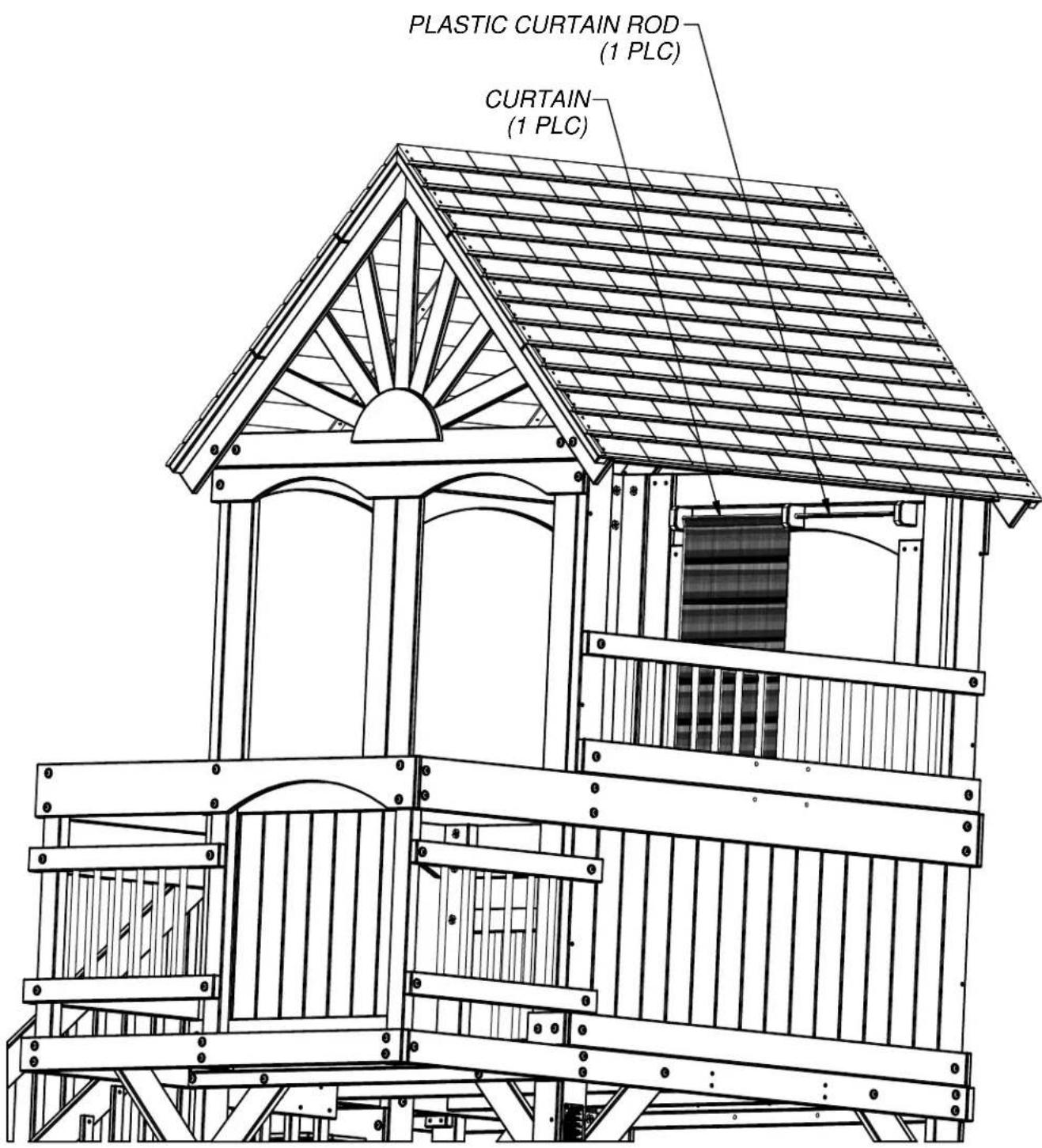

(1) - PLASTIC CURTAIN ROD - A6P00090

(4) - HAND GRIP METAL BLACK 381 c/c - A4M00613

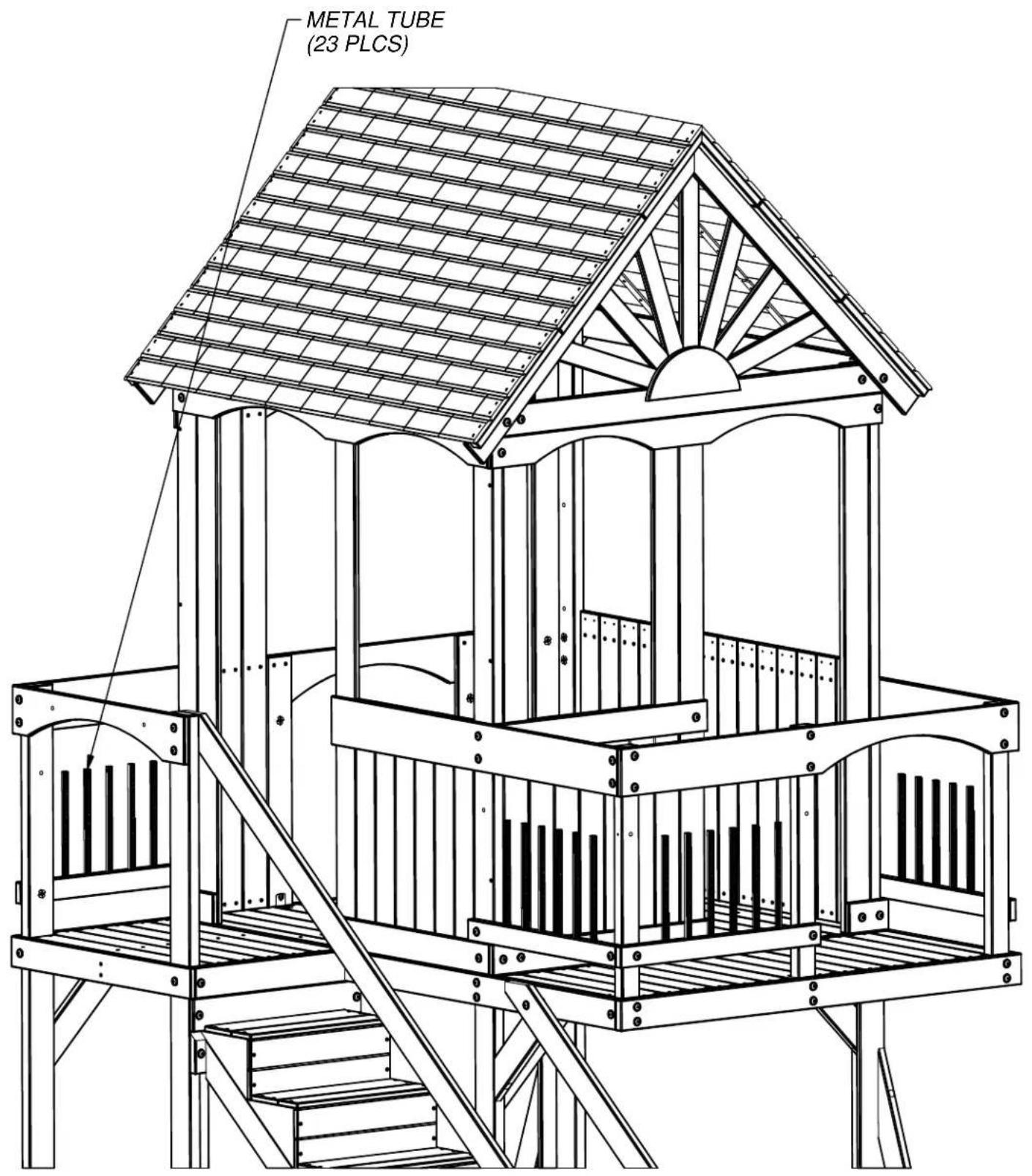

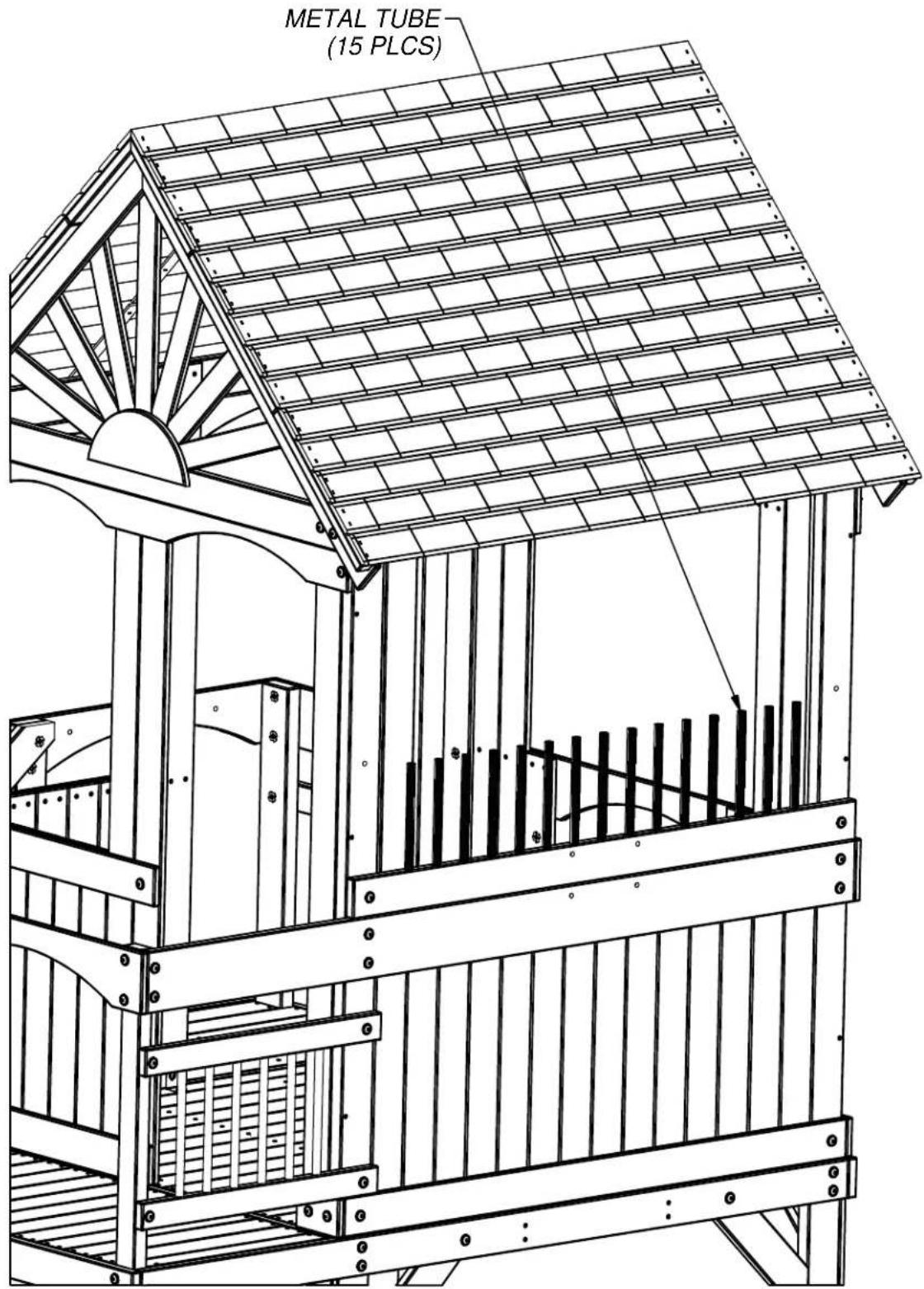

(23) - METAL TUBE - A4M00597

(2) - CHAIN GREEN 31" - A100177

A decorative border pattern composed of repeating square and circular motifs (no text or symbols)

(4) - CHAIN GREEN 57" - A100047

Parts Identification

Accessories

(NOT TO SCALE)

(1) - HAMMOCK - A6P00066

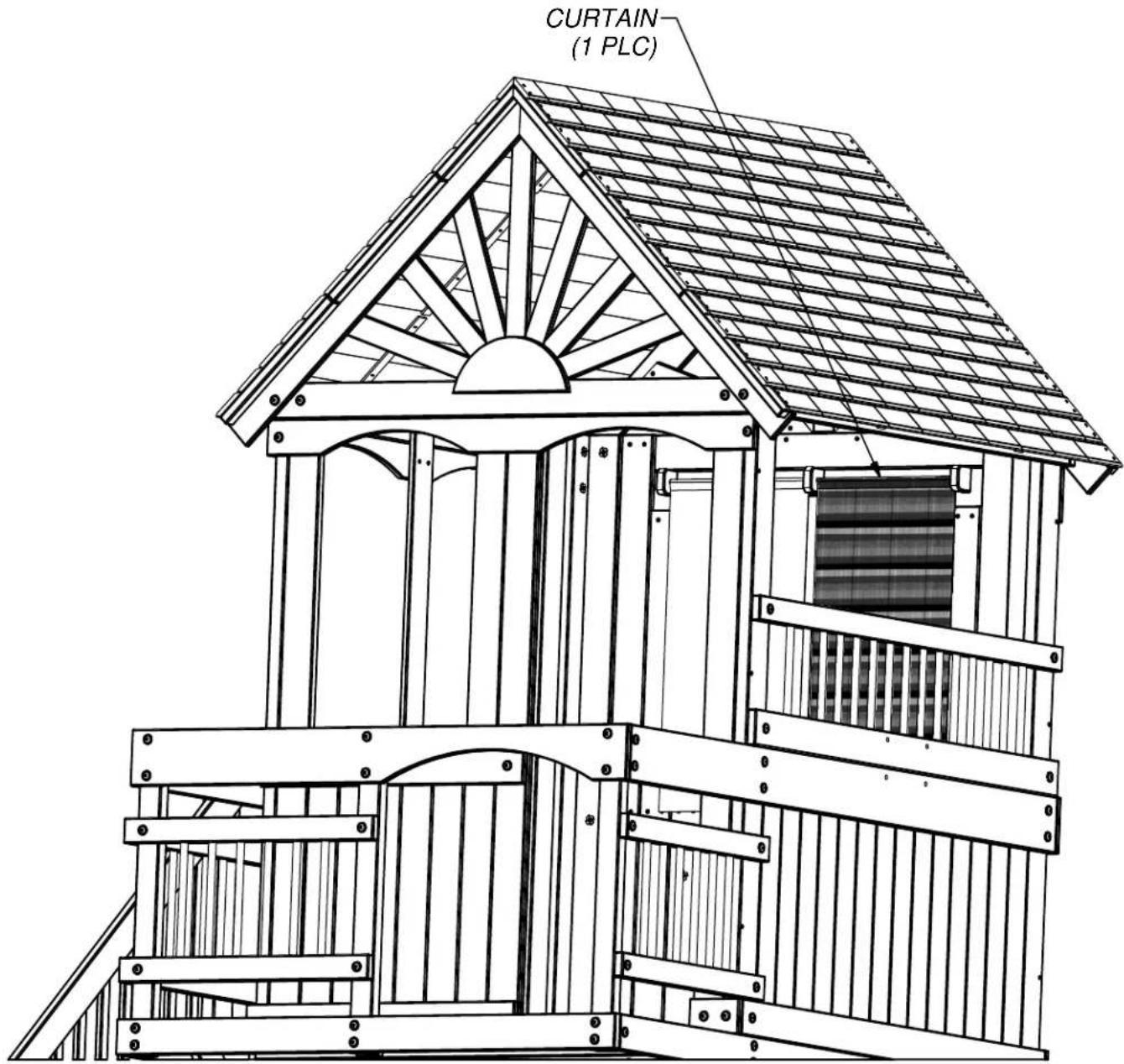

(2) - CURTAIN - A6P00089

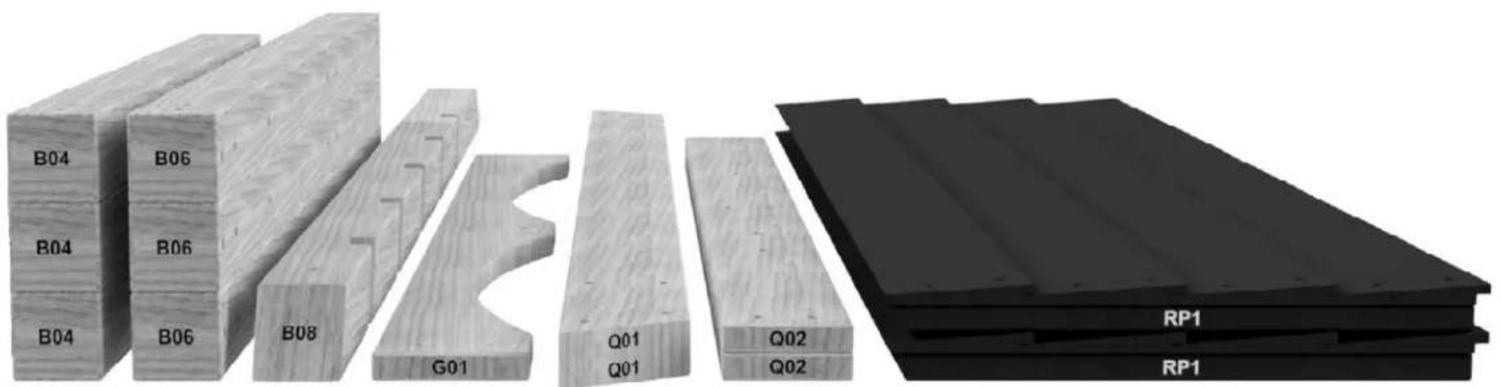

PRE-ASSEMBLY STEP 1 - SORTING PARTS

It is critical for ease of assembly that you take the time to sort and organize the wood and hardware.

WOOD PARTS:

• Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01).
• If there are multiple boards with the same stamped number, stack those pieces together.
• Stamps can be found on the flat surface of the boards or on the end of the boards.
• Allow yourself plenty of room - the wood pieces can take up a significant amount of space.

NOTE: CARTONS ARE NOT ORGANIZED BY BOARD NUMBER.

HARDWARE PARTS:

• We recommend that you have a separate table to organize the hardware.
- Hardware bags are printed with a seven-digit, alpha-numeric part number.
- You can organize your hardware by part number or group by hardware type (i.e. bolts, nuts, etc.).
- During assembly you only need to reference the last four digits of the number.

PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED

There are several types of assembly instructions available to you.

1. Printed Assembly Manual included with your set
2. BILT APP - 3D interactive instructions
3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)

Simple curved line diagram with no text, numbers, or symbols

(2) G2 - LADDER UPRIGHT - W4L06144 1"x5 1/4"x64 1/2" (24x134x1637)

(1) M20 - ATTACHMENT BOARD - W4L06146 5/8"x3 3/8"x21 1/2" (16x86x547)

(5) - METAL RUNG 547 - A4M00616

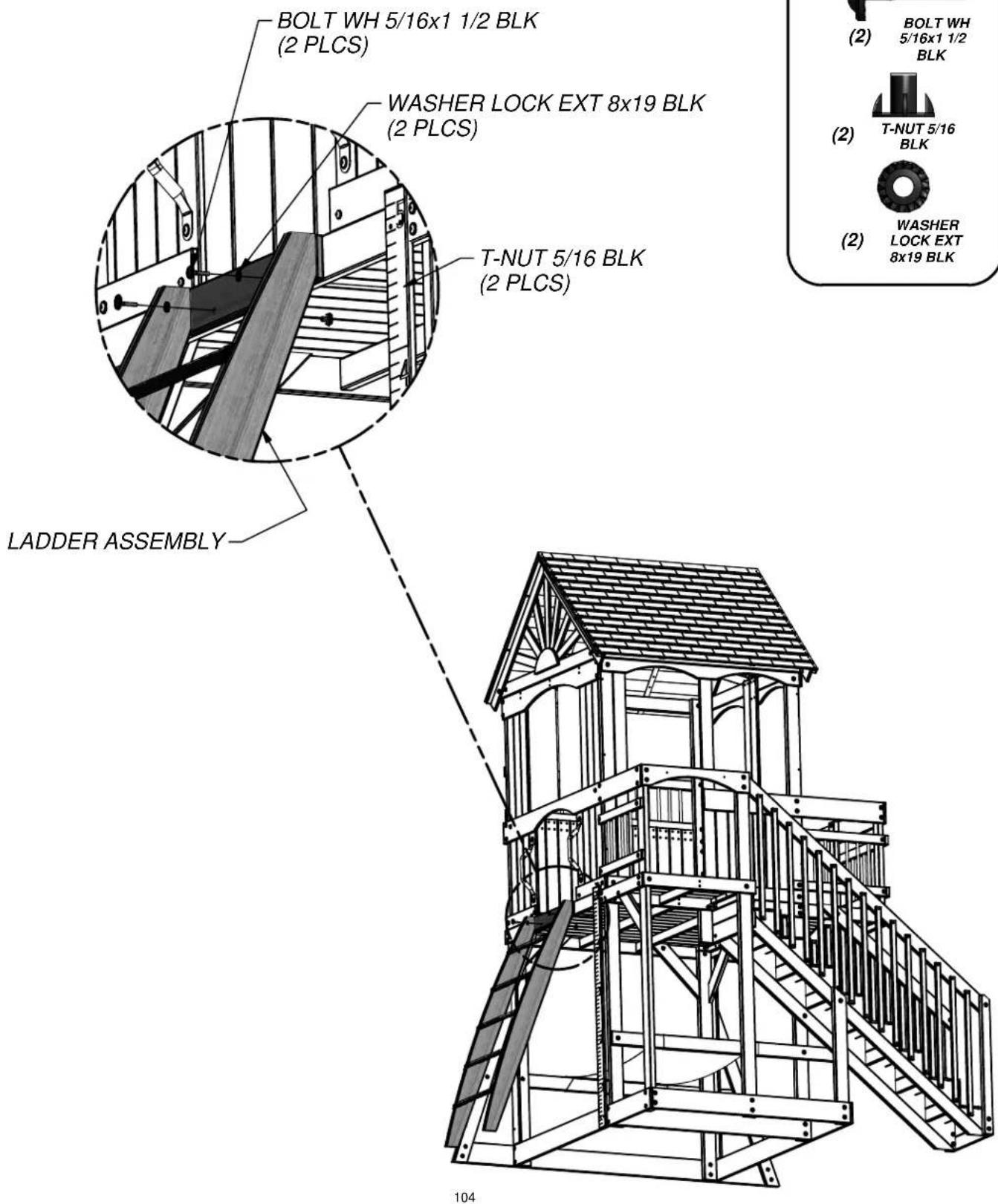

LADDER ASSEMBLY

(1) E74 - MONKEY BAR RAIL - W4L06149 1 3/8"x3 3/8"x60 5/8" (36x86x1539)

(1) - TRIANGLE PLATE 100° 5 HOLE - A4M00614
(1) - L BRACKET 2.5x38x50x55 - A4M00615

MONKEY BAR ASSEMBLY STEP 1

(1) E74 - MONKEY BAR RAIL - W4L06149 1 3/8"x3 3/8"x60 5/8" (36x86x1539)

(1) - TRIANGLE PLATE 100° 5 HOLE - A4M00614

(1) - L BRACKET 2.5x38x50x55 - A4M00615

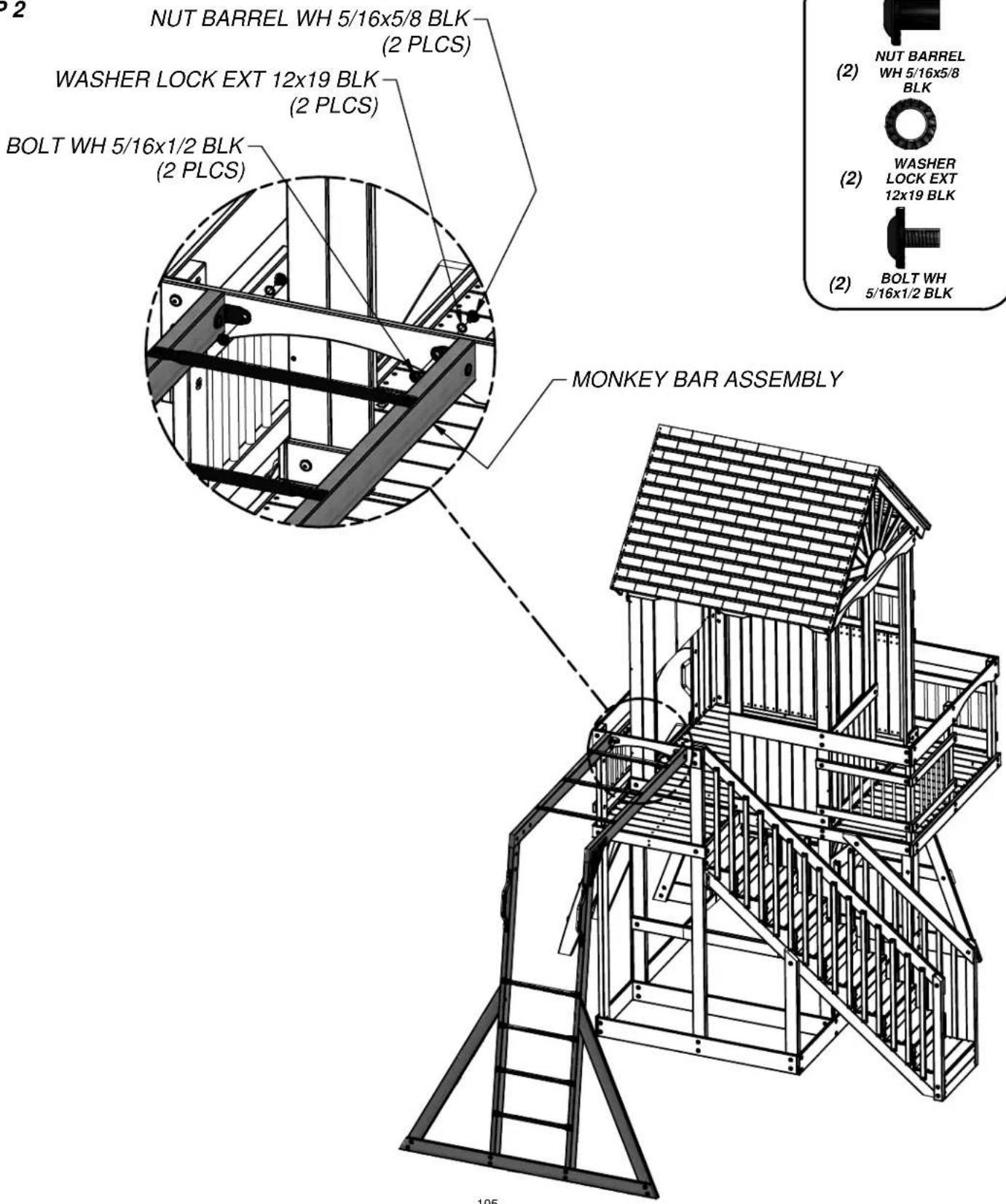

MONKEY BAR ASSEMBLY STEP 2

Simple horizontal line with tick marks and dots, no text or symbols present

(1) E79 - MONKEY BAR UPRIGHT - W4L06150 1 3/8"x3 3/8"x84 1/2" (36x86x2148)

(1) - HAND GRIP METAL BLACK 381 c/c - A4M00613

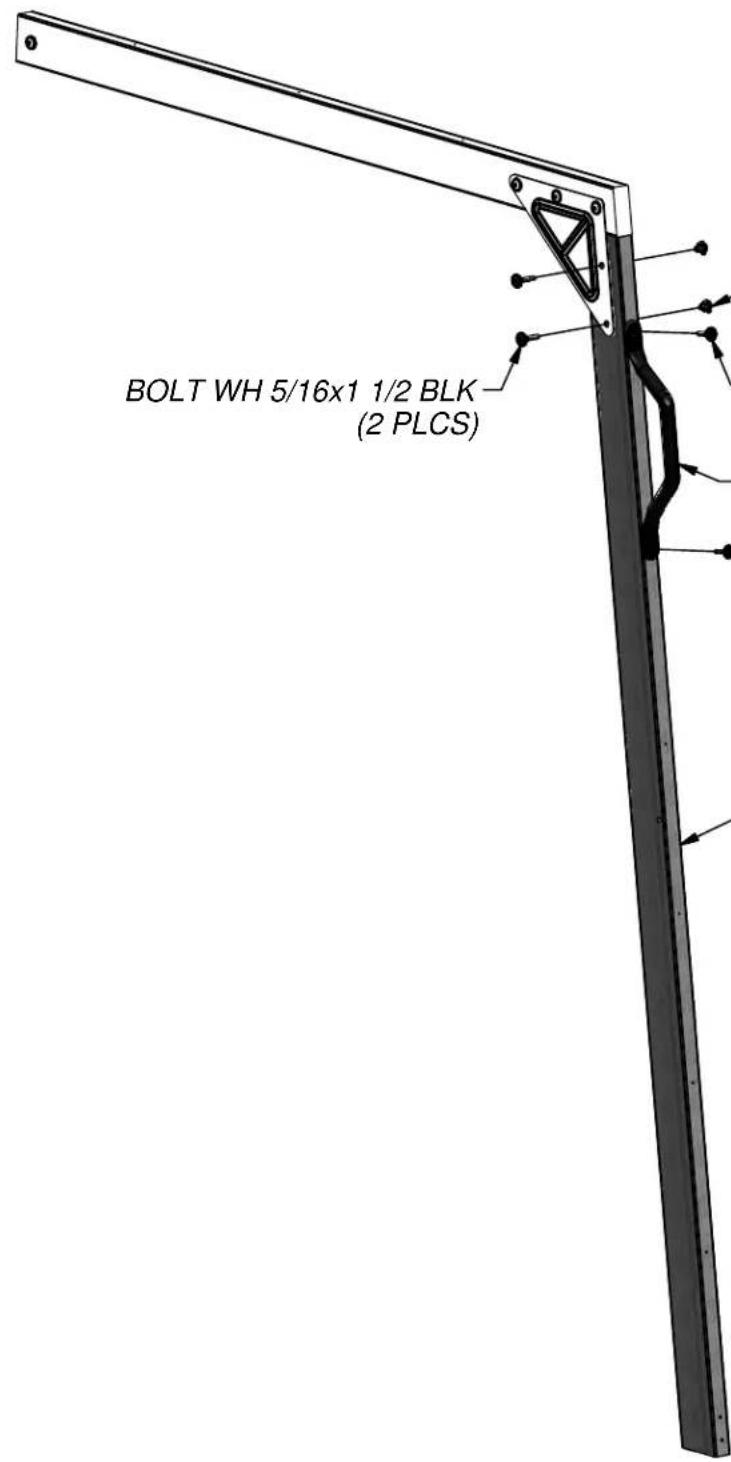

MONKEY BAR ASSEMBLY STEP 3

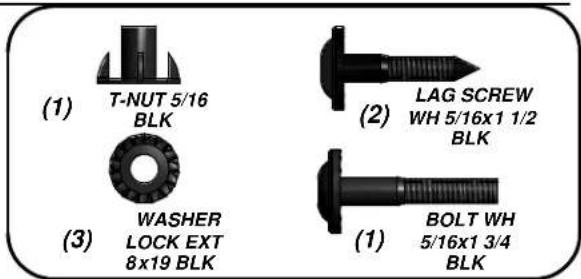

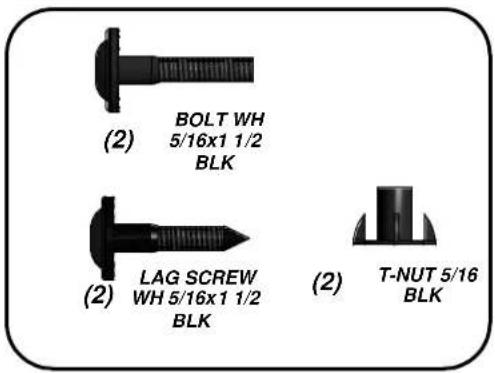

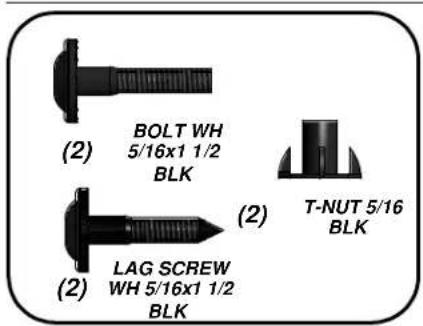

T-NUT 5/16 BLK (2 PLCS) LAG SCREW WH 5/16x1 1/2 BLK (2 PLCS) HAND GRIP METAL BLACK 381 c/c (1 PLC)

E79

Simple horizontal line with tick marks at intervals (no text or symbols)

(1) E79 - MONKEY BAR UPRIGHT - W4L06150 1 3/8"x3 3/8"x84 1/2" (36x86x2148)

MONKEY BAR ASSEMBLY STEP 4

(1) H82 - MONKEY BAR GROUND BOARD - W4L06168 1"x3 3/8"x70 3/8" (24x86x1786)

MONKEY BAR ASSEMBLY STEP 6

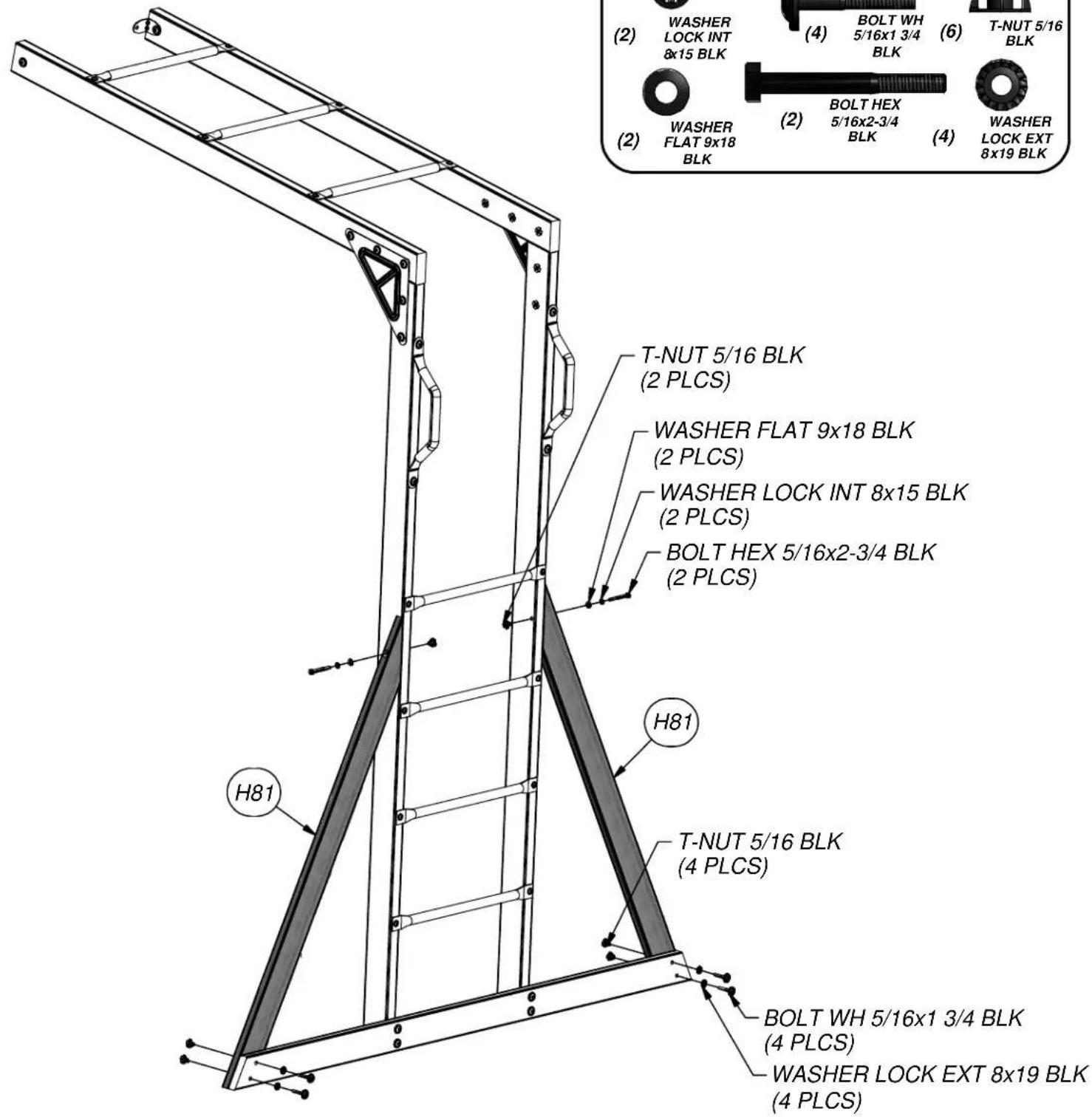

(2) H81 - MONKEY BAR BRACE - W4L06151 1"x3 3/8"x53 1/4" (24x86x1352)

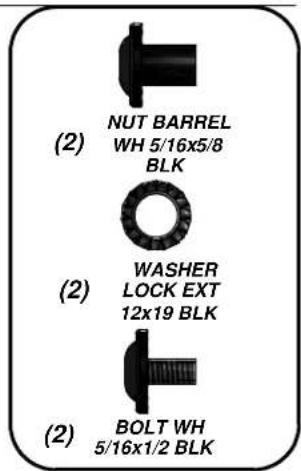

MONKEY BAR ASSEMBLY STEP 7

(1) - SWING BEAM EXTENSION BRACKET-LEFT - A4M00617

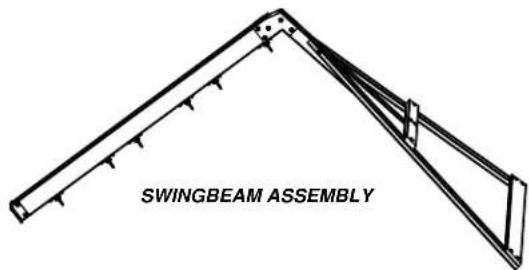

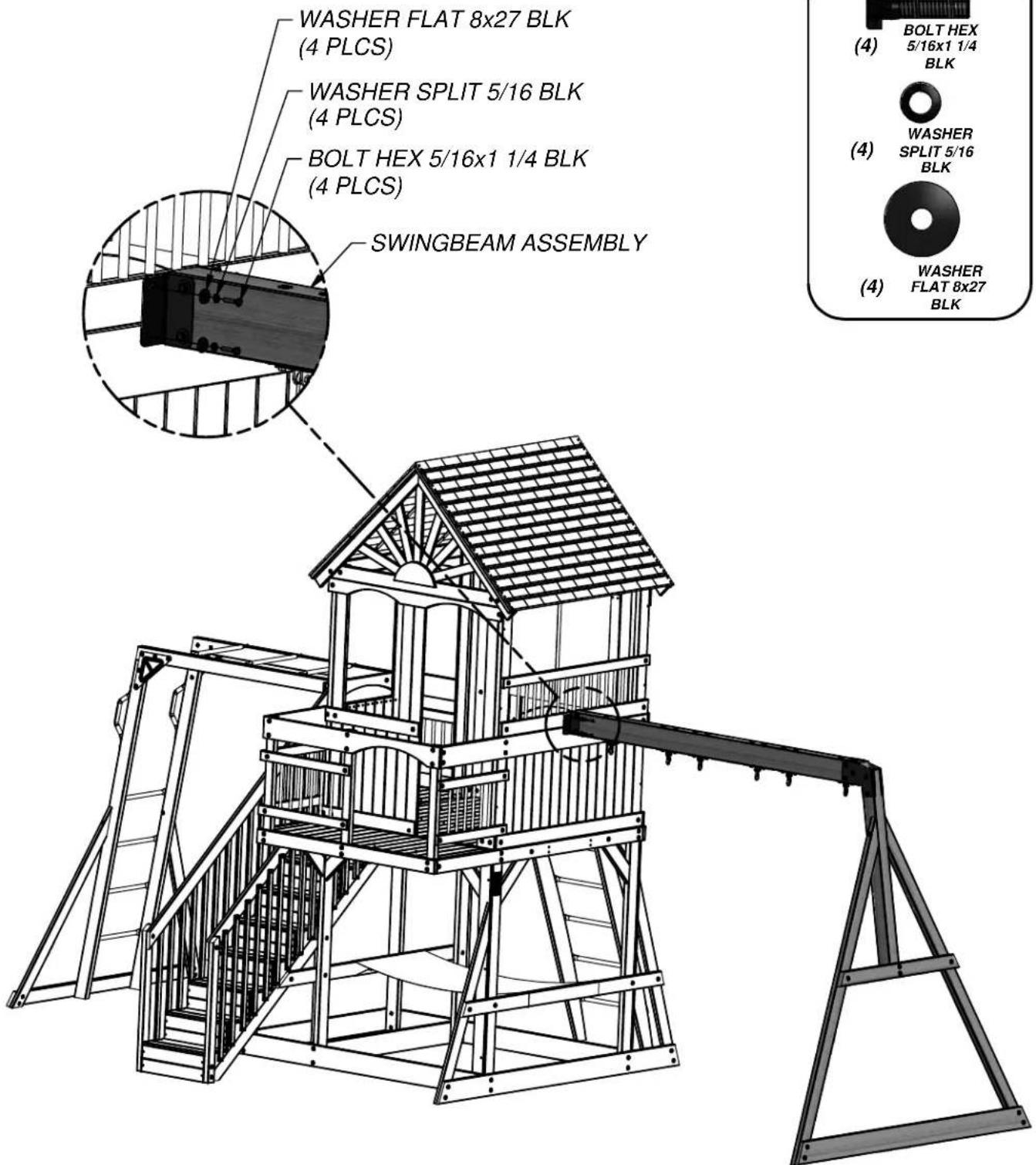

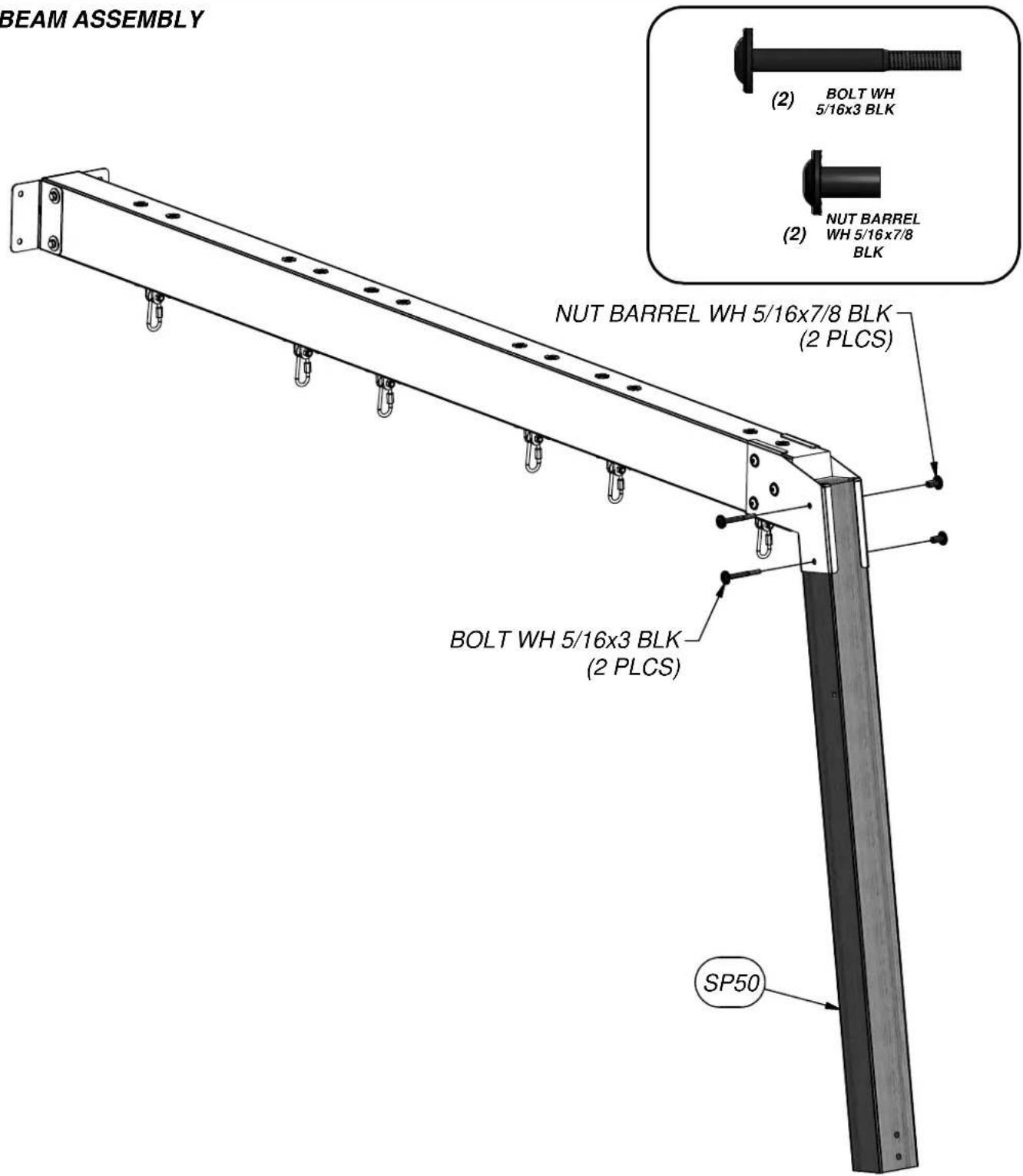

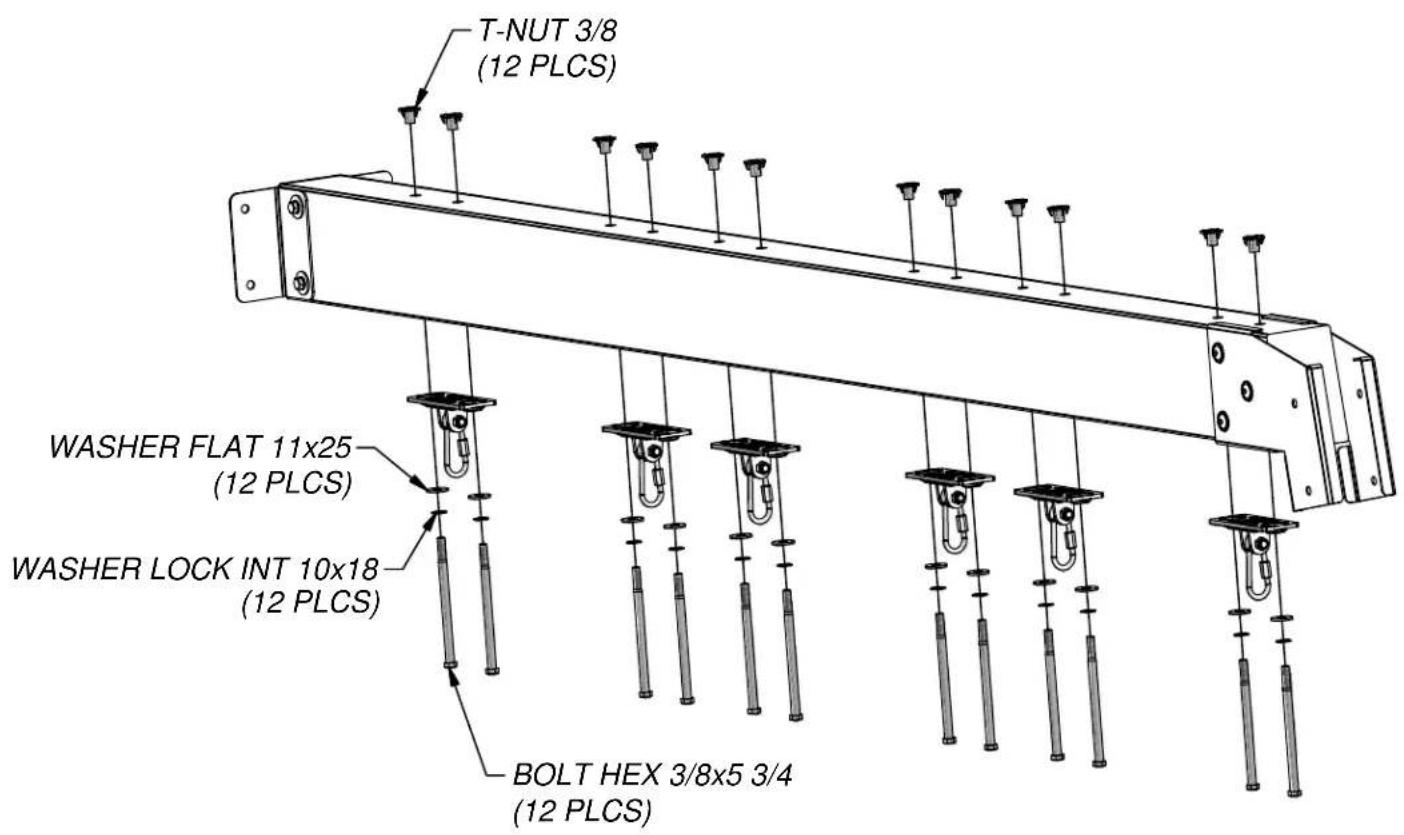

SWING BEAM ASSEMBLY STEP 1

(6) BY-SWING HANGER-A4M00505
SWING BEAM ASSEMBLY STEP 2

(1) SP50 - SWING BEAM SUPPORT - W4L06170 3 3/8"x3 3/8"x49 3/8" (86x86x1254)

SWING BEAM ASSEMBLY STEP 3

Simple geometric shape with a diagonal line and small circles at the top (no text or symbols)

(2) E51 - ANGLE BRACE - W4L06171 1 3/8"x3 3/8"x88 3/4" (36x86x2254)

(1) E50 - END SUPPORT - W4L06172 1 3/8"x3 3/8"x44 1/8" (36x86x1120)

SWING BEAM ASSEMBLY STEP 4

Empty rectangular frame with four small dots at corners (no text or symbols)

(1) G50 - GROUND BOARD - W4L06173 1"x5 1/4"x86 3/4" (24x134x2202)

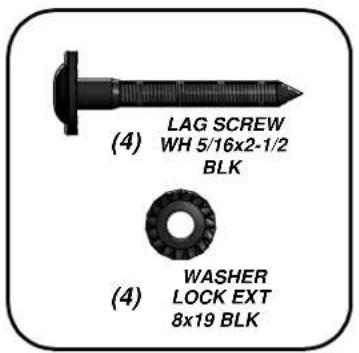

SWING BEAM ASSEMBLY STEP 5

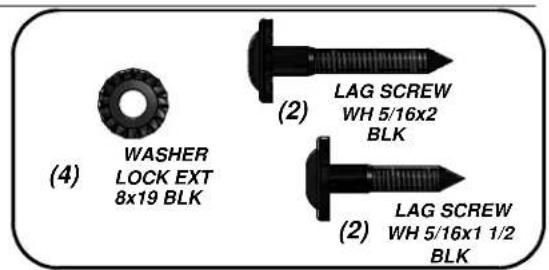

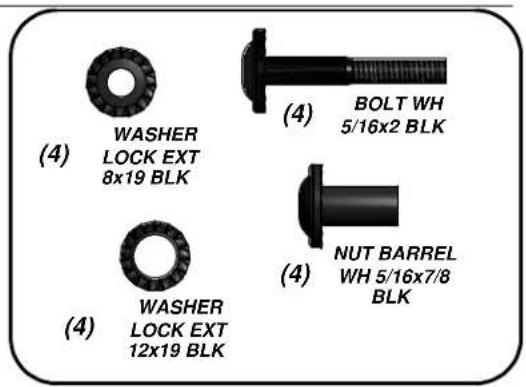

(4)

WASHER LOCK EXT 8x19 BLK

(1) E7 - UPRIGHT - W4L06051 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

Simple rectangular frame with evenly spaced dots at the bottom (no text or symbols)

(1) K12 - GROUND BOARD - W4L06185 5/8"x5 1/4"x89 1/2" (16x134x2274)

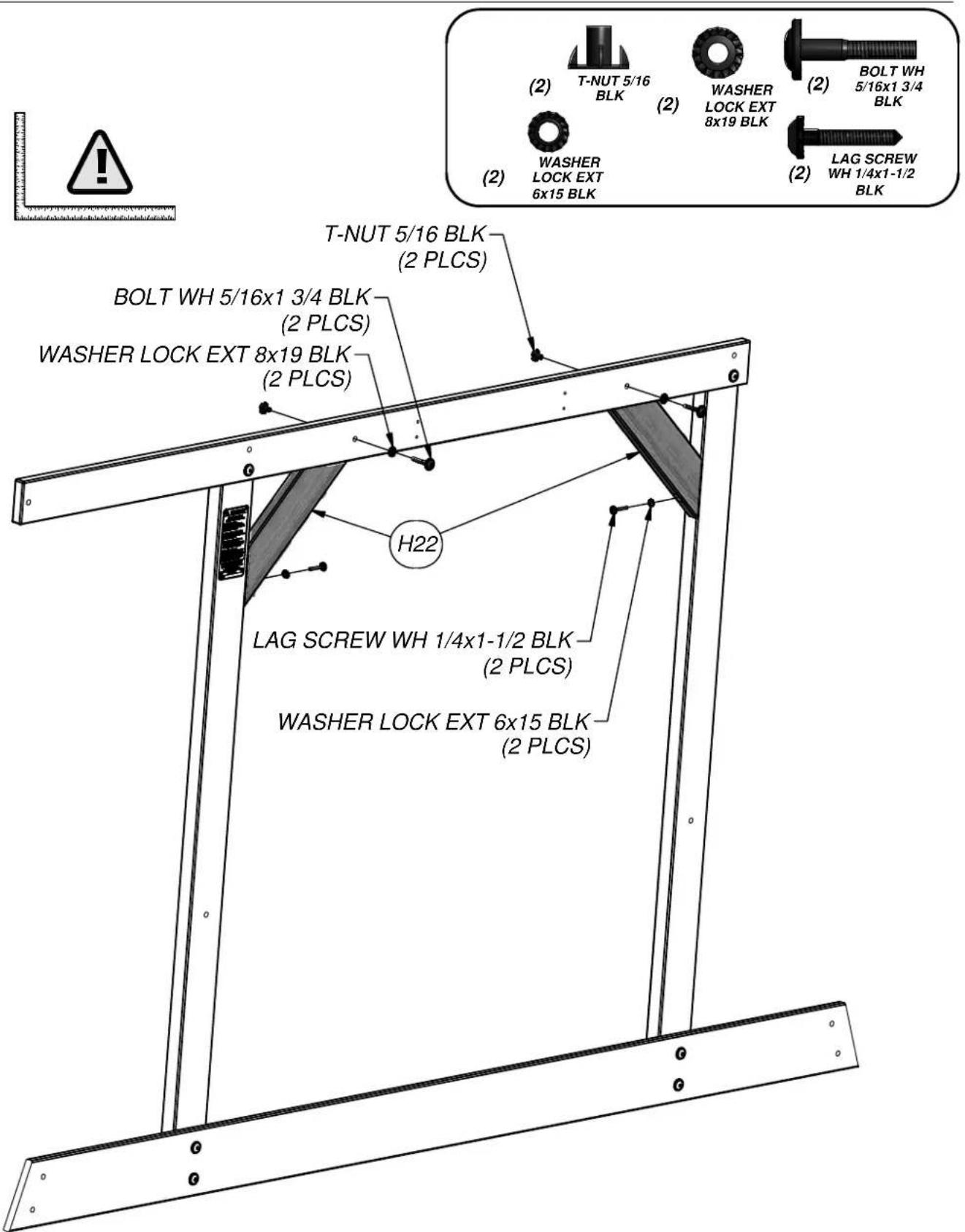

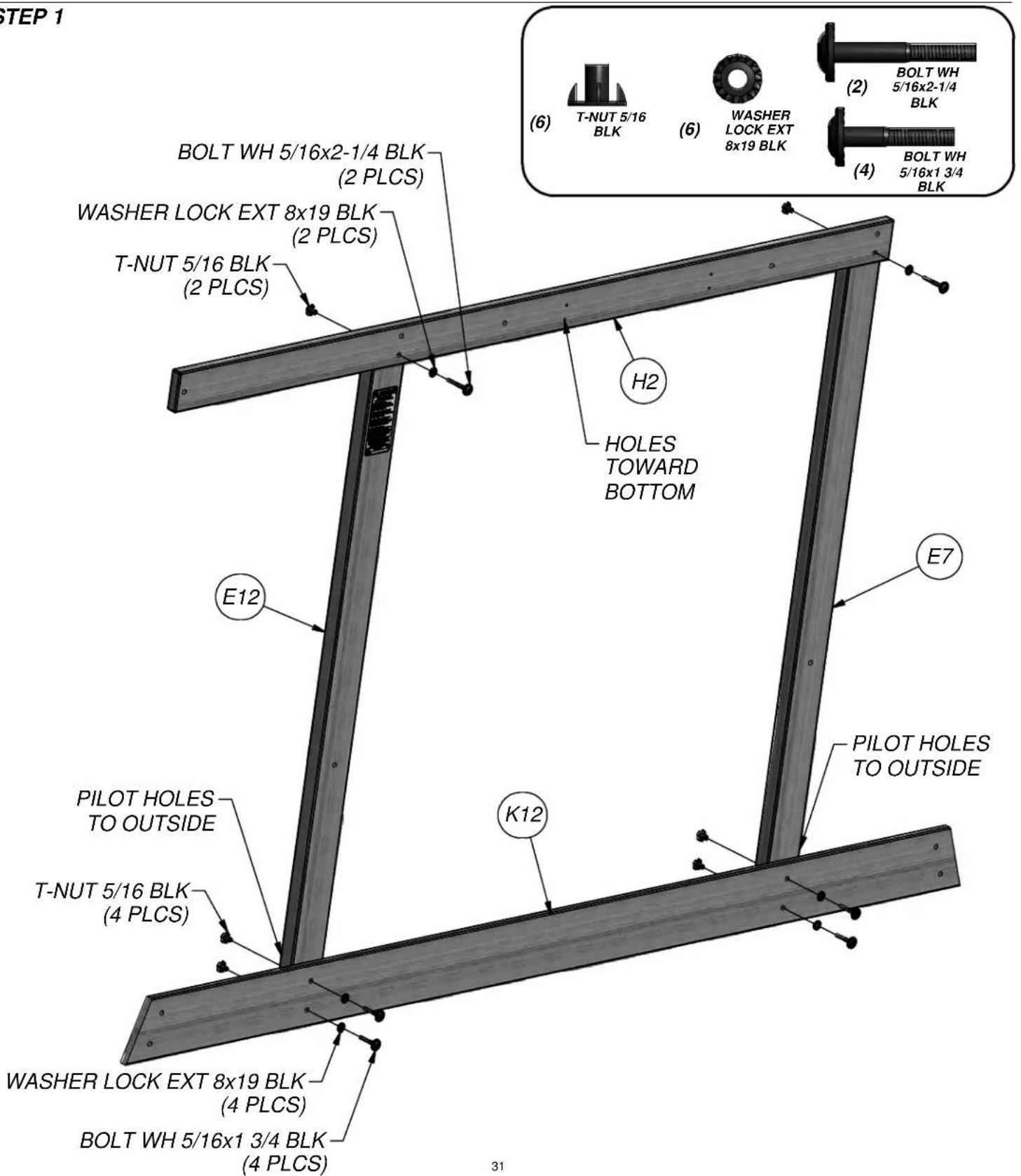

STEP 1

(2) H22 - DECK BRACE - W4L06082 1"x3 3/8"x18 3/8" (24x86x466)

STEP 2

Empty rectangular frame with four corner dots, no text or symbols present

(1) K1 - GROUND BOARD - W4L06052 5/8"x5 1/4"x74 1/2" (16x134x1893)

Empty rectangular frame with four small circles at the top and bottom corners (no text or symbols)

(1) K2 - GROUND BOARD - W4L06056 5/8"x5 1/4"x74 1/2" (16x134x1893)
STEP 3

(1) E8 - UPRIGHT - W4L06058 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

(1) E9 - UPRIGHT - W4L06061 1 3/8"x3 3/8"x57 3/8" (36x86x1457)

Empty rectangular frame with three small dots at the top (no text or symbols)

(1) K4 - GROUND BOARD - W4L06049 5/8"x5 1/4"x54 1/2" (16x134x1384)

STEP 4

(1) E1 - UPRIGHT - W4L06055 1 3/8"x3 3/8"x86 1/8" (36x86x2186)

(1) E10 - UPRIGHT - W4L06053 1 3/8"x3 3/8"x34 1/4" (36x86x869)

(1) K5 - GROUND BOARD - W4L06054 5/8"x5 1/4"x54 1/2" (16x134x1384)

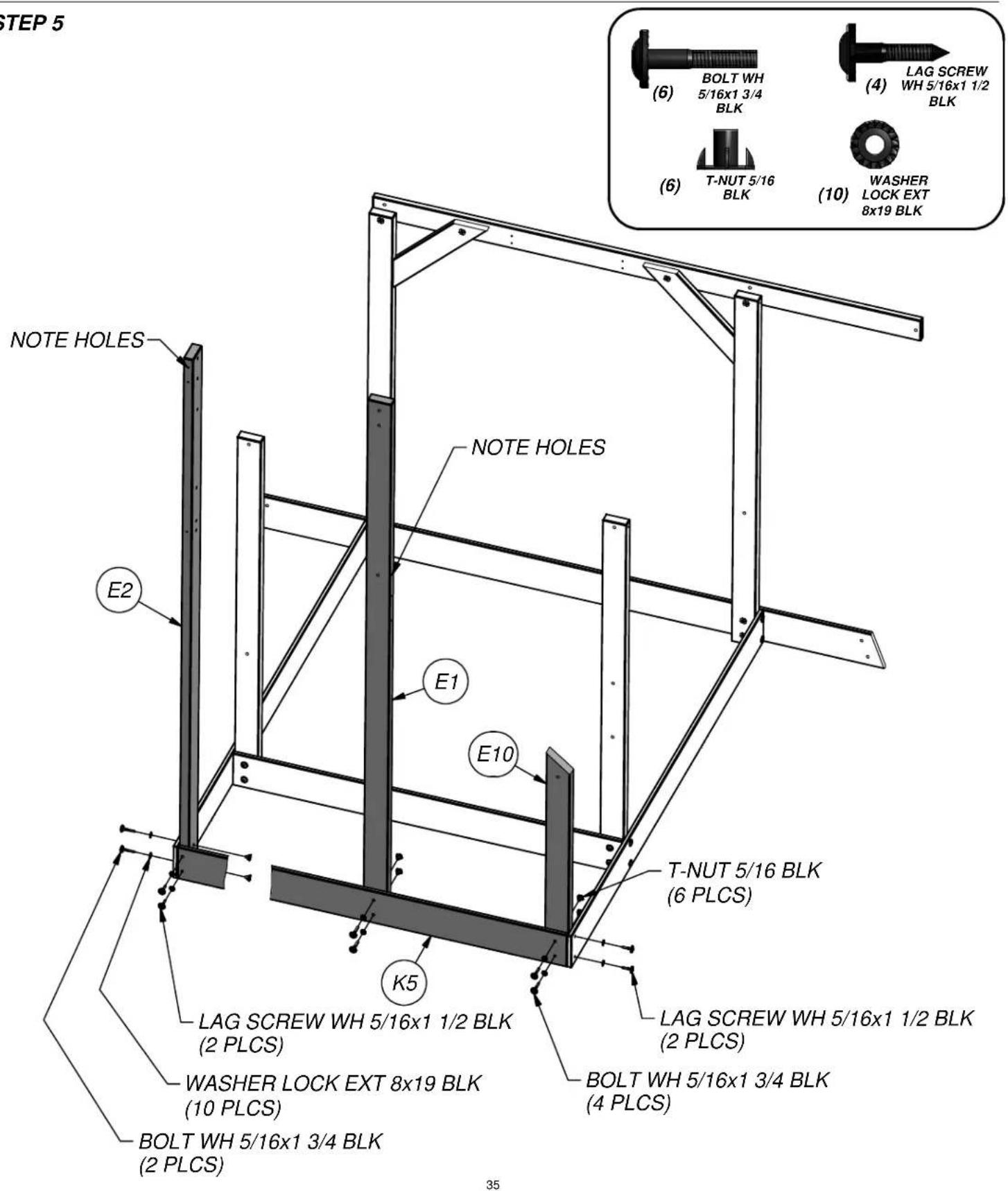

STEP 5

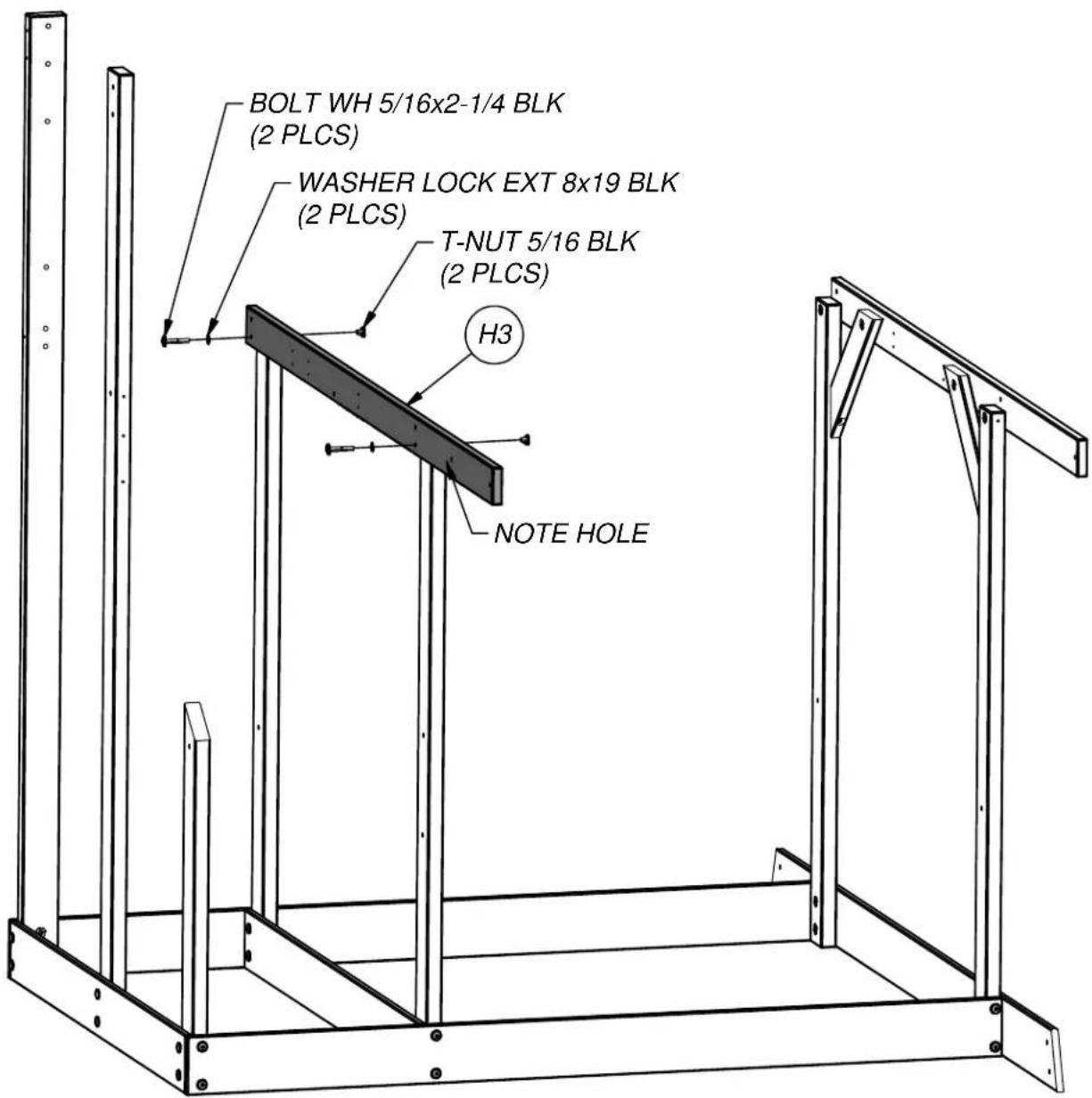

(1) H3 - FLOOR SUPPORT - W4L06083 1"x3 3/8"x76 3/4" (24x86x1948)

STEP 6

(1) H22 - DECK BRACE - W4L06082 1"x3 3/8"x18 3/8" (24x86x466)

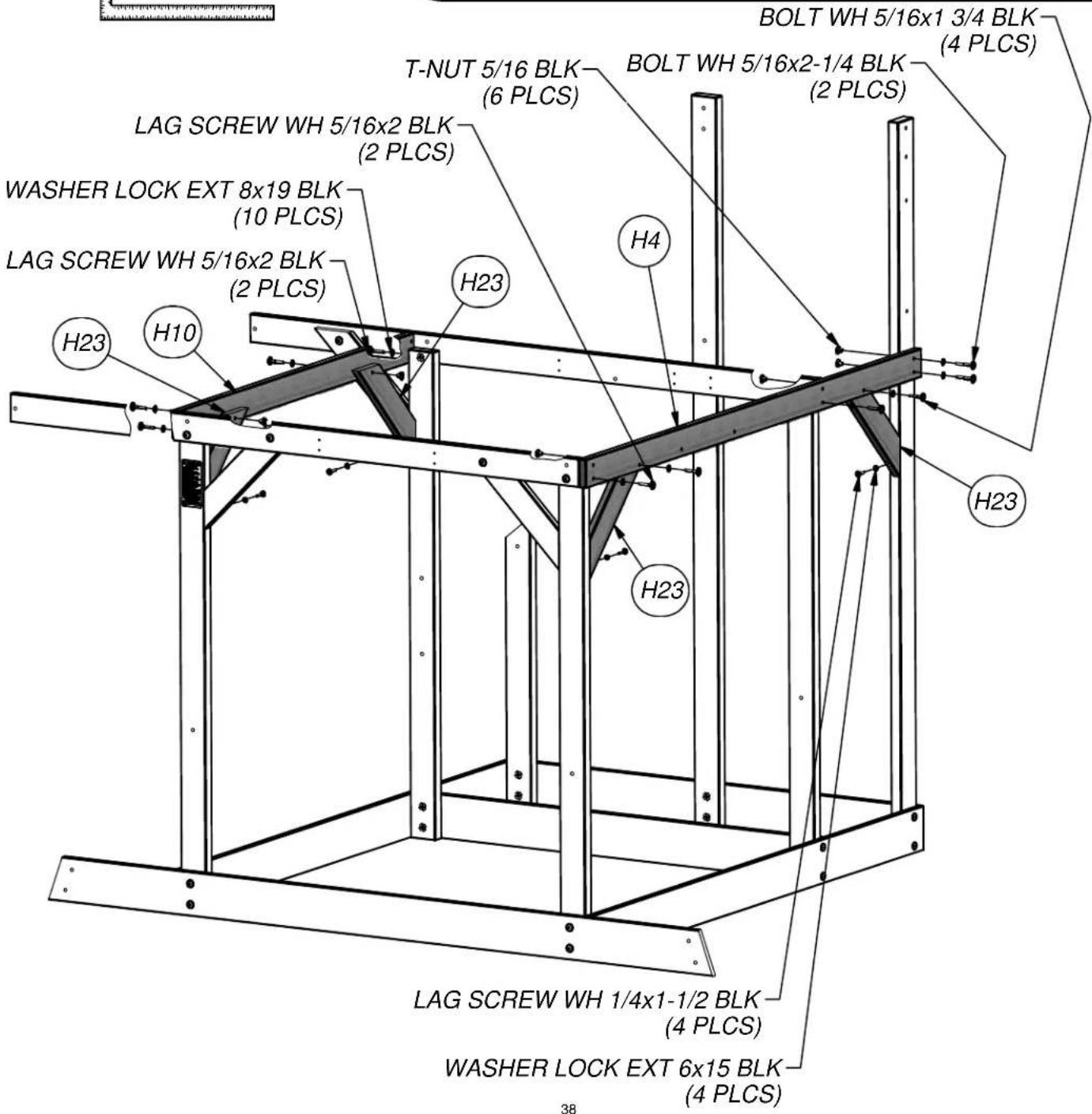

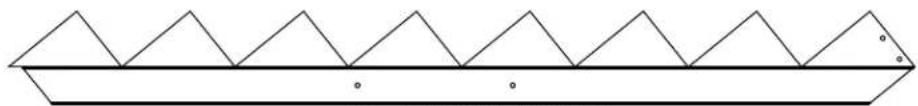

STEP 7

(1) H10 - FLOOR SUPPORT - W4L06062 1"x3 3/8"x52 1/2" (24x86x1334)

Simple diagram with a rectangular frame containing evenly spaced dots, no text or symbols present.

(1) H4 - FLOOR SUPPORT - W4L06063 1"x3 3/8"x74 7/8" (24x86x1901)

(4) H23 - DECK BRACE - W4L06179 1"x3 3/8"x17 7/8" (24x86x453)

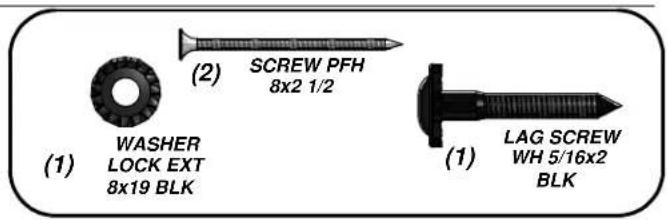

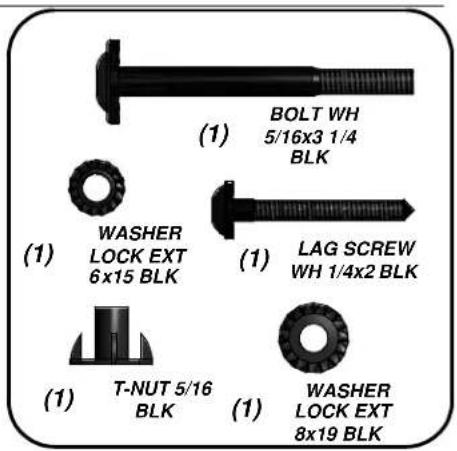

STEP 8

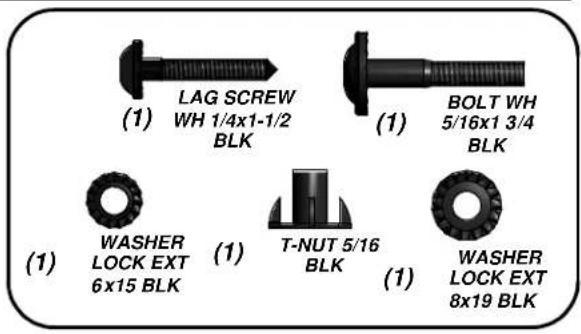

(4)

WASHER LOCK EXT 6x15 BLK

(6)

(1) K9 - ARCHED RAIL - W4L06124 5/8"x5 1/4"x29 3/4" (16x134x756)

(1) M12 - WALL RAIL - W4L06121 5/8"x3 3/8"x31" (16x86x788)

STEP 9

(2) J2 - FLOOR JOIST - W4L06068 1"x2 3/8"x52 1/2" (24x60x1334)

(1) J8 - FLOOR JOIST - W4L06134 1"x2 3/8"x20 3/8" (24x60x519)

(1) SQ - "A" REVISION TAG - A100314

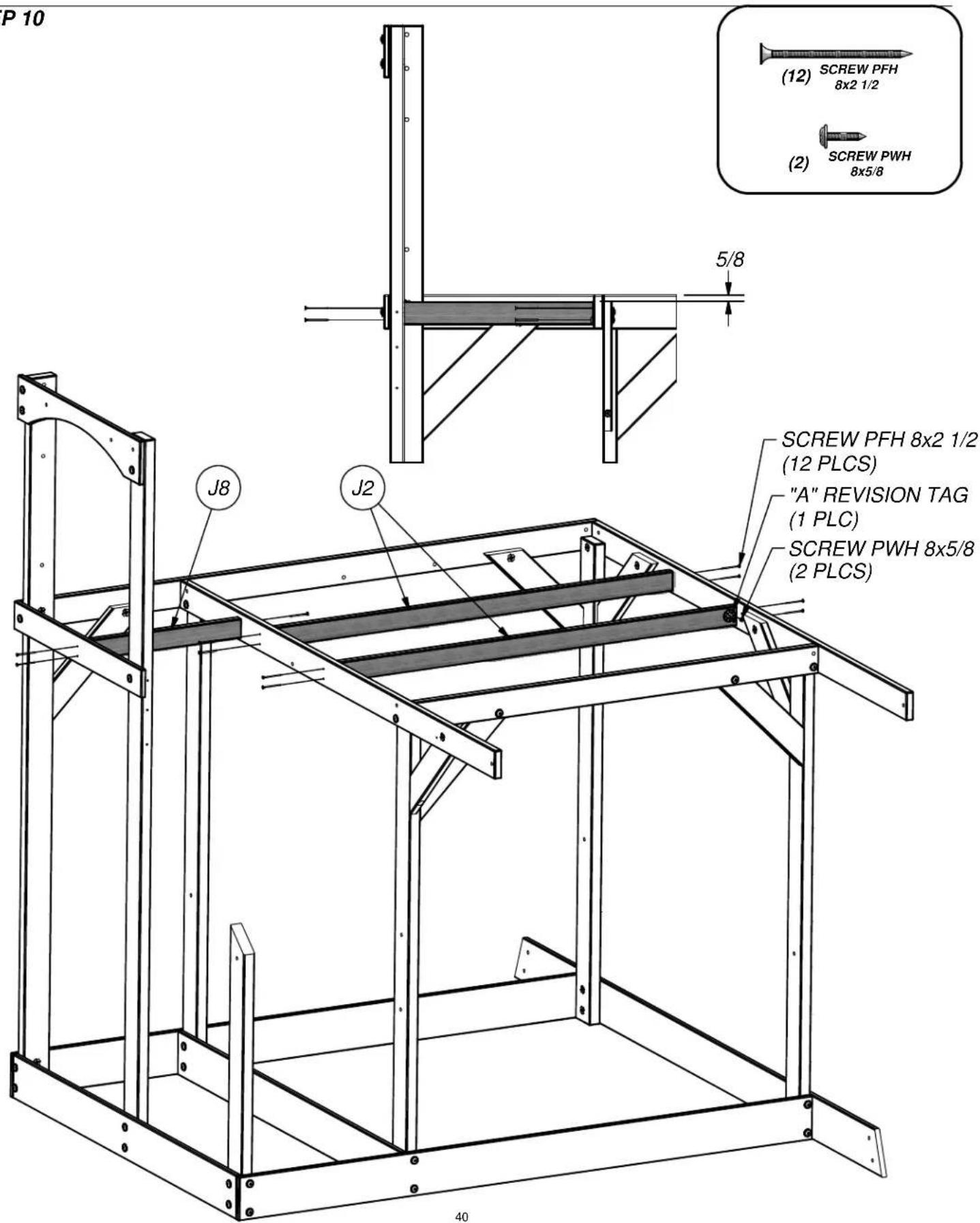

STEP 10

(1) E4 - UPRIGHT - W4L06085 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E6 - UPRIGHT - W4L06091 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E3 - UPRIGHT - W4L06069 1 3/8"x3 3/8"x63" (36x86x1600)

(1) E5 - UPRIGHT - W4L06090 1 3/8"x3 3/8"x63" (36x86x1600)

STEP 11

(2) N1 - FLOOR BOARD - W4L06067 5/8"x2 3/8"x54 1/2" (16x60x1384)

(14) M6 - FLOOR BOARD - W4L06066 5/8"x3 3/8"x54 1/2" (16x86x1384)

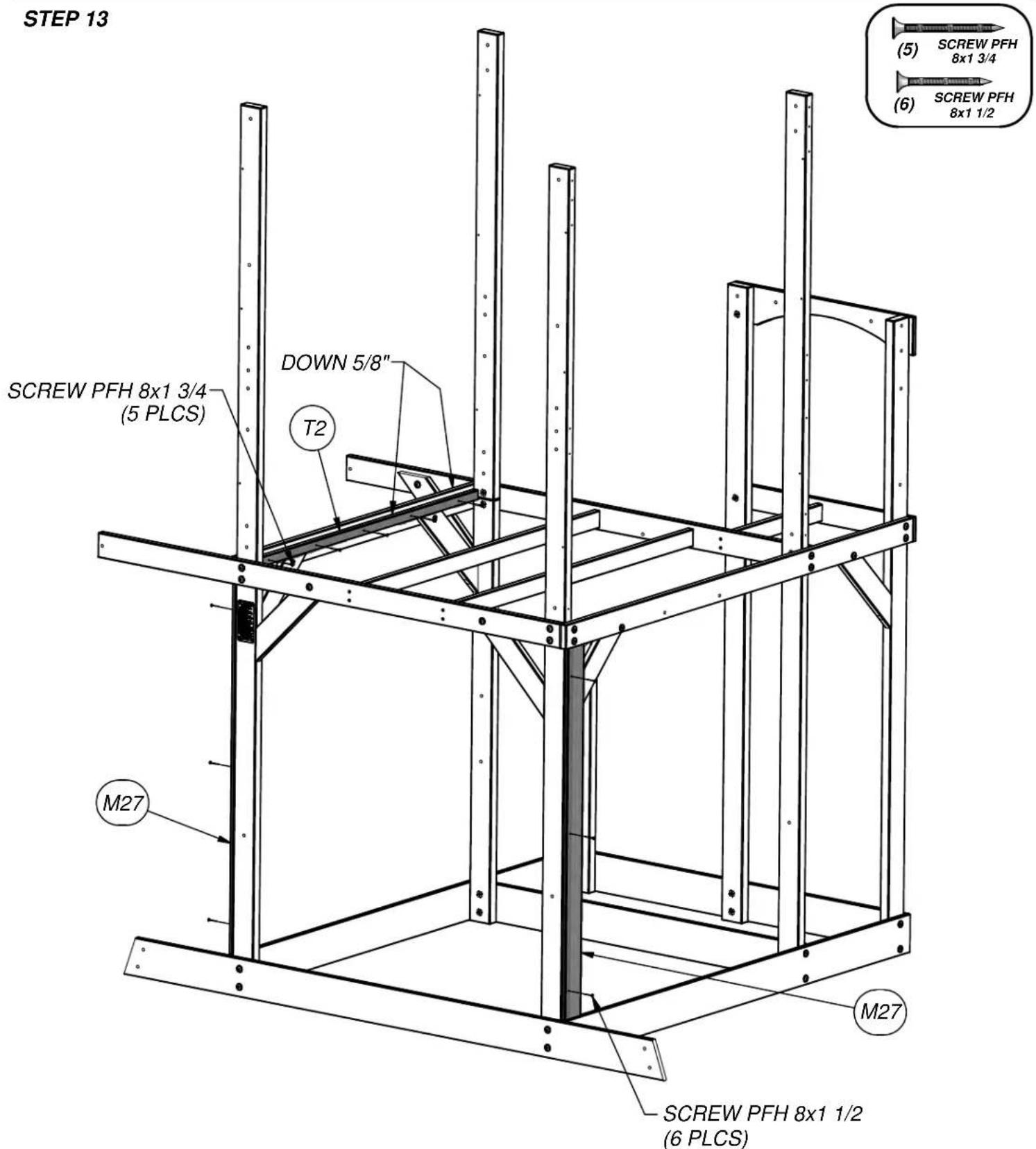

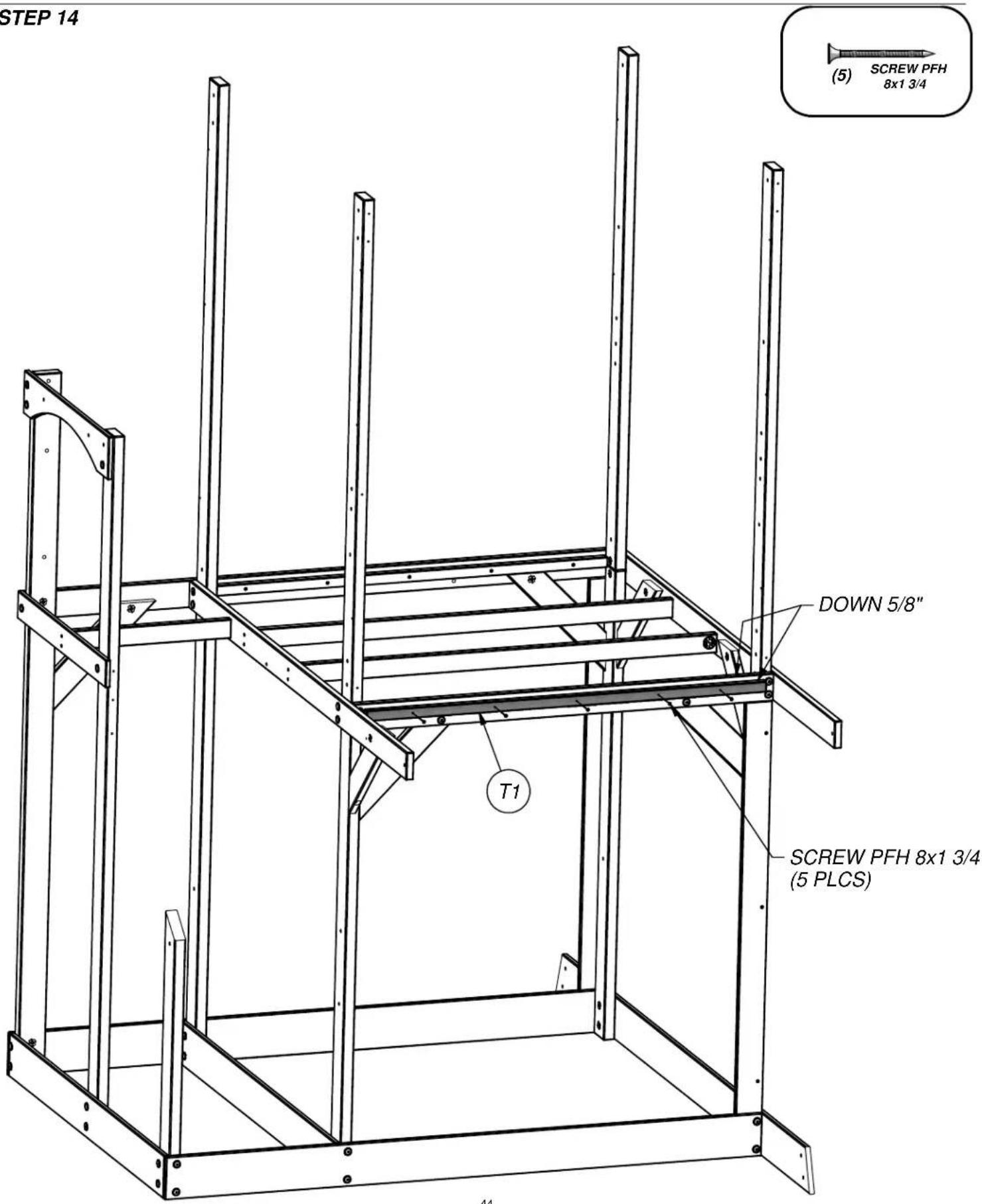

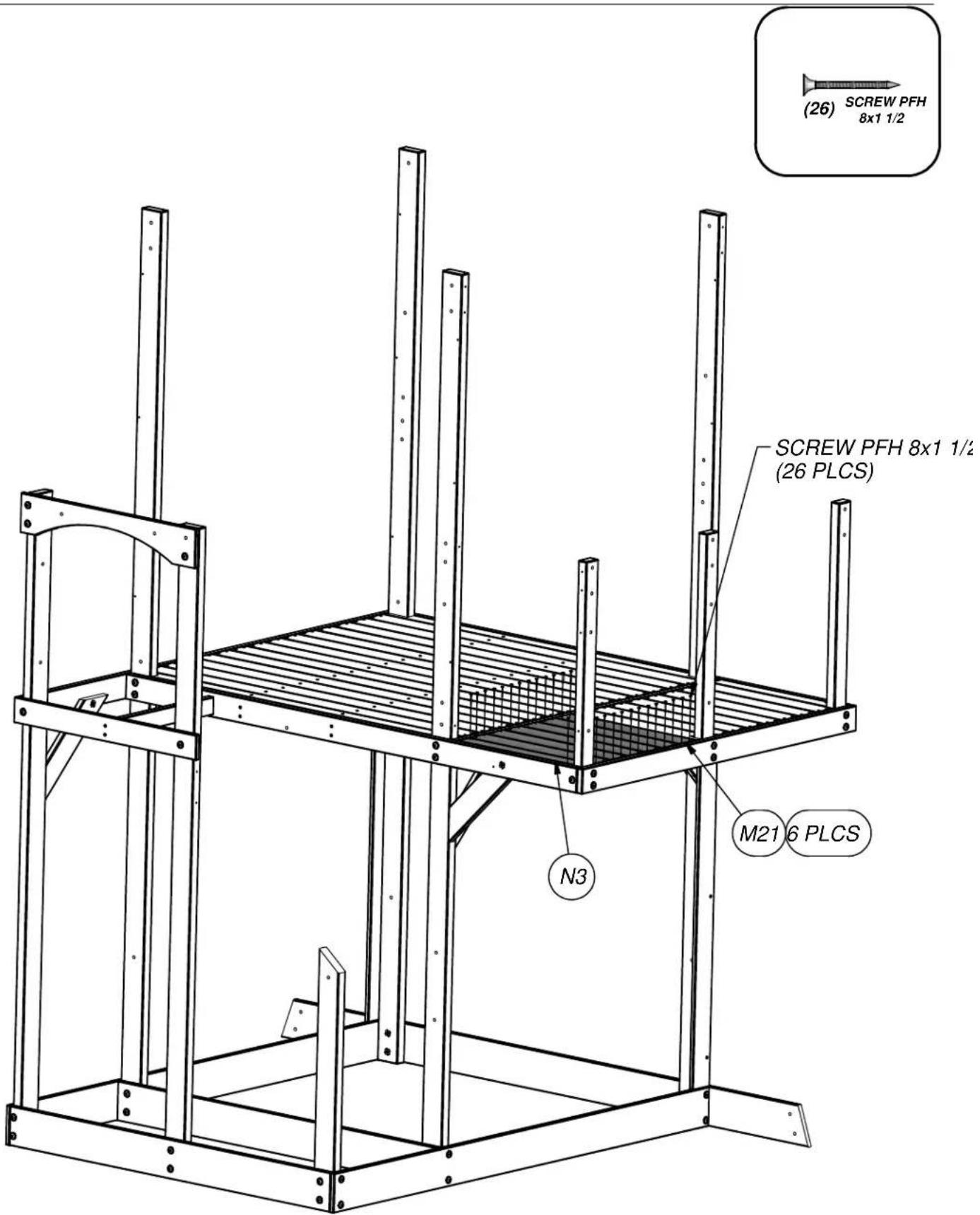

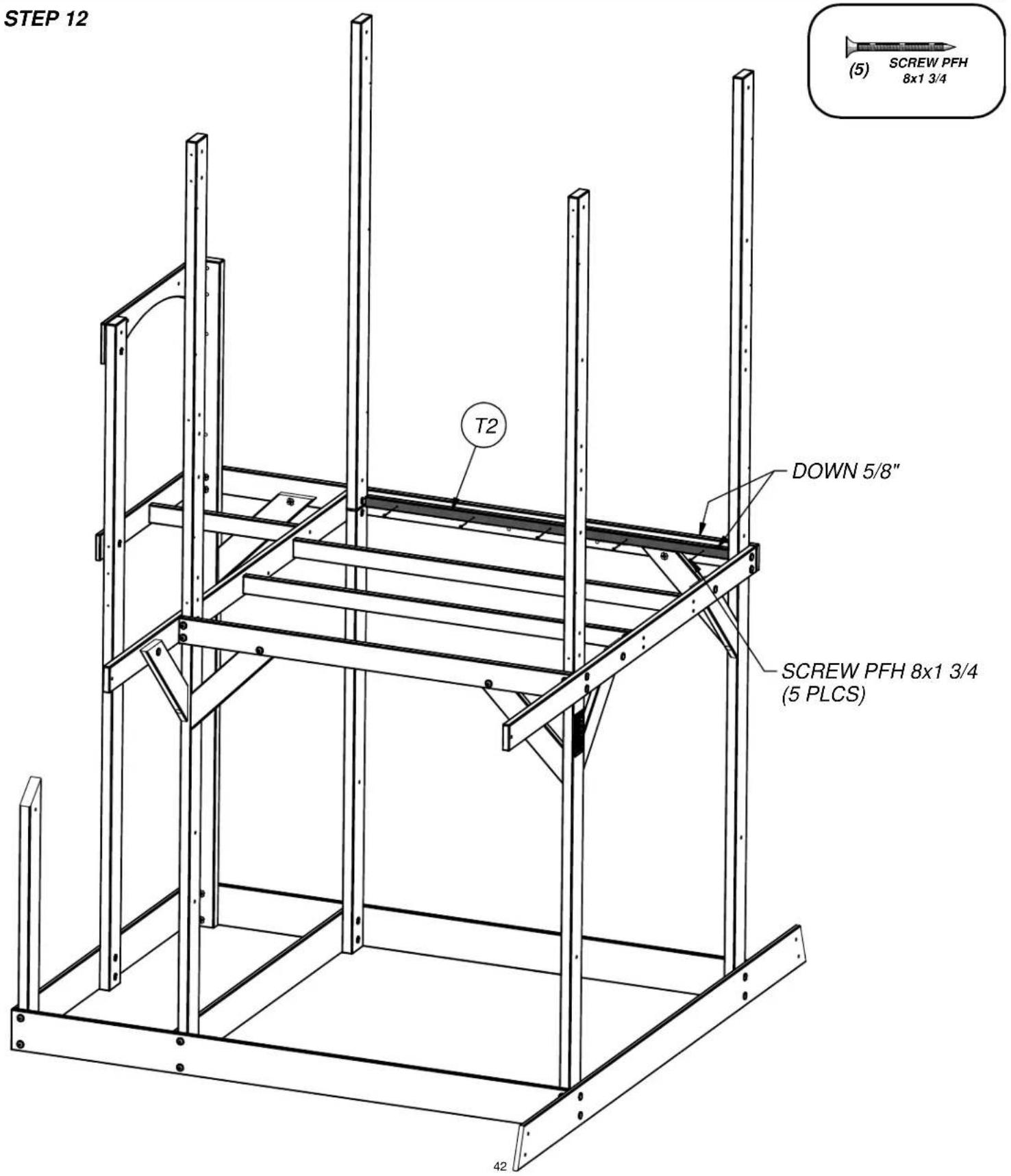

STEP 15

STEP 16

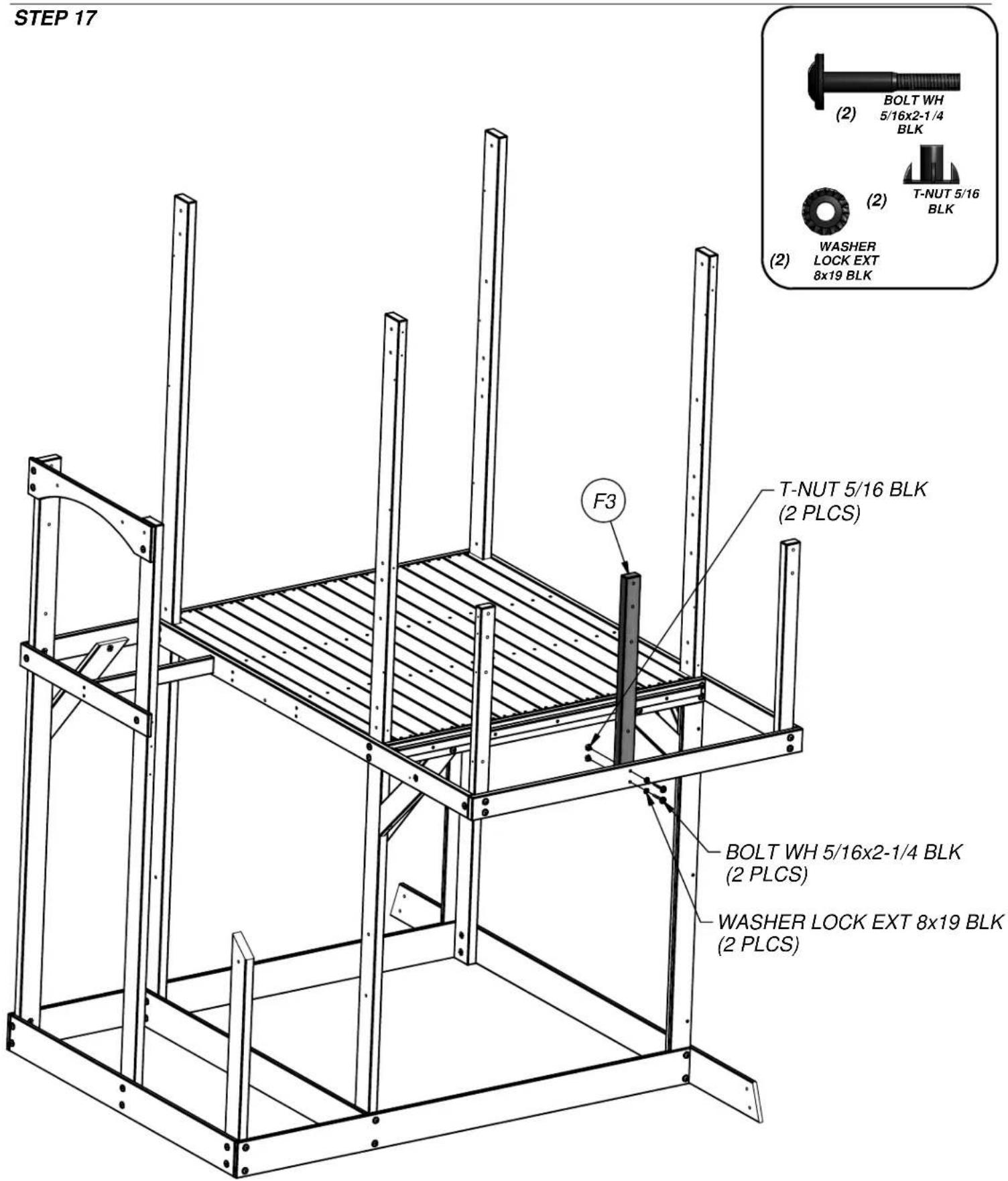

(1) F3 - POST - W4L06074 1 3/8"x2 3/8"x30 3/8" (36x60x772)

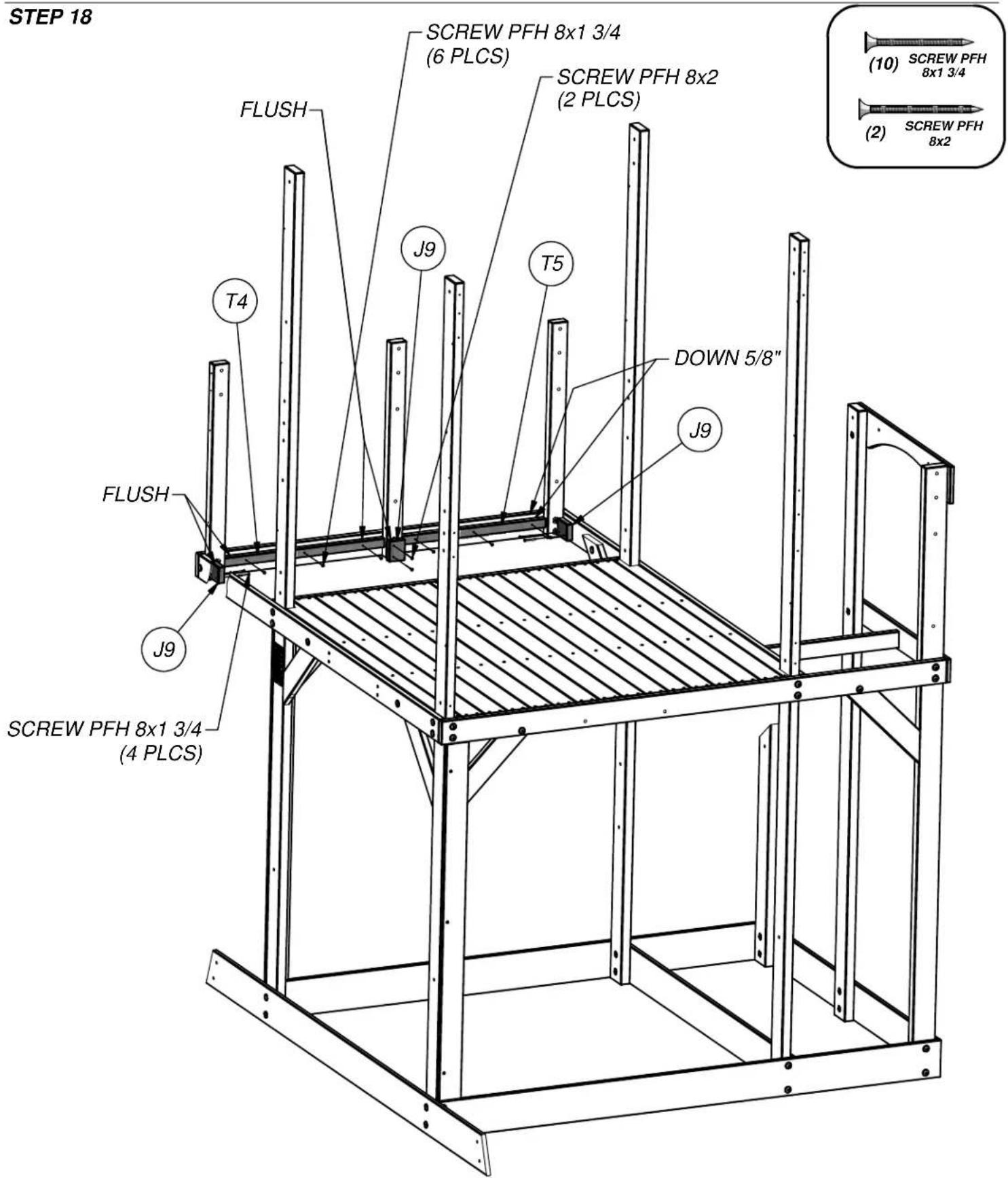

(1)

(1)

(3)
J9 - SUPPORT BOARD - W4L06064 1"x2 3/8"x3" (24x60x76)

STEP 19

STEP 20

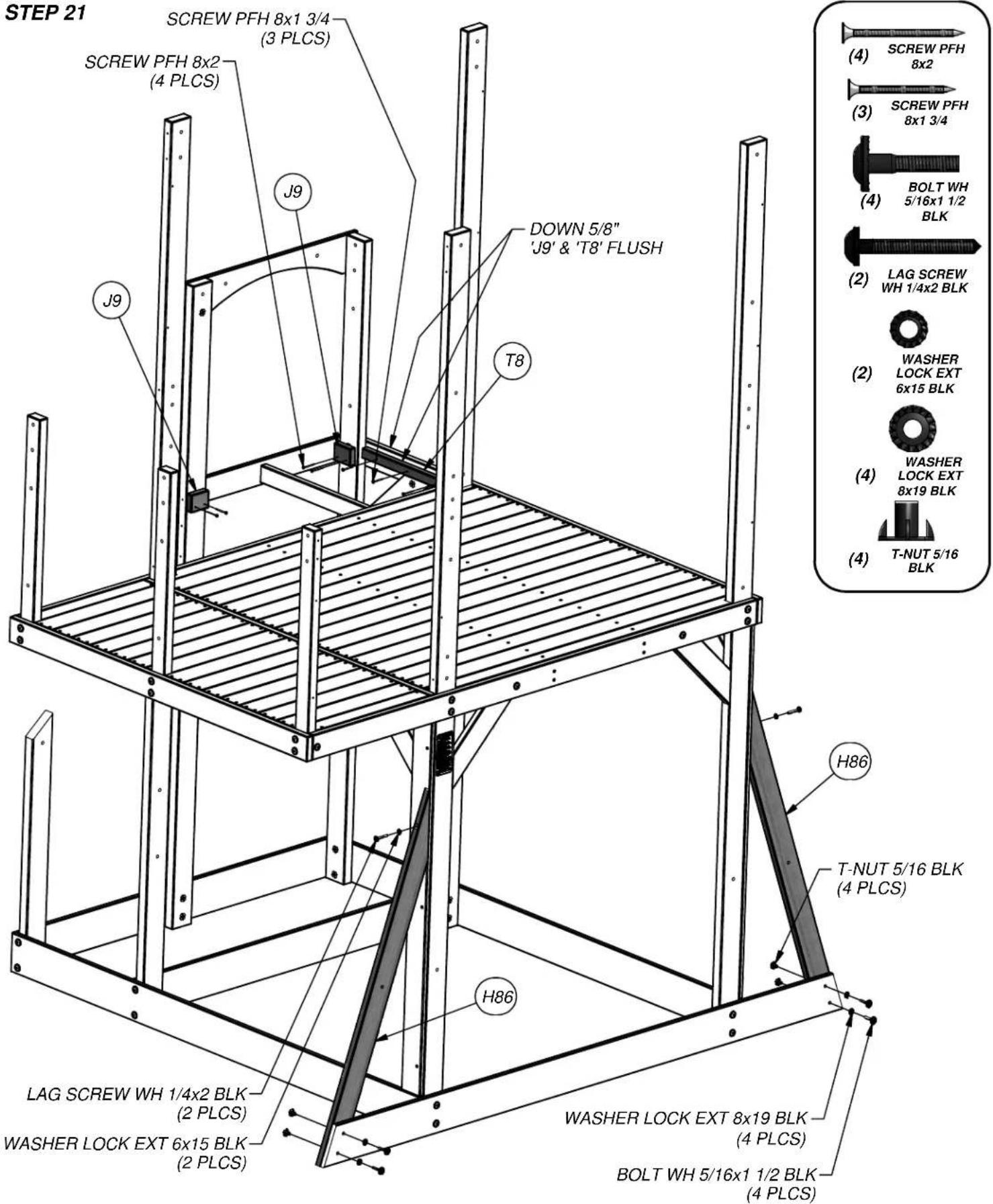

(2) H86 - ANGLE BRACE - W4L06186 1"x3 3/8"x49 3/8" (24x86x1254)

(2) J9 - SUPPORT BOARD - W4L06064 1"x2 3/8"x3" (24x60x76)

(1) T8 - SUPPORT BOARD - W4L06119 1"x1 3/8"x16 5/8" (24x34x423)

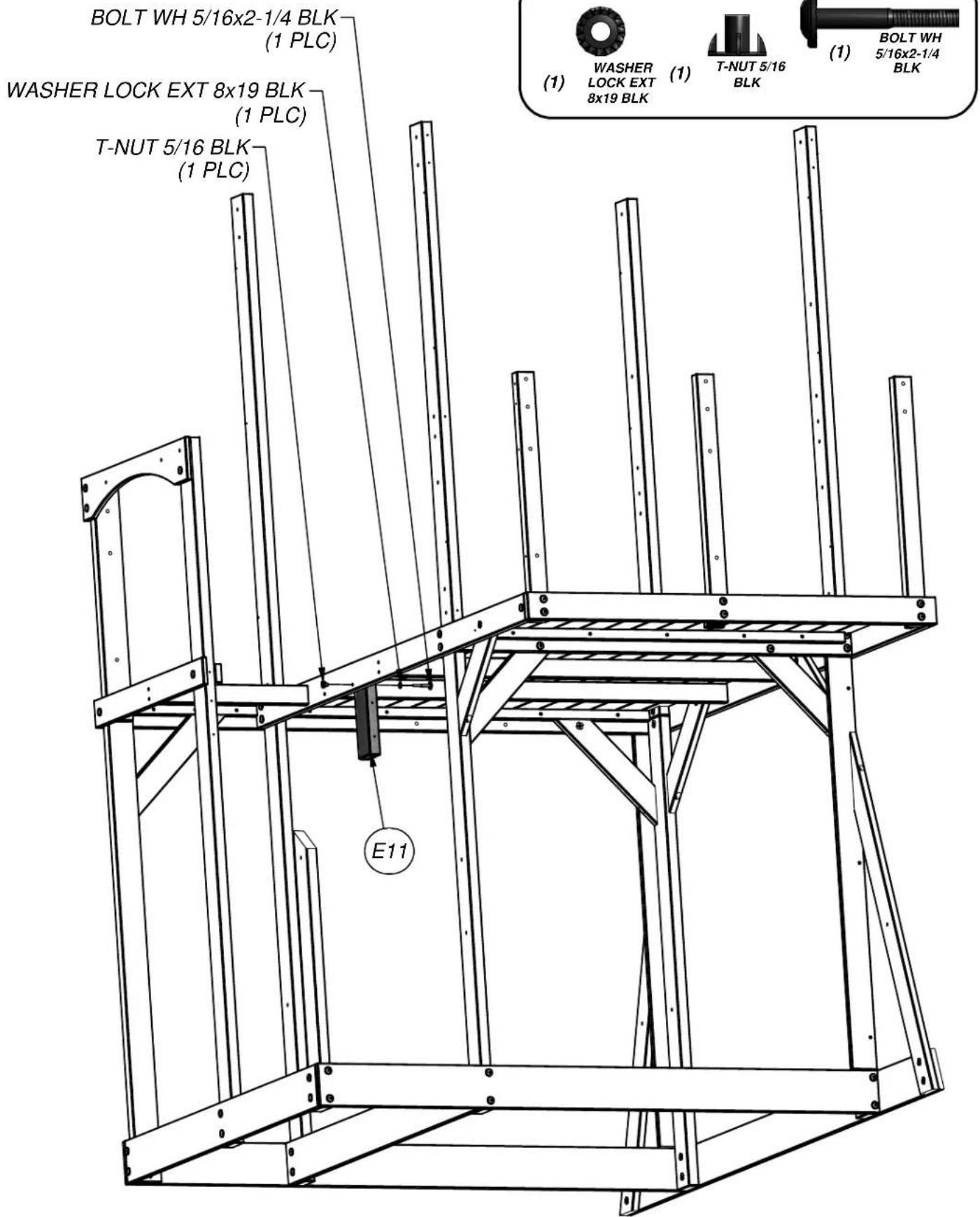

(1) E11 - UPRIGHT - W4L06127 1 3/8"x3 3/8"x10 7/8" (36x86x275)

STEP 22

(1) H12 - FLOOR SUPPORT - W4L06125 1"x3 3/8"x20 3/8" (24x86x519)
STEP 23

(1) L1 - SUPPORT BOARD - W4L06128 5/8"x3 5/8"x22 3/4" (16x92x579)

(1) Q1 - SUPPORT BOARD - W4L06129 1"x4 3/8"x22 3/4" (24x112x579)

STEP 24

(1)

T8 - SUPPORT BOARD - W4L06119
1"x1 3/8"x16 5/8" (24x34x423)

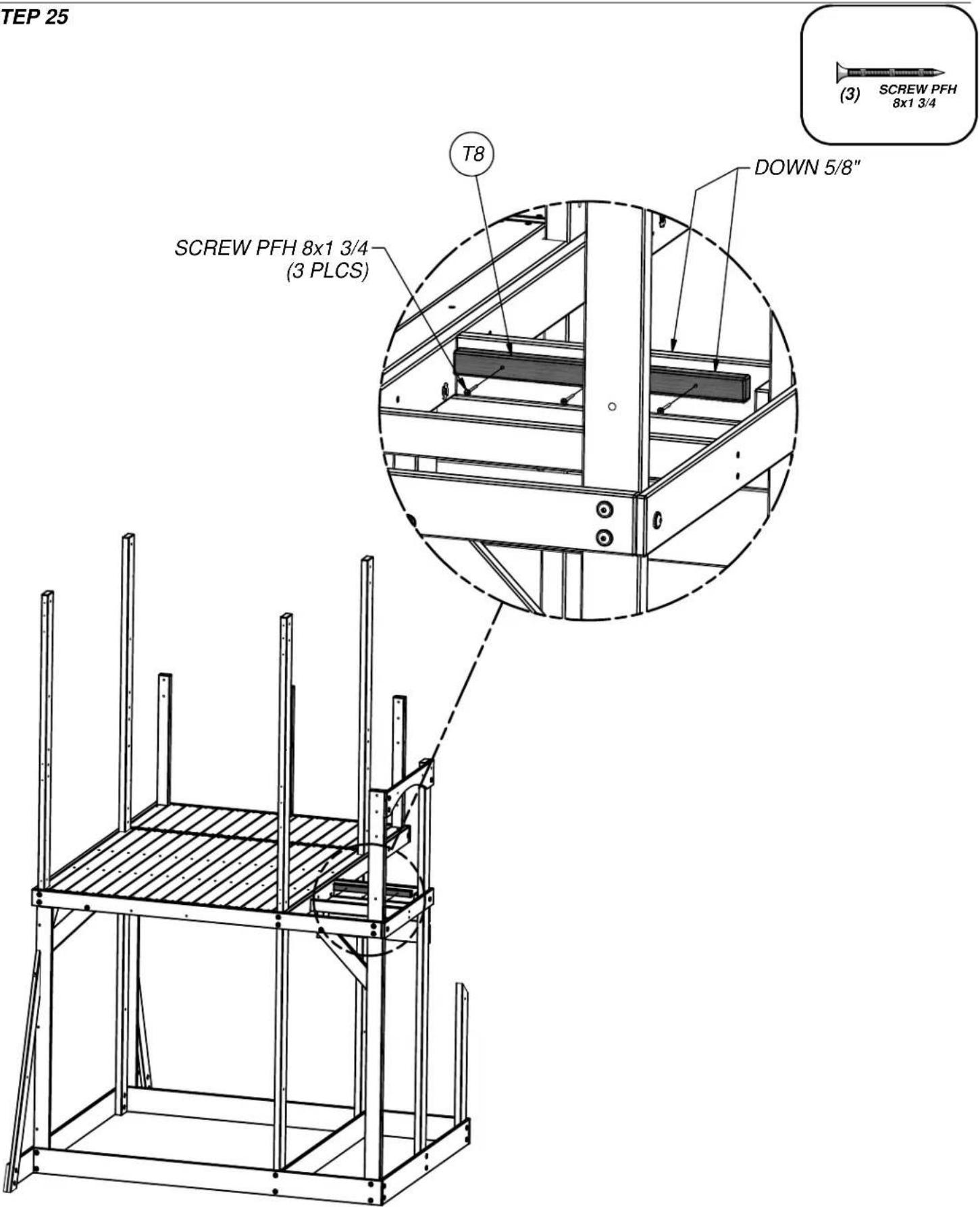

STEP 25

(5) M15 - FLOOR BOARD - W4L06120 5/8"x3 3/8"x29 1/8" (16x86x740)

(1) M16 - FLOOR BOARD - W4L06130 5/8"x3 3/8"x27 3/4" (16x86x704)
STEP 26

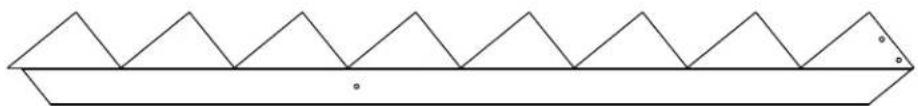

Pure geometric diagram of a trapezoid with triangular faces and base, no text or symbols present

(1) SR1 - STAIR RAIL - W2A01863 1"x8 3/8"x82 5/8" (24x214x2099)

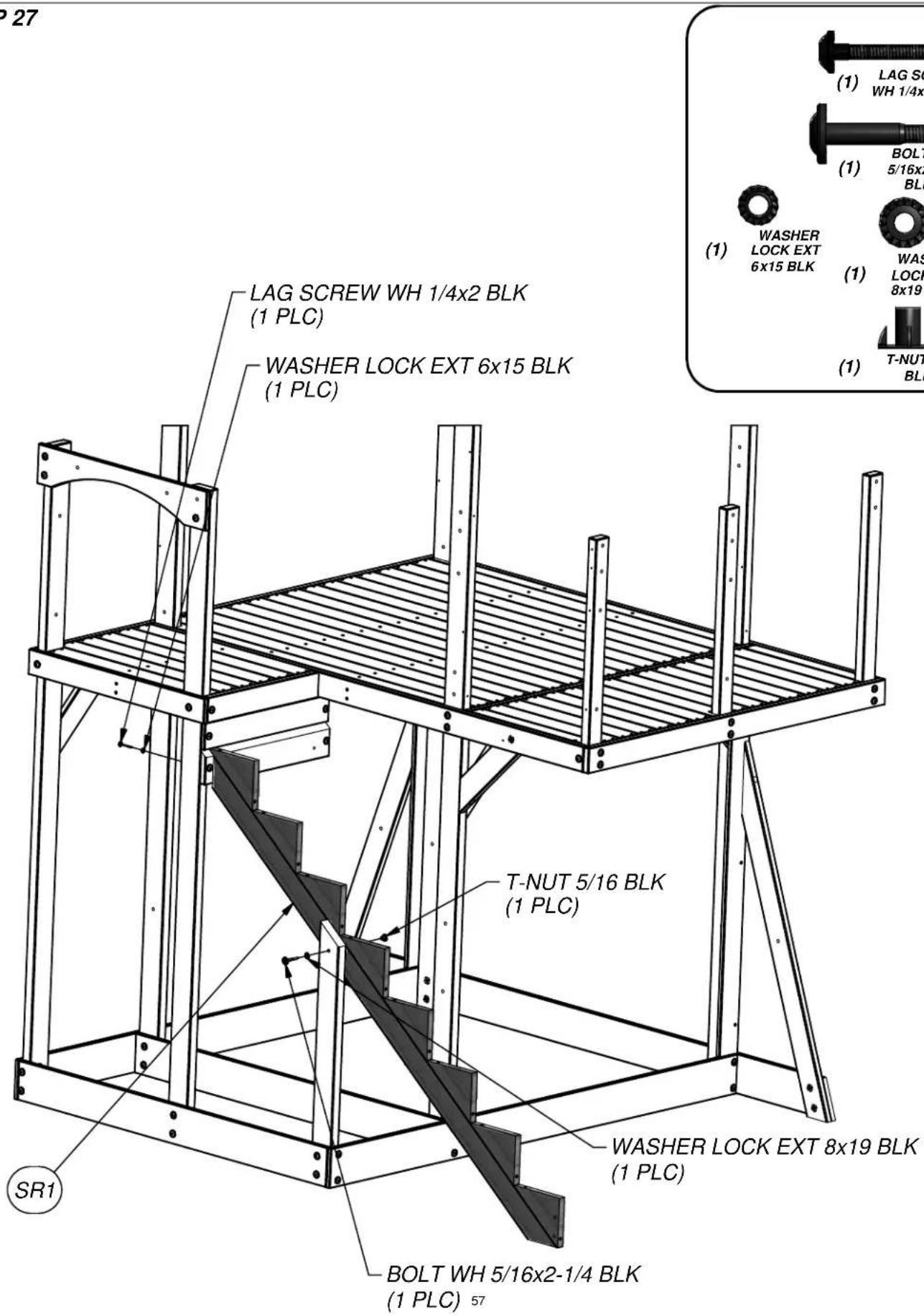

STEP 27

(1) H13 - WALL SPACER - W4L06126 1"x3 3/8"x3 3/8" (24x86x86)

Pure geometric diagram of a trapezoid with triangular faces and base, no text or symbols present

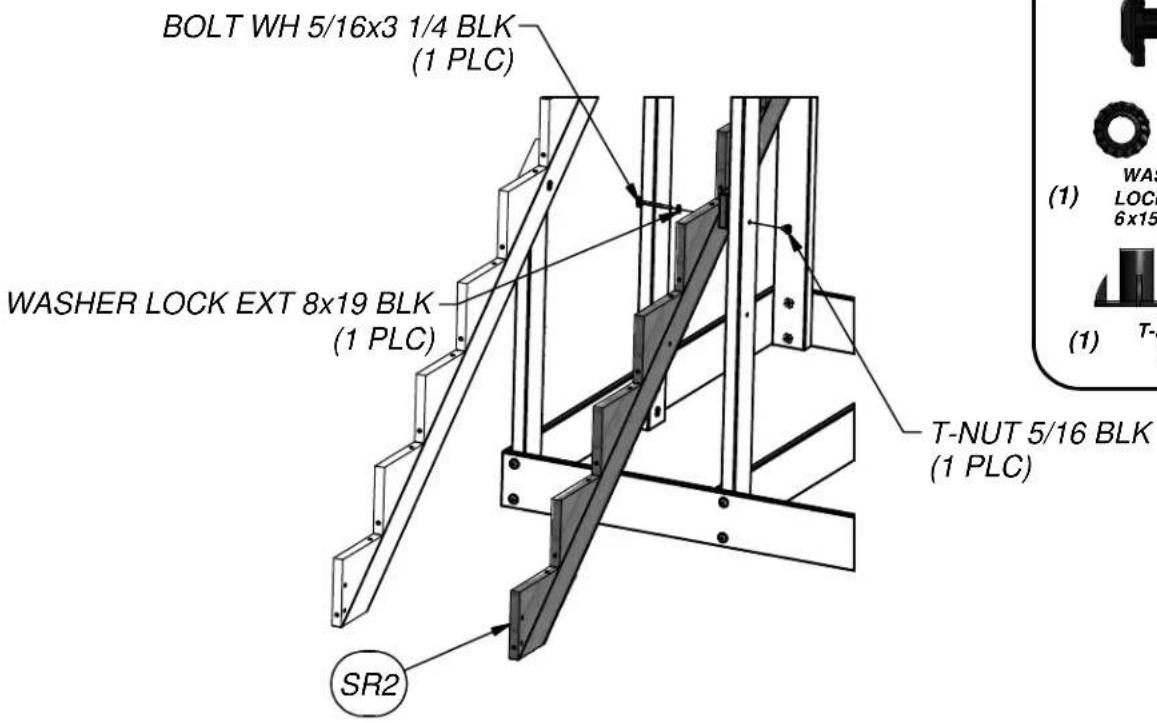

(1) SR2 - STAIR RAIL - W2A01868 1"x8 3/8"x82 5/8" (24x214x2099)

STEP 28

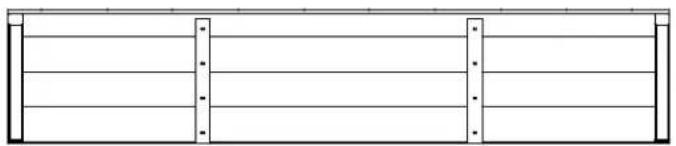

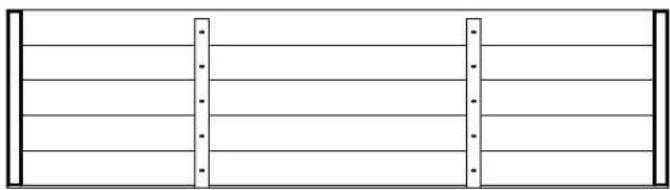

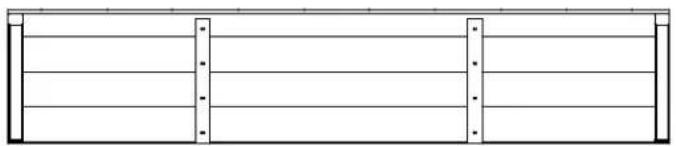

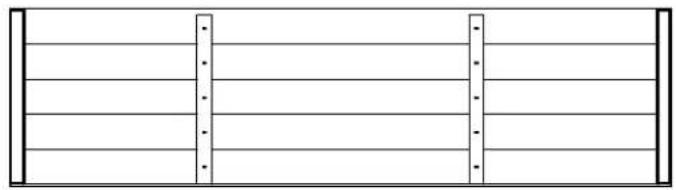

STEP 29

Simple horizontal arrow shape with two small dots at the top (no text or symbols)

(1) H1 - HANDRAIL - W4L06132 1"x3 3/8"x88 3/4" (24x86x2253)

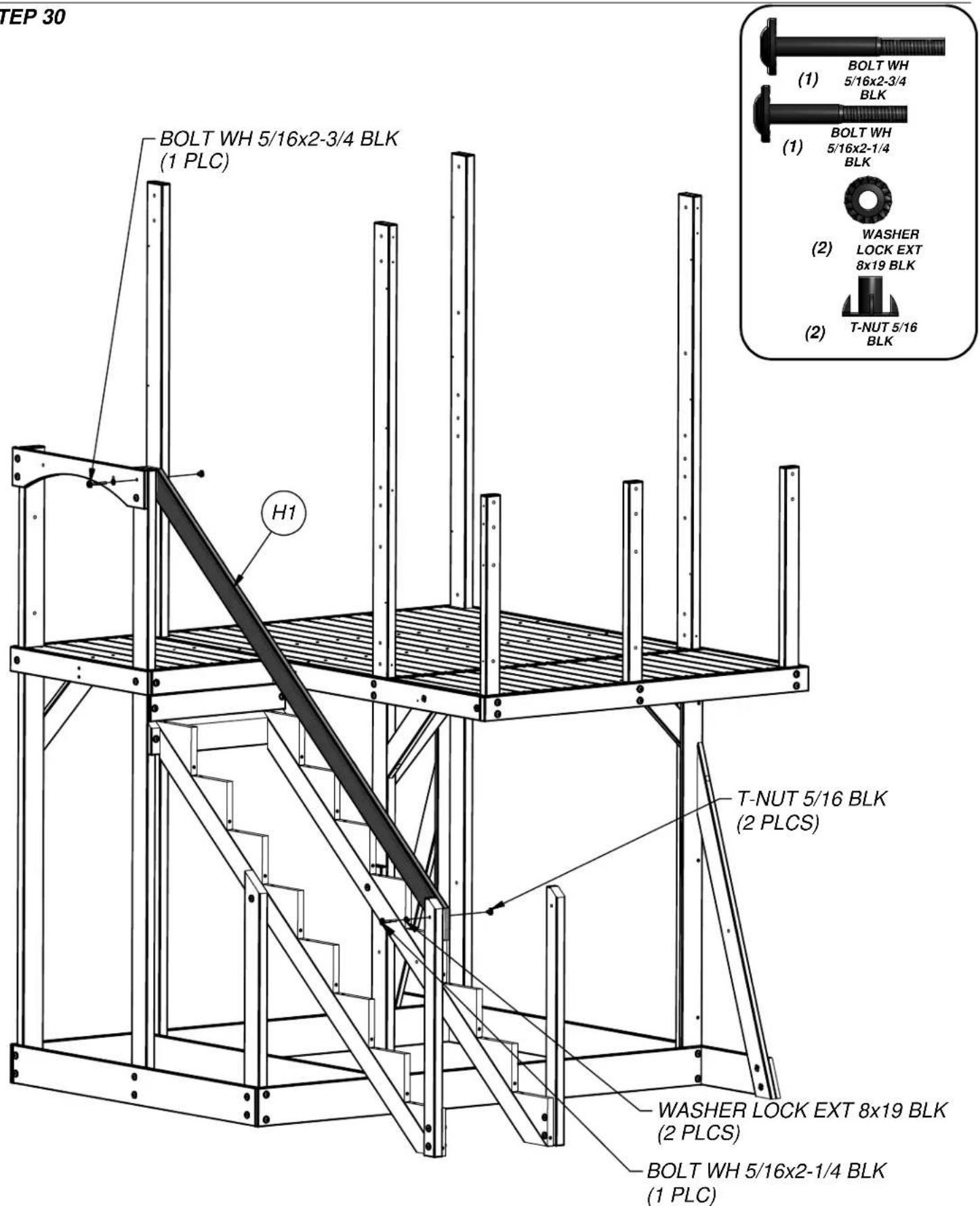

STEP 30

(1) H11 - HANDRAIL - W4L06133 1"x3 3/8"x46" (24x86x1170)

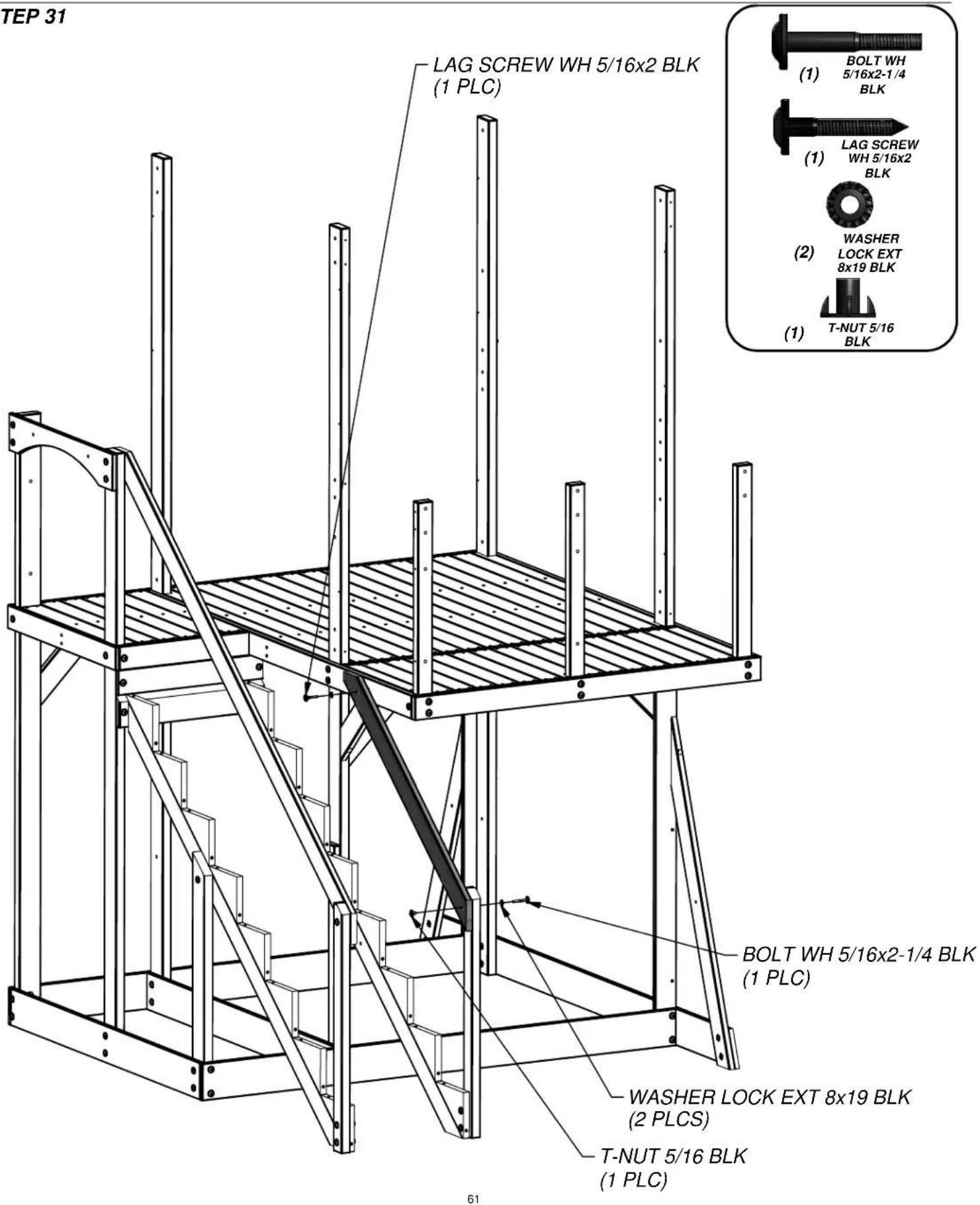

STEP 31

(1) K10 - STAIR STEP BOARD - W4L06123 5/8"x4 5/8"x19" (16x119x483)

(3) M23 - STAIR STEP BOARD - W4L06122 5/8"x3 1/4"x19" (16x83x483)

STEP 32

(2) M23 - STAIR STEP BOARD - W4L06122 5/8"x3 1/4"x19" (16x83x483)
STEP 33

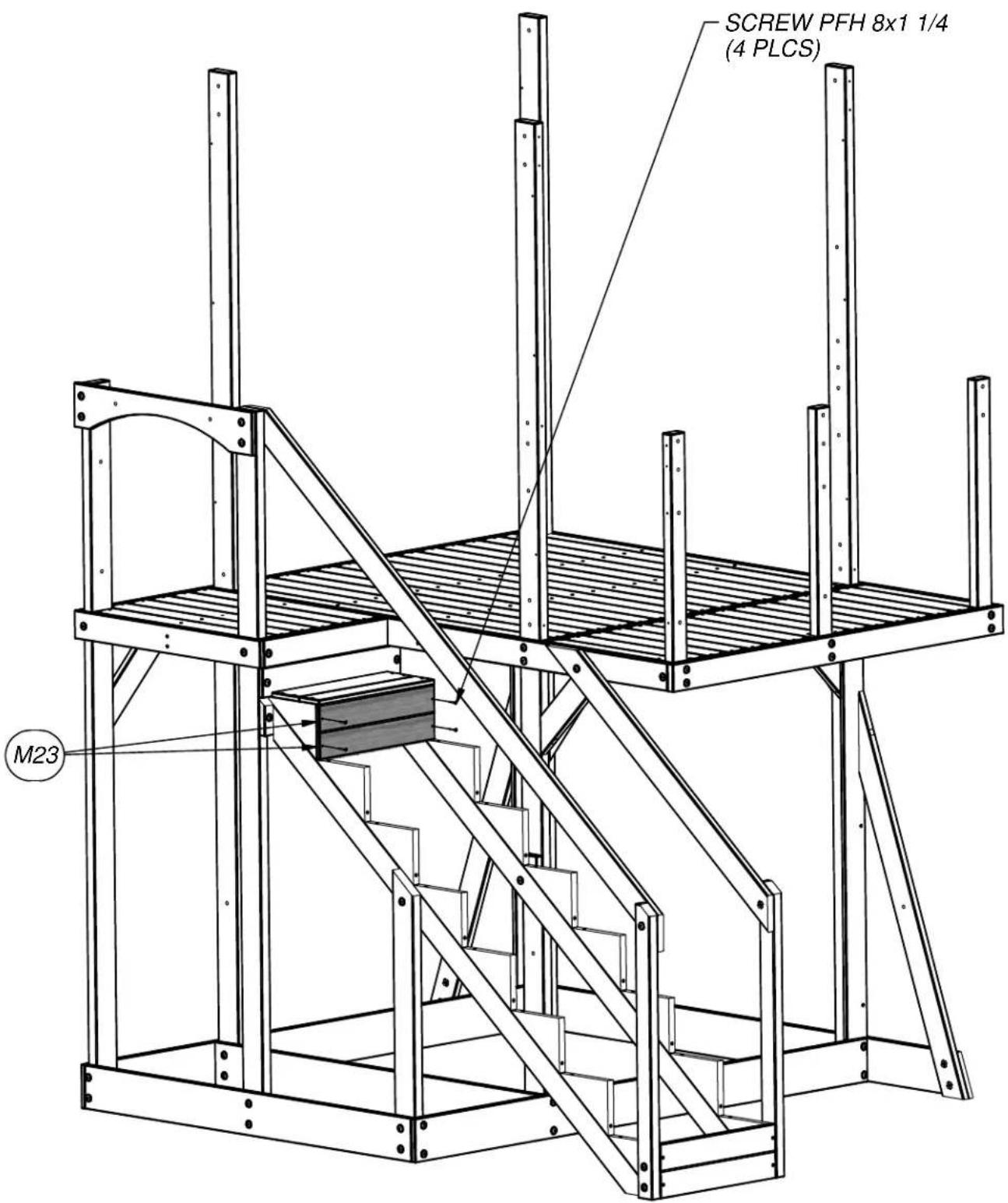

(4) SCREW PFH 8x1 1/4

(7) K10 - STAIR STEP BOARD - W4L06123 5/8"x4 5/8"x19" (16x119x483)

(19) M23 - STAIR STEP BOARD - W4L06122 5/8"x3 1/4"x19" (16x83x483)
STEP 34

Simple curved line drawing with four corner dots, no text or symbols present

(1) K6 - ARCHED RAIL - W4L06084 5/8"x5 1/4"x54 1/8" (16x134x1374)
STEP 35

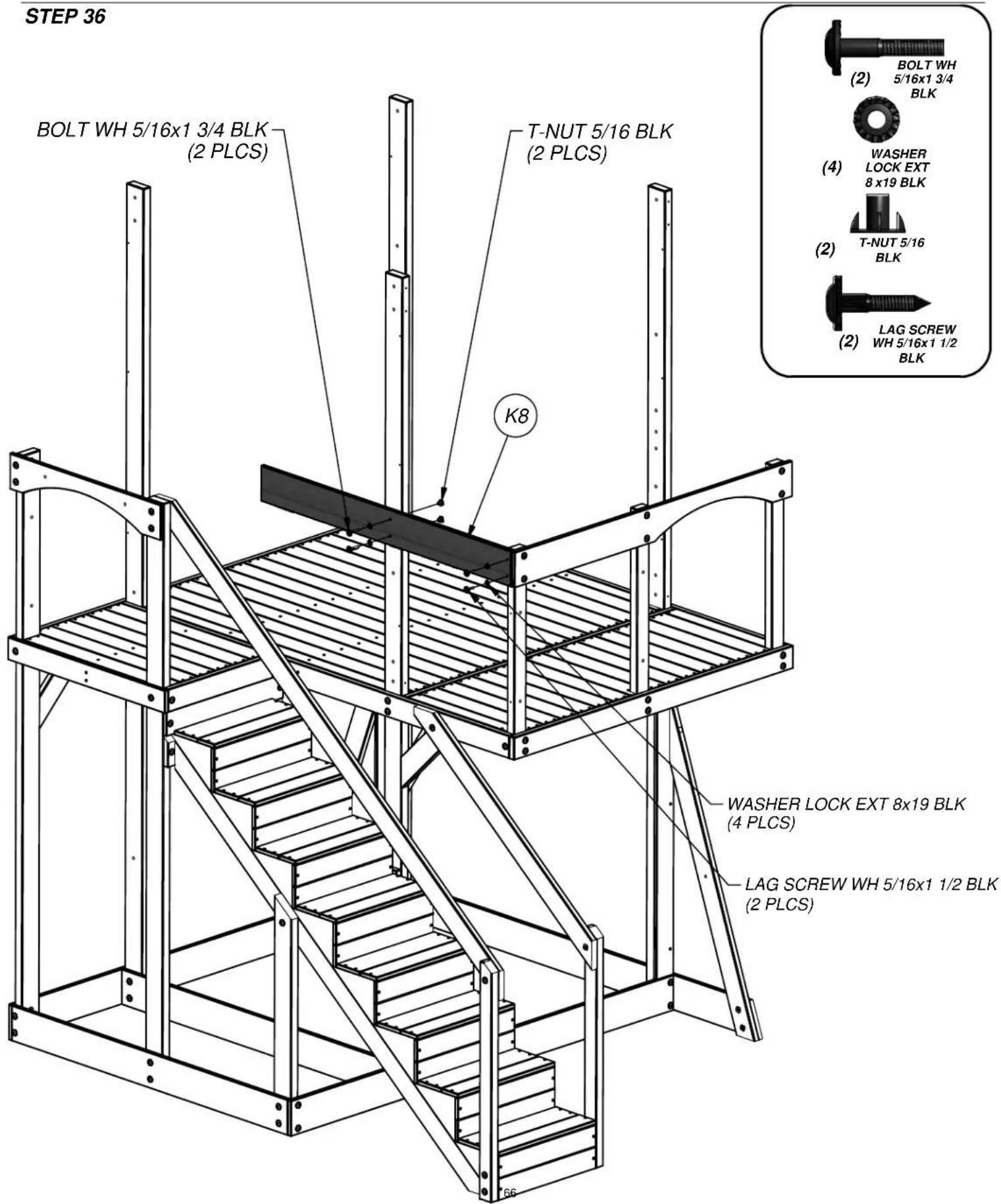

(1) K8 - WALL RAIL - W4L06095 5/8"x5 1/4"x49 1/2" (16x134x1256)

Pure horizontal line with evenly spaced dots, no text or symbols present

(1) G1 - WALL RAIL - W4L06086 1"x5 1/4"x76 3/4" (24x134x1948)

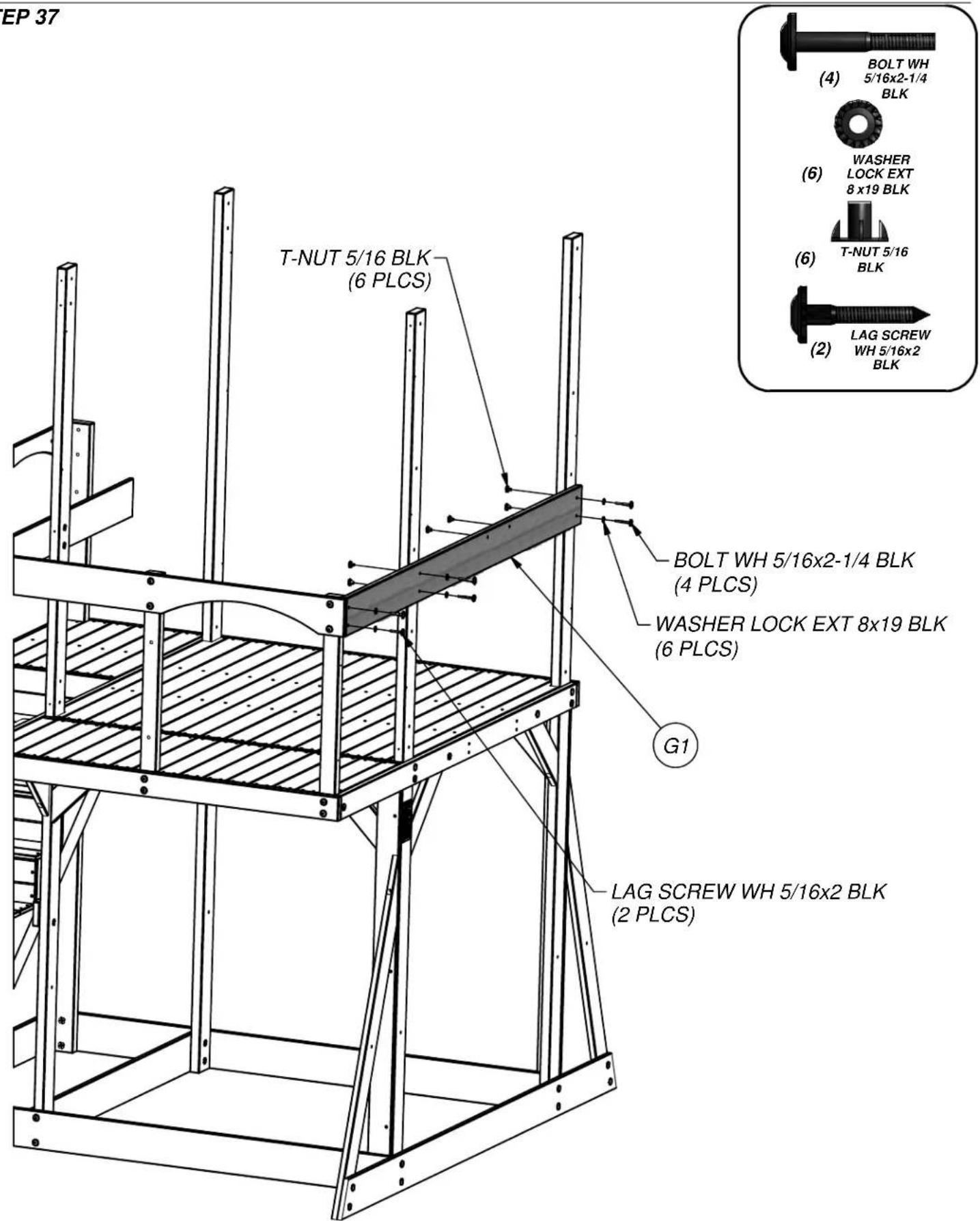

STEP 37

Simple curved line diagram with evenly spaced dots on both sides (no text or symbols)

(1) K3 - ARCHED RAIL - W4L06106 5/8"x5 1/4"x74 7/8" (16x134x1901)

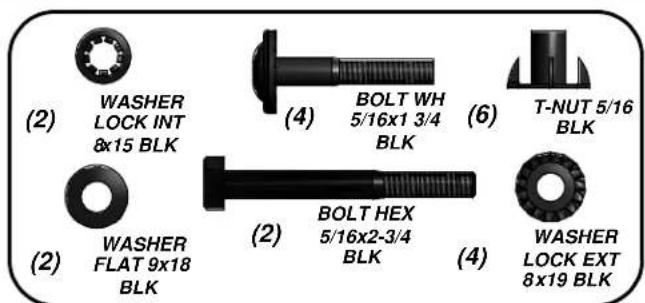

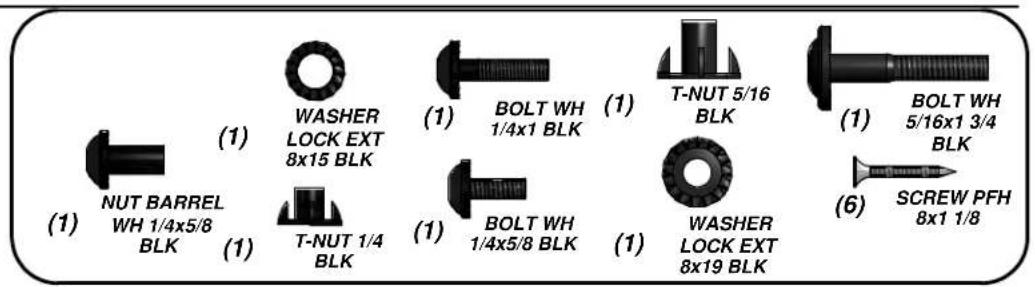

STEP 38

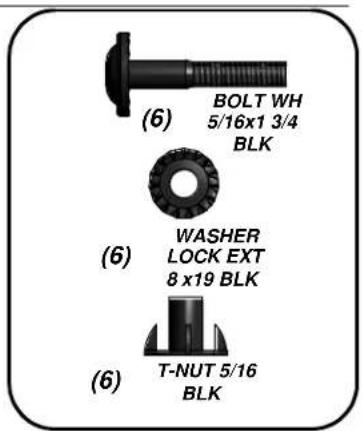

(2)
BOLT WH 5/16x1 3/4 BLK

WASHER LOCK EXT 8 x19 BLK

T-NUT 5/16 BLK

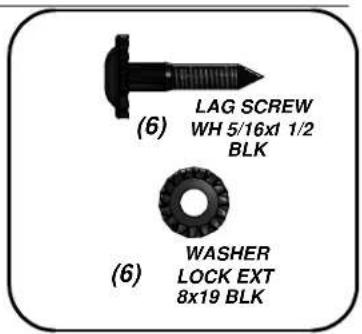

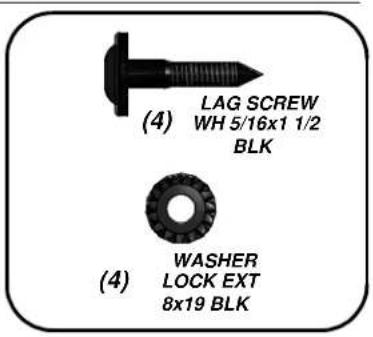

(4) LAG SCREW WH 5/16x1 1/2 BLK

(1) H7 - WALL RAIL - W4L06100 1"x3 3/8"x54 1/2" (24x86x1384)

(1) M8 - ARCHED RAIL - W4L06101 5/8"x3 3/8"x54 1/2" (16x86x1384)

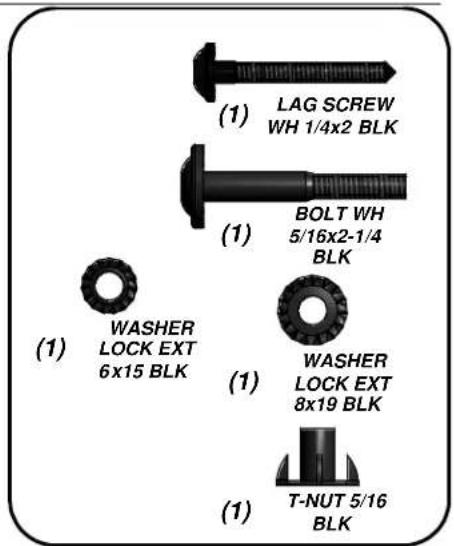

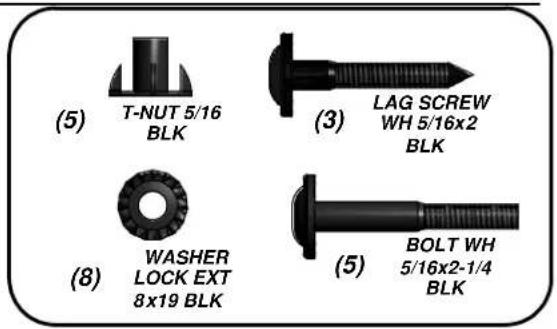

STEP 39

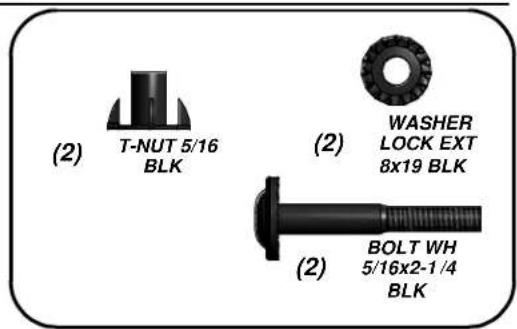

BOLT WH 5/16x1 3/4 BLK

WASHER LOCK EXT 8 x19 BLK

T-NUT 5/16 BLK

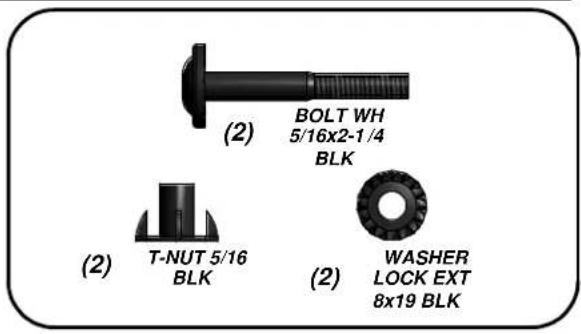

BOLT WH 5/16x2-1/4 BLK

(1) H7 - WALL RAIL - W4L06100 1"x3 3/8"x54 1/2" (24x86x1384)

Simple curved line diagram with four corner dots, no text or symbols present

(1) K7 - ARCHED RAIL - W4L06105 5/8"x5 1/4"x52 1/2" (16x134x1334)

(1) M10 - ARCHED RAIL - W4L06103 5/8"x3 3/8"x53 1/8" (16x86x1350)

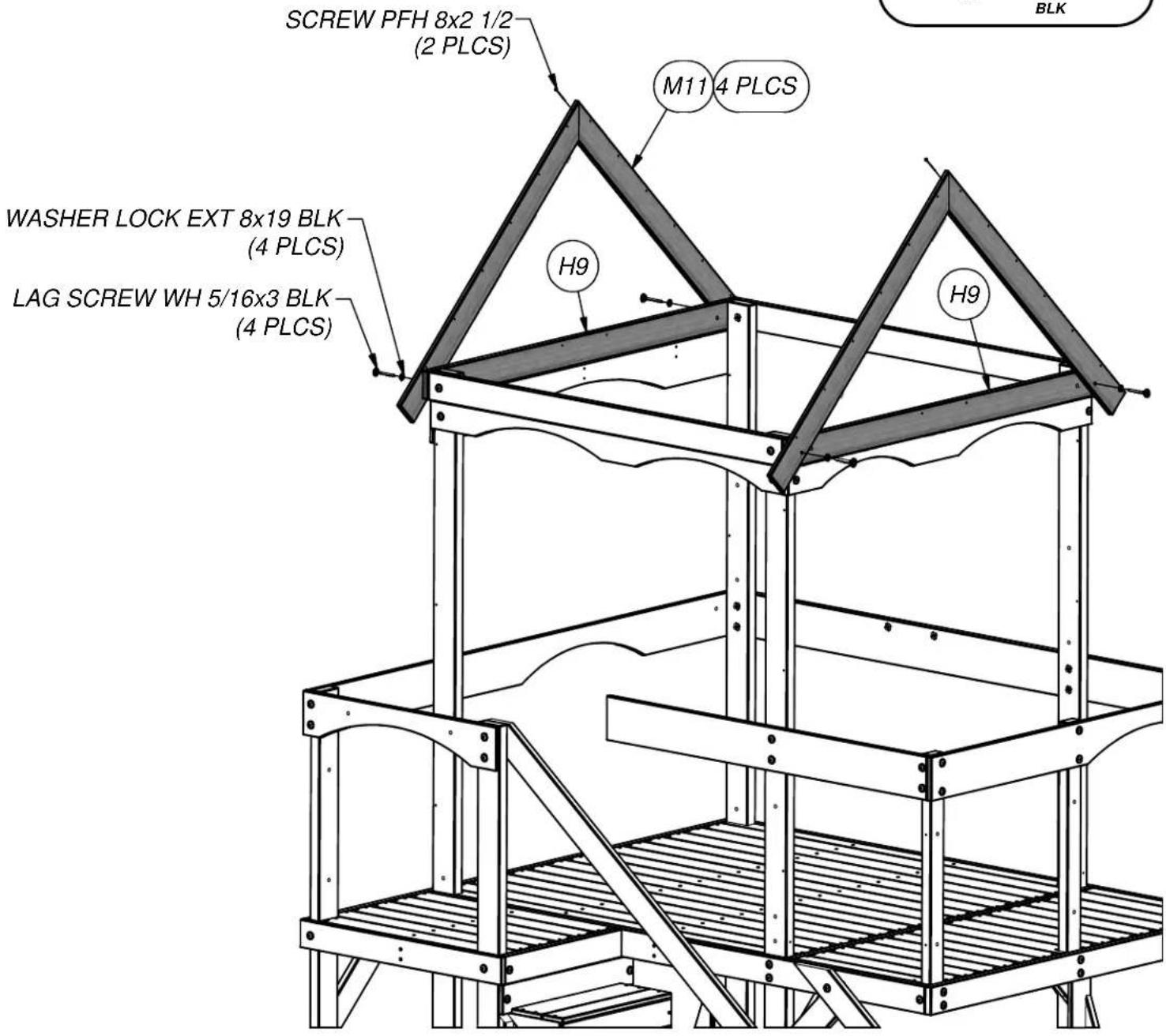

STEP 41

(4) M11 - ROOF RAFTER - W4L06114 5/8"x3 3/8"x43 7/8" (16x86x1114)

(2) H9 - WALL RAIL - W4L06102 1"x3 3/8"x54 3/8" (24x86x1382)

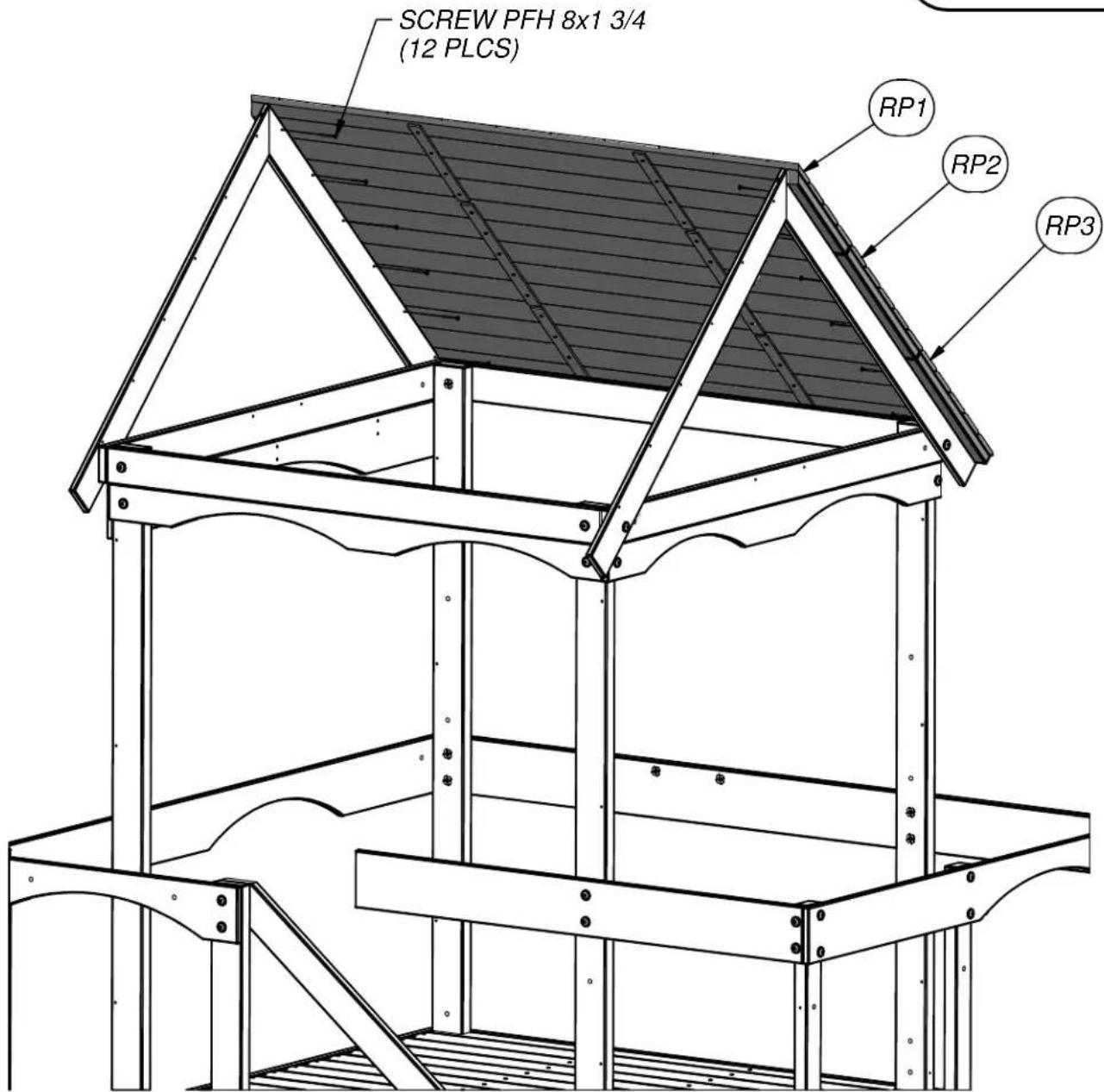

STEP 42

Pure structural diagram of a rectangular frame with vertical supports and horizontal beams (no text or symbols)

(1) RP1 - ROOF PANEL - W2A01860 1 3/8"x12 1/4"x59 1/2" (35x311x1532)

Pure diagram of a rectangular frame with vertical bars and horizontal lines, no text or symbols present.

(1) RP2 - ROOF PANEL - W2A01861 1 3/8"x16 1/8"x59 1/2" (35x410x1532)

Pure diagram of a rectangular frame with vertical and horizontal lines, no text or symbols present.

(1) RP3 - ROOF PANEL - W2A01862 1 3/8"x16 1/8"x59 1/2" (35x410x1532)
STEP 43

Pure structural diagram of a rectangular frame with vertical supports and horizontal beams (no text or symbols)

(1) RP1 - ROOF PANEL - W2A01860 1 3/8"x12 1/4"x59 1/2" (35x311x1532)

Pure diagram of a rectangular frame with vertical bars and horizontal lines, no text or symbols present.

(1) RP2 - ROOF PANEL - W2A01861 1 3/8"x16 1/8"x59 1/2" (35x410x1532)

Pure diagram of a rectangular frame with vertical and horizontal lines, no text or symbols present.

(1) RP3 - ROOF PANEL - W2A01862 1 3/8"x16 1/8"x59 1/2" (35x410x1532)

(2) -90° L-BRACKET - BLK - A4M00555

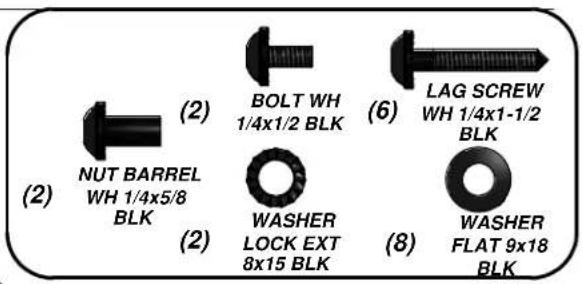

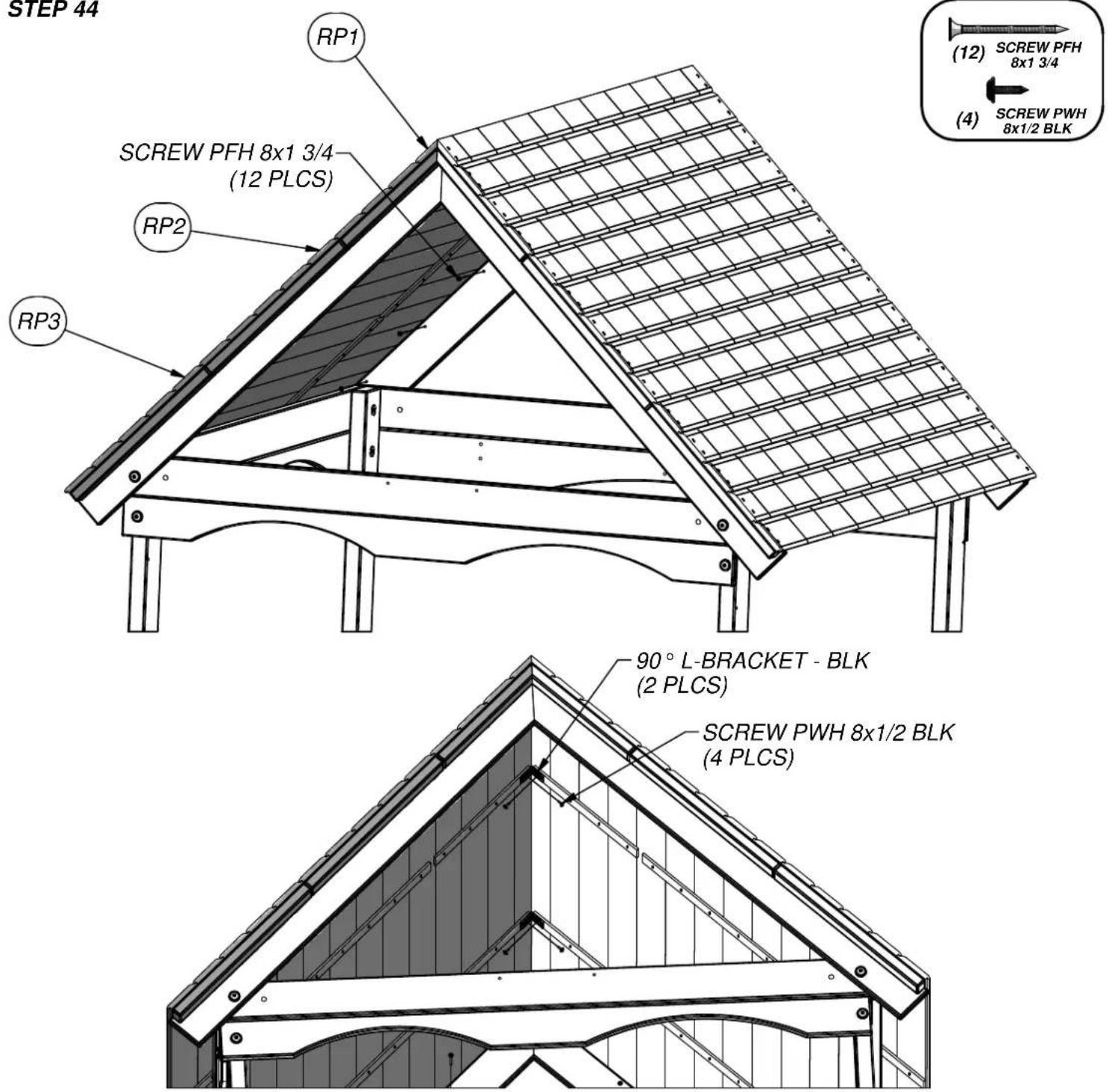

STEP 44

STEP 45

STEP 46

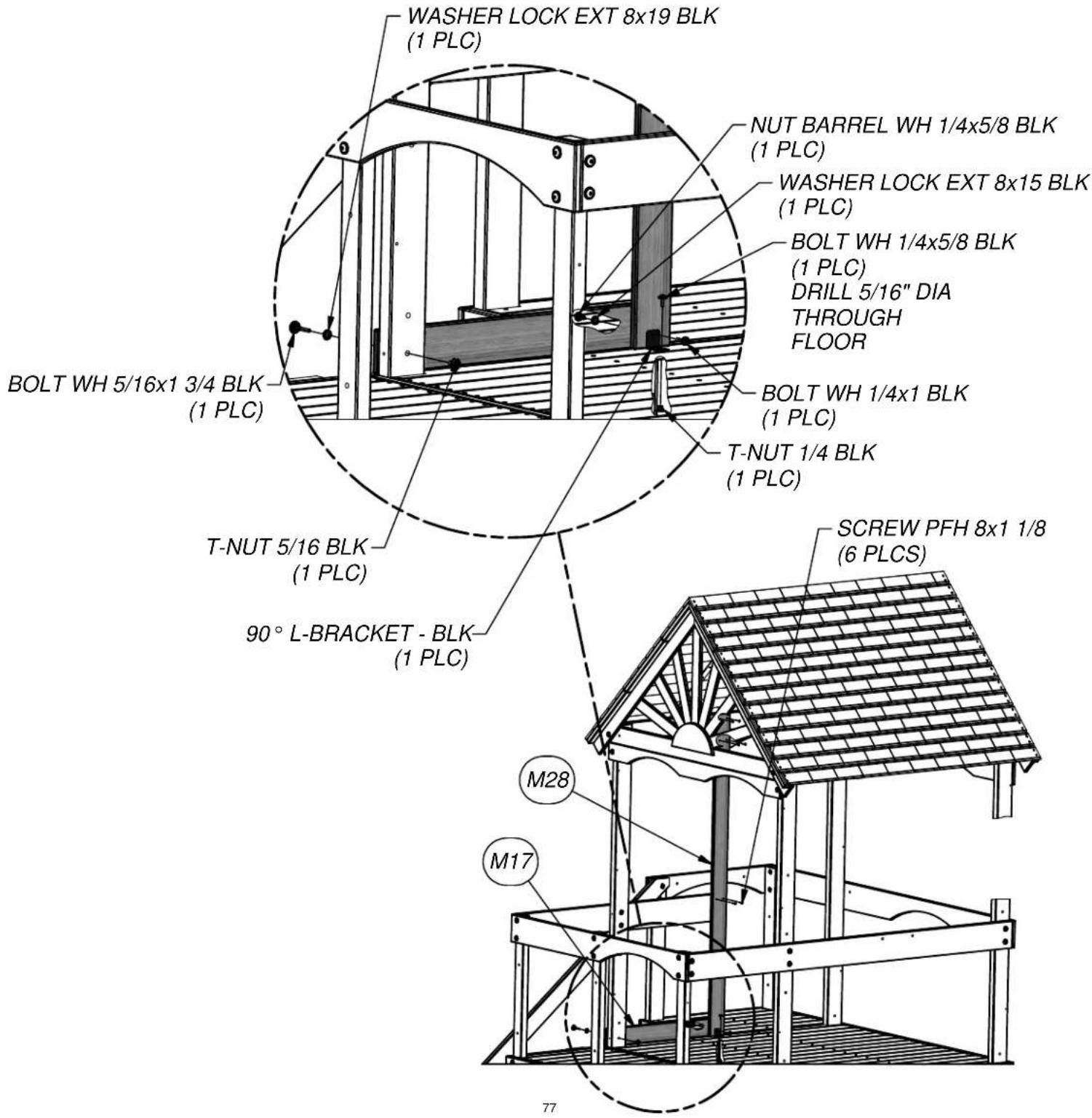

(1) M28 - WALL BOARD - W4L06180 5/8"x3 3/8"x61 1/4" (16x86x1557)

(1) M17 - WALL RAIL - W4L06094 5/8"x3 3/8"x27 1/4" (16x86x692)

(1) -90° L-BRACKET-BLK-A4M00555

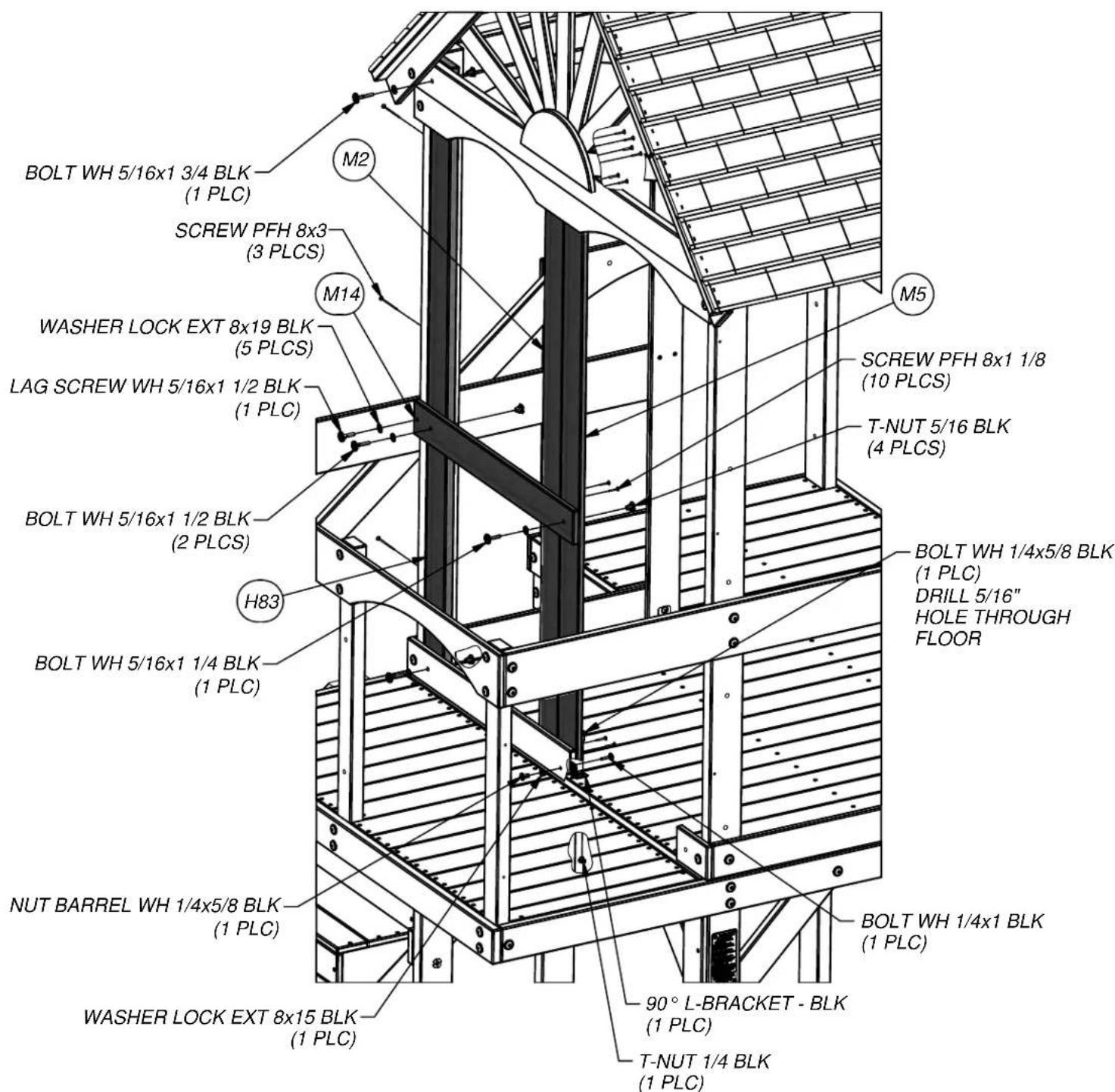

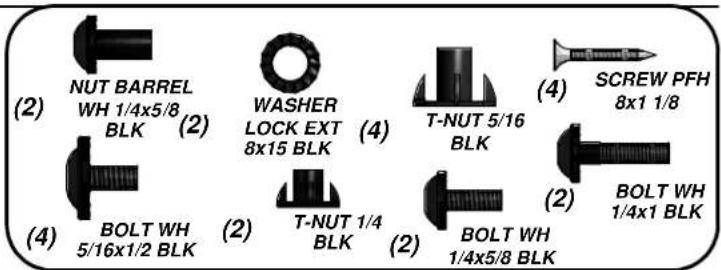

STEP 47

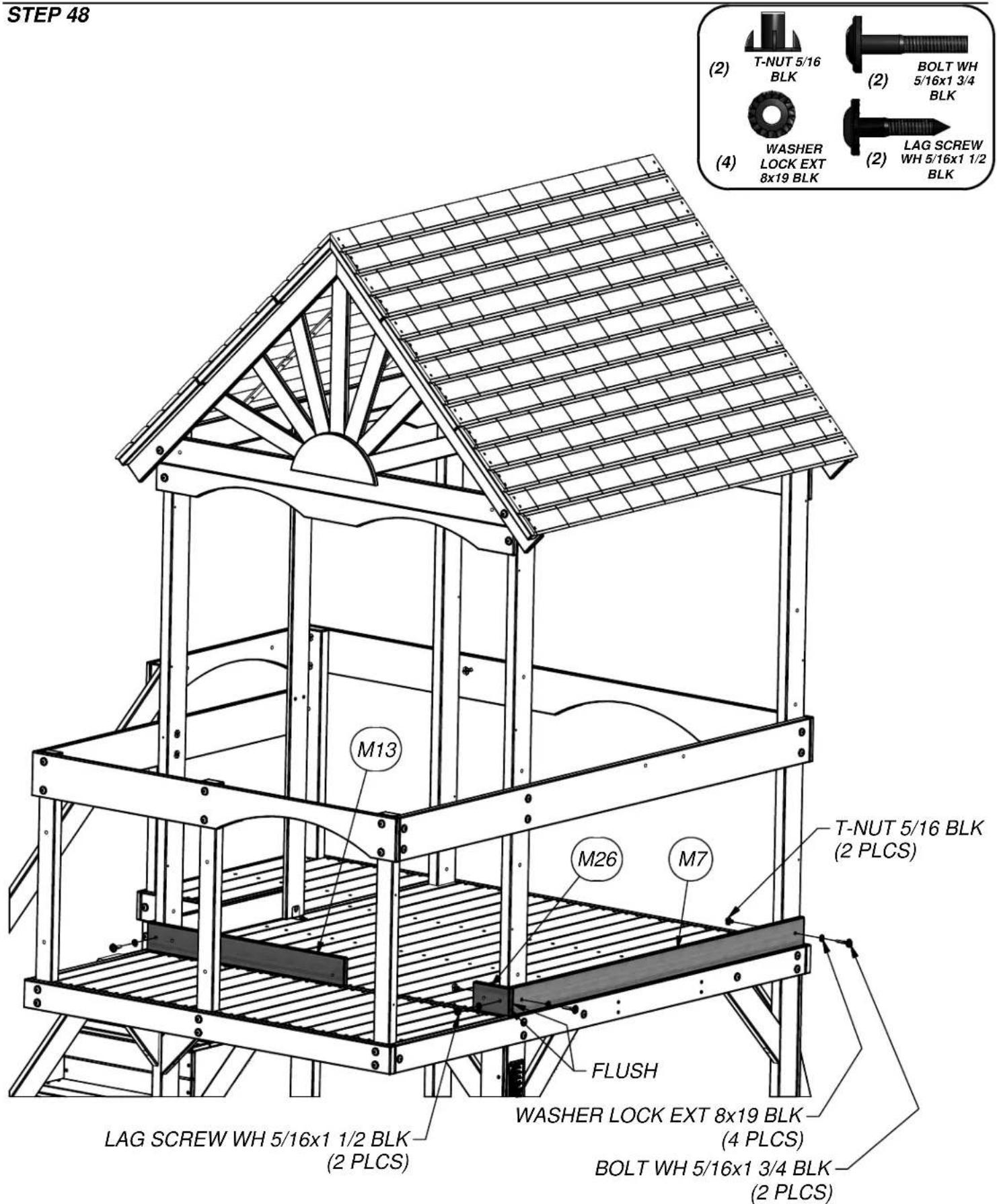

(1) M13 - WALL RAIL - W4L06112 5/8"x3 3/8"x29 1/4" (16x86x744)

(1) M26 - WALL RAIL - W4L06110 5/8"x3 3/8"x5 3/8" (16x86x138)

(1) M7 - WALL RAIL - W4L06087 5/8"x3 3/8"x54 1/2" (16x86x1384)

(1) H83 - WALL BOARD - W4L06182 1"x3 3/8"x61 1/4" (24x86x1557)

(1) M5 - WALL BOARD - W4L06111 5/8"x3 3/8"x61 1/4" (16x86x1557)

STEP 49

(2) M24 - WALL RAIL - W4L06107 5/8"x3 3/8"x15 5/8" (16x86x398)

(1) M25 - WALL RAIL - W4L06098 5/8"x3 3/8"x6 3/4" (16x86x172)

STEP 50

(1) H84 - WALL BOARD - W4L06183 1"x3 3/8"x61 1/4" (24x86x1557)

(1) M3 - WALL BOARD - W4L06099 5/8"x3 3/8"x61 1/4" (16x86x1557)

STEP 52

(2) M9 - WALL BOARD - W4L06148 5/8"x3 3/8"x54 1/4" (16x86x1377)

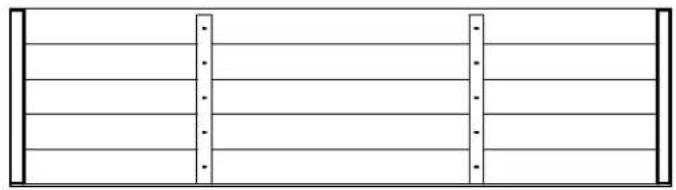

STEP 53

(2) H83 - WALL BOARD - W4L06182 1"x3 3/8"x61 1/4" (24x86x1557)

(2) M4 - WALL BOARD - W4L06109 5/8"x3 3/8"x61 1/4" (16x86x1557)

(5) M19 - WALL BOARD - W4L06096 5/8"x3 3/8"x27" (16x86x686)

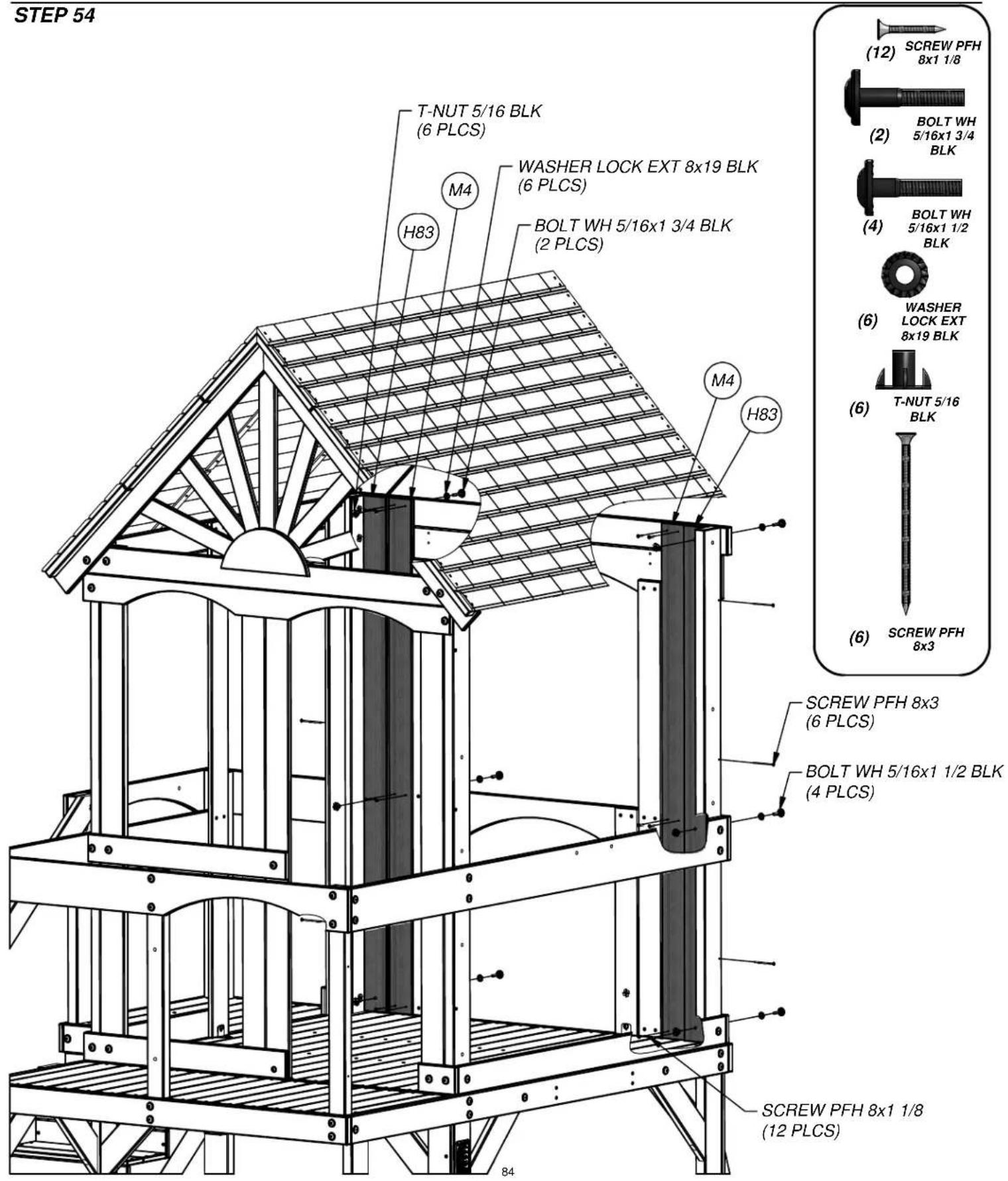

STEP 55

(14) M29 - WALL BOARD - W4L06181 5/8"x3 3/8"x28 5/8" (16x86x726)

STEP 56

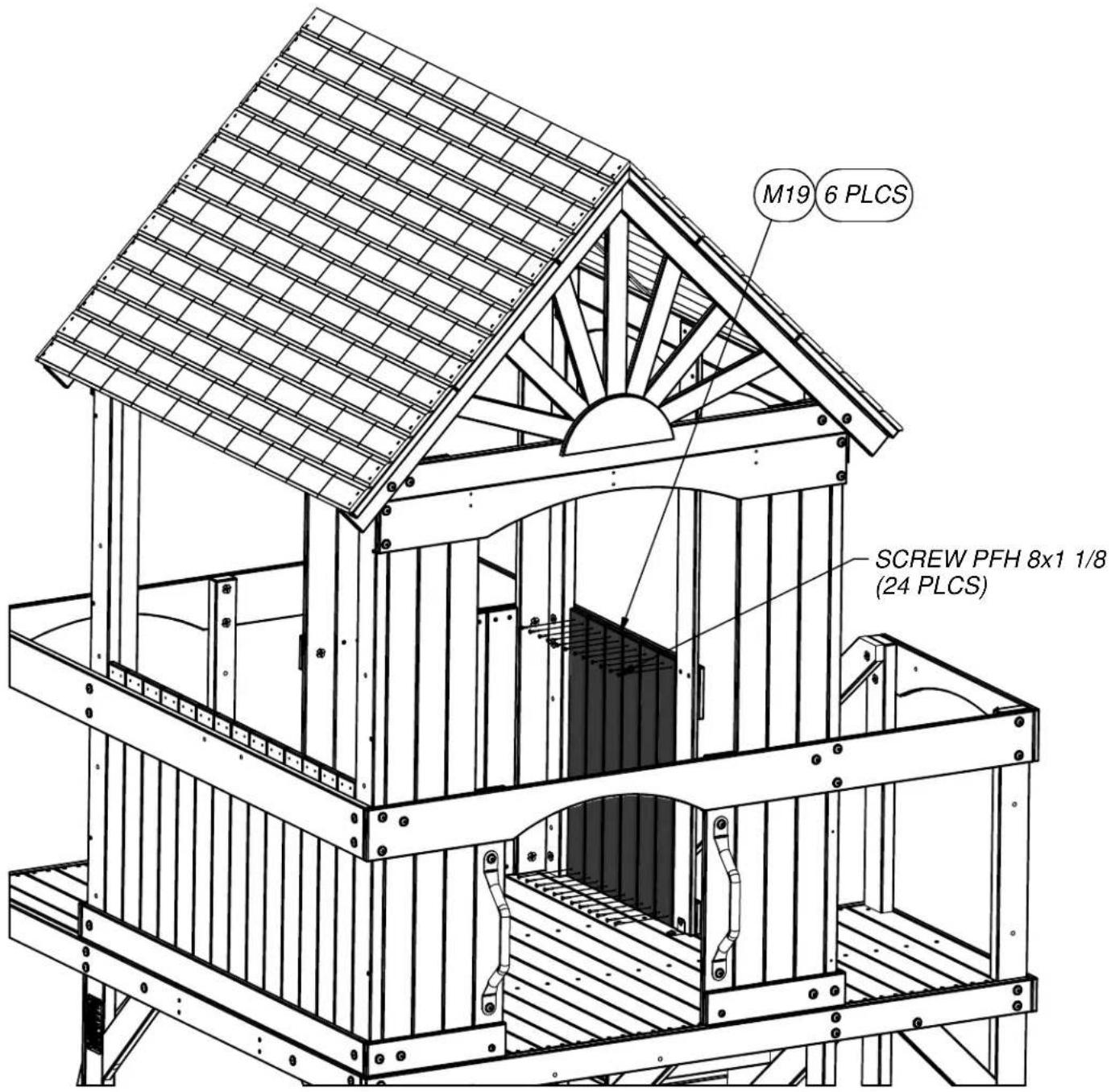

(56)

SCREW PFH 8x1 1/8

(6) M19 - WALL BOARD - W4L06096 5/8"x3 3/8"x27" (16x86x686)

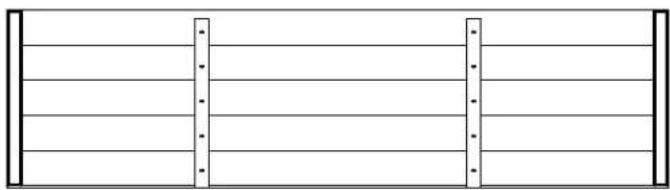

STEP 57

STEP 58

STEP 59

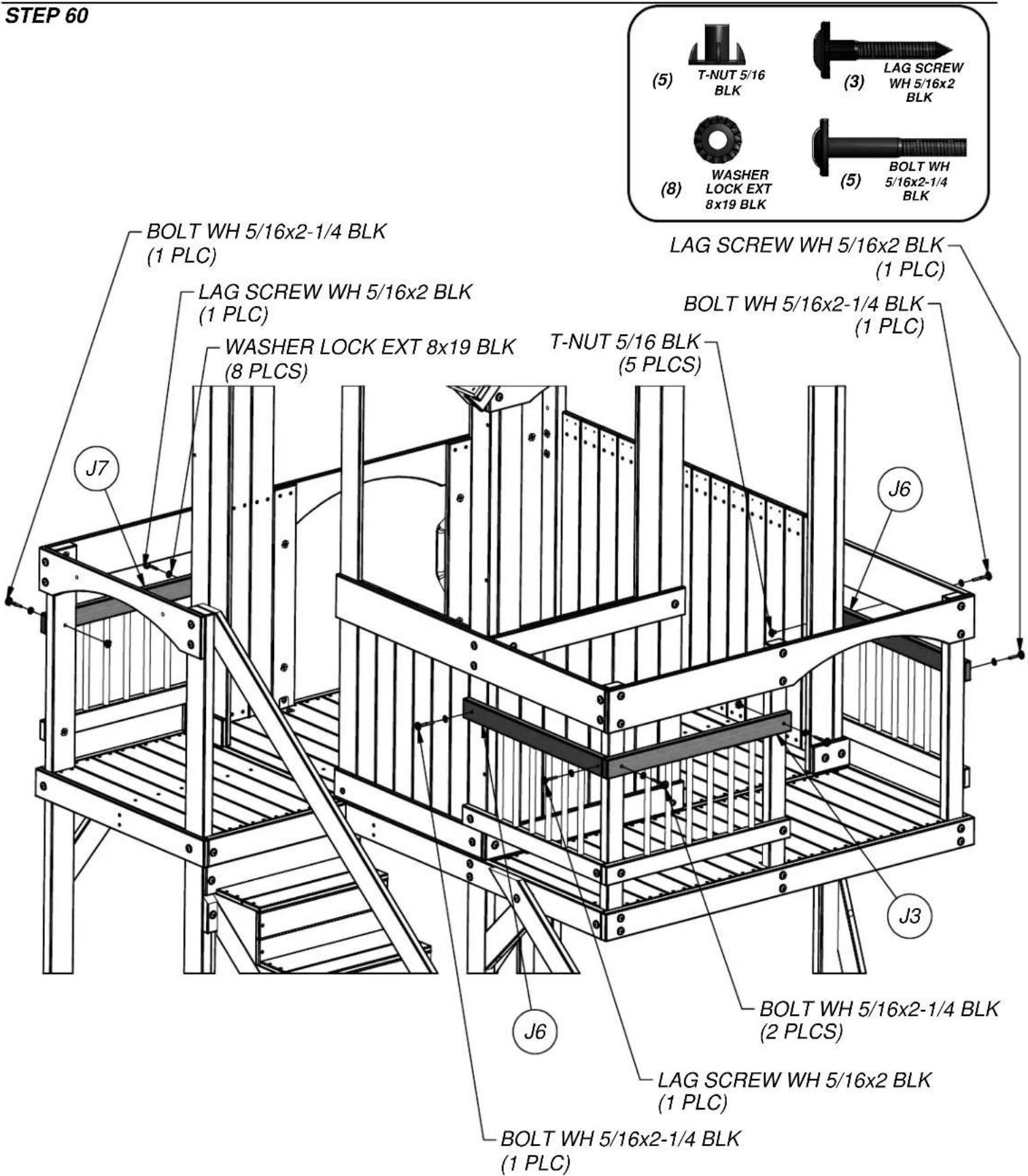

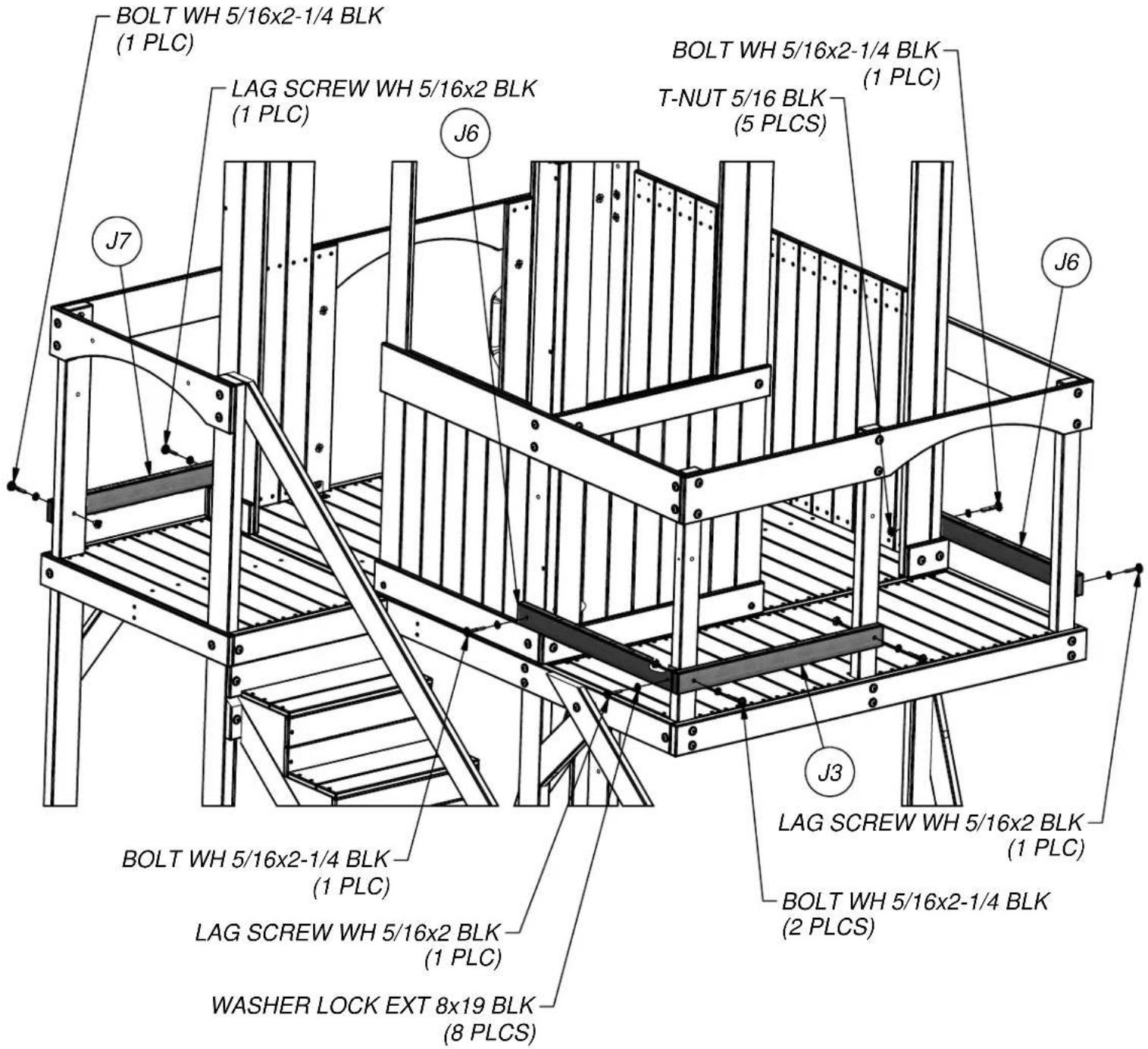

(1) J7 - WALL RAIL - W4L06050 1"x2 3/8"x22 3/4" (24x60x579)

(2) J6 - WALL RAIL - W4L06089 1"x2 3/8"x25 5/8" (24x60x650)

(1) J3 - WALL RAIL - W4L06092 1"x2 3/8"x27 1/4" (24x60x691)

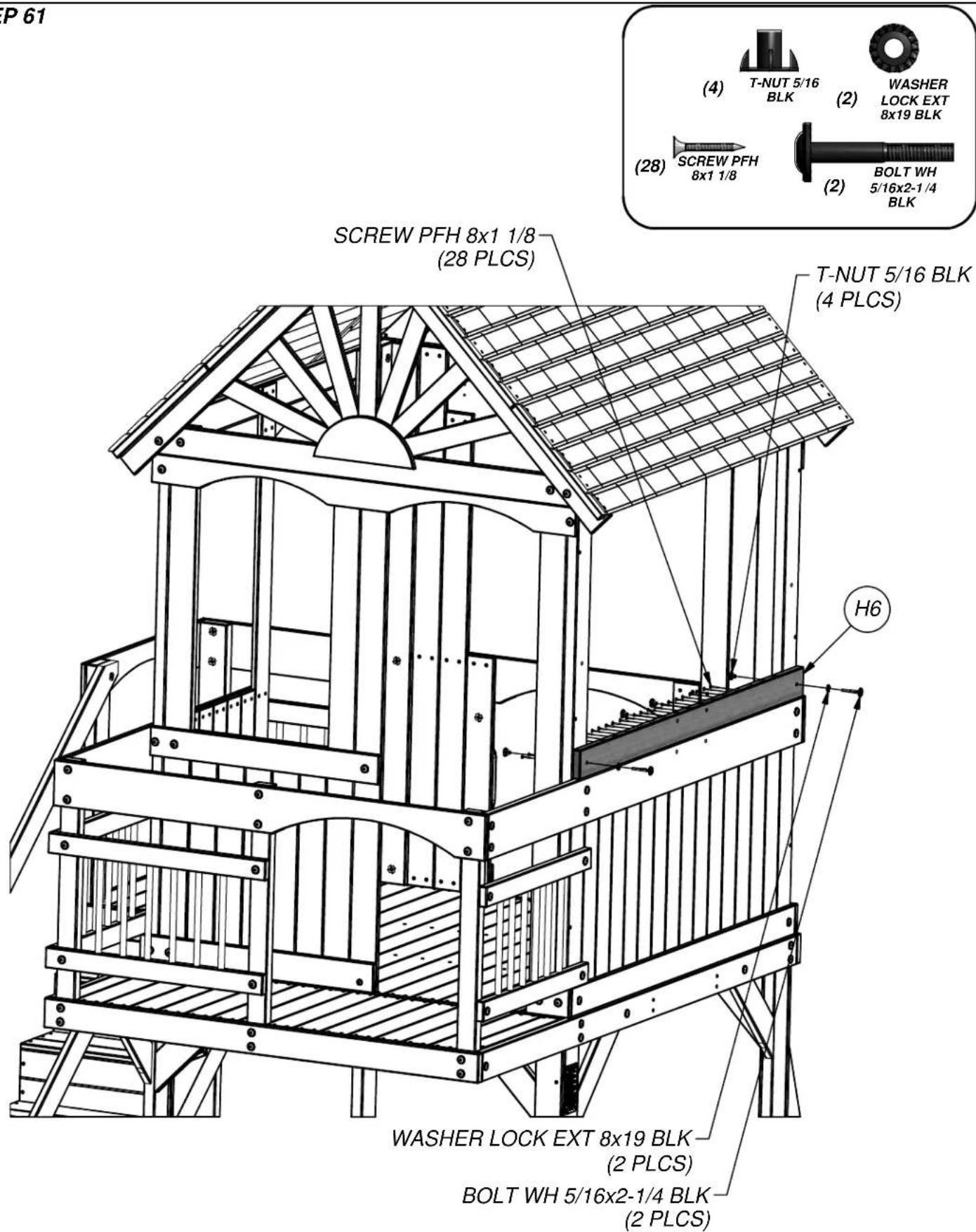

(1) H6 - WALL RAIL - W4L06088 1"x3 3/8"x54 1/2" (24x86x1384)

STEP 61

STEP 62

(1) J1 - WALL RAIL - W4L06104 1"x2 3/8"x54 1/2" (24x60x1384)
STEP 63

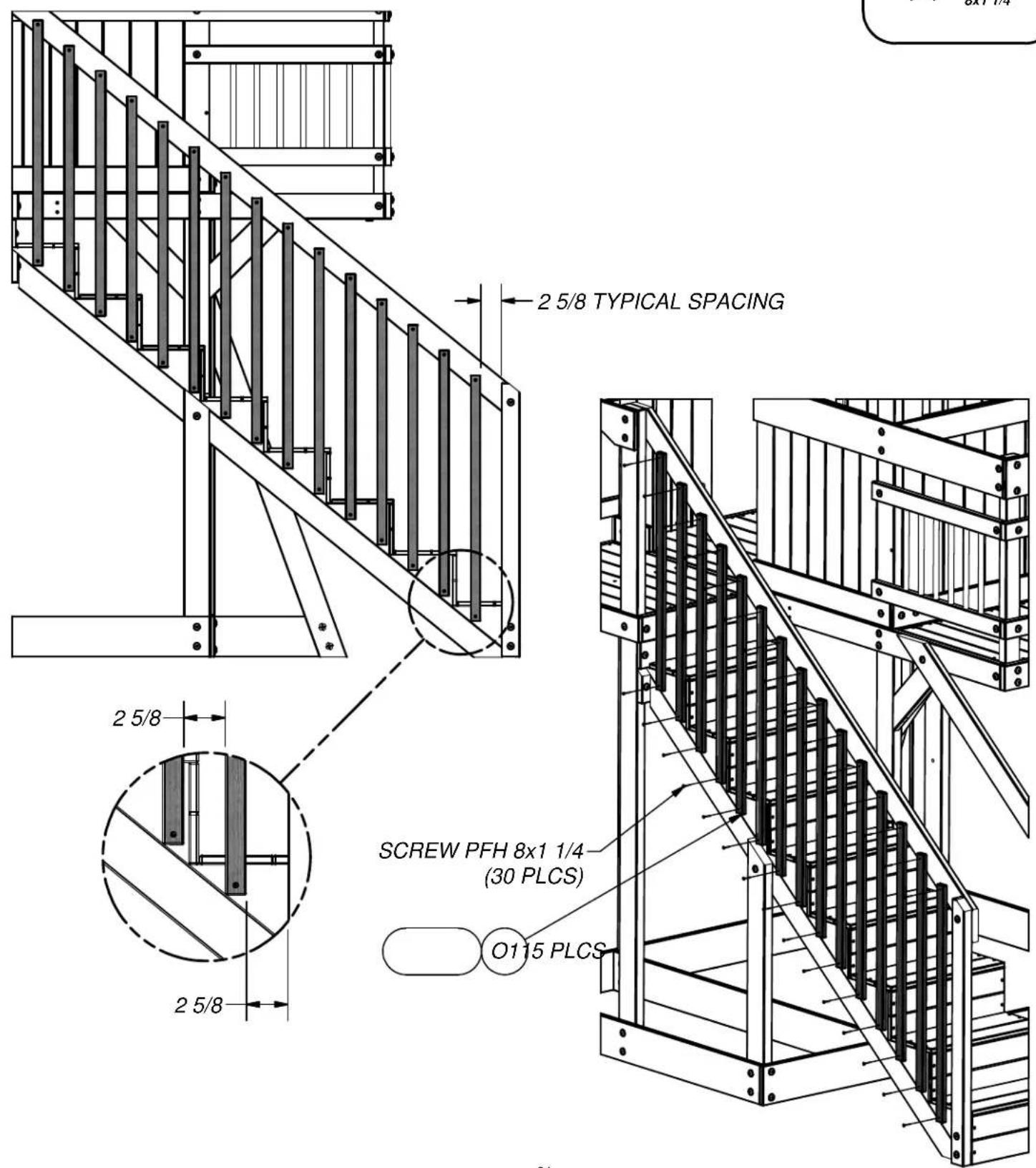

(15) O1 - PICKET - W4L06135 5/8"x1 3/8"x31 1/4" (16x34x795)
STEP 64

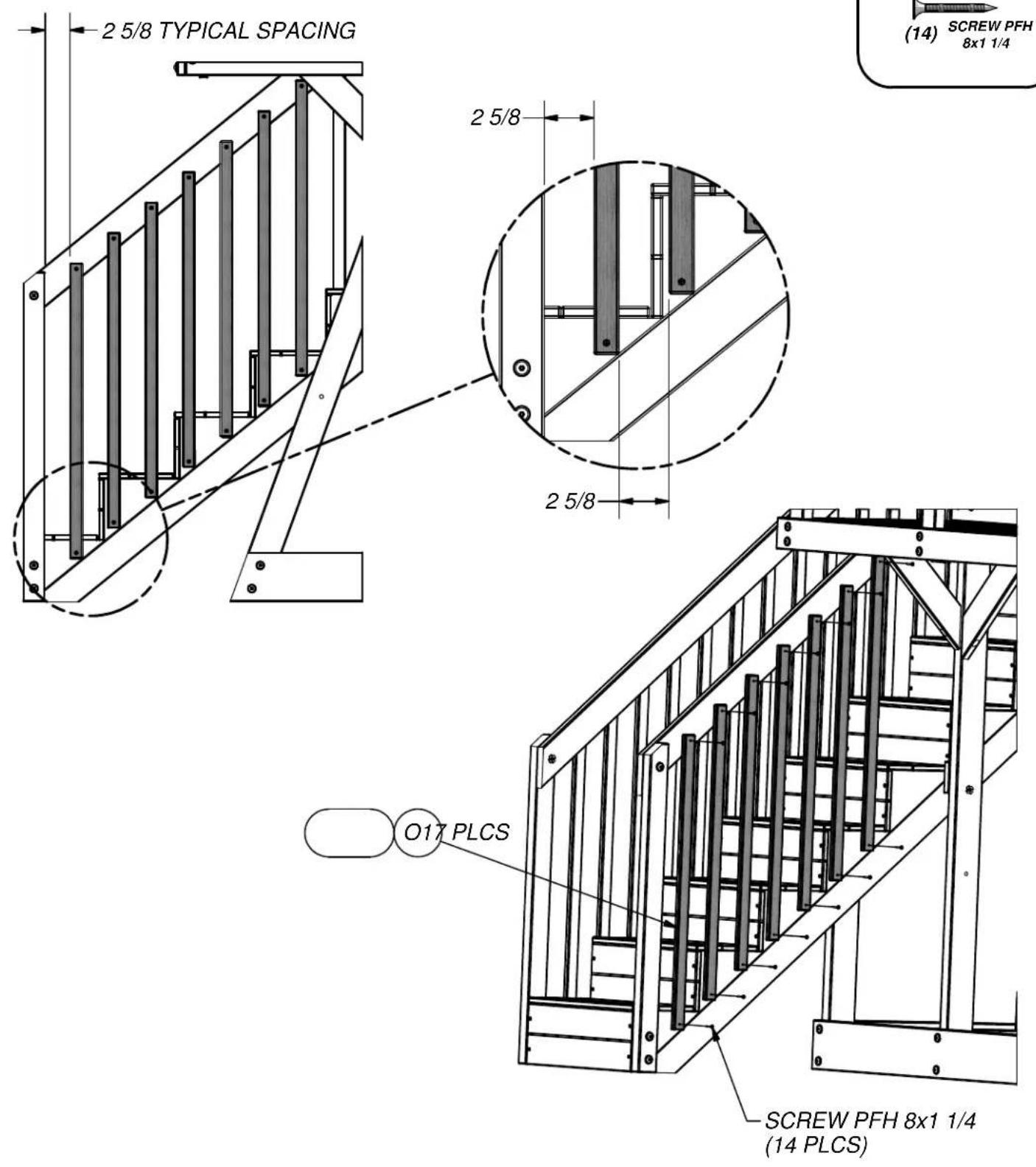

(7) O1 - PICKET - W4L06135 5/8"x1 3/8"x31 1/4" (16x34x795)

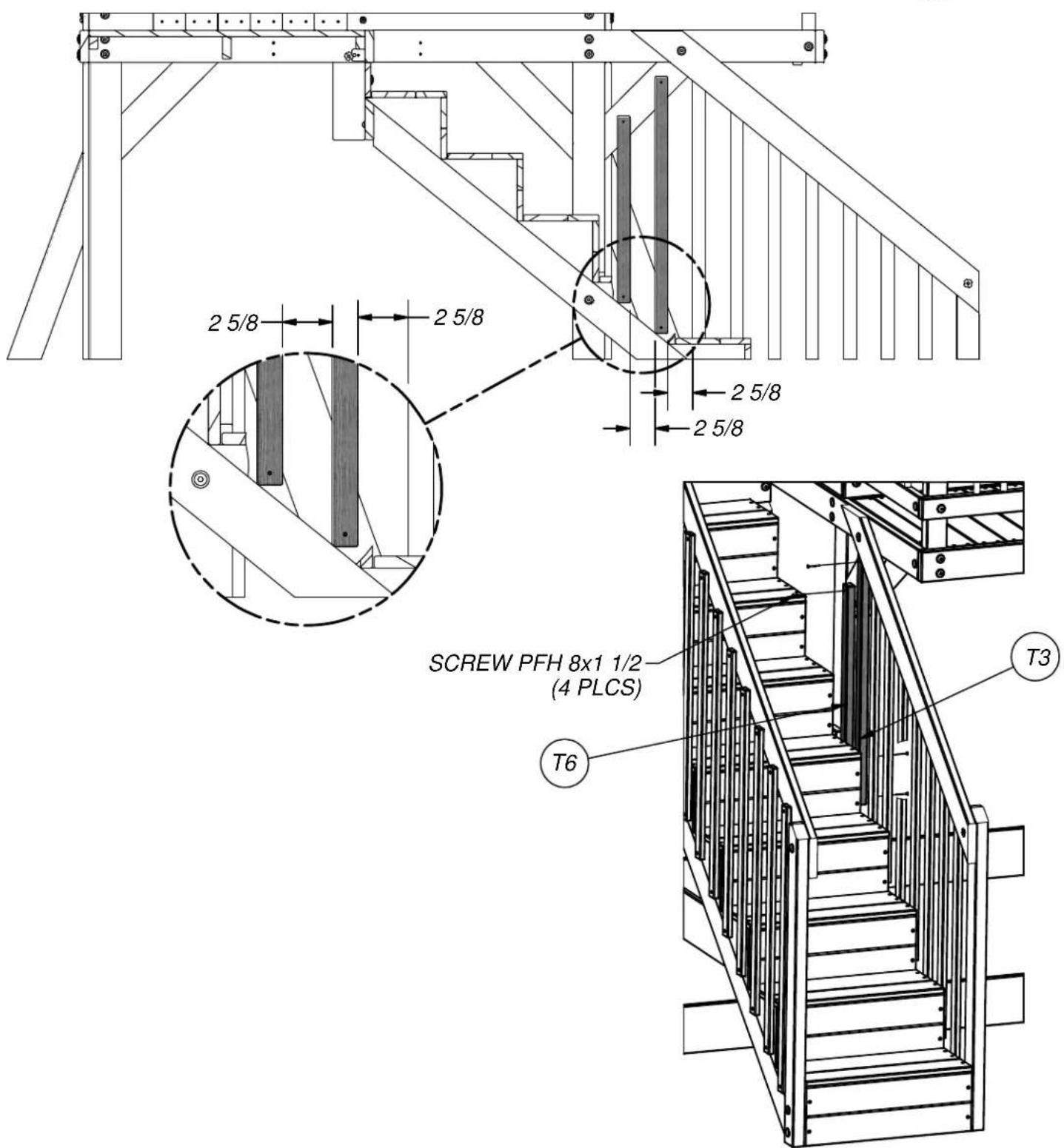

STEP 65

(1) T3 - PICKET - W4L06136 1"x1 3/8"x27 1/8" (24x34x688)

(1) T6 - PICKET - W4L06137 1"x1 3/8"x19 5/8" (24x34x500)
STEP 66

(1) M1 - GROWTH BOARD - W4L06143 5/8"x3 3/8"x60 1/4" (16x86x1530)

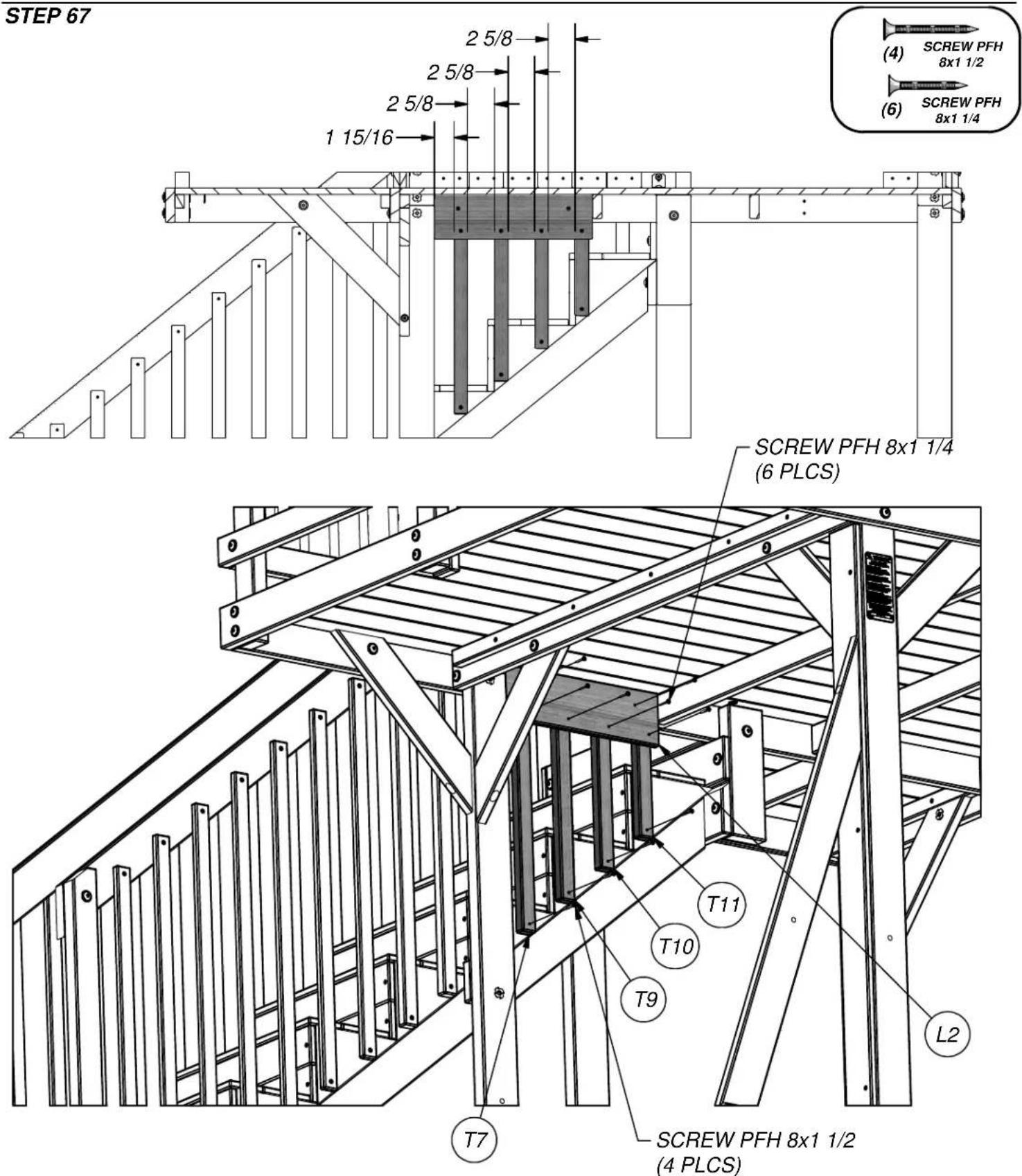

STEP 68

(4) SCREW PFH 8x1 1/8

Abstract grayscale pattern with horizontal bands and vertical lines, no text or symbols present

(1) - HAMMOCK - A6P00066

(1) H85 - SAFETY RAIL - W4L06184 1"x3 3/8"x75" (24x86x1904)

STEP 69

STEP 70

NOTE:

(7)
WASHER LOCK EXT 8x19 BLK

(3)
BOLT WH 5/16x1 3/4 BLK

(2) J4 - OUTER CURTAIN ROD HOLDER - W4L05293 1"x2 3/8"x2 3/8" (24x60x60)

(1) J5 - INNER CURTAIN ROD HOLDER - W4L05294 1"x2 3/8"x2 3/8" (24x60x60)

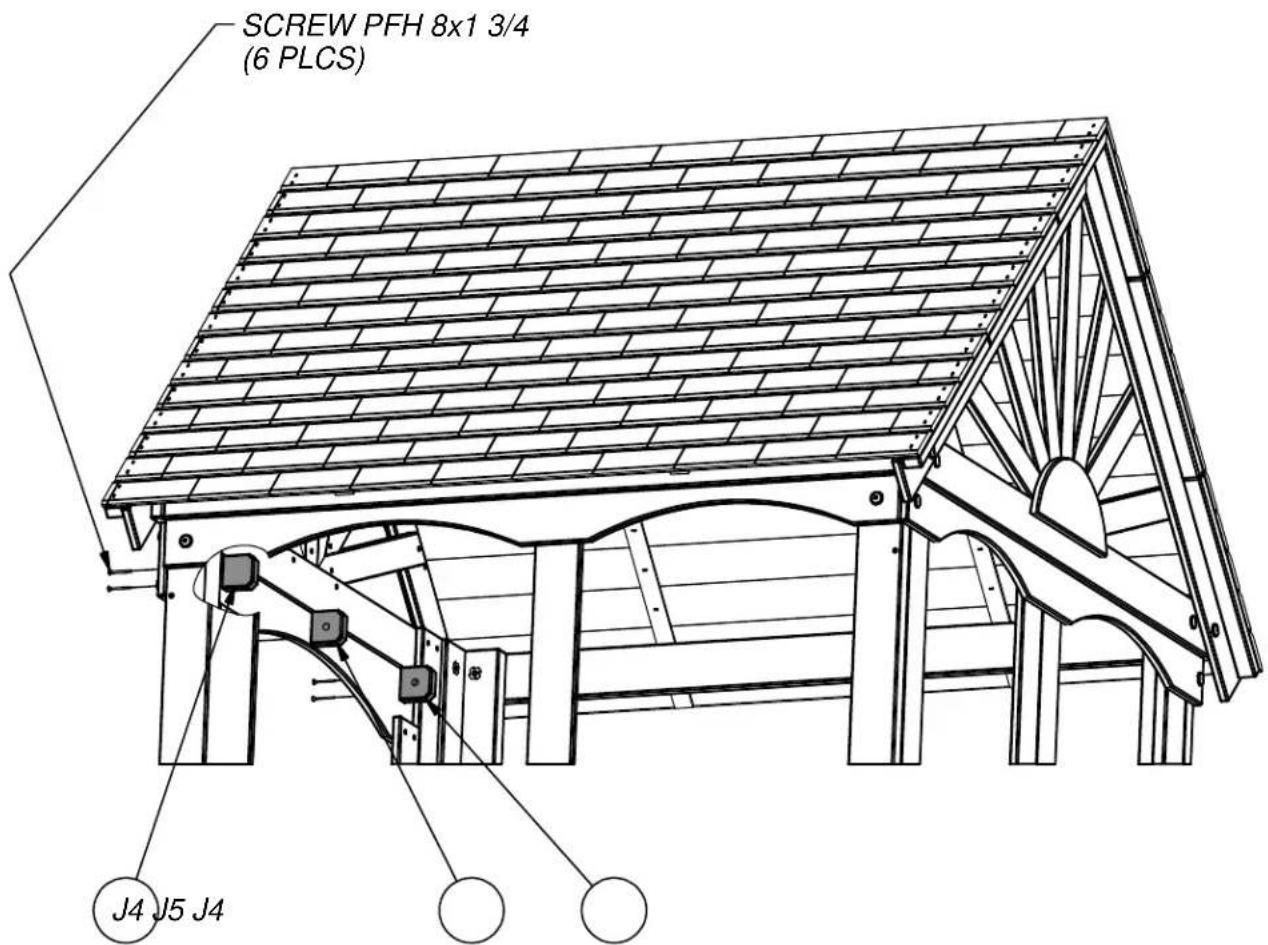

STEP 71

(6)

SCREW PFH 8x1 3/4

Abstract pattern of vertical gray bars with no text or symbols

(1) - CURTAIN - A6P00089
(1) - PLASTIC CURTAIN ROD - A6P00090

STEP 72

Abstract pattern of vertical black and gray stripes with no text or symbols

(1) - CURTAIN - A6P00089

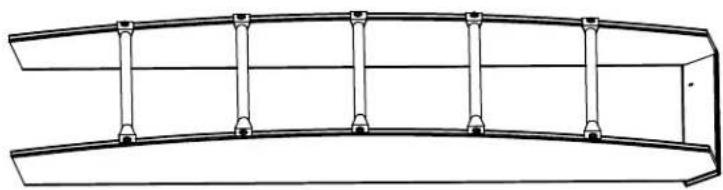

STEP 73

Technical line drawing of a curved structural beam with vertical supports (no text or symbols)

LADDER ASSEMBLY

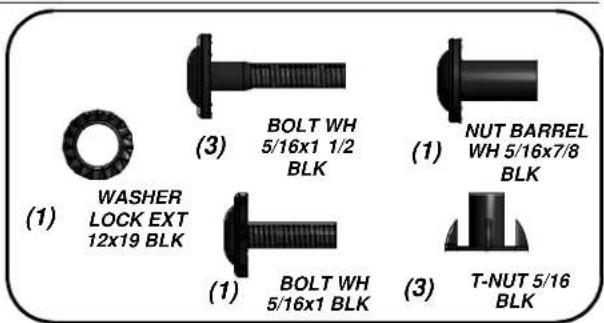

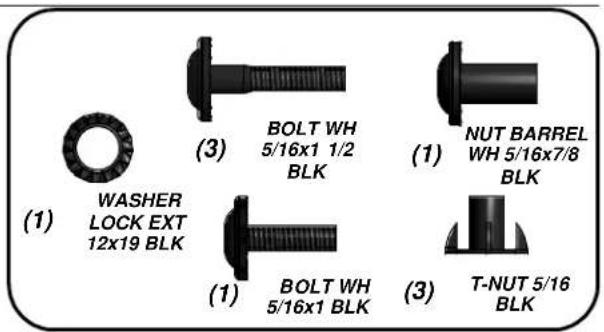

FINAL ASSEMBLY STEP 1

BOLT WH 5/16x1 1/2 BLK

T-NUT 5/16 BLK

WASHER LOCK EXT 8x19 BLK

Line drawing of a Monkey Bar assembly structure (no text or symbols on the diagram itself)

FINAL ASSEMBLY STEP 2

FINAL ASSEMBLY STEP 3

BOLT HEX 5/16x1 1/4 BLK

WASHER SPLIT 5/16 BLK

WASHER FLAT 8x27 BLK

(2) - SWING SEAT GREEN - A6P00054

(6) FA - QUICK LINK - A100069

(1) - TRAPEZE - A6P00034

(4) EF - CHAIN GREEN 57" - A100047

(2) KN - CHAIN GREEN 31" - A100177
FINAL ASSEMBLY STEP 4

3D model of a segmented mechanical component, labeled (1) SLIDE VF 10 FT-A100287 or A6P00539 or A6P00540, with no visible text or symbols on the object itself.

(1) - BYD ID TAG (LARGE) AGES 3-10 - A100164

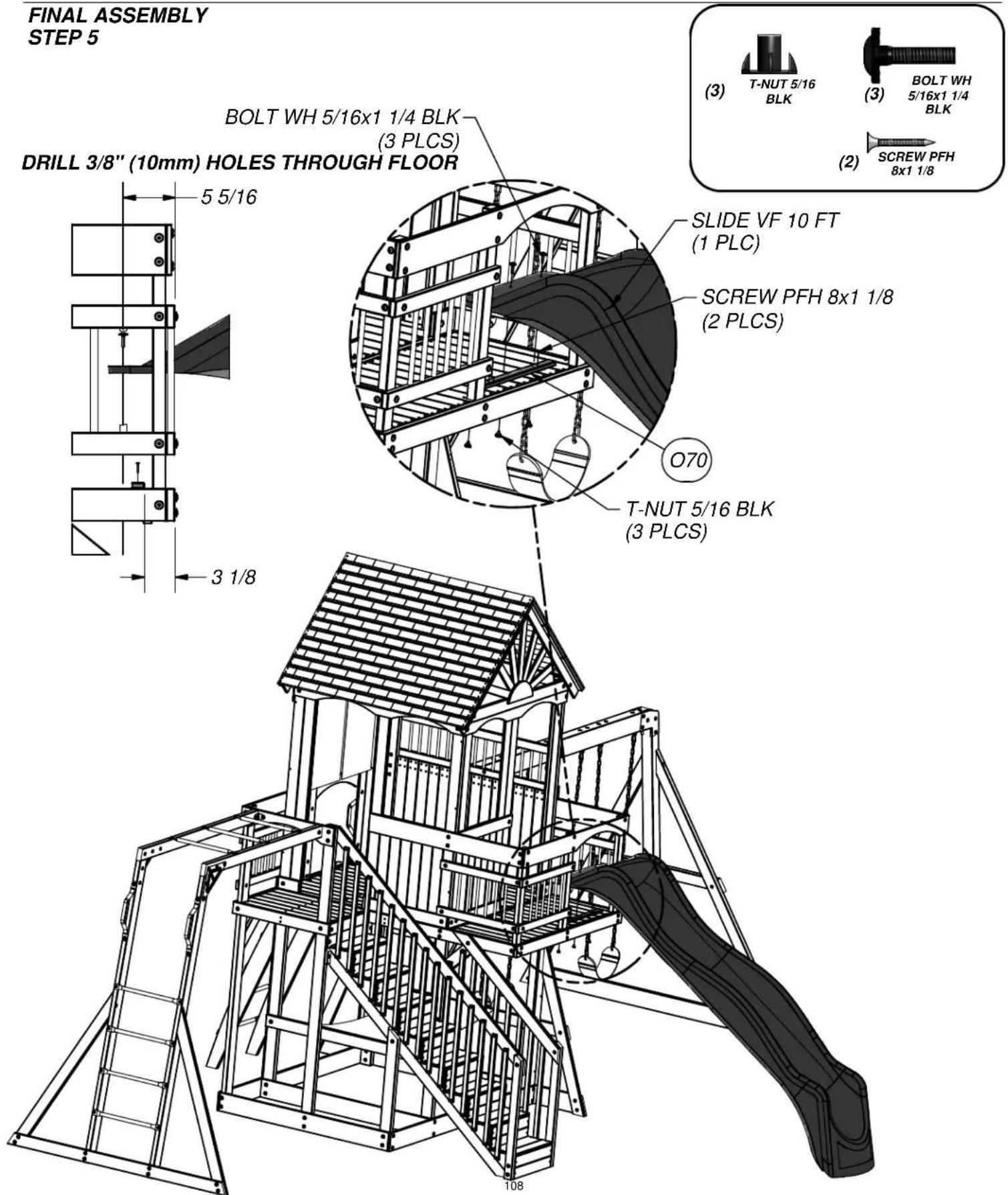

FINAL ASSEMBLY STEP 6

Simple black arrow with a circular end and triangular tip, no text or symbols present

(8) KC - METAL GROUND STAKE BROWN - A100178

FINAL ASSEMBLY STEP 7

NOTE:

FAILURE TO USE GROUND STAKES CAN VOID WARRANTY & CAUSE INJURY!

FINAL STEP

DOUBLE CHECK EVERY BOLT, SCREW AND NUT FOR TIGHTNESS. MAKE SURE EVERY BOARD IS SECURE AND MAKE SURE THE PLAY SET IS LEVEL.

ENJOY YOUR NEW PLAY SET!
