Product Type	Under-cabinet range hood
Brand	Mayer
Model	MMSH8099-L
Width	90 cm
Depth	50 cm
Height	15 cm (body only)
Weight	12.5 kg
Power Supply	220-240 V, 50 Hz
Maximum Power Consumption	220 W
Motor Power	200 W
Number of Motors	1
Fan Speeds	3 speeds
Extraction Capacity (max)	650 m³/h
Noise Level (max speed)	65 dB(A)
Lighting	2 x 1.5 W LED
Filter Type	Aluminum grease filter (washable)
Control Type	Push buttons
Exhaust Connection	150 mm diameter
Installation Type	Under cabinet or wall-mounted
Energy Efficiency Class	A+
Annual Energy Consumption	36 kWh/a
Grease Filter Cleaning	Every 2 months in dishwasher or hand wash
Carbon Filter Replacement	Every 3-6 months (optional recirculation mode)
Spare Parts Available	Filters, LED bulbs, motor, control board

Frequently Asked Questions - MMSH8099-L Mayer

How to clean the grease filters?

Remove the aluminum grease filters and wash them in warm soapy water or in the dishwasher at low temperature. Allow them to dry completely before reinstalling. Frequency: every 2 months or more often with heavy use.

Can the hood be used in recirculation mode?

Yes, the MMSH8099-L can be used in recirculation mode by adding a carbon filter (not included). Order a compatible carbon filter and install it behind the grease filter.

How to replace the LED lights?

Disconnect power. Remove the lamp cover by gently prying it off. Replace the defective LED module with a new one (same specifications). Reinstall the cover and restore power.

What is the duct diameter for exhaust?

The exhaust outlet has a diameter of 150 mm. Use a rigid or flexible duct of the same diameter for optimal airflow.

Is the hood noisy?

Noise level depends on the speed: lowest speed is around 45 dB, highest speed up to 65 dB. It is normal for the hood to be louder at max speed.

Why is the hood not sucking properly?

Check if the grease filters are clogged. Clean them if necessary. Also ensure the exhaust duct is not blocked and that the carbon filter (if used) is not saturated.

How often should I replace the carbon filter?

Carbon filters should be replaced every 3 to 6 months depending on usage. They cannot be washed and must be replaced to maintain odor absorption.

Can I install the hood by myself?

Installation is possible as a DIY project if you have basic skills. Ensure proper electrical connection and secure mounting. For ducted version, drilling through walls may be required. Check local regulations.

What safety features does the hood have?

The hood includes overheat protection that automatically shuts off the motor if it gets too hot. Also, the controls are touch-safe and the unit is designed to prevent grease accumulation.

Where can I buy spare parts?

Spare parts such as filters, LED bulbs, and motor can be ordered from Mayer authorized service centers or online parts retailers. Check your user manual for part numbers.

USER MANUAL MMSH8099-L Mayer

Our after sales team is here for you if you require any applian servicing.

When contacting us, please provide the product number and produce serial number so we are able to provide you with the correct ad and assistance.

The rating plate with these numbers can be found inside the appliance - simply remove the grease filter to gain access.

Please note that a visit by an after-sales provider may be charged if a product turns out to be a result of operator or installer error during warranty period.

Warranty & customer service

e-Warranty Registration at https://mayercare.biz/eWarranty

Customer Service Hotline: [phone] [Mon, Wed & Fri. 9:00am to 6:00pm]

[Tue & Thurs: 9.00am to 8.00pm] [Sat: 9.00am to 3pm]

Closed: Sunday & Public Holidays

71 Ubi Crescent, #06-02, Excalibur Centre, Singapore 408571

Download Mayer App via

mayer

MMSH8099-L

COOKER HOOD

USER MANUAL

INSTALLATION INSTRUCTION

To avoid the risk of accidents or damage to the appliance, it essential to read these instructions before it is installed or used the first time.

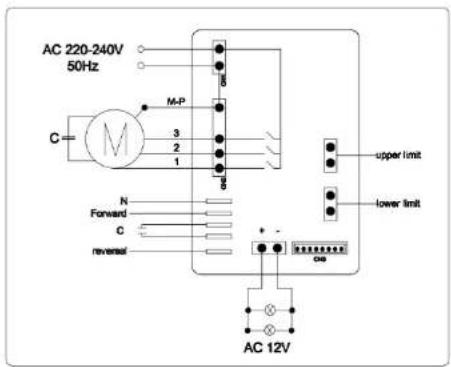

■ Schematic Diagram

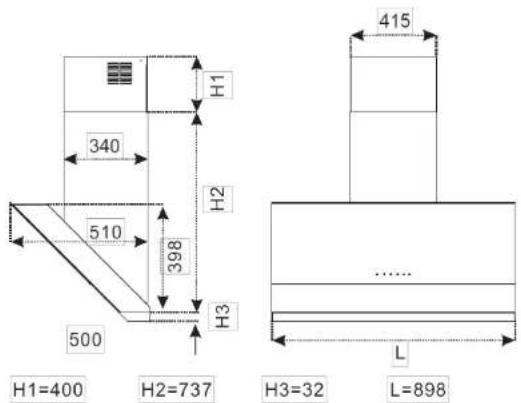

■ Dimension drawing

■ Troubleshooting

Symptoms Possible Cause Action

Does not function	No electrical supply	Check that the plug connected.
		Check that the main switch is turned on.
Poor airflow	Aluminium grease filter clogged	Clean the filters and replace when dry
	Charcoal grease filters clogged	Replace charcoal filters with new sets
Motor running but no airflow	Butterfly valve jammed	Contact technician
Motor cuts after a fe minutes	High temperature safety device activated	The kitchen is not sufficiently ventilated
	the hood is installed near the cooking stov	The hood must be at least 65cm from stov
Strong cooking smell	Charcoal filters not installed/ are not operating optimally	In re-circulation mode, charcoal filters must be installed. Otherwise, it charcoal filter is clogge replace the charcoal fil
Oil dripping onto stov	Aluminium grease filte saturated	Wash the aluminium grease filters
Whirring sound	Foreign object in conta with fan blade	Contact technician

■ Table of Contents

● From the Manufacturer 1
- Specifications 1
● SAFETY: Read this First! 2
● Vent System Requirements 3
● Description of Parts 4
● Re-circulating Mode 5
- Installation 6
● Electrical Connection 10
- Operation 11
● Auto Linkage System 12
● Cleaning & Maintenance 14
● Troubleshooting 15
● Schematic Diagram 16
- Dimension Drawing 16

■ From the Manufacturer

• This appliance and its packaging are produced by processes that minimize waste and respect the environment.
• Please help us to continue the protection of the environment by disposing of the packaging in a correct manner.

Safety!

• Please do not allow young children to play with the plastic bag packaging.
• Before disposing of any old appliances, be sure to cut off the power cord so that others will not be endangered by a defective electric appliance

■ Specifications

■ Cleaning & Maintenance

SURFACES:

Wash with warm soapy water and a soft sponge. Never use abrasive deter scouring pads, steel wool or solvents on any part of this appliance as this cause irreparable damage.

OIL CUP

The rectifier oil cup should be cleaned regularly, e.g. once a month. Alway: both hands to carefully hold on to the parts upon removing to prevent oil dripping out.

Wash with warm or hot soapy water and a soft sponge. Avoid using abras detergent and scouring pads as these will cause scratch on the stainless s finishing.

CHARCOAL FILTERS (only in re-circulating model): Charcoal cannot be reused. They must be replaced with the appropriate types once a year or depending on the frequency of appliance usage.

For this appliance to function effectively, regular maintenance is a must.

Clogged filters restrict airflow and may cause the motor to overheat.

LED LIGHT REPLACEMENT: Before attempting to replace the light bulb, make sure that the light switch is turned off. Remove the grease filter to a the lamp area. Remove the damaged LED light and replace with an LED I maximum 1.5 W.

• For linking to a compatible induction or gas hob, the hood will automatic operate at one power level below the maximum power level of the hood if the hood has 4 power levels, the hood will operate at power level 3 upon startup of the hob, regardless of the programmed power level of tl hob. However, users are able to manually programme their preferred hoo power level after startup of the hood.
• For linking to a compatible vitroceramic hob, the hood will automatically adjust its power level to the programmed power settings of the hob in accordance with the chart below:
  ● Hoods for which maximum power level is "4"

Vitroceramic Hob Power Setting	Linked Hood Matching Power Le
U、1、2	1
3、4、5	2
6、7、8	3
9、A	4

- Hoods for which maximum power level is "3"

Vitroceramic Hob Power Setting	Linked Hood Matching Power Lev
U、1、2	1
3、4、5	2
6、7、8、9、A	3

• Please note that once the hood is linked to a vitroceramic hobs, users be unable to manually programme the power levels of the hood. However, users may still adjust the lights of the hood. For induction and gas hob users will still be able to manually programme the power levels of the I even when linked.
• All linked hoods will automatically power off all functions 35 seconds after the hob has been switched off to ensure optimal removal of odours and grease in the kitchen.

■ SAFETY: Read this First!

• Check the appliance for damage before and after unpacking it.
• Do not connect the appliance if it has been damaged.
• Read this user manual thoroughly before attempting to use this appliance.

• This appliance may be used safety if it is correctly installed according to provided safety instruction by a qualified installer. The installer is responsible for ensuring that the appliance works correctly at its installation location. Mayer Marketing Pte Ltd is not liable for damage caused by incorrect installation or connection, and such damages are not covered under warranty.

• It is dangerous to modify any part of this appliance.

• Mayer Marketing Pte Ltd is not liable for damages in case of failure to proper safety measures.
• Ensure the location in which this appliance is installed is well ventilated.
  ● This appliance should not be used to ventilate a room.
• The distance between the bench top to the lower part of the hood is recommended to be between 650mm – 750mm.
• Use an electrical connector with earth that is suitable for your location.
• Check that the voltage in your location is suitable for supply to this product
  ● The electrical connection of this appliances must be connected to earth.

Green & Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

• Multiple plugs and extension cables should not be used in conjunction at time. Overload is dangerous and may cause a fire.

• Ensure that the power supply cord is away from any heat source or share objects.

• The product should be switched off and the electrical supply disconnected before any cleaning or maintenance work is carried out, or if the appliar is unused for extended periods.

• Remove all plastic covers or wrappings on the product and its attachmen (e.g. charcoal filters) before use.
• This product is intended for domestic use and the household environment only. The product is not intended for use outside or in a commercial se
• Do not leave the product unattended during operation. Mayer Marketing P Ltd is not liable for damage caused by improper use or incorrect operat

■ Vent System

Determine which venting method is best for your application. Vented (non-recirculating) system terminate on the outside. Ductwork may be extended either through the wall or the roof. Do not terminate the vent system in air or other enclosed area.

Cleaning & Maintenance

SURFACES : Wash with warm soapy water and a soft sponge. Never use harsh or abrasive cleaning agents, clean agents with high alcohol content, scouring pads or cleaning sponges or high-pressure cleaners or steam cleaners on any part of this appliance as this will cause irreparable damage

The length of the ductwork and the number of elbows should be kept to a minimum to optimise performance. The size of the ductwork should be uniform. Do not install two elbows together. Ensure all joints in the ductwork system are sealed well. Use caulking to seal exterior wall or floor opening around the cap.

■ Auto Linkage system

Set-up the hood and hob linkage via the ON/OFF button on your hood.

● The hood is factory set to non-linked mode.
- If the hood and hob are not linked, operate the hood manually.
- After connecting to AC220-240V power supply, press and hold the "ON/OFF" button for 3 seconds. When the hood "beeps" three times, the linkage mode is activated (if the hood only "beeps" once, the activation the linkage mode was unsuccessful. Please try pressing and holding down the "ON/OFF" button for 3 seconds again).
- Upon setting the hood in linkage mode, re-connect to AC220-240V and switch on the linkage compatible hob and activate a cooking zone of the hob within 8 seconds. Only 1 cooking zone needs to be switched on to initiate linking to the hood. Ensure that the zone's power level is of at level 1. For induction zones, ensure that an induction compatible pot is placed on the induction zone. If the connection is successful, you will have five "beep"s. If it is not heard, it means that the connection was unsuccessful. Please switch off the main power of the hood, and try ag
- The hood may only be linked to one hob at a time. To re-link the hoo new hob, simply install the new hob and undertake the steps outlined above.
- Upon successful linking, the hood and its light(s), decorative light (if have will be automatically switched on when the linked hob is switched on. In event that a linked gas hob fails to ignite and operate, the hood will automatically cease operations after 35 seconds. Please note that the tim function is non-operational in linked hoods. To employ the timer function, please operate the hood on non-linked mode.

Operation

ON mode

ON/OFF Speed Up Down Light Timer

OFF mode

The hood is equipped with electronic touch control that is located on the first edge of the range hood canopy.

OFF mode No symbol appears on the panel. The grey color circle line is the left side of the panel.

ON mode Press and hold the grey circle line for 2 seconds, the control pa symbols will light up.

UP & DOWN symbols

Select power level of hood by tapping the '+' and '-' symbols. The extract motor will operate between power levels 0 to 3.

1 Low speed 2 Medium speed 3 High speed 0 Off

Light symbol

To switch ON the light, tap the 'light bulb' symbol, the light bulb will switch and the symbol light will turn red.

Delay timer

Tap the delay timer symbol to activate the delay timer. The cooker hood v operate for 15 minutes and then switch off automatically. The symbol light turn red when activated.

11

Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance.

Make sure there is proper clearance within the wall or floor for exhaust du before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, a supporting frame must be constructed.

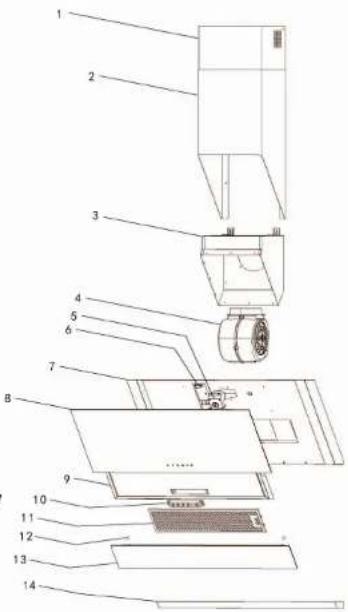

■ Description of Parts

1. Upper chimney

2. Bottom chimney

3. Motor box

4. Motor

5. Electrical machinery

6. Limiting switch

7. Body

8. Upper glass

9. Upper glass support

10.Switch assembly

1. Filter with charcoal

12.Magnet

1. Bottom glass assembly

14.Oil tray

4

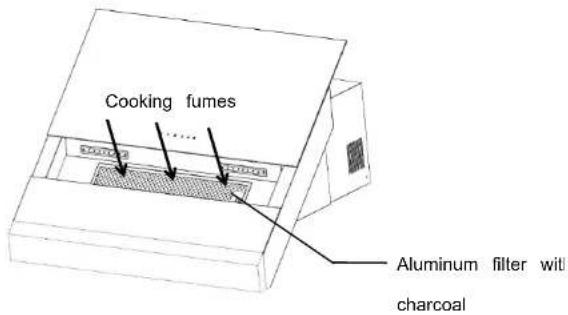

■ RE-CIRCULATING MODE

● Air is drawn into the hood and cleaned by the grease filters and charcoal filters before being reintroduced back into the kitchen.

Note: A charcoal filter is necessary to operate your hood in recirculating m. The charcoal filter is non-washable and may be replaced by contacting the dealer. Contact information is found at the end of the instructions for use.

■ Electrical Connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood.

Only a licensed professional may connect and install appliances. Damage caused by improper installation is not covered under warranty.

● Appliance fitted with plug

Connect it to a socket which conforms to current regulations. If you intend connect it directly to the electric mains, remove the plug and fit an approv bipolar switch with a minimum contact opening of not less than 3mm.

If the plug is not accessible once it has been inserted in the socket, it w however be necessary to fit an approved bipolar switch with a minimum co opening of no less than 3mm.

- Appliance without plug

Fit an approved plug or an bi-polar switch with a minimum contact opening no less than 3mm.

Direct connection installations must be handled by licensed professionals.

Mayer Marketing Pte Ltd is not liable for damages caused by improper har and installation of the appliance.

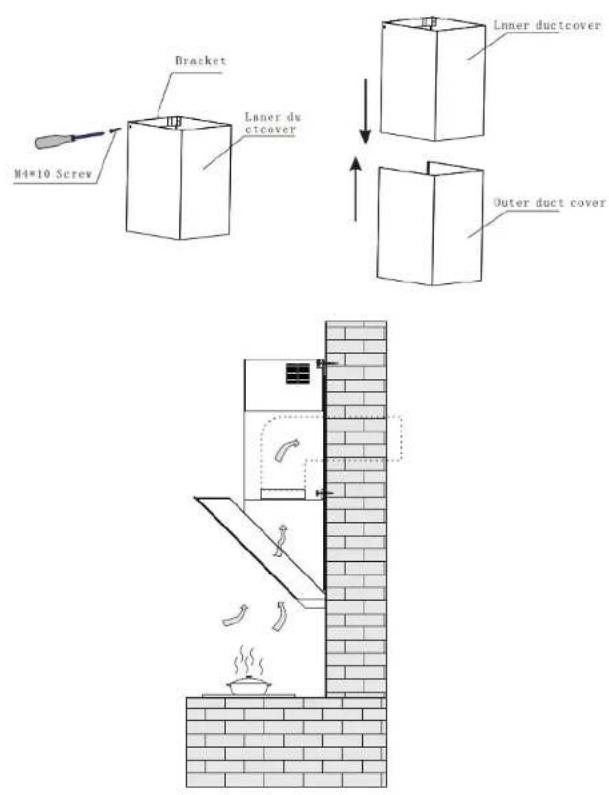

1. install the chimney


■ Installation

Safety precautions

• Do not install the cooker hood where there are many doors or windows order to avoid to effecting the exhaust efficiency of the hood caused by convection.
• Install the cooker hood right above the hob. The recommended distance between the hob and the lower edge of the cooker hood is minimum 400mm and maximum 500mm.
• In order to get the optimum performance, do not elongate the exhaust pipe too long, and try to make the bend of exhaust pipe less and biggest, the connection is airproof.
  ● After hanging the unit on the wall, ensure the hood is level and vertical
• The air outlet must not be connected to chimney flues or combustion ga ducts. The air outlet must under no circumstances be connected to ventilation ducts for room in which fuel-burning appliances are installed.

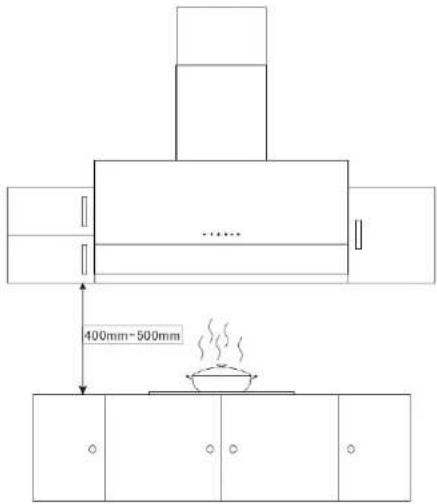

1. Installation Height of cooker hood

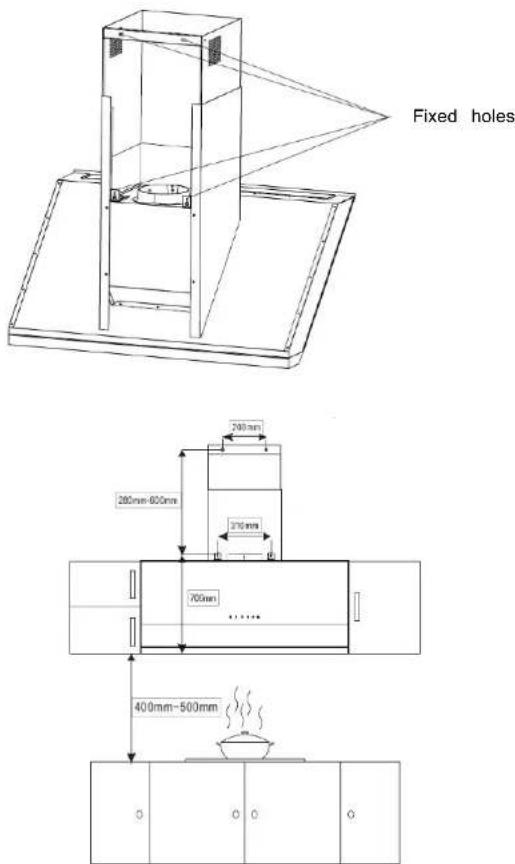

1. Position of fixed holes

According to the size of the holes.

Drill 2 holes in level in the wall with 8mm in diameter and 75-85 depth. Press the 2 expanding tube provided into the holes. Tighter the 2 metal screws of 5x50mm which is supplied together with the hood to the expanding tube, make sure it is secure.
