MI-14009 - Support pour écran plat Mount-It! - Free user manual and instructions

Product Type	Heavy-Duty Tilt TV Wall Mount
Brand	Mount-It!
Model	MI-14009
Category	Flat Screen TV Wall Mount
Weight Capacity	Up to 100 lbs (45 kg)
Tilt Range	±10 degrees
VESA Compatibility	Up to 600x400 mm (depends on bolt pattern)
Installation Type	Wood stud or concrete/brick wall
Material	Heavy-duty steel (estimated)
Mounting Hardware Included	Lag screws, washers, concrete anchors, VESA bolts, spacers, template, bubble level
Maintenance	Periodically check bolts and screws for tightness; clean with a damp cloth
Safety	Use only on solid concrete, masonry, or wood stud walls; do not exceed weight limit; professional installation recommended
Repairability	Free replacement of missing or defective parts within warranty period (contact support)
Warranty	Lifetime warranty (register online at www.mount-it.com)
Indoor/Outdoor	Indoor use only
Country of Origin	China (estimated)

Frequently Asked Questions - MI-14009 Mount-It!

What is the weight capacity of the Mount-It! MI-14009?

The weight capacity is up to 100 lbs (45 kg). Always ensure your TV and mount do not exceed this limit.

What VESA patterns does this mount support?

It supports VESA patterns up to 600x400 mm. Use the included bolts and spacers to match your TV's mounting holes.

Can I install this mount on drywall without a stud?

No, this mount must be installed on solid wood studs, concrete, or brick walls. Do not mount to drywall alone.

What tools are needed for installation?

You will need a stud finder, drill, 1/4" (6mm) and 1/2" (12mm) drill bits, a bubble level (included), and a screwdriver or socket wrench.

How do I remove the TV from the mount?

Pull down on the release cord located at the bottom of the mount, then lift the TV up and away from the wall.

Does the mount tilt? By how much?

Yes, it tilts ±10 degrees to reduce glare and improve viewing angle.

What if I am missing parts?

Call [phone] or email [e-mail]. They will ship replacement parts free of charge.

Is this mount suitable for outdoor use?

No, this mount is designed for indoor use only. Outdoor use may cause product failure.

Can I install this mount alone?

It is recommended to have a second person assist when hanging the TV on the mount for safety and ease.

How do I ensure the mount is level?

Use the included bubble level (#C) during installation. Adjust the mount before tightening all screws.

USER MANUAL MI-14009 Mount-It!

Technical line drawing of a structural frame with vertical supports and horizontal supports (no text or symbols)

Scan this QR code for product information, videos, and assembly assistance.

HEAVY-DUTY TILT TV WALL MOUNT

HAVE QUESTIONS?

Monday - Friday from 8:00am - 4:00pm PST

[e-mail]

[phone]

www.mount-it.com

Thank you for choosing Mount-It!

EN Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact Wount H for assistance.

CAUTION: Live with products heavier than the rated weights indicated may result in variability causing possible injury.

- Safety gear and proper tools must be used. This product should only be installed by professionals.

- This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.

* Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components. Use the mounting screen provided and DO NOT OVER TIGHTEN mounting oppose.

- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.

- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

IMPORTANT: Ensure that you have received all parts according to the component, checked as prior to installation. If any parts are missing or faulty, contact K2481-47 for a replacement

MAINTENANCE:

MANUTENÇÃO: Gestational

Mount and Accessories

Mounting Hardware

are

Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used. Use the correct mounting hardware suitable for your installation.

CHOKING HAZARD. Package includes small parts.

Not for children under 3 years. Adult supervision is required.

Missing Parts? Call us at [phone] and we will ship replacement parts free of charge.

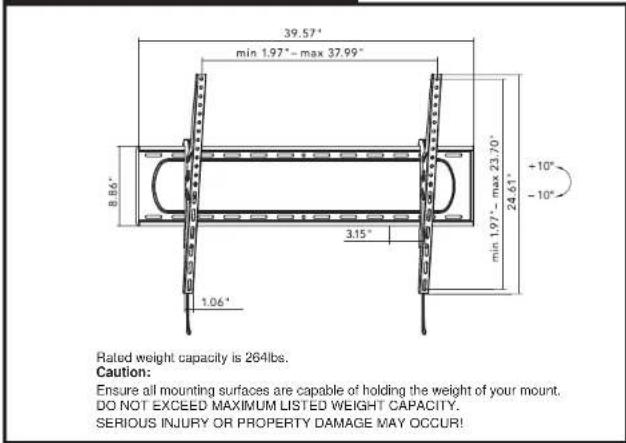

DIMENSIONS & WEIGHT CAPACITY

Step 1a

Wood Stud Installation Option

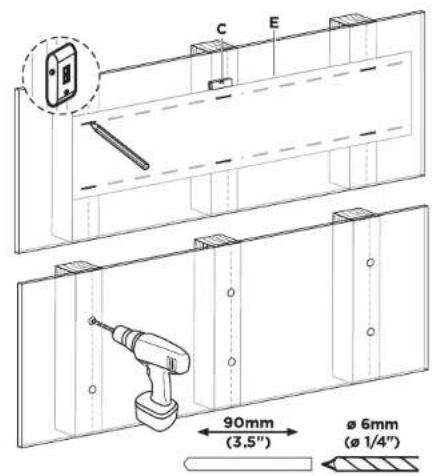

• Use a stud finder to locate the center of the studs and hold Template (#E) to the wall in the desired mounting location.
• Use a Bubble Level (#C) to ensure that the template is level.
  • Mark the center of the studs through the template as shown.
• Remove the template from the wall and drill holes in the marked locations using a 1/4" drill bit (6mm) to a depth of 3.5" (90mm)

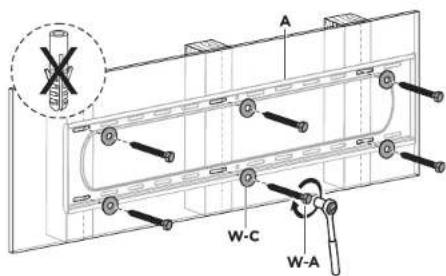

• Hold the Wall Mount (#A) to the wall over the holes, check the level once again, and install the 6 Lag Screws (#W-A) and Washers (#W-C) then tighten until secure.

Step 1b

Concrete/Brick Installation Option

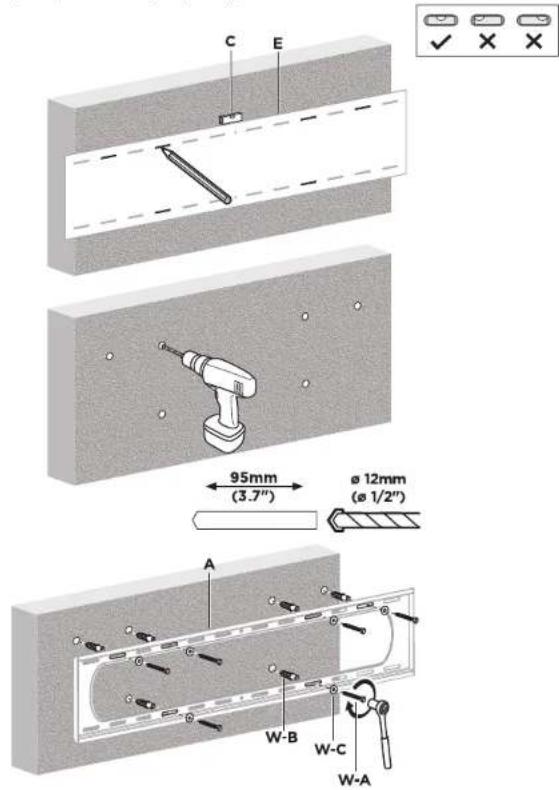

• Hold the Template (#E) to the wall in the desired mounting location.
• Use a Bubble Level (#D) to ensure that the template is level.
• Mark the center of the holes through the template in the locations shown.
• Remove the template from the wall and drill holes in the 6 marked locations using a 1/2" drill bit (12mm) to a depth of 3.7" (95mm).
  Note: Do not drill mounting holes into mortar (such as between bricks or stones) only drill and install into solid stone or concrete surfaces.
• Clear dust or debris from the holes and insert the Concrete Anchors (#W-B) fully until flush with the wall. Hold the Wall Mount (#A) to the wall over the holes, check the level once again, and install the 6
  Lag Screws (#W-A) and Washers (#W-C) then tighten until secure.

Step 2

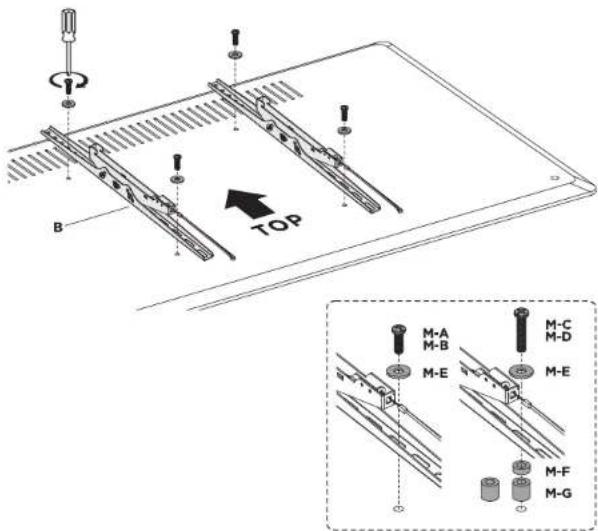

Attach the VESA Brackets to the TV

- Select the appropriate size mounting bolt (Select one size #M-A, M-B, M-C or M-D) and washer (#M-E) for your display's mounting holes and verify the length of the VESA bolt is not too long. If you are unsure of the correct bolt size for your display refer to your display's user manual or contact the display's manufacturer for sizing information. If necessary, use the included spacers (#M-F, M-G) between the mount and the screen as shown above to adjust the length of the mounting bolt. - Attach the VESA Brackets (#B) to the TV as shown using the selected bolts.

Step 3

Hang the TV on the Wall Mount

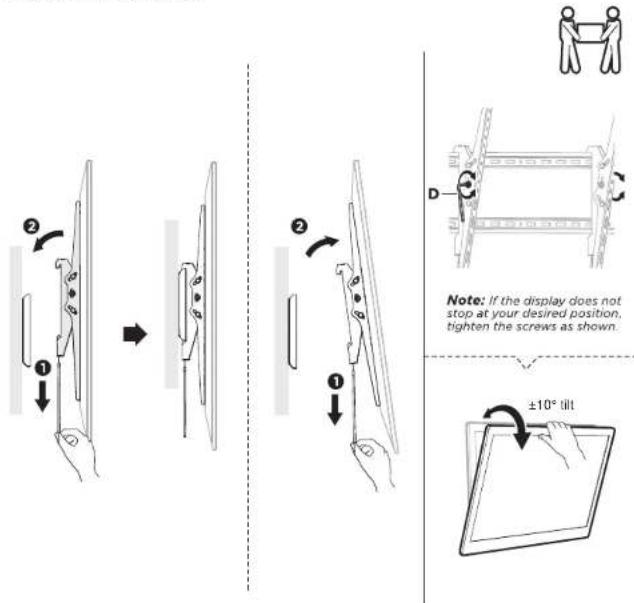

- It is recommended that you use the assistance of a second person for this step. Hang the TV on the wall mount as shown so that the top of the VESA brackets hook onto the top of the wall mount, then lower the bottom end of the TV down into place, while pulling down on the release cord until it is in place. - To remove the TV, pull the release cord down, then lift the TV up and away from the wall. - The screen can be tilted ± 10^ .

Visit us at www.mount-it.com for product registration and warranty information.

Our US based customer service team is standing by to answer any questions you have about your Mount-It! product.

Available by phone Monday - Friday from 8:00am to 4:00pm PST.

Chat live with an agent on our website!

[e-mail]

[phone]

www.mount-it.com
