Brand	Daewoo
Model	HEA1138
Product Type	Fan Heater
Voltage	220-240 V ~ 50 Hz
Rated Power	2000 W
Heat Settings	Low (1000 W), High (2000 W), Fan only
Dimensions (H x W x D)	265 x 225 x 125 mm
Weight	0.9 kg
Thermostat	Mechanical adjustable thermostat
Safety Features	Safety cut-out, overheat protection, do not cover warning
Fan Only Mode	Yes, for cool air output
Indoor Use Only	Yes, not for outdoor
Suitable For	Well insulated spaces or occasional use
Guarantee	12 months
Power Cord	With 13A BS1363 plug, fitted with fuse
Cleaning	Wipe with damp cloth, disconnect before cleaning
Storage	Allow to cool, do not wrap cord around heater
Nominal Heat Output	2.0 kW
Minimum Heat Output	1.0 kW
Auxiliary Electricity Consumption (fan motor)	0.012 kW
Auto Power Off	No (safety cut-out requires manual reset)

Frequently Asked Questions - HEA1138 DAEWOO

How to set the desired temperature?

Rotate the thermostat control clockwise to increase temperature and anticlockwise to decrease. For fine tuning, turn thermostat to max, let room warm up, then turn anticlockwise until heater clicks off, then slightly clockwise.

What do the indicator lights mean?

The indicator light illuminates on and off to indicate that the set temperature is being maintained.

How to clean the heater?

Always disconnect from mains and allow to cool. Clean outside with a clean damp cloth. Never use harsh cleaners or submerge in water.

What should I do if the heater stops working?

Unplug the heater, check that the air intake is not blocked. Leave for an hour to cool and reset before plugging back in.

Can I use the heater in a bathroom?

No, do not use the fan heater in the immediate surroundings of a bath, shower, or swimming pool.

Is it safe to leave the heater unattended?

No, do not leave the appliance unattended during use. Always unplug after use.

How to use the fan-only mode?

Rotate the On/Off/Fan/Heat switch to the fan only position (♣). The thermostat must be turned fully clockwise for the fan to operate.

What type of plug does it have?

It is fitted with a fused three-pin plug to BS 1363 with a 13A fuse. If replacing, use a 13A BS 1362 fuse.

How to reset the safety cut-out?

Unplug the heater, check for blockages, leave for an hour to cool, then plug back in. The cut-out resets automatically.

What is the power consumption?

Rated power is 2000 W. Low heat setting uses 1000 W. Fan motor consumes 0.012 kW.

USER MANUAL HEA1138 DAEWOO

Bring warmth and comfort to your home.

This product is only suitable for well insulated spaces or occasional use.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Fan Heater.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.

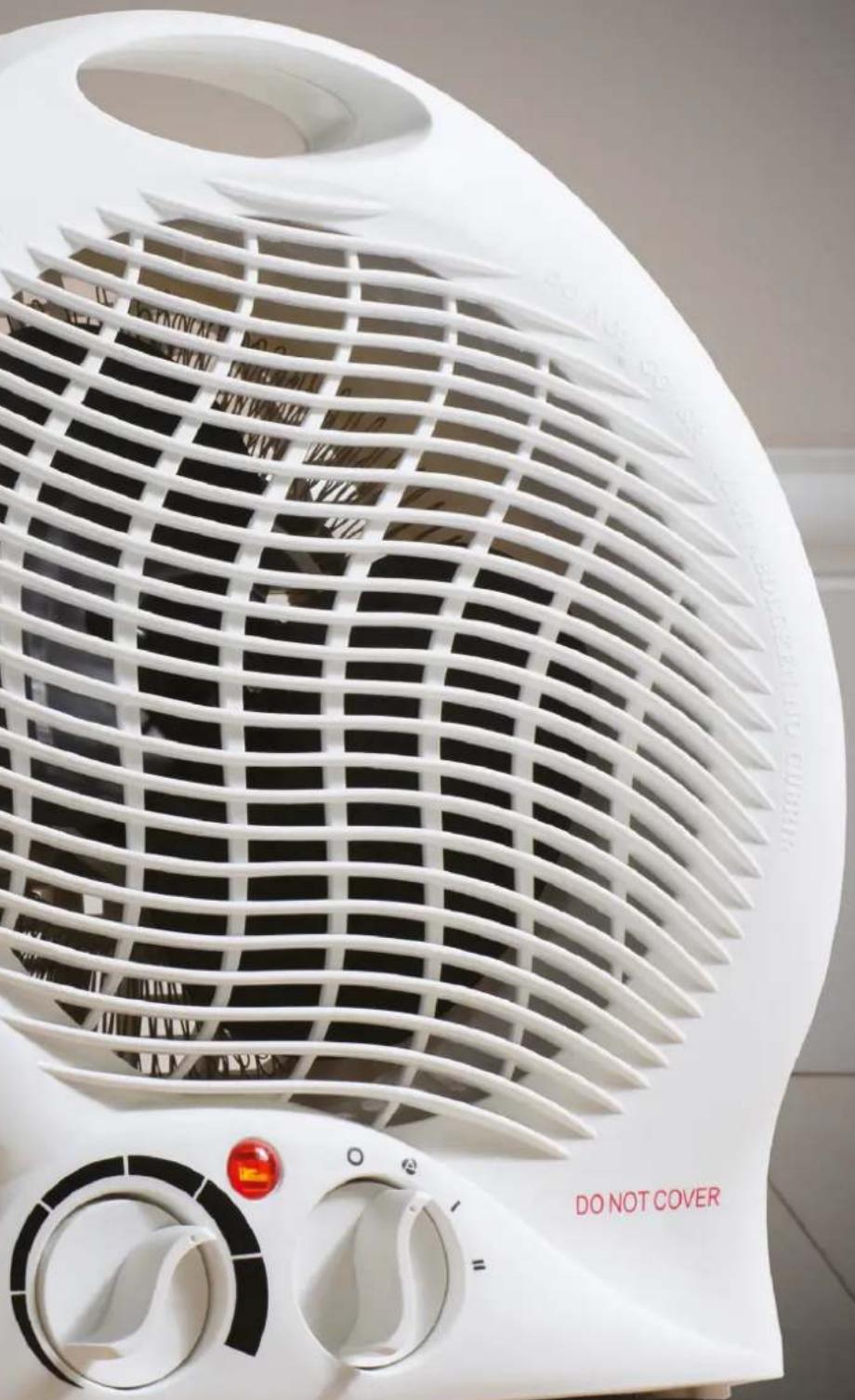

• WARNING: In order to avoid overheating, do not cover the heater.
• Ensure appliance is situated in an open area, do not allow it to come in contact with Cupboards, Curtains, wall coverings, clothing or other flammable materials.
• Do not install the appliance directly below an electrical socket.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use this heater with an extension cable.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance near children.
• Never leave this appliance within reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION — some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- Do not use the Fan Heater in the immediate surroundings of a bath, shower or a swimming pool.

- Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- Do not immerse the appliance or its cord in water or any other liquids.

- Do not leave the appliance unattended during use.

- Do not leave the appliance unattended whilst connected to the mains supply.

• Always use this appliance on a solid, level, non-flammable surface.

- Do not use this appliance outdoors.

- It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.

- Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place user at serious risk.

- Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.

- Regular, periodic checks should be carried out on the mains cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.

- If the power cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

- Do not run the mains cable under carpets, rugs, etc.

- Allow the unit to cool before storage.

- Before cleaning, disconnect the appliance from the mains supply and allow to cool.

- Never place the appliance near to flammable material or high pressure containers. (E.g. Paper, wood, petrol, solvents, spray canisters etc.)

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.

- Do not use this appliance for anything other than its intended use.

- Do not push objects into any openings as damage to the appliance and/or electric shock may occur.

• The appliance should not be installed in areas which have a fire-risk, such as garages, stables or wooden sheds; this is applicable also for rooms in which highly inflammable gasses or dust can develop. Danger of fire!!
• Unplug after each use. Grasp the plug, not the cord.

NB During the first few minutes of initial use, you may notice a slight odour and a little smoke. This is normal and will quickly disappear, It is the coating applied to the heating elements to prevent any corrosion during transit.

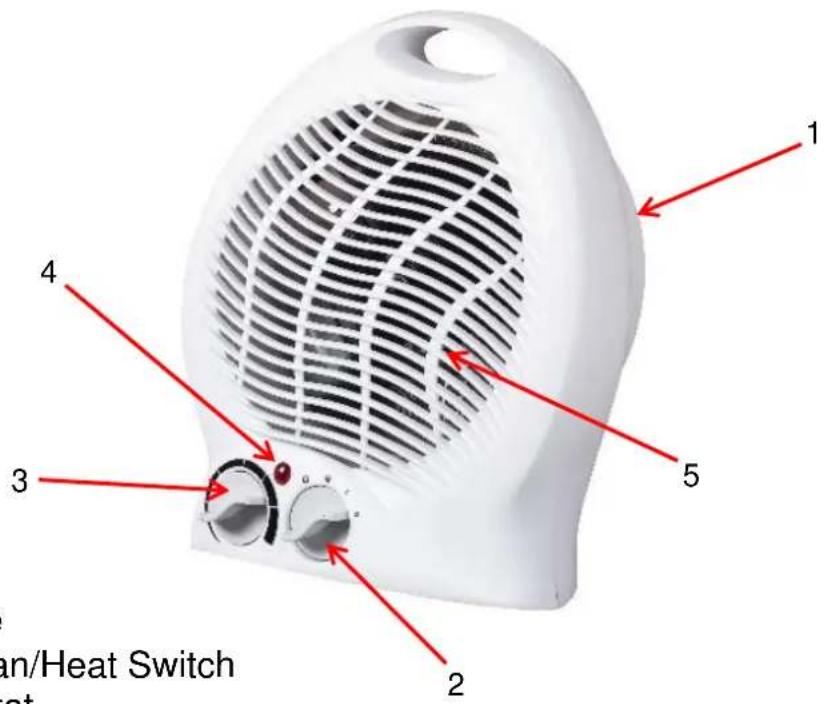

Description of Controls

1. Air Intake
2. On/Off/Fan/Heat Switch
3. Thermostat
4. Indicator
5. Air Outlet

Before the first time you use your Fan Heater

Please read these operating instructions thoroughly and keep them in a safe place for future reference.

Remove all packing materials and discard responsibly.

Operating Instructions – heat setting

• Place the heater on a solid, level non-flammable surface.

• Ensure that the On/Off/Fan/Heat Switch (2) is in the off (O) position

• Insert the mains plug into the mains socket.

• For the low heat setting, rotate the On/Off/Fan/Heat Switch (2) to the low heat position (I).
• For the high heat setting, rotate the On/Off/Fan/Heat Switch (2) to the high heat position (II).
• Rotate the thermostat control (3) clockwise to increase the room temperature and anticlockwise to decrease the room temperature as desired.
  NB the Indicator (4) will illuminate on and off to indicate that the set temperature is being maintained.
• Return the on/off/fan/heat switch (2) to the (O) position to switch off the heater.

Hint on setting the correct temperature

• Set the heater to the desired heat setting as above.
• Rotate the Thermostat to the maximum position and allow the room to warm up. Once the desired room temperature has been reached turn the Thermostat anticlockwise until the heater just clicks off then turn it back up clockwise very slightly. The Thermostat will now maintain the room temperature, if necessary, further increasing or decreasing the thermostat control may be required to ‘fine tune’ the ideal room temperature.
• Return the on/off/fan/heat switch (2) to the (O) position to switch off the heater.

Fan Only Mode

- Rotate the On/Off/Fan/Heat Switch (2) to the fan only position (♣) to enable the fan to operate for cool air output. NB the thermostat control will need to be rotated to the fully clockwise position for the fan to operate.

Care and Use of your Fan Heater

• Always disconnect the heater from the mains power supply and allow to cool before cleaning.
• Clean outside of the heater with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge any part of the heater in water or any other liquids.

Safety Cut – Out

Warning: This appliance is fitted with a built in safety cut-out, if the cut-out is activated the unit stops working, unplug the heater from the mains and check that the air intake area is not blocked or covered.

Leave for an hour to cool and reset before plugging back into the mains.

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

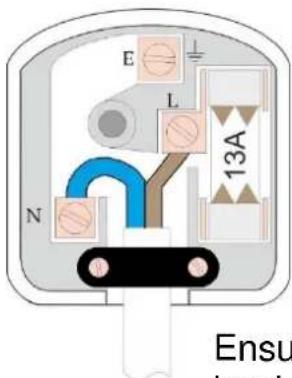

Fitting a new plug

The mains lead must be connected as shown below. The wires are coloured with the following code - Brown wire = Live (L), Blue wire = Neutral (N). NB no connection must be made to the Earth (E) terminal.

Connect Blue to Neutral (N)

Connect Brown to Live (L)

Ensure the outer sheath of the mains lead is securely held by the cable clamp

• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• The Green and Yellow wire must be connected to the terminal marked E or coloured Green.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 13 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
• After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

WARNING: Do not wrap the cord around the heater for storage.

Technical Data

Voltage : 220-240V \~ 50Hz

Rated power : 2000 W

Dimensions : 265mm (H) x 225mm (W) x 125mm (D)

Weight : 0.9kg

Model Number : HEA1138

ERP Data

Model	HEA1138
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	KW		manual heat charge control, with integrated thermostat	Not applicable
Minimum heat output (indicative)	P_min	1.0	KW		manual heat charge control with room and/or outdoor temperature feedback	Not applicable
Maximum continuous heat output	P_max,c	2.0	KW		electronic heat charge control with room and/or outdoor temperature feedback	Not applicable
Auxiliary electricity consumption					fan assisted heat output	Not applicable
At nominal heat output	el_max	0,012 (fan motor)	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0,012 (fan motor)	KW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0,0	KW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[yes]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]

GUARANTEE

This product is guaranteed for twelve months from the date of original purchase. If any defect should occur due to faulty materials or workmanship, please return it to the store it was purchased from.

You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisions:

• It is only valid within the boundaries of the country of purchase.
- The product must be correctly installed and operated in accordance with the instructions contained in the User Manual.
• The product must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential damages.
• The guarantee is in addition to, and does not diminish, your statutory or legal right

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
