Product Type	Portable PA System with Wireless Microphones and Bluetooth
Brand / Model	Karma BM 1213
Max Power Output	160 W
RMS Power Output	80 W
Power Supply	115-230V AC, 50/60Hz; External 12V DC; Built-in rechargeable battery 12V 7Ah (lead acid)
Frequency Response	55 Hz - 18 kHz (-6 dB)
Woofer / Tweeter	12" / 1"
Audio Inputs	2x Wireless VHF microphones, 1x XLR Mic (MIC1), 1x 6.3mm Mic/Guitar (MIC2), 1x RCA Line In, Bluetooth
Audio Output	1x RCA Line Out
Media Playback	USB (FAT32, ≤64GB), SD card (FAT32, ≤64GB), Bluetooth 5.0, FM radio
Controls	Master volume, mic volume (2 channels), echo, equalizer (5-band), talkover, mode selector, playback controls
Wireless Microphones	2 VHF handheld mics, frequencies: A: 208.80 MHz, B: 201.60 MHz, range up to 5m (receiver)
Remote Control	Included, battery CR2025, range ~5m
Dimensions (W x H x D)	375 x 600 x 295 mm
Weight	12 kg
Mounting	Standard speaker stand mount (35mm) on bottom, carrying handle on top
Battery Charging	Connect AC power cord to charge; maintain at least 50% charge for storage
Safety Features	Voltage selector (115/230V), fuse holder, overheat protection, grounding required
Warranty	2 years (1 year with invoice) for manufacturing defects; excludes wear parts
Compliance	CE, WEEE, Directive 2014/53/EU

Frequently Asked Questions - BM 1213 Karma

How do I pair my phone via Bluetooth?

Press the MODE button (15) repeatedly until Bluetooth is selected. On your phone, enable Bluetooth and search for devices. Select BM 1213 from the list. A confirmation tone will sound once paired.

How can I charge the built-in battery?

Connect the included power cable to the AC INPUT socket (13) and plug into a mains outlet matching your voltage (see voltage selector). The battery charge status LEDs (10) indicate charging progress. It is advisable to keep the battery above 50% during storage.

Why is there no sound from the speaker?

Check that the speaker is powered on (35) and the MASTER VOLUME (28) is turned up. Ensure the correct input source is selected via the MP3/LINE selector (23). Verify that cables are securely connected and that the source device is playing audio.

How do I use the FM radio?

Press and hold the MODE button (15) for a few seconds to enter FM radio mode. Press PLAY/PAUSE (20) to start automatic scanning and saving of stations. Use FORWARD (17) and BACK (16) to cycle through stored stations.

How do I replace the fuse?

Disconnect the speaker from power. Locate the fuse holder (12) near the AC input. Use a screwdriver to open the fuse compartment. Replace the blown fuse with one of the same type and rating (see specifications). If it blows again, contact an authorized service center.

Can I use the wireless microphones without batteries?

No, each wireless microphone requires 2 x AA 1.5V batteries. Insert them by unscrewing the handle (41). The LED indicator (39) lights red when batteries are low.

How do I connect an external guitar or microphone?

For a guitar, use the MIC2/GUITAR IN socket (3) with a 6.3mm jack. For a wired microphone, use the MIC1 XLR socket (4). Adjust the corresponding volume controls (24 for MIC1, 21 for MIC2).

What type of USB/SD cards are supported for MP3 playback?

The USB and SD sockets (14 and 1) support storage devices formatted in FAT32 with a maximum capacity of 64GB. Insert the device and select USB or SD mode via the MODE button (15).

How do I clean the speaker?

Use a dry or slightly damp cloth to wipe the exterior. Do not use solvents or detergents. Always disconnect the speaker from power before cleaning.

What does the TALKOVER function do?

When TALKOVER (25) is pressed, the microphone signals are given priority, automatically reducing the volume of other audio (e.g., music) when speaking. This is useful for announcements.

USER MANUAL BM 1213 Karma

• OTROS IDOMAS •
• OUTRAS LÍNGUAS •

Black speaker icon with two concentric circles (no text or symbols)

DIFFUSORE Speaker

Simple line drawing of a remote control with no text or symbols

TELECOMANDO Remote control

Pure electrical circuit symbol for a plug and bulb, no text or labels present

CAVO ALIMENT. Power cable

Two black silhouette icons of microphone devices (no text or symbols)

RADIOMICROFONO Wireless Mic.

Icon of an open book with a gear symbol, no text or symbols present

MANUALE Instructions

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

GRAZIE PER IL VOSTRO ACQUISTO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• This device works with dangerous 115-230V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.
• The product is conceived for professional use. Its installation must be carried out exclusively by specialized technicians, skilled in electric and audio systems. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.
  • Make sure that your power outlet voltage matches with the voltage selected on the product. A wrong voltage would seriously damage the fixture.
• To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to ground. Never cut internal or external ground wires. Never remove ground wiring from the protective ground terminal.
• Before making any connection with other devices, check that all the fixtures are disconnected from the power source and that all the volumes are set on minimum.
• To avoid the risk of shortcircuits don't expose the product to high temperatures (above 40°), rain or humidity.
  • Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands.
• Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
• If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
  • Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Disconnect the unit from power when it is not used.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • Wait for the product to cool before cleaning or maintenance.
• To clean the product, use only a dry or slightly damp cloth, avoiding solvents or detergents of any kind.
• Keep away from children's reach
  • To prevent possible hearing damage, do not listen at high volume levels for long periods.

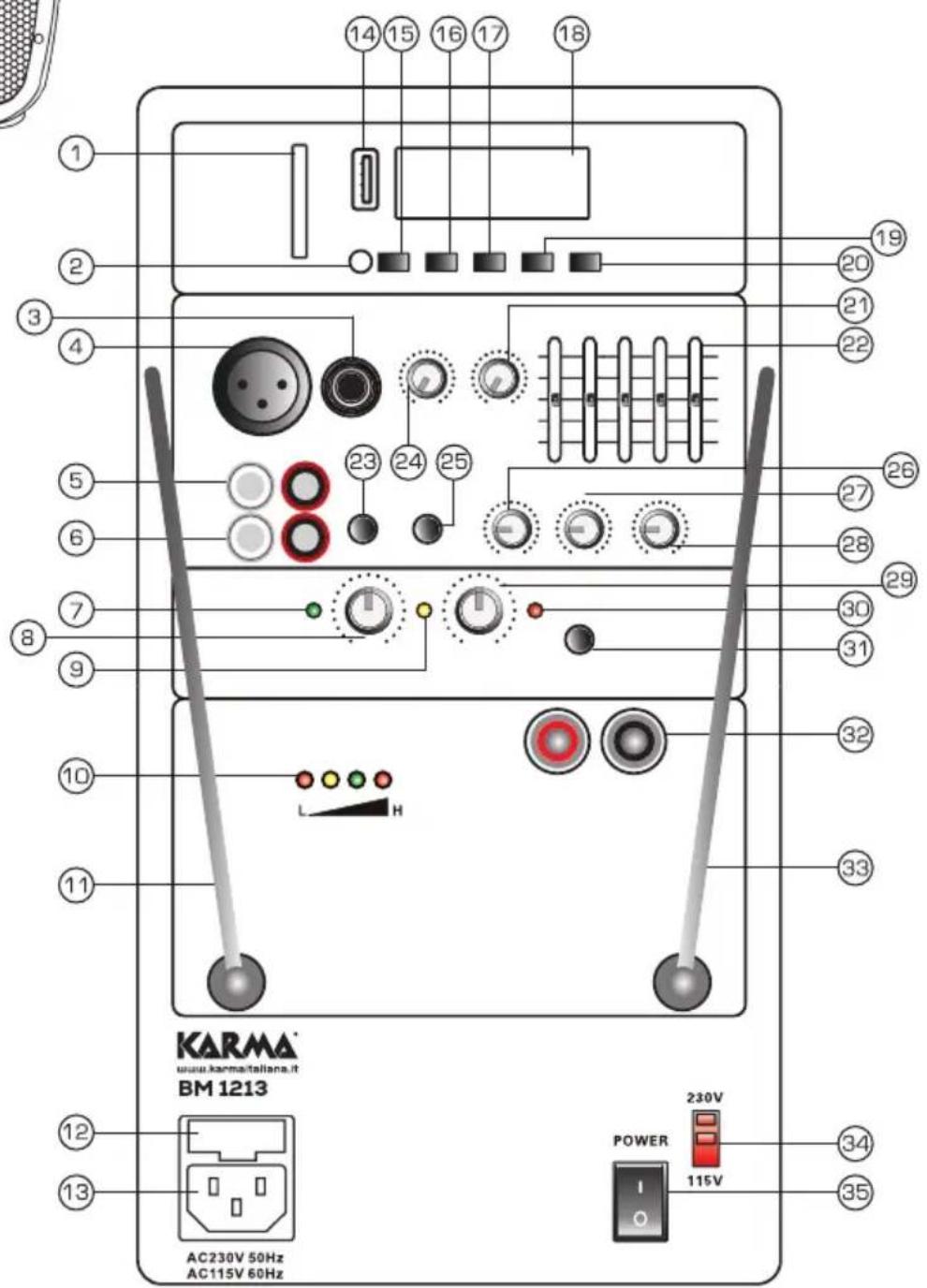

CONTROLS AND SOCKETS

1. SD SOCKET

Insert here a card containing MP3 music tracks. It must be formatted in FAT32 format and not greater than 64GB.

2. INFRARED RECEIVER

3. MIC2 - GUITAR IN

6,3mm socket for music instruments or for a further wired microphone.

4. MIC1 IN

XLR socket for an ordinary dinamic wired microphone.

5. LINE IN

Input RCA sockets for a line signal.

6. LINE OUT

Output RCA line sockets for the whole speaker's amplified signal.

7. RF CH A

This led is on when the frequency "A" wireless microphone is connected

8. CH A VOLUME

It adjusts the volume of wireless mic "A"

9. RF CH B

This led is on when the frequency "B" wireless microphone is connected

10. BATTERY CHARGE STATUS

11. WIRELESS MIC "A" ANTENNA

12. FUSE HOLDER

If the appliance does not turn on, you can check that the protection fuse is intact. If necessary, replace it with one of the same amperage. Should it blow again, turn off the appliance and contact the authorized technical service.

13. AC INPUT

Connect here the included power cable. The plug can be connected to a 110V or 220V power outlet (according to your local voltage).

14. USB SOCKET

Insert here a USB stick to play MP3 music tracks. The key must be in FAT32 format and not larger than 64GB.

15. MODE BUTTON

Press this button to choose the desired mode among Bluetooth, FM radio, Line and USB.

16. BACK / VOL -

To skip to the previous track or lower the volume.

17. FORWARD/ VOL +

To skip to the following track or increase the volume.

18. DISPLAY

You can see here the selected functions or info on the current tracks.

19. REC

Press it to record audio from wired or wireless microphones directly on a memory device.

20. PLAY/PAUSE

To stop or restart playing

21. MIC 2 LEVEL

It adjusts the volume of the second microphone connected to the socket (3).

22. EQUALIZER

A 5-band equalizer for perfect adjustment of audio tones.

23. MP3/LINE SELECTOR

To skip from the multimedia player to the signal connected to the input sockets (5).

24. MIC 1 LEVEL

It adjusts the volume of the first microphone connected to the XLR socket(4).

25. TALKOVER

If pressed it gives priority to the microphones reducing all the other volumes while speaking.

26. LINE/MP3 LEVEL

It adjusts the level of the signal connected to the socket (5) or of the multimedia module.

27. ECHO

It adjusts the level of echo on microphone signals.

28. MASTER VOLUME

It adjusts the master volume level.

29. CH B VOLUME

It adjusts the volume of the wireless microphone "B"

30. VHF LED

If on it indicates that the wireless microphones' module is turned on.

31. VHF ON/OFF

It turns on or off the the wireless microphones' receiver. If you are not using them we suggest to keep the module off..

32. DC 12V IN

12V external power supply terminals.

33. WIRELESS MICROPHONE "B" ANTENNA.

34. VOLTAGE SELECTOR

Before you connect the fixture to the mains check that the selected voltage is correct to avoid damaging it.

35. POWER

On off/ button

BATTERY RECHARGE

The speaker is equipped with a built-in rechargeable battery. Once you have turned on the speaker by means of the button (35) the leds (10) will show the current charge level. If necessary start recharging by connecting the power cable to the socket (13).

Warning: to save the battery, once you have finished using the speaker, we suggest that you put it away, always leaving the battery level at least at 50% and checking it from time to time. Never completely discharge the speaker. You will risk that the battery, once completely discharged, will no longer recharge.

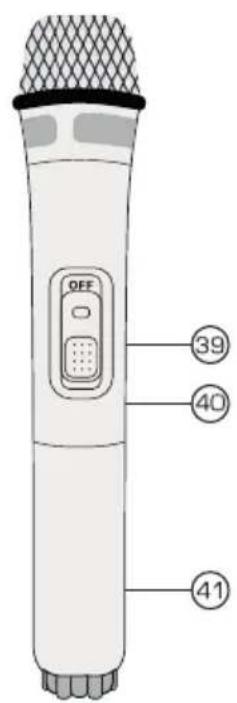

WIRELESS MICROPHONES

Your new speaker includes 2 wireless microphones operating on VHF band. They can transmit your voice also at long distance. Unscrew the microphone's handle (41) and check that the batteries are charged. If necessary replace them (2 x "AA" 1.5V batteries for each

microphone). Press the button (40) to activate the microphone. The led (39) will shortly light up. The red steady led indicates empty battery.

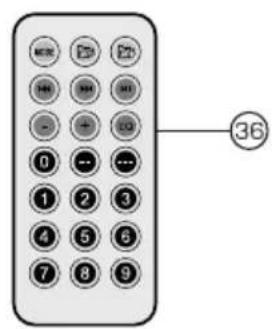

REMOTE CONTROL

Thanks to the included remote control (36) it is possible to set the main functions from a distance. It operates within a range of 5m from the speaker. It is powered by a button cell battery (CR 2025). If it doesn't work correctly check that the battery charge and if necessary replace it. To use the remote control address it towards the speaker's infrared sensor (2)

FM RADIO

Thanks to the FM receiver you can listen to you favourite radio stations. To enter the radio mode press and hold for some seconds the button (15). By pressing the PLAY button (19) you start scanning and saving the radio stations. Use the forward (17) button to skip to the next saved station. Use the back (16) button to skip to the previously saved station.

BLUETOOTH

This device includes a sophisticated latest generation Bluetooth receiver that can connect to your computer, tablet or smartphone to amplify audio and play songs wirelessly.

When using it for the first time, it is necessary to pair the transmitting device with the speaker. In the future it will no longer be necessary to carry out this procedure.

Select the bluetooth mode by pressing the MODE key (15) if necessary.

Open the bluetooth menu on your transmitting device and search for the new fixture to pair (BM 1213. If correctly paired you will hear a sound on the speaker.

The volume of the bluetooth audio can be adjusted both from the rotating knob (26) and directly from the volume of the transmitting device.

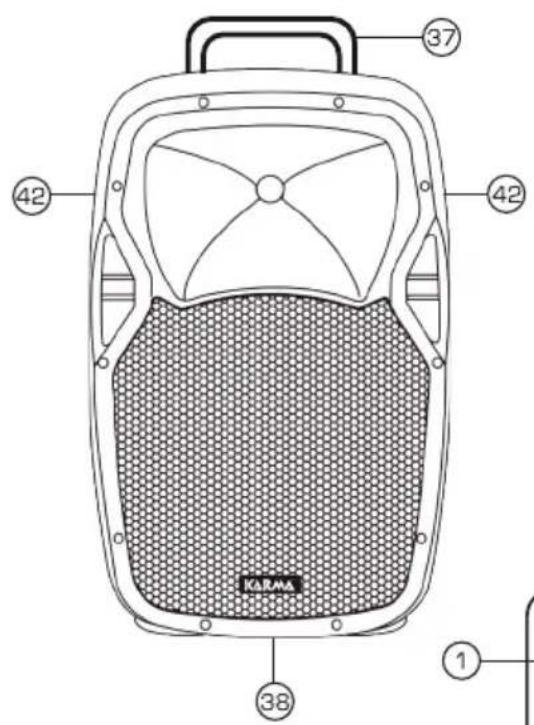

OTHER FEATURES

On the upper side the speaker is endowed with a handle (37) for easy carriage, while on its bottom it features a standard mount hole (38) for installation on stands.

On the two sides (42) it features two practical microphone holders where to place the handheld mics when they are not used.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
  • Damages caused by negligence or wrong use of the device are not covered by warranty.
  • The warranty is no longer effective if the item is modified or disassembled by not authorized people.
  • This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

CARATTERISTICHE TECNICHE / TECHNICAL SPECIFICATIONS
Potenza max / Max Power	160 W
Potenza RMS RMS Power	80 W
Alimentazione Power Supply	115 - 230V ~ AC - 50/60 Hz | Esterna/ External: 12V DC Batteria ricaricabile interna / Built-in rechargeable battery 12V 7Ah (piombo acido - Lead acid)
Risposta in freq. Frequency response	55Hz - 18 Khz (-6 dB)
Woofer / Tweeter	12" / 1"
Controllo toni Tone Control	Alti-Bassi Bass and treble
Ingressi chitarra Guitar In	1 x 6,3mm jack
Ingressi Line Line In	1 (RCA)
Ingressi Mic Mic In	1 (RCA + XLR combo)
Uscita Line Line Out	1 (RCA)
Bluetooth	Ver. 5.0 Freq. 2.4 Ghz
Lettore Mp3 Mp3 Player	Si tramite presa USB Yes, via USB/ SD port
Frequenze microfoni VHF VHF wireless mics freq.	A: 208,80 Mhz B: 201,60 Mhz
Dimensioni / Dimensions	375 x 600 x 295 mm
Peso / Weight	12 kg

ATTENZIONE

RISCHIO DI SCOSSA ELETTRICA, NON APRIRE

AVVERTENZA: PER RIDURRE IL RISCHIO DI SCOSSA ELETTRICA, NON TOGLIETE IL COPERCHIO, NON CONTIENE PARTI UTILI PER L'UTENTE. PER L'ASSISTENZA FATE RIFERIMENTO A PERSONALE QUALIFICATO

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

This device is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health.

The built-in battery, to be disposed of at the end of the useful life of the product, cannot be removed by the user. We strongly advise you to take your product to an official collection point to have a professional remove of the rechargeable battery.

CE

Hereby, KARMA ITALIANA SRL declares that the radio equipment type speaker with wireless microphone/bluetooth BM 1213 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

WARNING: In the countries indicated in the below chart the operating frequencies of this product might be not authorized, be subject to local restrictions or limitations of use, require a general authorization or an individual license for use. Please contact your telecommunications authority for detailed information about authorized frequencies and ERP power levels in your country or your region for wireless microphones.

AT	BE	BG	CH	CY	CZ	DE
DK	EE	EL	ES	FI	FR	HR
HU	IE	IS	IT	LI	LT	LU
LV	MT	NL	NO	PL	PT	RO
SE	SI	SK	TR	UK(NI)

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

KARMA®

Prodotto da/ produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

Ver. 24.1

Made in China
