LM-K2530X - Karaoke system LG - Free user manual and instructions

Product Type	Karaoke System
Brand	LG
Model	LM-K2530X
Dimensions (W x H x D)	273 x 327 x 356 mm
Weight	9.8 kg
Power Consumption	120 W
Disc Types Supported	DVD, Video CD, Audio CD, CD-R/RW (MP3)
Amplifier Output Power	50 W + 50 W (stereo)
Speaker Type	3-Way 3-Speaker System (LMS-K2530V)
Speaker Impedance	6 Ω
Speaker Frequency Response	60 - 20000 Hz
Tuner Bands	FM (87.5-108 MHz) and AM (522-1611 kHz)
Tape Deck	Dual Cassette Deck with Auto Reverse (Tape 2)
Karaoke Features	Mic volume, Echo effect, Key control (13 steps), Tempo control, Male/Female key, Song reservation (8 songs), Shadow mode
Mic Inputs	2 (MIC1, MIC2) with individual volume control
Video Output	Composite video (RCA) and S-Video
Audio Output	Optical digital (PCM/Dolby Digital), Analog stereo (RCA), Subwoofer pre-out
Remote Control	Included with full function control
Clock/Timer	Clock display, Sleep timer, Timer recording/playback
Equalizer Modes	FLAT, ROCK, POP, CLASSIC
Playback Modes	Programmed playback, Repeat (A-B, track, all), Random
Safety Certification	Laser Class 1, CE
Accessories Included	Remote control, FM/AM antennas, Audio/video cables, User manual

Frequently Asked Questions - LM-K2530X LG

How do I connect the karaoke system to a TV?

Connect the VIDEO OUT jack on the unit to the VIDEO IN jack on the TV using the supplied video cable. Alternatively, use an S-Video cable (not supplied) for better picture quality. Make sure the TV is set to the correct video input mode.

How can I adjust the microphone volume and echo?

Turn the MIC VOLUME CONTROL on the front panel clockwise to increase microphone volume. Press the ECHO button repeatedly to cycle through echo levels (OFF, 1, 2, 3).

The system does not power on. What should I check?

Ensure the power cord is securely plugged into a wall outlet. If using a power strip, check it is turned on. If the issue persists, try a different outlet.

How do I set the clock and timer functions?

Press and hold CLOCK for 2 seconds. Use the MULTI JOG DIAL to set the hour cycle (12/24h), then press SET. Set hours and minutes similarly. For timer, press TIMER and follow on-screen steps.

Can I play MP3 files from a CD-R?

Yes, the unit can play CD-R/RW discs containing MP3 files. Ensure the disc is finalized and uses ISO 9660 format. File names must end with <.mp3> and be 8 characters or less. Maximum 200 files per disc.

How do I use the key control feature during karaoke?

Press the KEY CONTROL (b/#) button on the remote or turn the KEY CONTROL dial on the front panel. Each press raises or lowers the key by one step (up to 6 steps higher or lower). Press repeatedly to return to the original key.

The remote control is not working. What can I do?

Check that the batteries are installed correctly (AAA) and not exhausted. Point the remote at the remote sensor on the front panel from within 7 meters. Remove any obstacles between the remote and the unit.

How do I record from CD to tape?

Insert a blank tape in TAPE 2. Press CD SYNC. in stop mode. The unit will automatically start recording after about 7 seconds. To record from a specific track, select the track with the MULTI JOG DIAL before pressing CD SYNC.

What discs are compatible with this player?

Compatible discs include DVD (Region 5 or ALL), Video CD (VCD), Audio CD, and CD-R/RW with audio or MP3 files. Do not use irregularly shaped discs or discs with labels.

How do I clean the disc and the unit?

Clean discs by wiping from the center outward with a soft, dry cloth. Do not use solvents. For the unit cabinet, use a soft, dry cloth. If very dirty, use a mild detergent solution on a lightly moistened cloth.

USER MANUAL LM-K2530X LG

Please read this manual carefully before operating your set. Retain it for future reference.

Designs and specifications are subject to change without notice for improvement.

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Notes on copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without permission.

This product is equipped with copy protection measures developed by Macrovision. Copy protection signals are recorded on some discs. When recording these discs on a VCR, picture noise will appear during playback.

This product incorporates copyright protection technology that is protected by certain U.S. patent claims and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Table of Contents

Introduction

Safety Precautions....2

Table of Contents....3

Before Use 4-5

playable Discs....4

Precautions 5

Notes on Discs 5

About Symbols 5

Front Panel....6

Remote Control 7

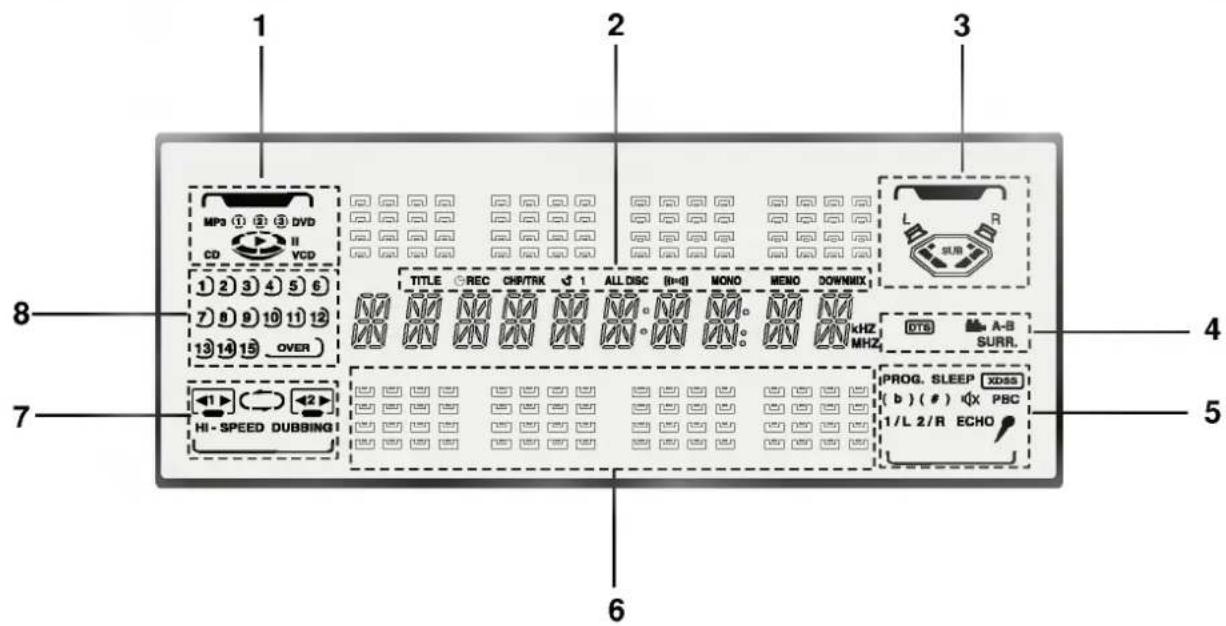

Display Window 8

Rear Panel 9

Preparation

Connections 9-12

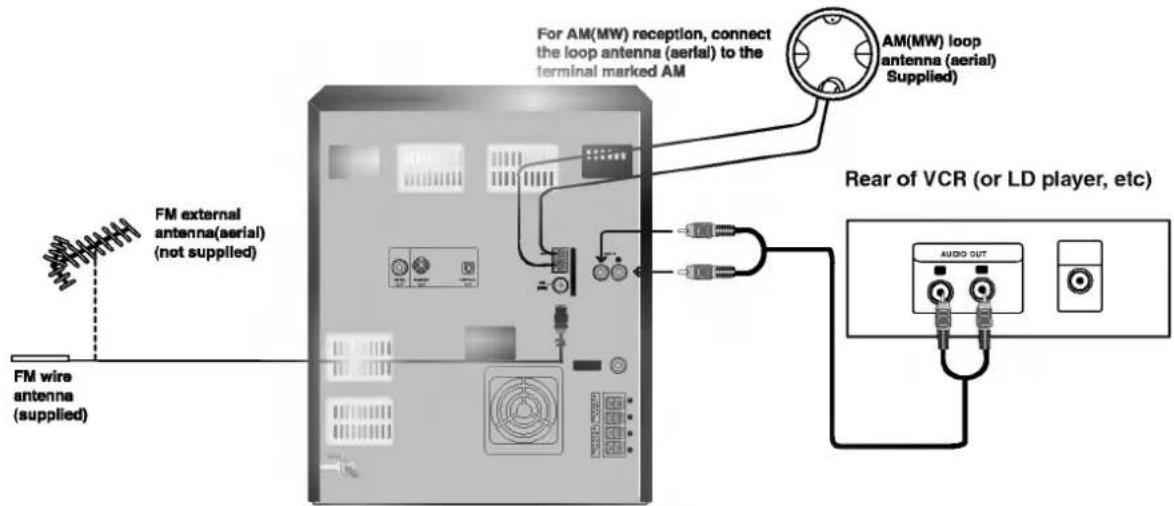

Connecting to External Equipment or Antenna .....9

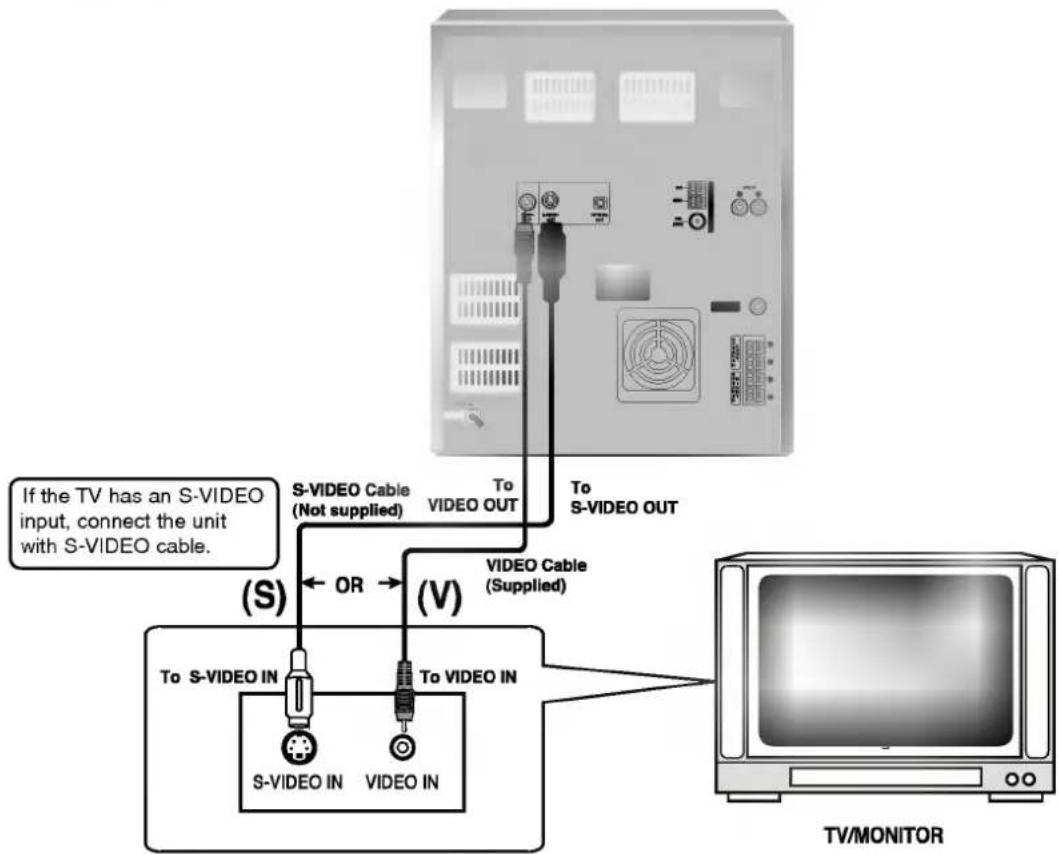

Connecting to a TV 10

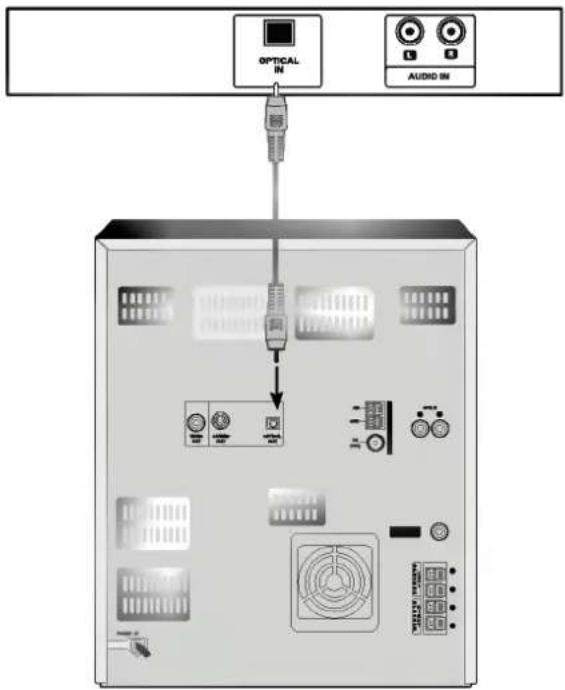

Connecting to Optional Equipment 11

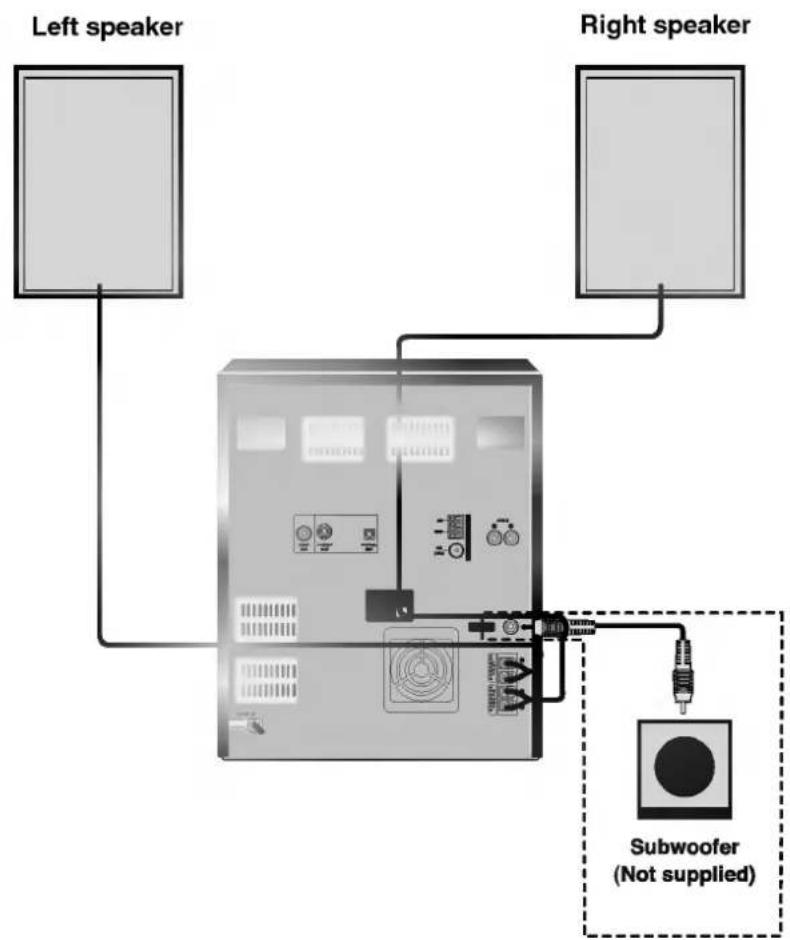

Speaker System Connection 12

Before Operation....13-20

Audio Adjustment....13

- Speaker Positioning.... 13

• Volume Adjustment ..... 13

• Sound Quality Adjustment....13

- MUTE/ SURROUND 13

• XDSS (Extreme Dynamic Sound System) ..... 13

- DEMO Mode/ SPECTRUM Effect ..... 13

• Sound Mode/ Setting the Clock ..... 14

- Timer Function/ Sleep Timer Function ..... 15

General Explanation 16

On-Screen Display....16

Initial Settings 17-20

- Initial Settings General Operation ..... 17

- Language 17

• Picture 17

- Sound 18

- Others....18

- Parental Control 19

- Selecting Speaker....20

Operation

Operation with RADIO 21

Presetting the radio stations....21

Listening to the radio 21

Operation with TAPE 22

Basic Playback 22

To Stop Play 22

Tape Counter Reset 22

To Play Rewind or Fast Forward....22

Dubbing....22

Recording 22

Basic Setting 22

Recording from Radio, CD or Auxiliary source ..... 22

CD to Tape Synchronized Recording ..... 22

Operation - CD/VCD/DVD 23-24

Basic Playback 23

To Change Discs during Play 24

To Stop Play/To Resume Play 24

To Skip chapters and tracks forward or back. 24

Still Picture/Frame advance 24

To Scan at fast forward or fast reverse playback ..... 24

To Play in slow-motion 24

Operation with DVD and Video CD 25-26

General Features 25-26

- Moving to another TITLE....25

- Moving to another CHAPTER/TRACK ..... 25

- Still Picture and Frame-by-Frame Playback ..... 25

- Repeat/ Repeat A-B 25

• Time Search 25

• 3D Surround Effect ..... 26

Special DVD Features 26

• Title Menu/ Disc Menu....26

- Camera Angle....26

- Changing the Audio Language. 26

- Subtitle 26

Operation with Audio CD and MP3 disc ..... 27

Playing an Audio CD and MP3 disc 27

Programmed Playback....28

Programmed Playback with Audio CD 28

Programmed Playback with MP3 disc....28

Operation with KARAOKE 29-33

Karaoke Basic Playback....29

Karaoke Advanced Playback....29-30

- Return Function/ To Adjust MIC Volume.....29

• To Adjust ECHO Volume/ Key Control ..... 29

• Reserving the Songs....30

- Male/Female Function....30

- Tempo Change 30

- Screen Change Function....30

- Shadow Function 30

Karaoke MENU Playback 31-33

- Select of Melody/ Score Indication....31

• Fanfare/ Challenging Karaoke 31

• Sing Room Karaoke 32

• Medley Karaoke 33

• Masterpiece Impression Karaoke....33

Additional Information....34

Last Condition Memory 34

Notes on MP3 Discs 34

Reference

Troubleshooting....35

Language Code List....36

Specifications 37

About the symbols for instructions

⚠️ Indicates hazards likely to cause harm to the unit itself or other material damage.

Indicates special operating features of this unit.

Indicates tips and hints for making the task easier.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro

Logic ^® , and the double-D symbol are

trademarks of Dolby Laboratories. Confidential Unpublished works.

Copyright 1992-1997 Dolby Laboratories. All rights reserved.

Apparatus Claims of U.S Patent Nos. 4,631,603,4,577,216,

4,819,098, and 4,907,093 Licensed for limited viewing uses only.

Before Use

playable Discs

	DVD(8 cm / 12 cm disc)
	Video CD (VCD)(8 cm / 12 cm disc)
	Audio CD(8 cm / 12 cm disc)

In addition, this unit can play a, CD-R or CD-RW that contains audio titles or MP3 files.

Notes

• Depending on the conditions of the recording equipment or the CD-R/RW disc itself, some CD-R/RW discs cannot be played on the unit.
• The unit cannot play the CD-R/RW discs that contain no data, or contain different kinds of formatted data other than MP3 and CD-DA data.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregular shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Notes on DVDs and Video CDs

Some playback operations of DVDs and Video CDs may be intentionally fixed by software manufacturers. As this unit plays DVDs and Video CDs according to disc content designed by the software manufacturer, some playback features of the unit may not be available, or other functions may be added.

Refer also to the instructions supplied with the DVDs and Video CDs. Some DVDs made for business purposes may not be played on the unit.

Regional code of the DVD karaoke and DVDs

This DVD karaoke is designed and manufactured for playback of region "5" encoded DVD software.

The region code on the labels of some DVD discs indicates which type of player can play those discs. This unit can play only DVD discs labeled "5" or "ALL". If you try to play any other discs, the message "Check Regional Code" will appear on the TV screen. Some DVD discs may not have a region code label even though their playback is prohibited by area limits.

Note on DTS-encoded CDs

When playing DTS-encoded CDs, excessive audio level may be heard from the analog stereo output. To avoid possible damage to the audio system, turn down the volume before playing back such discs, adjust the volume gradually, and keep the volume level low. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the digital output of the unit.

Disc-related terms

Title (DVD only)

The main film content or accompanying feature content or additional feature content, or music album.

Each title is assigned a title reference number enabling you to locate it easily.

Chapter (DVD only)

Sections of a picture or a musical piece that are smaller than titles.

A title is composed of one or several chapters. Each chapter is assigned a chapter number, enable you to locate the chapter you want. Depending on the disc, no chapters may be recorded.

Track (Video CD and audio CD only)

Sections of a picture or a musical piece on a video CD or an audio CD. Each track is assigned a track number, enabling you to locate the track you want.

Scene

On a video CD with PBC (Playback control) functions, moving pictures and still pictures are divided into sections called "Scenes". Each scene is displayed in the menu screen and assigned a scene number, enabling you to locate the scene you want.

A scene is composed of one or several tracks.

Types of video CDs

There are two types of video CDs:

Video CDs equipped with PBC (Version 2.0)

PBC (Playback control) functions allow you to interact with the system via menus, search functions, or other typical computer-like operations. Moreover, still pictures of high resolution can be played if they are included in the disc.

Video CDs not equipped with PBC (Version 1.1)

Operated in the same way as audio CDs, these discs allow playback of video pictures as well as sound, but they are not equipped with PBC.

Before Use (Cont'd)

Precautions

Handling the unit

When shipping the unit

The original shipping carton and packing materials come in handy. For maximum protection, re-pack the unit as it was originally packed at the factory.

When setting the unit

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.

To keep the surface clean

Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber of plastic products in contact with the unit for a long period of time. They will leave marks on the surface.

Installing

• Do not install the unit in a confined space, such as a bookcase or built-in cabinet.
• Allow adequate air circulation to prevent internal heat buildup.
• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.
• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• Do not place heavy objects on the unit.

Cleaning the unit

To clean the cabinet

Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents, such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

To obtain a clear picture

The DVD karaoke is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality will be poor.

Regular inspection and maintenance are recommended after every 1,000 hours of use. (This depends on the operating environment.)

For details, please contact your nearest dealer.

Notes on Discs

Handling discs

Do not touch the playback side of the disc.

Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case.

Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sunlight, as there may be a considerable temperature increase inside the car.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Two hand-drawn diagrams showing a circle and a cross, no text or symbols present

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

About Symbols

About the Ⓧ symbol display

" ⊗ " may appear on the TV screen during operation. This icon means the function explained in this owner's manual is not available on that specific DVD video disc.

About the disc symbols for instructions

A section whose title has one of the following symbol is applicable only to the disc represented by the symbol.

• DVD
  [Non-Text]
  Video CDs with the PBC (playback control) function
• Video CDs without the PBC (playback control) function
• Audio CDs
  [Non-Text]
  MP3 disc

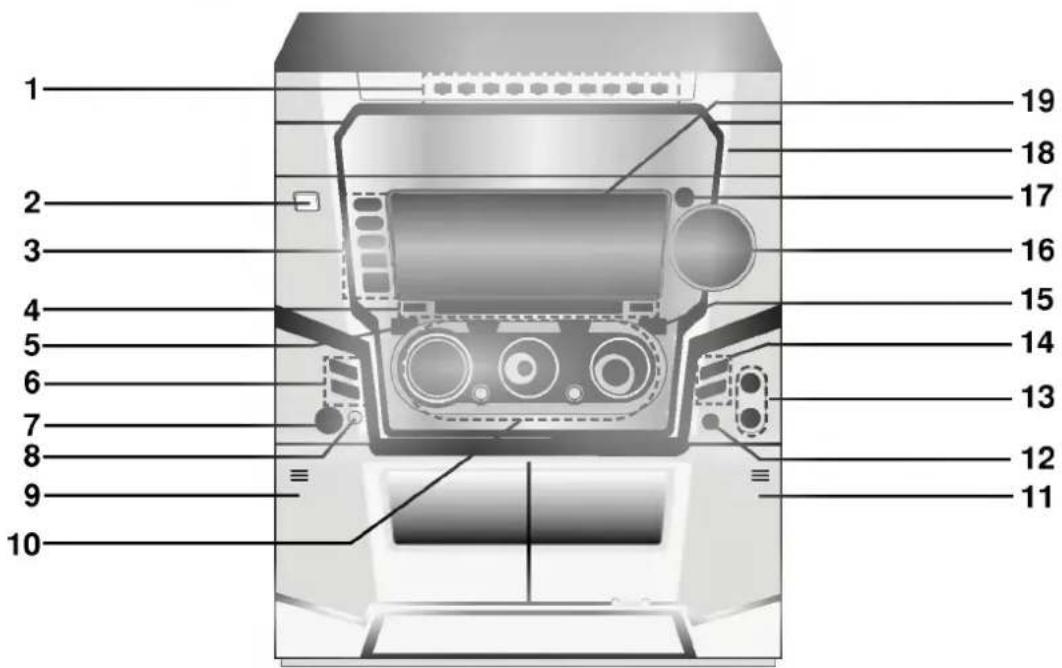

Front Panel

1. NUMERIC buttons (0\~9)

2. STANDBY/ON button

3. • DISC DIRECT PLAY buttons (DISC1, DISC2, DISC3)

• DISC SKIP button (DISC SKIP)

- CD DOOR OPEN/CLOSE (▲OPEN/CLOSE) button

1. • MODE/RIF button

- FUNCTION SELECT buttons (TUNER, TAPE, KARAOKE/DVD, AUX)

• PROGRAM/MEMORY (PROG./MEMO.) button

1. CD PAUSE (CDII)/ SET/ COUNTER RESET (COUNT.RESET) button

2. • NORMAL DUBBING (NOR-DUBB.)/ CD SYNCHRO RECORDING (CD SYNC.) button

• HIGH DUBBING (HI-DUBB.)/ REPEAT button

1. HEADPHONE JACK ( 6.3mm)

2. PLAY MODE/ DEMO button

3. ▲ PUSH EJECT position (TAPE 1)

4. • XDSS button

• SURROUND (SURR.) button

- MULTI JOG DIAL/ KEY CONTROL (b/#)/ SKIP (-/+)

- RECORD/ RECORD PAUSE (●REC/II) button

- PRESET DOWN/UP buttons

PLAY (▶)/ REVERSE PLAY (◀: optional) button CD PLAY (▶) button

- STOP(■STOP)/CLEAR button

• TUNING DOWN/UP buttons

TEMPO -/+ buttons

◀◀/▶▶ = REWIND/ FAST FORWARD buttons SEARCH buttons

1. ▲ PUSH EJECT position (TAPE 2)

2. MIC VOLUME CONTROL

3. MIC JACKS (MIC1, MIC2)

4. • CLOCK button

- TIMER button

1. EQUALIZER (EQ) button

2. VOLUME knob

3. Remote Sensor

4. CD door

5. Display Window

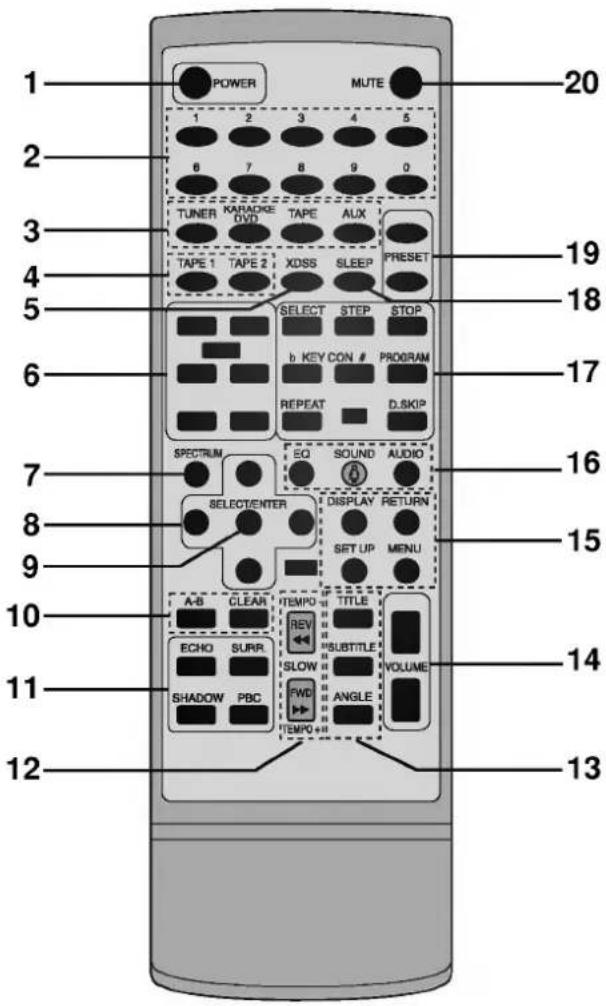

Remote Control

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

• Distance: About 23 ft (7 m) from the front of the remote sensor

• Angle: About 30^ in each direction of the front of the remote sensor

• POWER button

• NUMERIC buttons (0-9)
• FUNCTION SELECT buttons (TUNER, TAPE, KARAOKE/DVD, AUX)
• TAPE 1/2 SELECT buttons
• XDSS button

• TAPE FUNCTION buttons

• REWIND/ FAST FORWARD PLAY (◀◀/▶▶)

• PLAY (▶)
• REVERSE PLAY (◀: optional)
• STOP (■)

• RECORD/ RECORD PAUSE (●/II)

• SPECTRUM button

• ARROW buttons

(For use in highlighting a selection on a GUI menu screen, TITLE and MENU screen.)

1. SELECT/ENTER button

2. REPEAT A-B/ CLEAR buttons

3. ECHO/ SURROUND (SURR.)/ SHADOW/ PBC buttons
4. SLOW(◀◀/▶▶)/SCAN(REV./FWD)/TEMPO(-/+) buttons
5. • TITLE button

(Use the TITLE button to display the title screen included on DVD video discs.)

- SUBTITLE/ ANGLE buttons

1. VOLUME -/+ buttons

2. • DISPLAY/ RETURN/ SET UP buttons

- MENU button

(Use the MENU button to display the menu screen included on DVD video discs.)

1. EQUALIZER (EQ)/ SOUND, FEMALE (☐)/ AUDIO, MALE (☐) buttons

2. DVD/CD CONTROL buttons

3. PLAY/SELECT (▶), PAUSE(■)/ STEP, STOP (■)

4. SKIP/PREV. (◀◀), SKIP/NEXT (▶▶)
5. KEY CONTROL (b/#), PROGRAM
6. REPEAT, DISC SKIP (D.SKIP)

SKIP ◀◀/▶◀ : Press and hold button for about two seconds for search function.

1. SLEEP button
2. PRESET (▲/▼) buttons
3. MUTE button

Remote control battery installation

Exploded view diagram of a device showing internal components (no text or labels)

Detach the battery cover on the rear of the remote control, and insert two R03 (size AAA) batteries with + and - aligned correctly.

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Gradient gray vertical bar with no text or symbols

Display Window

1. • DISC indicator

• DISC NUMBER indicator
- PLAY/ PAUSE indicator

1. • TITLE indicator

2. TIMER indicator
   • CHAPTER/TRACK indicator

3. REPEAT indicator
   • FM STEREO RECEIVING indicator

4. MONO indicator
   • MEMORY (MEMO) indicator
   • DOWNMIX indicator

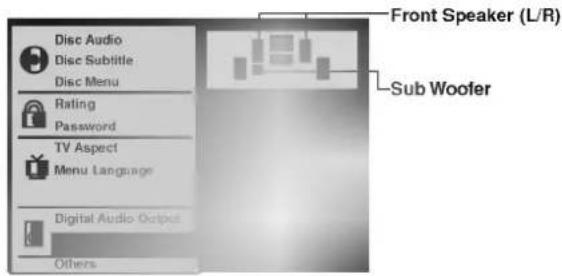

5. • LEFT FRONT SPEAKER indicator (L)

• RIGHT FRONT SPEAKER indicator (R)
• SUB WOOFER indicator (SUB)

1. • SURROUND indicator (SURR.)

• REPEAT A-B/ ANGLE indicator

1. • PROGRAM/ SLEEP/ XDSS indicator

2. KEY CONTROL (b/#)/ MUTE/ PBC indicator
   • ECHO/ MIC indicator

3. LEVEL indicator

4. • TAPE 1/2 SELECT indicator

5. PLAY MODE indicator
   • DUBBING indicator
   • CD SYNCHRO RECORDING indicator

6. • CD MUSIC CALENDAR indicator

• CD MUSIC CALENDAR OVER indicator

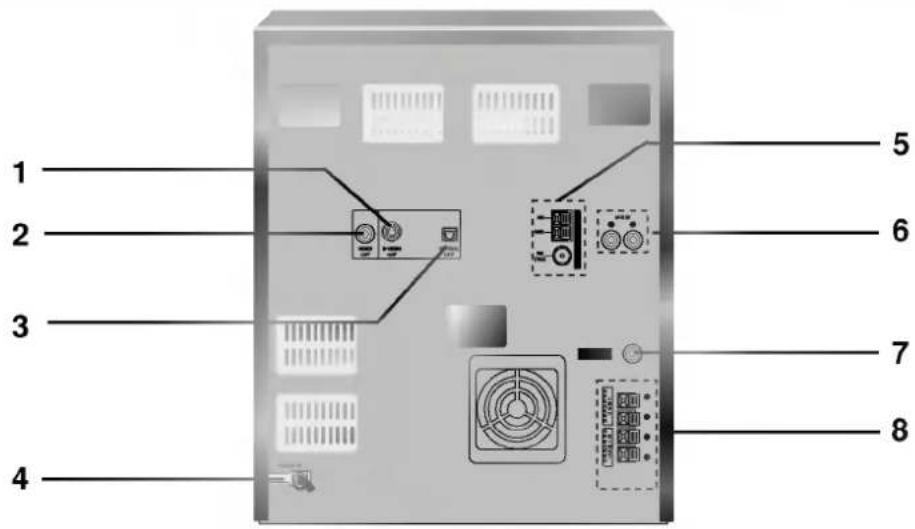

Rear Panel

1. S-VIDEO OUT Jack
2. VIDEO OUT Jack
3. OPTICAL OUT Jack

4. POWER CORD

5. ANTENNA Terminal

6. AUXILIARY INPUT Sockets
7. SUB WOOFER OUT Connector
8. SPEAKER Connector

Connections (Cont'd)

Connecting to External Equipment or Antenna

- Connect the AUX IN (L/R) jacks on the unit to the AUDIO OUT (L/R) jacks on the VCR, LD player, etc using the audio cables.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the unit and other component.
• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

• Connect the supplied FM/AM antennas for listening to the radio.

• Connect the AM loop antenna to the AM antenna connector.
• Connect the FM wire antenna to the FM antenna connector.

T ip

Press AUX to select input to these jacks. "AUX" appears on the display window.

Connections (Cont'd)

Connecting to a TV

- Make one of the following connections, depending on the capabilities of your existing equipment.

Tips

- Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use one of the connections described below.

- Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution

• Make sure DVD Karaoke is connected directly to the TV. Select the correct AV input on your TV.
• Do not connect your DVD Karaoke to TV via your VCR. The picture image could be distorted by the copy protection system.

Video connection

Connect the VIDEO OUT jack on the DVD Karaoke to the VIDEO IN jack on the TV using the video cable supplied (V).

S-Video connection

Connect the S-VIDEO OUT jack on the the DVD Karaoke to the S-VIDEO IN jack on the TV using the optional S-Video cable (S).

otes

• The signal of S-VIDEO OUT jack will output only when the function mode is selected to CD/DVD.
• When you connect the DVD Karaoke to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any connections.

Connections (Cont'd)

Connecting to Optional Equipment

Amplifier (Receiver)

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped with a multi-channel decoder (Dolby Digital™, MPEG 2 or DTS)

1 Connect the OPTICAL OUT jack on the DVD Karaoke to the OPTICAL IN jack on your amplifier. Use an optional audio cable.

2 You will need to activate the player's digital output. (See "Digital Audio Output" on page 18).

Caution:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

The sound is muted during playback on an audio CD recorded in dts.

Notes

• If the audio format of the digital output does not match the capabilities of your DVD Karaoke, the DVD Karaoke will produce a strong, distorted sound or no sound at all.
  – Six Channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.
• To see the audio format of the current DVD Karaoke in the On-Screen Display, press AUDIO.

Connections

Speaker System Connection

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.).

If you feel lack of bass frequency Connect an active sub woofer to the SUB WOOFER OUT connector using a monaural audio cord (not supplied).

Notes

• Be sure to match the speaker cord to the appropriate terminal on the components: + to + and - to -. If the cords are reversed, the sound will be distorted and will lack base.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

Before Operation

Audio Adjustment

Volume Adjustment

• Turn VOLUME knob clockwise to increase the sound level, or counterclockwise to decrease it.
• Press VOLUME + to increase the sound level, or use VOLUME - to decrease it on the remote control.

Sound Quality Adjustment

• To activate stereo sound

You can choose between 4 fixed sound impressions. Select a desired sound mode using the EQUALIZER (EQ).

FLAT	: Linear frequency response
ROCK	: More bass, more treble
POP	: Less bass, less treble
CLASSIC	: For orchestral music

• Headphone Jack

Connect a stereo headphone plug ( 6.3mm) into the headphone jack.

The speakers are automatically disconnected when you plug in the headphones (not supplied).

MUTE

Press MUTE to turn off the sound, press again to restore.

You can mute your unit in order, for example, to answer the telephone, "fx" indicator flashes in the display window.

SURROUND

To activate surround mode

You can choose one between 2 fixed sound impressions. Press SURROUND (SURR.) button.

Press XDSS to reinforce treble and bass.

- The "XDSS ON" indicator lights up.

To cancel it press XDSS again.

- The "XDSS OFF" indicator lights up.

DEMO Mode

With the unit plugged in but turned off, press the DEMO for a continuous visual display of units features. Press it again to return to a display of the current time.

SPECTRUM Effect

Whenever you press the SPECTRUM button on the remote control, you can enjoy the spectrum change with 8 types in the display.

Before Operation (Cont'd)

Sound Mode

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to.

This operation works only with CD/DVD discs.

Press the SOUND MODE repeatedly until the sound mode you want appears in the display window.

DIGITAL

The Dolby Digital surround format lets you enjoy up to 5.1 channels of digital surround sound from a Dolby Digital program source. If you play DVDs with "###" mark, you can enjoy even better sound quality, greater spatial accuracy, and improved dynamic range.

3D SURROUND

This unit can produce a 3D Surround effect, using 3D Surround Sound technology, which simulates multi-channel audio playback from two conventional stereo speakers instead of the five or more speakers normally required to listen to multi-channel audio from a home theatre. This feature works with DVD discs encoded with Dolby Pro Logic and Dolby Digital audio tracks.

Setting the Clock

1 Press CLOCK. (If the clock requires setting, press and hold CLOCK for more than 2 seconds.) - The hours display begins to blink.

2 Select either the 12 hour cycle or the 24 hour cycle by turning MULTI JOG DIAL.

(12HR)

or

(24HR)

3 Press SET to confirm the selected hour cycle.
4 Use MULTI JOG DIAL to set the current hour.
5 Press SET.
6 Use MULTI JOG DIAL to set current minutes.
7 Press SET and the correct time is shown on the display.
8 Press CLOCK at any time to show the time on the display, for about 5 seconds.

Before Operation (Cont'd)

Timer Function

With the TIMER function you can have the radio reception and recording, CD or tape playing turned on and off at the time desired.

1 Press CLOCK to check the current time.

For your reference

If you don't set clock, timer function doesn't work.

2 Press TIMER to enter the timer setting mode. TUNER-CD-TAPE flash in the display window in turn.

For your reference

If you want to correct the previous memorized TIMER setting, press and hold the TIMER button more than 2 seconds.

- The previous memorized timer setting for On Time and "○" indicators appear in the display.

3 Press SET when the desired function flashes.

4 1. a. When you select TUNER function, 'PLAY' and 'REC' indicator flash in the display window alternately for about 3 seconds.

'PLAY' indicator : TUNER play only

'REC' indicator : TUNER play and recording

b. Select the previous memorized preset number with MULTI JOG DIAL on the front panel and press SET.

'ON TIME' indicator appears for about 0.5 seconds in the display window and then disappears.

1. When you select CD or TAPE function, 'ON TIME' indicator appears for about 0.5 seconds in the display window and then disappears.

5 Set the turn on hour turning MULTI JOG DIAL.

6 Press SET to confirm the turn on hour time.

7 Set the turn on minutes time turning MULTI JOG DIAL.

8 Press SET to confirm the turn on minutes time.

'OFF TIME' indicator appears for about 0.5 seconds in the display window and then disappears.

9 Set the turn off hour time turning MULTI JOG DIAL.

10 Press SET.

11 Set the turn off minutes turning MULTI JOG DIAL.

12 Press SET.

13 Adjust the volume level turning MULTI JOG DIAL.

14 Press SET. "⑨" appear

15 Turn the system off.

The selected timer functions are automatically switched on and off at the preset times.

To cancel or check the timer

Each time the TIMER button is pressed you can select the timer set or cancel. You can also check the timer setting status.

To activate or check the timer, press the TIMER button repeatedly so that " ⊙" appears in the display window.

To cancel the TIMER, press the TIMER button repeatedly so that “☐” disappears from the display window.

Sleep Timer Function

When the sleep timer is set, the unit automatically turns off after the specified time has elapsed.

1 To specify the time delay before the power is turned off, press SLEEP.

In the display window you can see SLEEP 90 for about 5 seconds. This means that the system turns off automatically after 90 minutes.

Each time the button is pressed the time interval before it turns off is reduced by 10 minutes. i.e.

80...70... etc. Select the desired time to turn off.

2 To check the remaining time until the power is turned off.

While the sleep function is active press SLEEP briefly. The time remaining until the unit turns off is displayed for about 5 seconds.

Note

If you press SLEEP while the sleep time is displayed, the SLEEP time is reset.

To cancel Sleep Timer setting

If you wish to stop the function, press the SLEEP button repeatedly until "SLEEP 10" appears, and then press SLEEP once again after "SLEEP 10" shows on the display.

Before Operation (Cont'd)

Caution:

Before using the remote control, press the KARAOKE/DVD button to select the device to be operated.

General Explanation

This manual gives the basic instructions for operating the DVD Karaoke. Some DVDs require specific operation or allow only limited operation during playback. When this occurs, the symbol ⊙ appears on the TV screen, indicating that the operation is not permitted by the DVD Karaoke or is not available on the disc.

On-Screen Display

The general playback status can be displayed on the TV screen. Some items can be changed on the menu.

On-screen display operation

Press DISPLAY during playback.

Press ▲ or ▼ to select an item. The selected item will be highlighted.

Press ◀ or ▶ to change the setting of an item. The number buttons can be also be used for setting numbers (e.g., title number). For some functions, press SELECT/ENTER to execute the setting.

Temporary Feedback Field Icons

Repeat Title

Repeat Chapter

Repeat Track (non-PBC Video CDs only)

Repeat All Tracks (non-PBC Video CDs only)

Repeat A-B

Repeat Off

Resume play from this point

Action prohibited or not available

otes

• Some discs may not provide all of the features on the on-screen display example shown below.
• If no button is pressed for 10 seconds, the on-screen display disappears.

Items		Function (Press ▲/▼ to select desired item)	Selection Method
Title Number	1	Shows the current title number and skip to the desired title number.	◀ / ▶, or Numeric, SELECT/ENTER
Chapter Number	1	Shows the current chapter number and skips to the desired chapter number.	◀ / ▶, or Numeric, SELECT/ENTER, SKIP
Time search	0:16:57	Shows the elapsed playing time, and search the point by the elapsed time directly.	Numeric, SELECT/ENTER
Audio language and Digital Audio Output mode	1 RUS 6 CH	Shows the current audio sound track language, encoding method and channel number, and changes the setting.	◀ / ▶AUDIO
Subtitle language	OFF	Shows the current subtitles language, and changes the setting.	◀ / ▶SUBTITLE
Angle	1	Shows the current angle number and total number of angles, and changes the angle number.	◀ / ▶ANGLE
Sound	NORM.	Shows the current sound mode and changes the setting.	◀ / ▶

Items		Function (Press ▲/▼ to select desired item)	Selection Method
Track Number		Shows the current track number and the desired track number.	◀ / ▶, orNumeric, SELECT/ENTER
Time		Shows the elapsed playing time (Display only)	-
Audio Channel		Shows the current audio [STEREO, LEFT, RIGHT], and selects to the desired audio channel.	◀ / ▶AUDIO
Sound		Shows the current sound modeand changes the setting.	◀ / ▶

Before Operation (Cont'd)

Initial Settings

You can set your own Personal Preferences on the player.

Initial Settings General Operation

1 Press SETUP. The setup menu appears.

2 Press ▲/▼ to select the desired item. The screen will show the current setting for the selected item, as well as alternate setting(s).
3 While the desired item is selected, press ▶, then ▲/▼ to select the desired setting.
4 Press SELECT/ENTER to confirm your selection. Some items require additional steps.
5 Press SETUP, RETURN or PLAY to exit the setup menu.

Language

Disc Language

Select a language for the disc's Menu, Audio and Subtitle.

Original : The original language set for the disc is selected. Other : To select another language, press number buttons to enter the corresponding 4-digit number according to the language code list on page 36. If you enter the wrong language code, press CLEAR on the remote control.

Menu Language

Select a language for the setup menu. This is the menu you see when you press SETUP.


TV Aspect

4:3 Letterbox: Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.
4:3 Panscan: Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Either sides of the picture are cut off.
16:9 Wide: Select when a 16:9 wide TV is connected.

Solid gray gradient background with no text, symbols, or discernible objects

Before Operation (Cont'd)

Sound

Digital Audio Output

Each DVD disc has a variety of audio output options. Set the player's Digital Audio Output according to the type of audio system you use.

DOLBY DIGITAL/PCM: Select "DOLBY DIGITAL/PCM" if you connected the DVD Karaoke's DIGITAL OUT jack to a Dolby Digital decoder (or an amplifier or other equipment with a Dolby Digital decoder).

Stream/PCM: Select "Stream/PCM" if you connected the DVD Karaoke's DIGITAL OUT jack to an amplifier or other equipment with a DTS decoder, Dolby Digital decoder or MPEG decoder.

PCM: Select when connected to a 2 channel digital stereo amplifier. The DVD Karaoke outputs sounds in the PCM 2ch format when you play a DVD video disc recorded on the Dolby Digital, MPEG1 or MPEG2 recording system.

Playback Disc	OUTPUT
	Stream/PCM	Dolby Digital/PCM	PCM only
96 kHz Linear PCM DVD	PCM	PCM	PCM
Dolby Digital DVD	Dolby Digital bit Stream	Dolby Digital bit Stream	PCM
MPEG DVD	MPEG bit Stream	PCM	PCM
Audio CD/Video CD	PCM	PCM	PCM

otes

• When you are not using the units digital audio output, don't select any of the options.
• If an active digital audio output signal is supplied to a unit or other equipment without a corresponding digital decoding capability, a very loud noise may be produced which could permanently damage the speakers.

Others

The DRC, PBC, Pseudo PAL and Vocal settings can be changed.

- Press ▲/▼ to select the desired item and press SELECT/ENTER. The setting of the selected item are changed between On and Off.

Dynamic Range Control (DRC)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing dialog intelligibility. Set DRC to On for this effect.

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played the same way as Audio CDs.

Pseudo PAL On/Off

On: A NTSC DVD disc or Video CD can be played back with the PAL color system TV set, depending on the disc.

Off: A NTSC DVD disc or Video CD cannot be played back with the PAL color system TV set.

Vocal

Set Vocal to On only when a multi-channel Karaoke DVD is playing. The karaoke channels on the disc will mix into a normal stereo sound.

otes

• The DRC function works only during playback of Dolby Digital recorded discs.
• The level of Dynamic Range Compression may differ depending on the DVD disc.
• When playing karaoke, connect appropriate audio equipment such (such as an amplifier) to the unit.
• The Pseudo PAL can be displayed when the SYSTEM selector on the rear panel is switched to PAL mode.
• If there are any problems during playback of a NTSC disc, select the "Pseudo PAL" to "On" mode.
• The picture can be streamed according to TV type when the "Pseudo PAL" is in "On" mode.

Before Operation (Cont'd)

Parental Control

Rating

Movies on DVDs may contain scenes not suitable for children. Therefore, discs may contain Parental Control information that applies to the complete disc or to certain scenes on the disc. These scenes are rated from 1 to 8, and alternatively, more suitable scenes are available for selection on some discs. Ratings are country dependent. The Parental Control feature allows you to prevent discs from being played by your children or to have certain discs played with alternative scenes.

1 Select "Rating" on the Setup menu using the ▲ and ▼ buttons.

2 While "Rating" is selected, press ▶.

3 Select a rating from 1 to 8 using the ▲/▼ buttons. One (1) has the least playback restrictions. Eight (8) has the most playback restrictions. Unlock: If you select Unlock, Parental Control is not active. The disc will play in full.

Ratings 1 to 8: Some discs contain scenes not suitable for children. If you set a rating for the player, all disc scenes with the same rating or lower will be played. Higher rated scenes will not be played unless an alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating level in order to play the disc.

4 Press SELECT/ENTER to confirm your rating selection, then press SETUP to exit the menu.

Note

When you have already entered a password; Enter 4-digit password using the numeric buttons to confirm the personal 4-digit security password, then press SELECT/ENTER.

Password

1 Select "Password" using the ▲/▼ buttons on the setup menu, then press ▶.

2 Input a 4-digit password and press SELECT/ENTER.

Example : 1234

Do not forget your password.

3 Input the 4-digit password again and press SELECT/ENTER to verify. Setting is finished.

- The rating is locked. Any discs whose rating is higher than the setting cannot be played back unless the correct password is entered.

To change/clear memorized password

1 At the SETUP screen, press ▼ to select "Password" and press ▶.

2 Input your password and press SELECT/ENTER.

3 To change or clear your password, press ▲/▼ to select the "Change" or "Clear" and press SELECT/ENTER.

To change the rating level/password, follow the steps on page 19 again.

To clear your 4-digit password

If you forget your password, to clear the current password, follow the procedure below.

At the SETUP screen

1 Press ▼ to select "Password" item.
2 Enter 6-digit number "210499" and then press SELECT/ENTER. The 4-digit password is cleared.
3 Enter a new password Refer to "Password".

Solid gray vertical bar with no text, symbols, or markings

Before Operation

Selecting Speaker

Select the speaker to adjust the audio output mode of the speaker.

1 At the SETUP screen, press the ▲/▼ to select "2.1 Speaker Setup" and press the ▶.

2 Press the ▶ to select the desired speaker and press the ▲/▼/◀/▶ to adjust options.

• Do not place the center or rear speakers further away from the listening position than the front speakers.
• The test tone does not output from the subwoofer.

Volume

Press the ◀/▶ to adjust the output level of selected speaker. (-6dB \~ +6dB)

Size

Press the ◀/▶ to set a mode. (Large, Small, None)

• If you have connected the system to a speaker with low frequency of 100Hz or below, select "Large".
• If you have connected the system to a speaker without low frequency of 100Hz or below, select "Small" But if you haven't connected to sub woofer, always select "Large" of Front Speaker (L/R).
• When you don't connect to speaker, select "None".
• Front L/R speaker's size can be selected to Large" or "Small".
• If Front L/R speaker's size is selected to "Small", Sub woofer speaker's size can be selected only to "Large".

Test

Each time the SELECT/ENTER is pressed you can select the TEST ON or OFF. Set the TEST ON mode to test signals of each speaker.

To cancel the Test mode, select OFF by pressing the

Adjust Volume to match to the volume of test signals memorized in the system.

- Front (L) Front (R)

Return

Press the SELECT/ENTER to return to the previous menu screen.

Operation with RADIO

Presetting the radio stations

You can preset 30 stations for FM and AM.

Before tuning, make sure that you have turned the volume down to the minimum level.

1 Press TUNER to show either FM or AM in the display window.

Every time you press this button, AM and FM changes alternately.

2 Press TUNING DOWN/UP on the front panel until the frequency indication starts to change, then release.

Notes

• Automatic Tuning

Press the TUNING DOWN/UP.

- Scanning stops when the unit tunes in a station.

- Manual Tuning

Use the MULTI JOG DIAL.

Press PROG./MEMO. on the front panel.

A preset number will flash in the display window.

4 Press PRESET DOWN/UP (or PRESET ▲/▼ on the remote control) to select the preset number you want.

5 Press PROG./MEMO. again.

The station is stored.

6 Repeat steps 2 to 5 to store other stations.

To clear all memorized stations

Press and hold PROG./MEMO. on the front panel for about two seconds, "CLEAR" appears in the display window and then press CLEAR on the front panel, the stations are cleared.

For your reference

If all stations have already been entered, "FULL" message will appear in the display window for a moment and then a preset number will flash.

To change the preset number, follow the steps 4-5.

To recall preset numbers

Press and hold PRESET DOWN/UP (or PRESET ▲/▼ on the remote control) until the desired preset number appears or press the button repeatedly.

Listening to the radio

1 Press TUNER to select either AM or FM in the display window.

The last received station is tuned in.

2 Press PRESET DOWN/UP (or PRESET ▲/▼ on the remote control) repeatedly to select the preset station you want.

Each time you press this button, the unit tunes in the next preset station.

3 Adjust the volume by rotating VOLUME knob (or pressing VOLUME -/+ on the remote control) repeatedly.

To listen to non-preset radio stations

• For manual tuning, see "Manual Tuning".
• For automatic tuning, see "Automatic Tuning".

To turn the radio off

Press POWER to turn off the unit or to select another function mode (TAPE, KARAOKE/DVD or AUX).

For your reference

• If a FM program is noisy

Press MODE/RIF repeatedly so that “||||” disappears in the display window. There will be no stereo effect, but the reception will improve. Press MODE/RIF again to restore the stereo effect.

• To improve reception

Reposition the supplied antennas.

Notes

• Use MODE/RIF (Radio Interference Filter) function to switch to Mono reception if stereo reception is distorted by noise.
• While recording weak AM broadcasts, if noises occurs, press MODE/RIF once.

Operation with TAPE

Basic Playback

1 Press TAPE (or TAPE-1/2) to select tape function. ("NO TAPE" appears in the display window.)
2 Open cassette TAPE 1 (or 2) by pushing to the ▲PUSH EJECT position.:
3 Insert one or two cassettes with the tape side to the bottom and then close the TAPE 1 (and/or 2) door.
4 Press ▶ (or ◀ : optional) on the front panel or remote control.

AUTO STOP DECK (TAPE 1)

After auto stop deck plays front side of cassette, the unit stops automatically.

AUTO REVERSE DECK (TAPE 2) : OPTIONAL

You can select direction of the cassette you want by pressing PLAY MODE.

Pressing	Display	Function
Once		After the cassette of TAPE 1 or 2 plays front or reverse (backward play) side, stops automatically.
Twice		After the cassette of TAPE 1 or 2 plays front and reverse side, stops automatically.
Three times		After the cassette of TAPE 1 or 2 plays six times repeatedly front and reverse side, stops automatically.

To Stop Play

Press STOP(■)/CLEAR on the front panel or TAPE STOP(■) on the remote control during playback.

Tape Counter Reset

Press COUNT.RESET during playback.

Playing time appears "TAP -1 (or 2) 0000" in display window.

To Play Rewind or Fast Forward

After press ◀◀/▶▶ on the front panel or on the remote control during playback, press ▶ (or ◀:optional) at the tape position you want.

Dubbing

This function shows how to record from tape to tape.

4 Press TAPE or TAPE-1/2.

• Cassette TAPE 1- Insert the playback tape to dub.
• Cassette TAPE 2- Insert a blank tape to copy on.

Press NOR-DUBB./HI-DUBB..

• NOR-DUBB. - Normal speed copying
• HI-DUBB. - Double speed copying

To stop recording, press STOP (■).

Recording

Basic Setting

1 Press CD or TUNER to select source.
2 Open the cassette deck TAPE 2 and insert a blank cassette into the cassette compartment. Set the recording direction : OPTIONAL

Press PLAY MODE repeatedly to set the recording direction.

Recording from Radio, CD or Auxiliary source

1 Press ●REC/II on the front panel.

"REC" flashes and holds the cassette in pause mode.

2 Press ▶ (or ◀: OPTIONAL) on the front panel or remote control.

The recording is begun.

To Pause the recording

Press ●REC/II or ●/II.

To Stop the recording

Press STOP(■).

CD to Tape Synchronized Recording

The CD synchro recording function dubs a complete CD and programmed titles automatically into a cassette.

1 Press CD SYNC. in stop mode.

"REC" flashes and "CD SYNCHRO" displays in the display window.

2 The synchronized recording is started automatically after about 7 seconds.

Notes

• If you wish to record from the desired track, select the desired track with MULTI JOG DIAL before commencing CD synchro recording.
• A function change is not possible during recording.

Operation - CD/VCD/DVD

Preparations

• When you want to play back DVD video discs, turn on the TV and select the video input source connected to the unit.
• When you want to enjoy the sound of DVD video discs or audio CDs from the audio system, turn on the audio system and select the input source connected to the unit.
• Set the playback picture size according to the aspect ration of the connected TV at the SETUP menu (TV Aspect).
• If you do not have the necessary equipment to enjoy Dolby Digital sound, set the Digital Audio Output at the SETUP menu to "PCM".

Cross-sectional diagram of a mechanical component with numbered parts (1 and 2), no readable text or symbols present.

Number 1 disc
Number 2 disc

Basic Playback

Select the KARAOKE/DVD.

Press the ▲OPEN/CLOSE button to open the disc compartment.

Load disc (s) with the label side up.

• Playing one or two discs
  Place discs on trays 1 and 2.
• Playing three discs
  After placing two discs, press the DISC SKIP button to rotate the trays. Place the next disc on tray 3.

ote

To load an 8cm(3 in.) disc, put it onto the inner circle of the tray.

Press the ▲OPEN/CLOSE to close the disc compartment.

Press the PLAY (▶) to start play.

Play begins with the disc on the left hand side tray before closing the disc compartment. All the discs are played once only.

• If the disc is placed in upside down (and it is a single sided disc), "NO DISC" or "DISC ERROR" appears on the TV screen.

• If you insert an audio CD, the CHP/TRK indicator lights up in the display window. The title number does not appear.
  • After playing back all of the chapters in the title, the unit automatically stops and returns to the menu screen.

• During playback
  A tray which has no disc is skipped and play proceeds to the next tray. The indicator of the skipped tray number goes out in the display.

- To skip discs

During play or in the stop mode, press the DISC SKIP button.

- During play

Play begins automatically after skipping.

• In the stop mode

The changer skips to the next disc, but the player remains stopped.

Press the PLAY (▶) (or on remote control) to play the next disc. Play begins and all the discs are played once.

• To play one disc only

Press one of the DISC DIRECT PLAY(DISC 1,2,3) buttons to start play.

• To remove discs

Press the ▲OPEN/CLOSE button to open the disc compartment. You can remove two discs. To remove the disc on the back tray, press the DISC SKIP button to rotate the disc tray.

When a menu screen appears on the TV screen

In case of interactive DVDs with control, a menu screen appears on the TV screen.

Press ▲/▼/◀▶ and press SELECT /ENTER (Or press the numeric buttons), to select the desired item.

OR

Four black-and-white illustrations of different plant or garden scenes: a rose, a tree, a flower, and a water feature (no text or symbols)

Play of the selected item now begins.

- For further information, also refer to the jacket or case of the disc you are playing.

After operation

When the unit is not in use, remove the disc and press the POWER to turn off the power.

Video CD

This contains recordings of pictures and sound whose quality is on a par with that of video tape. This player also supports Video CDs with playback control (Version 2.0).

What is playback control (PBC)?

If a Video CD has "playback control" written on its disc or jacket, it means that particular scenes or information can be selected for viewing interactively with the TV monitor using the menu screen.

Operation - CD/VCD/DVD (Cont'd)

To Change Discs during Play

1 Press the ▲OPEN/CLOSE button to open the disc compartment.
2 Remove the discs and replace with other discs. The disc placed on the left side tray will be played next.
3 Press the ▲OPEN/CLOSE button to close the disc compartment.

Notes

When "☒" appears on the TV screen while a button is pressed, it means that this function is not available on the disc you are playing.
○ Depending on the DVD disc, some operations may be different or restricted. Refer to the jacket or case of the disc you are playing.

To Stop Play

Press STOP (■) during playback.

To Resume Play

When play is stopped, the unit records the point where STOP was pressed (RESUME function).

Press the PLAY and play will resume from this point.

Notes

• Resume function will be cleared when the STOP is pressed on the STOP mode.
• Resume function will be cleared when the power is turned off and then on.
• Opening the disc tray cancels Resume function.
• The Resume function may not be available on some DVD discs or Video CDs (version 2.0).

To Skip chapters and tracks forward

or back

Skipping forward

Use the MULTI JOG DIAL on the front panel or ▶▶ on the remote control during playback.

- A chapter (DVD) or a track (CD/Video CD) is skipped each time the button is pressed.

Skipping back

Press the MULTI JOG DIAL on the front panel or on the remote control during playback.

- When the button is pressed once midway through a chapter/track, the player returns to the start of that chapter/track. When it is pressed again, a chapter/track is skipped each time the button is pressed.

For your reference

When ◀◀/▶▶ is pressed during menu play of video CDs equipped with PBC (Version 2.0), a menu screen may sometimes be recalled.

Still Picture (Pause)

Press the STEP during playback.

.
The unit will be placed in the still picture mode.
.
The unit will be placed in the pause mode.

Frame advance

Press the STEP during still playback. (Each time you press the STEP, the picture advances one frame.) To resume normal playback, press the PLAY.

To Scan at fast forward or fast reverse playback

Press and hold ◀◀/▶▶ during playback.

[TV screen]

• The speed of advance (reverse) is relatively slow at first. When the button is pressed again, the speed becomes faster. (Each time the button is pressed, the speed increases up to 4 steps (DVD), 3 steps (Video CD) or 1 step (CD).)
• The speed will be retained even after the button is released.

To return to normal playback, press PLAY.

Note

The unit does not play back sound during the high speed reverse and forward playback of DVD video discs. However, the unit plays back sound during fast forward or fast reverse playback of audio CDs.

To Play in slow-motion

Press the SLOW ◀◀ or ▶▶ during pause.

The playback speed becomes 1/8 (DVD) of the normal speed.

[TV screen]

• The speed of slow-motion is slow at first. When the button is pressed again, the speed becomes slower. (Each time the button is pressed, the speed increase up to 4 steps (DVD) or 3 steps (Video CD).)
• The speed will be retained even after the button is released.

To return to normal playback, press the PLAY.

Notes

• The sound is muted during slow-motion playback.
- Subtitles do not appear on the screen during slow motion playback.
- This function does not work in case of Audio CDs.

Operation with DVD and Video CD (Cont'd)

General Features

Note

Unless stated, all operations described are based on remote control use. Some operations can be carried out using the setup menu.

Moving to another TITLE

When a disc has more than one title, you can move to another title as follows:

- Press DISPLAY when playback is stopped, then press the appropriate numerical button (0-9) to select a title number.

Moving to another CHAPTER/TRACK

When a title on a disc has more than one chapter or a disc has more than one track, you can move to another chapter/track as follows:

• Press SKIP ◀◀◀ or ▶▶◀ briefly during playback to select the next chapter/track or to return to the beginning of the current chapter/track.
• Press ◀◀ twice briefly to step back to the previous chapter/track.
• To go directly to any chapter during DVD playback, press DISPLAY. Then, press ▲/▼ to select C (chapter) (or for a Video CD, select T for track). Then, enter the chapter/track number using the numerical buttons (0-9).

Note

For two-digit numbers, press the buttons in rapid succession.

Still Picture and Frame-by-frame playback

1 Press PAUSE/STEP during playback. The player will now go into PAUSE mode.
2 You can advance the picture frame by frame by pressing PAUSE/STEP repeatedly on the remote control.

Repeat

DVD Video Discs - Repeat Title/Chapter/Off

1 To repeat the currently playing title, press REPEAT. The Repeat Title icon appears on the TV screen.
2 To repeat the chapter currently playing, press REPEAT a second time. The Repeat Chapter icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.

Video CDs - Repeat Track/All/Off

1 To repeat the track currently playing, press REPEAT. The Repeat Track icon appears on the TV screen.
2 To repeat the disc currently playing, press REPEAT a second time. The Repeat All icon appears on the TV screen.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the TV screen.

Note

On a Video CD with PBC, you must set PBC to Off on the setup menu to use the Repeat function.

Repeat A-B

To repeat a sequence in a title:

1 Press REPEAT A-B at your chosen starting point.
'appears briefly on the TV screen.
2 Press REPEAT A-B again at your chosen end point. " [IMAGE] " appears briefly on the TV screen, and the repeat sequence begins (a-b repeat appears on the player's display).
3 To cancel the sequence, press CLEAR.

Time Search

The Time Search function allows you to start playing at any chosen time on the disc.

1 Press DISPLAY during playback. The on-screen display appears on the screen.
The Time Search box shows the elapsed playing time of the current disc.
2 Within 10 seconds, press ▲/▼ to select the Time Search icon in the on-screen display. The “-:-:-” appears in the Time Search box.
3 Within 10 seconds, use the numerical buttons to enter the required start time. Enter hours, minutes and seconds from left to right in the box.
4 Within 10 seconds, press SELECT/ENTER to confirm the start time. Playback starts from the selected time on the disc. If you enter an invalid time, playback will continue from the current point.

Solid dark gray vertical bar with no visible text, symbols, or markings

Operation with DVD and Video CD (Cont'd)

General Features (Cont'd)

3D Surround Effect

This unit can produce a 3D Surround effect, which simulates multi-channel audio playback from two conventional stereo speakers, instead of the five or more speakers normally required to listen to multi-channel audio from a home theater system.

1 Press the DISPLAY during playback.
2 Use the ▲/▼ to select the sound option. The sound option will highlighted.
3 Use the ◀/▶ to select "3D SUR". To turn off the 3D Surround effect, select "NORM".

Special DVD Features

Checking the contents of DVD discs: Menus

DVDs may contain menus that allow you to access special features. To use the disc menu, press MENU. Then, press the appropriate numerical button to select an item. Or, use the ◀/▶/▲/▼ buttons to highlight your selection, then press ENTER.

Title Menu

1 Press TITLE. If the current title has a menu, the menu will appear on the screen. Otherwise, the disc menu may appear.
2 The menu can list camera angles, spoken language and subtitle options, and chapters for the title.
3 To remove the title menu, press TITLE again.

Disc Menu

1 Press MENU.
The disc menu is displayed.
2 To remove the disc menu, press MENU again.

Camera Angle

If the disc contains sequences recorded from different camera angles, the angle icon blinks on the display. You can then change the camera angle if you wish.

- Press ANGLE repeatedly during playback to select a desired angle.

The number of the current angle appears on the display.

Changing the Audio Language

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

Subtitles

Press SUBTITLE repeatedly during playback to see the different subtitle languages.

If ⊗ appears, the feature is not available on the disc.

Operation with Audio CD and MP3 Disc

Playing an Audio CD and MP3 disc

The DVD Karaoke can play MP3 format recordings on CD-ROM, CD-R or CD-RW discs. Before playing MP3 recordings, read the notes of MP3 Recordings on page 34.

1 Insert a disc and close the tray. MP3 disc menu appears on the TV screen but Audio CD menu doesn't appear on the TV screen.

MP3 menu

2 Press ▲/▼ to select a track then press PLAY. Playback starts. During playback, the current tracks elapsed playing time will appear on the display. Playback will stop at the end of the disc.

3 To stop playback at any other time, press STOP.

Pause

1 Press PAUSE/STEP during playback.
2 To return to playback, press PLAY or press PAUSE/STEP again.

Moving to another Track

• Press SKIP (◀◀ or ▶▶) briefly during playback to go to the next track or to return to the beginning of the current track.
• Press SKIP (◀◀◀) twice briefly to step back to the previous track.
• In case of audio CD, to go directly to any track, enter the track number using the numerical buttons (0-9) during playback.

Repeat TRACK/ALL/OFF

1 To repeat all tracks of disc in the unit, press REPEAT. The Repeat All icon appears on the menu screen or display window.
2 To repeat the track currently playing, press REPEAT a second time. The Repeat Track icon appears on the menu screen or display window.
3 To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the menu screen.

Repeat A-B

To repeat a sequence.

1 During disc playback, press REPEAT A-B at your chosen starting point. " [●] " and "A - " appears on the menu screen or display window.
2 Press REPEAT A-B again at your chosen end point. "☐" and "A-B" appears on the menu screen, and the sequence begins to play repeatedly.
3 To exit the sequence and return to normal play, press RETURN. The Repeat icon and "A-B" appears on the menu screen or display window.

Changing the Audio Channel

Press AUDIO repeatedly during playback to hear a different audio channel [STEREO, LEFT, RIGHT].

Programmed Playback

Programmed Playback with Audio CD

Program allows you to store your favorite tracks for a particular disc in the player memory.

Note

The programmed playback is not available to Video CD.

Press PROGRAM during playback or stop mode. The program playback screen appears on the TV screen.

To exit the screen, press PLAY or PROGRAM.

Press ◀/▶/▲/▼ and press the numeric button(s) to select the desired track number.

- Repeat step 2 to select another track.

- Up to 20 tracks can be programmed.

Press PLAY or SELECT/ENTER to exit the screen.

The selected track is stored in the memory and play now begins in the programmed sequence. If you press PROGRAM to exit the screen, the selected tracks are not memorized.

After playback of all tracks programmed

Play is stopped.

Clearing the program

To clear the programmed tracks one by one

Press ◀/▶/▲/▼ to select the unwanted number and then press CLEAR.

To clear all the programmed tracks

Press ◀/▶/▲/▼ to select "Clear All" and then press SELECT/ENTER. Press PLAY or SELECT/ENTER to exit the screen. If you press PROGRAM to exit the screen, the programs are not cleared. (The programs are also cleared when the power is turned off or the disc is removed.)

Repeat Programmed Tracks

• To repeat all tracks of program list, press REPEAT. The Repeat All icon appears on the menu screen.
• To repeat the track currently playing, press REPEAT a second time.
  The Repeat Track icon appears on the menu screen.
• To exit Repeat mode, press REPEAT a third time. The Repeat Off icon appears on the menu screen.

Programmed Playback with MP3 Disc

Insert the MP3 disc.

The program playback screen appears on the TV screen.

Press ▲/▼ to select the desired track.

Press PROGRAM.

Repeat steps 1-2.

Press ▶ to select the desired track in the Program list and press PLAY.

The selected track now plays in the programmed sequence.

Erasing a Track from Program List

1 Press ▶ to move to the Program list.
2 Use ▲/▼ to select the track that you wish to erase from the Program list.
3 Press CLEAR.
The track will be erased from the Program list.

Erasing the Complete Program List

1 Follow steps 1 of "Erasing a Track from Program List" as above.
2 Use ▲/▼ to select "Clear All", then press SELECT/ENTER.
The complete Program for the disc will be erased.
The programs are also cleared when the disc is removed.

Operation with KARAOKE (Cont'd)

You can play KARAOKE(singing along) with CD by connecting a microphone to the unit.

You can enjoy KARAOKE with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the singer's voice.

Karaoke Basic Playback

1 Check if the system is connected. (Refer to the page 9-12.)
2 Turn on the powers of TV (or Amplifier) and DVD Karaoke and enter to the video mode on TV.
3 Press ▲OPEN/CLOSE to open the disc tray and load supplied MIDI karaoke disc in the tray with the label facing up.
4 Press ▲OPEN/CLOSE to close the tray.
5 Press KARAOKE/DVD to enter to the karaoke mode.

[TV Screen]

6 Connect the supplied microphone to the MIC 1 or MIC 2 jack.

Turn the MIC VOLUME CONTROL to adjust the microphone volume.

* MIC 1 Jack
Insert when one microphone is only used.
* MIC 2 Jack
Insert when two microphones are used.

7 Select the melody number you want by pressing NUMERIC buttons.

If you cancel the selected melody number, press the CLEAR.

Press PLAY.

The selected melody number is played.

Sing in tone with microphone.

After melody ends, it is stopped automatically and score appears.

Karaoke Advanced Playback

Return Function

This is a function that returns to the preceding MENU.

Press the RETURN.

If there is no preceding menu (in case of the first menu), this function may not be executed.

To Adjust MIC Volume

If the microphone is connected to MIC 1 or MIC 2 Jack, adjust volume.

Turn the MIC VOLUME CONTROL on the front panel clockwise to increase the volume, or counterclockwise to decrease it.

To Adjust ECHO Volume

You can give an echo effect to the sound from the microphones.

Press the ECHO repeatedly.

$$ \begin{array}{c}\text { ECHO OFF } \rightarrow \text { ECHO - 1 } \rightarrow \text { ECHO - 2 } \rightarrow \text { ECHO 3 }\\uparrow\end{array} $$

Key Control

You can change the key to suit your vocal range. You can adjust the key to 13 steps (6steps higher, 6steps lower and the original key).

- The setting appears on the screen.

Press KEY CONTROL (b/#) repeatedly on the remote control or turn KEY CONTROL (b/#) on the front panel to find the key that suits your vocal range.

• To flatten the key one by one, press the KEY CONTROL (b) repeatedly during playback.
• To sharp the key one by one, press the KEY CONTROL (#) repeatedly during playback.
• To return to the original key, press the KEY CONTROL (b/#) repeatedly to appear the original key.

Operation with KARAOKE (Cont'd)

Karaoke Advanced Playback (Cont'd)

Reserving the Songs

When you want to make a reservation of next melody, you can enjoy the most 8 melodies reservation Without waiting.

1 Press the NUMERIC buttons to reserve melody number you want in the MIDI karaoke disc play mode. Melody number appears on the TV screen.

2 Press PROGRAM. The melody number is made a reservation.

3 Repeat steps 1-2. You can reserve 8 songs.

' ip After the one song finishes its playback, the next song will be playback automatically.

To cancel the reserved song

Each time you press CLEAR, the reserved song will be cancelled one by one.

To cancel or change the wrong reserved song

Press the PROGRAM to move to the desired position, then press the CLEAR to cancel the reserved song.

Male/Female Function

If you want to sing a song of MAN's or WOMEN's key, press MALE(♂)/FEMALE(♂) button repeatedly to change MAN's or WOMEN's key.

Tempo Change

You can use this function when you want to play fast or slow.

• Press TEMPO + repeatedly during singing to play faster.
• Press TEMPO - repeatedly during singing slower.

Screen Change Function

This function is used when you want to change the current screen during playing MIDI disc.

Press the DISC SELECT (DISC 1, DISC 2, DISC 3) or D.SKIP button during playing MIDI karaoke disc. It is played a screen existing another disc.

Shadow Function

If Video CD caption and the song's subtitle are mixed up, the song's subtitle may be invisible. In this case, to highlight the song's subtitle, press SHADOW.

- It will be highlighted by background shadow image.

Operation with KARAOKE (Cont'd)

Karaoke MENU Playback

Preparation

Press MENU on the karaoke mode.

The main MENU appears on the screen.

Main MENU (On the TV screen)

1 Select melody mode by pressing the NUMERIC button 1.

2 Select the melody number you want by pressing NUMERIC buttons.

For your reference

If you cancel the selected melody number, press the CLEAR.

Press PLAY.

7 The selected melody number is played.

For your reference

After melody ends, it is stopped automatically.

Score Indication

When singing by selection of melody, song score comes out after one piece of song is ended.

The Score indication appears in the condition of POWER ON at first.

To cancel the Score position

Press the NUMERIC button 2 on the main menu.

“∅” mark is expressed on the TV screen with no score.

To reproduce the Score position.

Press the NUMERIC button 2 again.

“∅” mark is disappeared on the TV screen.

Fanfare

In condition of POWER ON, scoring fanfare operates.

The fanfare sound comes out after singing finished.

To cancel the Fanfare

Press the NUMERIC button 3 on the main menu.

“∅” mark is expressed on the TV screen with no fanfare.

To reproduce the Fanfare

Press the NUMERIC button 3 again.

"∅" mark is disappeared on the TV screen.

Challenging Karaoke

Challenge will be going on up to three times.

First Challenge(70 Points)

→

Second Challenge(75 Points)

→

Third Challenge(80 Points)

Over corresponding score, next challenge is possible. Under corresponding score, no next challenge is possible.

1 Press NUMERIC button 4 on the main menu. It appears as below.

2 Press NUMERIC button 1. It appears as below.

1. Melody performance randomly

Press the NUMERIC button 1.

Melody played is randomly among melodies in karaoke CD.

2. Melody performance according to melody

1. Press the NUMERIC button 2.

2. Press NUMERIC buttons you want.

3. Press PLAY.

3. Challenge per title

1. Press the NUMERIC button 3.

2. Refer to steps 2-3 of 2 as above.

4. Challenge per title Melody performance according to year

1. Press the NUMERIC button 4.

2. Refer to steps 2-3 of 2 as above.

5. The words of a song

(Pressing NUMERIC button 5)

Indicates for Existence/nothing of words on every pushing, Existence/nothing of the words is changed. (No indication of melody when there is HET marked on.)

Solid gray vertical bar with no text, symbols, or markings

Operation with KARAOKE (Cont'd)

Karaoke MENU Playback (Cont'd)

Sing Room Karaoke

It has a function which enjoy a game dividing by two teams of A team & B team.

1 Press NUMERIC button 4 on the main menu. It appears as below.

2 Press NUMERIC button 2. It appears as below.

3 Press one of NUMERIC buttons 1\~9 to select winner's number. It appears as below.

4 Press NUMERIC buttons 1-4 to select success score. It appears as below.

5 Select number you want by pressing NUMERIC buttons. (Refer to step 4 screen.)

When randomly selected melody is played The winning point of one is increased only if the score is over the already selected score by singing.

If "The chance in going to over next team"

The winning two points are increased in case of over success score by singing.

6 Repeat step 4\~5. Changing the team of A team or B team alternately for 4 to 5 courses.

For your reference

"X" Signal to be on selected Number. once, it's not selected.

7 When reaching the targeted winning Number.

For going on the sing room game, press NUMERIC button 1.

To cancel, press NUMERIC button 2.

Operation with KARAOKE

Karaoke MENU Playback (Cont'd)

Medley Karaoke

1 Press NUMERIC button 5 on the main menu. It appears as below.

1. Melody performance randomly

Press the NUMERIC button 1. Melody played is randomly among melodies in karaoke CD.

2. Melody performance according to melody

1. Press the NUMERIC button 2.
2. Press NUMERIC buttons you want.
3. Press PLAY.

3. Challenge per title

1. Press the NUMERIC button 3.
2. Refer to steps 2-3 of 2 as above.

4. Challenge per title Melody performance according to year

1. Press the NUMERIC button 4.
2. Refer to steps 2-3 of 2 as above.

5. The words of a song

(Pressing NUMERIC button 5) Indicates for Existence/nothing of words on every pushing, Existence/nothing of the words is changed. (No indication of melody when there is HET marked on.)

Notes

• After one piece of melody is over, it is played automatically among corresponding range of melodies in a random order. (The display returns to previous MENU after 30 tracks continuous play.)
• When performing a melody, it is skipped to next one once pushing STOP.
• For movement to former screen, it is moved to the former screen on pushing RETURN one time.
• To make it clear of melody karaoke screen, press MENU and it is changed into menu screen.

Masterpiece Impression Karaoke

This can select when you want to impress the masterpiece as kinds you like.

1 Press NUMERIC button 6 on the main MENU. It appears as below.

2 Select MENU you want.

1. Selection per melody

(Pressing NUMERIC button 1.)

1. Select the melody number you want by pressing the NUMERIC buttons.
2. Press PLAY.
3. Melody is played.

2. Performance per medley

(Pressing NUMERIC button 2.)

1. Total performance (Pressing NUMERIC button 1.)
2. Melody is played randomly-selected which collected in karaoke disc.

3. Performance per composer (Pressing NUMERIC button 2.) Select the performance you want by using the NUMERIC buttons and ◀◀/▶▶ and then press PLAY.

4. Performance per atmosphere (Pressing NUMERIC button 3.)

5. Cinema music (Pressing NUMERIC button 4.) - Cinema music is played randomly-selected which collected in-itself.

Note: If press the STOP, next melody is played rightly and randomly.

3. Selection of musical instrument

(Pressing the NUMERIC button 3 repeatedly.)

-The sound of melody is changed.

Note: If can be different, for it is the sound of electronic musical instrument.

Solid gray vertical rectangle with no visible text, symbols, or features

Additional Information

Last Condition Memory

This unit memorizes the last condition for the last disc you have watched. Settings remain in memory even if you remove the disc from this unit or switch off this unit. If you load a disc that has its settings memorized, the latest stop position is automatically recalled.

1 Load the DVD that was memorized.

It will appear on the TV screen as below.

- If the screen is left for more than 10 seconds, playback will start from the beginning of the title automatically.

Plain gray rectangle with no text, symbols, or discernible features

2 Press NUMERIC 2 button or press ◀/▶ to select "YES" and press SELECT/ENTER.

The memorized settings are automatically recalled.

Notes

• Settings are stored in memory for use any time.
• You can store settings for up to 1 DVD in memory. If you memorize settings for more than 1 DVD previously memorized settings are erased in order from the last recently memorized settings. Subsequently, if you try to call up these previously memorized settings, you will get the latest settings that have taken their place.
• Switching of the audio mode etc., is automatic on some discs.
• This unit does not store settings in memory, if you remove the disc from this unit or switch power to this unit OFF when DVD or title menu is displayed on the TV screen.

Notes on MP3 Discs

About MP3

• An MP3 file is audio data compressed by using MPEG1, the audio layer-3 file-coding scheme. We call files that have the ".mp3" file extension "MP3 files".
• The player can not read an MP3 file that has a file extension other than ".mp3".
• The player can not read a fake MP3 file that has a file extension ".mp3".

MP3 disc compatible with this player is limited as follows:

1. Sampling Frequency / only at 44.1kHz
2. Bit rate / within 96 - 192kbps
3. CD-R physical format should be "ISO 9660"
4. If you record MP3 files using the software which cannot create a FILE SYSTEM, for example "Direct-CD" etc., it is impossible to playback MP3 files. We therefore recommend that you use "Easy-CD Creator", which creates an ISO9660 file system.
5. A single session disc requires MP3 files in the first track. If there is no MP3 file in the 1st track, it cannot playback MP3 files. If you wish to playback MP3 files, format all the data in the disc or use a new one.
6. We do not recommend using CD-RW discs. Please use finished CD-R discs only.
7. File names should be named using 8 letters or less and must incorporate ".mp3" extension e.g. "*******.MP3".
8. Do not use special letters such as “_?!><+*}{[@]::V.,” etc.
9. Total number of files on the disc should be less than 200.
10. Use 74 minute CD-R discs (650M), Do not use 80 minute CD-R (700M) software

This DVD Karaoke requires discs/recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files).

Customers should also note that permission is required in order to download MP3 files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord into the wall outlet securely.
The power is on, but the DVD Karaoke does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD Karaoke appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	The connected TV power is turned off.	Turn on the TV.
There is no sound or only a very low-level sound is heard.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio so you can listen to the sound from the DVD Karaoke.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The audio connecting cord is damaged.	Replace it with new one.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD Karaoke does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, color system and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	A menu is on the TV screen.	Press the SET-UP button to turn off the menu screen.
	The Rating level is set.	Cancel the Rating function or change the rating level.
Severe hum or noise is heard.	The plugs and jacks are dirty.	Wipe them with a cloth slightly moistened with alcohol.
	The disc is dirty.	Clean the disc.
	The speakers and components are connected poorly.	Connect the speakers and components securely.
	The DVD Karaoke is located with too close to the TV.	Move your TV away from the audio com-ponents.
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD Karaoke.	Point the remote control at the remote sensor of the DVD Karaoke.
	The remote control is too far from the DVD Karaoke.	Operate the remote control within about 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD Karaoke.	Remove the obstacle.
	The batteries in the remote control are exhausted.	Replace the batteries with new ones.

Completely blank or indistinct image with no visible text, symbols, or discernible features.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 26).

Code	Language	Code	Language	Code	Language	Code	Language
6565	Afar	7079	Faroese	7678	Lingala	8375	Slovak
6566	Abkhazian	7082	French	7679	Laothian	8376	Slovenian
6570	Afrikaans	7089	Frisian	7684	Lithuanian	8377	Samoan
6577	Ameharic	7165	Irish	7686	Latvian, Lettish	8378	Shona
6582	Arabic	7168	Scots Gaelic	7771	Malagasy	8379	Somali
6583	Assamese	7176	Galician	7773	Maori	8381	Albanian
6588	Aymara	7178	Guarani	7775	Macedonian	8382	Serbian
6590	Azerbaijani	7185	Gujarati	7776	Malayalam	8385	Sudanese
6665	Bashkir	7265	Hausa	7778	Mongolian	8386	Swedish
6669	Byelorussian	7273	Hindi	7779	Moldavian	8387	Swahili
6671	Bulgarian	7282	Croatian	7782	Marathi	8465	Tamil
6672	Bihari	7285	Hungarian	7783	Malay	8469	Telugu
6678	Bengali; Bangla	7289	Armenian	7784	Maltese	8471	Tajik
6679	Tibetan	7365	Interlingua	7789	Burmese	8472	Thai
6682	Breton	7378	Indonesian	7865	Nauru	8473	Tigrinya
6765	Catalan	7383	Icelandic	7869	Nepali	8475	Turkmen
6779	Corsican	7384	Italian	7876	Dutch	8476	Tagalog
6783	Czech	7387	Hebrew	7879	Norwegian	8479	Tonga
6789	Welsh	7465	Japanese	7982	Oriya	8482	Turkish
6865	Danish	7473	Yiddish	8065	Panjabi	8484	Tatar
6869	German	7487	Javanese	8076	Polish	8487	Twi
6890	Bhutani	7565	Georgian	8083	Pashto, Pushto	8575	Ukrainian
6976	Greek	7575	Kazakh	8084	Portuguese	8582	Urdu
6978	English	7576	Greenlandic	8185	Quechua	8590	Uzbek
6979	Esperanto	7577	Cambodian	8277	Rhaeto-Romance	8673	Vietnamese
6983	Spanish	7578	Kannada	8279	Rumanian	8679	Volapük
6984	Estonian	7579	Korean	8285	Russian	8779	Wolof
6985	Basque	7583	Kashmiri	8365	Sanskrit	8872	Xhosa
7065	Persian	7585	Kurdish	8368	Sindhi	8979	Yoruba
7073	Finnish	7589	Kirghiz	8372	Serbo-Croatian	9072	Chinese
7074	Fiji	7665	Latin	8373	Singhalese	9085	Zulu

Specification

		Model	LM-K2530X	LM-K2930X
[General]		Power supply	Refer to the back panel.
		Power Consumption	120W	210W
		Mass	9.8kg	10.4kg
		External dimensions (W x H x D)	273 x 327 x 356 mm
[CD/VCD/DVD]		Laser	Semiconductor laser, wavelength 650 nm
		Frequency response (audio)	40 - 18000 Hz
		Signal-to-noise ratio (audio)	More than 70 dB (1 kHz)
		Signal-to-noise ratio (video)	More than 60 dB (1 kHz)
		Dynamic range (audio)	More than 70 dB
		Harmonic distortion (audio)	0.2 % (1 kHz)
[Video]		Video output	1.0 V (p-p), 75 Ω, negative sync., RCA jack
		S-video output	(Y) 1.0 V (p-p), 75 Ω,(C) 0.3 V (p-p), 75 Ω
[Tuner]	FM	Tuning Range	65 -74 MHz, 87.5 -108.0 MHz
		Intermediate Frequency	10.7 MHz
		Signal to Noise Ratio (Mono/Stereo)	60/55 dB
		Frequency Response	60 - 10000 Hz
	AM(MW)	Tuning Range	522 - 1611 kHz or 530 - 1610 kHz
		Intermediate Frequency	450 kHz
		Signal to Noise Ratio	35 dB
		Frequency Response	100 - 1800 Hz
[Amplifier]		Output Power	50W + 50W	100W + 100W
		T.H.D	0.2%
		Frequency Response	42 - 25000 Hz
		Signal-to-noise ratio	80 dB
[Speakers]		Speaker Model	LMS-K2530V	LMS-K2930V
		Type	3 Way 3 Speaker	3 Way 3 Speaker
		Impedance	6 Ω	6 Ω
		Frequency Response	60 - 20000 Hz	65 - 20000 Hz
		Sound Pressure Level	86 dB/W (1m)	86 dB/W (1m)
		Rated Input Power	50 W	100 W
		Max. Input Power	100 W	200 W
		Net Dimensions (W x H x D)	230 x 356 x 293 mm	230X338X298mm
		Net Weight (Approx.)	5.0 kg	5.5kg
TAPE		Tape Speed	3 kHz ± 50Hz
		Wow Flutter	0.25% (MTT -111, JIS-WTD)
		F.F/REW. Time	120sec (C-60)
		Frequency Response	125 - 8000Hz
		Signal to Noise Ratio	43dB(P/B)/43dB(R/B)
		Channel Separation	45dB(P/B)/42dB(R/P)
		Erase Ratio	52dB (MTT-5511)

Completely blank or indistinct image with no visible text, symbols, or discernible content.

LG
