Product Type Dash Cam
Brand Rexing
Model V1P Pro
Front Camera Resolution 1080p Full HD (1920x1080)
Rear Camera Resolution 720p HD (1280x720)
Viewing Angle Front: 170°, Rear: 140°
Display 2.4-inch LCD
GPS Built-in GPS module
G-Sensor Yes, built-in for impact detection
Loop Recording Yes, with overwrite protection
Parking Mode Yes, motion detection and impact monitoring
Power Source 12V DC car charger (included)
Memory Support microSD up to 128GB (Class 10 or higher)
Dimensions Approx. 2.6 x 1.7 x 1.4 inches
Weight Approx. 2.9 oz
Operating Temperature -20°C to 65°C
Warranty 1-year limited warranty
Maintenance Clean lens with a soft cloth; format SD card monthly
Safety Features G-sensor for collision detection; parking mode for surveillance
Spare Parts & Reparability Replacement mounts, chargers, and cables available; professional repair recommended

Frequently Asked Questions - V1P Pro Rexing

How to install the Rexing V1P Pro dash cam?
To install, first clean the windshield area. Mount the front camera using the adhesive or suction mount, then route the power cable to the 12V charger. Connect the rear camera cable and mount the rear camera on the rear windshield. Plug in the charger and the camera will power on. Refer to the manual for detailed routing instructions.
What memory card is recommended for the V1P Pro?
Use a microSD card with Class 10 or UHS-I rating, up to 128GB. Brands like SanDisk, Samsung, or Lexar are recommended. Format the card in the camera before first use.
How to enable parking mode on the V1P Pro?
Parking mode can be enabled in the settings menu. With the hardwire kit (sold separately), the camera monitors motion and impacts while the car is off. Without the hardwire kit, it will enter a low-power mode to detect events. Ensure parking mode is turned ON in the system settings.
How to view recorded videos from the dash cam?
You can view videos directly on the camera's 2.4-inch LCD by pressing the Playback button. Alternatively, remove the microSD card and use a computer with an SD card reader. Videos are saved in AVI or MOV format in the DCIM folder.
How to update firmware on the Rexing V1P Pro?
Download the latest firmware from the Rexing official website. Copy the firmware file to a FAT32 formatted microSD card. Insert the card into the camera while it is off, then power on. The update will start automatically. Do not interrupt the process.
How to format the SD card in the V1P Pro?
Go to Settings > Format SD Card in the camera menu. Confirm the action. Formatting will erase all data. It is recommended to format the card monthly to maintain performance.
Why is my Rexing V1P Pro not recording?
Common causes: No SD card inserted, card is full or locked, loop recording is off, or G-sensor locked a file. Check the card status and ensure recording is enabled. Also verify the power supply and that the camera is not in parking mode without events.
How to adjust the camera angle on the V1P Pro?
The front camera has a swivel mount that allows rotation. Loosen the mount, adjust the angle to capture the desired view, then tighten. The rear camera can be tilted up or down. Fine-tune using the live view on the display.
Is the rear camera of the V1P Pro waterproof?
No, the rear camera is not waterproof. It is designed for indoor use only, typically mounted on the rear windshield. Do not expose it to rain or moisture. If you need an exterior rear camera, consider a model with an external waterproof camera.
How to reset the Rexing V1P Pro to factory settings?
To reset, press the Reset button with a paperclip (located on the side of the camera). Alternatively, go to Settings > Factory Reset and confirm. This will erase all settings and return the camera to default state.

User questions about V1P Pro Rexing

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dash cam in PDF format for free! Find your manual V1P Pro - Rexing and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V1P Pro by Rexing.

USER MANUAL V1P Pro Rexing

The information in this manual is subject to change without notice.

About This Manual

This device provides high-quality digital recording using Rexing's high standards of design, construction and technological expertise. This user manual describes the device's functions and features in detail. Please read this manual before using the device to ensure safe and proper use. Note that all descriptions included here are based on the device's default settings.

  • Images and screenshots may differ in appearance from the actual product. Content may differ from the final product or from software provided by service providers and is subject to change without prior notice.
    • For the latest version of this manual, refer to the Rexing website at www.rexingusa.com.
    • Available features and additional services may vary by device and software.
    • Applications and their functions may vary by country, region, or hardware specifications.
  • Rexing is not liable for performance issues caused by applications from any provider other than Rexing.
  • Rexing is not liable for performance issues or incompatibilities caused by failure to install the device as stated in this manual. Attempting to customize the installation may cause the device or applications to work improperly which may result in device malfunctions and data corruption or loss. These actions are violations of your Rexing agreement and will void your warranty.

- Default applications that come with the device are subject to updates and possible discontinuation of support without prior notice. If you have questions about an application provided with the device, contact an authorized Rexing Service Center.

Rexing V1P Pro - About This Manual - 1

Rexing V1P Pro - About This Manual - 2
/rexingusa

Rexing V1P Pro - About This Manual - 3

Rexing V1P Pro - About This Manual - 4
@rexingdashcam

Rexing V1P Pro - About This Manual - 5

Rexing V1P Pro - About This Manual - 6
www.rexingusa.com/support/registration/

Table of Contents

page

About This Manual 2

Table of Contents 4

  1. What's in the box? 6

  2. Camera Overview 8

Device Layout 8

Buttons 9

Status Icons 10

  1. Getting Started 12

Installation 12

Attach the Front Camera to the window mount 13

Inserting the Memory Card 13

Removing the Memory Card 14

Powering the Camera 15

Formatting the Memory Card 16

Mount the Rear Camera 17

Connect the car charger to the car's 12V DC outlet 18

Turning the Device On and Off 18

  1. Basic Operation 19

Auotomatic Recording 19

Playback 20

Camera Playback Mode 21

Computer Playback 22

GPS Playback 23

Wi-Fi Connect 25

page

  1. Mode Setup 26

Video Mode Settings 26

System Settings 30

Photo Settings 33

  1. Troubleshooting 36

Update Firmware 36

  1. Product Specifications 37

  2. Warranty & Support 39

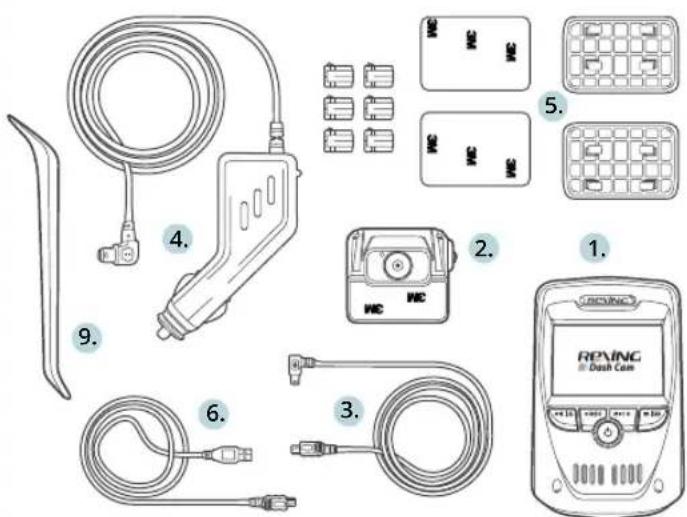

1. What's in the box?

Diagram showing various types of medical or electronic devices with numbered labels, including hoses, switches, and a dash camera.

  1. Rexing V1P Pro Dashboard Camera
  2. Full HD Rear Camera
  3. Rear Camera Cable (20ft)
  4. Car Power Connector (12ft)
  5. 3M Adhesive Mount
  6. USB Cable
  7. Quick Start Guide
  8. Safety Guide
  9. Cable Management Tool

7.8.

REXING Dash Cam V1P Pro Quick Start Guide

Rexing V1P Pro - What's in the box? - 3

REXING Dash Cam Safety Guide.

The items supplied with the device and any available accessories may vary depending on your region. Appearances and specifications are subject to change without prior notice. Availability of accessories is subject to change.

All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service.

For more information about available accessories, refer to www.rexingusa.com.

2. Camera Overview

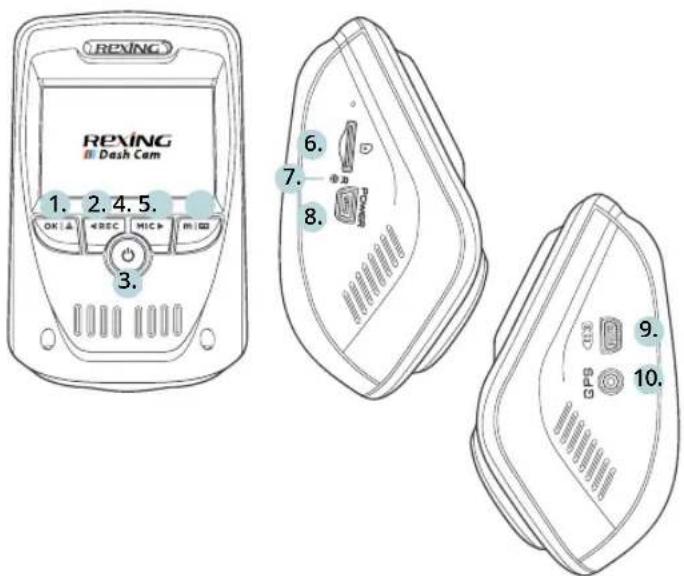

Device Layout
RPXING Dash Cam 1. 2. 4. 5. OK ↓ IM 3. 6. 7. 8. 9. GPS 10.

  1. OK (Confirm) Button / Emergency Lock Button
  2. Up Navigation Button / Record Button
  3. Power Button / Screen Toggle Button
  4. Down Navigation Button / Mic Button
  5. Menu Button / Mode Button
  6. Micro SD Card Slot
  7. Reset Button
  8. USB Charging Port
  9. Rear Camera Port
  10. GPS Logger Port (not used by V1P Pro)

Buttons

Button Function
Press: Toggle display on or offHold: Turn the device on or off manually
OK | ▲Menus: Confirm a selectionVideo Mode: Manually lock current recordingPhoto Mode: Take photoPlayback Mode: Start / stop playback
m | △Press: Enter menu, cycle through menus or exit current menuHold: Change mode
◀RECMenus: Move selection upVideo Mode: Start / stop recordingHold (Video or Photo Mode): Enable Wi-Fi modePlayback Mode: Decrease or reverse playback speed / Cycle left through recordings
MIC ▶Menus: Move selection downVideo Mode: Toggle audio recordingHold (Video or Photo Mode): Change front / rear camera viewsPlayback Mode: Increase playback speed / Cycle right through recordings
RESETPress and hold for 4 seconds to reset the device in the event that it operates erratically, hangs up, or freezes
Indicator Flashing Red - Recording

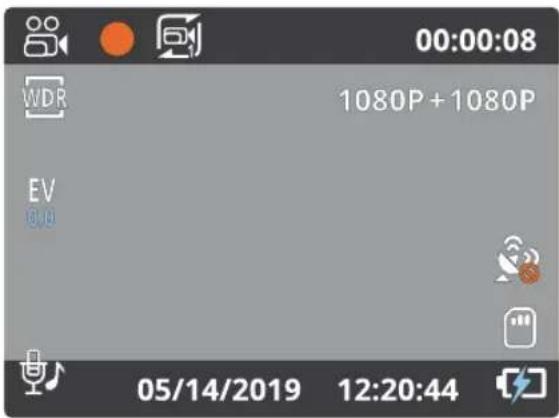

Status Icons

Icon Meaning
1080P + 1080PVideo resolution
Rexing V1P Pro - Camera Overview - 2Currently recording (blinking)
Rexing V1P Pro - Camera Overview - 3Wide Dynamic Range enabled
Rexing V1P Pro - Camera Overview - 4Connected to power source
Rexing V1P Pro - Camera Overview - 5Audio recording enabled
Rexing V1P Pro - Camera Overview - 6Audio recording disabled
Rexing V1P Pro - Camera Overview - 7Video Recording Mode
Rexing V1P Pro - Camera Overview - 8Playback Mode
Rexing V1P Pro - Camera Overview - 9Photo Mode
Rexing V1P Pro - Camera Overview - 10Loop Recording
Rexing V1P Pro - Camera Overview - 11Memory card detected
[2507]Exposure
Rexing V1P Pro - Camera Overview - 12GPS searching for signal (animated)
Rexing V1P Pro - Camera Overview - 13GPS signal acquired (no animation)
Rexing V1P Pro - Camera Overview - 14Current recording locked

00:00:08 WDR 1080P + 1080P EV 05/14/2019 12:20:44

3. Getting Started

Installation

Video guide can be found at video.rexingusa.com.

Orient the mount as shown

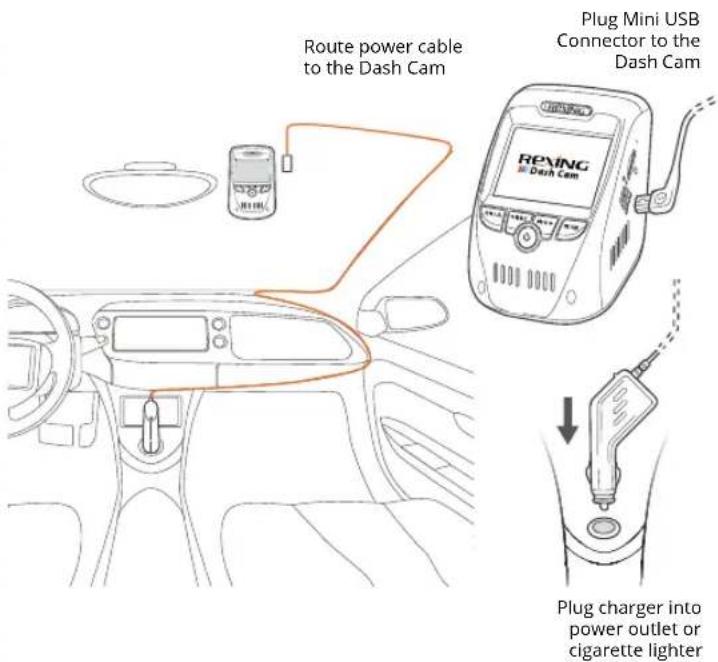

Route power cable to the Dash Cam Plug Mini USB Connector to the Dash Cam RENING at Dash Cam Plug charger into power outlet or cigarette lighter

Step 1: Attach the front camera to the window mount

Make sure that you mount the front camera in a safe, appropriate location where it won't obstruct the driver's view. Clean your windshield before applying the mount. Wait at least 20 minutes after applying the mount to the windshield before attaching the camera.

Step 2.1: Inserting the Memory Card

The V1P Pro accepts Micro SD memory cards (class 10 or higher) with a maximum capacity of 256GB.

Depending on the memory card manufacturer and type, some cards may not be compatible with your device. Using an incompatible card may damage the device or the memory card or corrupt the data stored on it.

We highly recommend using Micro SD cards that are specifically designated for use with dash cams. You can find our recommendations on our website: www.rexingusa.com/memory-card/.

Note: Before inserting or removing a memory card, first ensure you've powered down the device.

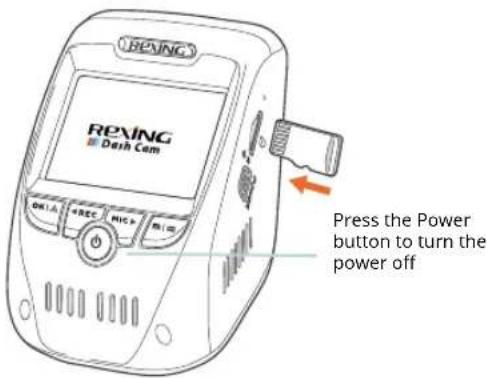

REYING ■ Dish Cam OR1.A +REC RH0.P R1.0 Press the Power button to turn the power off

Inserting a memory card

  1. If the device is powered on, press and hold the Power button to power down.
  2. Insert the card in the orientation shown.
  3. Push the card into the slot, listening for a click sound signaling the card is securely inserted.

Step 2.2: Removing the Memory Card

Before removing a memory card from your V1P Pro, you must first dismount it for safe removal.

With the device powered down, press down on the memory card until you hear a click. Gently remove your finger (or other pressing object) to allow the spring release to push the memory card out of the slot.

Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption or damage to the memory card or device. Rexing is not responsible for losses that result from the

use of damaged memory cards, including the loss of data.

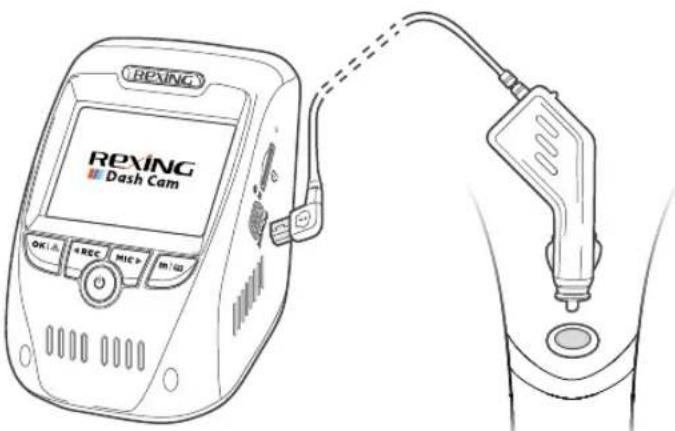

Step 3.1: Powering the Camera

You must always connect the V1P Pro to a power source while operating the camera. Connect the camera to your vehicle via the included car charger cable. Connect the larger end of the car charger cable to your car's cigarette lighter (12V DC power outlet). Connect the other Mini-USB end to the Mini-USB port on the device.

REXING Dash Cam OK:1.0 REC MIC> 1/12 RAXING

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Use only Rexing-approved chargers. Using unapproved chargers or cables can damage the device.

If the device receives an unstable power supply, the screen

may not function properly. If the device is not operating properly using a Rexing-approved charger, please contact Customer Care (care@rexingusa.com).

Step 3.2: Formatting the Memory Card

Before formatting your memory card, always remember to make backup copies of all important data stored on the device. The manufacturer's warranty does not cover loss of data resulting from user actions.

For best results, format the memory card using the Format function on your camera.

It's recommended that you format your memory card after transferring files to your computer or at least once a month.

Using your camera to format a memory card:

  1. Upon turning on the camera, press the REC button to stop recording.

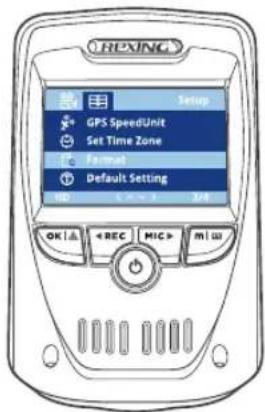

HOVIN Setup GPS SpeedUnit Set Time Zone Format Default Setting OK | ▲ | REC | MIC | MI | ∞

Press the Menu button twice
Rexing V1P Pro - Using your camera to format a memory card: - 2
Press the OK button to confirm formatting the card

  1. Press the MENU button twice to enter the Setup Menu.

  2. Use the REC and MIC buttons to navigate to the "Format" option.

  3. Press OK to confirm your selection.

  4. You will be notified that all data will be deleted. Scroll down to "OK" and press the OK button to confirm.

  5. If you followed the instructions above, you should see a blue box asking you to please wait while the card is being formatted. Formatting should only take a moment, and you will be taken back to the Setup Menu once formatting is complete.

  6. At this point, discount from the power source. The camera will shut down automatically after 3 seconds. The next time the camera is connected to power, the camera should start up and begin recording automatically.

Step 4: Mount the rear camera

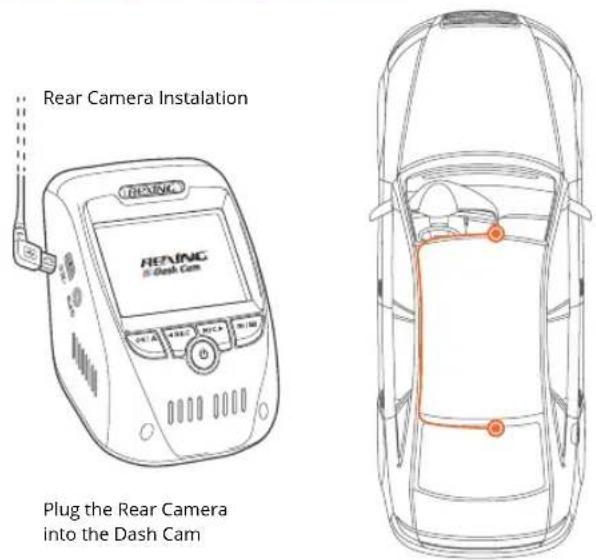

Rear Camera Installation READING 5-Dash Cam Plug the Rear Camera into the Dash Cam

Mount the rear camera as shown above. Use the provided rear camera cable to connect the rear camera to the front camera.

Step 5: Connect the car charger to the car's 12V DC outlet

Run the cable down from your camera to the 12V cigarette lighter port of your vehicle. Be sure to connect only Rexing-approved chargers designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.

Step 6: Turning the Device On and Off

Press and hold the Power button for a few seconds to turn on the device. A welcome message will be displayed onscreen.

To turn off the device, again press and hold the Power button for a few seconds. A goodbye message will be displayed onscreen.

The V1P Pro will switch on and off automatically if you keep it connected using the car charger. The camera will automatically start recording when powered on. After power is disconnected, the device will shut down after 3 seconds.

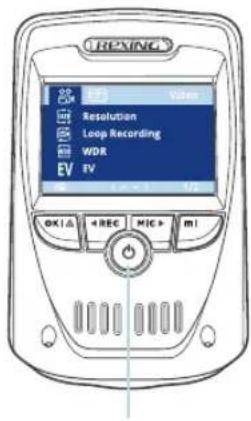

VEXING Resolution Loop Recording WDR EV OK/Δ < REC MIC > m

Press and hold the Power button to turn the device on manually

Note: If your car cigarette lighter provides constant power, the unit may not turn on and off automatically with the car.

4. Basic Operation

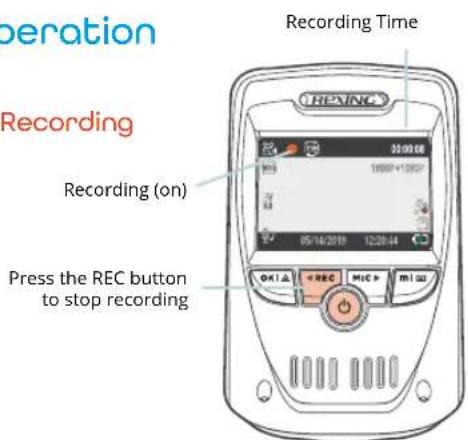

4.1 Automatic Recording

Operation Recording Recording (on) Press the REC button to stop recording Recording Time HEATING 00:00:00 16887+10937 05/14/2018 12:28:44 OK | A | < REC | MIC | m | u

The device will automatically turn on and begin recording once it receives power, such as when you start your car. The indicator and the red dot icon on screen will flash while recording.

Display Control

To switch between camera views on the LCD display, hold the MIC button. Press the POWER button will turn on or off the LCD screen. Your display settings won't affect the way recordings are captured.

On the rear camera, you can toggle the built-in switch to horizontally flip the rear camera image.

Locking Videos

While recording, you can press the OK button to manually lock

the current video clip. This will ensure that Loop Recording won't overwrite the clip when the memory card is full. You can also lock videos after recording by using the Protect function in the Playback Menu. Locked videos can be found on the memory card under "\CARDV\MOVIE\RO".

Automatic Shutdown

Once power is disconnected, the dash cam will shut down within 3 seconds.

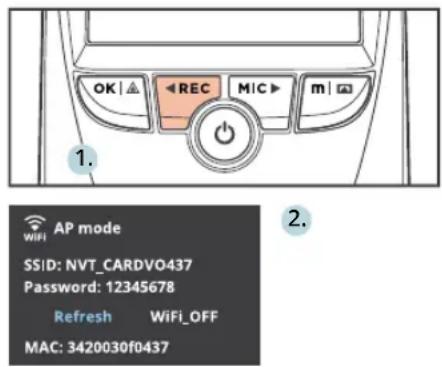

Using Wi-Fi

In Video Recording Mode, while recording is stopped, hold the REC button to enable Wi-Fi. For detailed instructions on how to use Wi-Fi, see page 29 – Wi-Fi Connect.

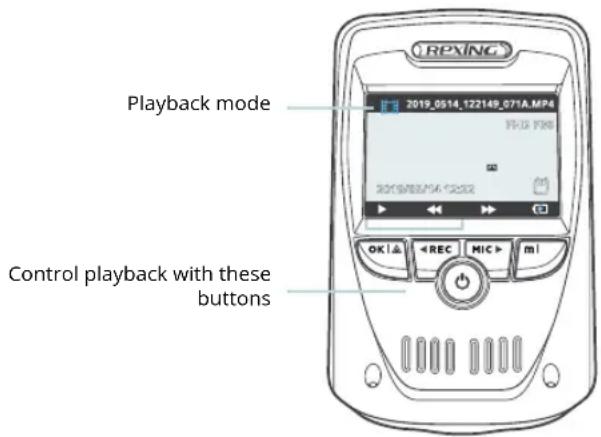

4.2 Playback

RPXING Playback mode 2019_0514.122149.071A.MP4 2019/03/16 1:222 Control playback with these buttons

Video recordings from the front and back cameras will be stored in chronological order on the memory card for easy navigation and playback.

4.2.1 Camera Playback Mode

To play recordings on your device:

  1. Switch to Playback Mode by holding the MENU button.
  2. Use the REC and MIC buttons to browse your videos.
  3. Press OK to play a selected recording.
  4. During playback, press OK to stop playback.
  5. FAST FORWARD: During playback, press the MIC button one or more times to increase playback speed (2X / 4X / 8X).
  6. FAST REWIND: During playback, press the REC button one or more times to decrease or reverse playback speed (-2X / -4X / -8X).

To delete a selected recording:

  1. In Playback Mode, use the REC and MIC buttons to browse your videos.
  2. Once you find the recording you want to delete, press MENU to view options.
  3. Press the MIC button to scroll down to "Delete".
  4. Press OK once to view options to "Delete Current" recording or "Delete All" recordings.
  5. With "Delete Current" selected, press OK.
  6. When prompted with "Erase This?" press the MIC button to scroll down to "OK" and press OK to delete the selected recording.

To delete all recordings:

  1. In Playback Mode, press MENU to view the Playback Menu.
  2. Press the MIC button to scroll down to "Delete".

  3. Press OK once to view options to "Delete Current" recording or "Delete All" recordings.

  4. With "Delete All" selected, press OK.
  5. When prompted with "Erase All Images?" press the MIC button to scroll down to "OK" and press OK to delete all recordings.

4.2.2 Computer Playback

Recommended Media Players: QuickTime Media Player / VLC / Windows Media Player

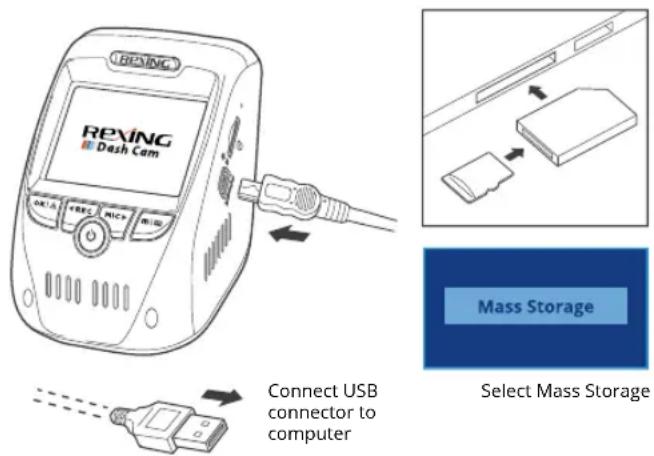

Using an SD card adapter

Insert your Micro SD card into an SD card adapter, then insert the SD card adapter into your computer or card reader to access your card storage. Your videos will be stored under "\CARDV\MOVIE".

RPXING Dash Cam Connect USB connector to computer Mass Storage Select Mass Storage

Using a USB cable

Connect your camera to your computer using the provided USB cable and select "Mass Storage" to access your card storage. Your videos will be stored under "\CARDV\MOVIE".

Locked files

Locked videos can be found on the memory card under "\CARDV\MOVIE\RO".

4.2.3 GPS Playback

You can play back your recordings in a specialized application that allows you to view speed and location information alongside your footage.

Minimum System Requirements

Operating System: Windows 7, 8, or 10, MAC OS X Display Resolution: 1280x720

Installing the application:

  1. Locate your dash cam at support.rexingusa.com to access the GPS Playback software.
  2. Download the zip folder containing the software installer.
  3. Unzip the folder to access the installer file contained within.
  4. Open the installer and follow the instructions to install the GPS Playback software to your computer.
  5. Once installed, you may launch the application.

Opening a GPS video file:

  1. Once you've opened the application, navigate to the top

menu bar and click File > Open to browse through your files.

  1. Navigate to the video file you want to add to the playback queue, select it and click "Open" to load it into the application. You may also select multiple videos at once.
  2. After a brief loading period, the (first) video should begin playing automatically, displaying speed and location information in real time along the right-side panels.

Playback

Beneath the video is a playback bar with a handle that you can drag to skip ahead to any time point in the video. Beneath that, there's a volume control slider, as well as previous, rewind, pause/play, fast forward, next, and stop buttons.

Additional Controls

Snip: Save the current frame of video as an image (PNG).

Full Screen: View the video in full screen (double-click the video to exit).

Settings

In the settings menu, you may change your language from English to Chinese, Japanese, or Vietnamese. You may also change your unit of speed measurement from MPH to KM/H. Additionally, you have the option to change the map application used from Google Maps to Baidu Maps.

4.3 Wi-Fi Connect

Use your mobile device to download the "Rexing Connect" app from the App Store or Google Play.

OK | ▲ REC MIC ▶ m | 1. 2. WiFi AP mode SSID: NVT_CARDVO437 Password: 12345678 Refresh WiFi_OFF MAC: 3420030f0437

Wi-Fi Connect Connect 3.

After you've done this, follow the instructions below:

  1. Dash cam: In Video Recording Mode, access the Wi-Fi function by holding REC (this can also be done by enabling the Wi-Fi feature in the Setup Menu).
  2. Mobile device: Navigate to your device's Wi-Fi settings and connect to the Wi-Fi name that's shown on the dash cam after "SSID:". When prompted for a password, enter the password shown on the dash cam after "PWA2:".
  3. Mobile device: Once connected to the dash cam Wi-Fi, open the Rexing Connect app. From there, press the "Connect" button to connect to the dash cam interface.
  4. Dash cam: Once connected, the screen should switch to the camera view and display a "Wi-Fi Connect" message.

Using the Rexing Connect app, you can view a live preview of the dash cam screen, start / stop recording, as well as view and save

your captures with your mobile device.

To exit Wi-Fi, hold the REC button to return to Video Recording Mode.

For further instruction regarding the Wi-Fi Connect feature, please visit www.rexingusa.com/wifi-connect/.

5. Mode setup

Video Mode Settings

These settings affect your video recordings. In Video Recording Mode, press REC to stop recording, then press MENU once to open the Video Menu.

Resolution

Default setting: FHD P30 + FHD P30 (1080p 30fps front and rear)

Set the video recording resolution.

HD 720P P60 HD 720P P30 FHD P30+FHD P30 HD P30+HD P30

Approximate recording time (dual-channel)

Memory Card SizeFHD P30 + FHD P30 ResolutionHD P30 + HD P30 Resolution
16GB 1.75 hours2.5 hours
32GB 3.5 hours5 hours
64GB 7 hours10 hours
128GB 14 hours 20 hours
256GB 28 hours 40 hours

Note: Choosing a single-channel resolution such as UHD, QHD, etc. will disable recording with the rear camera.

Loop Recording

Default setting: 1 Minute

Off 1 Minutes 3 Minutes

Video will be continually recorded in segments. When the storage limit is reached on the memory card, new recordings will automatically overwrite the oldest recordings. Locked video files on the memory card will remain protected and won't be overwritten by Loop Recording.

Note: Turning Loop Recording off will require you to manually clear recordings from your memory card whenever storage is full. We highly recommend keeping Loop Recording enabled.

WDR (Wide Dynamic Range)

Default setting: On

The camera automatically adjusts exposure settings to provide balanced lighting and clear video.

Off On

Exposure

Default setting: +0.0

Manually adjust the camera's exposure value to brighten or darken recordings. Positive values brighten recordings while negative values darken them.

Record Audio

Default setting: On

Allows you to enable or disable audio recording with your videos.

You may choose to record audio with video or turn off the microphone so all recorded videos will be muted.

Note: You can also use the MIC button to toggle auto recording.

Date Stamp

Default setting: On

Stamp the date and time to the bottom of your videos. Note that the date and time stamp cannot be removed from videos if this feature was enabled at the time of recording.

+2/3 +1/3 +0.0 -1/3

Off On

Off On

Gravity Sensing

Default setting: Low

Off Low sensitivity Medium Sensitivity High sensitivity

If a change in gravitational forces is detected, such as the event of a vehicular accident, the G-sensor will signal to the camera, and an automatic file lock will be placed on the current video, preserving your most crucial footage. Locked videos can be found on the memory card under "\CARDV \MOVIE\RO".

Note: Locked video files won't be erased by Loop Recording, they will remain on the memory card until they are manually deleted or when the card is formatted.

Plate Number

Default setting: Off

Enter your vehicle plate number. The plate number will be displayed at the bottom of your videos.

To enter your license plate number:

  • REC / MIC - Change current value
  • OK - Move to next value
  • MENU - Confirm setting

Off On

System Settings

Press MENU twice to open the Setup Menu (in Video Recording Mode, you must first stop recording which is done by pressing REC).

Wi-Fi

Default setting: Off

Turn this feature on to temporarily enable Wi-Fi mode (See Page 29).

Date/Time

Set the time and date on your device.

To enter the date/time:

  • REC / MIC - Change current value
  • OK - Move to next value
  • MENU - Confirm setting

Auto Power Off

Default setting: Off

When enabled, this feature allows the device to shut down after a period of time in which the camera isn't recording.

01 / 01 / 20XX 02 : 30 : 00 MM/DD/YY

Off 1 Minutes 2 Minutes 3 Minutes

Device Sound

Default setting: On

Enable or disable the device's sound effects.

Language

Default setting: English

Set your preferred device language.

Frequency

Default setting: 60Hz

Power supply specification used in your country or geographical region. United States users should use 60Hz (default).

Screen Saver

Default setting: Off

Specifies the duration for which the display will stay on after the device is powered on. Having this setting disabled (default) will keep the display on constantly. You can press any button to wake the device from screen saver mode.

Off On

English Français Español Português

50 Hz 60Hz

Off 15 Seconds 1 Minute 3 Minutes

Daylight Savings

Default setting: Off

When enabled, time is advanced forward by 1 hour to match daylight savings time.

GPS Speed Unit

Default setting: mi/h

Display speed information at the bottom of your recordings.

Set Time Zone

Default setting: Off

Updates the time automatically with your time zone.

Format

Performing this operation will format the memory card, clearing it of all files.

Note: Locked videos will also be cleared, so ensure you have backed up your important footage before formatting the card.

Off On

Off km/h mi/h

Off GMT-12:00 Eniwetok Island GMT-11:00 Midway Islands GMT-10:00 Hawaii

All data will be deleted Cancel OK

Default Setting

Performing this operation will reset all settings to their default values.

Version

Displays the current device firmware information.

Photo Settings

These settings affect your still photo captures. Hold MENU button 3 seconds to enter the Photo Mode. In Photo Mode, Press MENU once to open the Still Menu.

Capture Mode

Default setting: Single

Sets a timer that counts down before capturing images.

Resolution

Default setting: 5M

Set the pixel resolution for captured images. Higher resolution images are more detailed but take up more space on the memory card.

Return menu setting to defaults Cancel OK

B50.655.S323.181121HC.07

Single 2S Timer 5S Timer 10s Timer

12M 4032x3024 10M 3648x2736 8M 3264x2448 5M 2592x1944

Quality

Default setting: Fine

Set the quality level of captured images. Lower quality images will take up less space on the memory card, but they are more visually compressed than higher quality images.

Sharpness

Default setting: Normal

Automatically enhance images for a clearer, more distinct picture.

White Balance

Default setting: Auto

Adjust the white balance for different lighting environments. When set to Auto, the camera will automatically determine the appropriate white balance for each shot.

Color

Default setting: Normal

Overlay a color effect for captured images. When set to Normal, no overlay is applied.

Fine Normal Economy

Strong Normal Soft

Auto Daylight Cloudy Tungsten

Color Black & White Sepia

ISO

Default setting: Auto

Adjust the camera's sensitivity to light when taking photos. The higher the ISO, the better the camera operates in low light, although images are produced with more noise (grainy-looking).

Exposure

Default setting: +0.0

Adjust the camera exposure value to manually brighten or darken your images.

Anti-Shaking

Default setting: On

When enabled, the camera will automatically reduce the amount of blurriness resulting from quick or "shaky" movement.

Quick Review

Default setting: Off

Upon capturing an image, the image will be previewed on the display for a few seconds

Auto 100 200 400

+2/3 +1/3 +0.0 -1/3

Off On

Off 2 Seconds 5 Seconds

before returning to Photo Mode.

Date Stamp

Default setting: Date/Time

Apply a date and/or time stamp to captured images (works similarly to the Date Stamp function in the Video Menu).

Off Date Date/Time

6. Troubleshooting

Updating Firmware

Please note that we only recommend updating your firmware if you experience issues with your camera.

Installing incorrect firmware can damage your device. Identify the correct firmware for your camera by following the prompts on the rexingusa.com firmware portal.

Rexing V1P Pro - Updating Firmware - 1
Watch out video tutorial on https://youtu.be/0hRcKo0Bmko

To update your camera's firmware:

  1. Format the memory card using the Format function (See Page 16).

  2. Take note of your firmware version number (See Page 33 – Version).

  3. On a computer, visit the firmware section of rexingusa.com and follow the prompts to locate the correct firmware for your camera.

  4. Download the firmware zip file to your computer.

  5. Unzip the file.

  6. Move the resulting file (.bin) to the root of your memory card.

  7. Safely eject the card from computer, then insert into your unpowered camera.

  8. Turn the camera on by connecting to a power source.

  9. The camera will update automatically. The screen will stay off but the status light will stay on for up to 1 minute while the firmware updates.

  10. Important! After updating, format the memory card once more. Failure to do this will result in the camera attempting to update the firmware every time it's powered on.

  11. After formatting, hold the Power button to reboot the camera. Do not disconnect the camera from the power source.

  12. Upon reboot, you may disconnect your camera from power.

7. Product Specifications

Image Sensor Front - OV4689, Rear - OV2719
Lens Fixed-focus with full-glass elements
Aperture f1.8
CPU Class Novatek
Display 2.4 inch, 4:3 TFT LCD
Audio I/O Internal high-sensitivity mic and speaker
Memory Support Class 10 or hgher Micro SD card (up to 256GB)
Gravity Sensor Low / Medium /High / Off
White Balance Auto
Exposure Auto ISO
Battery Type Supercapacitor
Video Format h.264 (.MOV)
Video Resolution - Single 2160p24f, 1440p30f, 1080p60f, 1080p30f, 720p60f, 720p30f
Video Resolution - Dual 1080p30f+1080p30f, 720p30f+720p30f
Language English, Chinese, French, Spanish, Portuguese, German, Italian, Russian, Japanese
Loop Recording 1 min / 3 min /Off
Screen Saver 1 min / 3 min / Off
Audio Recording On / Off
GPS LoggerBuilt-in

8. Warranty & Support

Warranty

The Rexing V1P Pro Dash Cam comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.

Support

If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at (203) 800-4466. Queries are typically answered within 12-24 hours.

Your opinion matters

Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.

Connect with us today at care@rexingusa.com

Thank you for choosing Rexing!

FCC ID: 2AW5W-V1PPRO

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

REXING®

Rexing V1P Pro - FCC ID: 2AW5W-V1PPRO - 1

Rexing V1P Pro - FCC ID: 2AW5W-V1PPRO - 2

Rexing V1P Pro - FCC ID: 2AW5W-V1PPRO - 3

Rexing V1P Pro - FCC ID: 2AW5W-V1PPRO - 4

Rexing V1P Pro - FCC ID: 2AW5W-V1PPRO - 5

MADE IN CHINA

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Rexing

Model : V1P Pro

Category : Dash cam
