Enforcer EV-Y2201-AMWQ - Security Camera Seco-Larm - Free user manual and instructions

Product Type	Security Camera (Rollerball)
Brand	Seco-Larm
Model	EV-Y2201-AMWQ
Lens	2.8~12mm Varifocal
Resolution	1080p (1920x1080)
Video Formats	TVI (Default), CVI, AHD, Analog (CVBS)
IR LEDs	36
IR Range	Up to 100 ft (30m)
Minimum Illumination	0 Lux (IR On); Color 0.1 Lux, B/W 0.01 Lux (IR Off)
Day/Night	ICR Module
Wide Dynamic Range	DWDR (Digital Wide Dynamic Range)
Noise Reduction	3D-NR (3D Digital Noise Reduction)
OSD Control	Joystick OSD control
Power Supply	12VDC
Current Draw (IR On)	260mA
Current Draw (IR Off)	80mA
IP Rating	IP65
Operating Temperature	-4° to 131°F (-20° to 55°C)
Dimensions	4 3/4" x 3 3/4" (120 x 95 mm)
Weight	1 lb 10.1 oz (740 g)
Housing Color	White
Construction	Heavy-duty vandal-resistant, weatherproof
Cable Management	Concealed in bracket, split-glass design
Included Accessories	Screws, anchors, DC plug, hex wrench, rubber plugs, screwdriver, manual
Warranty	3 years

Frequently Asked Questions - Enforcer EV-Y2201-AMWQ Seco-Larm

How to install the EV-Y2201-AMWQ camera?

Run 12VDC power and video cable to the mounting location. Loosen set screws and remove case from base. Mount base with included screws. Connect BNC and power connectors. Place case over ball, adjust direction, tighten. Use OSD joystick to adjust settings.

How to change the video format (TVI/CVI/AHD/Analog)?

Use the OSD controller joystick: press and hold in the desired direction for 5 seconds until camera restarts. Up=CVI, Down=TVI, Left=CVBS, Right=AHD.

What power supply does the camera need?

The camera requires 12VDC power supply. Current draw is 260mA with IR on, 80mA with IR off. Ensure polarity is correct.

How to adjust zoom and focus?

On the EV-Y2201-AMWQ, use the included small screwdriver to adjust through the holes marked 'ZOOM' and 'FOCUS' on top of the camera ball. After adjustment, insert the rubber plugs to prevent tampering.

What is the IR range and how many IR LEDs?

The camera has 36 IR LEDs with an effective range up to 100 ft (30m). Split-glass design eliminates IR reflection.

Is the camera weatherproof?

Yes, the camera has an IP65 rating, making it weatherproof and suitable for outdoor use in temperatures from -4° to 131°F (-20° to 55°C).

Why is my screen black?

Check that the camera is powered, polarity is correct, monitor is on, and video cable is properly connected.

Why won't the IR LEDs turn on?

Ensure the correct 12VDC power supply is used. If using a lower voltage, the LEDs may not activate.

Can I mount the camera on a ceiling or wall bracket?

Yes, optional mounting brackets are available: Wall Mount EV-DWLWQ and Ceiling Mount EV-DCLWQ. White and gray versions are available.

What is the warranty period?

SECO-LARM offers a 3-year warranty from the date of sale to the original customer, covering defects in material and workmanship.

USER MANUAL Enforcer EV-Y2201-AMWQ Seco-Larm

Close-up of a white ENFORCER security camera with red LED array and black lens (no visible text or symbols on body)

EV-Y2201-AMWQ shown

Model #	Lens	Resolution	Voltage	Style	Color
EV-Y2201-A2WQ	2.8mm	1080p	12VDC	Rollerball	White
EV-Y2201-A2GQ	2.8mm	1080p	12VDC	Rollerball	Gray
EV-Y2201-AMWQ	2.8~12mm	1080p	12VDC	Rollerball	White
EV-Y2201-AMGQ	2.8~12mm	1080p	12VDC	Rollerball	Gray

Features:

• 1080p Resolution
• ICR Module
  • 3D-NR (3D Digital Noise Reduction)
  • DWDR (Digital Wide Dynamic Range)
• Joystick OSD control

• Heavy-duty vandal-resistant design
• Rugged, weatherproof (IP65) construction
- Split-glass design eliminates IR reflection
- Cables concealed in bracket to prevent tampering

Specifications:

Model		EV-Y2201-A2WQ	EV-Y2201-A2GQ	EV-Y2201-AMWQ	EV-Y2201-AMGQ
Housing color		White	Gray	White	Gray
Type		Fixed Rollerball Camera		Varifocal Rollerball Camera
Formats		TVI (Default) / CVI / AHD / Analog
CMOS		1/2.9" 2MP Sony CMOS
Resolution (HD)		1920x1080
TV Lines (Analog)		1200TVL
3D-NR		Yes
2D-NR		Yes
DWDR		Yes
OSD (On-Screen Display)		Yes
Cable OSD control		Yes
Video output		1.0Vp-p complex video output
Megapixels		2MP
Lens		2.8mm ICR		2.8~12mm ICR
Viewing Angle		90^		30^ 90^
# of IR LEDs		24		36
IR Range		Up to 50ft (15m)		Up to 100ft (30m)
FPS		30FPS
F Stop		F1.4		F1.4 - F1.6
Minimum illumination	(IR On)	0Lux
	(IR Off)	Color: 0.1Lux/F1.4, B/W: 0.01Lux/F1.4
Gamma correction		0-1
S/N Ratio		50dB
DSS (Digital Slow Shutter)		Yes
Shutter control		Yes
Gain control		Yes
White balance		Auto, Day & Night
Operating voltage		12VDC
Current Draw	(IR On)	150mA		260mA
	(IR Off)	80mA		80mA
IP Rating		IP65
Operating temperature		-4^ 131^ F (-20°~55°C)
Dimensions		3^11/_16"x2^15/_16" (93x75 mm)		4^3/_4"x3^3/_4" (120x95 mm)
Weight		13.1-oz (370g)		1-lb, 10.1-oz (740g)

Parts List:

1x Rollerball camera

4x Screws

4x Screw anchors

1x DC plug with terminal block

1x Hex wrench

2x Rubber plugs*

1x Small screwdriver*

1x Manual

*EV-Y2201-AMxQ only

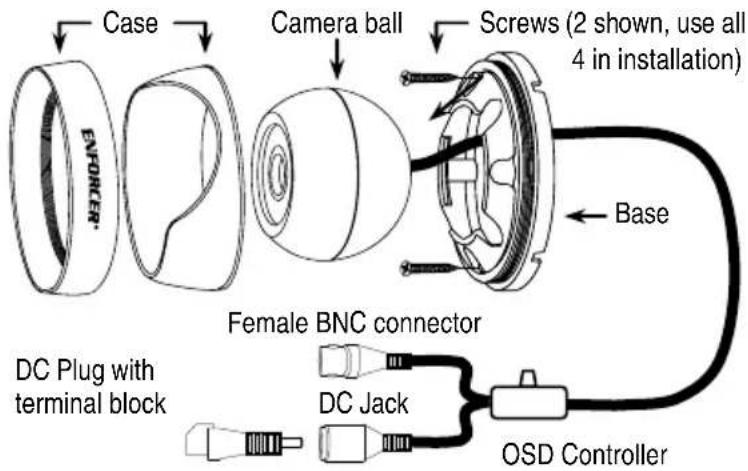

Overview:

EV-Y2201-A2xQ:

EV-Y2201-AMxQ:

Overview:

EV-Y2201-A2xQ shown above.

OSD Controller Settings:

To set format via the OSD controller, press the controller in the direction of the desired setting, hold for 5 seconds, and release when the camera restarts.

See chart below.

Direction	Format Setting
Up	CVI
Down	TVI
Left	CVBS
Right	AHD

Important: Do not cut any wires as the warranty will be voided.

Optional Mounting Brackets:

Wall Mount EV-DWLWQ

Ceiling Mount EV-DCLWQ

White models shown, gray mounting brackets also available.

Before Starting:

1. Use the camera within the given temperature and voltage limits.

2. Do not point the camera at the sun. Heat could damage the camera, even when not in use.

3. Do not subject the camera to strong vibrations.

4. Do not mount the camera in areas exposed to radiation, strong magnetic fields, or strong electrical signals.

Installation:

1. Run a 12VDC power supply wire and a video cable with a male BNC connector through the wall to where the camera is to be mounted.

2. Loosen the set screws with the included hex wrench and remove the case from the base.
   NOTE: The camera ball is NOT attached to the case or the base. It sits loose inside the case. Therefore, be very careful when removing the case from the base. Do not drop the camera ball.

3. Mount the base to the wall using the four included mounting screws. If the wall is made of dry wall, brick, or similar material, it may be necessary to use the included screw anchors.

4. Run the camera's BNC and power connectors through the camera base, and connect to the video and power wires that were run through the wall.

5. Put the case over the camera ball and onto the base.

6. Holding the case loosely on the base, turn the camera ball to the desired direction. Use the included small screwdriver to adjust the zoom and focus of the camera ball if needed, via the holes marked "ZOOM" and "FOCUS" on the top of the camera ball (EV-Y2201-AMxQ only).
   NOTE: Before securing installation, make sure to check both the day and night images. Adjust the camera ball in a way so that there are no objects blocking the camera's view.
7. Use the OSD controller joystick to adjust camera settings (see the separate OSD manual).
8. Once the ball is pointing in the desired direction, tighten the outer case ring to secure the camera in its position.
9. Do a final test of the video camera and monitor.
10. Insert the rubber plugs over the zoom and focus holes to prevent tampering (EV-Y2201-AMxQ only).

Troubleshooting:

The screen is black	Check that the camera is powered upCheck that the power supply's polarity is correctCheck that the monitor is powered upCheck that the video cable connecting the camera to the monitor is connected properly
The image is foggy or washed out at night	Check that there are no objects very close to the cameraCheck that there are no highly reflective objects in the scene
The screen image is dim	Clean the lens using a soft, clean clothCheck that the light source is adequate
The screen image has poor contrast	Adjust the monitor's contrast knobChange the position of the camera
The screen image flickers	Change the position of the camera, check cables and format setting
The screen image is distorted	Change the position of the camera, check cables and format setting
The camera case is hot	Check that the correct power supply is in use
IR LEDs do not turn on	Check that the correct power supply is in use

WARNING: Stop using the camera if you see a malfunction such as smoke or unusual heat, as it could cause fire or electric shock. Do not open the case of this device, as there are no user-serviceable components inside. Do not cut any wires as the warranty will be voided.

IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.

FCC COMPLIANCE STATEMENT

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.

WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for three (3) years from the date of sale to the original customer. SECO-LARM's obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM and the purchaser's exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damage of any kind to the purchaser or anyone else.

NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints.

Copyright © 2016 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole c in part, without the written permission of SECO-LARM.

SECO-LARM® U.S.A., Inc.

16842 Millikan Avenue, Irvine, CA 92606

Phone: [phone] | [phone]

Website: www.seco-larm.com

Email: [e-mail]

PICSN4

MI_EV-Y2201-AxxQ_161026.docx
