PDM1529S - Measurement Sanwa - Free user manual and instructions

Product Type	Insulation Resistance Tester (Megohmmeter)
Model	PDM1529S
Brand	Sanwa
Rated Measuring Voltages	250 V / 500 V / 1000 V
Measurement Ranges (MΩ)	1000 V: 0-2000 MΩ; 500 V: 0-100 MΩ; 250 V: 0-100 MΩ
AC Voltage Range	0–600 V (50/60 Hz)
DC Voltage Range	0–60 V
Battery Check Range	DC 60 V scale (load test under load)
Dimensions (H x W x D)	144 mm x 99 mm x 43 mm
Weight	Approx. 310 g
Power Supply	9 V alkaline battery (6LF22) x 1
Meter Type	Inner-pole taut-band, 46 μA
Safety Standards	IEC61010-1, IEC61010-2-033, CAT II 600 V
Maximum Overload Protection	ACV: 720 V for 10 sec; DCV: 120 V
Accuracy (MΩ, 1st effective range)	±5% of reading
Accuracy (ACV)	±3% of full scale
Accuracy (DCV)	±3% of full scale
Operating Temperature Range	0–43°C, 80% RH max
Storage Temperature Range	-10–60°C, 70% RH max
Accessories Included	Test lead TL-509S, carrying case C-005, instruction manual
Cleaning	Use dry soft cloth; avoid solvents like thinner or alcohol
Battery Life	Approx. 500 cycles (5 sec ON, 25 sec OFF)
Discharge Function	Automatic discharge after MΩ measurement via MΩ measuring switch
Warranty	1 year from date of purchase (defects in workmanship/material)

Frequently Asked Questions - PDM1529S Sanwa

What type of battery does the Sanwa PDM1529S use?

The tester uses one 9V alkaline battery, type 6LF22 (also known as 6LR61). Always use alkaline batteries for best performance.

How do I check the battery condition?

Turn the function knob to DC 60 V / BATTERY CHECK and press the MΩ measuring switch. The pointer should indicate within the BATTERY CHECK scale. Do not check for more than 5 seconds.

What is the rated measuring voltage for insulation resistance?

The PDM1529S offers three rated voltages: 250 V, 500 V, and 1000 V. Select the voltage closest to the circuit's operating voltage.

How do I measure insulation resistance?

First ensure the circuit is de-energized. Connect the black lead to EARTH and red to LINE. Select the desired MΩ range, connect clips to the object, press the MΩ switch, read the scale, then release the switch and discharge by keeping leads connected until pointer returns to infinity.

What safety precautions should I take when using this tester?

Never apply voltage above 600 V AC or 60 V DC. Always discharge capacitive objects after MΩ measurement. Use insulated gloves and follow local safety regulations. Keep fingers behind the probe barrier.

Can the PDM1529S measure AC voltage?

Yes, it can measure sinusoidal AC voltages up to 600 V (50/60 Hz). Set the function knob to AC 600 V, connect leads, and read the ACV scale.

How do I measure DC voltage?

Set the knob to DC 60 V. Connect black lead to negative and red to positive. Read the DCV scale. Maximum input is 60 V DC.

What does the discharge function do?

After measuring insulation resistance, the tester automatically discharges high voltage stored in capacitive objects. Keep the MΩ switch off but leads connected until the pointer returns to infinity (zero on MΩ scale).

How do I replace the battery?

Turn the function knob to OFF. Remove the two screws on the battery lid. Replace the 9V alkaline battery (6LF22) connected to the snap terminal. Reattach lid and screws.

What is the accuracy of the insulation resistance measurement?

In the 1st effective measurement range, accuracy is ±5% of reading. In the 2nd effective range (lower resistance), accuracy is ±10% of reading. For 0.0x scale it's ±0.7% of scale length.

USER MANUAL PDM1529S Sanwa

- For storing the instrument, avoids hot, cold or humid places or places under direct sunlight or where condensation is anticipated. (See 9.1 Storage temperature/humidity) - Be sure to remove the battery when the instrument is not to be used for a long period

[5] Description of Functions

- Function control knob and MO (insulation resistance) measuring switch by operating these two switches, the functions and ranges can be set as shown below.

Position of Function Control Keits		MV Measuring Switch (F)		Set Range ( Panama)
AC 603 V	1000 V/2000 MΩ	PDM5-5295	OFF	AC 600 V range
	500 V/100 MΩ
	250 V/100 MΩ
	125 V/100 MΩ
AC 603 V	1000 V/2000 MΩ	PDM7-5295	ON	1000 V/2000 MΩ range
	500 V/100 MΩ			600 V/100 MΩ range
	250 V/100 MΩ			250 V/100 MΩ range
	125 V/100 MΩ			125 V/100 MΩ range
DC 60 V - BATTERY CHECK		OFF		DC 60 V range
DC 60 V - BATTERY CHECK		ON		BATTERY CHECK range

*The MΩ measuring switch is turned on by the following operation.

① ON only when the right end of the

lever is pressed with a finger. (OFF when the lever is released)

(Off when the finger is released) ⑦. Continuously CN when the left

(2) Dominously ON WISH the end of the lever is raised.

(OFF when it is laid down)

Meter zero position adjustment

If the meter pointer is not on the graduation line of the MΩ scale when the function control knob is at OFF, adjust the zero position with a screwdriver.

-4-

REFERENCE

1. The rated current of this tester is 1 mA (1 mA to 1.7 mA).
2. The no-load voltage is within 1.25 times the rated measuring
   voltage.
3. While measuring there may be an oscillator noise from the meter, but this is not a malfunction.

1) Measuring object

Measurement of insulation resistance (MΩ) of electric equipment and circuits

and contracts.

2) Rated measuring voltage

Model	Rated measuring voltage
PDM1529S	250 V/500 V/1000 V
PDM5219S	125 V/250 V/500 V

3) Selection of a measuring range

When measuring insulation resistance, select a range of the voltage that is close to the voltage used by the circuit to measure, unless otherwise specified.

For example, when measuring insulation resistance of 100 V home appliances and indoor wiring, select the 125 V rated measuring voltage range and when measuring 200 V power circuits, select the 250 V rated measuring voltage range.

4) Measuring method

① Power off the measuring object.
Insert the black measuring cord to which the black alligator clip (or black pin-type adapter) is attached into the EARTH ground measuring terminal, and the red measuring cord to which the red pin-type adapter is attached into the LINE measuring terminal.
① Turn the function control knob to a desired rated measuring voltage range.
④ Connect the black aligator clip to the object measured. Usually connect the EARTH (ground) measuring terminal to the grounding side.

- 日 -

② Turn the function control knob to DC 60 V / BATTERY CHECK.
③ Connect the black alligator clip to the - side of the object (circuit)
measured, and connect the tip of the red pin-type adapter to the + side.
④ Head the indicated value on the DCV scale. ⑤ First remove the red test pin from the project
(2) First have, first last pin from the top, flattened, and then disconnect the black alligator clip from it.

④ Turn the function control knob to the position of OFF.

[7] Battery Replacement

① Remove two battery lid

scouring screws.

④ Replace the consumed

battery that is connected to

the snap terminal with a new

one.

① Set the battery in the original

place and secure the battery

is with screws. ▲ Be cure to

1. So sure to turn the function contronally to the position of CHe order to replacing the battery.
   (1) 招商公司介绍的公司

Be sure to use the alkaline battery 6L RE1 (6L F22) x1[9 V]

[8] After-Sales Service

8.1 Warranty and Provision

Samwa offers comprehensive warranty services to its end-users and to

its product resellers. Under Sarwa's general warranty policy, each instrument is warranted to be free from defects in workmanship of

Material under normal use for the period of one (1) year from the date of purchase.

This warranty policy is valid within the country of purchase only, and applied only to the product purchased from Sanwa authorized agent or distributor.

Sanva reserves the right to inspect all warranty claims to determine the extent to which the warranty policy shall apply. This warranty shall not apply to test leads, disposables batteries, or any product or parts, which have been linked to one of the following services:

which have been subject to one of the following causes: 1. A failure due to improper handling or use that deviates from the instruction manual.

-12

[1] Read First: Safety Information

We thank you for your purchasing our product, the battery-driven insulation resistance tester.

This is a OC resistance tester developed under the principle to provide new and unique design and function for the measurement of insulation resistance of each kind of electric equipments. Since this tester generates high voltage, we recommend that you read this instruction manual thoroughly, and treat the tester correctly and safely.

The symbols used on this tester and in this instruction manual denote the following meanings:

Be careful as the high voltage is impressed.

A. Be careful because there is a possibility of bodily injury or the destruction of equipment.

WARNING

To ensure that the meter is used safely, follow all safety and operating instructions.

1. Never use tester for high power or high voltage circuit.

2. Pay special attention when measuring the voltage of AC 35 Vrms (107V/4) to 88.75Vrms, which is a standard electrical circuit.

[46.7 V Peak of OC 70] V or more to avoid injury.

1. Disconnect power source of the measuring insulation resistance

2. High voltage is generated while measuring insulation resistance.

Be cautions of electric shock.

1. After measuring insulation to avoid electric shock. Be sure to

discharge the high voltage charged

1. Never apply an input signal exceeding the maximum rating input value.

2. Never use ticker for measuring the line connected with equipment (i.e., motors) that generates induced or sure

since it may exceed the maximum allowable voltage.

1. Never use tester if the tester or test leads are damaged or broken

2. Never use uncased tester

3. Always keep your fingers behind the Barriers on the probe when making measurements.

4. Be sure to disconnect the test pin from the circuit when changing the function.

5. Never use tester with wet hands or in a damp environment.

-1-

How To Use Carrying Case

During measurement, set the case as illustrated and hang it from the neck.

- Lid turns in

precision at plot the A.
Lay is along the bottom of the box and secure it
my books marked by*

[6] Measuring Method

6.1 Start-up Check

△ WARNING

1. Do not use a damaged tester or test lead.

2. Make sure test head wiring is not broken.

3. When testing the continuity of a test lead, the measuring terminals are under a high voltage. Be careful of electric shock.

4. To prevent electric shock and battery consumption, be sure to

turn the MO measuring switch and function control knob to OFF after measurement.

-5-

⑤ Connect the 1p of the red pin-type adapter to the other side of the object measured.

△CAUTION: If the meter deflects in the state, the measuring

object is charged. Be sure to remove the voltage

prior to measure

(See 15) Description of Functional

⑦ Read the indicated value. Use the appropriate scale according to

the position of the turn (See the following line).

⑧ Turn off the MO measuring

switch.

⑤ Discharge the high voltage

charged in the measuring object.

19 First remove the red test pin from the object measured, and then disconnect the block alligator clip.

⑪ Be sure to turn the function control knob to the position of OFF

(POM5219S is a scale common to all ranges.)

2

1. A failure due to inadequate repair or modification by people other than Sarnes service personnel.

2. A failure due to causes not attributable to this product such as fire, flood and other natural disasters

3. Non-operation due to a discharged battery

4. A failure or damage due to transportation, relocation or dropping after the purchase.

8.2 Repair

Customers are asked to provide the following information when

1. Customer name, address, and contact information

2. Description of problem

3. Description of product configuration

4. Model Number

5. Product Serial A

6. Proof of Date of Purch

7. Where you purchased the product

1) Prior to requesting repair, please check the following:

Capacity of the battery, polarity of installation and discontinuity of the test leads.

2) Repair during the warranty period

The failed meter will be repaired in accordance with the conditions stipulated in 8-1 Warranty and Provision.

3) Repair after the warranty period has expired;

In some cases, repair and transportation cost may become higher than the price of the product. Please contact Sanwa authorized agent / service provider in advance.

The minimum retention period of service functional parts is 6 years after the discontinuation of manufacture. This retention period is the repair warranty period. Please note, however, if such functional parts become unavailable for reasons of discontinuation of manufacture, etc., the retention period may become shorter accordingly.

4) Precautions when sending the product to be repaired

To ensure the safety of the product during transportation, place the product in a box that is larger than the product 5 times or more in volume and fill cushion materials fully and then clearly mark "Repair Product Enclosed" on the box surface. The cost of sending and returning the product shall be borne by the customer.

8.3 SANWA web site

http://www.sanwa-meter.co.jp

E-mail [e-mail]

-19-

1. Use test leads matching the measurement category or the object
   Measured. If the measurement categories of the instrument, and set leads were different, the lowest measurement category would be applied.
2. When handling equipment containing a hazardous wire part, be sure to wear insulative protection gear to prevent accidents. Also
   be sure to observe your local and national safety regulations.
3. Do not attempt any alterations of original specifications.
4. To ensure safety and maintain accuracy, calibrate and check the
   feater at least once a year
5. Indoor use.
6. Do not use the instrument in a place where corneve or explosive
   gas is produced. 19. To present the protection function of the laser from laser
   To prevent the protection failure of the water from being spoiled, do not use it in a method other than specified.

CAUTION

Remove components such as semi-conductors and apparatuses from the circuit of measuring object to avoid damages when withstand of the object is unknown or lower than rated measuring voltage of a resistance insulation tester, especially in case of the objects you measure connected with PCs or computers.

Maximum Overload Protection Input

Function (Range)	Maximu rating input value	Maximum overload protection input
ACV (600)	AC 600 V	AC 720 V
DCV (60)	DC 60 V	DC 120 V

[2] Applications and Features

2.1 Applications

• DC insulation resistance tester to measure the insulation resistance of electric lines and electric equipment.

2.2 Features

* This tester has the minimum number of scale graduations and

- employs a three-range system for easy viewing and readability. - The measured voltage is maintained until the low insulation resistance value at the rated current specified in IEC61557-2.

-2-

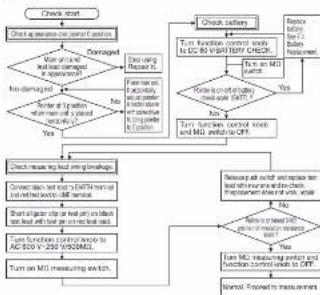

Before starting measurement, check the "appearance", "pointer 0 position" (1), "battery" and "measuring lead" in this order. ("The pointer 0 position is the 0 position of the DC 60 V scale or re position of the MO scales.")

6.2 How to Check the Battery (BATTERY CHECK)

Prior to MO (insulation resistance) measurement, be sure to check the battery. A consumed battery will cause not only measurement errors but danger due to erroneous measurement.

Do not check the battery for more than 5 seconds.

-6-

6.4 Discharge Function

1) Reason of a need to discharge

For safety, high voltage remaining in capacitive measuring objects such as capacitors and electric wire must be discharged to prevent accidents.

2) Discharging method

This procedure follows the step ④ of 6.3-4
① When the MO measurement has been completed, turn off only the MO measuring switch with the test pin and the alligator clip connected to the measuring object.
② Then the pointer deflects to the right and its deflection becomes smaller as time passes (indicating the charged charge is being discharged).
③ When the pointer stops at zero ( of the MO scale) and discharge has been completed, conduct the steps ① and ② of 8.3-4

6.5 Measurement of ACV (AC voltage) (Measuring range is the AC 600 V range only).

⚠ WARNING

1. Do not apply a voltage exceeding the maximum rated voltage of 800 VAC.
2. During measurement, do not operate the function control knob.
3. Do not measure a voltage with the MO measuring switch being pressed or raised.
4. When the circuit to measure has a breaker, measure the voltage on the secondary side (load side).
5. To prevent electric shock, do not touch the metal part of the pin plug and clip.

1) Measuring object

Sinusoidal AC voltages (ACV) such as lighting line voltages can be measured. 2) Measuring method

① Insert the black measuring cord to which the black alligator clip (or black pin-type adapter) is attached into the EARTH (ground) measuring terminal, and the red measuring cord to which the red pin-type adapter is attached into the LINE measuring terminal.

-10-

(9) Specifications

9.1 General Specifications

AC rectifying method: Half-wave rectification

(Mean value indication rms value converted) Meter specification : Inner-pole type taut-band system, 46 μA Battery consumption : Checked by BATTERY CHECK range. Allowable temperature humidity range

23±5℃, 75% RH max., no condensation. Senior temperature daily: 0-43℃, 80% RH max., no condensation. Storage temperature: 10-60℃, 70% RH max., no condensation. Service ambient condition: Altitude 2000 m max., environmental pollution Power supply: Layer built type alkaline battery (LRF) (LRF2) x1 (x2) Factory pre-installed battery

A battery for monitoring is preinstalled before shipping, therefore it may run down sooner than the battery life specified in the instruction manual. The "battery for monitoring" is a battery to inspect the functions and specifications of the product.

Max. power consumption: Approx 2.8 W (at 1000 V/2000 MO range) Battery life: When the lower limit measurement resistance value that can maintain the rated output voltage is measured and if one cycle for the measurement is defined as ON for 5 seconds and OFF for 25 seconds, the battery life is 500 cycles. Degree of IP: IP20 BIC Device, Ro-6 Device: IEC61326 (EMC), EN5081 (RoHS) Safety: IEC61010-1, IEC61010-2-03C CAT, II 600 V IC61010-2-033, IEC61010-C31

+ Measurement Category II: Line from the primary side or branch of equipment (CAT). III: which directly takes in electrolyte from a distribution board to the recapture.

Year of manufacture : The first two digits of the serial number on the bottom of this product indicate the last two digits of the year. Size and mass : 144 (H) x 99 (W) x 43 (D) mm, approx. 310 g Accessories : Test lead TL-509S, 1 set Carrying case C-005, 1 piece Instruction manual, 1 copy

-14-

[3] Front View and Name of Each Part

Test Lead (TL-509S)

[4] Cleaning and storage

CAUTION - The panel and the case are not resistant to volatile solvent and must not be cleaned with thinner or alcohol. For cleaning, use dry, soft cloth and wipe it lightly. - The panel and the case are not resistant to heat. Do not place the instrument near heat-generating devices (such as a soldering iron). - Do not store the instrument in a place where it may be subjected to vibration or from where it may fail.

-3-

6.3 Measurement of MΩ (Insulation Resistance)

WARNING

1. Never apply a voltage to the measuring terminal when the tester is in the MO measuring range.

2. Prior to measurement, disconnect the measuring object (circuit) from the power supply

3. Prior to measurement, make sure no voltage is applied to the circuit to measure by the AC 600 V range.

4. During measurement, a high voltage is generated. Do not touch the test pin, clip and measuring object.

5. The tester and measured circuit have been charged by high voltage immediately after the measurement. Be careful not to get electric shock.

6. There is a possibility of an accident of electric shock. After the measurement, be sure to discharge the high voltage charged in the measuring object. (See 6.4 Discharge Function)

△ CAUTION

When the object measured is grounded, usually connect the block EARTH (ground) test lead to the grounded side and the red LINE test lead to the circuit. (When this connection is used, a measurement value becomes smaller than a value obtained by the reverse connection.)

1. To prevent a measuring error, keep the test lead connected to the LINE side out of contact with the measuring object and ground (earth).
2. The insulation resistance varies largely depending on temperature and humidity. It is also influenced by a voltage to apply (measuring voltage). Normally as temperature, humidity and voltage increase, the insulation resistance decreases.

-7-

CAUTION

② Turn the function control knob to
AC 600 V. ① Connect the black aligator clip to the earth (grounding) side of the object measured, and connect the tip of the red pin-type adapter to the charging side of the object measured.
④ Read the indicated value on the ACV scale.
⑤ First remove the red test pin from the object measured, and then disconnect the black alligator clip from it.
⑥ Turn the function control knob to the position of OFF.

6.6 Measurement of DCV (DC voltage) (Measuring range is the DC 60 V range on)

WARNING

1. Do not apply a voltage exceeding the maximum rated voltage of 60 VDC.
2. Keep in round the warnings at 5.5 described earlier.
   1) Measuring object DC voltages of batteries, etc., can be measured. Also, the tester can be used to check the presence of DC voltage prior to MO measurement. 2) Measuring method ① Insert the black measuring cord to which the black alignator clip (or black pin-type adapter) is attached into the EARTH ground measuring terminal, and the red measuring cord to which the red pin-type adapter is attached into the LINE measuring terminal.

   -11-
   9.2 Measurement Range and Accuracy

Accuracy assurance : 23±5 °C 75 % RH max
Altitude: Horizontal ±5°. External magnetic field: Not present. Battery voltage: Within the range in which the battery power is effective.

Model	PDM15295		PDM25195
MO (residen / resistors)	Best measuring range:		Best measuring range:
	Max. rate	Max. range per unit of measurement range	Max. rate	Max. range per unit of measurement range
	-1000 V	± 0 - 2 - 1000	500 V	± 0 - 1 - 50
	2000 MC	-∞ to MO	100 MC	-∞ to MO
	500 V	± 0 - 0.1 - 50	250 V	± 0 - 0.1 - 50
	100 MC	-∞ to MO	100 MC	-∞ to MO
	250 V	± 0 - 0.1 - 50	125 V	± 0 - 0.1 - 60
	100 MC	-∞ to MO	100 MC	-∞ to MO
ACV		0~800 V
DCV		0~80 V
Accuracy	• MO range1st effective measurement range : ± 0.5% of reading2nd effective measurement range : ± 10% of reading0.0x scale ± 0.7% of scale lengthRed date voltage ± 0.6^ or nominal measuring voltageRated current : 1-1.2 mAShort circuit current max 2.0 mA
	• ACV range (50/60 Hz line wave) ± 0.5% of full scale
	• DCV range ± 0.5% of full scale
Operating instruments uncertainty	Within ±20 %Maximum value tolerated by IEC standard.Variation causing factors [E1 Attitude, E2 Supply voltage,E3 Temperature]

-15-
