Product Type	Remote Temperature Sensor
Model	CHV-RTS
Brand	Crestron
Measurement Range (Indoor)	0° to 110°F (-18° to 43°C)
Measurement Range (Outdoor)	-30° to 120°F (-35° to 49°C)
Temperature Tolerance (Full Range)	±1°F (±0.5°C)
Temperature Tolerance (At Room Temperature)	+1°F (+0.1 / -0.4°C)
Connection	10 in (254 mm) 22 AWG twisted-pair pigtail; non-polarized
Compatible Thermostats	CHV-THSTAT, CHV-TSTAT, CHV-TSTATEX, CHV-TSTATEX-FCU
Maximum Number of Sensors per Thermostat	Up to 4 (depending on firmware)
Maximum Cable Length	500 ft (152 m) via CAT5
Enclosure Material	Cylindrical plastic, drywall mountable
Dimensions (Diameter)	1.50 in (39 mm)
Dimensions (Depth)	2.22 in (57 mm)
Protrusion from Wall	1/8 in (3 mm)
Mounting Hole Diameter	1 in (25 mm)
Pigtail Wire Length	10 in (254 mm)
Regulatory Compliance	FCC Part 15 Class B, CE, ICES-3(B)/NMB-3(B)
Paintability	Primed metal cap suitable for paint or wallpaper
Indoor/Outdoor Use	Suitable for dry or damp locations (not direct precipitation)

Frequently Asked Questions - CHV-RTS Crestron

How far can the CHV-RTS be mounted from the thermostat?

Using CAT5 cable, the sensor can be mounted up to 500 feet (152 meters) from the thermostat. For CAT3 cable, the maximum is 250 feet (76 meters).

Is the CHV-RTS wiring polarized?

No, the connection is non-polarized. You can connect the two wires from the sensor to the thermostat terminals in either orientation.

Can I paint the CHV-RTS sensor to match my wall?

Yes, the sensor's metal cap is primed and can be painted or wallpapered. Ensure the small gap around the outer edge remains unobstructed.

How many CHV-RTS sensors can I connect to one thermostat?

Up to four CHV-RTS sensors can be connected to a single compatible thermostat (depending on firmware version). For older firmware (1.xx), only two are supported.

What type of wire should I use for installation?

Crestron recommends low-capacitance twisted pair wire such as CAT3 or CAT5. Ordinary thermostat wire (18-20 gauge) can be used for runs up to 100 feet (30 meters).

What should I do if the thermostat is not receiving a signal from the sensor?

Check the wiring connection between the sensor and thermostat. Ensure there are no loose connections or open circuits. Refer to the Hardware Hookup section in the manual.

Can the CHV-RTS be used outdoors?

Yes, it is suitable for outdoor use in dry or damp locations, but avoid direct sunlight and exposure to precipitation. Ensure it is not placed where rain or snow can directly hit it.

What is the measurement accuracy of the CHV-RTS?

The temperature tolerance is ±1°F (±0.5°C) over the full range, and within ±1°F (typically +0.1°F/-0.4°F) at room temperature.

Does the CHV-RTS require its own power supply?

No, the sensor is powered by the thermostat through the connection wires. No external power supply is needed.

Can I connect both a CHV-RTS and a CHV-RTHS to the same thermostat?

Yes, but each channel supports up to two CHV-RTS sensors or one CHV-RTHS. You can mix them across different channels as long as the total number per thermostat does not exceed the maximum (typically 4).

USER MANUAL CHV-RTS Crestron

Crestron CHV-RTS & CHV-RTHS

Remote Temperature & Humidity Sensors

Installation Guide

Regulatory Compliance

As of the date of manufacture, the CHV-RTS and CHV-RTHS have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, and infiNET EX are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

©2013 Crestron Electronics, Inc.

Contents

Remote Temperature & Humidity Sensors: CHV-RTS & CHV-RTHS 1

Introduction ....1

Specifications 2

Physical Description....3

Setup 4

Installation....4

Hardware Hookup 5

Problem Solving 9

Troubleshooting....9

Reference Documents....9

Further Inquiries ....10

Future Updates 10

Return and Warranty Policies....11

Merchandise Returns / Repair Service 11

Crestron Limited Warranty....11

Remote Temperature & Humidity Sensors: CHV-RTS & CHV-RTHS

Introduction

The CHV-RTS and CHV-RTHS are wall-mounted remote temperature and relative humidity sensors* designed for use with select Crestron® thermostats. Using CAT5 or similar low-capacitance wire, the remote sensor may be mounted up to 500 feet (152 meters) from the thermostat. One-piece mounting and a single non-polarized twisted-pair connection make the CHV-RTS and CHV-RTHS simple to install. The 1 1/2 inch (39 mm) diameter face of each protrudes just 1/8 inch (3 mm) from the wall surface and is easily painted or wallpapered to blend into the wall surface.

Up to four CHV-RTS sensors may be connected to a single CHV-THSTAT, CHV-TSTAT, CHV-TSTATEX, or CHV-TSTATEX-FCU thermostat (all sold separately). Up to two CHV-RTHS sensors may be connected to a single CHV-THSTAT or CHV-TSTAT thermostat (all sold separately).

NOTE: When connecting a CHV-RTS or CHV-RTHS sensor to a CHV-THSTAT or a CHV-TSTAT (models without infiNET EX ^® ), note that thermostat firmware version 1.xx supports two optional remote sensors, while thermostat firmware version 2.xx and later supports four optional remote sensor inputs, in any combination, for each thermostat.

NOTE: If the maximum number of sensors is exceeded, some of the sensors will be ignored by the system.

Specifications

Specifications for the CHV-RTS and CHV-RTHS are listed in the following table.

CHV-RTS and CHV-RTHS Specifications

SPECIFICATION DETAILS
Measurement RangeIndoor TemperatureOutdoor TemperatureHumidity*	0° to 110°F (-18° to 43°C)-30° to 120°F (-35° to 49°C)0% to 100% RH
Temperature ToleranceOver Full RangeAt Room Temperature	±1°F (±0.5°C)+1°F (+0.1 / -0.4°C)
Humidity Tolerance*	±5%
Connection 10 in (254 mm) 22	AWGtwisted-pair pigtail;Non-polarized connection to remote sensor input of CHV-TSTAT, CHV-THSTAT,CHV-TSTATEX,CHV-TSTATEX-FCU;Maximum Cable Length:500 ft (152 m) via CAT5
Enclosure Cylindrical plastic, drywall	mountable in a 1 in (25 mm)diameter round hole;Protrudes 1/8 in (3 mm) from wall surface;Primed metal cap suitable for paint or wallpaper
DimensionsDiameter 1.50 in (39 mm)Depth	2.22 in (57 mm)

* CHV-RTHS only.

Physical Description

This section provides information on the connections, controls, and indicators available on the CHV-RTS and CHV-RTHS.

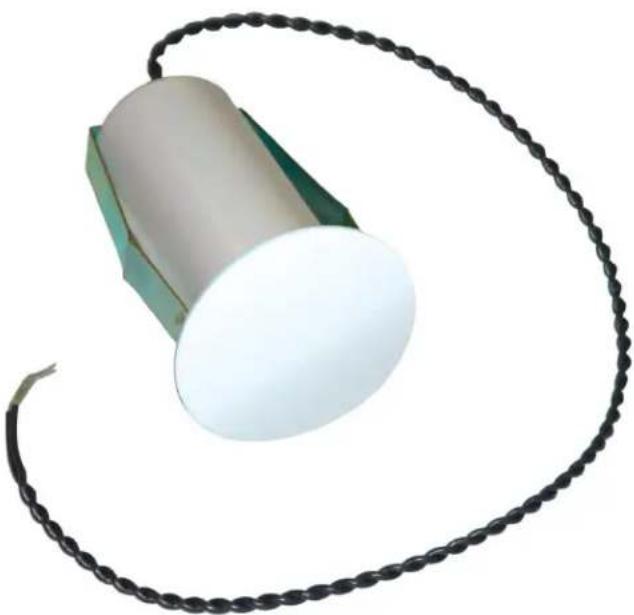

CHV-RTS and CHV-RTHS Physical View

Close-up of a cylindrical object with a green base and white top, connected by a black cord (no text or symbols visible)

CHV-RTS and CHV-RTHS Overall Dimensions (Top and Side Views)

Setup

Installation

NOTE: Ensure the installation location is not close to a heat or humidity source and is away from direct sunlight, skylights, and windows. When mounting the sensor outdoors, do not place in direct sunlight and do not place where the sensor is directly exposed to precipitation. Sensors are suitable for mounting in dry or damp locations as defined by the National Electrical Code.

Complete the following procedure to install the CHV-RTS or CHV-RTHS.

1. Locate an area on the wall that is free of miscellaneous wiring and studs.
2. Make a small hole near the center of the desired area to verify the location is suitable.
3. Drill or cut a 1 inch (25 mm) diameter circular hole in the wall at the desired position.
4. Route the wires from the thermostat to the sensor. For thermostat connection details, refer to the Crestron CHV-TSTAT and CHV-THSTAT Thermostats Operations and Installation Guide (Doc. 8163), the CHV-TSTATEX Thermostat Operations and Installation Guide (Doc. 6989), or the CHV-TSTATEX-FCU Thermostat Operations and Installation Guide (Doc. 7206) at www.crestron.com/manuals.

NOTE: Crestron strongly recommends low-capacitance twisted pair wire such as CAT3 (up to 250 feet (76 meters)) or CAT5 (up to 500 feet (152 meters)) network cable when using remote sensors. Other cable types are satisfactory, provided the total capacitance is less than 7000 pF. Maximum distance from sensor to thermostat is 500 feet (152 meters).

NOTE: In situations where ordinary two-conductor thermostat wire (18 to 20 gauge) has been installed, it may be used for runs up to 100 feet (30 meters). This is not a preferred method of installation.

NOTE: If multi-conductor cables are used, the unused conductors must NOT be used for other purposes and must be left unconnected at both ends.

1. Connect the wires from the thermostat to the 10 inch (254 mm) sensor pigtail (22 AWG x 12" black/black twisted pair) using wire nuts. The wires are non-polarized. (Refer to "Hardware Hookup," below.)

Wiring the CHV-RTS and CHV-RTHS

1. Press fit the sensor into the hole; the clips on either side of the sensor hold it in place.

NOTE: The face of the sensor may be painted or wallpapered to match the wall. However, keep the small gap around the outer edge clear of any obstructions.

Hardware Hookup

CHV-RTS and CHV-RTHS sensors connect to the terminal blocks on the back plate of the CHV-TSTAT, CHV-THSTAT, CHV-TSTATEX, and CHV-TSTATEX-FCU thermostats (all sold separately).

NOTE: Sensor wiring is non-polarized.

NOTE: Up to two CHV-RTS sensors or one CHV-RTHS sensor may be connected to a single channel.

NOTE: Use a separate run of wire for each sensor.

NOTE: Sensor lines should not be run parallel to any other wiring. Lines should cross other cables at right angles.

Complete the following procedure to connect the CHV-RTS or CHV-RTHS to the system:

1. Turn off the circuit breaker.

CAUTION: Do not press on the LCD display of the thermostat during this procedure, as this may cause the screen to crack.

1. Separate the front plate from the back plate of the thermostat (it may be necessary to exert force when removing the faceplate).

Front Plate Removal

1. To connect a sensor(s) to a single channel on the thermostat, connect up to two CHV-RTS devices or one CHV-RTHS to the RS1 and RSR terminals as shown in the following illustration.

CHV-RTS (Single Channel) Hookup (Two Sensors Shown)

1. To connect sensors using two channels on the thermostat, wire up to two CHV-RTS sensors to the RS1 and RSR terminals and up to two additional CHV-RTS sensors (or one CHV-RTHS sensor) to the RS2 and RSR terminals as shown in the illustration on the following page.

Dual CHV-RTS and Single CHV-RTHS Hookup (Three Sensors Shown)

1. Note the orientation of the front plate connection pins and reattach the front plate (making sure the front plate snaps in place and no wires are pinched).

For additional information about the thermostat connections, refer to the CHV-TSTAT and CHV-THSTAT Thermostats Operations and Installation Guide (Doc. 8163), the CHV-TSTATEX Thermostat Operations and Installation Guide (Doc. 6989), or the CHV-TSTATEX-FCU Thermostat Operations and Installation Guide (Doc. 7206).

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

CHV-RTS and CHV-RTHS Troubleshooting

TROUBLE POSSIBLE CAUSE(S)		CORRECTIVE ACTION
The thermostat is not receiving a signal.	Improper connection between the sensor and the thermostat.	Check the connection between the sensor and thermostat (refer to “Hardware Hookup,” on page 5).
	Incomplete (open) circuit exists in wiring.	Check the connection between the sensor and thermostat (refer to “Hardware Hookup,” on page 5).

Reference Documents

All documents mentioned in this guide are available at www.crestron.com/manuals.

List of Related Reference Documents

DOCUMENT TITLE

CHV-TSTAT and CHV-THSTAT Thermostats

CHV-TSTATEX Thermostat

CHV-TSTATEX-FCU Thermostat

Further Inquiries

To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at 1-888-CRESTRON [1-888-273-7876] or, for assistance within a particular geographic region, refer to the listing of Crestron worldwide offices at www.crestron.com/offices.

To post a question about Crestron products, log onto Crestron's Online Help at www.crestron.com/onlinehelp. First-time users must establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of the CHV-RTS and CHV-RTHS, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without prior authorization from Crestron. To obtain warranty service for Crestron products, contact an authorized Crestron dealer. Only authorized Crestron dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number and return address.
2. Products may be returned for credit, exchange or service with a Crestron Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to Crestron, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. Crestron reserves the right in its sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by Crestron, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

Crestron Limited Warranty
