CT-200 - Hand tool Panduit - Free user manual and instructions

Brand	Panduit
Model	CT-200
Product Type	Hand Tool (Crimper/Cutter)
Primary Functions	Wire cutting, crimping non-insulated terminals, disconnects, splices, and wire joints
Wire Cutter Capacity	Up to 10 AWG copper wire (solid or stranded)
Crimp Pocket 1	12-10 AWG for non-insulated terminals, disconnects, splices, wire joints
Crimp Pocket 2	22-14 AWG for non-insulated terminals, disconnects, splices, wire joints
Material	Hardened steel with light oil coating
Handle Material	Plastic grips (non-insulated)
Safety Warning	Verify power OFF before working on wiring; grips not intended for electrical insulation
Compliance	UL/CSA approved tooling/product combination (see product packaging)
Recommended Use	Center crimp on barrel, indenter on seam, close dies fully for best results
Strip Length	Refer to product packaging for proper strip lengths
Maintenance	Keep tool clean and lightly oiled; protect from moisture
Weight (estimated)	Approx. 0.5 kg (1.1 lb)

Frequently Asked Questions - CT-200 Panduit

What is the wire cutting capacity of the Panduit CT-200?

The CT-200 can cut copper wire up to 10 AWG and smaller.

Can I use this tool for insulated terminals?

No, the CT-200 is designed for non-insulated terminals, disconnects, splices, and wire joints only.

What are the crimp pocket sizes?

The tool has two crimp pockets: one for 12-10 AWG and another for 22-14 AWG wire.

Is the CT-200 safe for live electrical work?

No. The plastic grips are for comfort only and do not insulate. Always turn off power before working on wiring.

How do I achieve a proper crimp?

Center the crimp pocket on the metal barrel, position the indenter on the seam, and squeeze handles fully until the dies close completely.

What maintenance does the CT-200 require?

Keep the tool clean and apply a light coat of oil to prevent rust. Store in a dry place.

Is the CT-200 UL or CSA approved?

Yes, it is designed for UL/CSA approved tooling/product combinations. Check product packaging for specific listings.

Can I use the CT-200 for aluminum wire?

The manual specifies copper wire up to 10 AWG. For aluminum wire, refer to the product packaging or contact Panduit customer service.

How do I use the CT-200 for butt splices?

Insert stripped wire into one end of the butt splice to the internal wire stop, place in the correct crimp pocket, center on the barrel half with wire, squeeze firmly, then repeat for the other end.

What is the recommended strip length for terminals?

Strip length varies by terminal size. See product packaging for proper strip lengths and trimming instructions.

USER MANUAL CT-200 Panduit

Verify power is “OFF” before working on wiring with this tool. The plastic grips are for the user’s comfort, and are not intended to insulate against electrical shock while working on live electrical circuits.

See product packaging or contact Customer Service for UL/CSA approved tooling/product combination.

WIRE CUTTER for No. 10 AWG and smaller copper wire.

CRIMP POCKET for Pan-Term non-insulated terminals, disconnects, splices and wire joints.

The 12-10 pocket is for No. 12 to No. 10 solid or stranded wire; the 22-14 pocket is for No. 22 to No. 14 solid or stranded wire. The crimp should be centrally located on the barrel with the indenter on the seam, and the dies fully closed for best results.

This tool is made of hardened steel and is protected with a light coat of oil.

NON-INSULATED WIRE JOINT INSTRUCTIONS

1. Twist ends of stripped wire together, trim and insert into wire joint. (See product packaging for proper strip lengths and trimming instructions.)
2. Locate wire joint in proper non-insulated crimp pocket.
3. Position crimp pocket on the center of the metal barrel.
4. Squeeze handles firmly.

NON-INSULATED TERMINAL AND DISCONNECT INSTRUCTIONS

1. Insert stripped wire into terminal or disconnect until a minimum of 1/32" of conductor extends beyond barrel. (See product packaging for proper strip lengths.)
2. Locate terminal or disconnect in proper non-insulated crimp pocket.
3. Position crimp pocket on the center of the metal barrel.
4. Squeeze handles firmly.

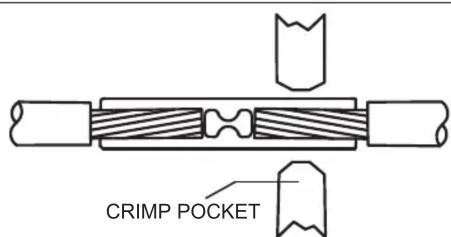

NON-INSULATED BUTT SPLICE INSTRUCTIONS

1. Insert stripped wire into end of the butt splice to internal wire stop. (See product packaging for proper strip lengths.)
2. Locate butt splice in proper non-insulated crimp pocket.
3. Position crimp pocket on the center of the metal barrel half with wire inserted.
4. Squeeze handles firmly.
5. Repeat for other end of butt splice.
